12.30 DAQ continues OK file S496/R32_373

      System wide checks OK *except*

Base 		Current 	Difference
aida01 fault 	 0x8944 : 	 0x8947 : 	 3
aida02 fault 	 0x9b36 : 	 0x9b39 : 	 3
aida03 fault 	 0xf26b : 	 0xf26e : 	 3
aida04 fault 	 0x57a0 : 	 0x57a3 : 	 3
aida05 fault 	 0x4d3c : 	 0x4d3d : 	 1
aida05 : WR status 0x10
 aida06 fault 	 0x640c : 	 0x640d : 	 1
aida07 fault 	 0x255e : 	 0x255f : 	 1
aida08 fault 	 0xffbd : 	 0xffbe : 	 1
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     13      5     12      7      2      4      2      2      1      4      7   : 40572
aida02 :     11      6      8      6      1      3      3      2      1      4      7   : 40540
aida03 :     26      5     11      5      1      2      2      3      2      3      7   : 39712
aida04 :     18      7      8      3      2      3      2      3      2      3      7   : 39776
aida05 :     11      5      9      4      1      2      2      3      1      4      7   : 40612
aida06 :     17      3      6      5      5      2      1      3      1      4      7   : 40604
aida07 :      9      3      4      9      1      3      3      2      1      4      7   : 40540
aida08 :     11      8      5      5      3      3      3      2      1      4      7   : 40604
aida09 :     13      5      8      5      2      3      3      2      1      4      7   : 40572
aida10 :     13      8     13      5      1      2      2      2      1      4      7   : 40228
aida11 :     11      5     14      6      3      3      3      3      2      3      7   : 40244
aida12 :     10      9      5      5      3      3      2      2      1      4      7   : 40352
aida13 :     15      7      7      4      3      4      3      3      2      3      7   : 40228
aida14 :      9      6      7      6      3      4      3      3      2      3      7   : 40260
aida15 :     14      3      8      5      1      2      2      4      1      4      7   : 41136
aida16 :     15      4      9      4      4      4      3      3      2      3      7   : 40300

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Fri Jun 04 09:30:42 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

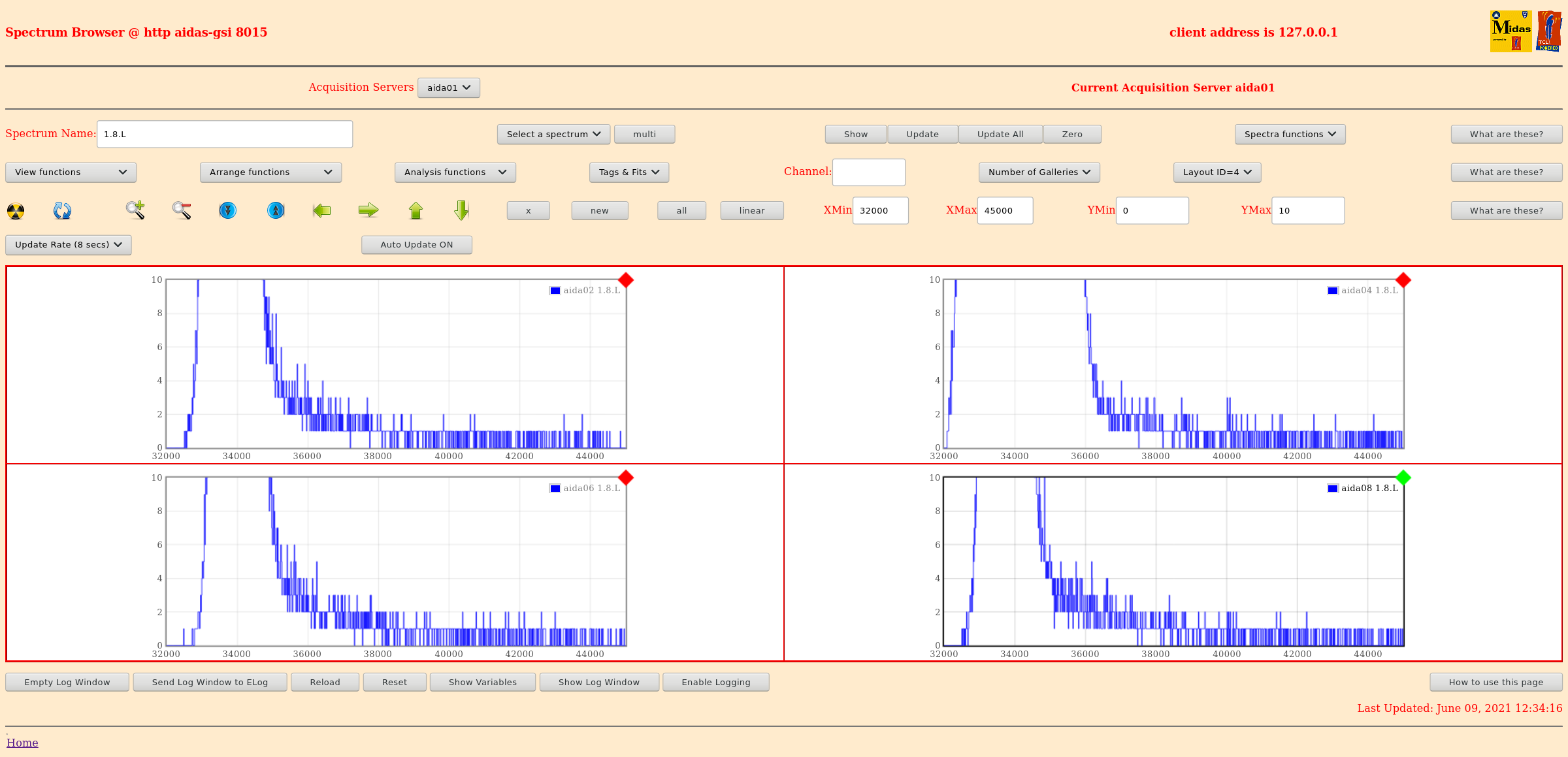

1.8.L specttra - attachments 1 & 2

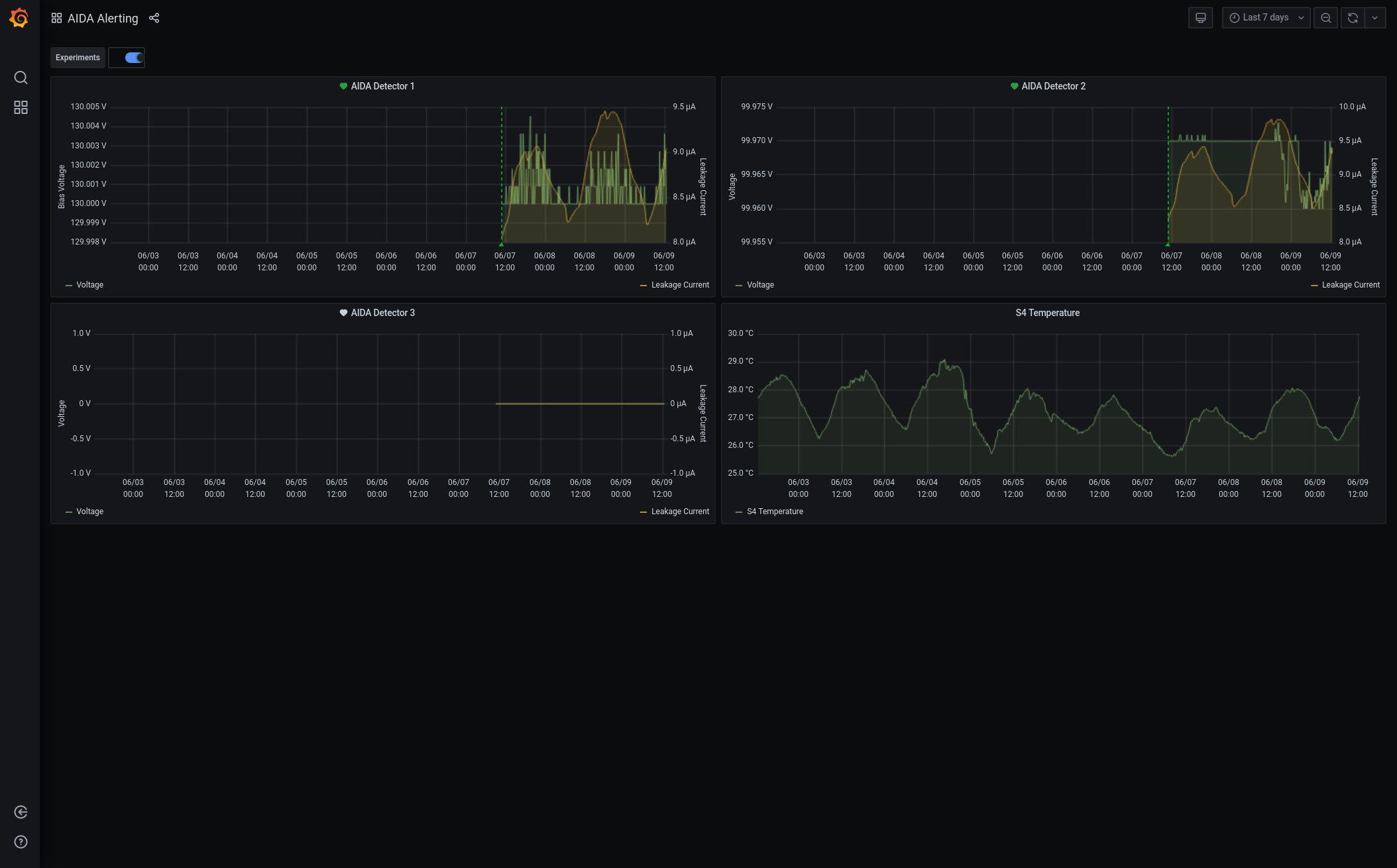

      Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 3
      Lost activity monitor - attachment 4

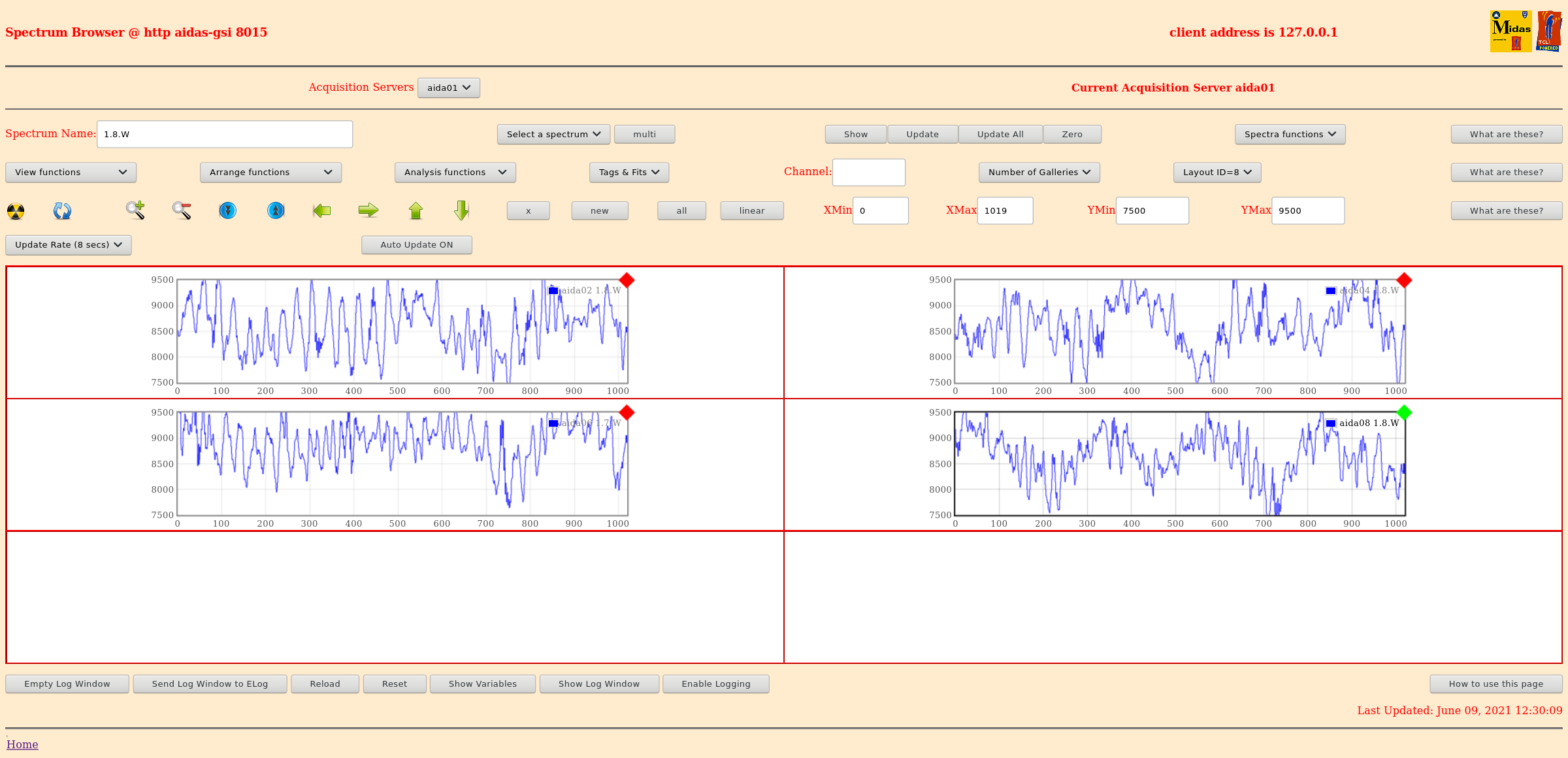

      1.8.W spectra - 20us FSR - attachments 5 & 6
      ADC data items - attachment 7
      FEE64 temperatures OK - attachment 8
      DSSSD bias & leakage currents OK - attachment 9
      Merger/Tape Server/Merger statistics - attachment 10
       no merger errors reported since previous restart

16.28 analysis of file S496/R32_372 - attachment 11
       max deadtime 0.07% aida04
