12.26 DAQ continues file S496/R32_428
      High data rate from c. 06.00 this morning
      ASIC check

System wide checks OK *except*

Base 		Current 	Difference
aida01 fault 	 0x8944 : 	 0x8947 : 	 3
aida02 fault 	 0x9b36 : 	 0x9b39 : 	 3
aida03 fault 	 0xf26b : 	 0xf26e : 	 3
aida04 fault 	 0x57a0 : 	 0x57a3 : 	 3
aida05 fault 	 0x4d3c : 	 0x4d3d : 	 1
aida05 : WR status 0x10
 aida06 fault 	 0x640c : 	 0x640d : 	 1
aida07 fault 	 0x255e : 	 0x255f : 	 1
aida08 fault 	 0xffbd : 	 0xffbe : 	 1
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     35     11      6      3      4      4      2      2      2      4      6   : 37540
aida02 :     30      8      7      3      4      4      3      2      2      4      6   : 37768
aida03 :     38      8     13      3      4      3      1      3      3      3      6   : 36744
aida04 :     37      9      7      2      3      4      2      3      3      3      6   : 36940
aida05 :     29      5      9      3      3      3      1      3      2      4      6   : 37580
aida06 :     38      6      2      3      3      3      2      3      2      4      6   : 37768
aida07 :     31      9      2      7      4      2      3      2      2      4      6   : 37572
aida08 :     34      6      3      5      4      4      3      2      2      4      6   : 37768
aida09 :     29      2     12      5      1      3      3      2      2      4      6   : 37540
aida10 :     24      8     15      3      5      3      3      3      1      4      6   : 37296
aida11 :     35      4     15      3      3      4      3      3      1      4      6   : 37308
aida12 :     36      5      3      5      6      4      3      3      1      4      6   : 37384
aida13 :     31     10      4      3      6      4      3      3      1      4      6   : 37356
aida14 :     37      7      1      4      5      4      3      3      1      4      6   : 37276
aida15 :     34     10      6      3      4      1      2      4      2      4      6   : 38168
aida16 :     31      9      3      3      5      4      3      3      1      4      6   : 37268

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Fri Jun 04 09:30:42 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 202

Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1
      Lost activity monitor - attachment 2
      1.8.W spectra - 20us FSR - attachments 3 & 4
      ADC data items - attachment 5
      FEE64 temperatures OK - attachment 6
      DSSSD bias & leakage currents OK - attachment 7
      Merger/Tape Server/Merger statistics - attachment 8
       no merger errors reported since previous restart

15.07 analysis of file S496/R32_431 - attachment 9
      max dead time aida04 0.33%

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2021-06-10_AIDA_Alerting_-_Grafana.png Original size: 2108x1310

Attachment 2:

Screenshot_2021-06-10_Lost_activity_monitor_aidas-gsi.png Original size: 2400x1159

Attachment 3:

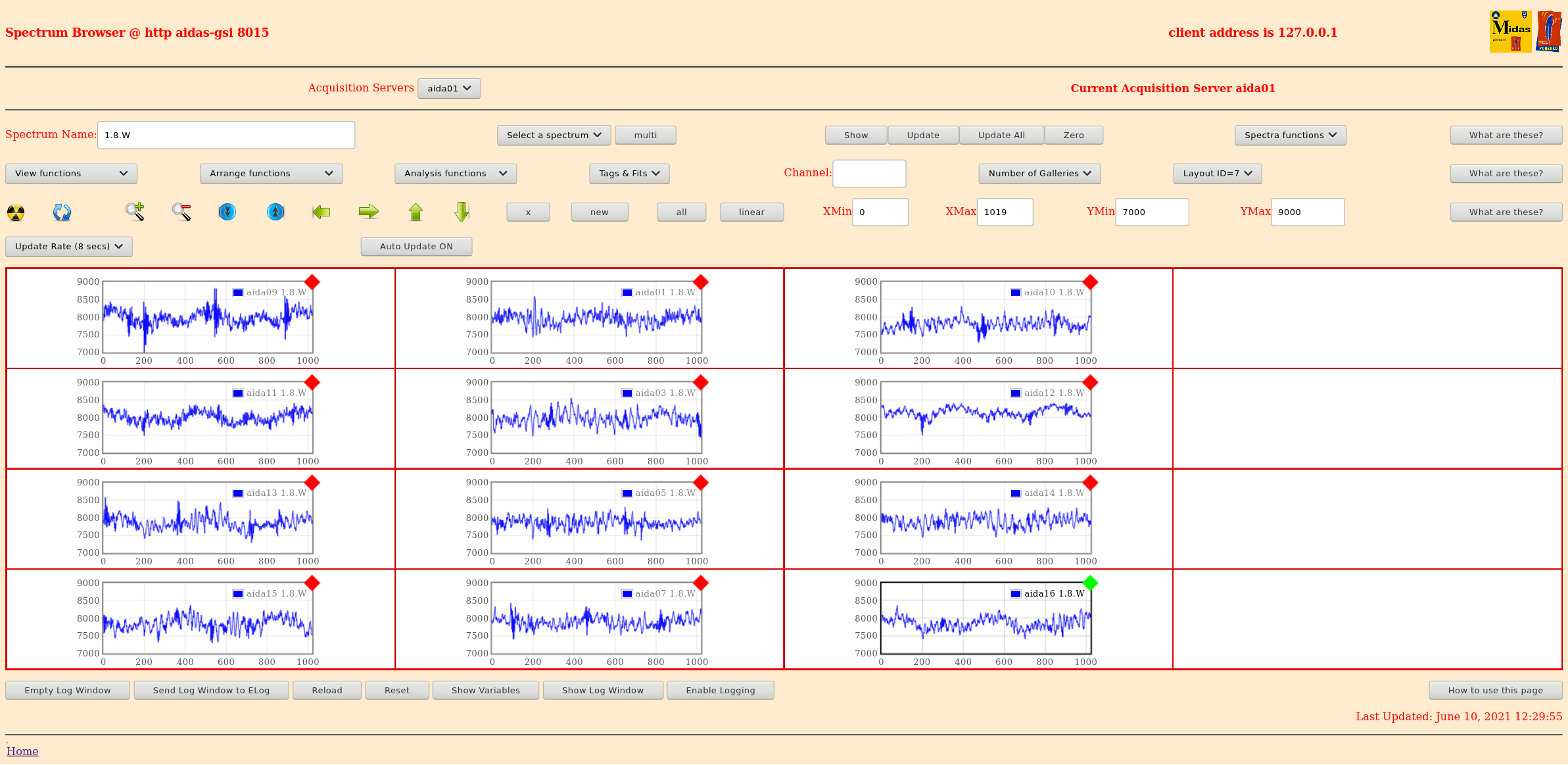

Screenshot_2021-06-10_Spectrum_Browser_aidas-gsi(1).png Original size: 2400x1160

Attachment 4:

Screenshot_2021-06-10_Spectrum_Browser_aidas-gsi.png Original size: 2385x1163

Attachment 5:

Screenshot_2021-06-10_Statistics_aidas-gsi.png Original size: 2400x1159

Attachment 6:

Screenshot_2021-06-10_Temperature_and_status_scan_aidas-gsi.png Original size: 2400x1159

Attachment 7:

996.png Original size: 502x344

Attachment 8:

997.png Original size: 3840x1080

Attachment 9:

R32_431

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:   54180182 (   19758.0 Hz)
        Other data format:  207739819 (   75756.7 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
