14.11 DAQ continues file S496/R32_697
      High data rate from c. 06.00 this morning
      ASIC check

System wide checks OK *except*

Base 		Current 	Difference
aida01 fault 	 0x8944 : 	 0x8948 : 	 4
aida02 fault 	 0x9b36 : 	 0x9b3a : 	 4
aida03 fault 	 0xf26b : 	 0xf26f : 	 4
aida04 fault 	 0x57a0 : 	 0x57a4 : 	 4
aida05 fault 	 0x4d3c : 	 0x4d3e : 	 2
aida05 : WR status 0x10
 aida06 fault 	 0x640c : 	 0x640e : 	 2
aida07 fault 	 0x255e : 	 0x2560 : 	 2
aida08 fault 	 0xffbd : 	 0xffbf : 	 2
White Rabbit error counter test result: Passed 8, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Base 		Current 		Difference
aida12 fault 	 0x0 : 	 0x21be : 	 8638
aida13 fault 	 0x0 : 	 0x2294 : 	 8852
FPGA Timestamp error counter test result: Passed 14, Failed 2
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     33     10      9      2      5      4      2      2      2      4      6   : 37604
aida02 :     46     12      7      2      4      4      3      2      2      4      6   : 37832
aida03 :     34     10      9      5      4      3      1      3      3      3      6   : 36744
aida04 :     35     12     10      1      3      4      2      3      3      3      6   : 36972
aida05 :     37      9      8      3      4      4      2      2      2      4      6   : 37564
aida06 :     34     10      5      5      4      2      2      3      2      4      6   : 37832
aida07 :     31     11      1      7      4      2      3      2      2      4      6   : 37572
aida08 :     40      7      4      5      3      4      3      2      2      4      6   : 37752
aida09 :     39      9      8      4      1      3      3      2      2      4      6   : 37540
aida10 :     43     12      8      4      4      3      3      3      1      4      6   : 37260
aida11 :     34     14     10      5      3      4      3      3      1      4      6   : 37368
aida12 :     46     12      3      4      4      4      3      3      1      4      6   : 37320
aida13 :     41     11      5      4      5      3      3      3      1      4      6   : 37260
aida14 :     39     10      2      6      4      4      3      3      1      4      6   : 37324
aida15 :     19     12      4      3      2      2      3      2      2      4      6   : 37324
aida16 :     45     10      6      4      5      3      3      3      1      4      6   : 37284

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

FEE : aida01 =>   Options file size is 1026 	 Last changed Fri Jun 04 09:30:42 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1

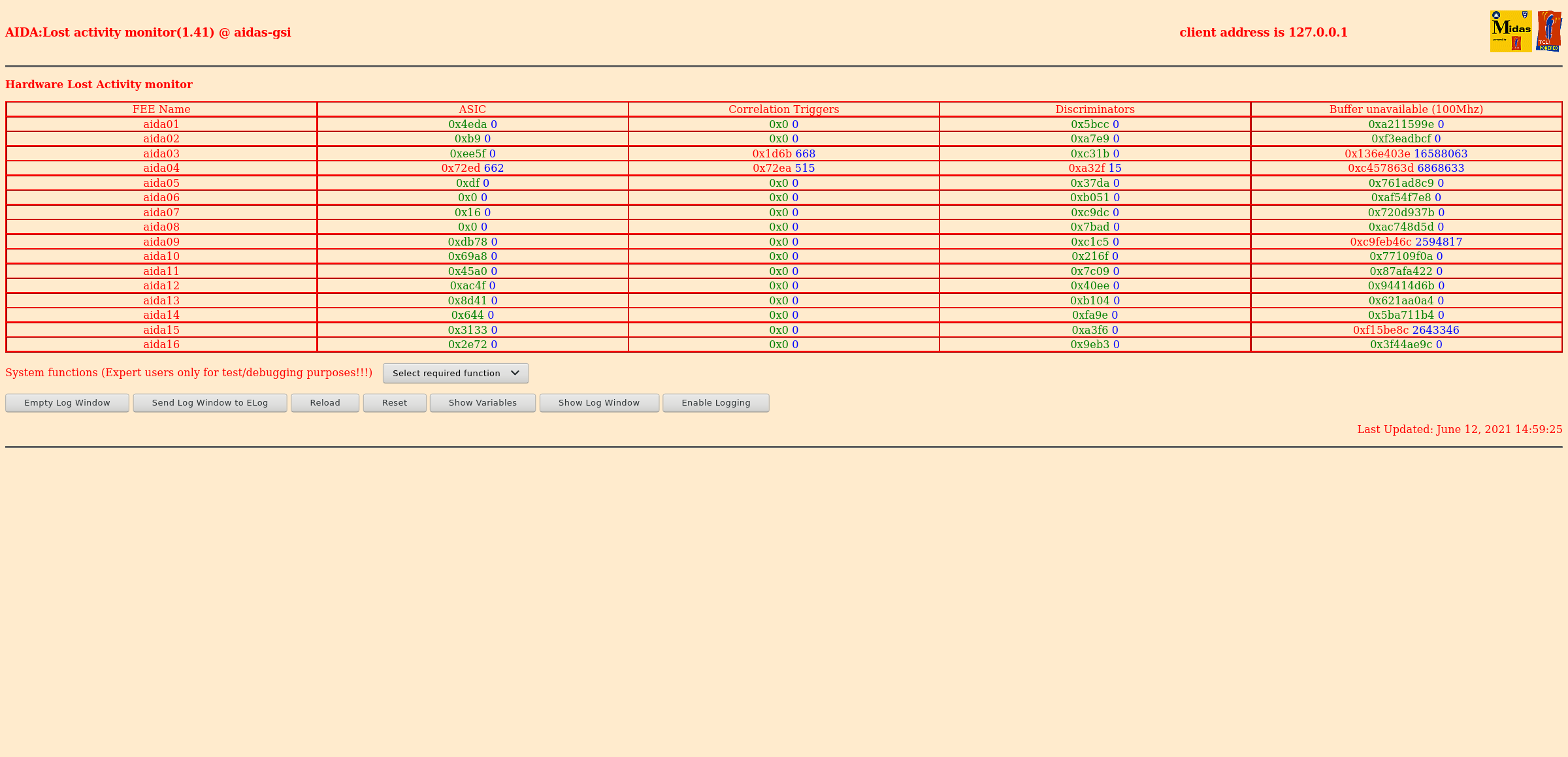

      Lost activity monitor - attachment 2

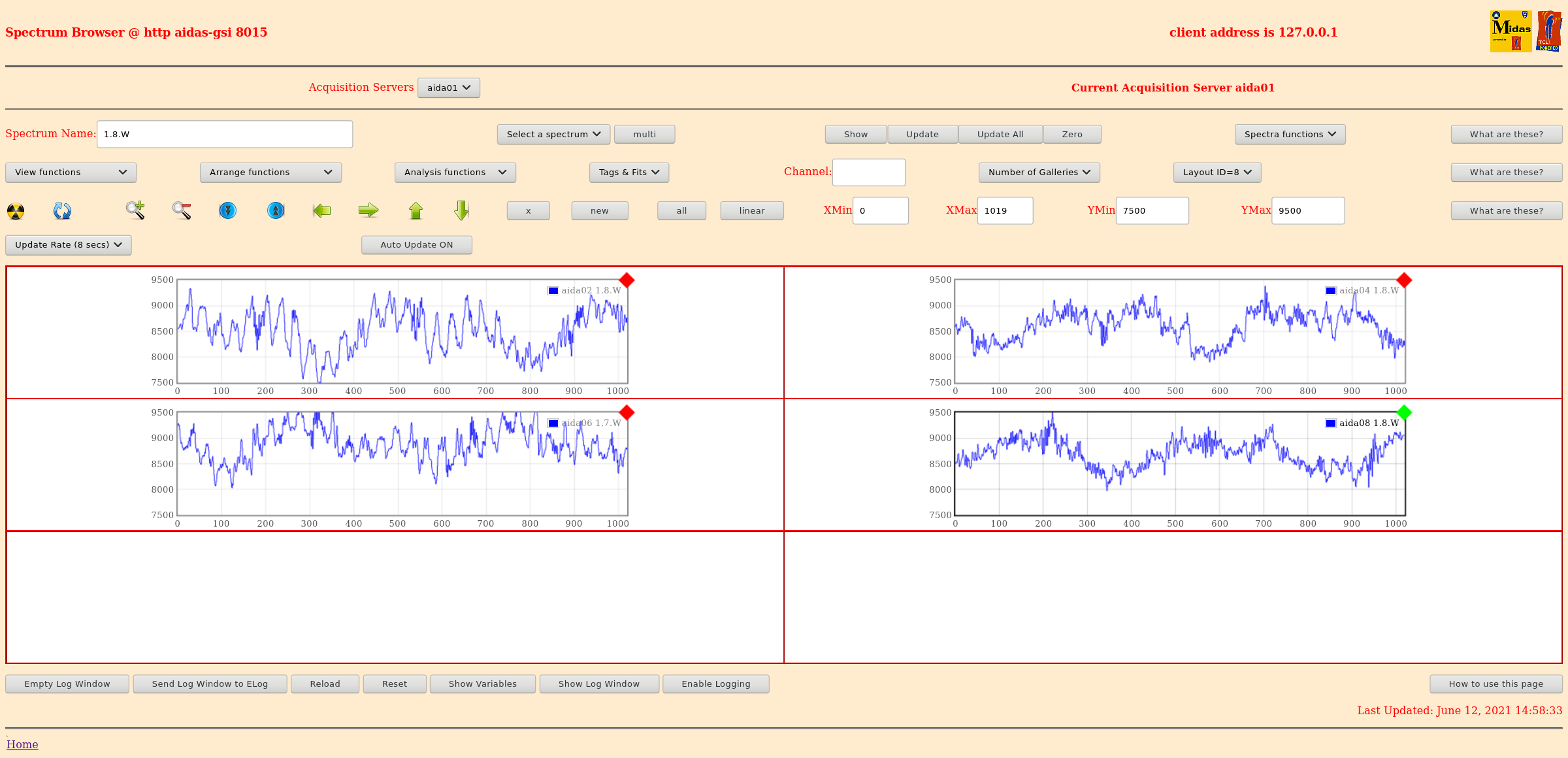

      1.8.W spectra - 20us FSR - attachments 3 & 4
      ADC data items - attachment 5
      FEE64 temperatures OK - attachment 6
      DSSSD bias & leakage currents OK - attachment 7
      Merger/Tape Server/Merger statistics - attachment 8
       no merger errors reported since previous restart

15.05 analysis of file S496/R32_698 - attachment 9
      max dead time 0.05% aida04

15.33 aida15 rebooted - see https://elog.ph.ed.ac.uk/DESPEC/365

successful DAQ stop
      aida15 DAQ reset, setup, go
      successful DAQ go

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2021-06-12_AIDA_Alerting_-_Grafana.png Original size: 2108x1310

Attachment 2:

Screenshot_2021-06-12_Lost_activity_monitor_aidas-gsi.png Original size: 2400x1159

Attachment 3:

Screenshot_2021-06-12_Spectrum_Browser_aidas-gsi(1).png Original size: 2385x1163

Attachment 4:

Screenshot_2021-06-12_Spectrum_Browser_aidas-gsi.png Original size: 2400x1160

Attachment 5:

Screenshot_2021-06-12_Statistics_aidas-gsi.png Original size: 2400x1159

Attachment 6:

Screenshot_2021-06-12_Temperature_and_status_scan_aidas-gsi.png Original size: 2400x1159

Attachment 7:

998.png Original size: 502x344

Attachment 8:

999.png Original size: 3840x1080

Attachment 9:

R32_698
