13.35 DAQ continues OK - no storage mode

      All system wide checks OK *except*

		 Base 		Current 	Difference
aida01 fault 	 0x8944 : 	 0x8949 : 	 5
aida02 fault 	 0x9b36 : 	 0x9b3b : 	 5
aida03 fault 	 0xf26b : 	 0xf270 : 	 5
aida04 fault 	 0x57a0 : 	 0x57a5 : 	 5
aida05 fault 	 0x4d3c : 	 0x4d3e : 	 2
aida05 : WR status 0x10
 aida06 fault 	 0x640c : 	 0x640e : 	 2
aida07 fault 	 0x255e : 	 0x2560 : 	 2
aida08 fault 	 0xffbd : 	 0xffbf : 	 2
aida15 fault 	 0x4e4 : 	 0x1267 : 	 3459
White Rabbit error counter test result: Passed 7, Failed 9

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR


			 Base 		Current 		Difference
aida12 fault 	 0x0 : 	 0x3e01 : 	 15873
aida13 fault 	 0x0 : 	 0x32d2 : 	 13010
FPGA Timestamp error counter test result: Passed 14, Failed 2
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     37     10      8      5      4      4      2      2      2      4      6   : 37636
aida02 :     37     10     10      3      4      4      3      2      2      4      6   : 37860
aida03 :     41      8      7      7      5      3      1      3      2      4      6   : 37876
aida04 :     33      9      4      4      2      5      2      3      3      3      6   : 37004
aida05 :     37      9      9      3      5      4      2      2      2      4      6   : 37644
aida06 :     39      9      6      5      4      2      2      3      4      3      6   : 37860
aida07 :     29     12      6      5      4      2      3      2      2      4      6   : 37588
aida08 :     25      7      9      5      4      3      3      2      2      4      6   : 37708
aida09 :     34      5      9      6      2      3      3      2      2      4      6   : 37632
aida10 :     34     12     11      5      4      3      3      3      3      3      6   : 37304
aida11 :     38      8      7      6      3      4      3      3      1      4      6   : 37320
aida12 :     34     10      8      6      3      4      3      3      1      4      6   : 37336
aida13 :     33     11      5      6      4      4      3      3      1      4      6   : 37356
aida14 :     31     10      5      6      5      3      3      3      3      3      6   : 37276
aida15 :     14      6      7      4      1      2      3      2      1      4      7   : 40344
aida16 :     33      8      6      7      5      3      3      3      1      4      6   : 37316

 Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

 FEE : aida01 =>   Options file size is 1026 	 Last changed Sat Jun 12 15:46:33 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1025 	 Last changed Sat Jun 12 15:48:28 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

      Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1

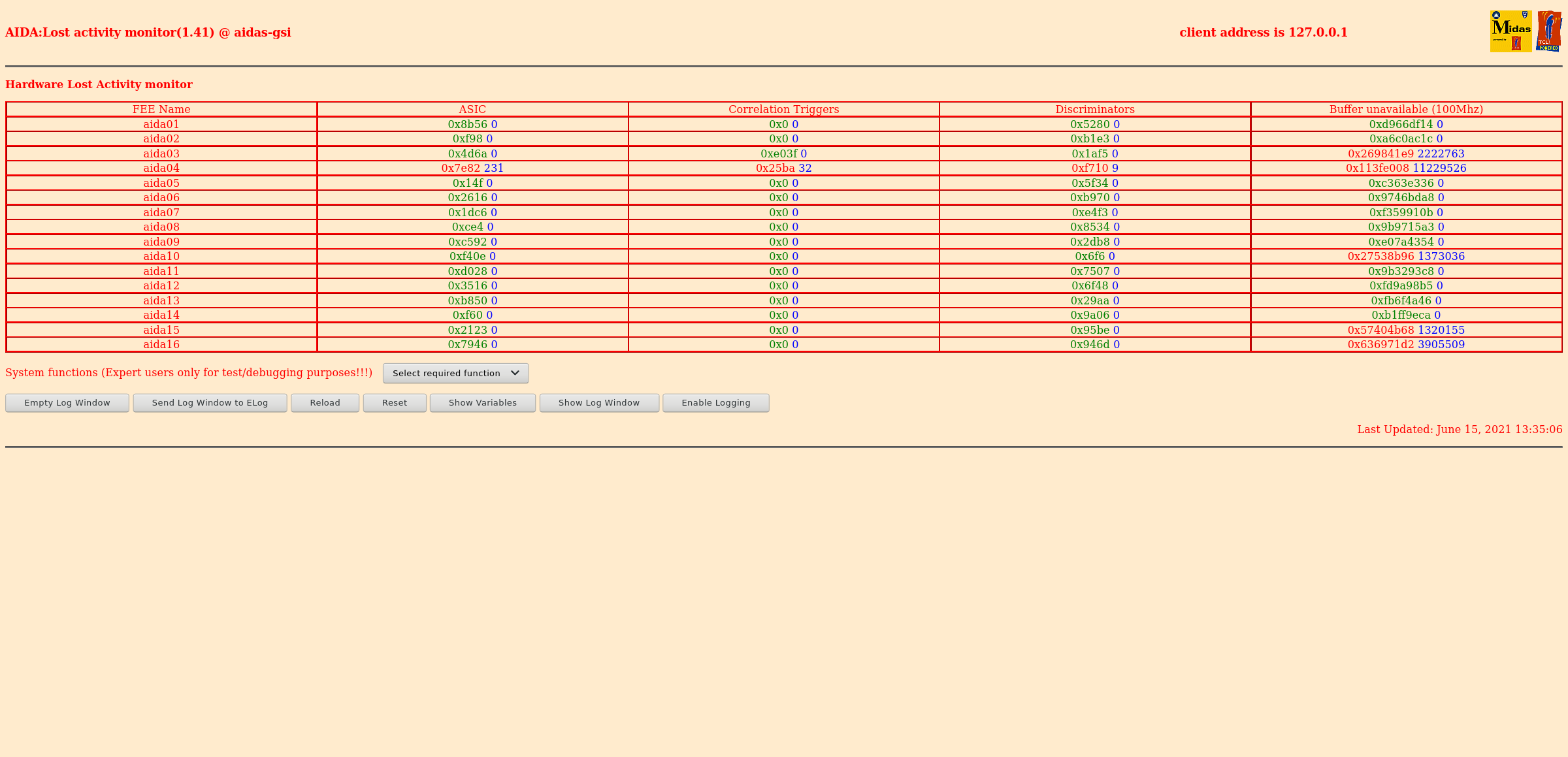

      Lost activity monitor - attachment 2

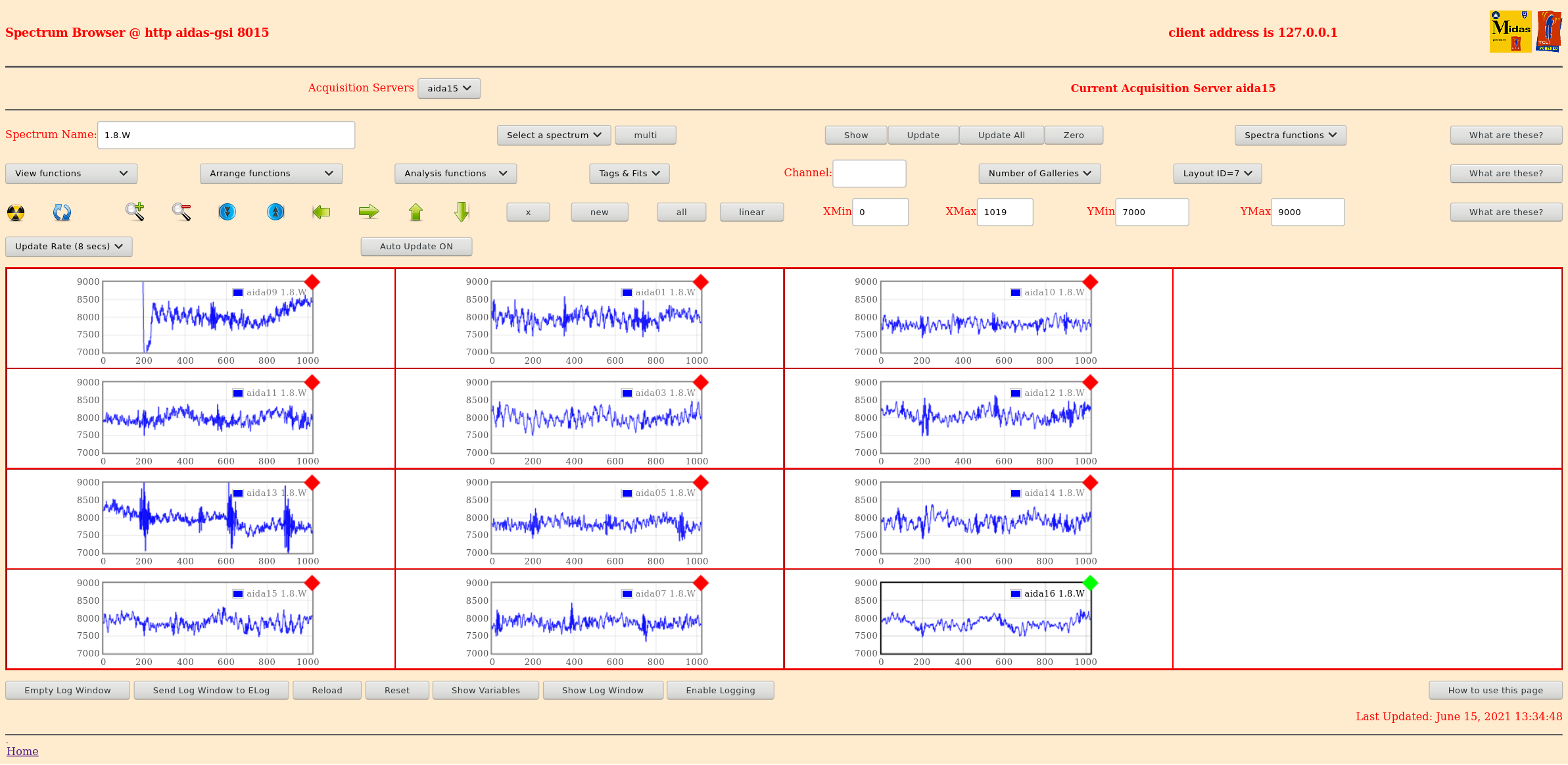

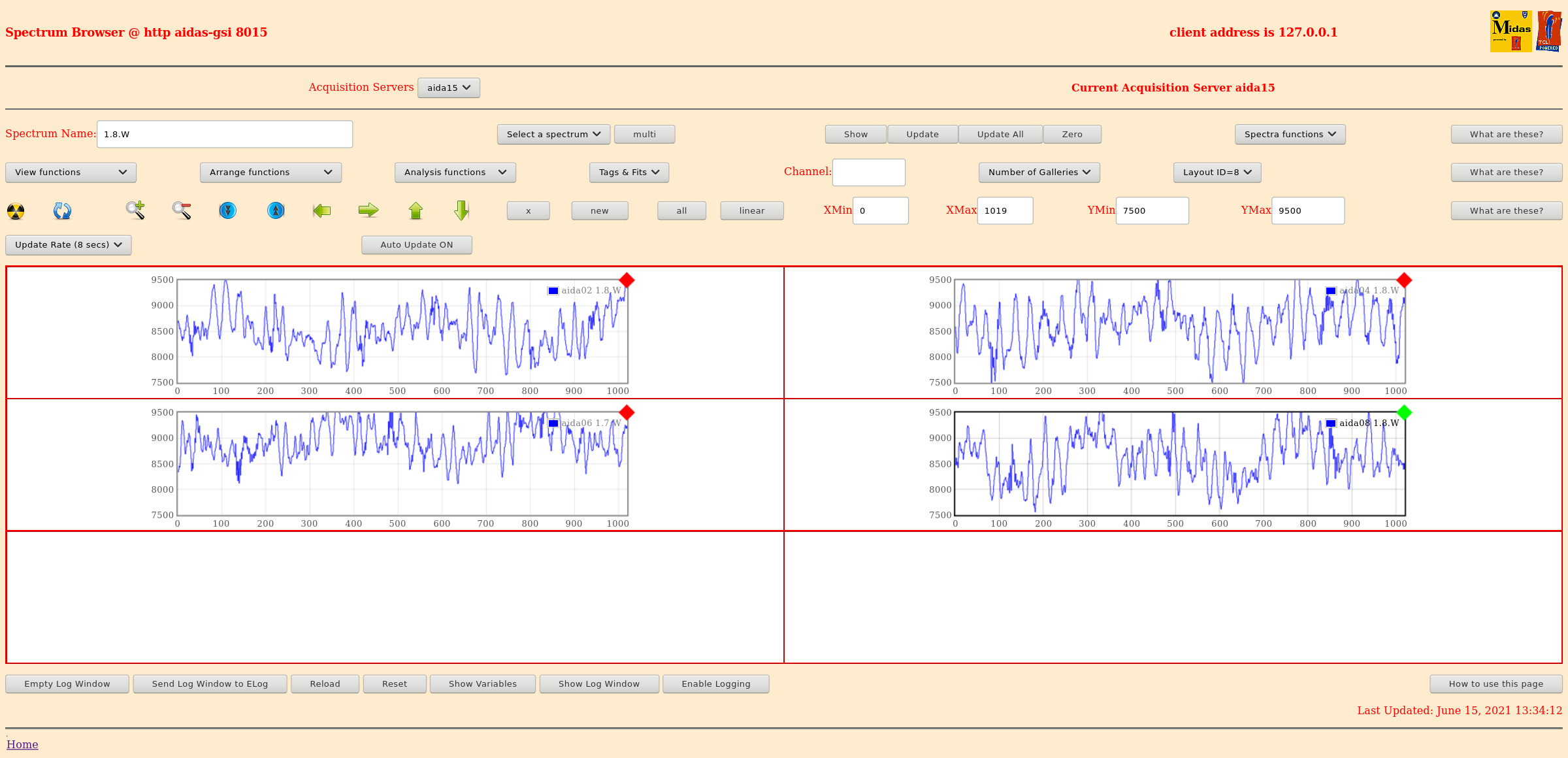

      1.8.W spectra - 20us FSR - attachments 3 & 4

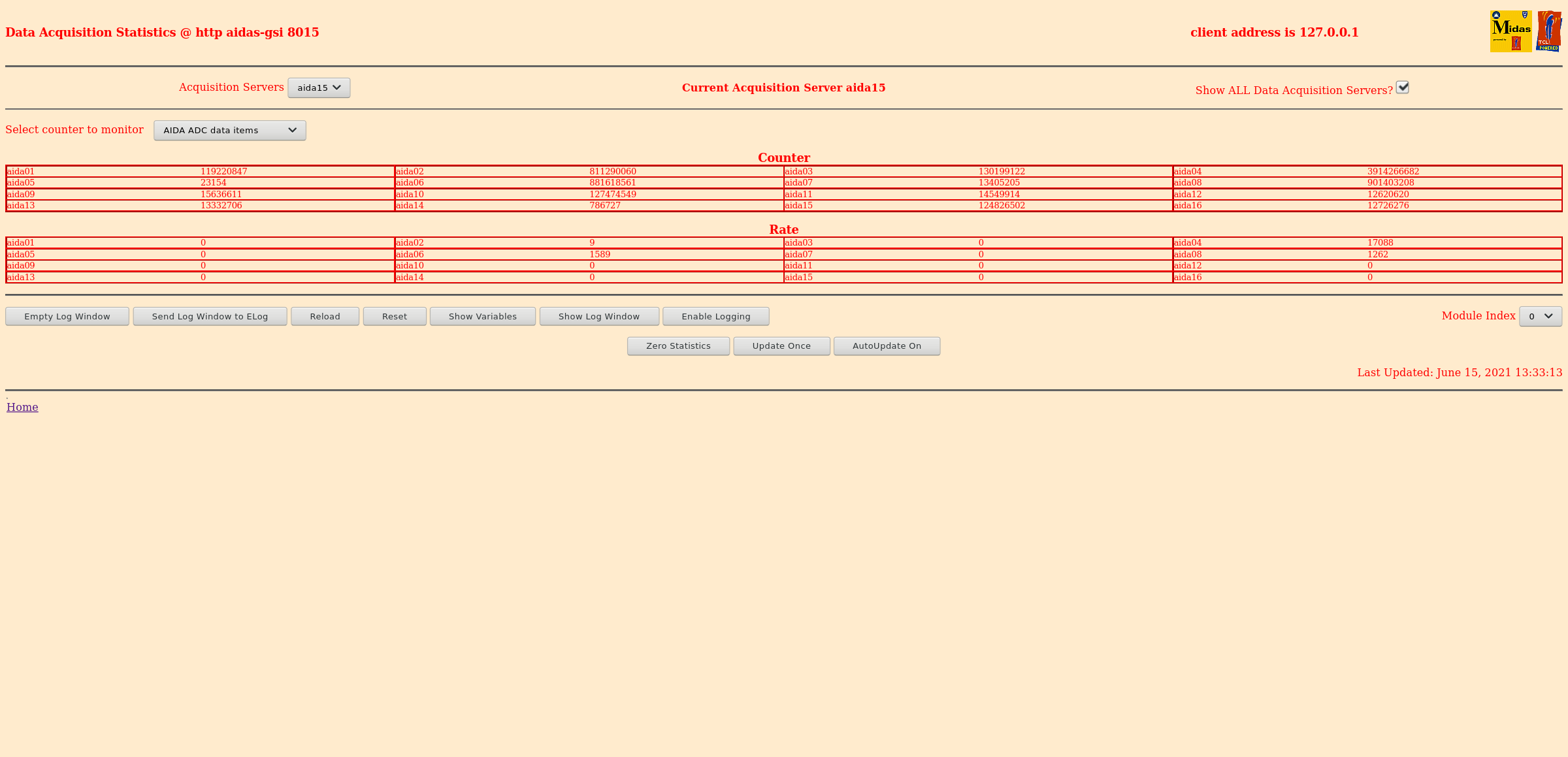

      ADC data items - attachment 5

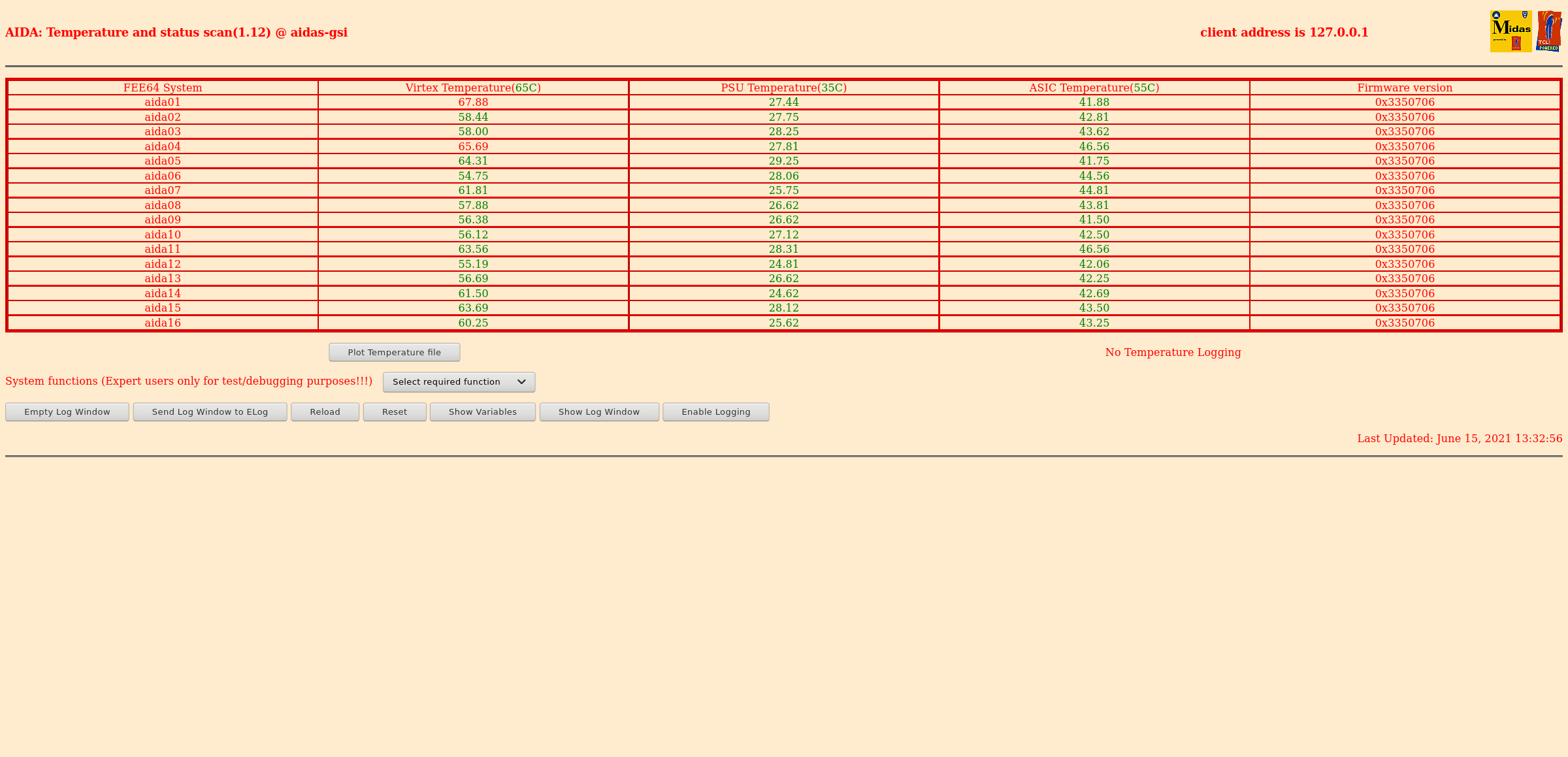

      FEE64 temperatures OK - attachment 6
      DSSSD bias & leakage currents OK - attachment 7
      Merger/Tape Server/Merger statistics - attachment 8
       no merger errors reported since previous restart

13.40 All histograms, stats & merger stats zero'd
