| DESPEC |
 |
|
|
|
Message ID: 385
Entry time: Wed Oct 20 13:26:08 2021
|
| Author: |
NH, OH |
| Subject: |
AIDA Noise + Filtering |
|
|
Turn on AIDA (SL6) to investigate noise situation and impact of new RC filters on bias input
Current setup:
- No Detectors
- Pulser in fee14, fee8 *only*, no bias connected. FEEs isolated from each other
Pulser widths::
p+n grounds connected via bias link (no connection to HV bias itself)
|
ASIC | FEE14 Width | FEE8 Width
| |
1.8.L | 14.41 | 21.86
| |
2.8.L | 13.02 | 21.87
| |
3.8.L | 12.57 | 21.52
| |
4.8.L | 13.75 | 23.59
|
Note: FEE8 is connected via SA1 inverter -> cause of worse resolution
Plug bias into outer FEEs (14 + 8 + chaint o 6)
|
ASIC | FEE14 Width | FEE8 Width
| |
1.8.L | 14.59 | 24.43
| |
2.8.L | 12.73 | 22.25
| |
3.8.L | 12.76 | 23.06
| |
4.8.L | 14.36 | 23.31
|
Long run over lunch:
|
ASIC | FEE14 Width | FEE8 Width
| |
1.8.L | 14.47 | 25.52
| |
2.8.L | 12.83 | 24.26
| |
3.8.L | 12.75 | 24.15
| |
4.8.L | 14.58 | 26.93
|

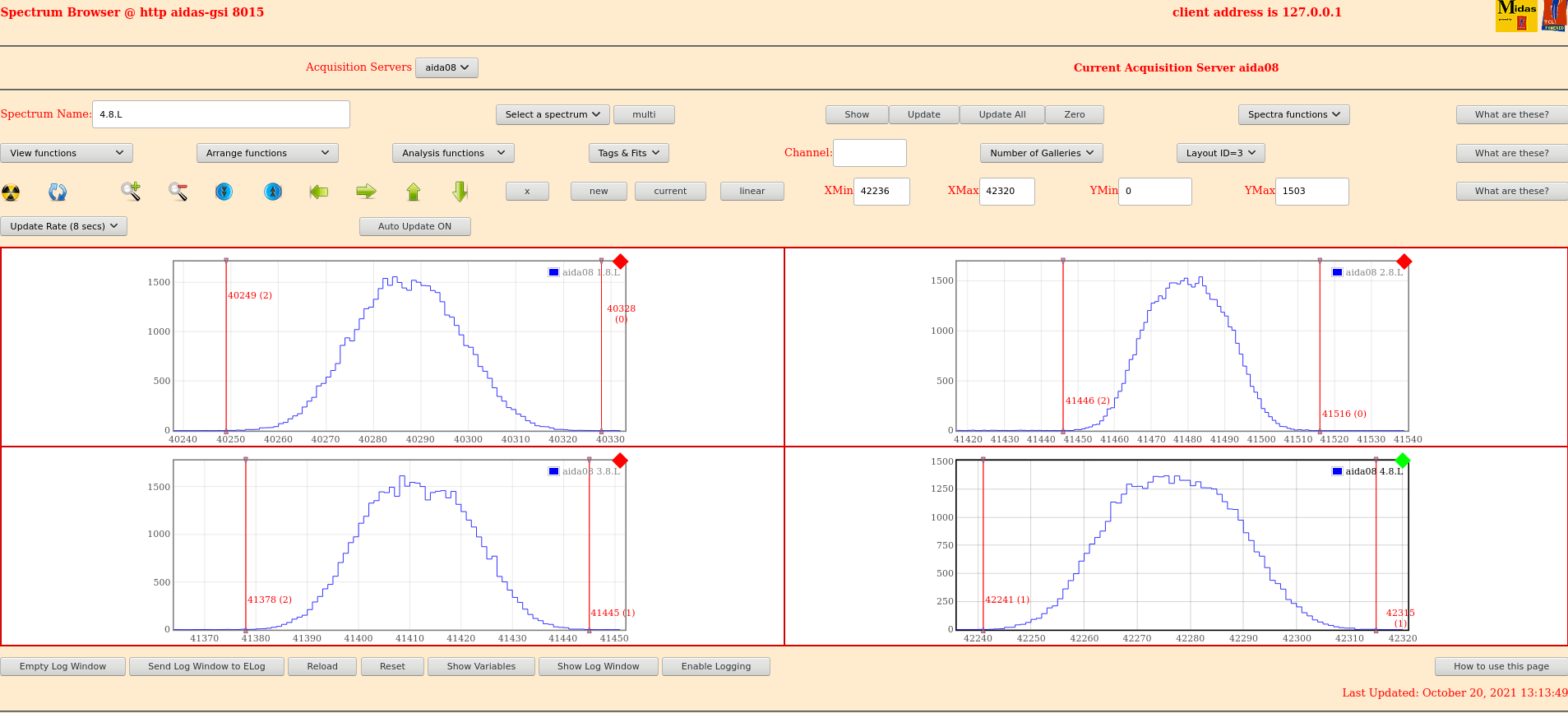

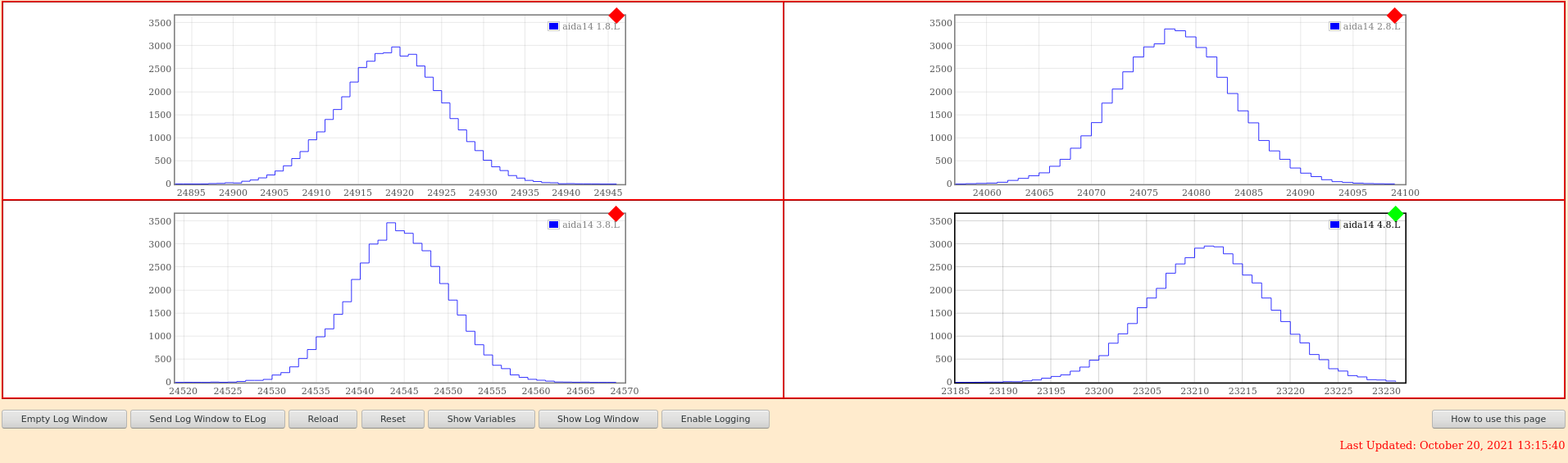

Figures 1 & 2
Add HV filters
|
ASIC | FEE14 Width | FEE8 Width
| |
1.8.L | 14.34 | 23.53
| |
2.8.L | 12.67 | 23.82
| |
3.8.L | 12.78 | 23.59
| |
4.8.L | 13.88 | 25.76
|
Figures 3 & 4
Small improvement maybe?
Figs 5&6 - Oscilloscope before & after HV filter added
--
Plans for tomorrow (21/10/21)
- Reintroduce pulser cables through all FEEs to see impact on noise (maybe improved now)
- Measure pulser noise in battery DSO (+ other sourceS?)
- Add a DSSD and see impact on noise with HV filter
- Resistance from FEE64 adapter to mechanical ground
- Check pulser on the battery powered scope (Is the signal common to the power supply) |
|
|
|
|
|
|
|
|
|
|
|
|
