Entry time:
Fri Oct 29 10:49:01 2021
Author
*
:
Subject
*
:

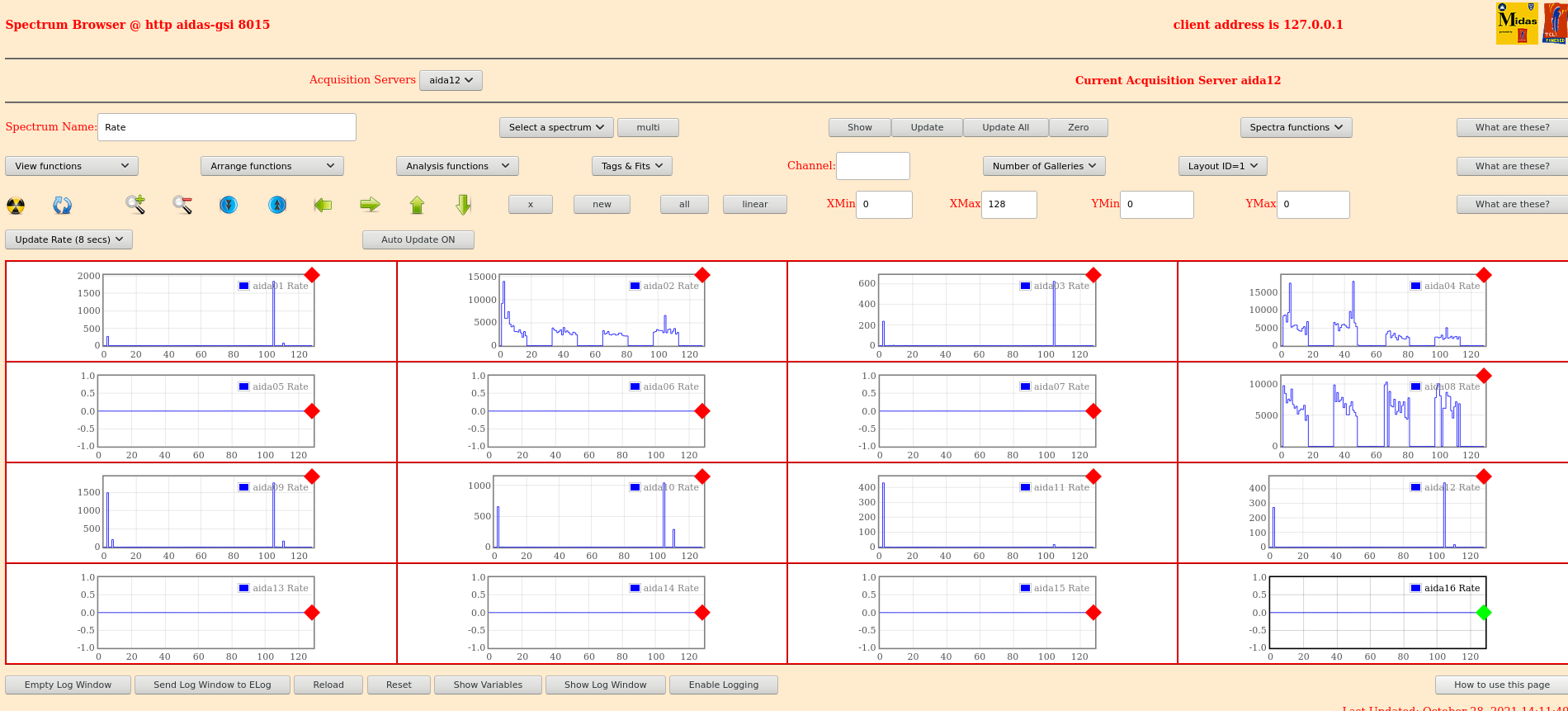

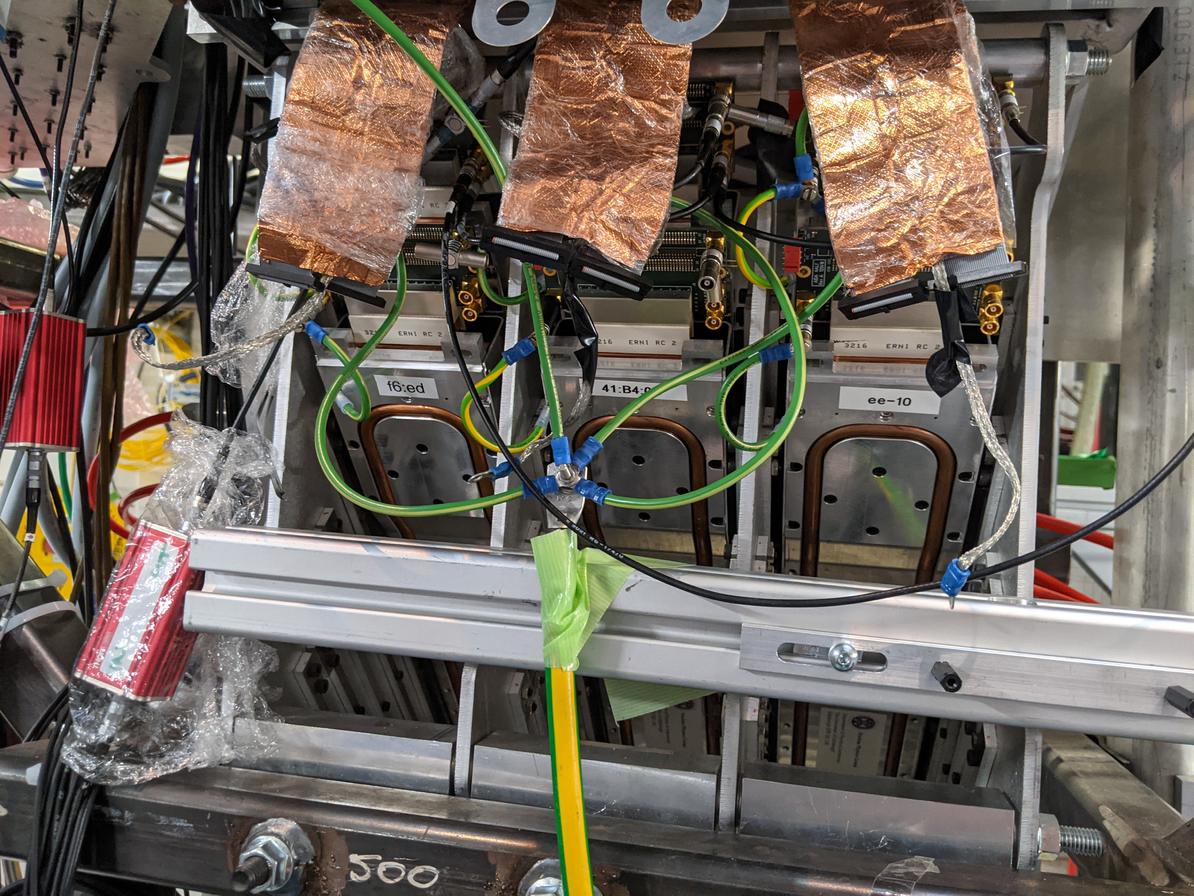

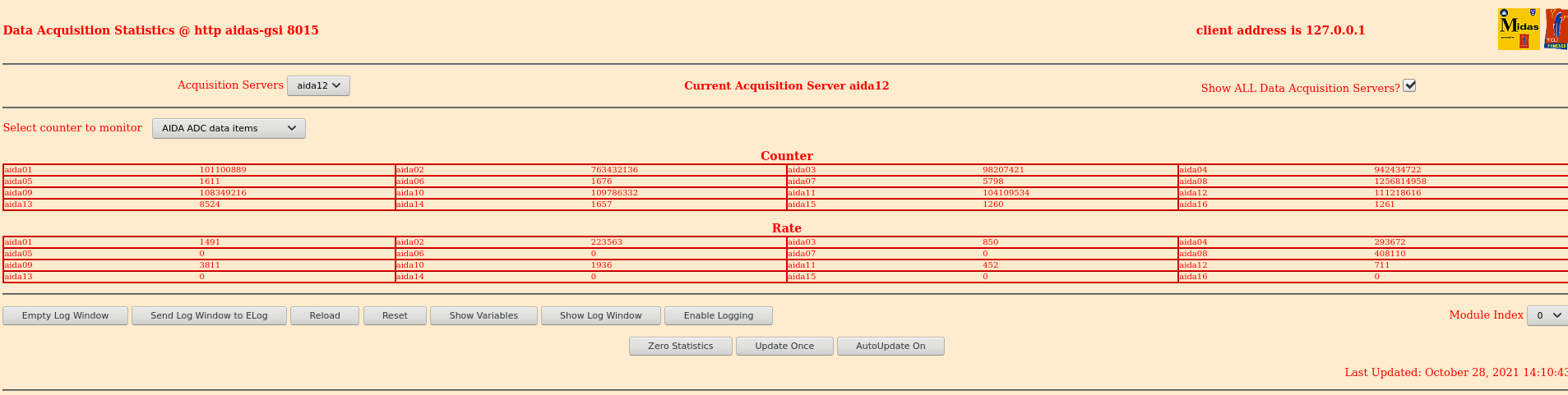

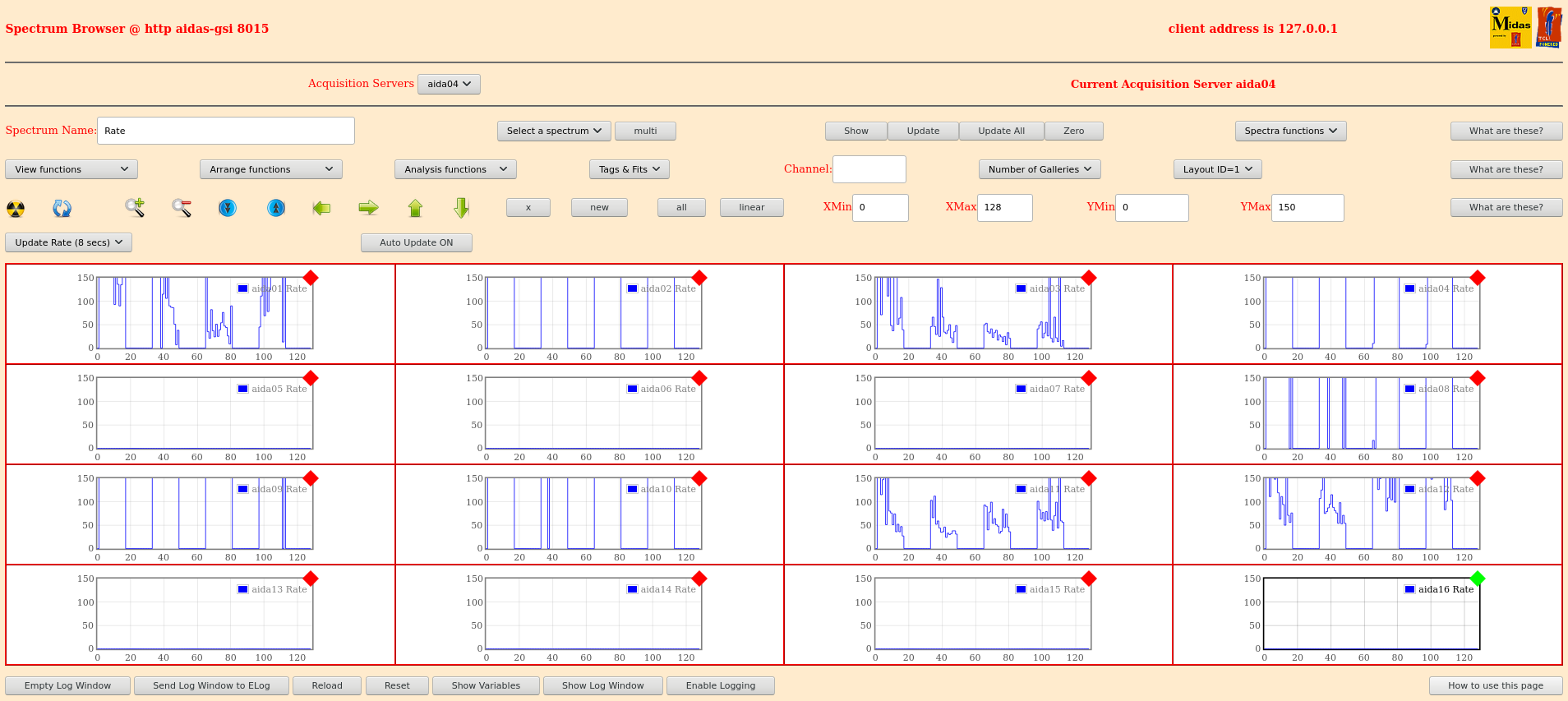

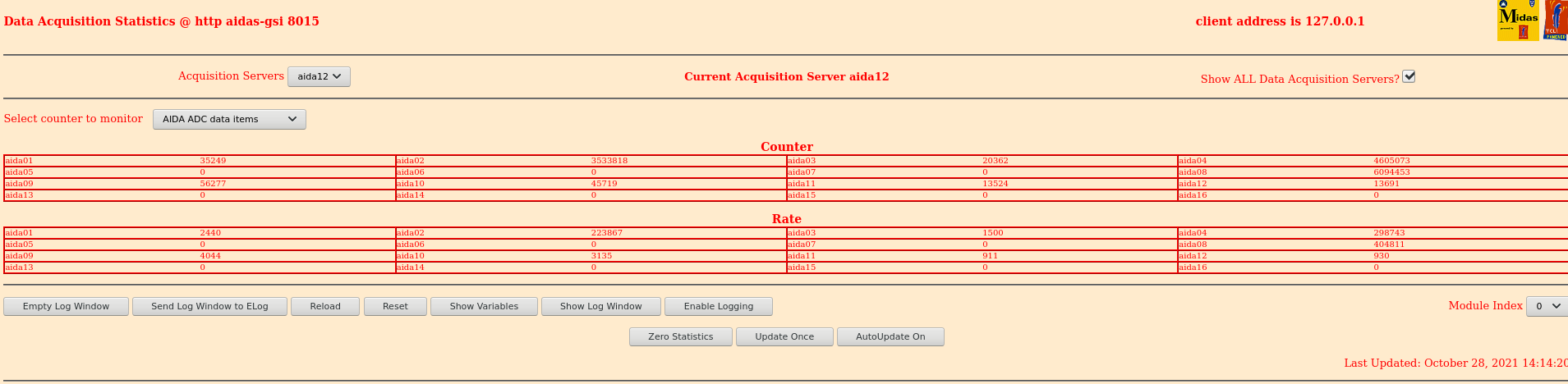

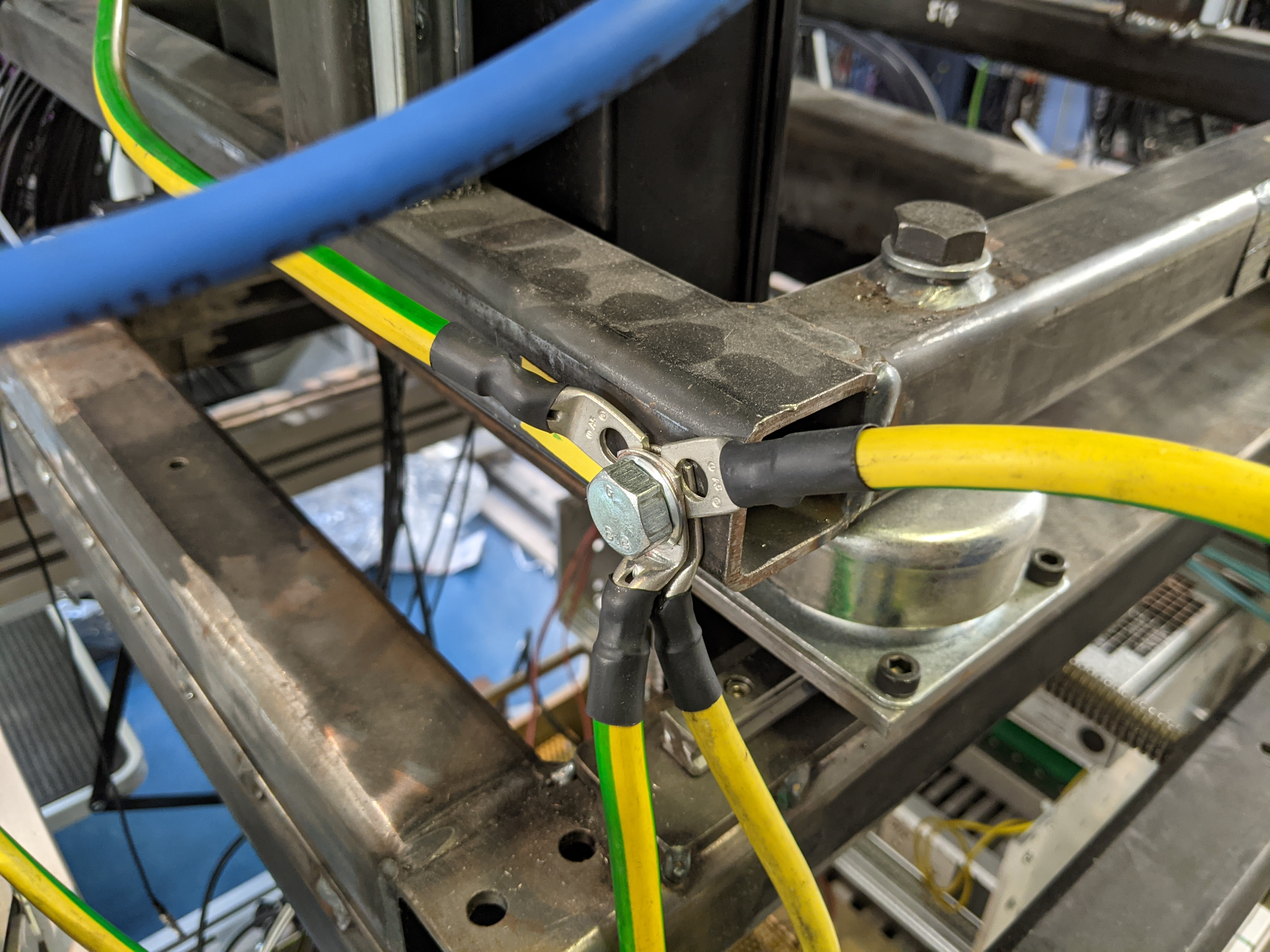

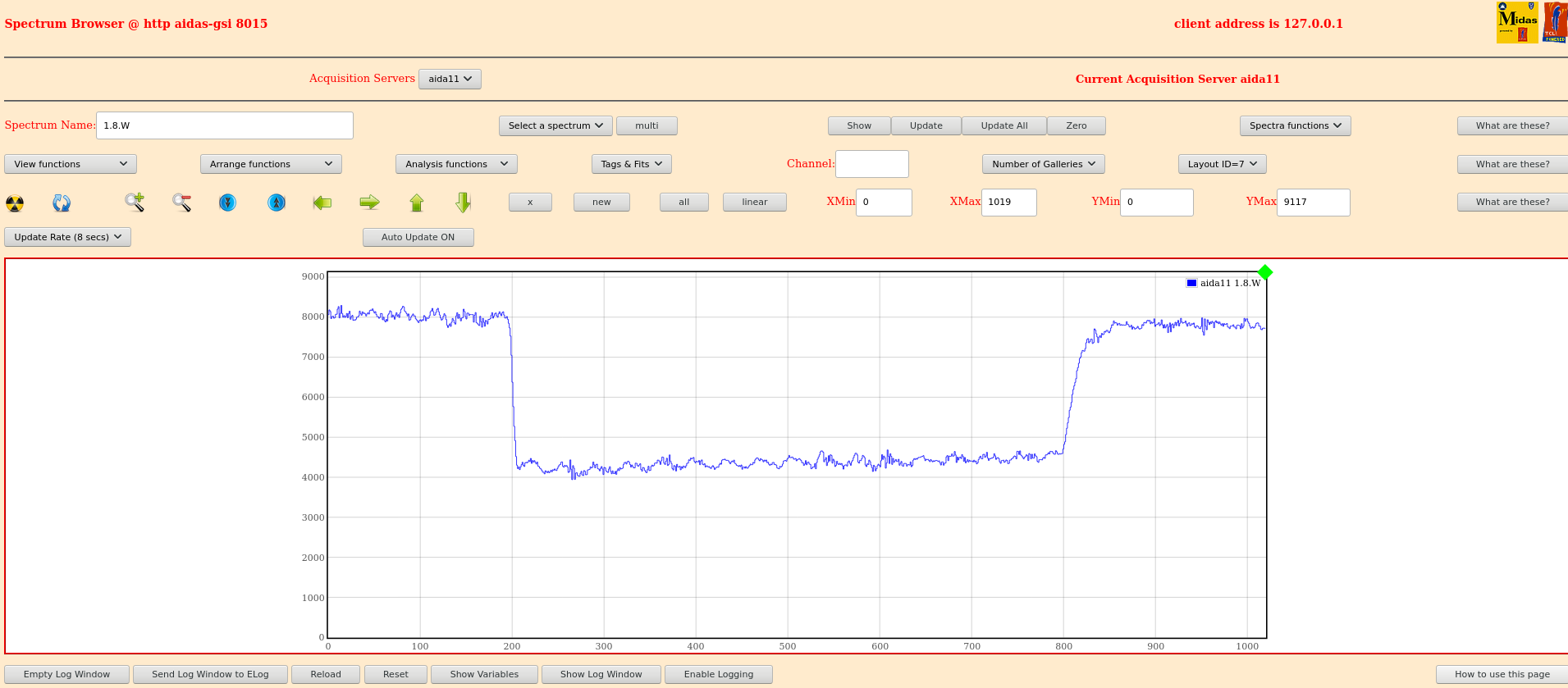

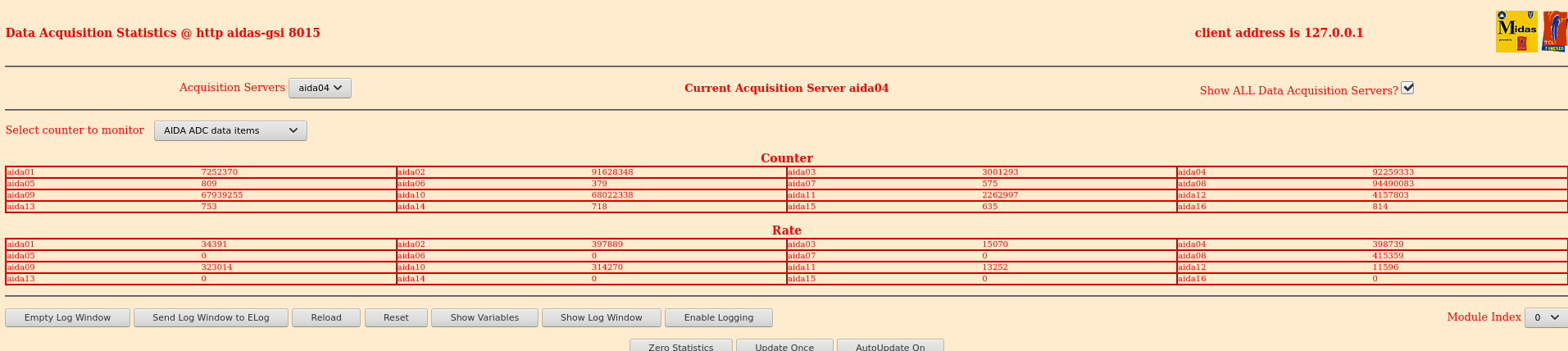

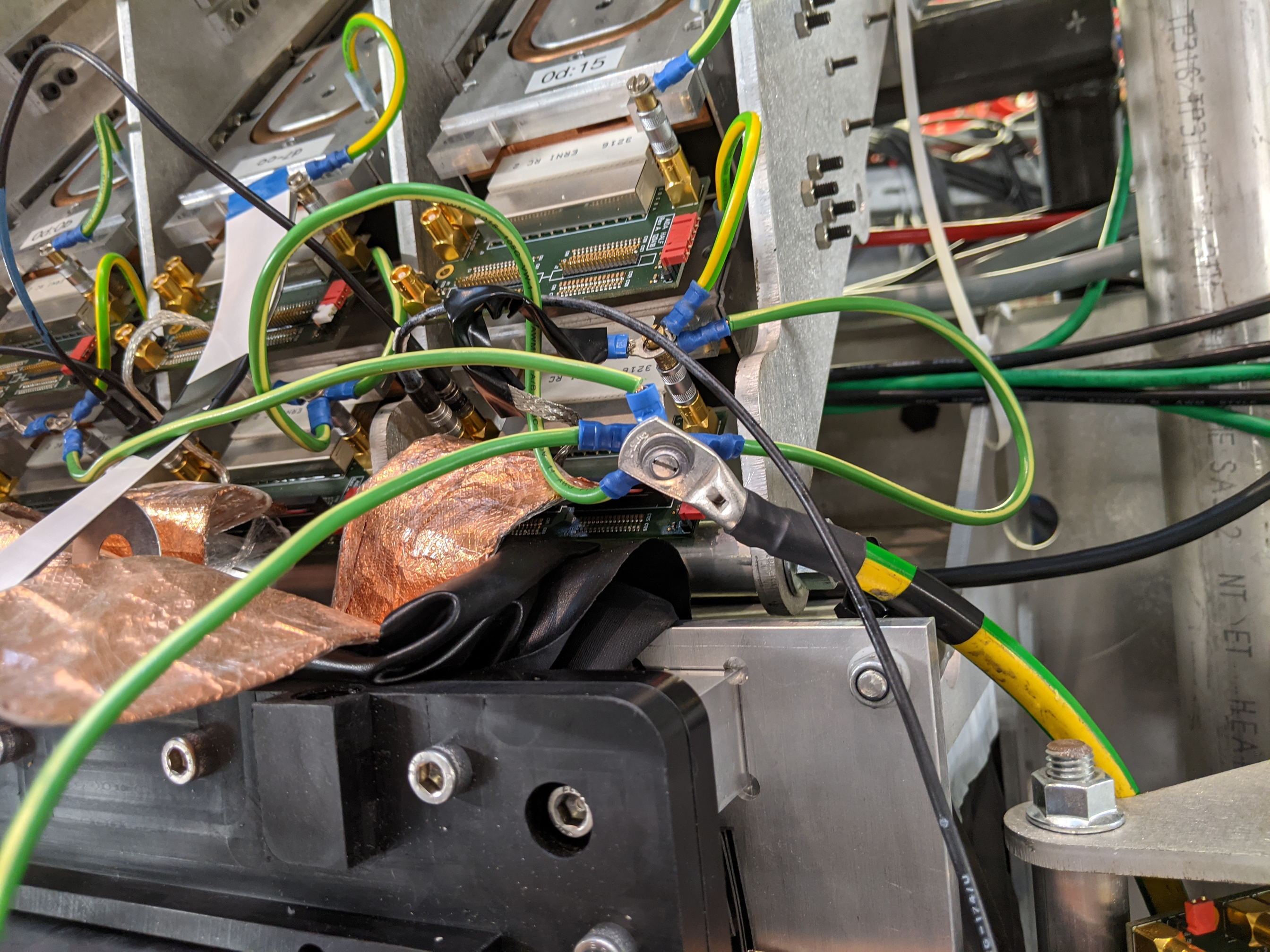

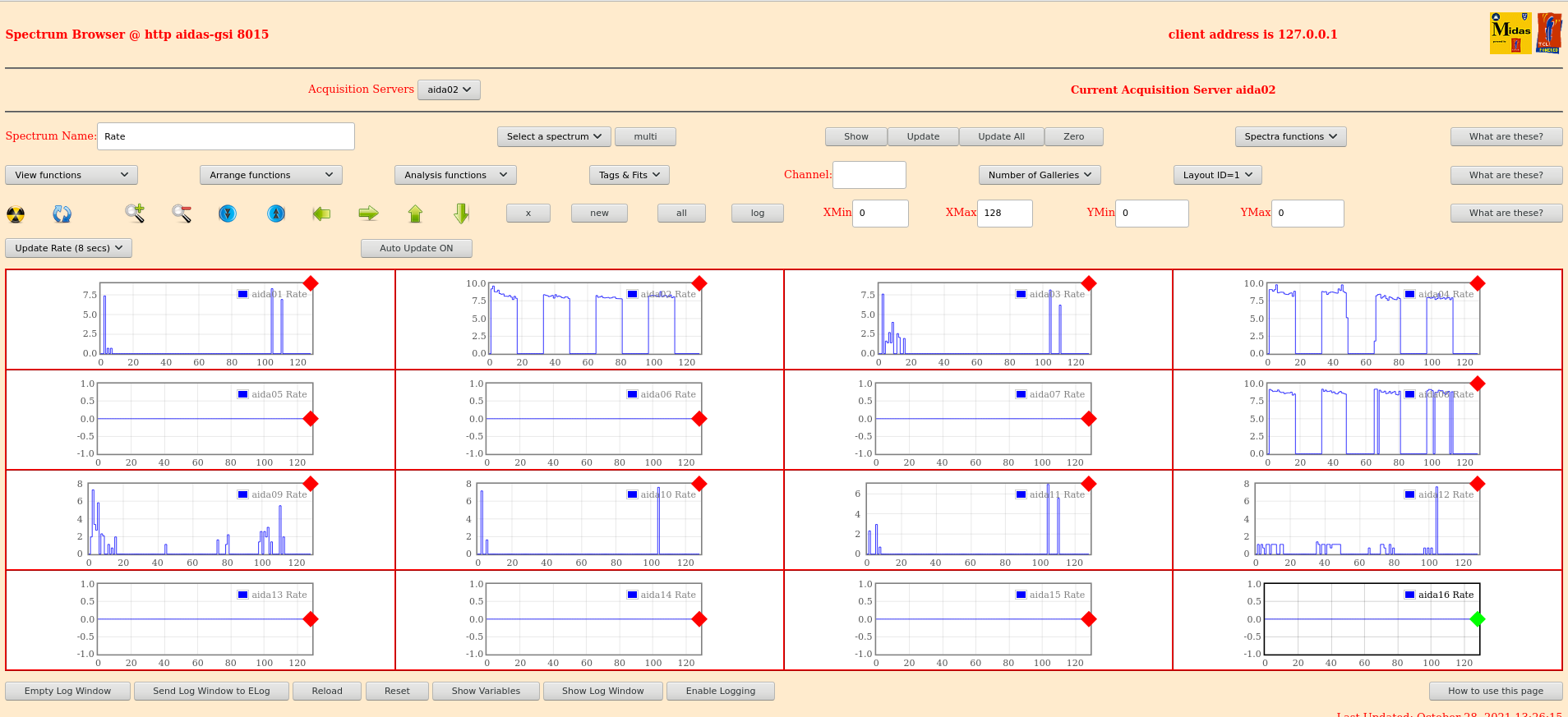

Plan for the day was to connect a mechanical ground to the FEEs connected to DSSD0 1, 2, 3, 4, 9, 10, 11 and 12 This was done by connecting thick copper cable to the mechanical ground wires on the AIDA frame (These ground wires are connected to the platform ground which is earthed properly we are told) Two thick copper wires were run each one for the top and right side and one for the bottom and left side. Each cable was connected to the FEEs with a star of smaller cables going to the adapter boards. Before connection the potential difference between the FEE ground and the mechanical ground was 16mV. After connection the potential difference was 3-4mV. It was checked that both the NIM ground and the PSU ground pins were on the same ground as the mechanical ground. It was just the FEE modules on a different ground. Photos of connection at end of attachments. It was found later in the afternoon that the 3mV drop comes as a result of the resistance of the bolt used to connect all the thinner wires to the thicker copper braid. Very good rates observed in all p+n strips but high rates in n+n. The large oscillations observed in waveforms yesterday are gone though. High frequency component remains Statistics - attachment 1 Rates spectra - attachment 2 Zoomed in rates spectra - attachment 3 p+n aida11 1.8.W - attachment 4 n+n aida02 1.8.W - attachmeFEE Width 9 60.25 1 64.18 10 55.76 11 64.81 3 56.21 12 48.54nt 5 We then reconfigured the PSU so that the FEEs for a given detector were all on the same PSU Rates are observed to drop across all p+n fees Statistics - attachment 6 Rates spectra - attachment 7 Rates spectra y max 10 - Attachment 8 p+n aida 12 1.8.W - attachment 9 n+n aida 02 1.8.W - attachment 10 Pulser was then connected to all p+n channels but left off Rates - attachment 11 Rates spectra - attachment 12 Rates spectra ymax10 - attachment 13 Pulser was then switched on Rates spectra - attachment 14 Statistics - attachment 15 Pulser peaks p+n - attachment 16 Pulser widths FEE Width 9 60.25 1 64.18 10 55.76 11 64.81 3 56.21 12 48.54 n=n pulser was then added to both 2 and 4 Pulser peaks n+n - attachment 17 Pulser peaks p+n - attachment 18 FEE Width 9 62.88 1 65.30 10 55.18 11 64.47 3 51.77 12 50.22 2 196.00 4 271.57 29 October Test adding LK2,3,4 to n+n n+n all LK1,2,3,4 p+n all lk 2,3,4 Makes p+n side worse - attachment 22 Remove LK3 from n+n n+n 1,2,4 p+n all LK2,3,4 A slight improvement on previous attachment 23 Remove LK2 and 4 from n+n Remove LK3 from all p+n except 1 and 3 which are the two non isolated cables attachment 24
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry

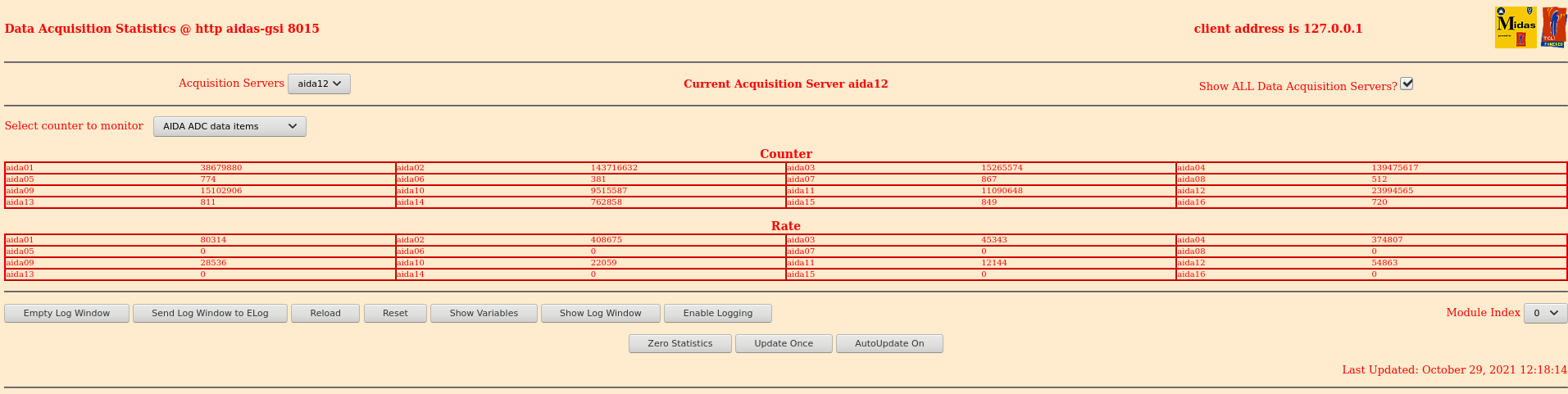

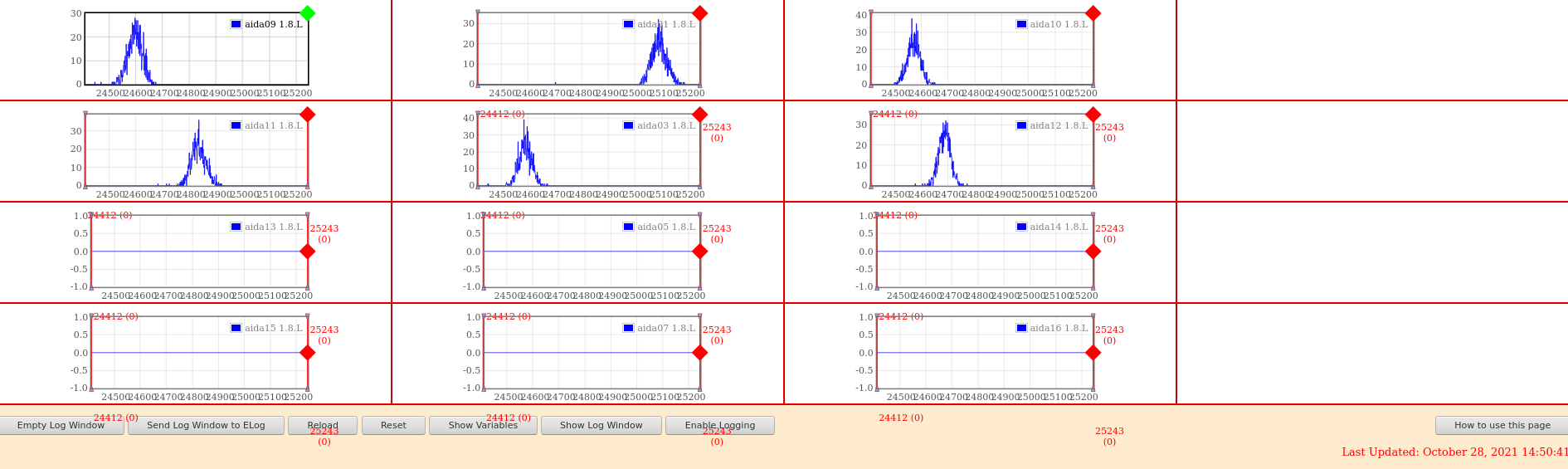

Attachment 1:
Original size: 1913x428

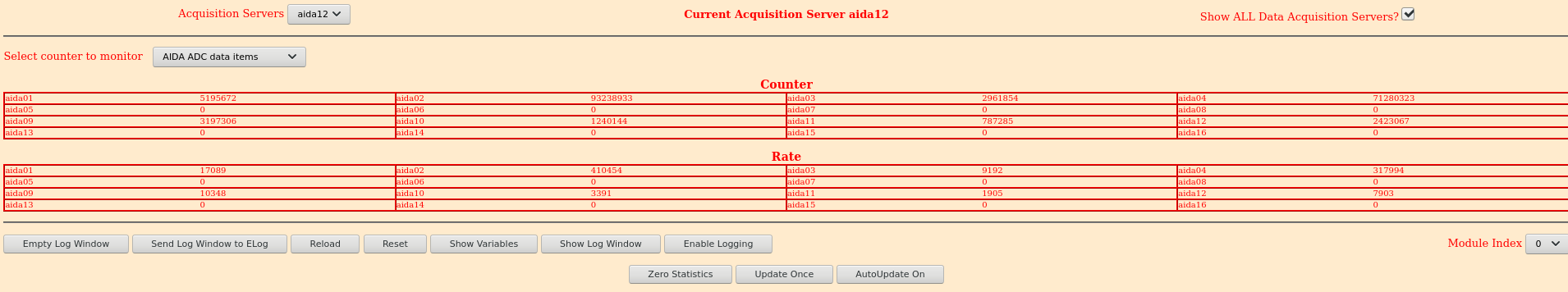

Attachment 2:
Original size: 1900x824

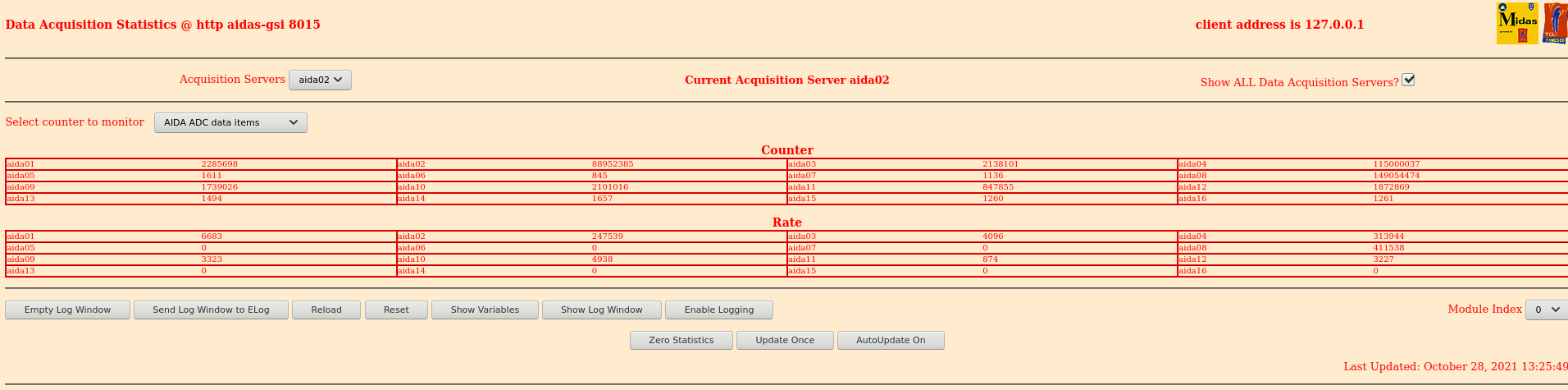

Attachment 3:
Original size: 1908x853

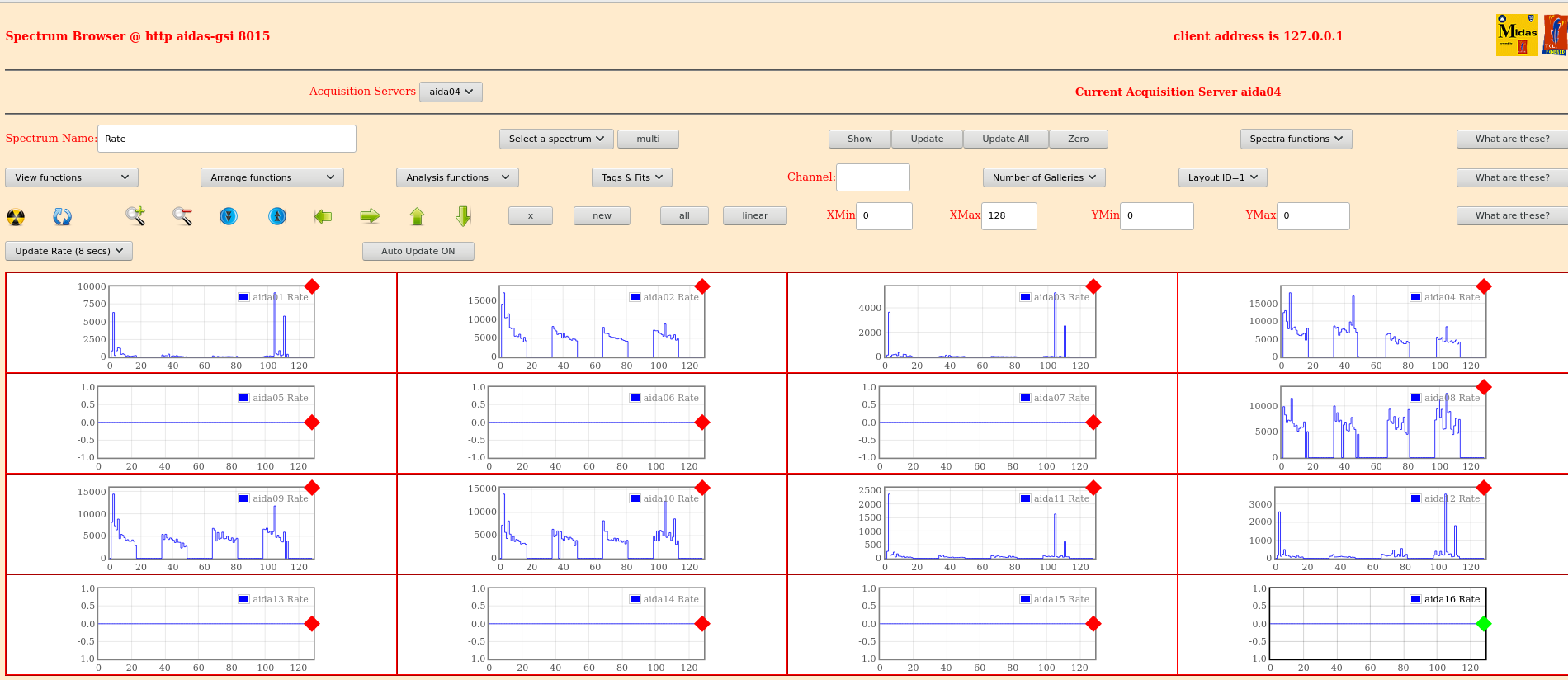

Attachment 4:
Original size: 1911x839
Attachment 5:
Original size: 1915x879
Attachment 6:
Original size: 1912x475
Attachment 7:
Original size: 1908x873
Attachment 8:
Original size: 1903x855
Attachment 9:
Original size: 1920x1080

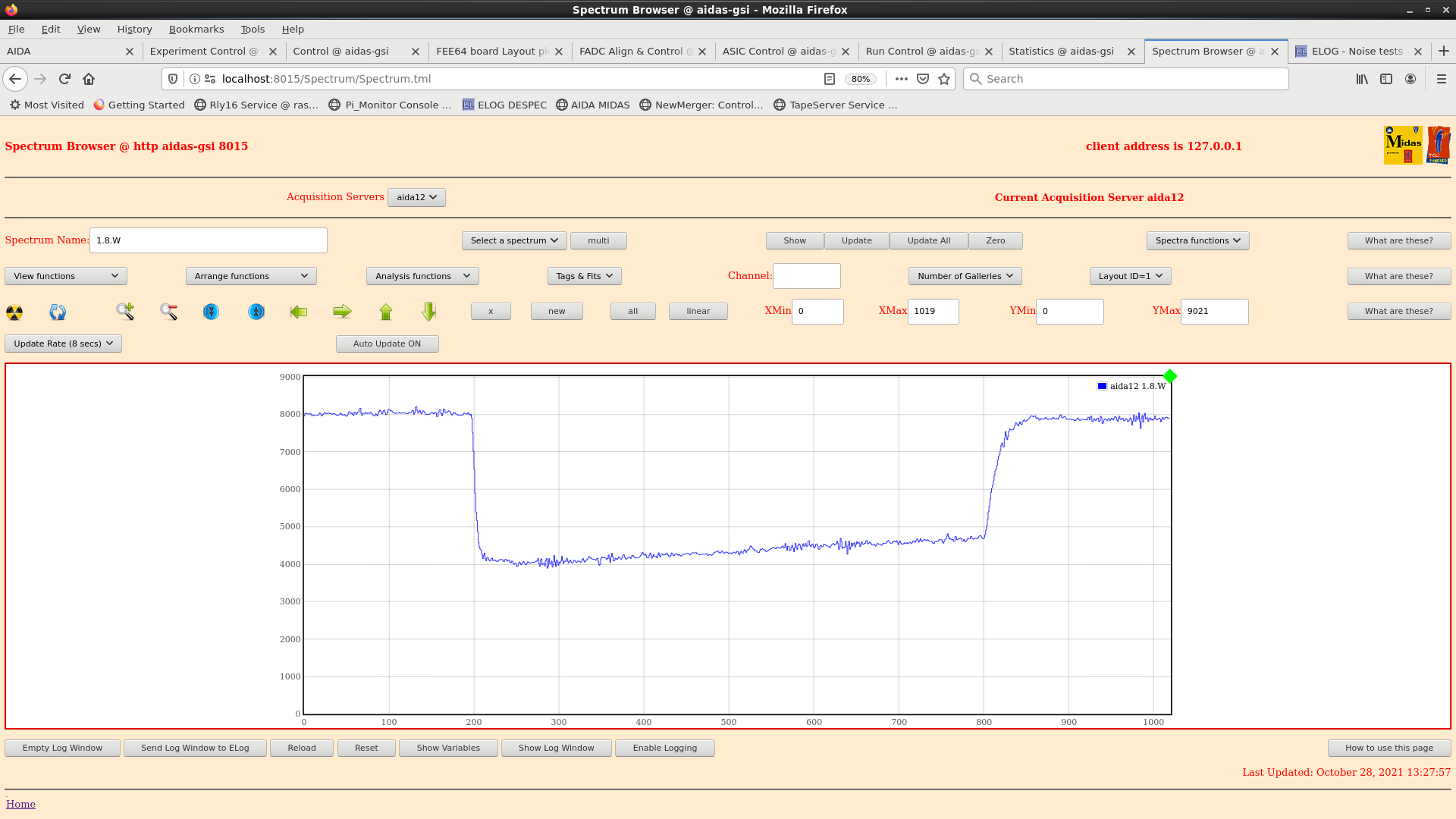

Attachment 10:
20211028-1326-wavesaida02-newpsupng
Attachment 11:
Original size: 1907x481
Attachment 12:
Original size: 1900x861
Attachment 13:
Original size: 1910x870

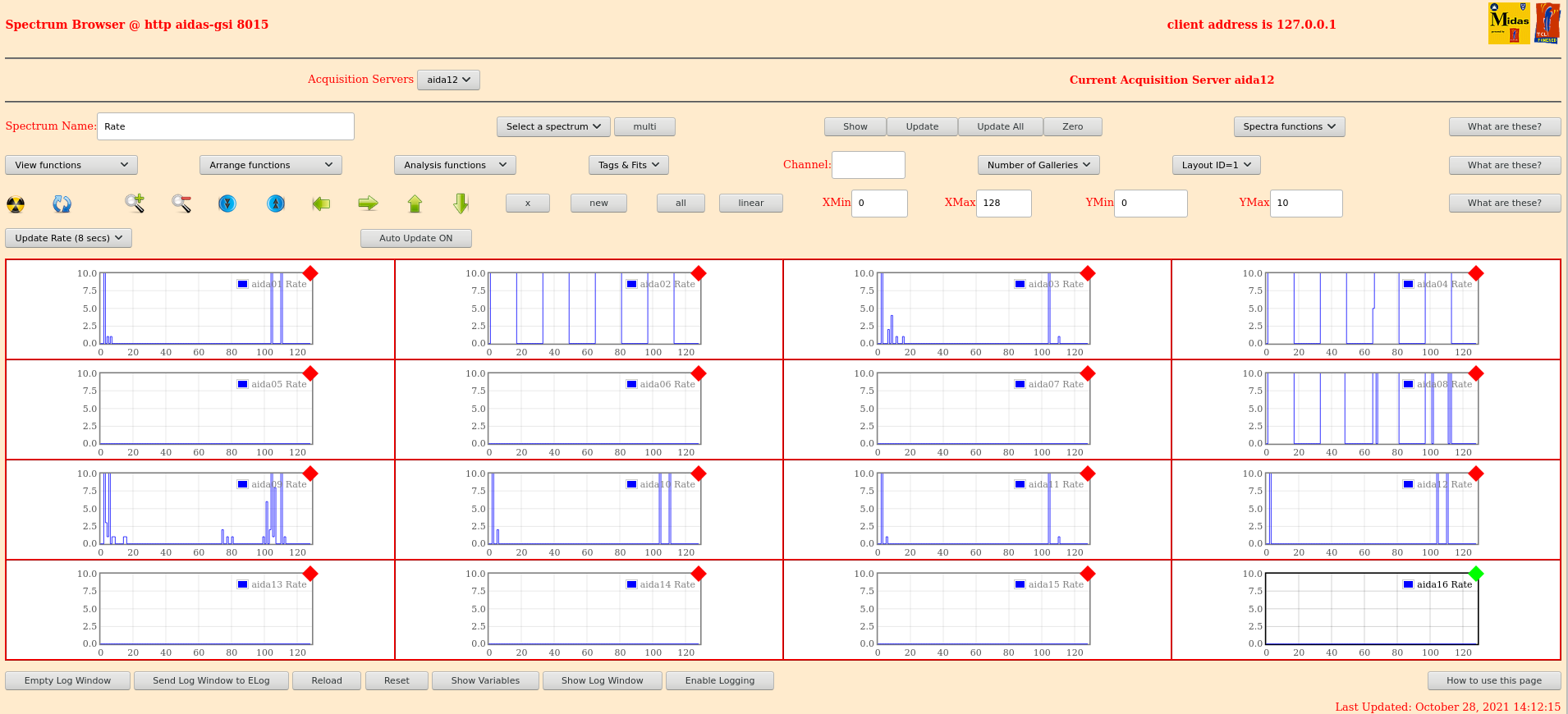

Attachment 14:
