11.15 - S4 is currently closed no access

If access possible (should be) plan is

Re-attach ribbon cable braids
Re-attach DSSSD middle wafer rear g/r (LK3)
Re-attach DSSSD ground (LK2?)

See difference in rates, expectation is braid should restore most p+n rates

Once status quo ante achieved explore ASIC settings to identify preamp feedback and shaping time options to stabilise preamp output and optimise signal:noise.

aida12 Peak width =    84.73
aida02 Peak width =   526.68

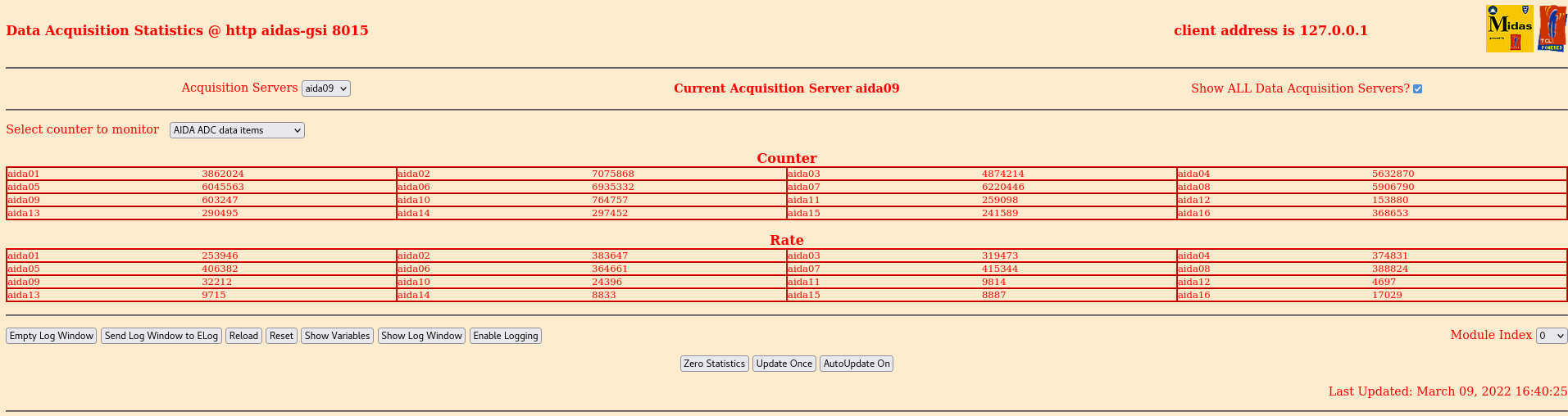

Attachment 1 - Stats

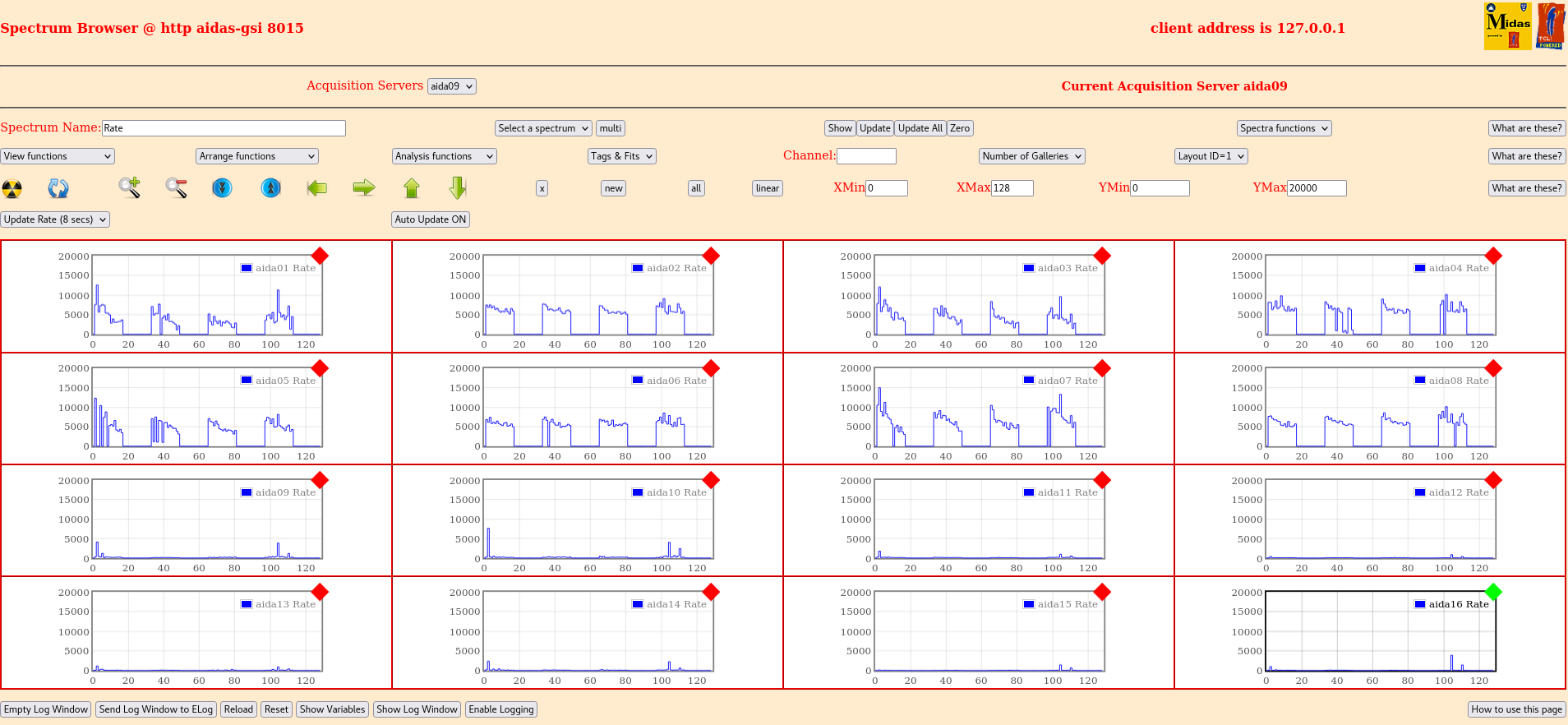

Attachment 2 - Per FEE Rates

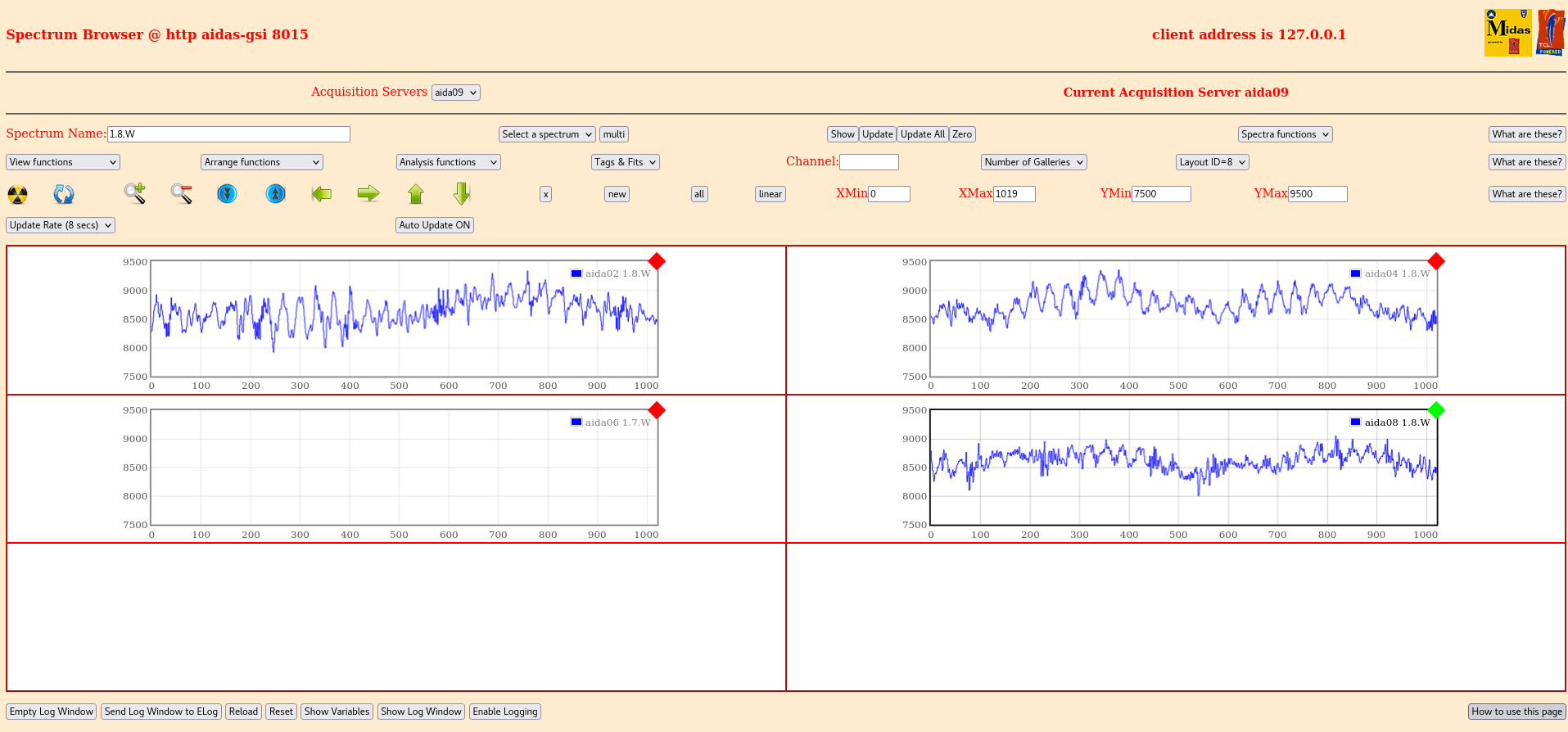

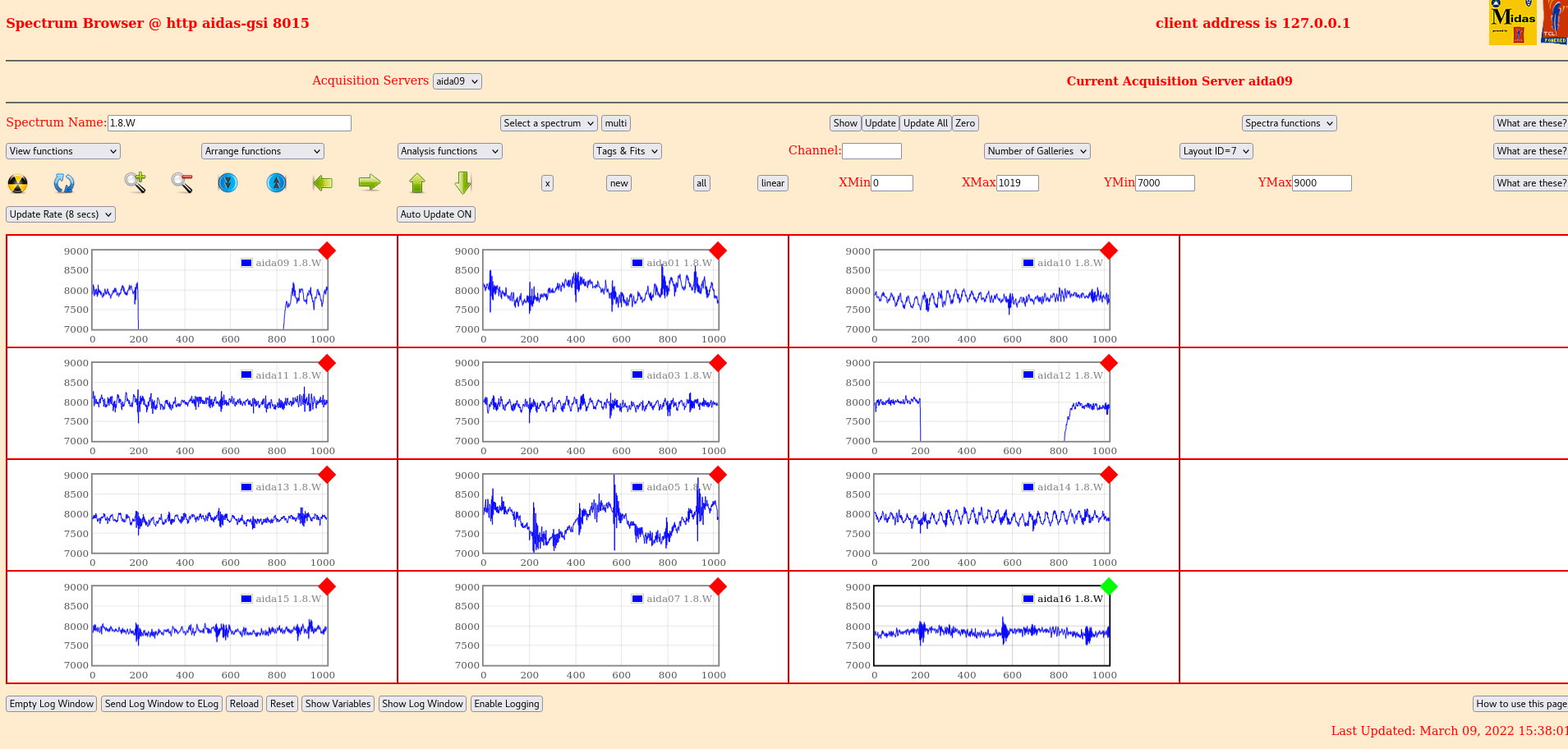

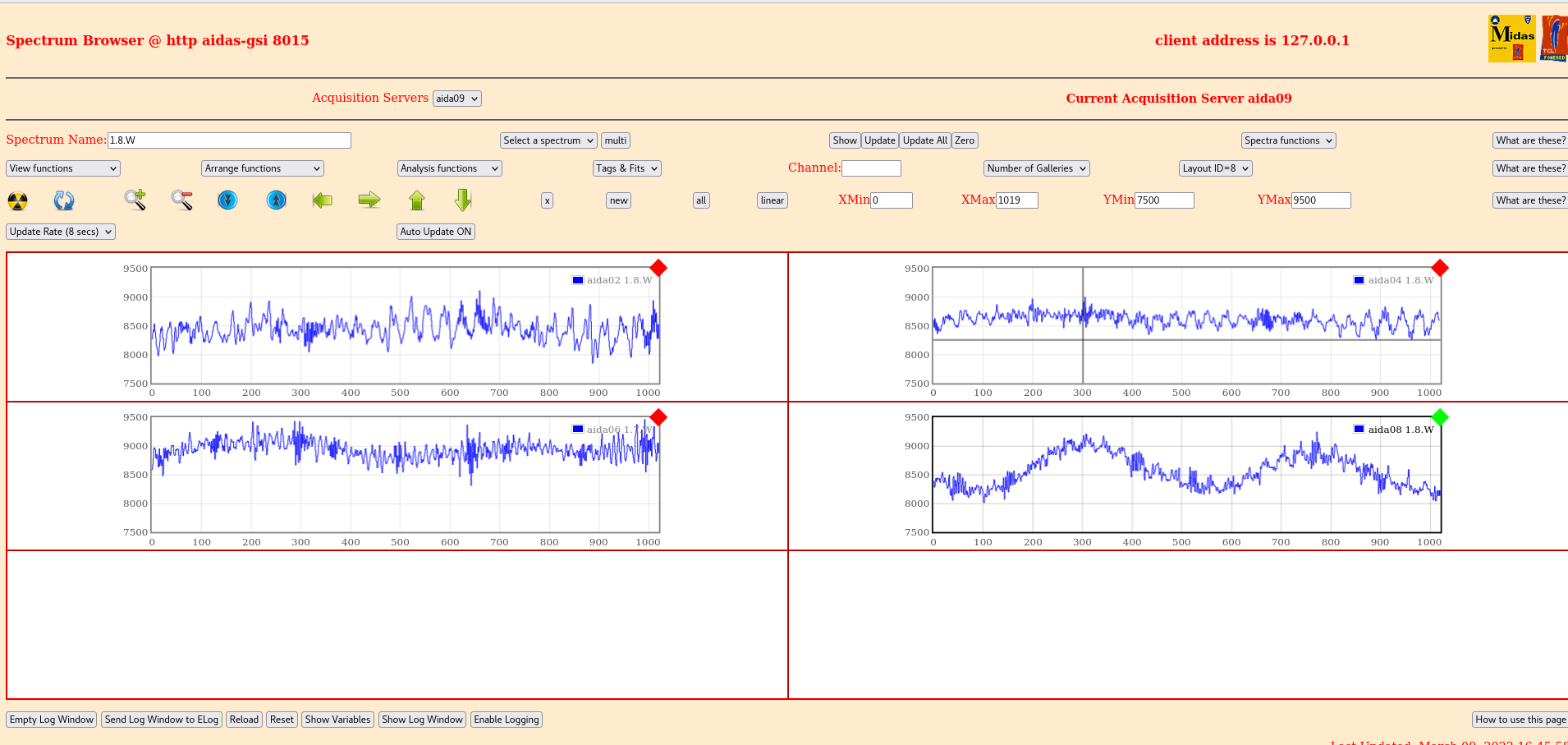

Attachments 3,4 - Waveforms

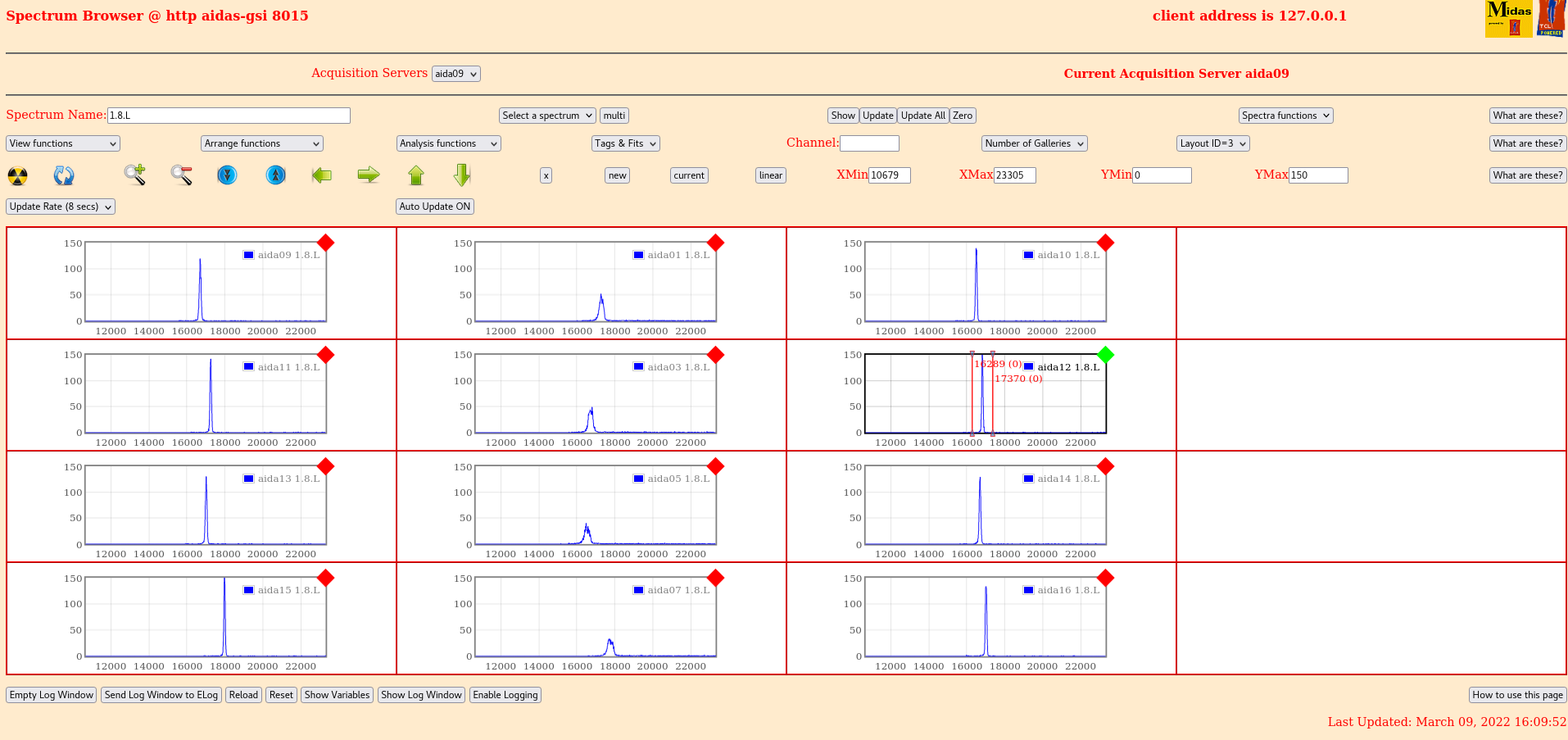

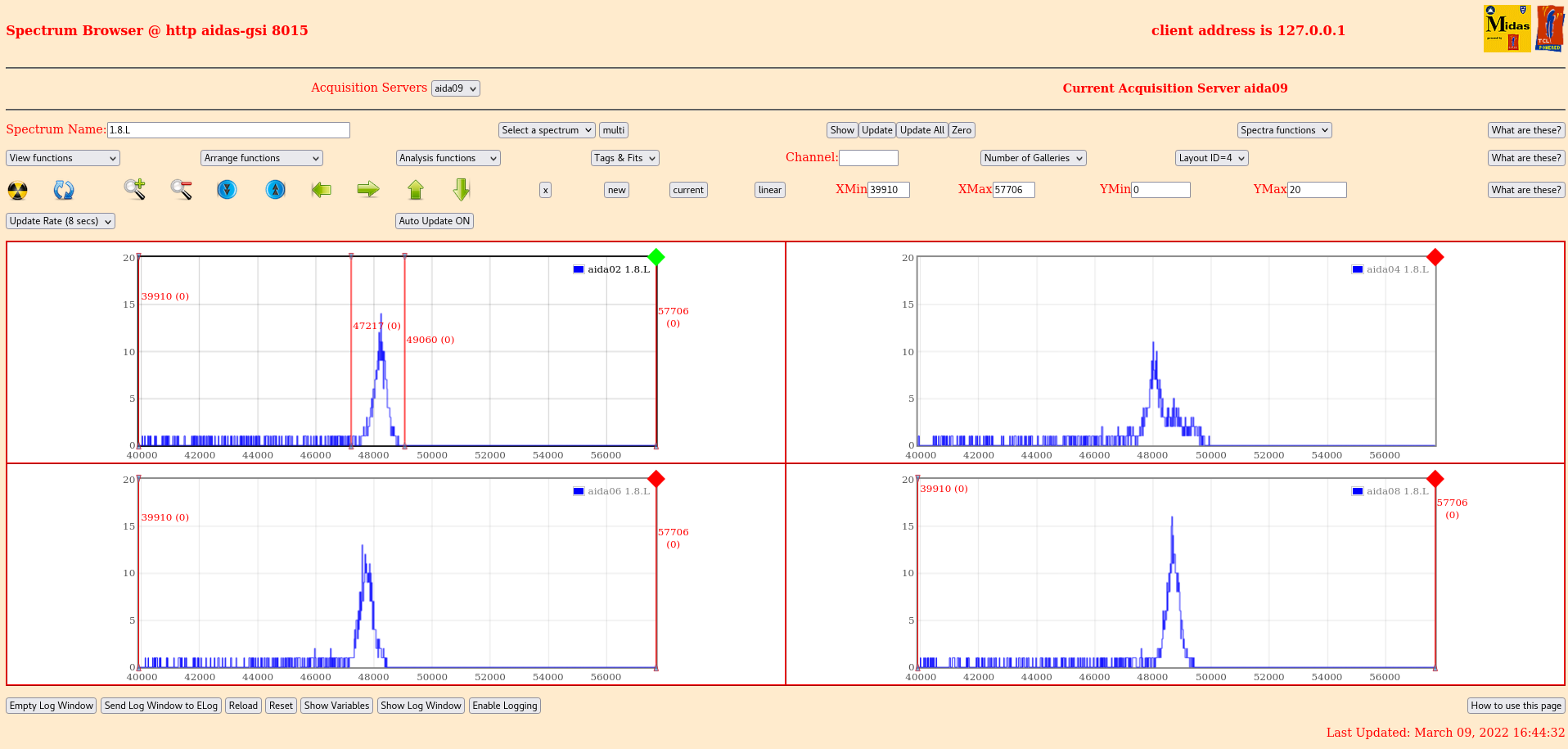

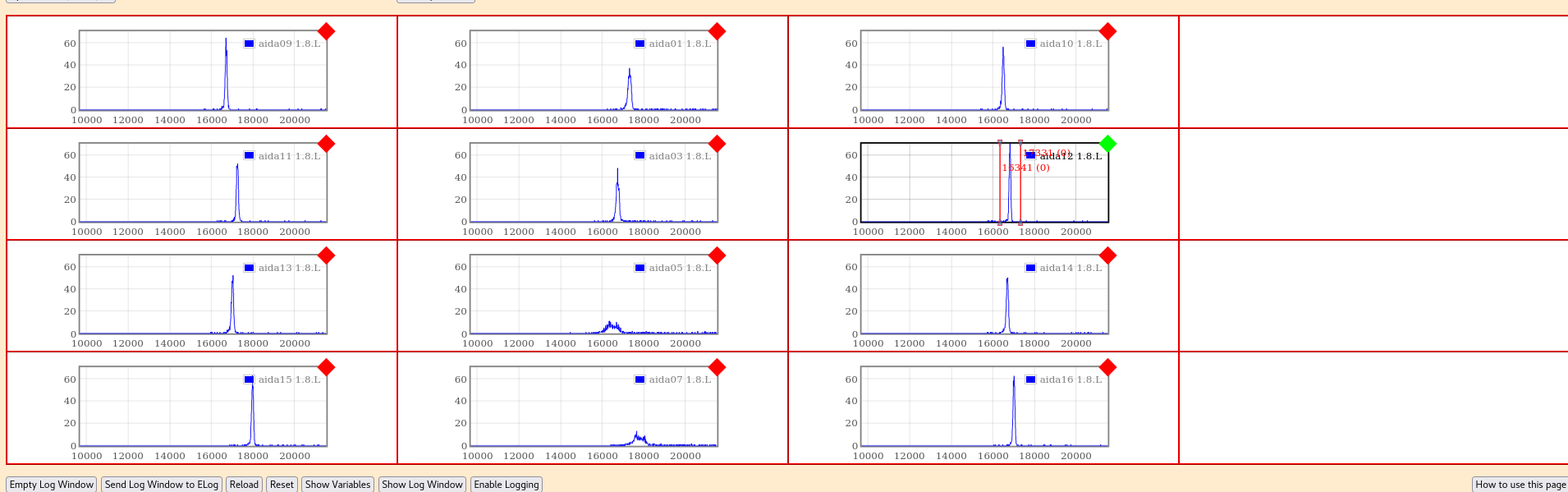

Attachments 5,6 - Pulser Peaks
Attachment 7 - HV Bias. Leakage current recovered and does not seem to be ramping up

16.00 - Attach LK3 jumpers to aidas 1, 3, 5, 7 (DSSD ground and middle rear g/r)

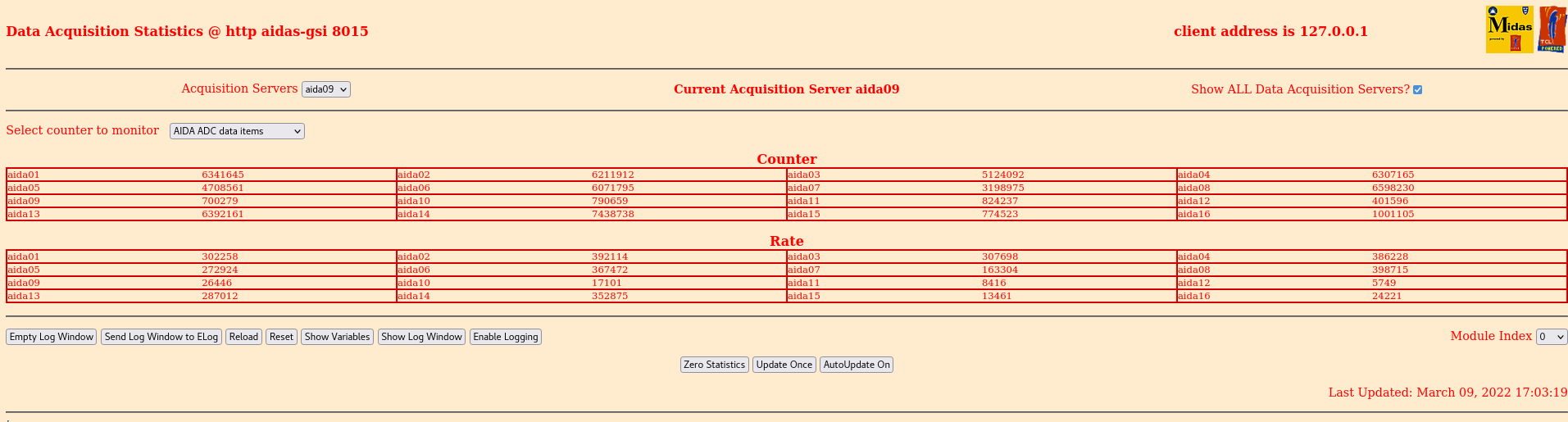

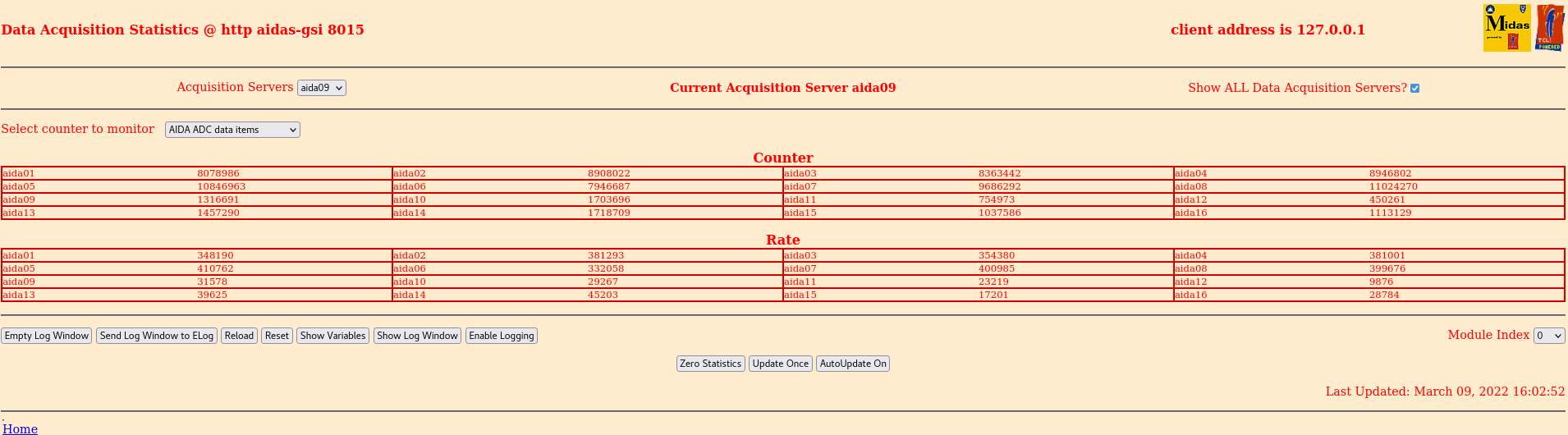

Attachment 8 - Stats

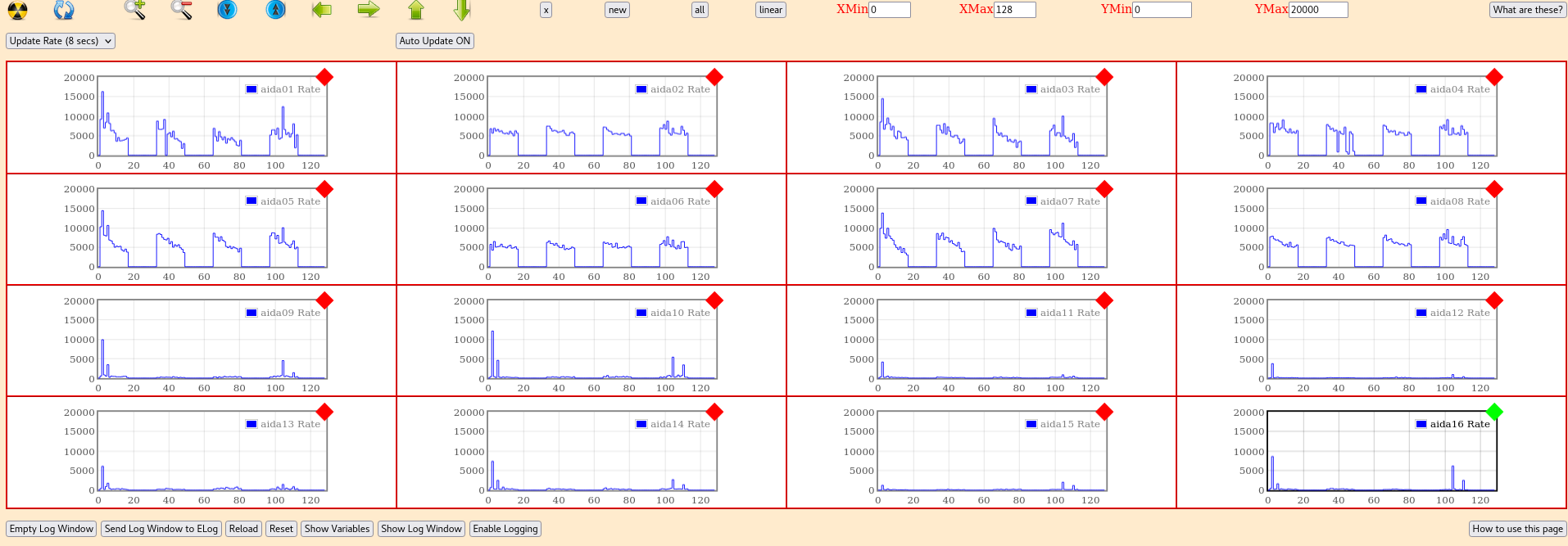

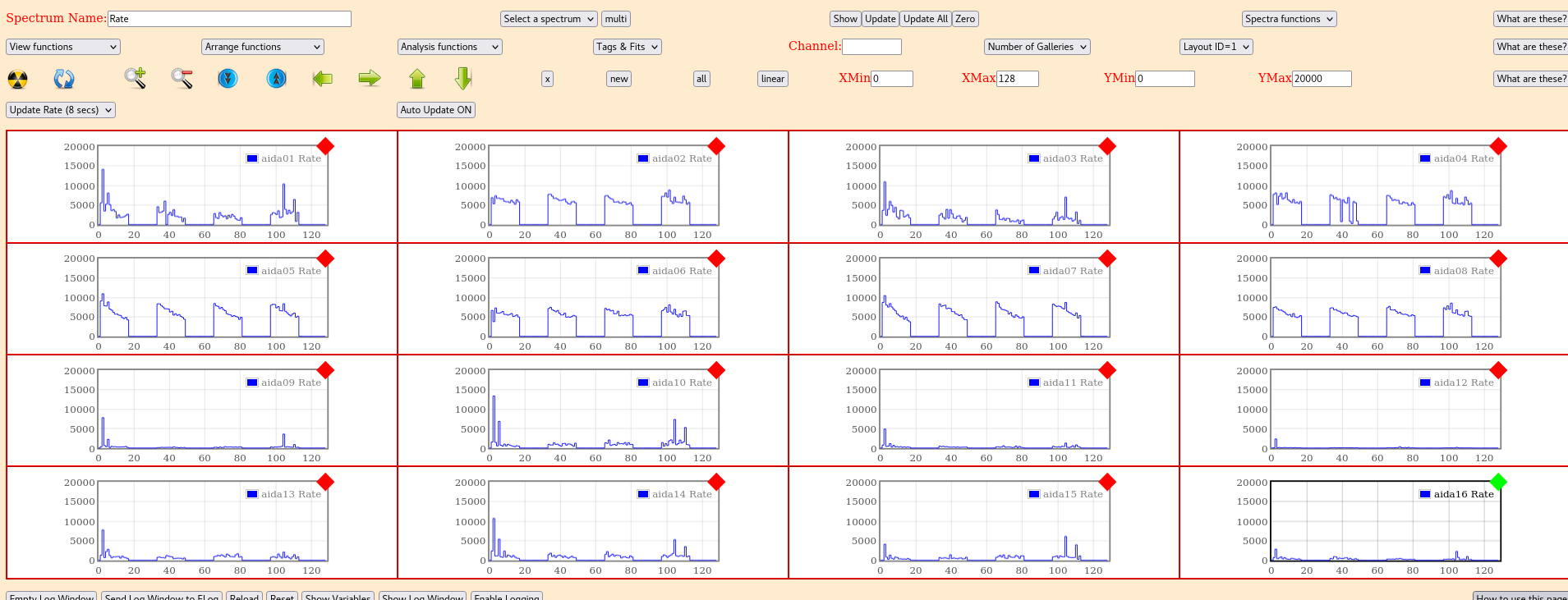

Attachment 9 - Per FEE Rates

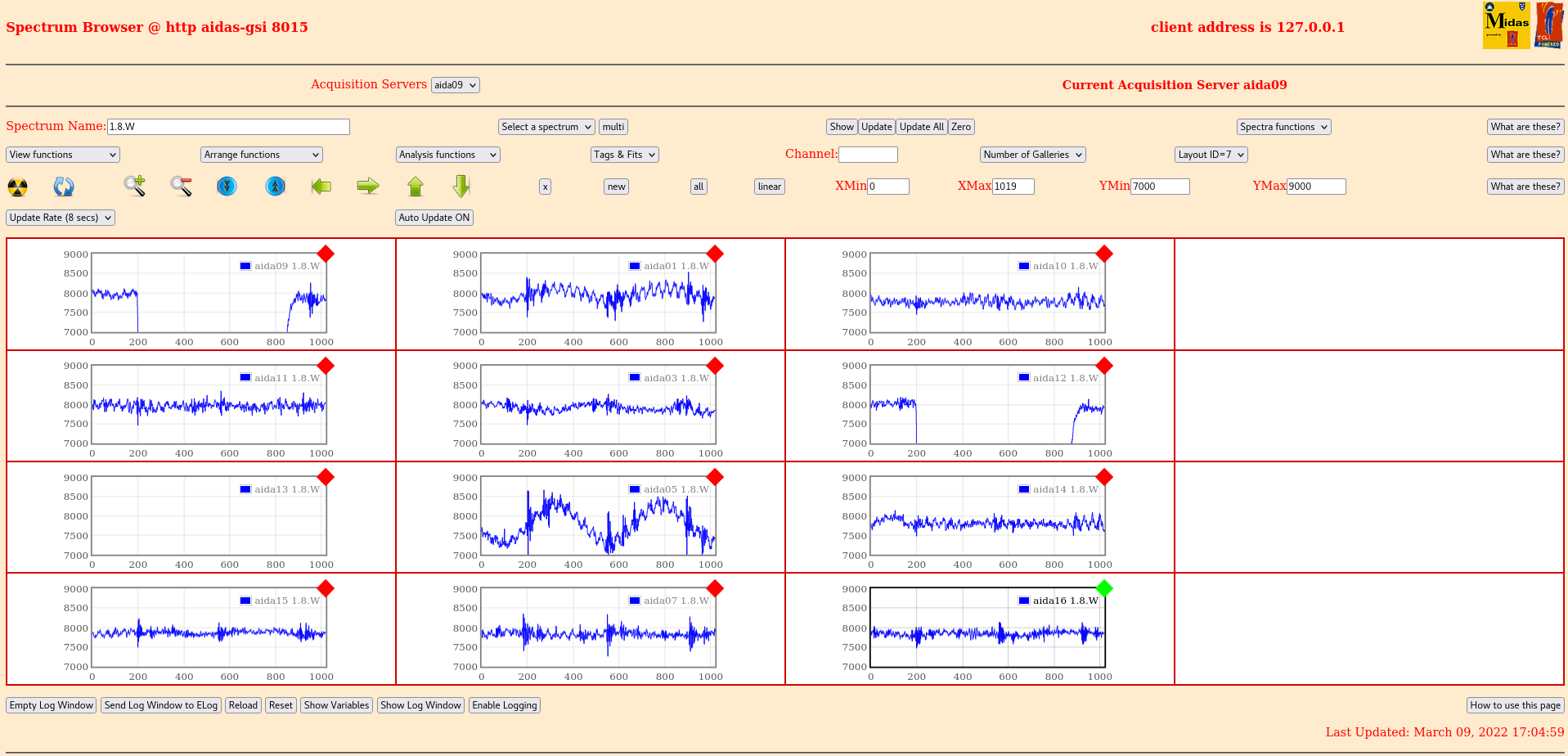

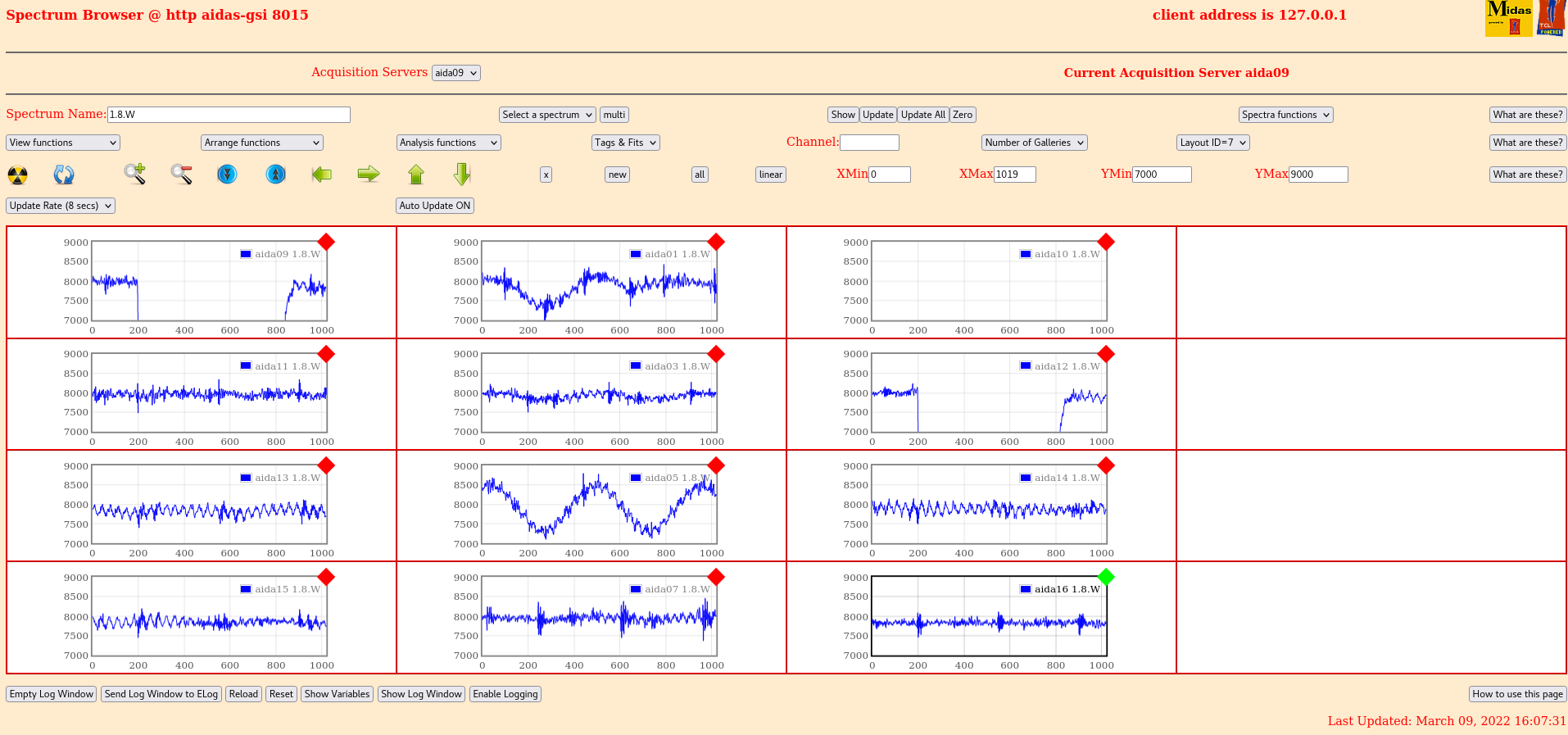

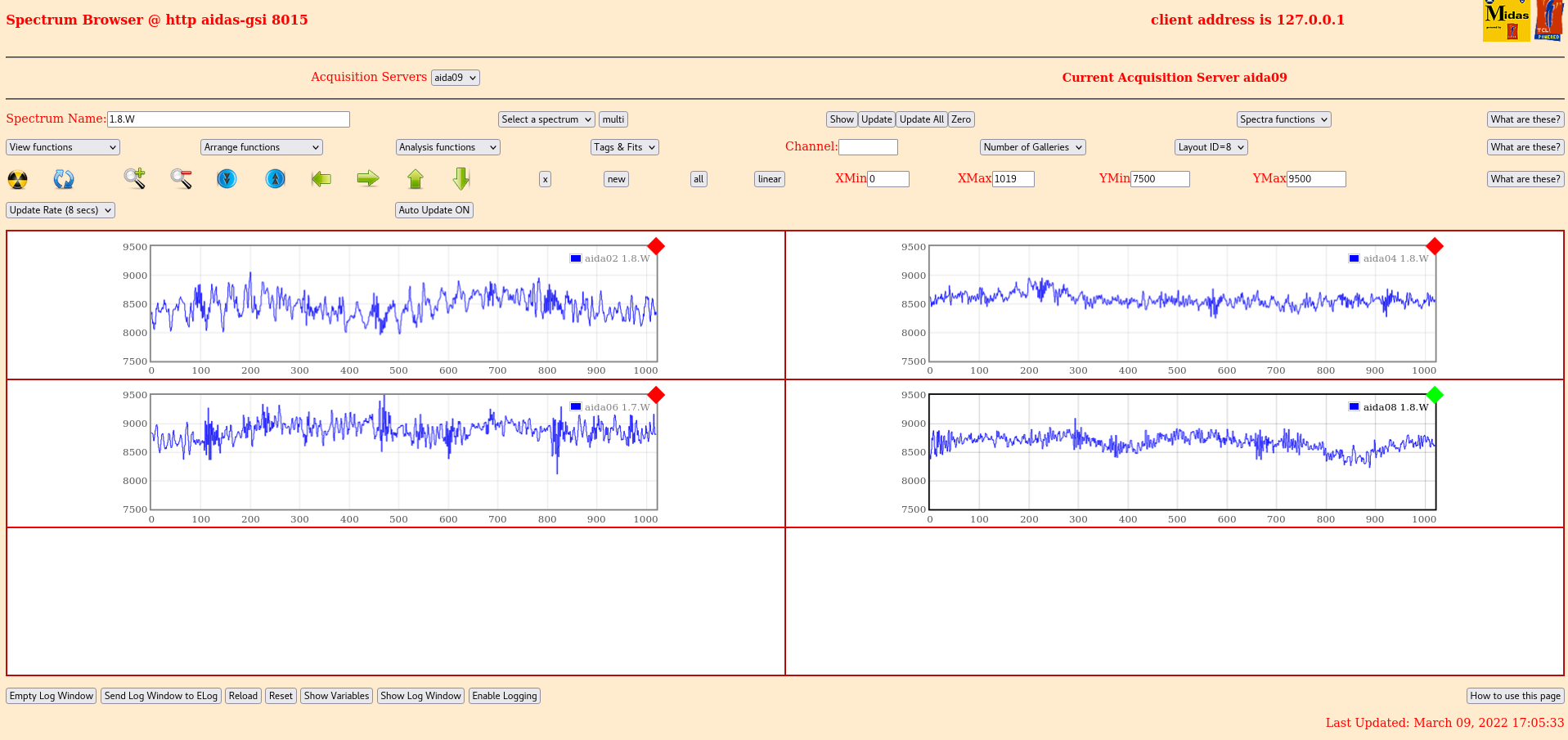

Attachment 10, 11 - Waveforms

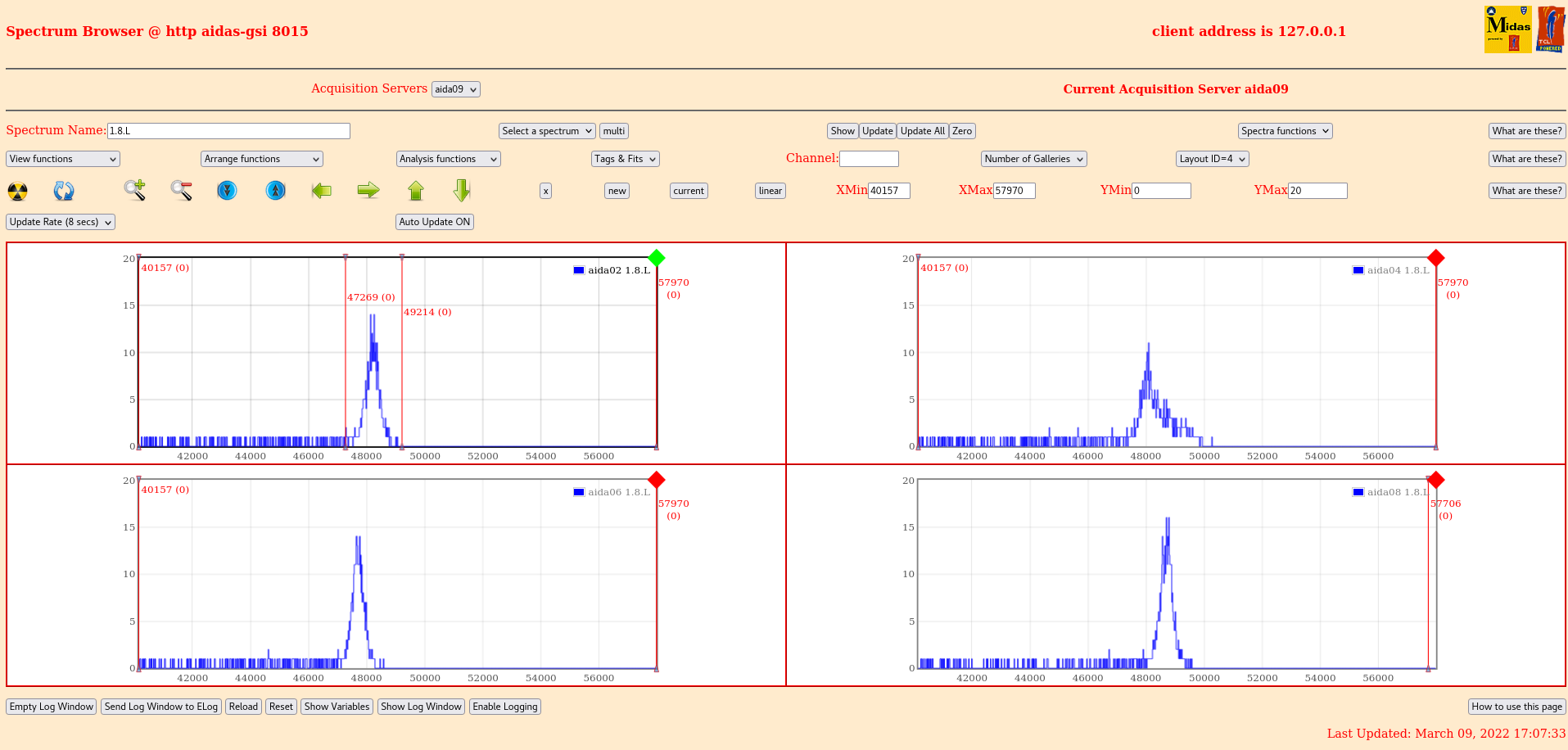

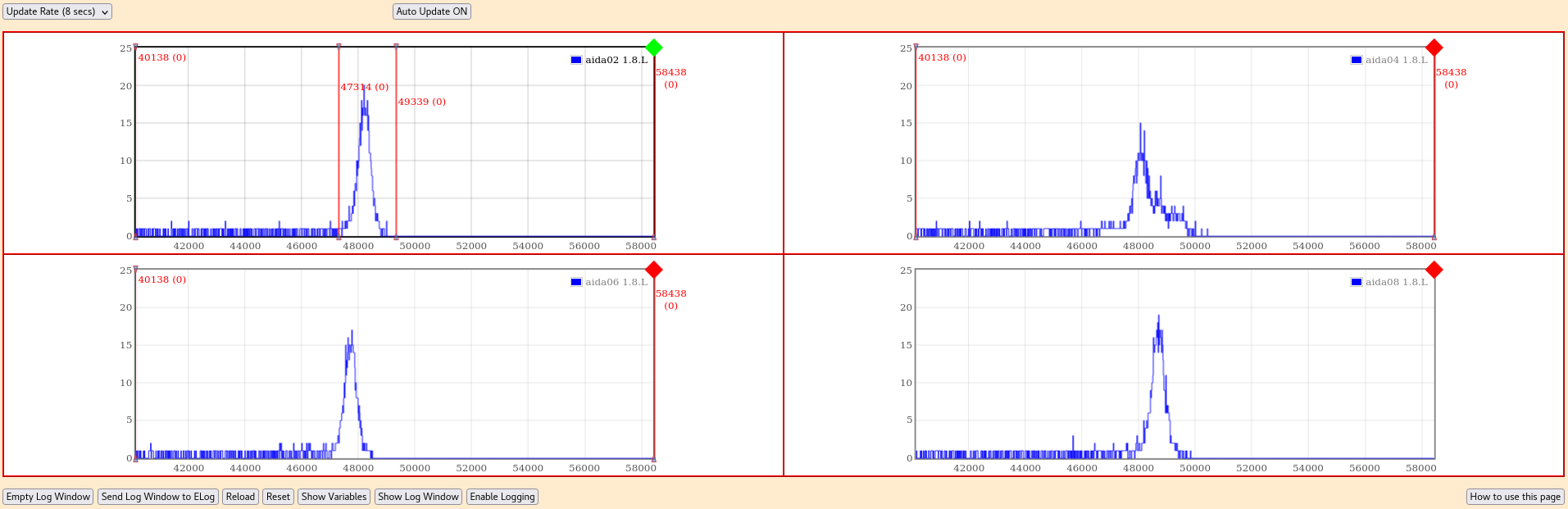

Attachment 12, 13 - Pulser Peaks

aida12 Peak width =    78.51
aida02 Peak width =   480.90

No major change, FEES 1-8 are all noisy and FEES 9-16 are quiet
aida01, aida05 waveforms very noticably bad (100 kHz), aida03, aida07 waveforms seem OK


16.45 - Attach LK2, LK4 jumpers to all FEEs (field plane grounding)
No significant changes

Attachment 14 - Stats
Attachment 15 - Per FEE Rates

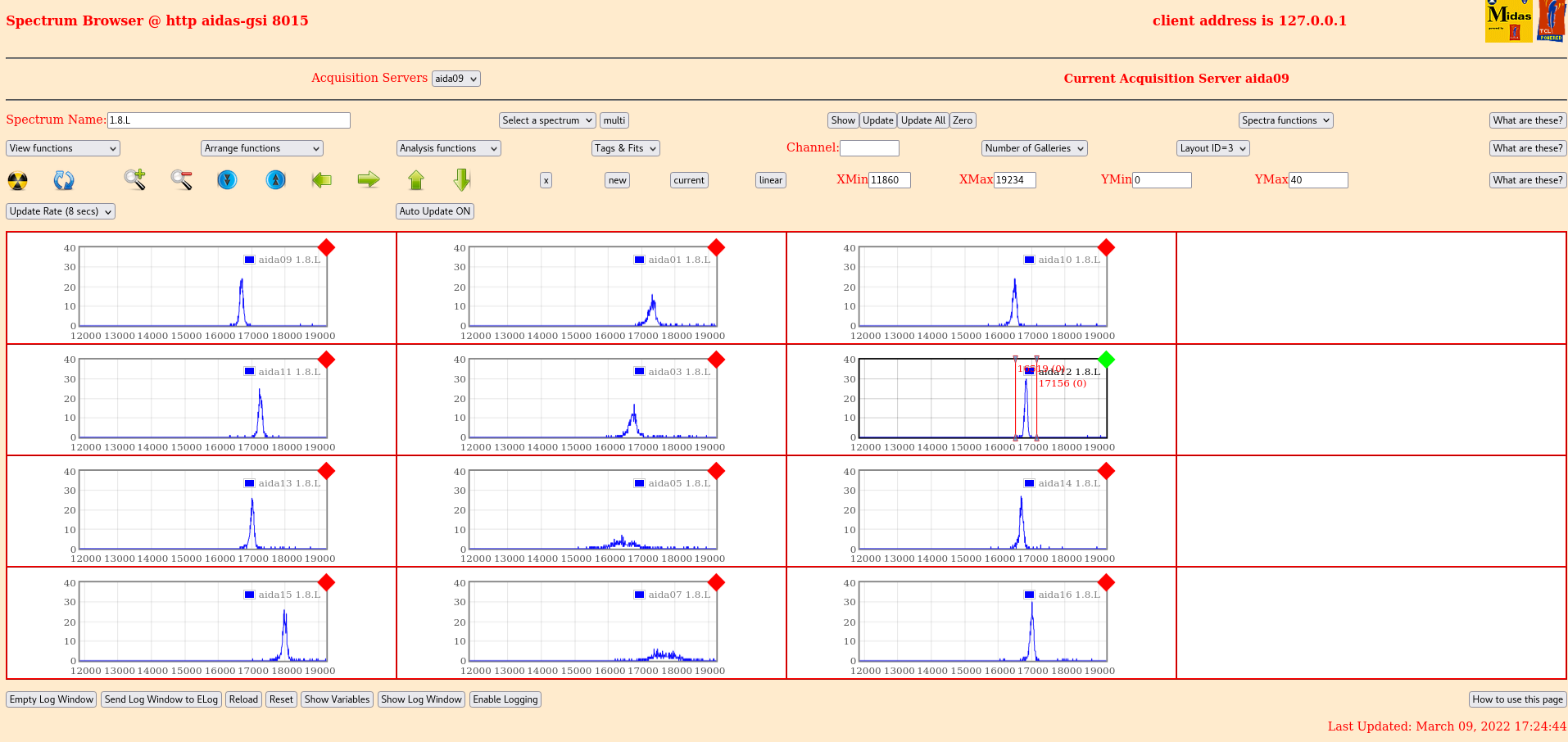

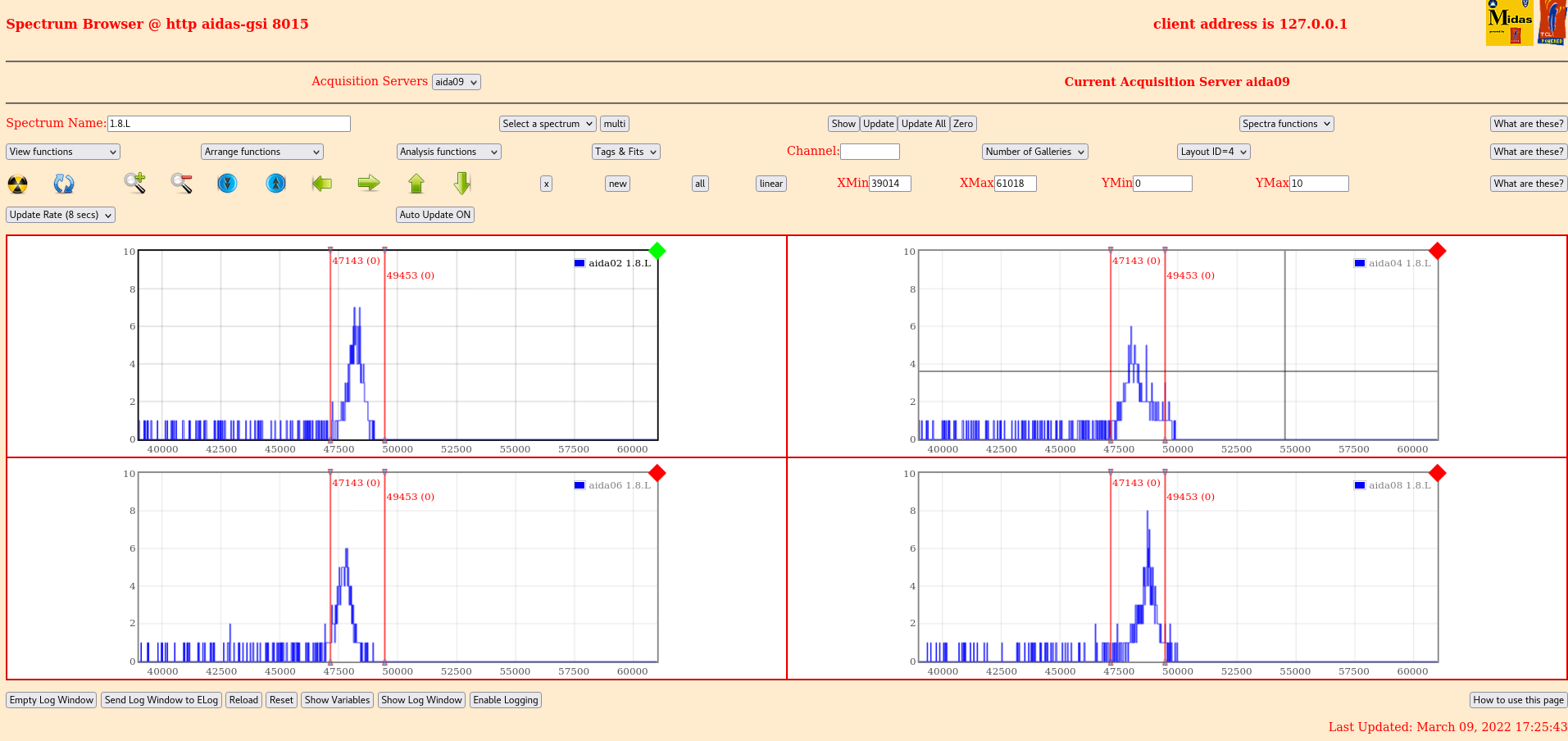

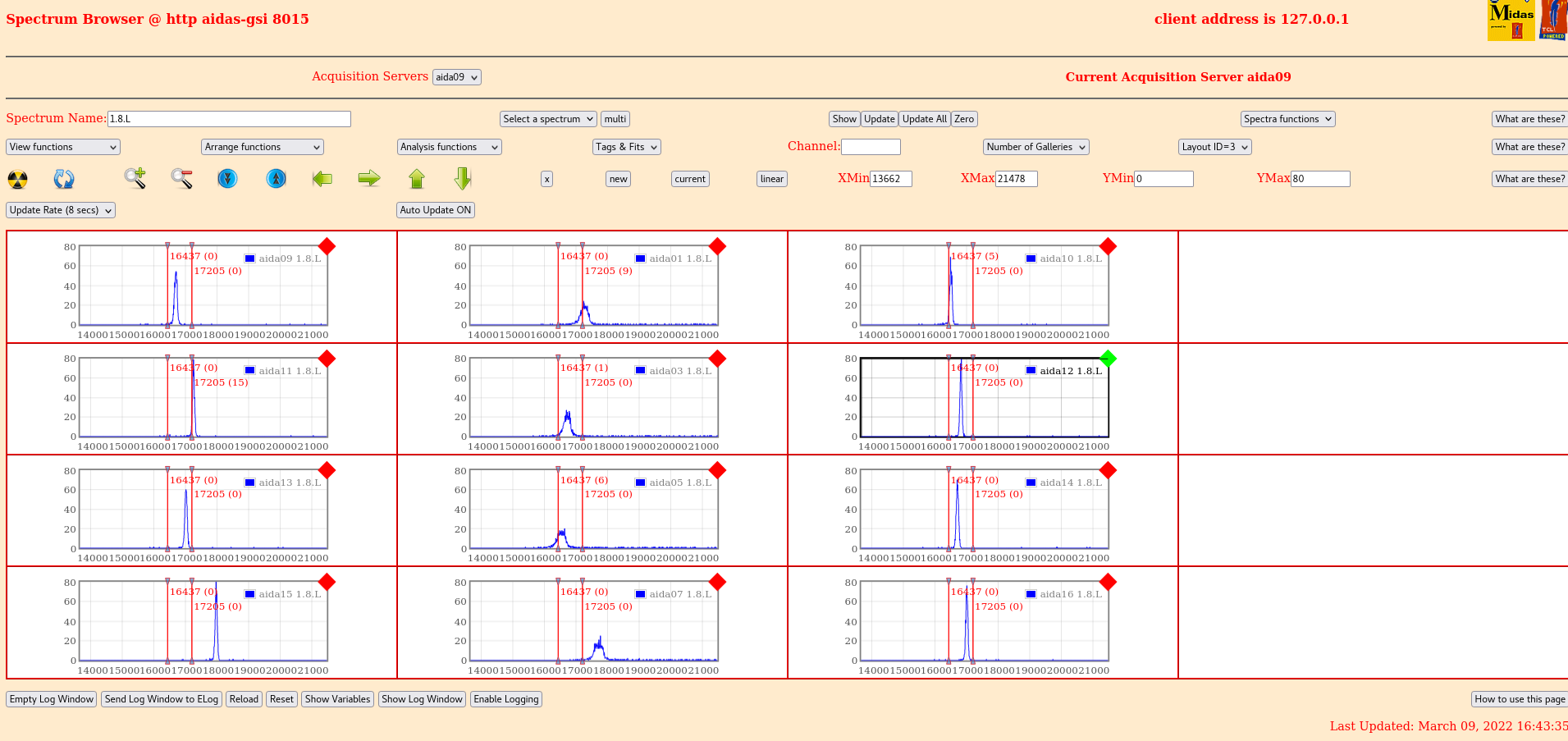

Attachment 16, 17 - Pulser Peaks

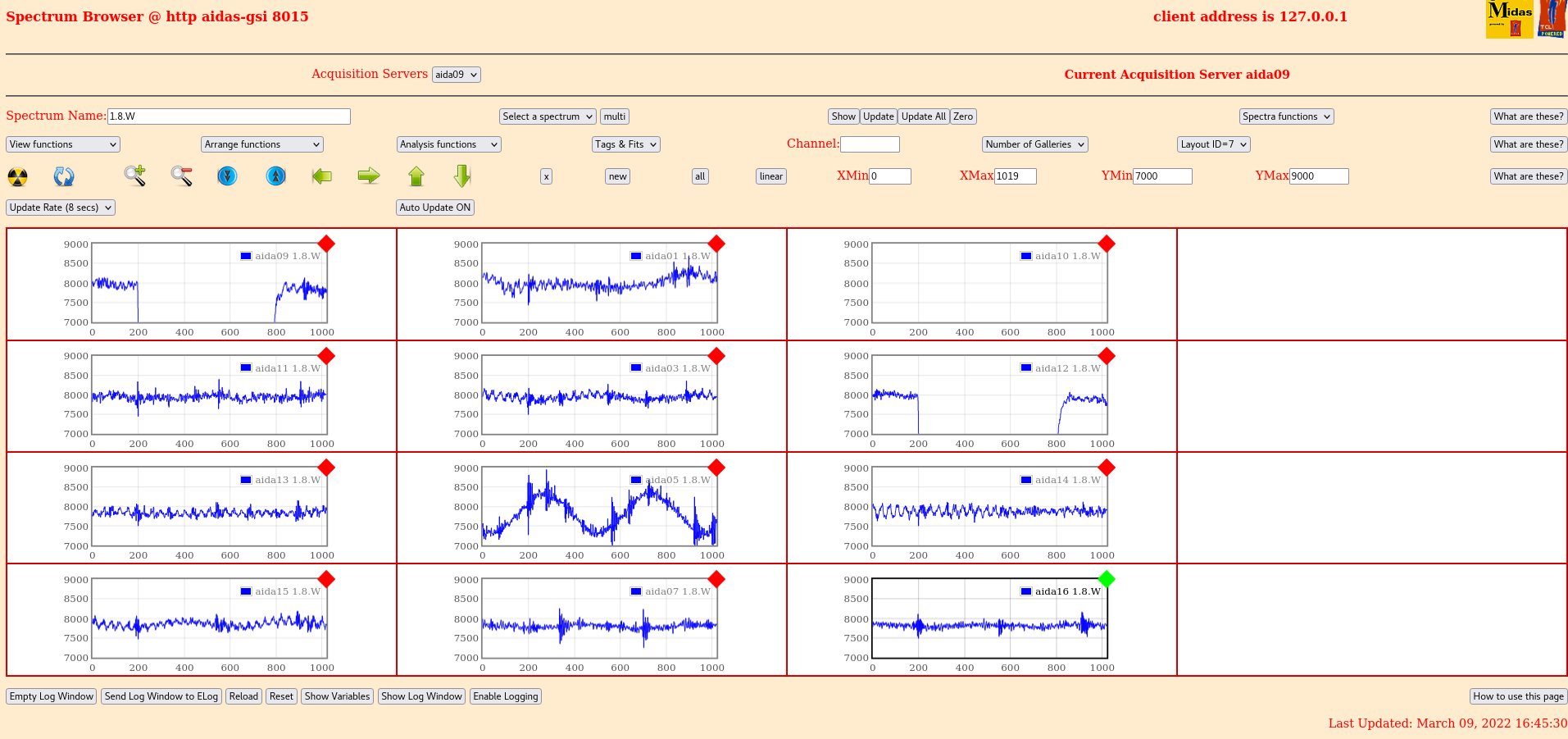

Attachment 18, 19 - Waveforms

aida12 Peak width =    71.28
aida02 Peak width =   458.18

Remove LK3 jumpers

aida12 Peak width =    71.43
aida02 Peak width =   496.05

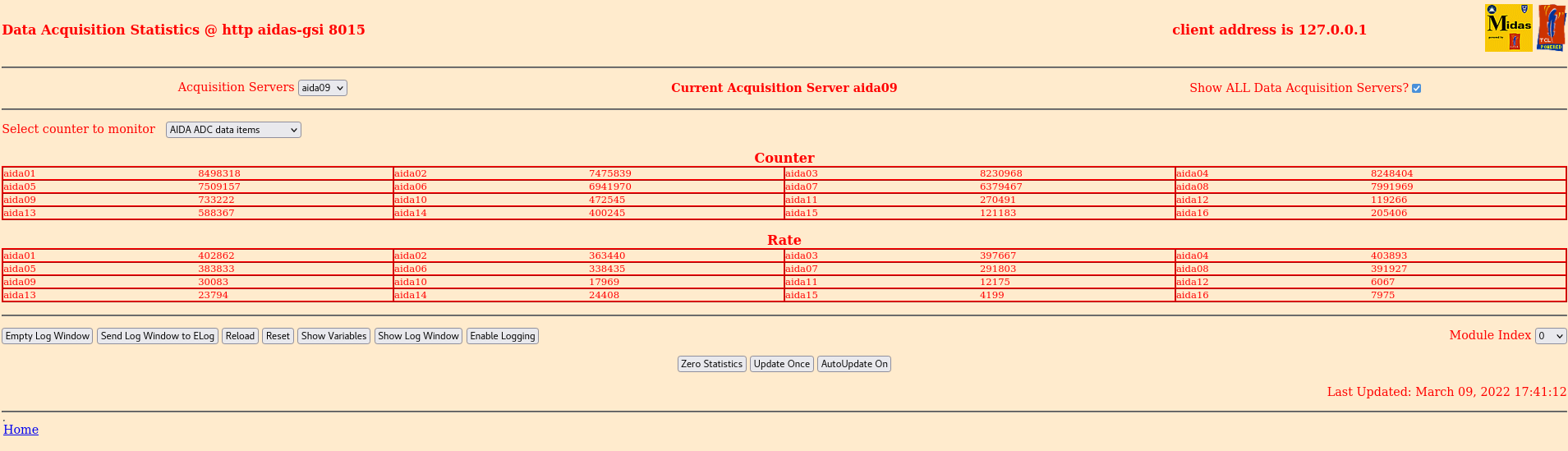

Attachment 20 - Stats
Attachment 21 - Per FEE Rates

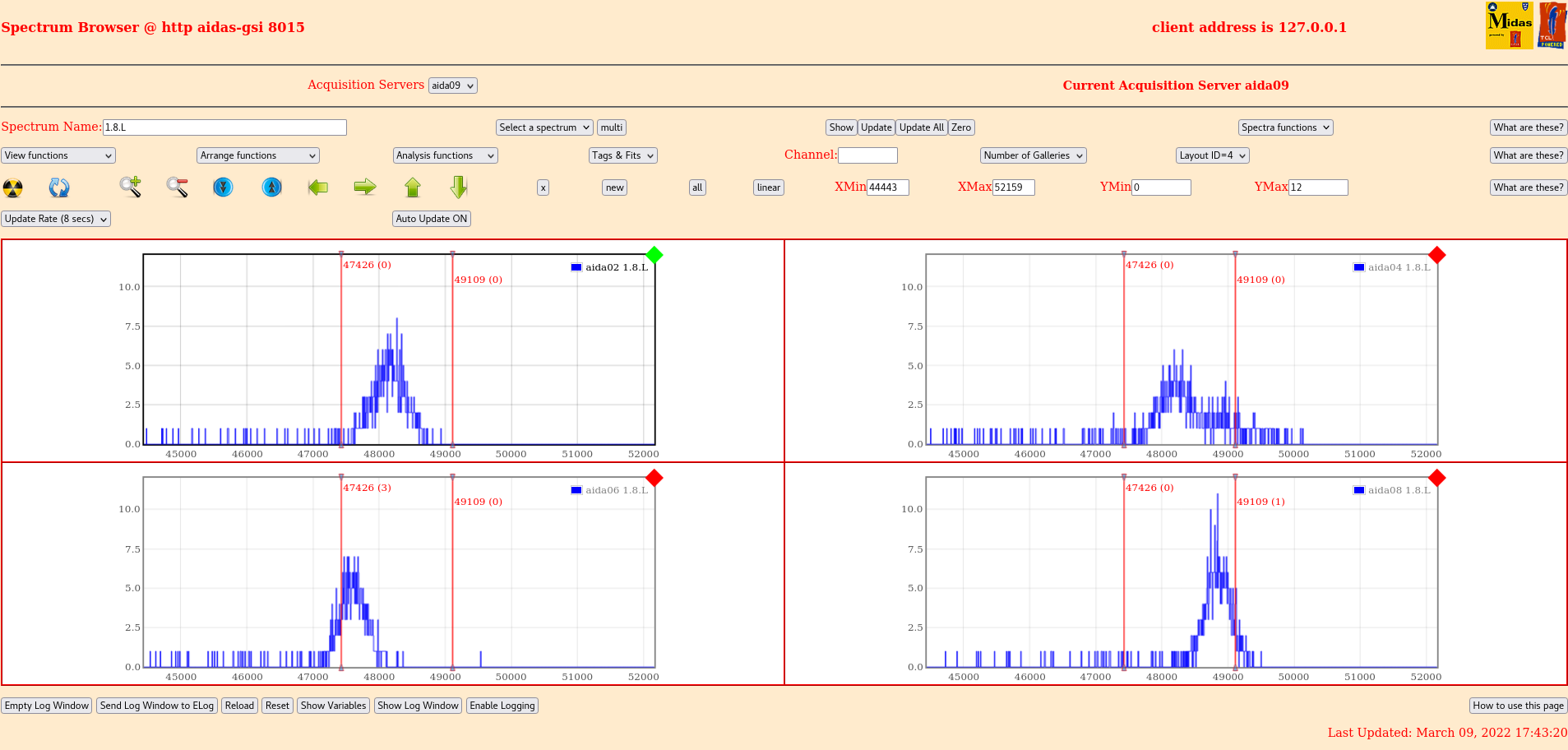

Attachment 22, 23 - Pulser Peaks
Attachment 24, 25 - Waveforms

Re-add jumpers - attachments 26-28

aida12 Peak width =    87.42
aida02 Peak width =   572.24

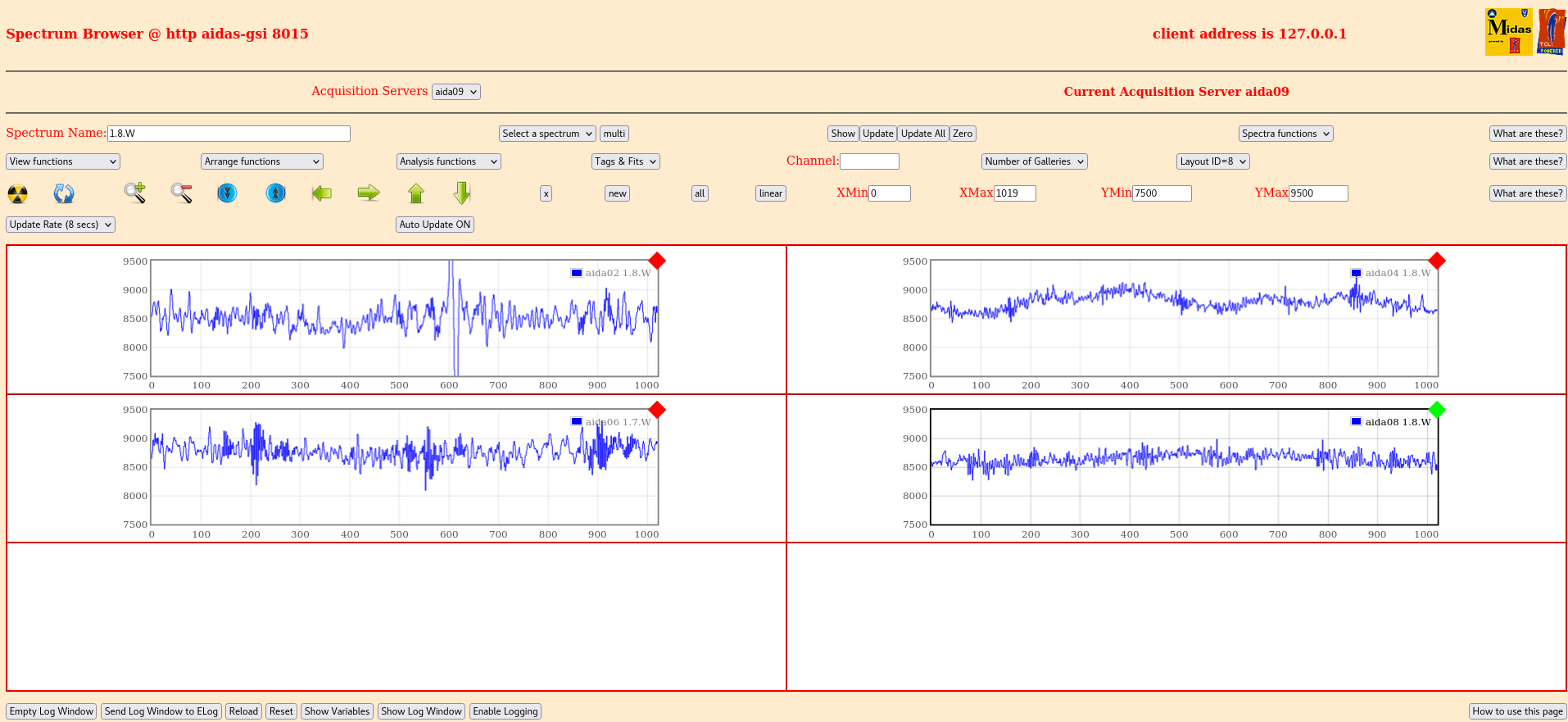

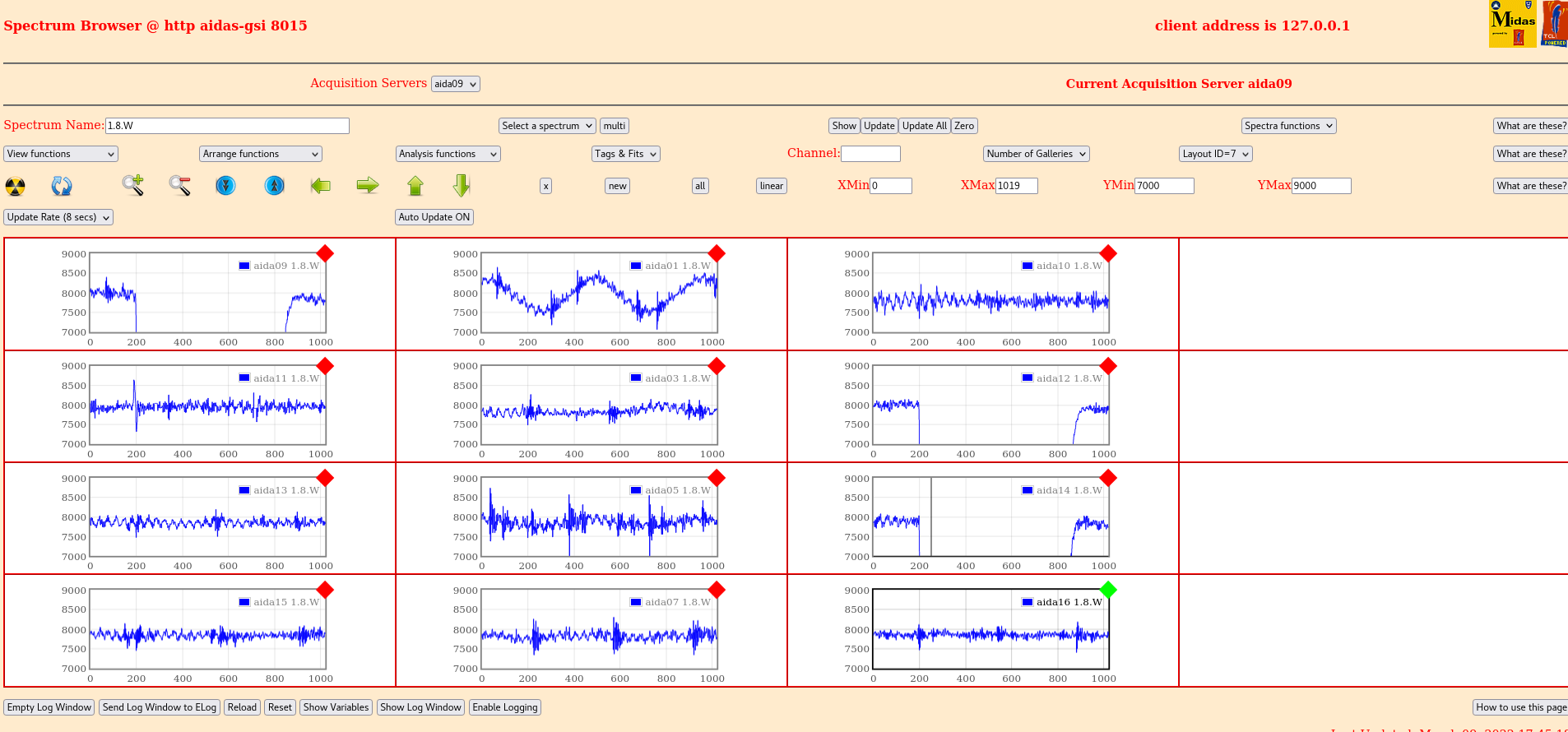

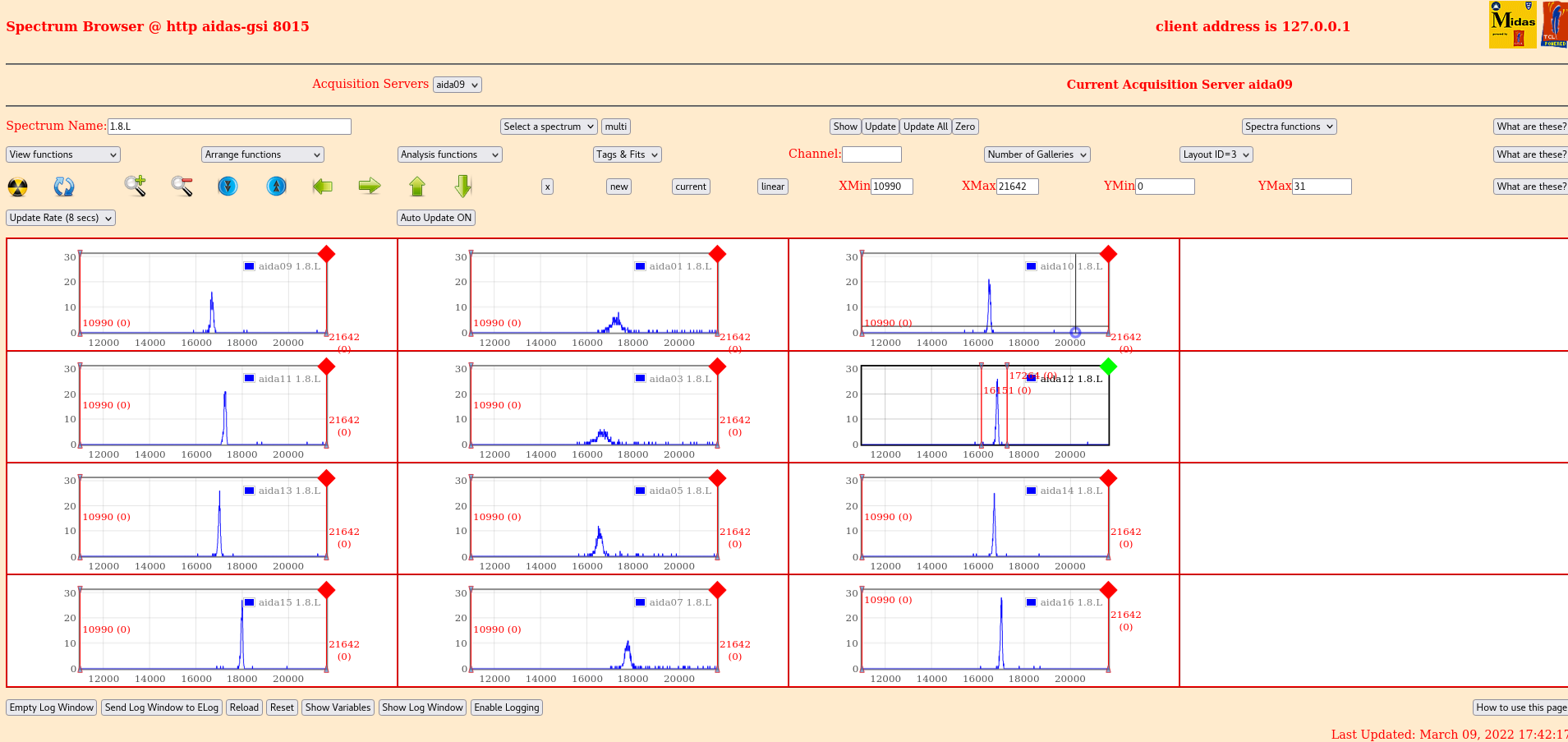

17.45 Directly bias from the p+n FEEs using SHV->BNC->Lemo - attachments 29-33

aida12 Peak width =    87.87
aida02 Peak width =   504.41

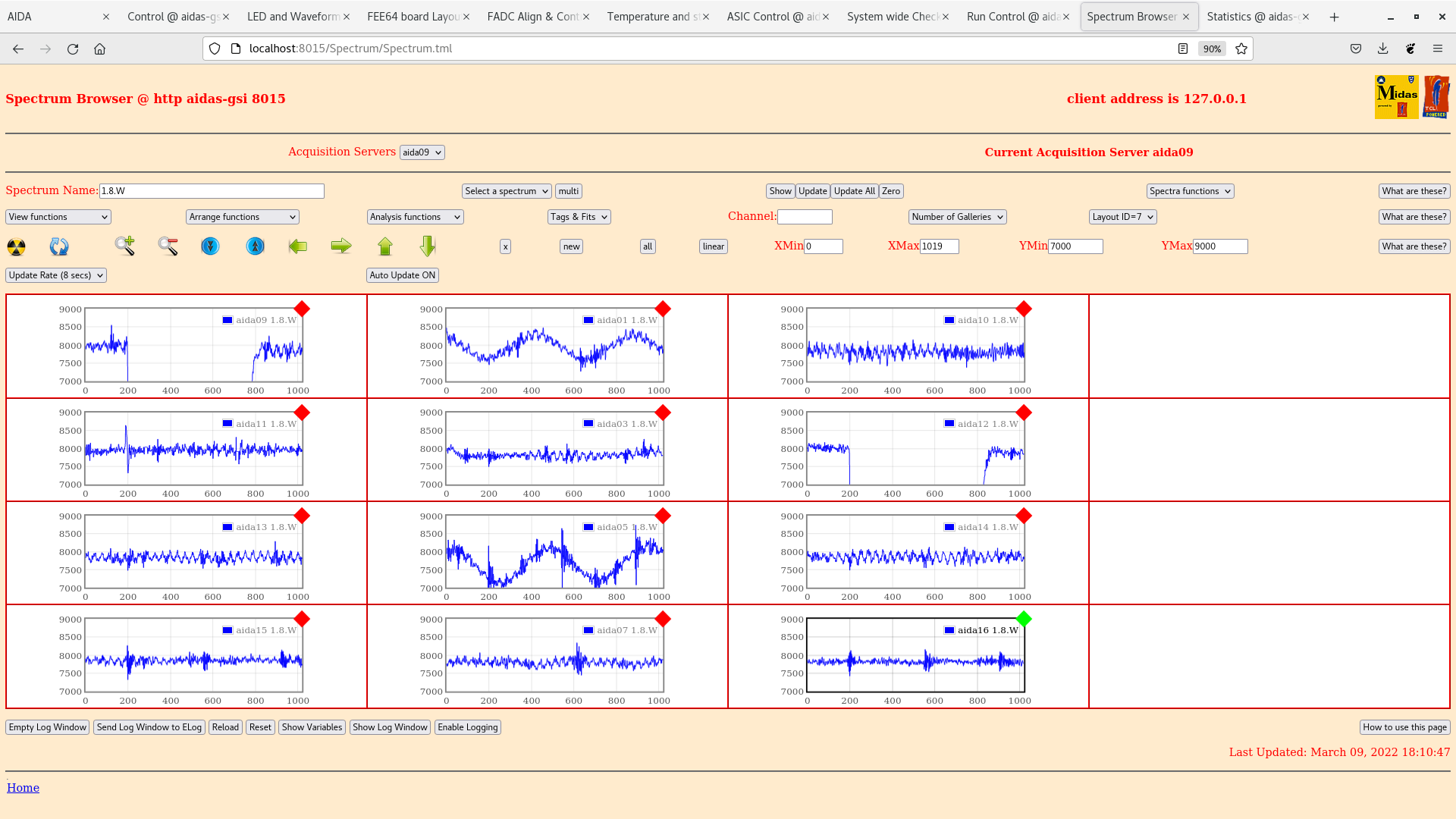

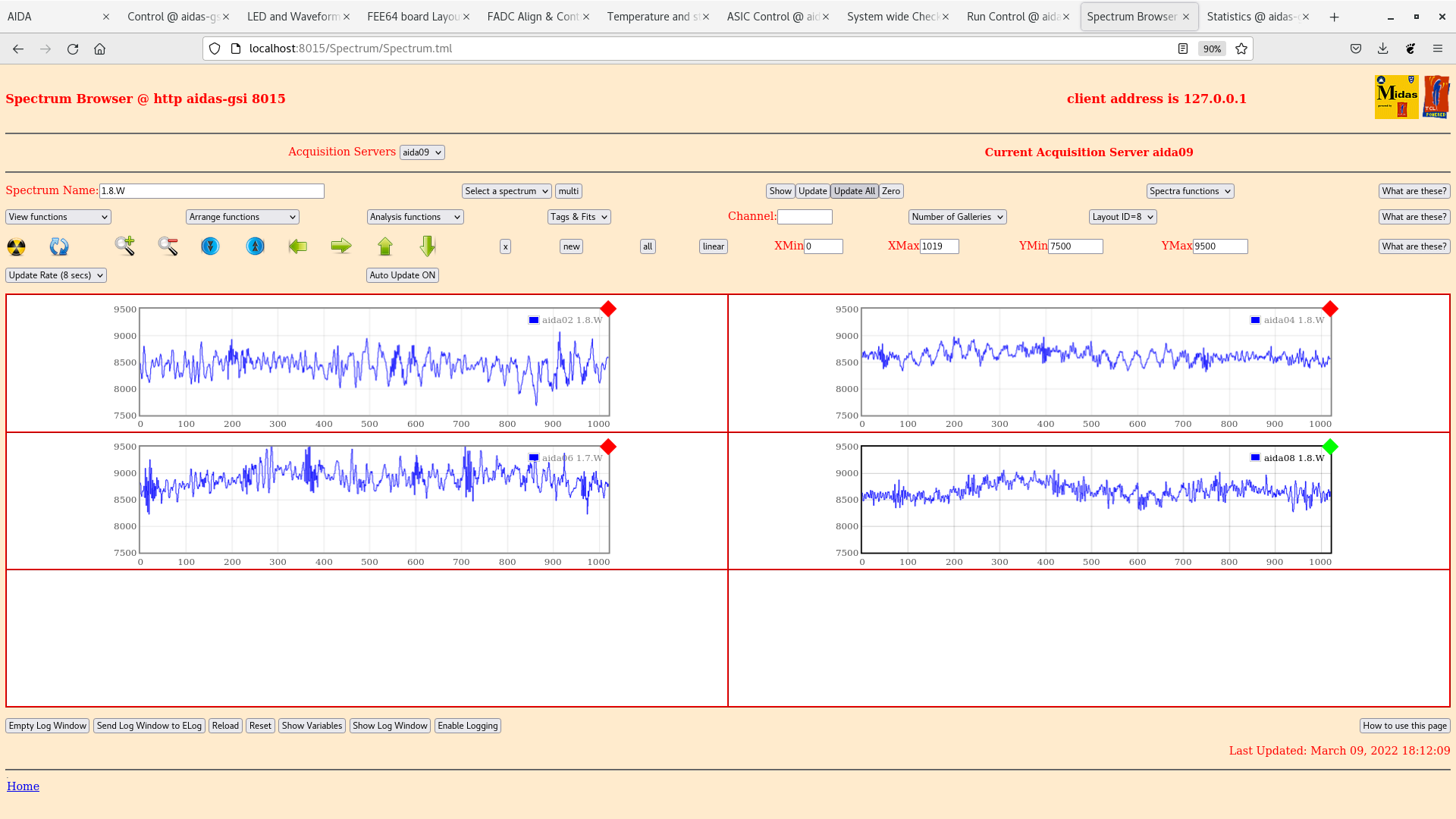

The correlation between high 'ADC data item' rate and the noise observed on the corresponding 1.8.W spectrum is not clear *except* for aida01 & aida05 - see also attachments 34-35

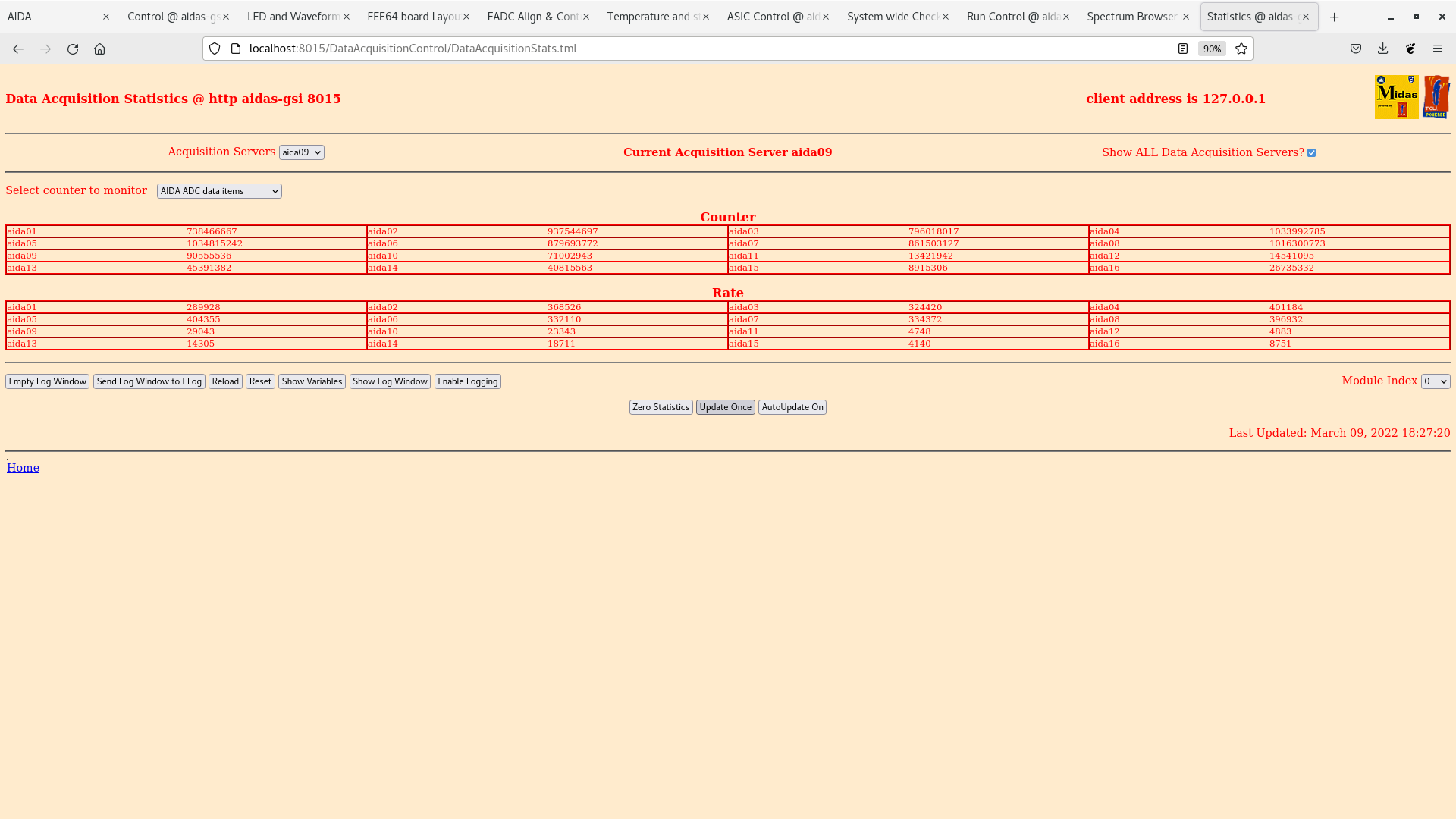

ADC data item stats - attachment 36

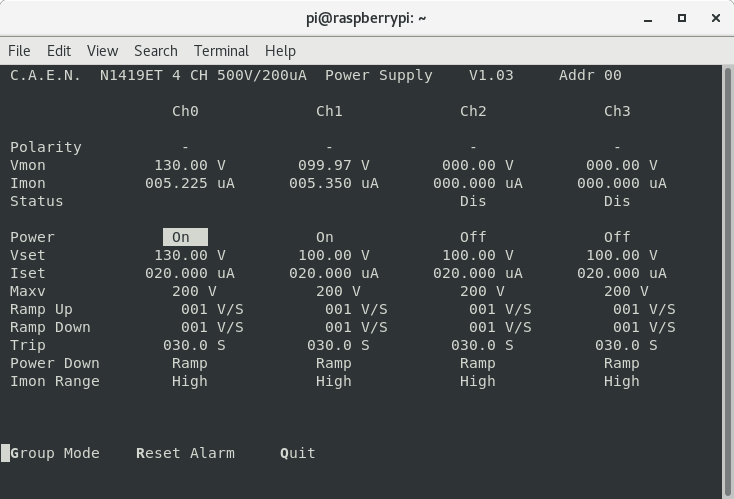

DSSSD bias & leakage current OK - attachment 37

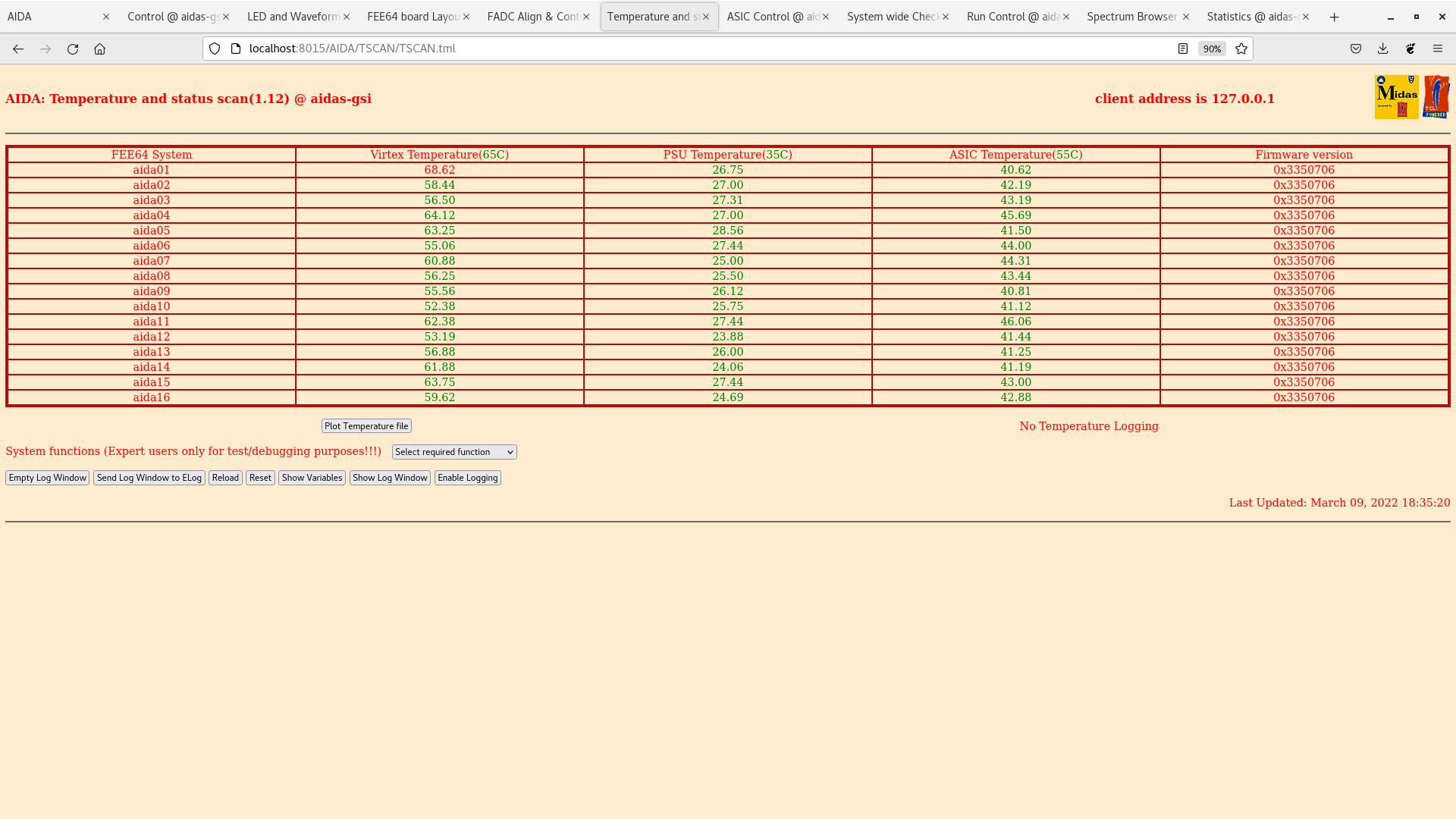

FEE64 temperatures OK - attachment 38

all system wide checks OK *except aida11 clock fail status 6
