Entry time:
Mon Apr 4 09:19:49 2022
Author
*
:
Subject
*
:

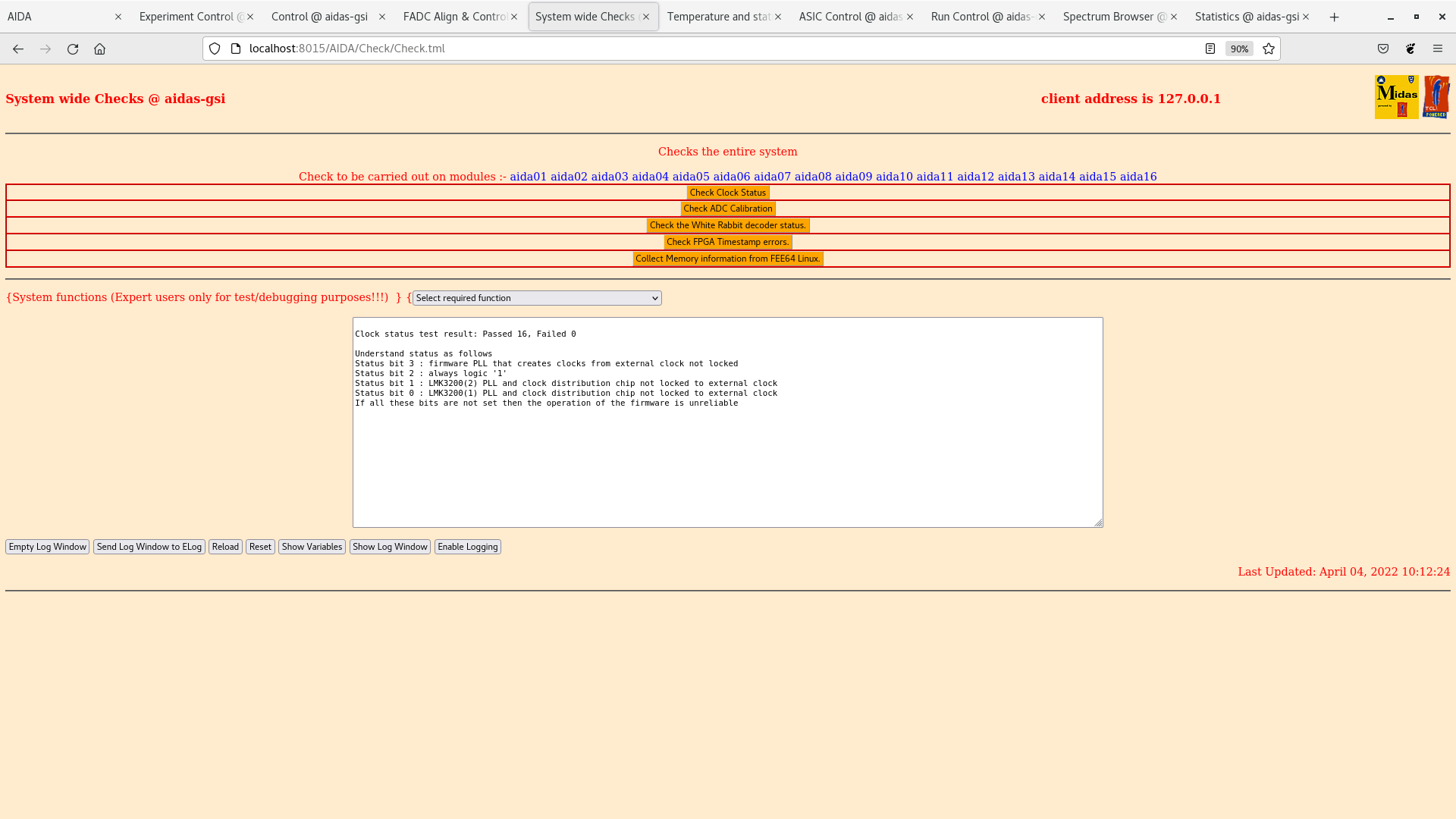

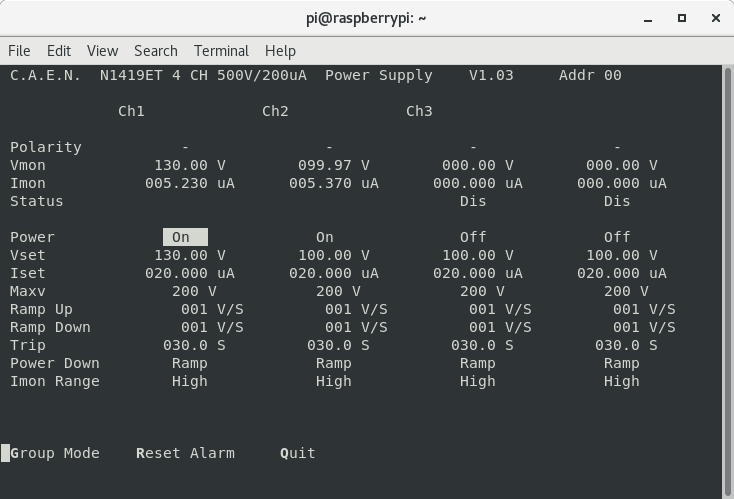

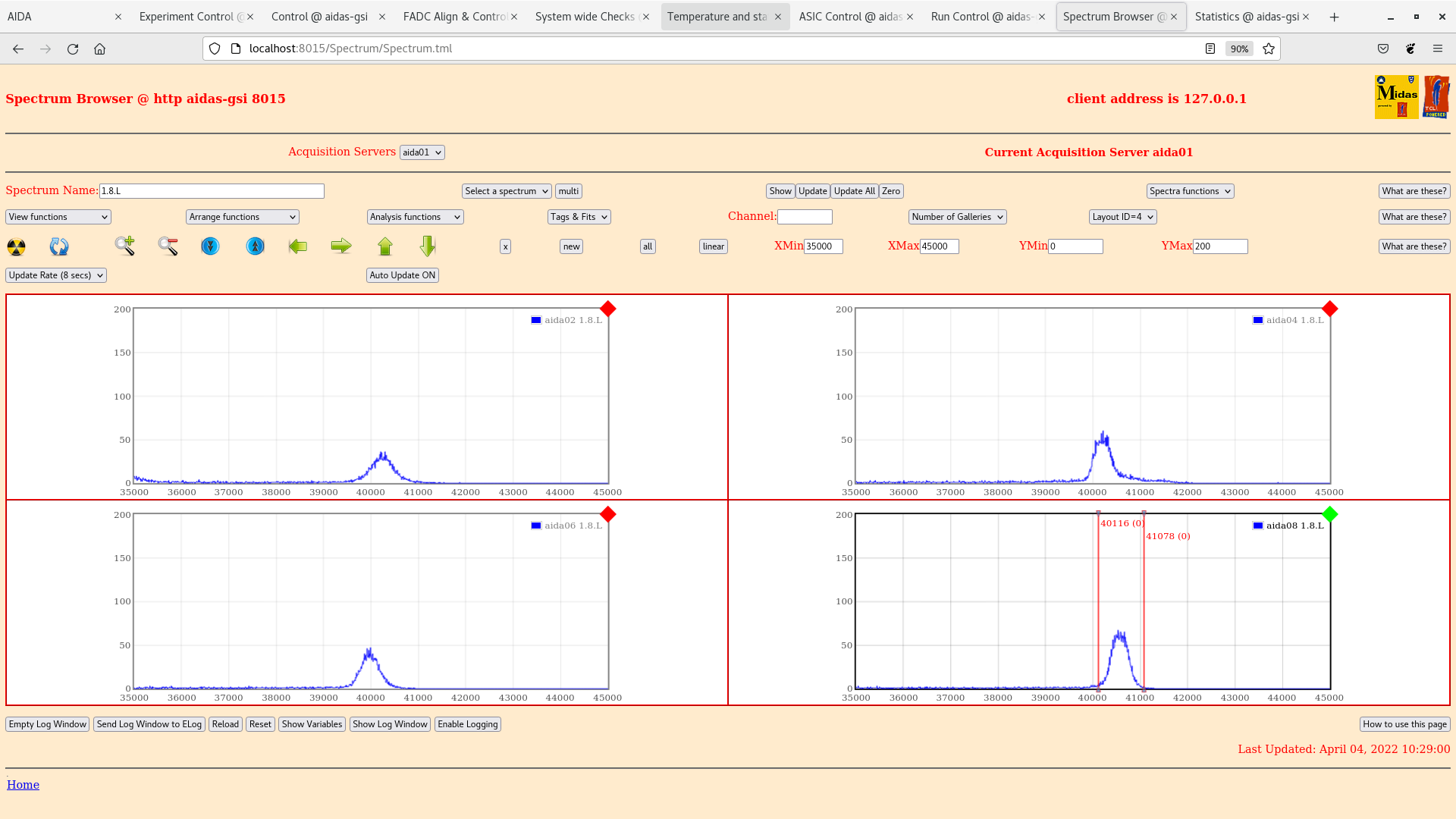

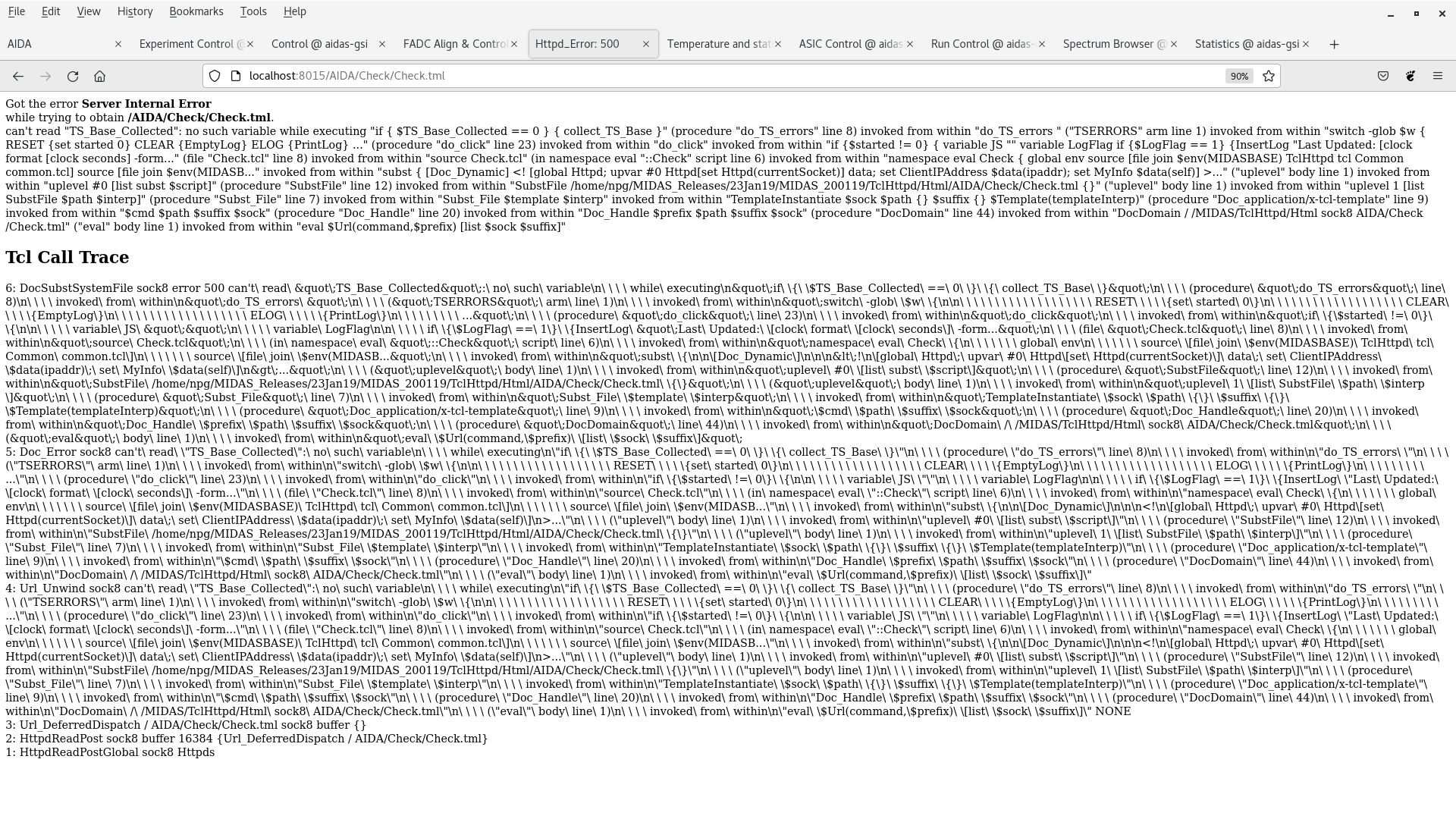

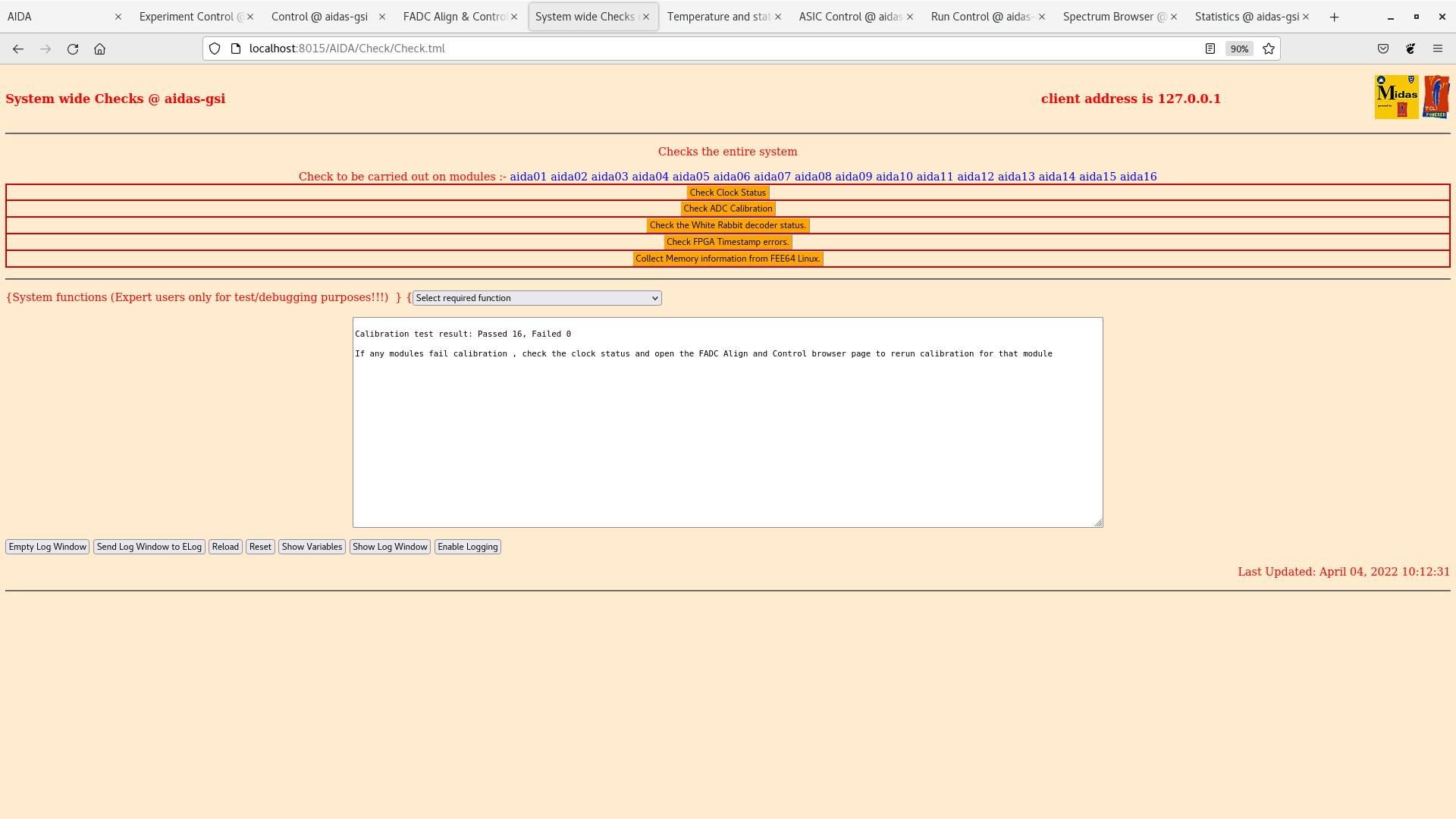

AIDA adaptor PCB config - all LKs removed *except* aida04 & aida08 LK1 aida02 & aida07 LK2, LK3 & LK4 aida09, aida01, aida10, aida11, aida15, aida12 & aida16 LK2 & LK4 10.05 check all ASICs all FEE64s zero histograms Attachment 1 per FEE64 rate spectra Attachment 2 per FEE64 p+n 1.8.L spectra - aida10 peak width 79 ch FWHM Attachment 3 per FEE64 p+n 1.8.W spectra 20us FSR Attachment 4 per FEE64 n+n 1.8.W spectra 20us FSR Attachments 5-8 - system wide checks - all OK *except* FPGA timestamp errors no longer works aida05 & aida09 report WR decoder error 0x10 Attachment 9 ADC data item stats Attachment 10 FEE64 temps OK Attachment 11 DSSSD bias & leakage current OK Attachment 12 per FEE64 n+n 1.8.L spectra - aida08 peak width 369 ch FWHM 14.25 DAQ STOP DSSSD bias OFF AIDA triple snout removed from AIDA stand and moved to table by aida-gsi (Messeheute)
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1080
Attachment 9:
Original size: 1920x1080
Attachment 10:
Original size: 1920x1080
Attachment 11:
Original size: 734x499
Attachment 12:
Original size: 1920x1080
