Entry time:
Thu Apr 7 12:42:14 2022
Author
*
:
Subject
*
:

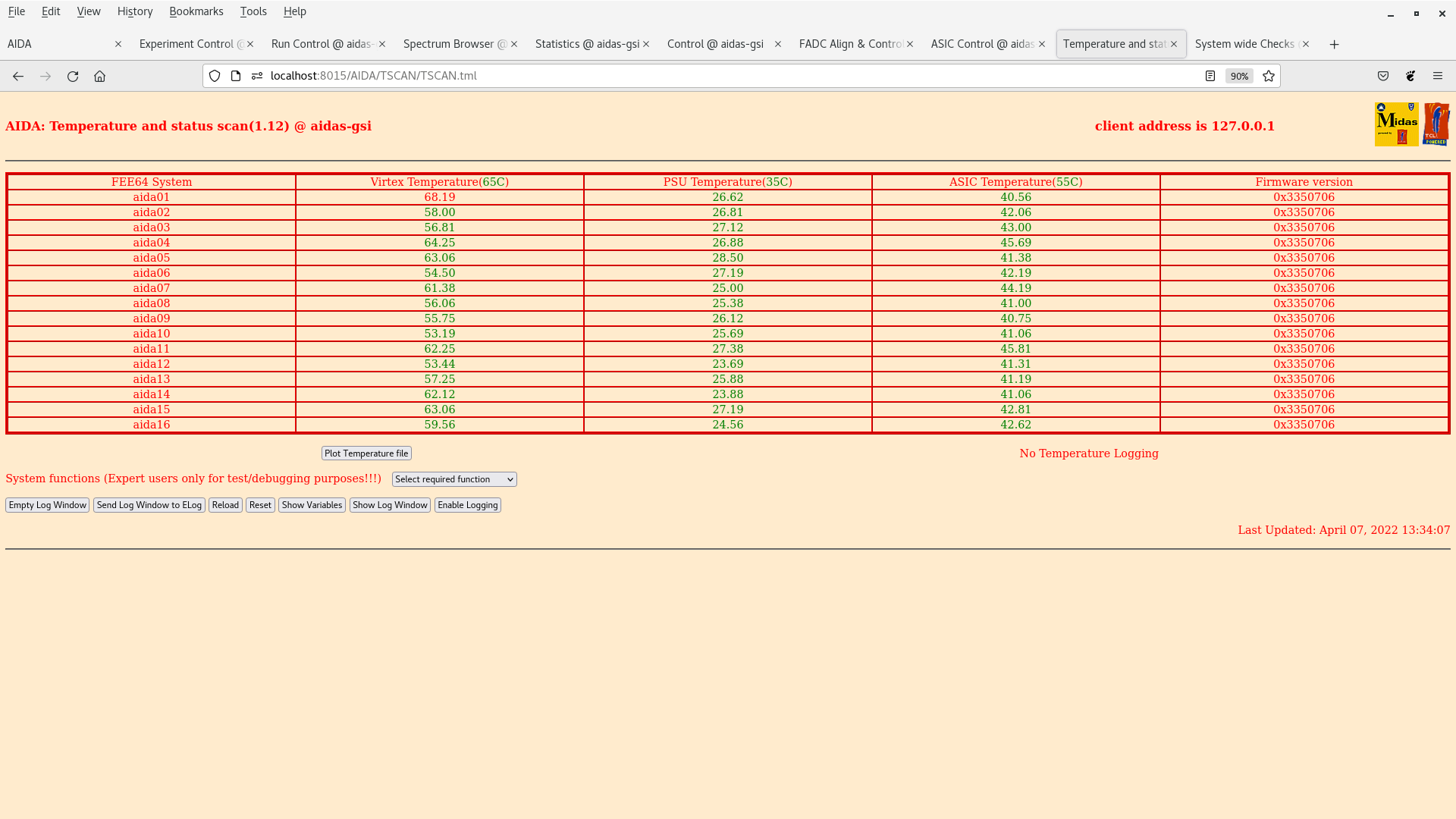

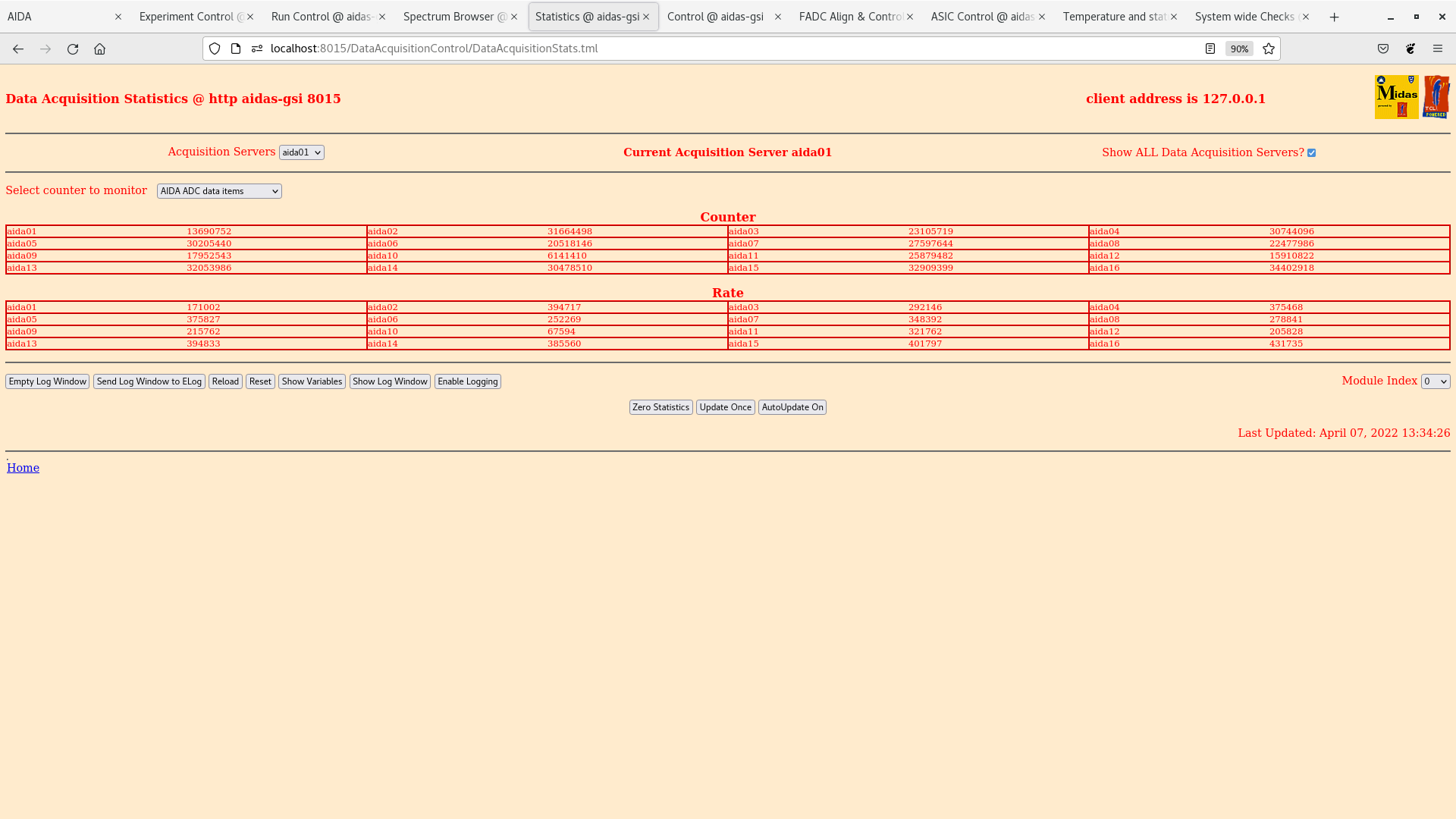

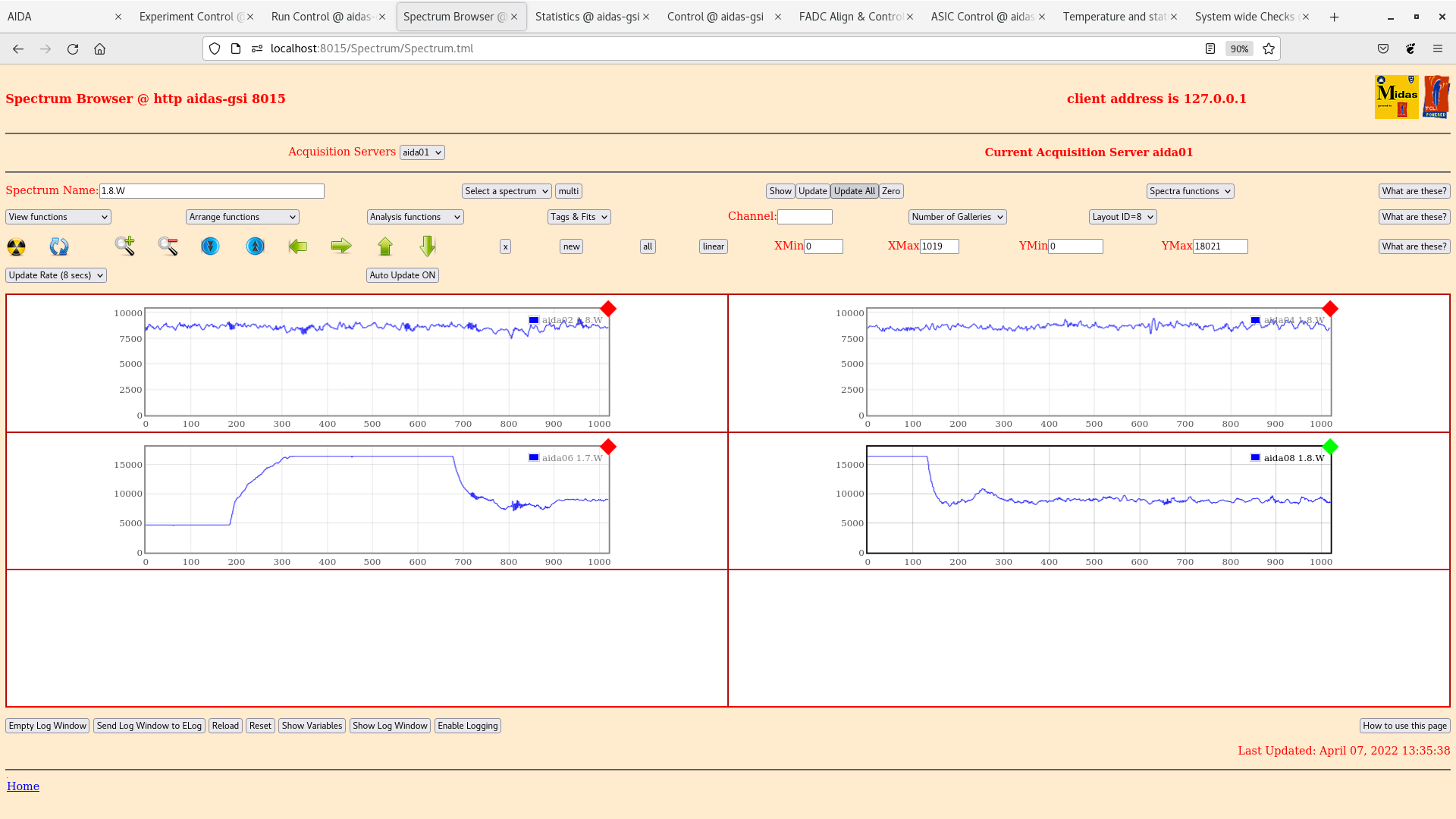

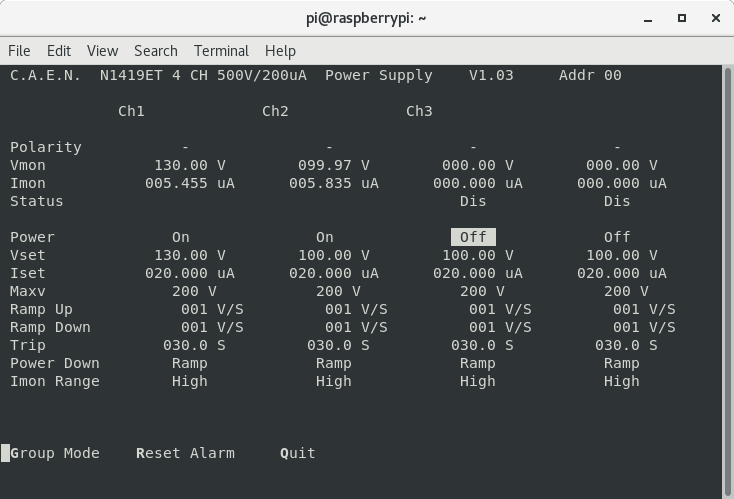

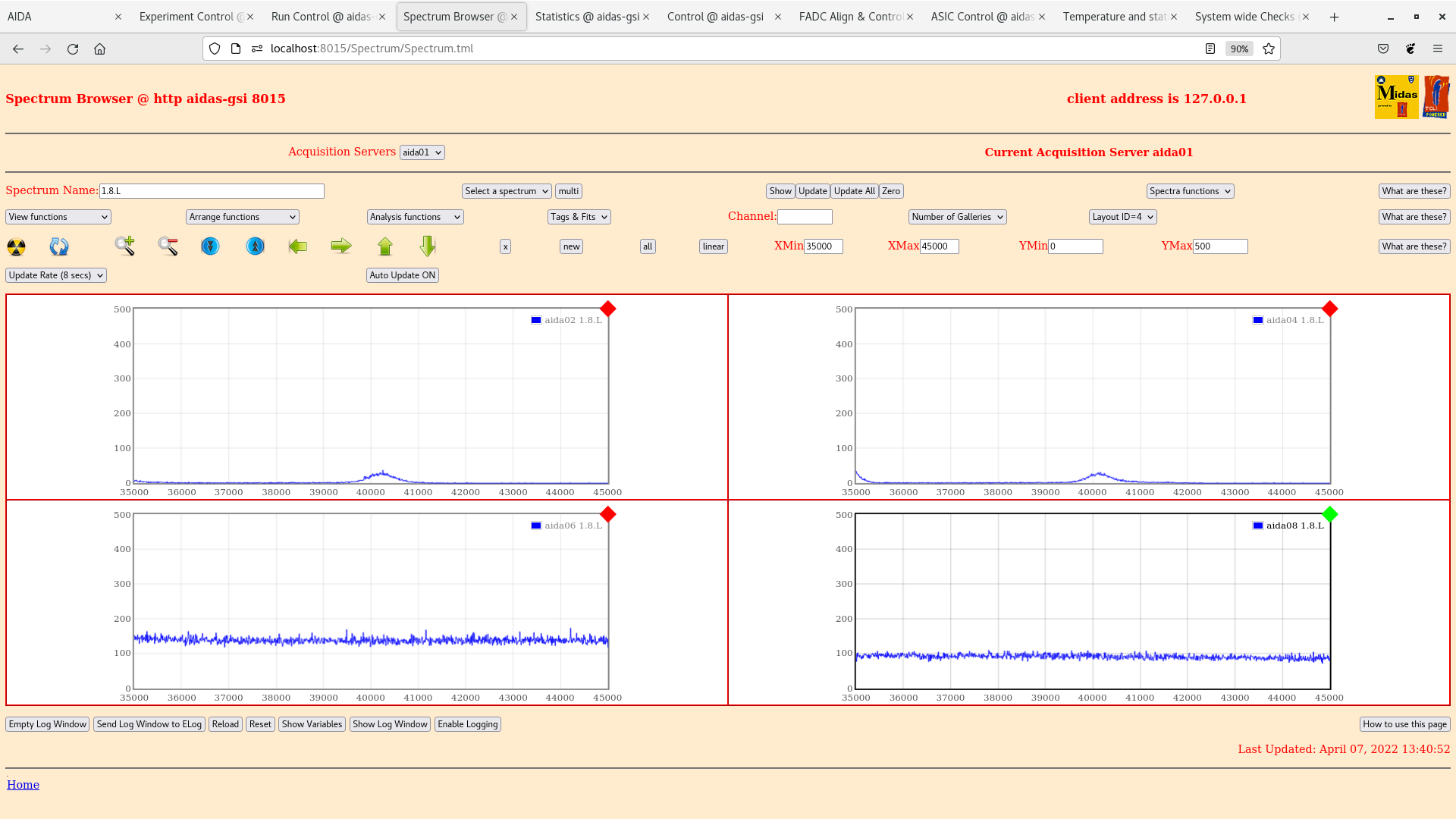

Re-assembled triple snout re-installed on the AIDA stand - DSSSD ribbon cables and grounds re-connected. FEE64 adaptor PCB LKs per https://elog.ph.ed.ac.uk/DESPEC/409 Attachments 1 & 2 1.8.L spectra p+n FEE64 aida10 pulser peak width 97 ch FWHM n+n FEE64 aida04 pulser peak width 550 ch FWHM Attachment 3 rate spectra missing channels aida01, aida07 & aida11 - misaligned ERNI and/or Samtec connectors? Attachments 4 & 5 1.8.W spectra Attachment 6 ADC data item rates aida10 OK, all others c. 300-400k Attachment 7 FEE64 temperatures OK Attachment 8 DSSSD bias & leakage currents OK
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 734x499
