Entry time:
Wed May 4 16:50:04 2022
Author
*
:
Subject
*
:

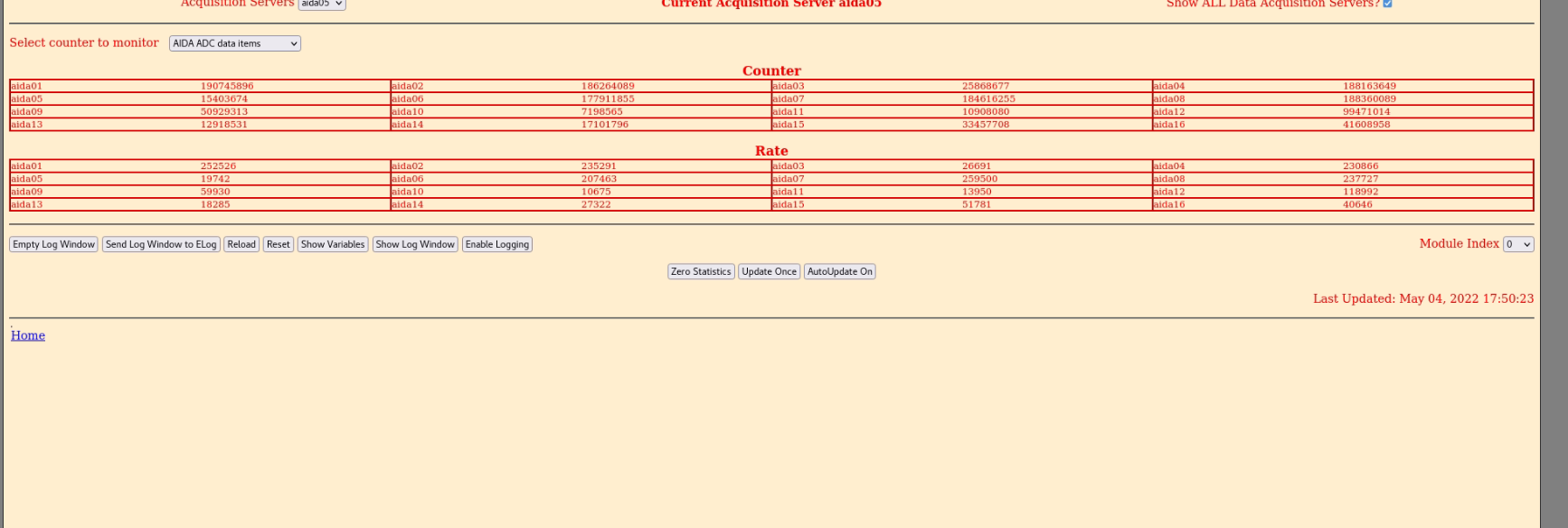

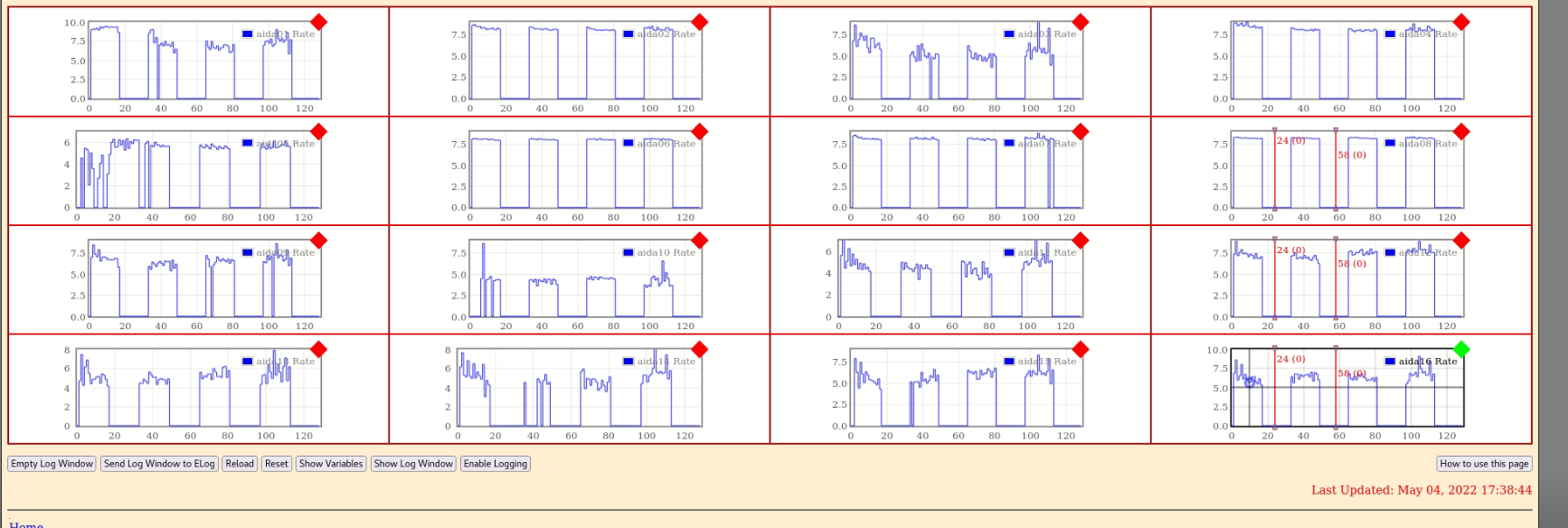

bPlas has been mostly cabled in now Reseat LAN cable (AIDA Switch -> AIDA-3) and reachieve 1 gbit/s speed as needed. CHeck DAQ with MBS, working well (16 MB/s). Performance seems better than before on MBS side too Note implant counts in aida05, observable in rate spectra (fig 1) Also a few early channels in aida10 seem empty ASIC check-loads didn't fix Try powercycle... also didn't fix Tomorrow will inspect adapter board and ribbon cable, perhaps it is loose. Absolute rates otherwise seem OK (fig 2) aida01 and aida07 are both very hot. aida01 is usually quieter but aida07 has always been observed running fast
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1734x584
Attachment 2:
Original size: 1734x584
