09.32 Re-start AIDA

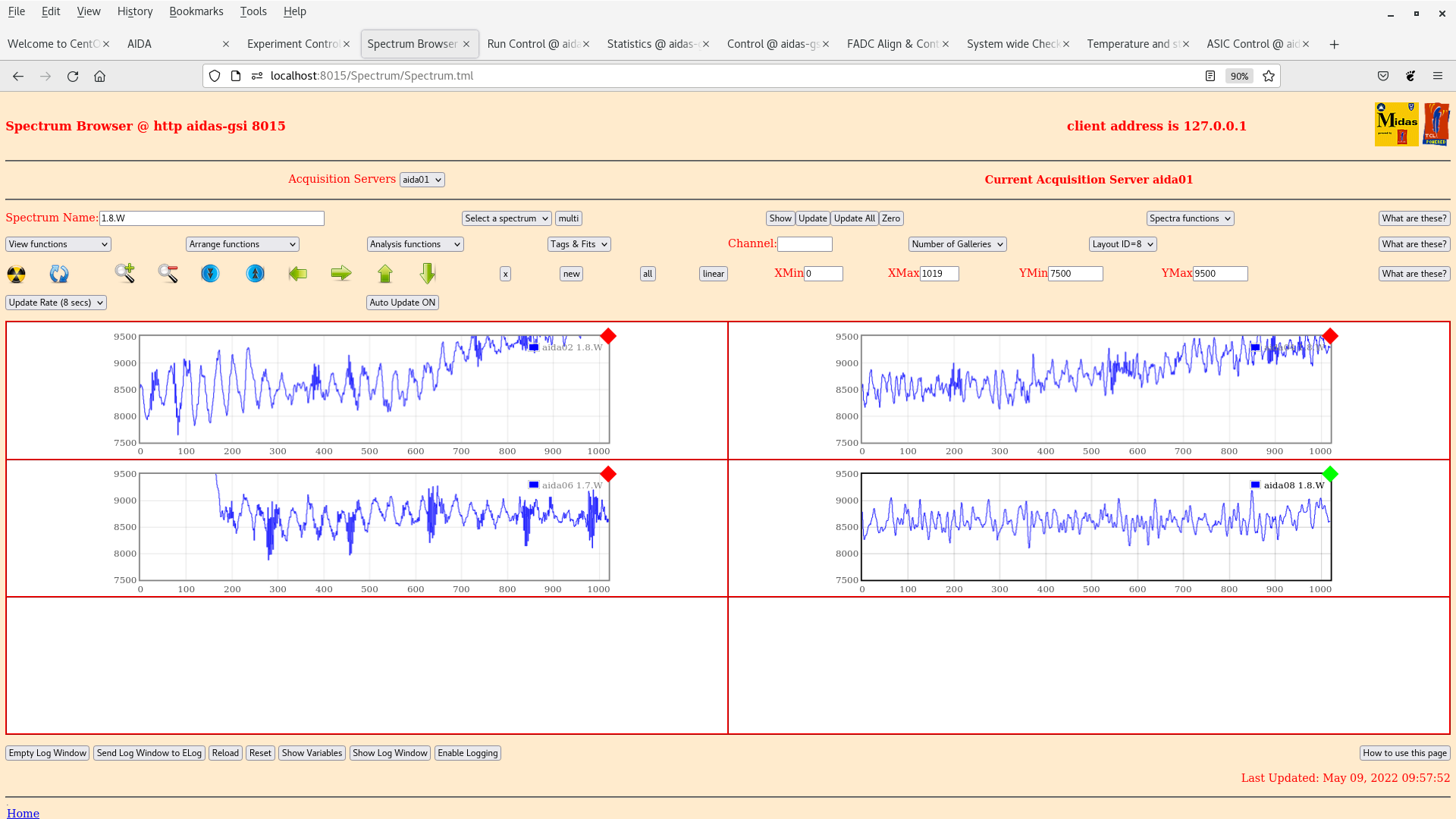

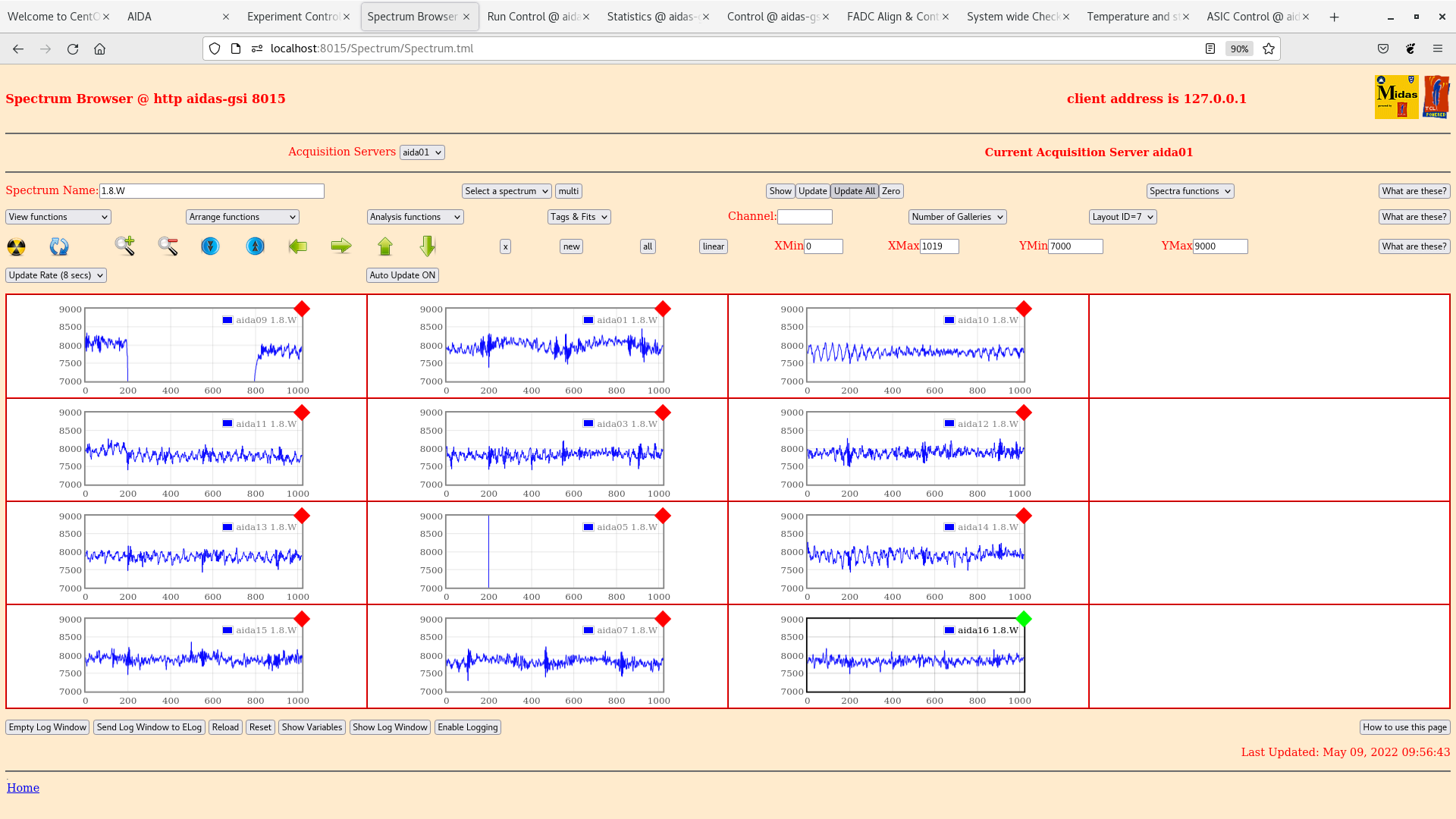

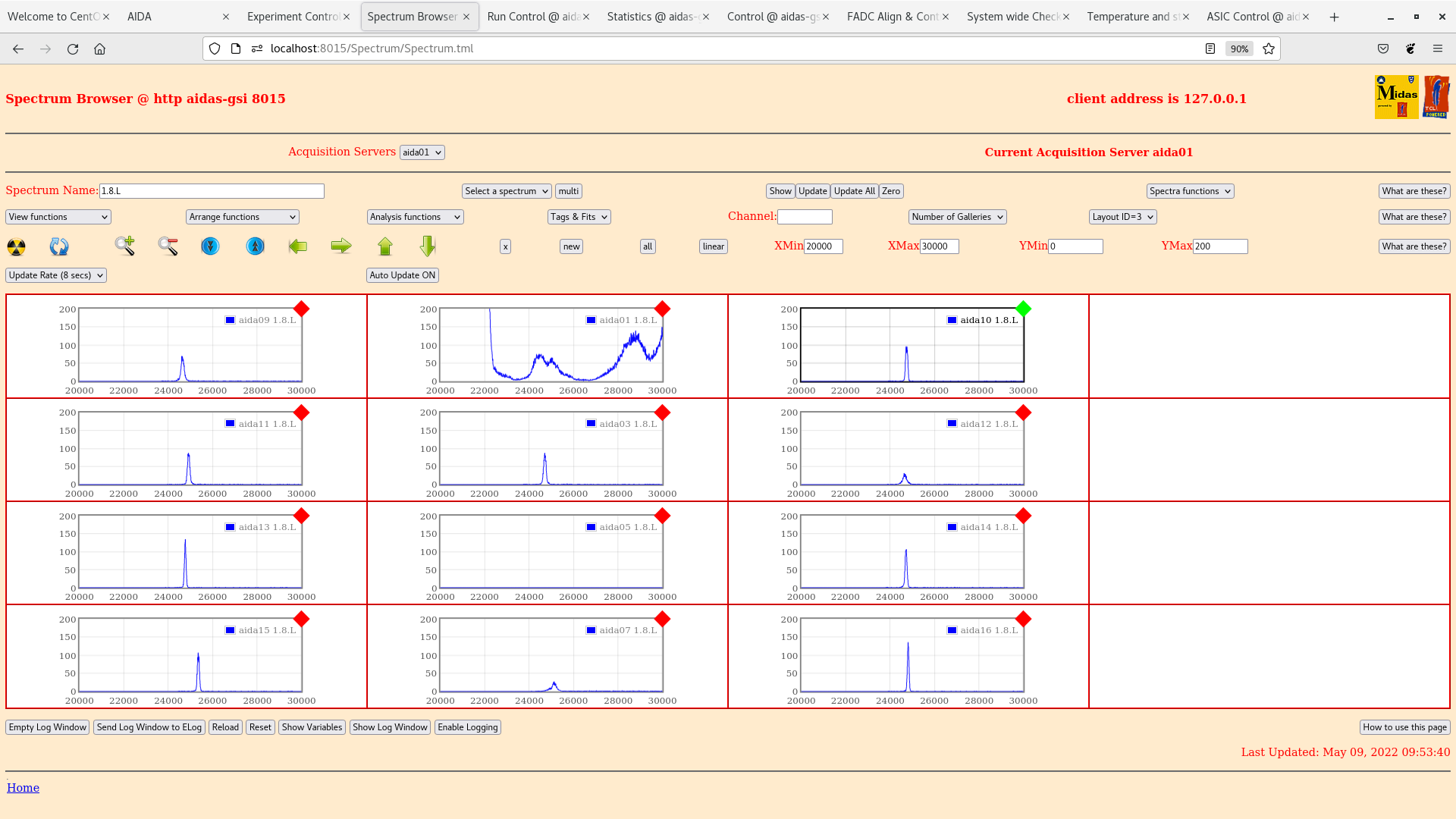

Attachments 1 & 2 1.8.W spectra 20us FSR

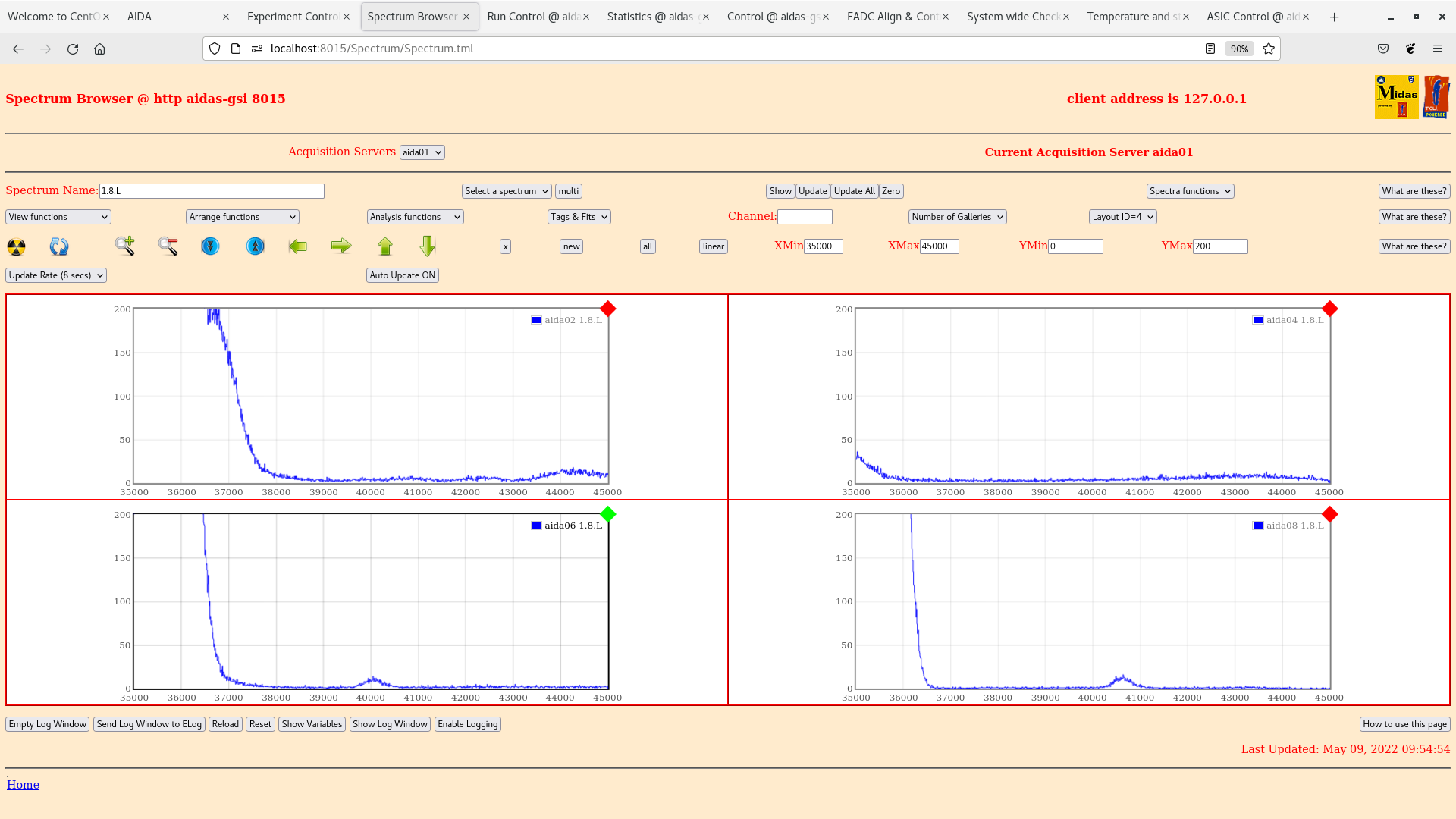

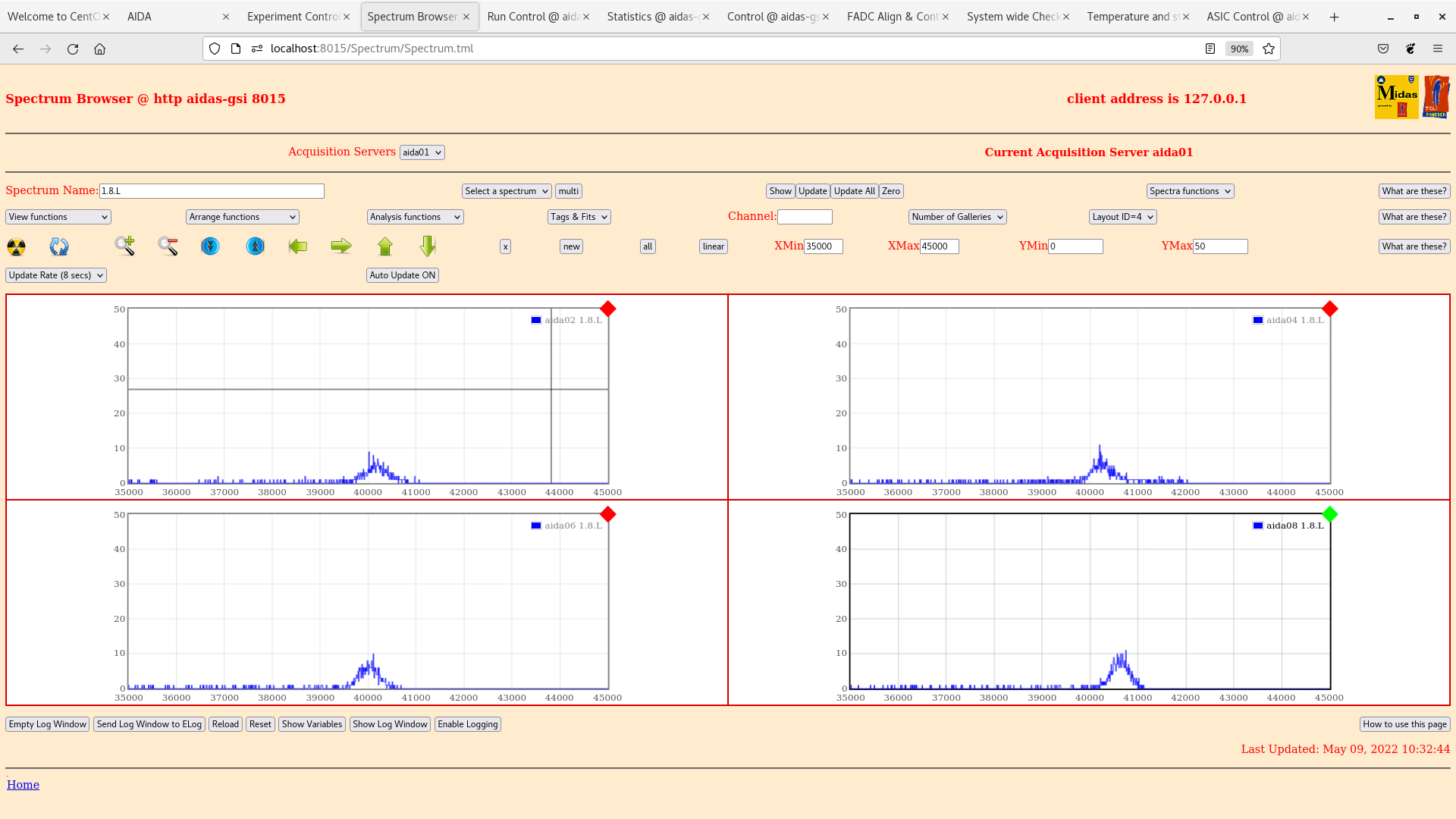

Attachments 3 & 4 1.8.L spectra
 aida10 98ch FWHM
 aida06 384 ch FWHM

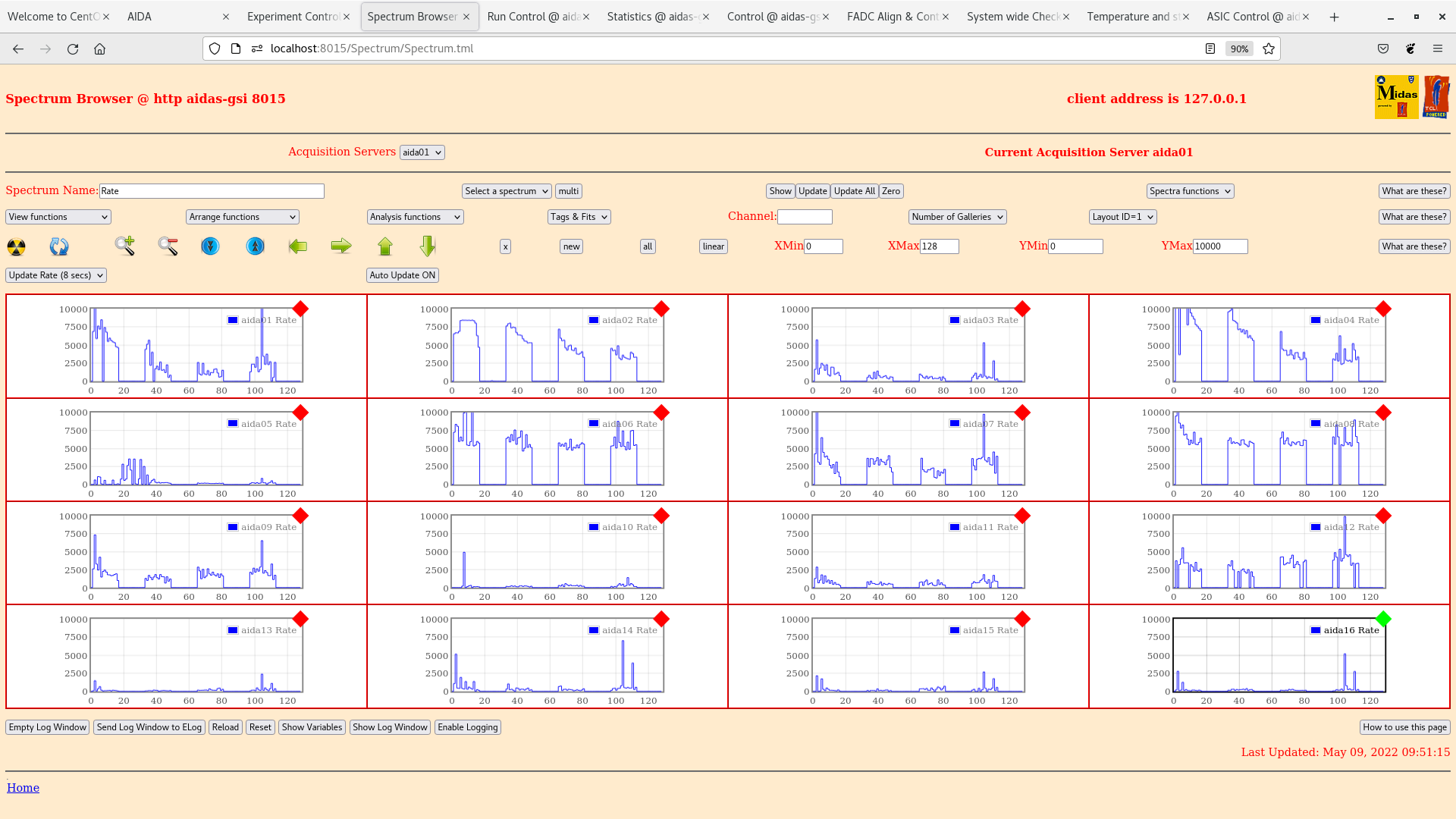

Attachment 5 per FEE64 rate spectra

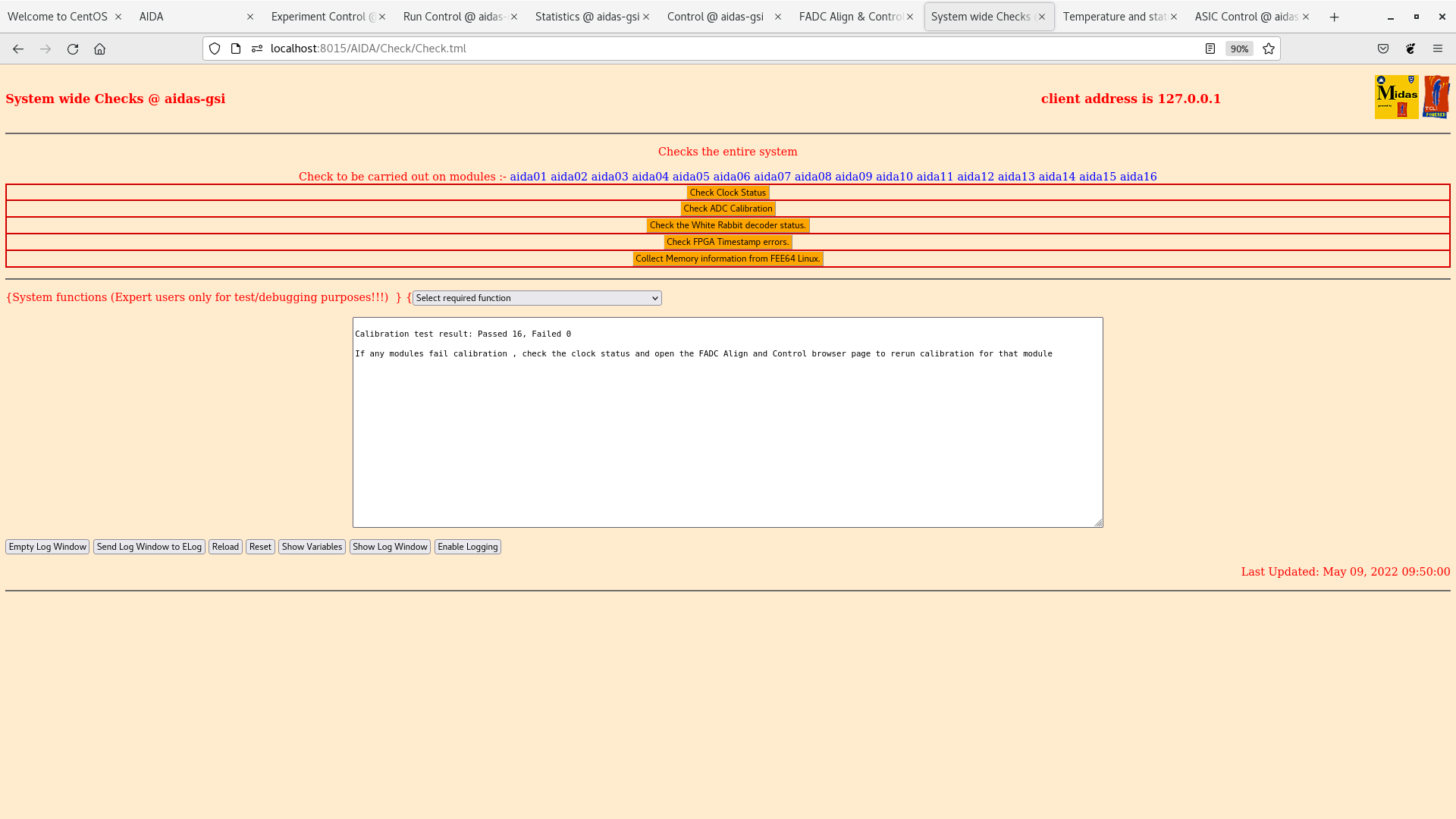

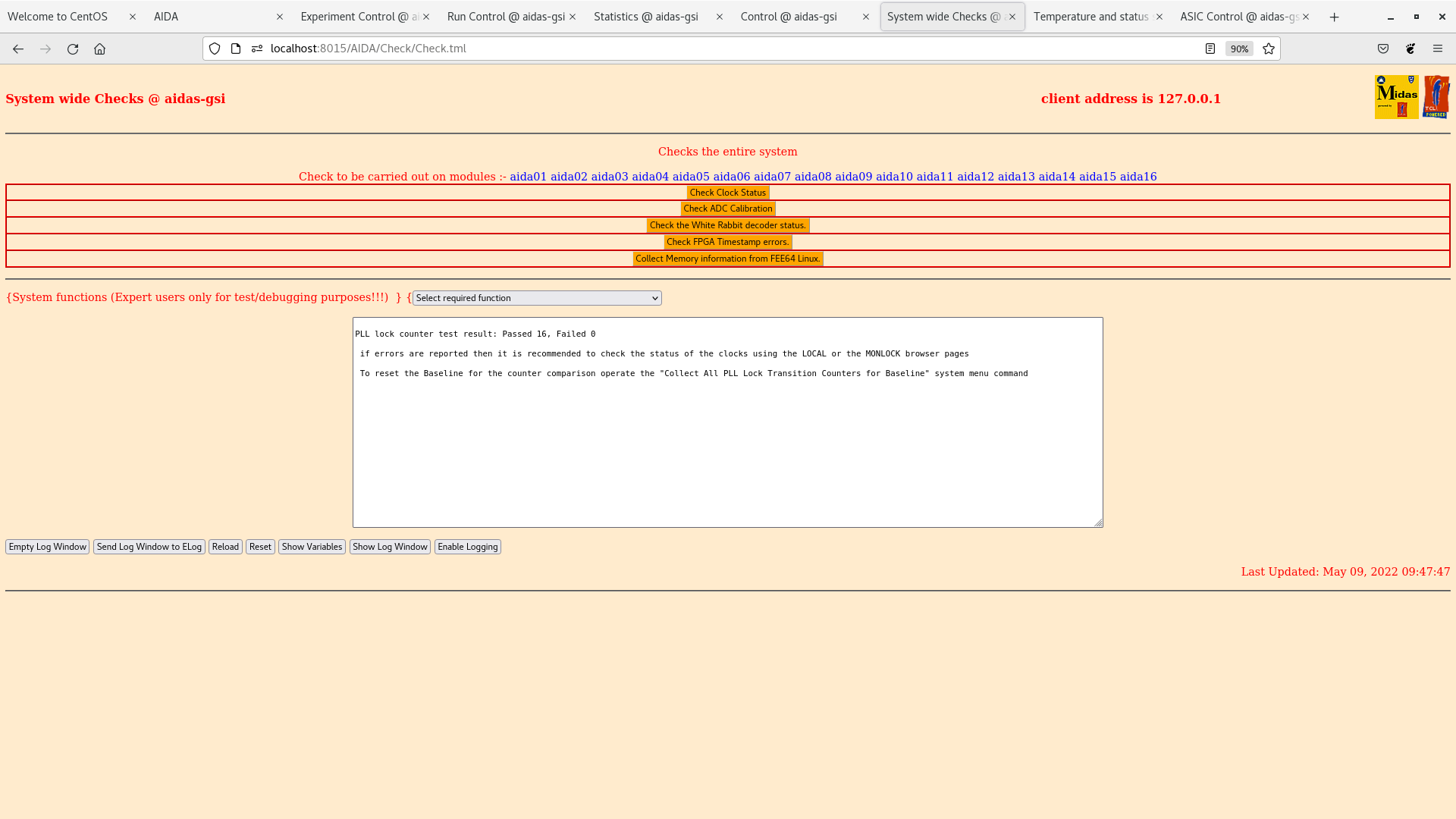

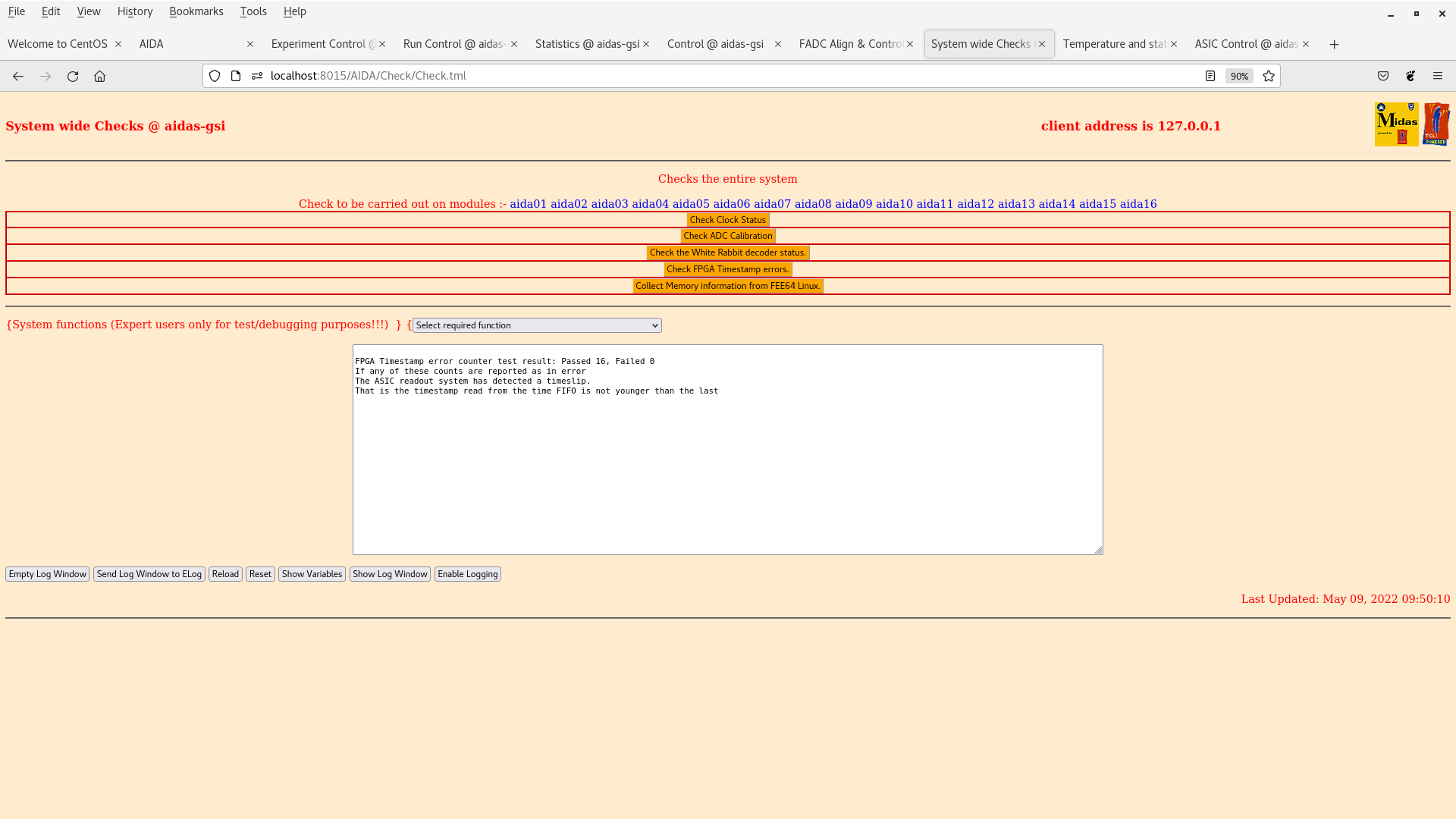

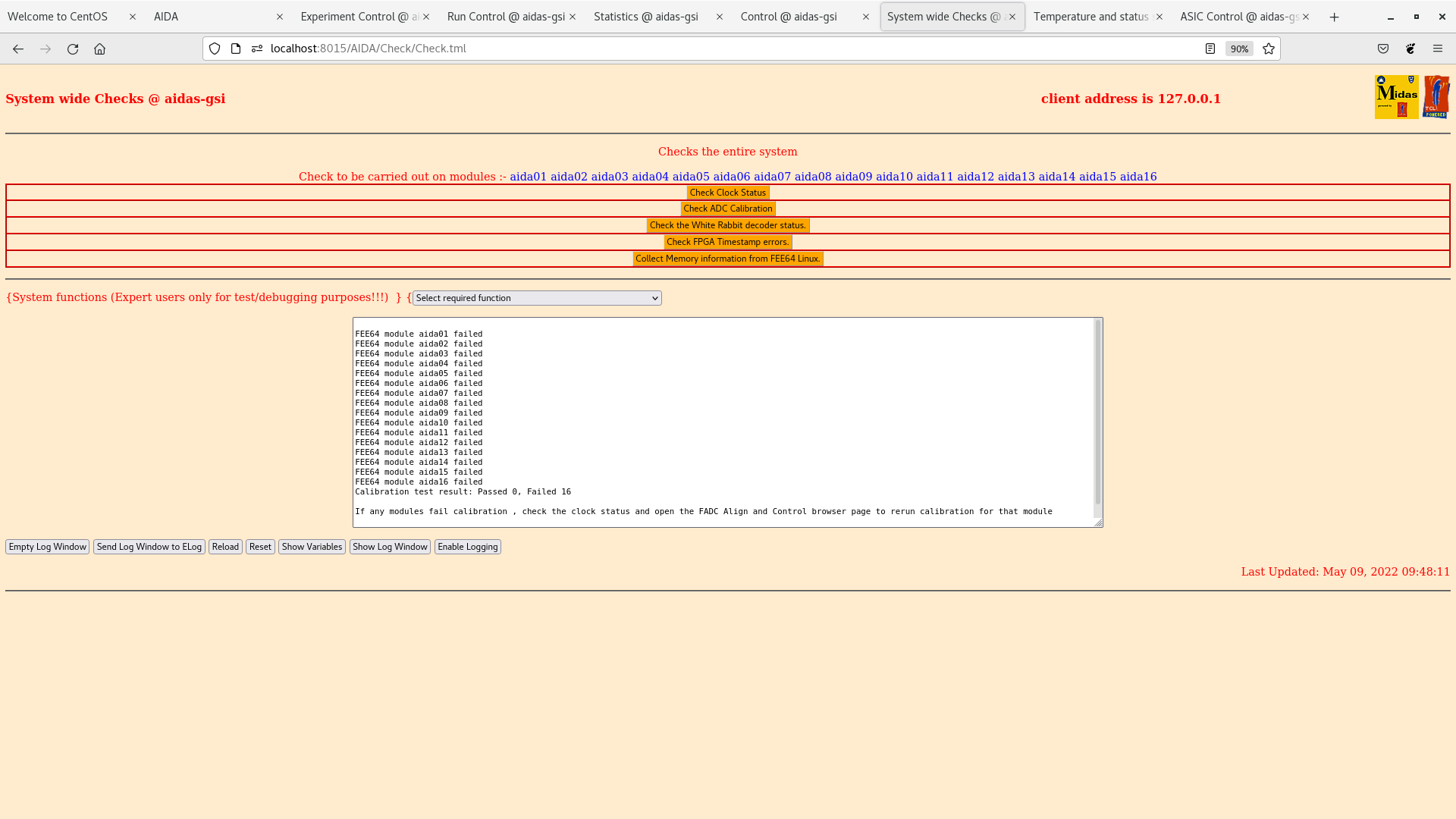

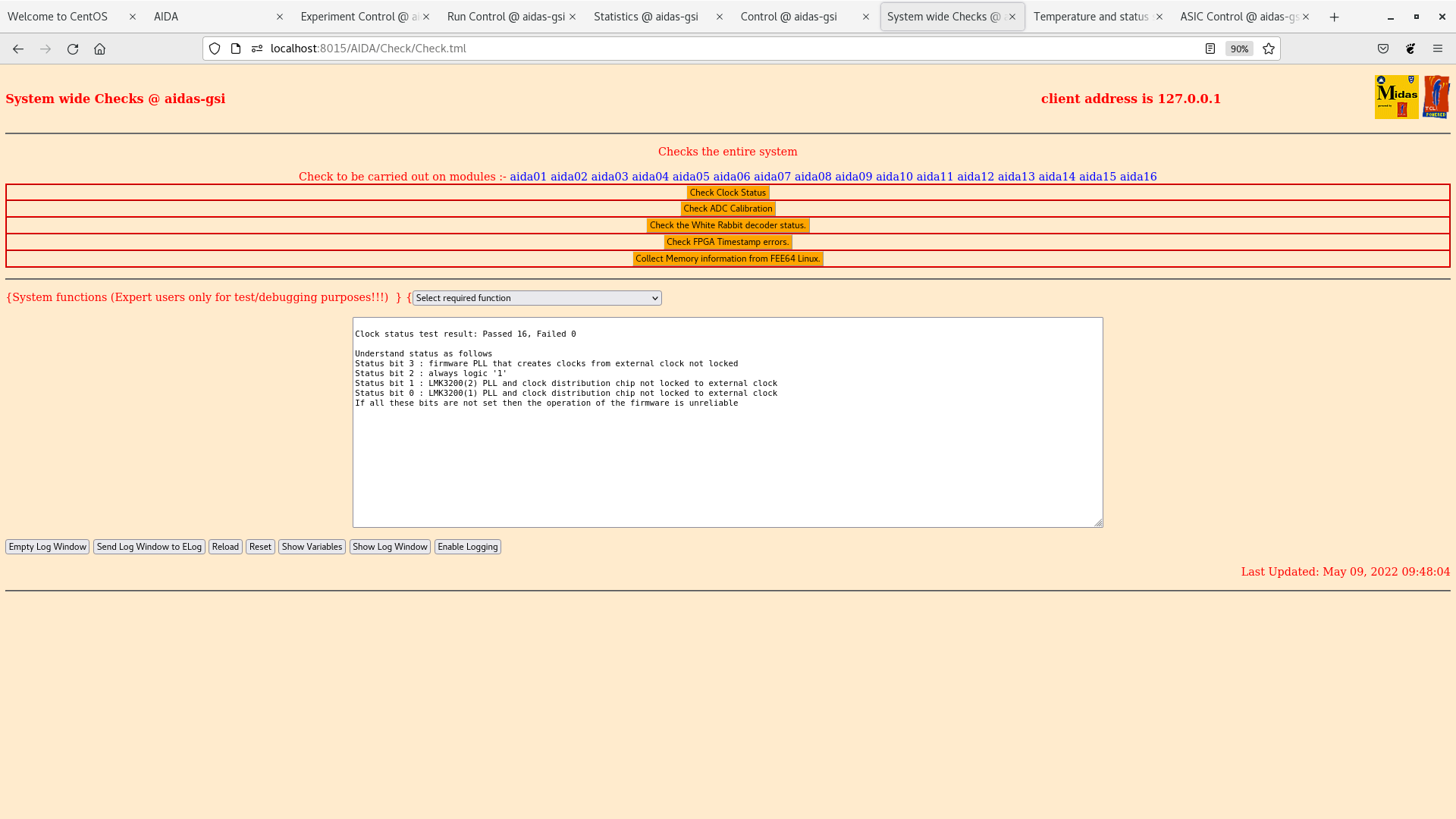

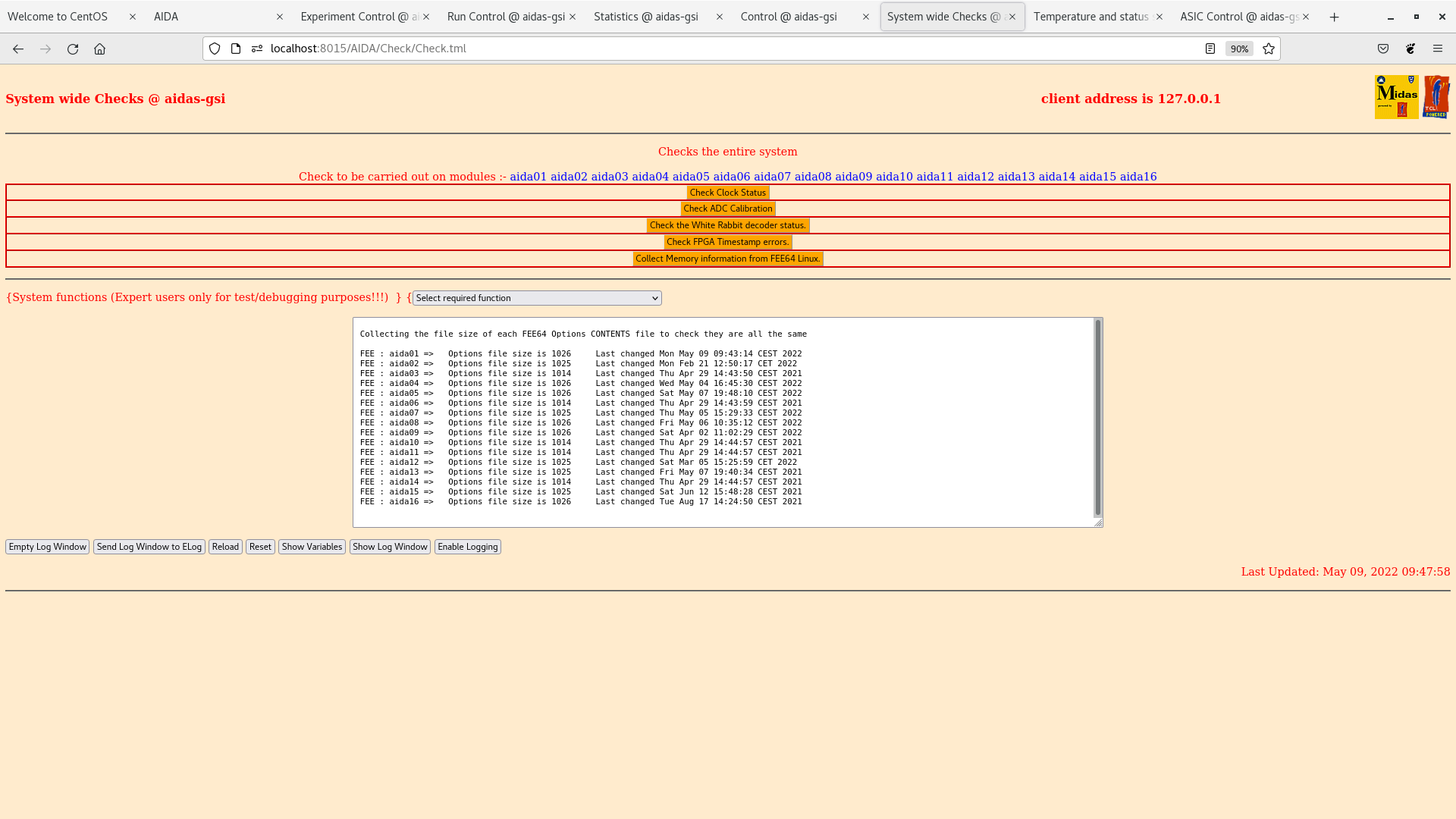

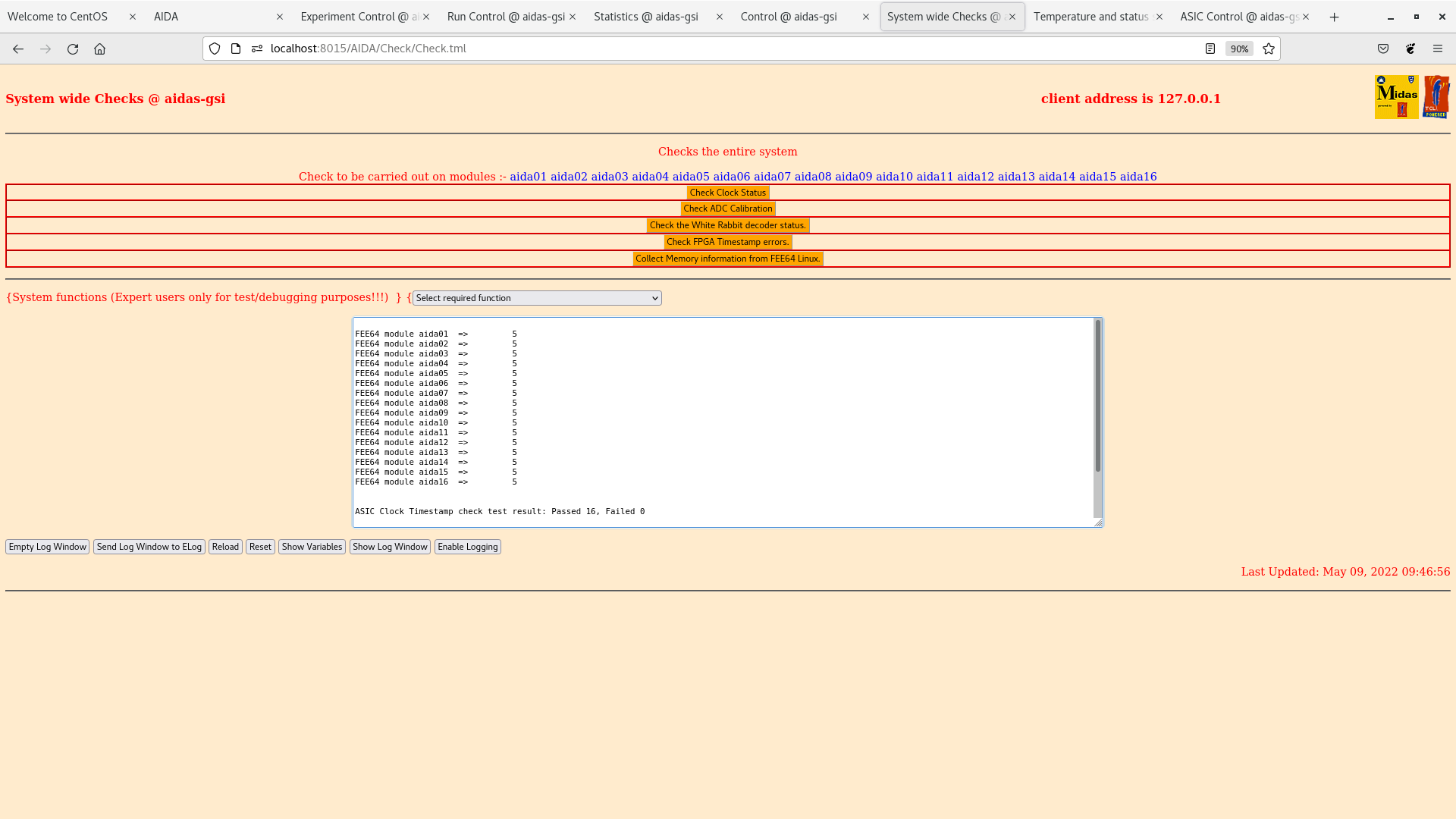

Attachments 6-13 system wide checks - all OK

Attachment 14 ADC data item stats
 n+n FEE64s c. 250k -> c. 370k
 aida01, 7 & 12 c. 200-400k

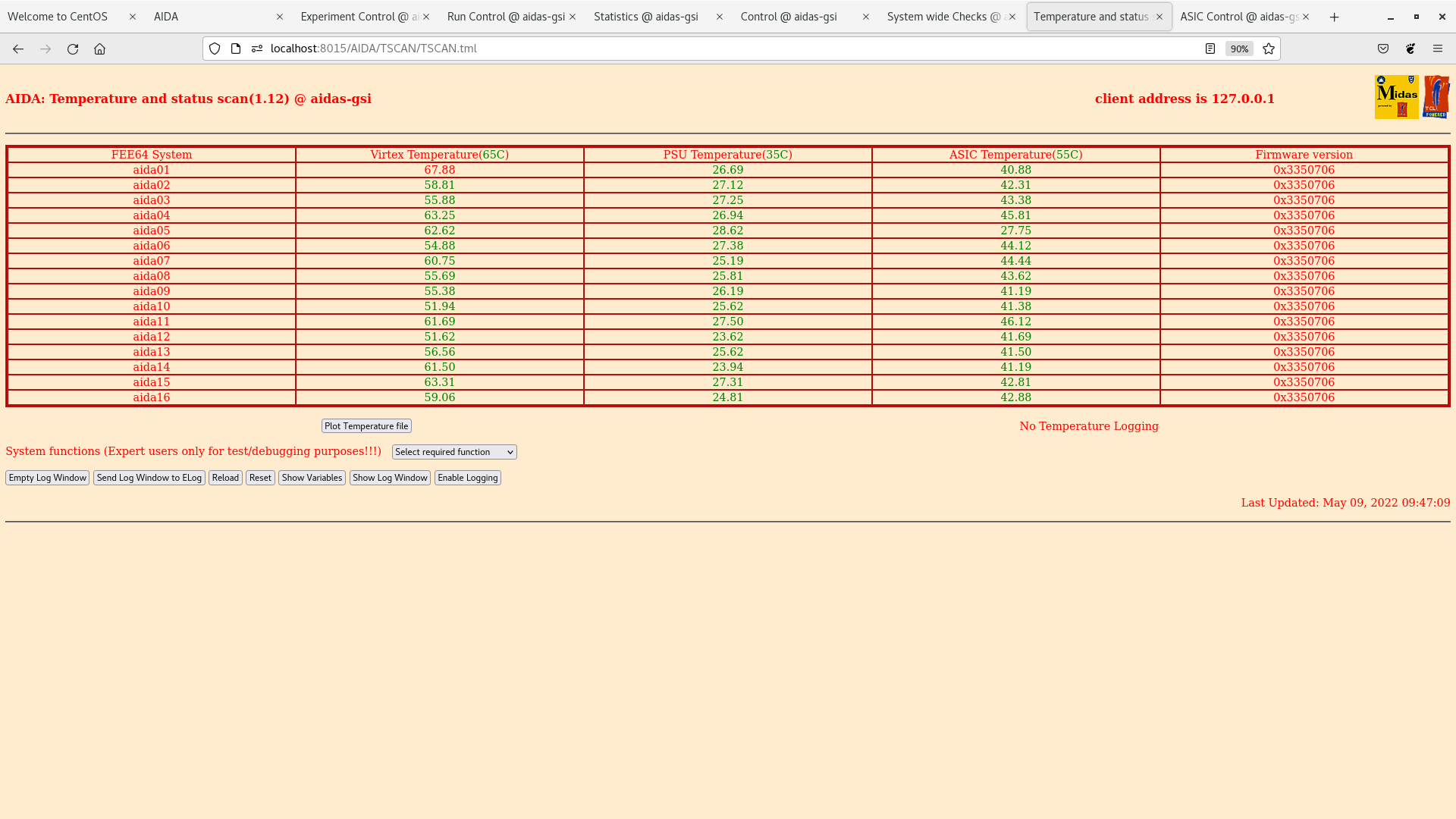

Attachment 15 FEE64 temps OK

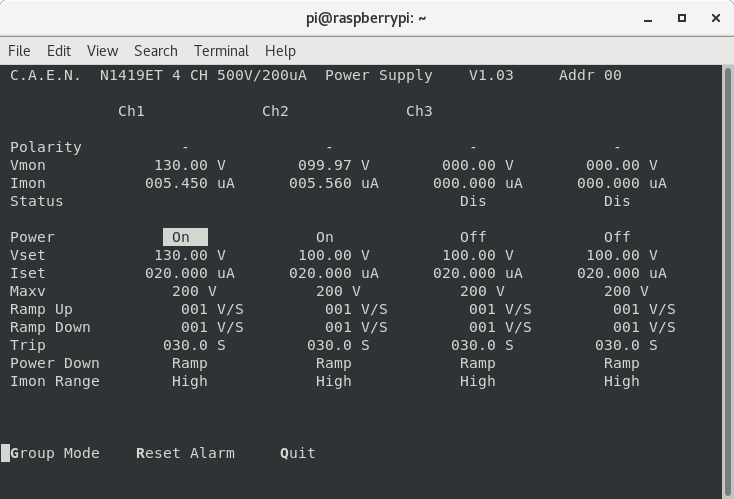

Attachment 16 DSSD bias & leakage current OK

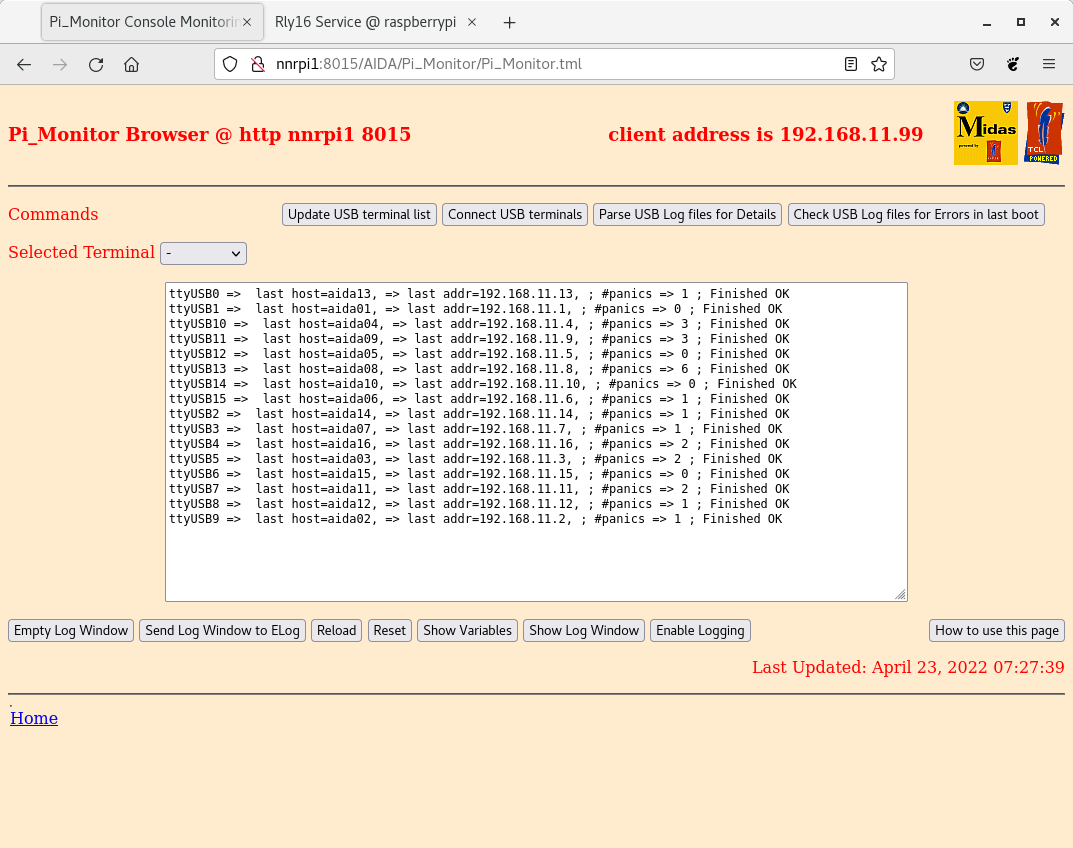

Attachment 17 per FEE64 sys console status summary



10.15 Move triPlast Lemo-00 cabling away from aida02 DSSSD-adaptor PCB ribbon cable
      ASIC check load

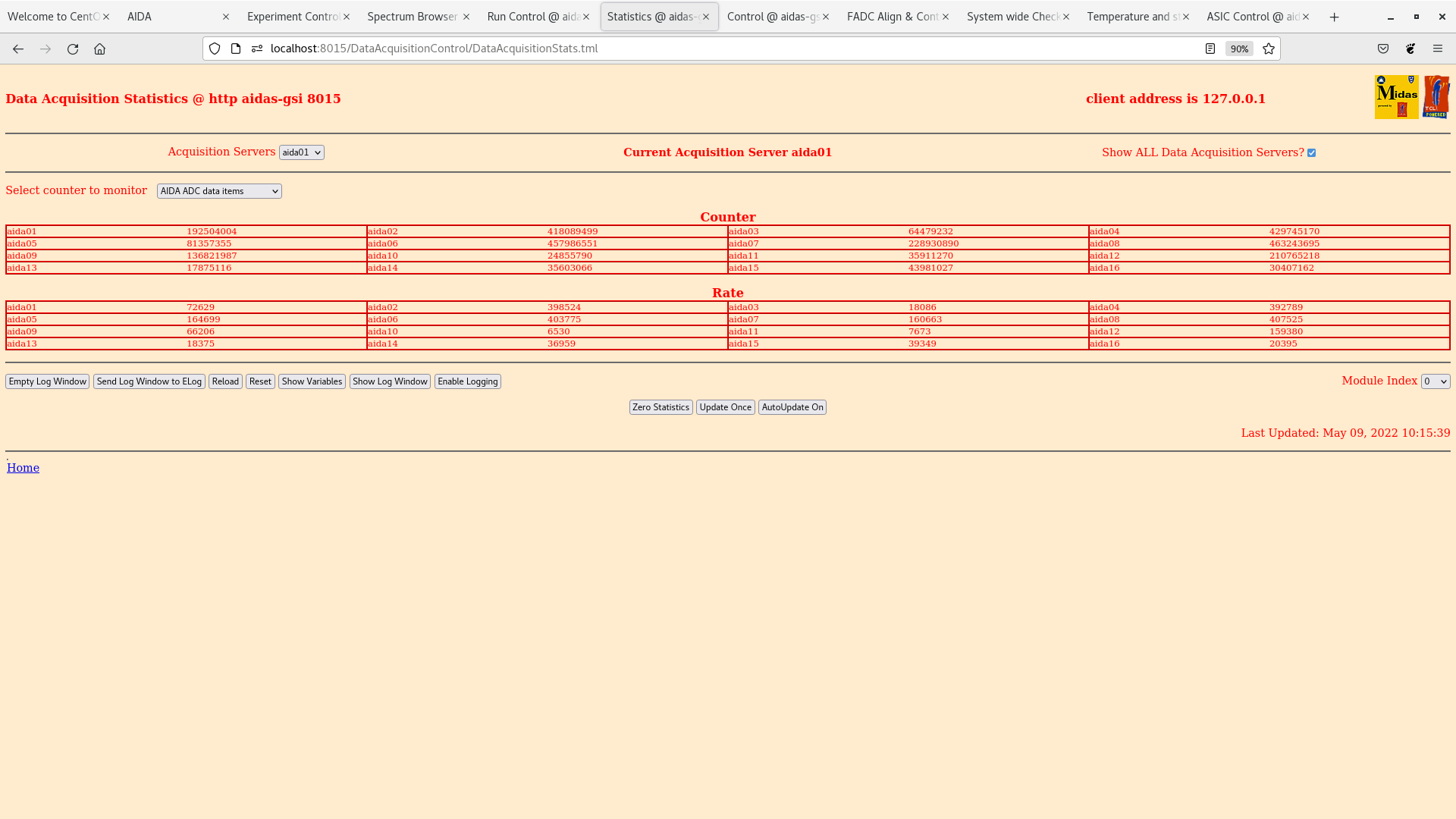

Attachments 18 ADC data item stats
 no change to n+n FEE64s, very high p+n FEE64s now at lower rates

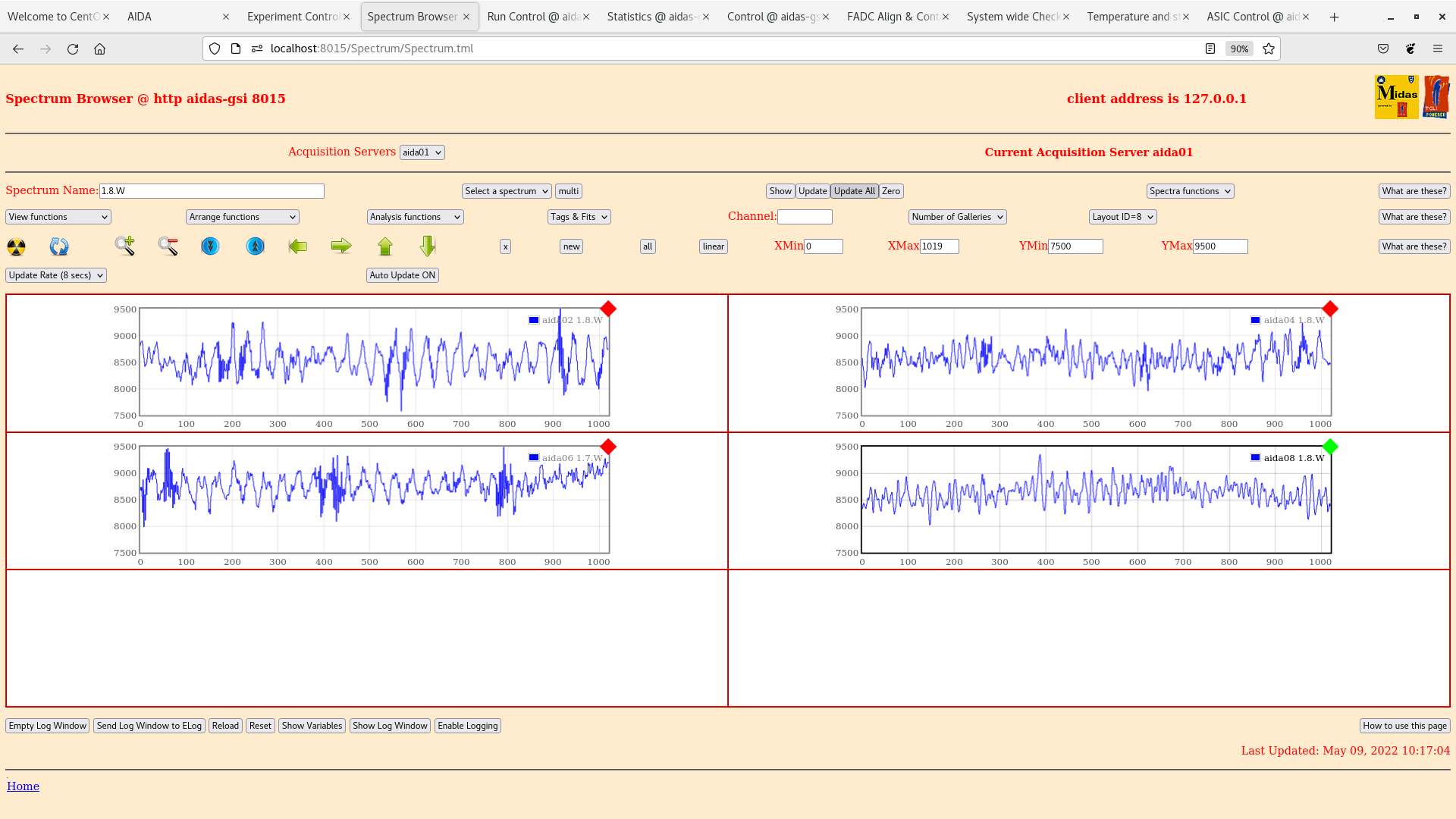

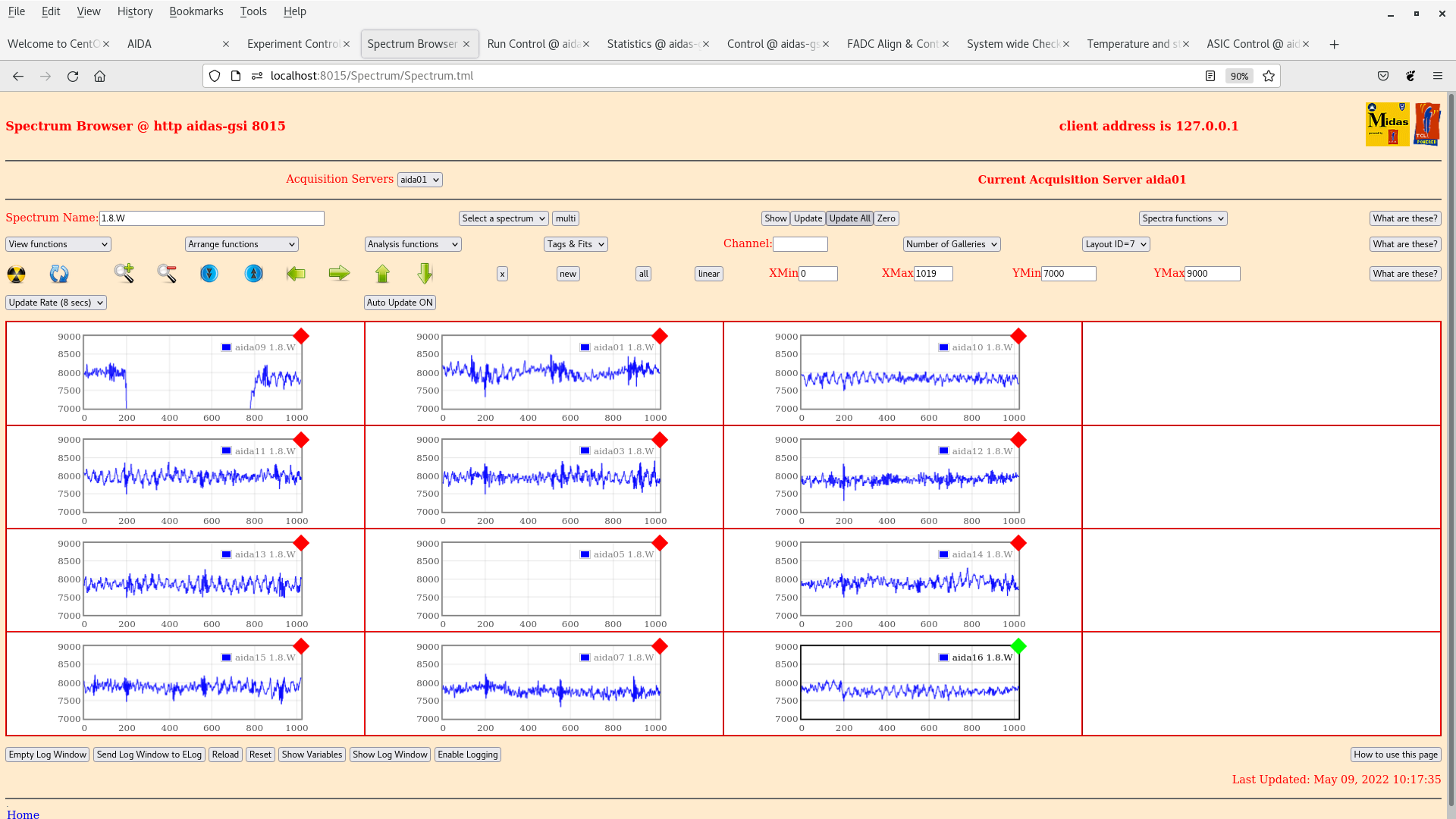

Attachments 19 & 20 1.8.W spectra 20us FSR


18.27 all ADC data rates very high
      aida05, asic #1 is again producing HEC data
      aida14, asic #2 producing very little data

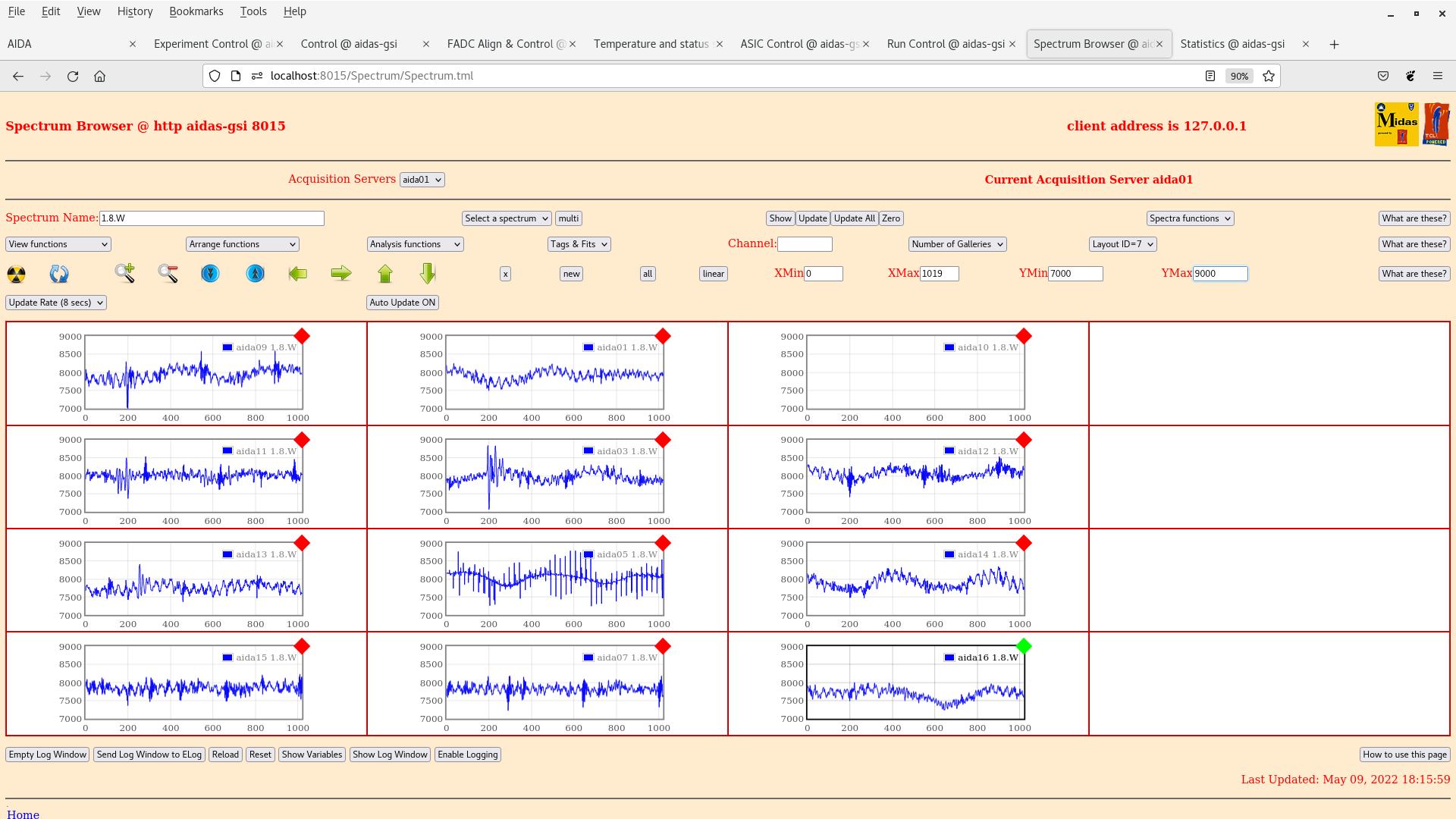

Attachments 23 & 24 1.8.W spectra 20us FSR

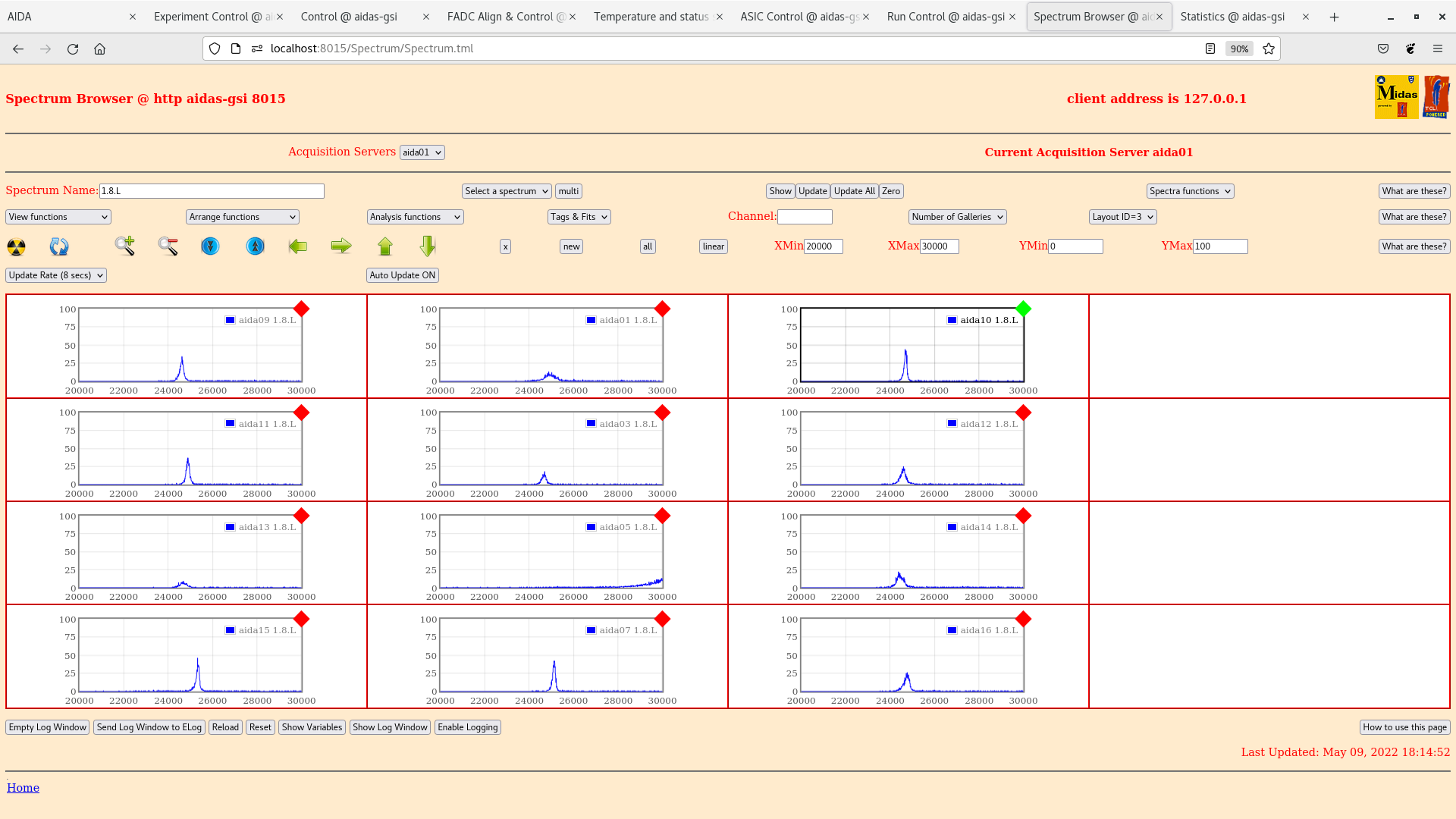

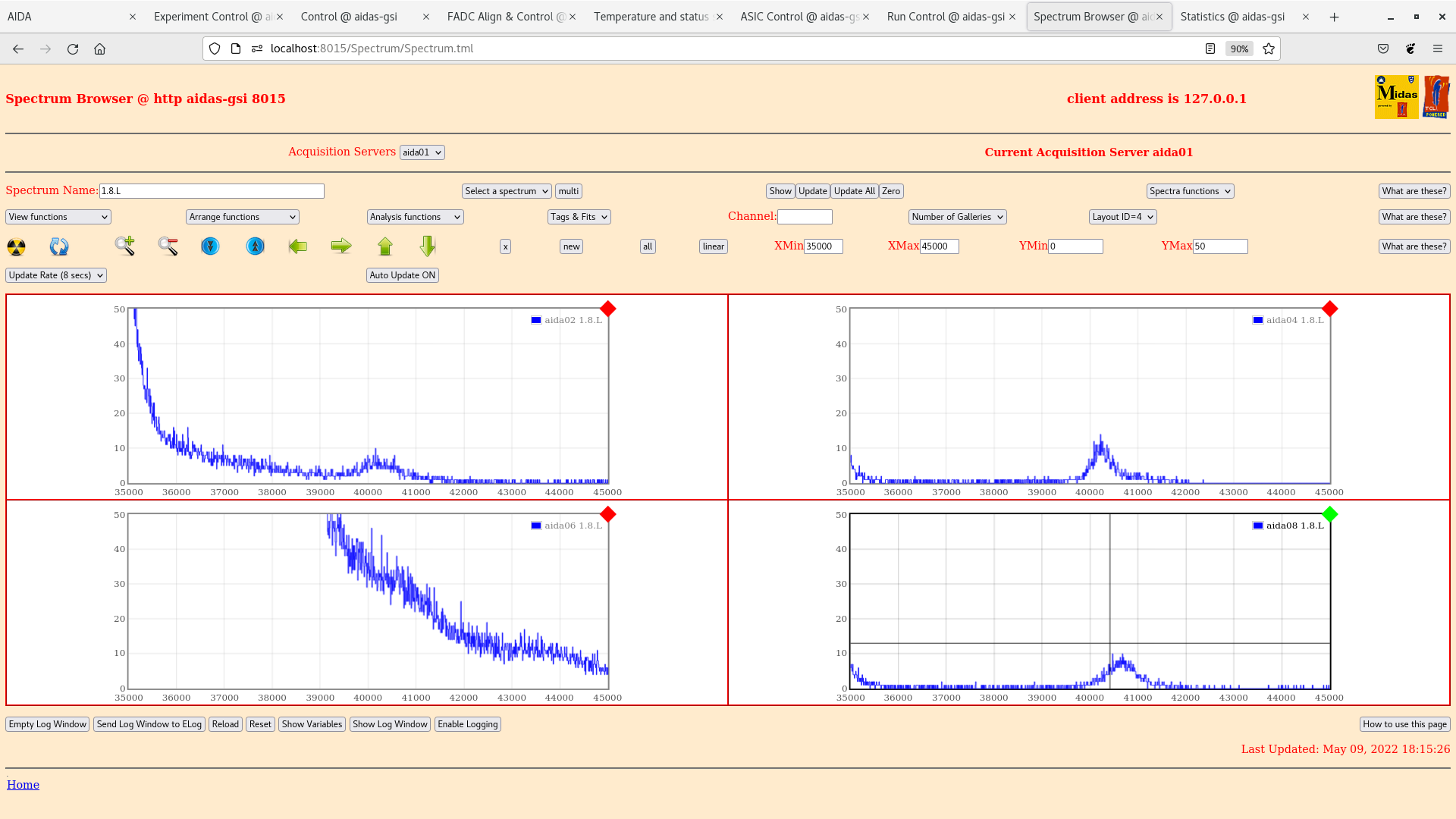

Attachments 25 & 26 1.8.L spectra
 aida10 165ch FWHM

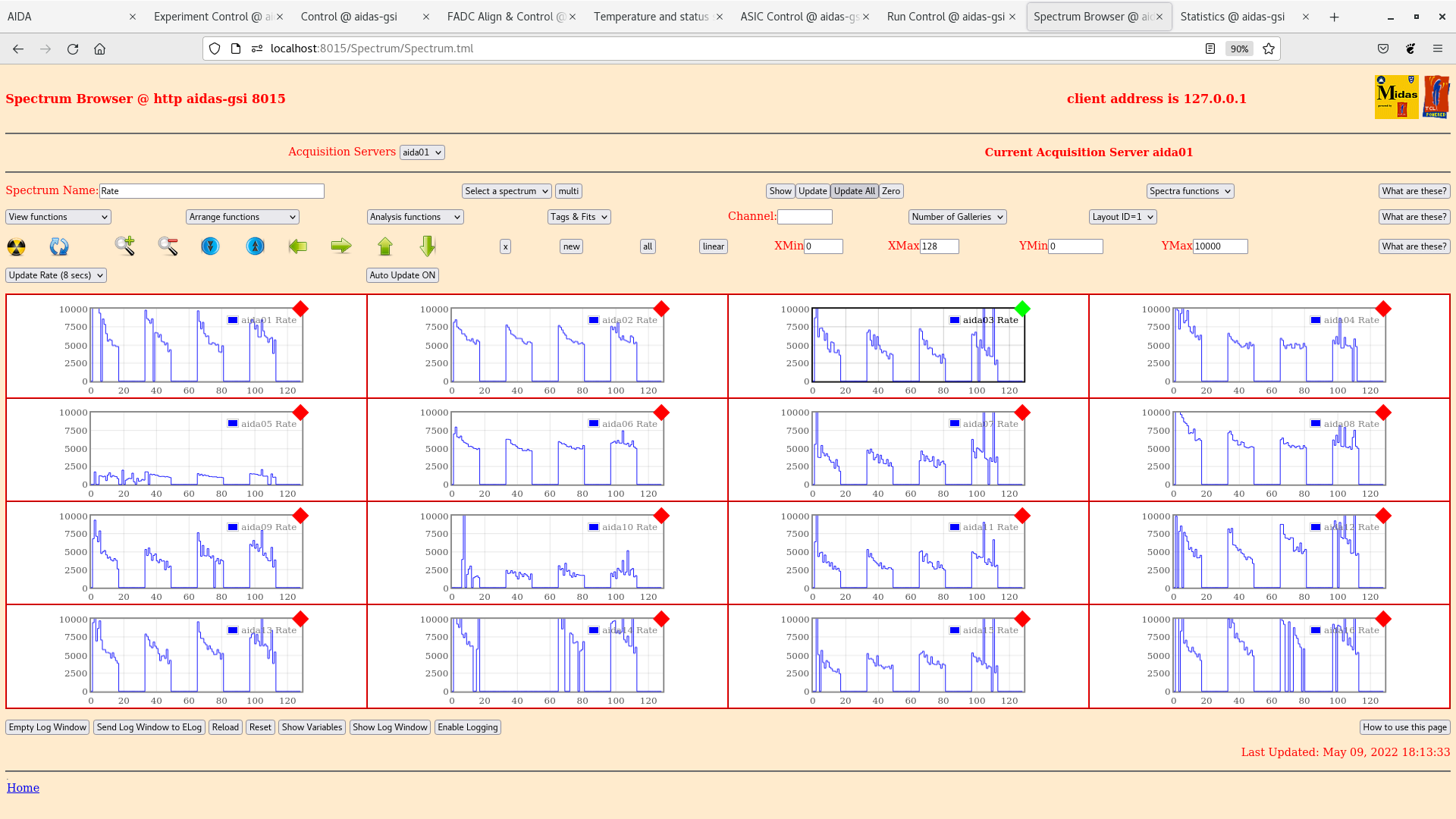

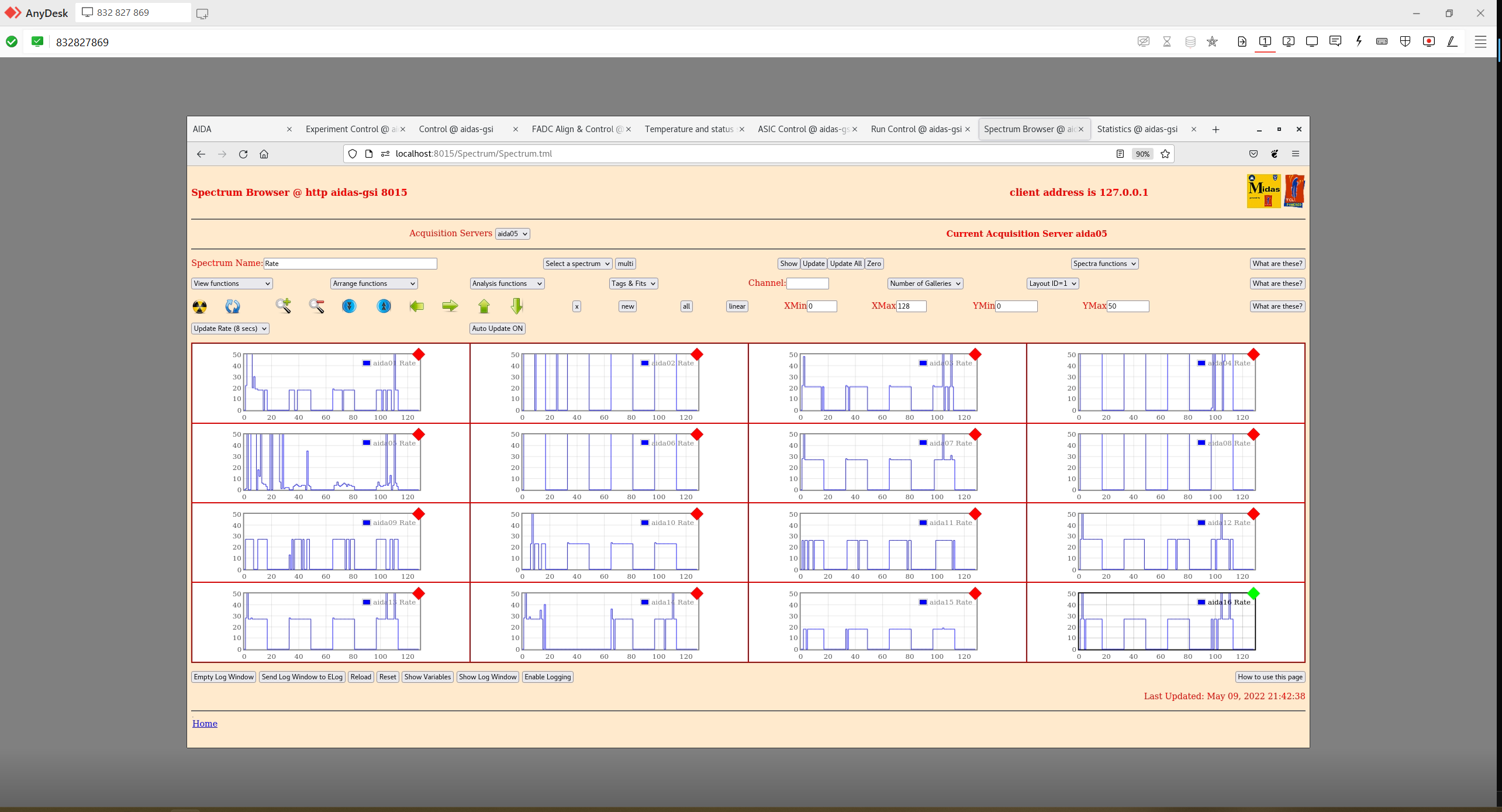

Attachment 27 per FEE64 rate spectra

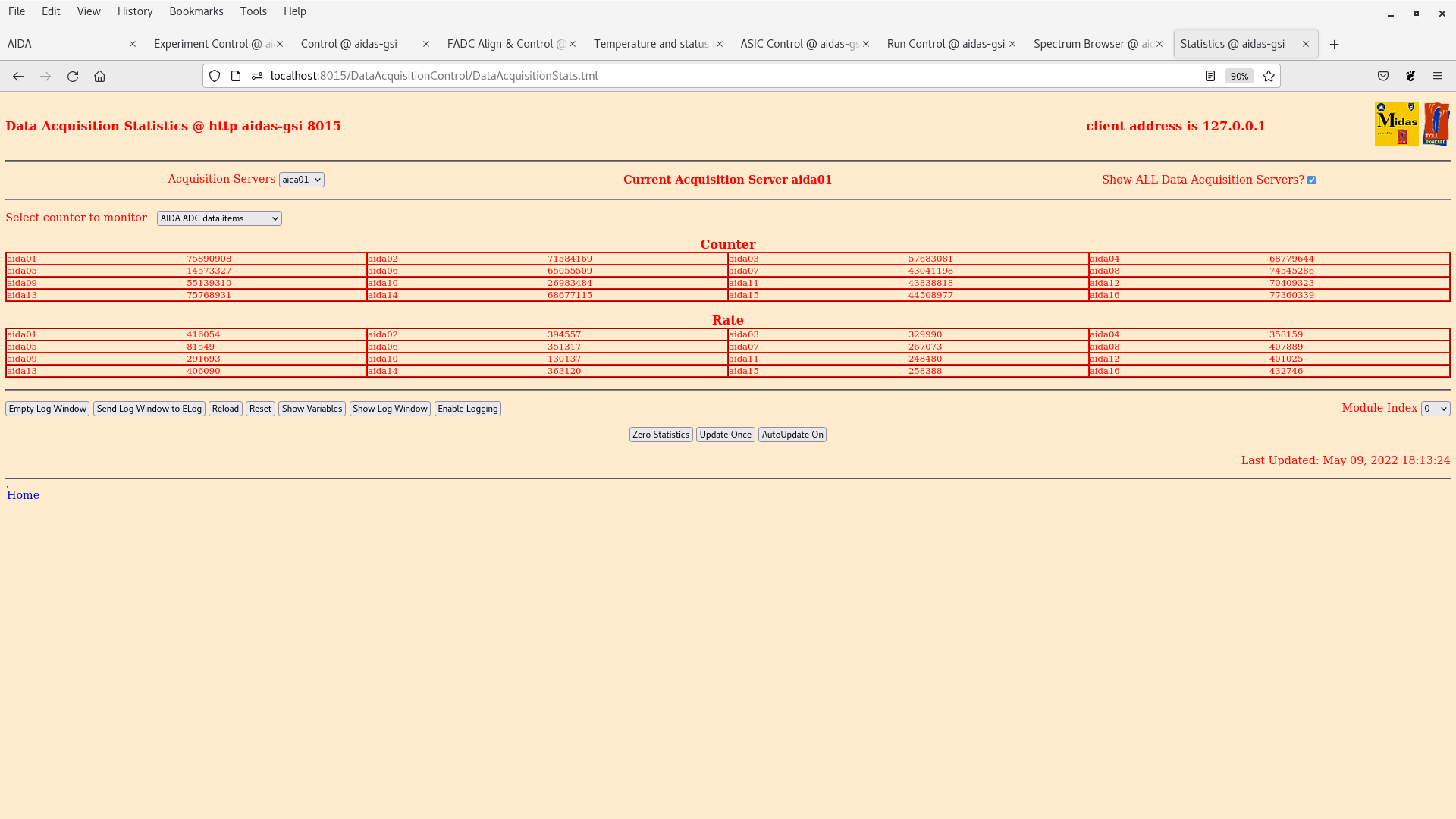

Attachment 28 ADC data item stats

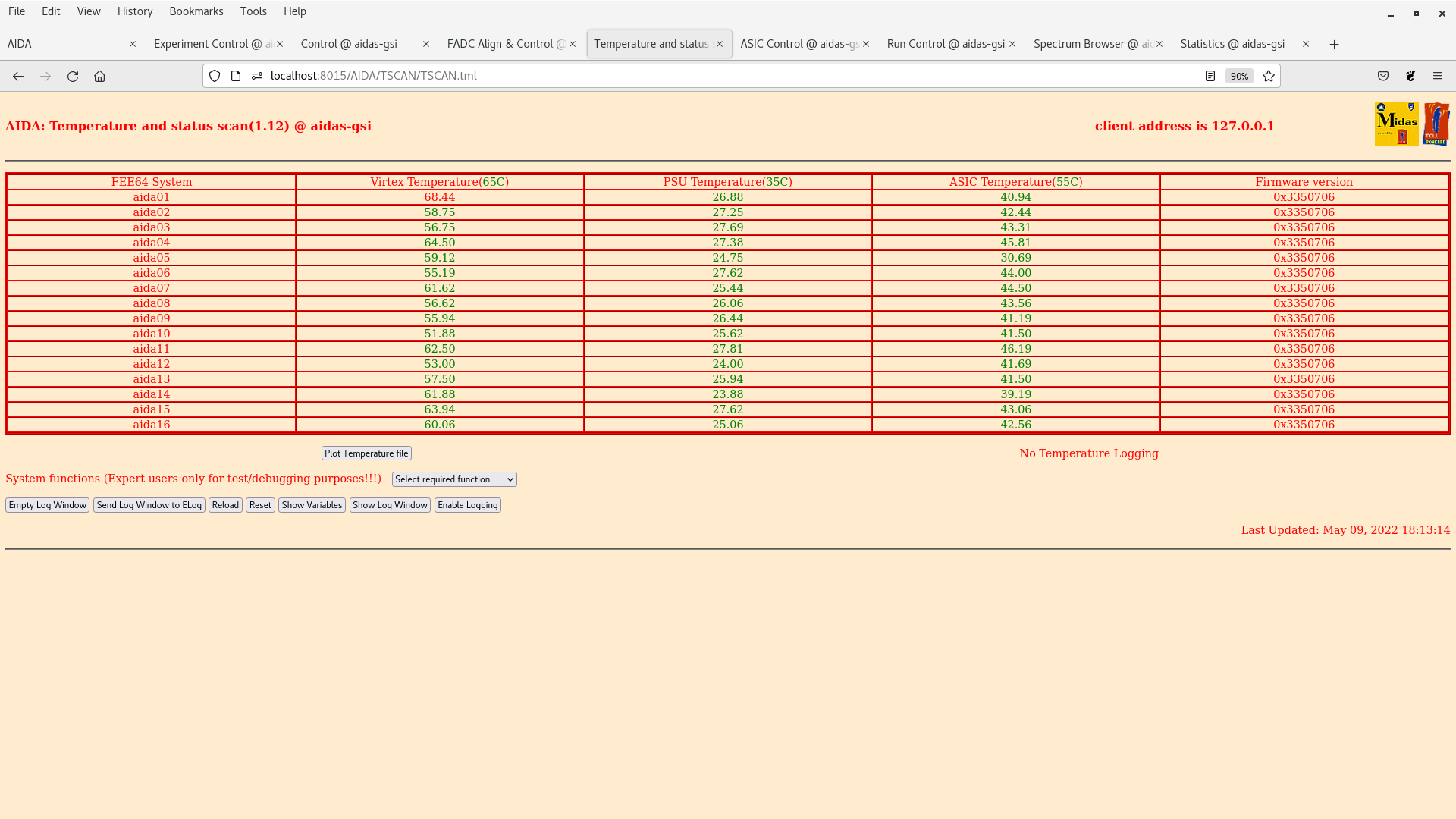

Attachment 29 FEE64 temps OK

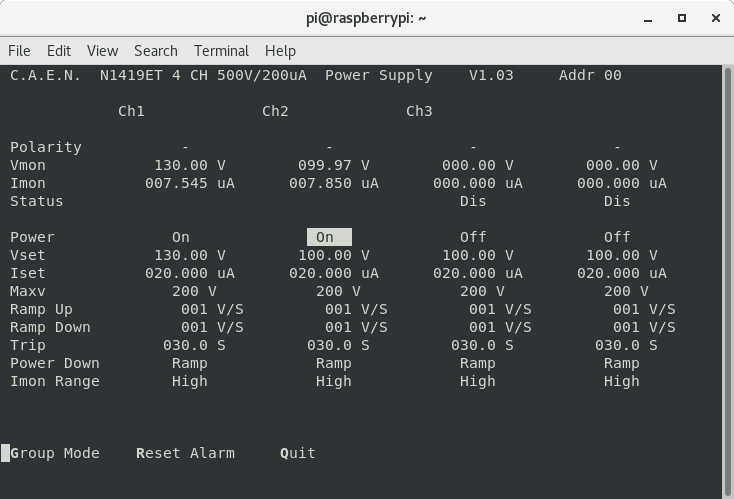

Attachment 30 DSSD bias & leakage current OK

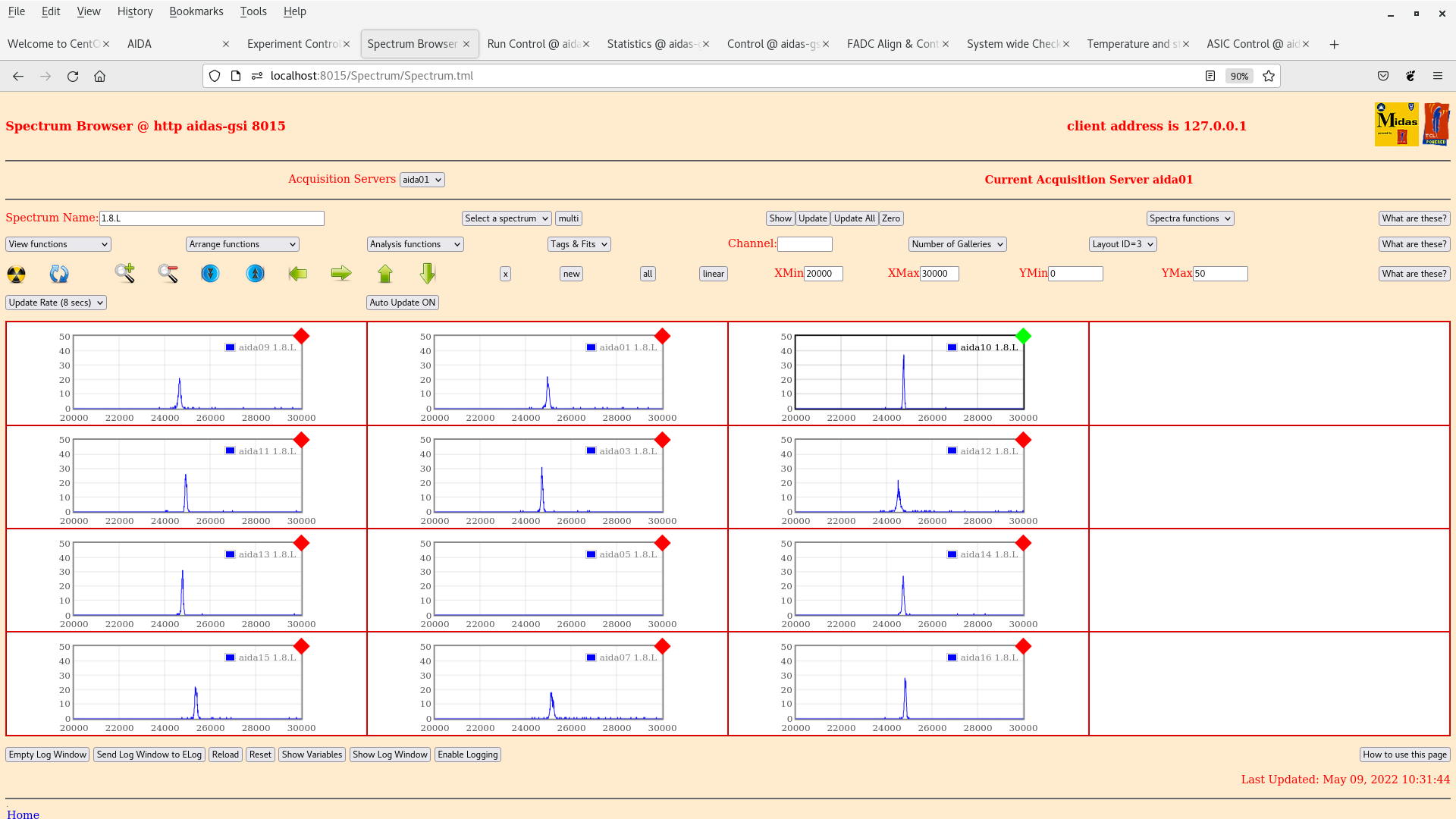

Attachments 21 & 22 1.8.L spectra
 aida10 65ch FWHM
 aida06 394ch FWHM

Attachment 31 Rate with threesholds at 0x64

14.00 Check 3x IC RF signals are not source of extrinsic source (c. 2MHz & c. 100kHz) observed. NT switches off all 3x RF signals - no change.


14.30 Replace FEE64 aida05
      old d8:80:39:41:d7:cc -> d8:80:39:41:b4:0b
      old dhcpd.conf file backed up
