Entry time:

Thu May 12 07:09:43 2022

Author*:

Subject*:

08.10 AIDA DAQ status

      14x FEE64s configured - aida05, aida14 power OFF - dhcpd.conf changed - aida15 -> aida05, aida16 -> aida14
2
      AD9222 OFF - waveforms disabed
      disc - all disabled

ASIC settings 2021Apr29-13-16-00
       slow comparator 0xc *except* aida02 & aida04 0x16, aida06 & aida08 0x23

BNC PB-5
      amplitude 1.000V
      attenuation x1
      tau_d 1ms (tail pulse)
      polarity +
      frequency 22Hz

08.14 all histograms zero'd
2
08.15 system wide check counter baseline

08.17 check ASIC control - all FEE64s all ASICs

Attachment 1 - grafana DSSSD bias & leakage current - OK

Attachment 2 - per FEE64 stat spectra

Attachments 3 & 4 - per FEE64 1.8.H spectra - few events c. 5GeV p+n strips

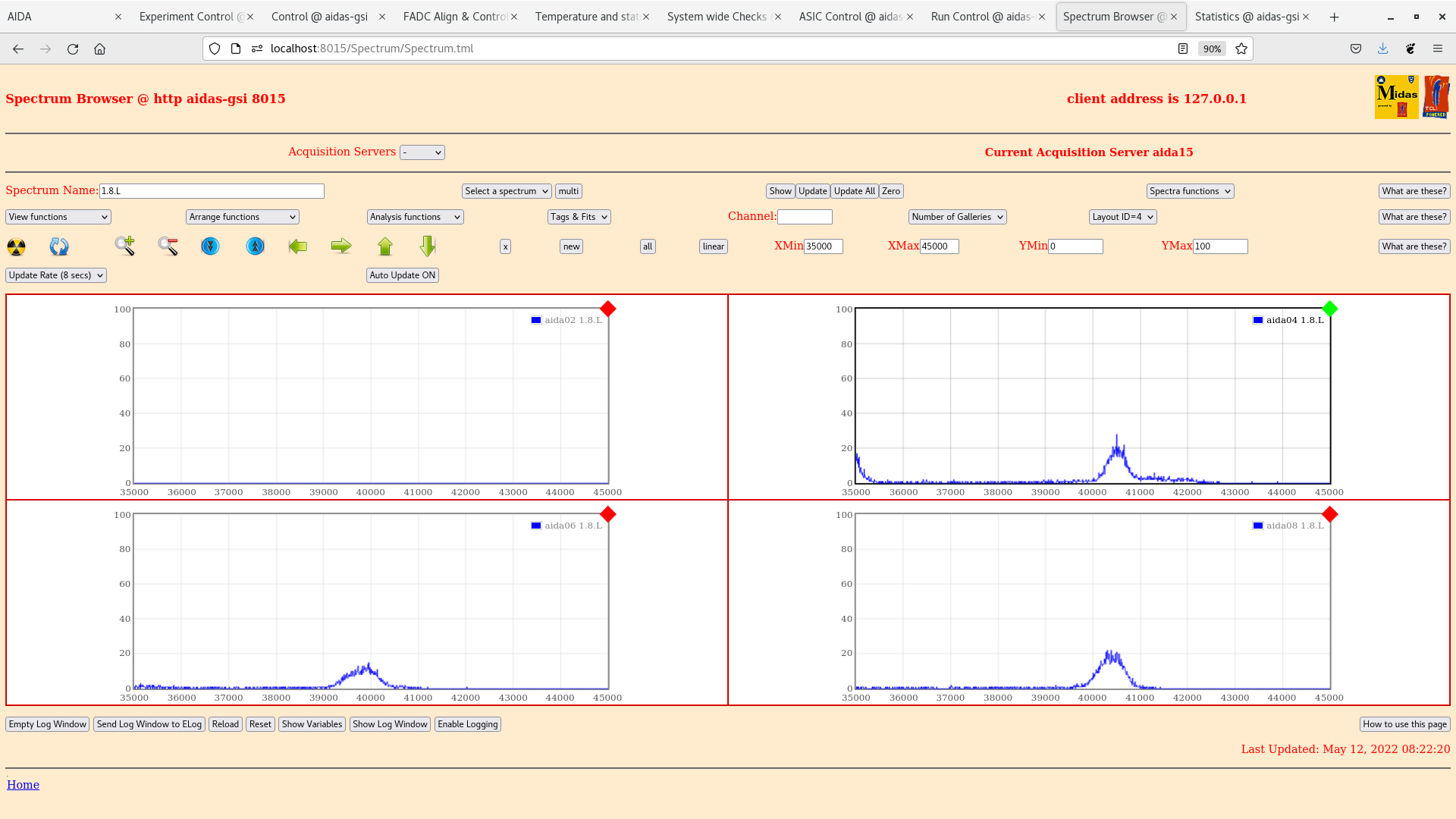

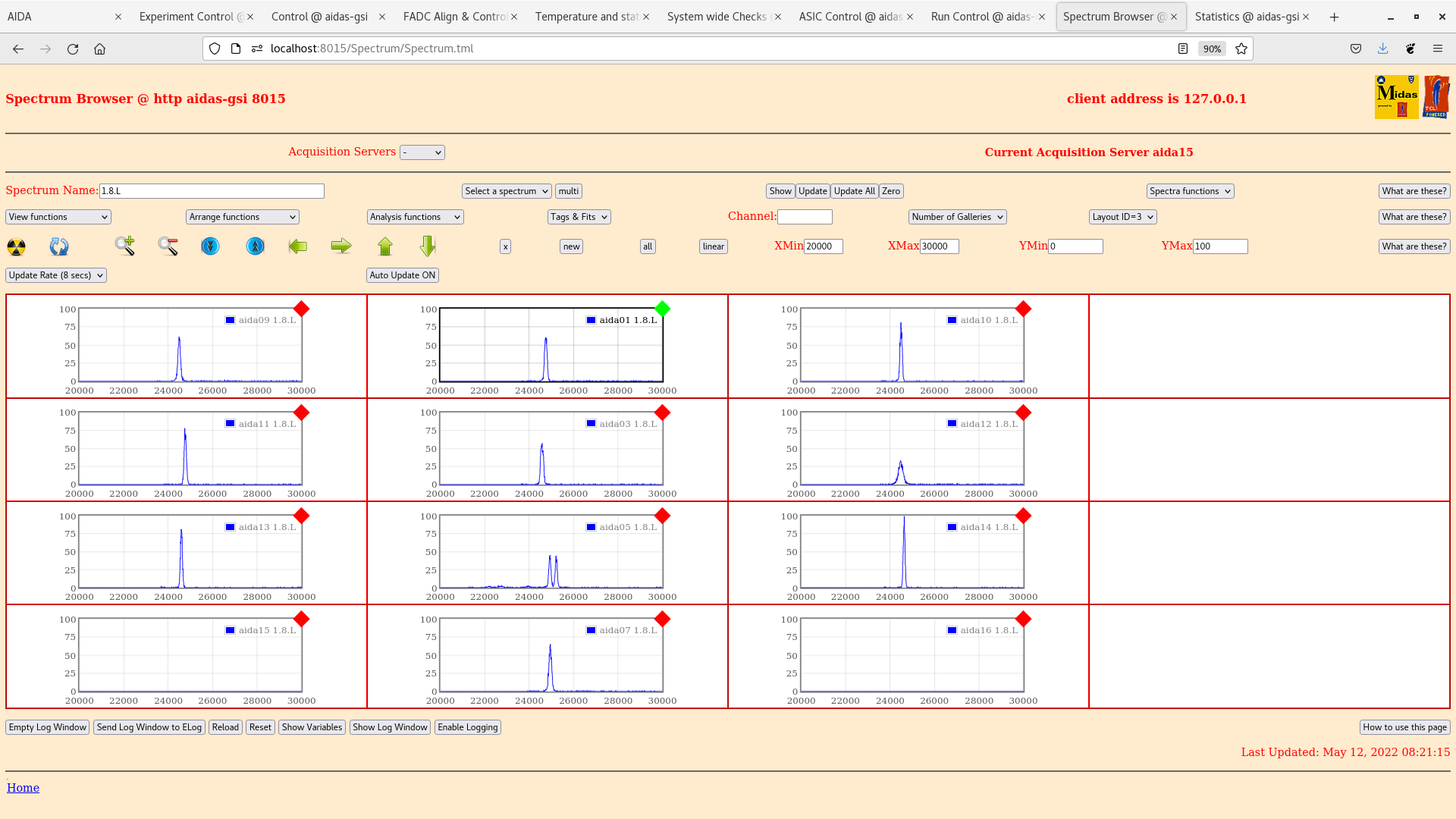

Attachments 5 & 6 - per FEE64 1.8.L spectra
 pulser peak width aida01 124ch FWHM, aida04 293ch FWHM

Attachment 7 - per FEE64 rate spectra

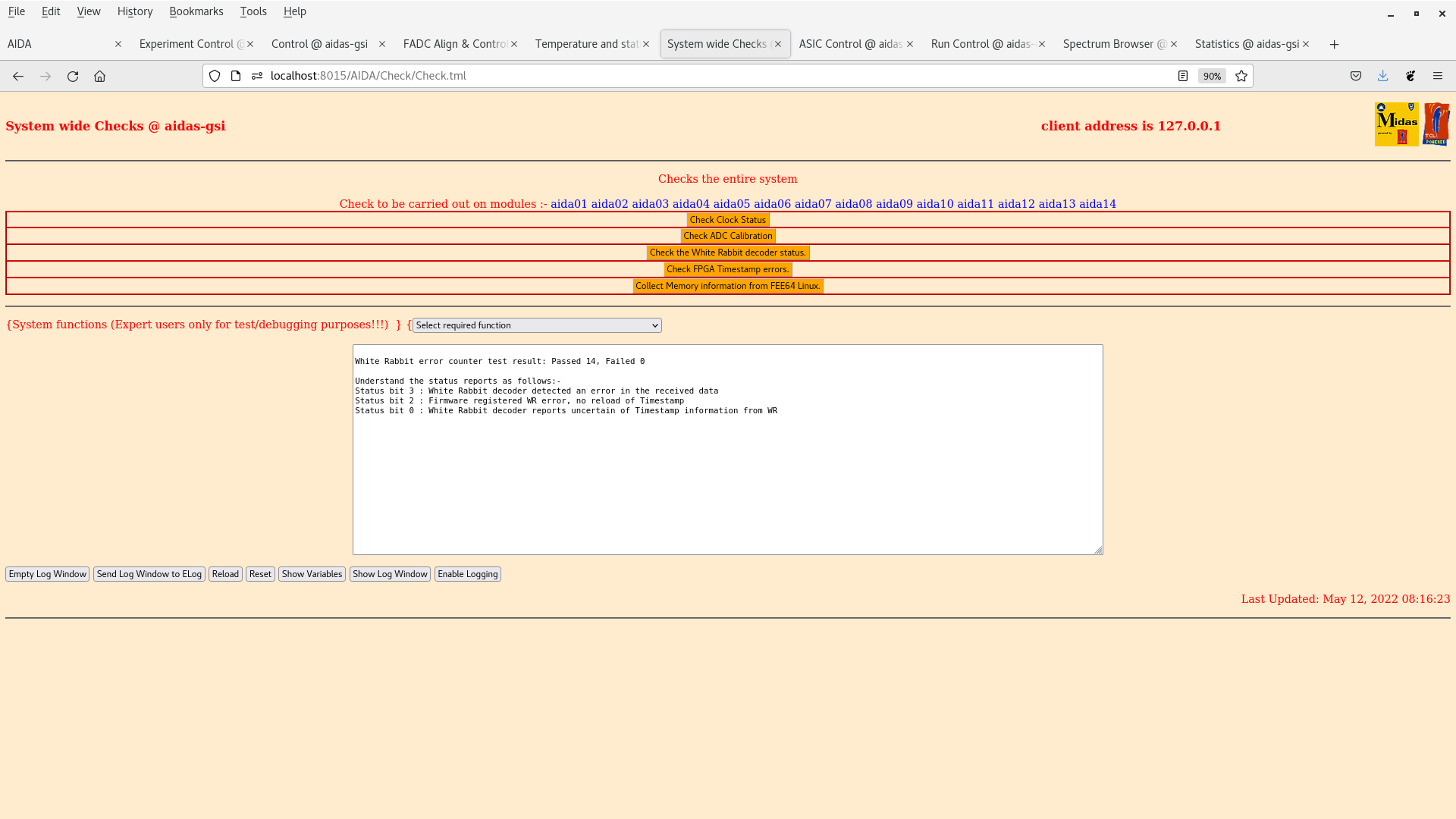

Attachments 8-12 - system wide checks - all OK

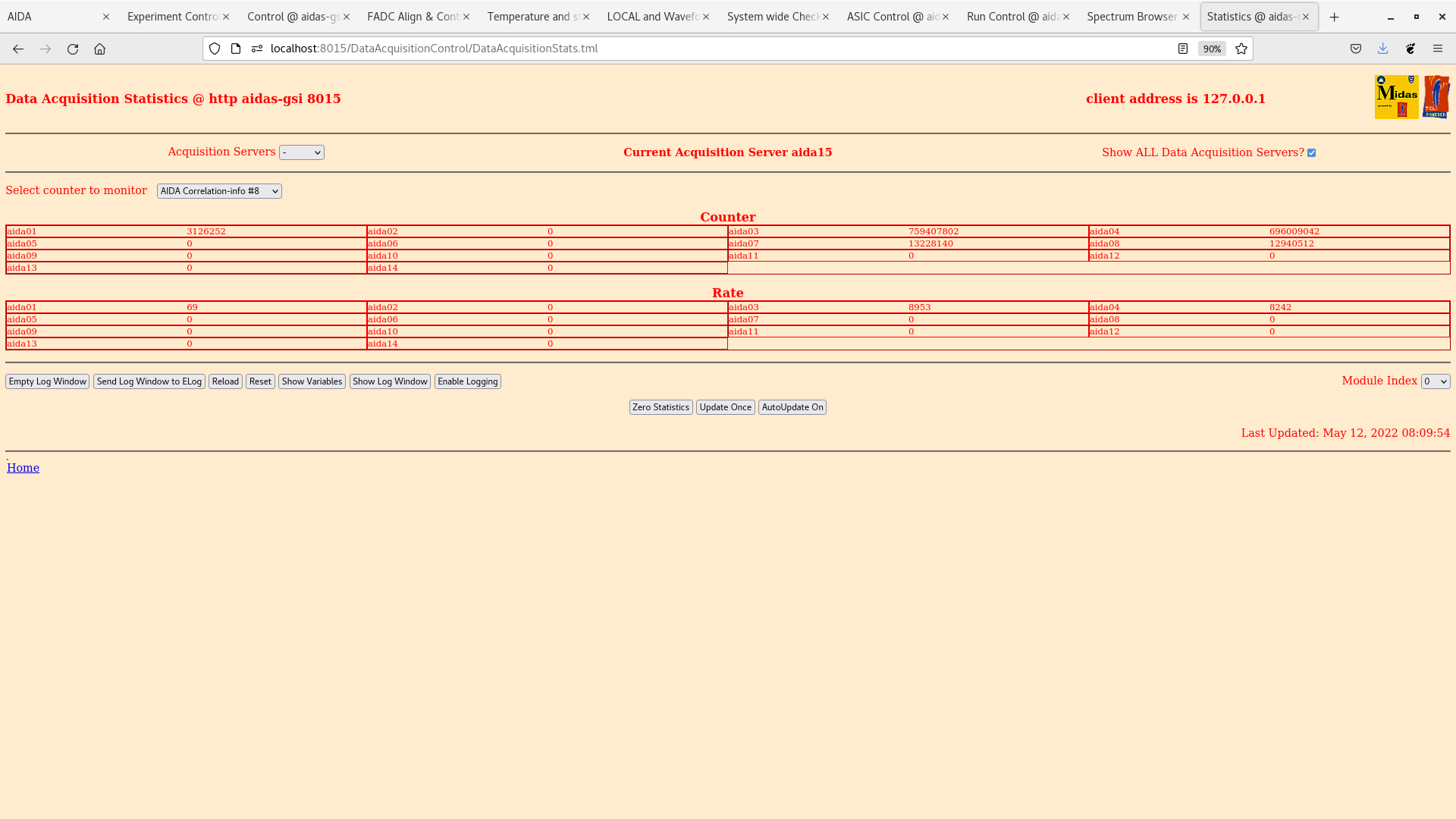

Attachments 13-16 - statistics - adc, pause, resume & correlation data

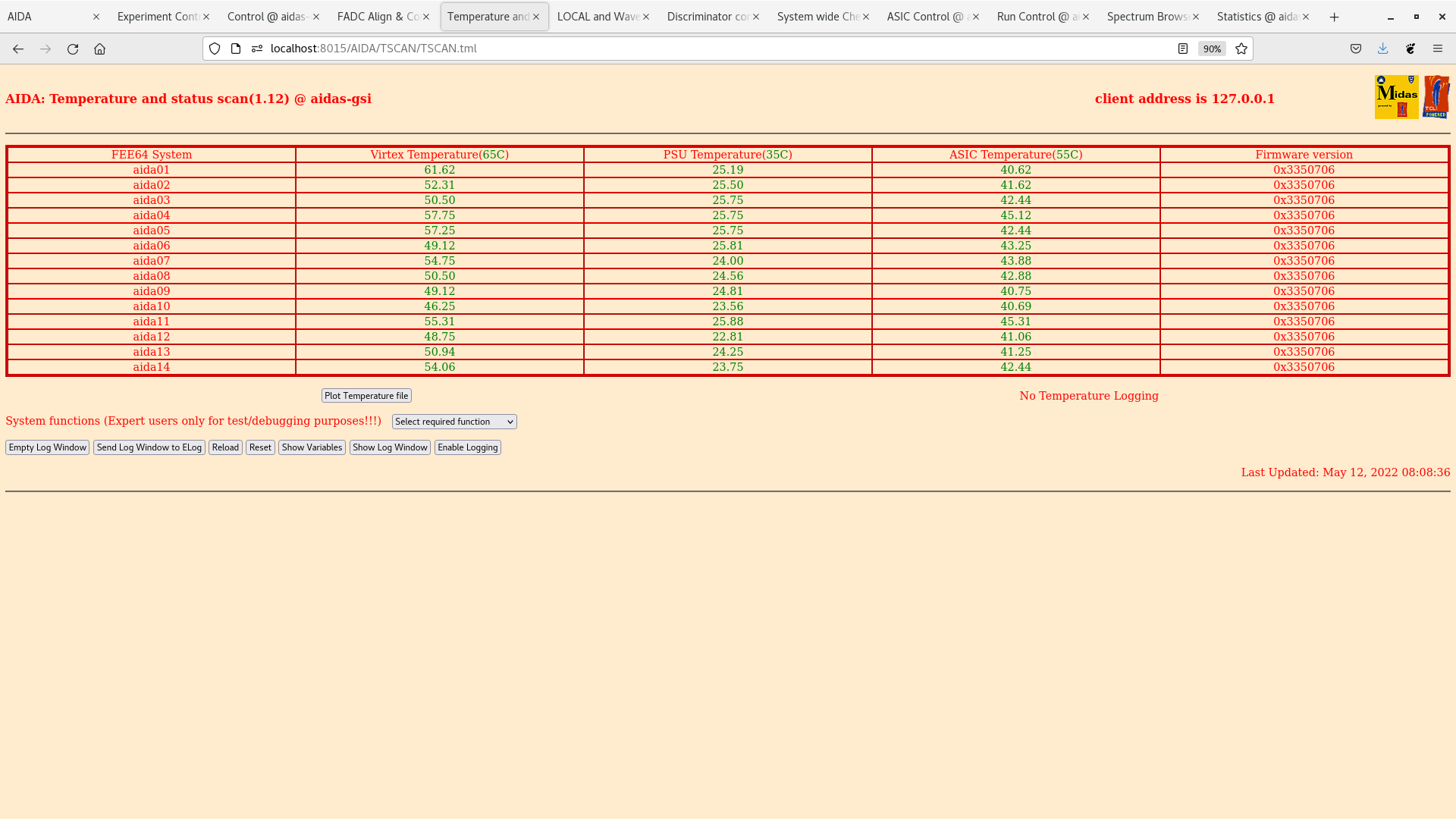

Attachment 17 - FEE64 temps OK

Attachment 18 - DSSSD bias & leakage current OK - start new section of googledoc spreadsheet to monitor long term trends

Attachments 19 & 20 - NewMerger & TapeServer - OK - no warning messages

08.44 DAQ continues - file NOTAPE/R18 - no storage mode

08.47 switch to storage mode to generate data file to evaluate FEE64 dead times etc

08.53 no storage mode enabled

Attachment 21 - analysis of file NOTAPE/R18_20

Attachment 22- analysis of file NOTAPE/R19_19
               AIDA12 slow comp up to 0xd improved deadtime drastically for FEE

10:54 Beam on detector. Take another run to test deadtime - attachment 23
      Deadtimes ranging from 10-40% in n+n FEEs

Attachment 23 & 24 aida06 aida02 1.*.H spectra

14:07 - Currently no beam so had acces. OH checked the cables on AIDA12 were seated correctly. No improvement in the rate for 12 but better for remaining p+n strips.
        Tested running with dataspy off for PCS but observed no change in the deadtimes (Other than a decrease because no beamtime)

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2022-05-12_08-25-44.png Original size: 1874x1014

Attachment 2:

Screenshot_from_2022-05-12_08-25-20.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2022-05-12_08-24-01.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2022-05-12_08-23-35.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2022-05-12_08-22-24.png Original size: 1920x1080

Attachment 6:

Screenshot_from_2022-05-12_08-21-18.png Original size: 1920x1080

Attachment 7:

Screenshot_from_2022-05-12_08-19-15.png Original size: 1920x1080

Attachment 8:

Screenshot_from_2022-05-12_08-16-40.png Original size: 1920x1080

Attachment 9:

Screenshot_from_2022-05-12_08-16-30.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2022-05-12_08-16-25.png Original size: 1920x1080

Attachment 11:

Screenshot_from_2022-05-12_08-16-17.png Original size: 1920x1080

Attachment 12:

Screenshot_from_2022-05-12_08-16-08.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2022-05-12_08-10-02.png Original size: 1920x1080

Attachment 14:

Screenshot_from_2022-05-12_08-09-44.png Original size: 1920x1080

Attachment 15:

Screenshot_from_2022-05-12_08-09-20.png Original size: 1920x1080

Attachment 16:

Screenshot_from_2022-05-12_08-09-02.png Original size: 1920x1080

Attachment 17:

Screenshot_from_2022-05-12_08-08-39.png Original size: 1920x1080

Attachment 18:

Screenshot_from_2022-05-12_08-08-26.png Original size: 734x499

Attachment 19:

Screenshot_from_2022-05-12_08-39-14.png Original size: 1920x1080

Attachment 20:

Screenshot_from_2022-05-12_08-39-05.png Original size: 3840x1080

Attachment 21:

R18_20

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  259331519 ( 1693112.6 Hz)
        Other data format:    2588481 (   16899.6 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1016 (       6.6 Hz)
                               RESUME:       1017 (       6.6 Hz)
                              SYNC100:      32570 (     212.6 Hz)
                              WR48-63:      32570 (     212.6 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    2521308 (   16461.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          0 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      153.169 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.171                0.000
  1                9.417                0.000
  2                0.061                0.000
  3               24.348                0.000
  4                0.008                0.000
  5               72.336                0.000
  6                0.231                0.000
  7               25.570                0.000
  8                0.125                0.000
  9                0.007                0.000
 10                0.000                7.342
 11               41.574                0.000
 12                0.027                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    7431923      12514          0          0          8          8        933        933          0      10632          0          0
  1   37380104       9380          0          0         51         51       4639       4639          0          0          0          0
  2    7217279    1365495          0          0          3          3       1056       1056          0    1363377          0          0
  3   38015689    1157497          0          0        179        179       4920       4920          0    1147299          0          0
  4    4440445       1078          0          0          2          2        537        537          0          0          0          0
  5   40380917      10697          0          0        319        320       5029       5029          0          0          0          0
  6   14913071       3788          0          0          5          5       1889       1889          0          0          0          0
  7   41232478      10490          0          0        181        181       5064       5064          0          0          0          0
  8   11952709       2932          0          0          4          4       1462       1462          0          0          0          0
  9    4910914       1250          0          0          1          1        624        624          0          0          0          0
 10    2469929        580          0          0          0          0        290        290          0          0          0          0
 11   39767127      10486          0          0        257        257       4986       4986          0          0          0          0
 12    5557988       1406          0          0          6          6        697        697          0          0          0          0
 13    3660946        888          0          0          0          0        444        444          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   36.578s (  874.840 blocks/s,  54.677 Mb/s)

Attachment 22:

R19_19.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      17139
          ADC data format:  138519076 ( 1563611.9 Hz)
        Other data format:    1763639 (   19908.1 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        358 (       4.0 Hz)
                               RESUME:        358 (       4.0 Hz)
                              SYNC100:      17469 (     197.2 Hz)
                              WR48-63:      17469 (     197.2 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1727985 (   19505.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          0 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:       88.589 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.084                0.000
  1                0.528                0.000
  2                0.008                0.000
  3               10.973                0.000
  4                0.000                0.000
  5               30.421                0.000
  6                0.000                0.000
  7                7.252                0.000
  8                0.055                0.000
  9                0.000                0.000
 10                0.000               12.541
 11                3.332                0.000
 12                0.009                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    4390551       7288          0          0          4          4        565        565          0       6150          0          0
  1   21021919       5186          0          0          9          9       2584       2584          0          0          0          0
  2    3174721     918030          0          0          1          1        518        518          0     916992          0          0
  3   22097261     810837          0          0         77         77       2920       2920          0     804843          0          0
  4    2596723        620          0          0          0          0        310        310          0          0          0          0
  5   23543560       6240          0          0        174        174       2946       2946          0          0          0          0
  6    4211356       1020          0          0          0          0        510        510          0          0          0          0
  7   24080430       6296          0          0         63         63       3085       3085          0          0          0          0
  8    4823696       1068          0          0          3          3        531        531          0          0          0          0
  9    1770702        408          0          0          0          0        204        204          0          0          0          0
 10     933213        222          0          0          0          0        111        111          0          0          0          0
 11   21419475       5280          0          0         21         21       2619       2619          0          0          0          0
 12    2929744        698          0          0          6          6        343        343          0          0          0          0
 13    1525725        446          0          0          0          0        223        223          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   17.484s (  980.247 blocks/s,  61.265 Mb/s)

Attachment 23:

R20_20.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:       4909
          ADC data format:   39765494 ( 1644562.3 Hz)
        Other data format:     414671 (   17149.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        151 (       6.2 Hz)
                               RESUME:        152 (       6.3 Hz)
                              SYNC100:       4999 (     206.7 Hz)
                              WR48-63:       4999 (     206.7 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:     404370 (   16723.3 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:      23252 (     961.6 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:       24.180 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                1.954                0.000
  2                0.000                0.000
  3                4.569                0.000
  4                0.000                0.000
  5               10.824                0.000
  6                0.000                0.000
  7                5.869                0.000
  8                0.000                0.000
  9                0.008                0.000
 10                0.000                0.000
 11                2.942                0.000
 12                0.007                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    1157062       1976          0          0          0          0        148        148          0       1680          0        159
  1    5834981       1480          0          0         12         12        728        728          0          0          0      22412
  2    1125294     220409          0          0          0          0        178        178          0     220053          0         83
  3    5924210     180469          0          0         32         32        741        741          0     178923          0         86
  4     669291        180          0          0          0          0         90         90          0          0          0         10
  5    6069826       1577          0          0         47         48        741        741          0          0          0         20
  6    1749760       2346          0          0          0          0        222        222          0       1902          0         32
  7    6604292       3590          0          0         38         38        851        851          0       1812          0         32
  8    1794890        416          0          0          0          0        208        208          0          0          0         42
  9     736012        164          0          0          1          1         81         81          0          0          0        124
 10     410664         98          0          0          0          0         49         49          0          0          0         15
 11    6315369       1576          0          0         19         19        769        769          0          0          0        153
 12     852659        248          0          0          2          2        122        122          0          0          0         23
 13     521184        142          0          0          0          0         71         71          0          0          0         61
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:    5.102s (  962.254 blocks/s,  60.141 Mb/s)

Attachment 24:

Screenshot_from_2022-05-12_11-57-44.png Original size: 1920x1080

Attachment 25:

Screenshot_from_2022-05-12_11-56-42.png Original size: 1920x1080

Attachment 26:

Screenshot_from_2022-05-12_22-32-53.png Original size: 3840x1080

Attachment 27:

Screenshot_from_2022-05-12_22-32-22.png Original size: 1073x848

Attachment 28:

Drop attachments here...

ELOG V3.1.4-unknown
