08:36 DAQ Still running smoothly
      Currently on run R1_328
      At current data rates we have just over 4 days of space left on the current disk
      Analysis of R1_327 - attachment 1

14.15 all histograms zero'd
      baseline system wide checks counters

      DAQ continues file S450/R4_33

netint pushenable 6 - was 60 - to investigate FEE64 throughput issues
      netint flushenable 60 - not changed

ASIC settings
       slow comparator aida02 aida04 0x16, aida06 aida08 0x23, aida12 0xd, all others 0xc

BNC PB-5 settings
      amplitude 1.000V
      attenuation x1
      frequency 2Hz
      tau_d 1ms (tail pulse)
      + polarity

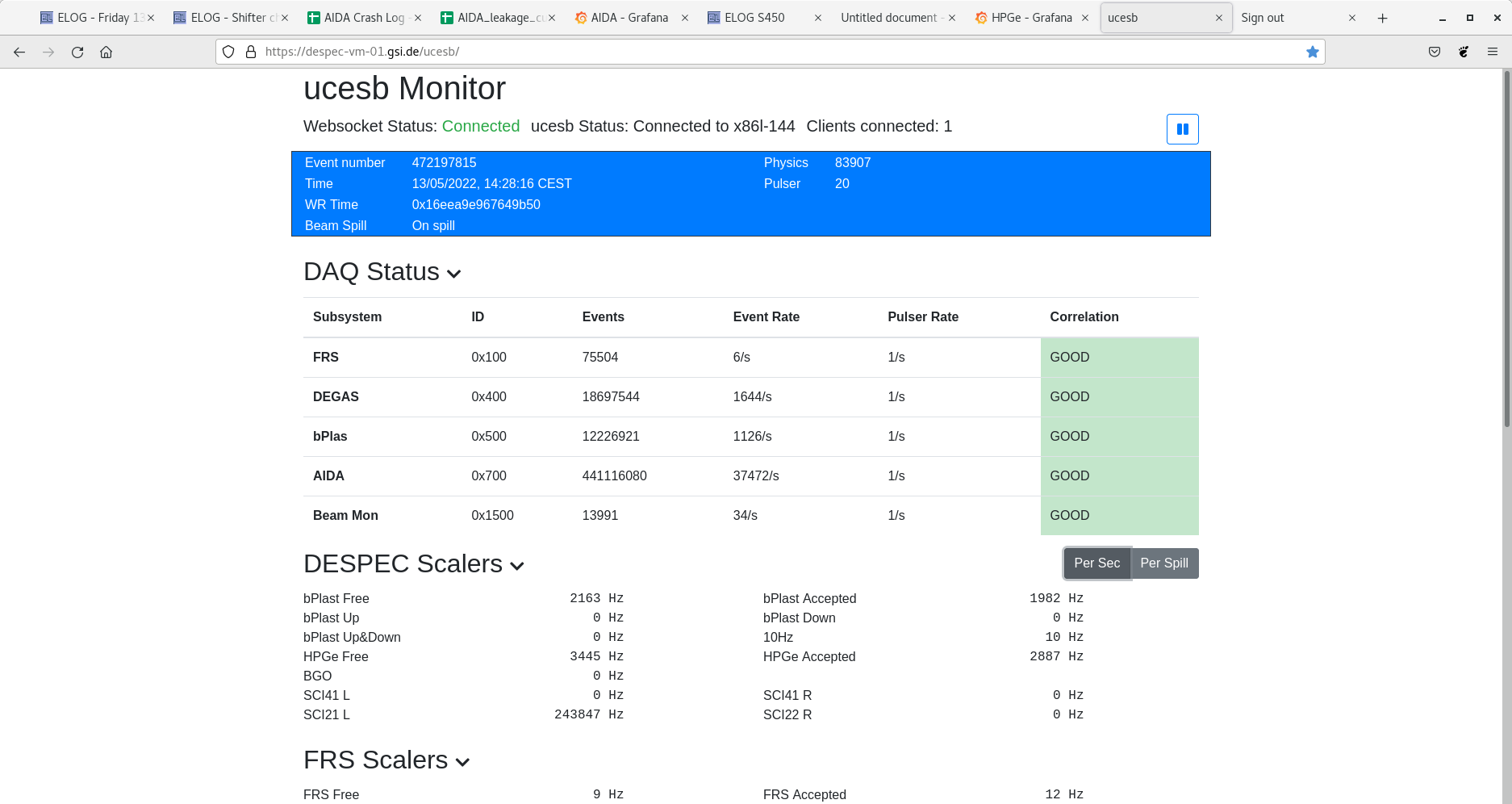

Attachments 2 & 3 - ucesb
      Pb beam intensity c. 4e+8/spill - lower than expected 1e+9/spill . Low implant rates (~Hz/spill) are expected for setting.

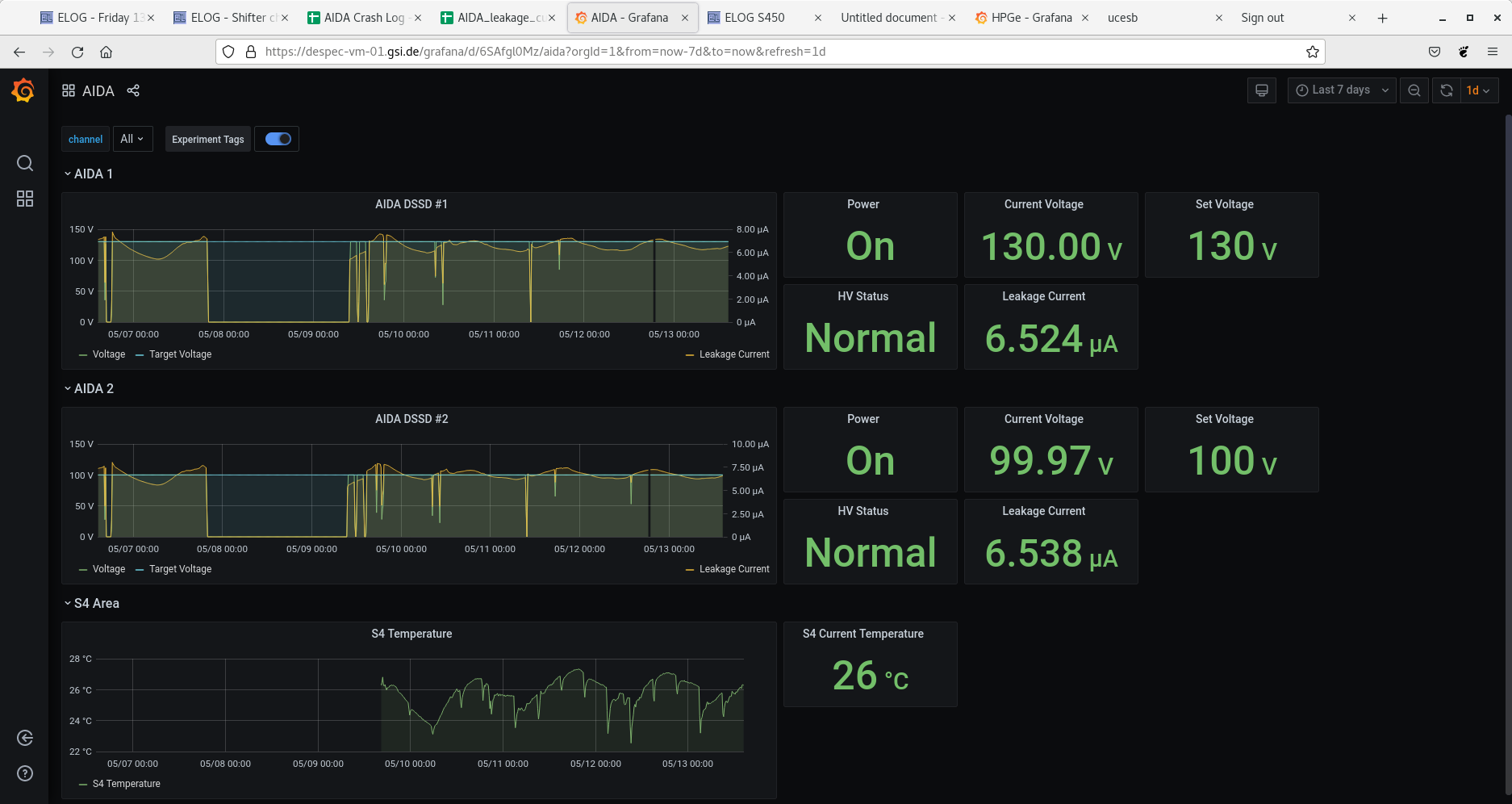

Attachment 4 & 5 - grafana DSSSD bias, leakage current & temp - OK

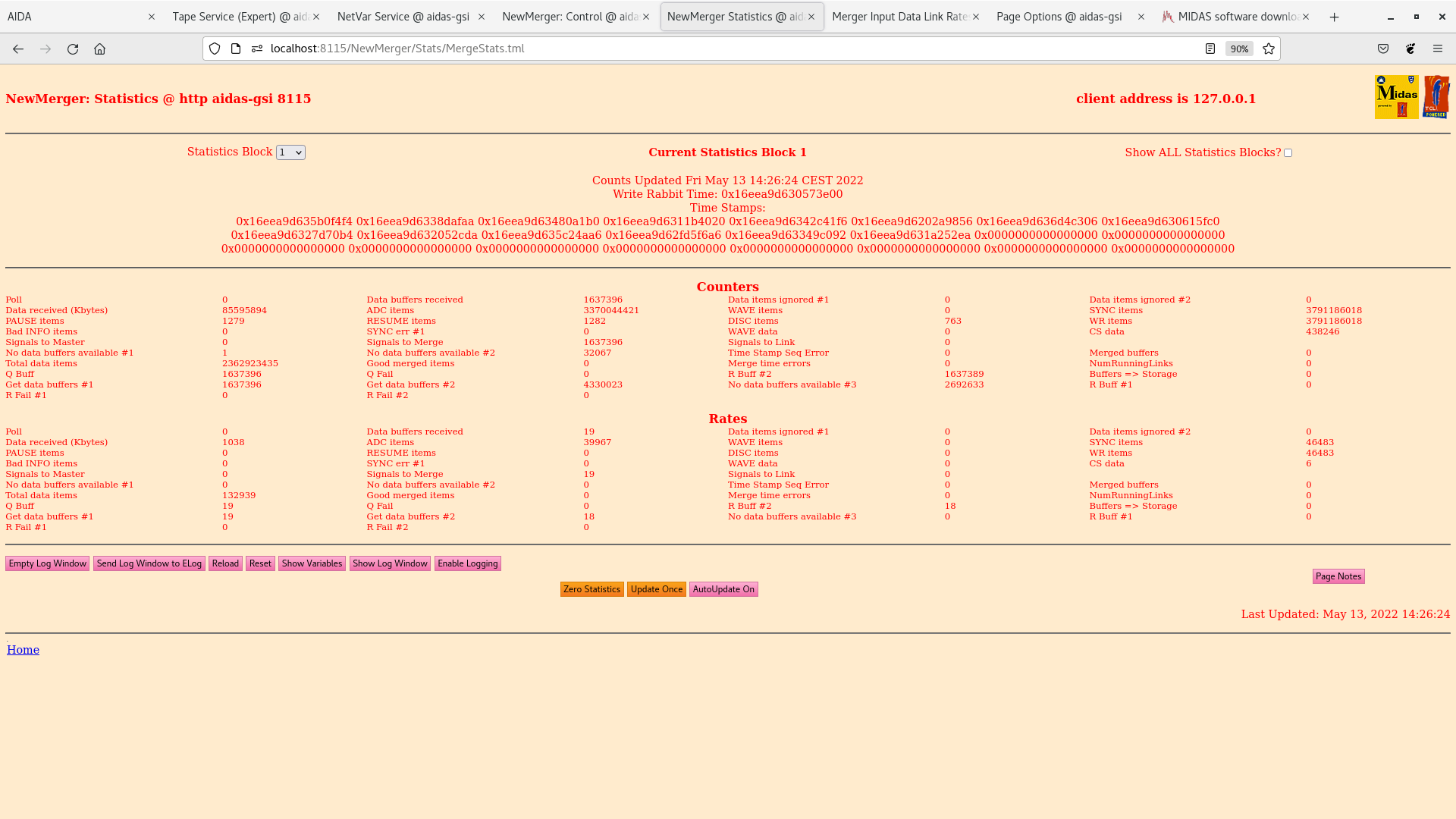

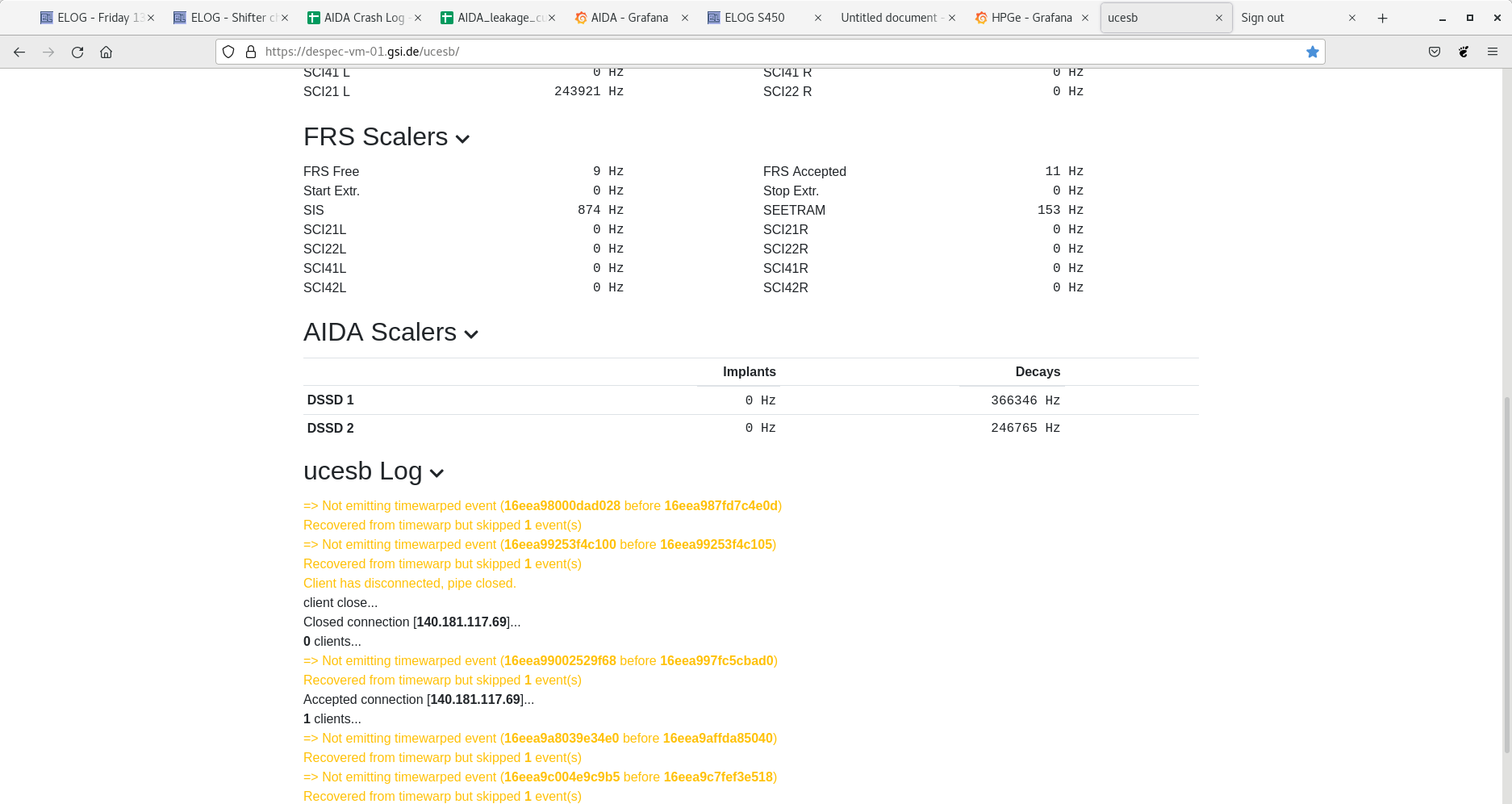

Attachments 6-8 - NewMerger stats blocks 0, 1, & 6

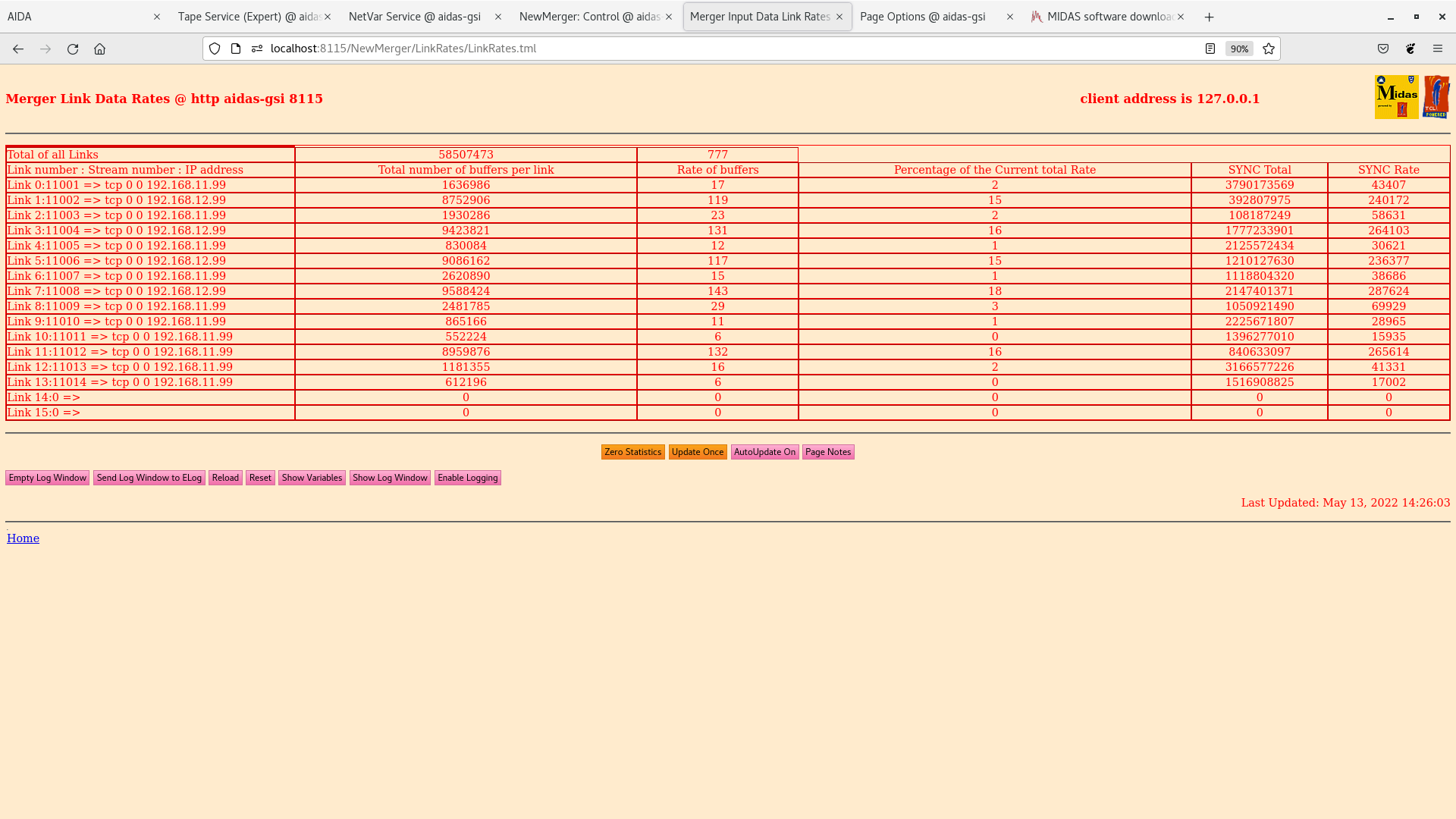

Attachment 9 - NewMerger link stats

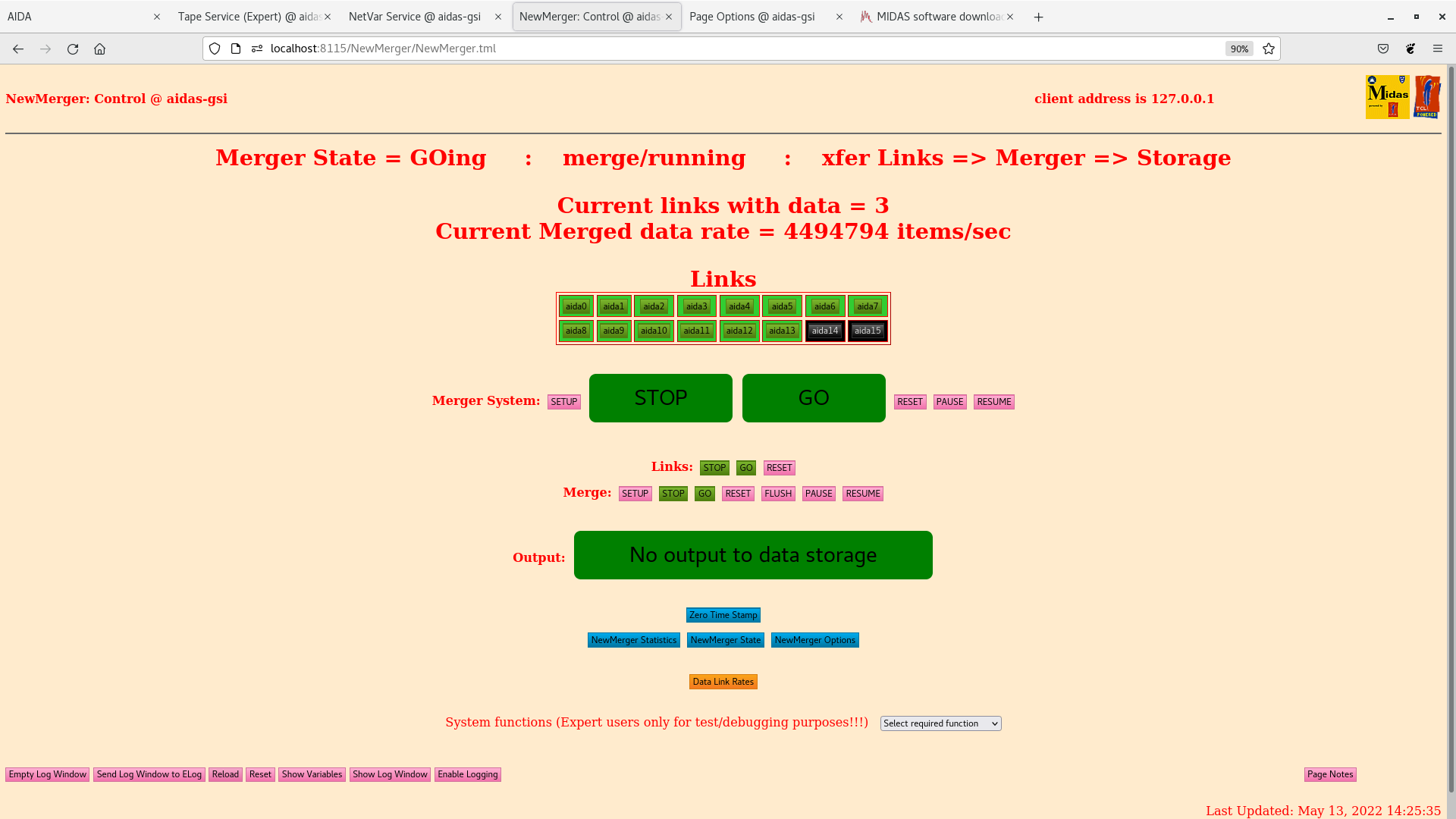

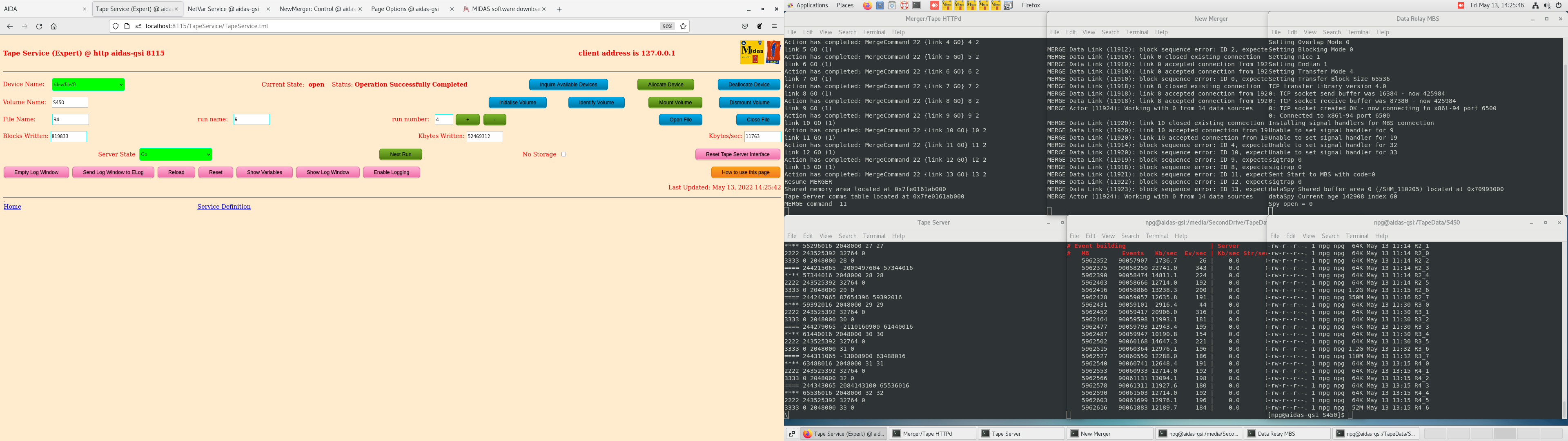

Attachments 10-11 - TapeServer/NewMerger

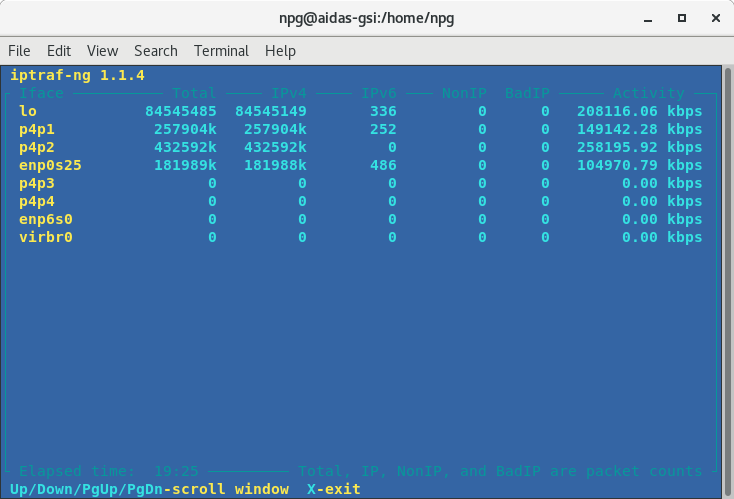

Attachment 12 - iptraf aida-gsi network interfaces

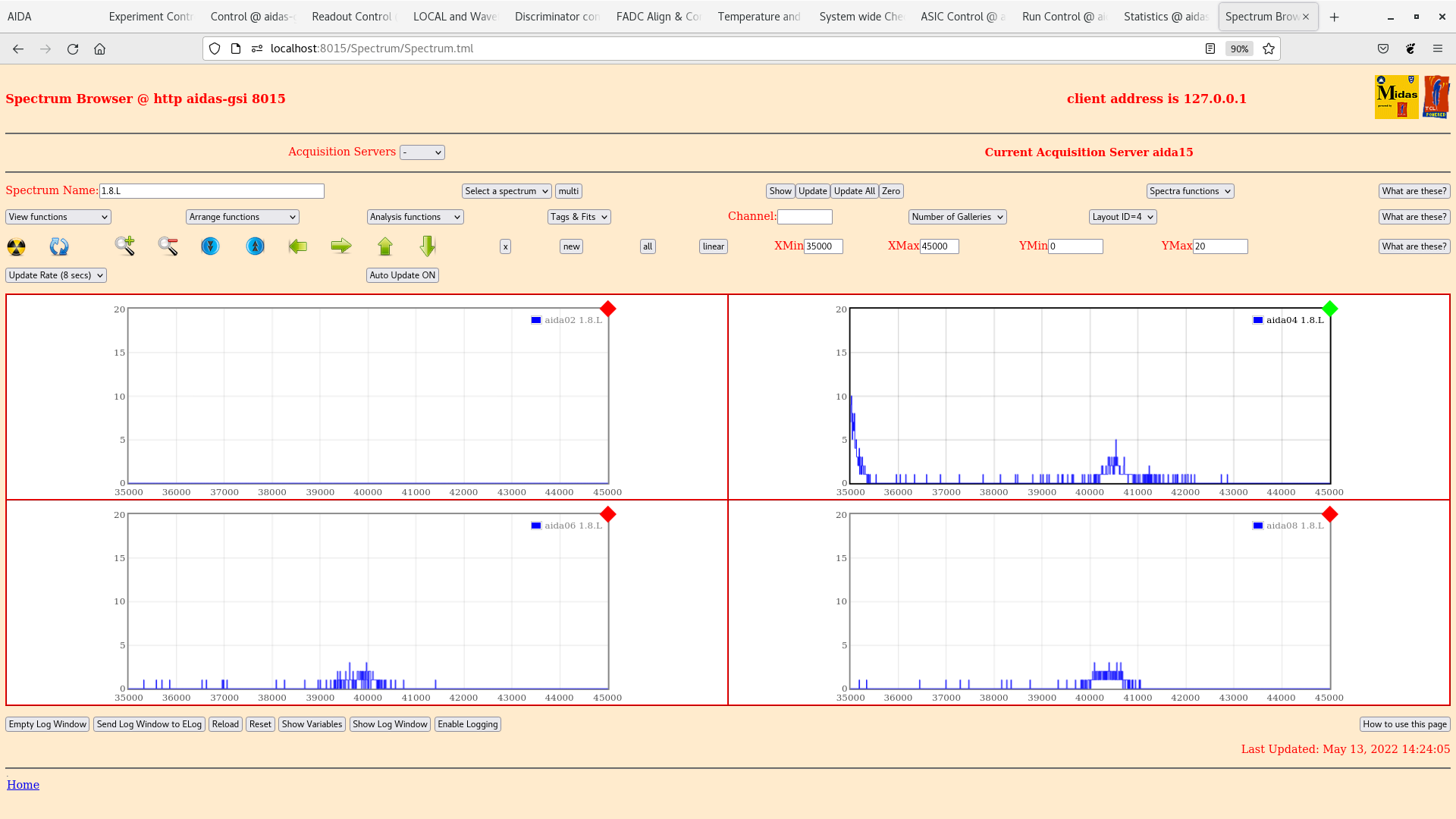

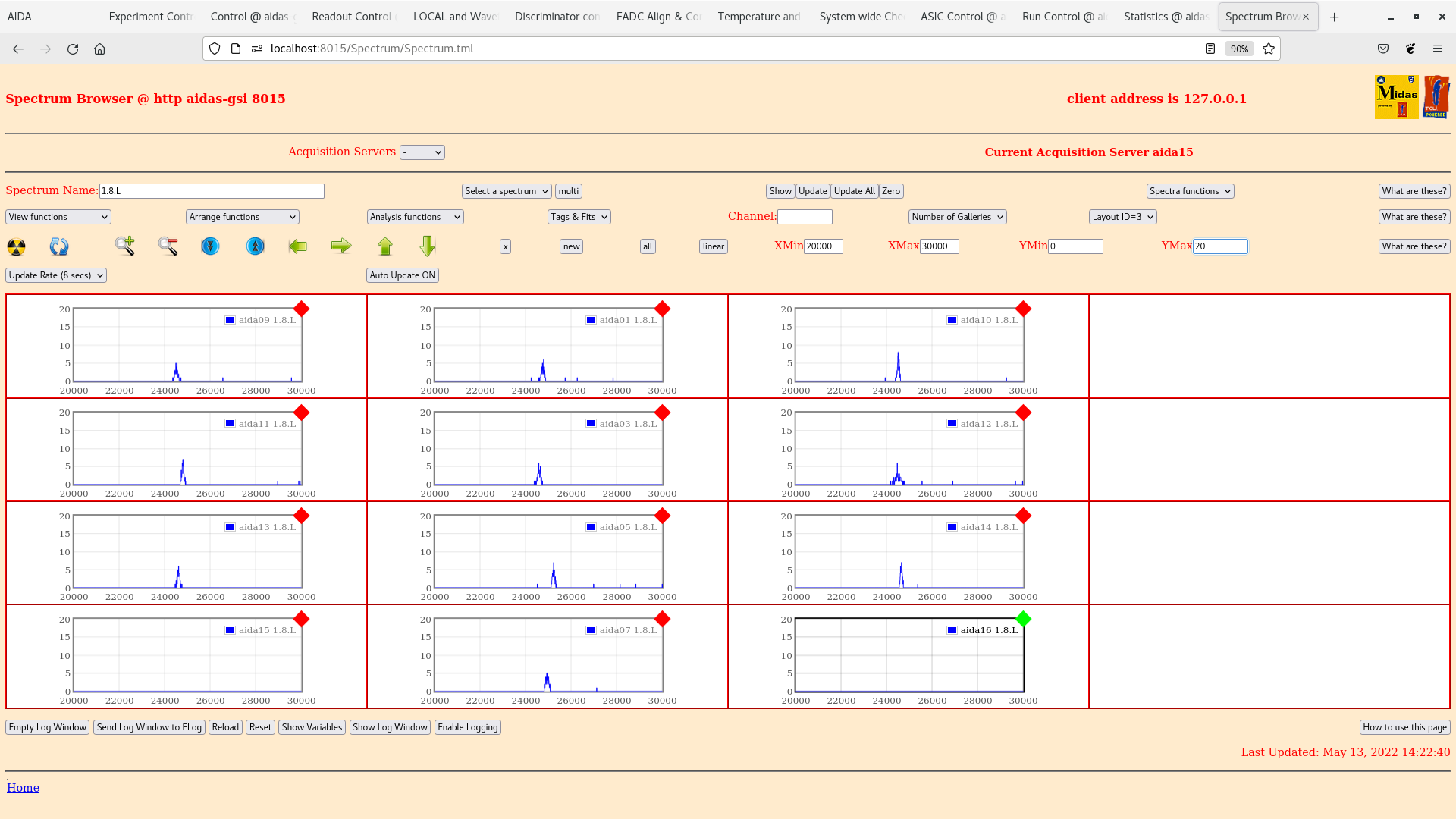

Attachments 13-14 - per FEE64 1.8.L spectra
 pulser peak width aida01 123 ch FWHM, aida04 430 ch FWHM

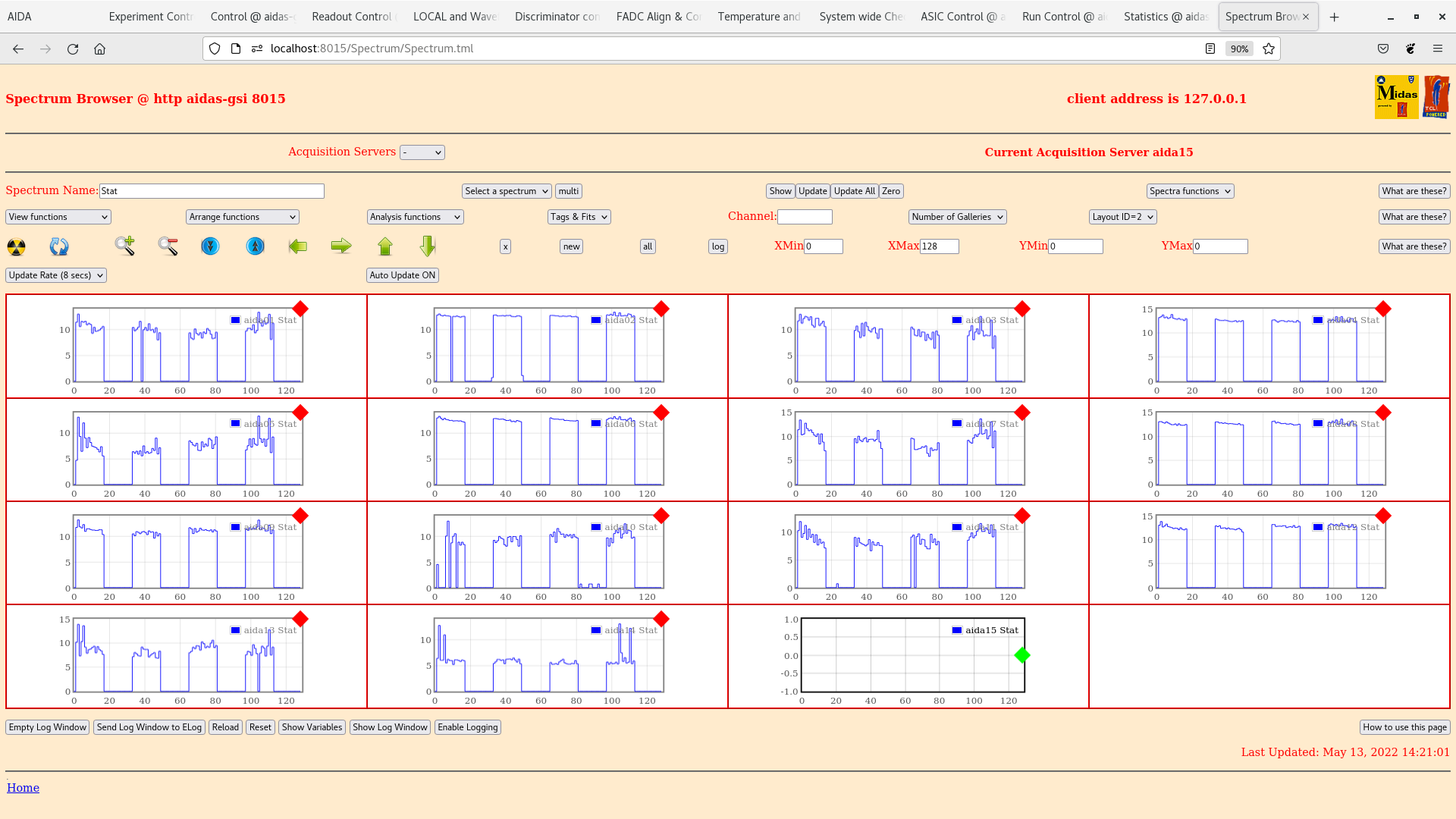

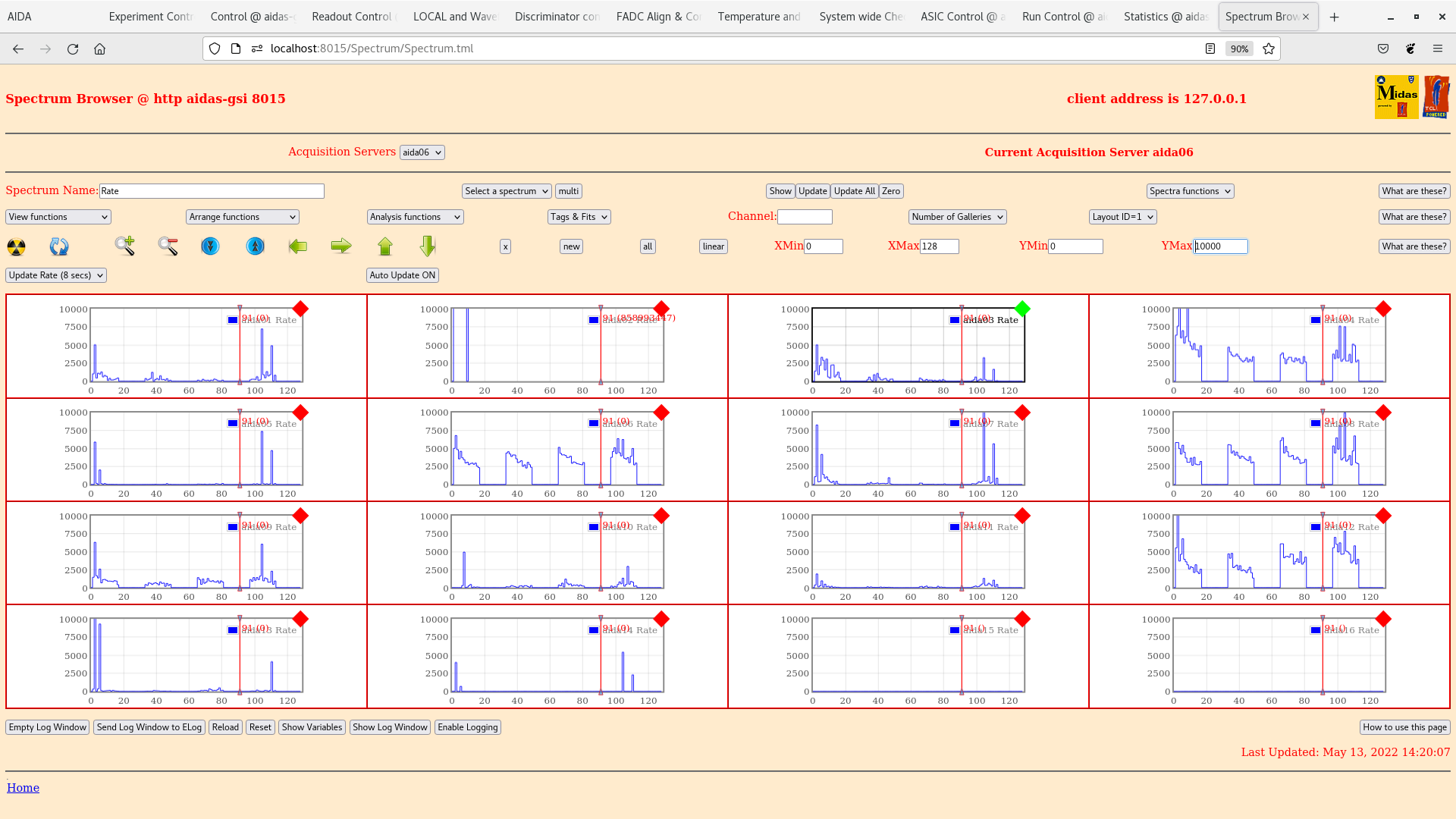

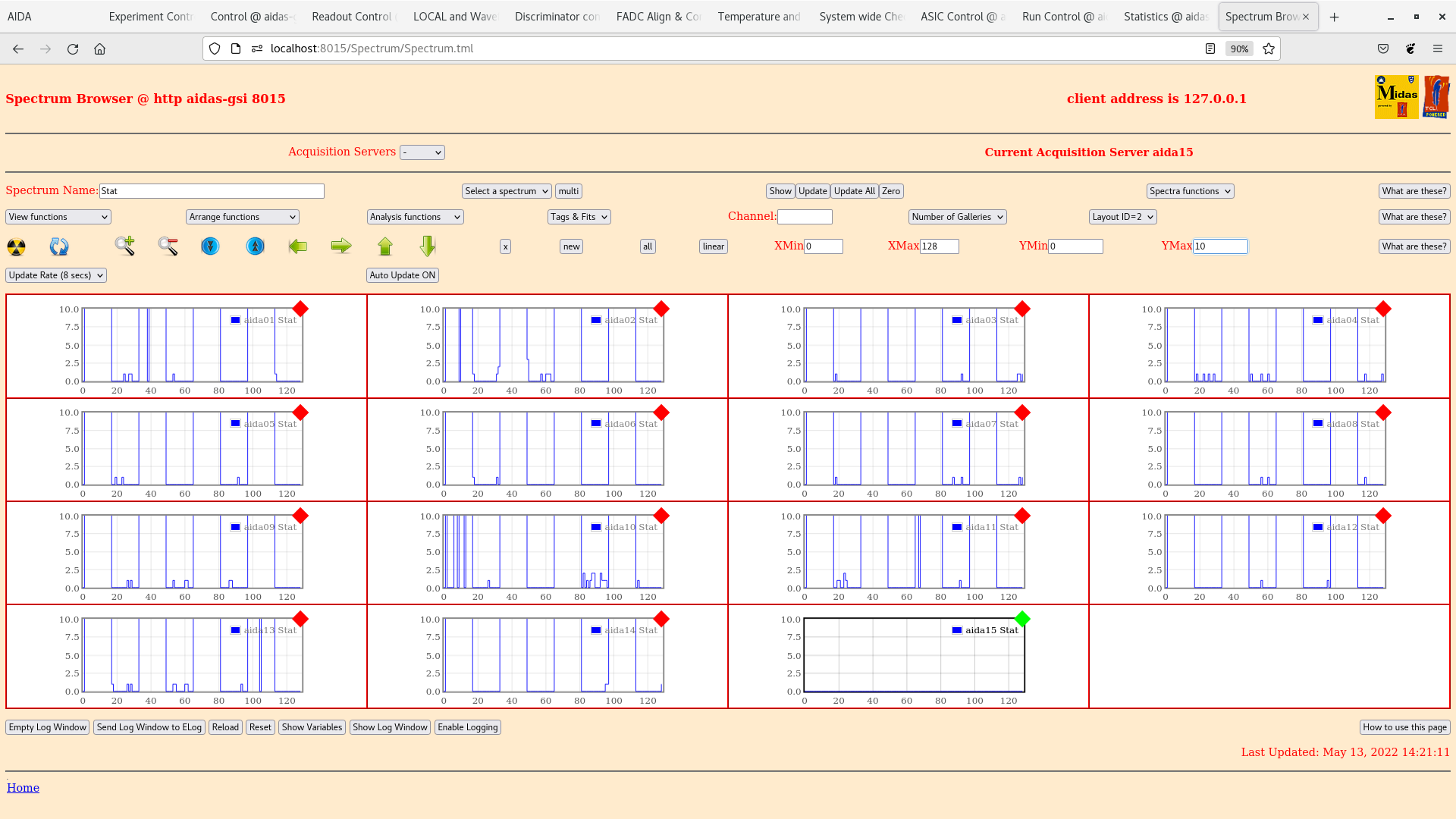

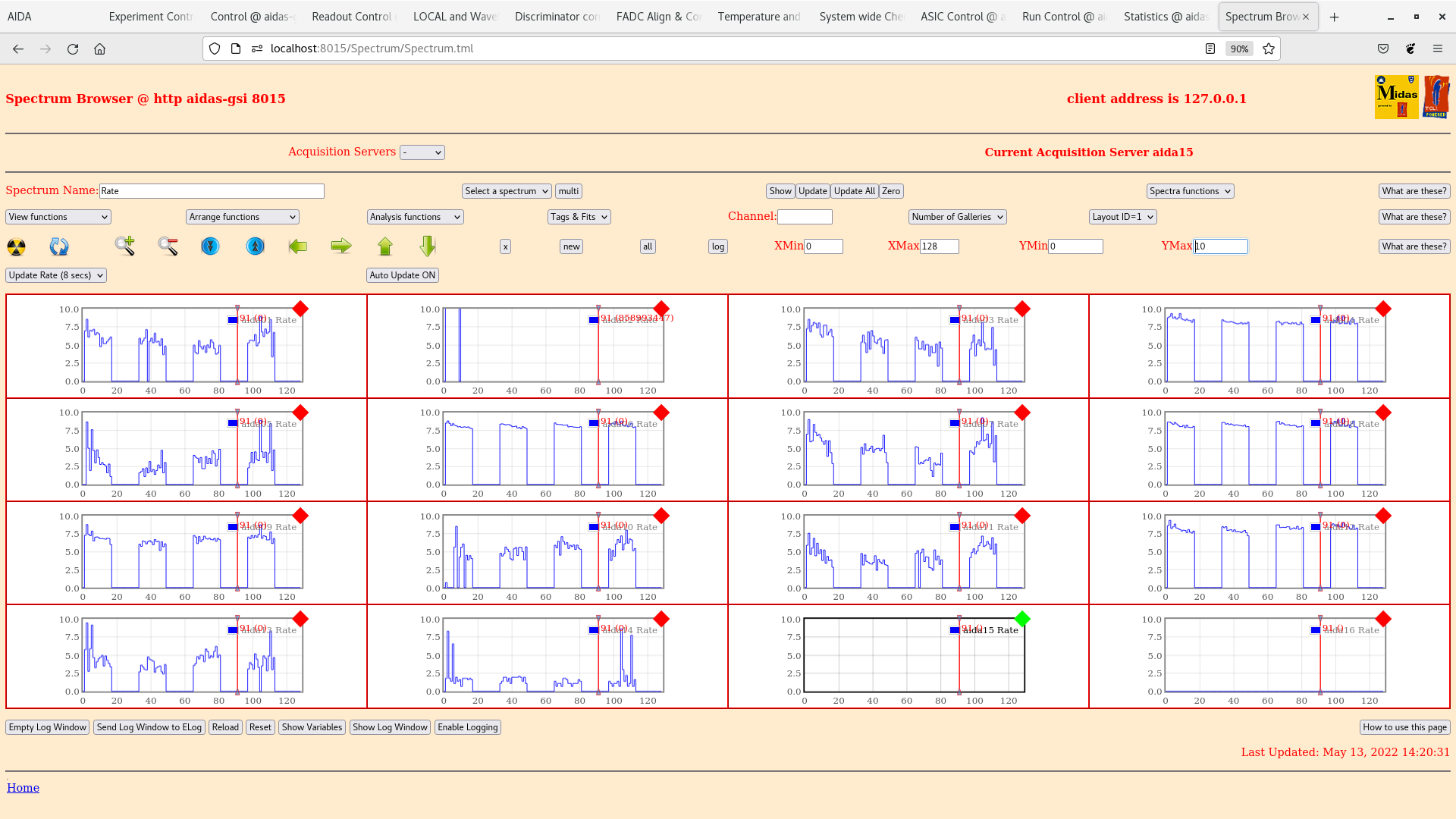

Attachments 15-18 - per FEE64 rates and stat spectra

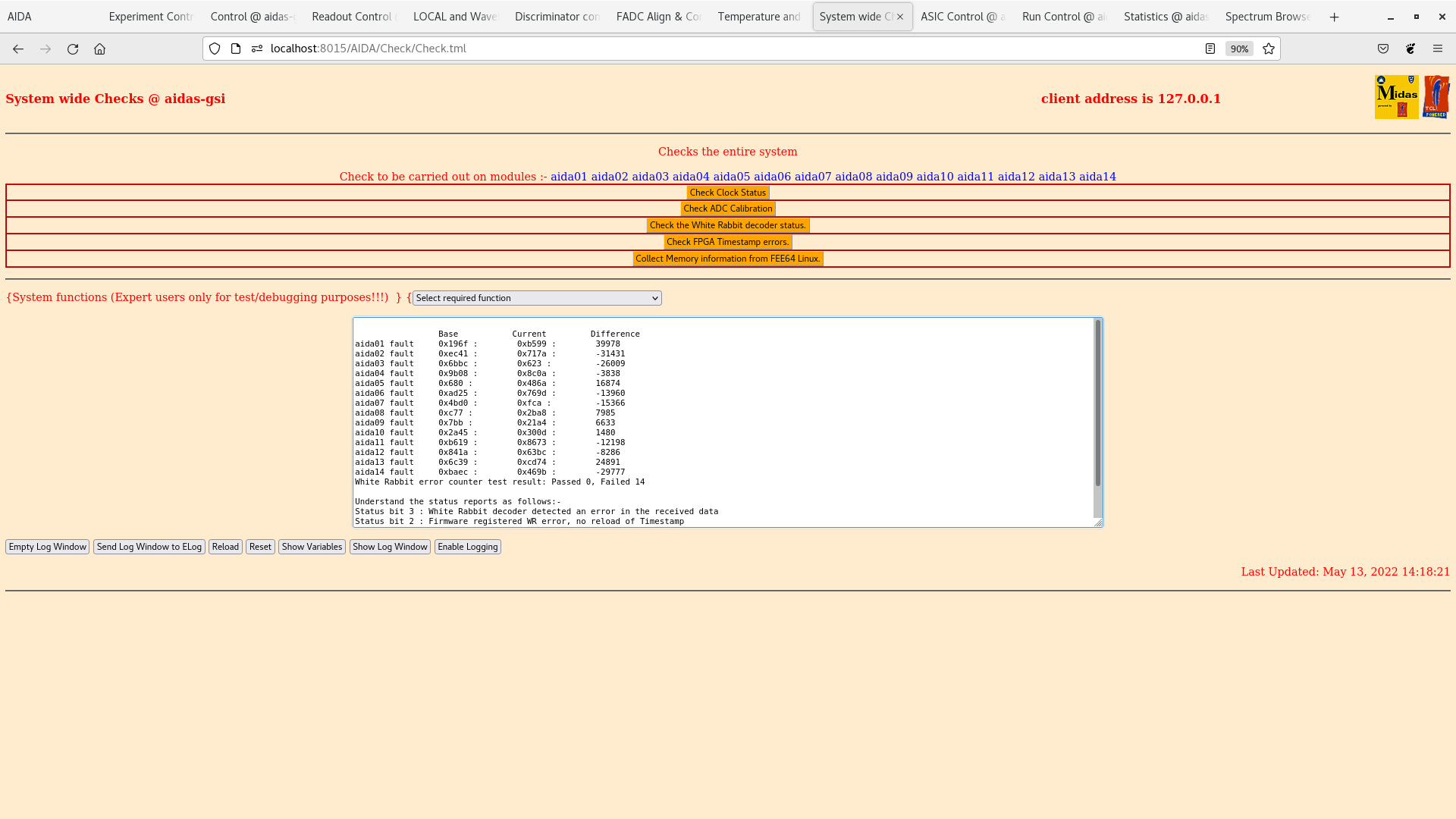

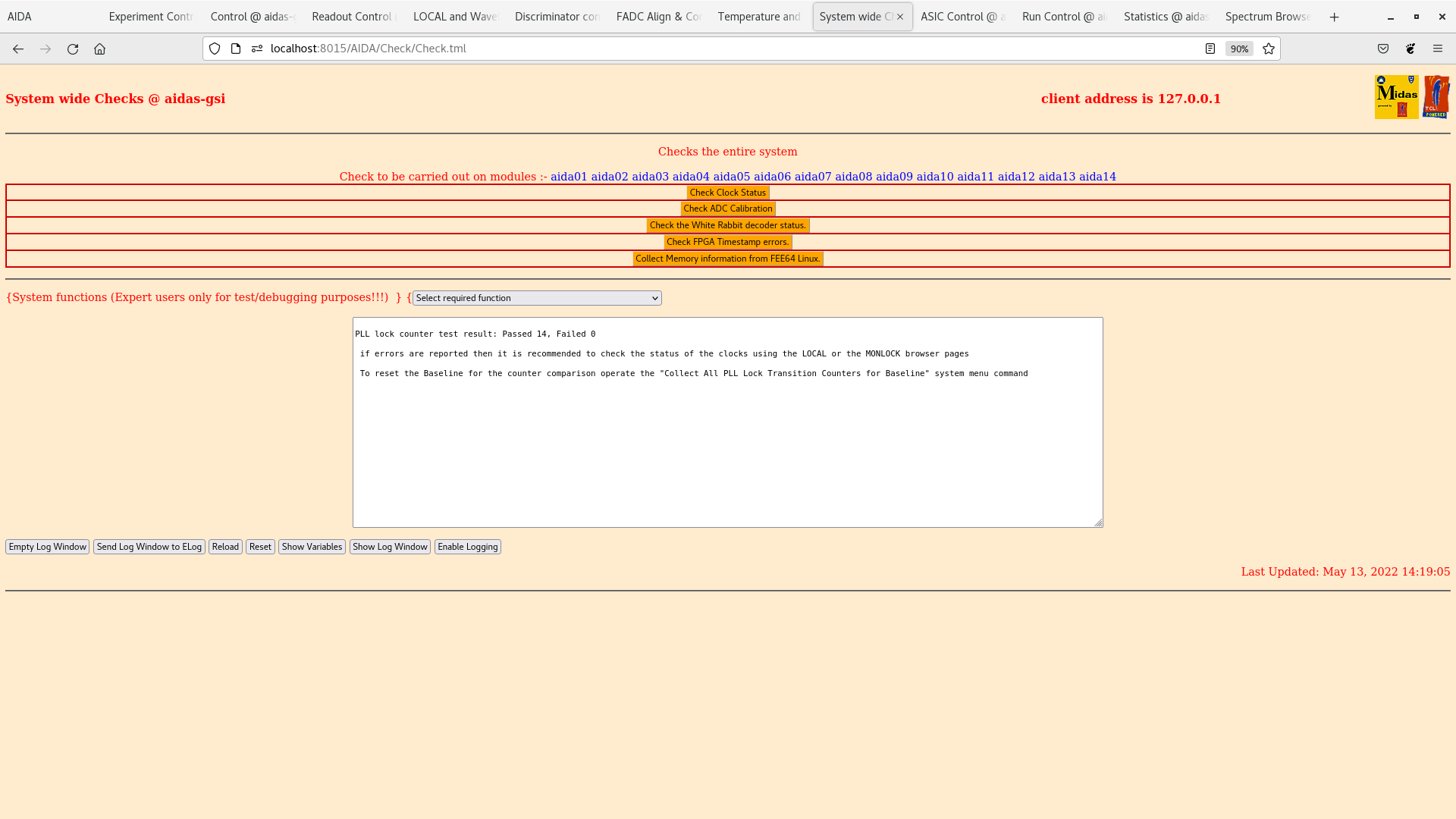

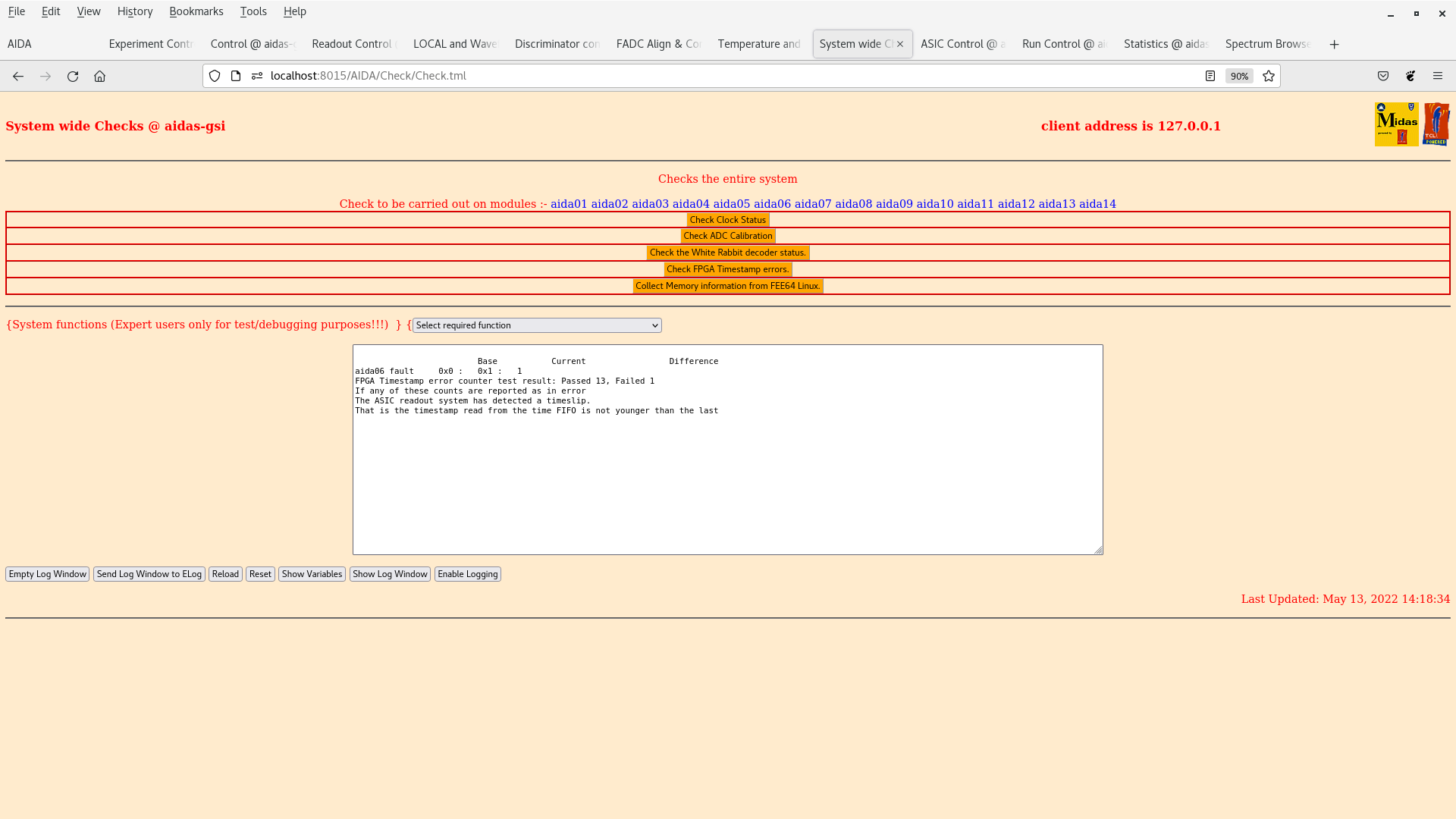

Attachments 19-22 - system wide checks

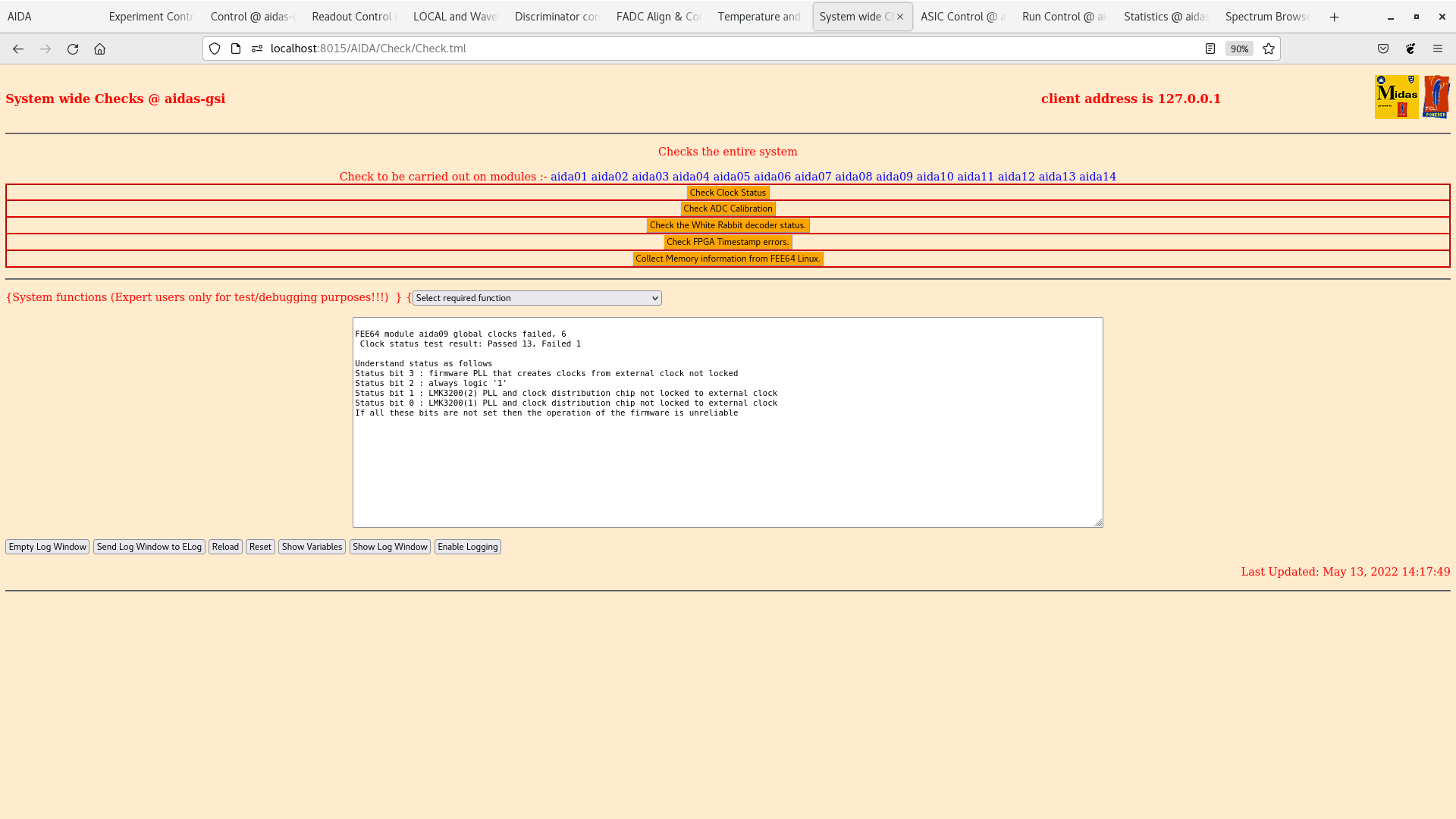

 aida09 clock status 6, WR decoder status errors

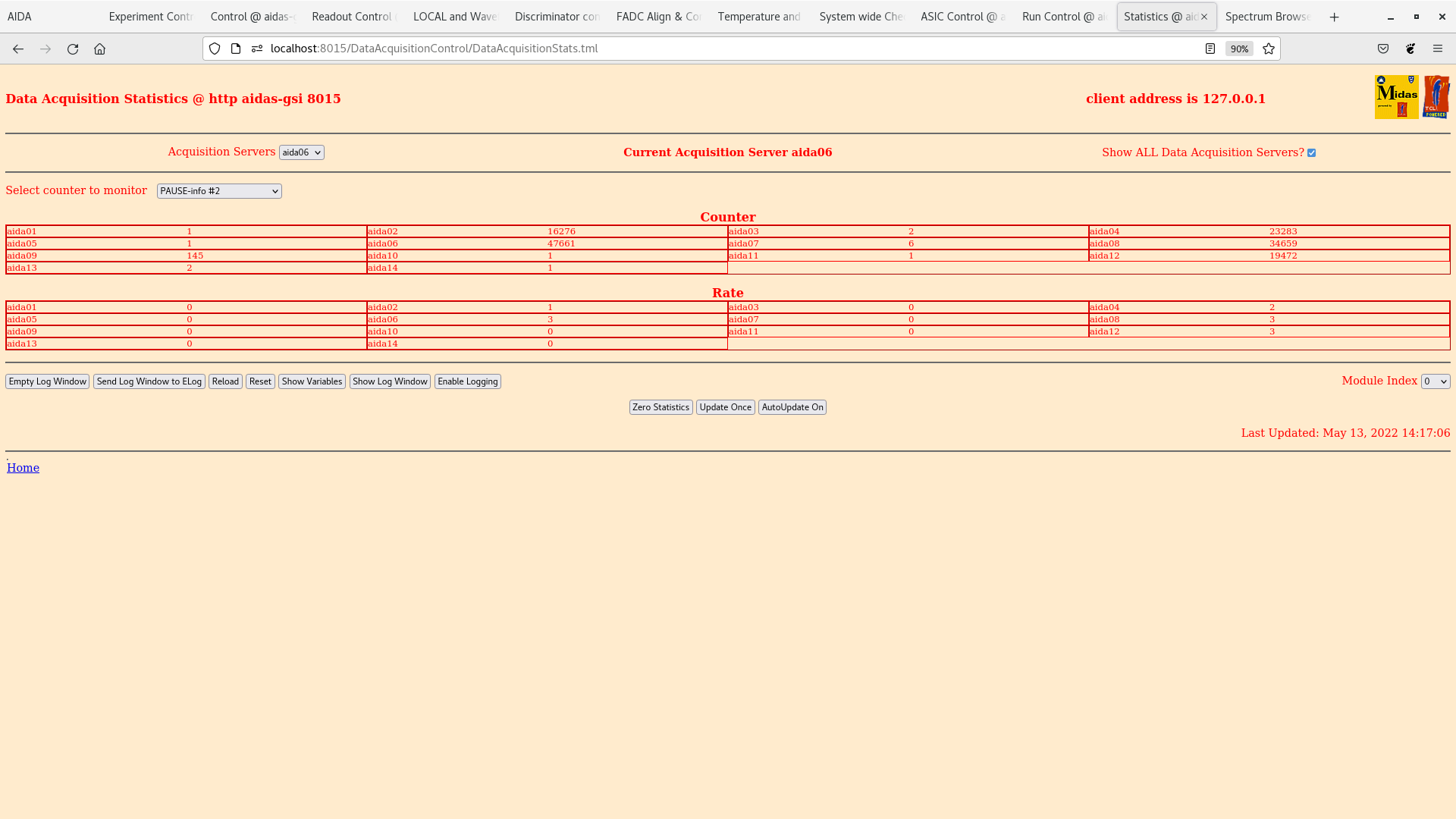

Attachments 23-26 - adc, pause, resume correlation sclaer data item stats

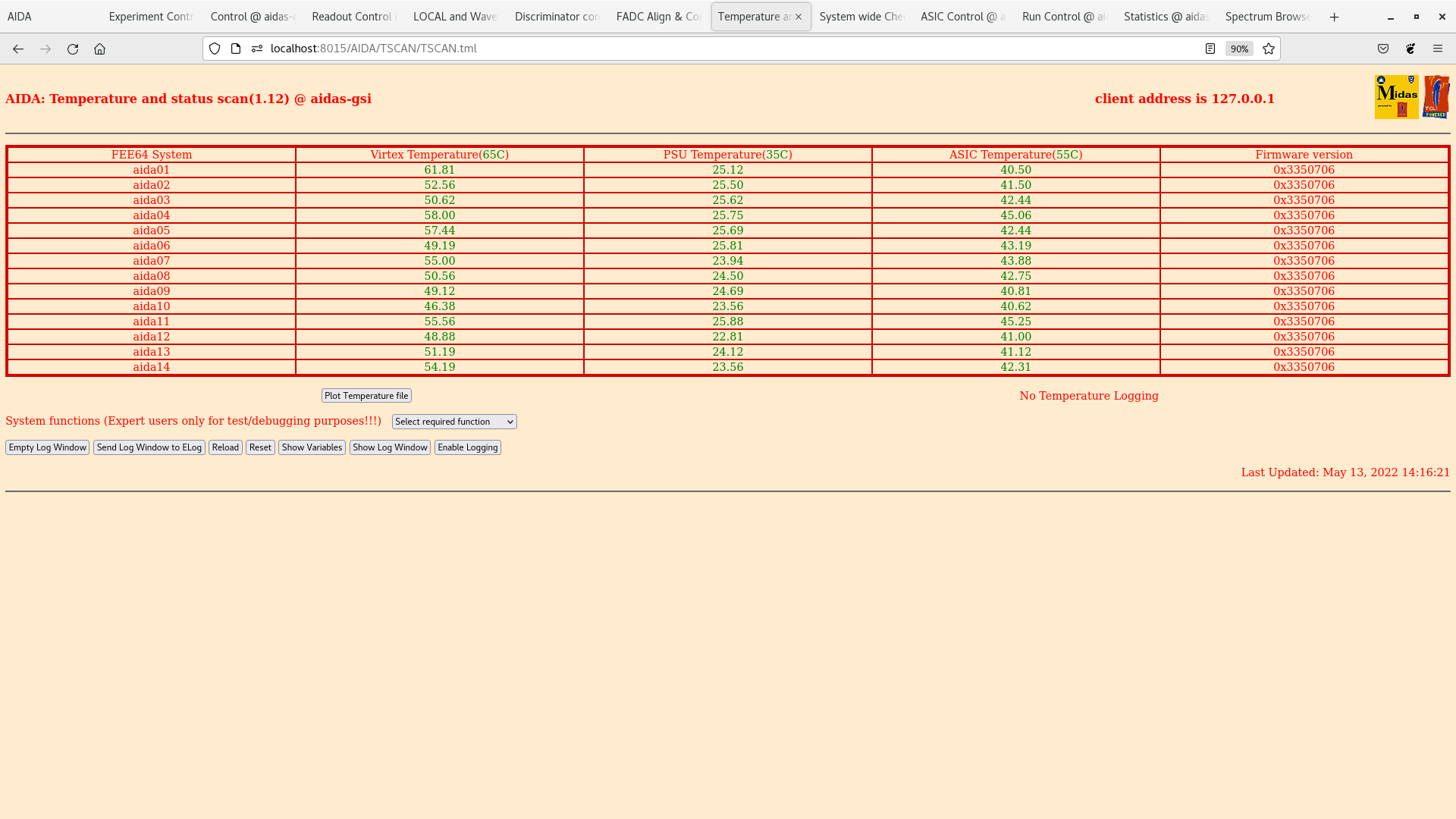

Attachment 27 - FEE64 temps OK

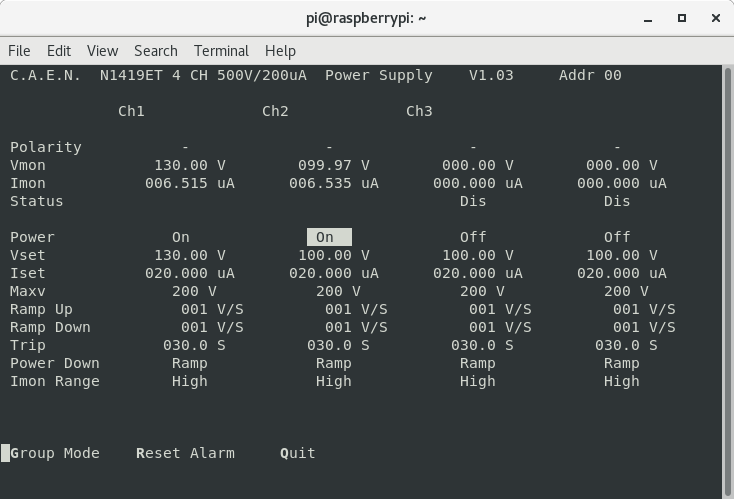

Attachment 28 - DSSSSD bias and leakage currents OK

14.30 check ASIC load

14.47 attachment 29 - analysis S450/R4_38

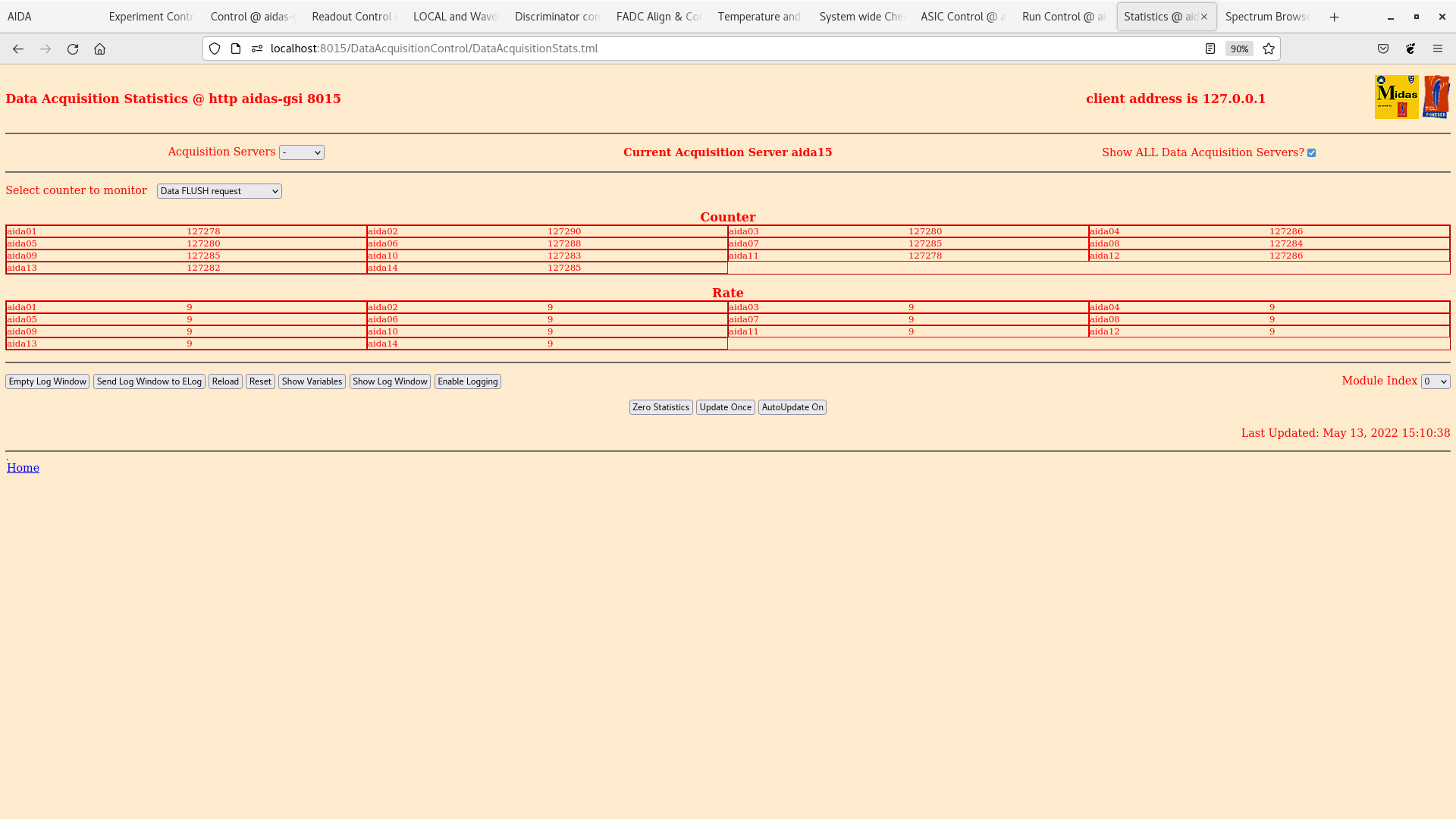

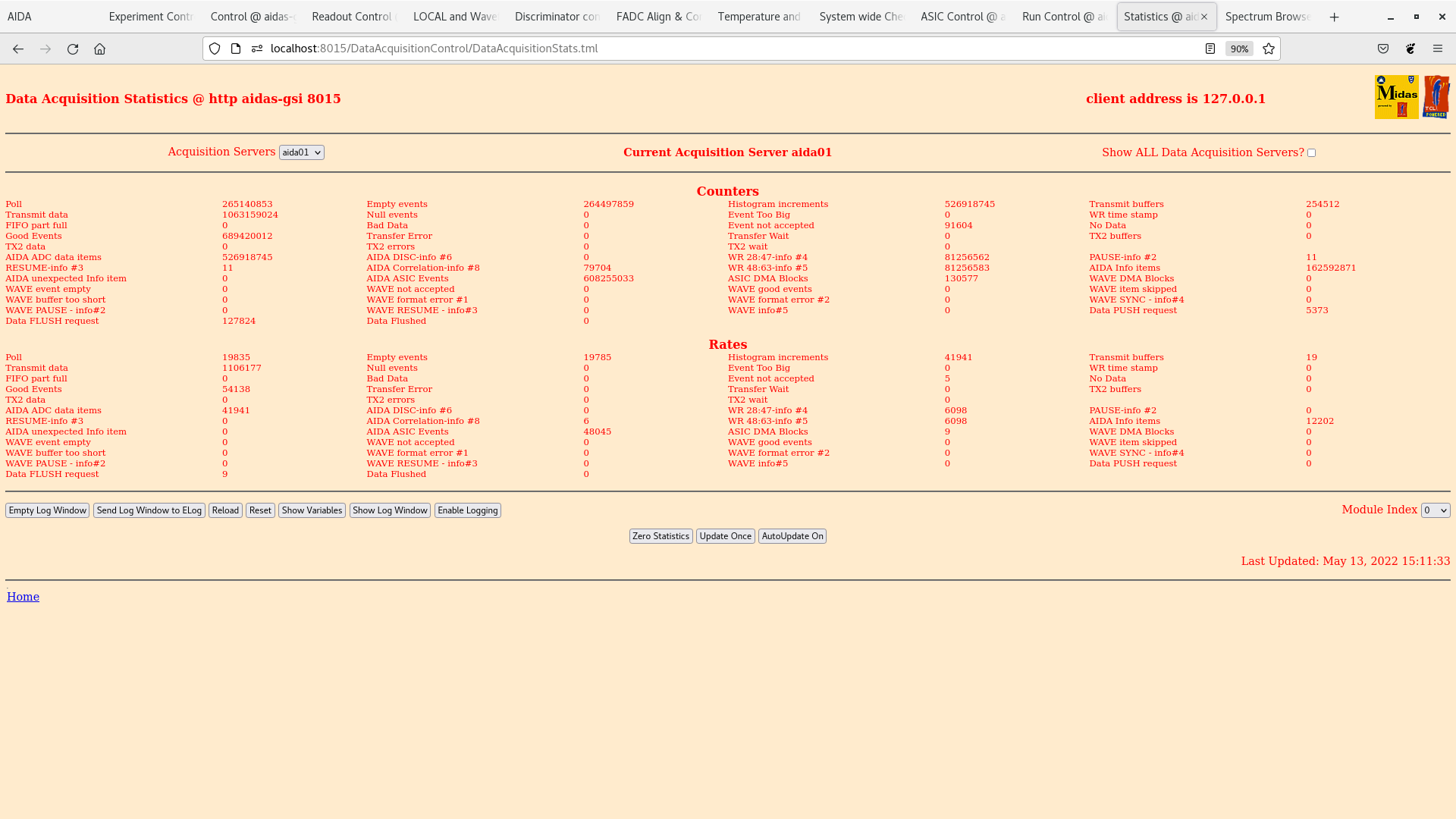

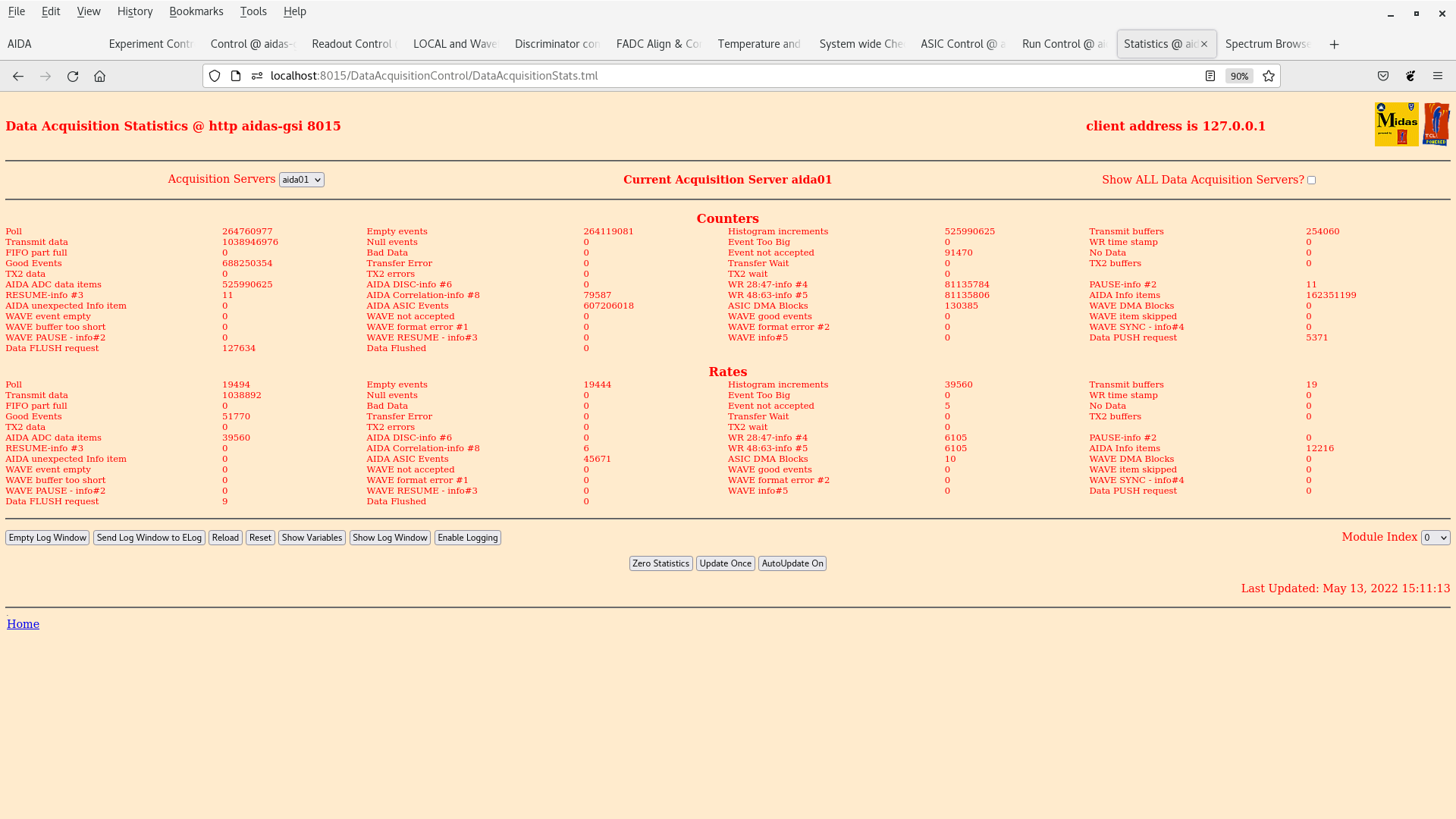

15.11 Attachments 30-35 - data push, flush stats for all FEE64s and aida01 (low ADC data item rate) and aida06 (high ADC data item rate)

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

220513_0839_R1_327_analysis.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  259232212 ( 1719602.4 Hz)
        Other data format:    2687788 (   17829.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        986 (       6.5 Hz)
                               RESUME:        986 (       6.5 Hz)
                              SYNC100:      32562 (     216.0 Hz)
                              WR48-63:      32562 (     216.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    2620692 (   17384.2 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     130683 (     866.9 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      150.751 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.085                0.000
  1                9.978                0.000
  2                0.059                0.000
  3               21.640                0.000
  4                0.158                0.000
  5               66.897                0.000
  6                1.778                0.000
  7               36.972                0.000
  8                0.172                0.000
  9                0.018                0.000
 10                0.000                7.315
 11               28.135                0.000
 12                0.007                0.000
 13                0.000                3.034
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    7933827       2887          0          0          5          5        987        987          0        903          0       1141
  1   37526918       9508          0          0         50         50       4704       4704          0          0          0     122502
  2    8368319    1400718          0          0          2          2       1222       1222          0    1398270          0        647
  3   39185673    1207805          0          0        156        156       5116       5116          0    1197261          0        703
  4    4609566       1178          0          0          5          5        584        584          0          0          0       1170
  5   40049357      10540          0          0        309        309       4961       4961          0          0          0        297
  6   13162553      17502          0          0         13         13       1685       1685          0      14106          0        302
  7   41199857      20850          0          0        248        248       5101       5101          0      10152          0        241
  8   12021437       2864          0          0          5          5       1427       1427          0          0          0        467
  9    4748197       1188          0          0          2          2        592        592          0          0          0       1165
 10    3089949        744          0          0          0          0        372        372          0          0          0        247
 11   38258323       9856          0          0        190        190       4738       4738          0          0          0       1052
 12    6307578       1518          0          0          1          1        758        758          0          0          0        311
 13    2770658        630          0          0          0          0        315        315          0          0          0        438
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   33.600s (  952.392 blocks/s,  59.525 Mb/s)
