Message ID: 446 Entry time: Sat May 14 03:14:00 2022

Author:	PP
Subject:	Shift Checks

4:13

AIDA stats OK

Leakage current OK

Temperatures OK

grafana OK

ucesb rates OK

System wide check done and same results as earlier: aida09 fails clock (1), aida02 06 09 10 13 fail ADC calibration, all pass WR

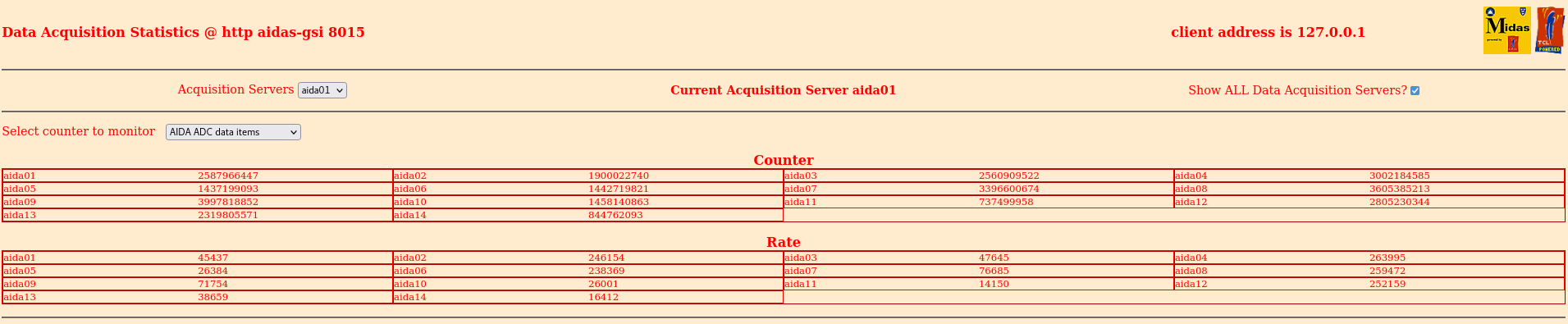

Screenshot 1: statistics

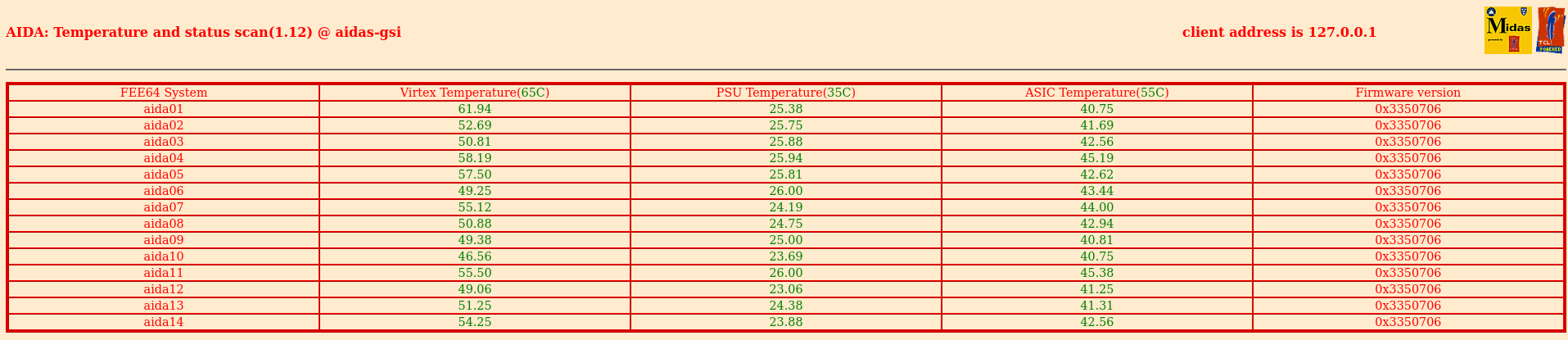

Screenshot 2: temperatures

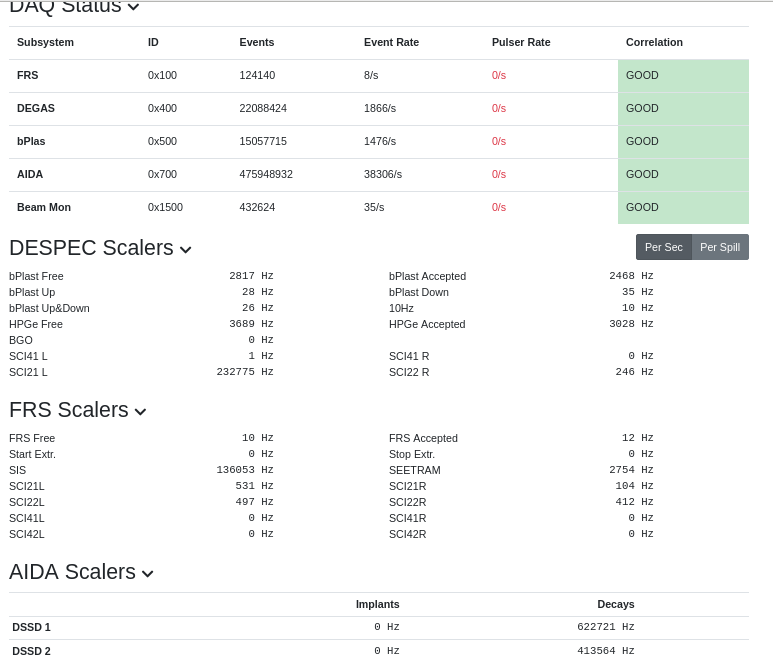

Screenshot 3: scalers

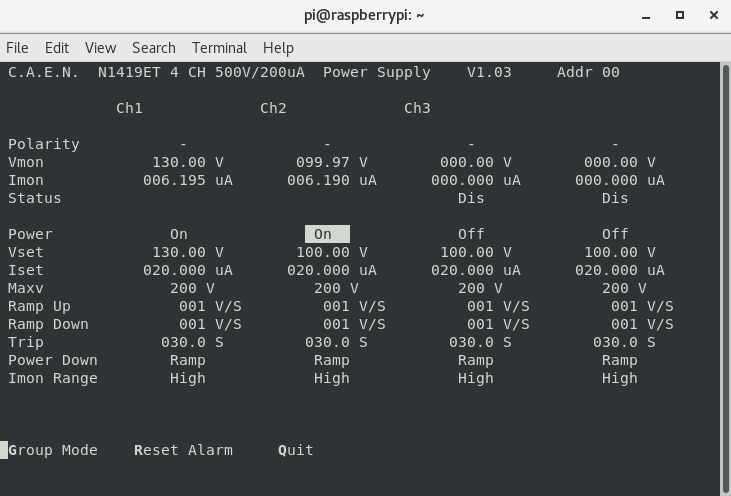

Screenshot 4: Bias and leakage current

6:36

AIDA stats OK

Leakage current OK

Temperatures OK

grafana OK

ucesb rates OK

System wide check done and same results as earlier: aida09 fails clock (1), aida02 06 09 10 13 fail ADC calibration, all pass WR

Screenshot 5: statistics

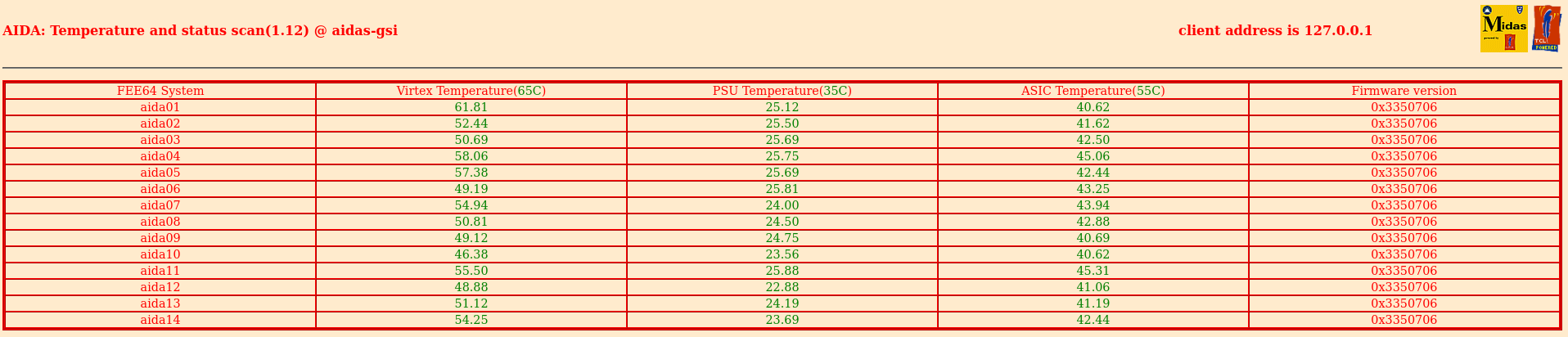

Screenshot 6: temperatures

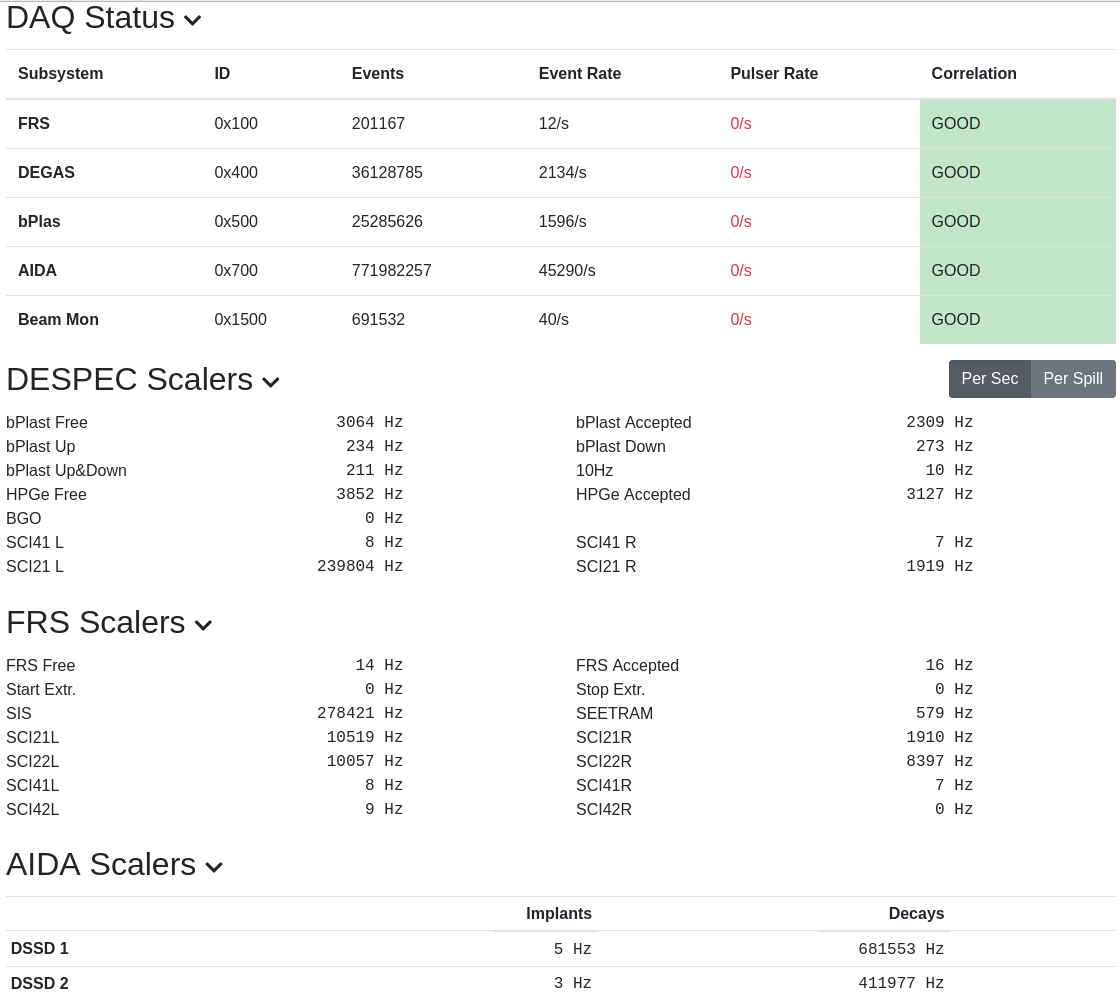

Screenshot 7: scalers

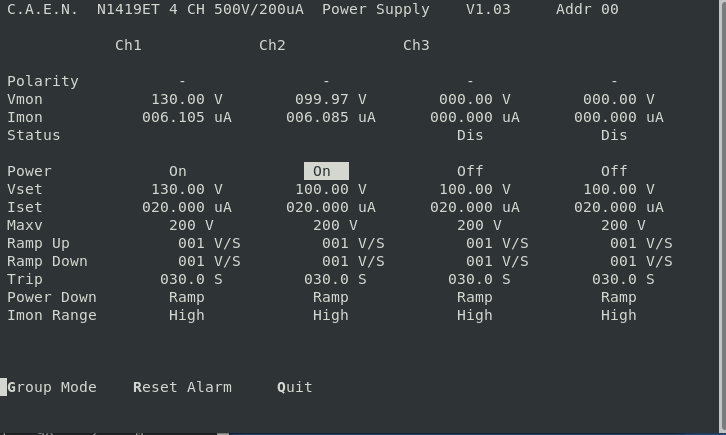

Screenshot 8: Bias and leakage current

Attachment 1:

stats-220514-0428.png 65 kB Uploaded Sat May 14 06:47:32 2022 | Hide | Hide all

Attachment 2:

temps-220514-0417.png 95 kB Uploaded Sat May 14 06:47:51 2022 | Hide | Hide all

Attachment 3:

scalers-220514-0426.png 70 kB Uploaded Sat May 14 06:48:10 2022 | Hide | Hide all

Attachment 4:

I-V-220514-0431.png 40 kB Uploaded Sat May 14 06:48:39 2022 | Hide | Hide all

Attachment 5:

stats-220514-0639.png 65 kB Uploaded Sat May 14 06:48:48 2022 | Hide | Hide all

Attachment 6:

temps-220514-0639.png 94 kB Uploaded Sat May 14 06:48:57 2022 | Hide | Hide all

Attachment 7:

scalers-220514-0641.png 128 kB Uploaded Sat May 14 06:49:06 2022 | Hide | Hide all

Attachment 8:

I-V-220514-0640.png 35 kB Uploaded Sat May 14 06:49:15 2022 | Hide | Hide all
