FEE64 module aida09 global clocks failed, 6
&nbsp;Clock status test result: Passed 13, Failed 1

Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic &#39;1&#39;
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable

&nbsp;

FEE64 module aida02 failed
FEE64 module aida06 failed
FEE64 module aida09 failed
FEE64 module aida10 failed
FEE64 module aida13 failed
Calibration test result: Passed 9, Failed 5

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

&nbsp;

White Rabbit error counter test result: Passed 14, Failed 0

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

&nbsp;

FPGA Timestamp error counter test result: Passed 14, Failed 0
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

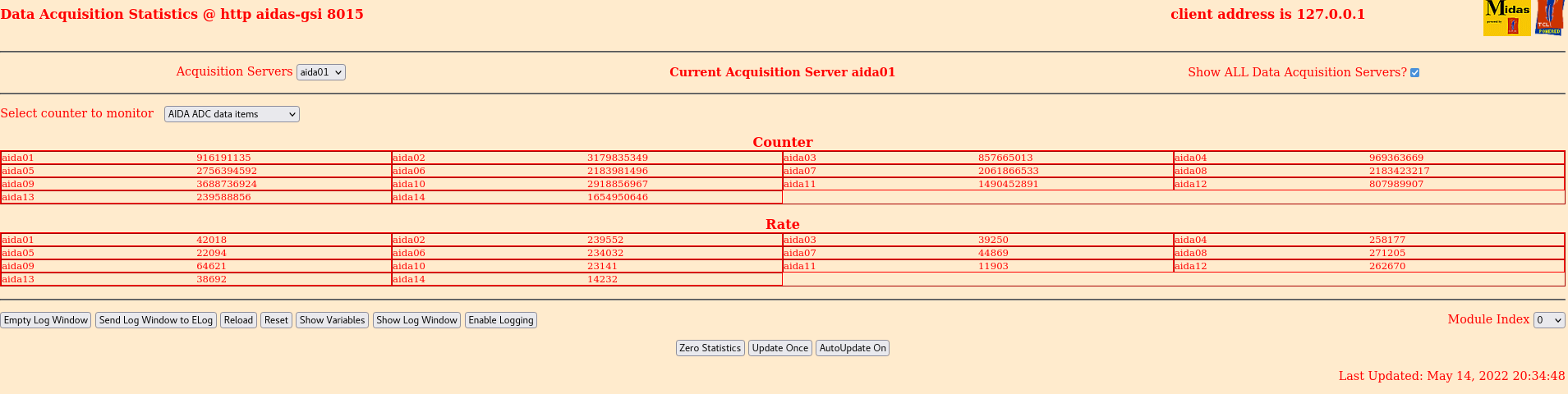

Stat_2022-05-14_20-36-15.png Original size: 1909x480
