| DESPEC |
 |
|
|
|
Message ID: 455
Entry time: Sat May 14 23:02:33 2022
|
| Author: |
TD |
| Subject: |
Sunday 15 May 00:00-08:00 |
|
|
Pb beam c. 1e+9/spill
00.02 zero all histograms
system wide checks - baseline counters
00.08 ASIC check control - all FEE64s, all ASICs

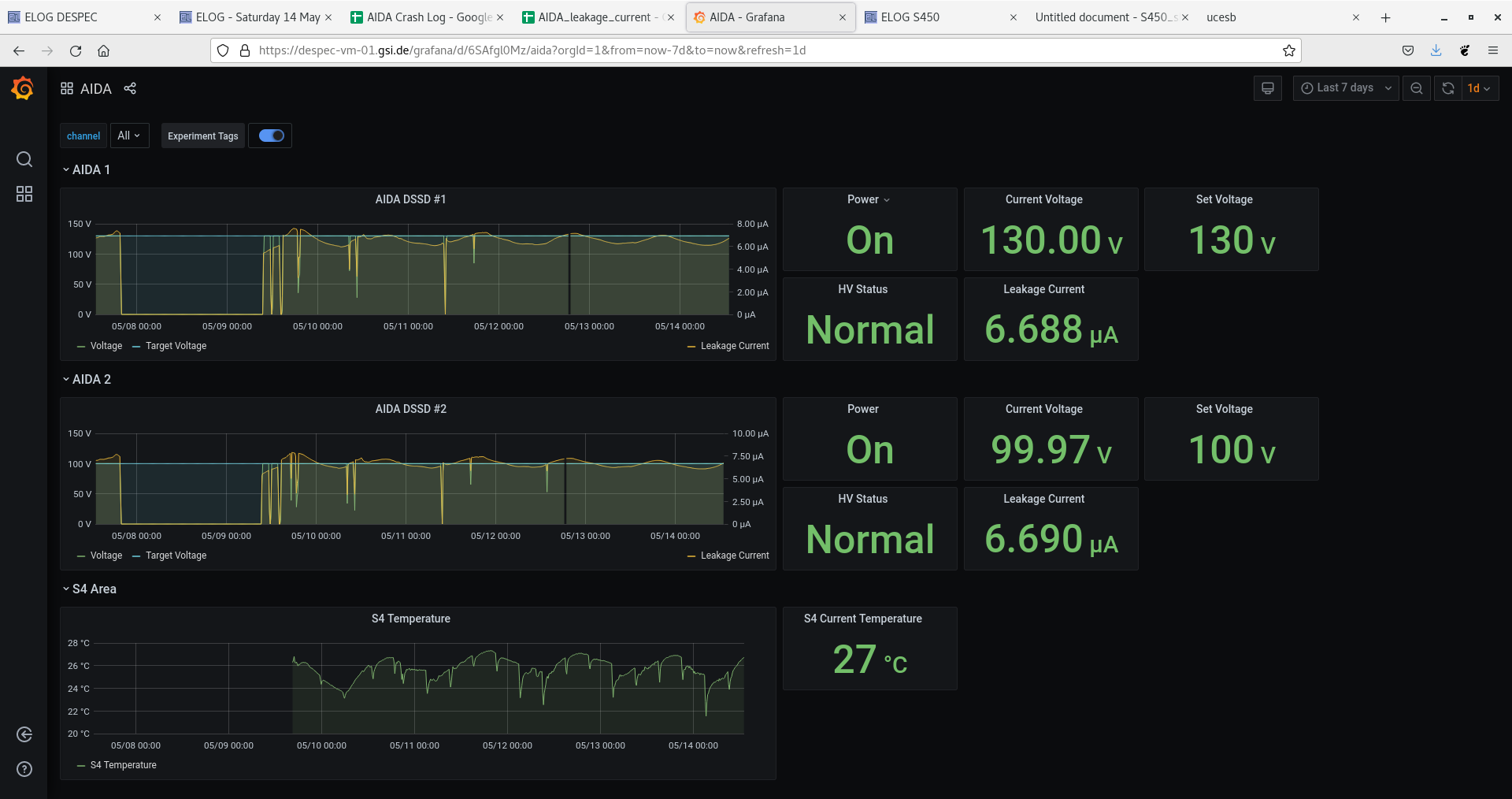

Attachment 1 - grafana DSSSD bias, leakage current & temp - OK

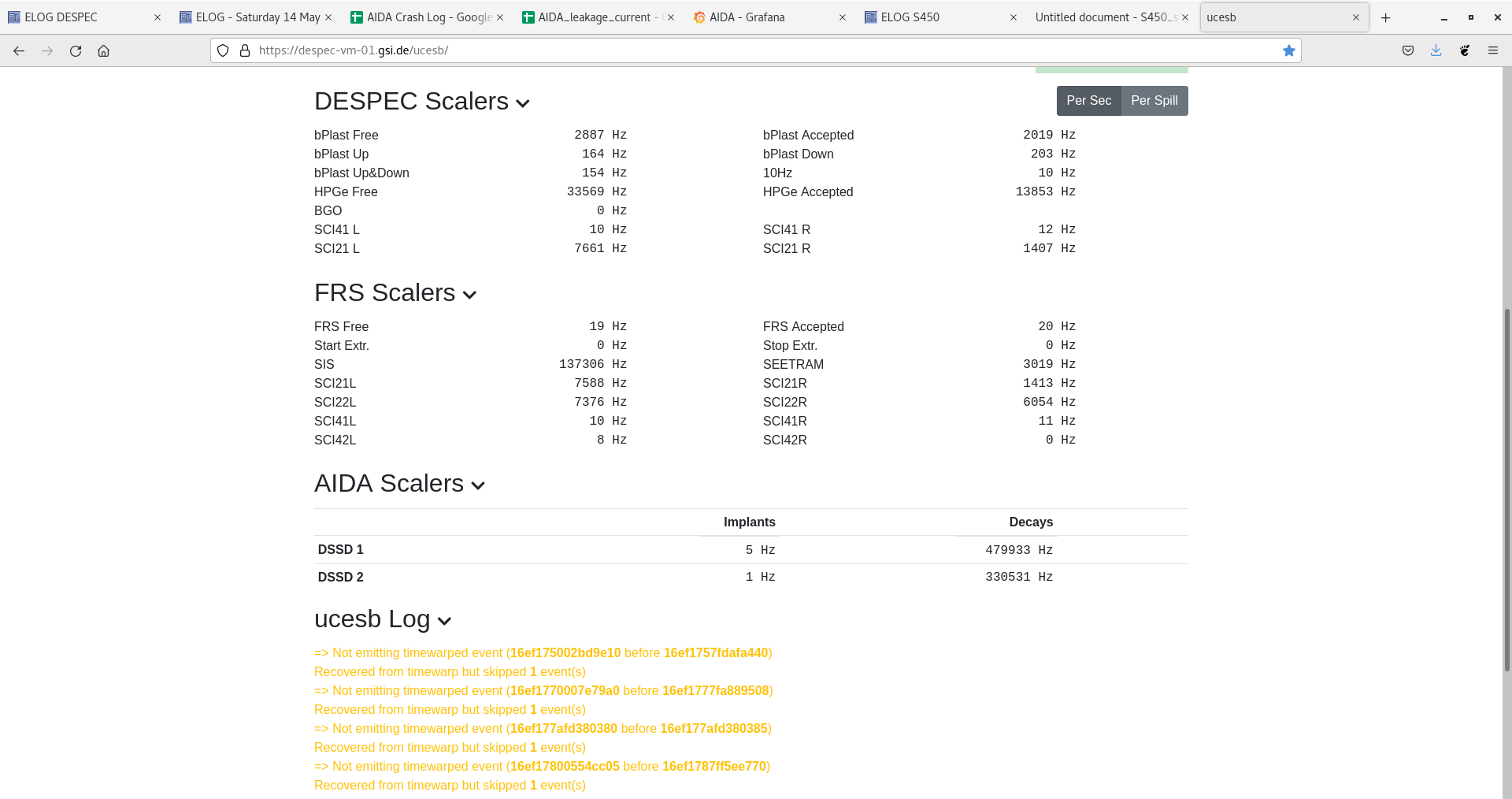

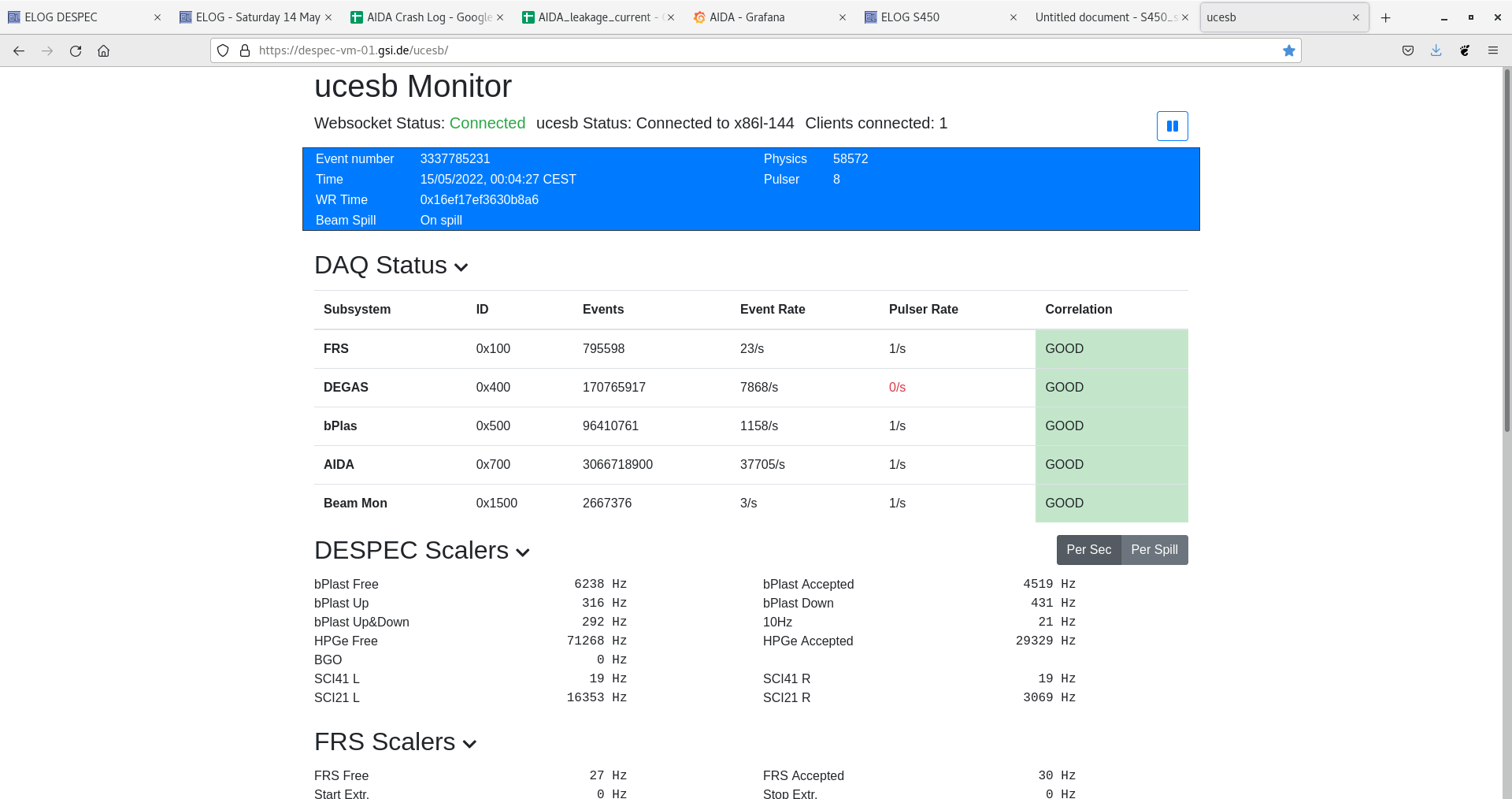

Attachments 2 & 3 - ucesb - AIDA DSSSD #1 c. 10-20Hz peak rate on spill, c. 0Hz off spill
Attachment 4 - DSSSD bias & Leakage current - OK

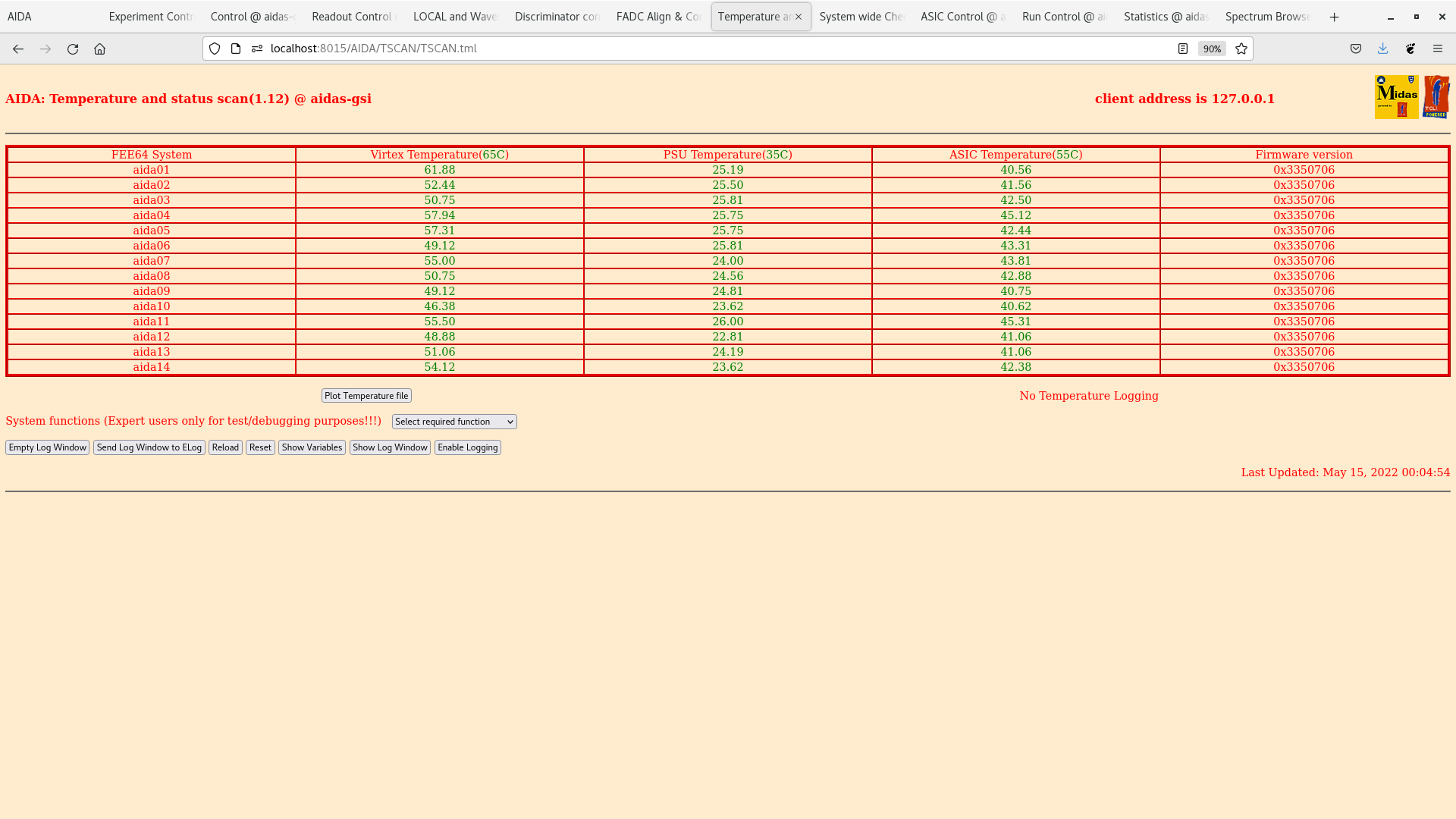

Attachment 5 - FEE64 temps OK

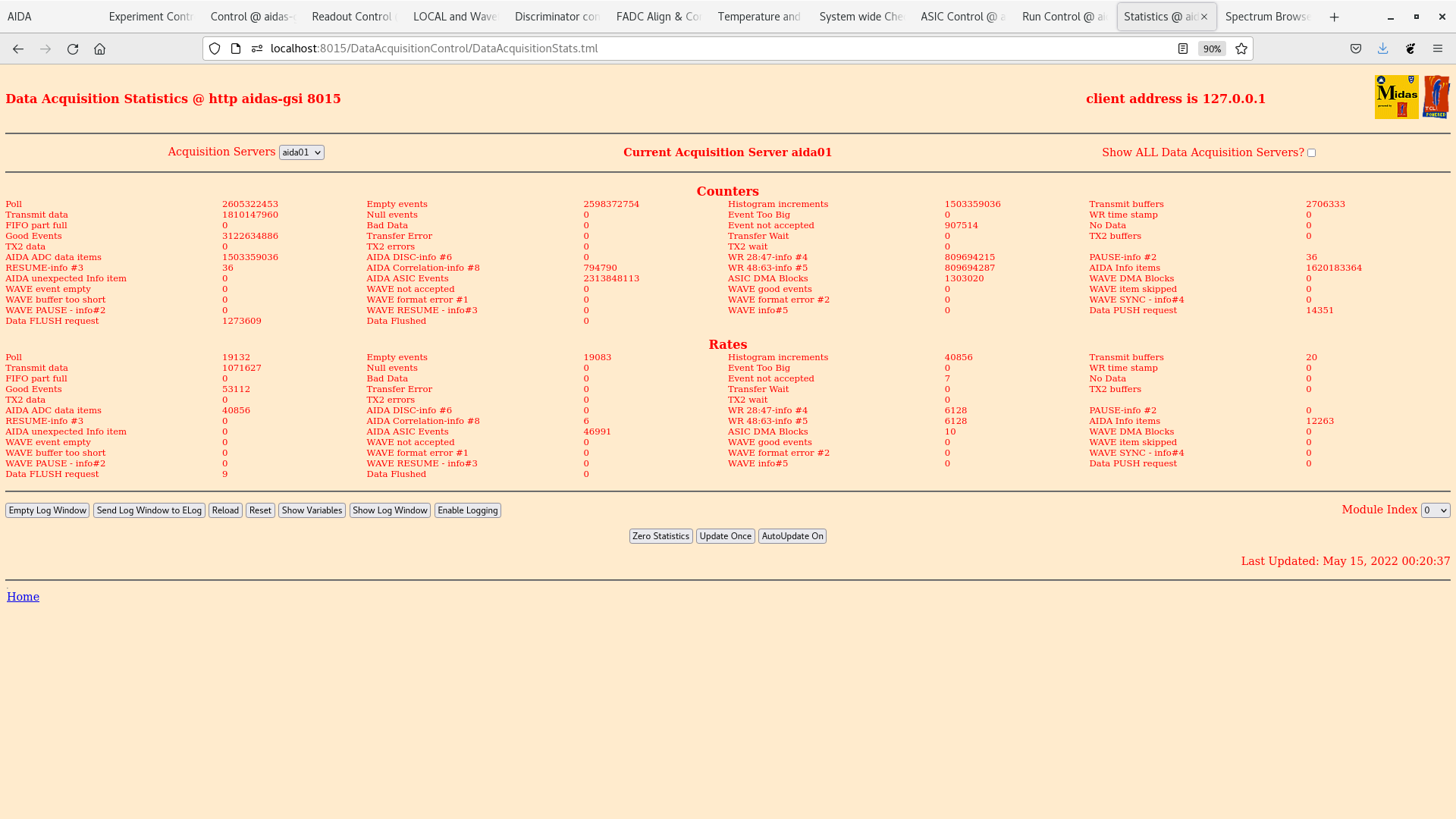

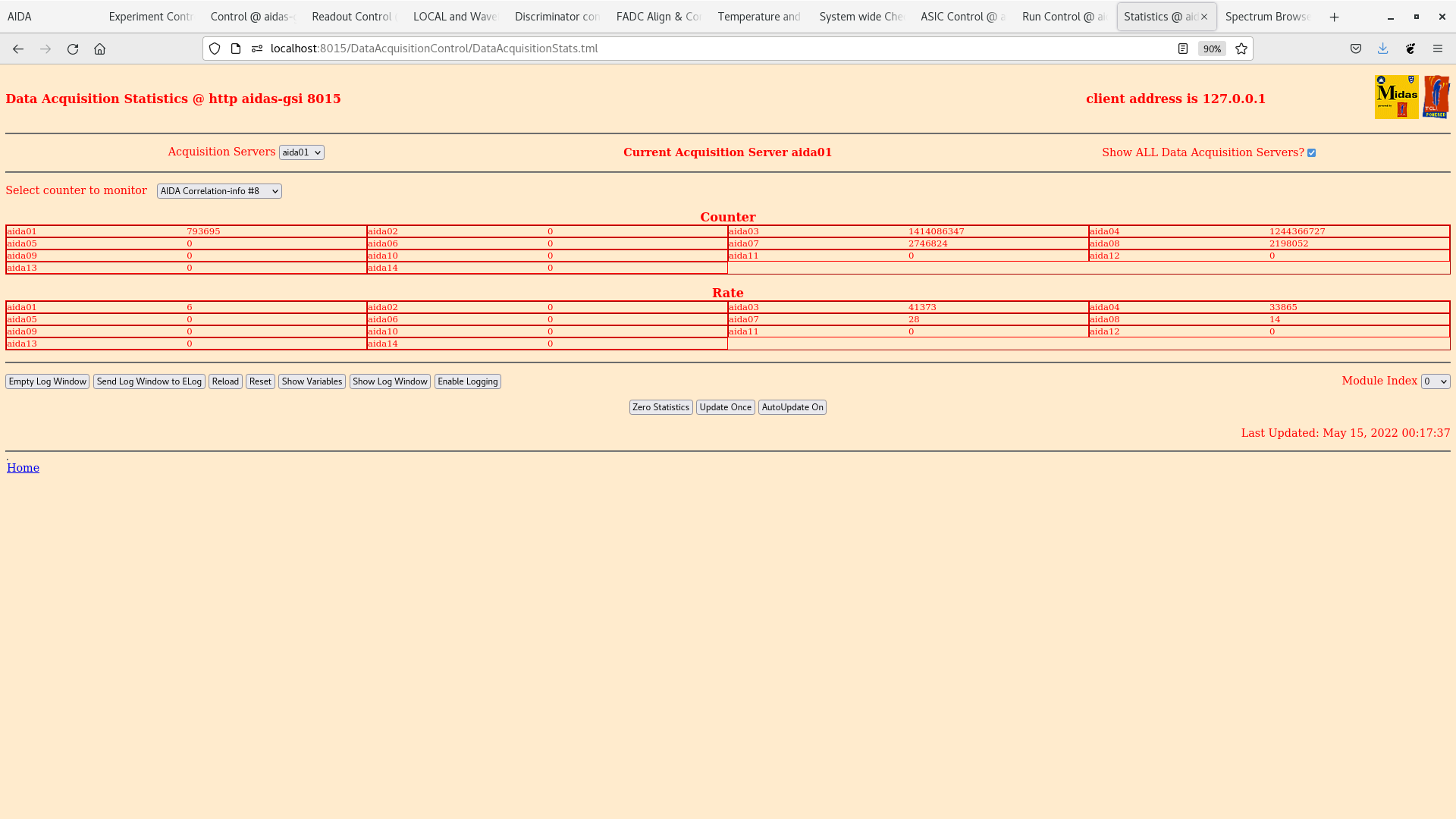

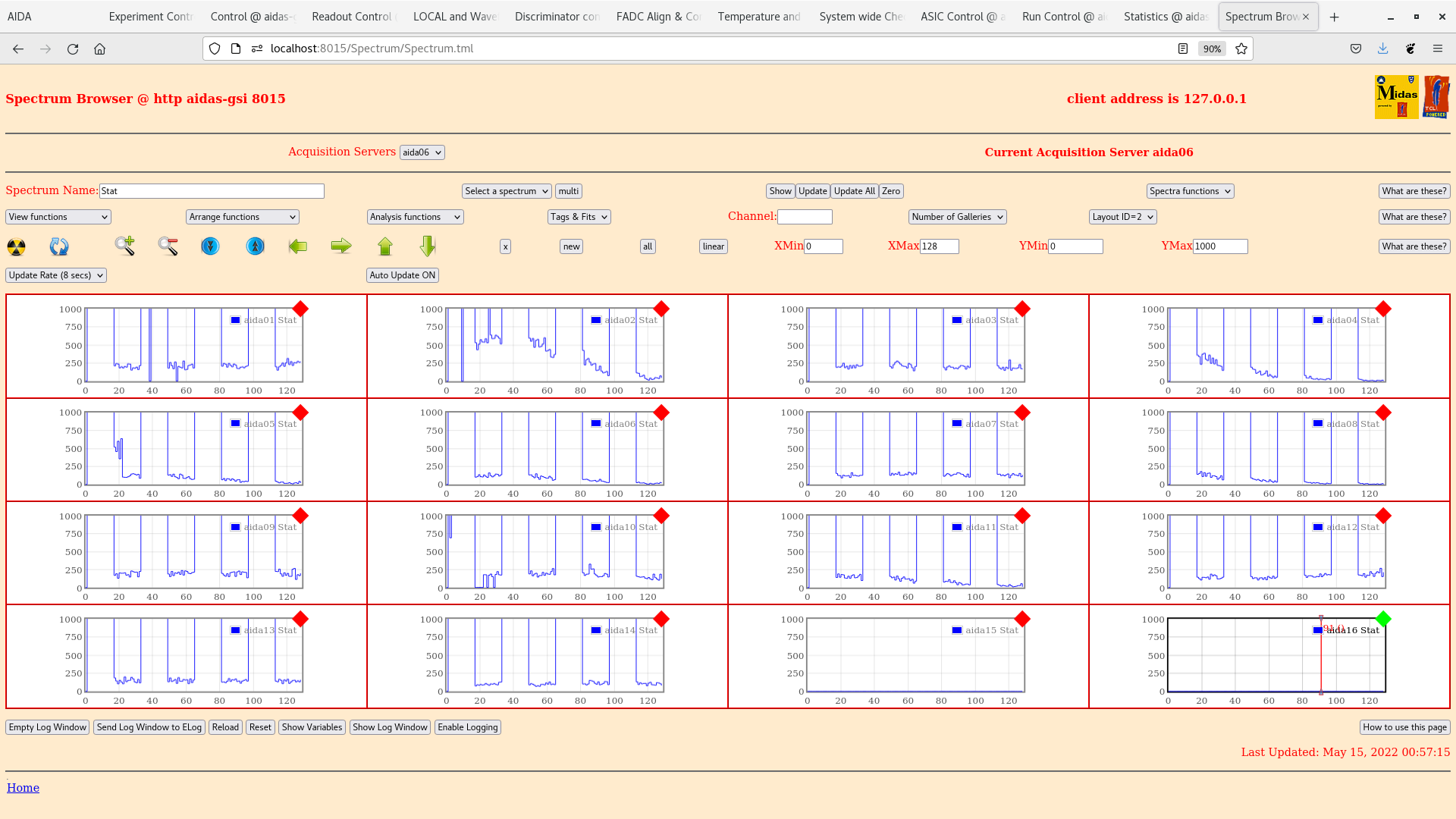

Attachment 6-13 - adc, pause, resume & correlation scaler data items, push, flush, aida01, aida06

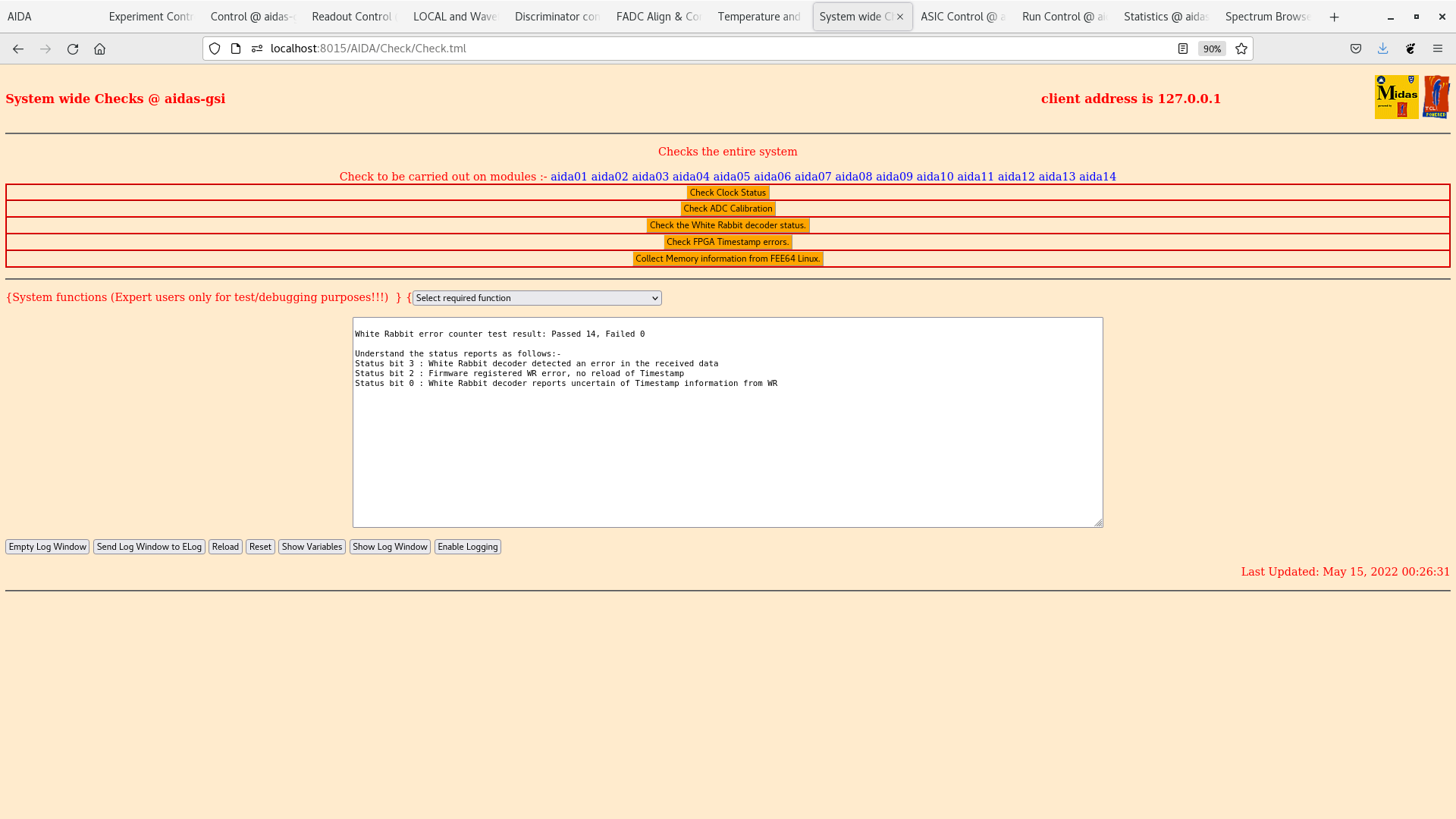

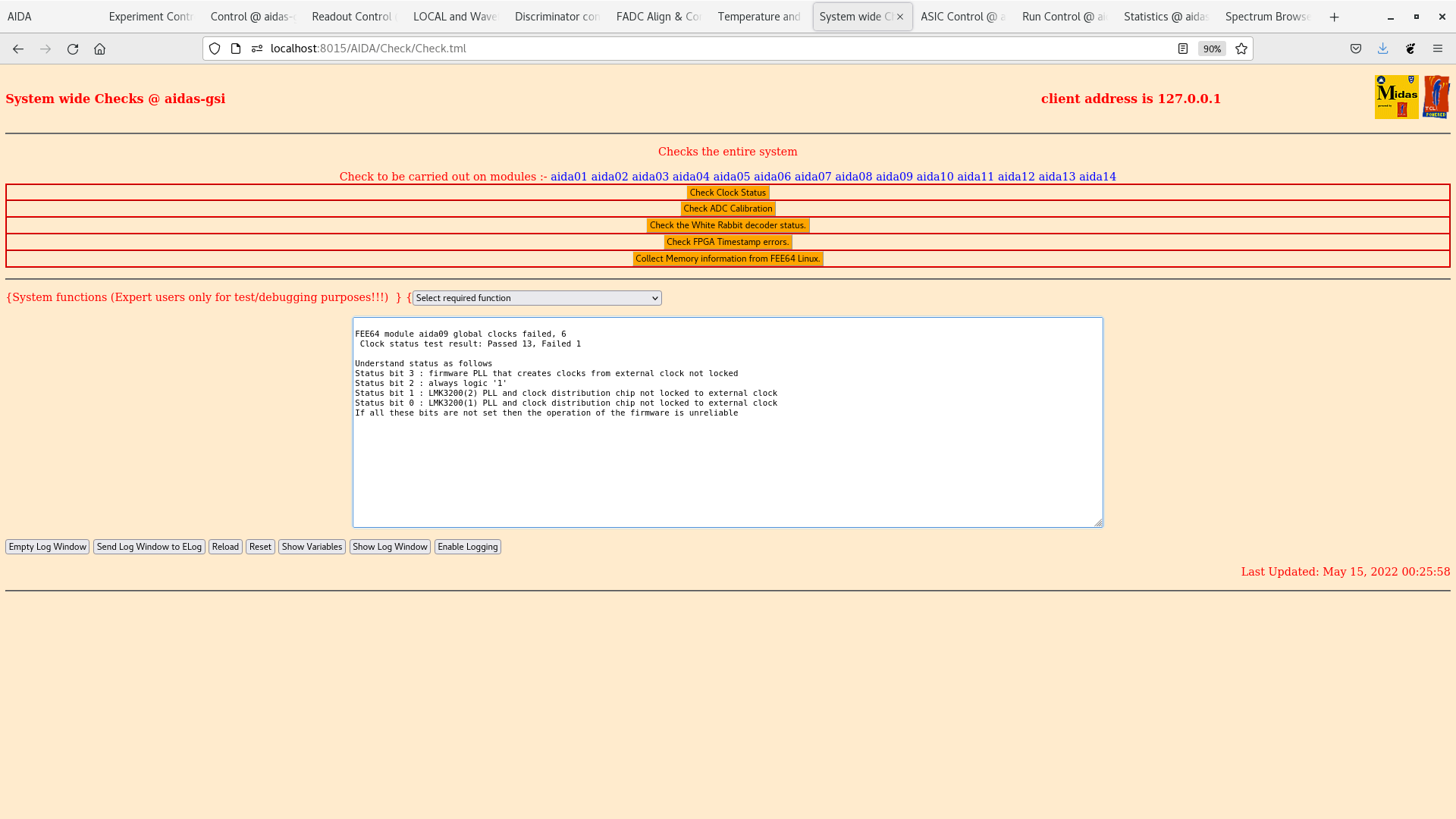

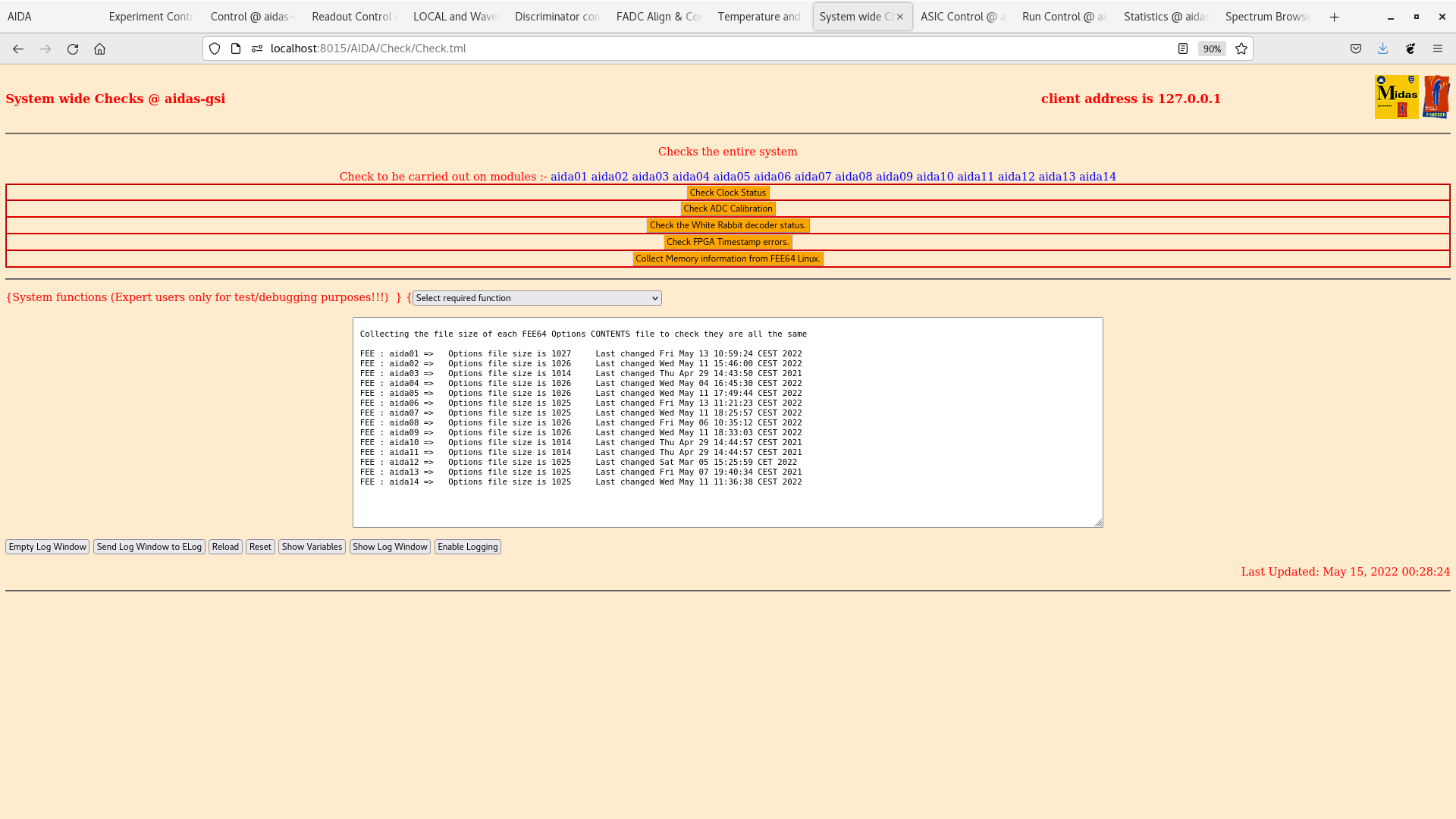

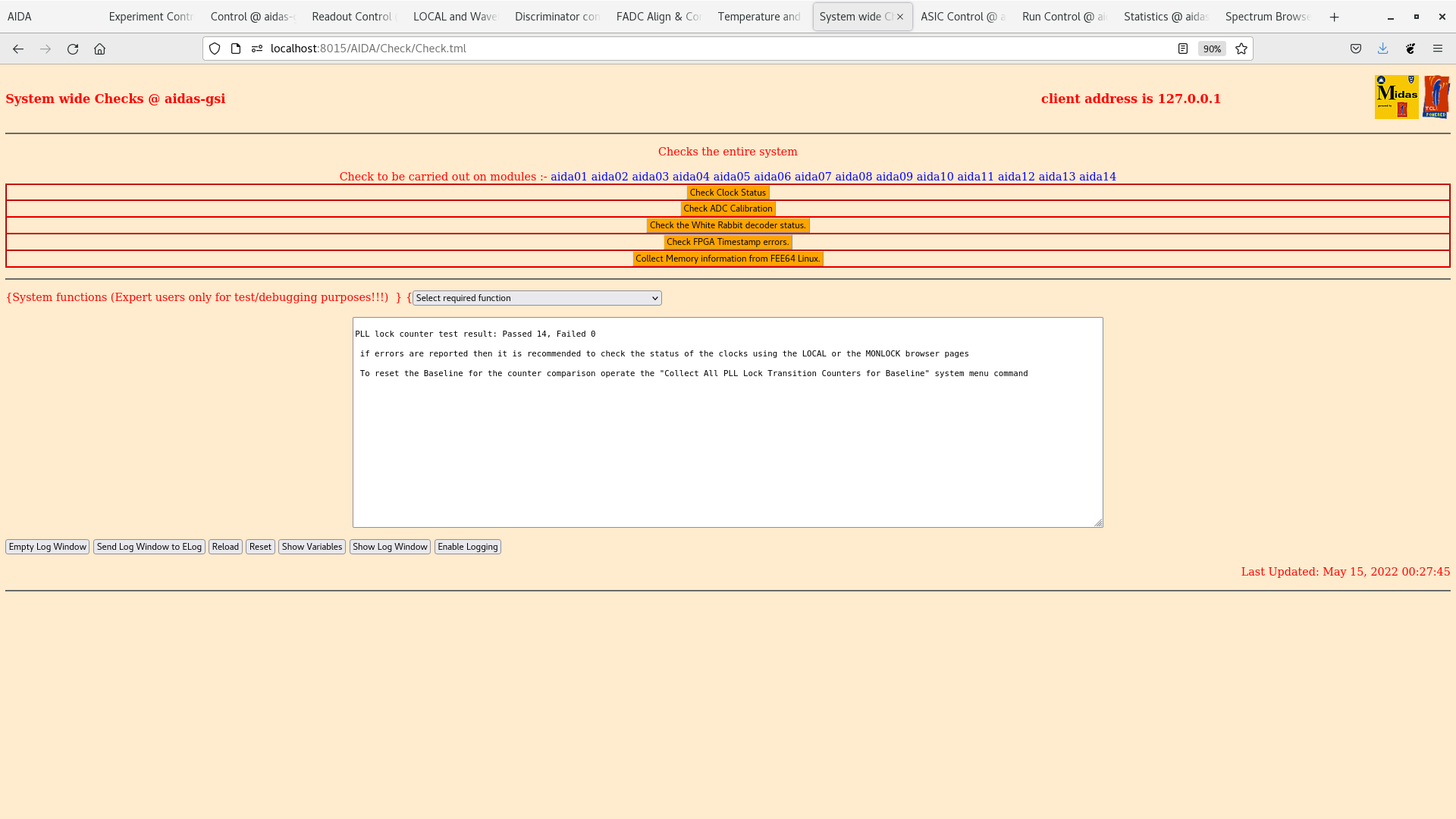

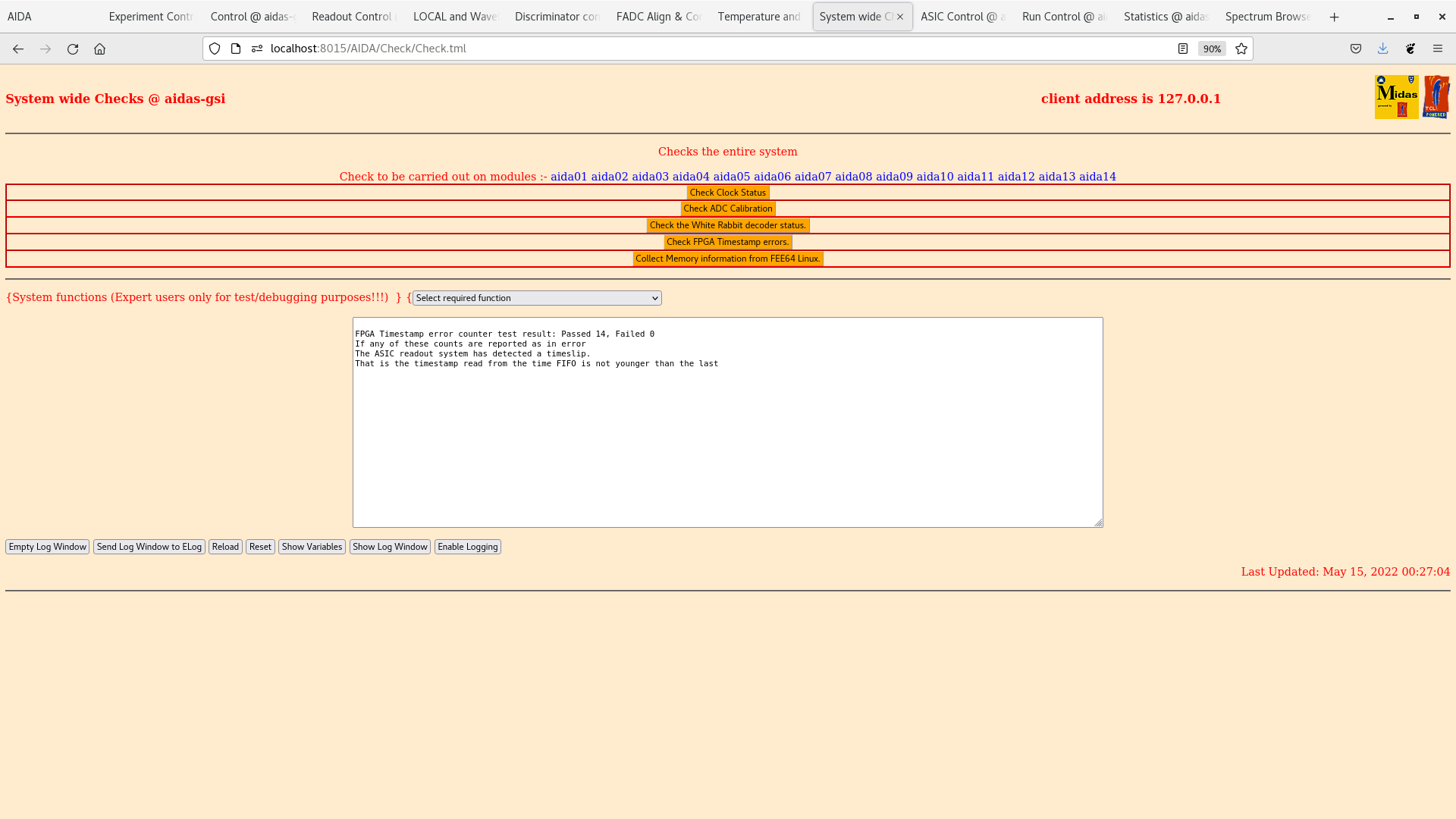

Attachments 14-18 - system wide checks - all OK *except* aida09 clock fail status 6

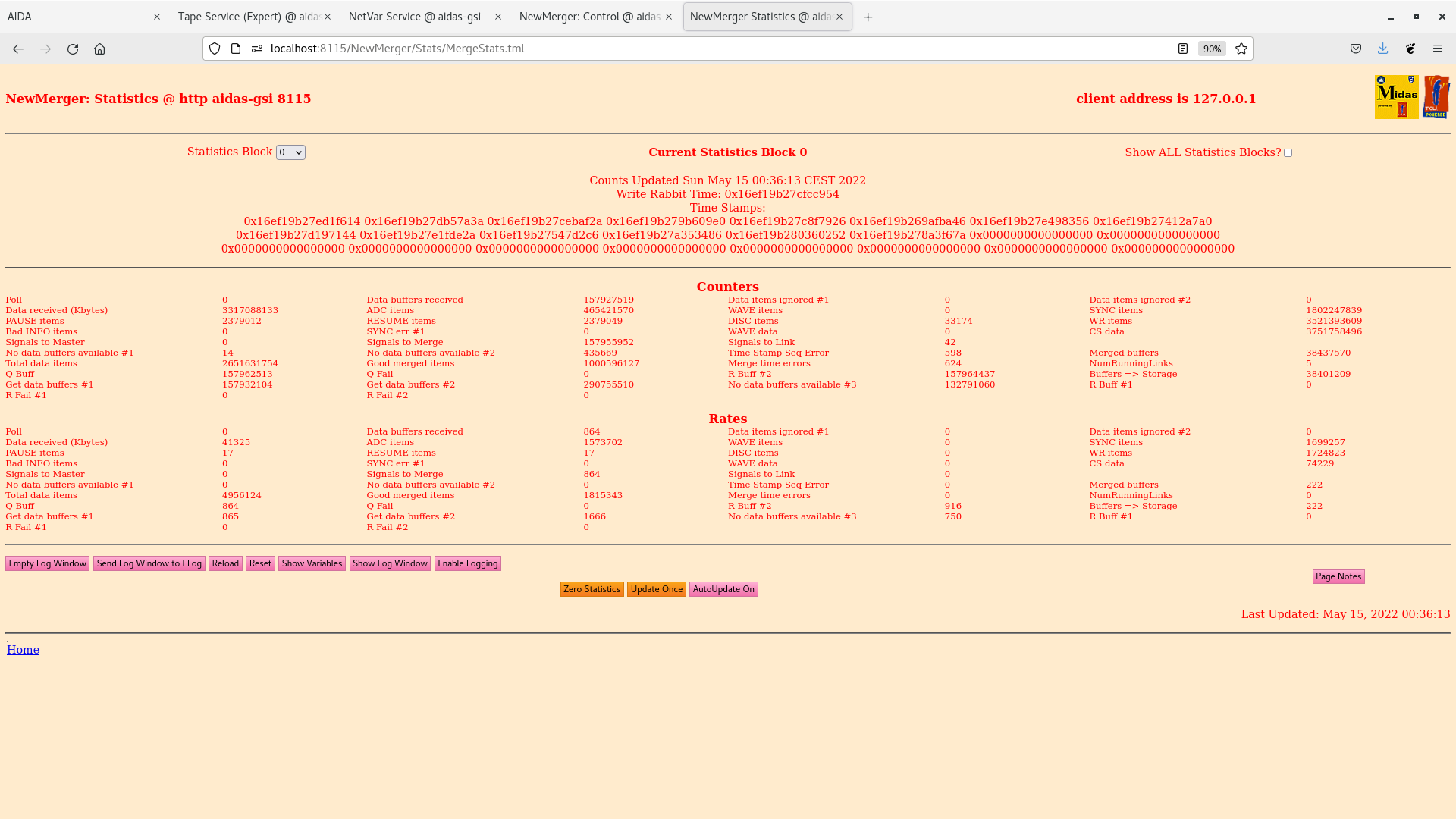

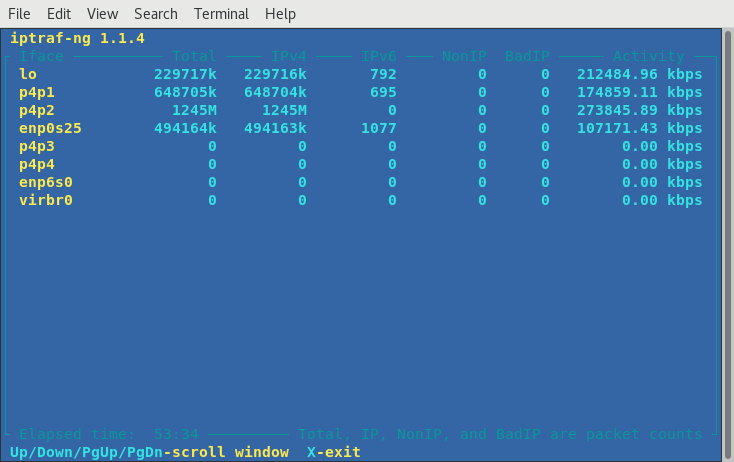

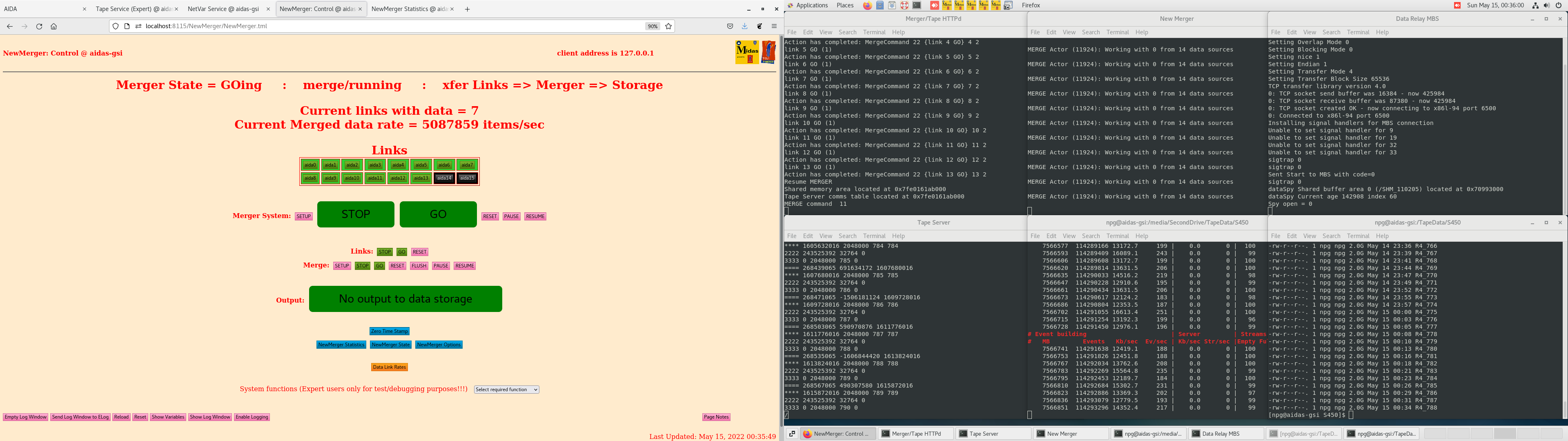

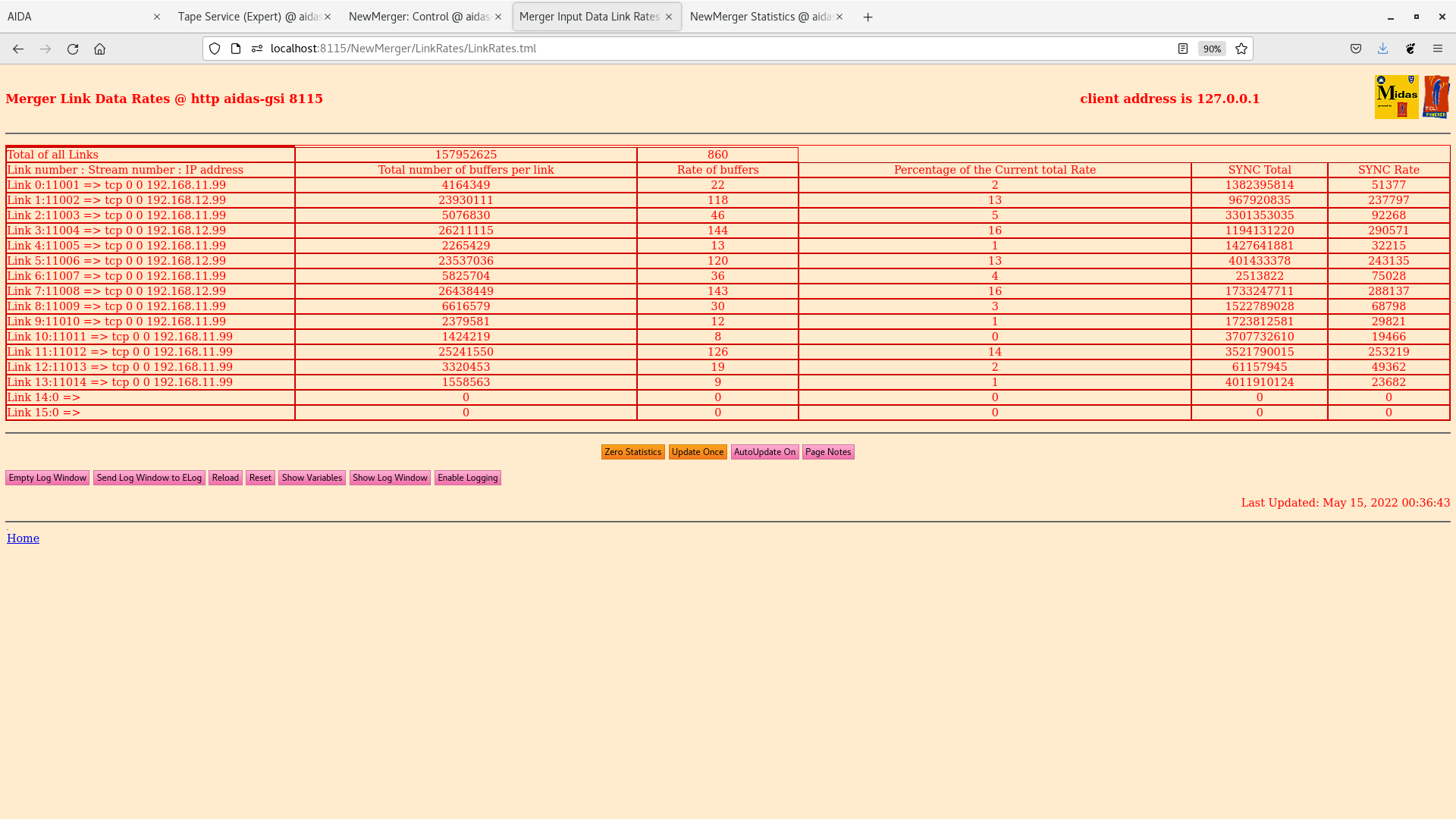

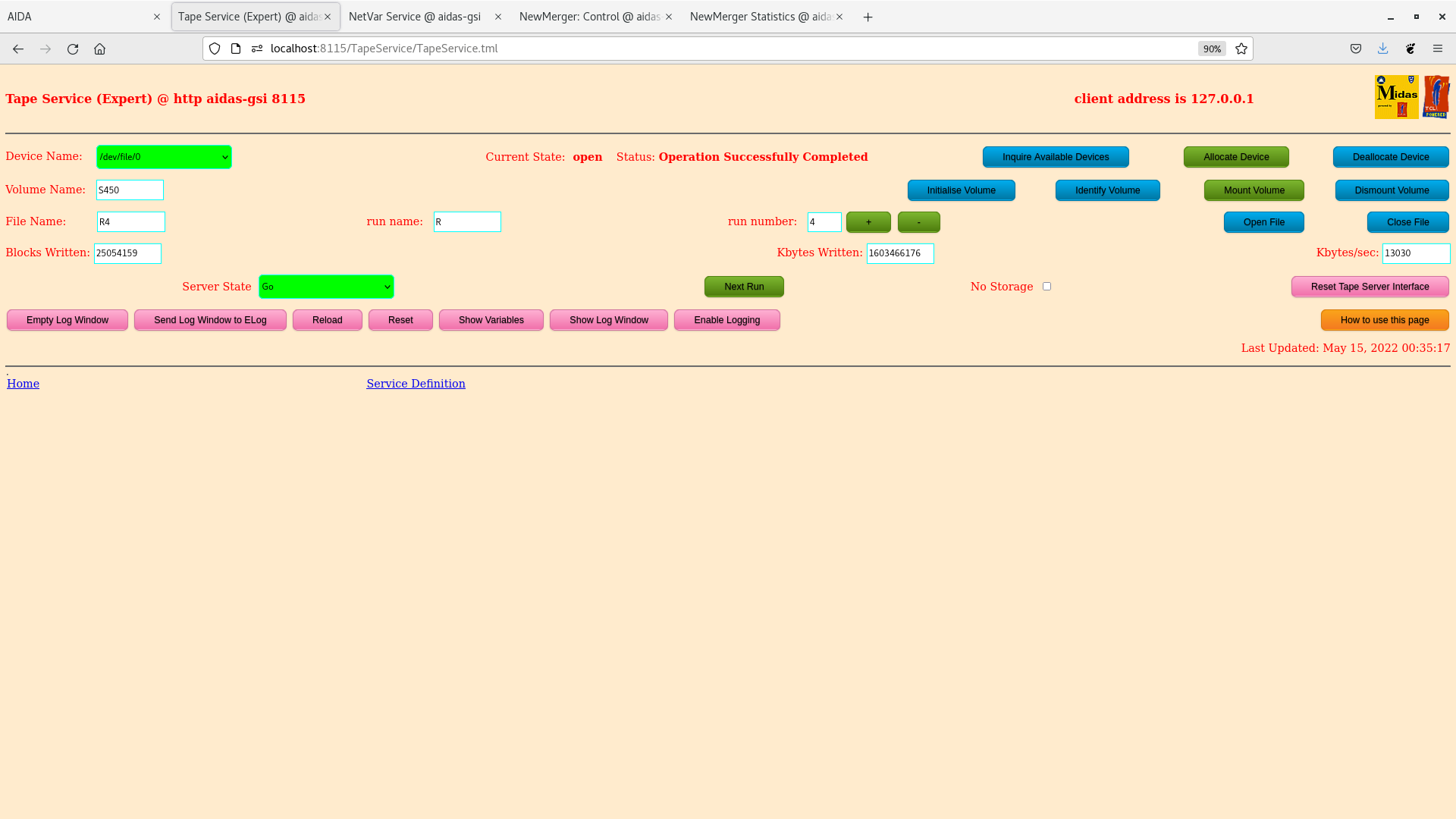

Attachments 19-25 - iptraf, TapeServer, NewMerger, NewMerger stats
00.44 file S450/R4_792
ADC control register 0xff
all disc outputs disabled
ASIC settings 2021Apr29-13-16-00
slow comparator aida02 & aida04 0x16, aida06 & aida08 0x23, aida12 0xd, all others 0xc
BNC PB-5 settings
amplitude 1.000V
attenuation x1
tau_d 1ms
frequency 2Hz
polarity +
00.51 disk space OK - c. 3' per data file
[npg@aidas-gsi S450]$ ls -l /
total 40
lrwxrwxrwx. 1 root root 7 Oct 18 2021 bin -> usr/bin
dr-xr-xr-x. 5 root root 4096 May 12 18:31 boot
drwxr-xr-x. 23 root root 4100 May 12 18:31 dev
drwxr-xr-x. 145 root root 8192 May 12 18:31 etc
drwxr-xr-x. 4 root root 56 Jan 28 14:56 home
lrwxrwxrwx. 1 root root 7 Oct 18 2021 lib -> usr/lib
lrwxrwxrwx. 1 root root 9 Oct 18 2021 lib64 -> usr/lib64
drwxr-xr-x. 5 root root 113 Apr 28 11:58 media
lrwxrwxrwx. 1 root root 45 Oct 18 2021 MIDAS -> /home/npg/MIDAS_Releases/23Jan19/MIDAS_200119
drwxr-xr-x. 2 root root 6 Apr 11 2018 mnt
drwxr-xr-x. 3 root root 16 Oct 18 2021 opt
dr-xr-xr-x. 464 root root 0 May 12 18:30 proc
dr-xr-x---. 10 root root 4096 May 13 11:47 root
drwxr-xr-x. 44 root root 1360 May 14 06:34 run
lrwxrwxrwx. 1 root root 8 Oct 18 2021 sbin -> usr/sbin
drwxr-xr-x. 2 root root 6 Apr 11 2018 srv
dr-xr-xr-x. 13 root root 0 May 12 18:31 sys
lrwxrwxrwx. 1 root root 28 Apr 28 14:19 TapeData -> /media/SecondDrive/TapeData/
drwxrwxrwt. 40 root root 12288 May 15 00:49 tmp
drwxr-xr-x. 13 root root 155 Oct 18 2021 usr
drwxr-xr-x. 21 root root 4096 Oct 18 2021 var
[npg@aidas-gsi S450]$ df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 7.8G 0 7.8G 0% /dev
tmpfs 7.8G 373M 7.4G 5% /dev/shm
tmpfs 7.8G 19M 7.7G 1% /run
tmpfs 7.8G 0 7.8G 0% /sys/fs/cgroup
/dev/mapper/centos-root 50G 16G 35G 31% /
/dev/sda2 1014M 226M 789M 23% /boot
/dev/sda1 200M 12M 189M 6% /boot/efi
/dev/sde1 7.2T 3.1T 3.8T 46% /media/SecondDrive
/dev/mapper/centos-home 407G 91G 316G 23% /home
tmpfs 1.6G 52K 1.6G 1% /run/user/1000
/dev/sdd1 7.2T 6.5T 310G 96% /run/media/npg/ThirdDrive
Attachment 26 - analysis data file R4_792

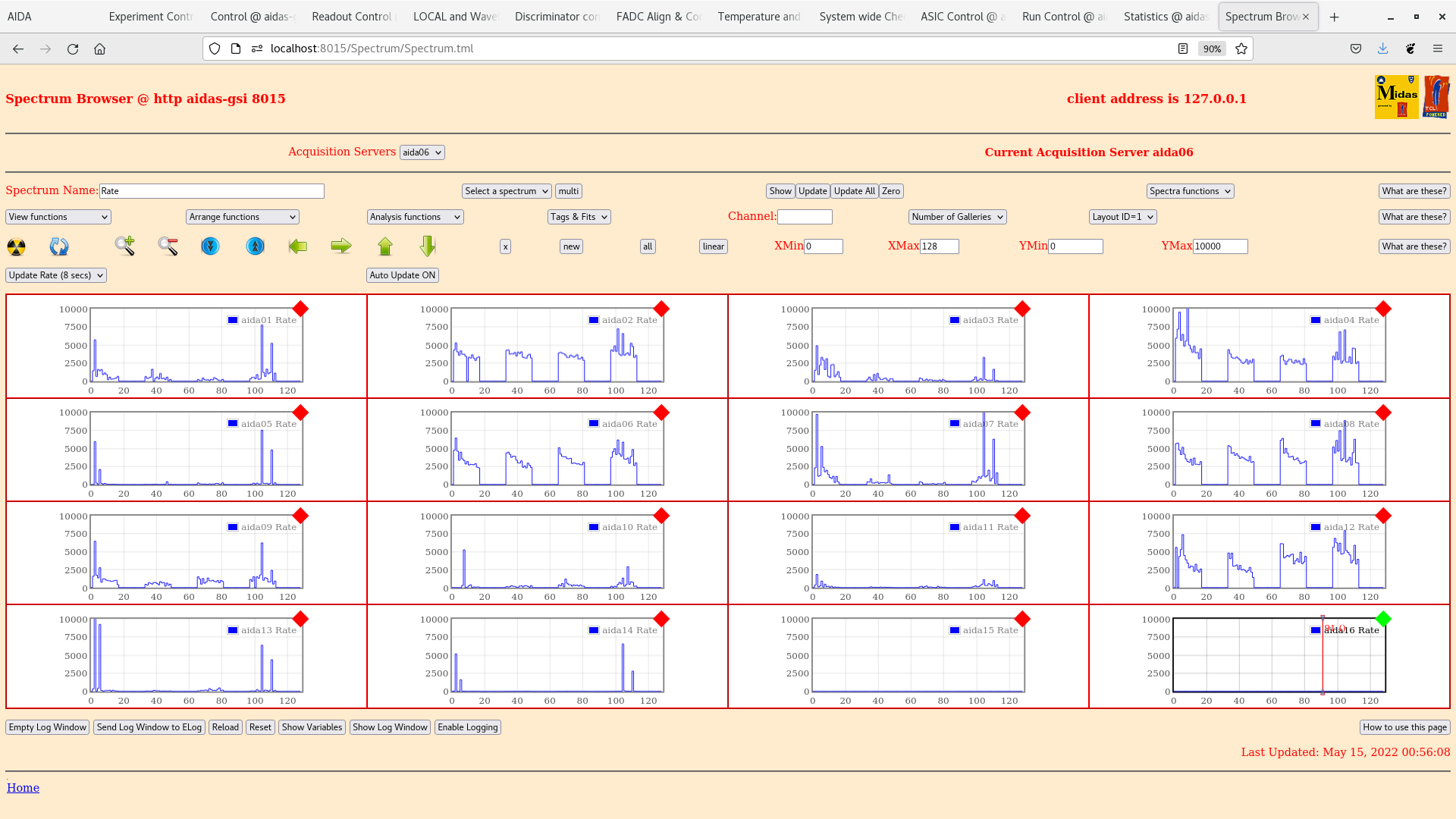

Attachments 27-28 - per FEE64 rate & stat spectra - shows distro HEC events

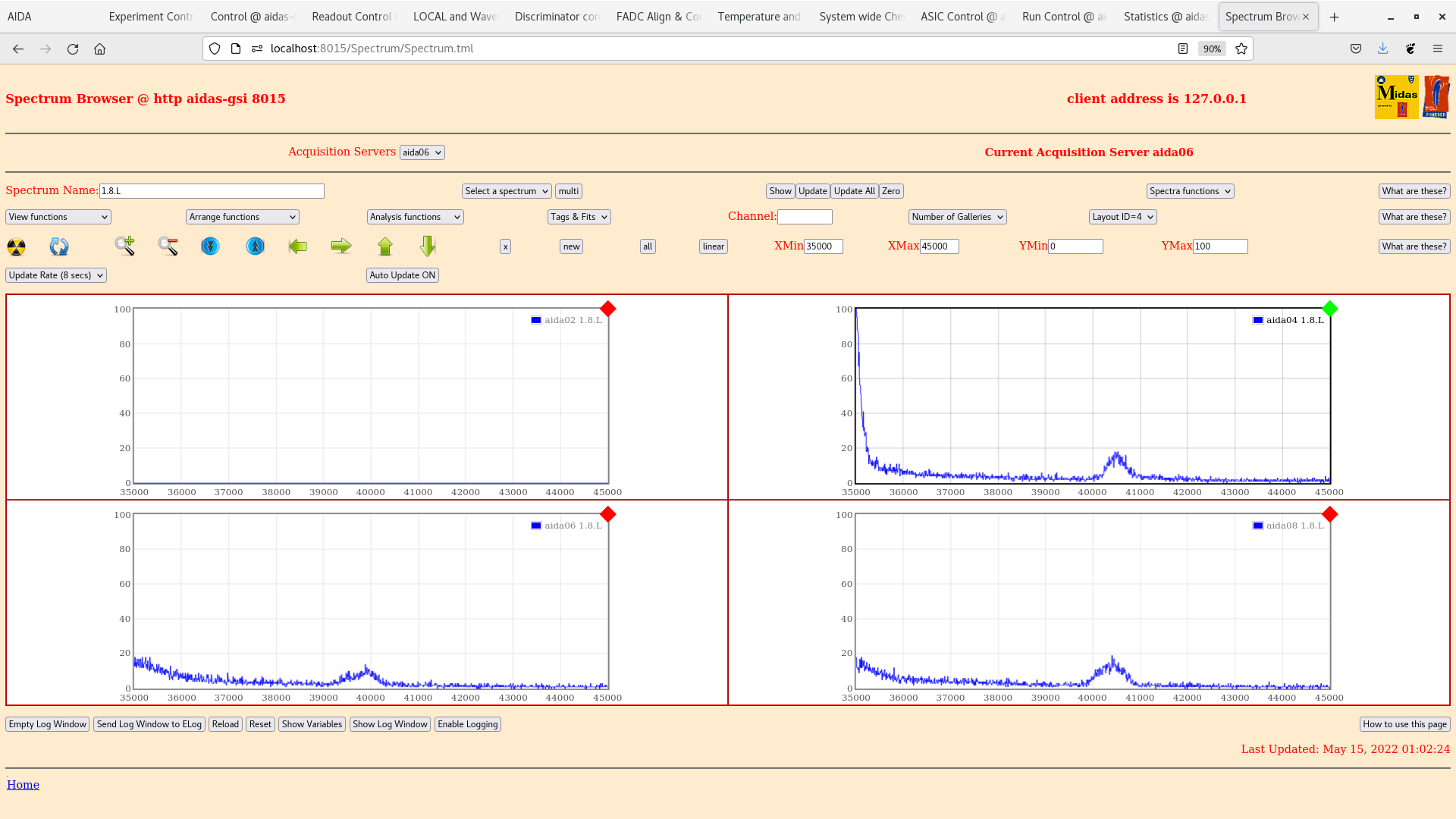

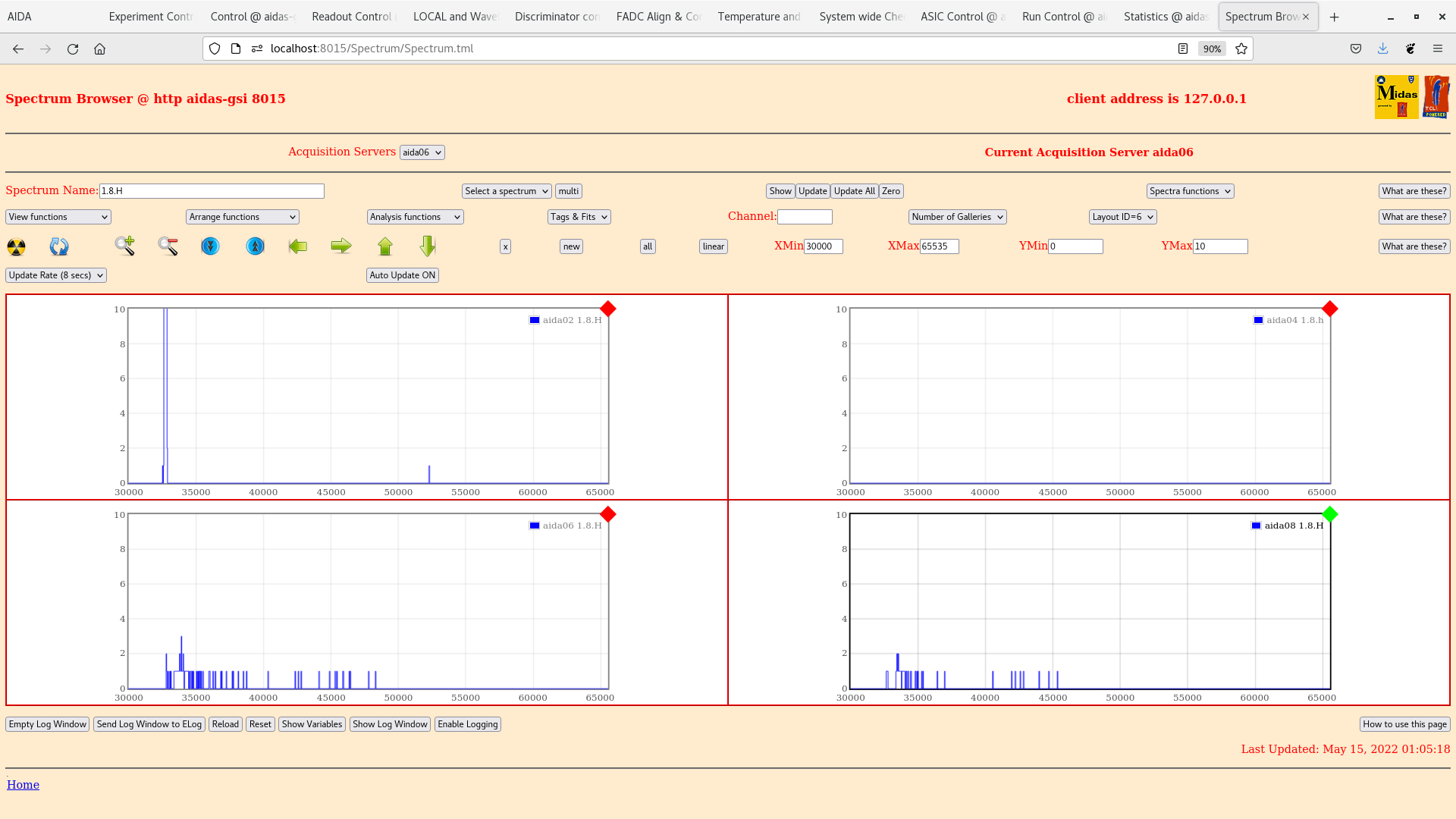

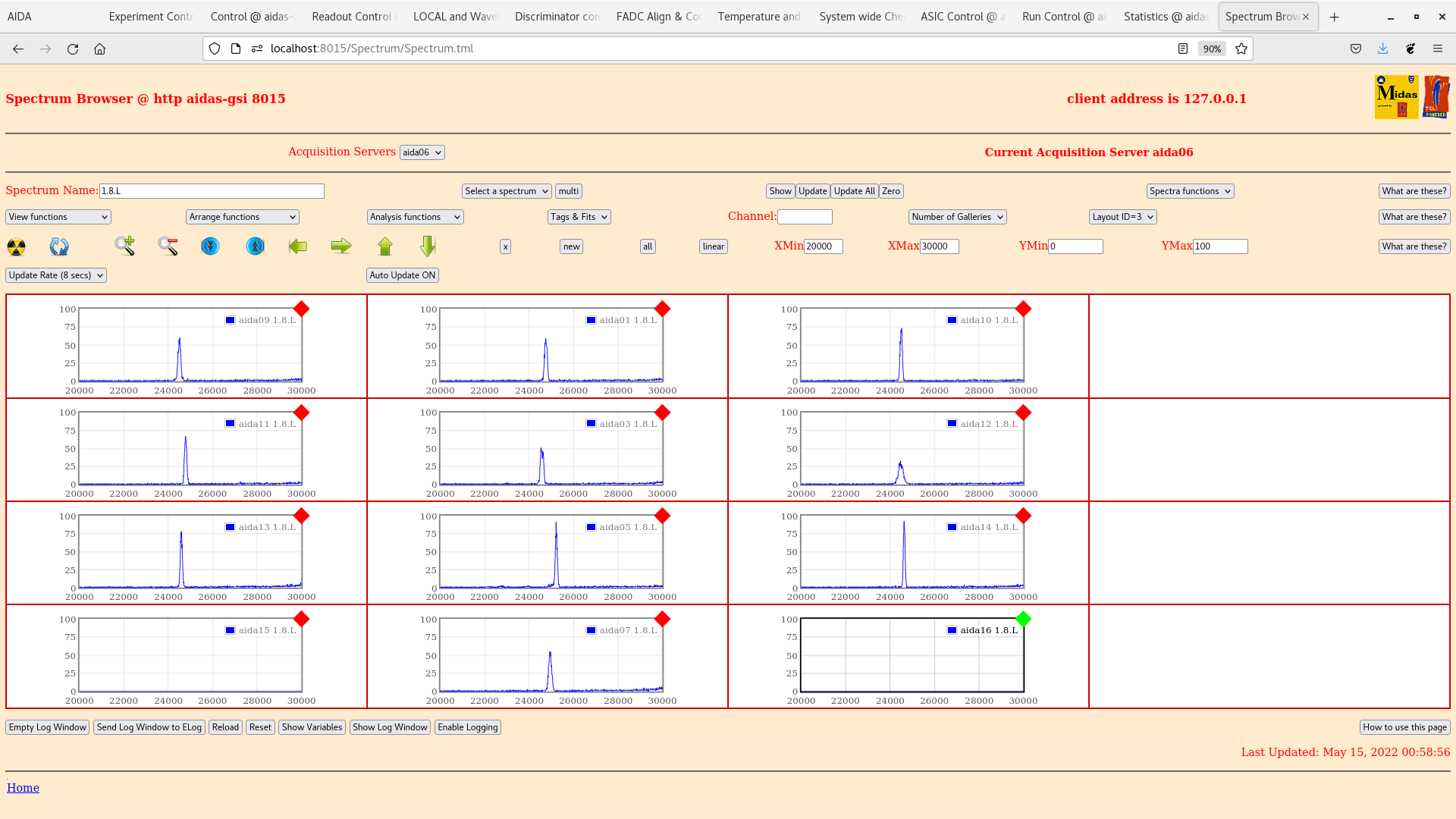

Attachments 29-30 - per FEE64 1.8.L spectra
pulser peak widths aida01 134 ch FWHM, aida04 393 ch FWHM

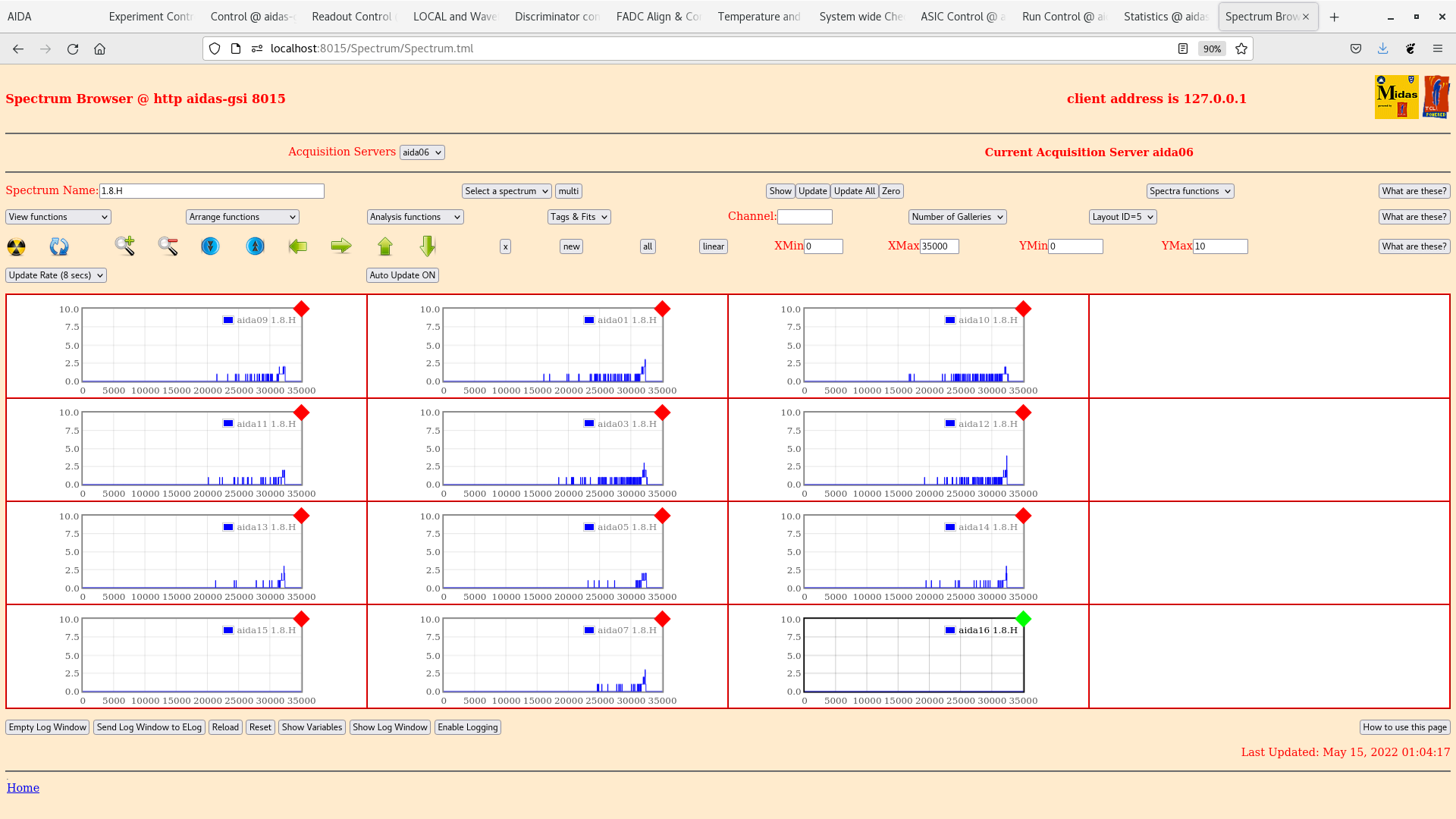

Attachments 31-32 - per FEE64 1.8.H spectra

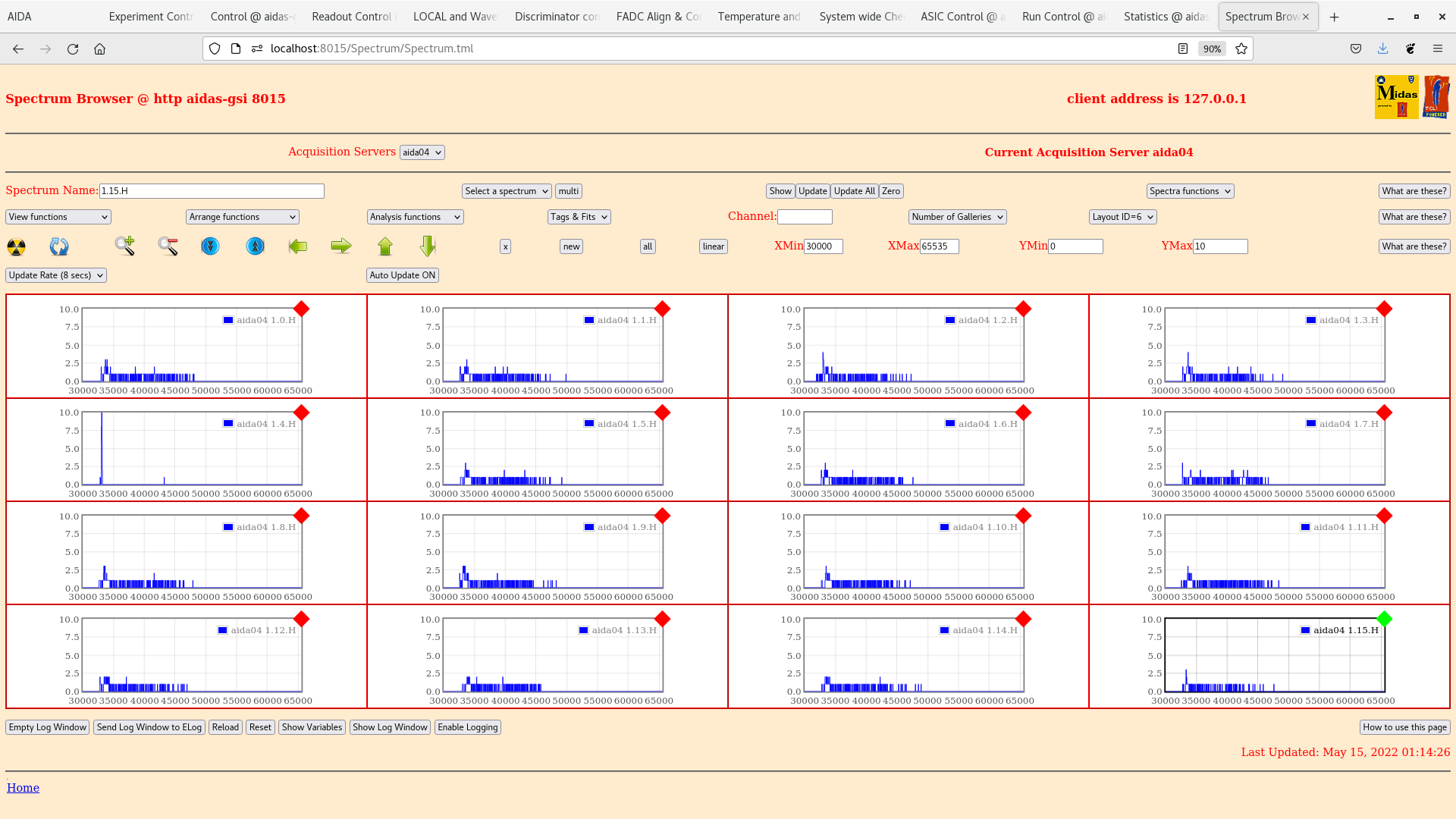

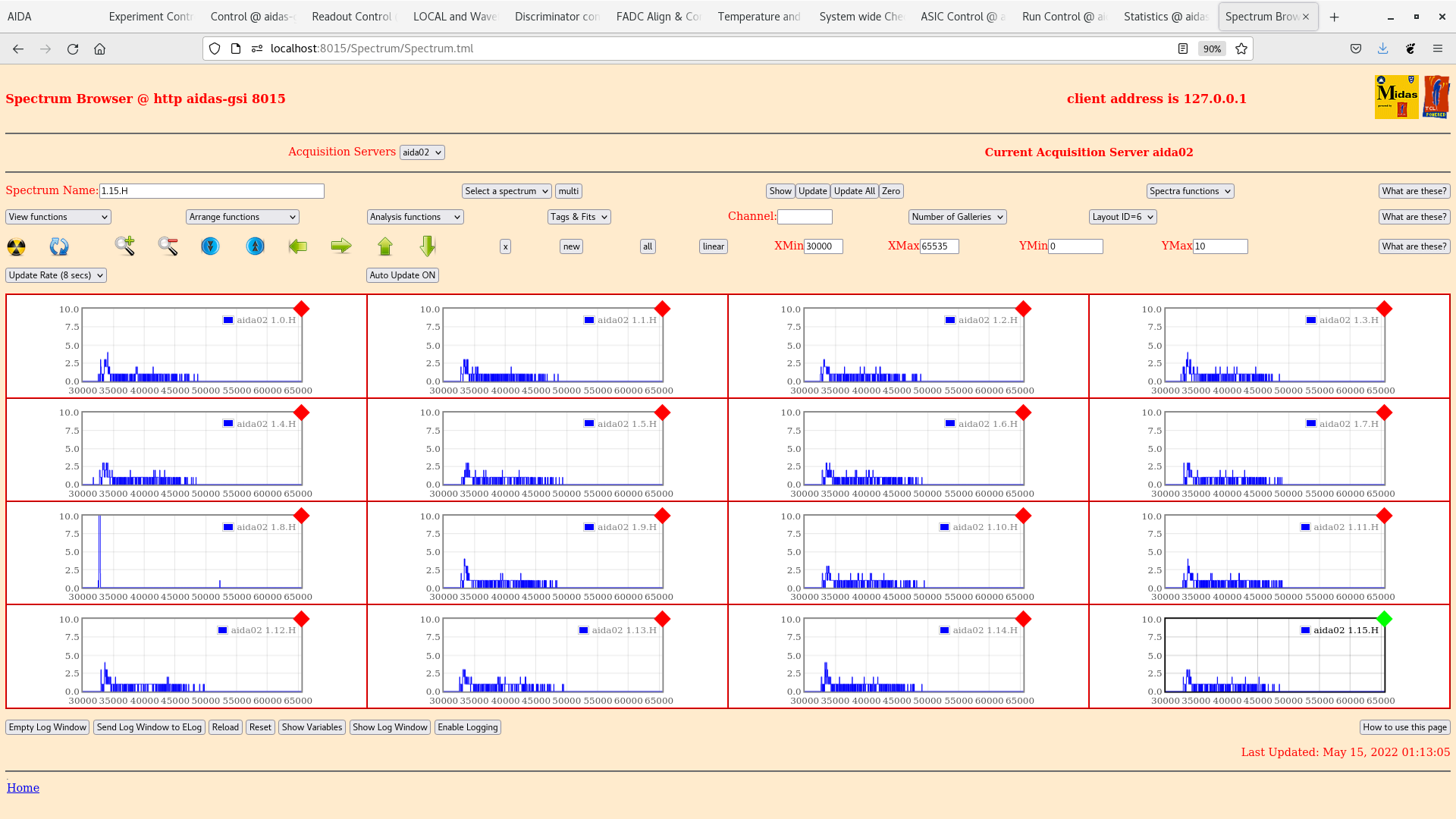

Attachments 33-34 - aida02 & aida04 1.*.H spectra
04.13

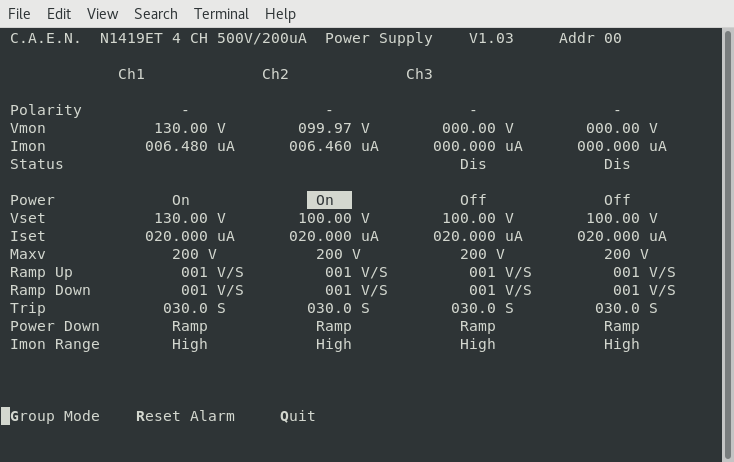

Attachment 35 - DSSSD bias & Leakage current - OK
Attachment 36 - FEE64 temps OK
Attachment 37 - adc data item stats
Attachments 38 - ucesb
system wide checks - all OK *except* aida09 clock fail status 6
07.05

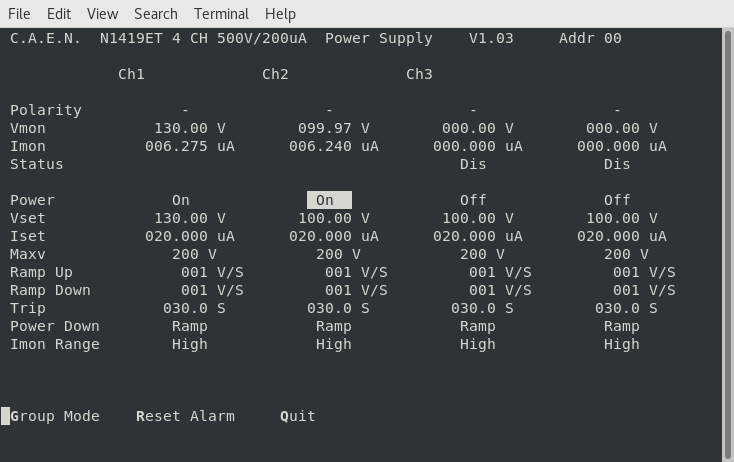

Attachment 39 - DSSSD bias & Leakage current - OK
Attachment 40 - FEE64 temps OK
Attachment 41 - adc data item stats

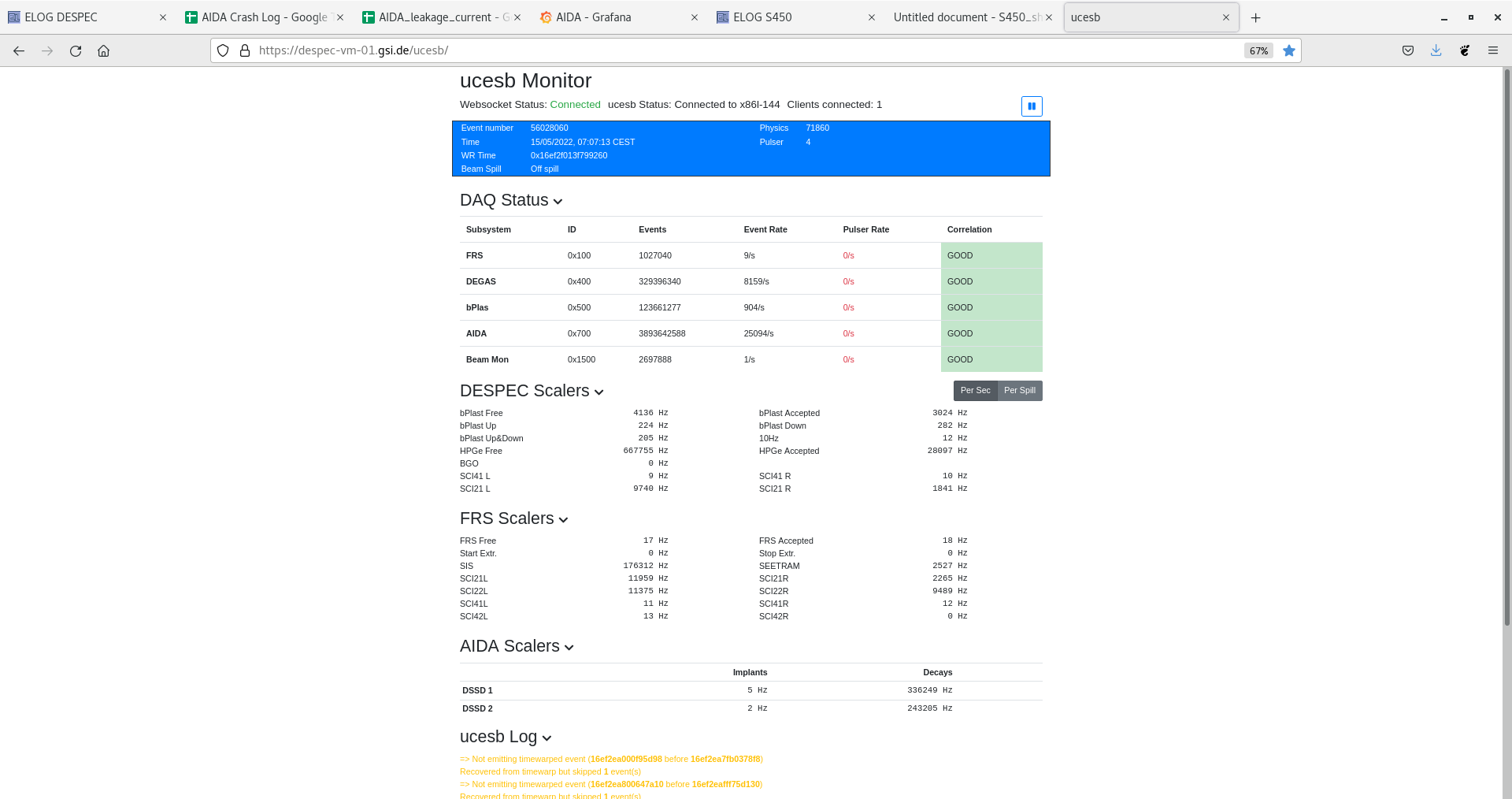

Attachments 42 - ucesb
system wide checks - all OK *except* aida09 clock fail status 6

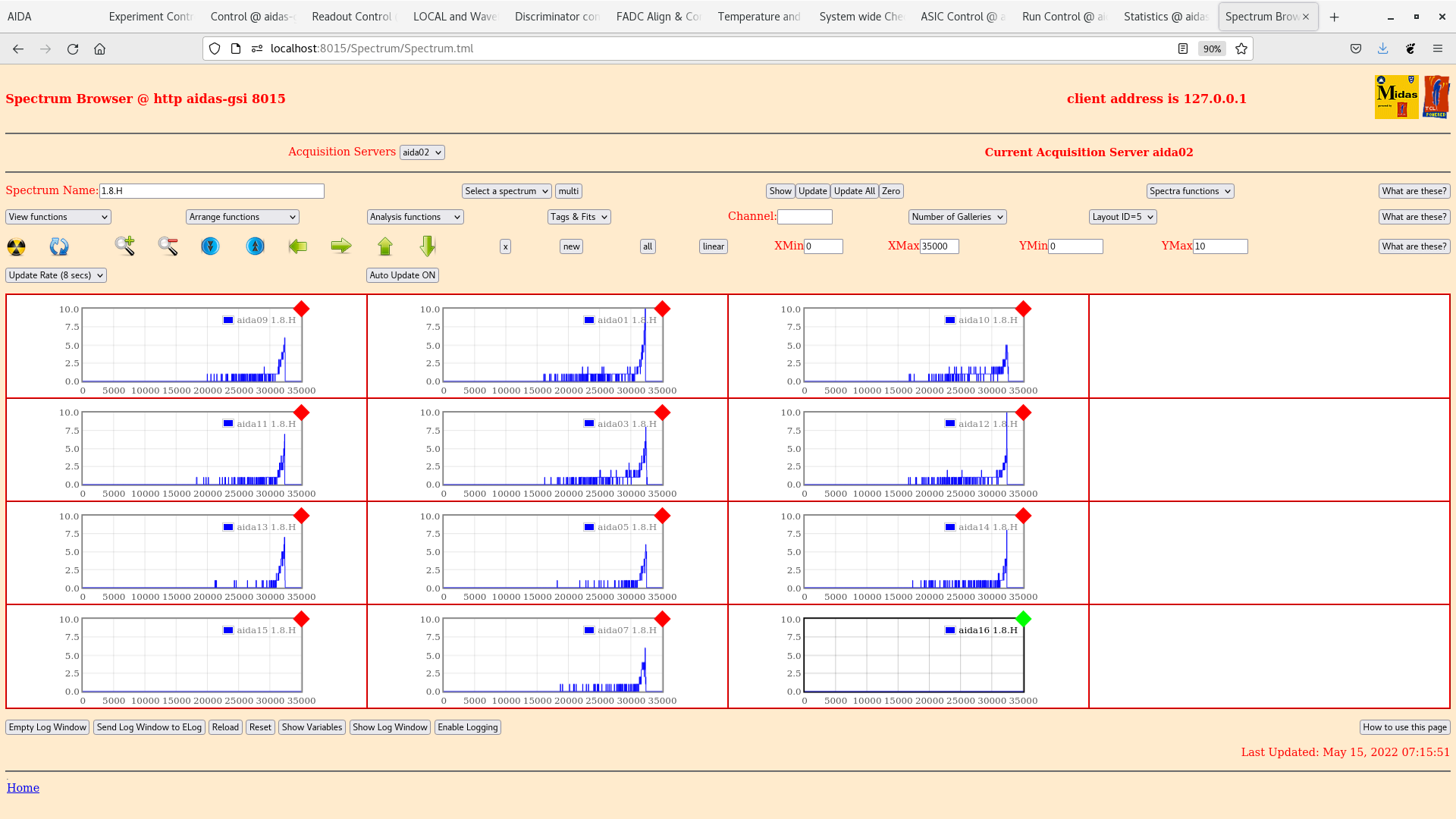

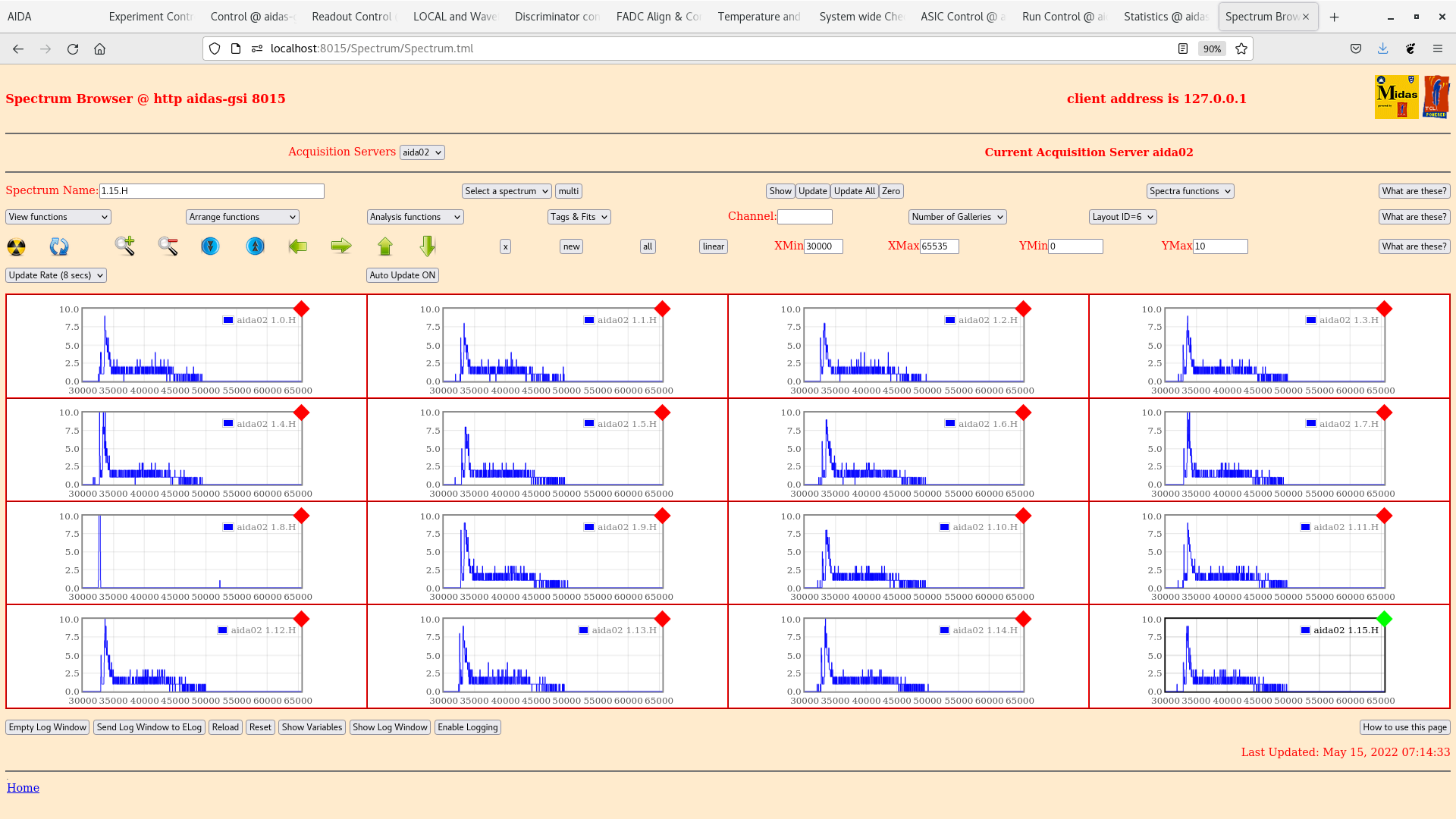

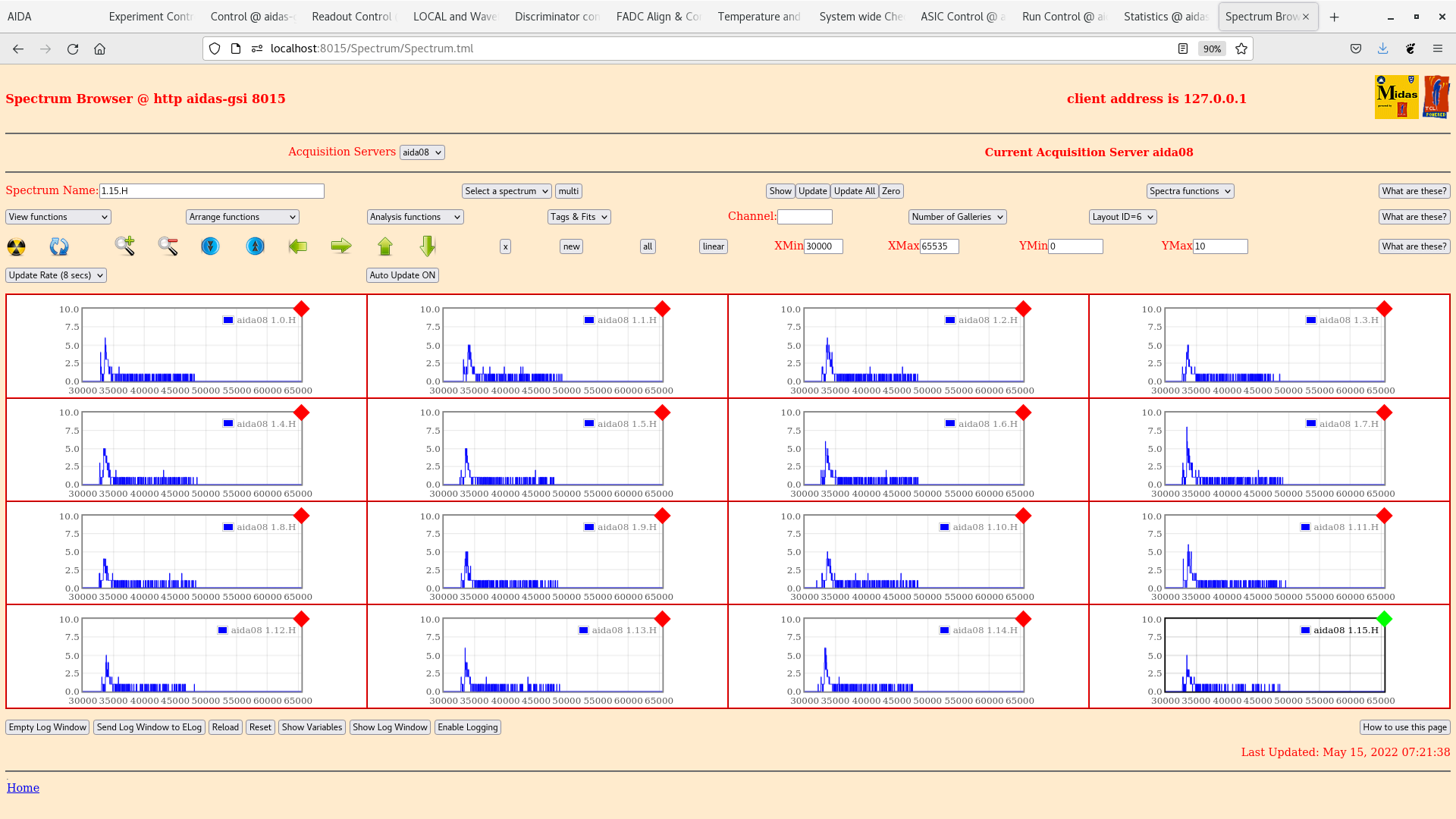

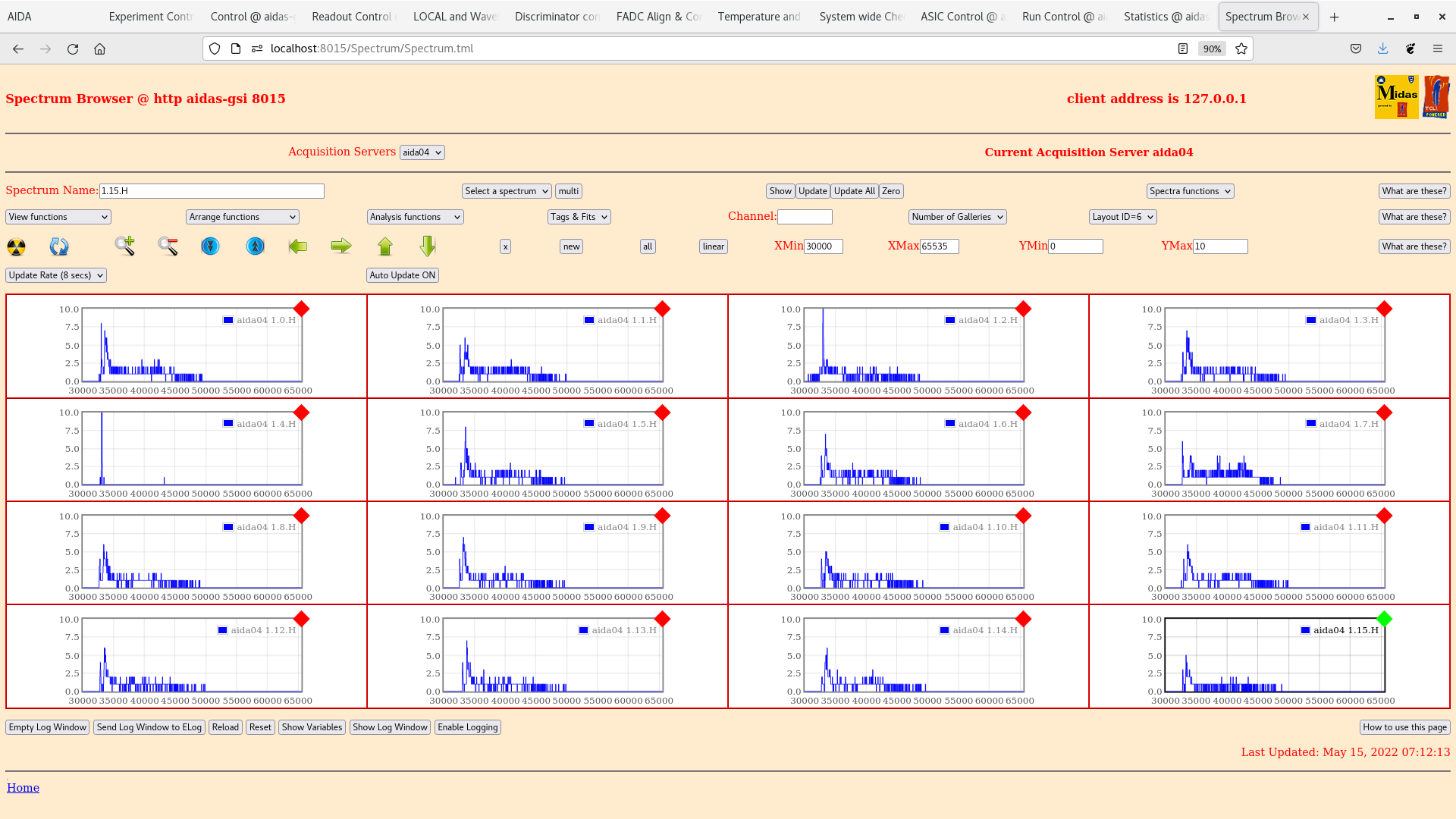

Attachments 43-48 - aida02 & aida04 & aida06 & aida08 & 1.*.H spectra |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 250102849 ( 1597022.2 Hz)
Other data format: 11817151 ( 75458.0 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 2692 ( 17.2 Hz)
RESUME: 2692 ( 17.2 Hz)
SYNC100: 32584 ( 208.1 Hz)
WR48-63: 32584 ( 208.1 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 11746599 ( 75007.5 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 48170 ( 307.6 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 156.606 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 6.802 0.000
2 0.000 0.000
3 28.710 0.000
4 0.000 0.000
5 76.548 0.000
6 0.000 0.000
7 36.670 0.000
8 0.002 0.000
9 0.000 0.000
10 0.000 14.137
11 20.418 0.000
12 0.000 0.000
13 0.000 3.327
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 7219269 2805 0 0 0 0 933 933 0 939 0 589
1 37816150 10006 0 0 269 269 4734 4734 0 0 0 43094
2 6973157 6465448 0 0 0 0 1676 1676 0 6462096 0 570
3 37723722 5287878 0 0 579 580 5326 5326 0 5276067 0 352
4 3982759 1044 0 0 0 0 522 522 0 0 0 233
5 36626106 10369 0 0 747 746 4438 4438 0 0 0 211
6 11915365 7321 0 0 0 0 1544 1544 0 4233 0 403
7 42135728 15066 0 0 653 653 5248 5248 0 3264 0 174
8 10616770 2532 0 0 2 2 1264 1264 0 0 0 570
9 3975235 966 0 0 0 0 483 483 0 0 0 497
10 2072466 538 0 0 0 0 269 269 0 0 0 289
11 40106886 10836 0 0 442 442 4976 4976 0 0 0 472
12 6251481 1636 0 0 0 0 818 818 0 0 0 413
13 2687755 706 0 0 0 0 353 353 0 0 0 303
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 36.205s ( 883.854 blocks/s, 55.241 Mb/s)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
