Message ID: 457     Entry time: Sun May 15 15:51:49 2022
Author: ML
Subject: Sunday 15th May 16:00-0:00

Status at 16:45 (CET)

The expreiment continues to run smoothly.

AIDA Stats look ok - Attachment 1

AIDA Temperature ok - Attachment 2

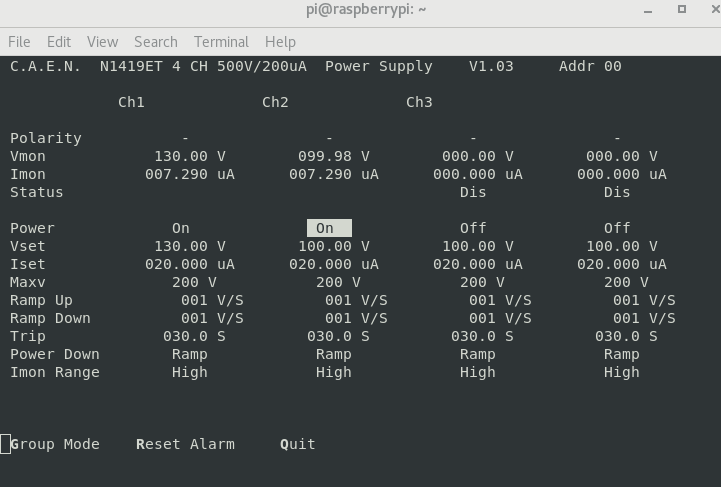

AIDA Leakage current: ok - Attachment 3

System wide check:

Clock: 13 passed, 1 failed (aida09)

ADC Calibration: 9 passed, 5 fialed (aida2,6,9,10,13)

White rabbit decoder: 14 passed, 0 failed.

FPGA timestamp: 14 passed, 0 failed.



Status at 18:45 (CET):

All rates ok on ucesb.

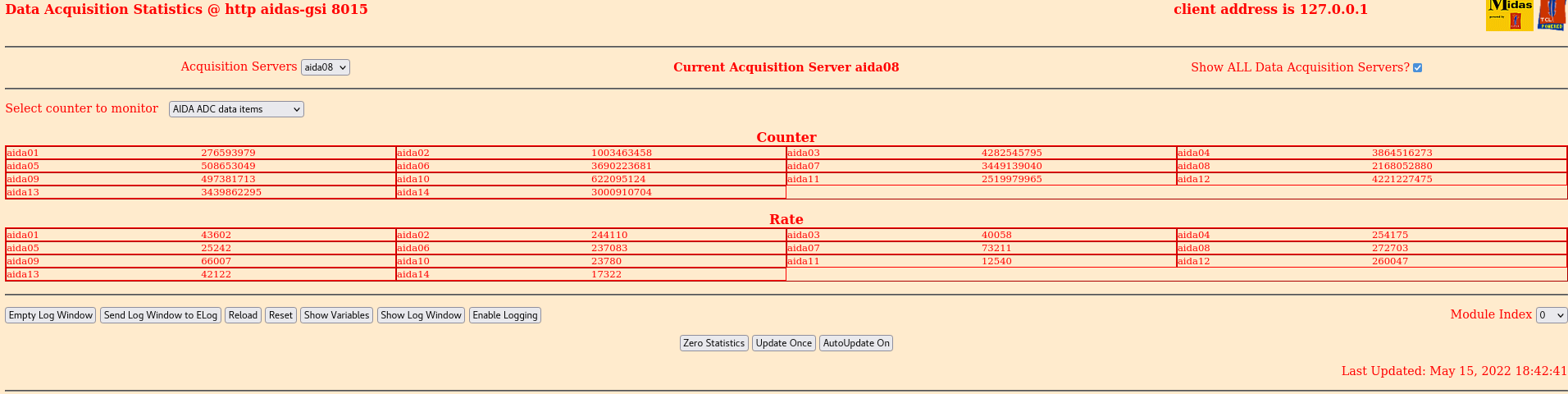

AIDA Stats ok - Attachment 4

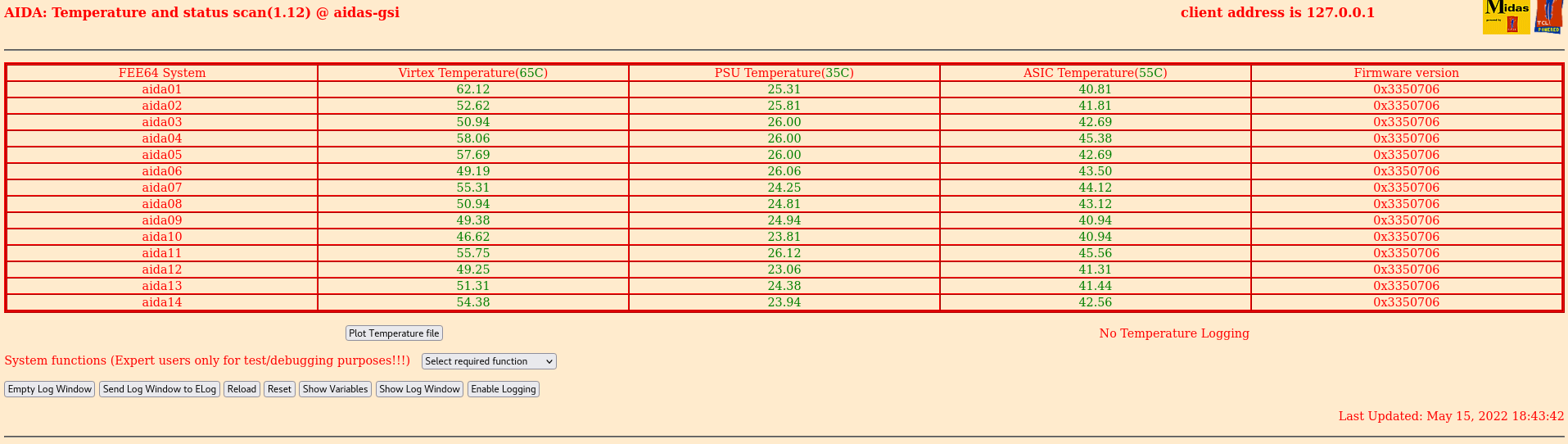

AIDA Temperature ok - Attachment 5

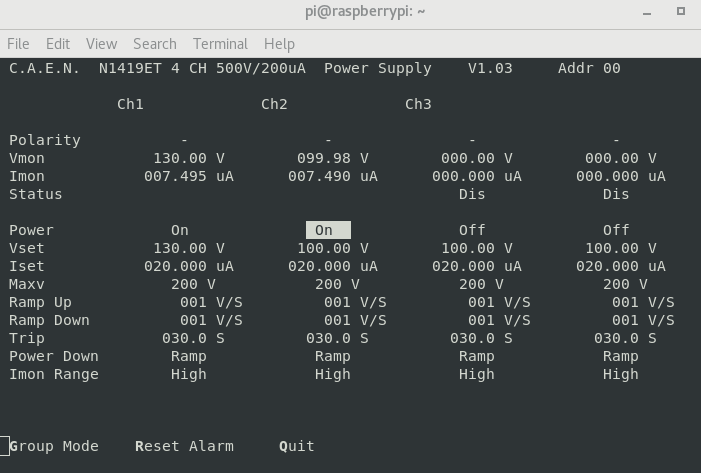

AIDA Leakage current: increase slightly - Attachment 6

System wide check: No changes, same as above



Status at 20:45 (CET):

All rates ok on ucesb.

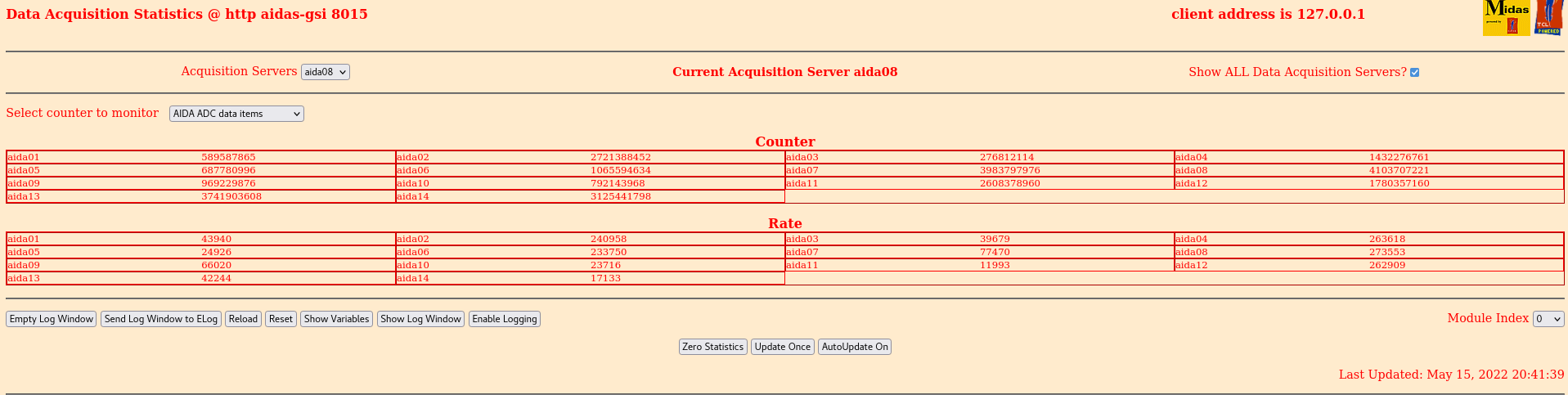

AIDA Stats ok - Attachment 7

AIDA Temperature ok - Attachment 8

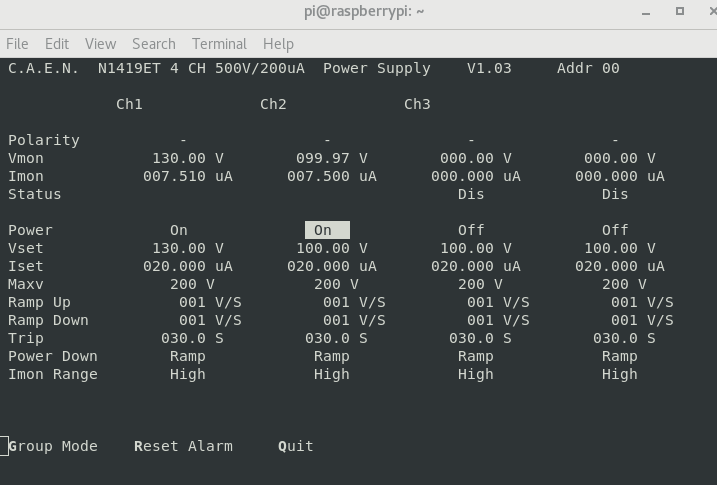

AIDA Leakage current: increase slightly - Attachment 9

System wide check: No changes, same as above



Status at 22:45 (CET):

All rates ok on ucesb.

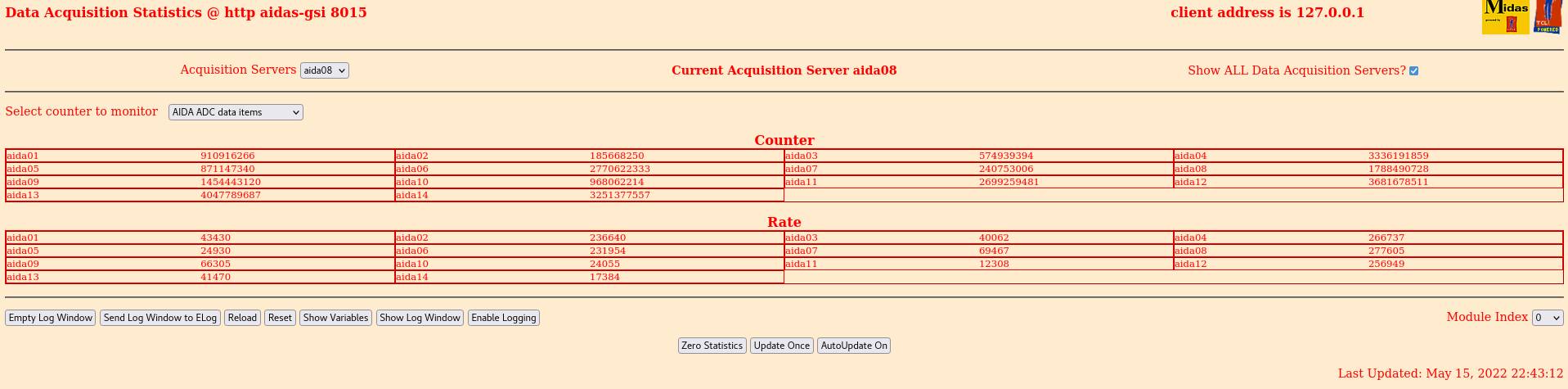

AIDA Stats ok - Attachment 10

AIDA Temperature ok - Attachment 11

AIDA Leakage current: increase slightly - Attachment 12

System wide check: No changes, same as above

Attachment 1: Stats_Screenshot_from_2022-05-15_16-49-06.png  79 kB  Uploaded Sun May 15 16:58:14 2022  | Hide | Hide all
Attachment 2: Temp_Screenshot_from_2022-05-15_16-48-31.png  116 kB  Uploaded Sun May 15 16:59:00 2022  | Hide | Hide all
Attachment 3: HV_LC_Screenshot_from_2022-05-15_16-47-44.png  40 kB  Uploaded Sun May 15 16:59:22 2022  | Hide | Hide all
Attachment 4: Stats_Screenshot_from_2022-05-15_18-43-16.png  78 kB  Uploaded Sun May 15 18:47:36 2022  | Hide | Hide all
Attachment 5: Temp_Screenshot_from_2022-05-15_18-44-06.png  115 kB  Uploaded Sun May 15 18:47:54 2022  | Hide | Hide all
Attachment 6: HV_LC_Screenshot_from_2022-05-15_18-42-23.png  39 kB  Uploaded Sun May 15 18:48:09 2022  | Hide | Hide all
Attachment 7: Stats_Screenshot_from_2022-05-15_20-42-03.png  80 kB  Uploaded Sun May 15 20:43:58 2022  | Hide | Hide all
Attachment 8: Temp_Screenshot_from_2022-05-15_20-42-42.png  115 kB  Uploaded Sun May 15 20:44:11 2022  | Hide | Hide all
Attachment 9: HV_LC_Screenshot_from_2022-05-15_20-36-28.png  39 kB  Uploaded Sun May 15 20:44:36 2022  | Hide | Hide all
Attachment 10: Stats_Screenshot_from_2022-05-15_22-43-37.png  79 kB  Uploaded Sun May 15 22:47:06 2022  | Hide | Hide all
Attachment 11: Temp_Screenshot_from_2022-05-15_22-44-20.png  113 kB  Uploaded Sun May 15 22:47:33 2022  | Hide | Hide all
Attachment 12: HV_LC_Screenshot_from_2022-05-15_22-42-36.png  40 kB  Uploaded Sun May 15 22:47:55 2022  | Hide | Hide all
