Entry time:
Wed May 18 15:29:50 2022
Author
*
:
Subject
*
:

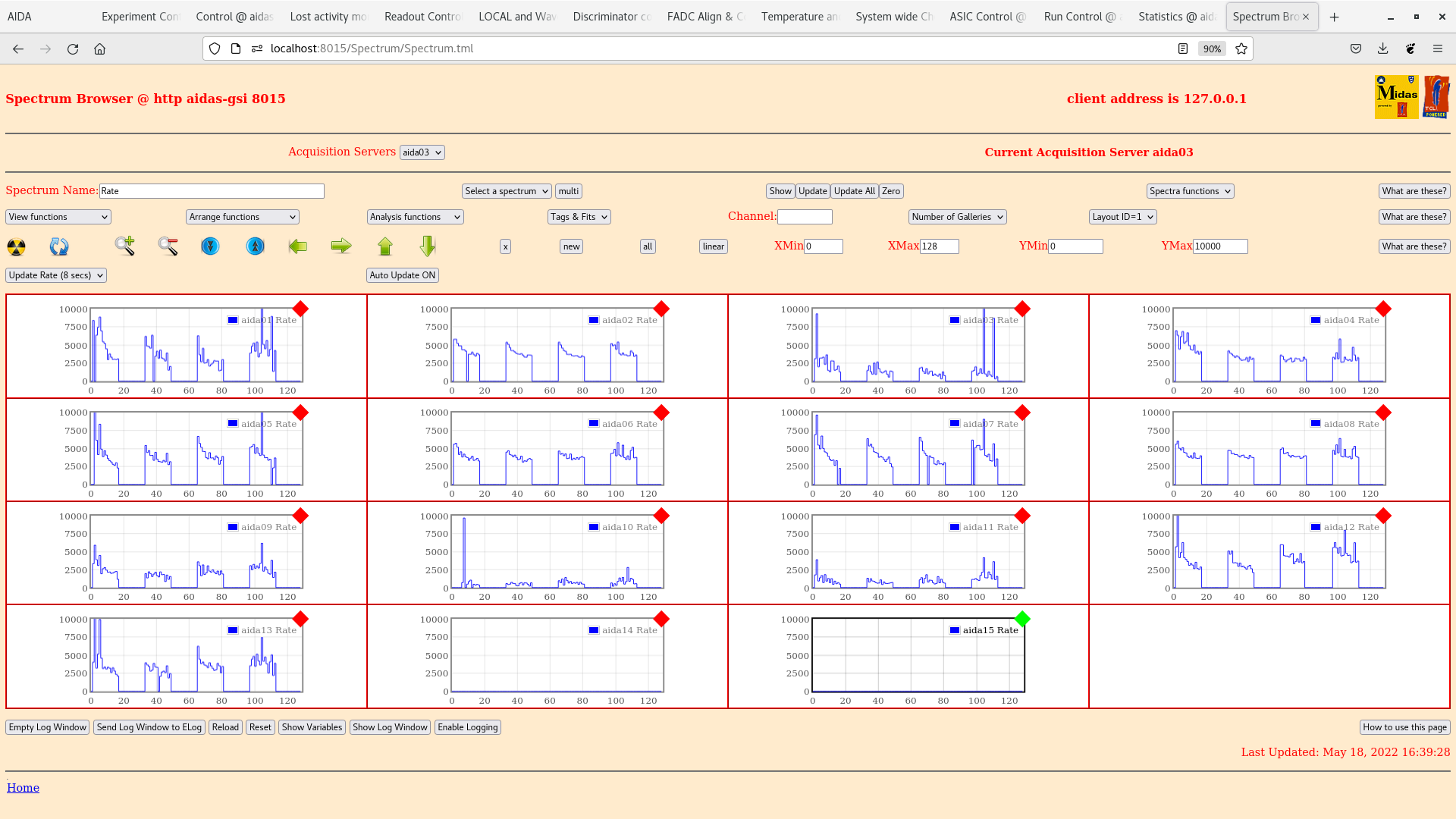

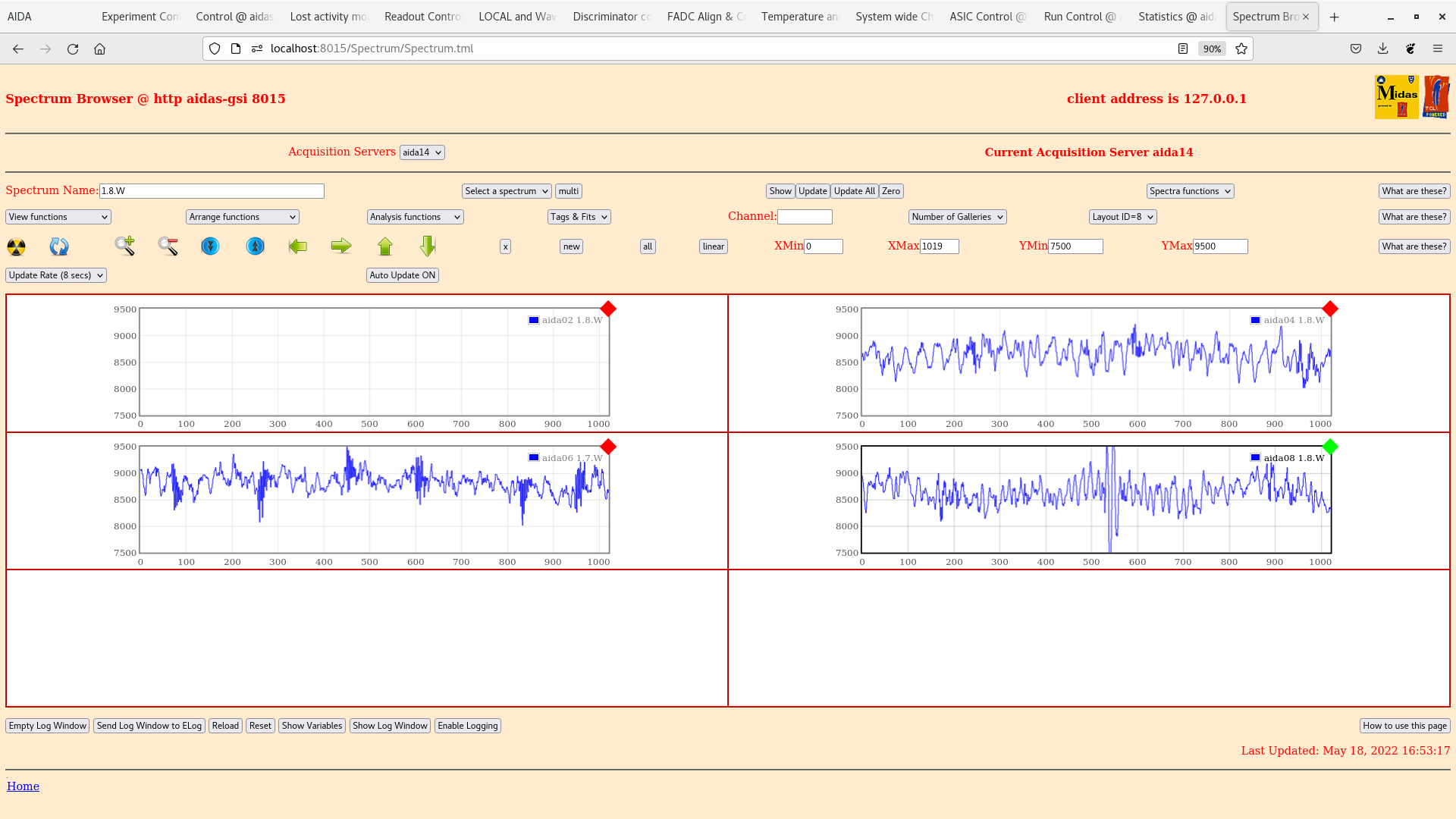

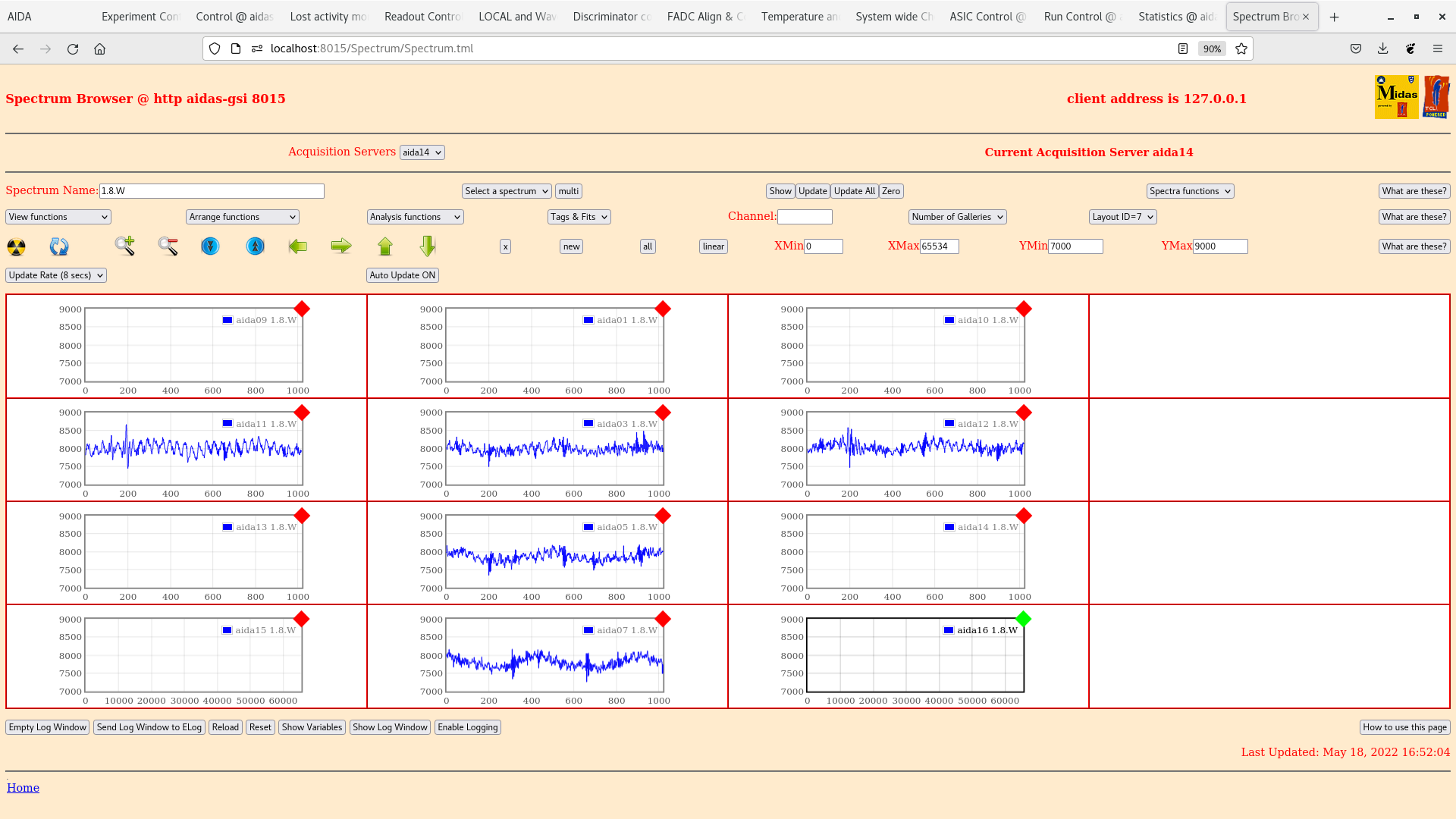

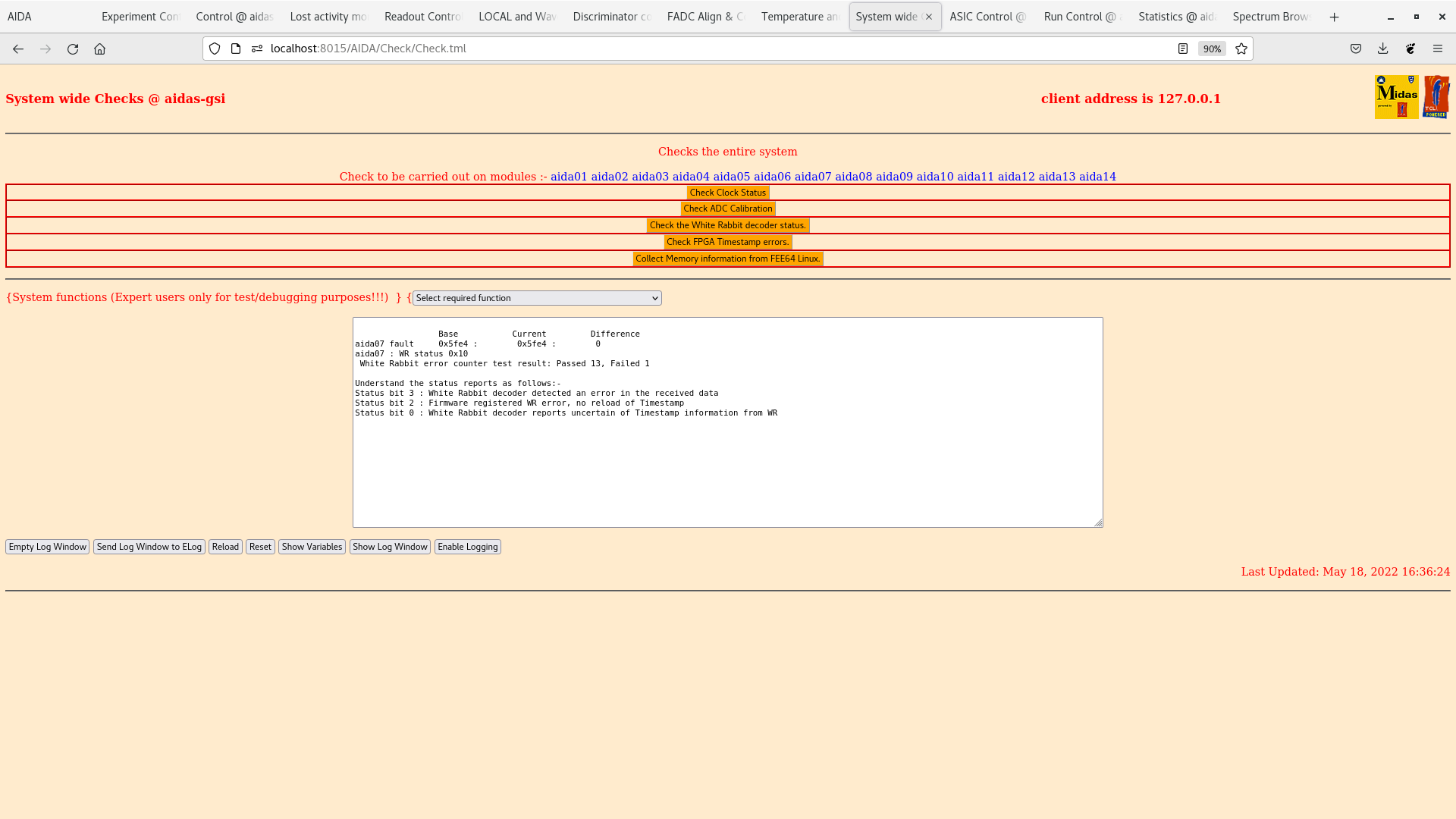

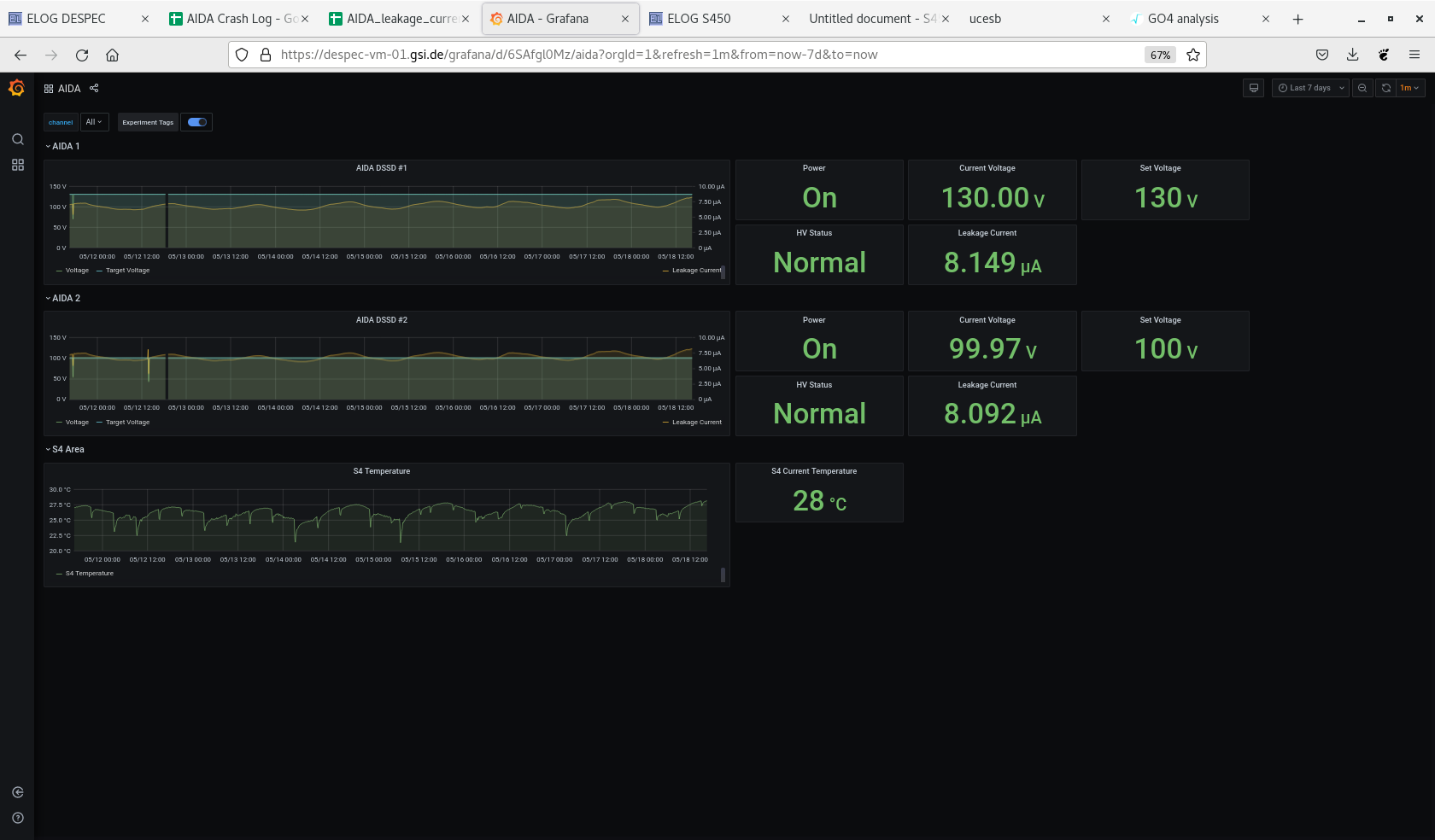

file no storage mode, no MBS data transfer ADC control register 0x0 std disc outputs disabled ASIC settings 2021Apr29-13-16-00 slow comparator 0xa BNC PB-5 settings amplitude 1.000V attenuation x1 tau_d 1ms frequency 2Hz polarity + Attachment 1 - DSSSD bias & leakage current Attachment 2 - grafana DSSSD bias, leakage current & temp - OK Attachment 3 - ADC data item stats Attachment 4 - FEE64 temps - OK 16.35 zero all histograms zero statistics zero NewMerger statistics ASIC check control - all FEE64s, all ASICs baseline counters system wide checks - all OK *except* aida07 WR error 0x10 Attachment 5 - per FEE64 rate spectra Attachmnents 6 & 7 - per FEE64 1.8.W spectra 20us FSR
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 734x462
Attachment 2:
Original size: 1680x984
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1080
Attachment 9:
