Tue May 31 17:09:35 2022
Author
*
:
Subject
*
:

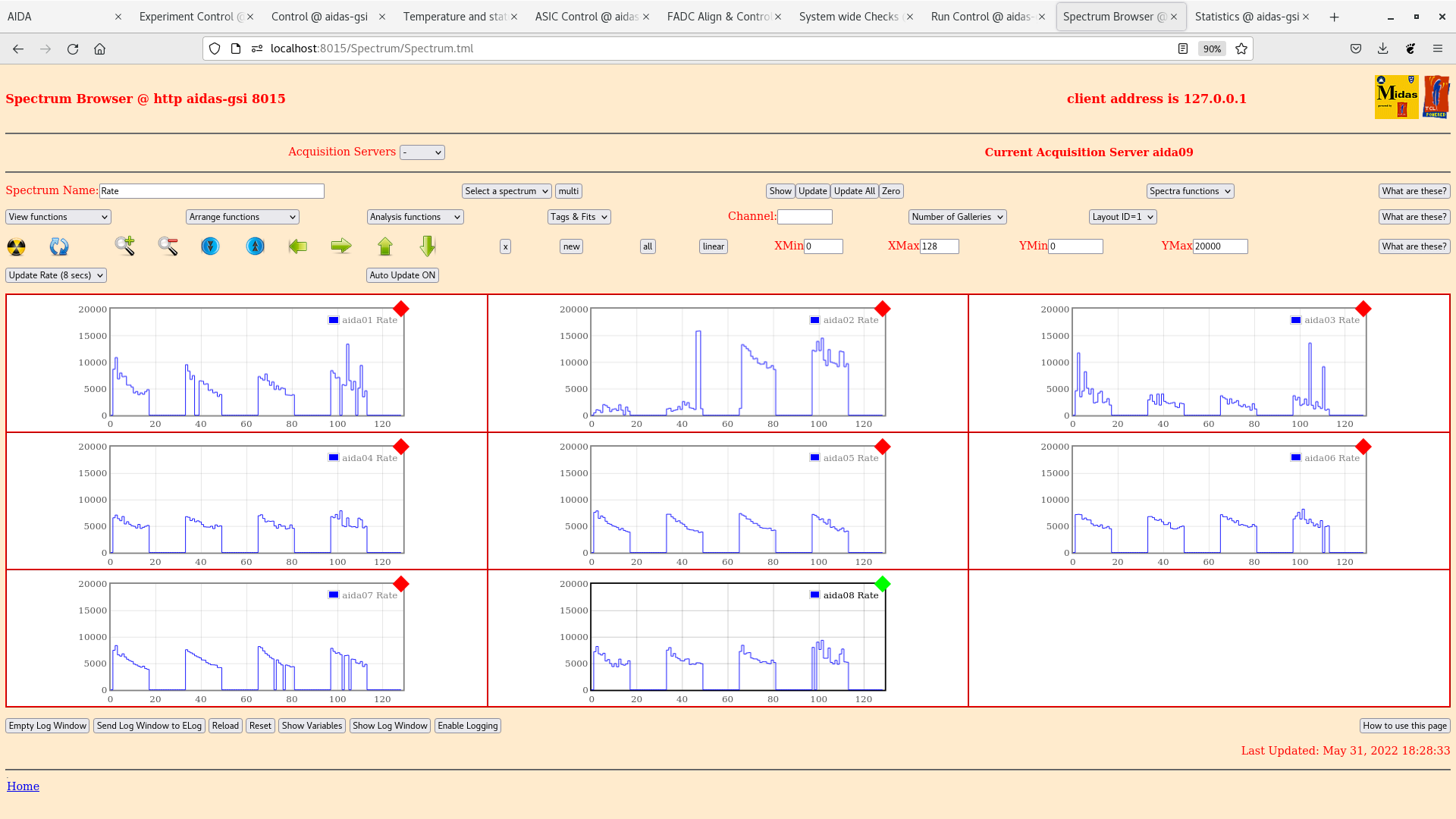

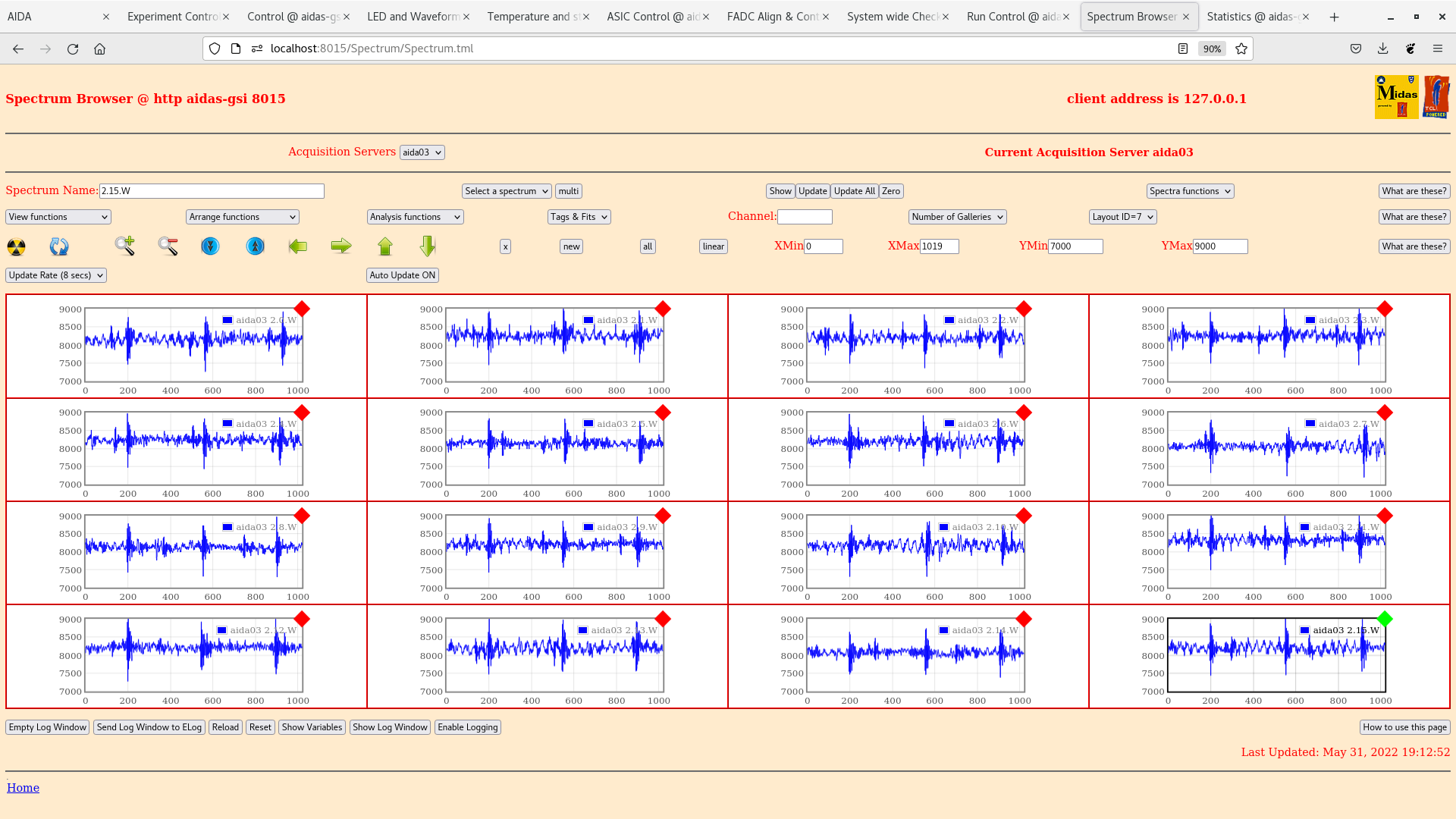

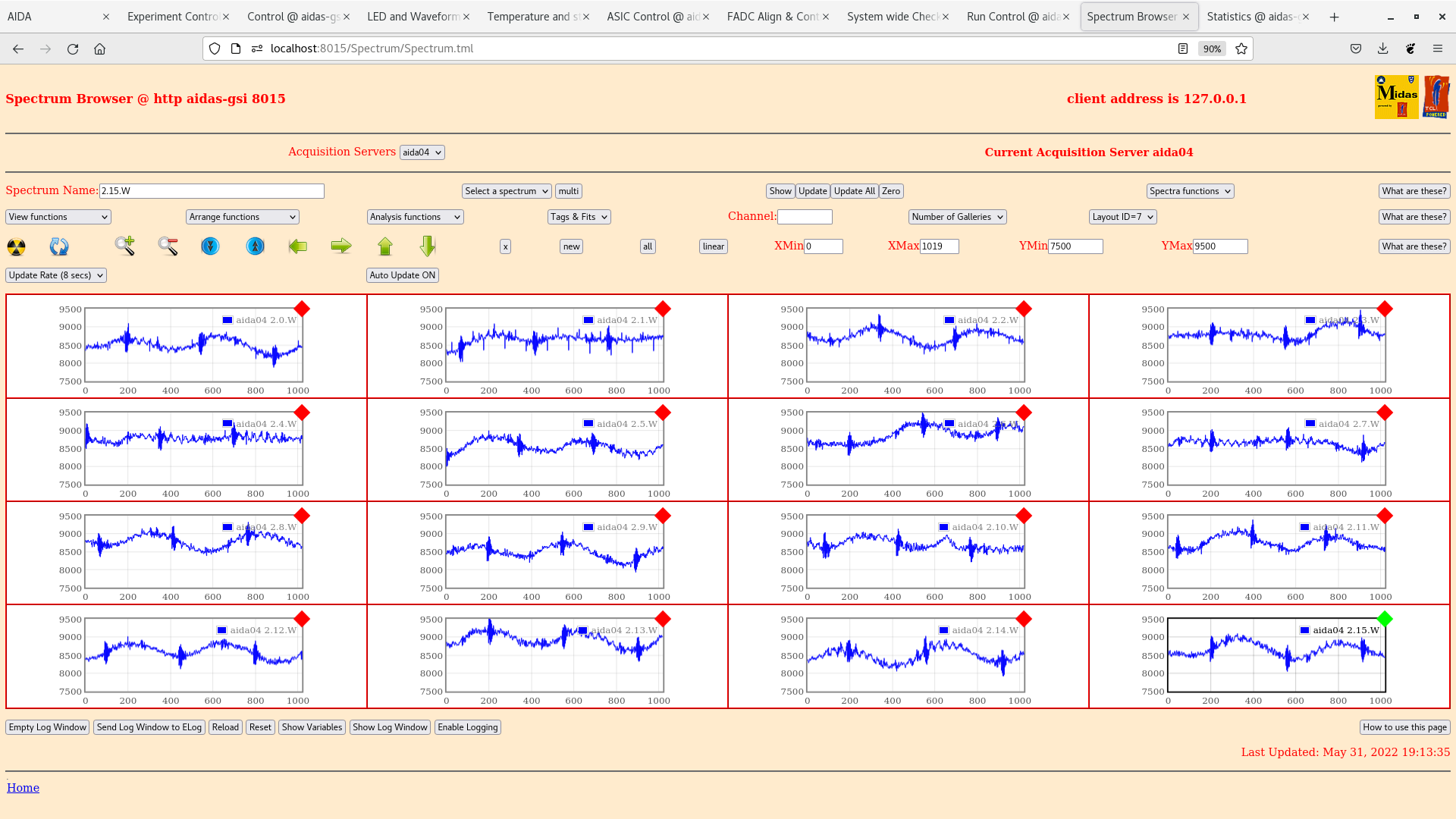

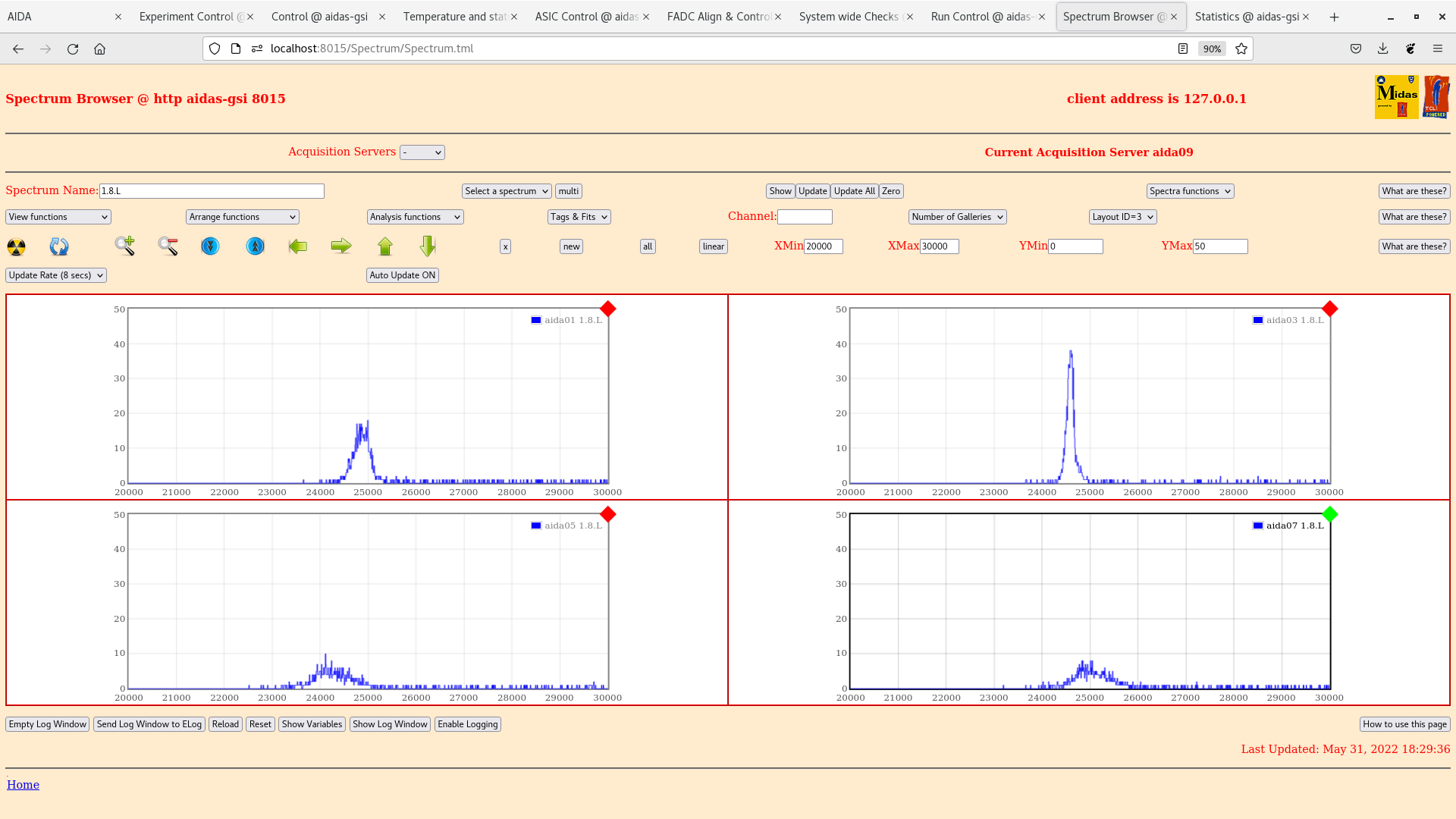

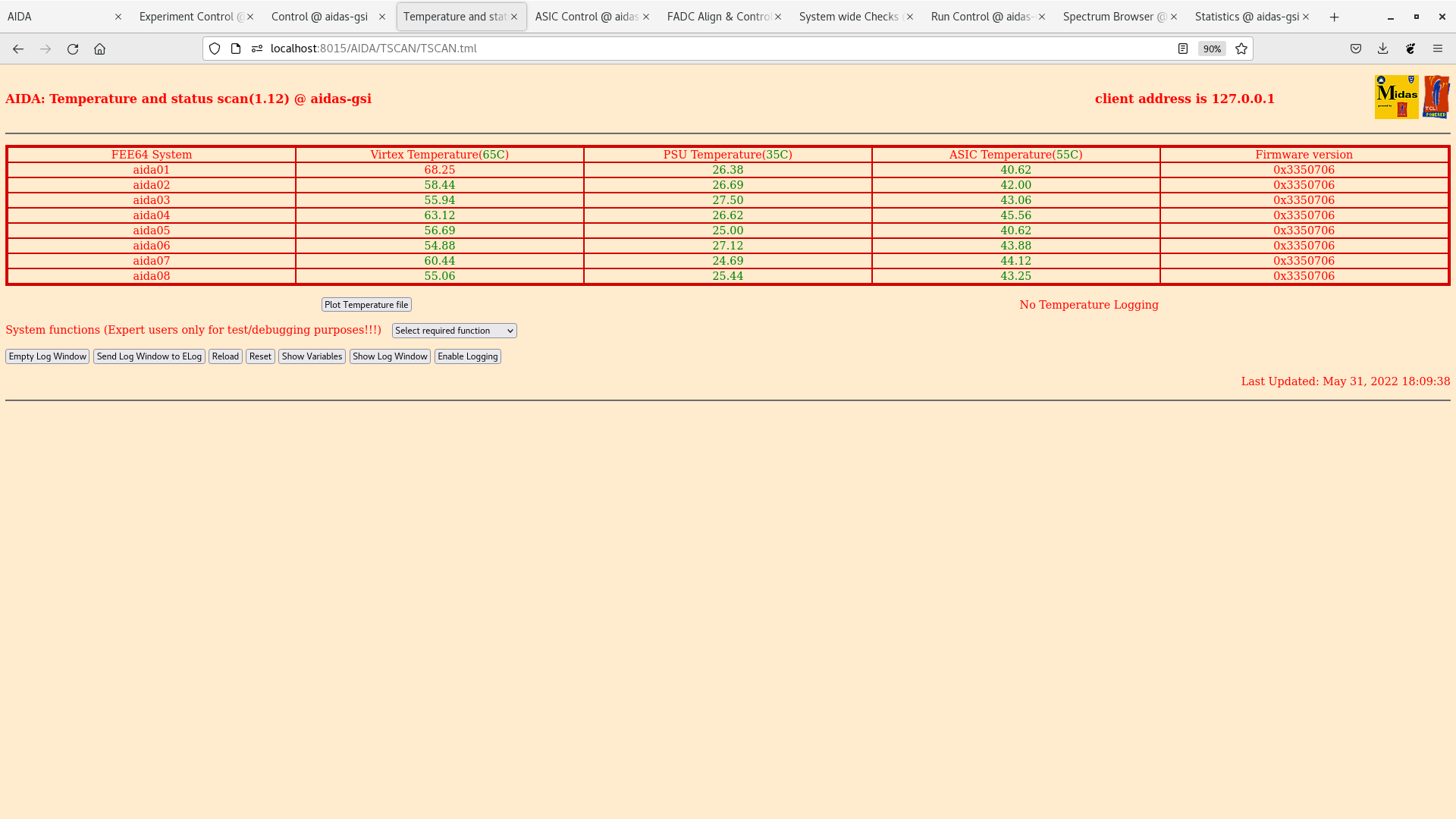

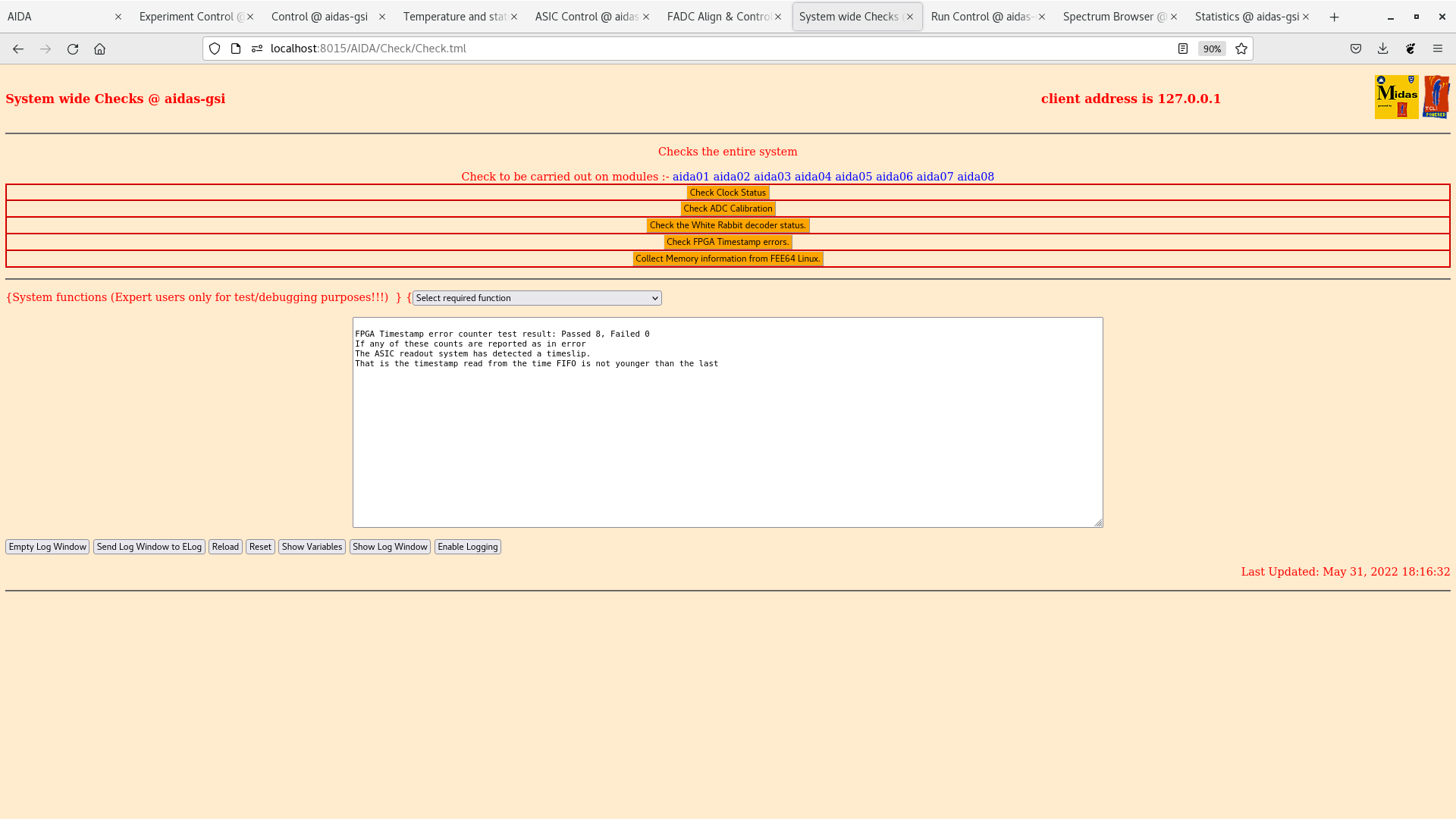

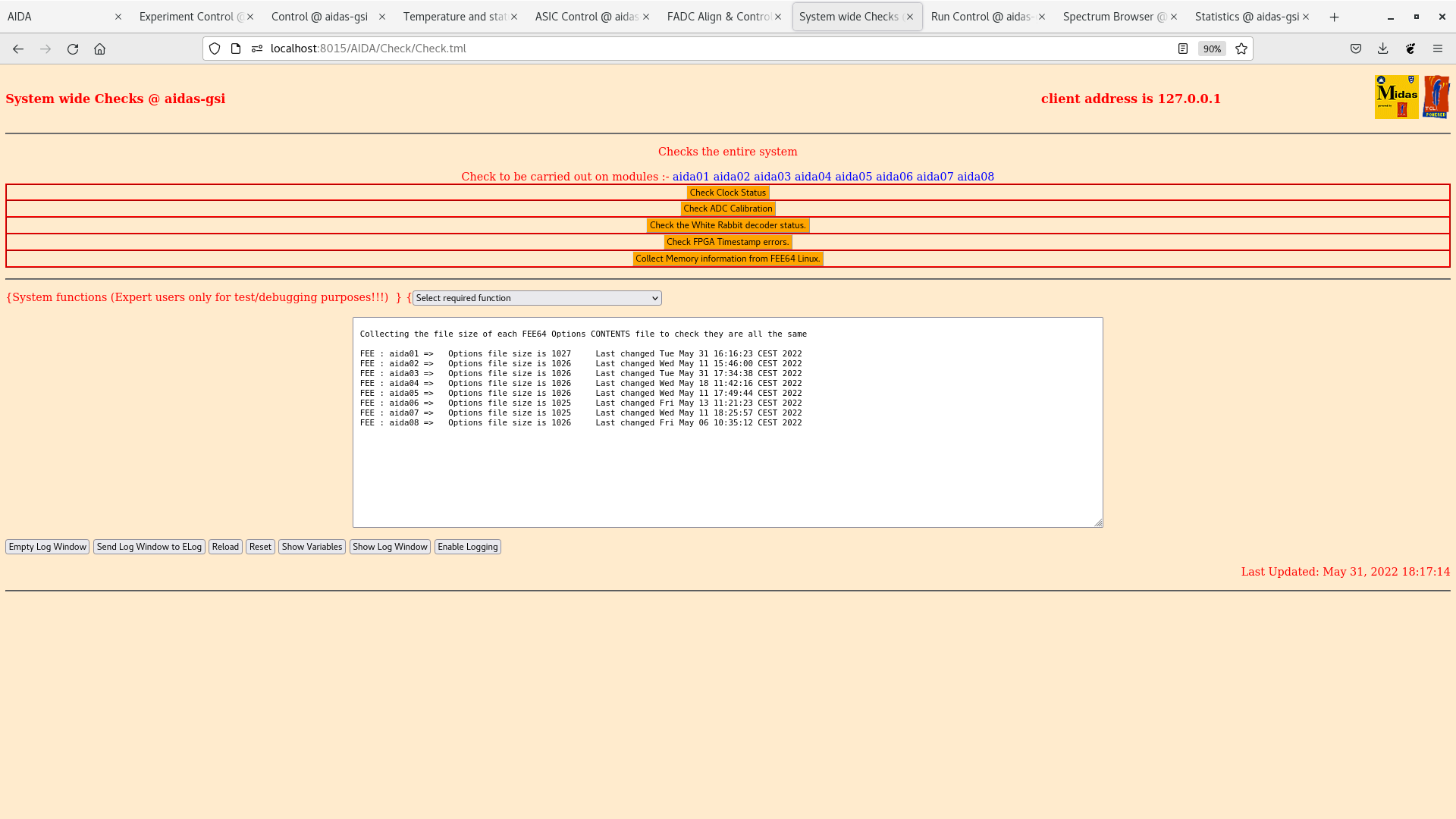

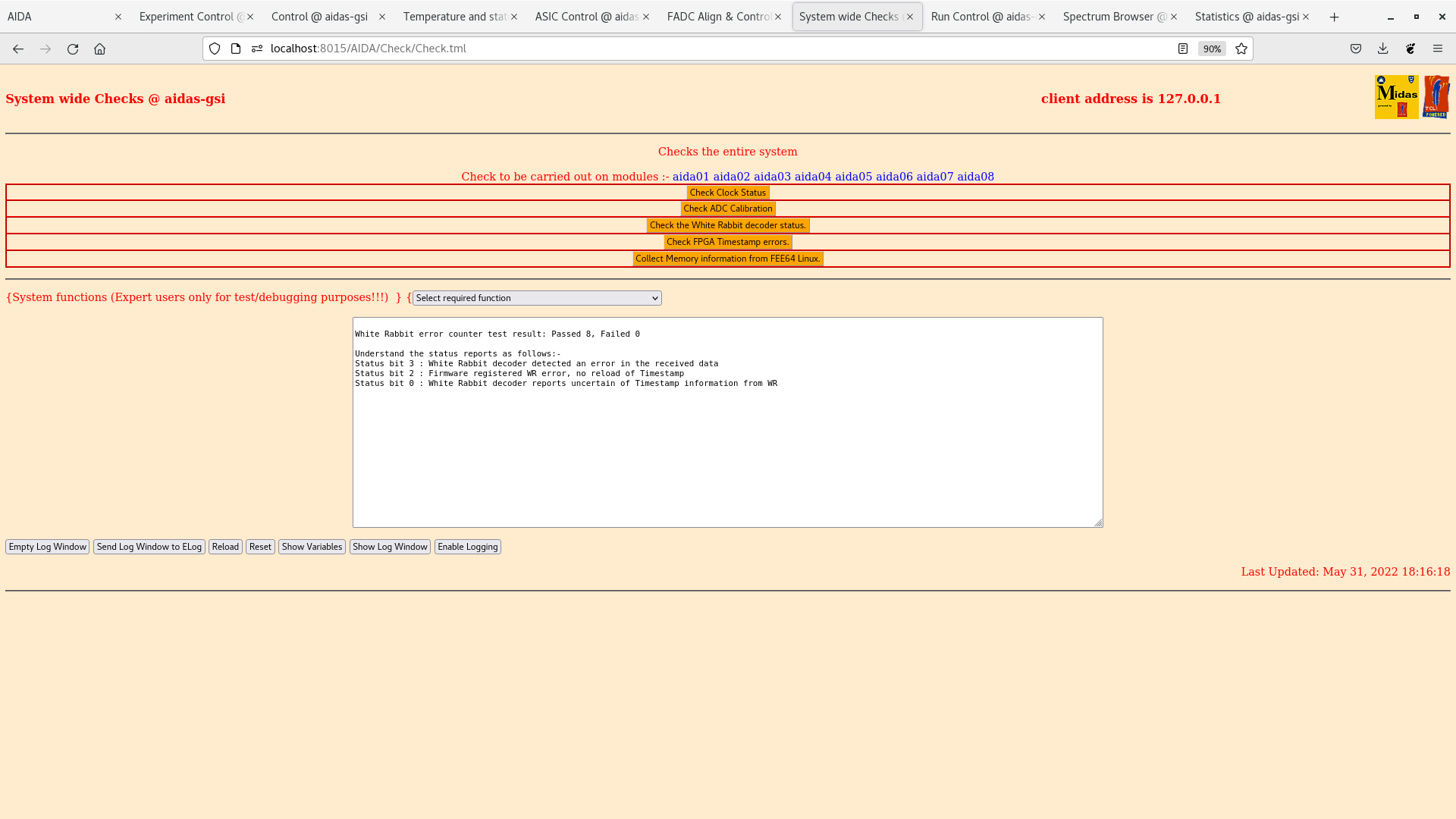

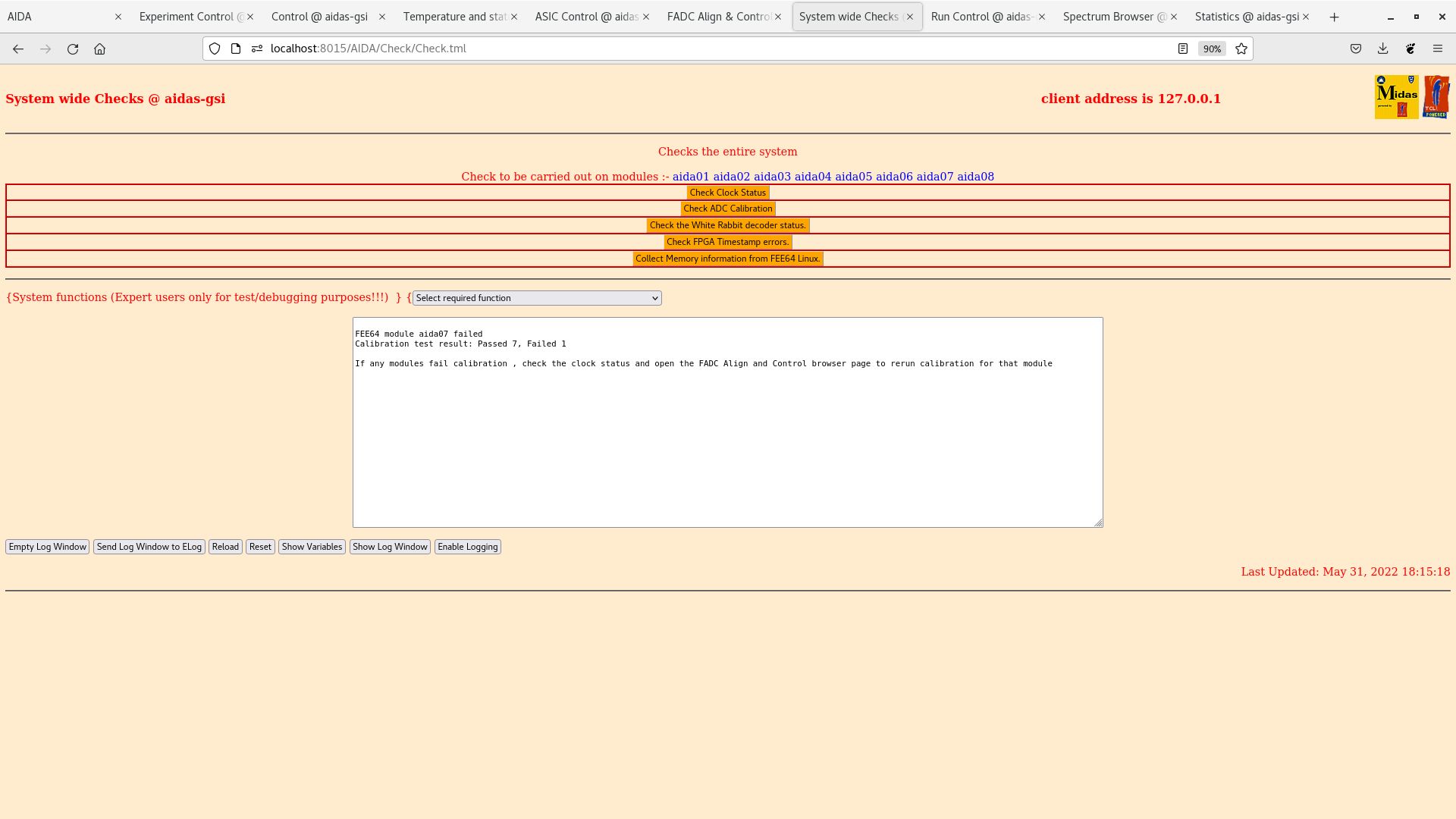

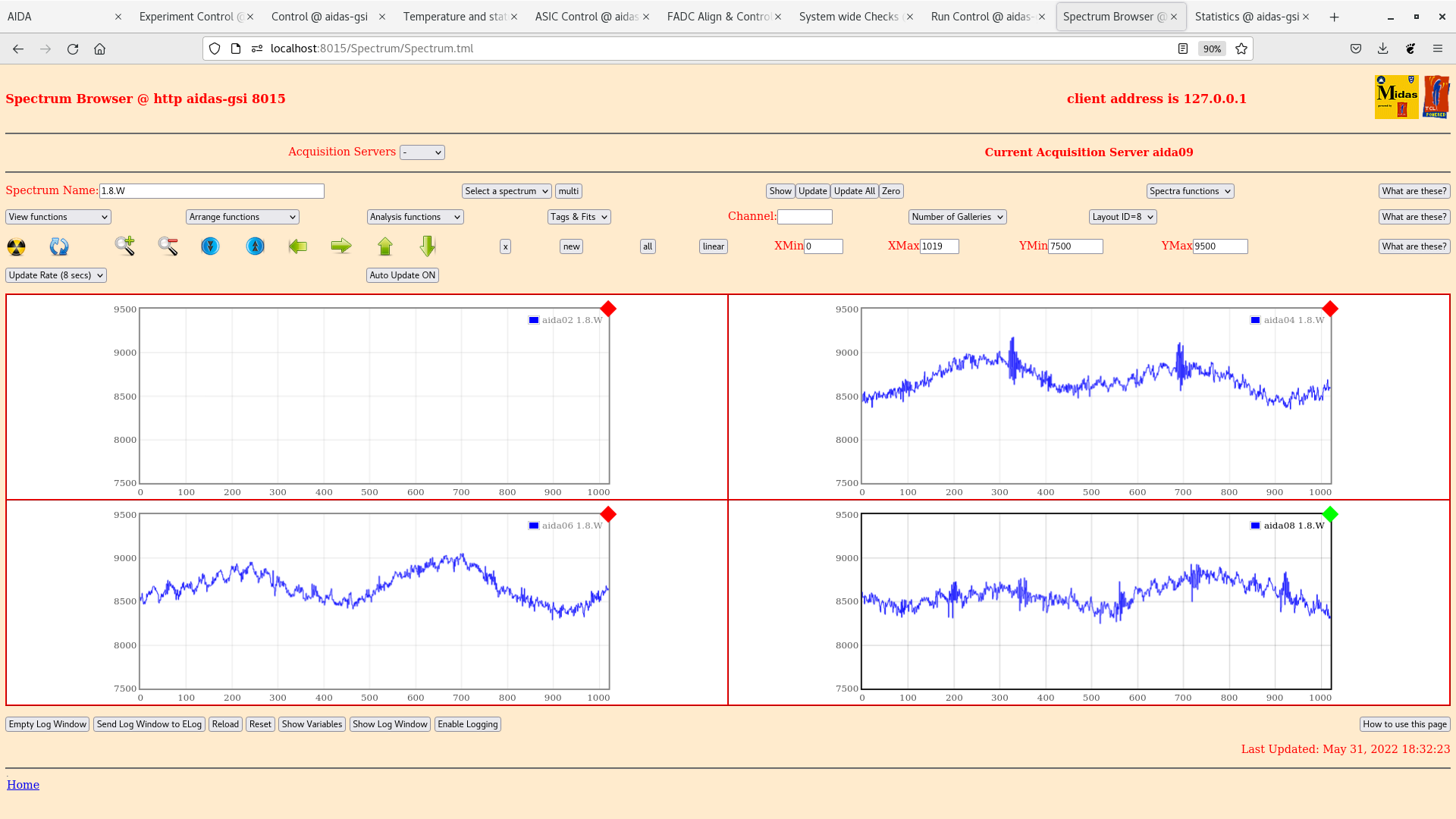

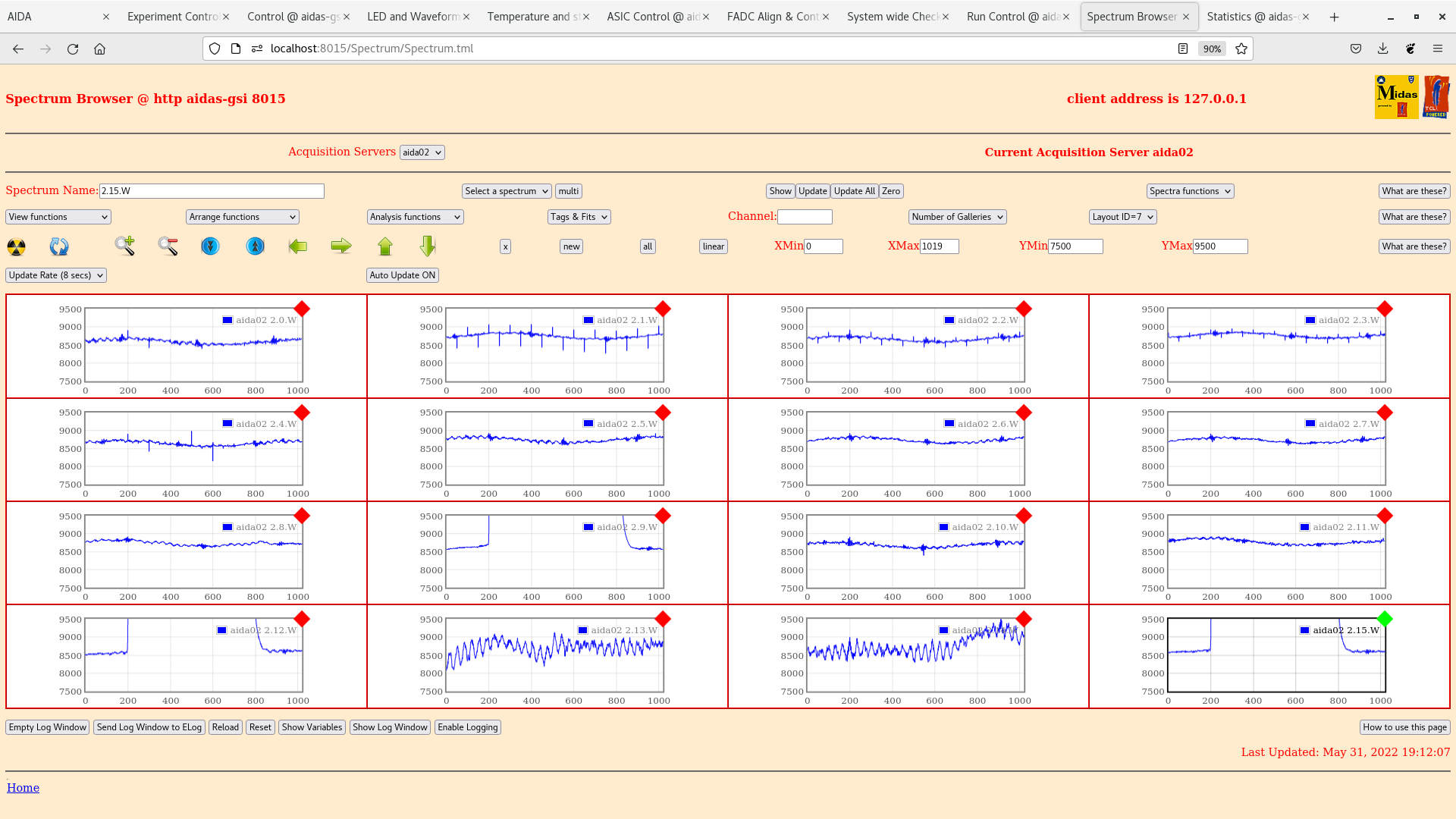

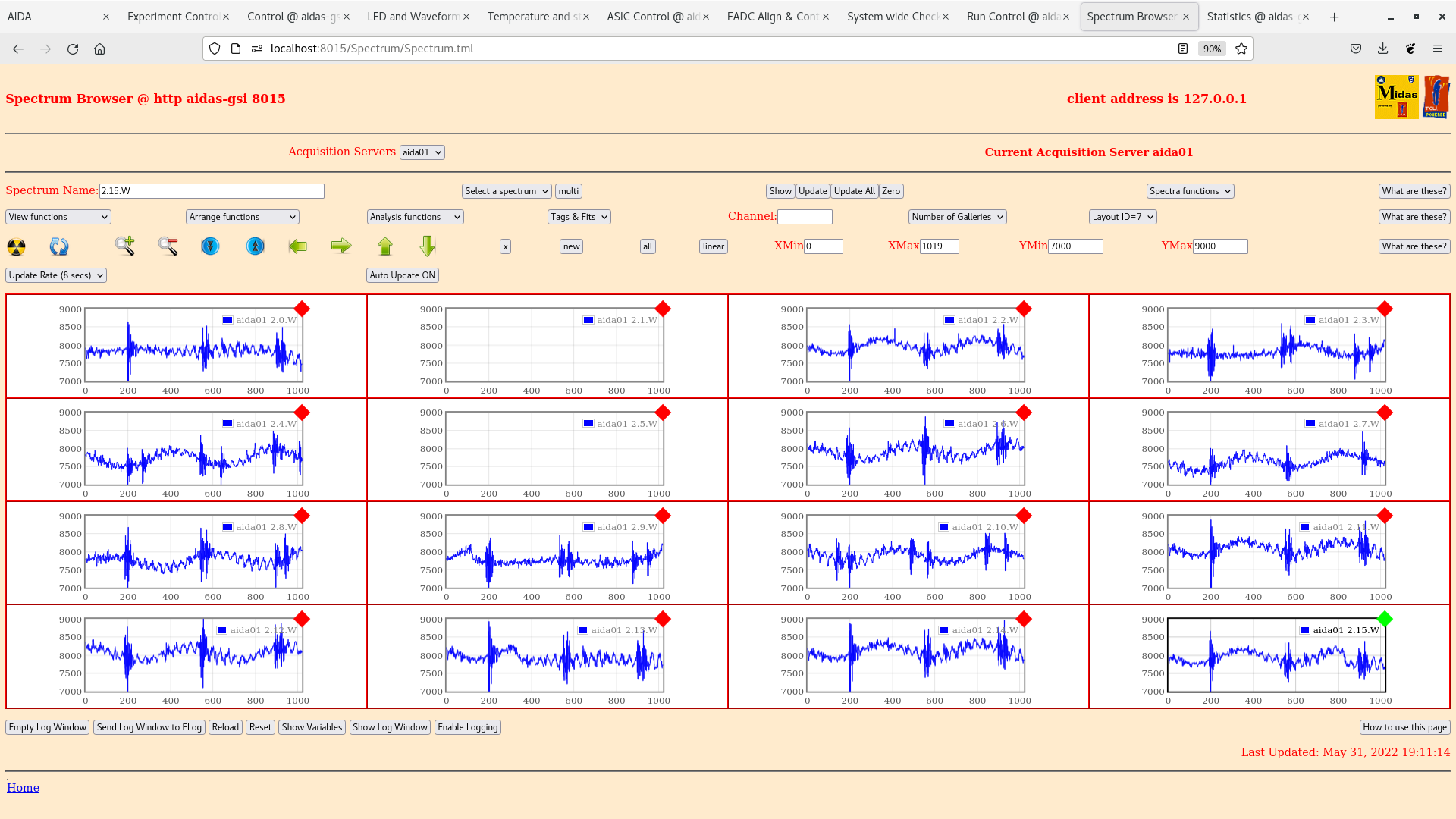

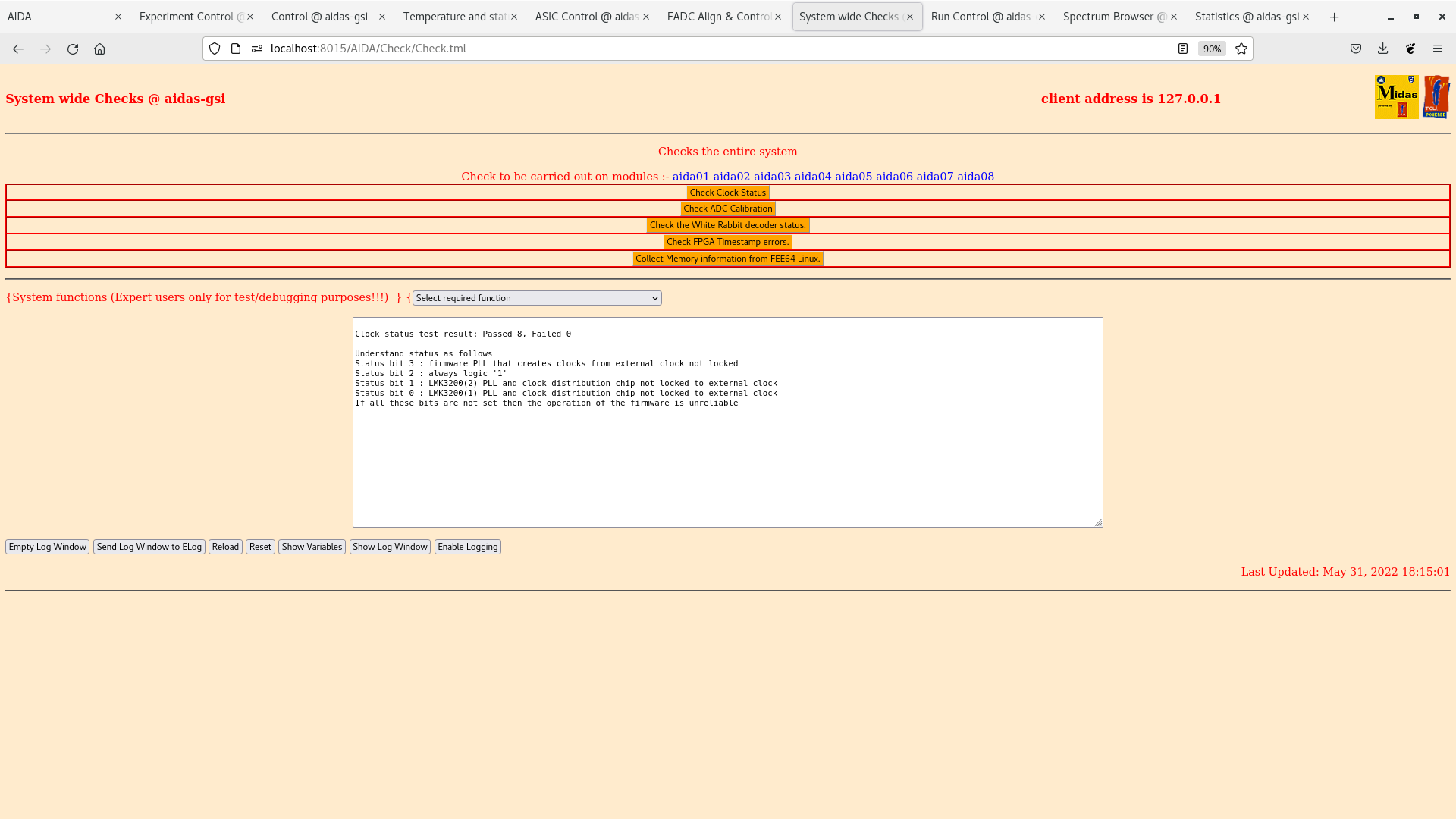

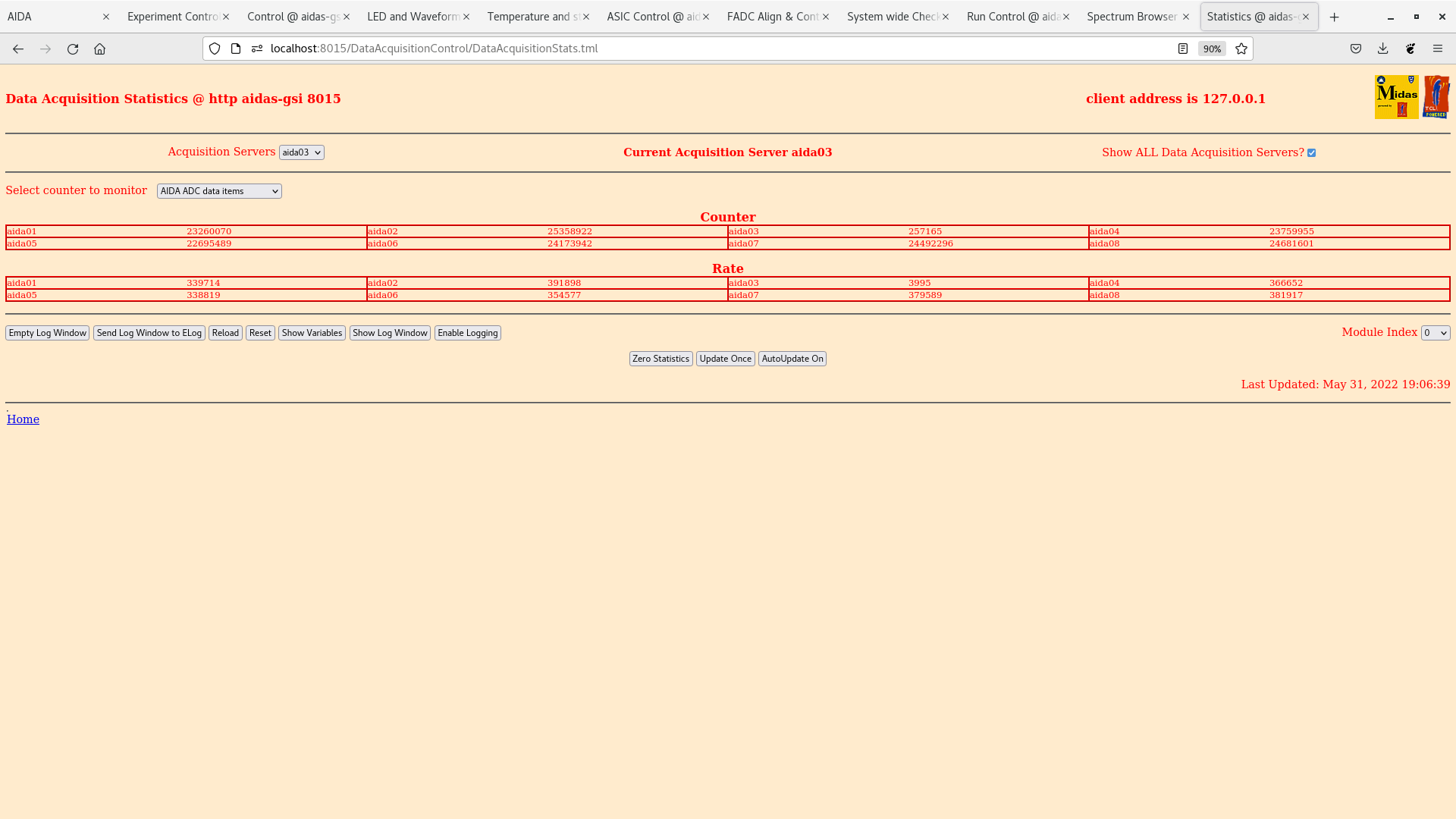

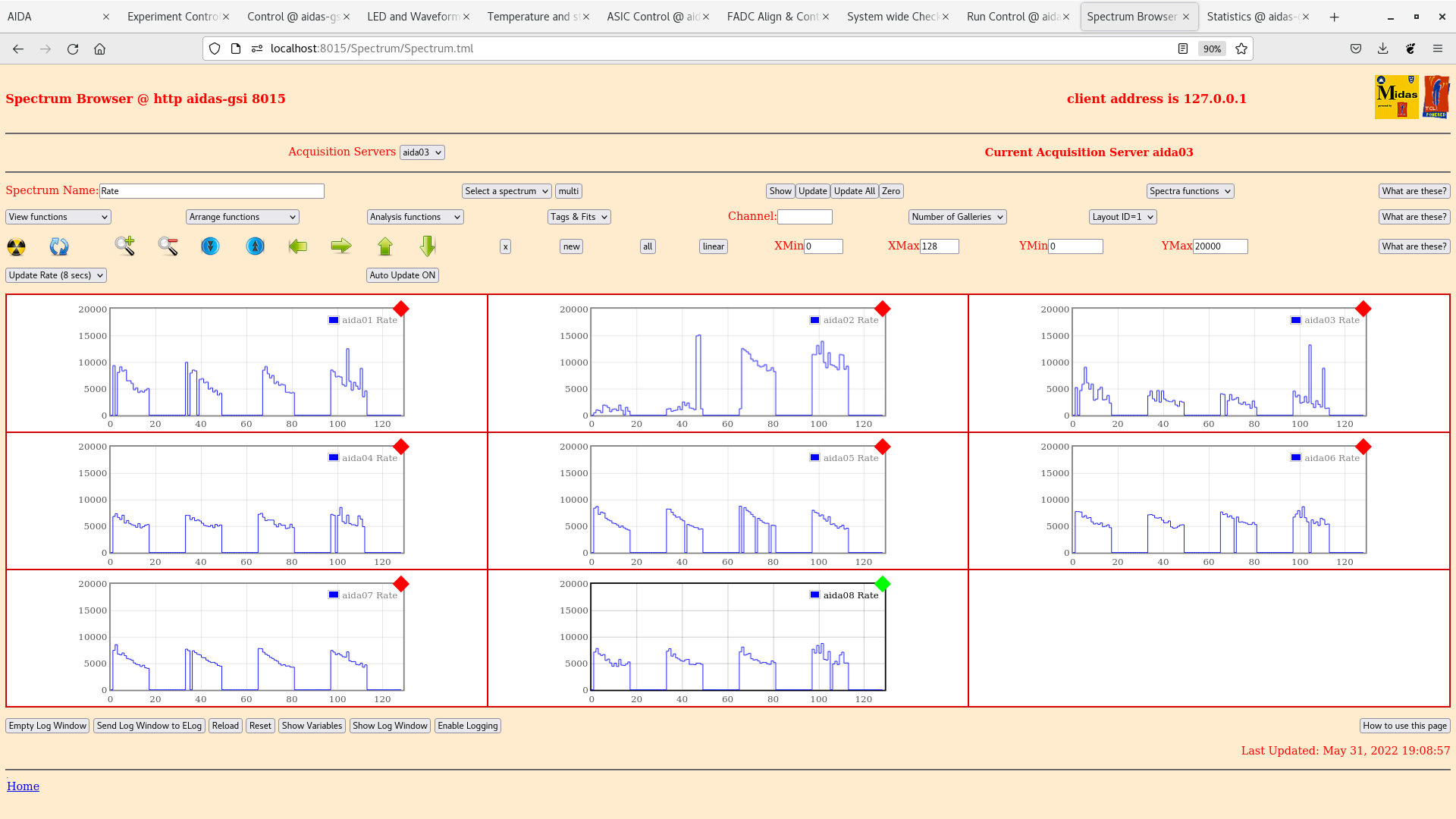

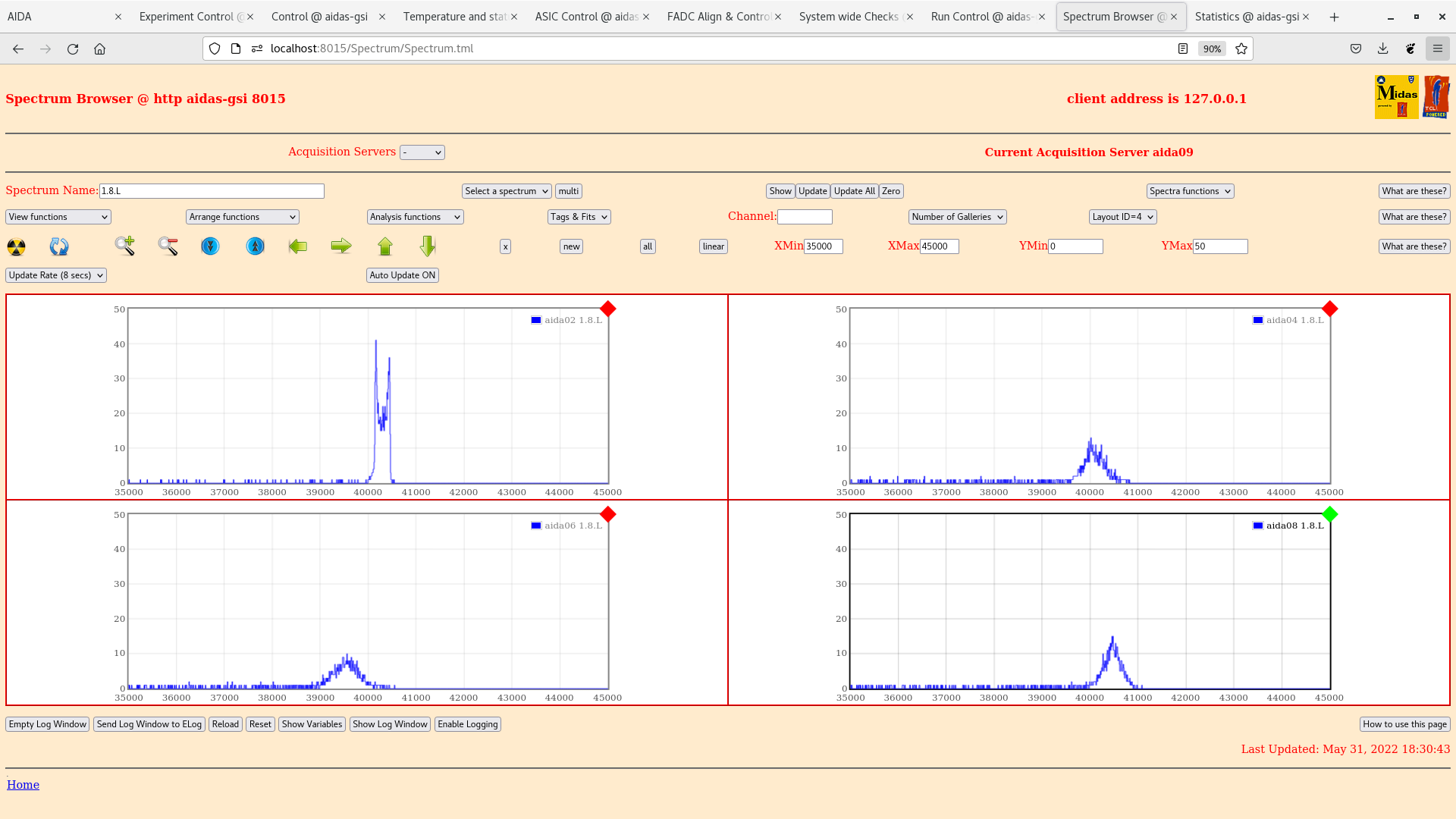

2x MSL type BB18(DS)-1000 installed Adaptor PCB LK config all FEE64s LK2, LK4 fitted n+n FEE64s LK1 fitted bottom p+n FEE64s LK3 fitted AIDA PSU config top 1-3 2-4 bottom 5-7 6-8 DSSSD bias -> p+n FEE64 core, n+n FEE64 braid Heavy duty grounds not connected to FEE64 adaptor PCBs ASIC settings 2021Apr29-13-16-00 slow comparator 0xa BNC PB-5 settings amplitude 1.000V attenuation x1 tau_d 1ms frequency 25Hz polarity + Attachment 1 - DSSSD bias & Leakage current - OK Attachment 2 - FEE64 temps OK Attachment 3 - adc data item stats Attachments 4-9 - system wide checks OK *except* aida07 fails ADC calibration Attachments 10 & 11 - 1.8.W spectra 20us FSR Attachments 12 & 13 - 1.8.L spectra - aida03 pulser peak width 155 ch FWHM Attachment 14 - per FEE64 rate spectra 19.15 Attachments 15-18 - 2*W spectra for aida01, 02, 03 &04 Attachment 19 - per FEE64 rate spectra Attachment 20 - adc data item stats
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 734x462
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1080
Attachment 9:
Original size: 1920x1080
Attachment 10:
Original size: 1920x1080
Attachment 11:
Original size: 1920x1080
Attachment 12:
Original size: 1920x1080
Attachment 13:
Original size: 1920x1080
Attachment 14:
Original size: 1920x1080
Attachment 15:
Original size: 1920x1080
Attachment 16:
Original size: 1920x1080
Attachment 17:
Original size: 1920x1080
Attachment 18:
Original size: 1920x1080
Attachment 19:
Original size: 1920x1080
Attachment 20:
Original size: 1920x1080
