Entry time:
Sun Jun 19 00:22:24 2022
Author
*
:
Subject
*
:

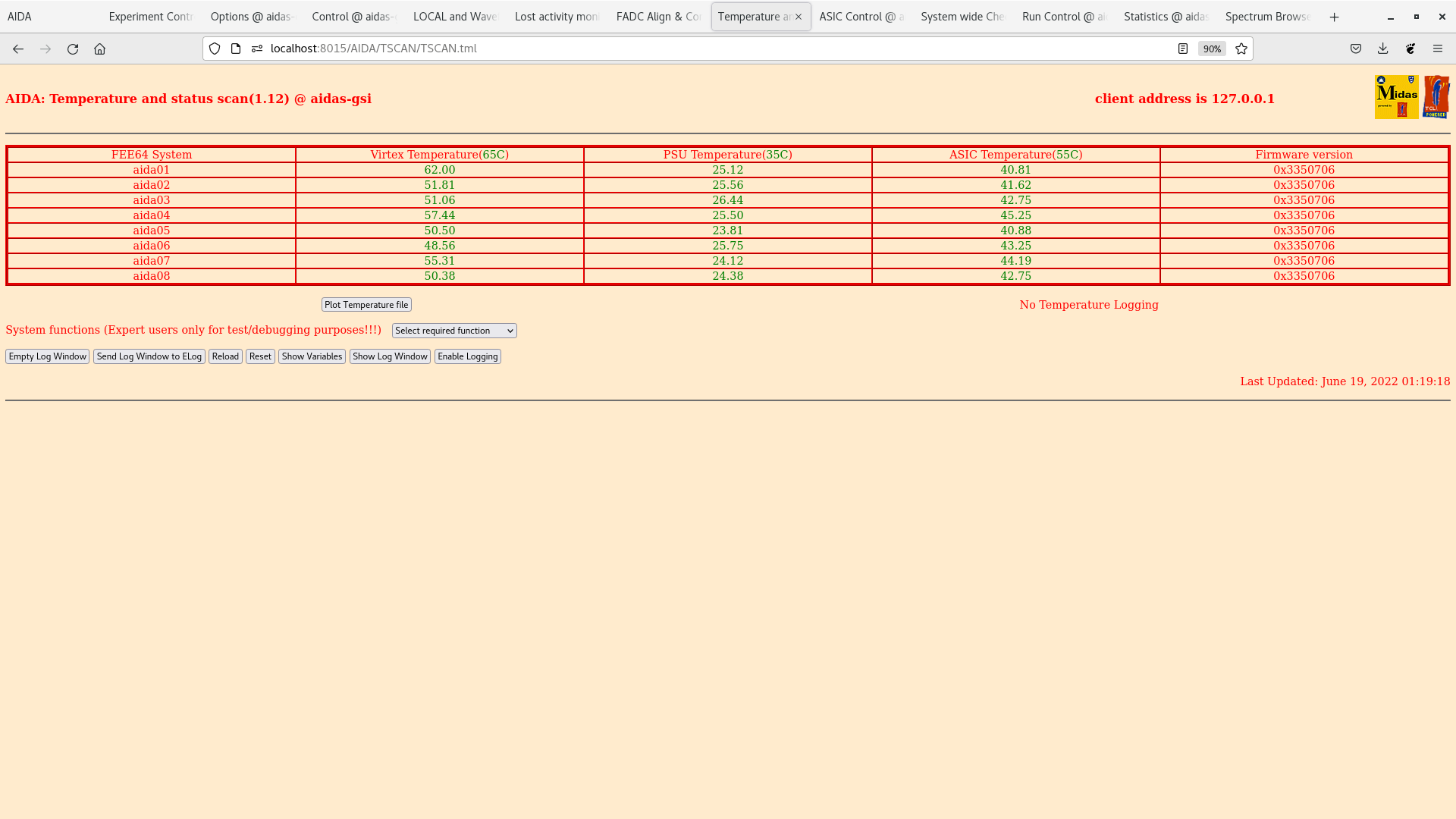

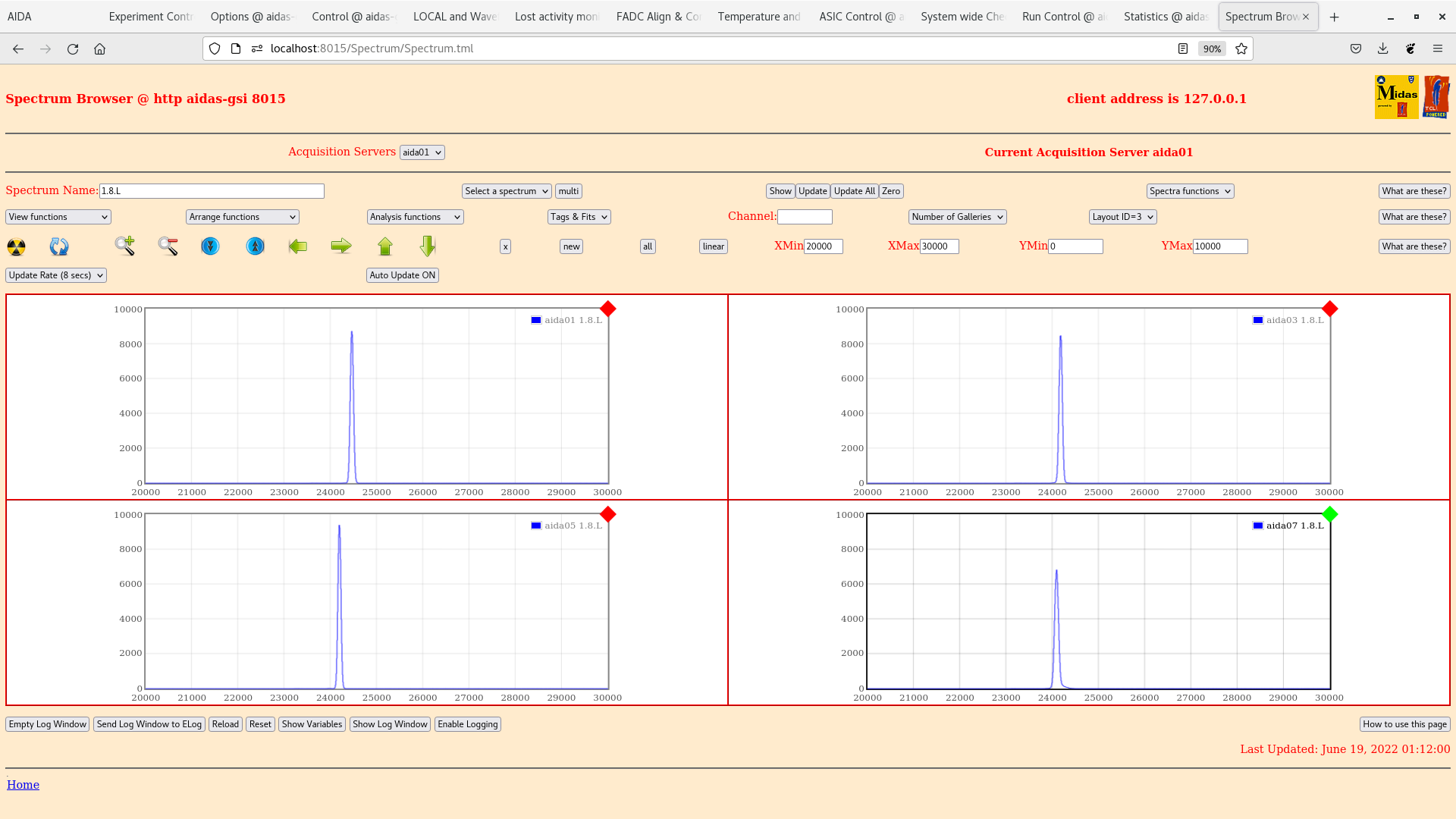

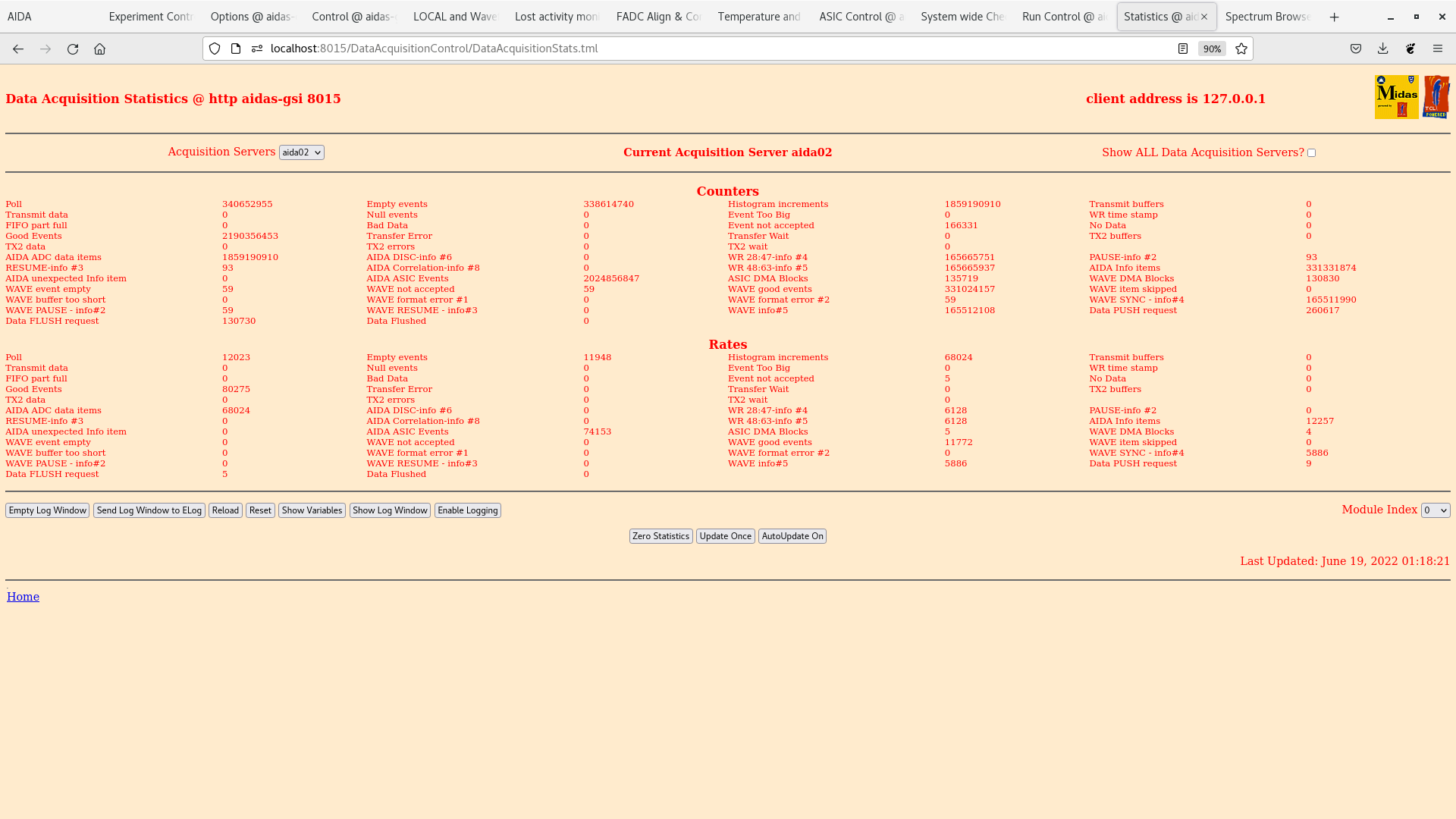

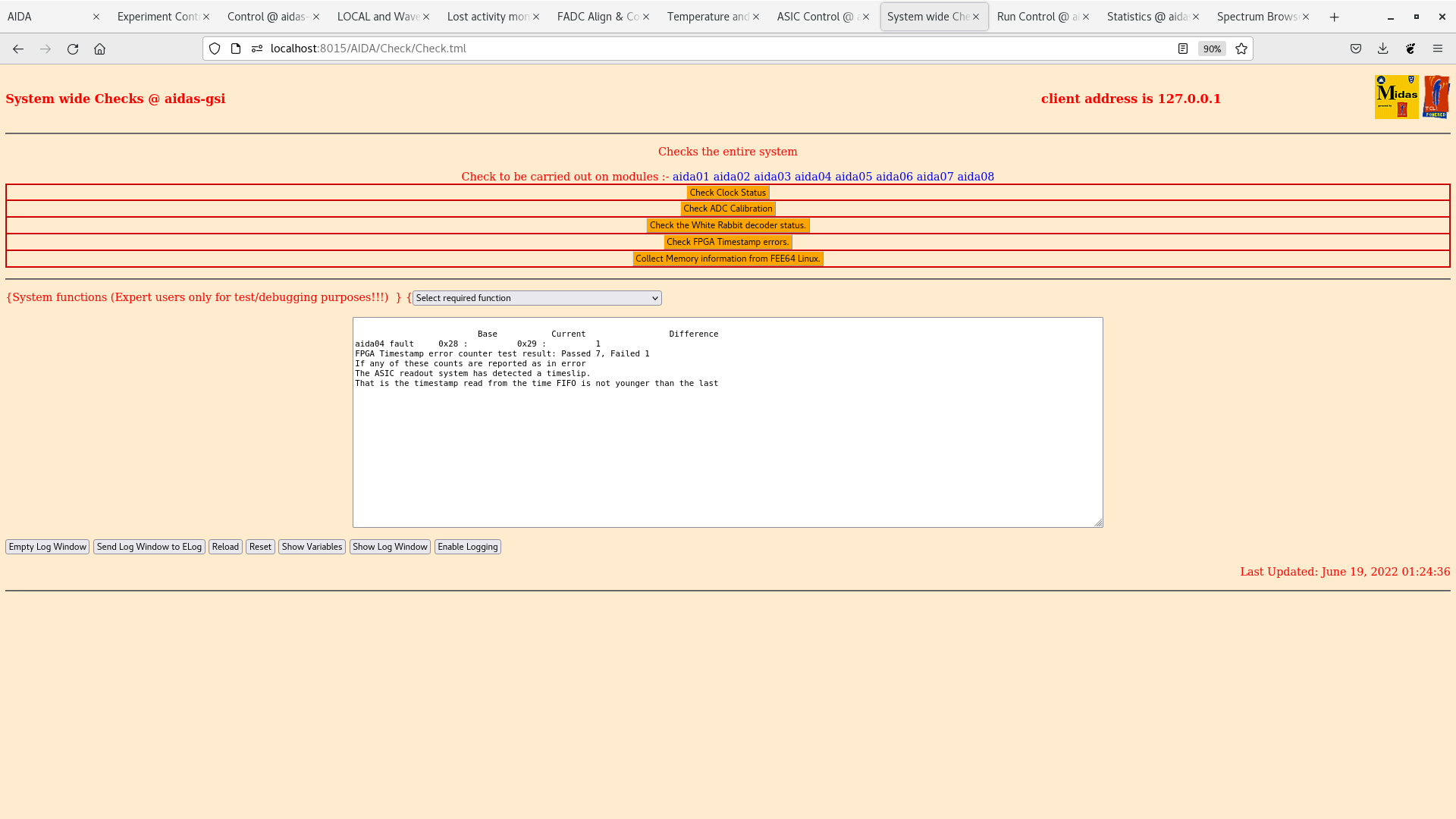

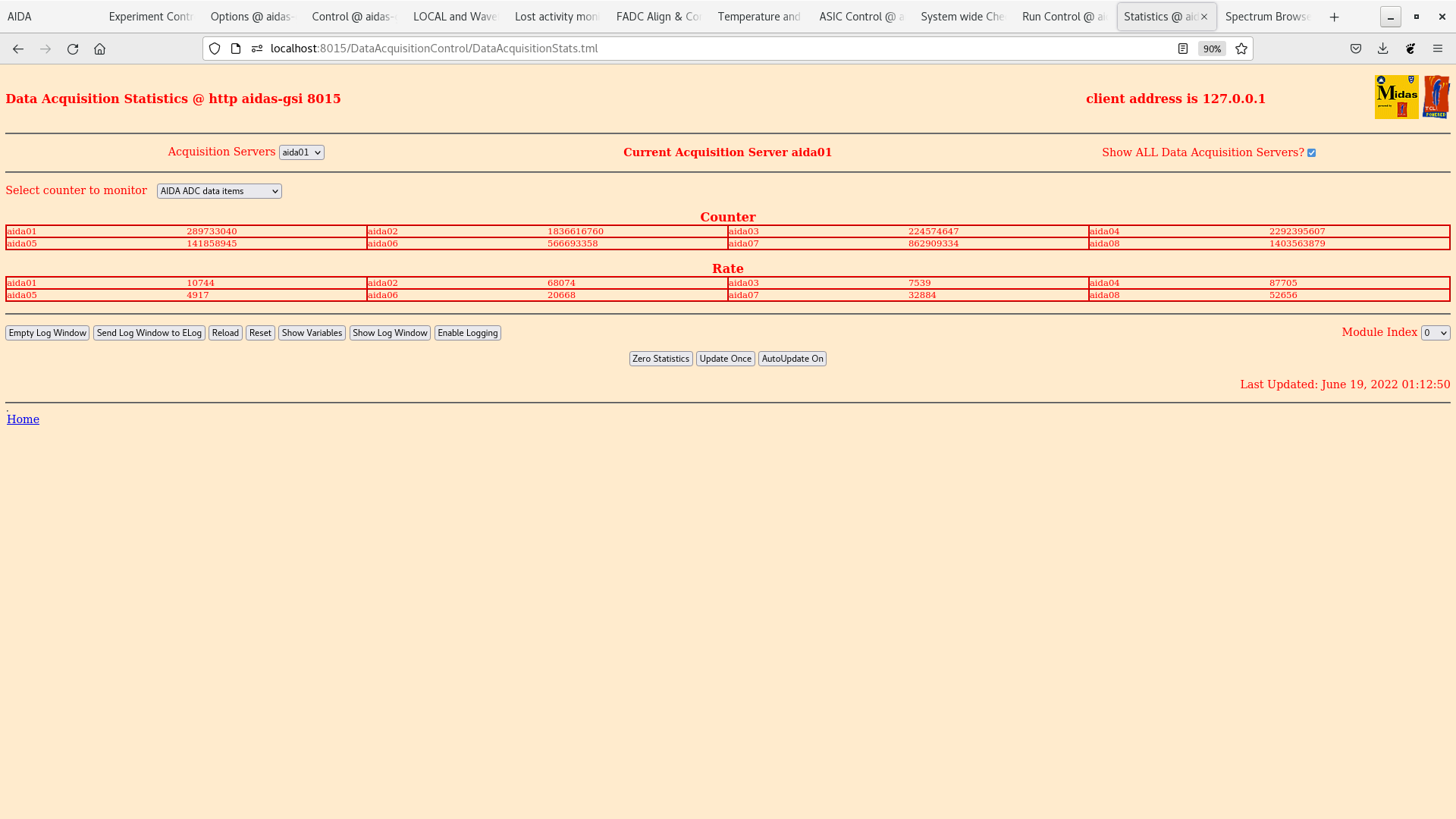

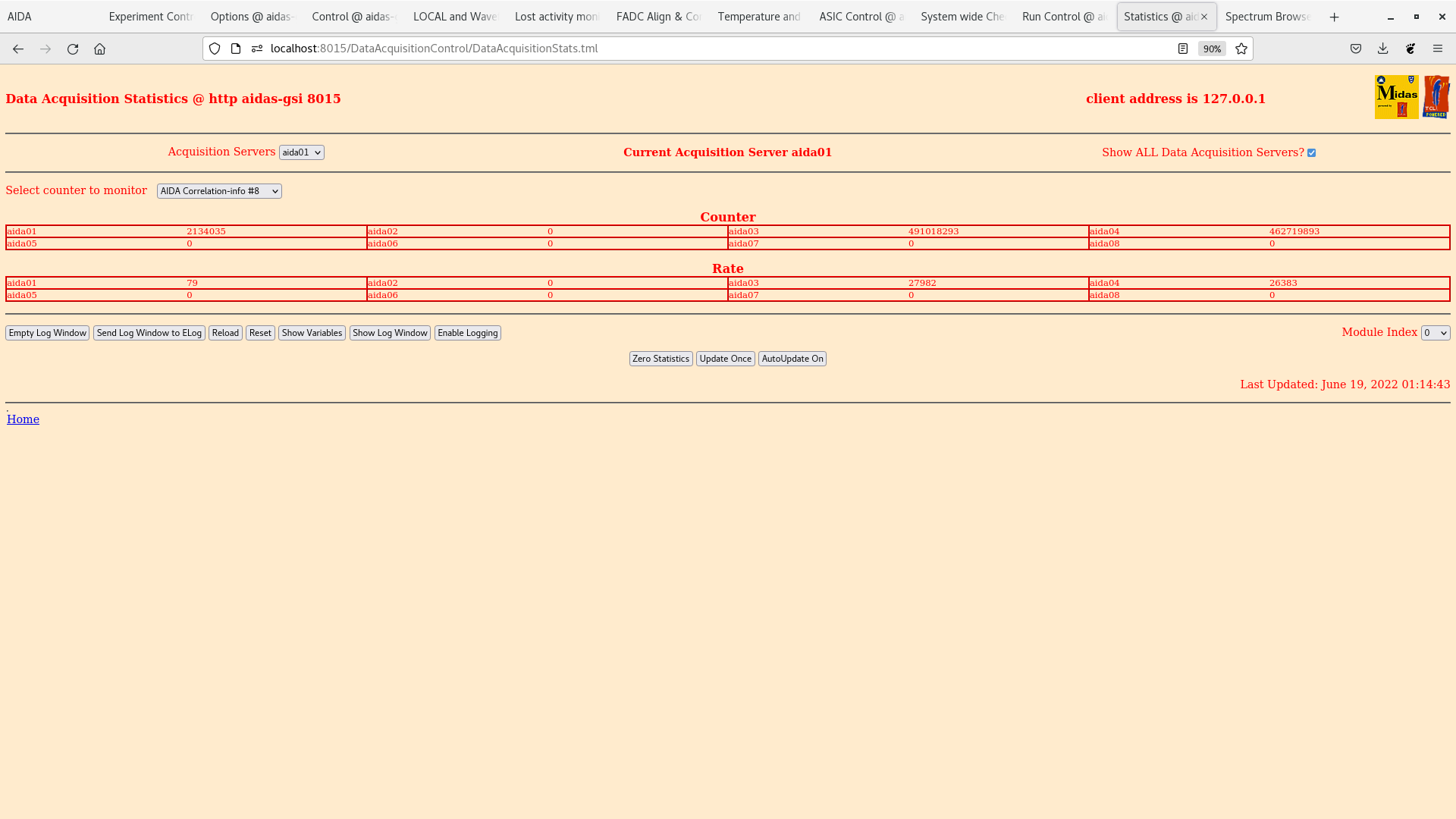

01.20 ASIC settings 2021Apr29-13-16-00 *except* slow comparator 0x64 -> 0xa All waveform ADCs disabled BNC PB-5 pulser to p+n FEE64s only all system wide checks OK *except* ADC calibration, WR decoder & FPGA timestamp errors - see attachments 1 & 2 DSSSD bias & leakage current OK - see attachments 3 & 4 FEE64 temps OK - see attachment 5 statistics OK - ADC data, pause, resume & correlation scaler data items data push, data flush, aida01, aida02 - see attachments 6-13 per FEE64 1.8.L spectra - see attachment 14 aida01 pulser peak width 73 ch FWHM
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1014
Attachment 4:
Original size: 734x462
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1080
Attachment 9:
Original size: 1920x1080
Attachment 10:
Original size: 1920x1080
Attachment 11:
Original size: 1920x1080
Attachment 12:
Original size: 1920x1080
Attachment 13:
Original size: 1920x1080
Attachment 14:
Original size: 1920x1080
