Entry time:

Tue Jun 21 23:29:16 2022

Author*:

Subject*:

00.28 all histograms & stats zero'd
      baseline counters

ASIC settings 2021Apr29-13-16-00
 *except* slow comparator 0x64 -> 0xa

BNC PB-5 pulser
 to p+n FEE64s only
  amplitude 1.0V
  attenuator x1
  decay time 1ms
  polarity +
  frequency 2Hz

all AD9252 waveform ADCs disabled

Tape Server -> no storage mode

00.36 check ASIC control all FEE64s all ASICs

all system wide checks OK

00.41 BNC PB-5 pulser rate increased from 2Hz to 22Hz per request by HA/NH - to ensure DTAS correlation checker has sufficient rate of identified pulser events

per p+n FEE64 1.8.L spectra - attachment 1
 aida01 pulser peak width 88 ch FWHM

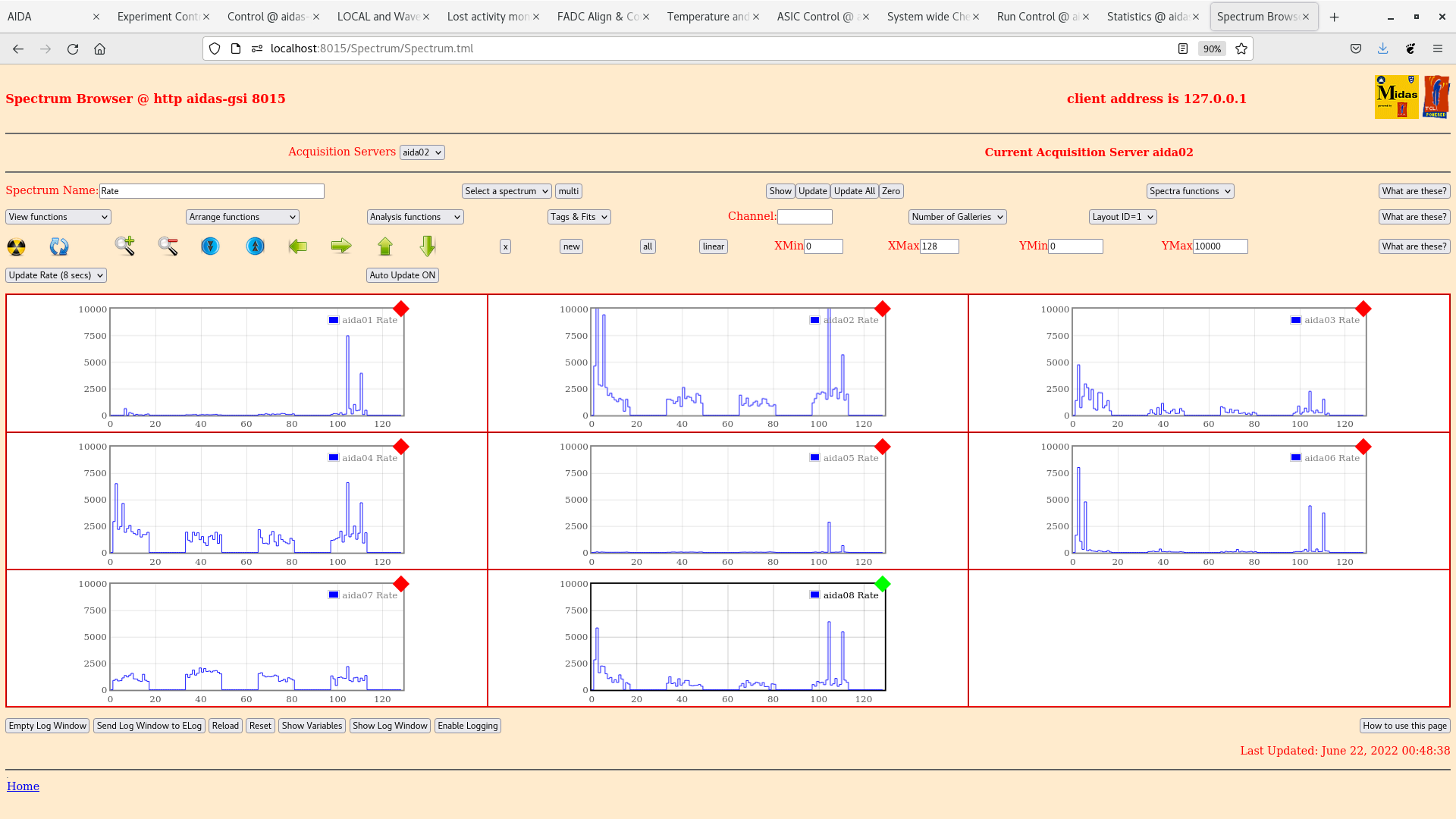

per FEE64 rate spectra - attachment 2

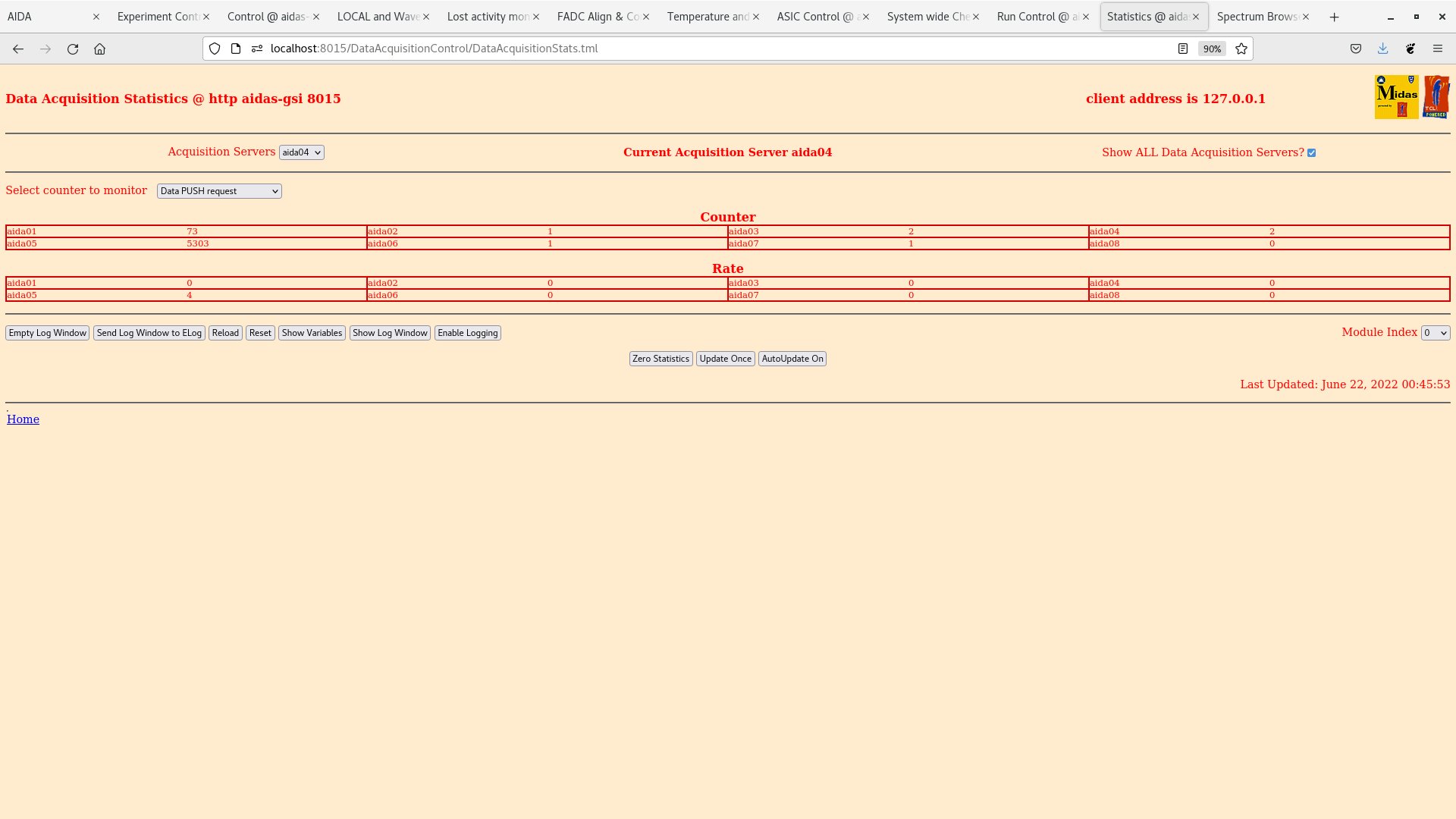

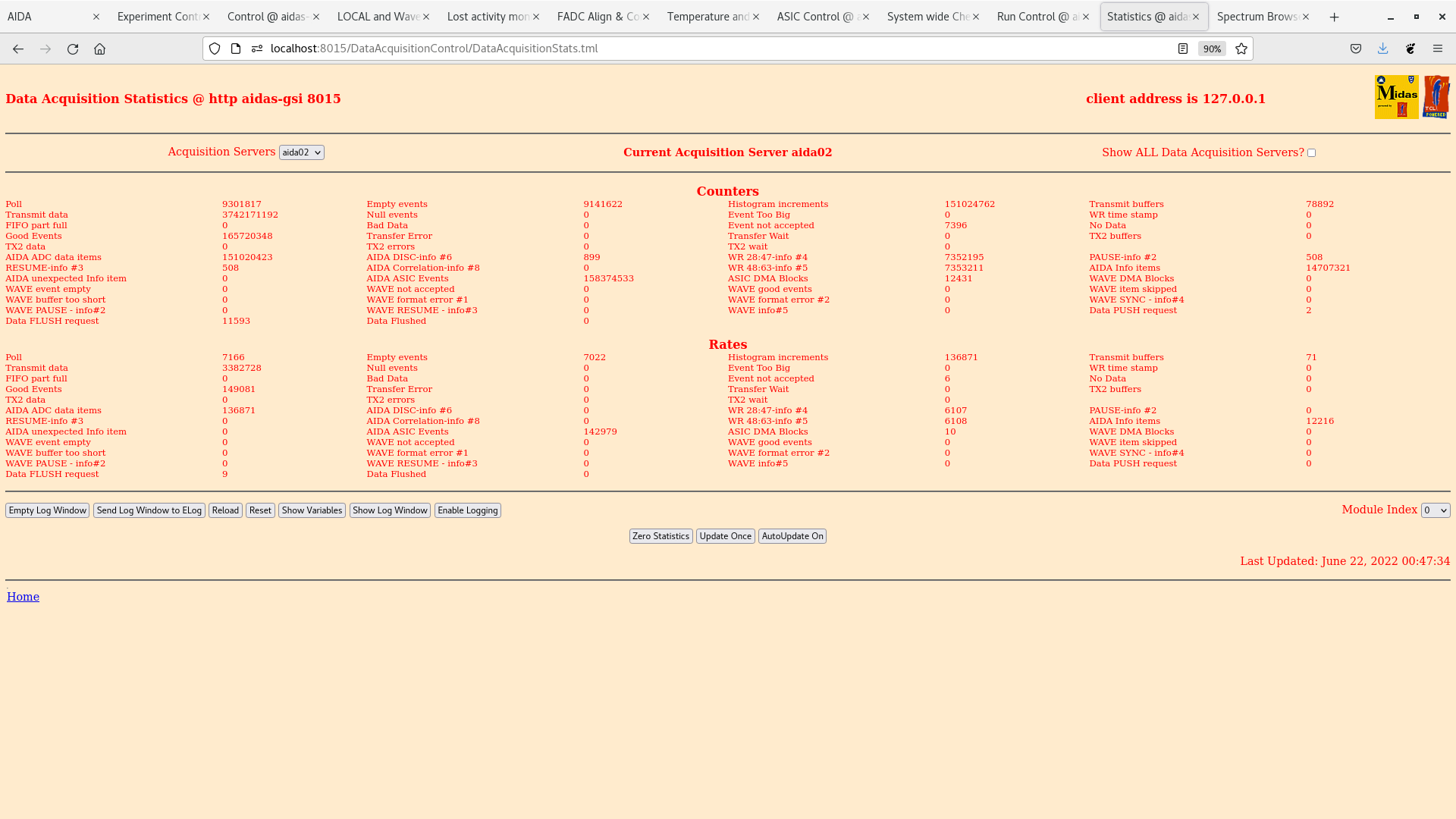

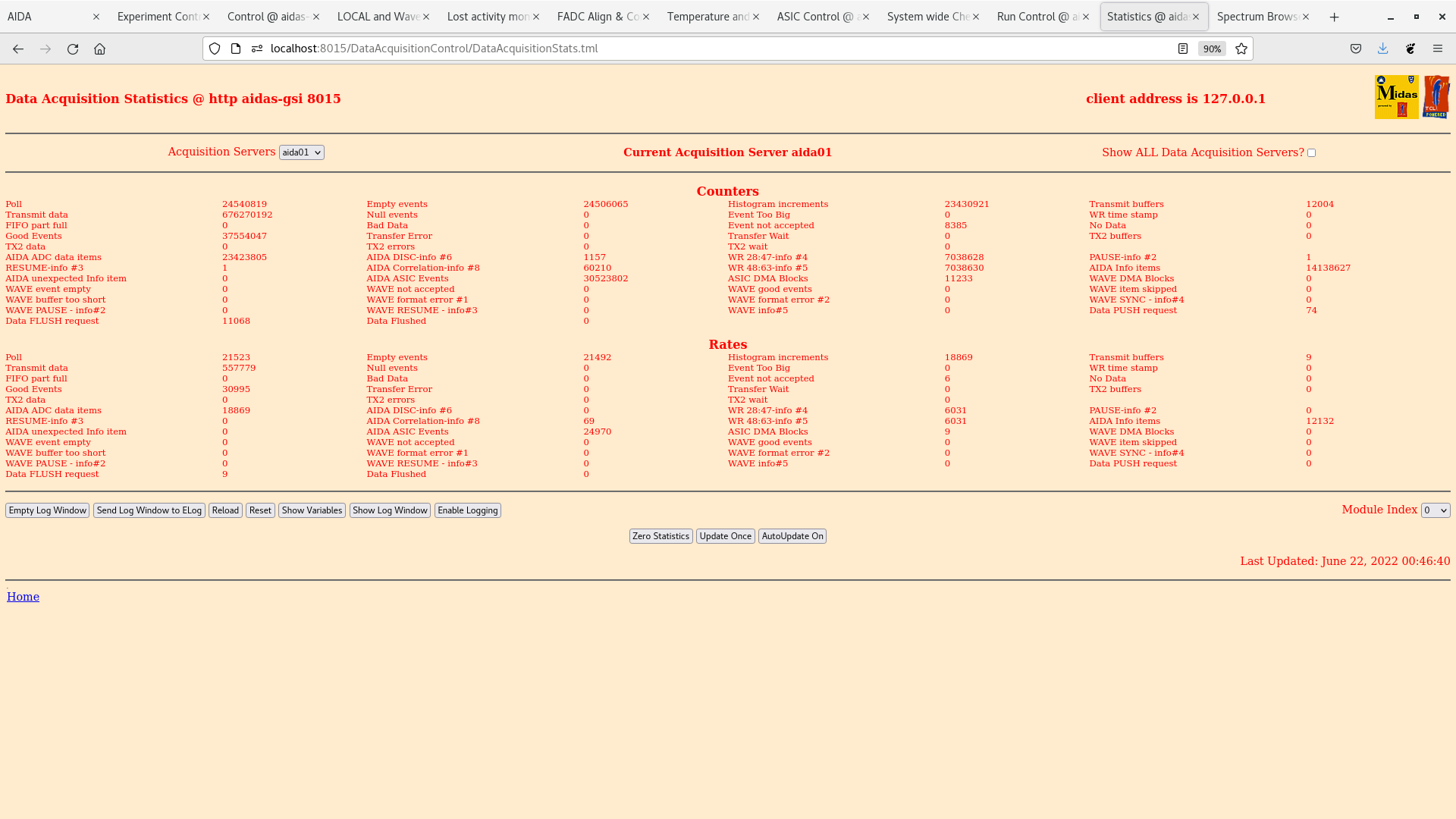

adc, pause and correlation scaler data items - push, aida01 and aida02 stats - attachments 3-8

FEE64 temps OK - attachment 9

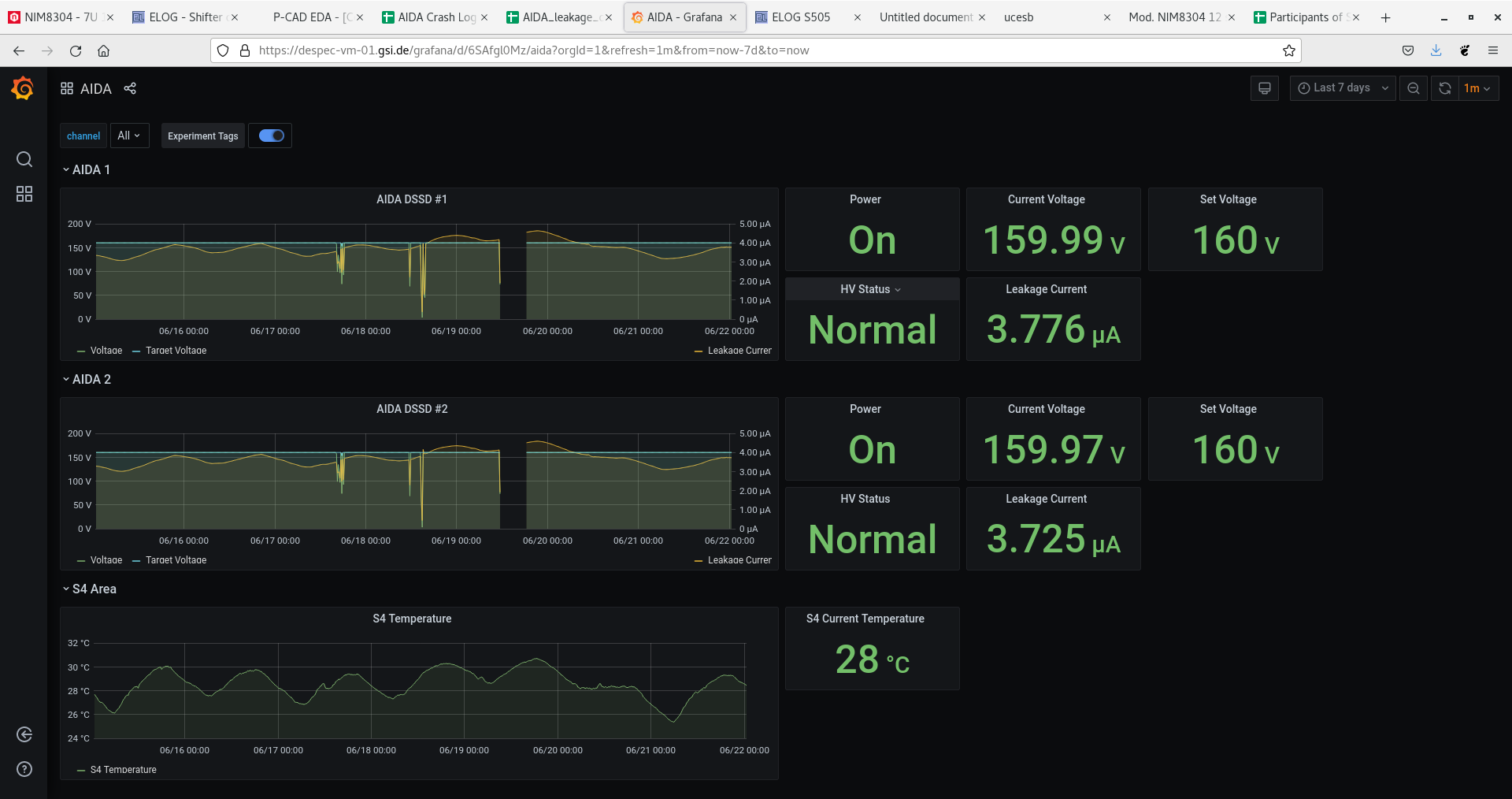

DSSSD bias & leakage current OK - attachments 10 & 11

02.28 aida05 zero adc data items, unable to halt aida05 - all other FEE64s OK

restart NewMerger -> now able to halt aida05

DAQ go OK, merge rate c. 1.4M data items/s

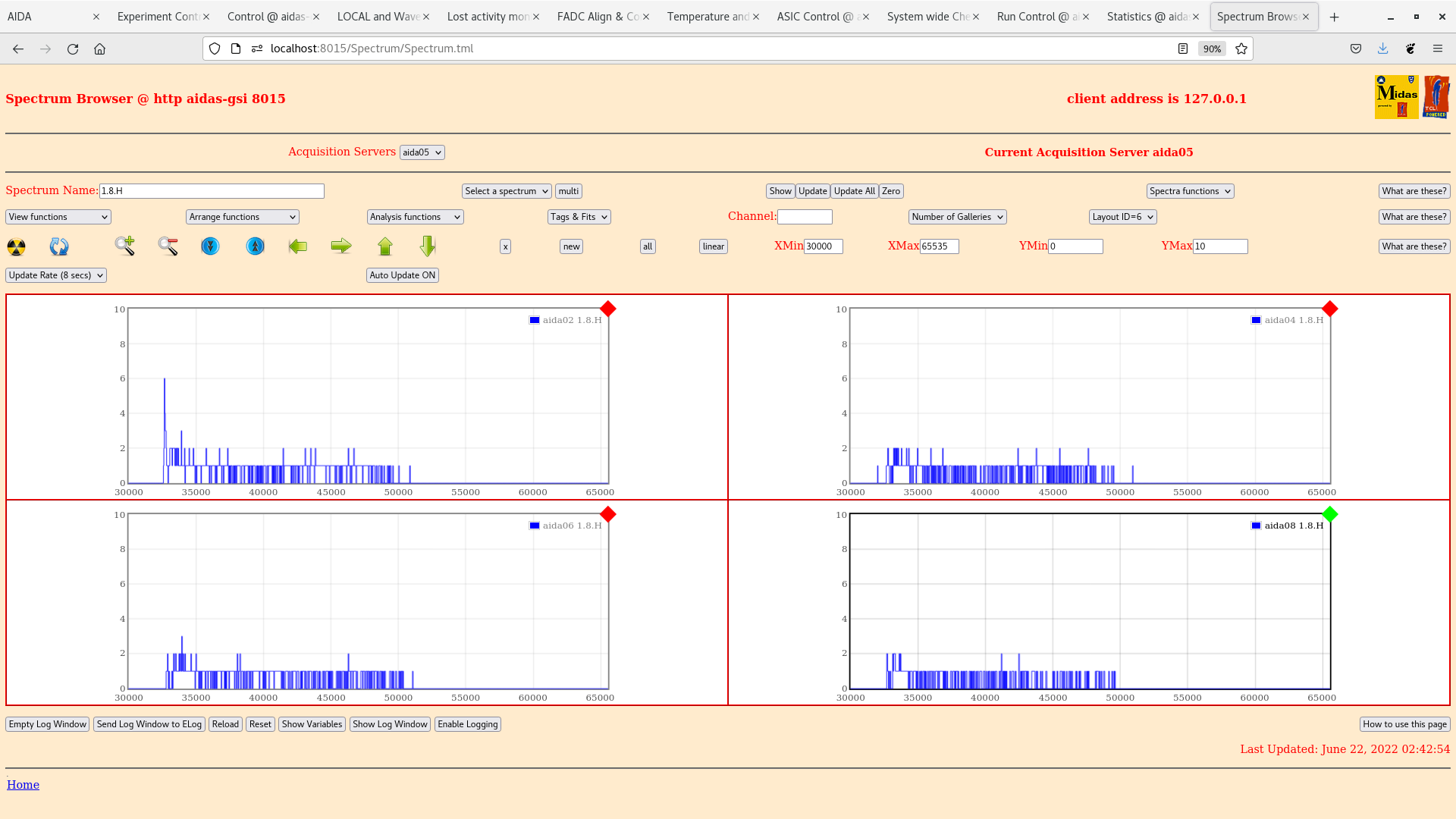

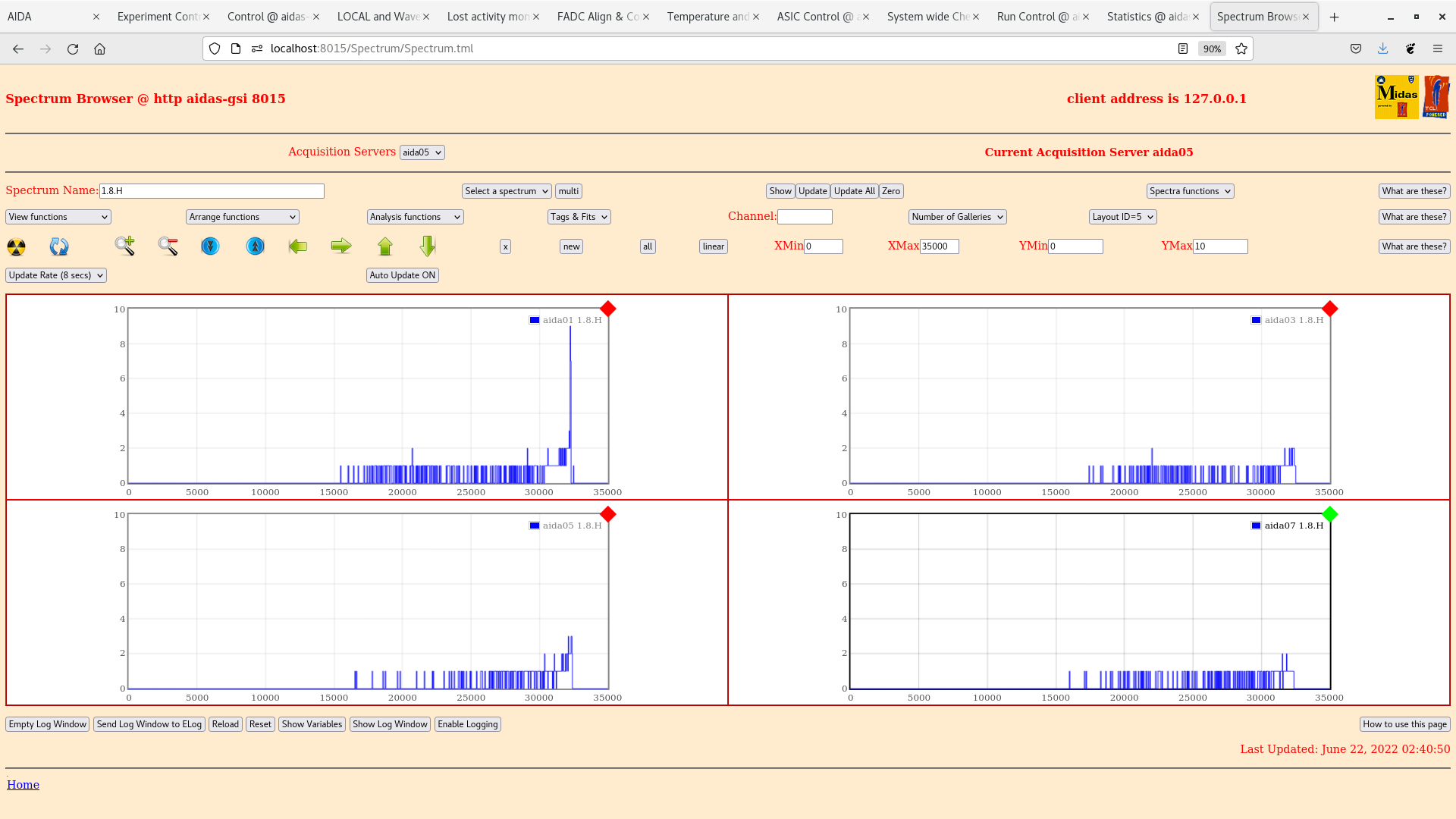

per FEE64 1.8.H spectra - attachments 12 & 13
 approx flat distribution to c. 10GeV

adc data items stats OK - attachments 14

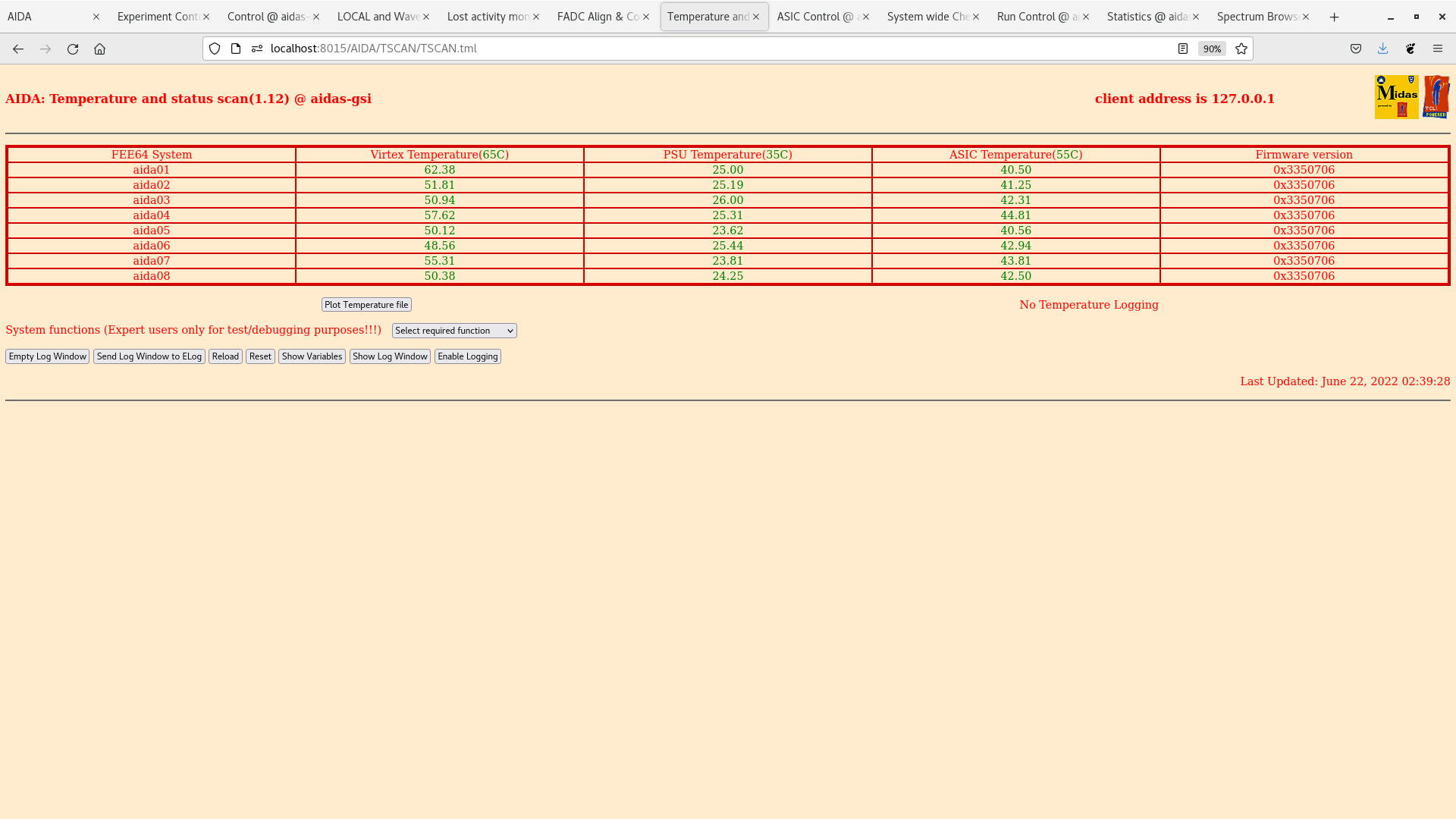

FEE64 temps OK - attachment 15

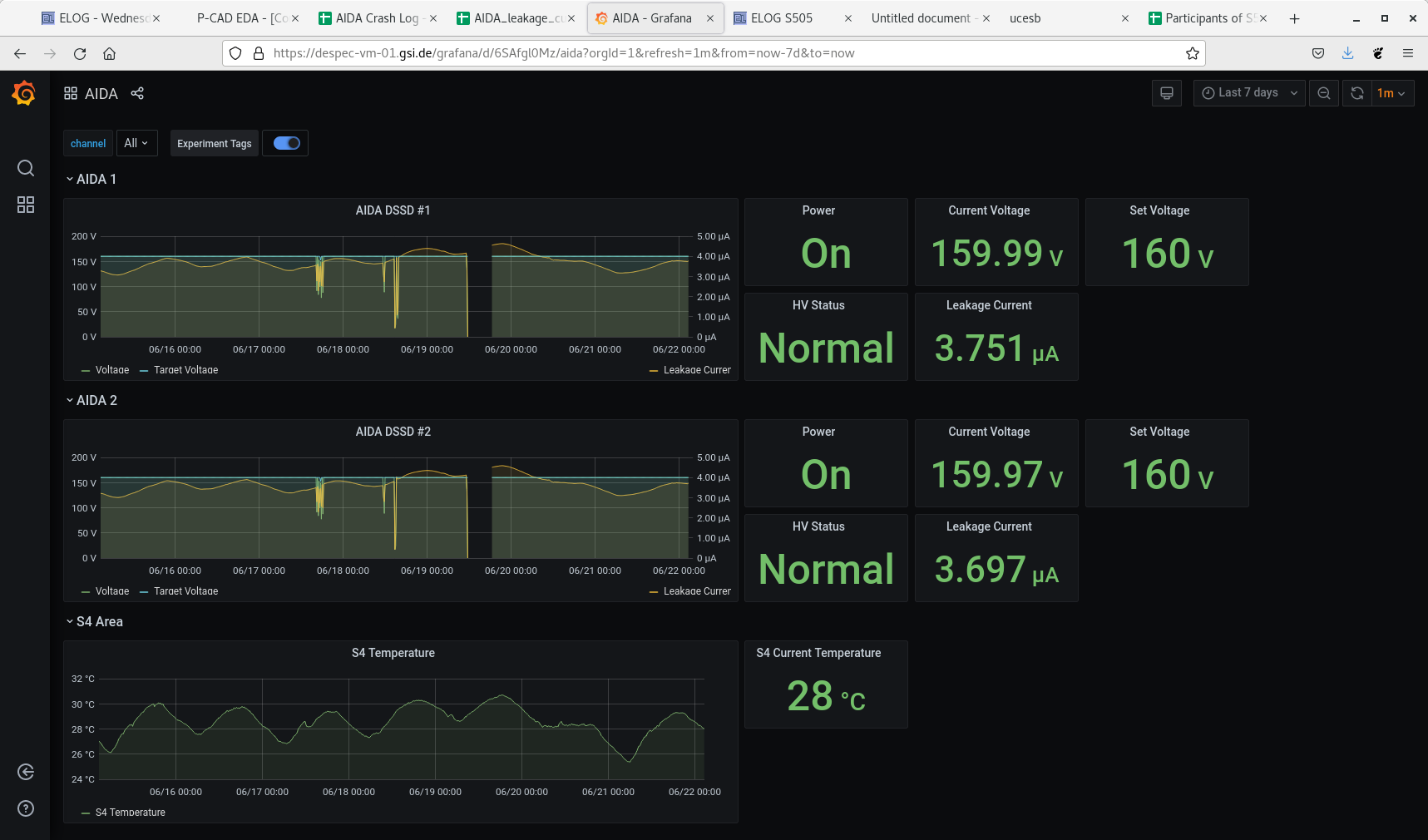

DSSSD bias & leakage current OK - attachments 16 & 17

02.55 Some problems with GO4 data analysis for PID (FRS PID looks OK). 204Pt setting. Will commence writing data to disk file S505/R2_0

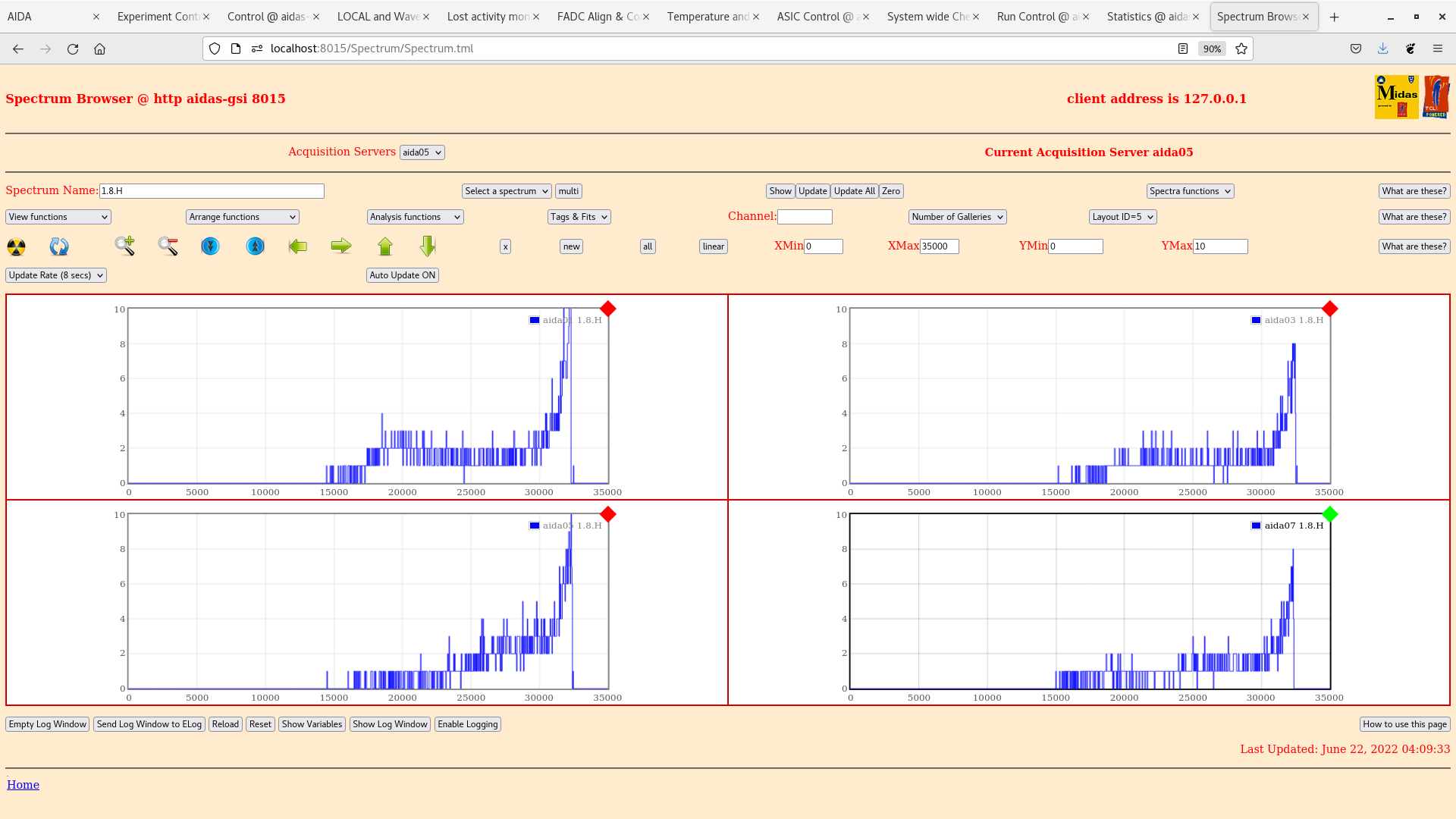

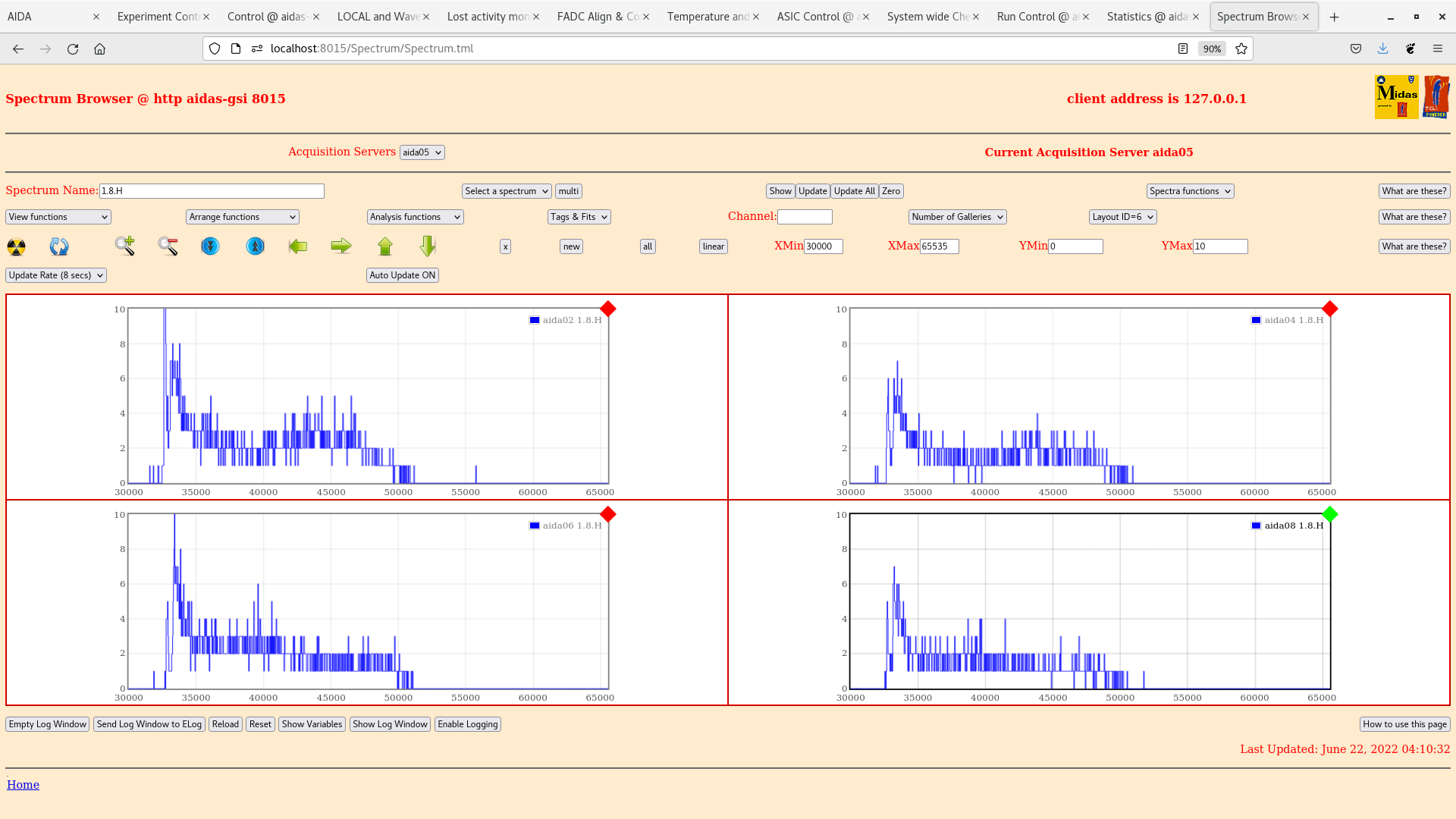

04.12 per FEE64 1.8.H spectra - attachments 18 & 19
      c. 9GeV peak in upstream DSSSDs (aida01, 2, 3 & 4) indicating (high energy) heavy fragments are stopping
      Low energy events near c. 200MeV lower mass, high energy, low energy loss - fission fragments?

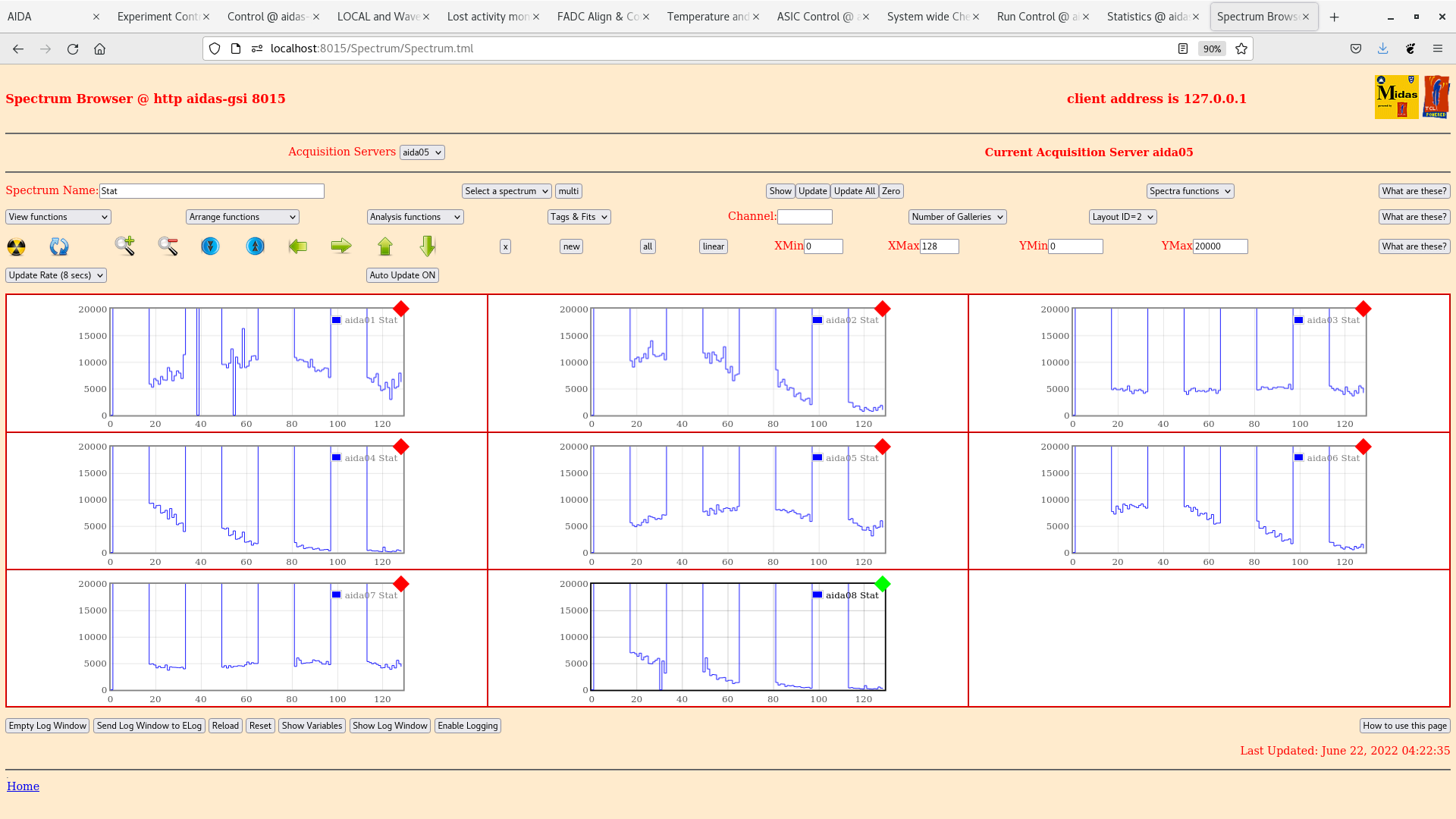

04.20 per FEE64 stats spectra - attachment 20
      indicates implant x-y distribution - off centre (more significantly in x than in y) but DSSSDs appear to see most of distribution
      remember raw distro will have significant fraction of fission fragments - may be misleading - need to gate on high energy events to see x-y distro of ions of
interest

adc data items stats OK - attachments 21

FEE64 temps OK - attachment 22

DSSSD bias & leakage current OK - attachments 23

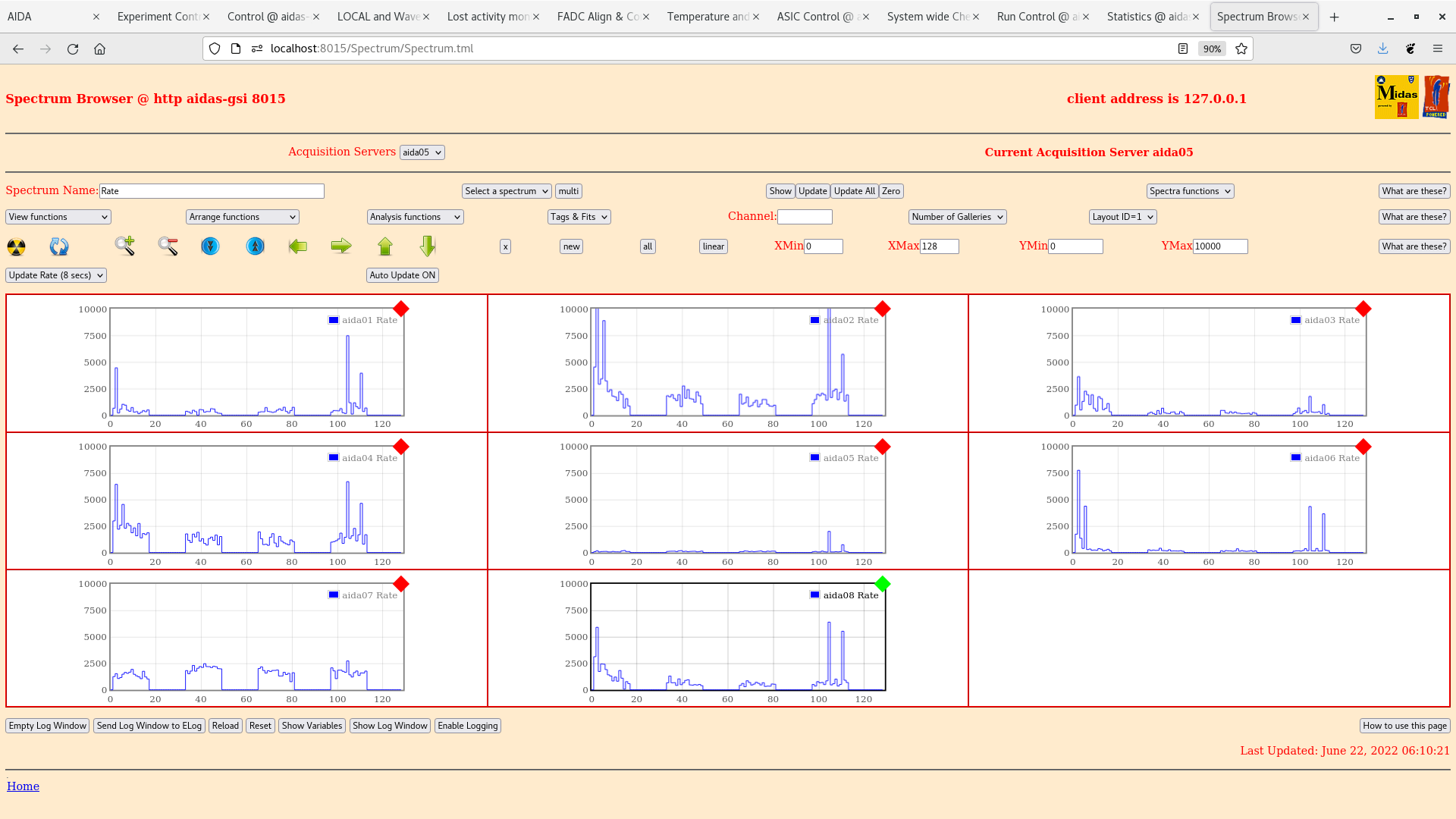

06.10 per FEE64 rate spectra - attachment 24

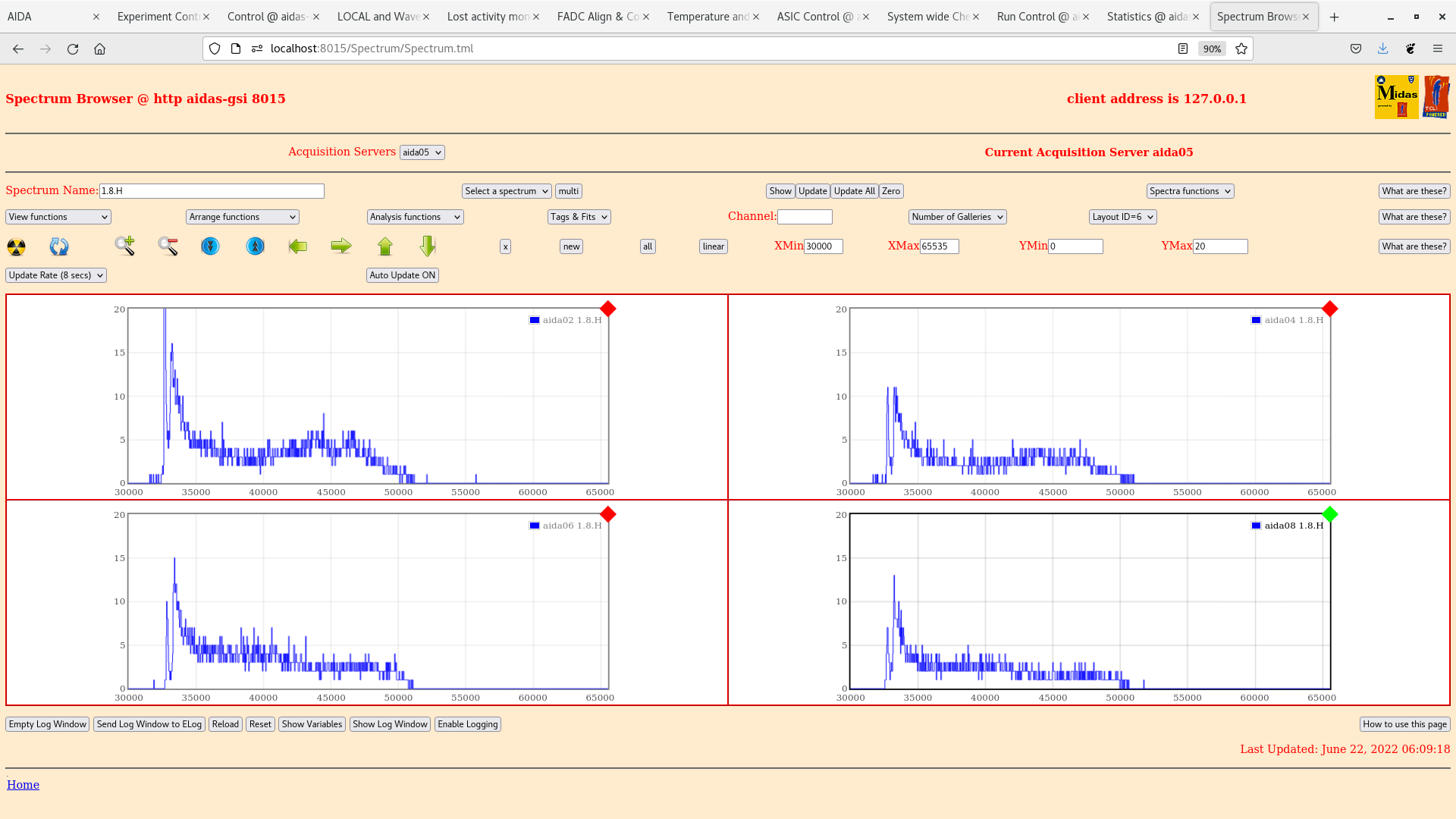

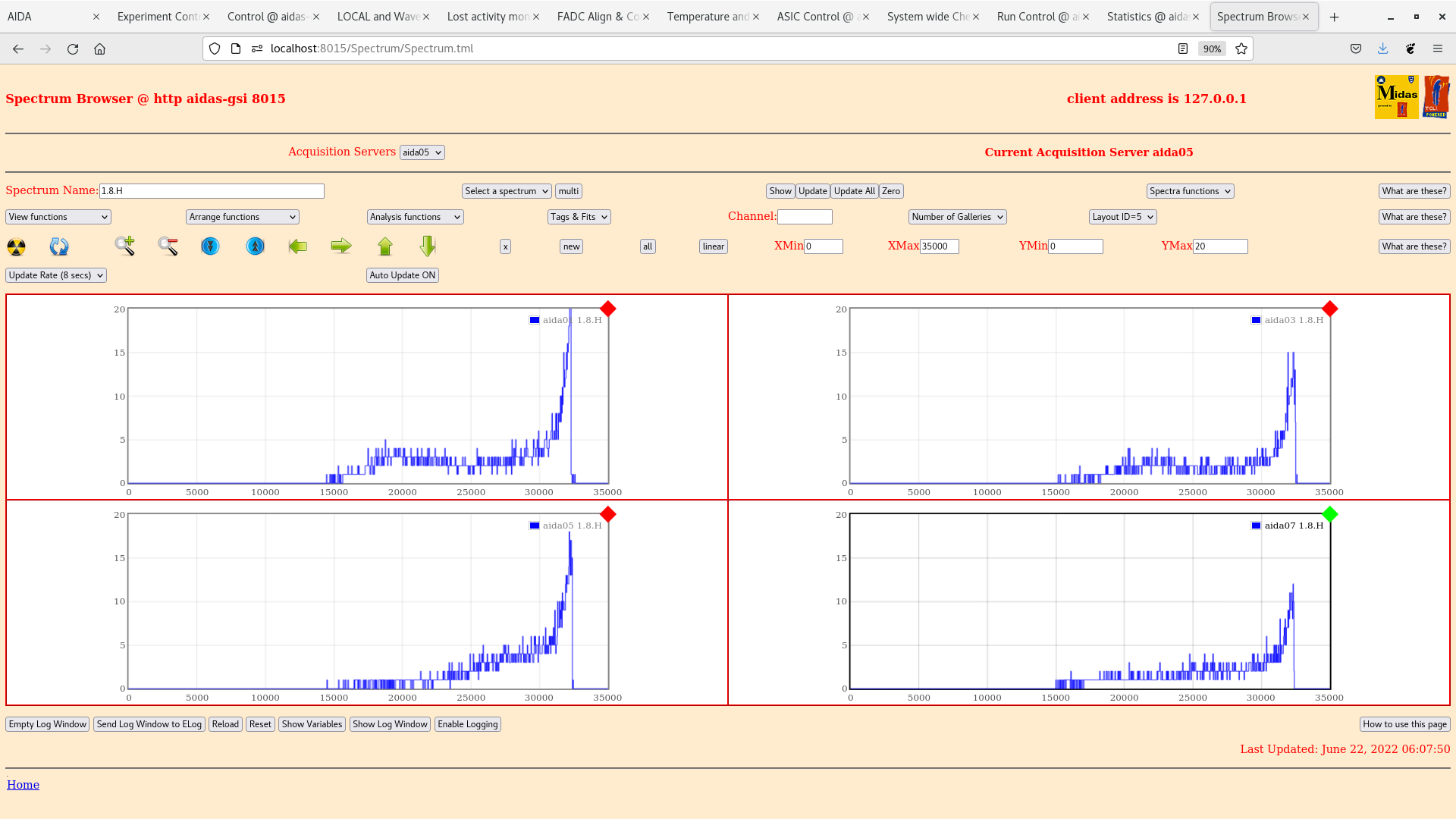

per FEE64 1.8.H spectra - attachments 25 & 26

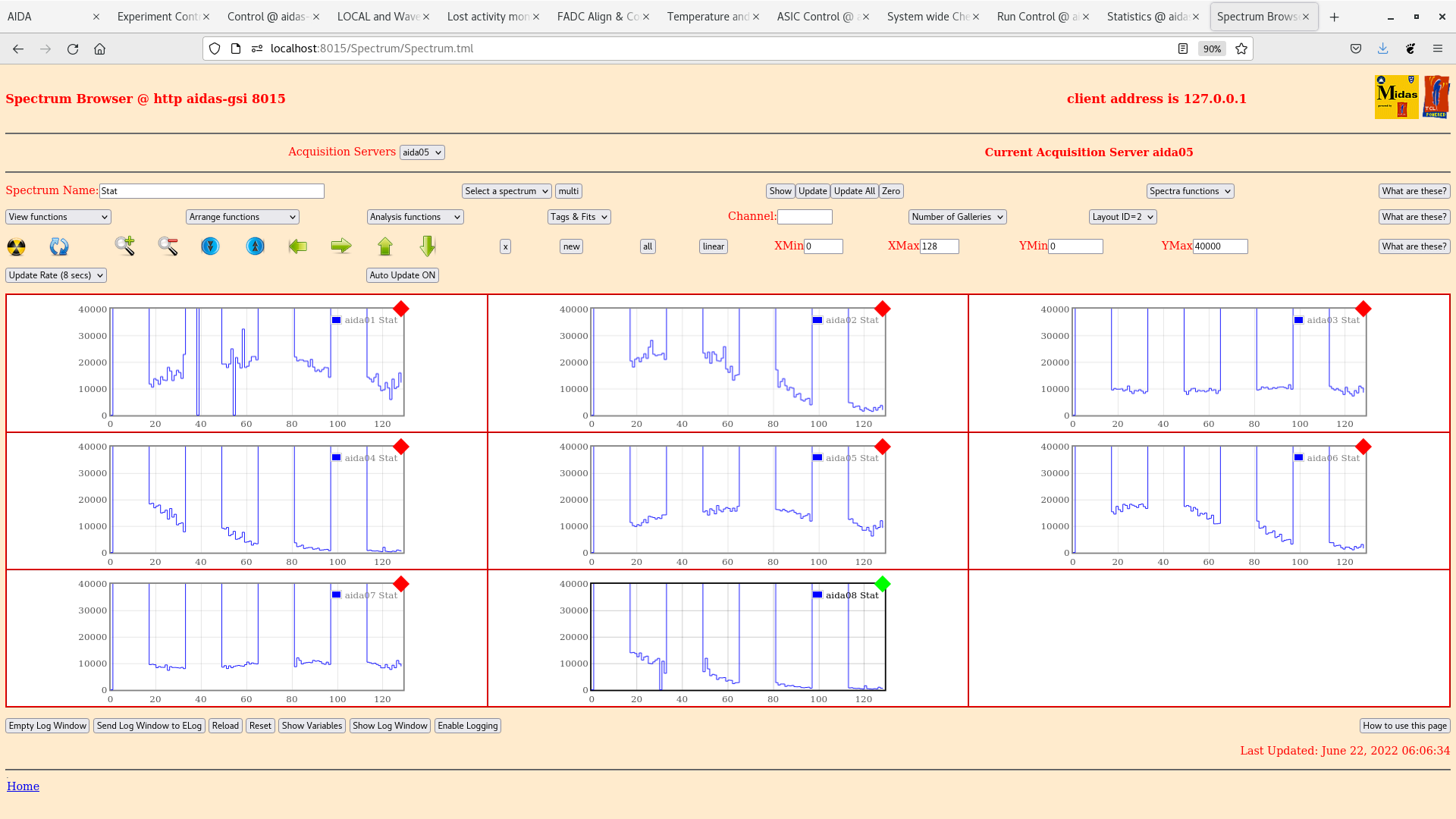

per FEE64 stats spectra - attachment 27

adc data items stats OK - attachments 28

FEE64 temps OK - attachment 29

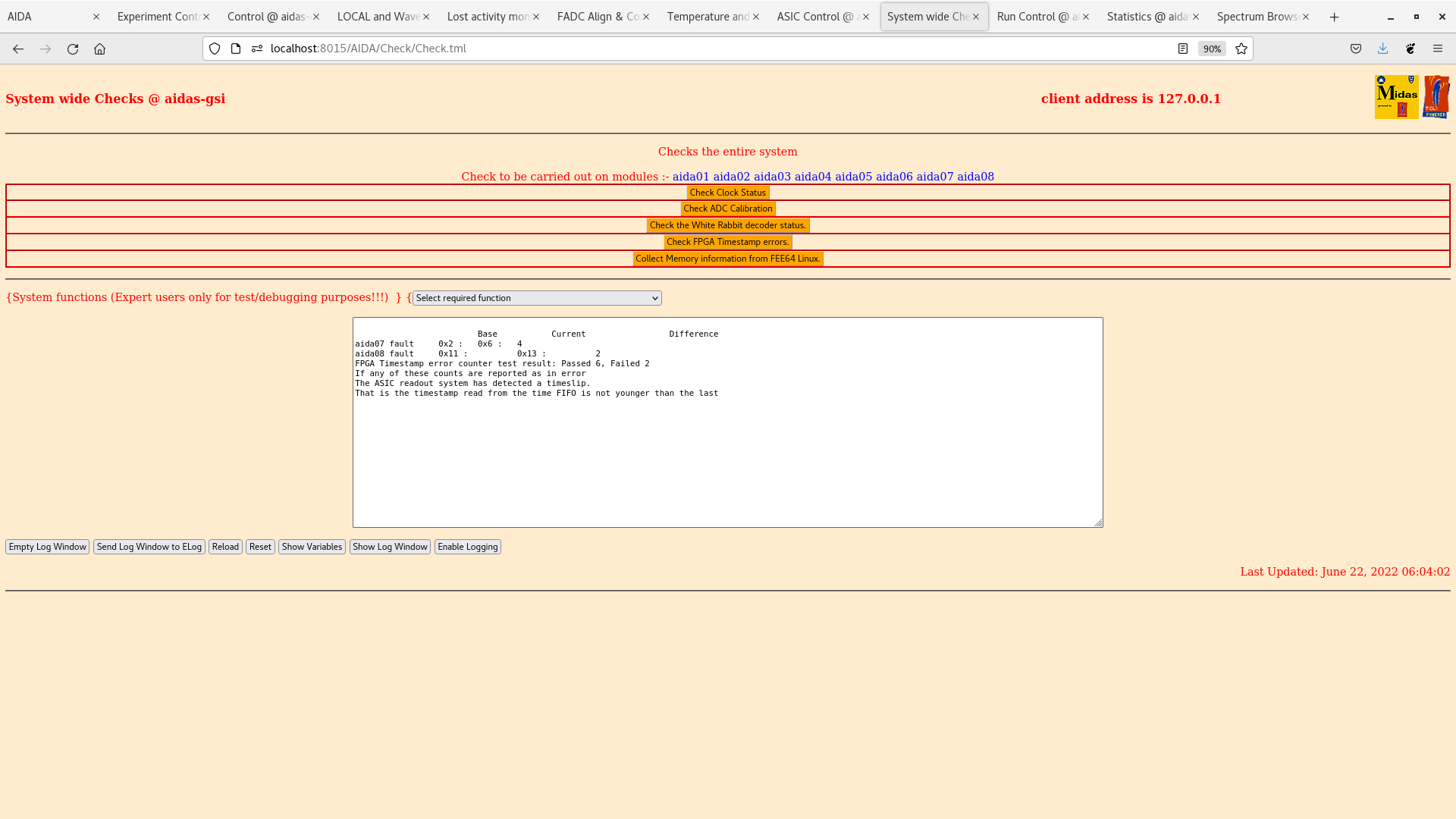

system wide checks OK *except* WR & FPGA errors - see attachments 30 & 31

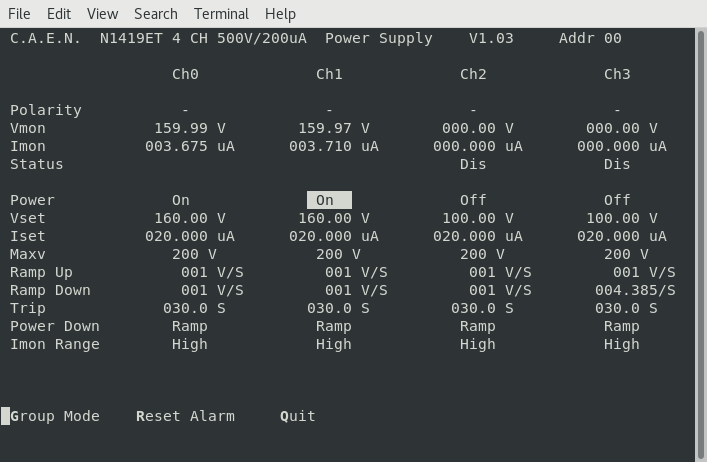

DSSSD bias & leakage current OK - attachments 32

07.52 analysis of file S505/R2_47 - attachment 33
      all FEE64 dead times < 1% *except* aida02 c. 7%

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2022-06-22_00-50-20.png Original size: 1920x1080

Attachment 2:

Screenshot_from_2022-06-22_00-49-07.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2022-06-22_00-47-56.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2022-06-22_00-46-57.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2022-06-22_00-46-17.png Original size: 1920x1080

Attachment 6:

Screenshot_from_2022-06-22_00-45-33.png Original size: 1920x1080

Attachment 7:

Screenshot_from_2022-06-22_00-44-58.png Original size: 1920x1080

Attachment 8:

Screenshot_from_2022-06-22_00-44-13.png Original size: 1920x1080

Attachment 9:

Screenshot_from_2022-06-22_00-36-06.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2022-06-22_00-35-17.png Original size: 1920x1014

Attachment 11:

Screenshot_from_2022-06-22_00-34-01.png Original size: 707x462

Attachment 12:

Screenshot_from_2022-06-22_02-44-02.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2022-06-22_02-41-13.png Original size: 1920x1080

Attachment 14:

Screenshot_from_2022-06-22_02-40-14.png Original size: 1920x1080

Attachment 15:

Screenshot_from_2022-06-22_02-39-42.png Original size: 1920x1080

Attachment 16:

Screenshot_from_2022-06-22_02-39-01.png Original size: 1717x1010

Attachment 17:

Screenshot_from_2022-06-22_02-38-24.png Original size: 707x462

Attachment 18:

Screenshot_from_2022-06-22_04-10-47.png Original size: 1920x1080

Attachment 19:

Screenshot_from_2022-06-22_04-10-00.png Original size: 1920x1080

Attachment 20:

Screenshot_from_2022-06-22_04-23-13.png Original size: 1920x1080

Attachment 21:

Screenshot_from_2022-06-22_04-20-06.png Original size: 1920x1080

Attachment 22:

Screenshot_from_2022-06-22_04-19-34.png Original size: 1920x1080

Attachment 23:

Screenshot_from_2022-06-22_04-19-00.png Original size: 707x462

Attachment 24:

Screenshot_from_2022-06-22_06-10-41.png Original size: 1920x1080

Attachment 25:

Screenshot_from_2022-06-22_06-09-33.png Original size: 1920x1080

Attachment 26:

Screenshot_from_2022-06-22_06-08-08.png Original size: 1920x1080

Attachment 27:

Screenshot_from_2022-06-22_06-06-50.png Original size: 1920x1080

Attachment 28:

Screenshot_from_2022-06-22_06-05-58.png Original size: 1920x1080

Attachment 29:

Screenshot_from_2022-06-22_06-05-20.png Original size: 1920x1080

Attachment 30:

Screenshot_from_2022-06-22_06-04-27.png Original size: 1920x1080

Attachment 31:

Screenshot_from_2022-06-22_06-03-53.png Original size: 1920x1080

Attachment 32:

Screenshot_from_2022-06-22_06-03-05.png Original size: 707x462

Attachment 33:

R2_47

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  259428432 (  714533.4 Hz)
        Other data format:    2491568 (    6862.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        881 (       2.4 Hz)
                               RESUME:        880 (       2.4 Hz)
                              SYNC100:      33352 (      91.9 Hz)
                              WR48-63:      33352 (      91.9 Hz)
                           FEE64 disc:    1422279 (    3917.3 Hz)
                             MBS info:    1000824 (    2756.5 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     416179 (    1146.3 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      363.074 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.857                0.000
  1               26.452                0.000
  2                0.132                0.000
  3                1.570                0.000
  4                0.002               46.041
  5                0.661                0.000
  6                0.312                0.000
  7                0.027                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   25701314     249377          0          0         56         56       3411       3411     217219      25224          0      83012
  1   63351849     247459          0          0        567        566       8361       8361     229604          0          0      62244
  2   23166597     387869          0          0         37         37       3010       3010     134065     247710          0      48973
  3   48876539     363237          0          0        105        105       6171       6171     104940     245745          0      28921
  4    8006429     267186          0          0          3          3       1045       1045     265090          0          0      68788
  5   22095663     170195          0          0         36         36       2789       2789     164545          0          0      52757
  6   40483353     472437          0          0         66         66       5106       5106     227985     234108          0      48544
  7   27746688     333808          0          0         11         11       3459       3459      78831     248037          0      22940
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   35.072s (  912.402 blocks/s,  57.025 Mb/s)

Attachment 34:

Drop attachments here...

ELOG V3.1.4-unknown
