07:56 Taken over from AM
      Current White Rabbit Error status:
      		 Base 		Current 	Difference
      aida07 fault 	 0xc4fe : 	 0xc51a : 	 28
      aida08 fault 	 0xf0e9 : 	 0xf132 : 	 73
      White Rabbit error counter test result: Passed 6, Failed 2

FPGA error status:
      			 Base 		Current 		Difference
      aida07 fault 	 0x11 : 	 0x18 : 	 7
      aida08 fault 	 0x1a : 	 0x20 : 	 6
      FPGA Timestamp error counter test result: Passed 6, Failed 2

Likely that at some point AIDA08 will drop out again. I think this occurs if there is a sudden burst of WR errors which causes the merger to drop the link

Statistics ok - attachment 1
      FEE temperatures ok - attachment 2
      Bias and leakage currents ok - attachment 3
      Analysis of file R3_93 - attachment 4
      Still deadtime in aida02 of ~15%
      Patrick has said he will look into whether we are still sending info code 4 and 5 for every ADC event which could be contributing to the deadtime.

      Currently 2.2 TB of space on /media/SecondDrive
      Current data rate of 6.23MB/s
      At current data rate this should last 4 days

08:27 Currently no beam
      Problem with Alvarez 3 now
      Tomorrow will have a 1 hour break due to changing of the source

09:36 Beam back

09:59 System wide checks
		 Base 		Current 	Difference
      aida07 fault 	 0xc4fe : 	 0xc51b : 	 29
      aida08 fault 	 0xf0e9 : 	 0xf138 : 	 79
      White Rabbit error counter test result: Passed 6, Failed 2

Base 		Current 		Difference
      aida07 fault 	 0x11 : 	 0x18 : 	 7
      aida08 fault 	 0x1a : 	 0x20 : 	 6

Stats ok - attachment 5
      Temperatures ok - attachment 6
      Bias and leakage currents ok - attachment 7

11:14 FRS group is changing from Hg setting back to Pt

11:36 Back on Pt R3_129

14:14 Stats ok - attachment 8
      Temperature ok - attachment 9
      Bias and leakage currents ok - attachment 10
      System wide checks:
      WR:
      		 Base 		Current 	Difference
      aida07 fault 	 0xc4fe : 	 0xc523 : 	 37
      aida08 fault 	 0xf0e9 : 	 0xf156 : 	 109
      White Rabbit error counter test result: Passed 6, Failed 2

FPGA

			 Base 		Current 		Difference
      aida07 fault 	 0x11 : 	 0x1b : 	 10
      aida08 fault 	 0x1a : 	 0x20 : 	 6

Analysis of R3_156 - attachment 11

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

220623_0758_Stats.png Original size: 1916x424

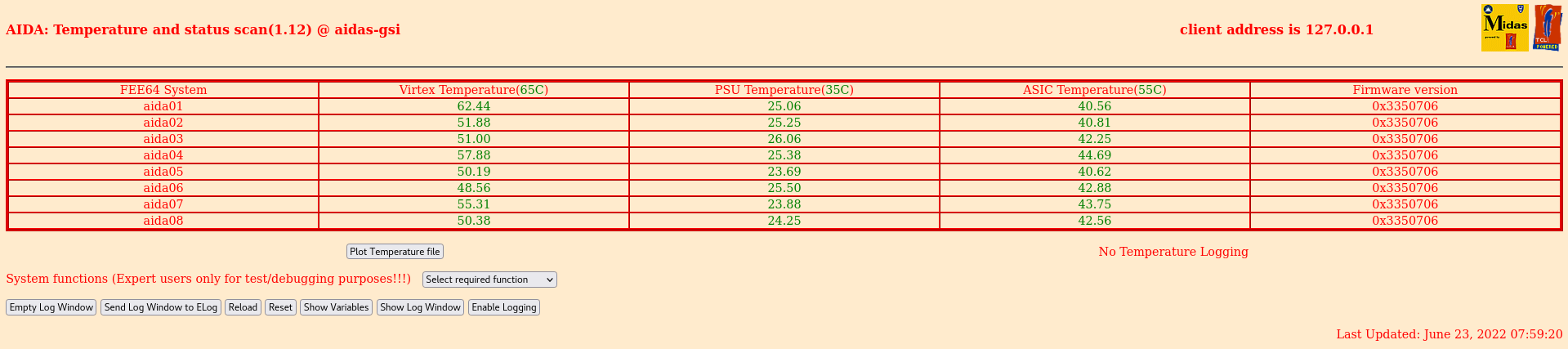

Attachment 2:

220623_0759_Temp.png Original size: 1919x427

Attachment 3:

220623_0759_Bias.png Original size: 682x411

Attachment 4:

R3_95_analysis.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260243782 (  817307.6 Hz)
        Other data format:    1676218 (    5264.2 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1230 (       3.9 Hz)
                               RESUME:       1231 (       3.9 Hz)
                              SYNC100:      33186 (     104.2 Hz)
                              WR48-63:      33186 (     104.2 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1607385 (    5048.1 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     440709 (    1384.1 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      318.416 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.258                0.000
  1               47.390                0.000
  2                1.040                0.000
  3                6.094                0.000
  4                0.003               59.113
  5                0.094                0.000
  6                0.304                0.000
  7                0.013                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   20778195      27751          0          0         46         46       2749       2749          0      22161          0      72140
  1   62611625      17407          0          0        705        706       7998       7998          0          0          0      66280
  2   31916579     410233          0          0         83         83       4122       4122          0     401823          0      94767
  3   52868439     408659          0          0        312        312       6874       6874          0     394287          0      28791
  4    5535248       1334          0          0          1          1        666        666          0          0          0      39988
  5   19704728       4912          0          0         25         25       2431       2431          0          0          0      52543
  6   35689179     392725          0          0         47         47       4446       4446          0     383739          0      67737
  7   31139789     413197          0          0         11         11       3900       3900          0     405375          0      18463
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   34.666s (  923.094 blocks/s,  57.693 Mb/s)

Attachment 5:

220623_0958_Stats.png Original size: 1915x425

Attachment 6:

220623_0959_Temp.png Original size: 1917x416

Attachment 7:

220623_1000_Bias.png Original size: 691x430

Attachment 8:

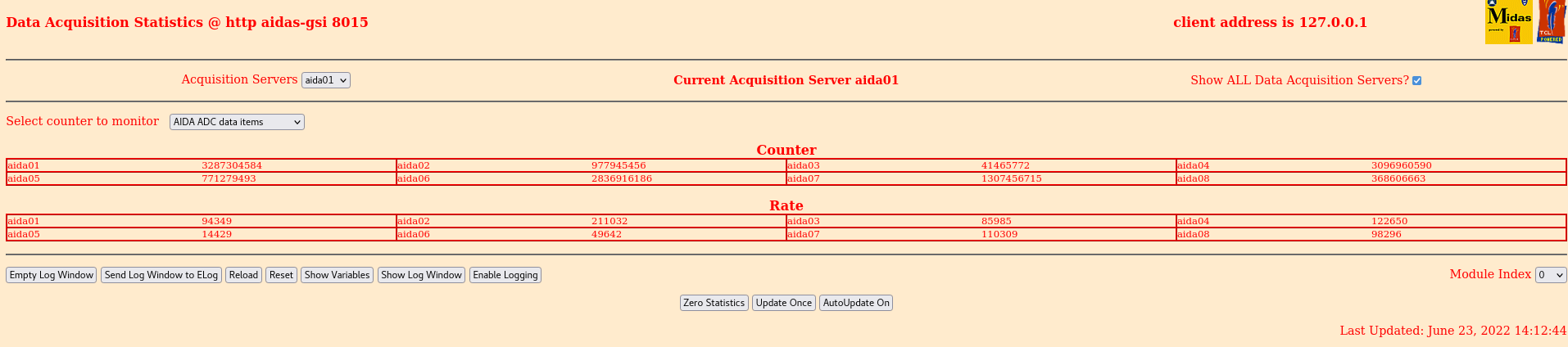

220623_1413_Stats.png Original size: 1914x424

Attachment 9:

220623_1413_Temp.png Original size: 1917x422

Attachment 10:

220623_1414_bias.png Original size: 678x450

Attachment 11:

R3_156_analysis.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260453729 (  852518.1 Hz)
        Other data format:    1466271 (    4799.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1362 (       4.5 Hz)
                               RESUME:       1362 (       4.5 Hz)
                              SYNC100:      33138 (     108.5 Hz)
                              WR48-63:      33138 (     108.5 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1397271 (    4573.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     435545 (    1425.6 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      305.511 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0               11.365                0.000
  1               54.806                0.000
  2                0.562                0.000
  3                5.946                0.000
  4                0.000               35.352
  5                0.068                0.000
  6                0.334                0.000
  7                0.054                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   30150644      28922          0          0        254        254       3938       3938          0      20538          0     108754
  1   64977250      18108          0          0        757        757       8297       8297          0          0          0      62895
  2   28023912     358551          0          0         83         83       3523       3523          0     351339          0      69361
  3   44222269     352853          0          0        180        180       5536       5536          0     341421          0      37017
  4    5005333       1272          0          0          0          0        636        636          0          0          0      36369
  5   19466878       5006          0          0         20         20       2483       2483          0          0          0      42187
  6   36422600     339861          0          0         37         37       4700       4700          0     330387          0      59710
  7   32184843     361698          0          0         31         31       4025       4025          0     353586          0      19252
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   35.418s (  903.496 blocks/s,  56.469 Mb/s)

Attachment 12:

Drop attachments here...

ELOG V3.1.4-unknown
