16:20
System wide checks.
Clock status OK
White Rabbit Error status:
		 Base 		Current 	Difference
aida07 fault 	 0xc4fe : 	 0xc525 : 	 39
aida08 fault 	 0xf0e9 : 	 0xf166 : 	 125
White Rabbit error counter test result: Passed 6, Failed 2

FPGA error status:
                 Base 		Current 		Difference
aida07 fault 	 0x11 : 	 0x1c : 	 11
aida08 fault 	 0x1a : 	 0x23 : 	 9

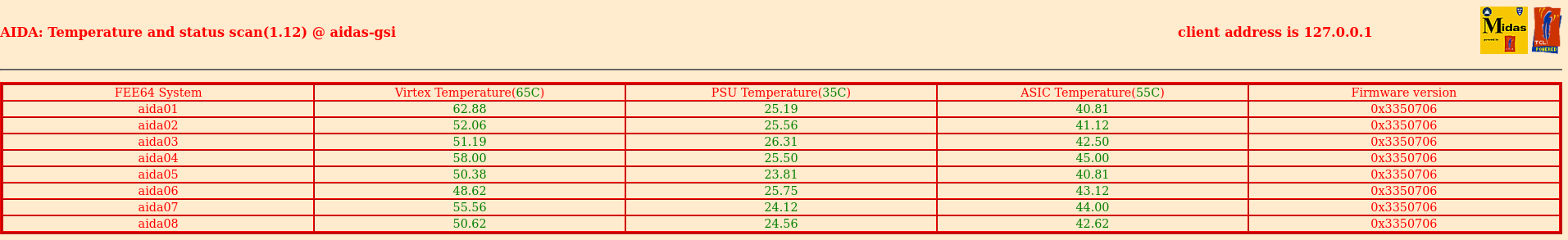

Temps OK (attachment 1), Stats OK (attachment 2), Bias and leakage OK (attachment 3)

18:05
System wide checks.
Clock status OK
White Rabbit Error status:
		 Base 		Current 	Difference
aida07 fault 	 0xc4fe : 	 0xc527 : 	 41
aida08 fault 	 0xf0e9 : 	 0xf177 : 	 142
White Rabbit error counter test result: Passed 6, Failed 2

FPGA error status:
		 Base 		Current 		Difference
aida07 fault 	 0x11 : 	 0x1c : 	 11
aida08 fault 	 0x1a : 	 0x24 : 	 10
FPGA Timestamp error counter test result: Passed 6, Failed 2

Temps OK (attachment 4), Stats OK (attachment 5), Bias and leakage OK (attachment 6)

20:22
System wide checks.
Clock status OK
White Rabbit Error status:
		 Base 		Current 	Difference
aida07 fault 	 0xc4fe : 	 0xc529 : 	 43
aida08 fault 	 0xf0e9 : 	 0xf17f : 	 150
White Rabbit error counter test result: Passed 6, Failed 2

FPGA error status:
		 Base 		Current 		Difference
aida07 fault 	 0x11 : 	 0x20 : 	 15
aida08 fault 	 0x1a : 	 0x25 : 	 11
FPGA Timestamp error counter test result: Passed 6, Failed 2

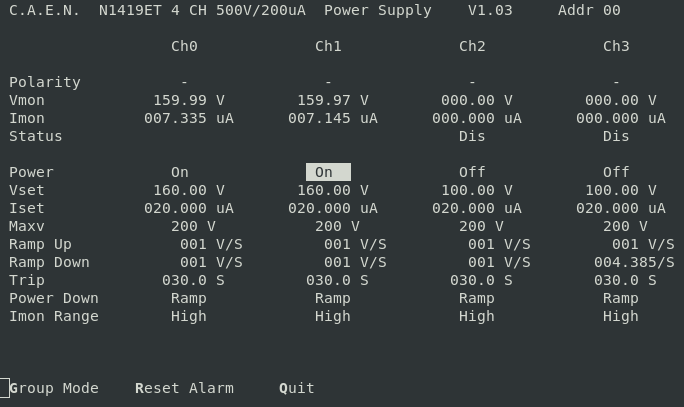

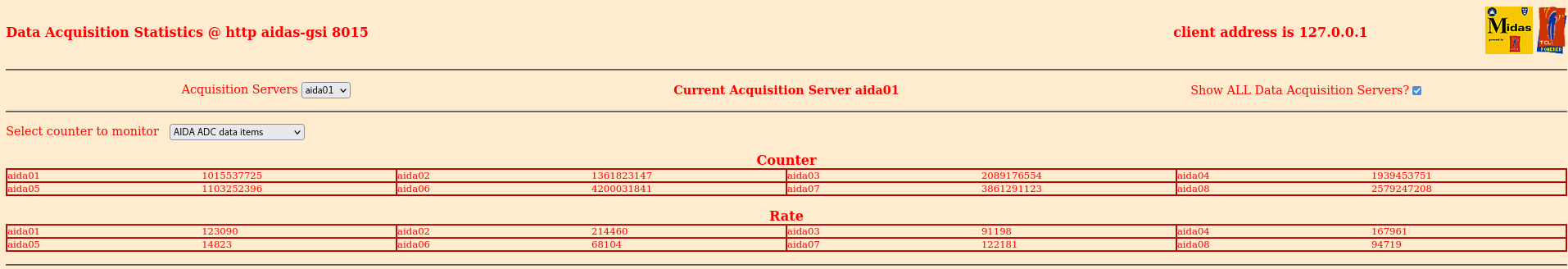

Temps OK (attachment 7), Stats OK (attachment 8), Bias and leakage OK (attachment 9)

21:56
System wide checks.
Clock status OK
White Rabbit Error status:
		 Base 		Current 	Difference
aida07 fault 	 0xc4fe : 	 0xc529 : 	 43
aida08 fault 	 0xf0e9 : 	 0xf186 : 	 157
White Rabbit error counter test result: Passed 6, Failed 2

FPGA error status:
		 Base 		Current 		Difference
aida07 fault 	 0x11 : 	 0x21 : 	 16
aida08 fault 	 0x1a : 	 0x26 : 	 12

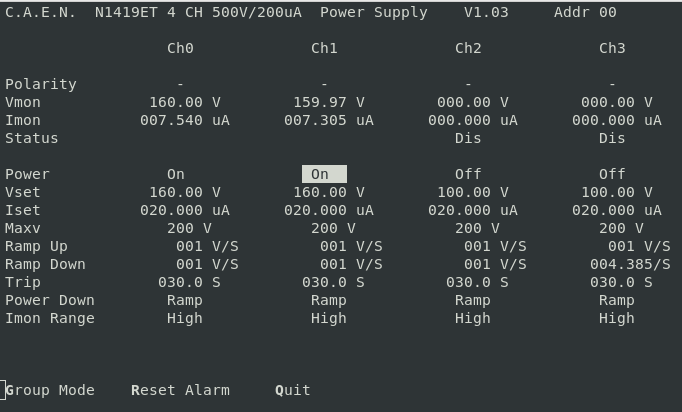

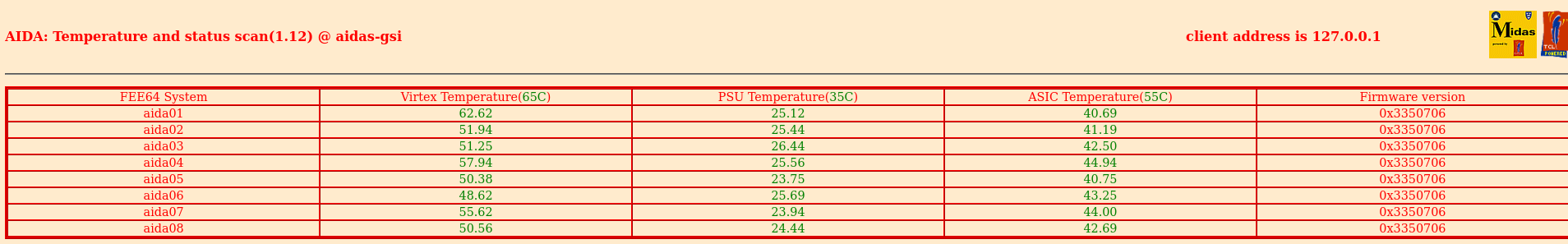

Temps OK (attachment 10), Stats OK (attachment 11), Bias and leakage OK (attachment 12)

23:50
System wide checks.
Clock status OK
White Rabbit Error status:
		 Base 		Current 	Difference
aida07 fault 	 0xc4fe : 	 0xc52e : 	 48
aida08 fault 	 0xf0e9 : 	 0xf18c : 	 163
White Rabbit error counter test result: Passed 6, Failed 2

FPGA error status:

			 Base 		Current 		Difference
aida07 fault 	 0x11 : 	 0x21 : 	 16
aida08 fault 	 0x1a : 	 0x27 : 	 13
FPGA Timestamp error counter test result: Passed 6, Failed 2

Temps OK (attachment 13), Stats OK (attachment 14), Bias and leakage OK (attachment 15)
