07:56 Took over from AM. No issues reported overnight
      Stats ok - attachment 1

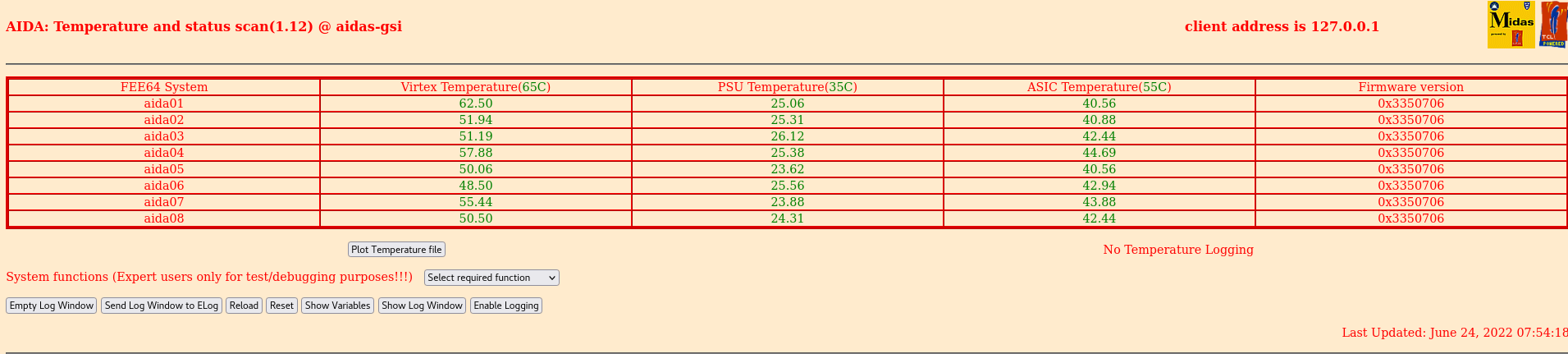

      Temperature ok - attachment 2
      Bias and leakage current ok - attachment 3

      System wide checks:
      Clocks ok
      WR
      		 Base 		Current 	Difference
      aida07 fault 	 0xc4fe : 	 0xc53b : 	 61
      aida08 fault 	 0xf0e9 : 	 0xf1b7 : 	 206
      White Rabbit error counter test result: Passed 6, Failed 2
      FPGA Errors
      			 Base 		Current 		Difference
      aida07 fault 	 0x11 : 	 0x29 : 	 24
      aida08 fault 	 0x1a : 	 0x2c : 	 18
      FPGA Timestamp error counter test result: Passed 6, Failed 2

Analysis of R3_359 - attachment 4
      Dead time still around 15.9%

Merger item rate around 2E6-4E6
      Tape server rate at 7750 kB/s
      Current HDD free space 1.7 TB
      Time left in HDD 2.59 days
      Will run out of space at some point on Sunday
      Have started compression of uncompressed raw data on the HDD. Using nice +10

08:45 AIDA07 dropped out from the merger at some point in the preceeding 5-10 minutes. - attachment 5
      Am regularly checking the statistics
      Was able to stop the DAQ by relaunching the merger.
      Reset the FEEs and recovered without a powercylce
      Started R4 following this stop

08:58 They have taken the beam to change the ion source for maybe 2 hours
      Will stop writing data but continue forwarding to MBS
      No storage ticked. Following break will be on R5

11:10 Beam is starting to come back R5 started
      Stats ok - attachment 6
      Temps ok - attachment 7

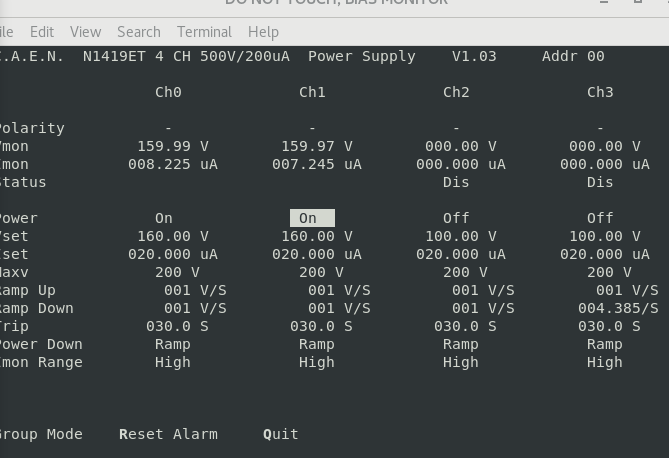

      Bias and leakage currents ok - attachment 8

13:05 Statistics ok - attachment 9
      Temps ok - attachment 10
      Bias and leakage curents ok - attachment 11
      System wide checks:
      WR
      		 Base 		Current 	Difference
      aida07 fault 	 0xc53d : 	 0xc540 : 	 3
      aida08 fault 	 0xf1be : 	 0xf1d0 : 	 18
      White Rabbit error counter test result: Passed 6, Failed 2

FPGA
      			 Base 		Current 		Difference
      aida07 fault 	 0x2a : 	 0x2b : 	 1
      FPGA Timestamp error counter test result: Passed 7, Failed 1

Analysis of R5_33 - attachment 12

15:28 Statistics ok - attachment 13
      Temperature ok - attachment 14

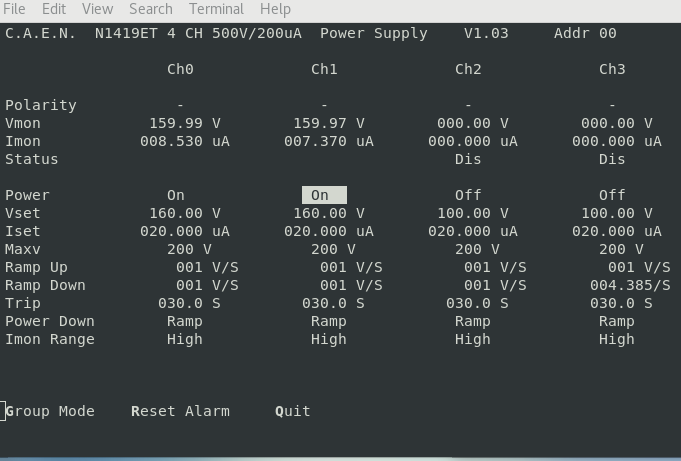

      Bias and leakage current ok - attachment 15
      System wide checks:

		 Base 		Current 	Difference
      aida07 fault 	 0xc53d : 	 0xc546 : 	 9
      aida08 fault 	 0xf1be : 	 0xf1e0 : 	 34
      White Rabbit error counter test result: Passed 6, Failed 2

Base 		Current 		Difference
      aida07 fault 	 0x2a : 	 0x2b : 	 1
      FPGA Timestamp error counter test result: Passed 7, Failed 1

Analysis of R5_63 - attachment 16

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

220624_0753_stats.png Original size: 1920x425

Attachment 2:

220624_0754_Temp.png Original size: 1911x431

Attachment 3:

220624_0755_Bias.png Original size: 707x462

Attachment 4:

R3_359_analysis.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260715255 (  897318.9 Hz)
        Other data format:    1204745 (    4146.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1323 (       4.6 Hz)
                               RESUME:       1323 (       4.6 Hz)
                              SYNC100:      33082 (     113.9 Hz)
                              WR48-63:      33082 (     113.9 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1135935 (    3909.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     353220 (    1215.7 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      290.549 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0               10.171                0.000
  1               46.409                0.000
  2                1.006                0.000
  3                4.601                0.000
  4                0.000               37.574
  5                0.031                0.000
  6                0.191                0.000
  7                0.254                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   30903987      28078          0          0        236        236       4023       4023          0      19560          0      86851
  1   61208192      17252          0          0        718        718       7908       7908          0          0          0      52897
  2   26785987     291397          0          0         72         72       3425       3425          0     284403          0      56573
  3   43119726     289440          0          0        153        153       5319       5319          0     278496          0      29859
  4    4604412       1194          0          0          0          0        597        597          0          0          0      28791
  5   18336996       4656          0          0         16         16       2312       2312          0          0          0      34152
  6   36059875     277258          0          0         42         42       4514       4514          0     268146          0      48935
  7   39696080     295470          0          0         86         86       4984       4984          0     285330          0      15162
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   34.877s (  917.511 blocks/s,  57.344 Mb/s)

Attachment 5:

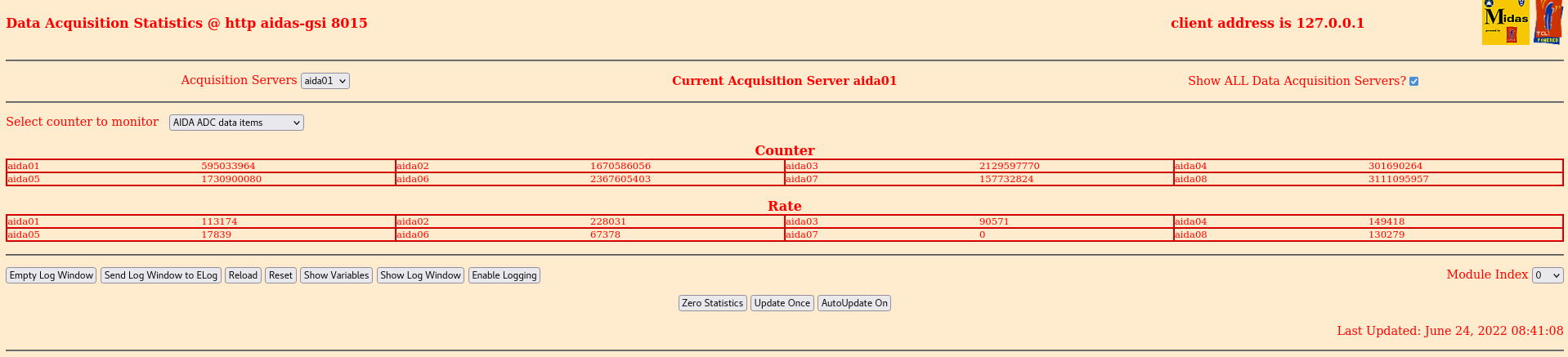

220624_0842_Stats_Stop.png Original size: 1918x437

Attachment 6:

220624_1111_Stats.png Original size: 1903x428

Attachment 7:

220624_1111_Temp.png Original size: 1902x428

Attachment 8:

220624_1112_Bias.png Original size: 669x458

Attachment 9:

220624_1303_stats.png Original size: 1916x445

Attachment 10:

220624_1303_Temp.png Original size: 1911x417

Attachment 11:

220624_1304_Bias.png Original size: 685x406

Attachment 12:

R5_33_analysis.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260717099 (  869523.1 Hz)
        Other data format:    1202901 (    4011.8 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1344 (       4.5 Hz)
                               RESUME:       1344 (       4.5 Hz)
                              SYNC100:      33117 (     110.4 Hz)
                              WR48-63:      33117 (     110.4 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1133979 (    3782.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     354749 (    1183.1 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      299.839 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0               11.504                0.000
  1               42.102                0.000
  2                0.275                0.000
  3                6.677                0.000
  4                0.000               31.976
  5                0.051                0.000
  6                0.250                0.000
  7                0.412                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   31758241      28867          0          0        238        238       4156       4156          0      20079          0      87480
  1   58453105      16104          0          0        635        635       7417       7417          0          0          0      53128
  2   20104679     289945          0          0         41         41       2565       2565          0     284733          0      56849
  3   41709424     287290          0          0        188        188       5262       5262          0     276390          0      29572
  4    5133297       1264          0          0          0          0        632        632          0          0          0      29278
  5   17857346       4470          0          0         22         22       2213       2213          0          0          0      34539
  6   40732502     278221          0          0         59         59       5175       5175          0     267753          0      48740
  7   44968505     296740          0          0        161        161       5697       5697          0     285024          0      15163
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   34.742s (  921.070 blocks/s,  57.567 Mb/s)

Attachment 13:

220624_1538_Stats.png Original size: 1912x435

Attachment 14:

220624_1538_Temp.png Original size: 1917x431

Attachment 15:

220624_1538_Bias.png Original size: 681x461

Attachment 16:

R5_63_analysis.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260796374 (  834020.0 Hz)
        Other data format:    1123626 (    3593.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1191 (       3.8 Hz)
                               RESUME:       1191 (       3.8 Hz)
                              SYNC100:      33165 (     106.1 Hz)
                              WR48-63:      33165 (     106.1 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1054914 (    3373.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     350507 (    1120.9 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      312.698 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                7.889                0.000
  1               39.498                0.000
  2                0.306                0.000
  3                5.270                0.000
  4                0.000               26.707
  5                0.036                0.000
  6                0.217                0.000
  7                0.175                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   30903831      29785          0          0        188        188       4074       4074          0      21261          0      87155
  1   61666403      16932          0          0        646        646       7820       7820          0          0          0      55280
  2   20140383     267008          0          0         42         42       2575       2575          0     261774          0      55290
  3   41652352     266495          0          0        164        164       5306       5306          0     255555          0      28879
  4    4871487       1204          0          0          0          0        602        602          0          0          0      28340
  5   17605547       4430          0          0         11         11       2204       2204          0          0          0      33538
  6   41056242     264471          0          0         55         55       5126       5126          0     254109          0      47278
  7   42900129     273301          0          0         85         85       5458       5458          0     262215          0      14747
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   41.305s (  774.730 blocks/s,  48.421 Mb/s)

Attachment 17:

Drop attachments here...

ELOG V3.1.4-unknown
