23:36 Check ASIC contorol
      Zero stats & all histograms

ASIC settings 2021Apr29-13-16-00
 slow comparator 0x64 -> 0xa

all waveform AD9252 ADCs disabled
all fast discs disabled

BNC PB-5 settings (to p+n FEE64s only)
 amplitude 1.0V
 attenuator x1
 decay time 1ms
 polarity +
 frequency 22Hz

analysis of file S505/R5_154 - attachment 1
 zero timewarps
 max deadtime aida02 c. 17%, all other FEE64s < 5%

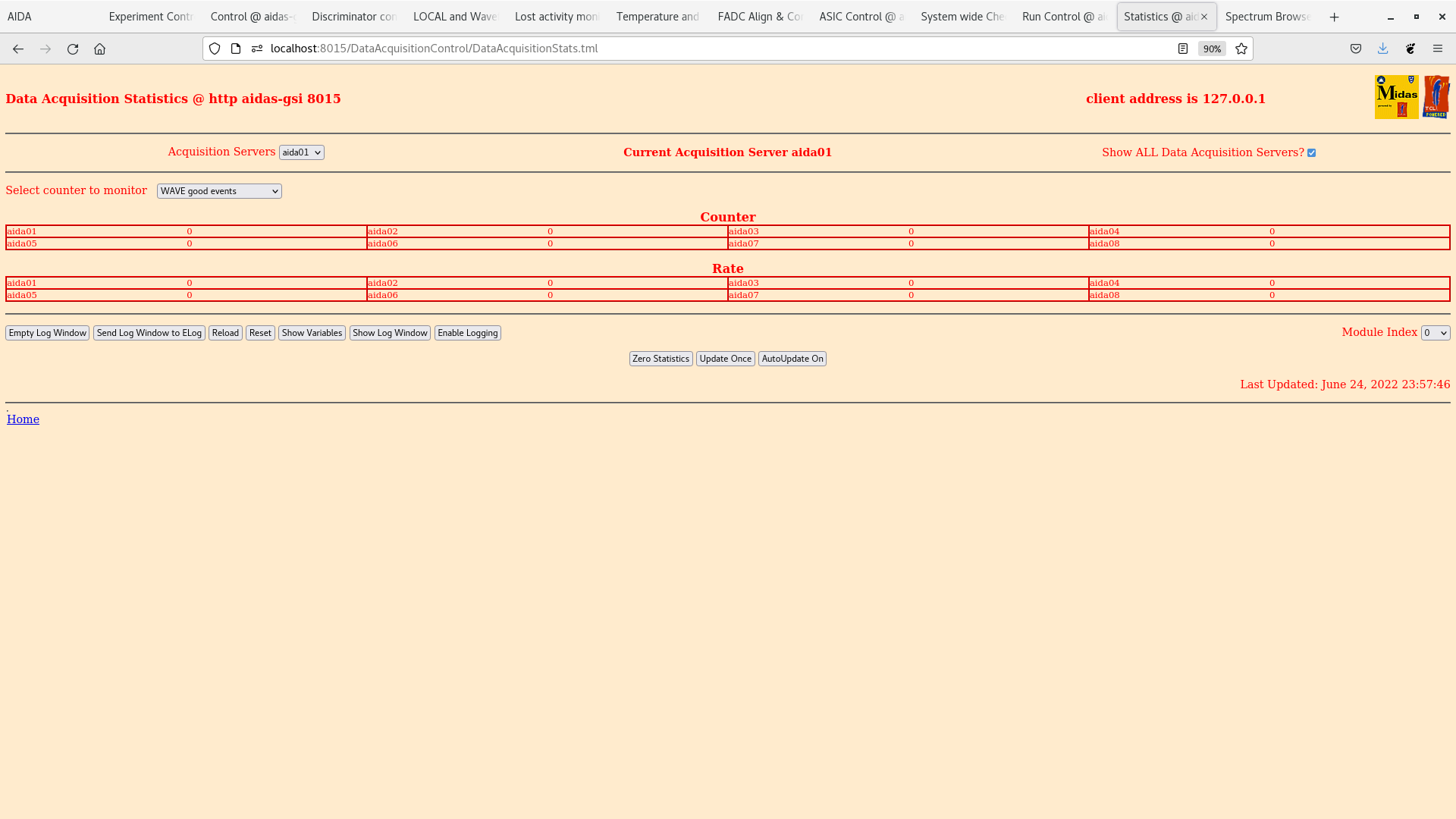

stats - attachments 2-6

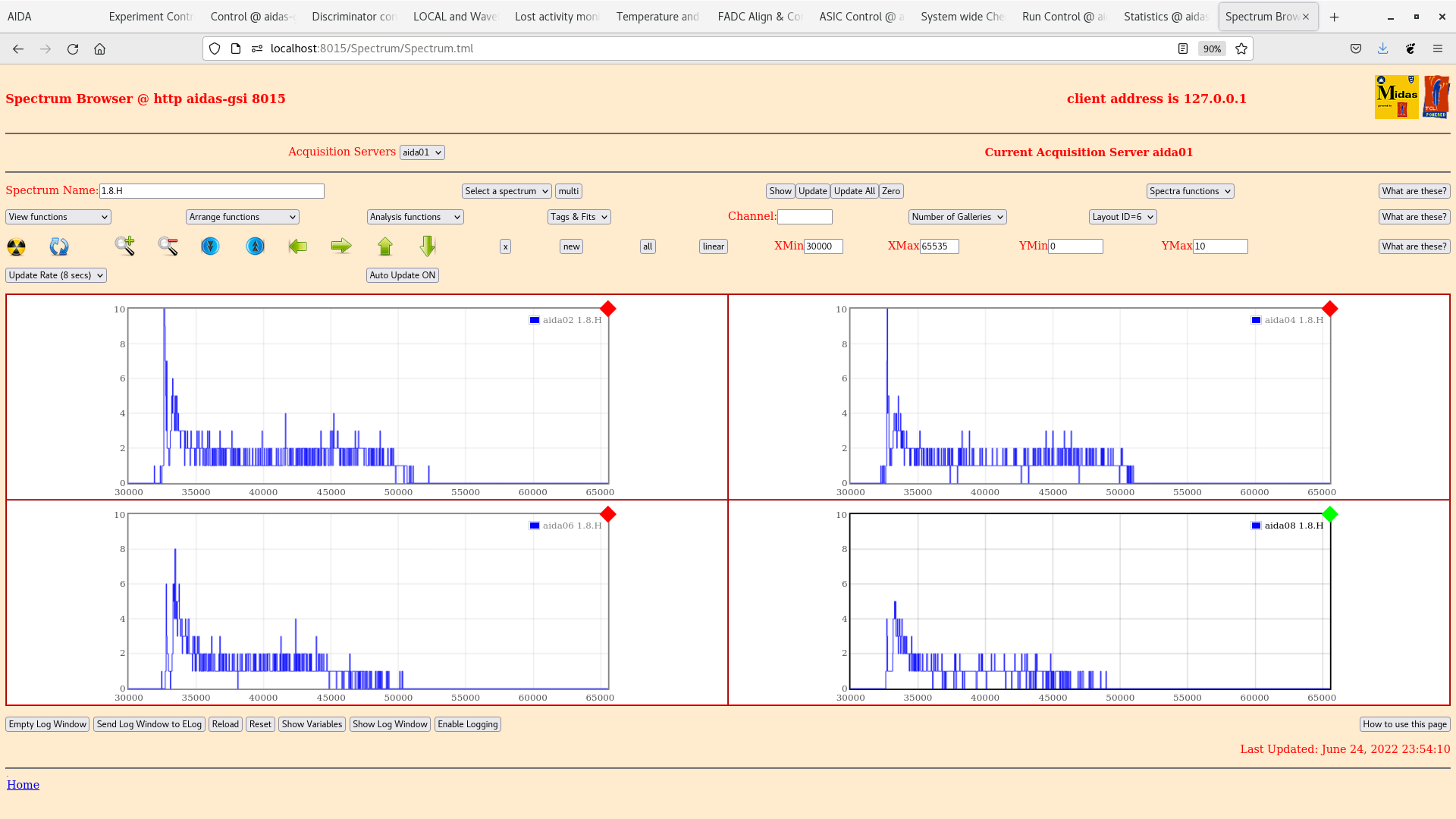

per FEE64 1.8.H spectra - attachments 7 & 8

per p+n FEE64 1.8.L spectra - attachment 9
 aida01 pulser peak width 101 ch FWHM

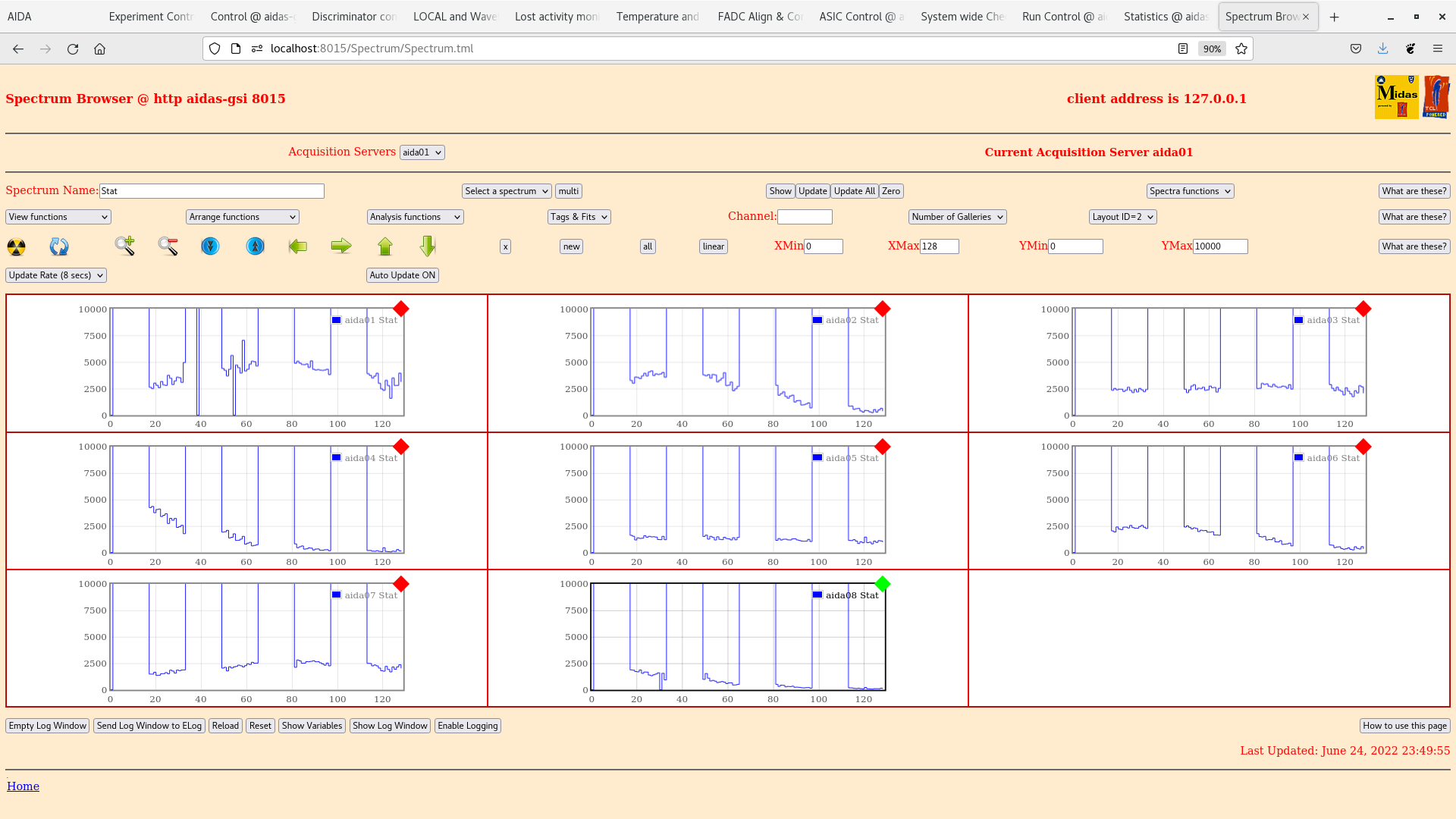

per FEE64 stat & rate spectra - attachments 10 & 11

adc data item stats - attachment 12

FEE64 temps OK - attachment 13

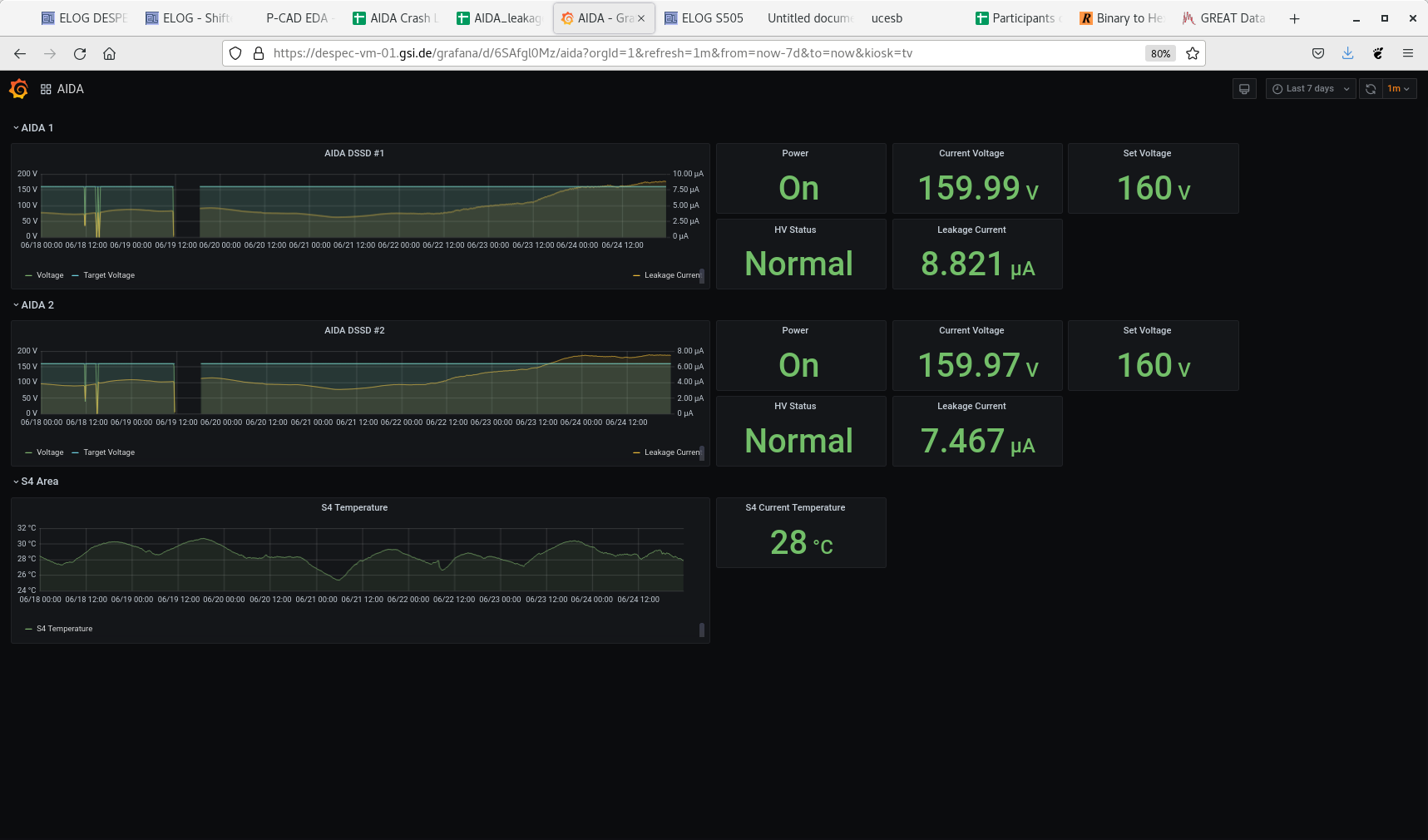

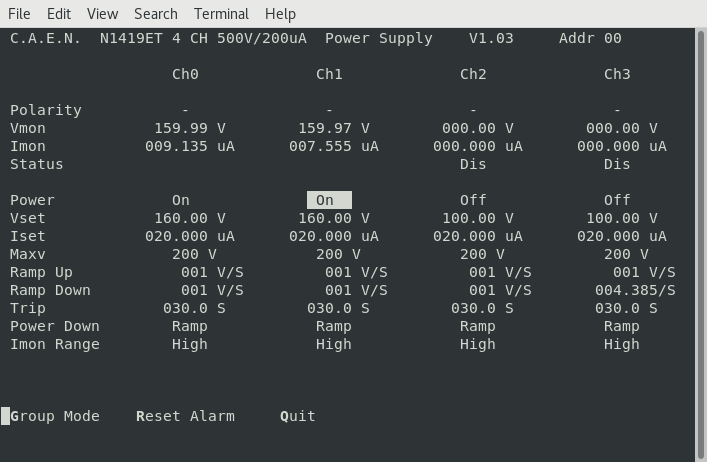

DSSSD bias & leakage currents OK - attachments 14 & 15

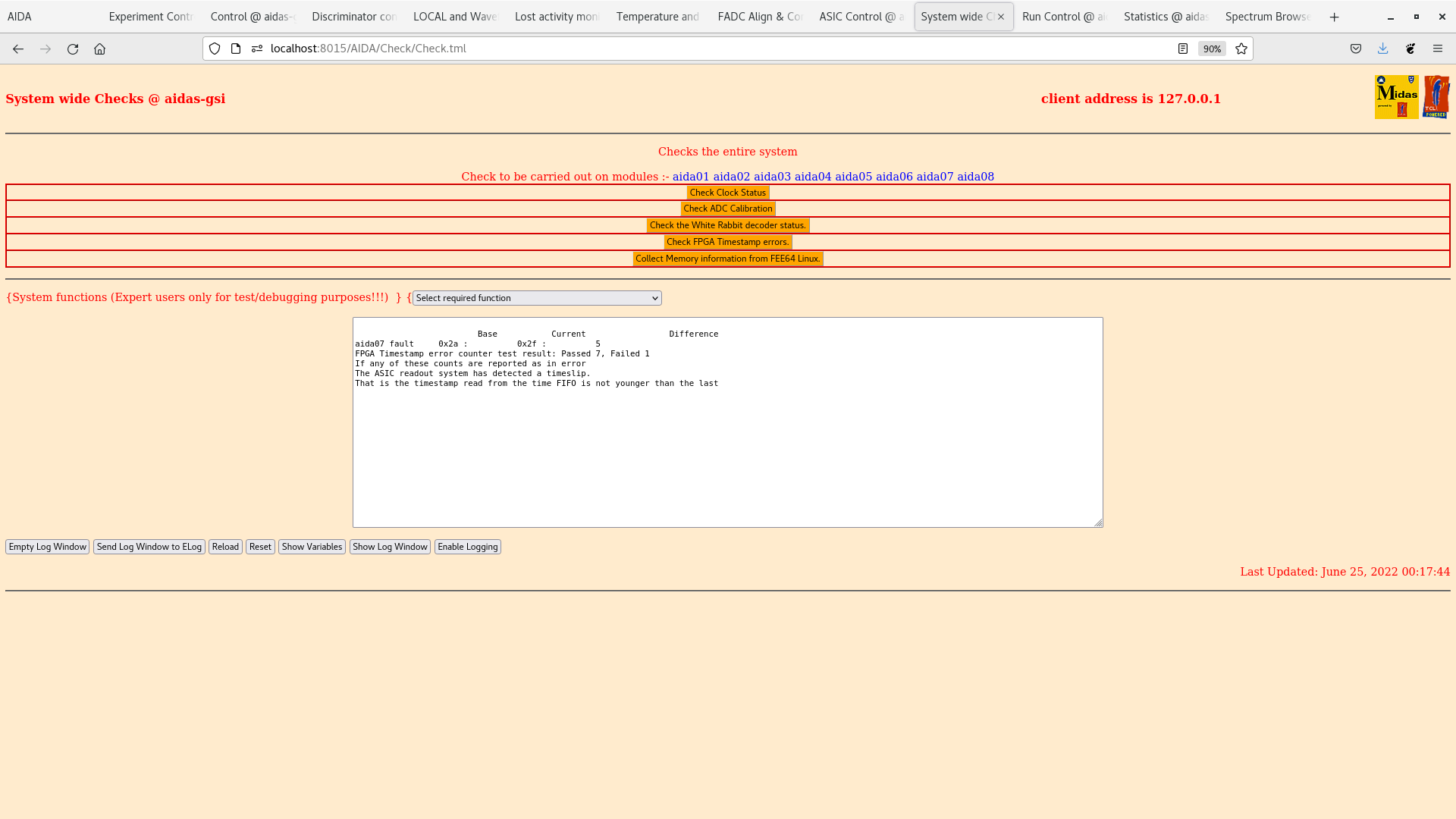

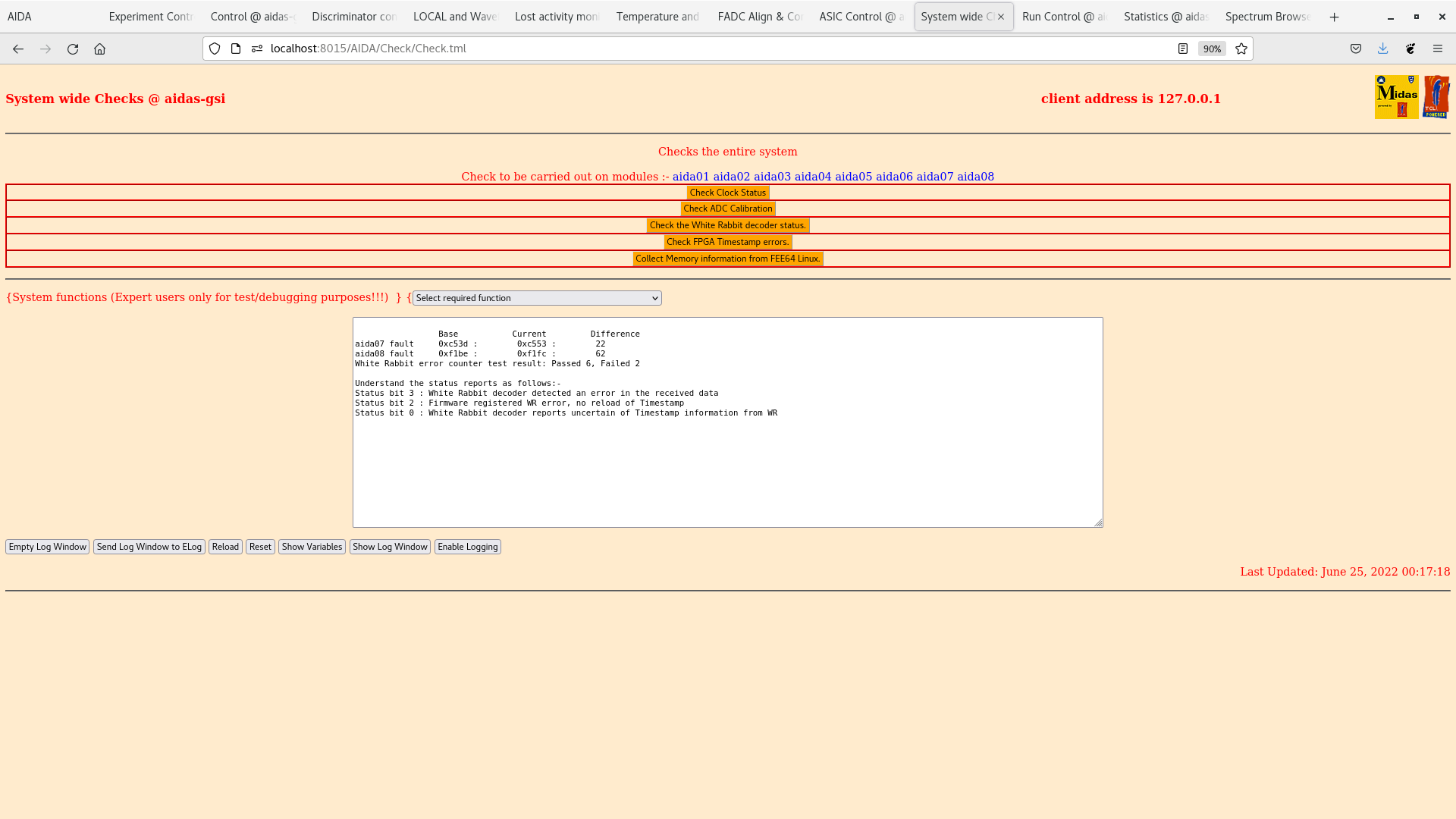

00:20 all system wide checks OK *except* WR and FPGA errors - attachments 16 & 17

03:03

analysis of file S505/R5_189 - attachment 18
 zero timewarps
 max deadtime aida02 c. 17%, all other FEE64s < 5%

all system wide checks OK *except* WR and FPGA errors - attachments 19 & 20

adc data item stats - attachment 21

FEE64 temps OK - attachment 22

DSSSD bias & leakage currents OK - attachment 23

03:30

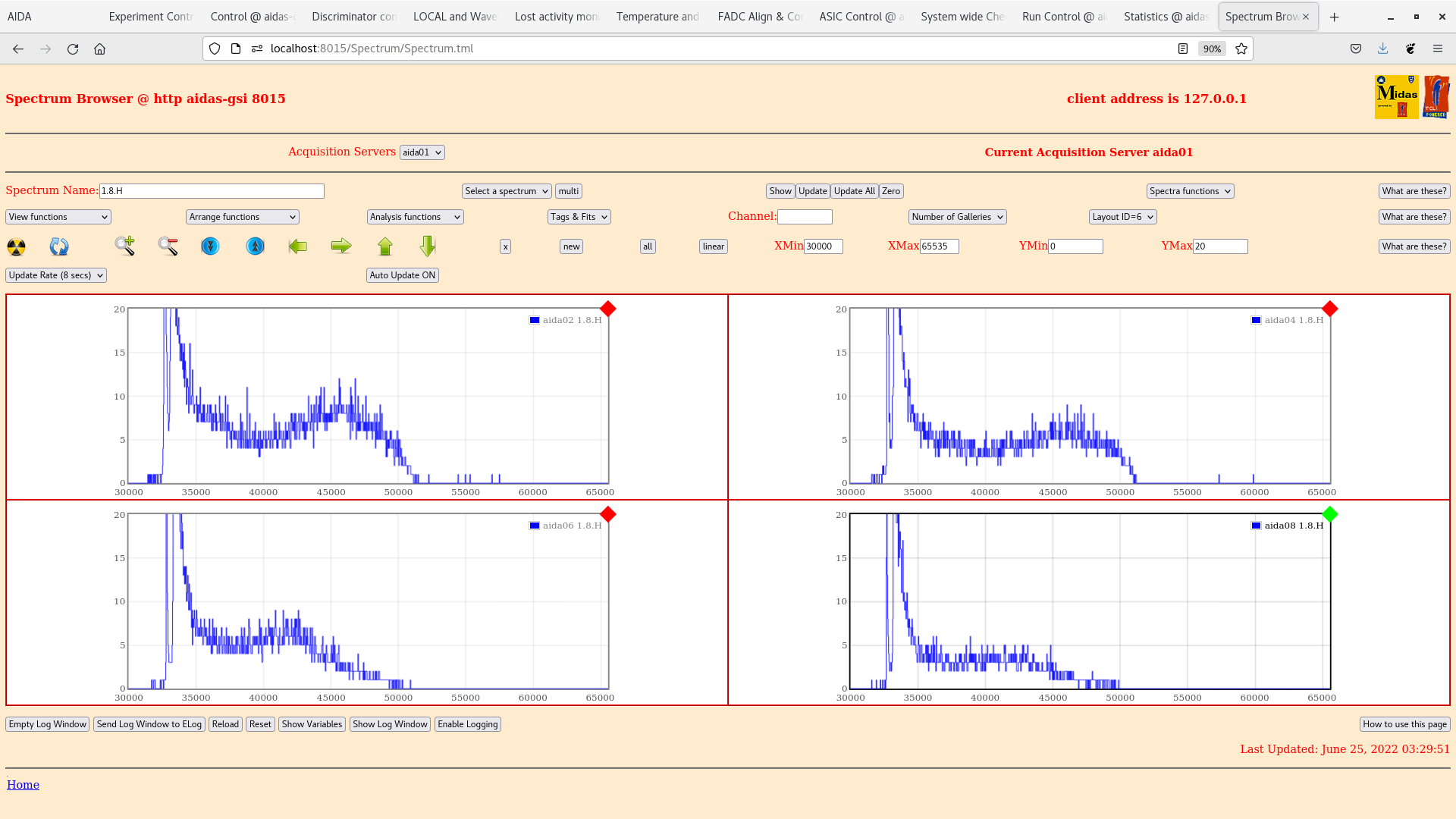

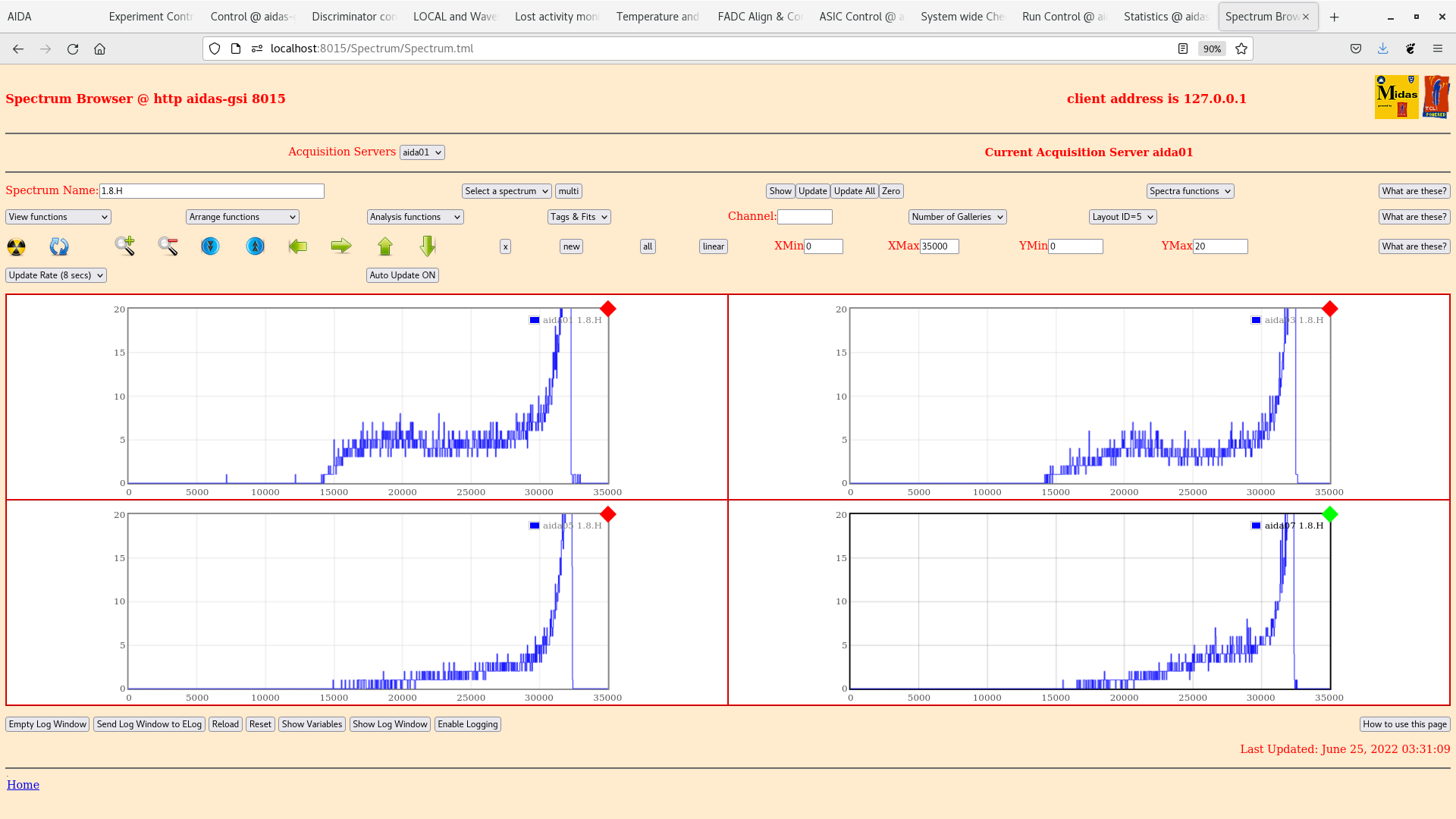

per FEE64 1.8.H spectra - attcahments 24 & 25

06:09 no beam

analysis of file S505/R5_221 - attachment 26
 zero timewarps
 all dead times << 1%

all system wide checks OK *except* WR and FPGA errors - attachments 27 & 28

adc data item stats - attachment 29

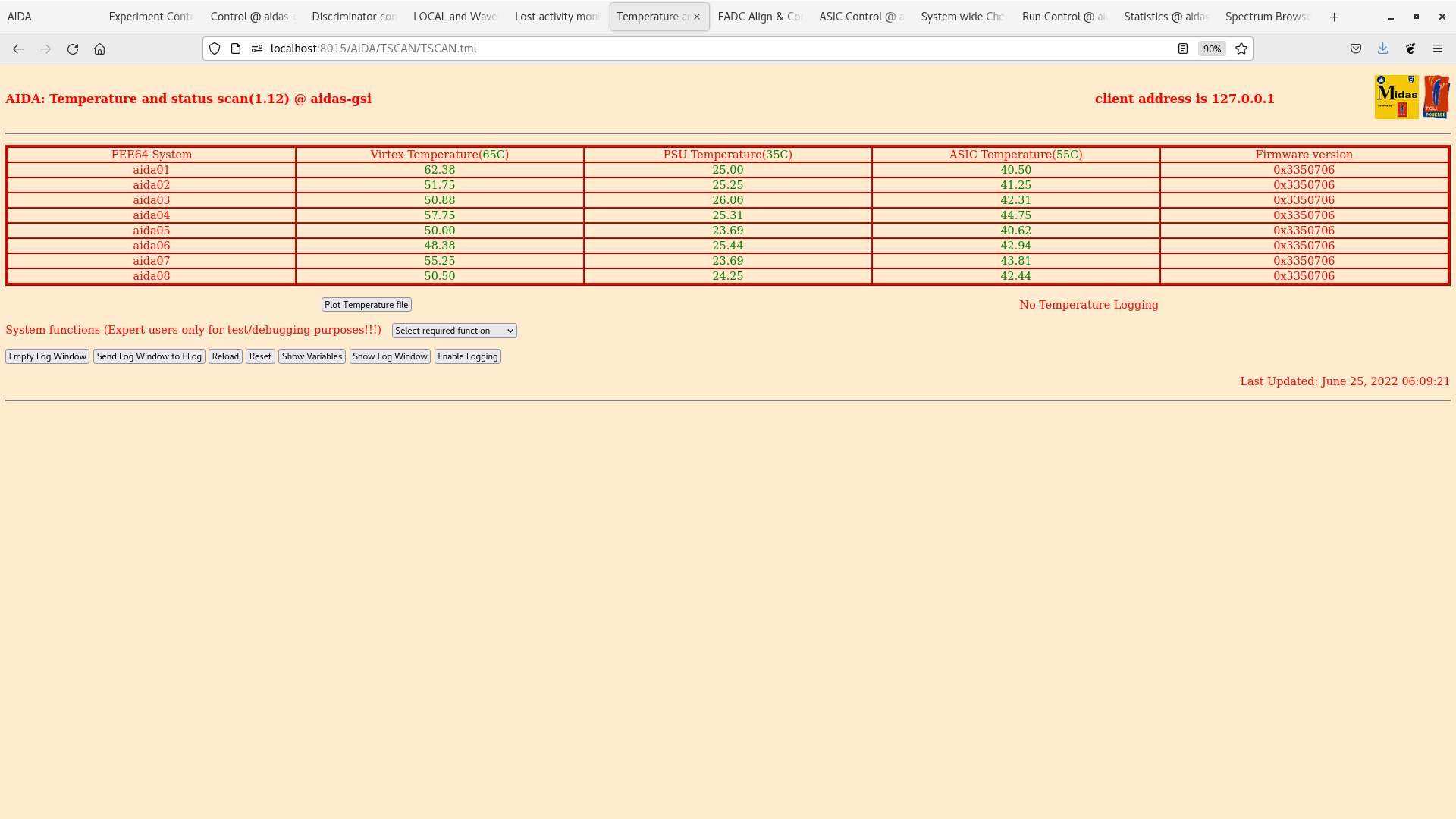

FEE64 temps OK - attachment 30

DSSSD bias & leakage currents OK - attachment 31

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

R5_154

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260632197 (  880101.4 Hz)
        Other data format:    1287803 (    4348.6 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1443 (       4.9 Hz)
                               RESUME:       1443 (       4.9 Hz)
                              SYNC100:      33103 (     111.8 Hz)
                              WR48-63:      33103 (     111.8 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1218711 (    4115.3 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     391650 (    1322.5 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      296.139 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0               14.978                0.000
  1               49.946                0.000
  2                0.925                0.000
  3                8.130                0.000
  4                0.131               17.535
  5                0.197                0.000
  6                0.760                0.000
  7                0.599                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   32916598      28529          0          0        287        287       4193       4193          0      19569          0      96572
  1   59287487      16678          0          0        710        710       7629       7629          0          0          0      57145
  2   20165095     309168          0          0         52         52       2618       2618          0     303828          0      63600
  3   42178844     305489          0          0        214        214       5322       5322          0     294417          0      32426
  4    5271956       1388          0          0          2          2        692        692          0          0          0      31943
  5   18164680       4584          0          0         28         28       2264       2264          0          0          0      38343
  6   41060613     306981          0          0         61         61       5168       5168          0     296523          0      54824
  7   41586924     314986          0          0         89         89       5217       5217          0     304374          0      16797
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   44.250s (  723.164 blocks/s,  45.198 Mb/s)

Attachment 2:

Screenshot_from_2022-06-24_23-58-03.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2022-06-24_23-56-54.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2022-06-24_23-56-18.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2022-06-24_23-55-53.png Original size: 1920x1080

Attachment 6:

Screenshot_from_2022-06-24_23-55-15.png Original size: 1920x1080

Attachment 7:

Screenshot_from_2022-06-24_23-54-37.png Original size: 1920x1080

Attachment 8:

Screenshot_from_2022-06-24_23-53-22.png Original size: 1920x1080

Attachment 9:

Screenshot_from_2022-06-24_23-51-35.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2022-06-24_23-50-18.png Original size: 1920x1080

Attachment 11:

Screenshot_from_2022-06-24_23-49-08.png Original size: 1920x1080

Attachment 12:

Screenshot_from_2022-06-24_23-48-14.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2022-06-24_23-47-40.png Original size: 1920x1080

Attachment 14:

Screenshot_from_2022-06-24_23-46-10.png Original size: 1717x1010

Attachment 15:

Screenshot_from_2022-06-24_23-44-08.png Original size: 707x462

Attachment 16:

Screenshot_from_2022-06-25_00-17-58.png Original size: 1920x1080

Attachment 17:

Screenshot_from_2022-06-25_00-17-36.png Original size: 1920x1080

Attachment 18:

R5_189

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260527466 (  871545.5 Hz)
        Other data format:    1392534 (    4658.5 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1393 (       4.7 Hz)
                               RESUME:       1393 (       4.7 Hz)
                              SYNC100:      33113 (     110.8 Hz)
                              WR48-63:      33113 (     110.8 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1323522 (    4427.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     429409 (    1436.5 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      298.926 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0               14.659                0.000
  1               49.890                0.000
  2                0.405                2.804
  3                7.856                0.000
  4                0.000               45.637
  5                0.052                0.000
  6                0.331                0.000
  7                0.206                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   33437852      29241          0          0        298        298       4430       4430          0      19785          0     105011
  1   60873066      16872          0          0        713        713       7723       7723          0          0          0      63589
  2   19991278     336066          0          0         51         51       2502       2502          0     330960          0      70003
  3   42622163     327782          0          0        194        194       5471       5471          0     316452          0      35634
  4    5450705       1394          0          0          0          0        697        697          0          0          0      34276
  5   18430449       4608          0          0         17         17       2287       2287          0          0          0      41850
  6   41735438     335959          0          0         67         67       5311       5311          0     325203          0      60533
  7   37986515     340612          0          0         53         53       4692       4692          0     331122          0      18513
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   35.010s (  914.031 blocks/s,  57.127 Mb/s)

Attachment 19:

Screenshot_from_2022-06-25_03-05-56.png Original size: 1920x1080

Attachment 20:

Screenshot_from_2022-06-25_03-05-35.png Original size: 1920x1080

Attachment 21:

Screenshot_from_2022-06-25_03-04-59.png Original size: 1920x1080

Attachment 22:

Screenshot_from_2022-06-25_03-04-24.png Original size: 1920x1080

Attachment 23:

Screenshot_from_2022-06-25_03-03-54.png Original size: 707x462

Attachment 24:

Screenshot_from_2022-06-25_03-31-28.png Original size: 1920x1080

Attachment 25:

Screenshot_from_2022-06-25_03-30-31.png Original size: 1920x1080

Attachment 26:

R5_221

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  261819129 (  557711.5 Hz)
        Other data format:     100871 (     214.9 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        371 (       0.8 Hz)
                               RESUME:        371 (       0.8 Hz)
                              SYNC100:      33749 (      71.9 Hz)
                              WR48-63:      33749 (      71.9 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:      32631 (      69.5 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          2 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      469.453 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                0.835                0.000
  2                0.000               15.780
  3                0.000                0.000
  4                0.000              132.034
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   18255571      37491          0          0          0          0       2430       2430          0      32631          0          1
  1   67878845      18770          0          0        371        371       9014       9014          0          0          0          0
  2    8103831       2048          0          0          0          0       1024       1024          0          0          0          1
  3   41453255      10648          0          0          0          0       5324       5324          0          0          0          0
  4    3384177        880          0          0          0          0        440        440          0          0          0          0
  5   15593071       3880          0          0          0          0       1940       1940          0          0          0          0
  6   55917021      14018          0          0          0          0       7009       7009          0          0          0          0
  7   51233358      13136          0          0          0          0       6568       6568          0          0          0          0
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   34.299s (  932.977 blocks/s,  58.311 Mb/s)

Attachment 27:

Screenshot_from_2022-06-25_06-11-13.png Original size: 1920x1080

Attachment 28:

Screenshot_from_2022-06-25_06-10-50.png Original size: 1920x1080

Attachment 29:

Screenshot_from_2022-06-25_06-10-11.png Original size: 1920x1080

Attachment 30:

Screenshot_from_2022-06-25_06-09-40.png Original size: 1920x1080

Attachment 31:

Screenshot_from_2022-06-25_06-09-06.png Original size: 734x462

Attachment 32:

Drop attachments here...

ELOG V3.1.4-unknown
