Entry time:

Sat Jun 25 22:48:57 2022

Author*:

Subject*:

23.43 Check ASIC control
      Zero stats & all histograms

ASIC settings 2021Apr29-13-16-00
 slow comparator 0x64 -> 0xa

all waveform AD9252 ADCs disabled
all fast discs disabled

BNC PB-5 settings (to p+n FEE64s only)
 amplitude 1.0V
 attenuator x1
 decay time 1ms
 polarity +
 frequency 22Hz

All system wide checks OK *except* WR & FPGA errors - attachments 1 & 2

DSSSD bias & leakage currents OK - attachment 3

adc data item stats - attachment 4

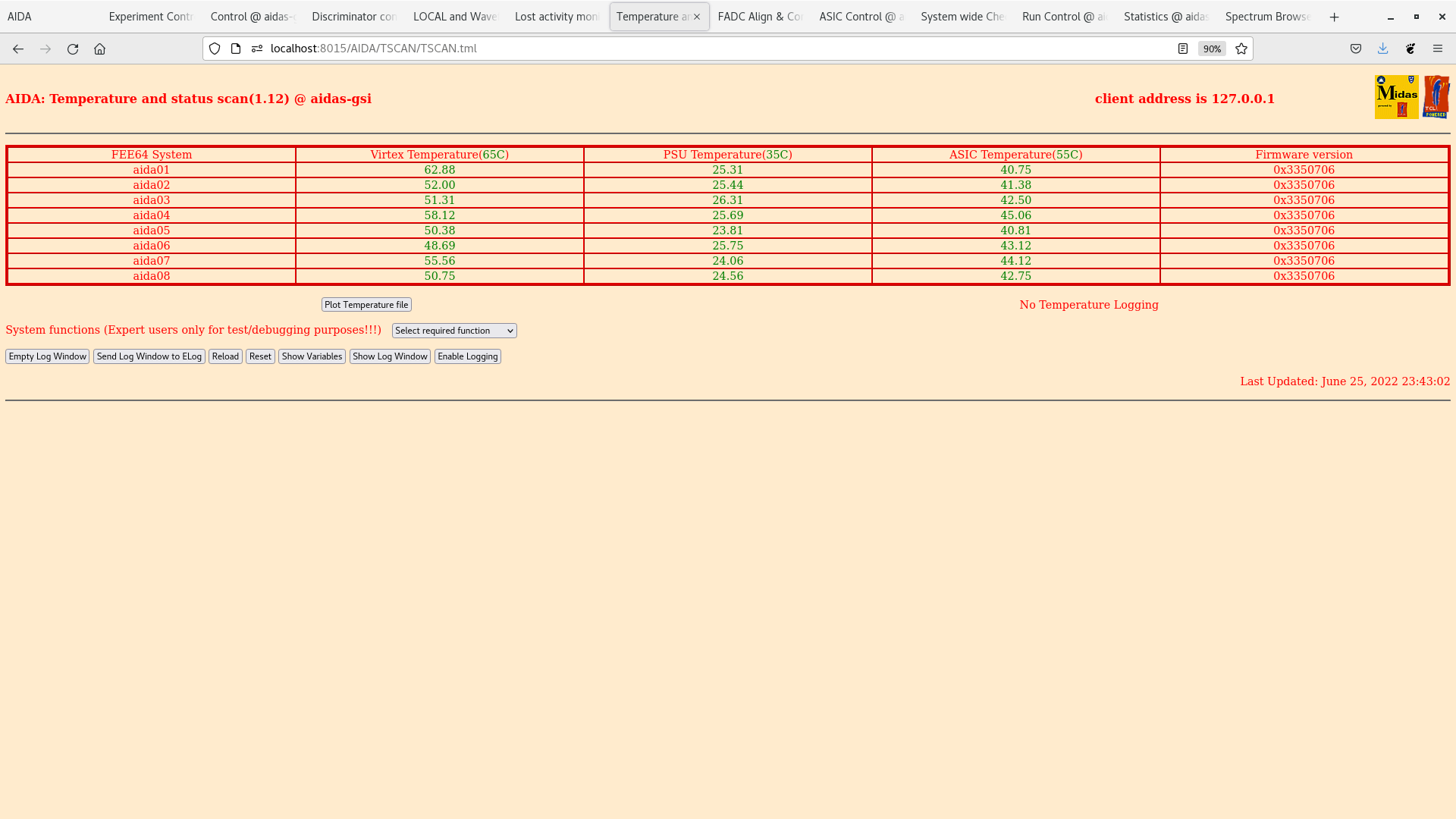

FEE64 temps OK - attachment 5

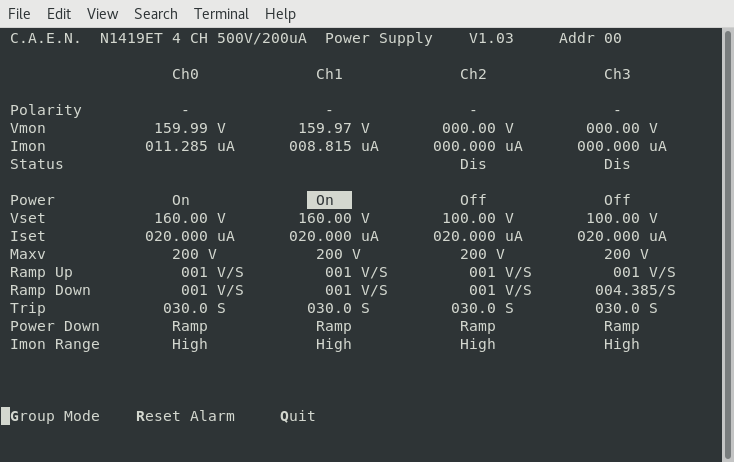

DSSSD bias & leakage currents OK - attachment 6

analysis of file S505/R5_415 - attachment 7
 zero timewarps
 max deadtime aida02 c. 17%, all other FEE64s < 1%

02:36

analysis of file S505/R5_449 - attachment 8
 zero timewarps
 max deadtime aida02 c. 15%, all other FEE64s < 1%

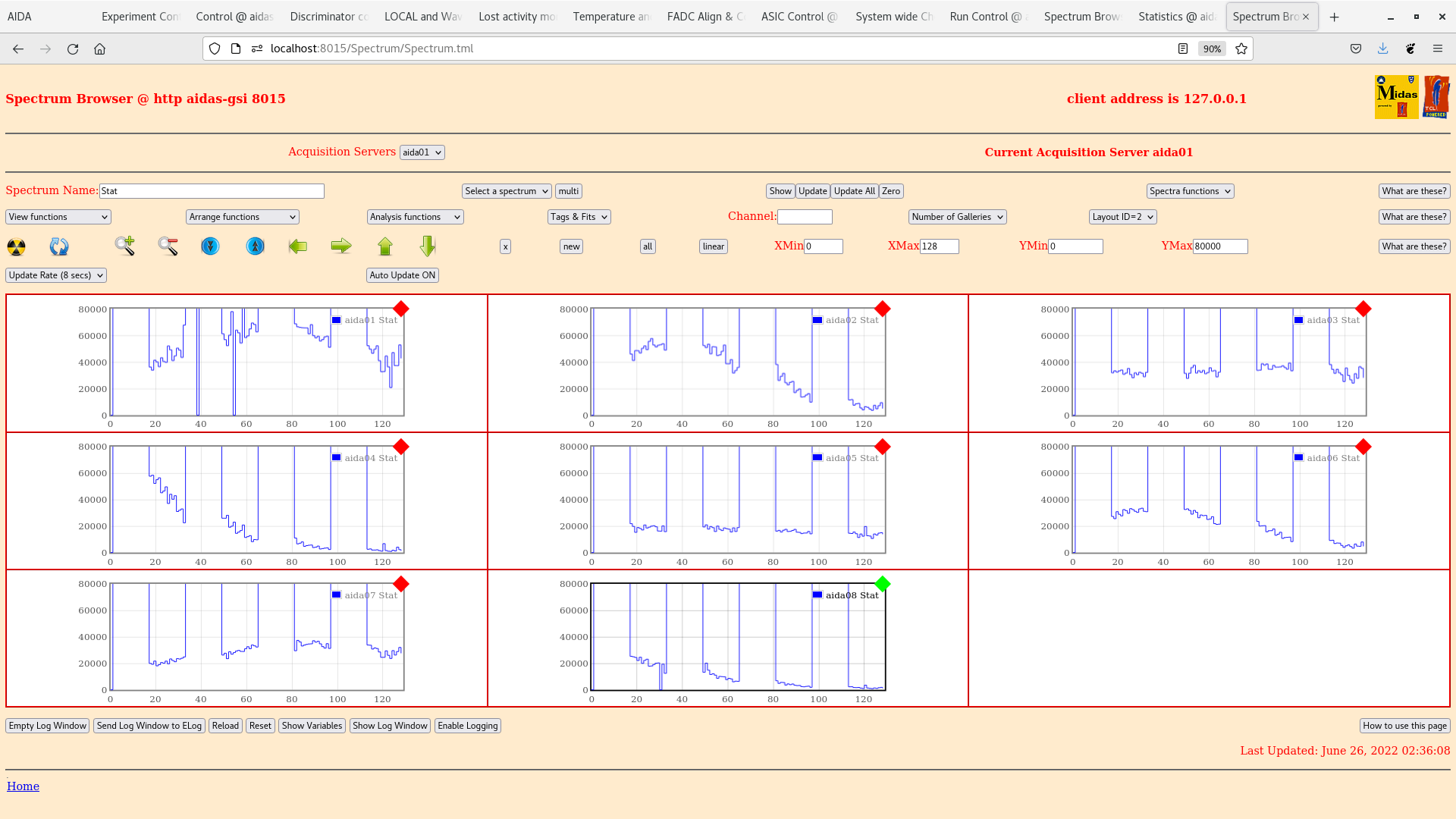

per FEE64 rate & stat spectra - attachments 9 & 10

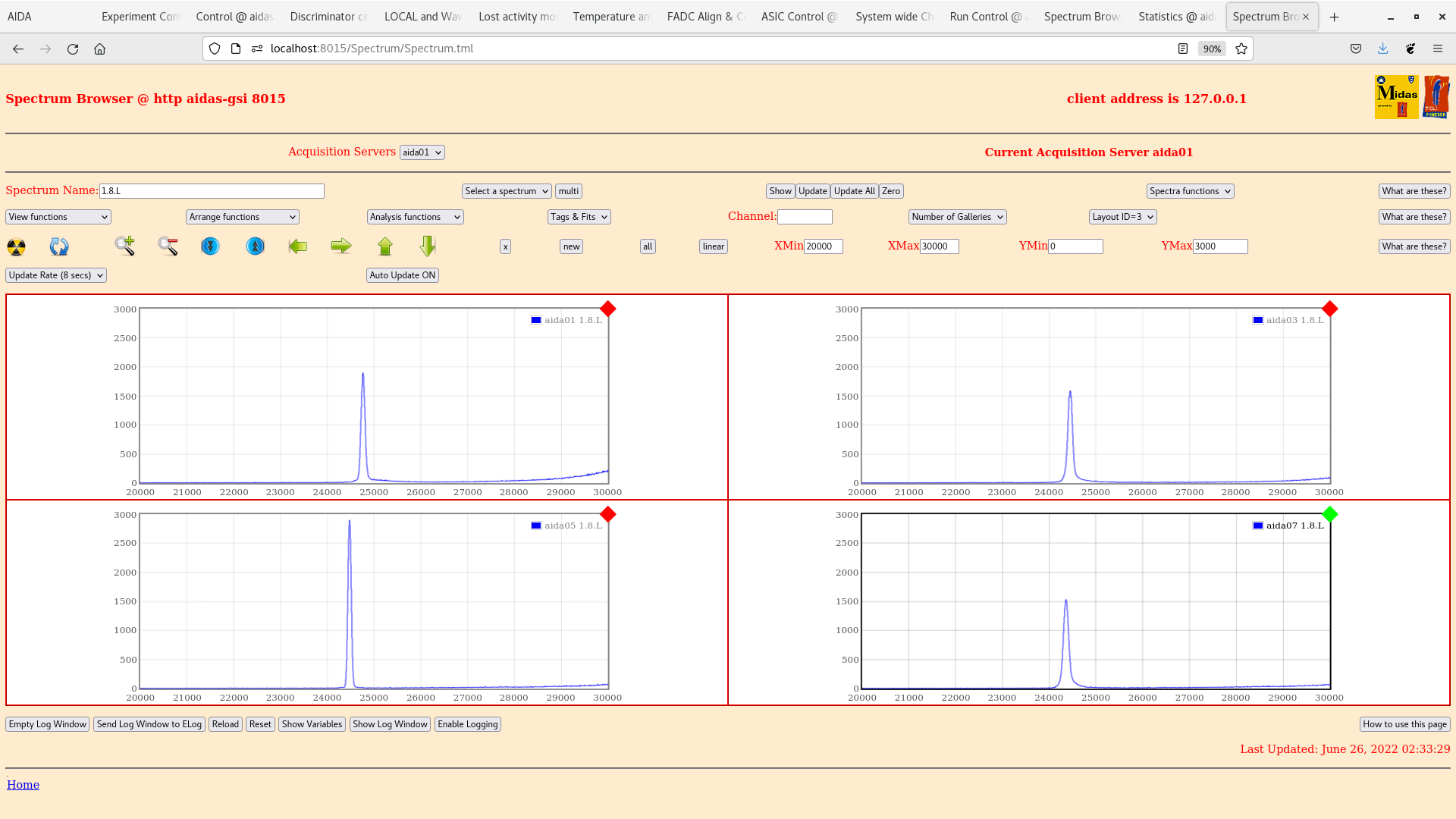

per p+n FEE64 1.8.L spectra - attachment 11
 aida01 pulser peak width 99 ch FWHM

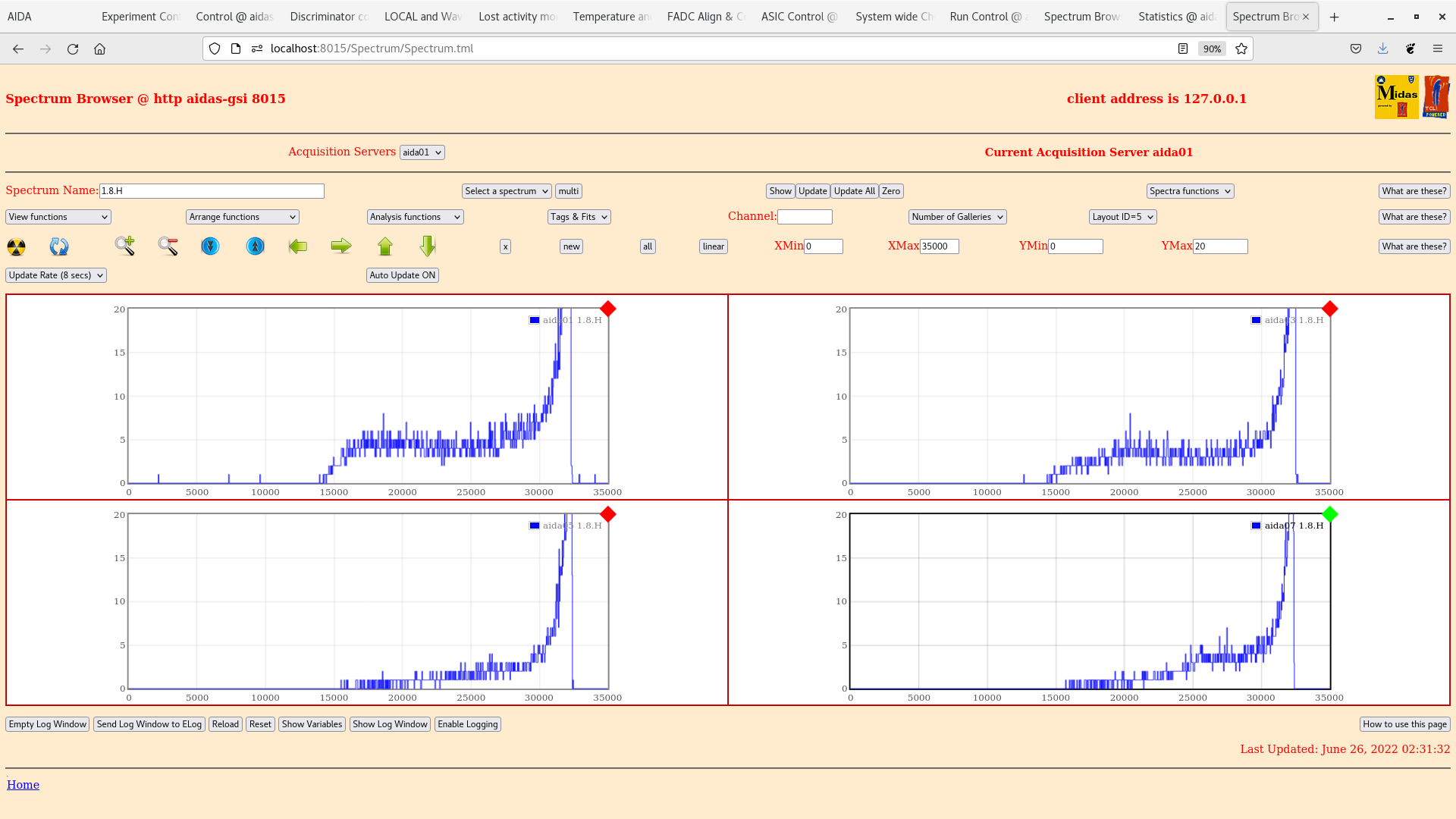

per FEE64 1.8.H spectra - attachments 12 & 13

All system wide checks OK *except* WR & FPGA errors - attachments 14 & 15

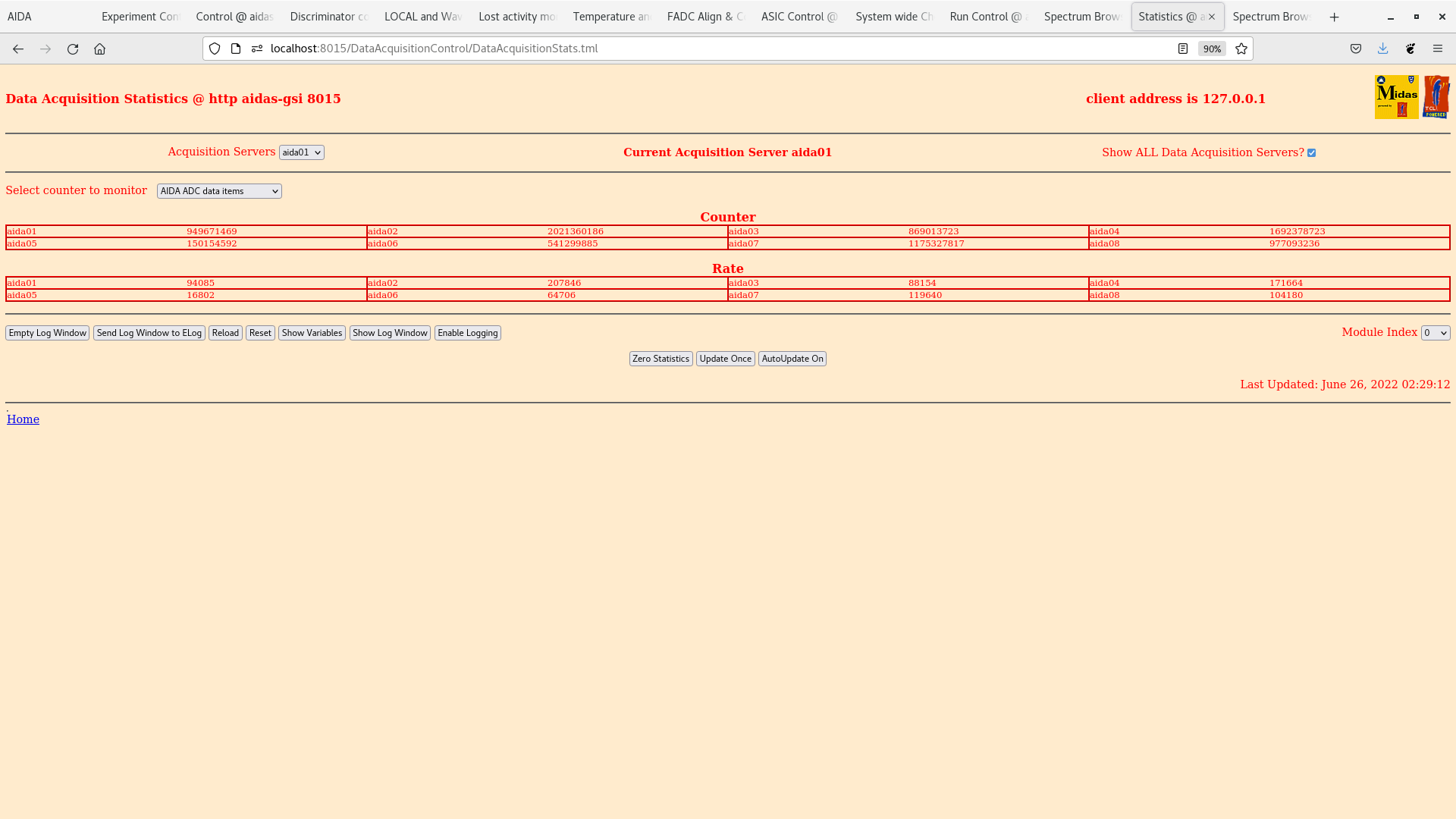

adc data item stats - attachment 16

FEE64 temps OK - attachment 17

DSSSD bias & leakage currents OK - attachment 18

05:38

analysis of file S505/R5_483 - attachment 19
 zero timewarps
 max deadtime aida02 c. 16%, all other FEE64s < 2%

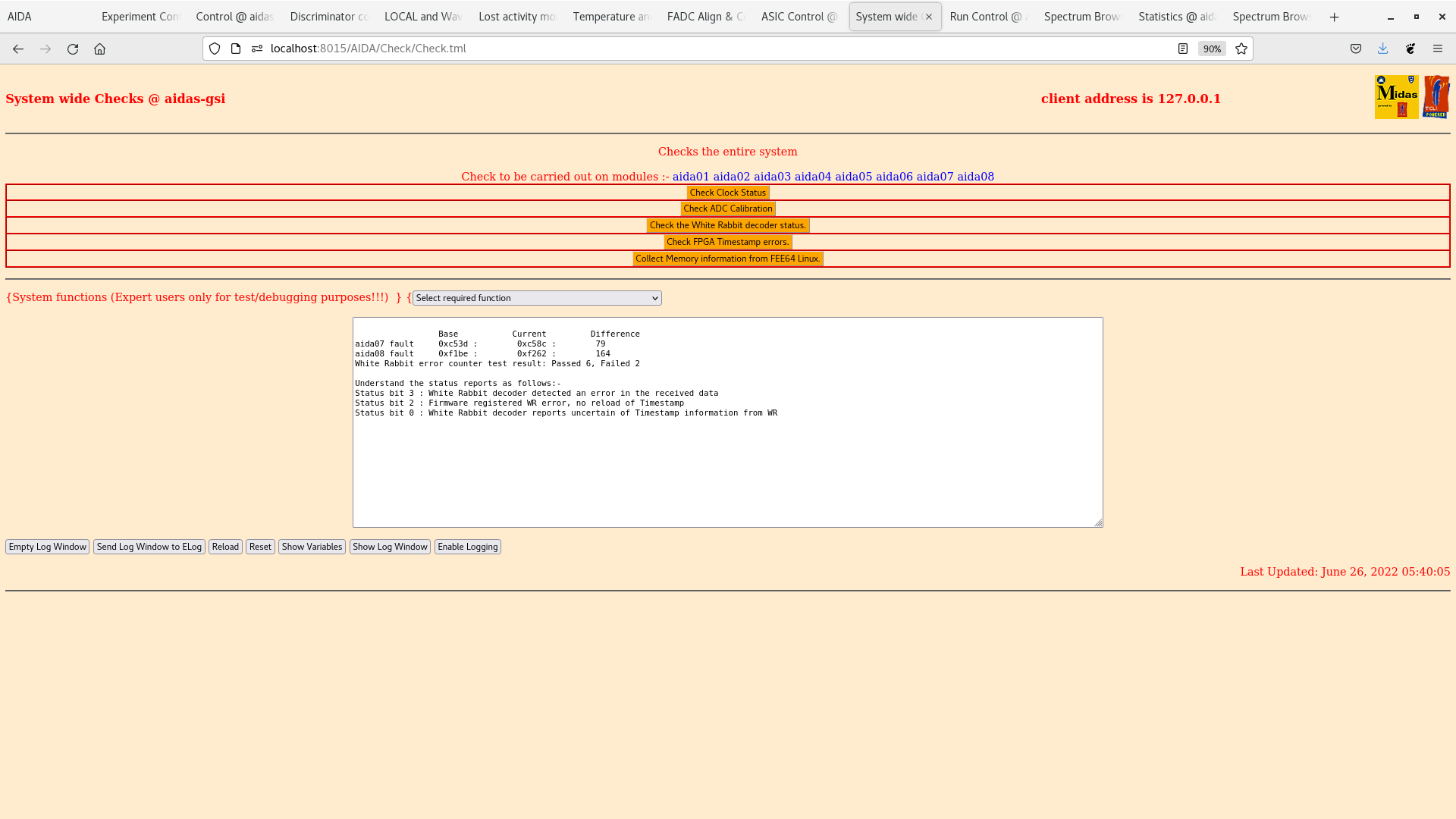

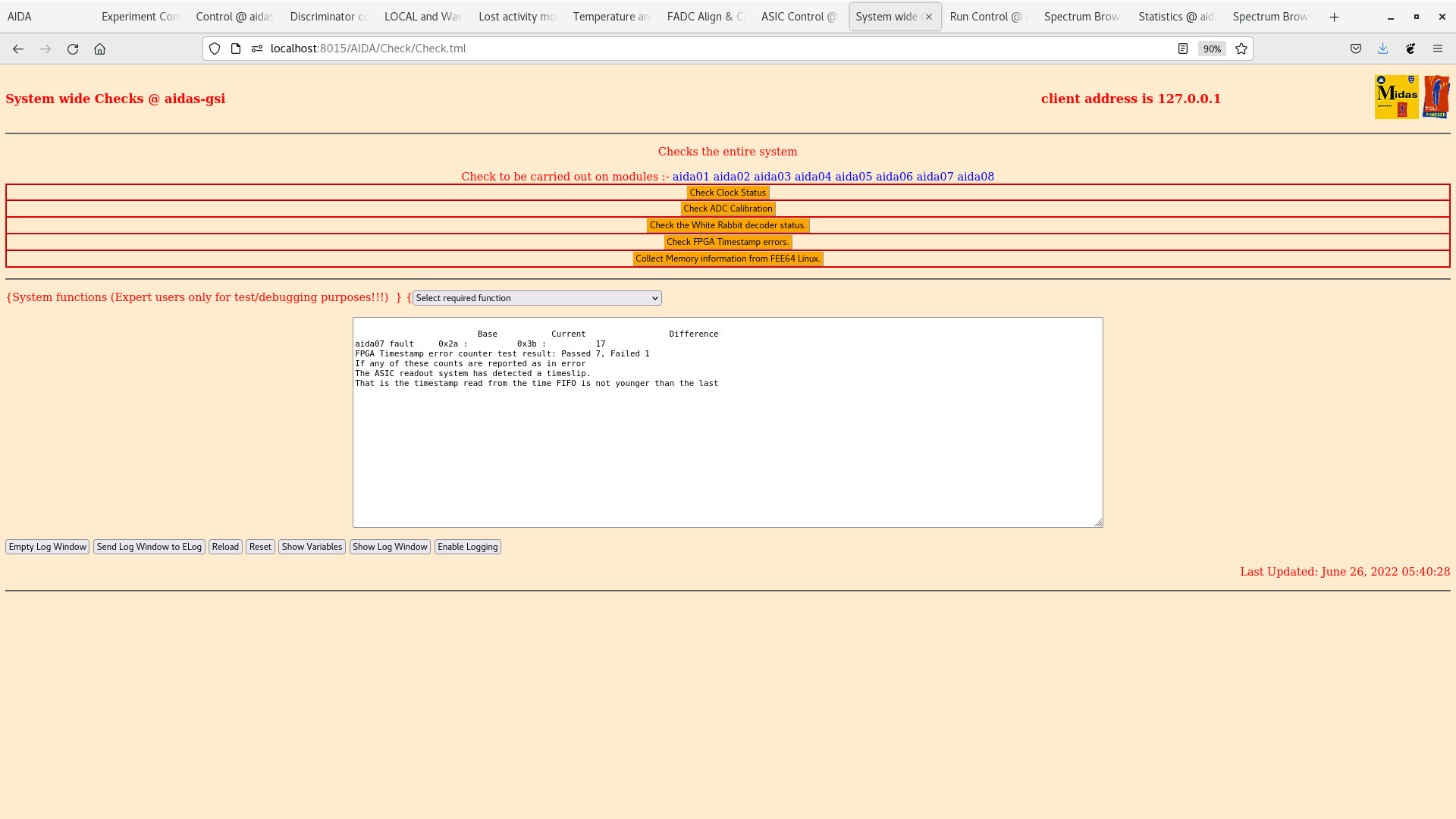

All system wide checks OK *except* WR & FPGA errors - attachments 20 & 21

adc data item stats - attachment 22

FEE64 temps OK - attachment 23

DSSSD bias & leakage currents OK - attachment 24

07:27

analysis of file S505/R5_502 - attachment 25
 zero timewarps
 max deadtime aida02 c. 16%, all other FEE64s < 2%

All system wide checks OK *except* WR & FPGA errors - attachments 26 & 27

adc data item stats - attachment 28

FEE64 temps OK - attachment 29

DSSSD bias & leakage currents OK - attachment 30

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2022-06-25_23-48-13.png Original size: 1920x1080

Attachment 2:

Screenshot_from_2022-06-25_23-47-49.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2022-06-25_23-46-30.png Original size: 1717x1010

Attachment 4:

Screenshot_from_2022-06-25_23-45-38.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2022-06-25_23-43-15.png Original size: 1920x1080

Attachment 6:

Screenshot_from_2022-06-25_23-42-41.png Original size: 734x462

Attachment 7:

R5_415

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260603334 (  839394.5 Hz)
        Other data format:    1316666 (    4240.9 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1333 (       4.3 Hz)
                               RESUME:       1333 (       4.3 Hz)
                              SYNC100:      33156 (     106.8 Hz)
                              WR48-63:      33156 (     106.8 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1247688 (    4018.8 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     404733 (    1303.6 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      310.466 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                5.804                0.000
  1               49.047                0.000
  2                0.579                0.000
  3                4.786                0.000
  4                0.000               41.193
  5                0.052                0.000
  6                0.398                0.000
  7                0.178                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   29744429      29368          0          0        191        191       3879       3879          0      21228          0     101774
  1   62881123      17488          0          0        744        744       8000       8000          0          0          0      60446
  2   27391657     317618          0          0         76         76       3507       3507          0     310452          0      64539
  3   52390232     315971          0          0        228        228       6571       6571          0     302373          0      33153
  4    4668386       1144          0          0          0          0        572        572          0          0          0      32450
  5   16955242       4388          0          0         19         19       2175       2175          0          0          0      39119
  6   36767424     310864          0          0         60         60       4661       4661          0     301422          0      55985
  7   29804841     319825          0          0         15         15       3791       3791          0     312213          0      17267
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   42.203s (  758.238 blocks/s,  47.390 Mb/s)

Attachment 8:

R5_449

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:       9631
          ADC data format:   78467361 (  817544.9 Hz)
        Other data format:     362374 (    3775.5 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        372 (       3.9 Hz)
                               RESUME:        372 (       3.9 Hz)
                              SYNC100:       9989 (     104.1 Hz)
                              WR48-63:       9989 (     104.1 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:     341652 (    3559.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     112408 (    1171.2 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:       95.979 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                1.159                0.000
  1               13.633                0.000
  2                0.066                0.000
  3                0.790                0.000
  4                0.000               20.217
  5                0.003                0.000
  6                0.066                0.000
  7                0.003                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    8759445       9043          0          0         45         45       1175       1175          0       6603          0      28377
  1   19225571       5374          0          0        215        215       2472       2472          0          0          0      17713
  2    7917505      86814          0          0         15         15       1017       1017          0      84750          0      17600
  3   15877732      87394          0          0         75         75       1976       1976          0      83292          0       9310
  4    1340586        302          0          0          0          0        151        151          0          0          0       8860
  5    4870076       1158          0          0          2          2        577        577          0          0          0      10559
  6   11177308      84854          0          0         17         17       1400       1400          0      82020          0      15171
  7    9299138      87435          0          0          3          3       1221       1221          0      84987          0       4818
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   10.232s (  941.224 blocks/s,  58.826 Mb/s)

Attachment 9:

Screenshot_from_2022-06-26_02-36-29.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2022-06-26_02-34-58.png Original size: 1920x1080

Attachment 11:

Screenshot_from_2022-06-26_02-33-46.png Original size: 1920x1080

Attachment 12:

Screenshot_from_2022-06-26_02-32-48.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2022-06-26_02-31-49.png Original size: 1920x1080

Attachment 14:

Screenshot_from_2022-06-26_02-30-49.png Original size: 1920x1080

Attachment 15:

Screenshot_from_2022-06-26_02-30-25.png Original size: 1920x1080

Attachment 16:

Screenshot_from_2022-06-26_02-29-31.png Original size: 1920x1080

Attachment 17:

Screenshot_from_2022-06-26_02-28-59.png Original size: 1920x1080

Attachment 18:

Screenshot_from_2022-06-26_02-28-31.png Original size: 734x462

Attachment 19:

R5_483

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260645305 (  834521.2 Hz)
        Other data format:    1274695 (    4081.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1211 (       3.9 Hz)
                               RESUME:       1211 (       3.9 Hz)
                              SYNC100:      33162 (     106.2 Hz)
                              WR48-63:      33162 (     106.2 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1205949 (    3861.1 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     393822 (    1260.9 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      312.329 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                5.184                0.000
  1               48.274                0.000
  2                0.431                0.000
  3                3.375                0.000
  4                0.000               25.625
  5                0.027                0.000
  6                0.216                0.000
  7                0.008                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   30200144      29499          0          0        166        166       3899       3899          0      21369          0      99521
  1   63245692      17566          0          0        710        710       8073       8073          0          0          0      60306
  2   25915590     306468          0          0         52         52       3383       3383          0     299598          0      62507
  3   52691198     306273          0          0        212        212       6559       6559          0     292731          0      32107
  4    4611863       1212          0          0          0          0        606        606          0          0          0      31071
  5   16567070       4140          0          0          9          9       2061       2061          0          0          0      37441
  6   37080833     301098          0          0         53         53       4819       4819          0     291354          0      54190
  7   30332915     308439          0          0          9          9       3762       3762          0     300897          0      16679
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   35.023s (  913.674 blocks/s,  57.105 Mb/s)

Attachment 20:

Screenshot_from_2022-06-26_05-40-48.png Original size: 1920x1080

Attachment 21:

Screenshot_from_2022-06-26_05-40-20.png Original size: 1920x1080

Attachment 22:

Screenshot_from_2022-06-26_05-39-34.png Original size: 1920x1080

Attachment 23:

Screenshot_from_2022-06-26_05-38-30.png Original size: 1920x1080

Attachment 24:

Screenshot_from_2022-06-26_05-37-55.png Original size: 734x462

Attachment 25:

R5_502

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260592349 (  788577.6 Hz)
        Other data format:    1327651 (    4017.6 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1258 (       3.8 Hz)
                               RESUME:       1257 (       3.8 Hz)
                              SYNC100:      33231 (     100.6 Hz)
                              WR48-63:      33231 (     100.6 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1258674 (    3808.9 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     409569 (    1239.4 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      330.459 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0               10.444                0.000
  1               49.479                0.000
  2                0.188                0.000
  3                4.232                0.000
  4                0.000               57.929
  5                0.053                0.000
  6                0.278                0.000
  7                0.015                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   31755884      31086          0          0        242        242       4168       4168          0      22266          0     103011
  1   67198908      18739          0          0        724        723       8646       8646          0          0          0      63328
  2   19438169     317456          0          0         45         45       2440       2440          0     312486          0      65069
  3   45255369     318470          0          0        158        158       5750       5750          0     306654          0      33811
  4    4887217       1230          0          0          0          0        615        615          0          0          0      32106
  5   18040993       4688          0          0         19         19       2325       2325          0          0          0      38770
  6   42367504     314874          0          0         58         58       5348       5348          0     304062          0      56174
  7   31648305     321108          0          0         12         12       3939       3939          0     313206          0      17300
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   33.316s (  960.488 blocks/s,  60.030 Mb/s)

Attachment 26:

Screenshot_from_2022-06-26_07-29-14.png Original size: 1920x1080

Attachment 27:

Screenshot_from_2022-06-26_07-28-54.png Original size: 1920x1080

Attachment 28:

Screenshot_from_2022-06-26_07-28-22.png Original size: 1920x1080

Attachment 29:

Screenshot_from_2022-06-26_07-27-50.png Original size: 1920x1080

Attachment 30:

Screenshot_from_2022-06-26_07-27-21.png Original size: 734x462

Attachment 31:

Drop attachments here...

ELOG V3.1.4-unknown
