Entry time:

Sun Jun 26 08:51:20 2022

Author*:

Subject*:

09:51 Taken over from Tom following the night shift
      Experiment is still running smoothly
      Compression of the files is complete up to the start of R5.
      Have started compression of files in R5 which should run up to R5_499
      Currently on R5_528

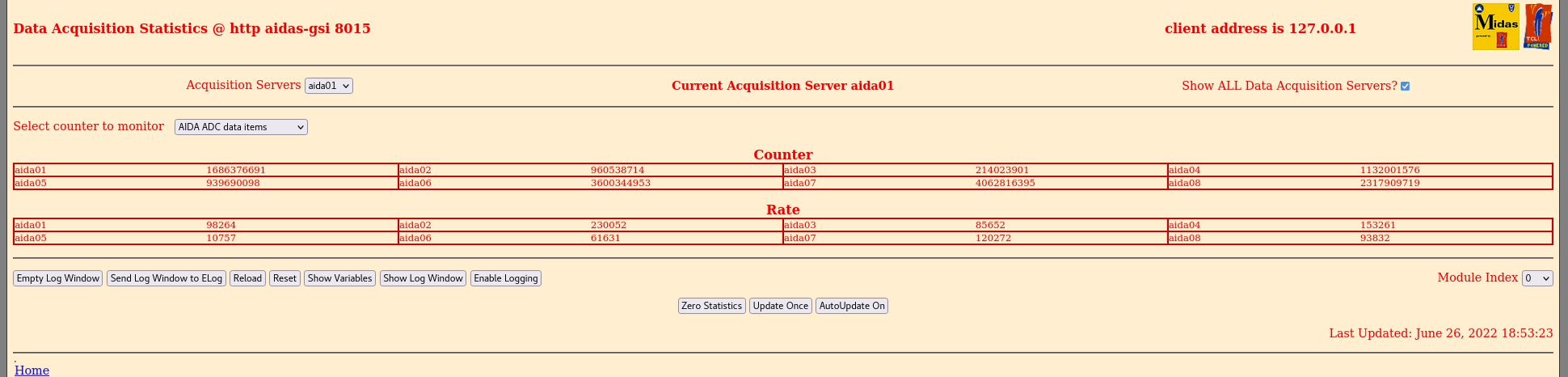

Statistics ok - attachment 1

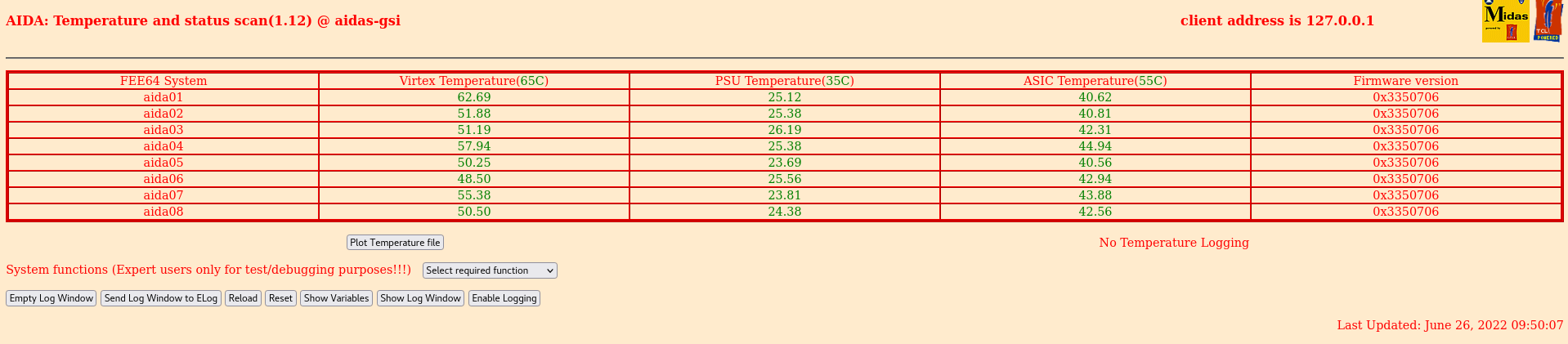

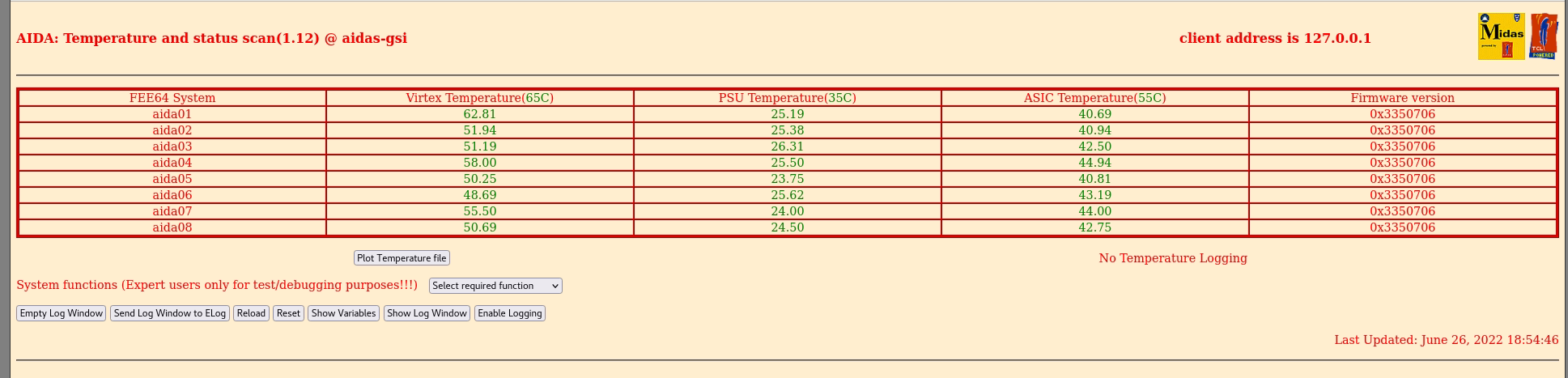

      Temperatures ok - attachment 2
      Bias and leakage currents ok - attachment 3
      System wide checks:
          		 Base 		Current 	Difference
      aida07 fault 	 0xc53d : 	 0xc594 : 	 87
      aida08 fault 	 0xf1be : 	 0xf271 : 	 179
      White Rabbit error counter test result: Passed 6, Failed 2

Base 		Current 	Difference
      aida07 fault 	 0x2a : 	 0x3b : 	 17
      FPGA Timestamp error counter test result: Passed 7, Failed 1

Current merger rate is 2E6-4E6 events per second
      Current tapeserver rate is 5800 kB/s
      Free HDD space is 1.1 TB
      At current rates will last 54 hours which should see out the experiment
      Experiment currently scheduled to finish at 6am on Tuesday morning (May get until 8am)

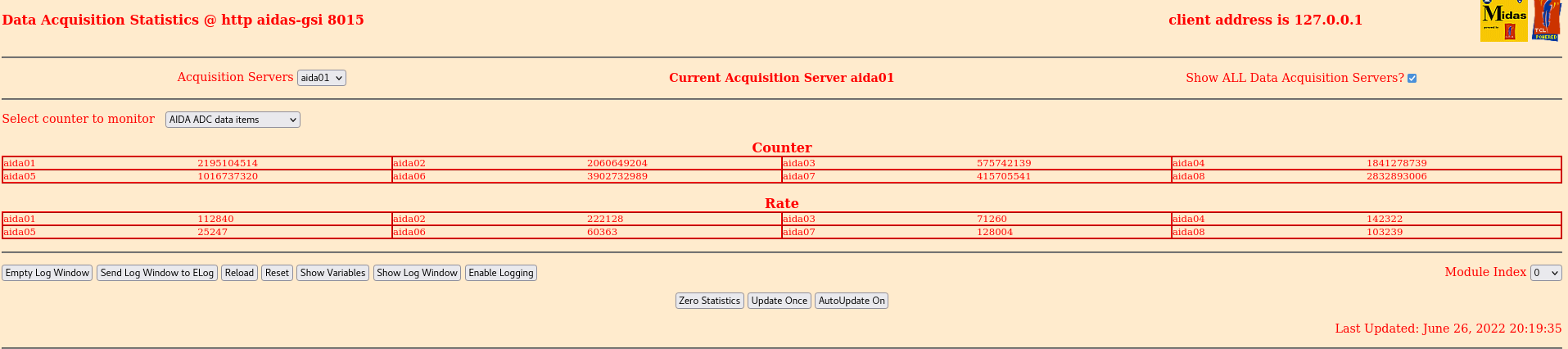

      Analysis of R5_528 - attachment 4
      Deadtime of AIDA02 currently around 15%

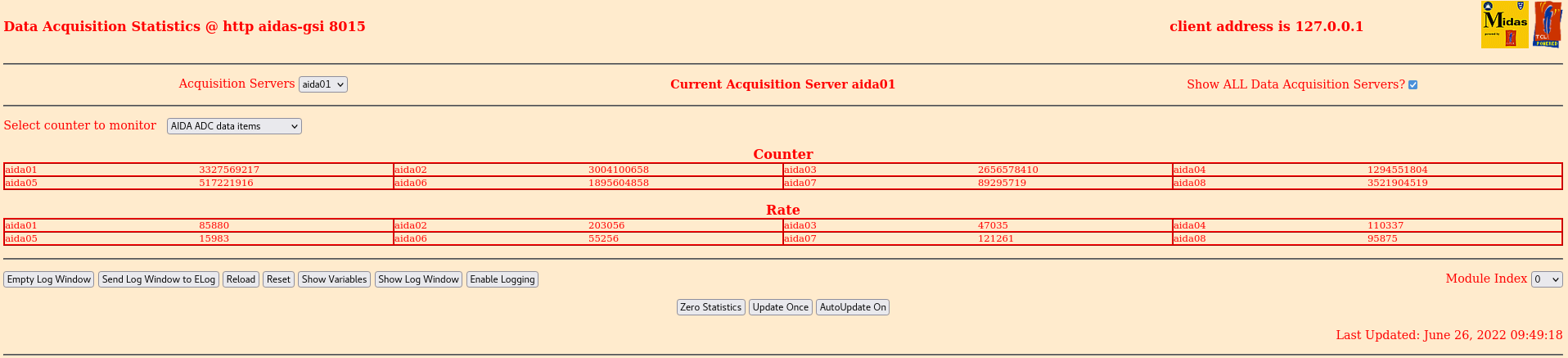

11:56 Statistics ok - attachment 5

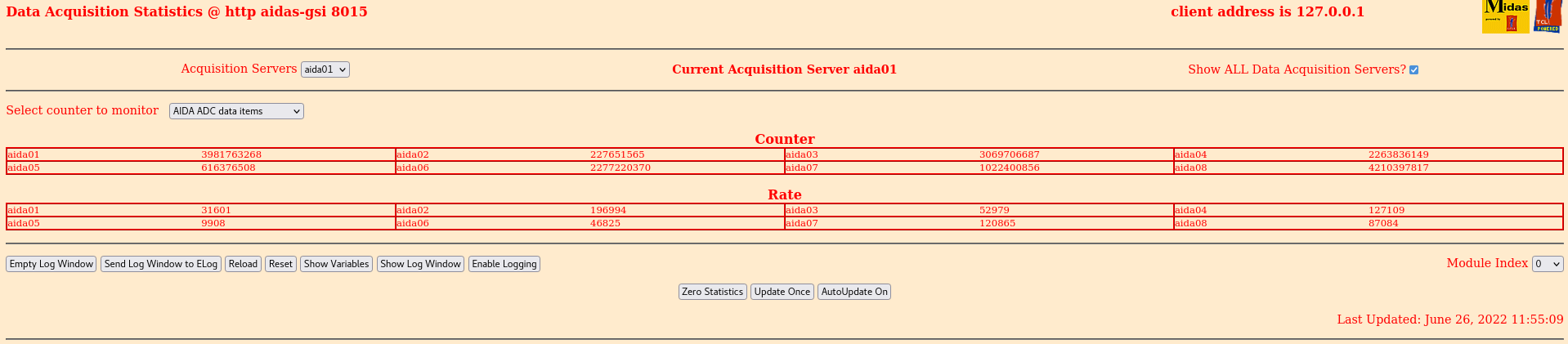

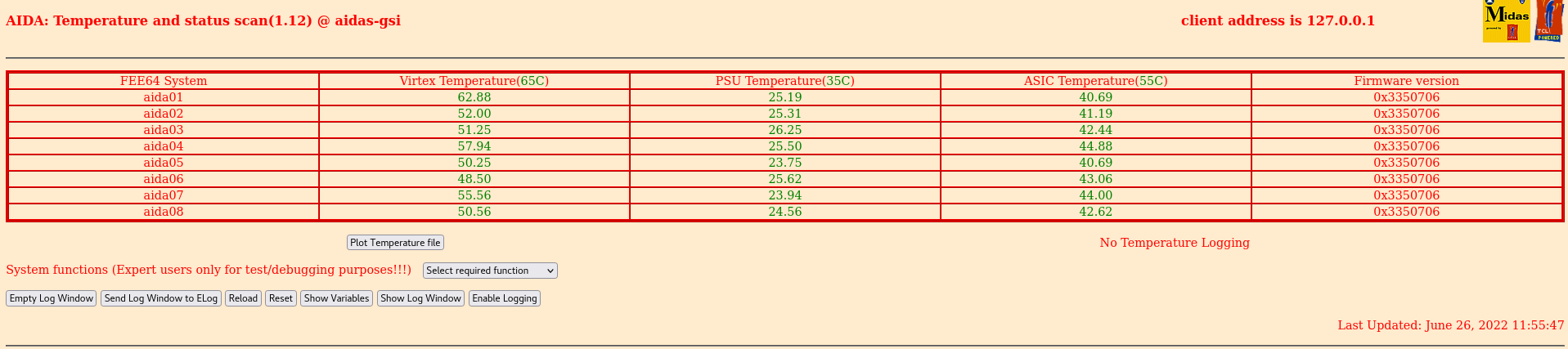

      Temps ok - attachment 6
      Bias and leakage currents ok - attachment 7
      System wide checks:
      Clocks all ok

         		 Base 		Current 	Difference
      aida07 fault 	 0xc53d : 	 0xc59c : 	 95
      aida08 fault 	 0xf1be : 	 0xf27a : 	 188
      White Rabbit error counter test result: Passed 6, Failed 2

Base 		Current 		Difference
      aida07 fault 	 0x2a : 	 0x3b : 	 17
      FPGA Timestamp error counter test result: Passed 7, Failed 1

Analysis of file R5_458 - attachment 8
      Deadtime in AIDA02 only 11.5% in this file
      TapeServer rate still 5.5 MB/s

14:36 Has been no beam for the last while or so.
      With no beam AIDA02 has 0.25% deadtime so the deadtime is almost entirely due to the spill on time

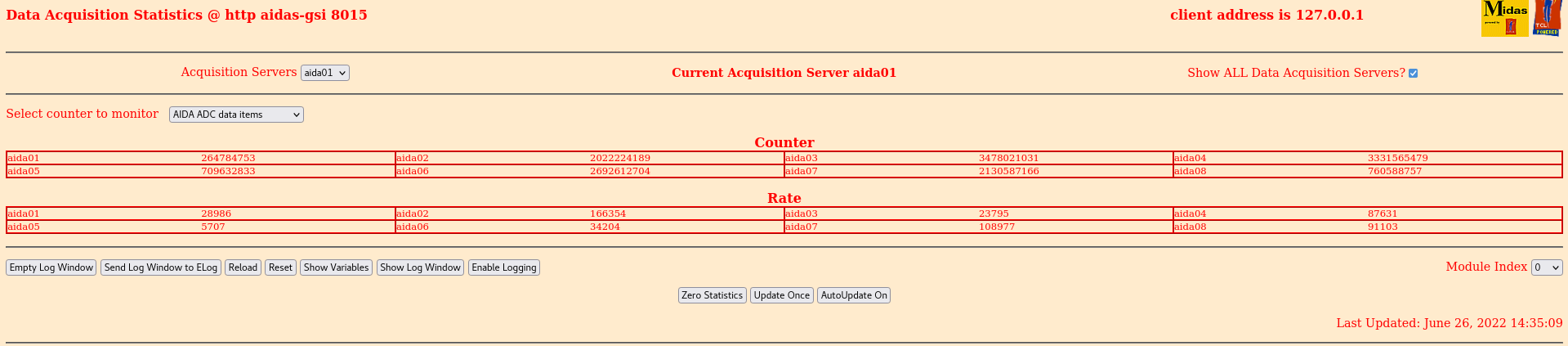

      Stats- attachment 9

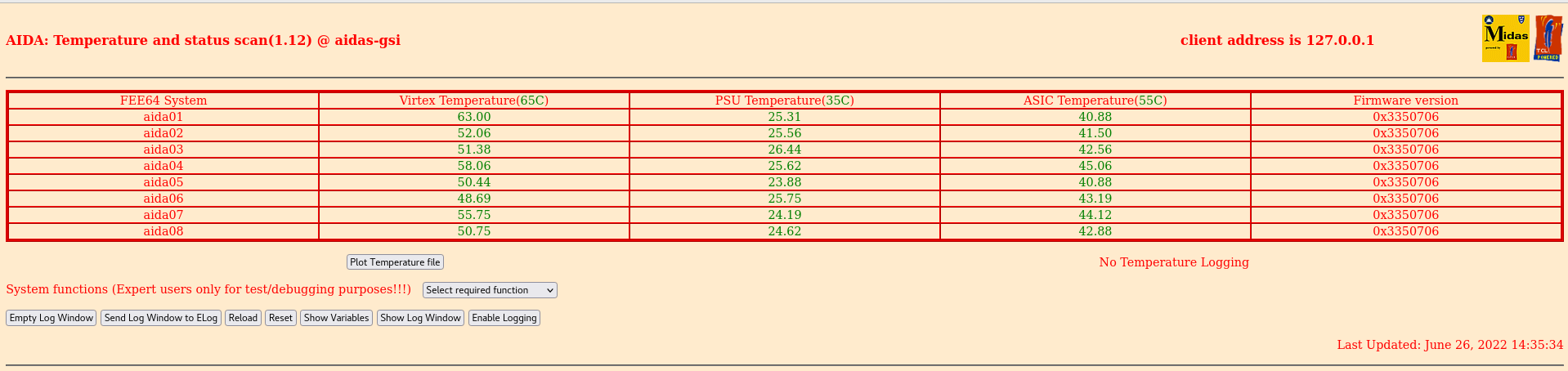

      Temp - attachment 10
      Bias and leakage currents ok - attachment 11
      System wide checks:
      Clock ok

        		 Base 		Current 	Difference
      aida07 fault 	 0xc53d : 	 0xc59d : 	 96
      aida08 fault 	 0xf1be : 	 0xf27c : 	 190
      White Rabbit error counter test result: Passed 6, Failed 2

			 Base 		Current 		Difference
      aida07 fault 	 0x2a : 	 0x3c : 	 18
      FPGA Timestamp error counter test result: Passed 7, Failed 1

13:30 Beam taken to change an ion source

14:57 Beam back

16:21 Statistics ok - attachment 12
      Temperatures ok - attachment 13

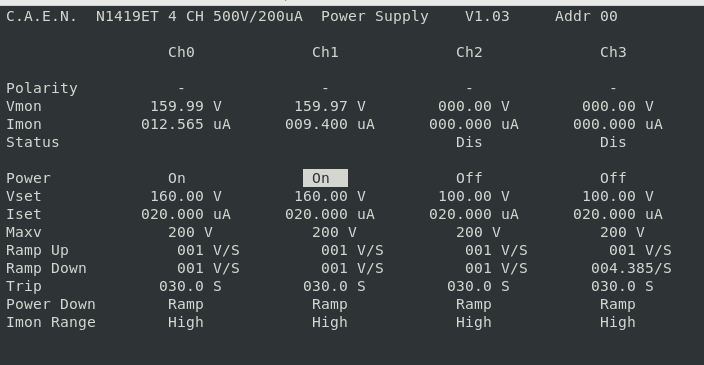

      Bias and leakage currents ok - attachment 14

System wide checks - ASIC clocks ok

	        	 Base 		Current 	Difference
      aida07 fault 	 0xc53d : 	 0xc5a3 : 	 102
      aida08 fault 	 0xf1be : 	 0xf285 : 	 199
      White Rabbit error counter test result: Passed 6, Failed 2

Base 		Current 		Difference
      aida07 fault 	 0x2a : 	 0x3e : 	 20
      FPGA Timestamp error counter test result: Passed 7, Failed 1

Currently on file R5_592
      Analysis of R5_591 - Attachment 15
      Deadtime of AIDA02 sitting at 17%

[NH taking over for OH so he can get home]

18:53 - FRS DAQ problems mean we weren't taking DESPEC data for the past hour or so... now all back
        Statitics ok - attachement 16
        Temps ok - attachement 17
        Bias & leakage ok - attachement 18

System wide checks -
        Clocks OK
        ADC Calibration N/A
	WR Decoder -
        		 Base 		Current 	Difference
        aida07 fault 	 0xc53d : 	 0xc5ac : 	 111
        aida08 fault 	 0xf1be : 	 0xf28c : 	 206
        White Rabbit error counter test result: Passed 6, Failed 2
        FPGA -
         Base 		Current 		Difference
        aida07 fault 	 0x2a : 	 0x3f : 	 21
        PLL OK

Currently on file R5_621
        Analysis of R5_620 - Attachement 19
        aida02 deadtime only 5%, all others negligible

20:20 Stats ok - attachment 20

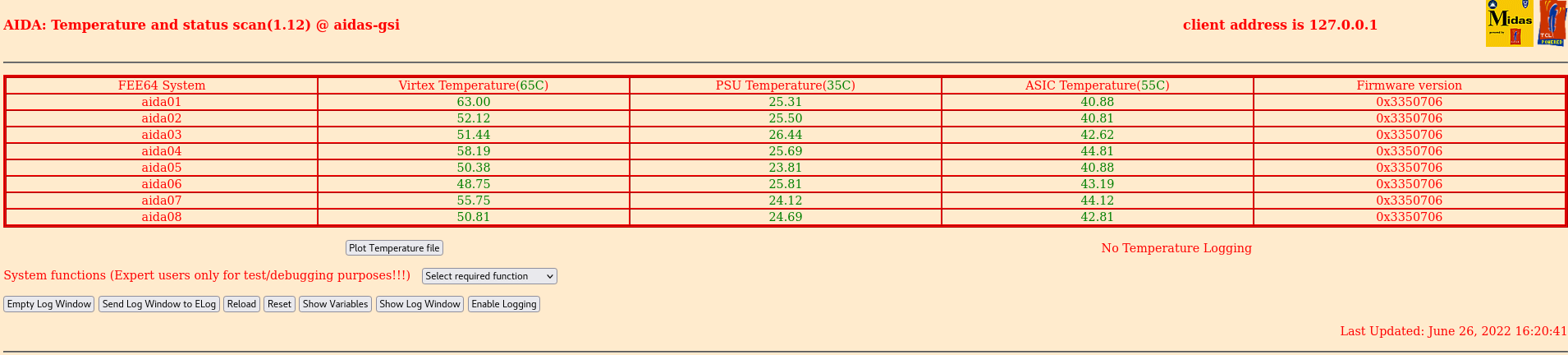

      Temps ok - attachment 21

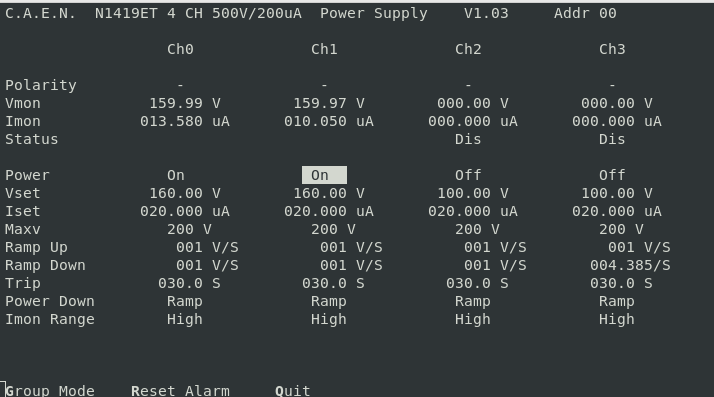

      Bias and leakage currents ok - attachment 22
      System wide checks:
      Clock ok

	        	 Base 		Current 	Difference
      aida07 fault 	 0xc53d : 	 0xc5ad : 	 112
      aida08 fault 	 0xf1be : 	 0xf293 : 	 213
      White Rabbit error counter test result: Passed 6, Failed 2

Base 		Current 		Difference
      aida07 fault 	 0x2a : 	 0x3f : 	 21
      FPGA Timestamp error counter test result: Passed 7, Failed 1

Analysis of R6_637 - attachment 23

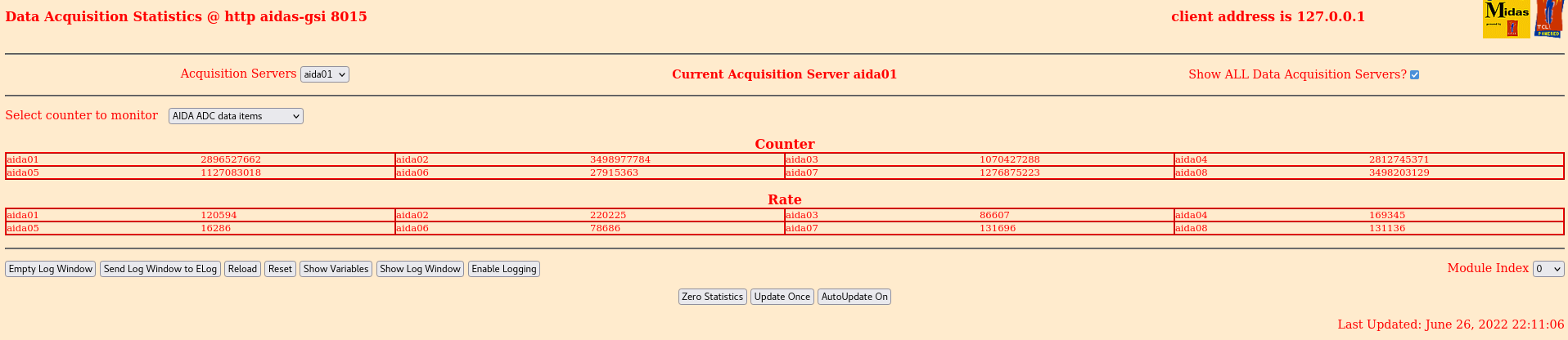

22:13 Statistics ok - attachment 24
      Temperatures ok - attachment 25
      Bias and leakage currents ok - attachment 26
      ASIC clock check ok

Base 		Current 	Difference
      aida07 fault 	 0xc53d : 	 0xc5ba : 	 125
      aida08 fault 	 0xf1be : 	 0xf2a2 : 	 228
      White Rabbit error counter test result: Passed 6, Failed 2

Base 		Current 		Difference
      aida07 fault 	 0x2a : 	 0x40 : 	 22
      FPGA Timestamp error counter test result: Passed 7, Failed 1

Analysis of R5_658 - attachment 27

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

220626_0949_stats.png Original size: 1916x437

Attachment 2:

220626_0950_Temps.png Original size: 1918x421

Attachment 3:

220626_0951_Bias.png Original size: 725x460

Attachment 4:

R5_528_analysis.txt
