0:00 Experiment continues to run smoothly. AIDA DAQ has been rather stable. Leakage current has gone up for the past two days in both DSSDs (combination of high-Z and high-intensity beam and external high temperature).

Stats &amp; Temperatures (VIRTEX,PSU, ASICs)&nbsp; all ok.

At 0:30

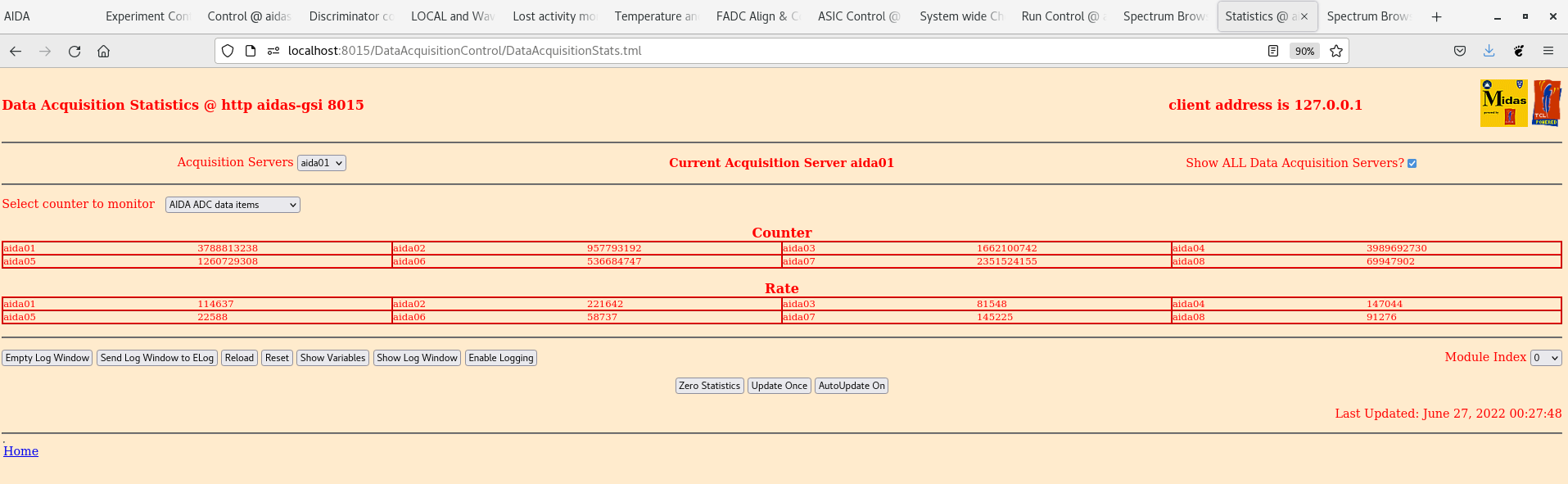

Stats ok - Attachment 1

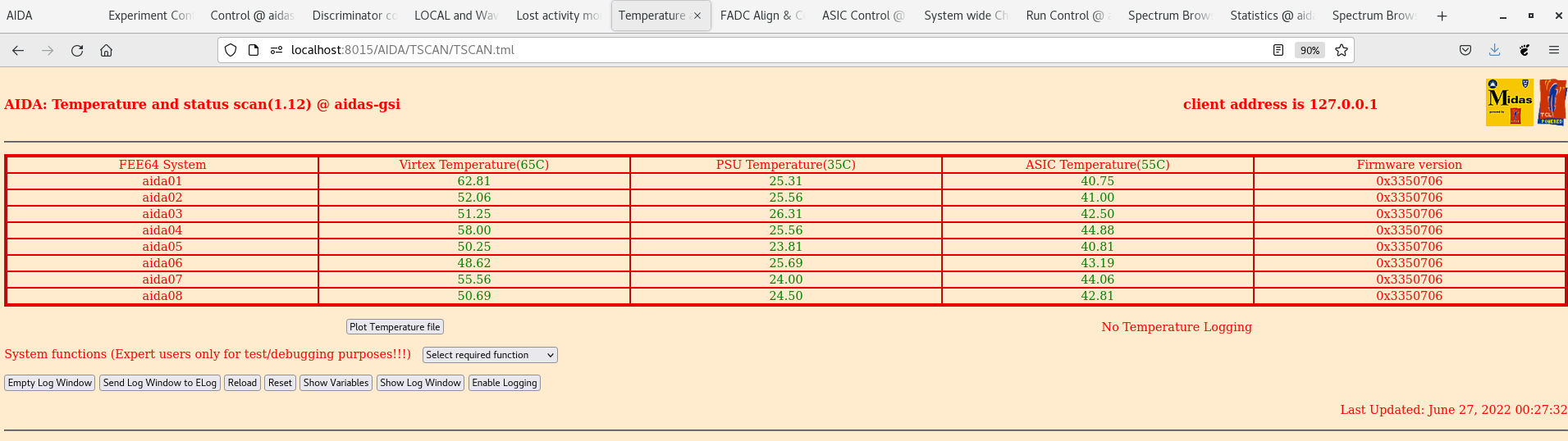

Temp ok - Attachement 2

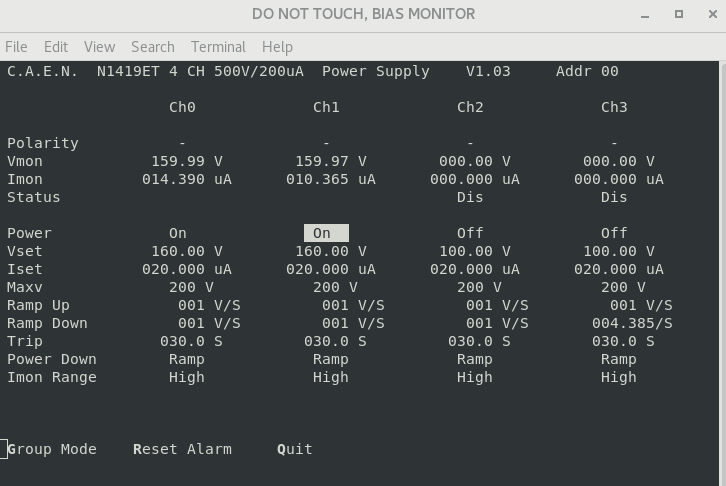

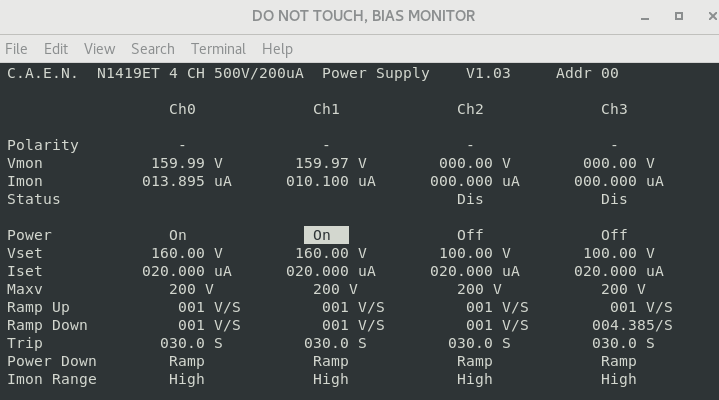

HV-LC -Attachment 3

At 2:20

Stats ok - Attachment 4

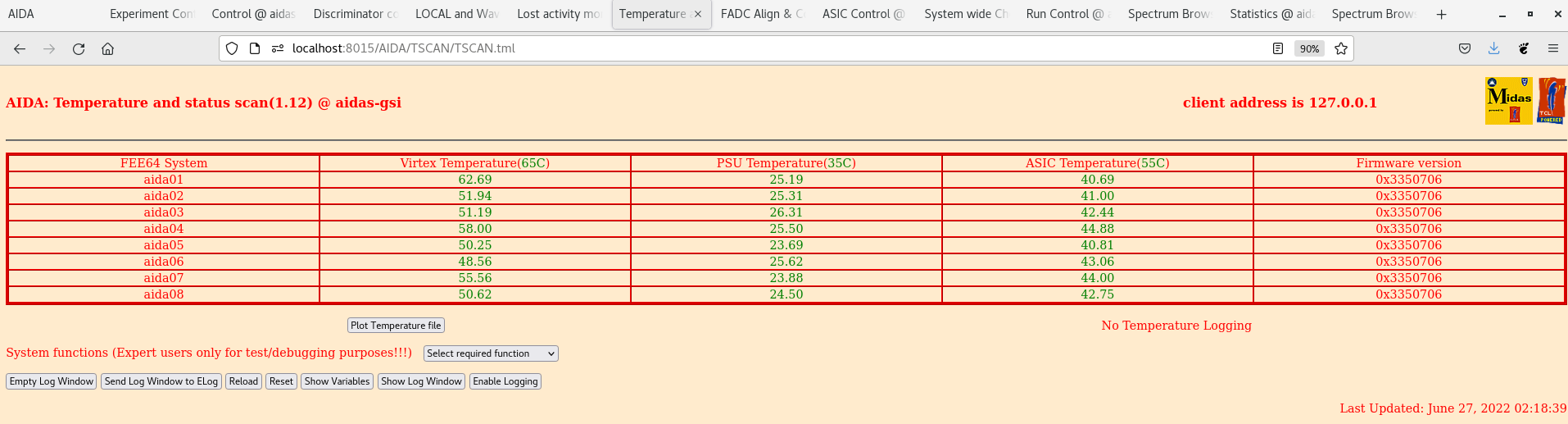

Temp ok - Attachement 5

HV-LC -Attachment 6

Wide Checks:

Clock status test result: Passed 8, Failed 0&nbsp;&nbsp;

&nbsp;&nbsp;&nbsp; Understand status as follows
&nbsp;&nbsp;&nbsp; Status bit 3 : firmware PLL that creates clocks from external clock not locked&nbsp;
&nbsp;&nbsp;&nbsp; Status bit 2 : always logic &#39;1&#39;
&nbsp;&nbsp;&nbsp; Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
&nbsp;&nbsp;&nbsp; Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
&nbsp;&nbsp;&nbsp; If all these bits are not set then the operation of the firmware is unreliable

ADC Calibration (same as before):

&nbsp; &nbsp; FEE64 module aida01 failed
&nbsp;&nbsp;&nbsp; FEE64 module aida02 failed
&nbsp;&nbsp;&nbsp; FEE64 module aida03 failed
&nbsp;&nbsp;&nbsp; FEE64 module aida04 failed
&nbsp;&nbsp;&nbsp; FEE64 module aida05 failed
&nbsp;&nbsp;&nbsp; FEE64 module aida06 failed&nbsp;&nbsp;
&nbsp;&nbsp;&nbsp; FEE64 module aida07 failed
&nbsp;&nbsp;&nbsp; FEE64 module aida08 failed
&nbsp;&nbsp;&nbsp; Calibration test result: Passed 0, Failed 8

&nbsp;&nbsp;&nbsp; If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

WR decoder status:

&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; Base &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Current &nbsp;&nbsp; &nbsp;Difference
aida07 fault &nbsp;&nbsp; &nbsp; 0xc53d : &nbsp;&nbsp; &nbsp; 0xc5c9 : &nbsp;&nbsp; &nbsp; 140 &nbsp;
aida08 fault &nbsp;&nbsp; &nbsp; 0xf1be : &nbsp;&nbsp; &nbsp; 0xf2b2 : &nbsp;&nbsp; &nbsp; 244 &nbsp;
White Rabbit error counter test result: Passed 6, Failed 2

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

FPGA timestamp check:
&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; Base &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Current &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Difference
aida07 fault &nbsp;&nbsp; &nbsp; 0x2a : &nbsp;&nbsp; &nbsp; 0x41 : &nbsp;&nbsp; &nbsp; 23 &nbsp;
FPGA Timestamp error counter test result: Passed 7, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

At 4:15:

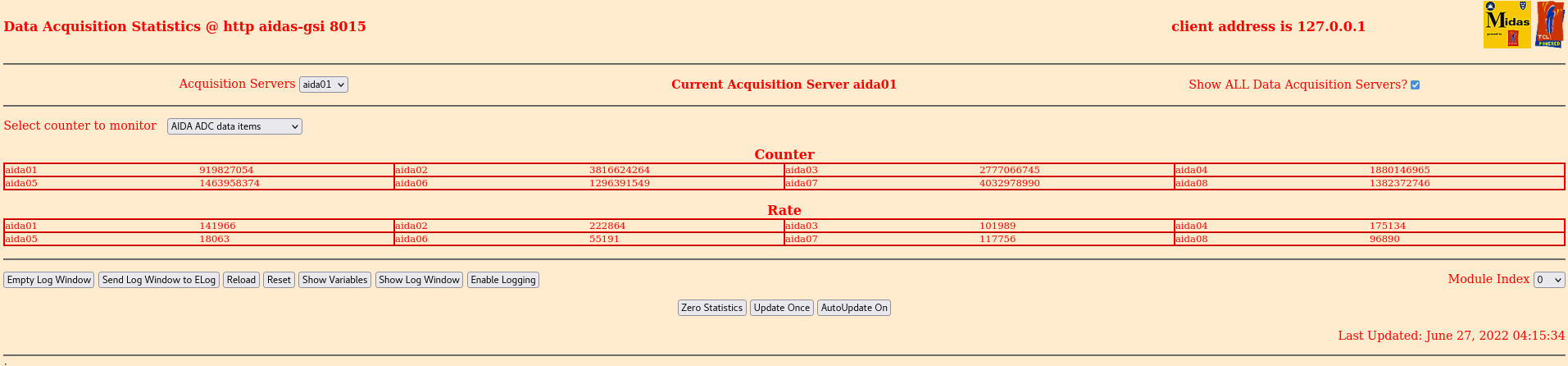

Stats ok - Attachment 7

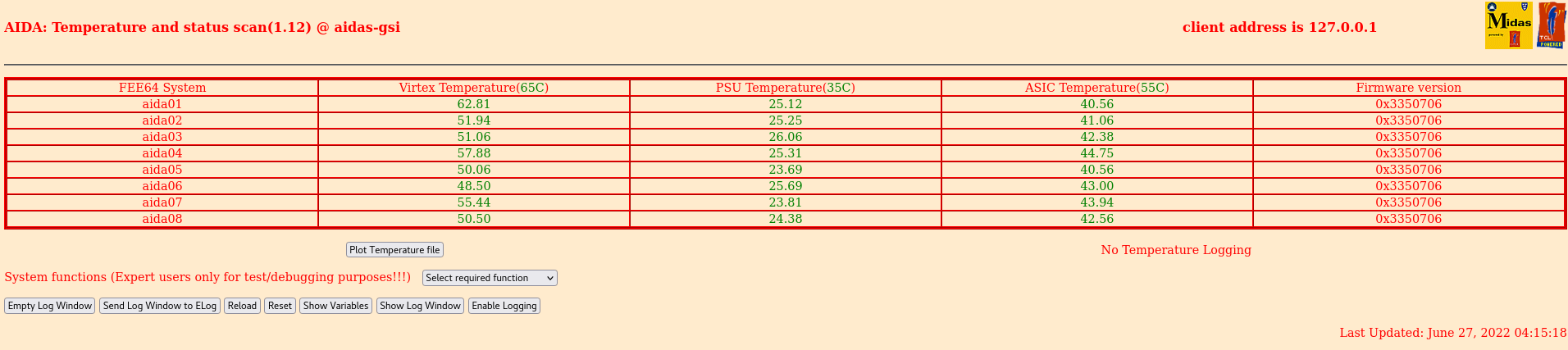

Temp ok - Attachement 8

HV-LC -Attachment 9

Wide Checks: No change

At 7:15: (no beam since ~6am -&gt; background run)

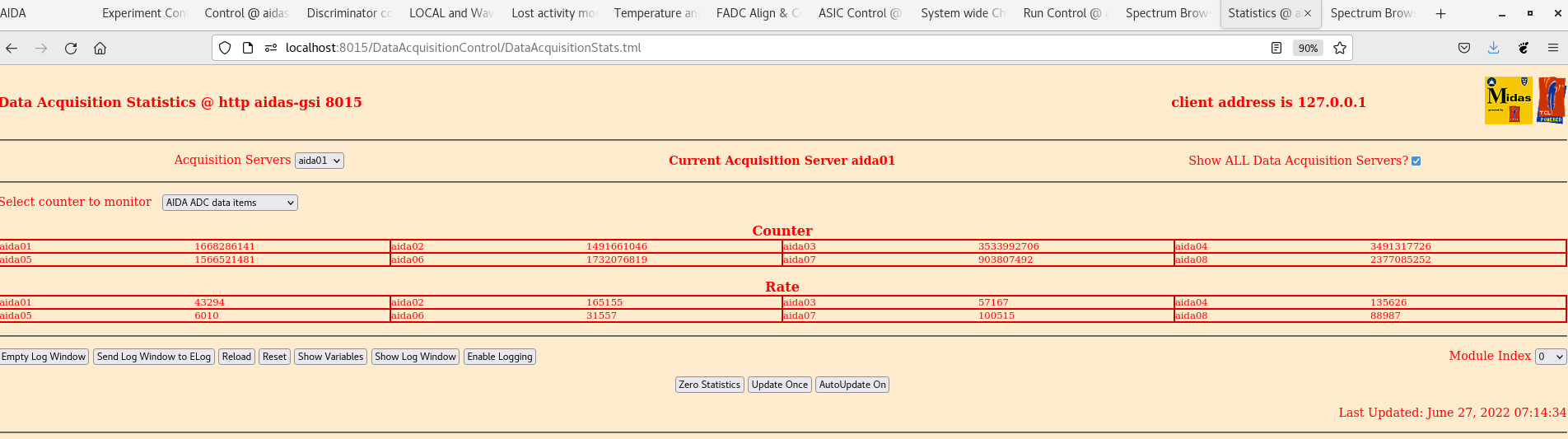

Stats ok - Attachment 10

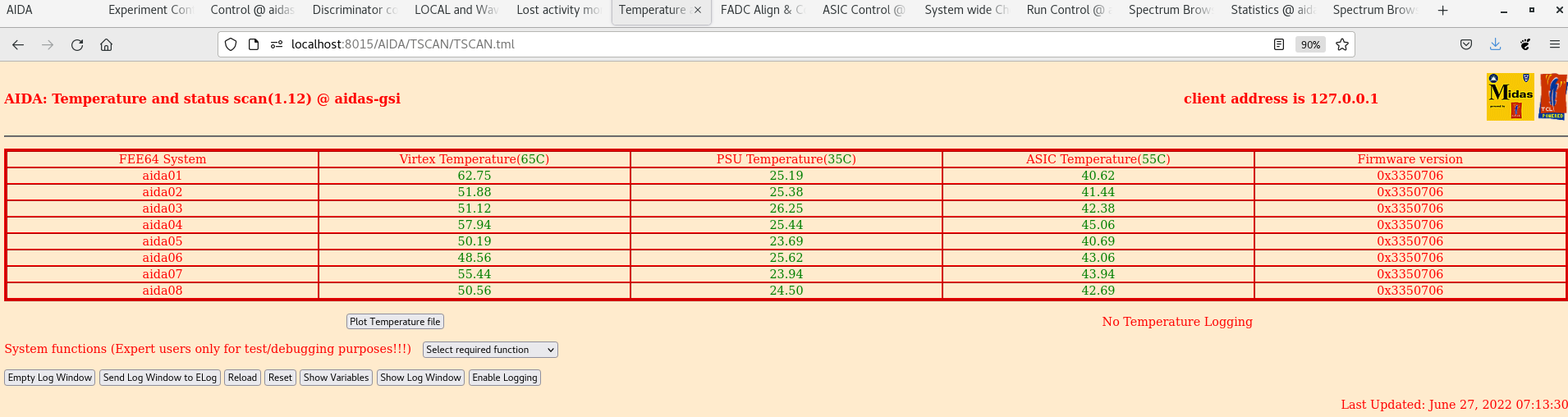

Temp ok - Attachement 11

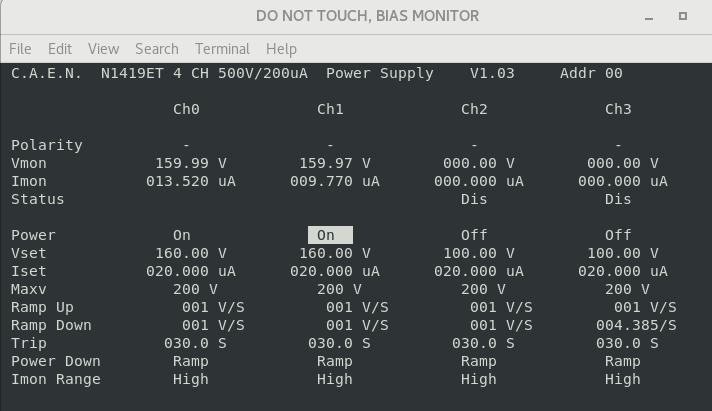

HV-LC -Attachment 12

Wide Checks: No change
