| DESPEC |
 |
|
|
|
Message ID: 504
Entry time: Mon Jun 27 06:45:22 2022
|
| Author: |
OH |
| Subject: |
Monday 27th June 08:00-16:00 |
|
|
07:45 Spoke to David and the beam has been gone since about 05:30
Reason for the loss of beam is a vacuum issue before the FRS
They are waiting for the experts
08:31 Statistics ok - attachment 1

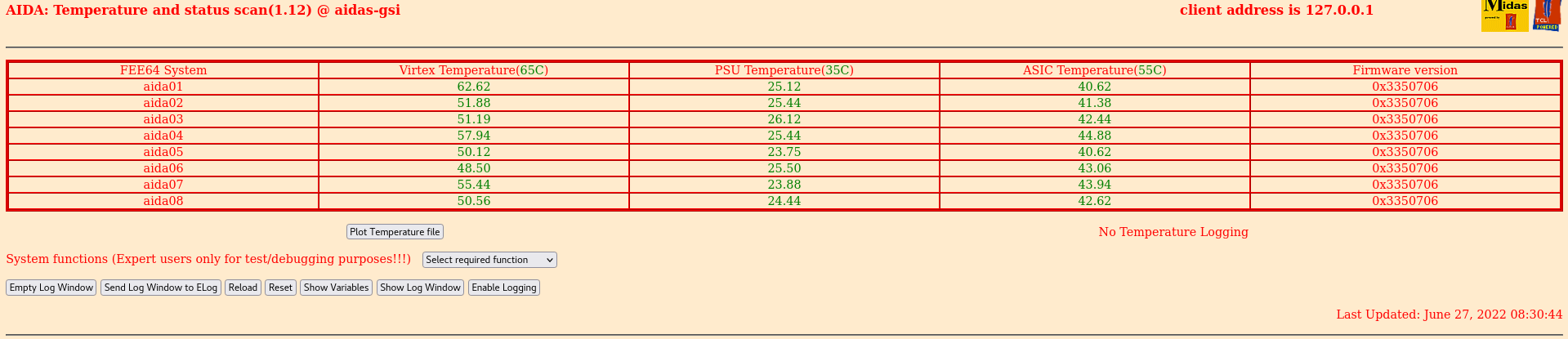

Temperature ok - attachment 2
Bias and leakage currrents ok - attachment 3
ASIC clock check ok
Base Current Difference
aida07 fault 0xc53d : 0xc5cf : 146
aida08 fault 0xf1be : 0xf2ba : 252
White Rabbit error counter test result: Passed 6, Failed 2
Base Current Difference
aida07 fault 0x2a : 0x41 : 23
Currently on file R5_771
Analysis of file R5_770 (No beam) - attachment 4
Around 0.25% deadtime on AIDA02 rest even less
09:02 Current free HDD space 965 GB
Current tape server rate 4979 kB/s
Free space taking data rate at 5700 kB/s (Closer to beam value) 47 hours
11:41 Statistics ok - attachment 5
Temperatures ok - attachment 6
Bias and leakage currents ok - attachment 7
ASIC clock check ok
Base Current Difference
aida07 fault 0xc53d : 0xc5cf : 146
aida08 fault 0xf1be : 0xf2ba : 252
White Rabbit error counter test result: Passed 6, Failed 2
Base Current Difference
aida07 fault 0x2a : 0x41 : 23
FPGA Timestamp error counter test result: Passed 7, Failed 1
Note that there has been no change in the White Rabbit errors or FPGA faults since very early morning.
Could the rate of accrual in errors be proportional to the data rate. Faster data rate, errors occur more frequently? |
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 261823568 ( 639881.5 Hz)
Other data format: 96432 ( 235.7 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 451 ( 1.1 Hz)
RESUME: 451 ( 1.1 Hz)
SYNC100: 33524 ( 81.9 Hz)
WR48-63: 33524 ( 81.9 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 28482 ( 69.6 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 0 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 409.175 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.033 0.000
1 1.307 0.000
2 0.000 0.000
3 0.206 0.000
4 0.000 157.882
5 0.000 0.000
6 0.000 0.000
7 0.139 0.000
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 20319054 33950 0 0 1 1 2733 2733 0 28482 0 0
1 68104715 18442 0 0 318 318 8903 8903 0 0 0 0
2 24150534 6320 0 0 0 0 3160 3160 0 0 0 0
3 55928626 14410 0 0 131 131 7074 7074 0 0 0 0
4 2503858 618 0 0 0 0 309 309 0 0 0 0
5 12980974 3340 0 0 0 0 1670 1670 0 0 0 0
6 41271038 10344 0 0 0 0 5172 5172 0 0 0 0
7 36564769 9008 0 0 1 1 4503 4503 0 0 0 0
8 0 0 0 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 41.158s ( 777.488 blocks/s, 48.593 Mb/s)
|
