Entry time:

Mon Jun 27 23:11:47 2022

Author*:

Subject*:

00:07 Zero stats & all histograms

ASIC settings 2021Apr29-13-16-00
 slow comparator 0x64 -> 0xa

all waveform AD9252 ADCs disabled
all fast discs disabled

BNC PB-5 settings (to p+n FEE64s only)
 amplitude 1.0V
 attenuator x1
 decay time 1ms
 polarity +
 frequency 22Hz

analysis of file S505/R5_896 - attachment 1
 zero timewarps
 deadtime all FEE64s << 1%

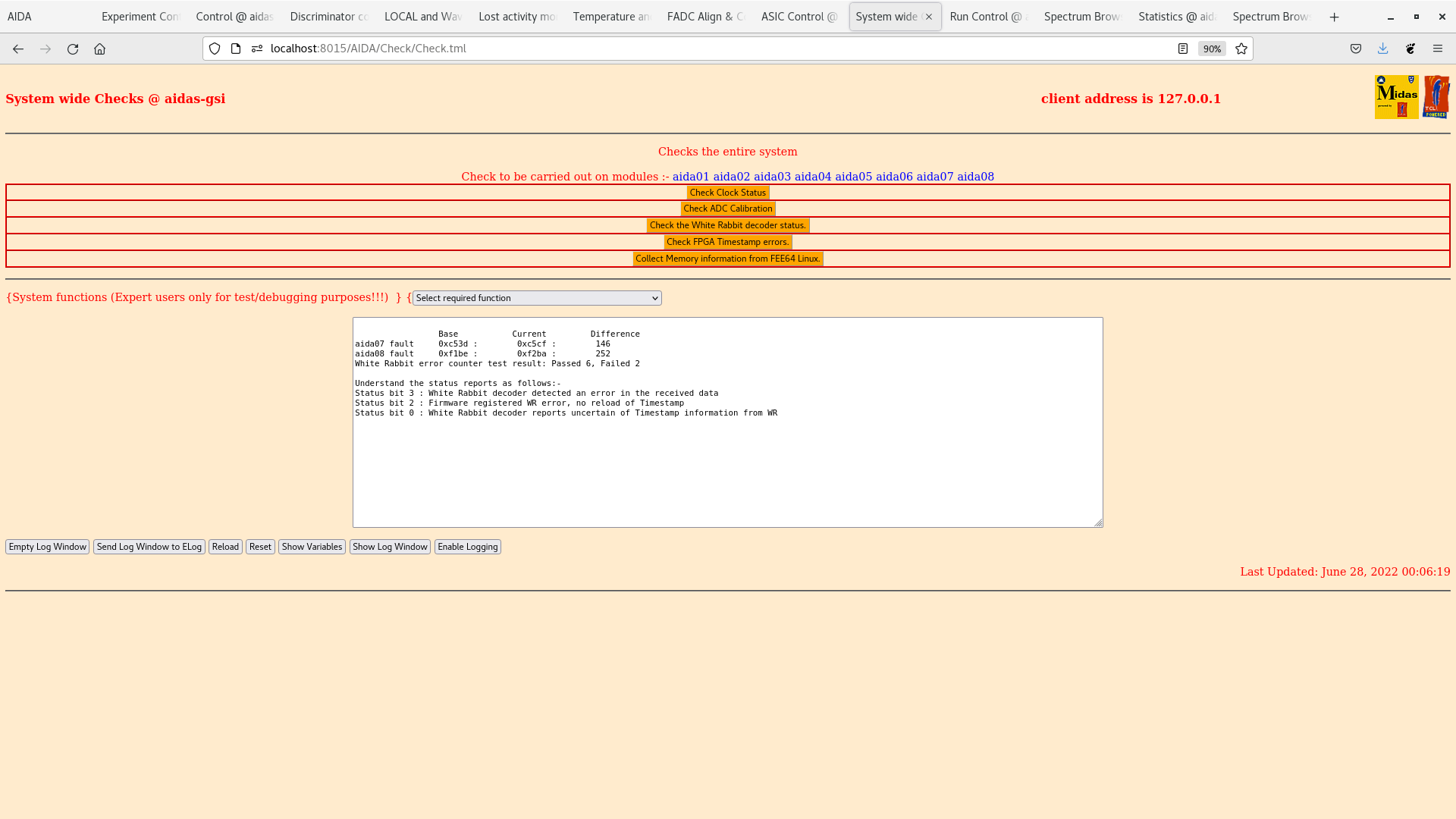

All system wide checks OK *except* WR & FPGA errors - attachments 2 & 3

adc data item stats - attachment 4

FEE64 temps OK - attachment 5

DSSSD bias & leakage currents OK - attachment 6 & 7

00:15 Check ASIC control all FEE64s, all ASICs

02:03

analysis of file S505/R5_914 - attachment 8
 zero timewarps
 deadtime all FEE64s << 1%

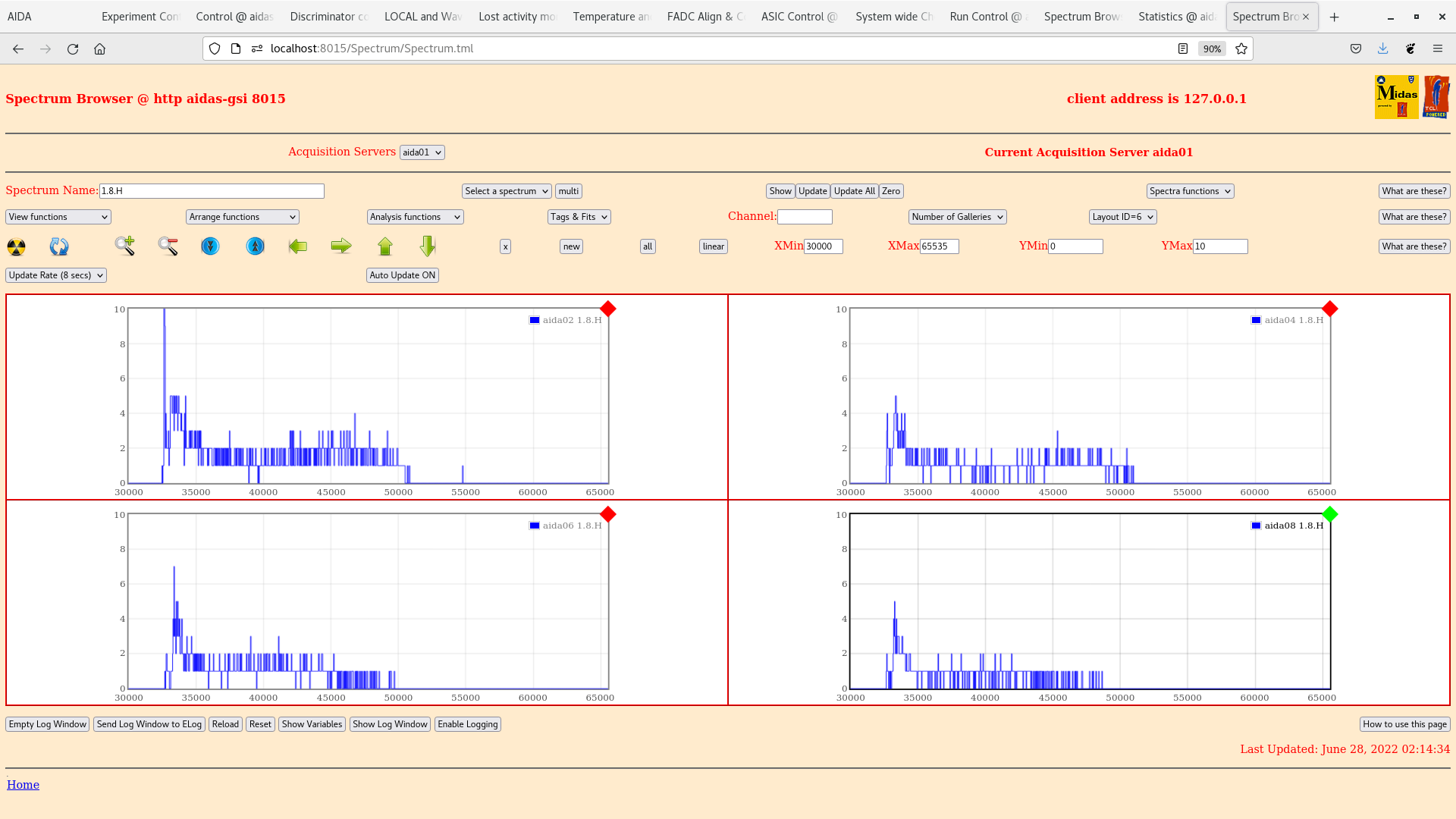

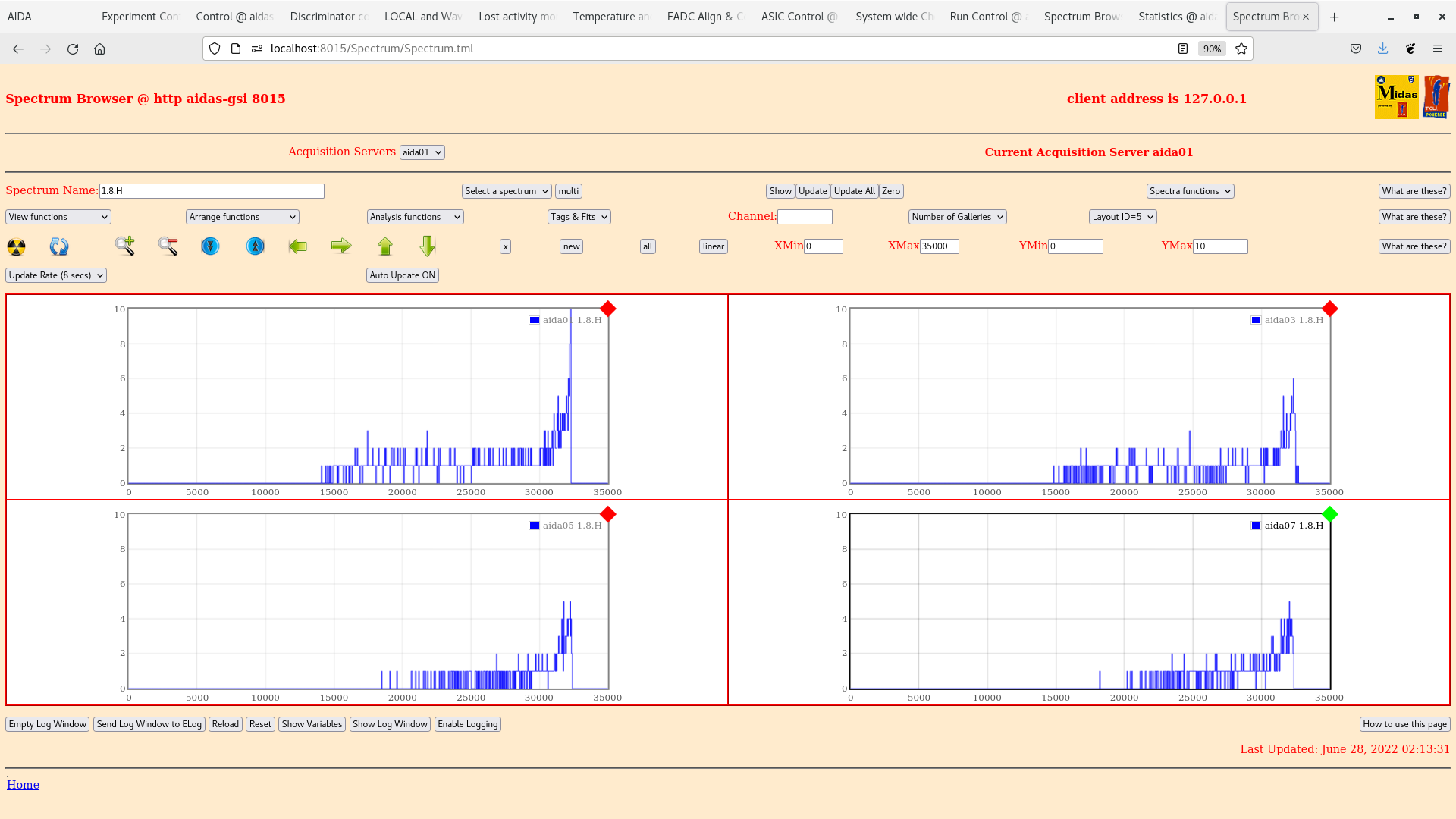

per FEE64 1.8.H spectra - attachments 9 & 10

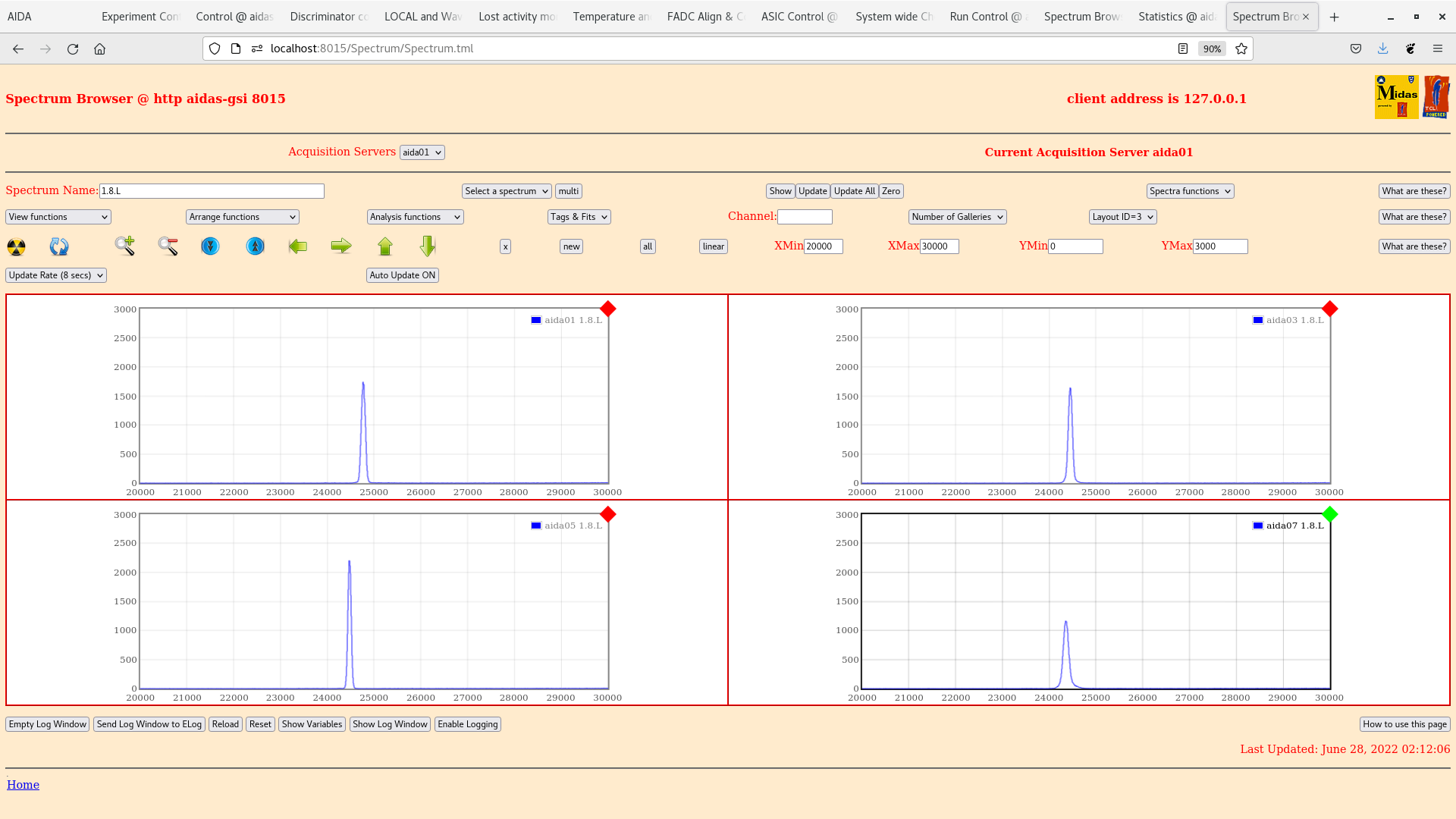

per p+n FEE64 1.8.L spectra - attachment 11
 aida01 pulser peak width 94 ch FWHM

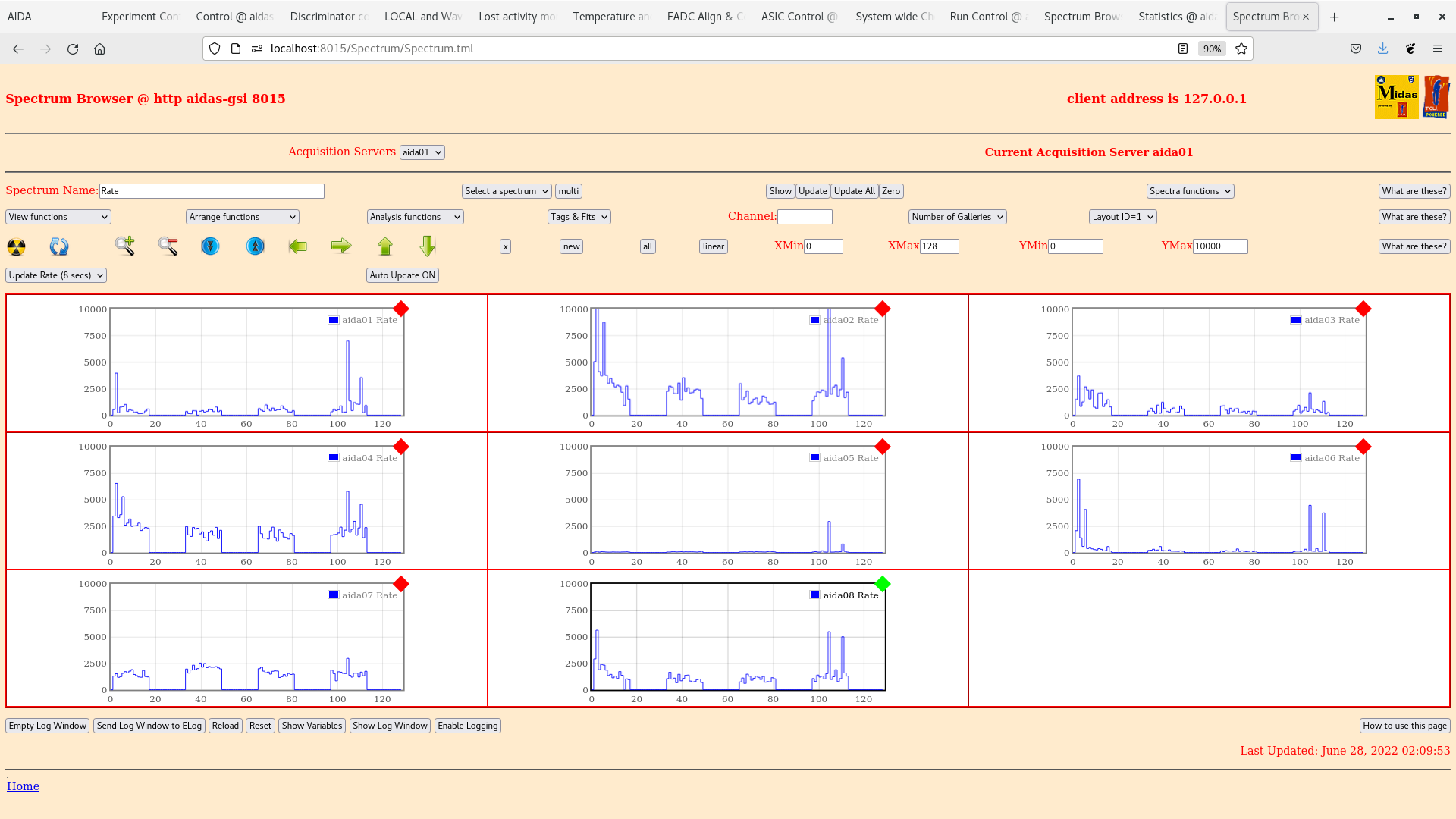

per FEE64 stat & rate spectra - attachments 12 & 13

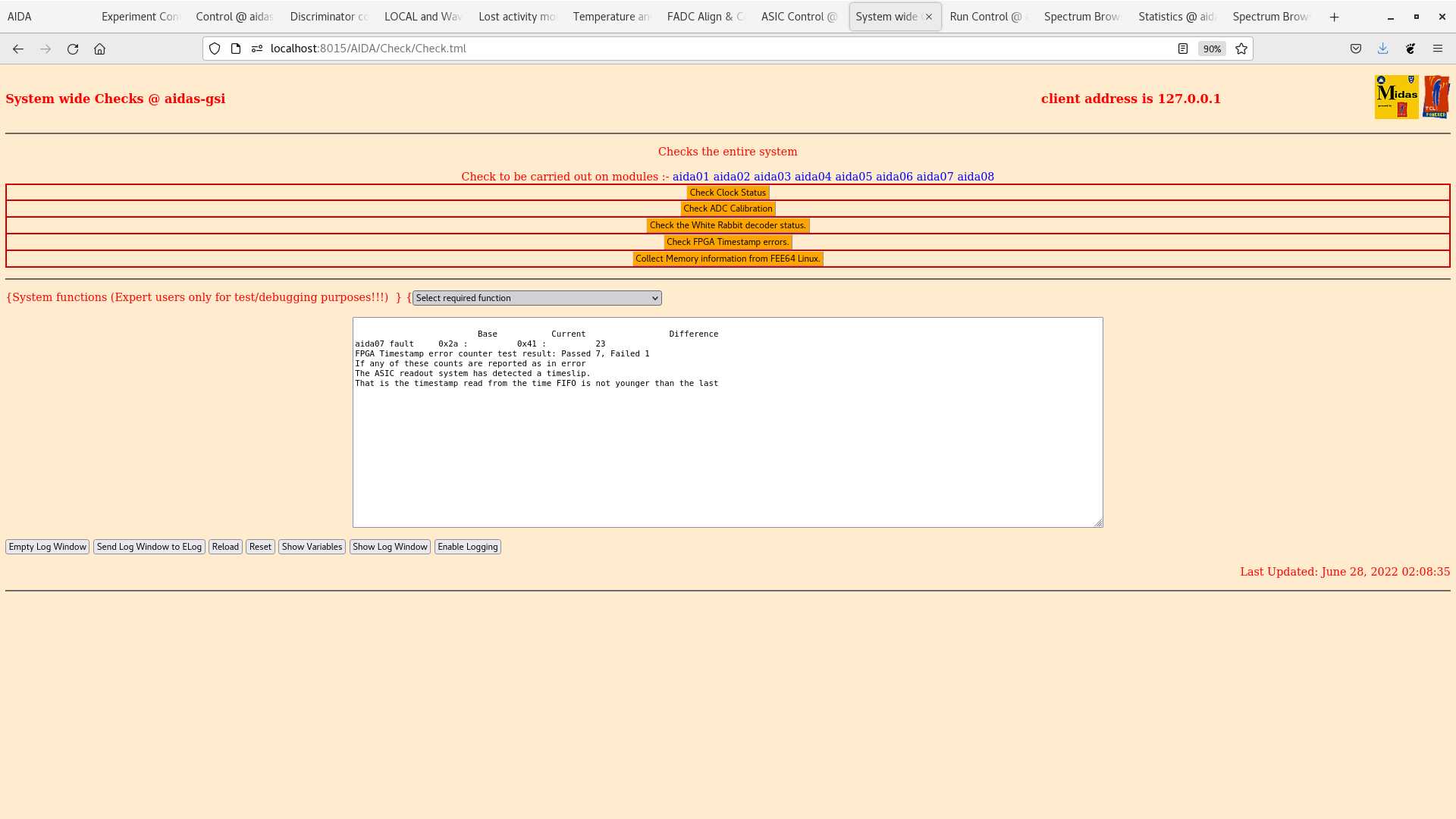

All system wide checks OK *except* WR & FPGA errors - attachments 14 & 15

adc data item stats - attachment 16

FEE64 temps OK - attachment 17

DSSSD bias & leakage currents OK - attachment 18

03:31 S505 PI Anabel declares experiment end - following periods of beam loss and FRS DAQ issues today

03:41

analysis of file S505/R5_926 - attachment 19
 zero timewarps
 deadtime all FEE64s << 1%

All system wide checks OK *except* WR & FPGA errors - attachments 20 & 21

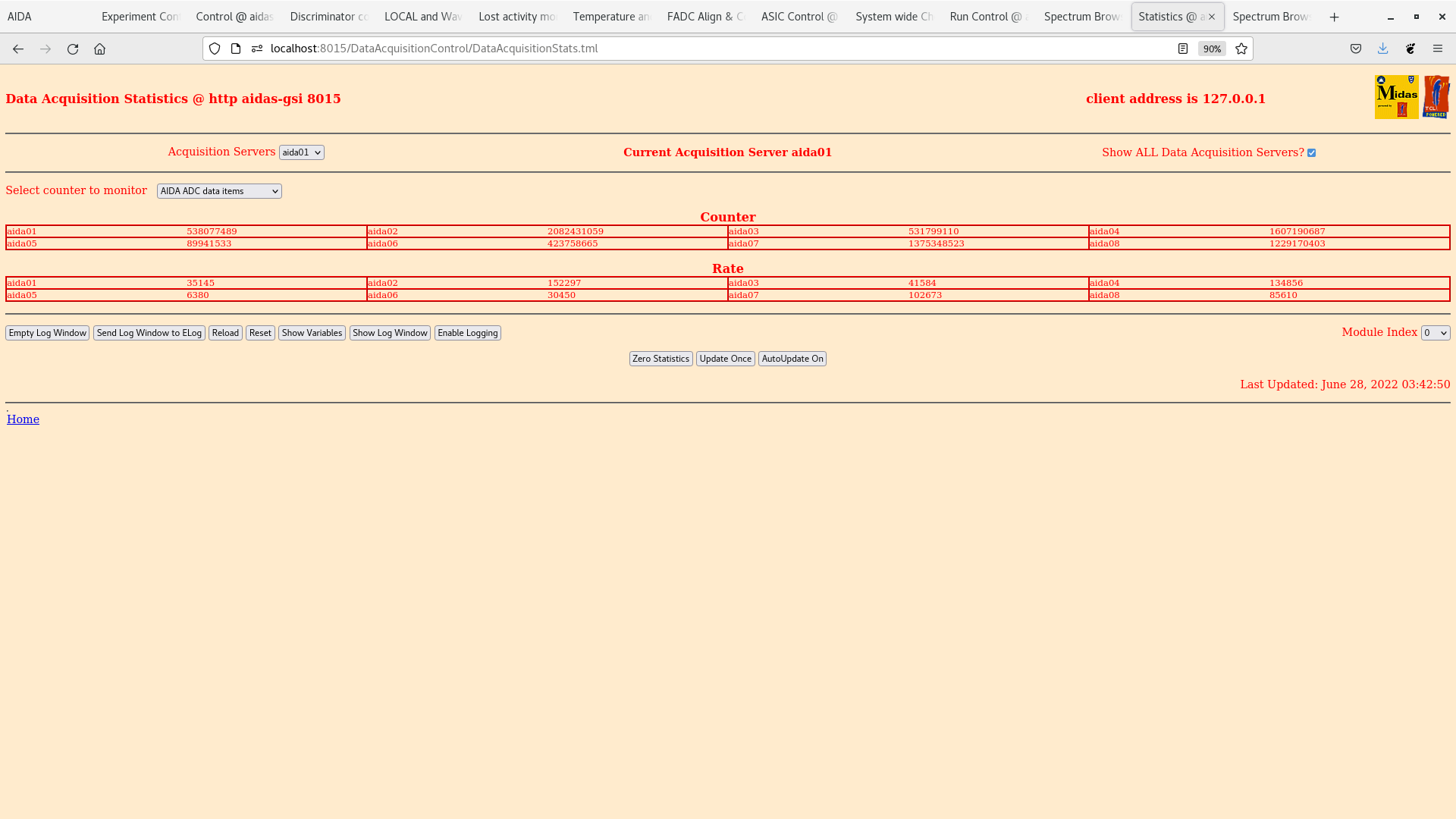

adc data item stats - attachment 22

FEE64 temps OK - attachment 23

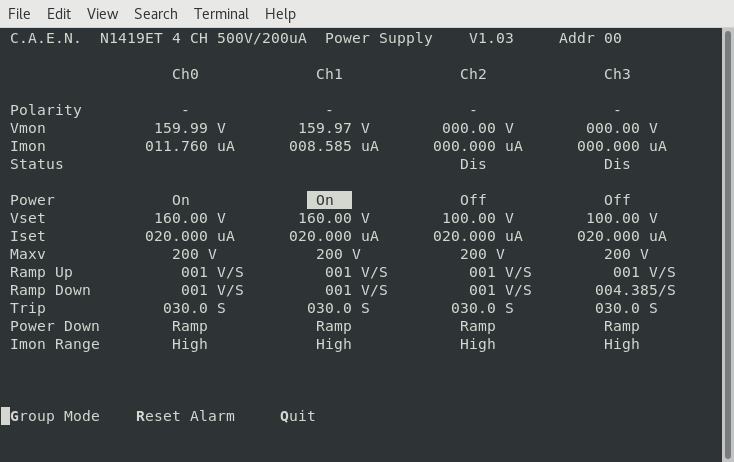

DSSSD bias & leakage currents OK - attachment 24

07:00

analysis of file S505/R5_954 - attachment 25
 zero timewarps
 deadtime all FEE64s << 1%

All system wide checks OK *except* WR & FPGA errors - attachments 26 & 27

adc data item stats - attachment 28

FEE64 temps OK - attachment 29

DSSSD bias & leakage currents OK - attachment 30

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

R5_896

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  261821326 (  595374.9 Hz)
        Other data format:      98676 (     224.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        406 (       0.9 Hz)
                               RESUME:        406 (       0.9 Hz)
                              SYNC100:      33638 (      76.5 Hz)
                              WR48-63:      33638 (      76.5 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:      30588 (      69.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          0 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      439.759 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                1.599                0.000
  2                0.000                0.000
  3                0.043                0.000
  4                0.000              153.964
  5                0.000                0.000
  6                0.053                0.000
  7                0.015                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   19090298      35782          0          0          0          0       2597       2597          0      30588          0          0
  1   70343282      19202          0          0        400        400       9201       9201          0          0          0          0
  2   10361360       2782          0          0          0          0       1391       1391          0          0          0          0
  3   39578798      10102          0          0          3          3       5048       5048          0          0          0          0
  4    3065688        742          0          0          0          0        371        371          0          0          0          0
  5   15482560       3946          0          0          0          0       1973       1973          0          0          0          0
  6   51969876      12870          0          0          2          2       6433       6433          0          0          0          0
  7   51929464      13250          0          0          1          1       6624       6624          0          0          0          0
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   35.371s (  904.697 blocks/s,  56.544 Mb/s)

Attachment 2:

Screenshot_from_2022-06-28_00-06-58.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2022-06-28_00-06-35.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2022-06-28_00-06-00.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2022-06-28_00-05-30.png Original size: 1920x1080

Attachment 6:

Screenshot_from_2022-06-28_00-04-42.png Original size: 1717x1010

Attachment 7:

Screenshot_from_2022-06-28_00-03-56.png Original size: 734x462

Attachment 8:

R5_914

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  261460369 (  646962.6 Hz)
        Other data format:     459631 (    1137.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        616 (       1.5 Hz)
                               RESUME:        616 (       1.5 Hz)
                              SYNC100:      33505 (      82.9 Hz)
                              WR48-63:      33505 (      82.9 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:     391389 (     968.5 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     131720 (     325.9 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      404.135 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.615                0.000
  1                2.119                0.000
  2                0.420                0.000
  3                0.323                0.000
  4                0.124              111.840
  5                0.000                0.000
  6                0.696                0.000
  7                0.001                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   19284409      33077          0          0          6          6       2512       2512          0      28041          0      31815
  1   69379431      18886          0          0        391        391       9052       9052          0          0          0      26209
  2   20984122      96945          0          0          6          6       2775       2775          0      91383          0      19775
  3   56761004     105837          0          0        202        202       7127       7127          0      91179          0       9889
  4    3261224        838          0          0          2          2        417        417          0          0          0       9818
  5   13707273       3434          0          0          0          0       1717       1717          0          0          0      11918
  6   42321326     100064          0          0          8          8       5351       5351          0      89346          0      17237
  7   35761580     100550          0          0          1          1       4554       4554          0      91440          0       5059
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   35.648s (  897.667 blocks/s,  56.104 Mb/s)

Attachment 9:

Screenshot_from_2022-06-28_02-14-50.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2022-06-28_02-13-46.png Original size: 1920x1080

Attachment 11:

Screenshot_from_2022-06-28_02-12-22.png Original size: 1920x1080

Attachment 12:

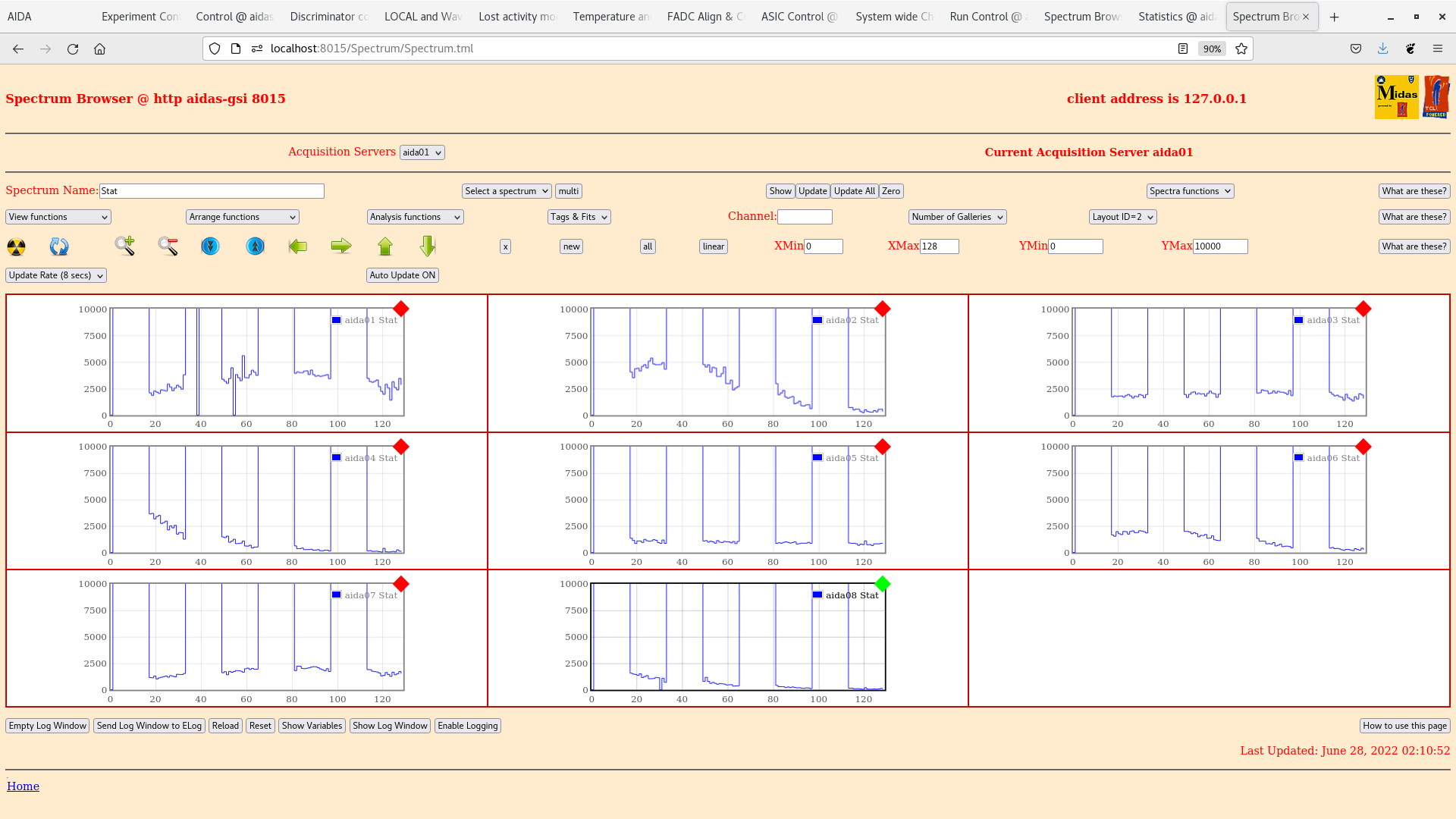

Screenshot_from_2022-06-28_02-11-10.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2022-06-28_02-10-07.png Original size: 1920x1080

Attachment 14:

Screenshot_from_2022-06-28_02-08-49.png Original size: 1920x1080

Attachment 15:

Screenshot_from_2022-06-28_02-05-26.png Original size: 1920x1080

Attachment 16:

Screenshot_from_2022-06-28_02-04-36.png Original size: 1920x1080

Attachment 17:

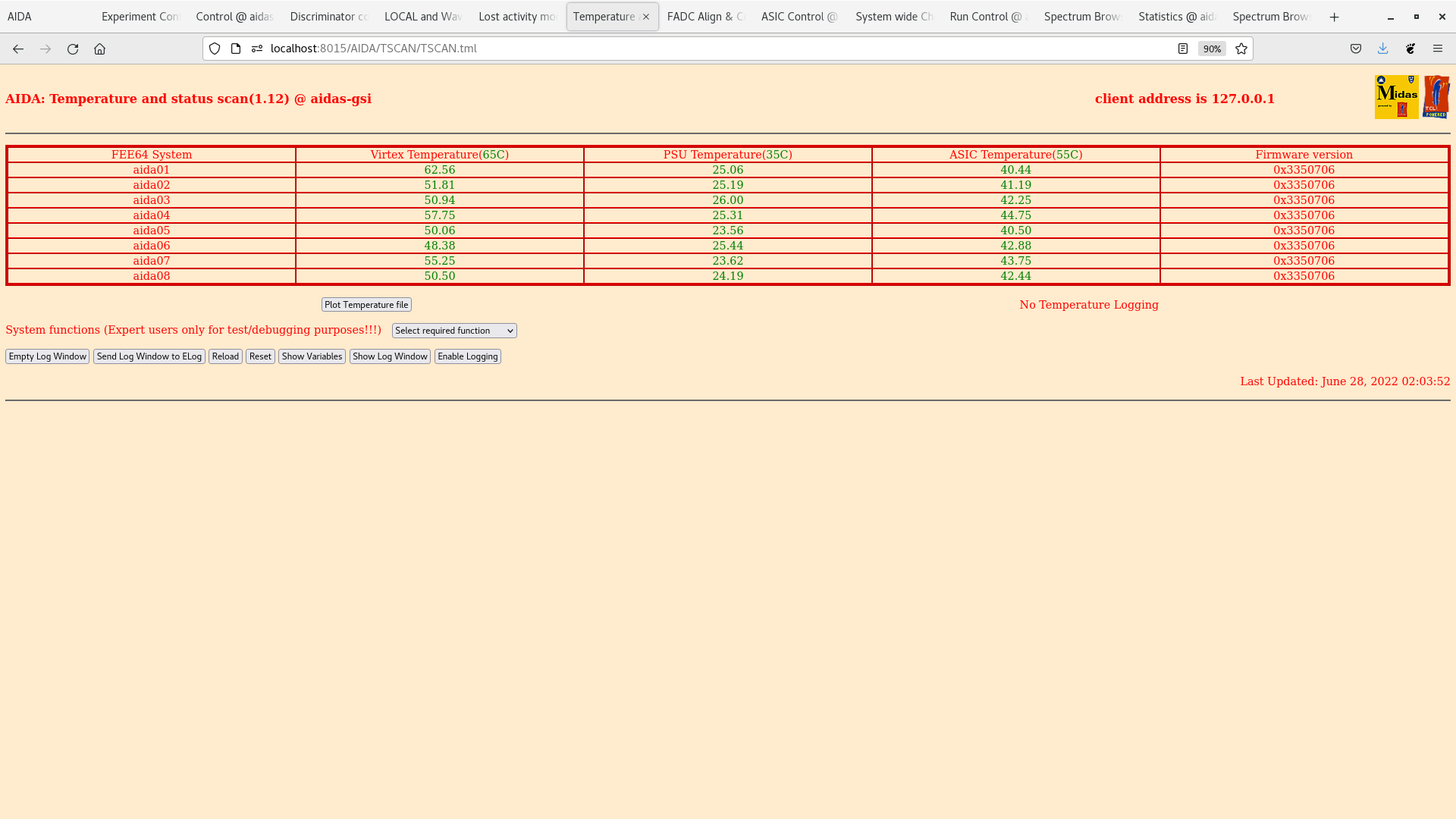

Screenshot_from_2022-06-28_02-04-11.png Original size: 1920x1080

Attachment 18:

Screenshot_from_2022-06-28_02-03-39.png Original size: 734x462

Attachment 19:

R5_926

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  261820610 (  589706.0 Hz)
        Other data format:      99390 (     223.9 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        624 (       1.4 Hz)
                               RESUME:        624 (       1.4 Hz)
                              SYNC100:      33654 (      75.8 Hz)
                              WR48-63:      33654 (      75.8 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:      30834 (      69.4 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          0 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      443.985 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                1.081                0.000
  2                0.000                0.000
  3                0.281                0.000
  4                0.000              152.429
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   15622398      34978          0          0          0          0       2072       2072          0      30834          0          0
  1   68236330      18574          0          0        381        381       8906       8906          0          0          0          0
  2   18744892       4984          0          0          0          0       2492       2492          0          0          0          0
  3   59875268      15514          0          0        243        243       7514       7514          0          0          0          0
  4    2759883        664          0          0          0          0        332        332          0          0          0          0
  5   13541412       3478          0          0          0          0       1739       1739          0          0          0          0
  6   45470554      11726          0          0          0          0       5863       5863          0          0          0          0
  7   37569873       9472          0          0          0          0       4736       4736          0          0          0          0
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   35.045s (  913.114 blocks/s,  57.070 Mb/s)

Attachment 20:

Screenshot_from_2022-06-28_03-44-20.png Original size: 1920x1080

Attachment 21:

Screenshot_from_2022-06-28_03-44-00.png Original size: 1920x1080

Attachment 22:

Screenshot_from_2022-06-28_03-43-05.png Original size: 1920x1080

Attachment 23:

Screenshot_from_2022-06-28_03-41-50.png Original size: 1920x1080

Attachment 24:

Screenshot_from_2022-06-28_03-41-21.png Original size: 734x462

Attachment 25:

R5_954

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  261819650 (  564425.6 Hz)
        Other data format:     100350 (     216.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        346 (       0.7 Hz)
                               RESUME:        346 (       0.7 Hz)
                              SYNC100:      33728 (      72.7 Hz)
                              WR48-63:      33728 (      72.7 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:      32202 (      69.4 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          0 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      463.869 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                0.860                0.000
  2                0.000               16.297
  3                0.000                0.000
  4                0.000              130.996
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   19510795      37524          0          0          0          0       2661       2661          0      32202          0          0
  1   71776267      19370          0          0        343        343       9342       9342          0          0          0          0
  2    7596519       1752          0          0          0          0        876        876          0          0          0          0
  3   39174917      10150          0          0          0          0       5075       5075          0          0          0          0
  4    3312486        838          0          0          0          0        419        419          0          0          0          0
  5   15419570       4004          0          0          0          0       2002       2002          0          0          0          0
  6   56857618      14472          0          0          3          3       7233       7233          0          0          0          0
  7   48171478      12240          0          0          0          0       6120       6120          0          0          0          0
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   35.318s (  906.044 blocks/s,  56.628 Mb/s)

Attachment 26:

Screenshot_from_2022-06-28_07-03-01.png Original size: 1920x1080

Attachment 27:

Screenshot_from_2022-06-28_07-02-34.png Original size: 1920x1080

Attachment 28:

Screenshot_from_2022-06-28_07-01-31.png Original size: 1920x1080

Attachment 29:

Screenshot_from_2022-06-28_07-01-03.png Original size: 1920x1080

Attachment 30:

Screenshot_from_2022-06-28_07-00-31.png Original size: 734x462

Attachment 31:

Drop attachments here...

ELOG V3.1.4-unknown
