Message ID: 512     Entry time: Thu Sep 8 12:31:25 2022
Author: NH
Subject: Retrying AIDA DataAcq v10
Startup AIDA with ribbon cable connected to aida03 and aida07 for noise

Setup and run with waveforms enabled. Discriminators ADC power etc as default

Try to push above 200k as this is where we saw issues before... lowering threshold to 0x3 pushes rates to

aida03 - 320k
aida07 - 254k

Startup merger and observe rates

aida03 - 224k
aida07 - 213k

Rate drop observed as before.

Now update aidacommon to point to AidaExecV10 and powercycle FEEs

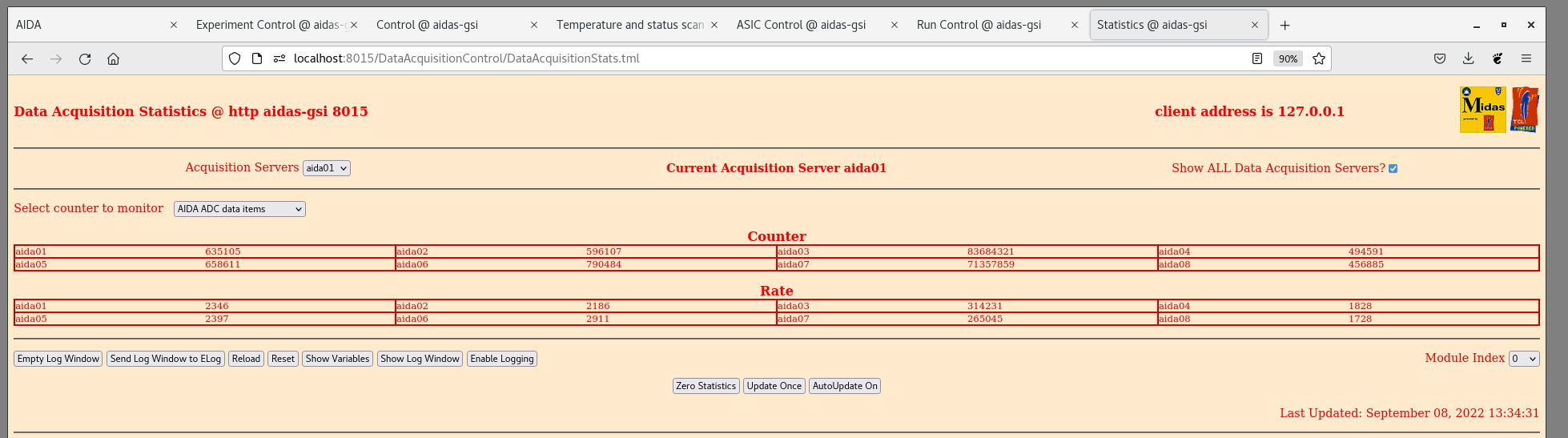

Rates again with 0x3

aida03 - 315k
aida07 - 252k

Restart with data transfer ON

aida03 - 317k
aida07 - 262k

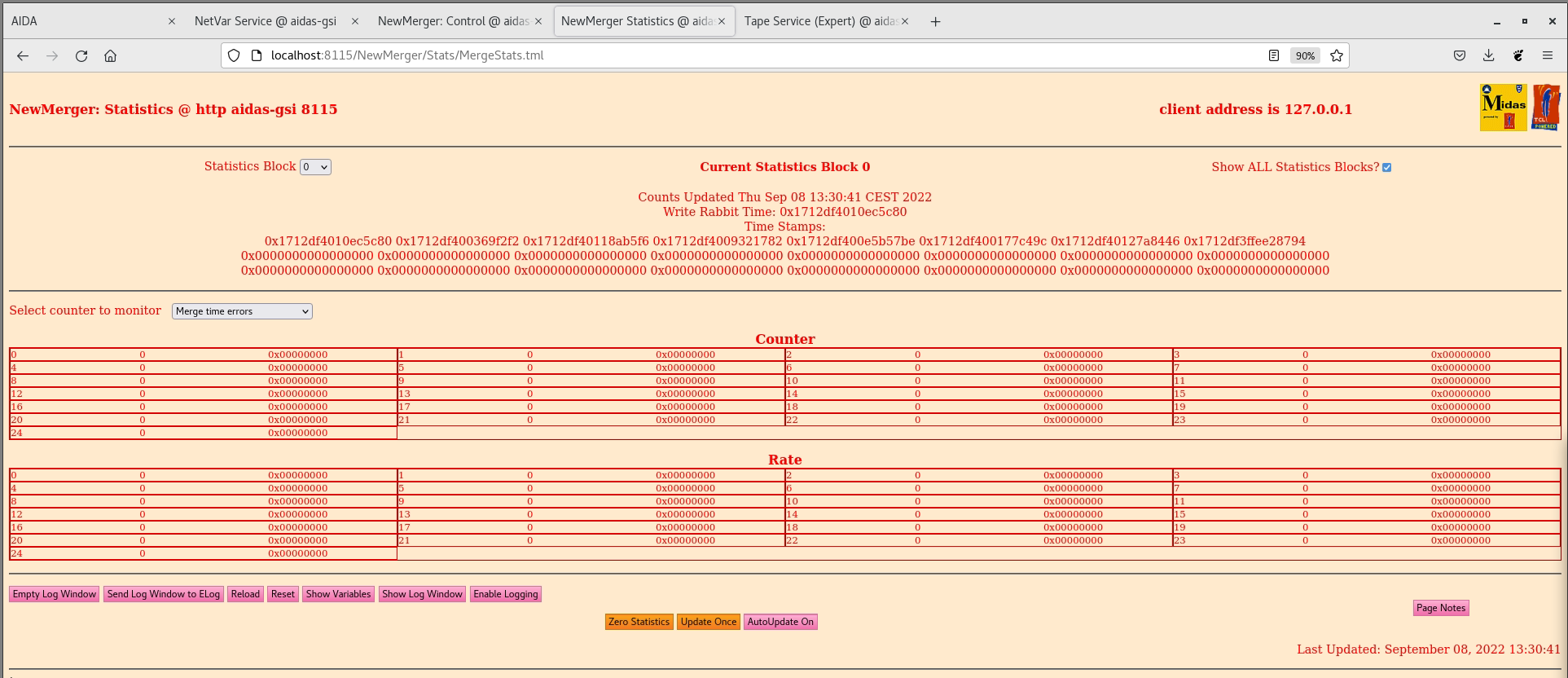

No errors in merger terminal or "Merge time errors" statistic

Will keep running
Attachment 1: AnyDeskMSI_2022-09-08_13-35-50.png  118 kB  Uploaded Thu Sep 8 13:36:14 2022  | Hide | Hide all
Attachment 2: AnyDeskMSI_2022-09-08_13-35-58.png  190 kB  Uploaded Thu Sep 8 13:36:20 2022  | Hide | Hide all
Attachment 3: AnyDeskMSI_2022-09-08_13-36-02.png  113 kB  Uploaded Thu Sep 8 13:36:25 2022  | Hide | Hide all
