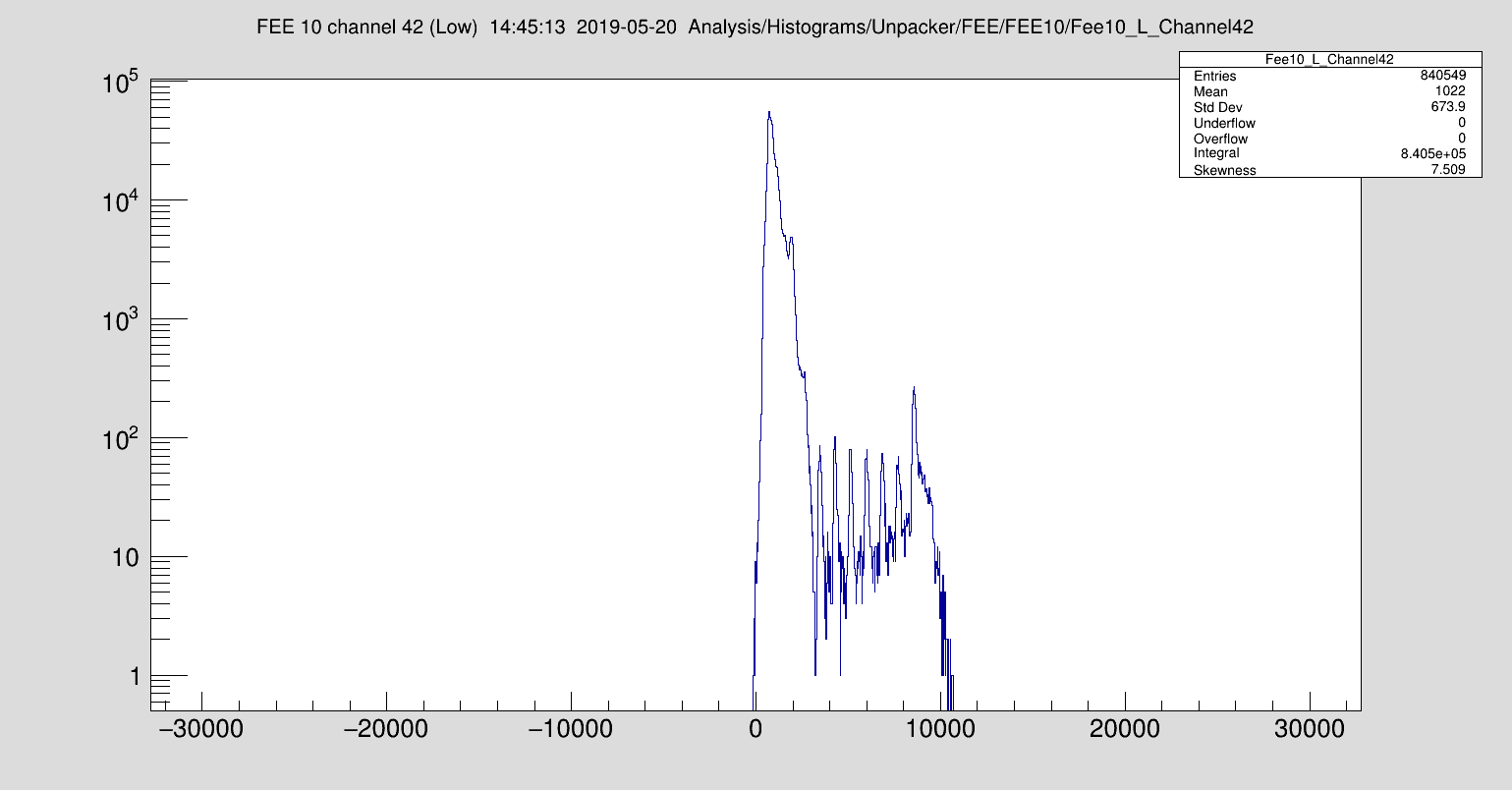

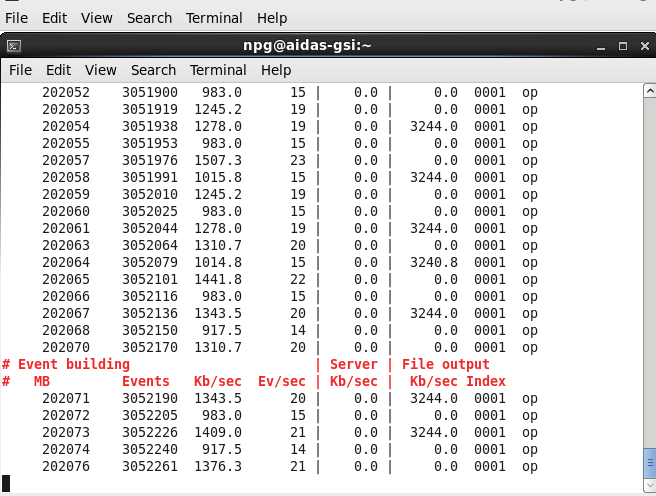

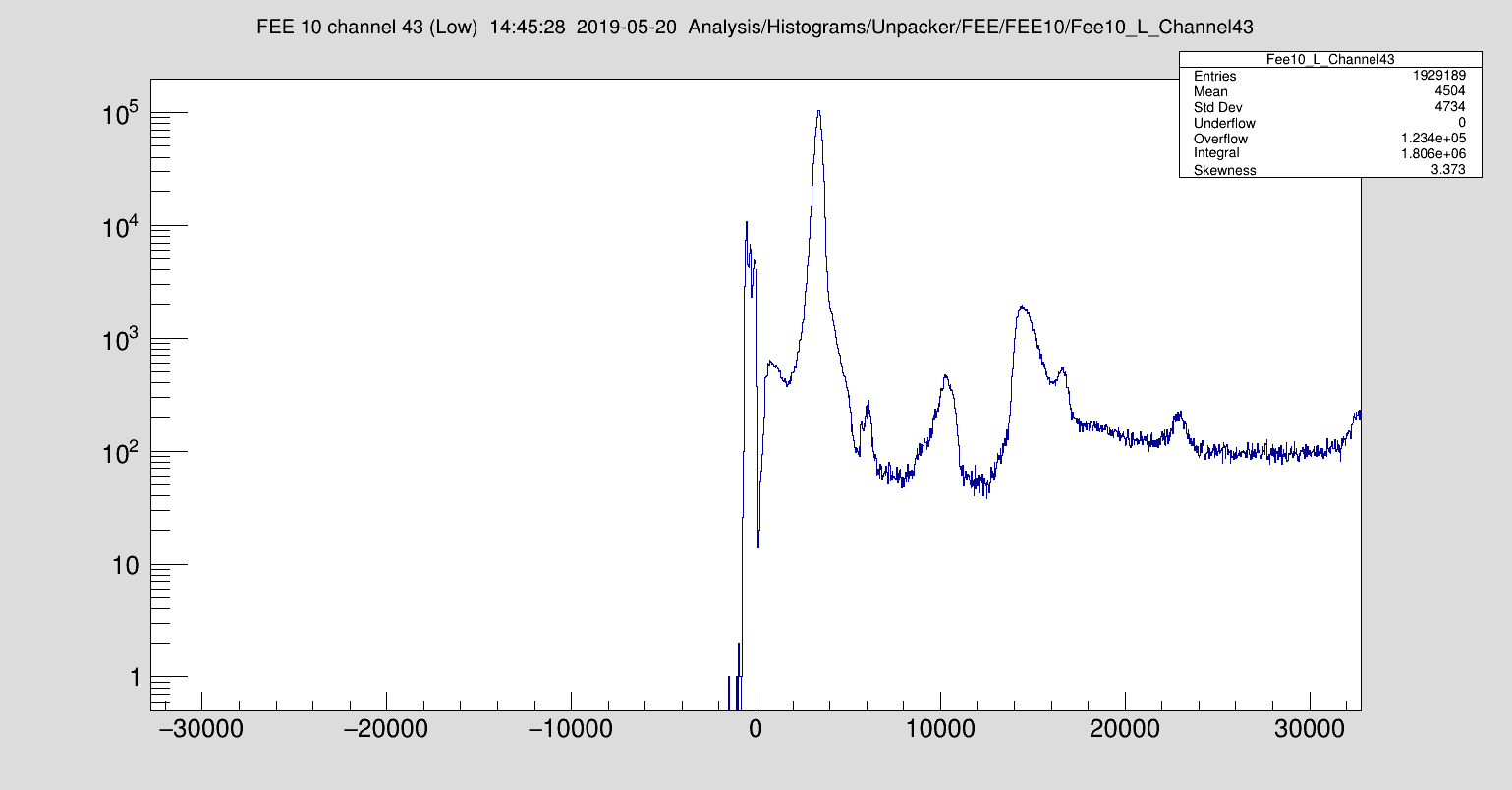

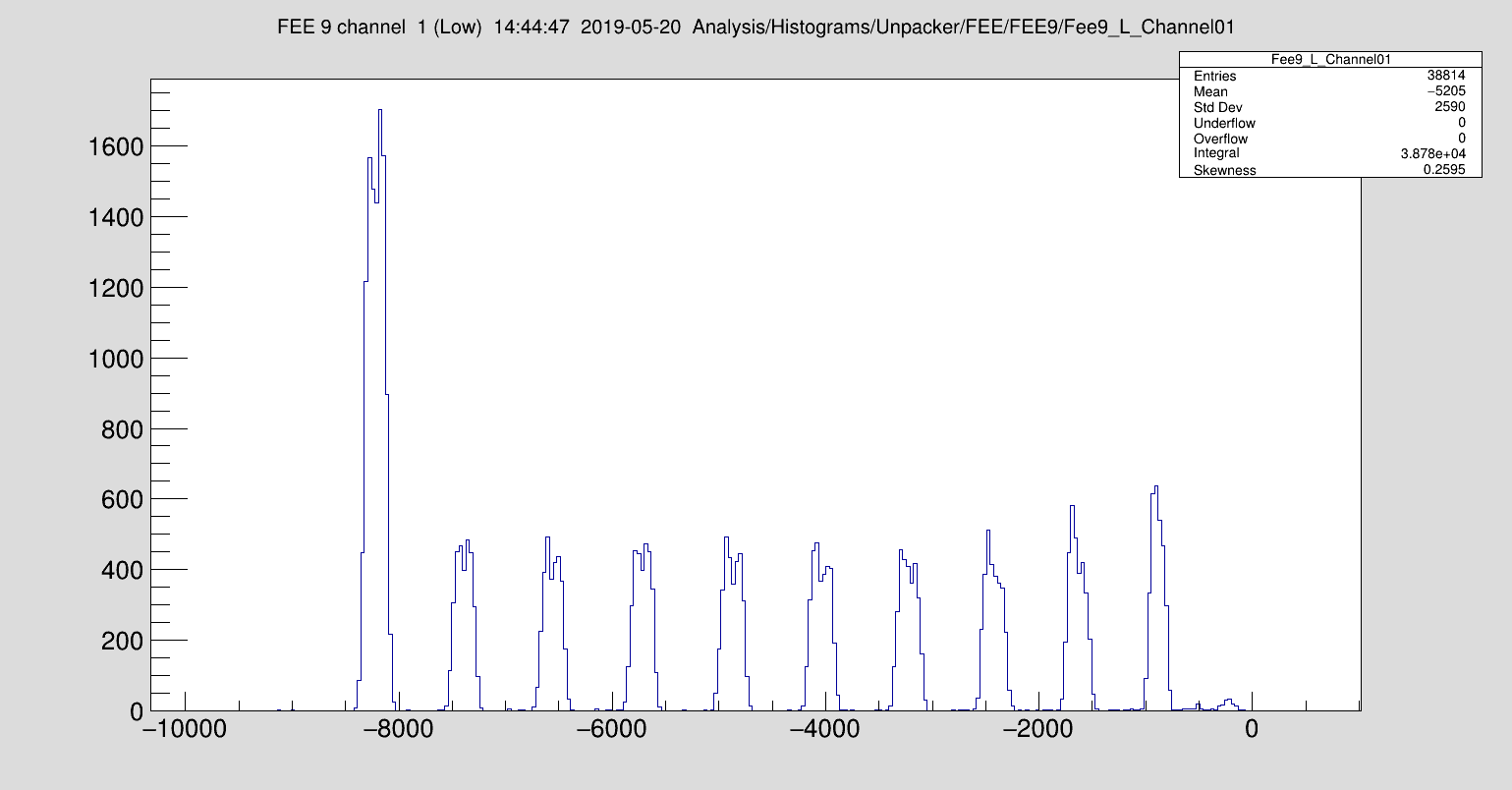

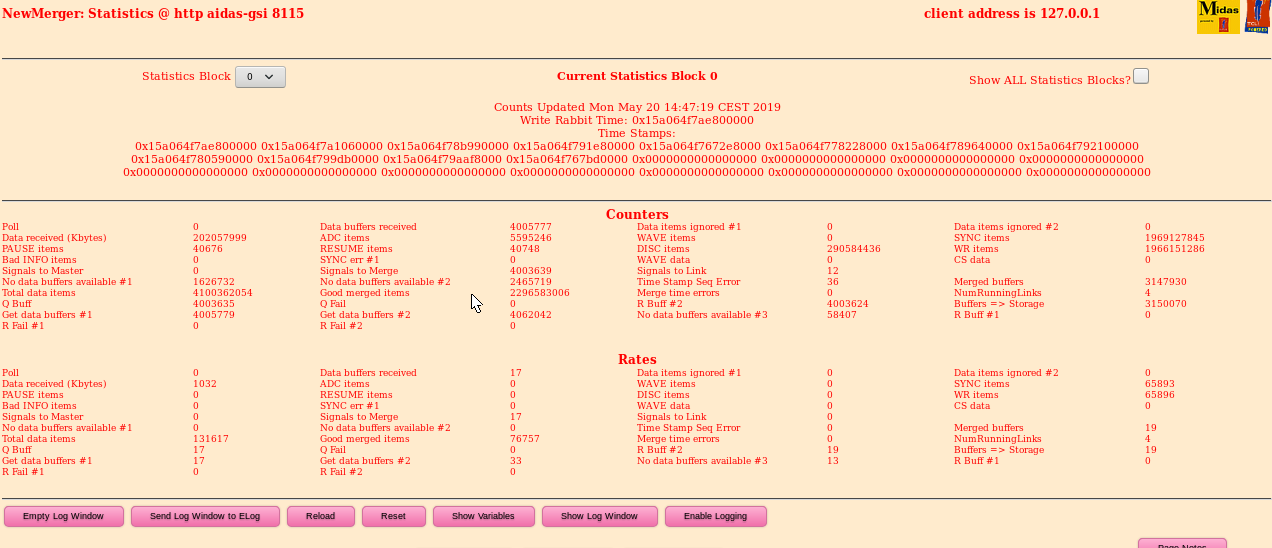

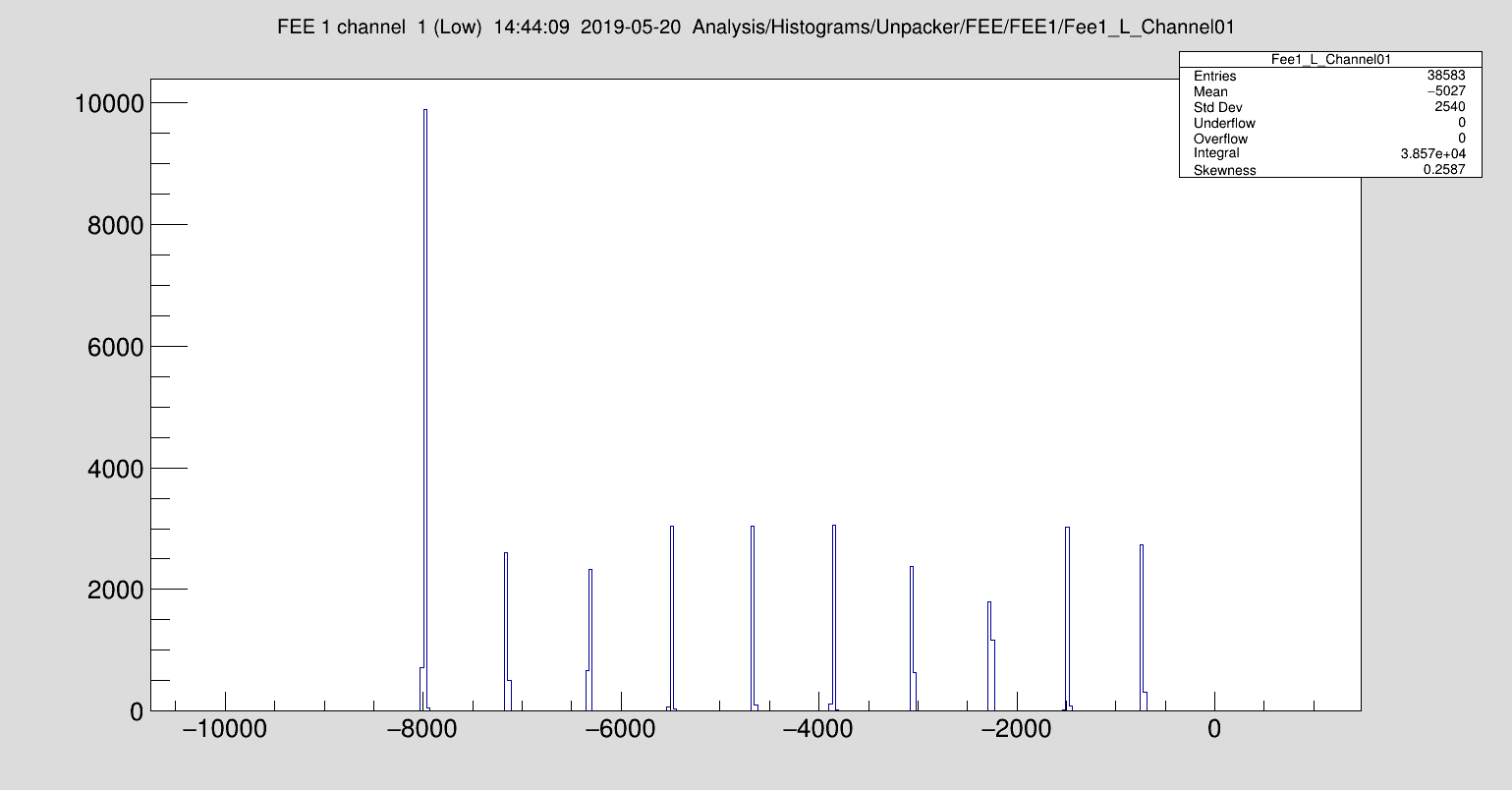

<p>New merger has been worked on by VP which fixes the timewarp issues and MBS integration.</p> <p>Currently no WAVE capture is supported, VP will re-add WAVE histogramming for startup testing.</p> <p>10.05.2019 - Pulser walkthrough<br /> -> Pulser rate 50 Hz<br /> -> 1 minute per 0.1 V (0.1 to 1 V)<br /> -> extra time on 1 V</p> <p>With this 95% of channels calibrate easily (good statistics)<br /> Issue: ~16 channels (most of ASIC3) in FEE10 are horrificly noisy. Not calibrated</p> <p>Fig 1. Pulser of FEE1 (no DSSD)<br /> Fig 2. Pulser of FEE9 (DSSD)<br /> Fig 3&4. Pulser of FEE10 noisy channels</p> <p>Future TODO: Will investigate WAVE data and look if issue can be found.</p> <p>20.05.2019 - Alpha walkthrough<br /> -> Pulser off<br /> -> FEE10ASIC3 has readout off & discriminator masked<br /> -> Slow threshold 0x64<br /> -> Fast threshold 0xff<br /> -> HEC threshold 0x2</p> <p>File is nyx/gamma/nhubbard/AIDA/alpha_bg_200519_</p> <p>Rate is approx. 1MB/s still of WR timestamp data.</p> <p>(NB, MIDAS Alpha walkthrough before beamtime I see no alpha events in!)</p> <p>Fig 5: Temps<br /> Fig 6: Stats<br /> Fig 7: Merger Stats<br /> Fig 8: MBS Stats</p>
