First pass analysis of data file /TapeData/DEC23/R9_6

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  234532726 (   99567.1 Hz)
        Other data format:   27387282 (   11626.8 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         53 (       0.0 Hz)
                               RESUME:         53 (       0.0 Hz)
                              SYNC100:      40775 (      17.3 Hz)
                              WR48-63:      40775 (      17.3 Hz)
                           FEE64 disc:    2928025 (    1243.0 Hz)
                             MBS info:   24377601 (   10349.1 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     287073 (     121.9 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:     2355.524 s

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   59013868     372005          0          0         20         20       9888       9888     281563      70626          0      55467
  1   31445079    1098714          0          0          2          2       5017       5017     243009     845667          0      38876
  2   22895499   11841669          0          0          1          1       5294       5294     482655   11348424          0      42748
  3   18228498   11705354          0          0          0          0       3913       3913     416619   11280909          0      78526
  4   25500772    1237178          0          0          3          3       4320       4320     396557     831975          0      28918
  5          4          0          0          0          0          0          0          0          0          0          0          0
  6   15933921     394210          0          0          0          0       2560       2560     389090          0          0      11489
  7   61515085     738152          0          0         27         27       9783       9783     718532          0          0      31049

FEE64 configuration https://elog.ph.ed.ac.uk/AIDA/935


Note

- aida06 not connected to DSSSD ( cabling broken  - will be replaced later this week )

- LEC ( 20MeV FSR ) data ADC offset corrected
   ADC offsets available for 489 of 512 channels and are included in the analysis - 23 strips for which no ADC offsets could be calculated ( usually because there was
no
pulser data ) are not included in analysis
- LEC ( 20MeV FSR ) front-back strip energy difference cut +/- 50 channels ( c. +/- 280keV )
- HEC ( 2GeV FSR ) front-back strip energy difference cut +/-200 channels ( c. +/- 1120MeV )

- LEC ADC data: 13 < channel < 188 ( c. 73-1053keV )
- HEC ADC data: > 13 channels ( c. 73MeV )
- FEE64 hardware thresholds: LEC c. 100keV, HEC c. 200MeV

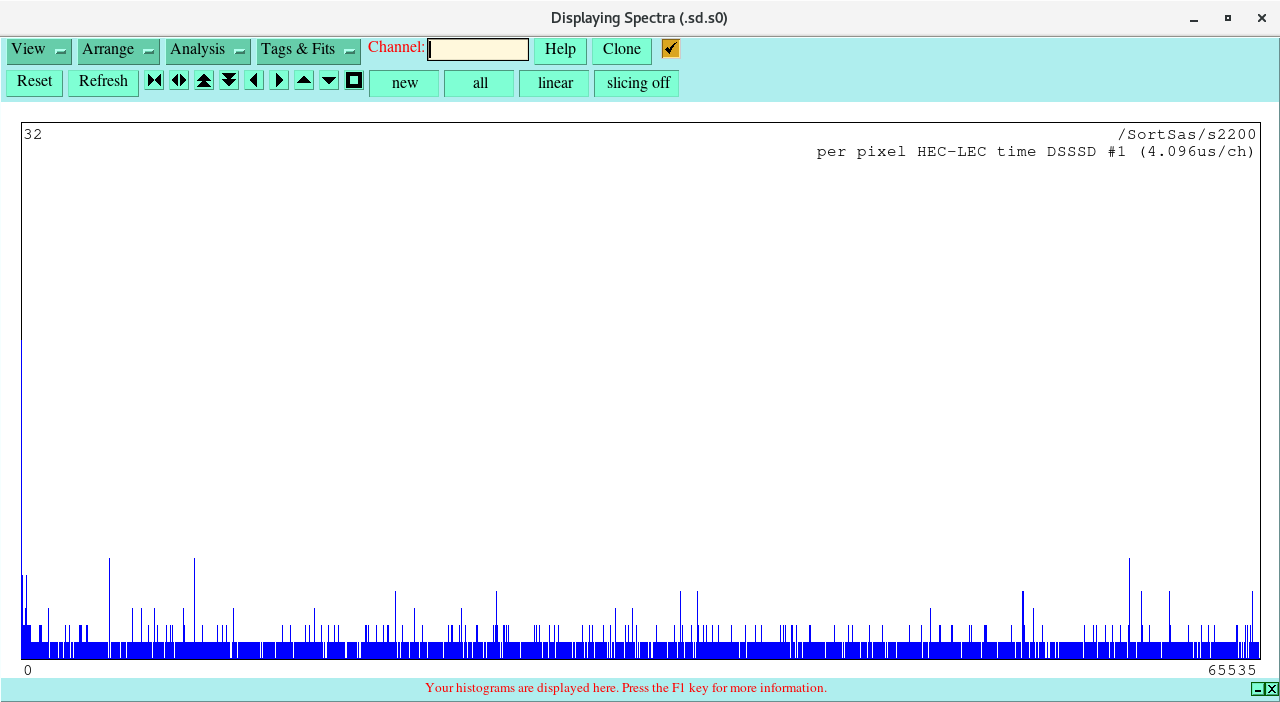

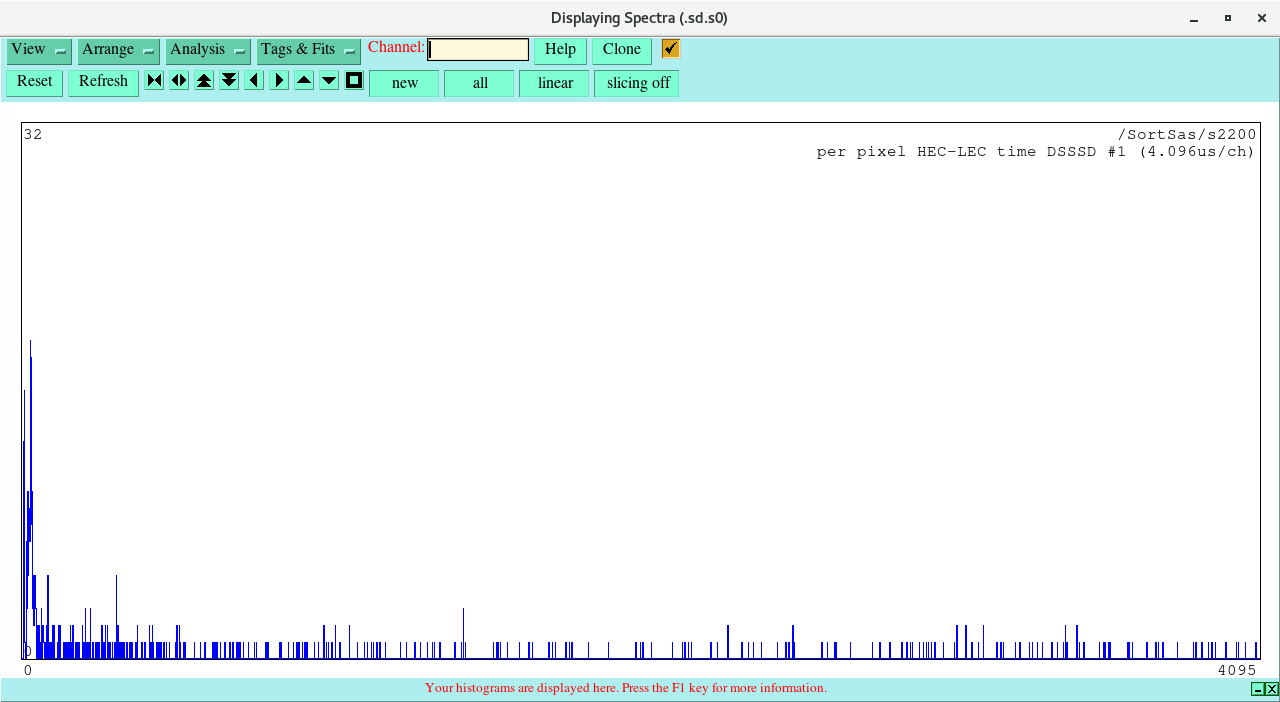

Attachments 1 & 2 - per pixel HEC-LEC event time difference spectra - 4.096us/channel

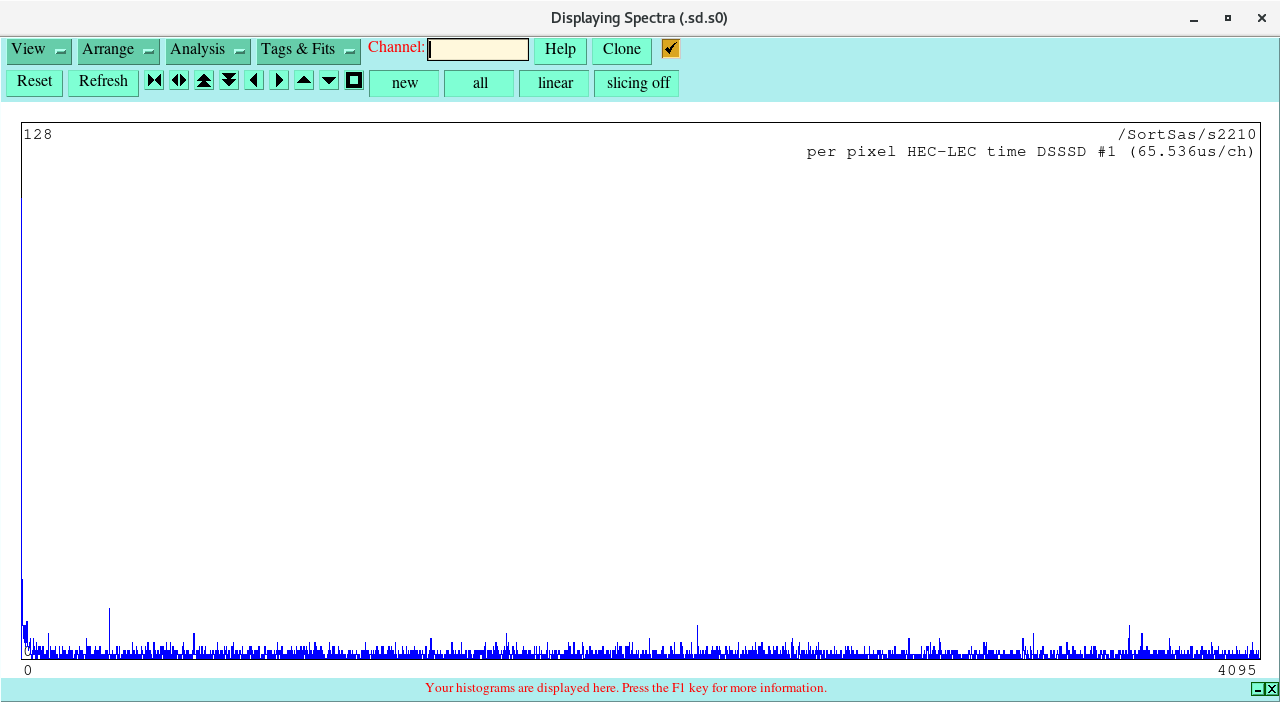

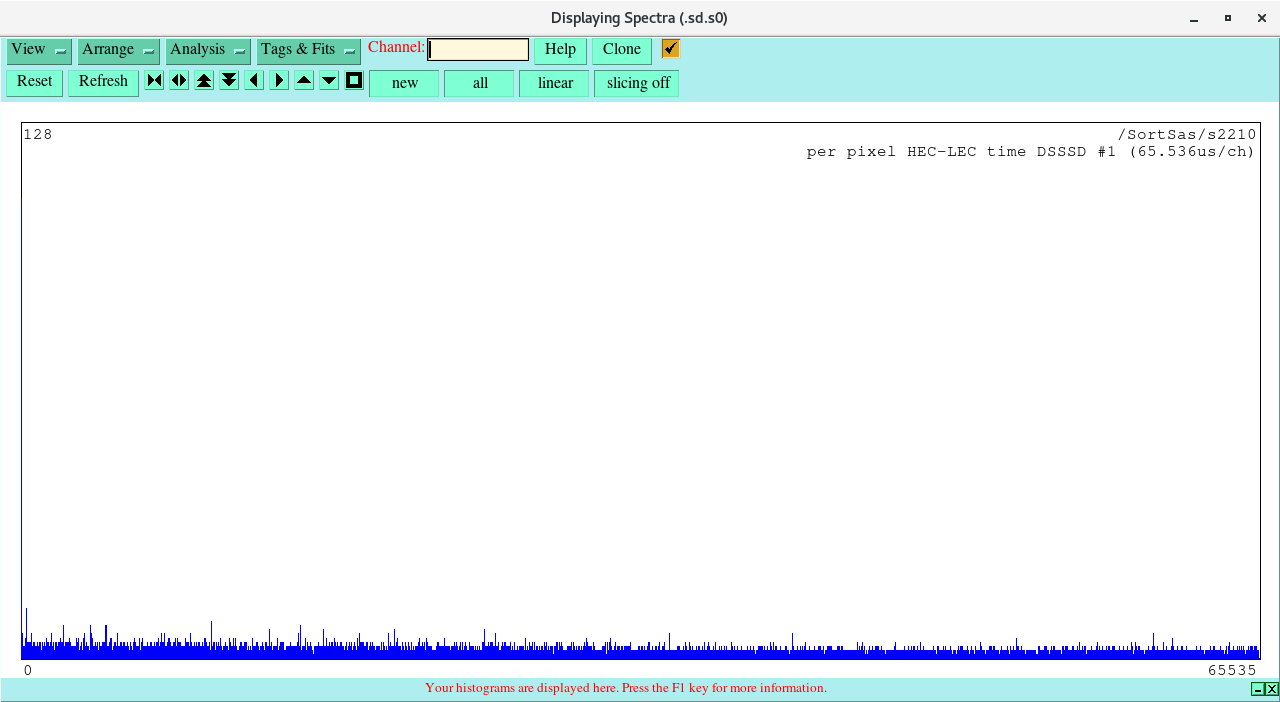

Attachments 3 & 4 - per pixel HEC-LEC event time difference spectra - 65.536us/channel

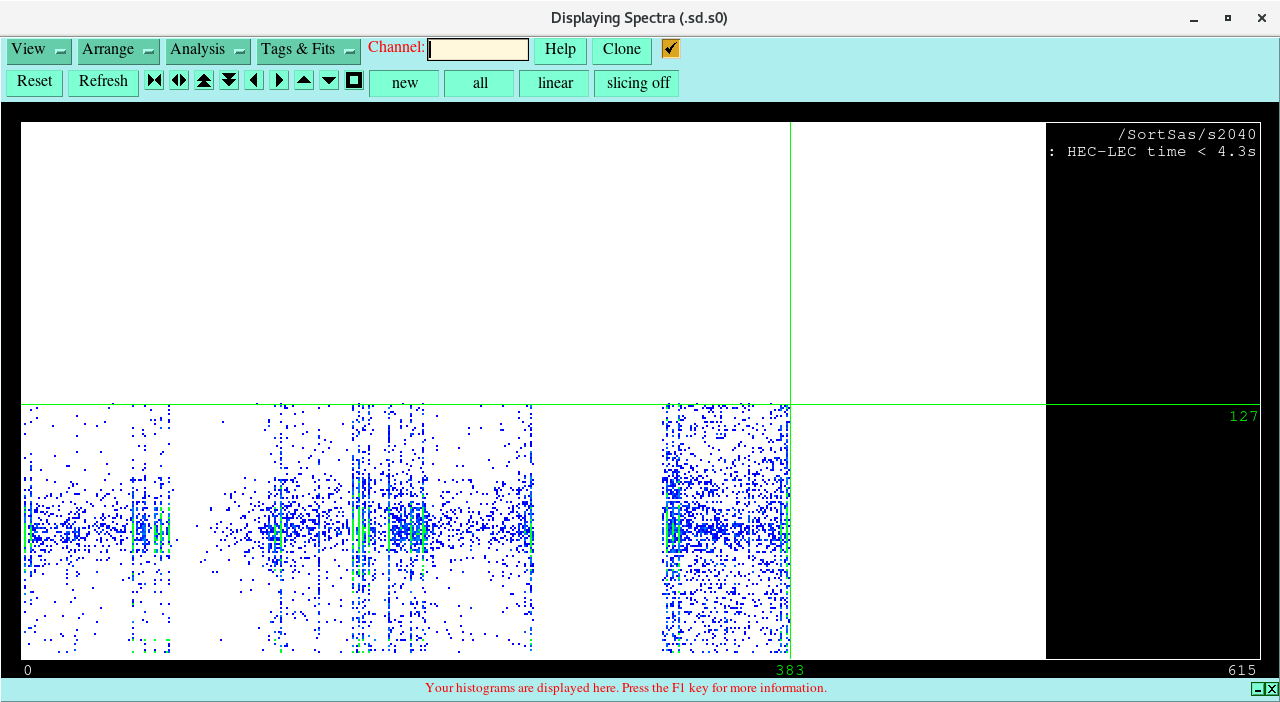

Attachment 5 - DSSSD x-y hit pattern: HEC-LEC event time difference < 4.3s
 Majority of events associated with 'hot' p+n junction strips - few plausible decay candidate events - as expected.
 z-scale - semi-logarithmic - scattered events are single counts ( blue )
 1 count => rate ~ 1/2355s ~ 0.0004Hz, the great majority of pixels have zero counts

Attachment 6 - LEC ( decay ) and HEC ( implant ) events - 262.144us/channel ( 65536 channels = 17.2s )

HEC implants channels 12000-25000 = 216 counts => HEC rate ( in spill ) 63.4Hz
LEC decays channels 12000-25000 = 3865 counts => LEC rate ( in spill ) 1134.1Hz
LEC decays channels 25000-38000 = 2790 counts => LEC rate ( inter spill ) 818.7Hz

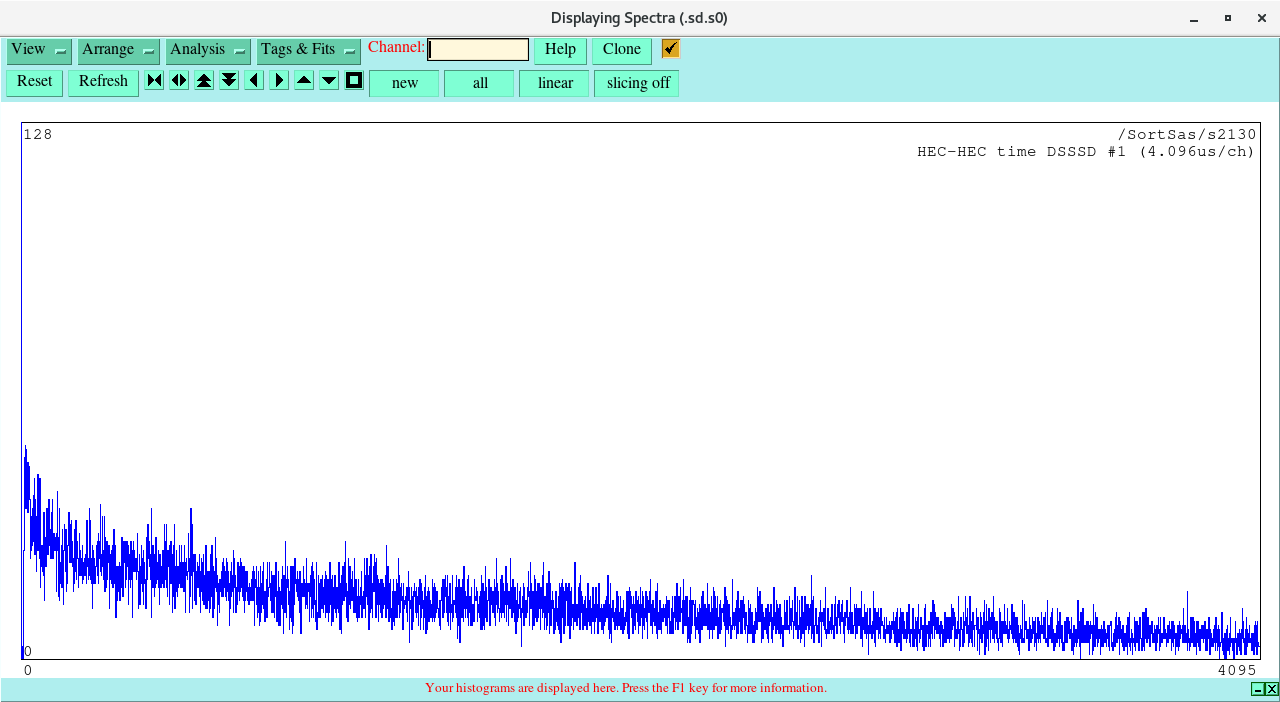

Attachment 7 - per pixel HEC-HEC event time difference spectra - 4.096us/channel

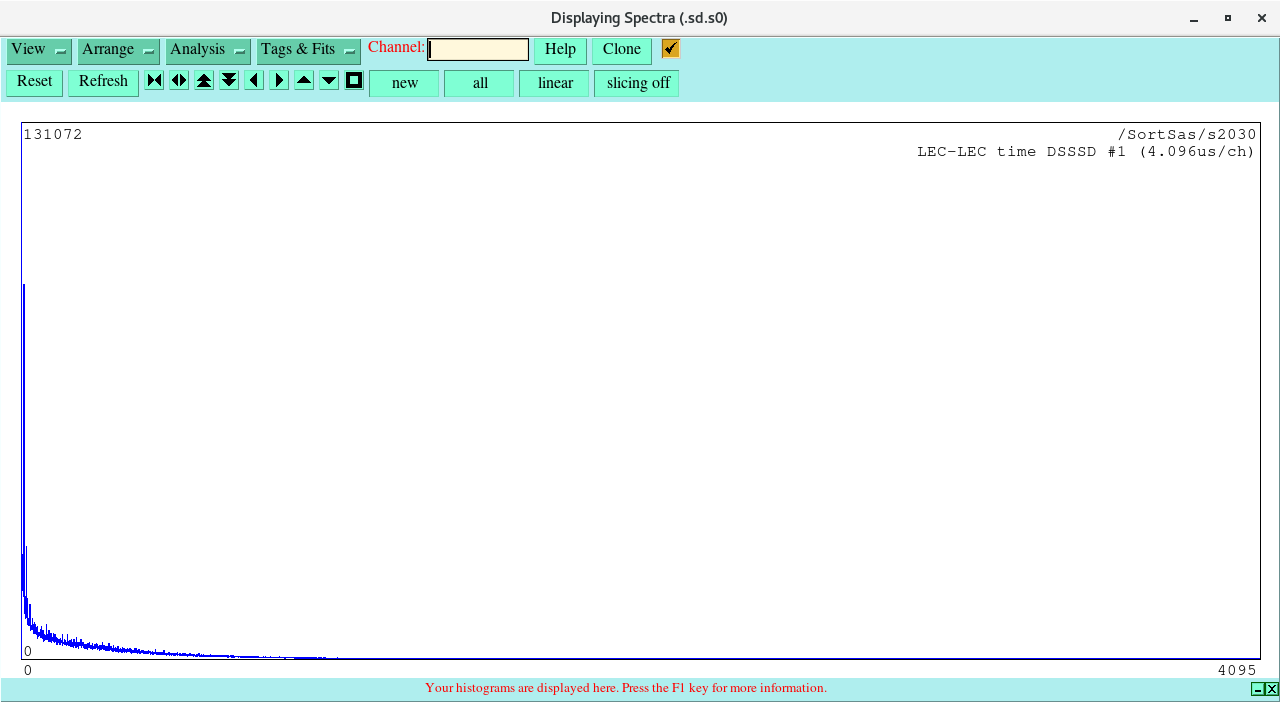

Attachment 8 - per pixel LEC-LEC event time difference spectra - 4.096us/channel

Attachment 9 - variables.dat
This is a ( Fortran ) Namelist I/O data file containing of the ADC offsets, FEE64 configuration, LEC and HEC energy difference windows

The ADC offset channel number is calculated as

channel = channel_ident + ( module * 64 ) where module = 0-7 corresponding to AIDA FEE64s aida01-aida08

and is used as follows

ADC data = INT ( RSHIFT( ABS( 32768 - data( i ) ), 3 ) - offset( i ) + 0.5 )

where data(i) is the ADC data item for channel i, offset(i) is the ADC offset for channel i

An ADC offset of -9999 means there was no pulser data for this channel in data files R5 and R11.
