Entry time:
Tue Mar 19 10:17:30 2024
Author
*
:
Subject
*
:

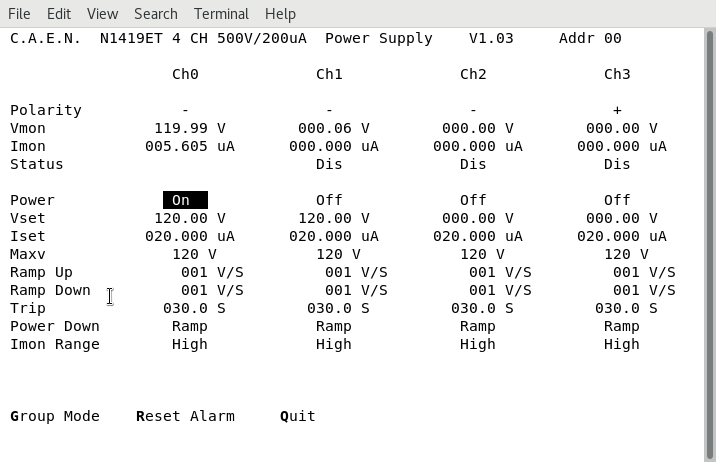

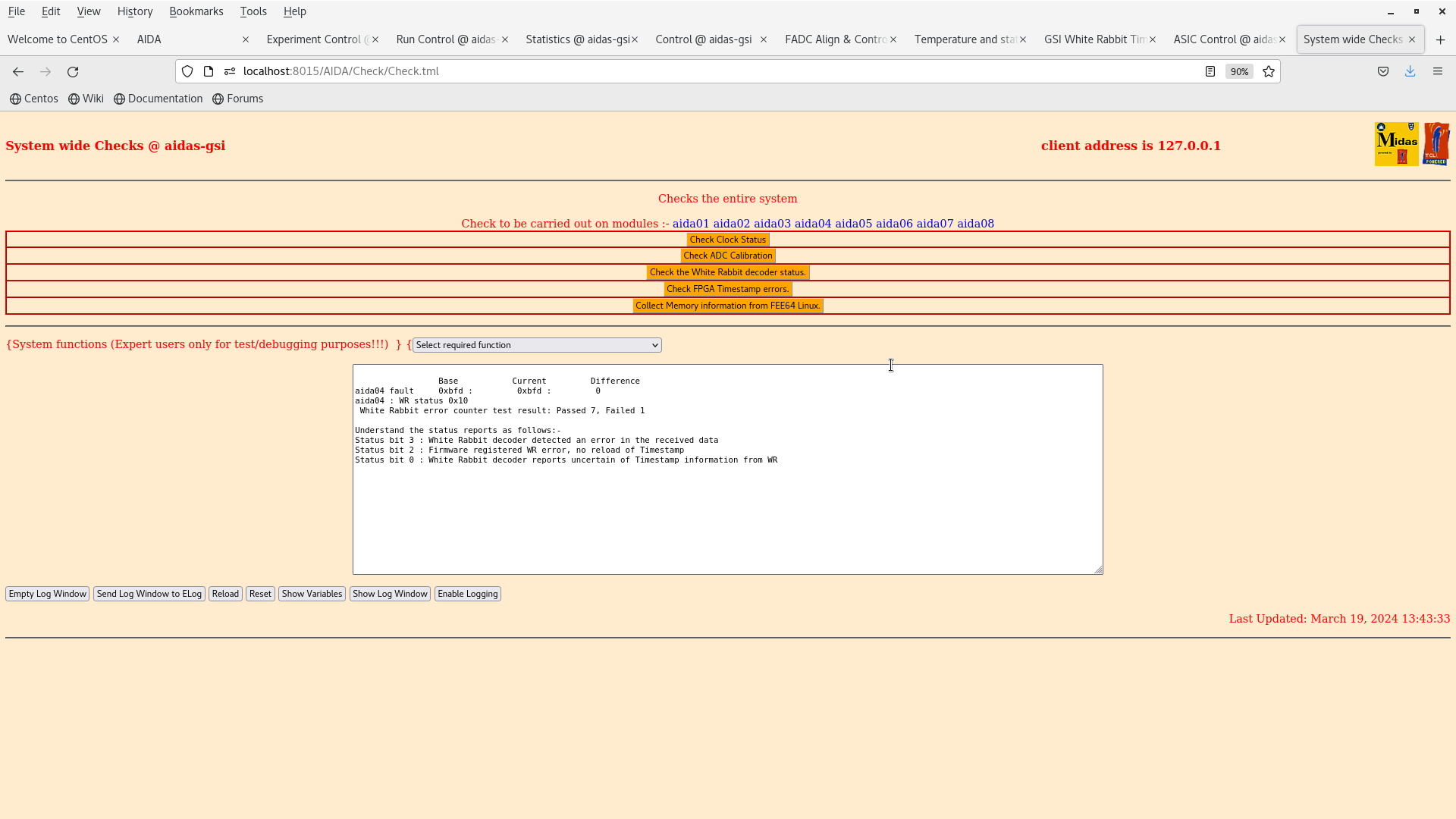

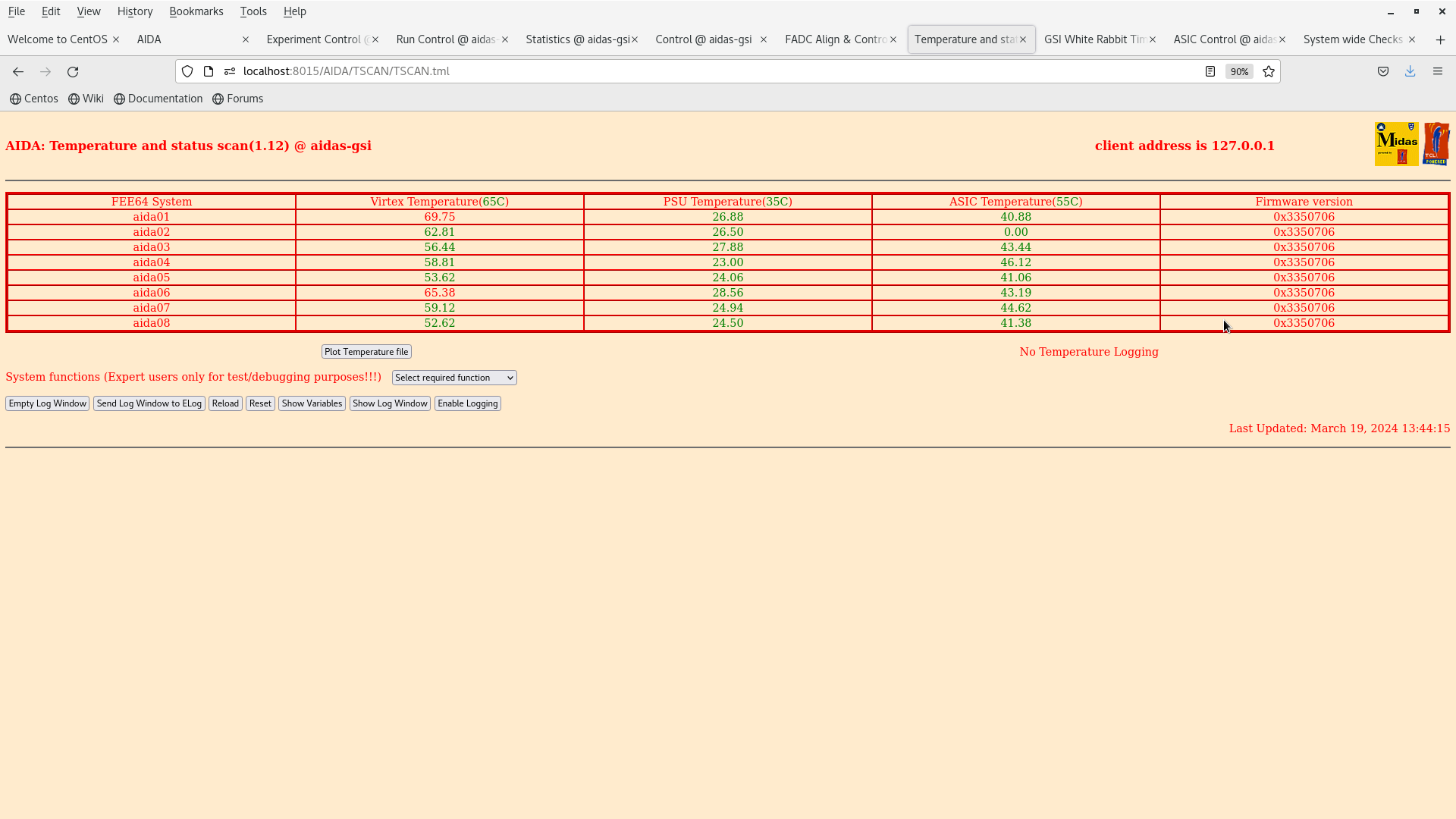

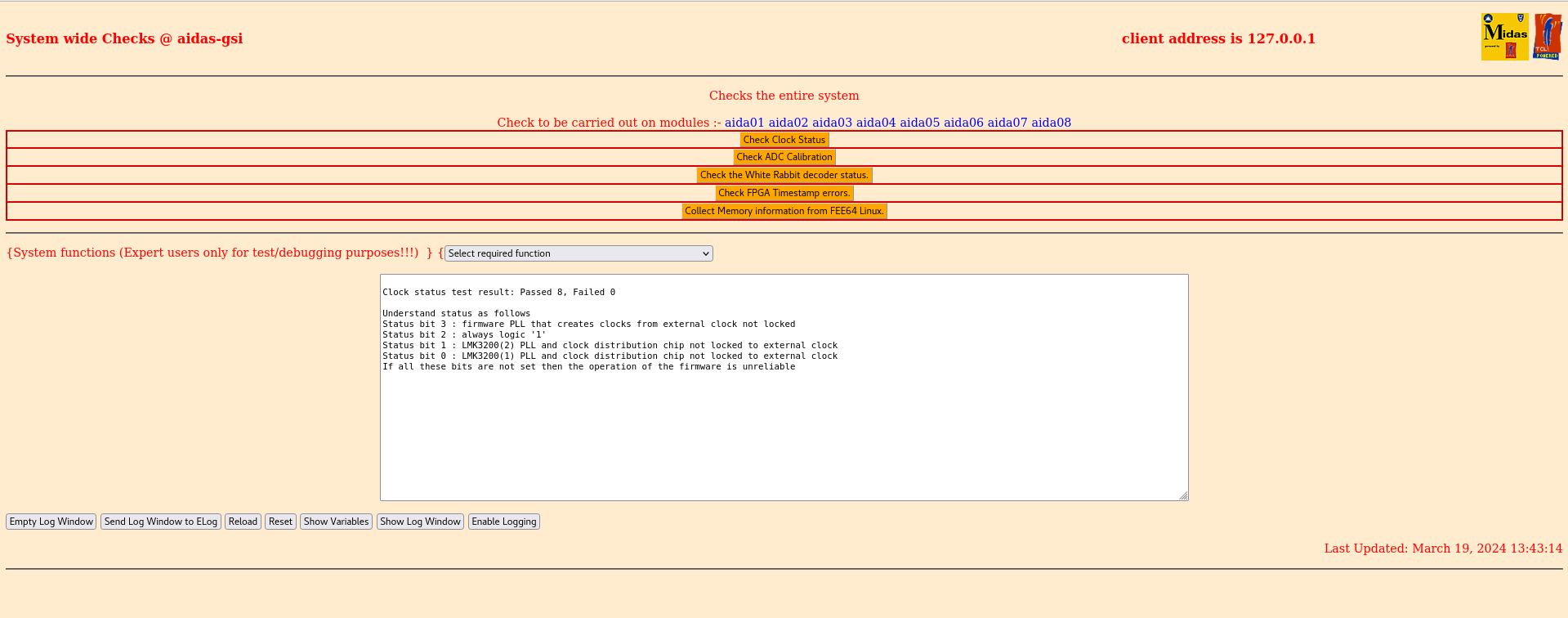

AIDA has 8 FEEs and 1 DSSSD Aida08 (HDMI#12) had no WR again, I moved it to a different MACB and now it gets WR The MACB (currently with jsut HDMI#10) seems issues, check/replace the upstream HDMI and thent eh MACB (after dry run!) DSSSD#1 biased to -120 V, leakage current 5.6 uA (fig 1) (also on Grafana) Temps OK fig2 System Checks (fig3-5) Clocks OK aida07 fails calibration, others OK WR OK (aida04 0x10, seems OK) FPGA OK Did "Synchronise ASIC clocks" to align ASIC clocks (Notes for scalers: SC41L HDMI 5, SCI41R HDMI 9) 18:12 FRS is taking beam, AIDA is powered off and unbiased
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 716x462
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1919x756
