Entry time:
Wed Mar 20 12:22:27 2024
Author
*
:
Subject
*
:

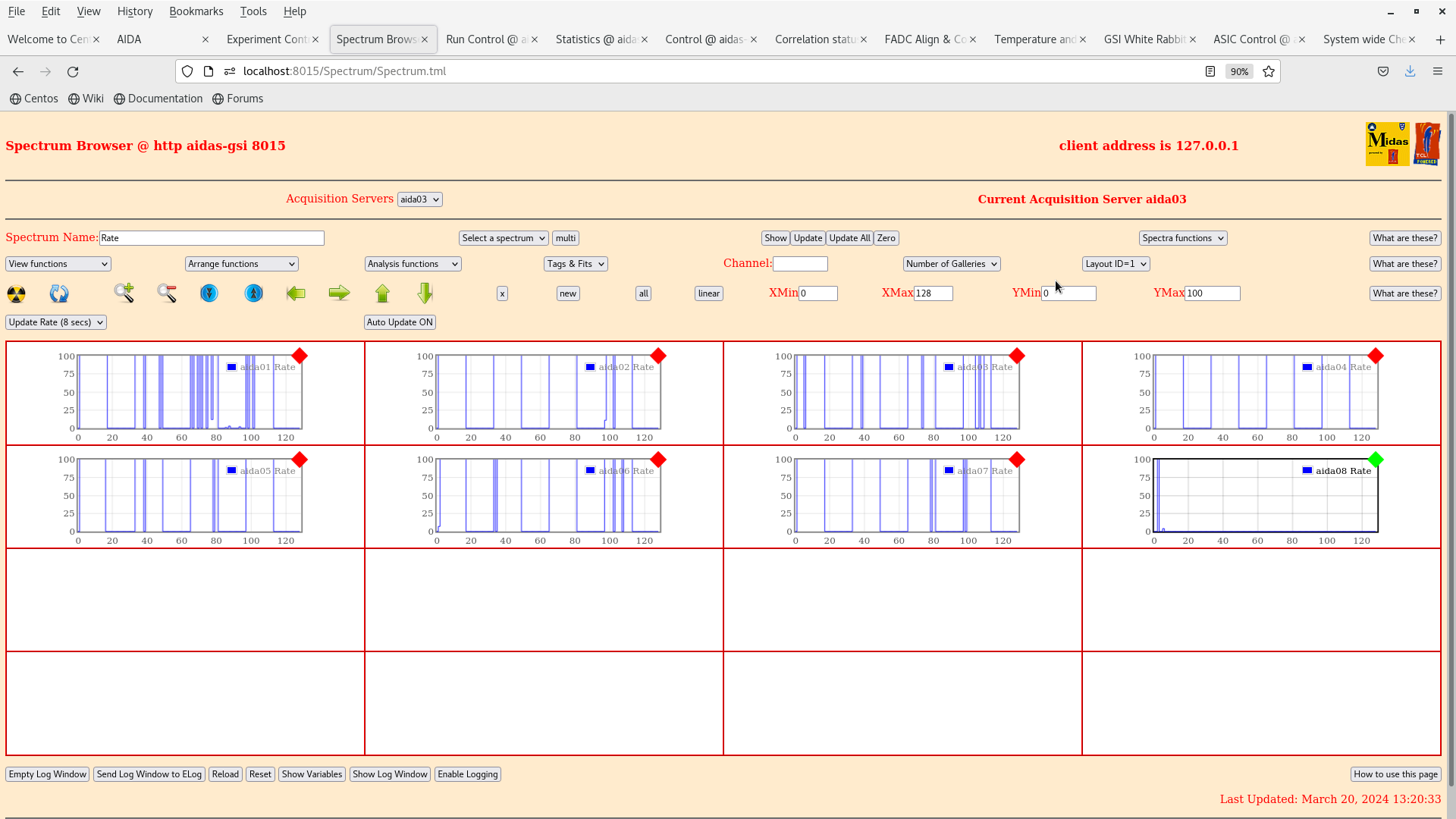

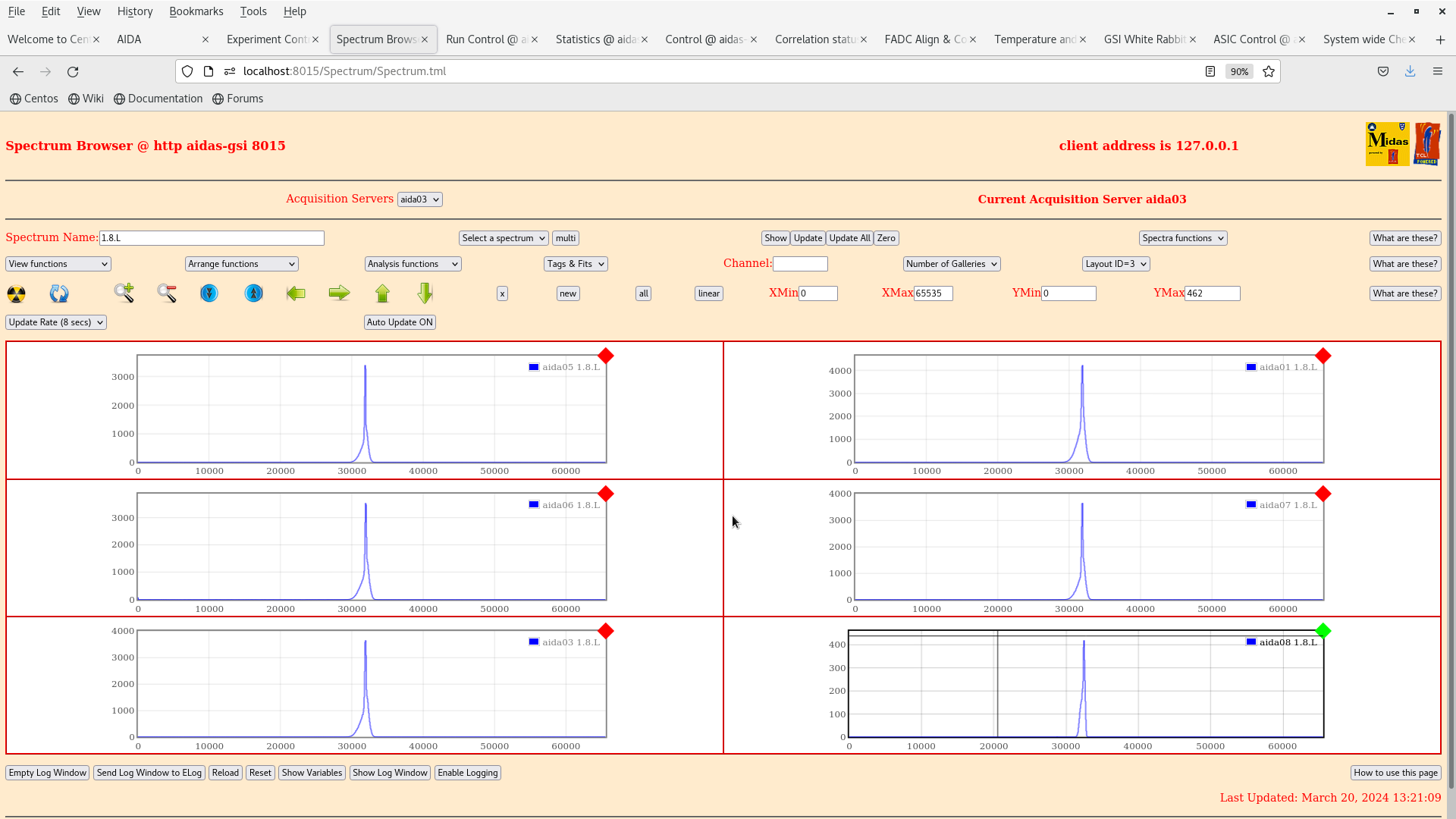

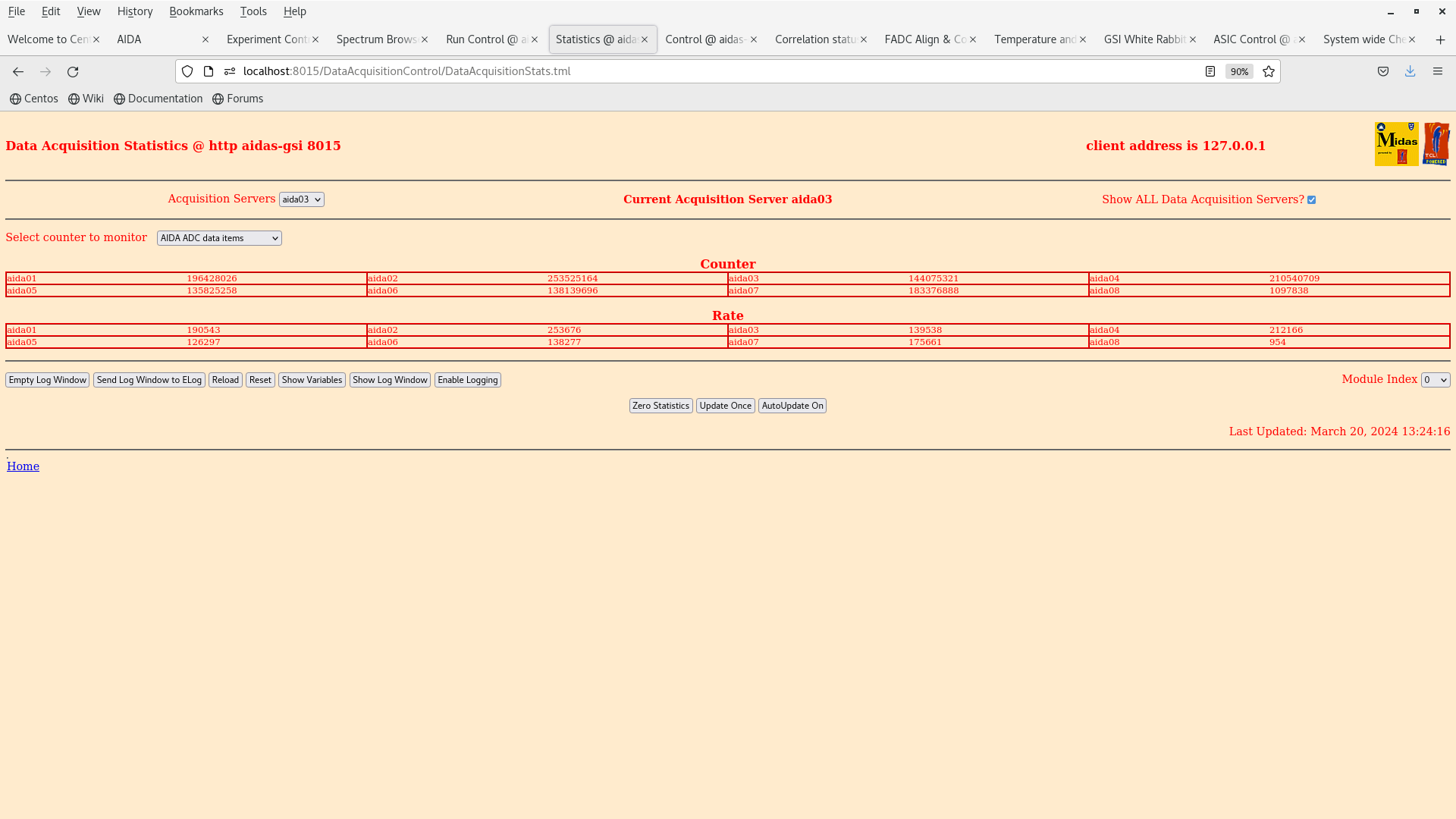

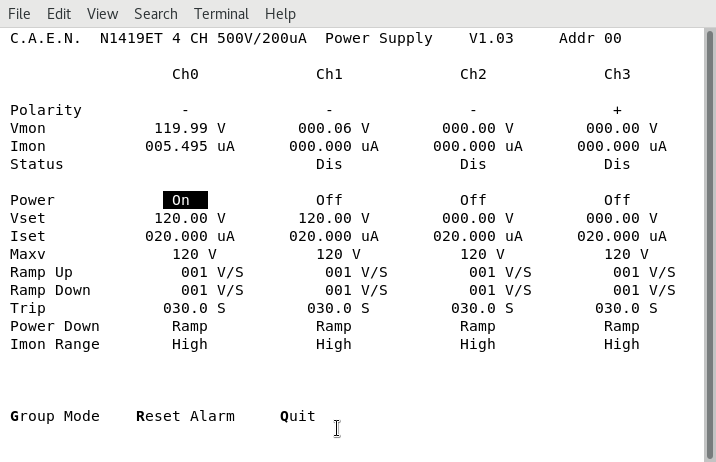

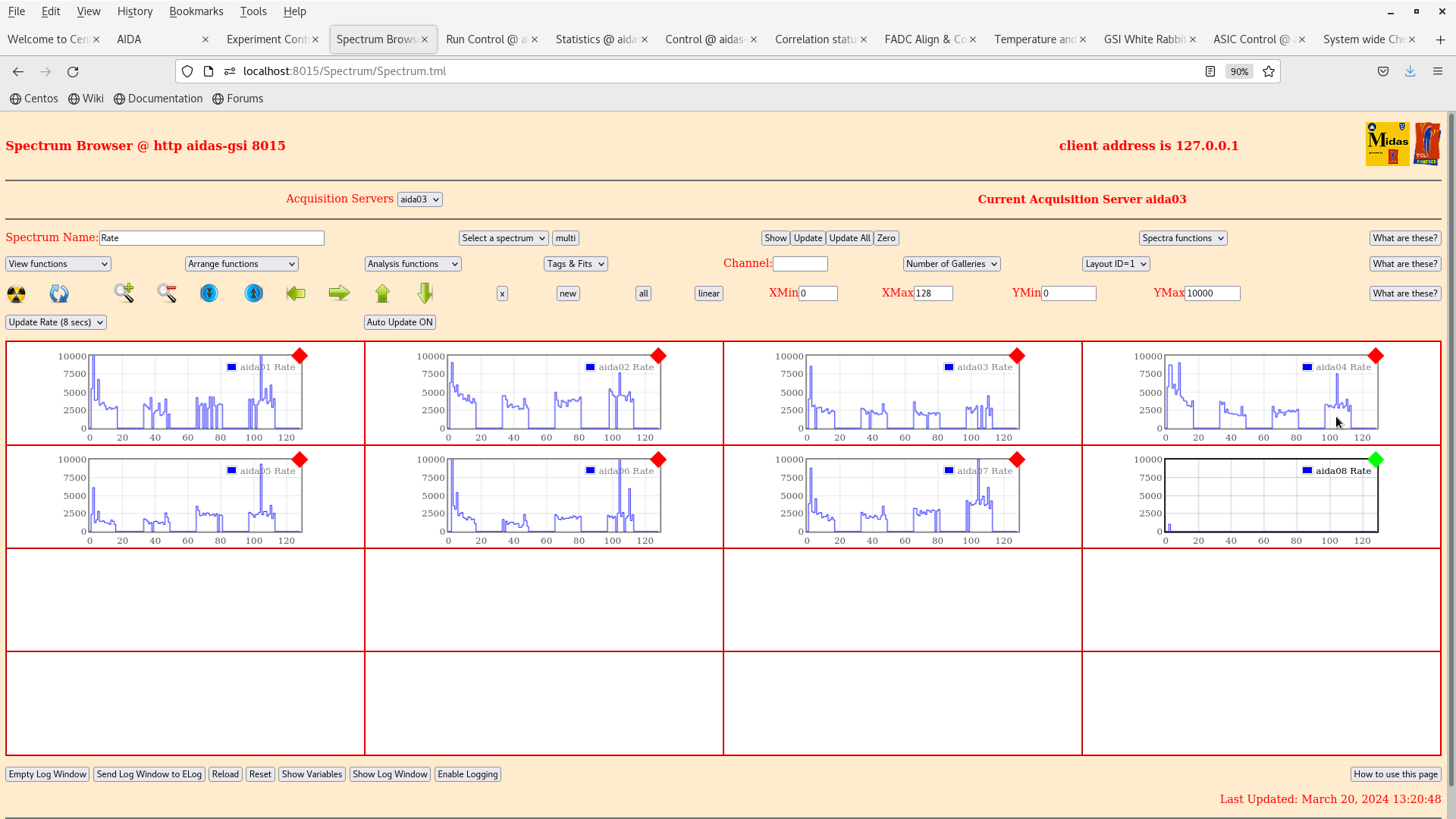

<p>Turn on AIDA for Dry Run demonstrations and so on</p> <p>All system wide checks, temp, bias OK</p> <p>Noise situation is dreadful (but has not been optimised). Deterioriation since first mounted, suspect cabling issues with bPlast and BB7.</p> <p> Note thresholds at 0x32 (!!!) to not brutalise the DAQs during testing</p> <p> aida08 seems OK</p> <p>Server running to MBS totally fine</p> <p>18:00</p> <p>Carole grounded some of the Bplast and this reduced the rates in AIDA, although they are a bit fluctuatey. Due to position constraints she couldn't ground it all<br /> Also AIDA ribbon cables are not grounded yet<br /> The indication is these fixes should make a lot of difference to the situation</p> <p>AIDA is now powered off for the end of day</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 716x462
Attachment 9:
Original size: 1920x1080
