DESPEC |
 |
|
Message ID: 550
Entry time: Tue Mar 26 10:32:05 2024
|
Author: |
NH, JB |
Subject: |
Tue 26 March |
|
|
Taken 4 FEE64s from CRYRING (the 4 easiest to access)
41:d8:2b
41:f6:5a
41:ee:71
41:d0:0e
In addition a FEE without rails marked only 20 was found in my old office for 5
- This probably came in a shipment to/for repairs
DSSSD#1 unbiased
DESPEC Platform moved out of beam and gamma platform moved from AIDA

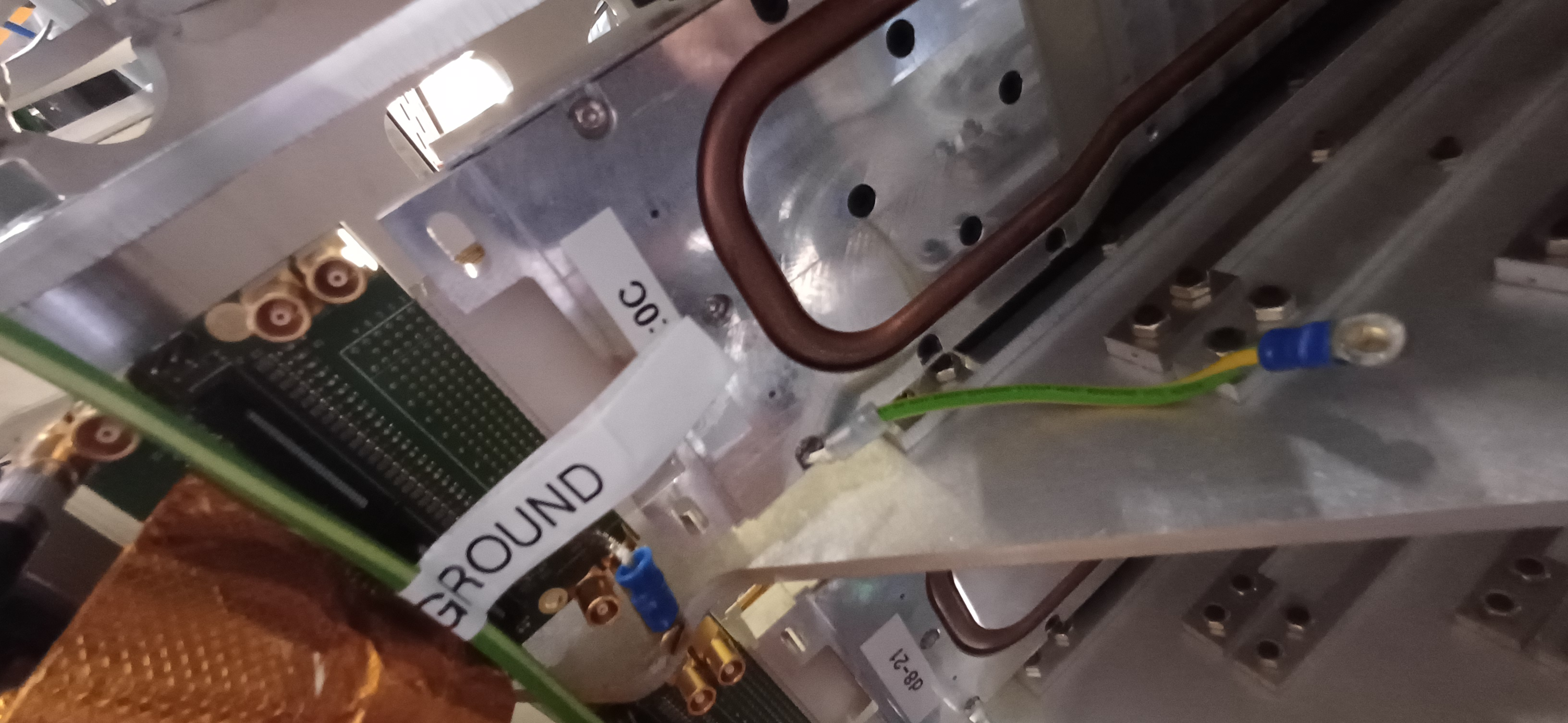

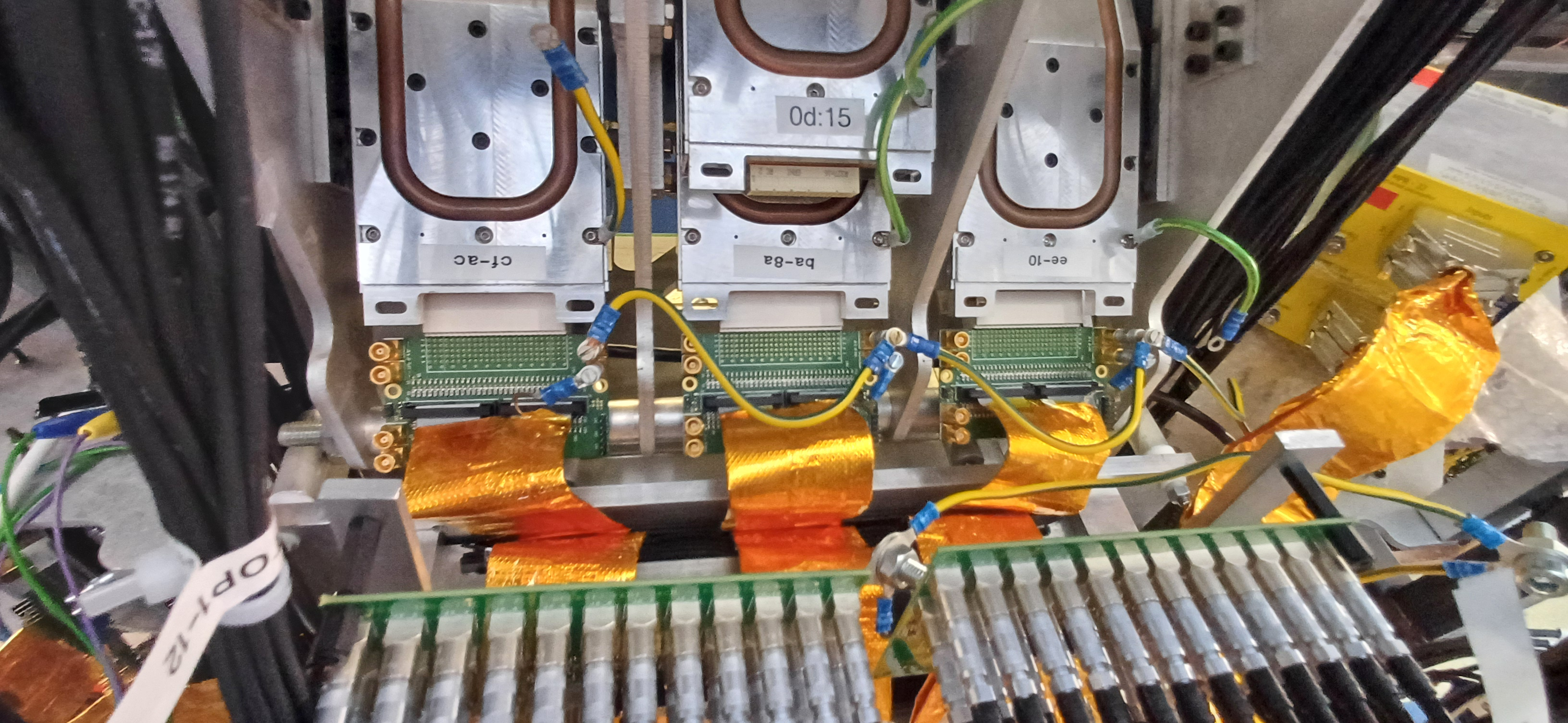

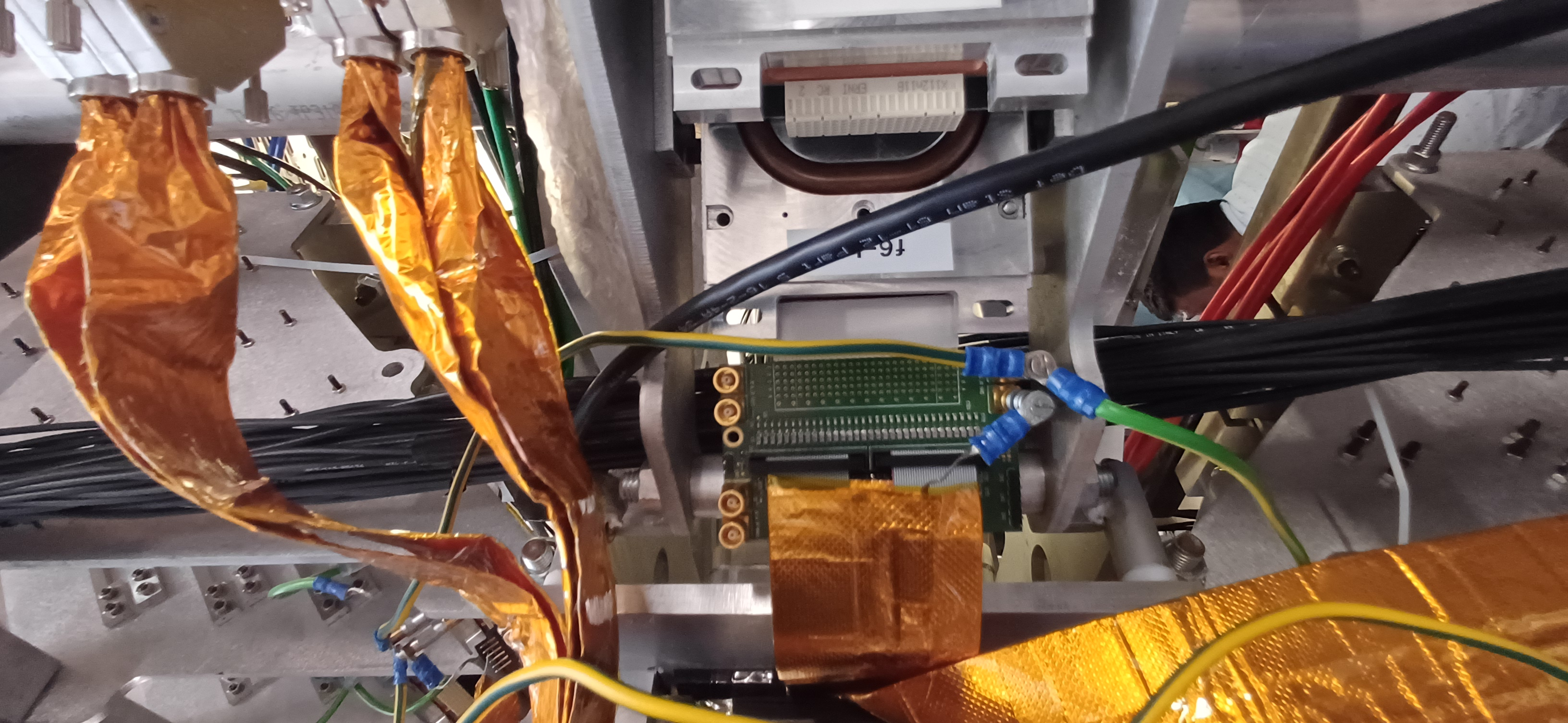

JB works on grounding the original 8 DSSSD#1 FEEs

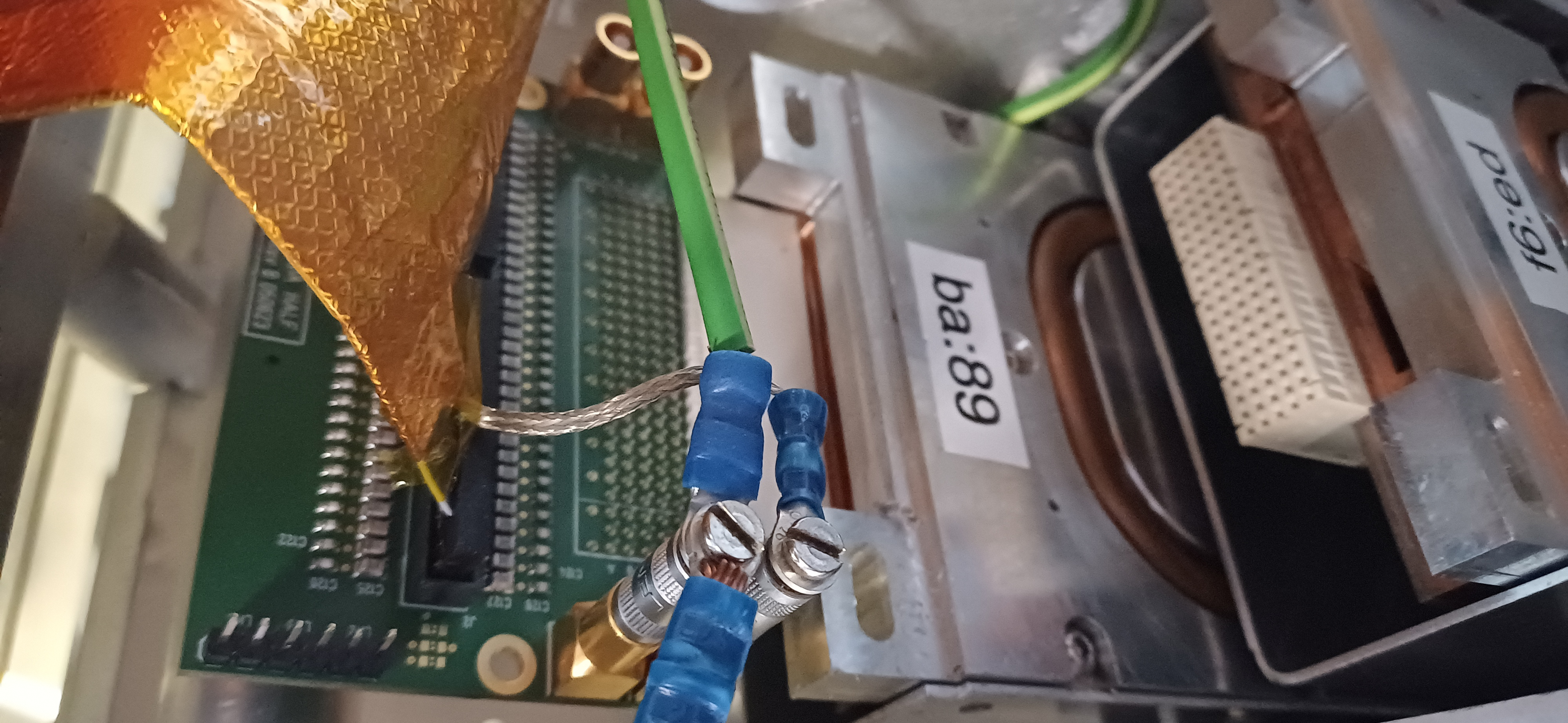

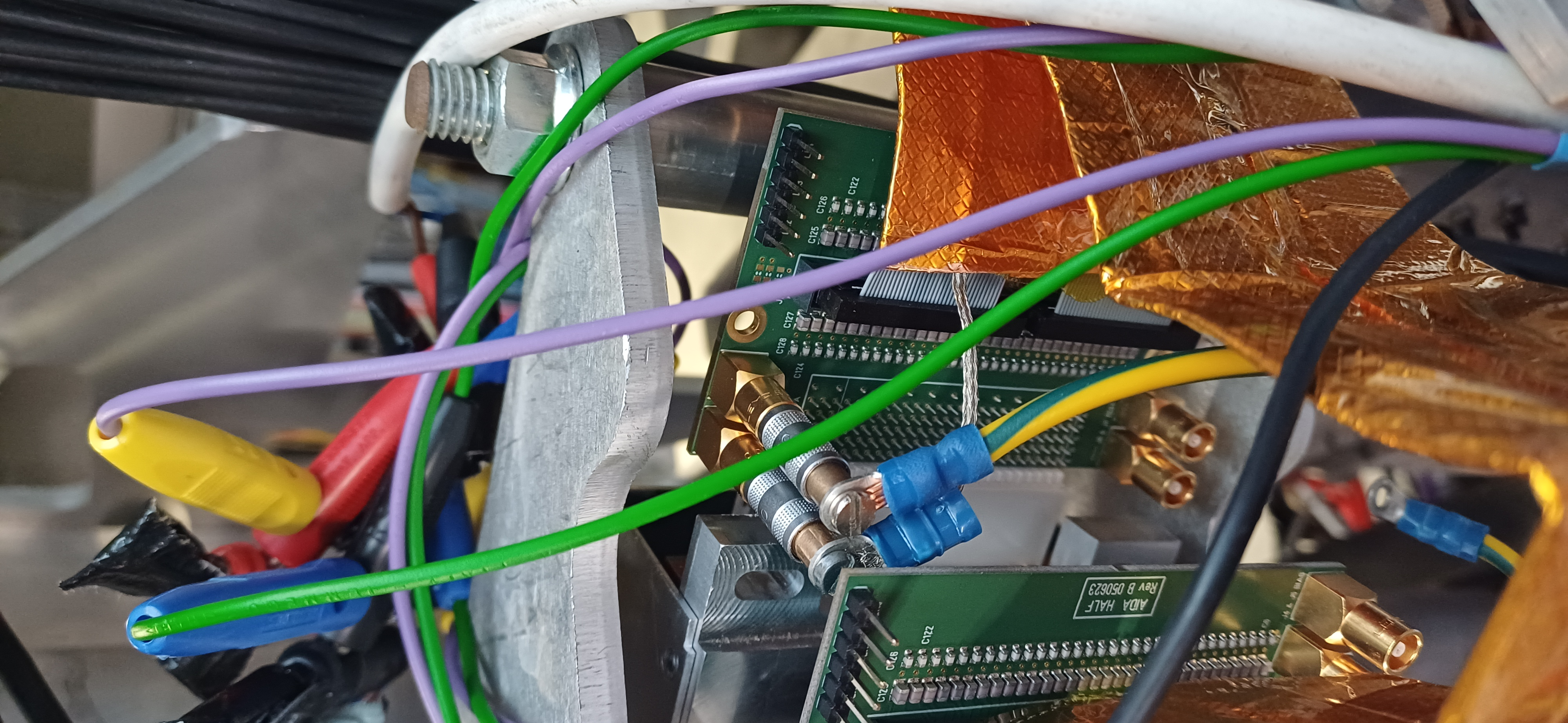

Connected grounding from ribbon cable drain to adapter PCB
Ground loop connected

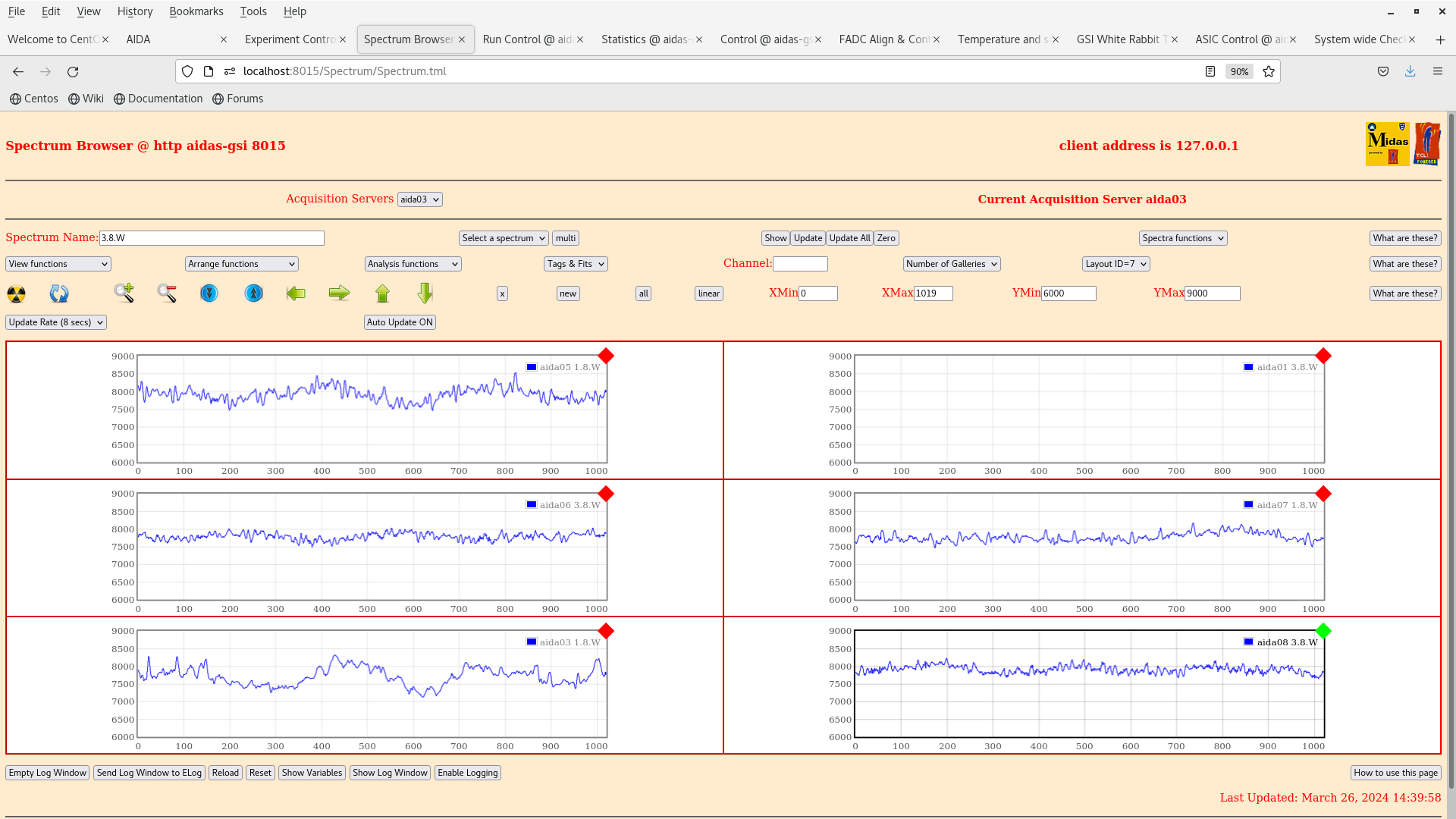

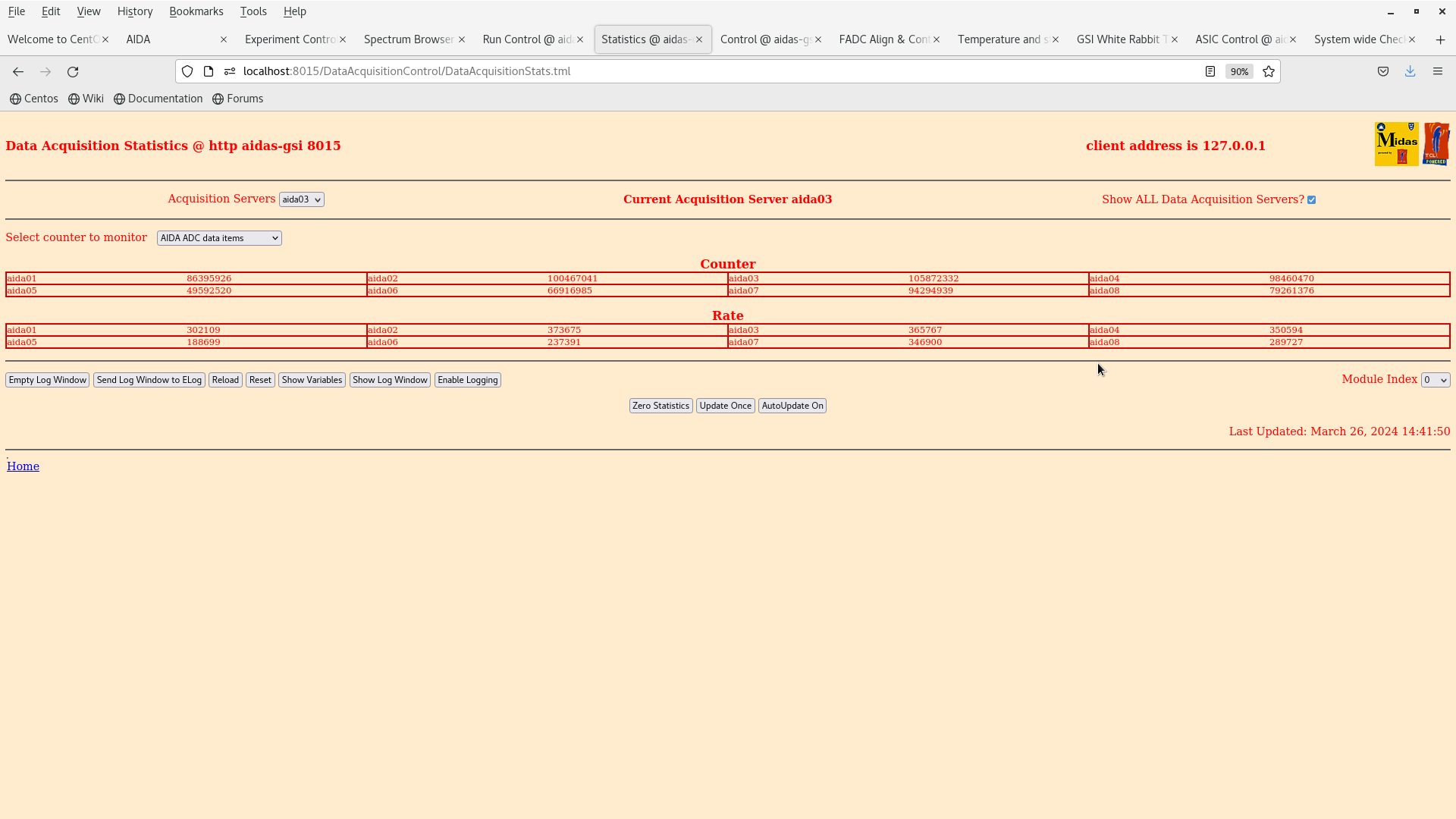

AIDA rates unchanged bad still fig 1

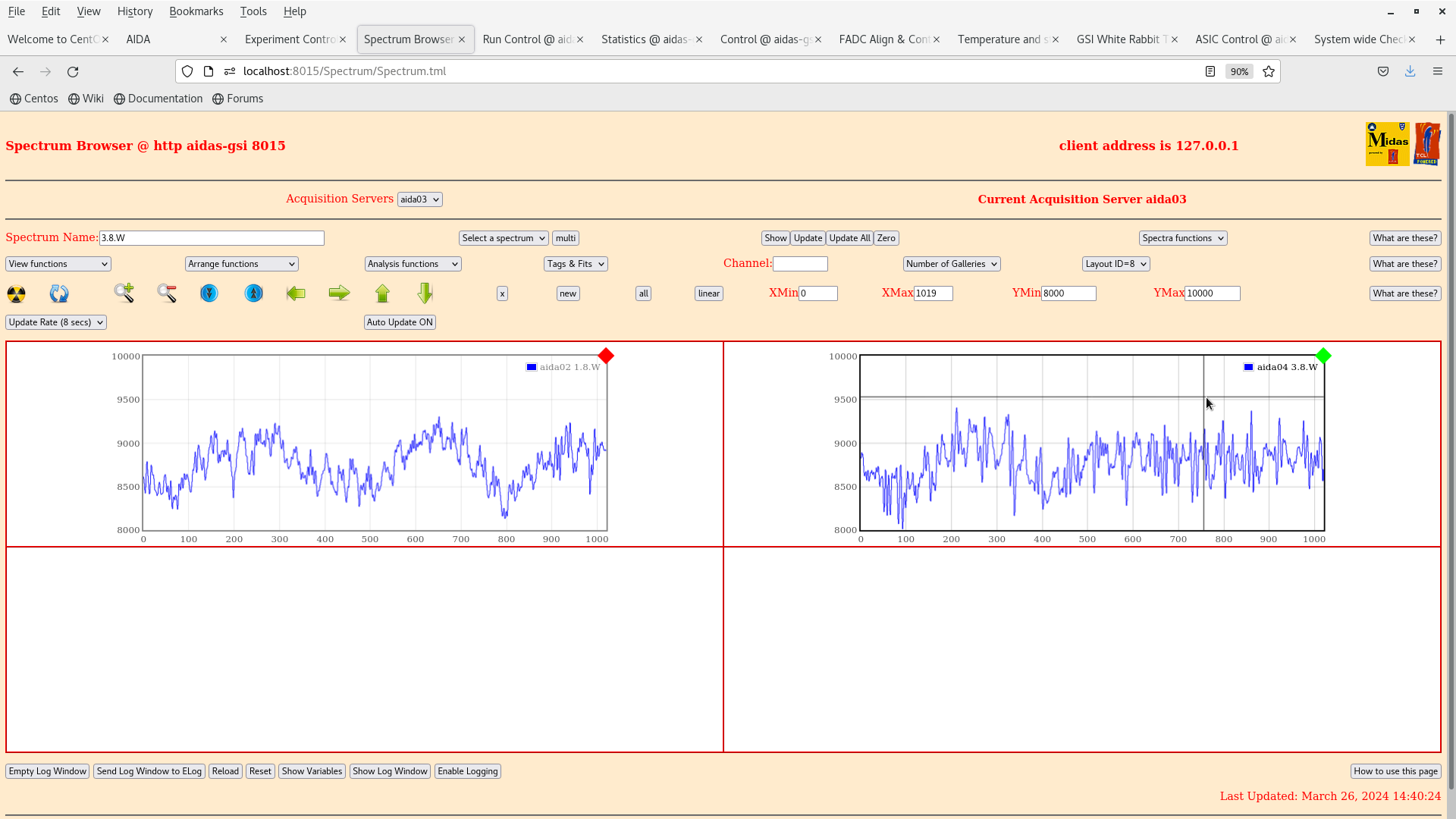

Waves fig 2 (p+n 6000-9000)
Waves fig 3 (n+n 8000-10000)
Statistics fig 4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
