Mounted on frame:
DSSD 1 (Upstream) : 3208-2/3208-5/3208-8
DSSD 2 (Downstream): 3208-3/3208-21/3208-22
Current mapping has been redone for better management.
| AIDA - FEE Mapping |
| DSSSD 1 |
DSSSD2 |
| FEE |
MAC |
FEE |
MAC |
| aida01 |
41:ba:8a |
aida06 |
41:05:15 |
| aida02 |
41:f6:b7 |
aida07 |
41:f6:5a |
| aida03 |
41:d8:21 |
aida08 |
41:d7:cd |
| aida04 |
41:a0:71 |
aida10 |
41:d0:0E |
| aida05 |
41:cf:ac |
aida13 |
41:d8:2b |
| aida09 |
41:ee:10 |
aida14 |
42:0d:15 |
| aida15 |
41:b4:0c |
aida11 |
41:EE:0f |
| aida12 |
41:ba:89 |
aida16 |
41:f6:ed |
Going to try optimising noise now.
DHCP updated
new ASIC settings: 2024Mar27-11.25.32 - 16 FEEs (2,4,6,8 n+n, rest p+n)
New layouts: /home/npg/LayOut/GSI_Triple_S100
New layout.txt
Firmware of aida11 updated from 0xea40704 to 0x3350706

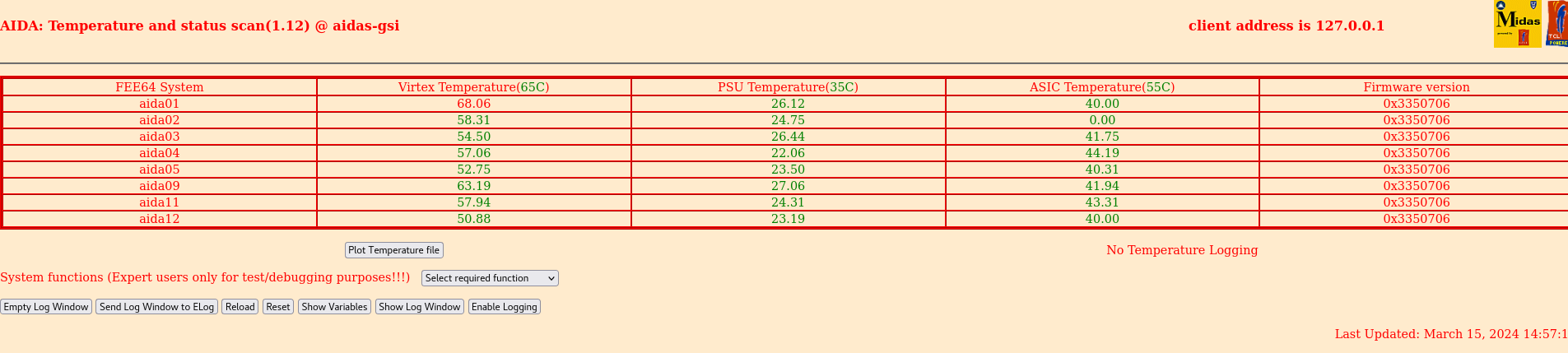

Temps GOOD fig 5

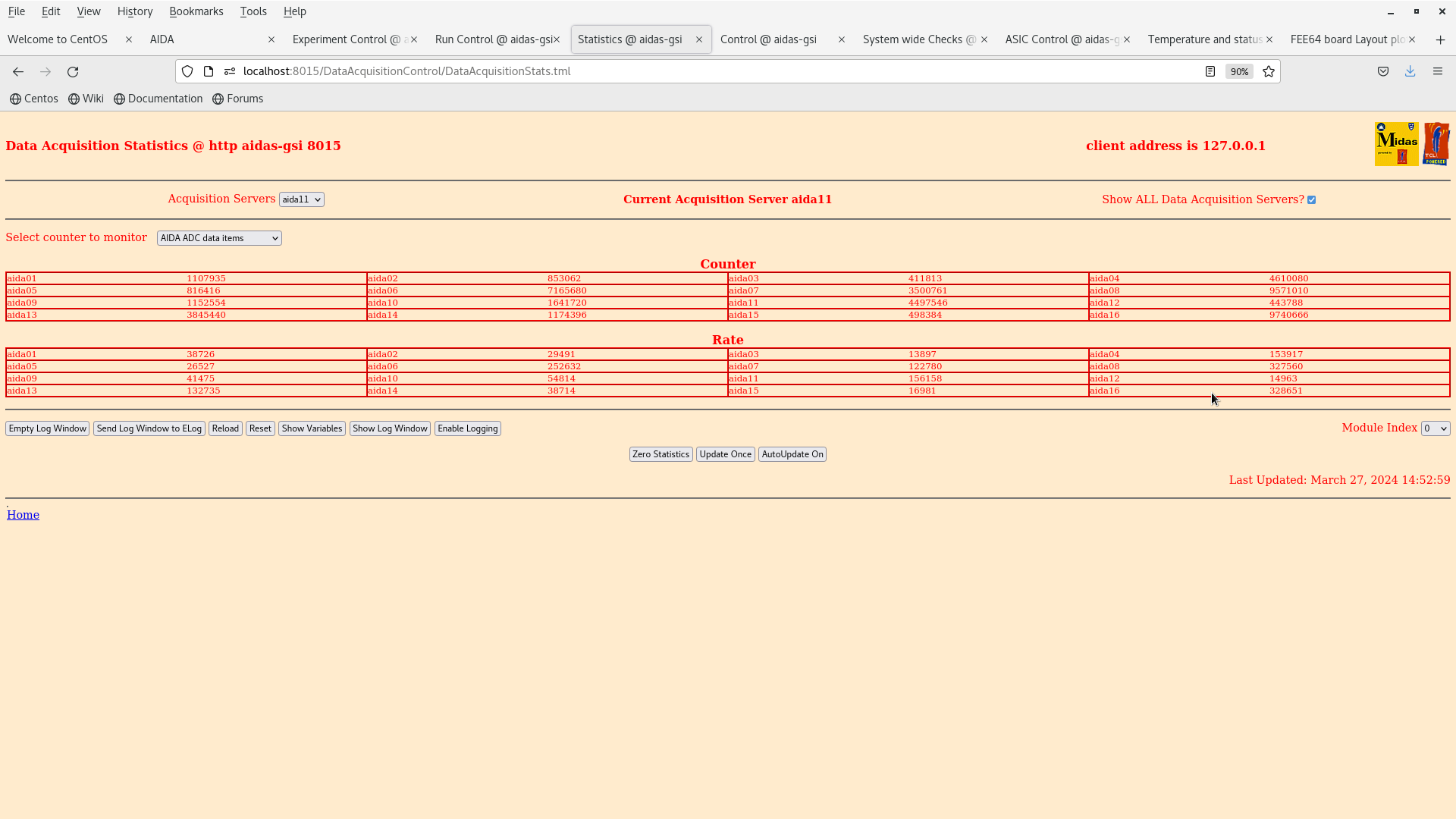

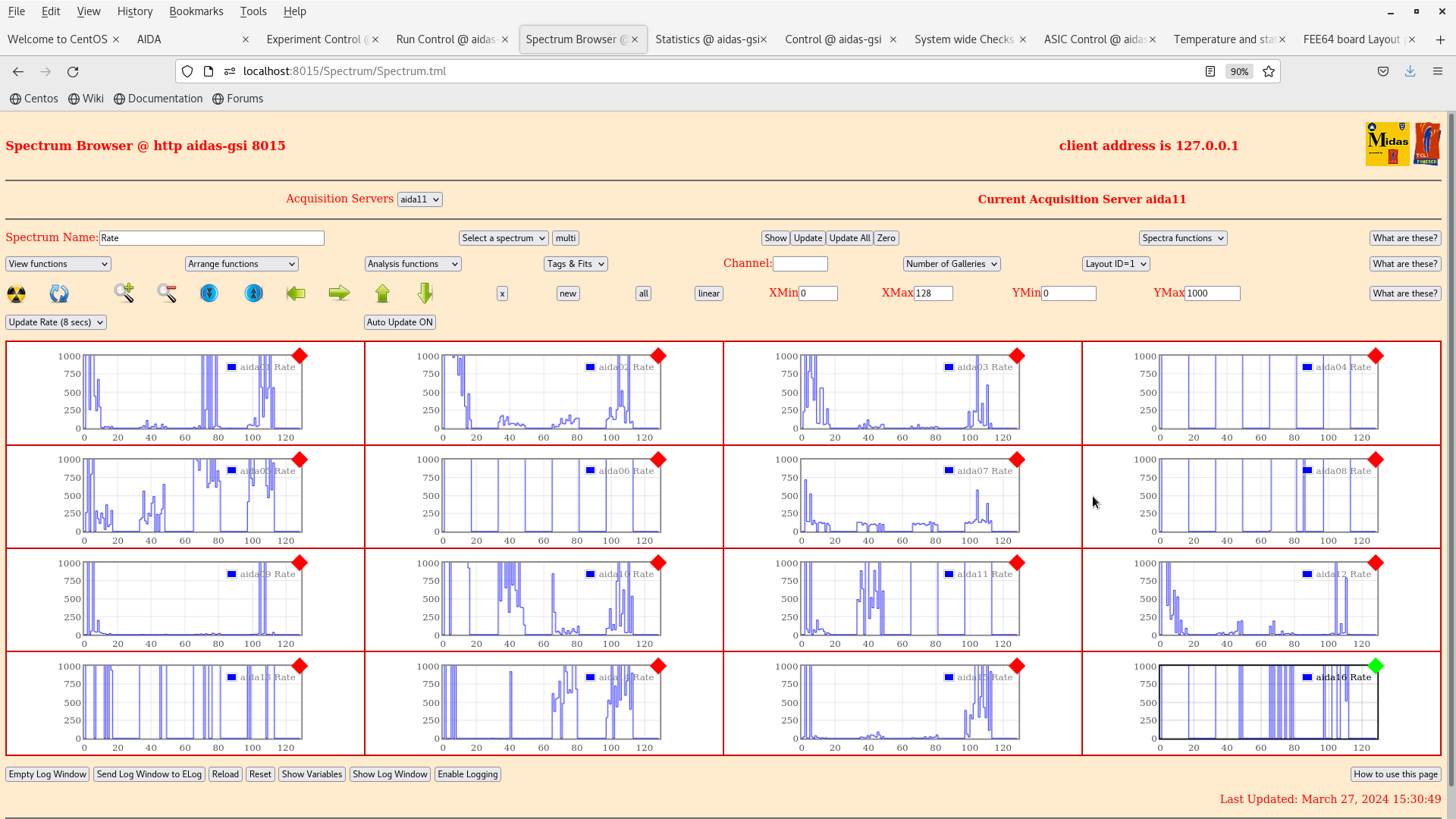

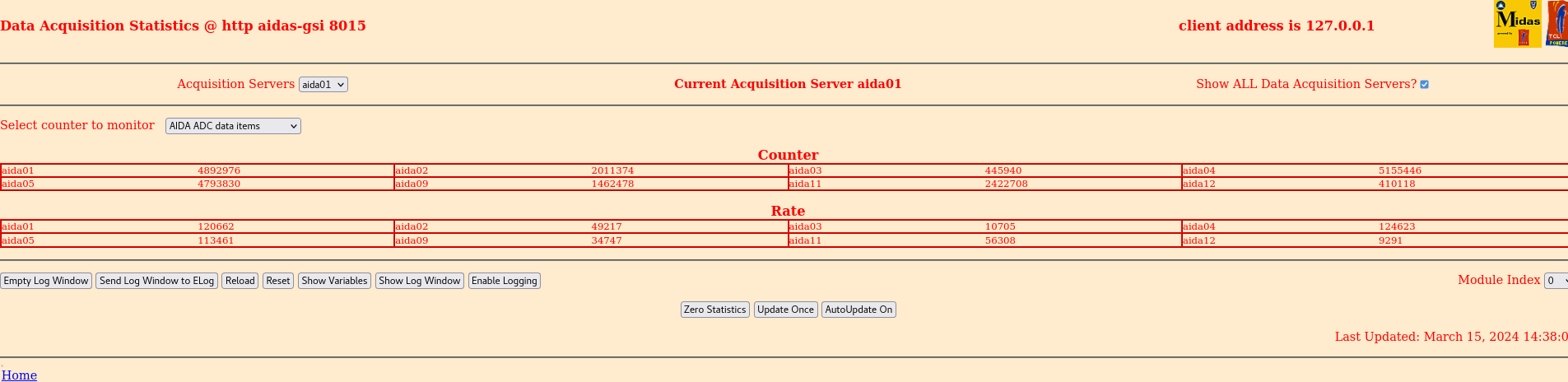

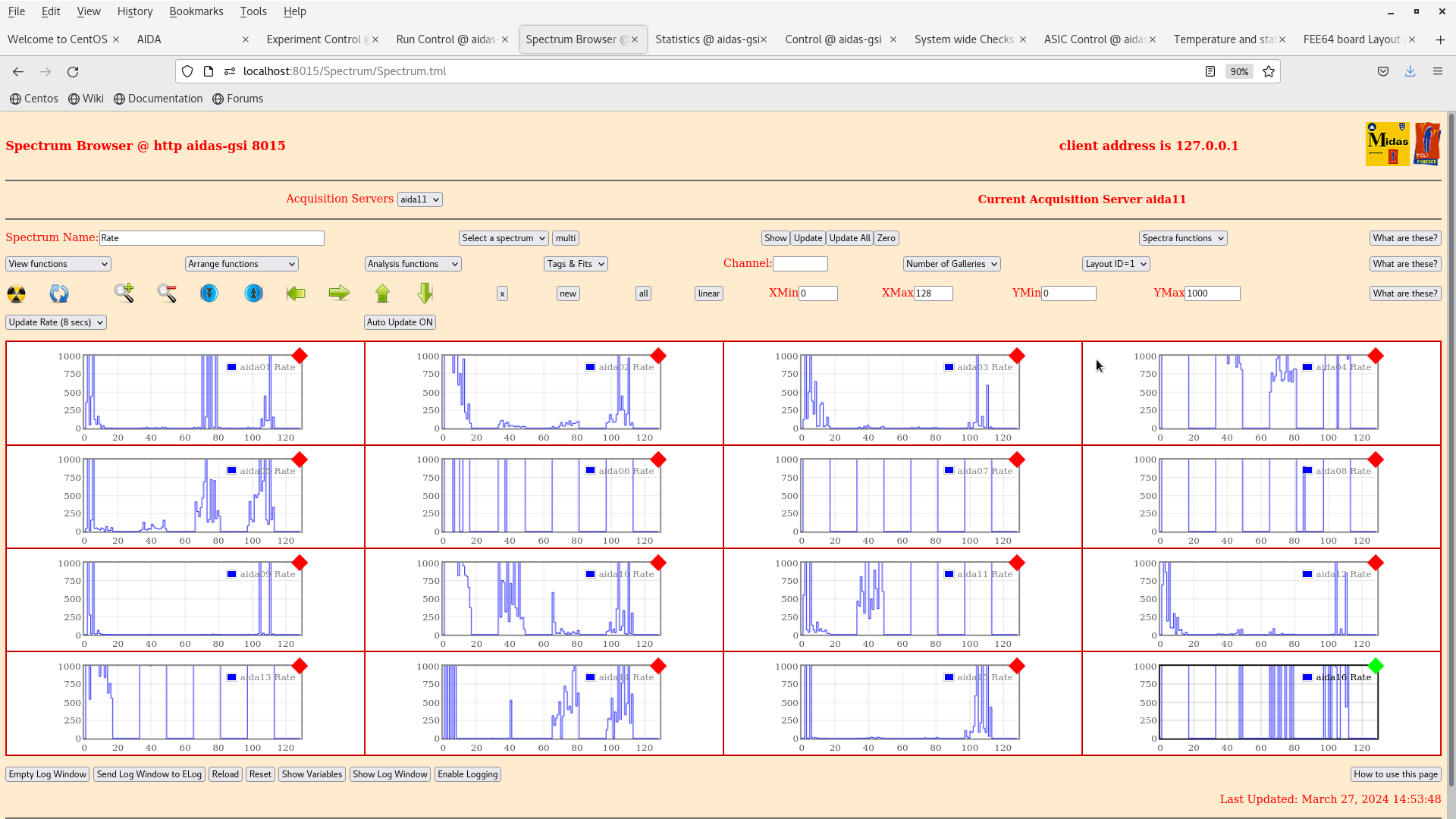

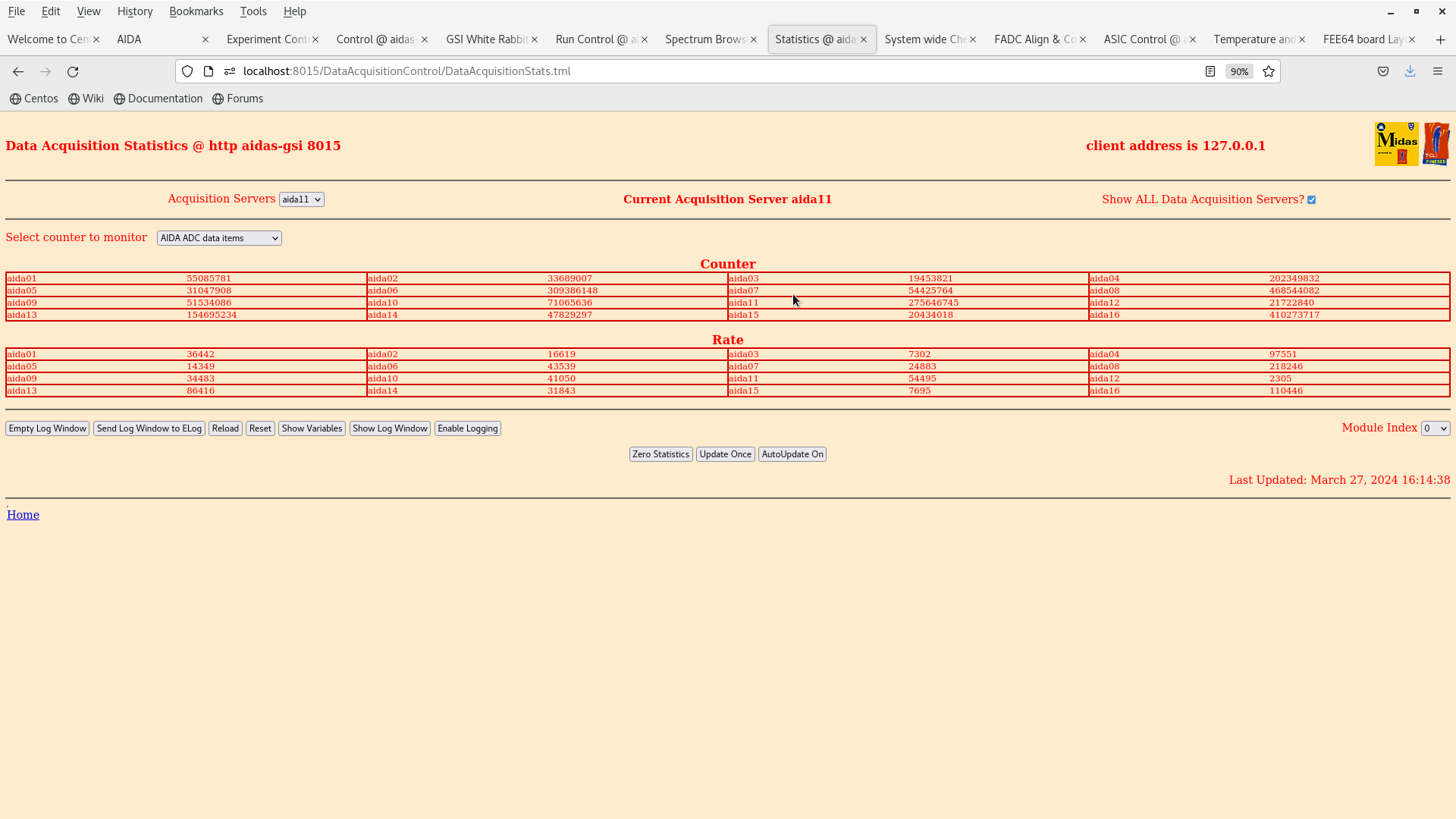

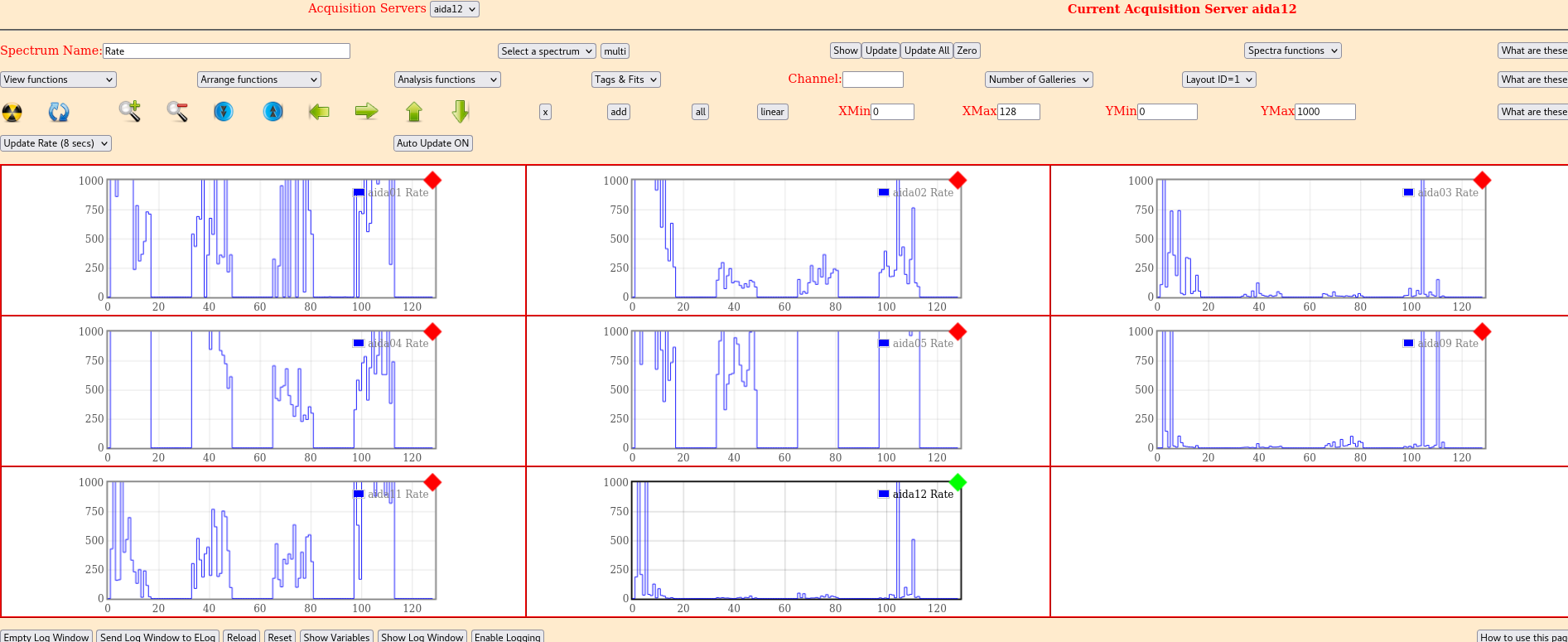

Rates fig 6, 7
Check adapter alignment aida14 and aida16
bPlas left/right cables are not insulated and shorting to the snout
Logs on nnpi1 archived and deleted, start again
All 16 FEEs are showing USB logging connectivity and can be monitored with Pi_Monitor

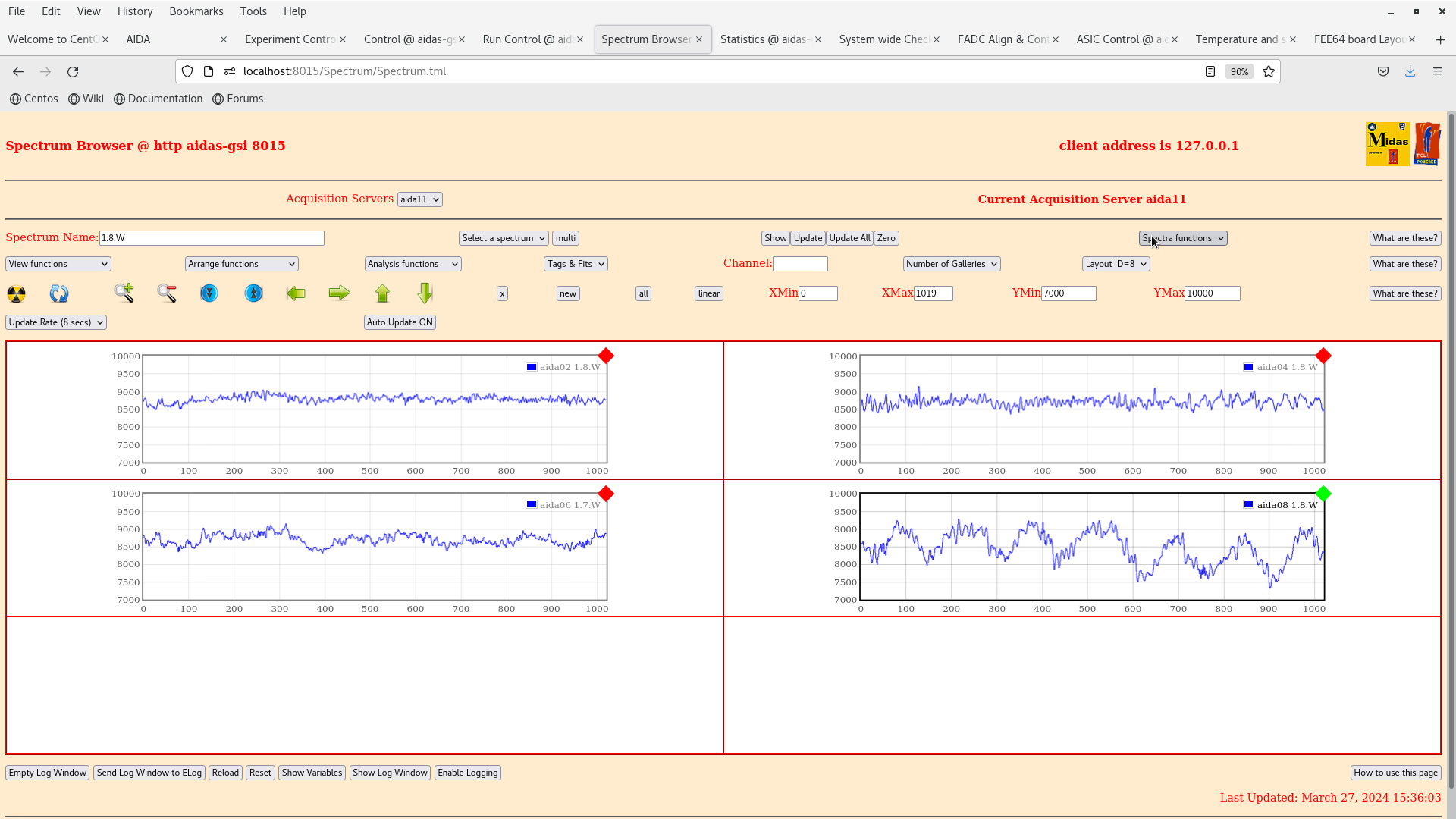

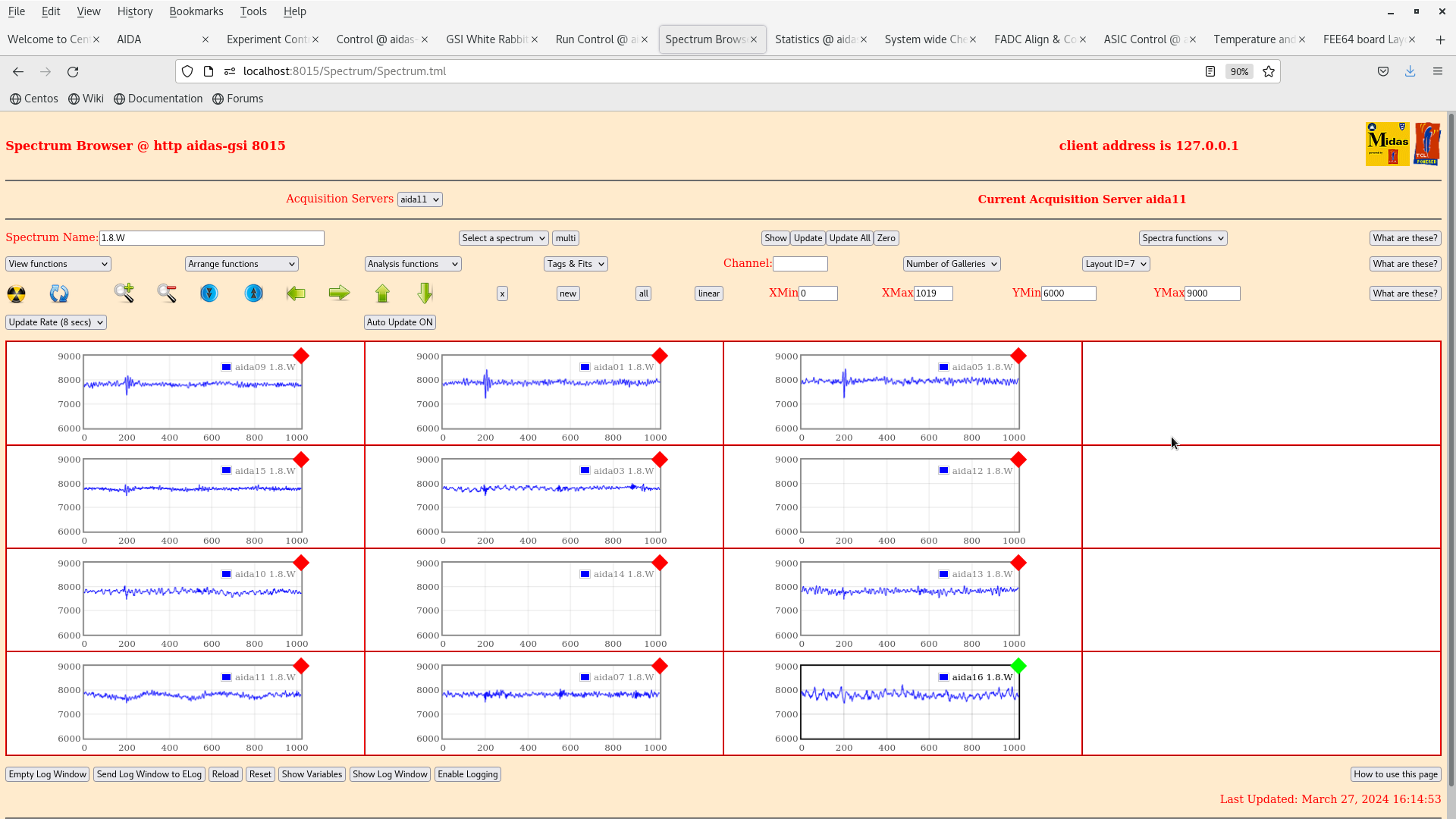

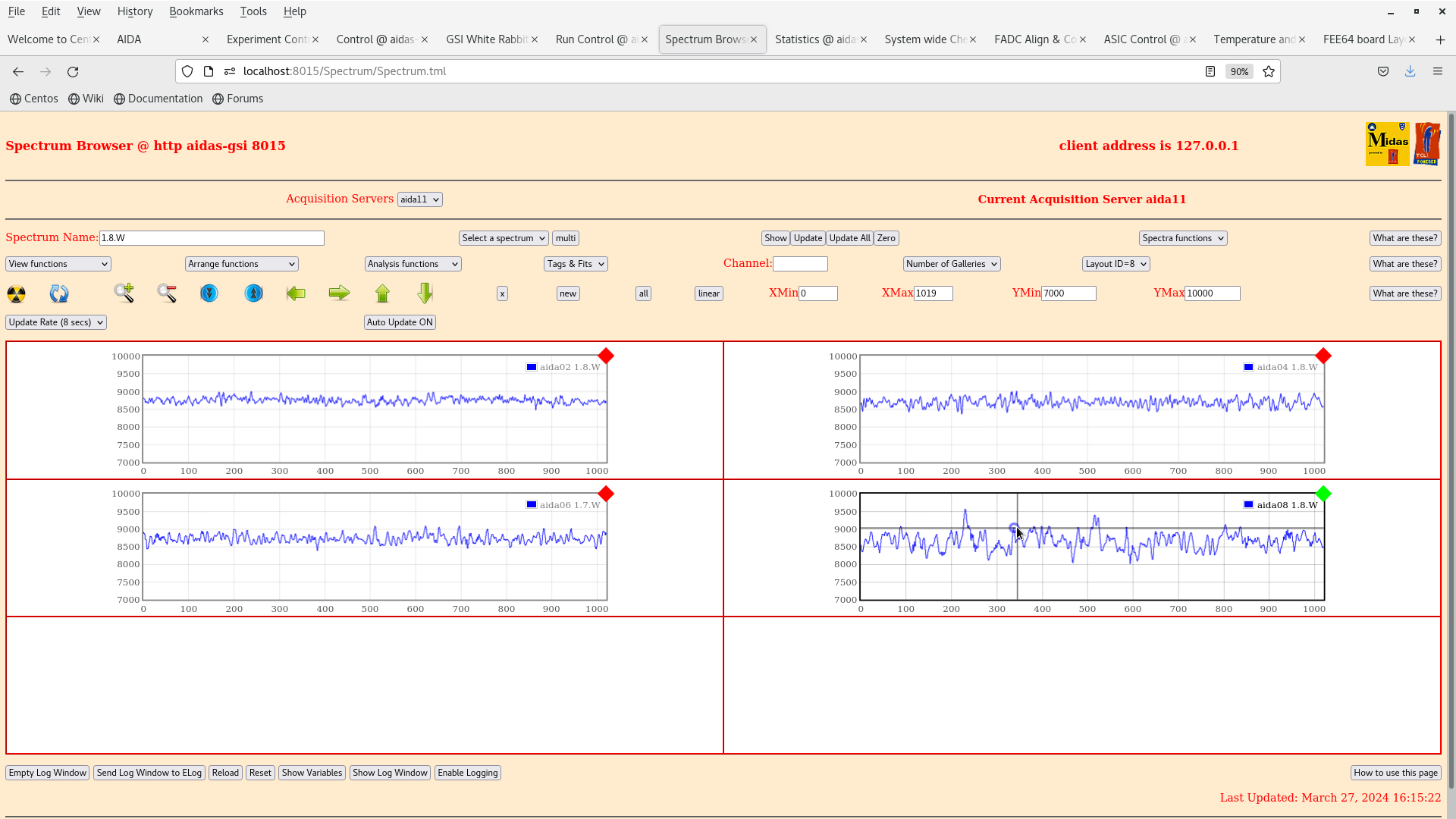

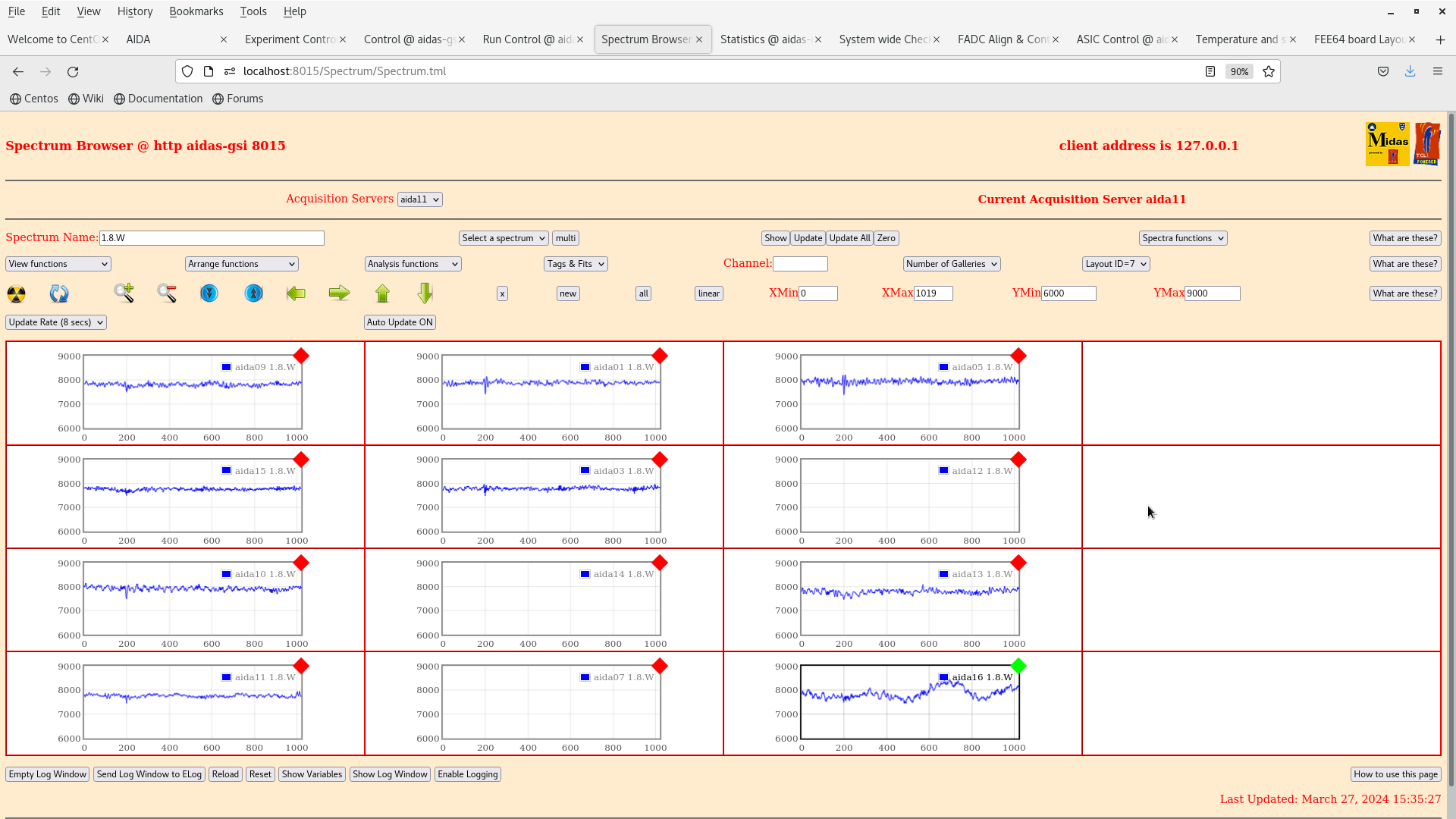

From waveforms aida08 and aida16 are quite unhappy. The rest don't seem too bad. DSSSD 1 is much quieter than it was before!

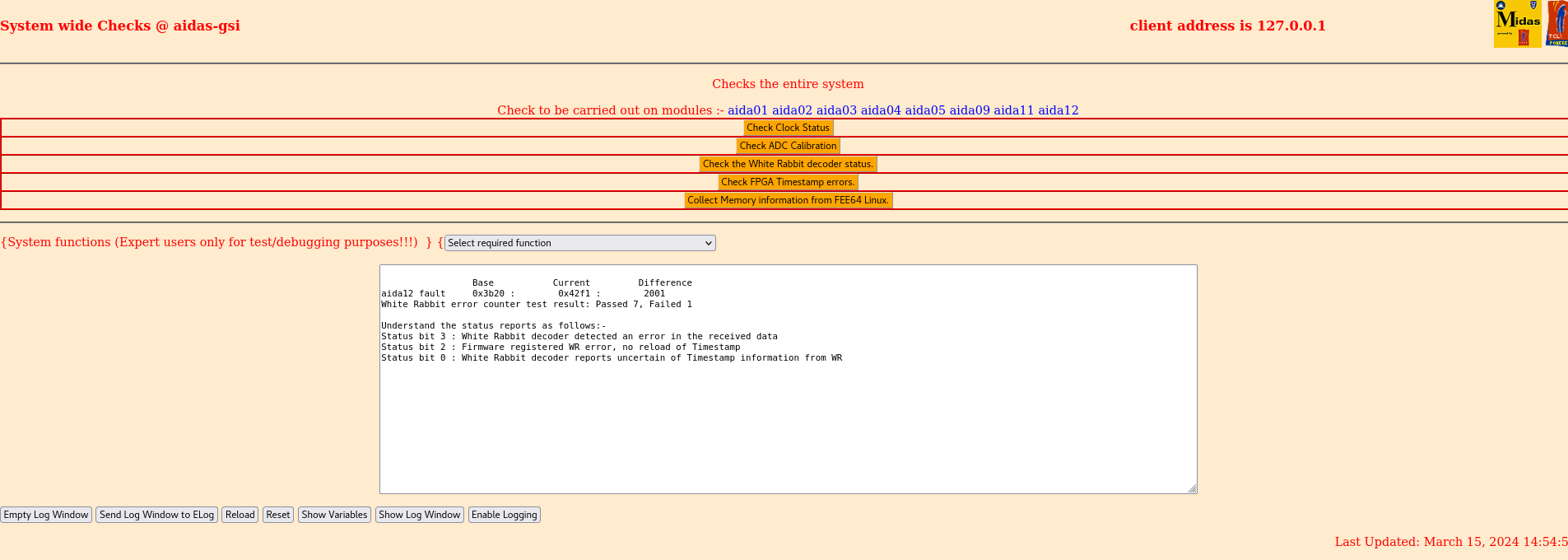

White Rabbit Analysis: aida02 has lots of WR error counter, HDMI reseat needed
aida09-12 have no WR timestamp, the cable to the MACB is bad or the MACB is bad.
Not needed to fix right now (for noise testing)
Turn off bPlas

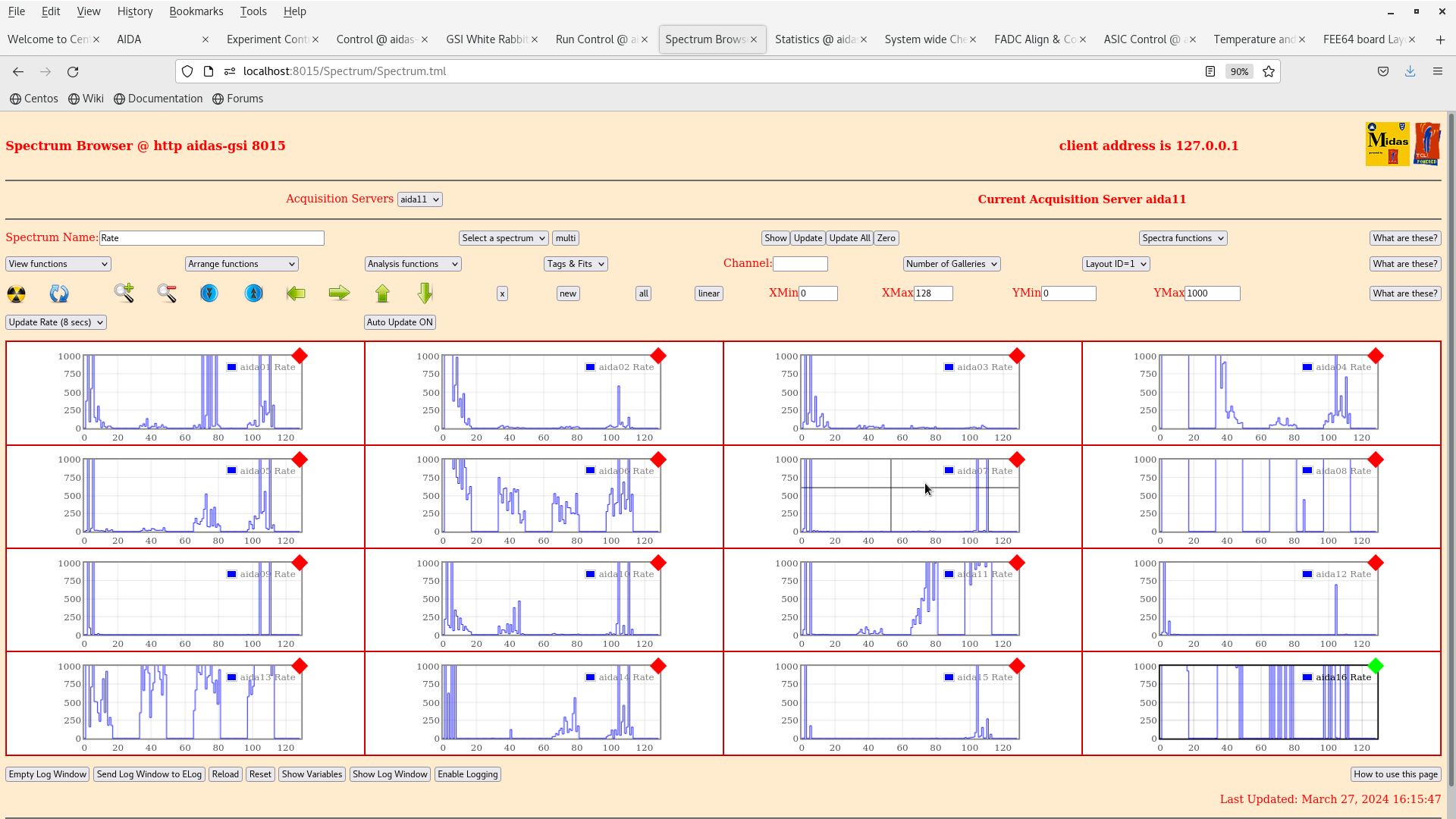

We see the noise drop a lot |
