Message ID: 559     Entry time: Wed Apr 3 13:02:19 2024
Author: NH
Subject: Merger for 16 FEEs
Changed /MIDAS/Linux/startup/NewMerger

Change parameters -i and -l in master64 to 16 for 16 FEEs
Update NewMerger Options LinksAvailable to 16, LinksInUse to 1%1%1%1%1%1%1%1%1%1%1%1%1%1%1%1%
Fix NetVar RunOptions 1 (was 0)

Restart Merger HTTPd, Tape, Merger, MBS Spy

Reset/Setup/Go

16 Links green and status going, all good?

Bias DSSSDs and turn data transfer on

Merger connected, shows rate and updates... no rate in Tape Server?

.. Oops forget to turn on Output to data storage in merger!

Rate in tape server and to MBS: 7 MB/s

Merger, Tape and MBS working with 16 FEEs

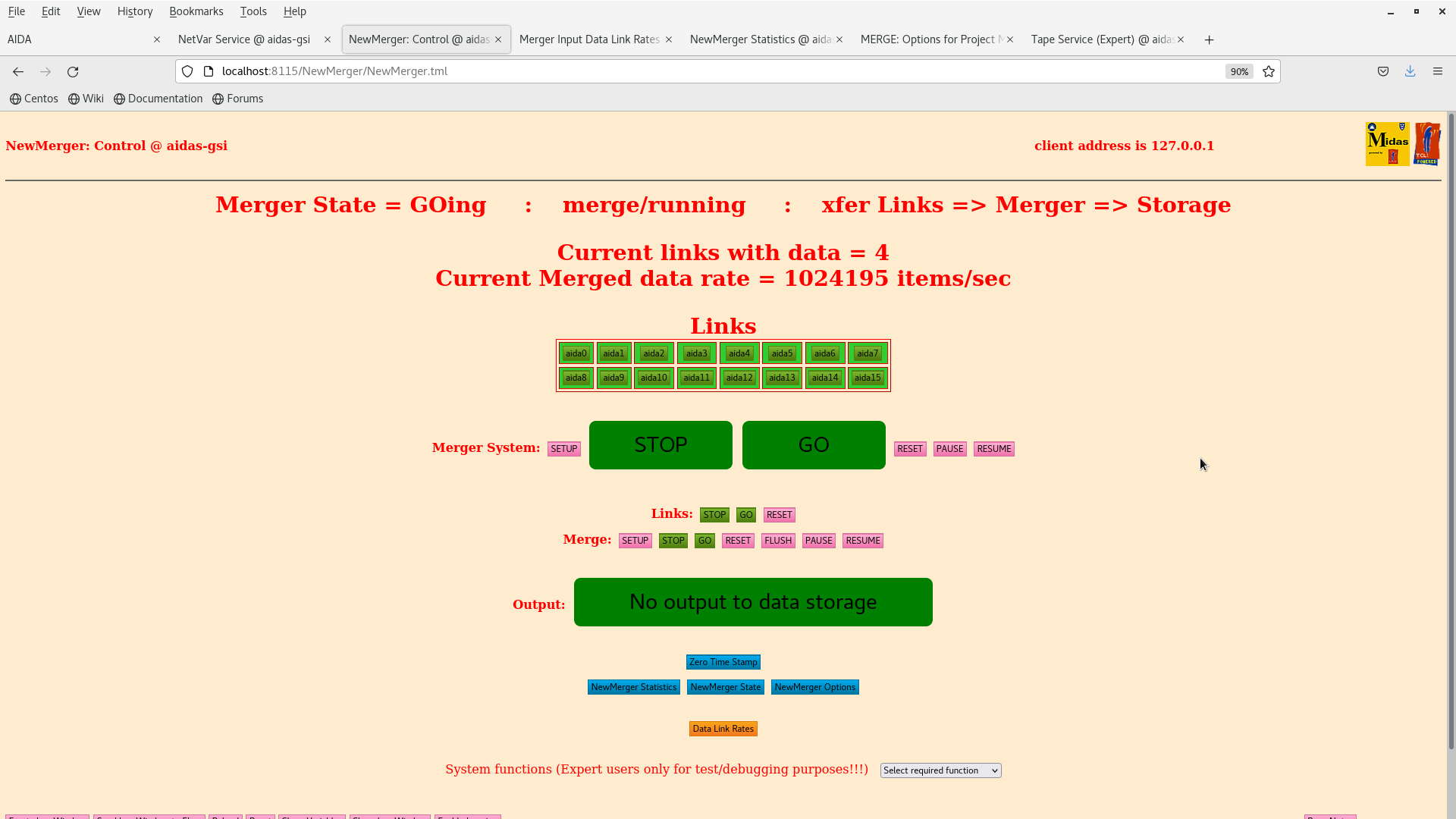

Attachment 1: Screenshot_from_2024-04-03_14-15-02.png  141 kB  Uploaded Wed Apr 3 14:15:58 2024  | Hide | Hide all

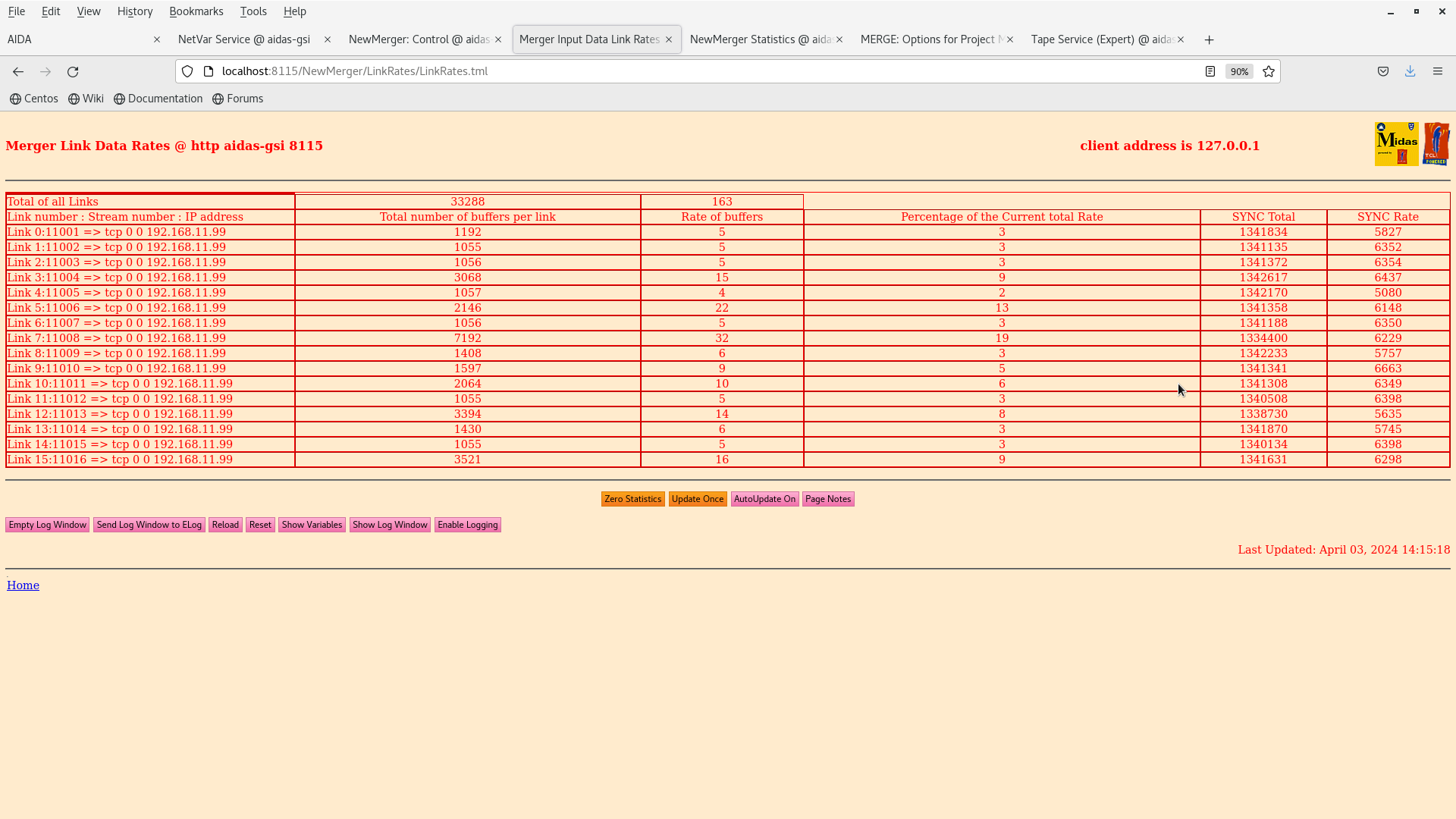

Attachment 2: Screenshot_from_2024-04-03_14-15-25.png  179 kB  Uploaded Wed Apr 3 14:16:01 2024  | Hide | Hide all

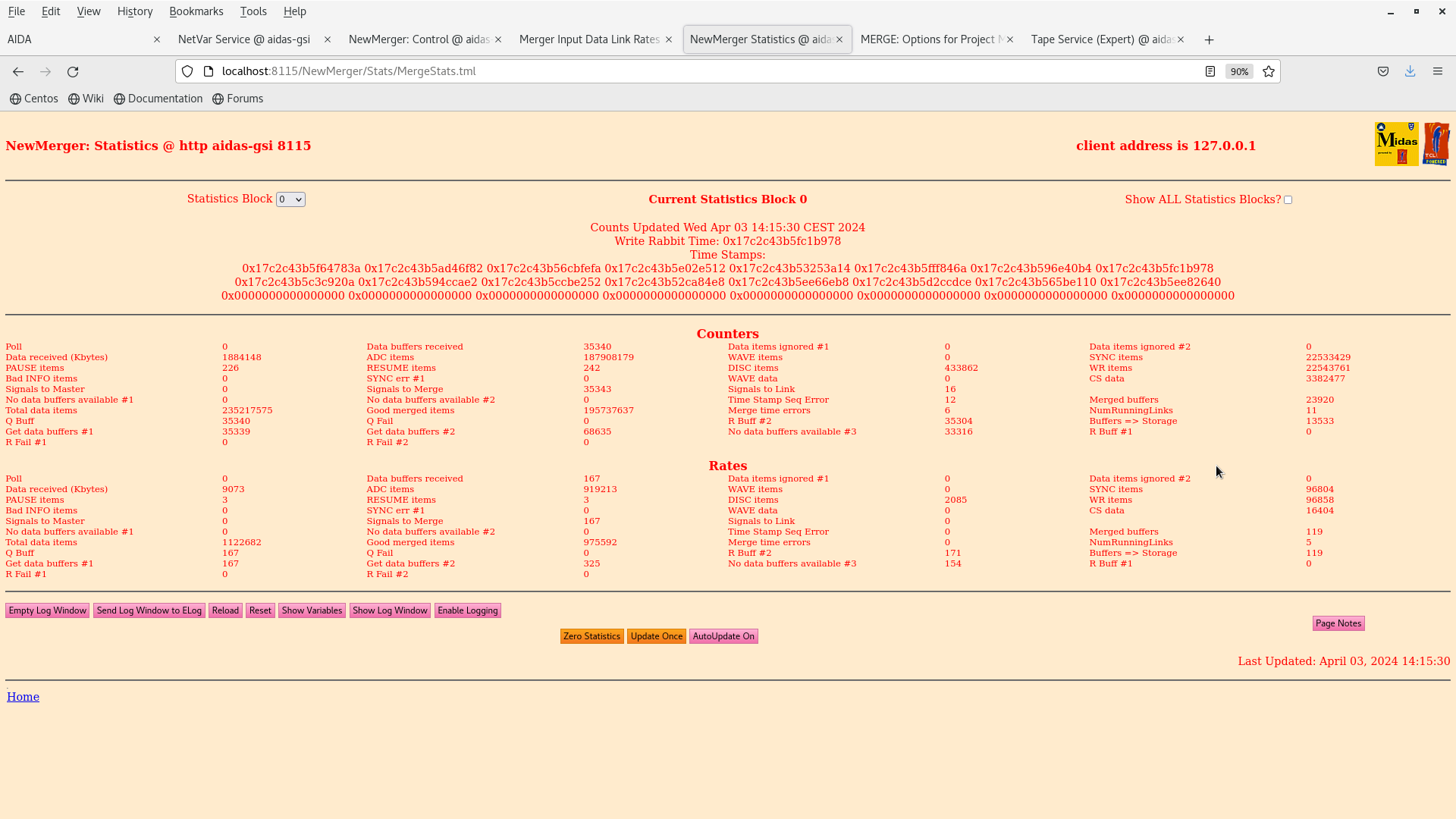

Attachment 3: Screenshot_from_2024-04-03_14-15-36.png  217 kB  Uploaded Wed Apr 3 14:16:04 2024  | Hide | Hide all

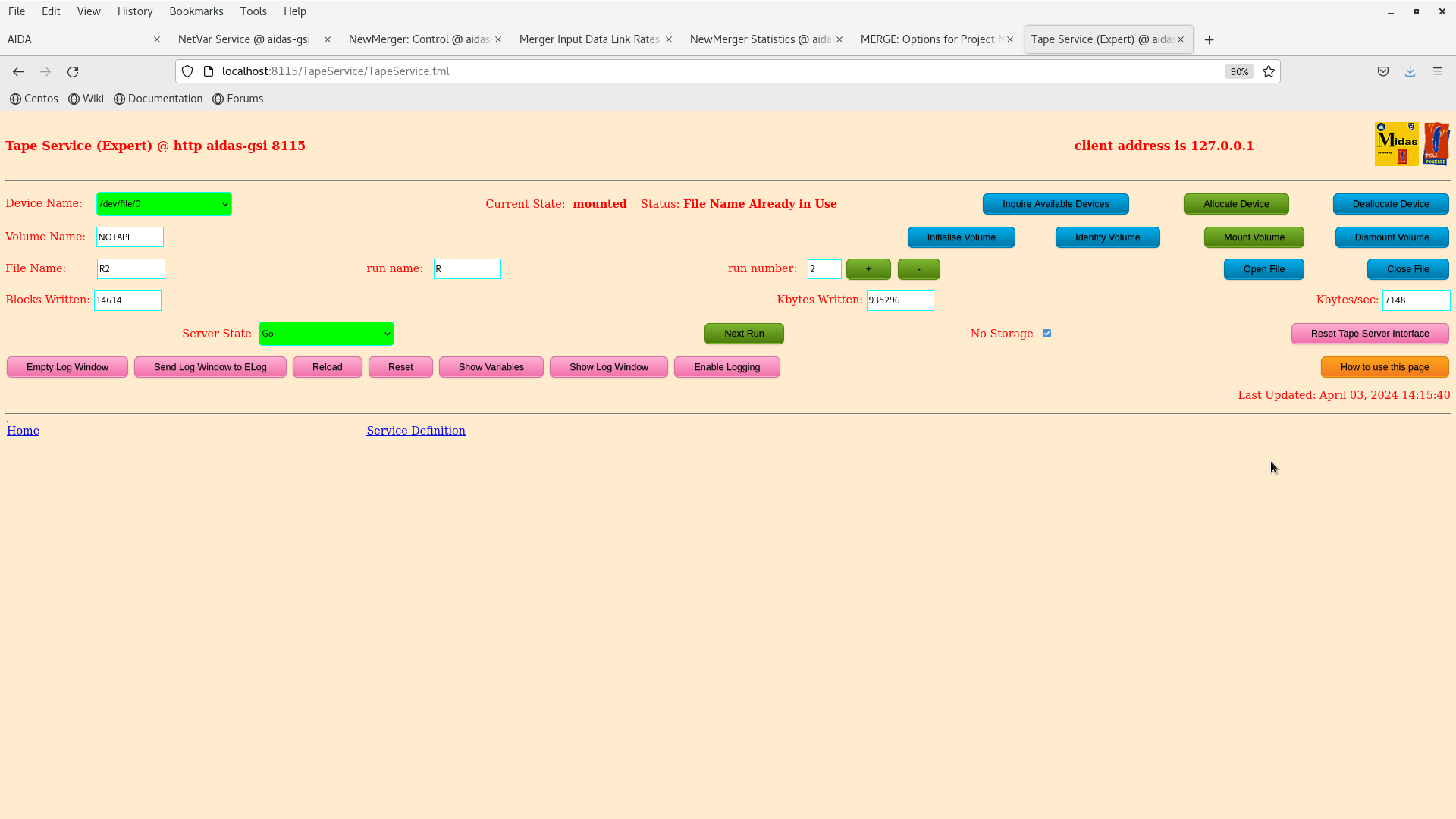

Attachment 4: Screenshot_from_2024-04-03_14-15-45.png  138 kB  Uploaded Wed Apr 3 14:16:07 2024  | Hide | Hide all

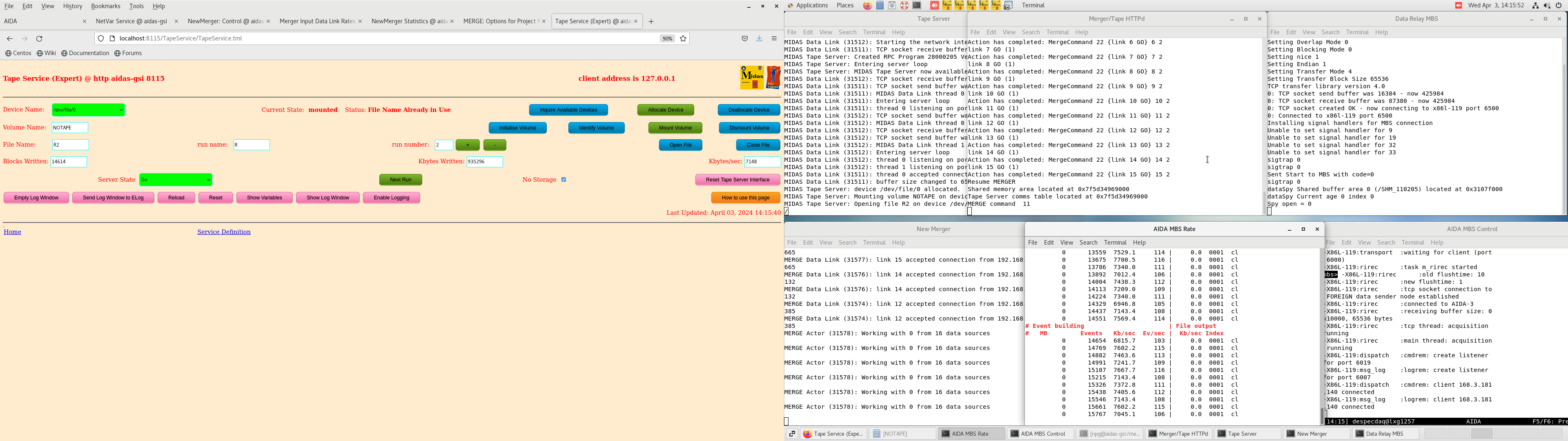

Attachment 5: Screenshot_from_2024-04-03_14-15-52.png  546 kB  Uploaded Wed Apr 3 14:16:11 2024  | Hide | Hide all
