15:04 bPlast was left powered over night. Powering up to check noise conditions - also to check shifting of Germanium baseline (no change observed).

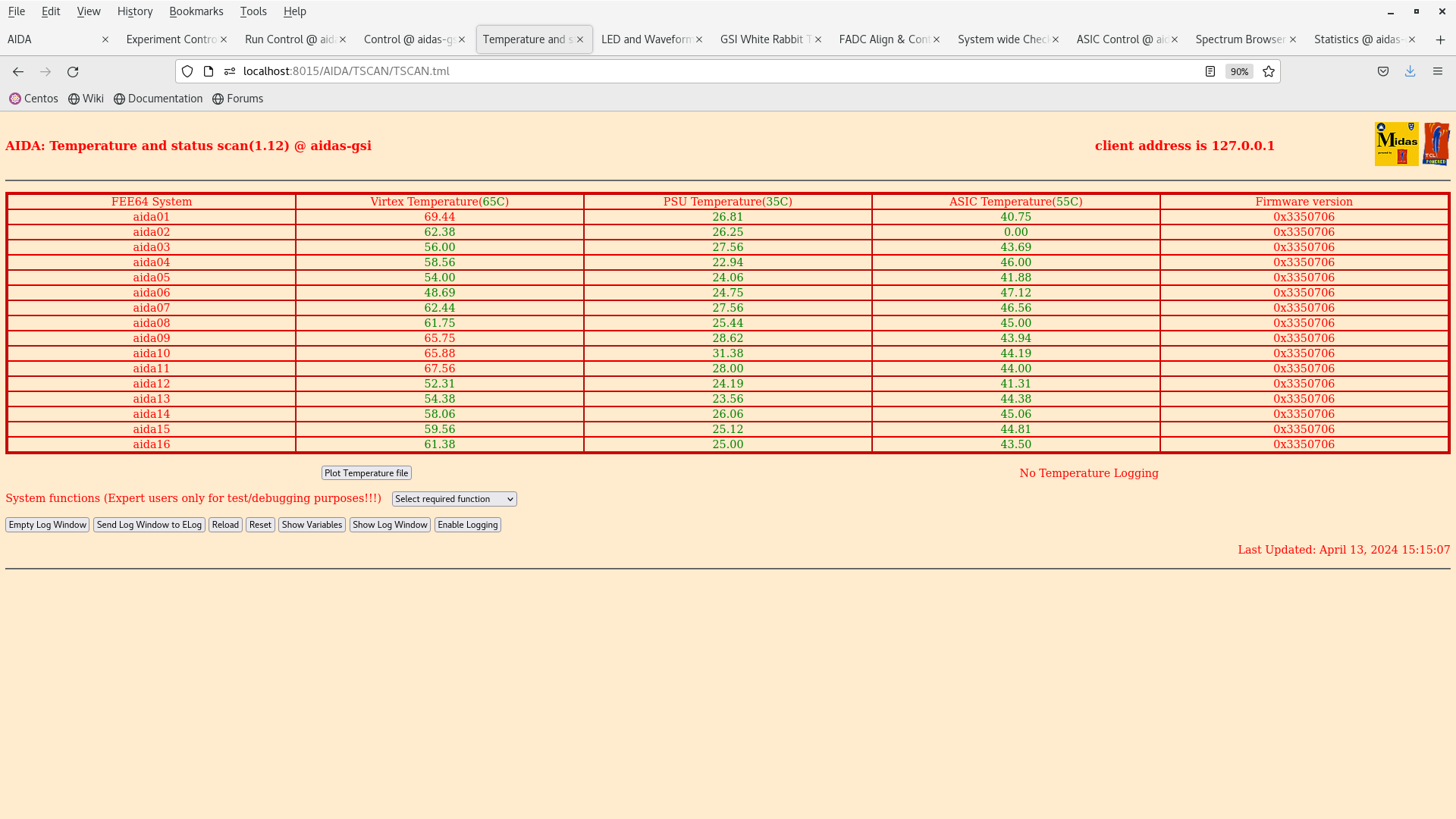

TEMP OK.

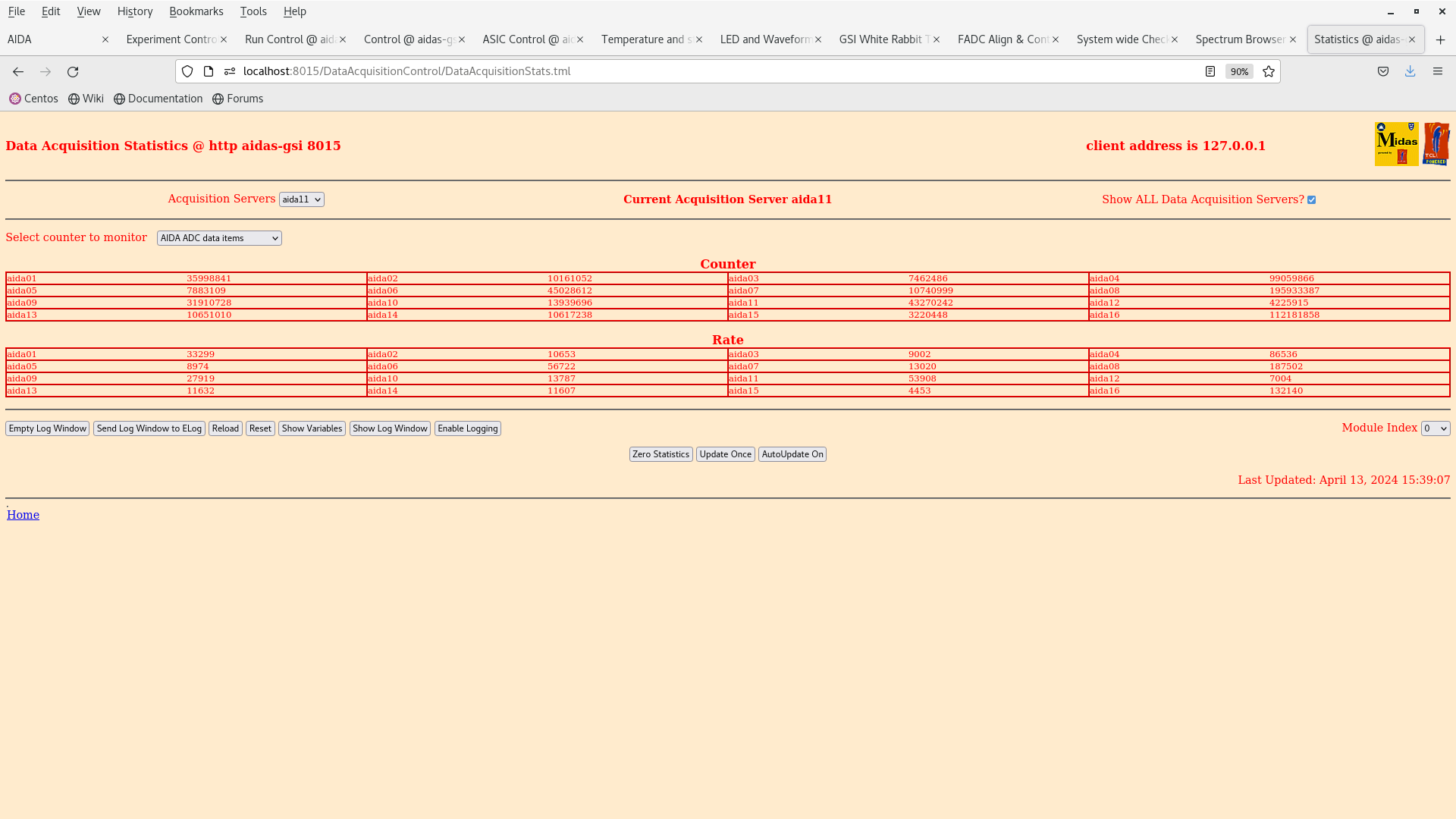

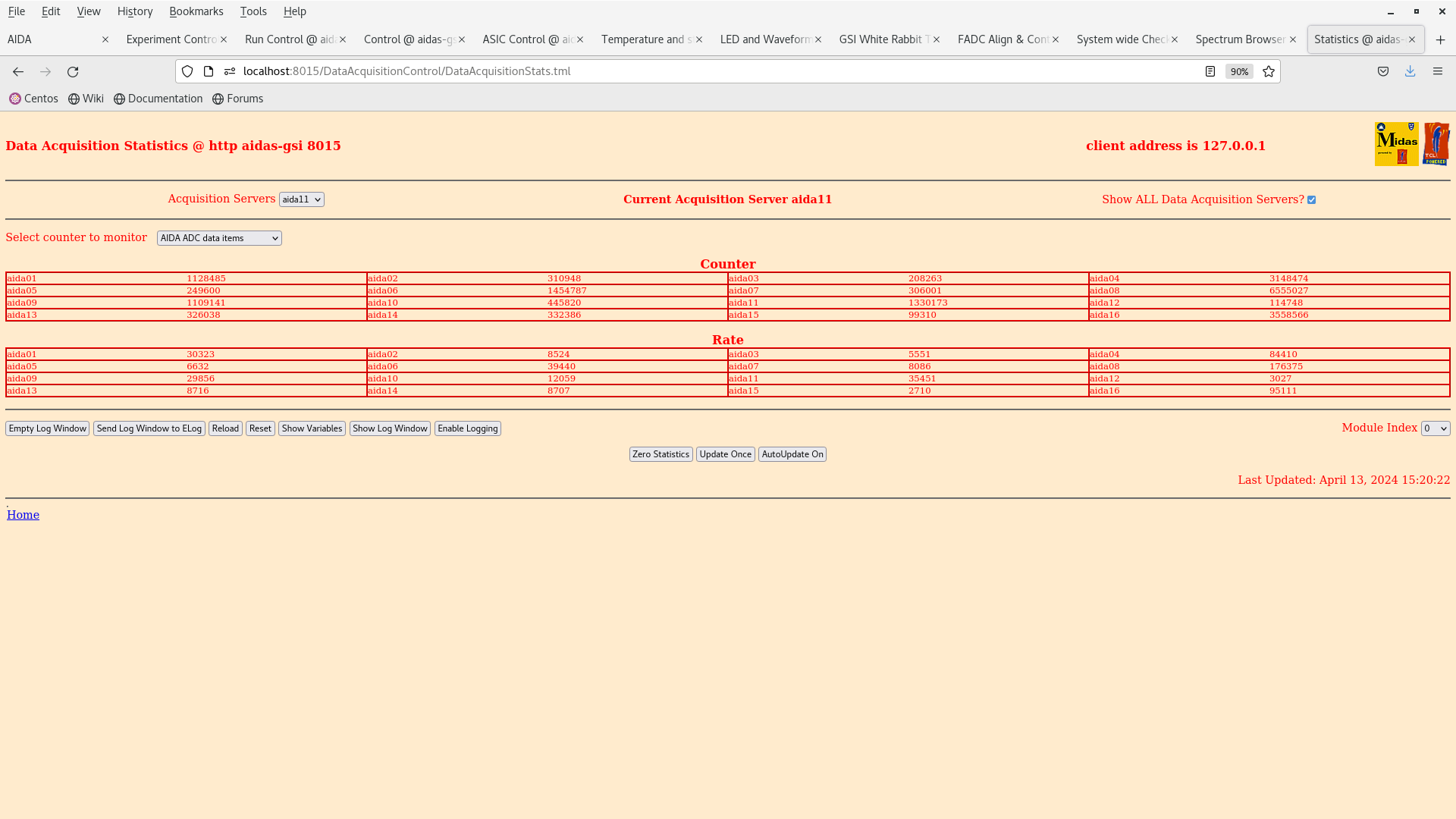

Noise condition the same as yesterday when platform was moved in. Noise in aida01 and aida09 due to single channel failures (?). Attachments 1-3.
9/16 <20kHz, max 176k

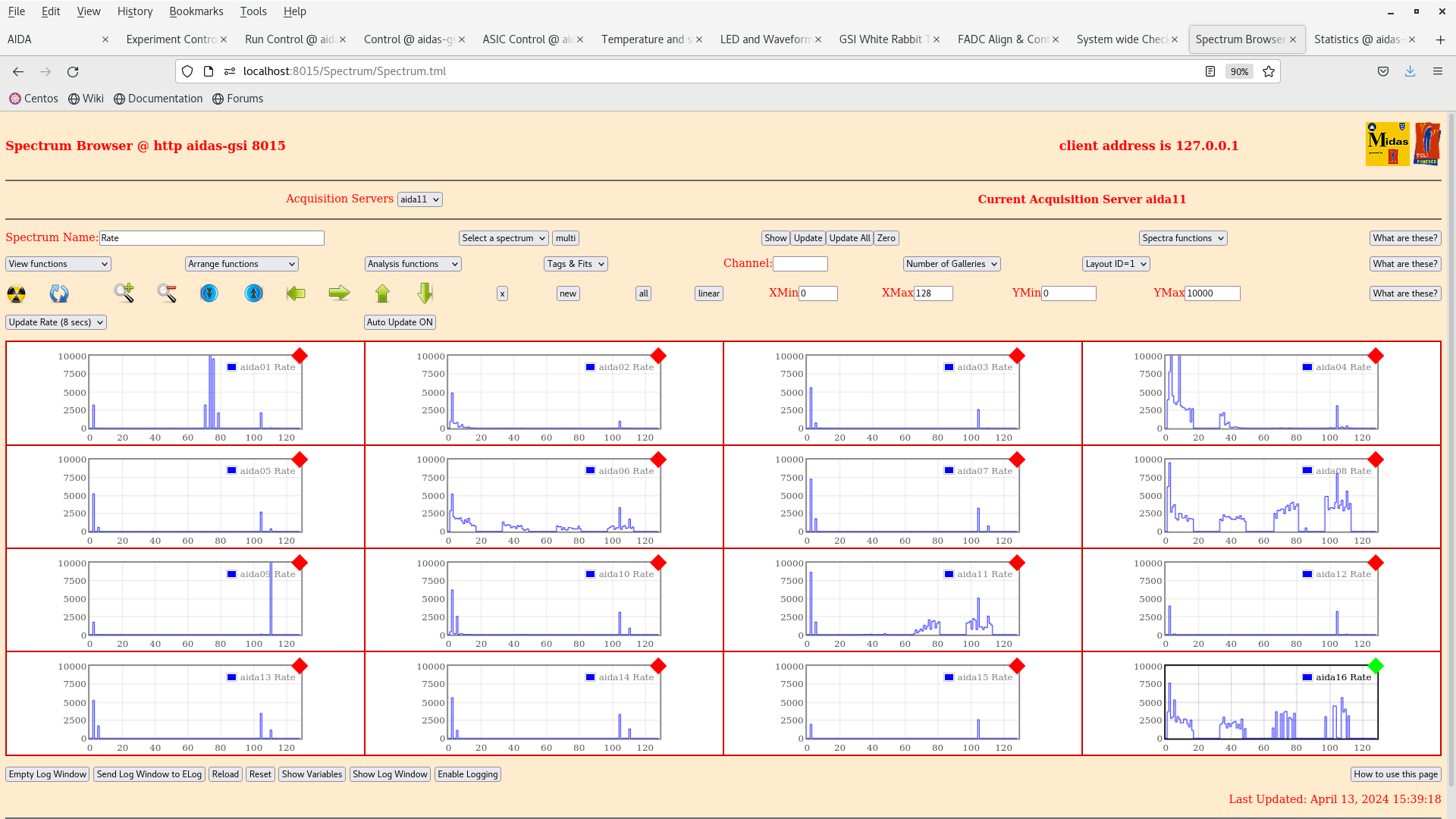

15:30 Changed drainwires ground from 4V (Ch3) -> 29.5V (Ch4) out on R&SMP4040 PSU. Attachments 4-5.
No change in noise observed.
9/16 <20kHz, max 187k
15:49 Connected PN 300 ground to R&SMP4040 4V (Ch3) output. Noise decreased in many channels aida09 does not have a noisy channel anymore (??). Attachments 6-7.
10/16 <20kHz, max 158k.
Current bPlast grounding scheme in attachments 8-9.
|
