Entry time:
Tue Apr 16 10:49:37 2024
Author
*
:
Subject
*
:

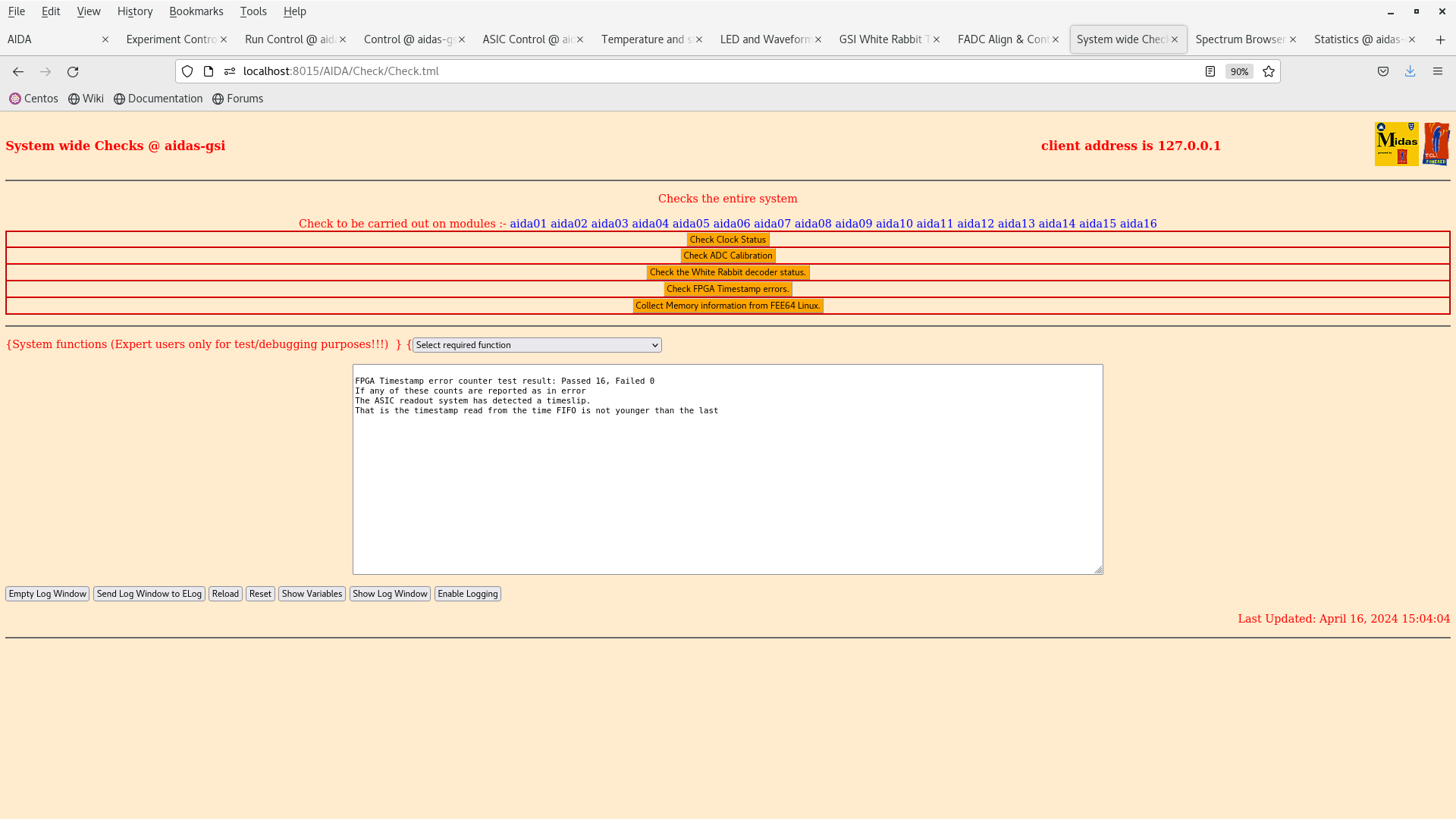

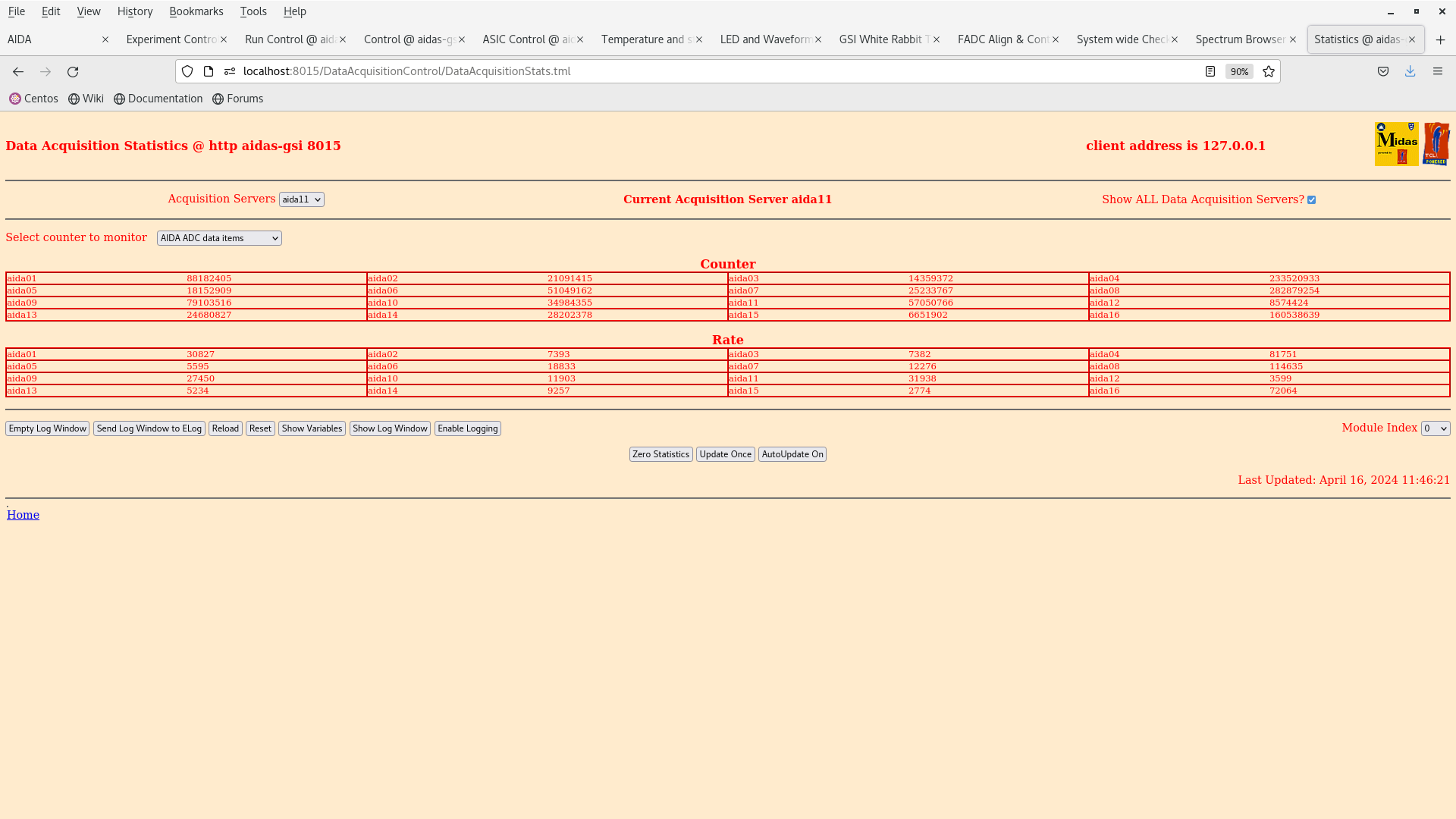

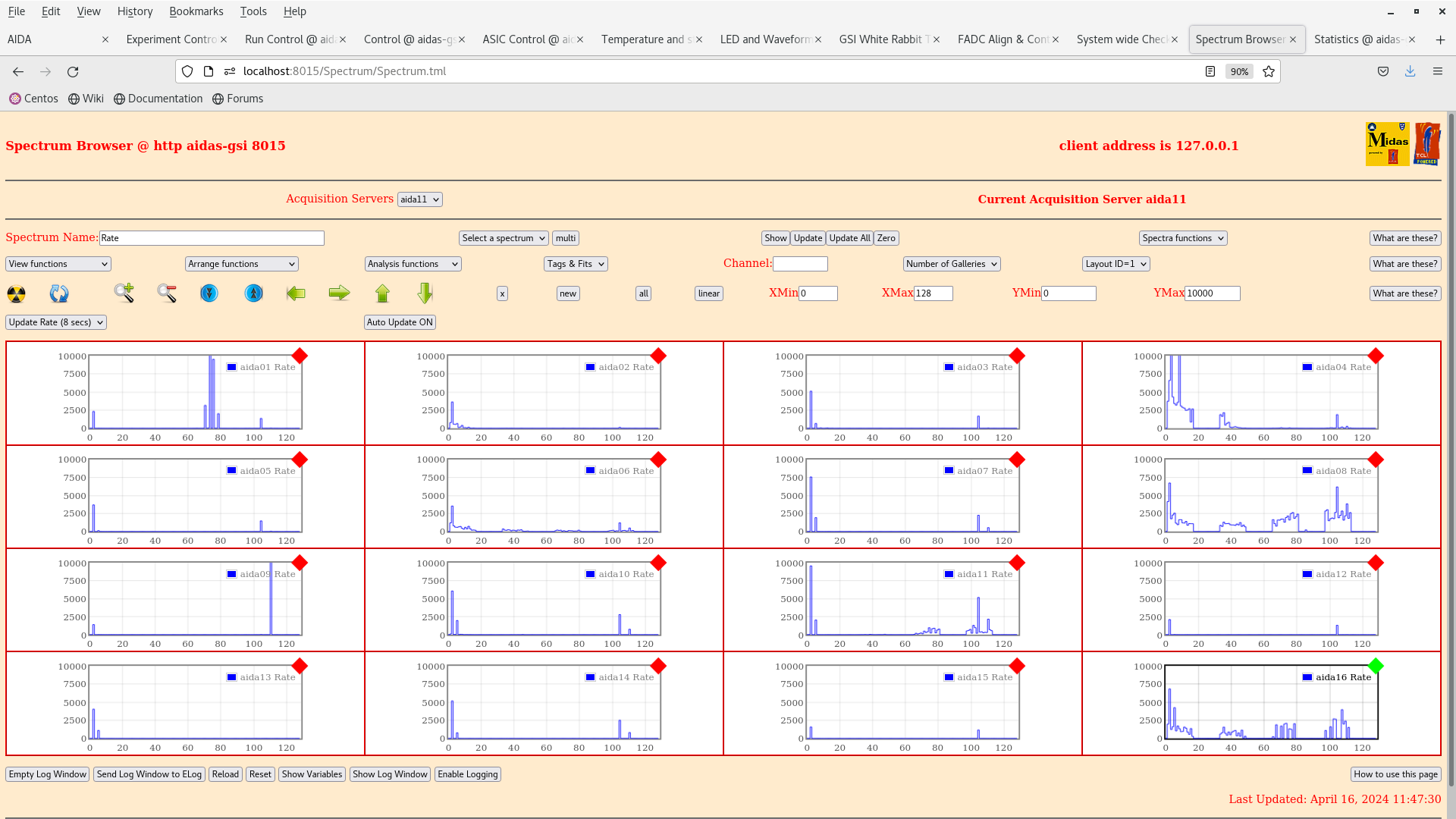

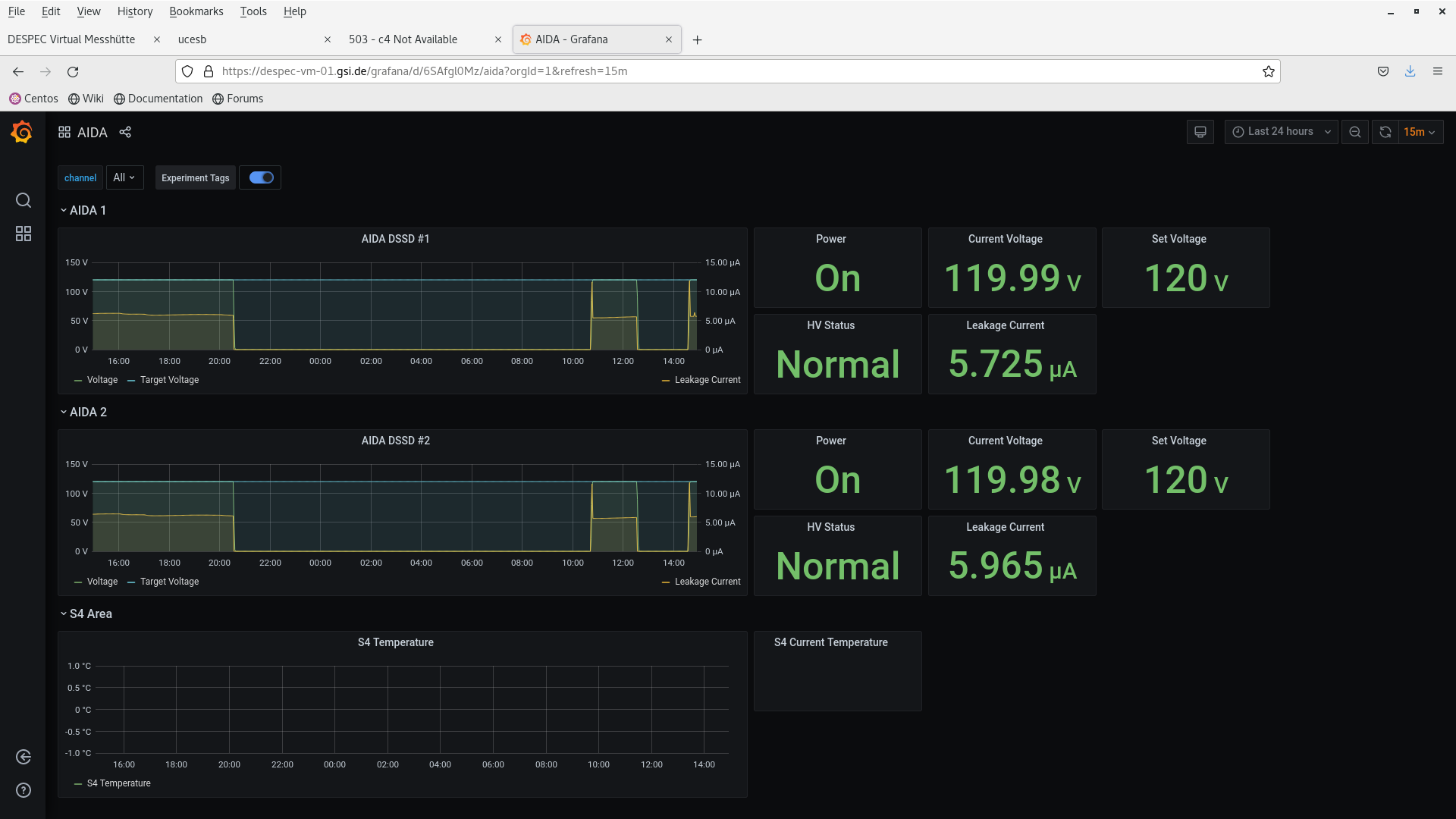

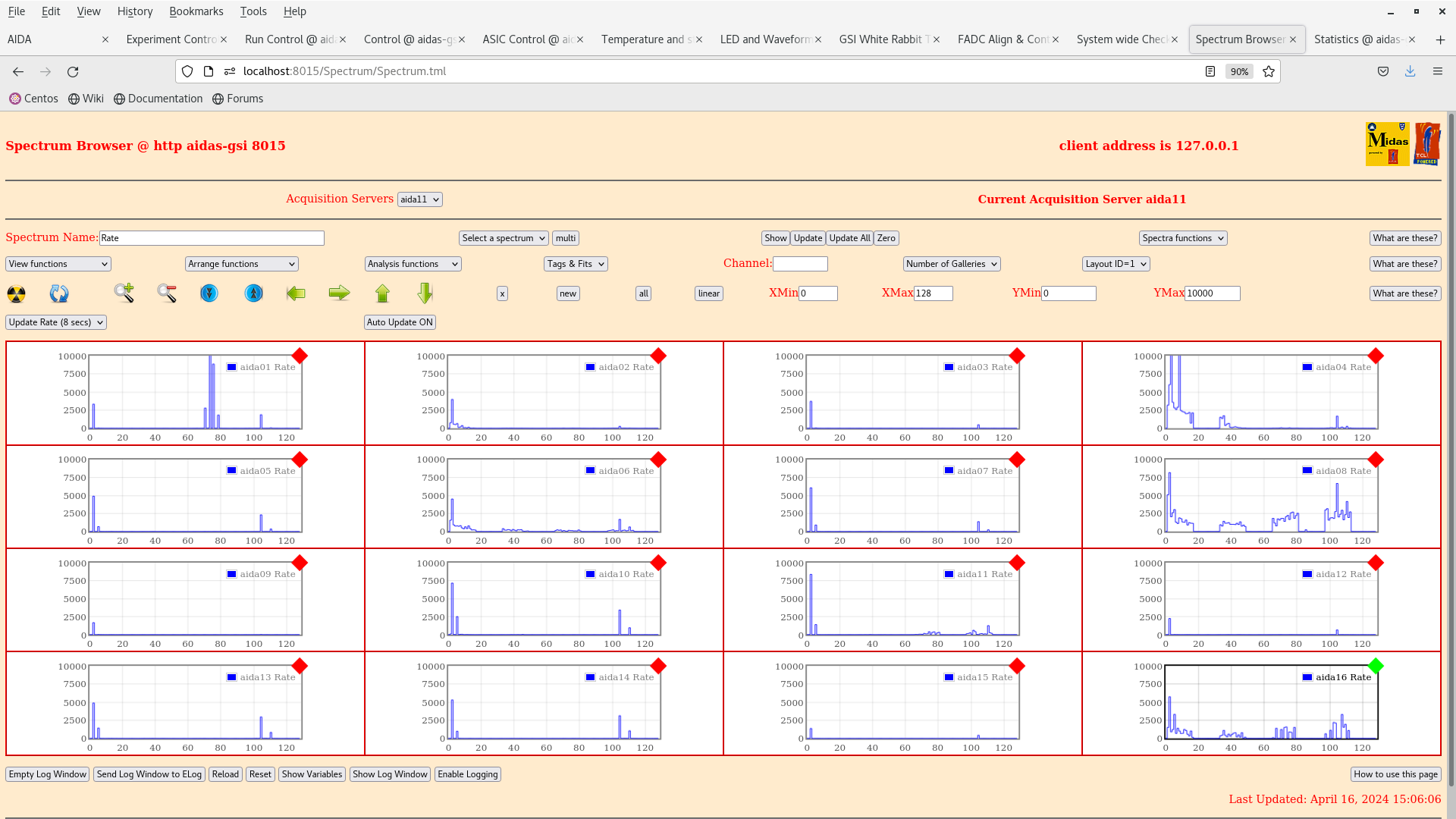

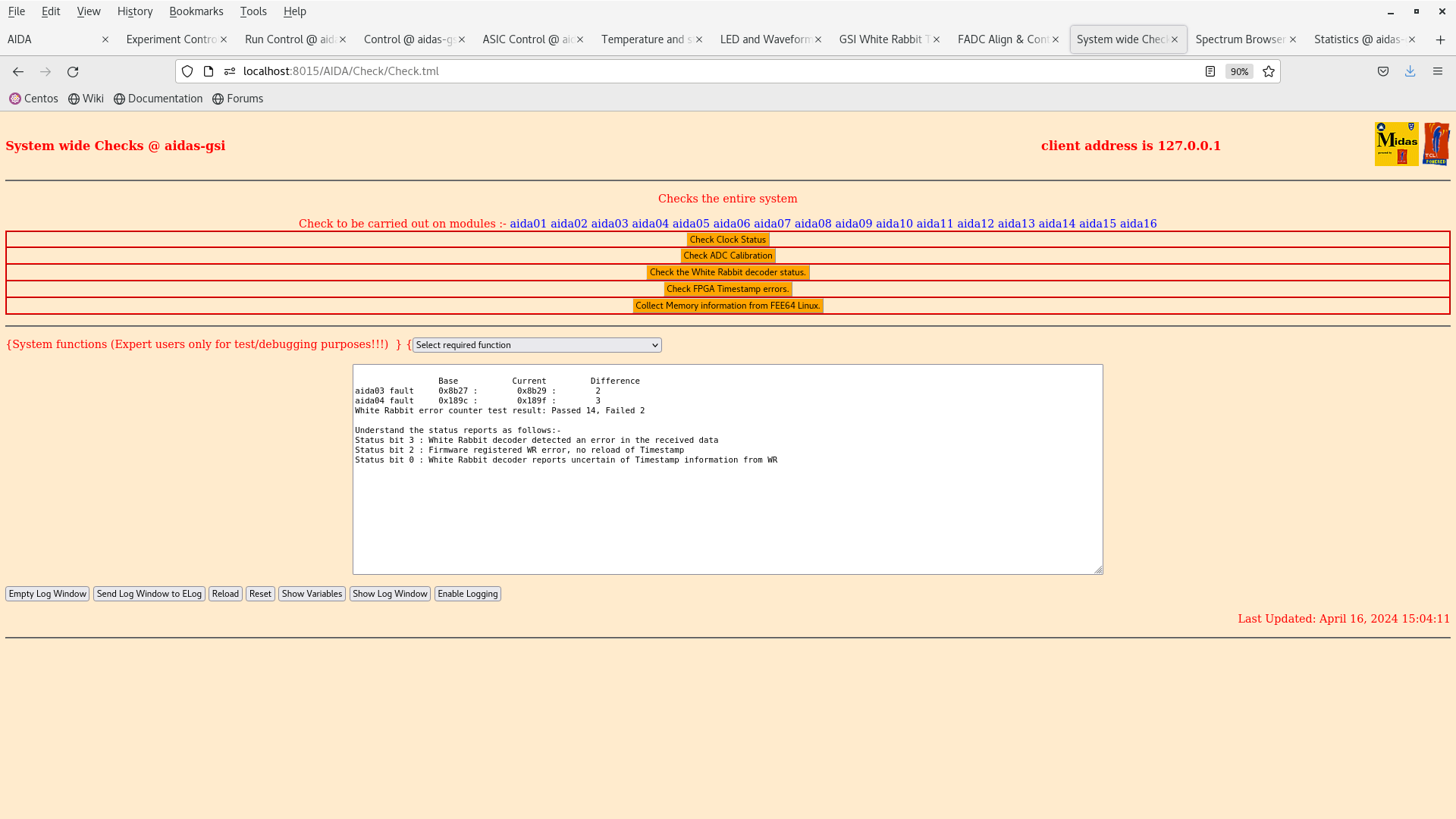

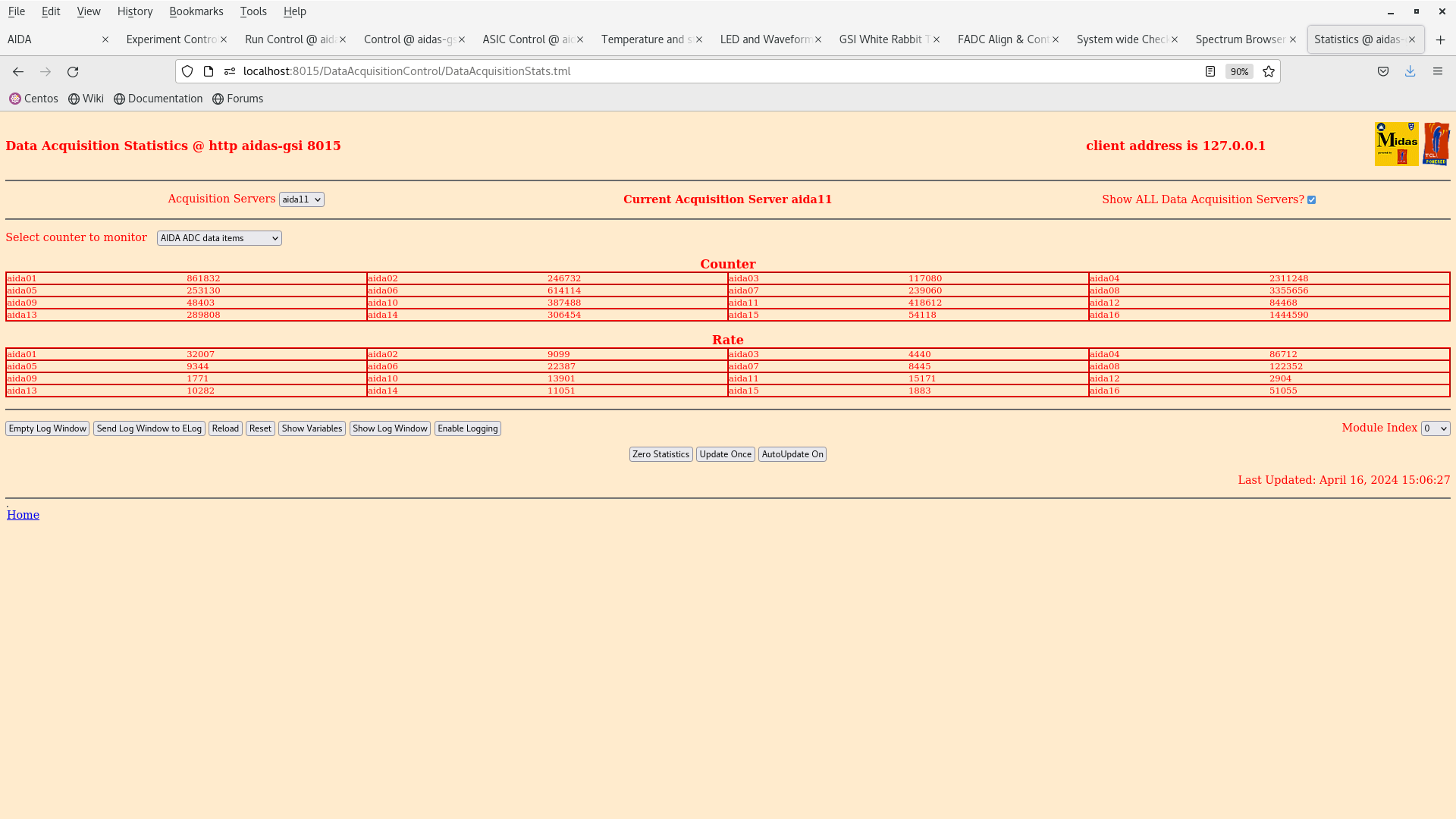

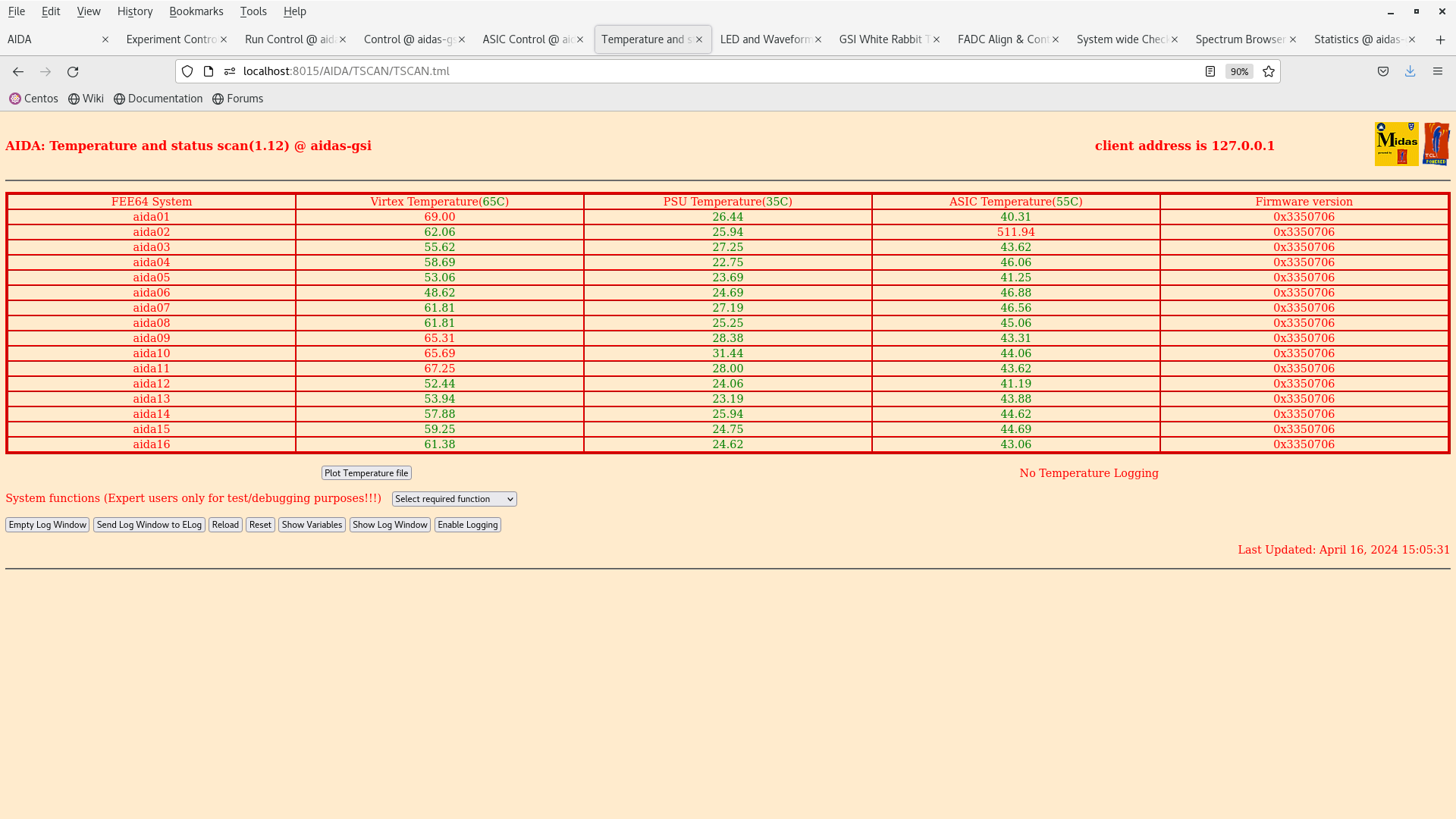

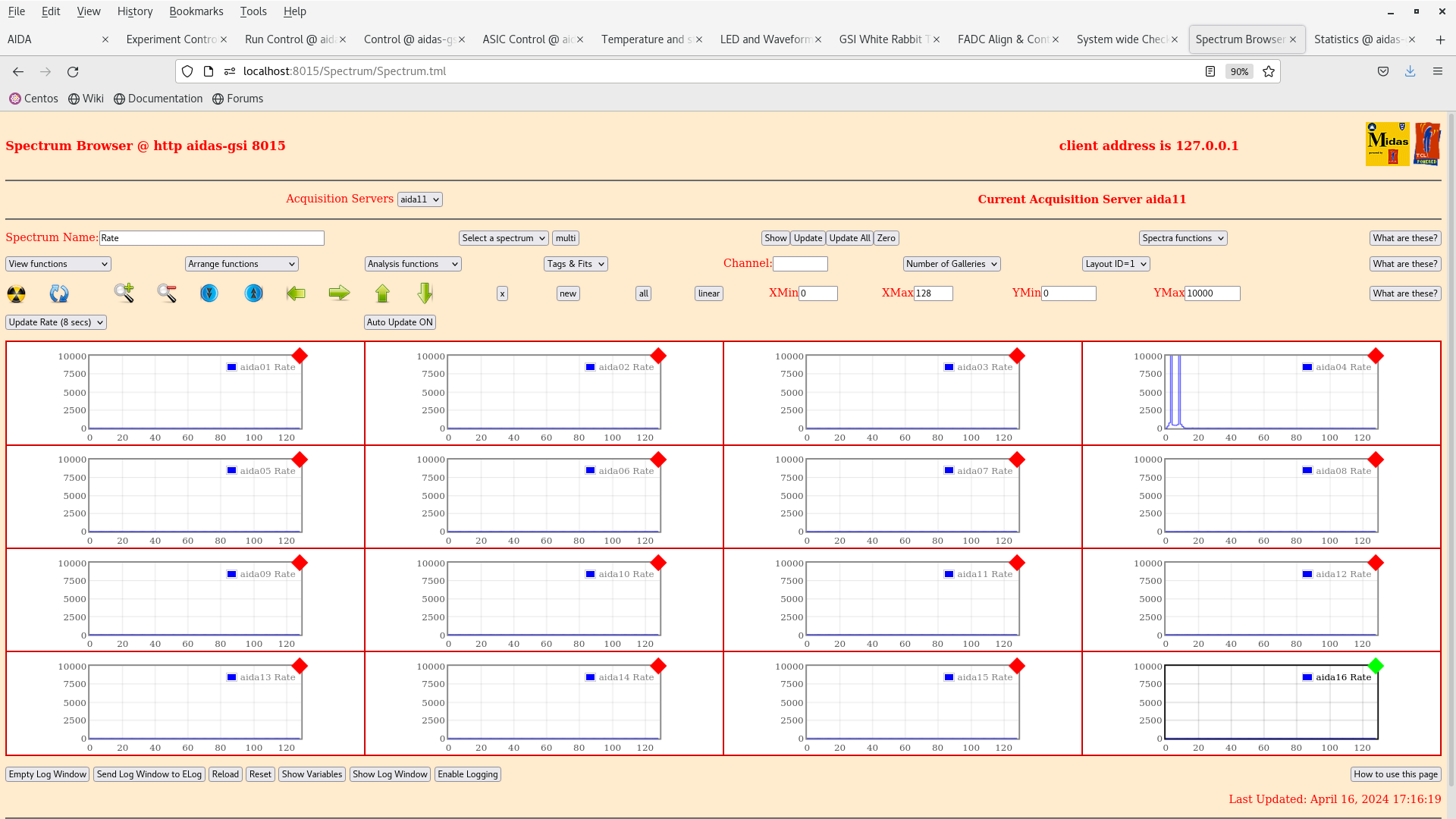

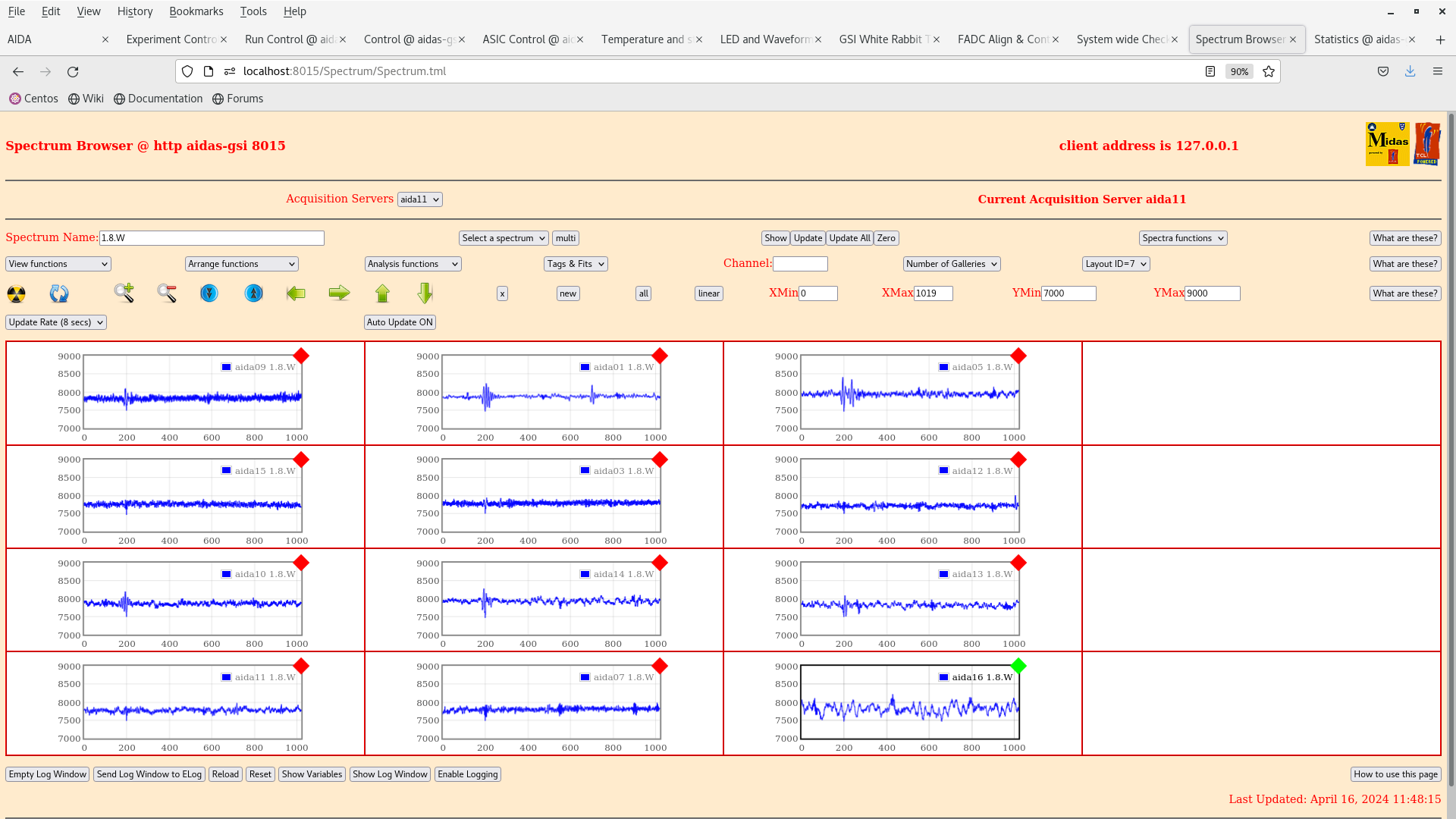

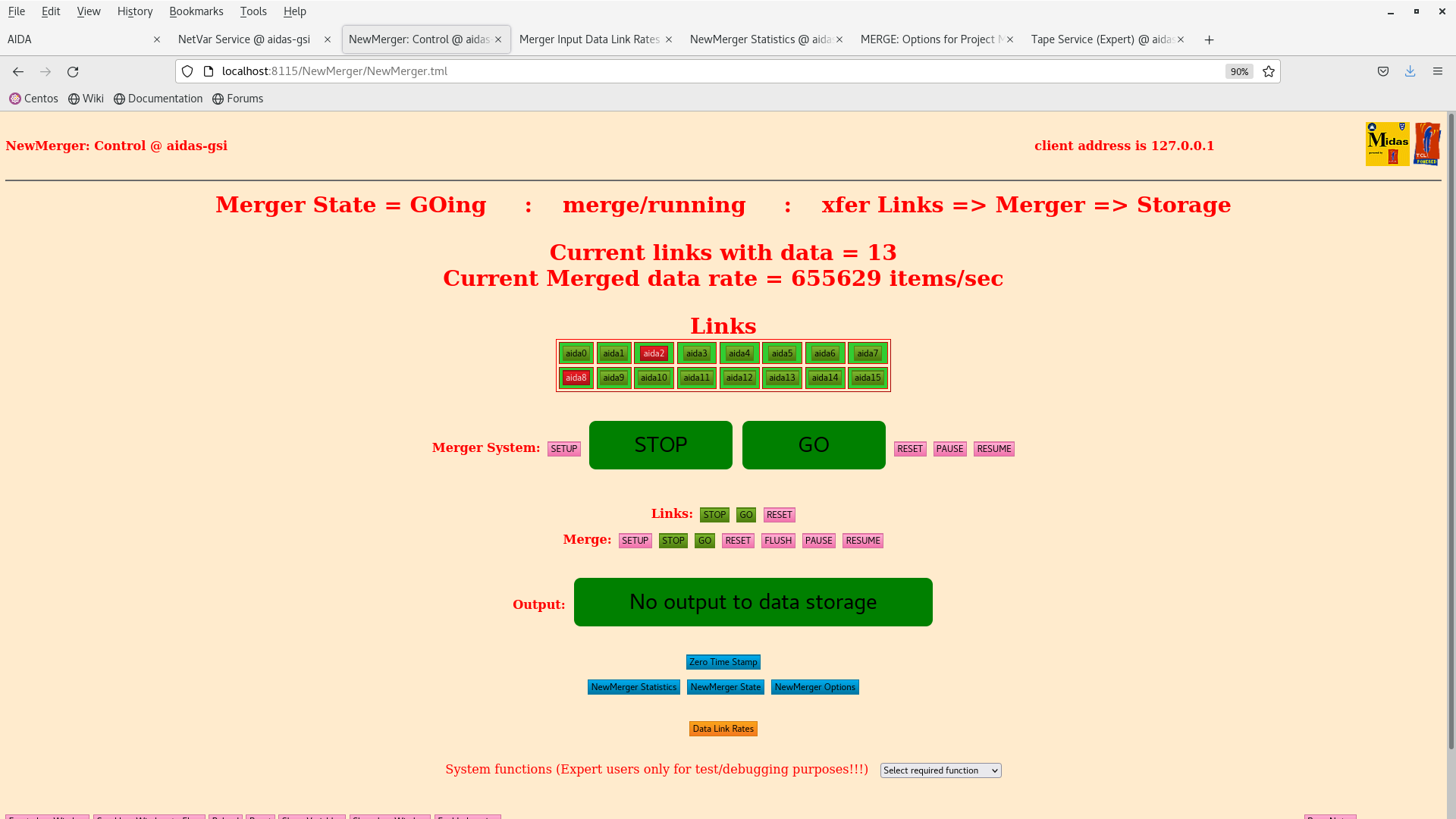

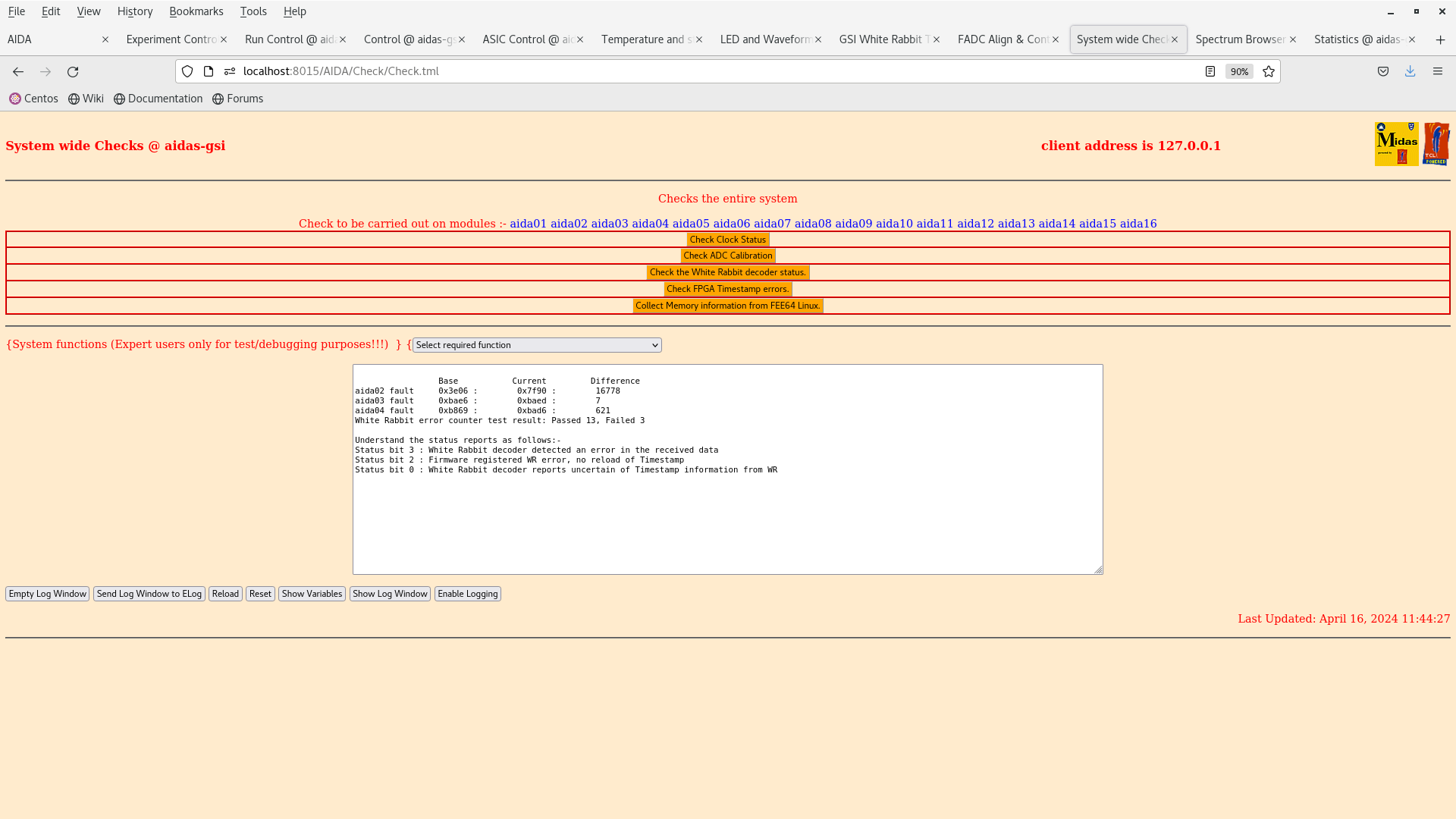

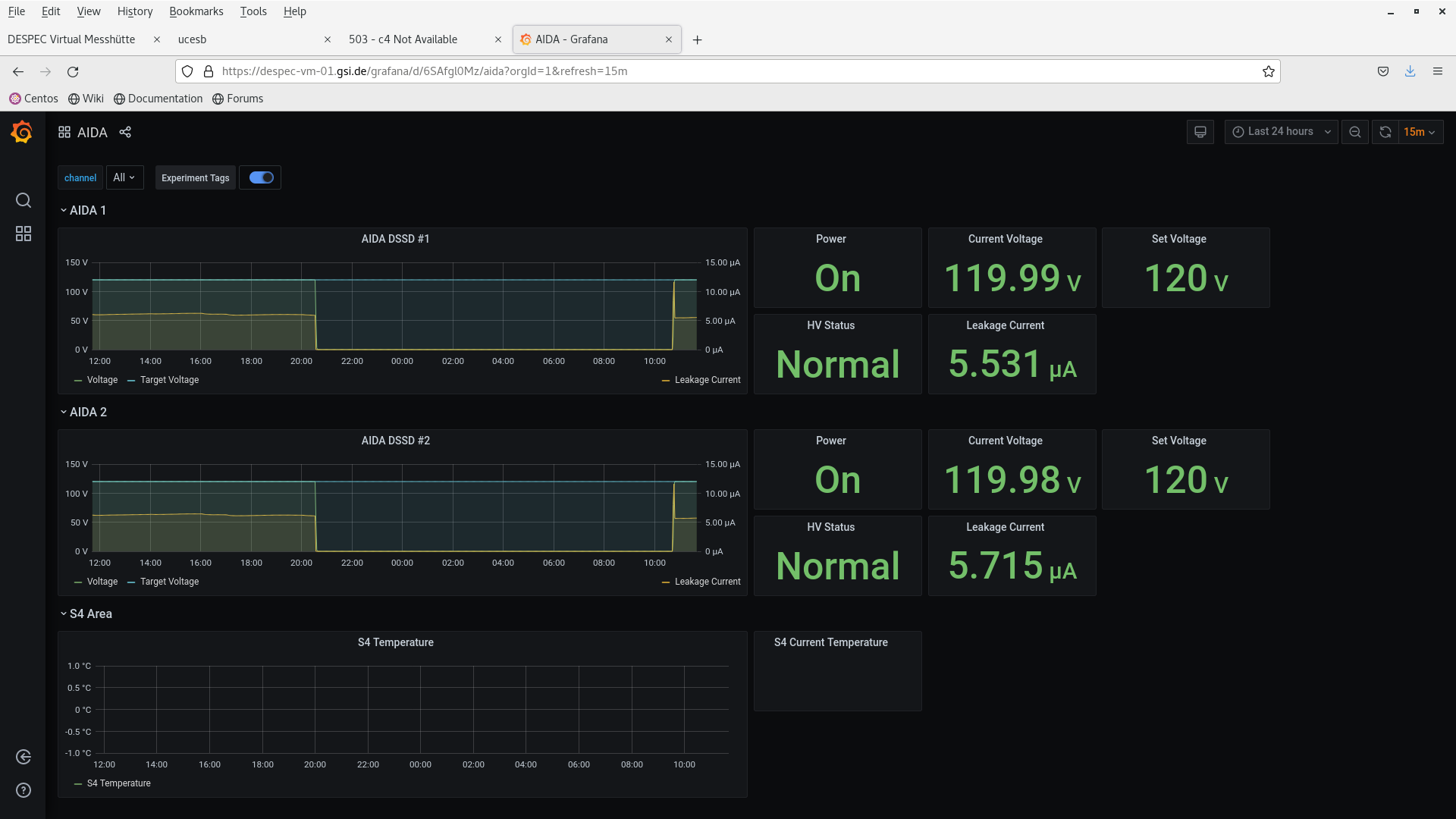

11.45 DSSSD bias & leakage current OK - attachments 9-10 FEE64 temps OK - attachment 8 *except* aida02 ASIC temp which is known to be u/s All system wide checks OK *except* aida02 and aida04 WR decoder/FPGA status errors - attachments 6-7 HDMI cabling disturbed during platform move? WR timestamps OK - attachment 5 ADC data item stats - attachment 4 10/16 < 20k, max 115k per FEE64 Rate spectra - attachments 3 per 1.8.W spectra - 20us FSR - attachments 1-2 11.58 BB7 preamps unplugged. Noise conditions OK. Did not change considerably. 11/16 < 20k (aida09 has 1 hot channel), max 114k Attachments 11-12. 12:34 Detector powered down to bring to safe state to check HDMI cables of aida02 and aida03. 15:06 Reseated aida02 and aida03. No more FPGA timestamp error. See attachment 13-14. Rates and histograms look good for pulser walk through. Test + and test - connected. Currently, Attachment 16-17. Temp OK Attachment 15. Bias OK Attachment 18. Data links aida02 and aida08 missing (?) 16:30 All slow comparator thresholds set to 0x64 for alpha background run during platform freeze. Initial rates and histograms attachment 19 - 20. aida04 noisy in ASIC 1. Temps OK. Attachment 21. MBS disc and tape setup in atttachment 22-23.
