DESPEC |
 |
|
Message ID: 576
Entry time: Tue Apr 16 23:37:58 2024
|
Author: |
TD |
Subject: |
Wednesday 17 April |
|
|
00.40 Observed zero data fron aida03, aida04, aida09

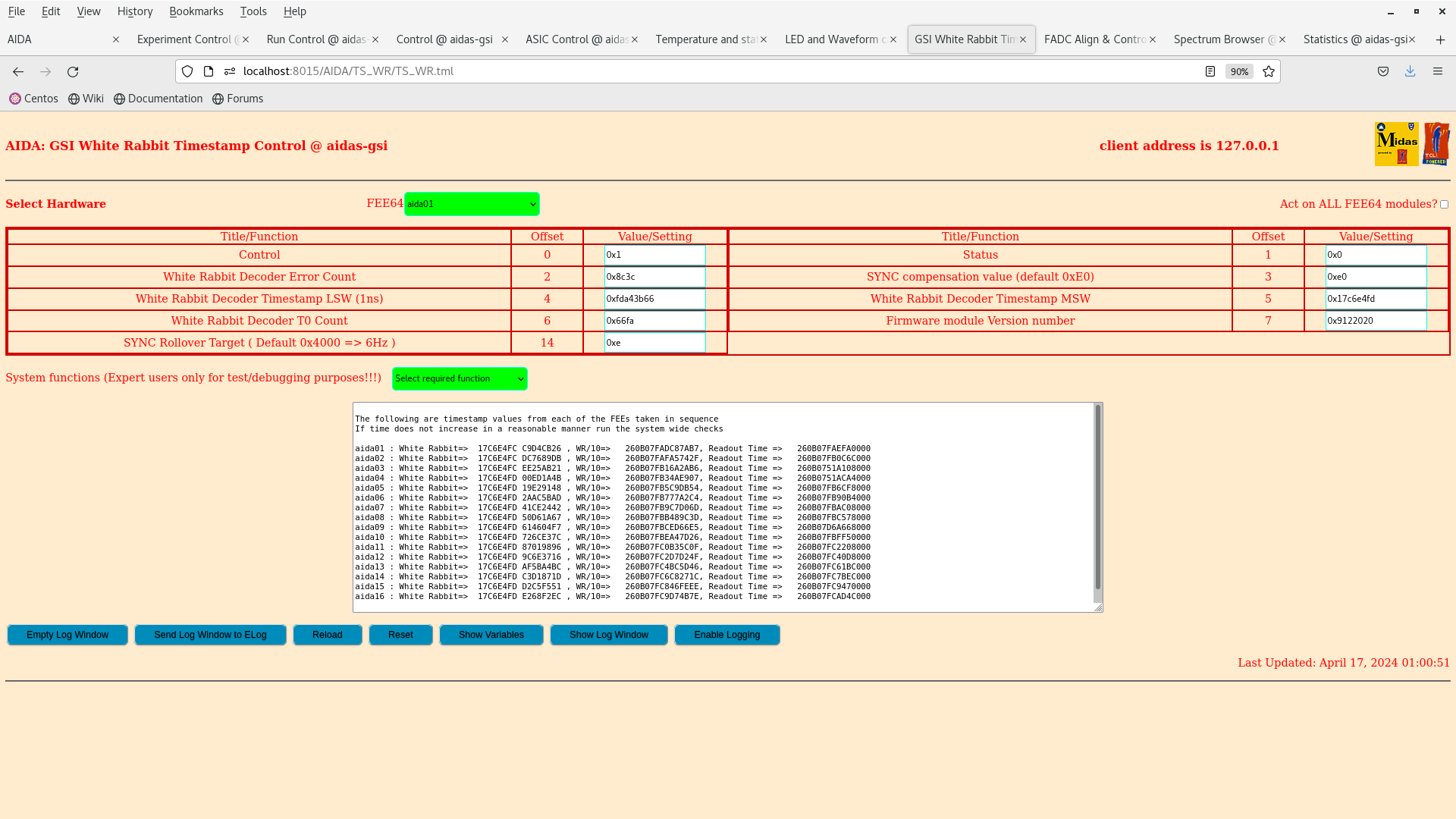

WR timestamps offset from other FEE64s
rebooted aida03, aida04, aida09
no change
see attachments 14-17
18.25 rebooted aida03, aida04, aida09, aida15

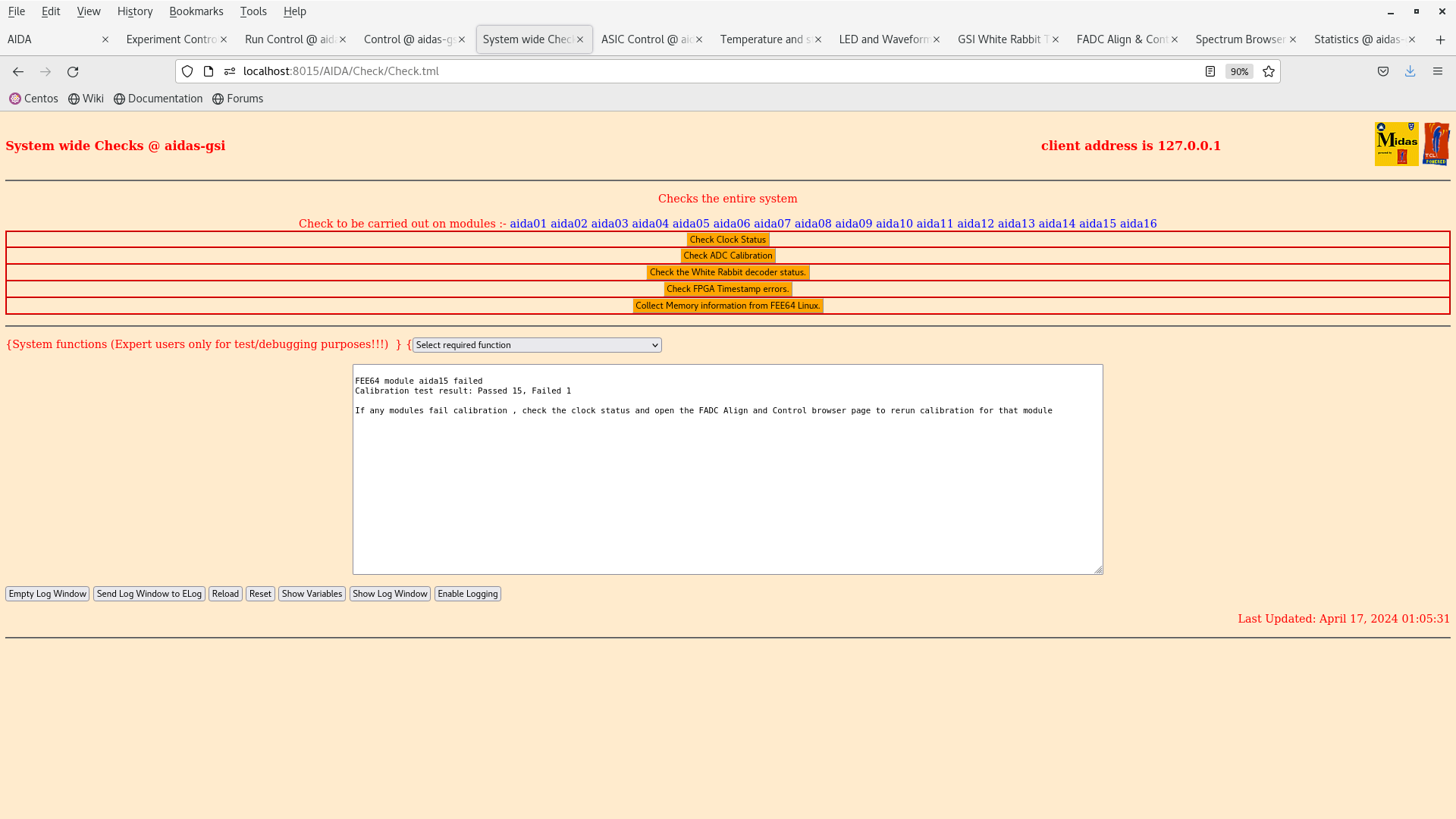

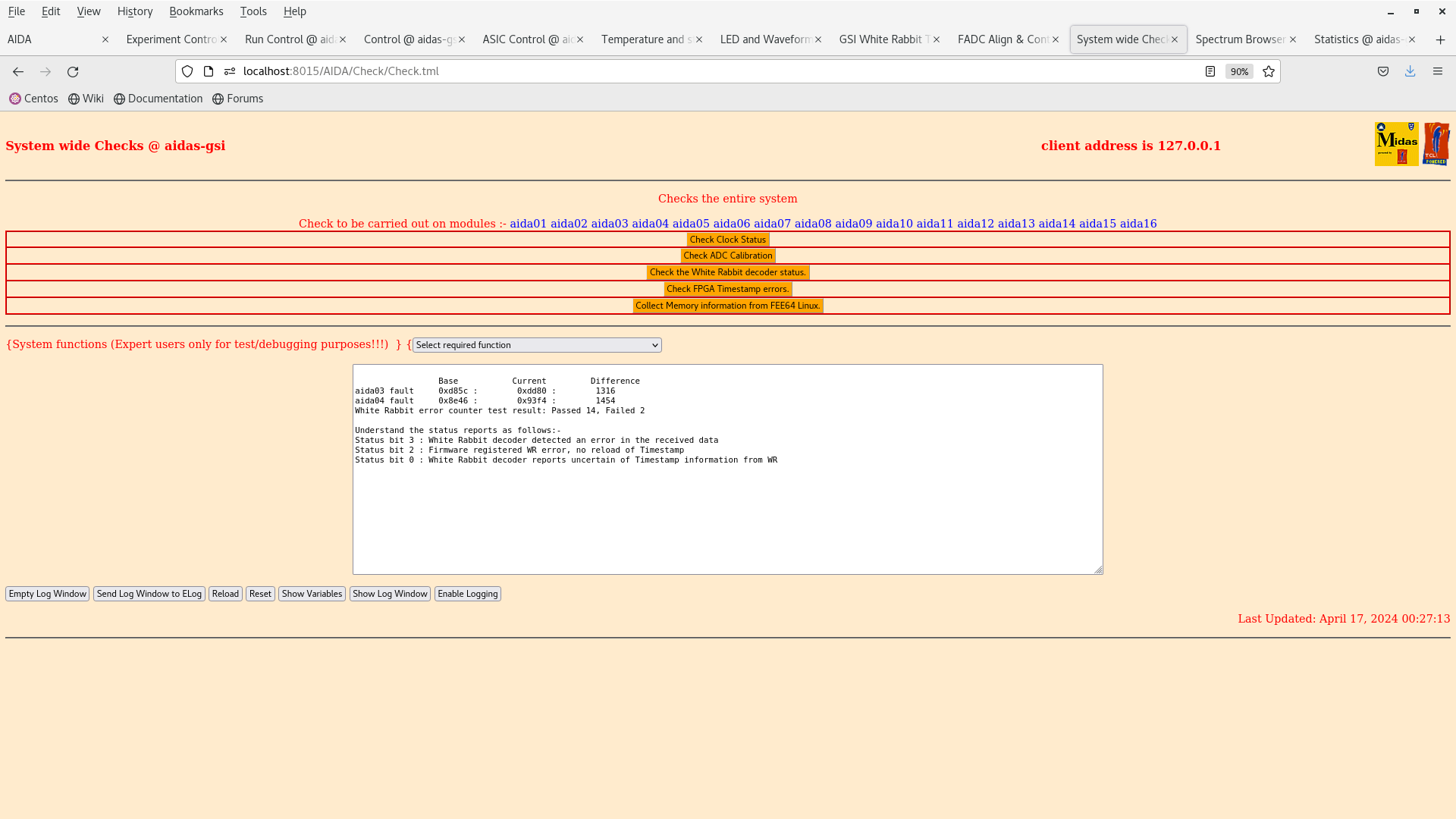

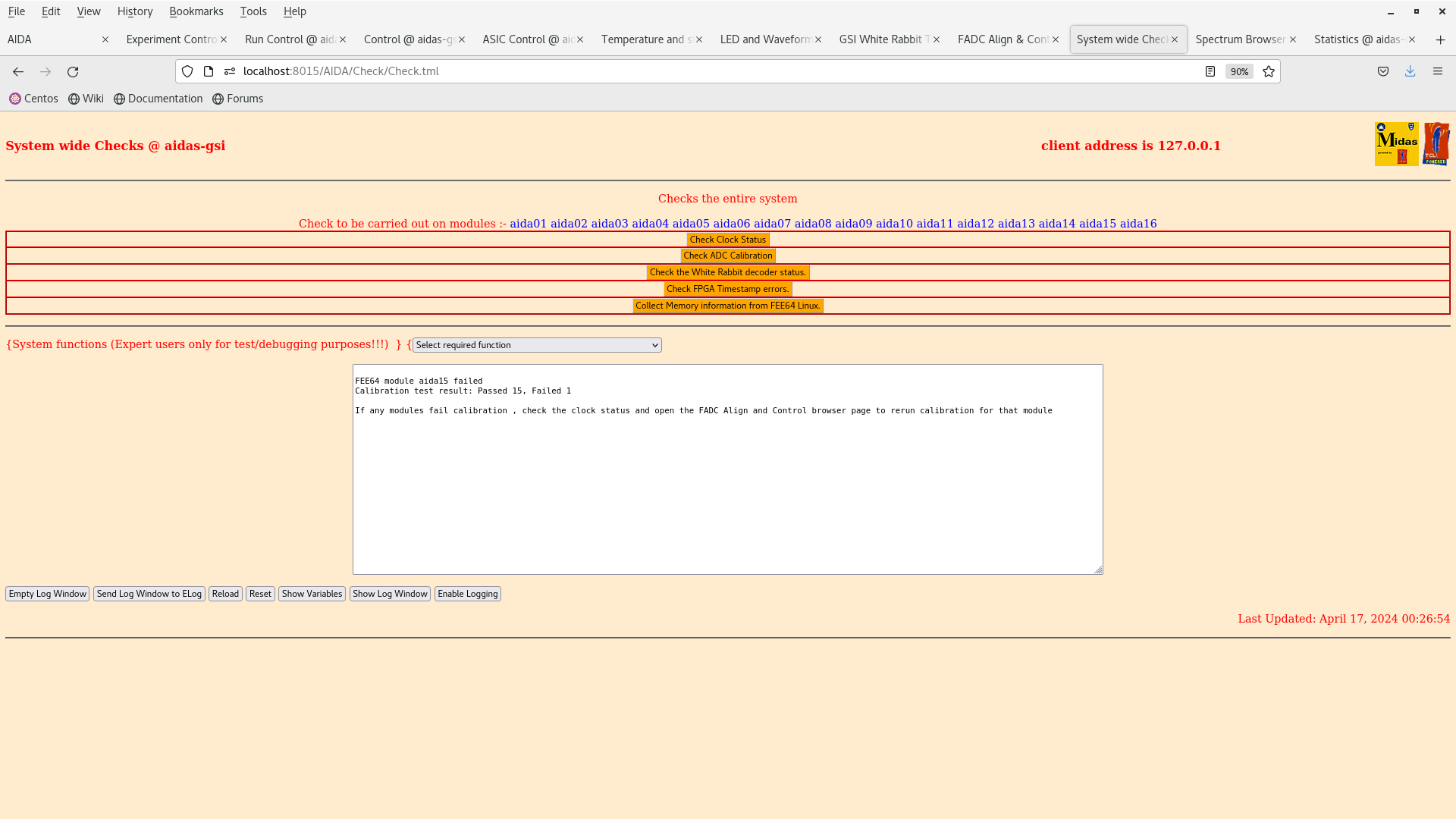

system wide checks OK *except* aida15 ADC not calibrated, FPGA decoder errors aida02, aida03

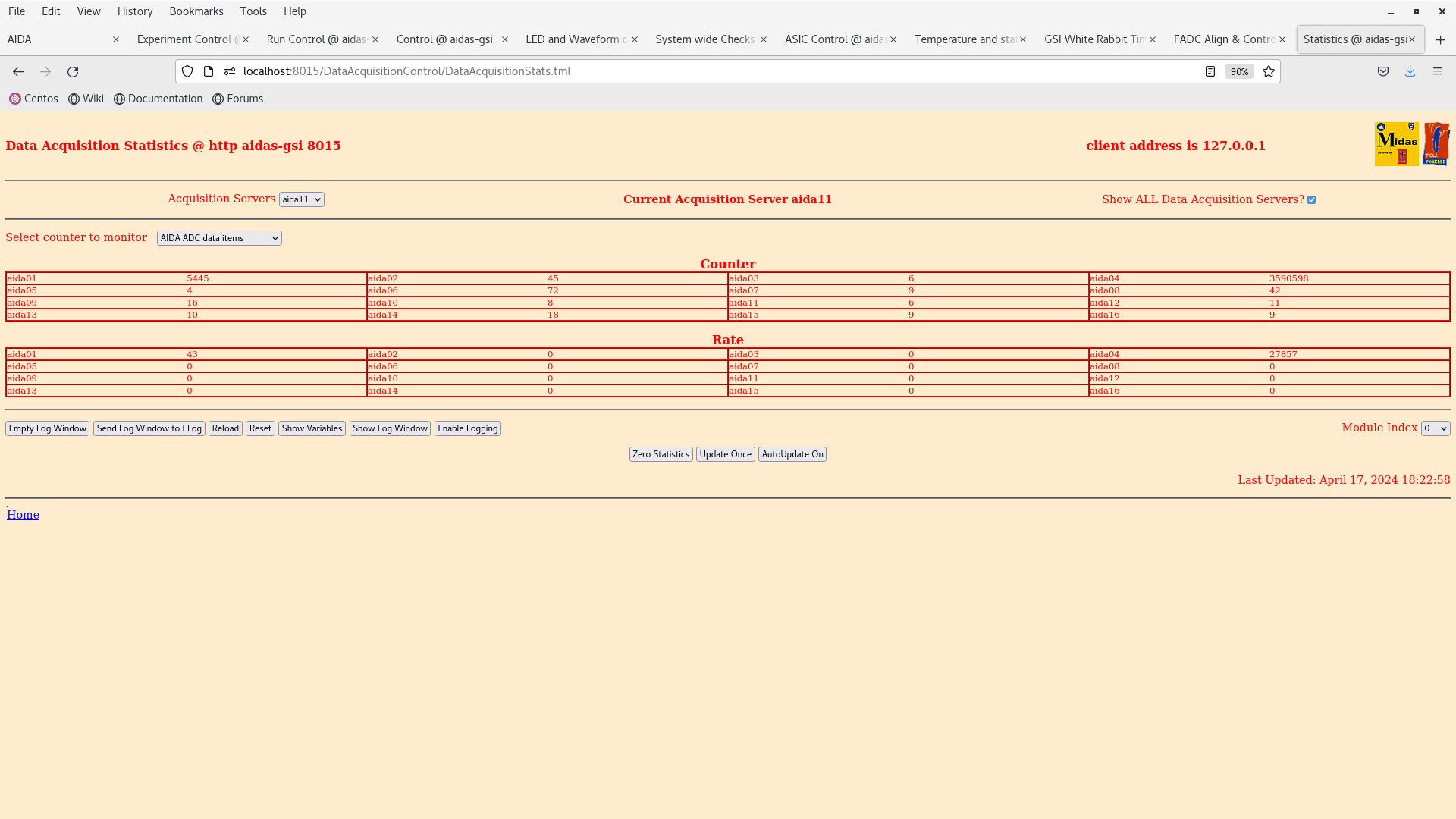

ADC data item stats - attachment 28

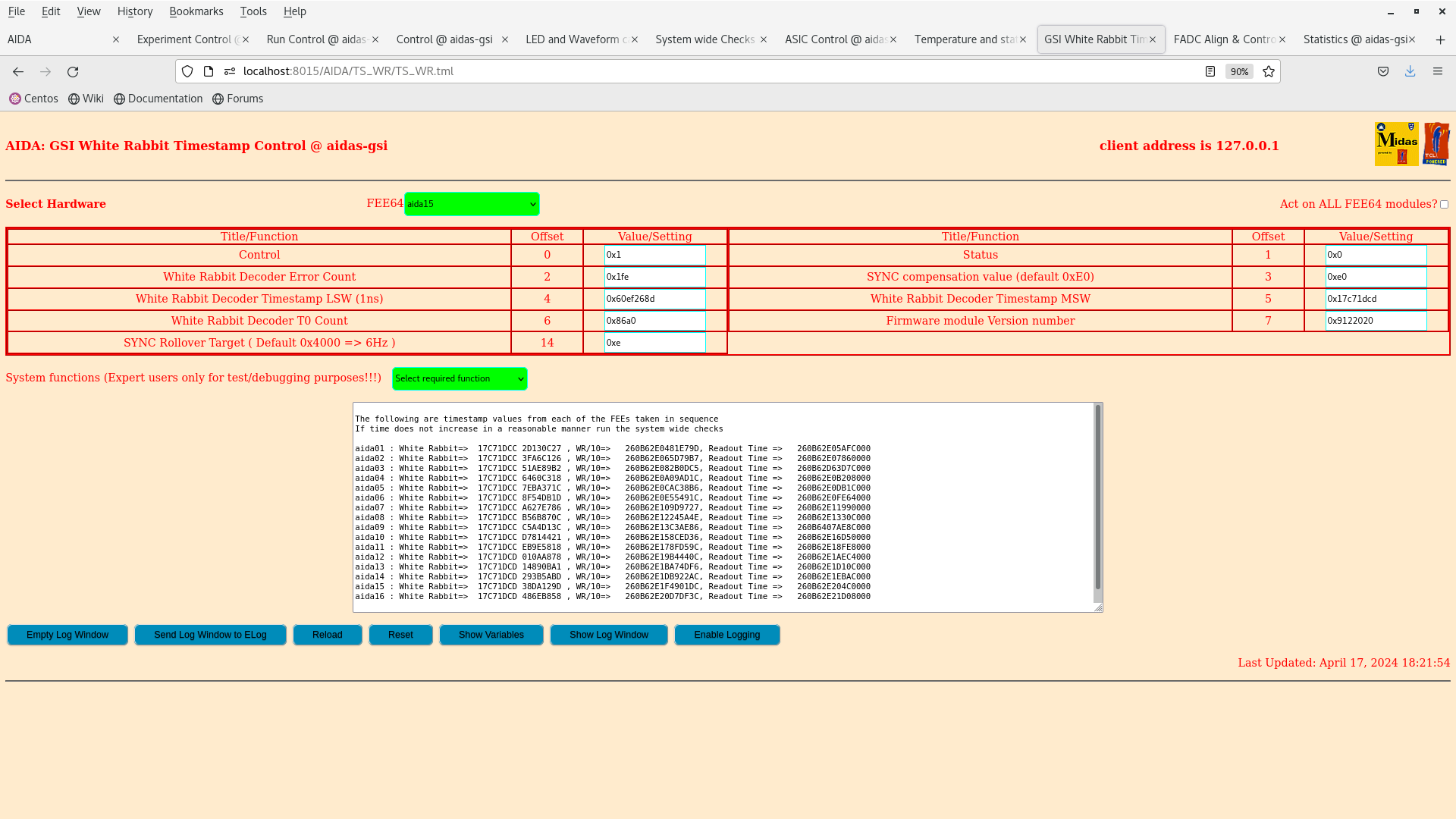

WR timestamps OK - attachment 29
data file S100_alpha/R5 - alpha background

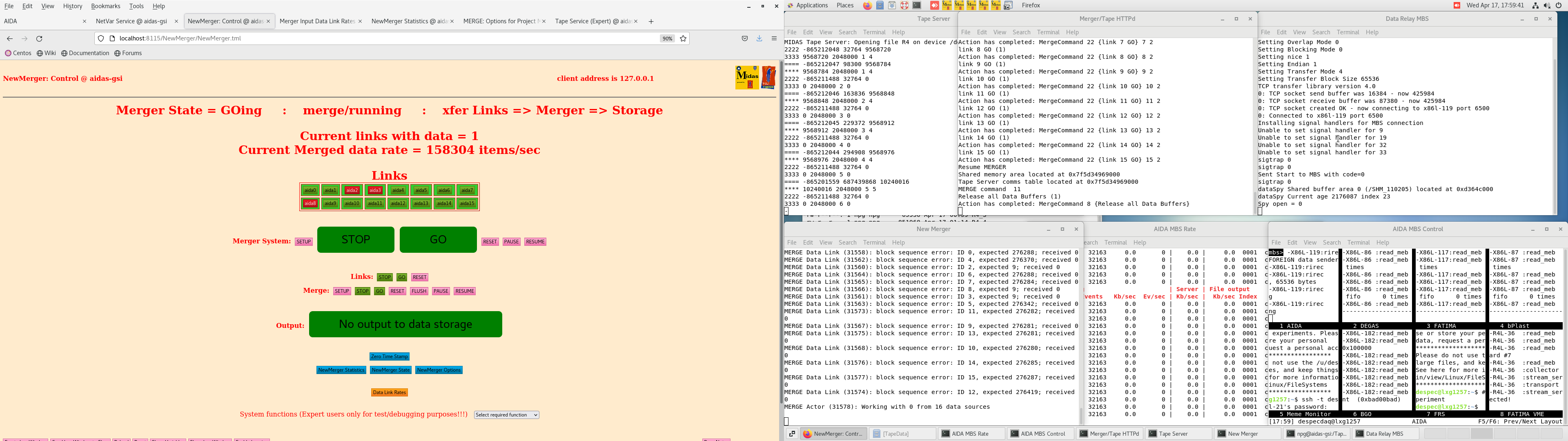

Merger and TapeServer - attachments 30-31
c. 1Mb/s to disk

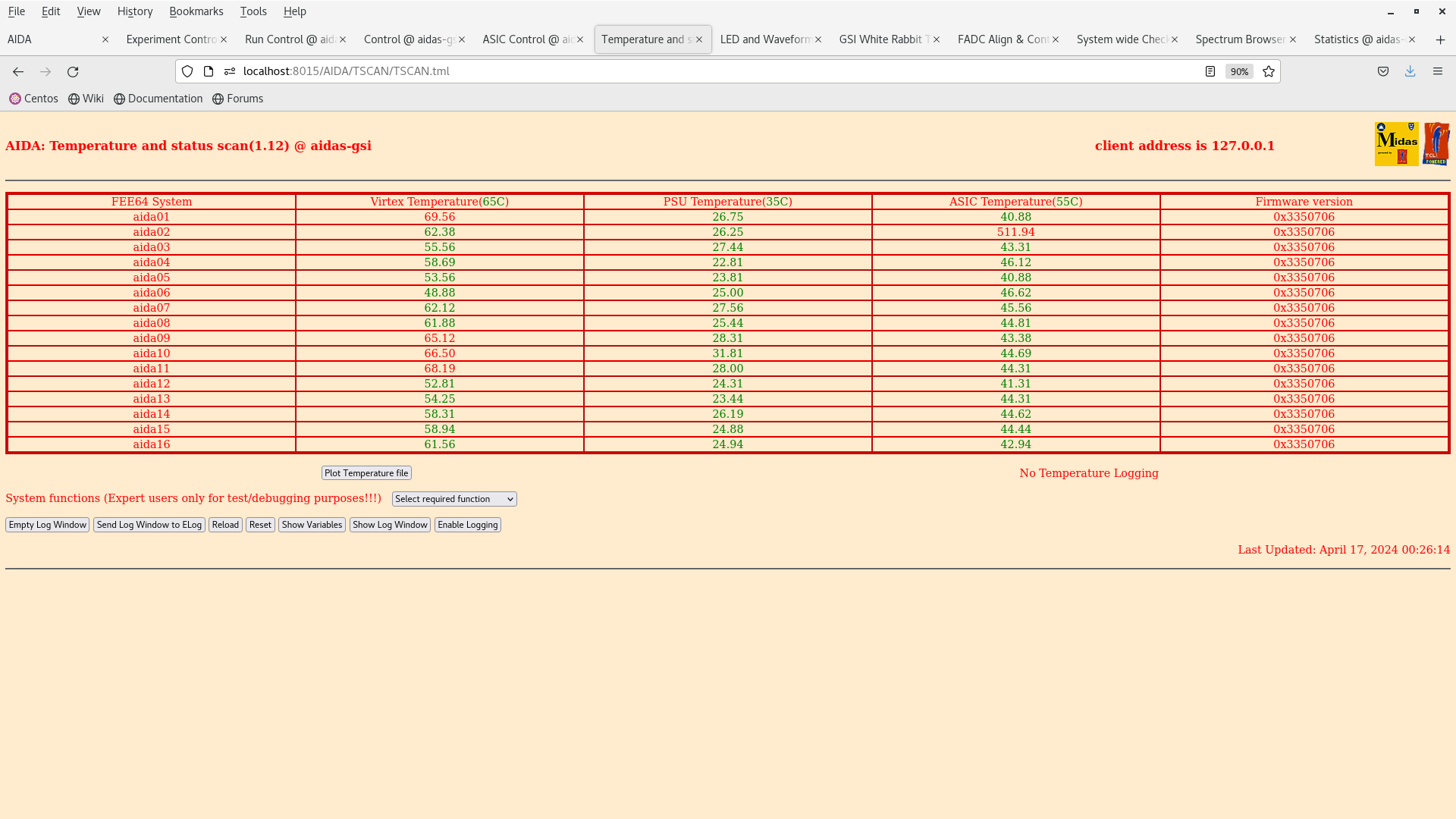

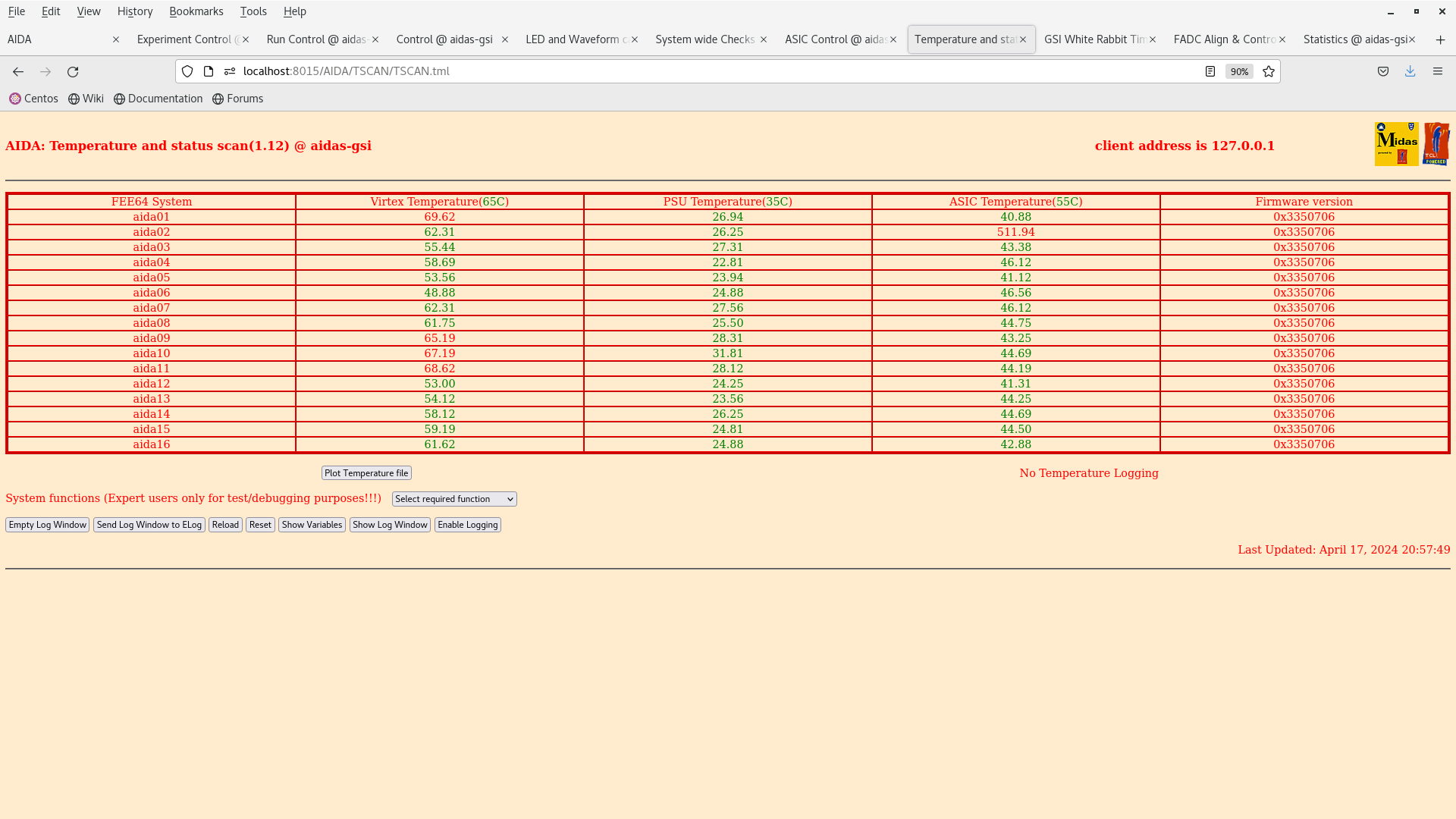

21.05 FEE64 temps OK - attachment 44
*except* aida02 ASIC temp which is known to be u/s

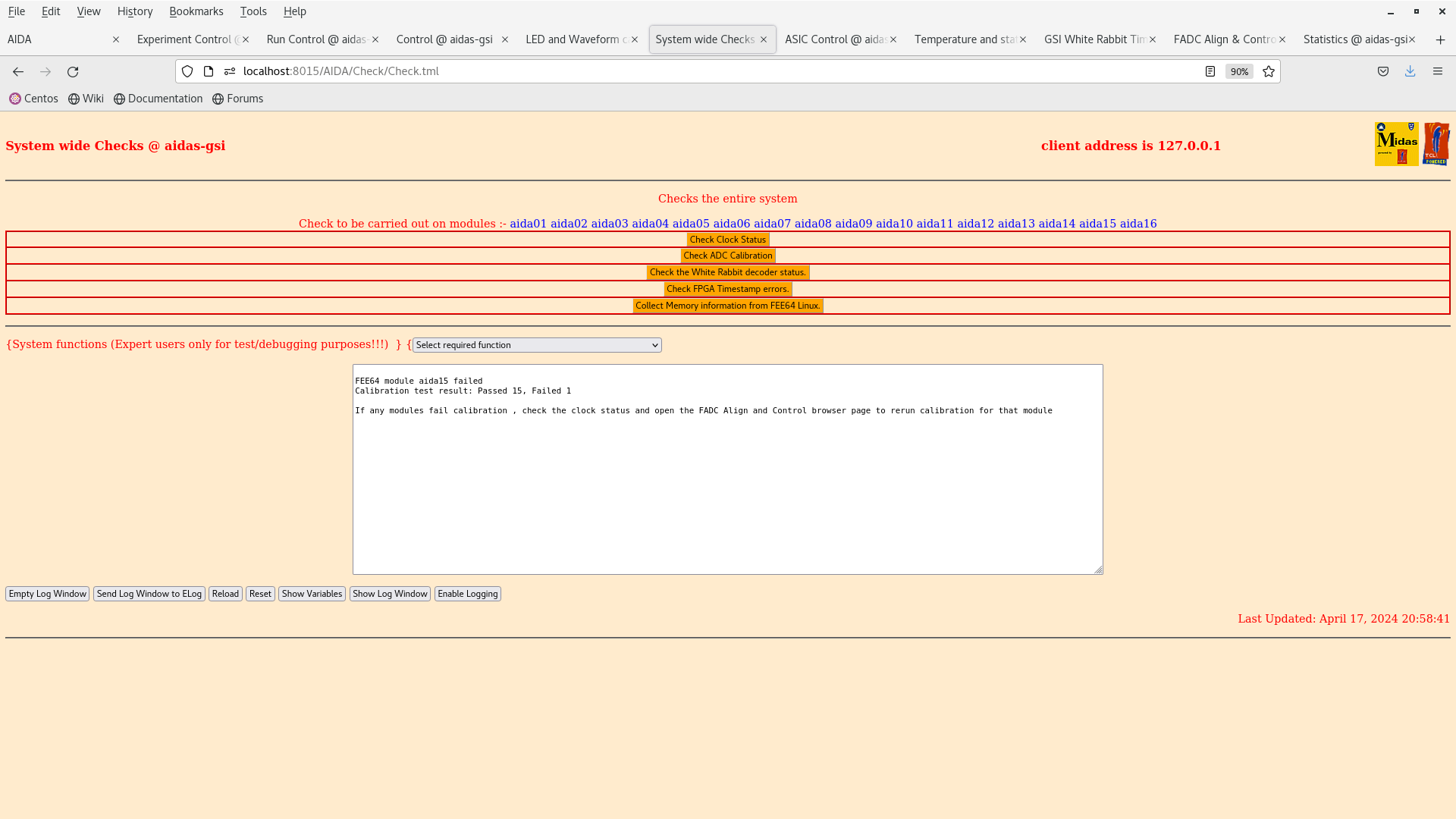

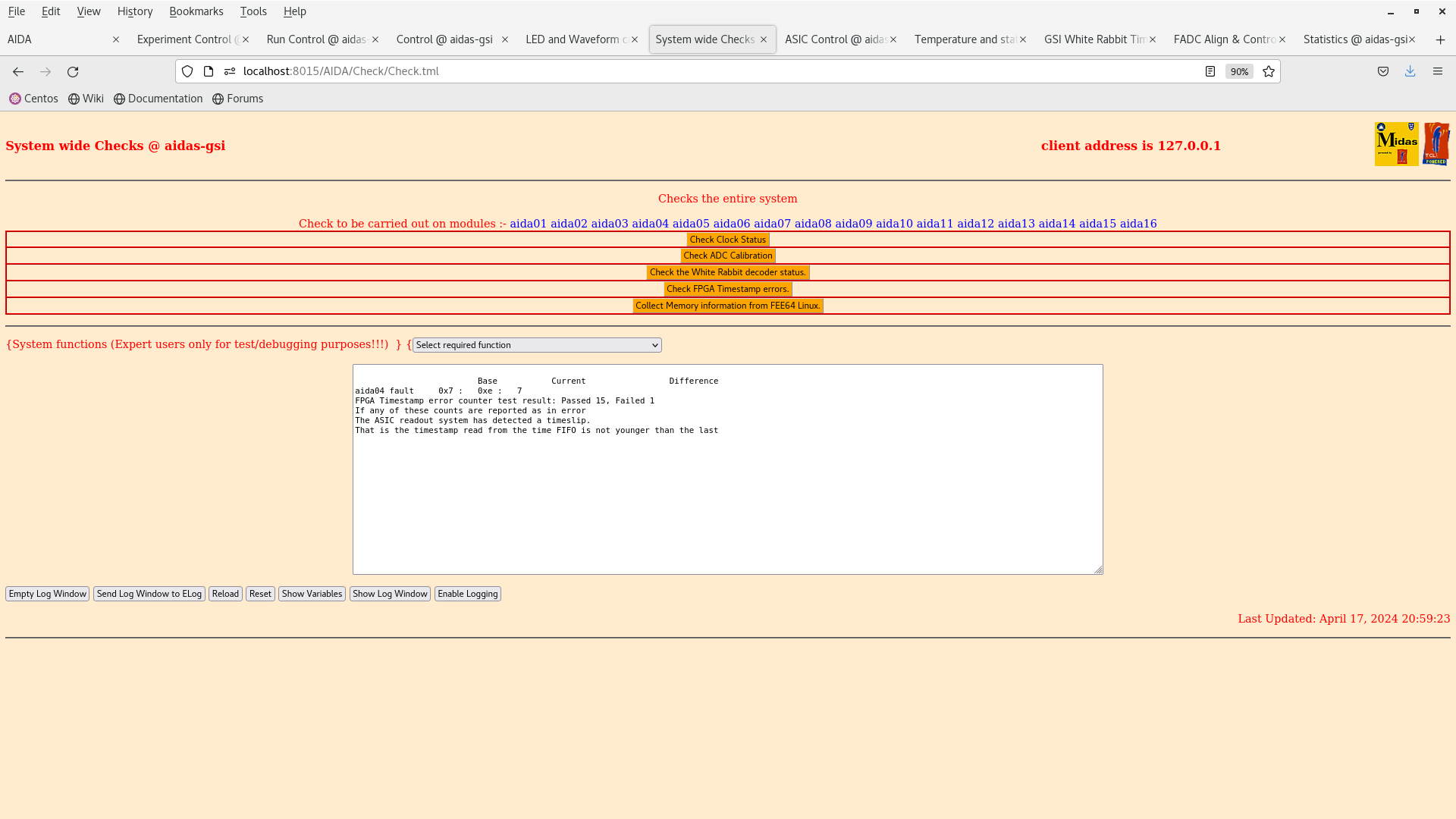

All system wide checks OK *except* aida15 ASDC not calibrated, WR timestam/FPGA errors - attachments 41-43
WR timestamps- attachment 40
aida03, aida04 and aida09 differ from other timestamps again

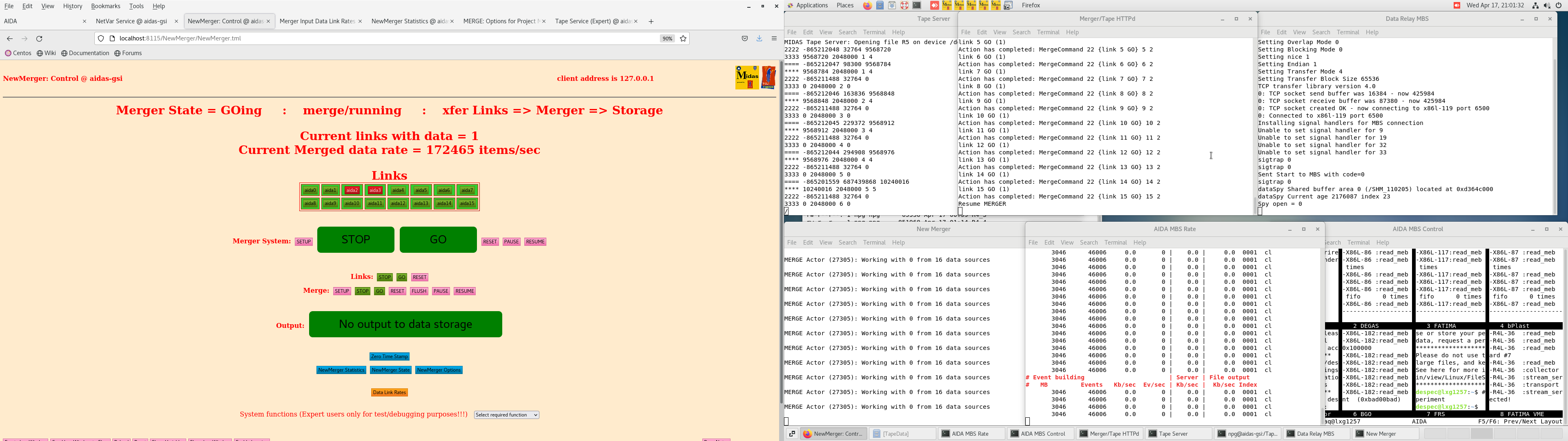

Merger and TapeServer - attachments 38-39
c. 0Mb/s to disk due to WR timestamp issues

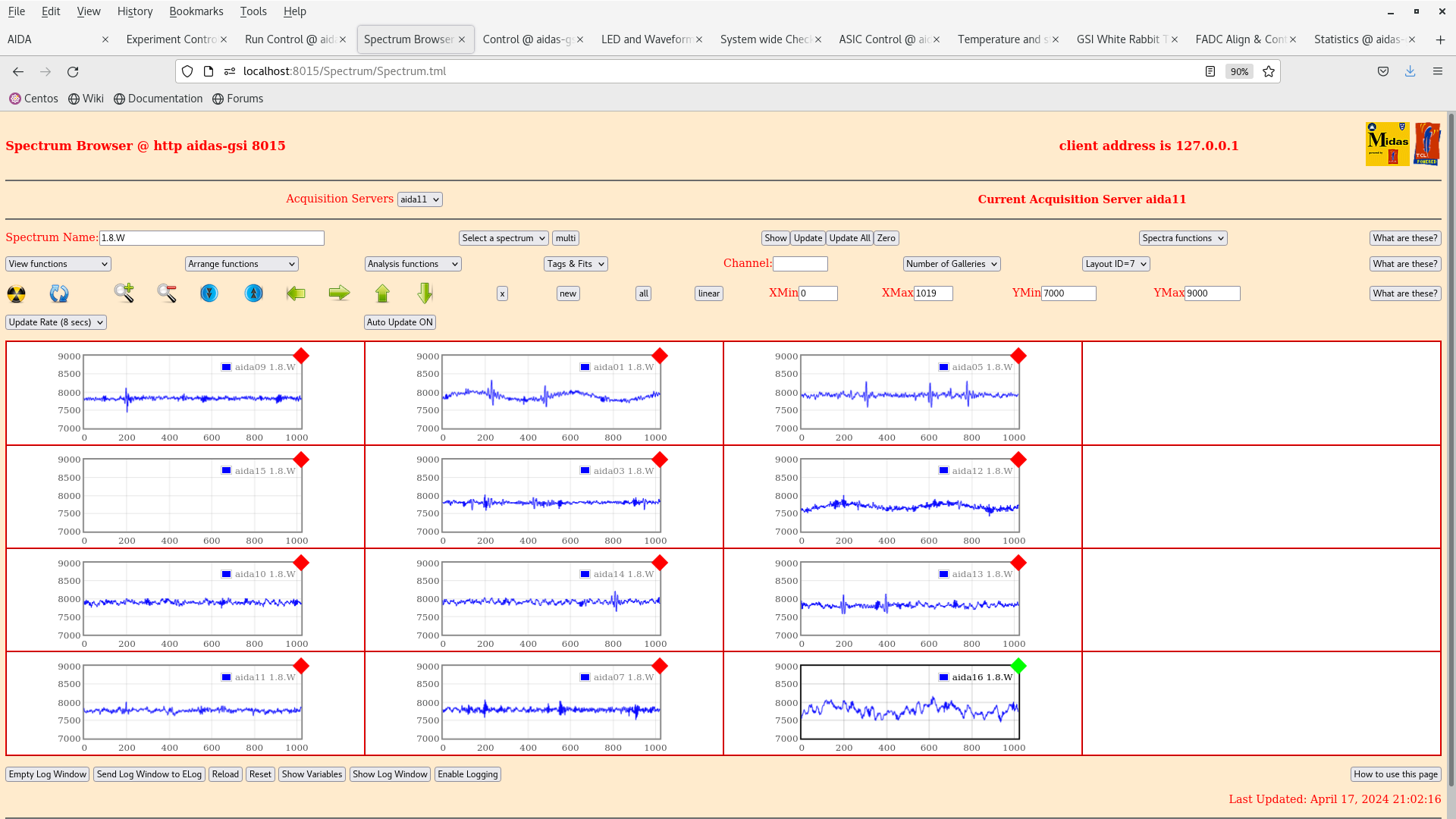

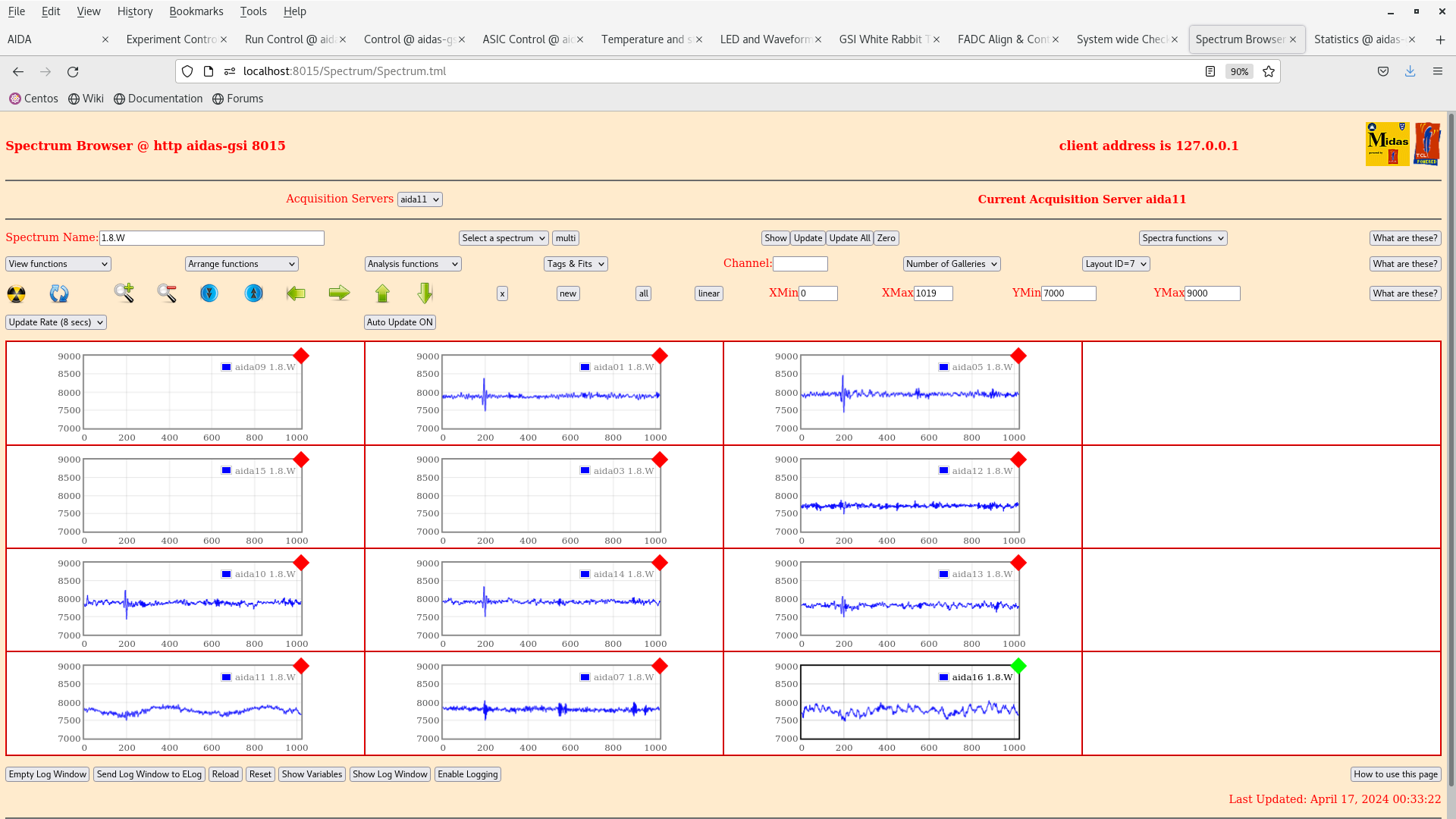

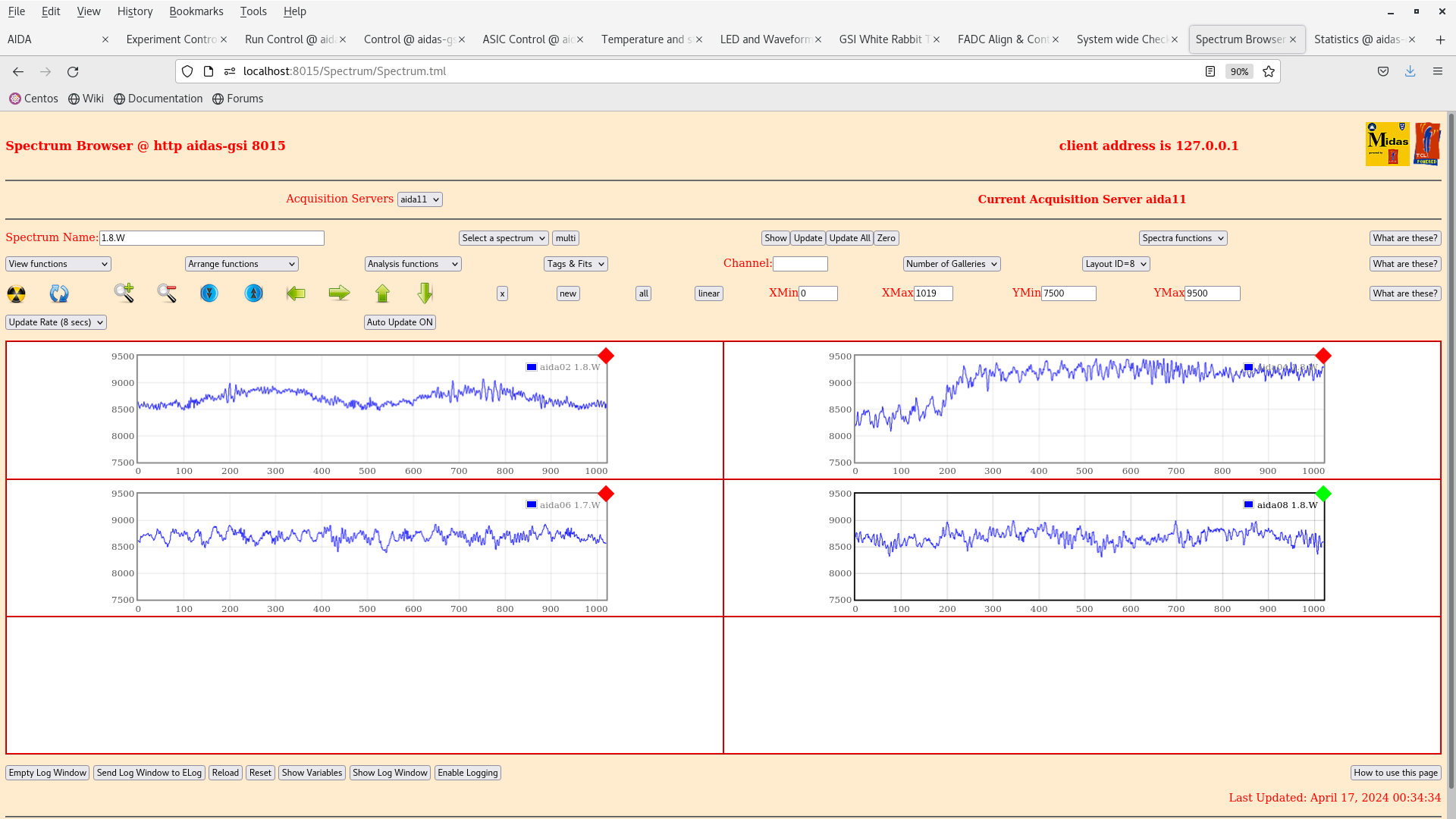

per 1.8.W spectra - 20us FSR - attachments 36-37

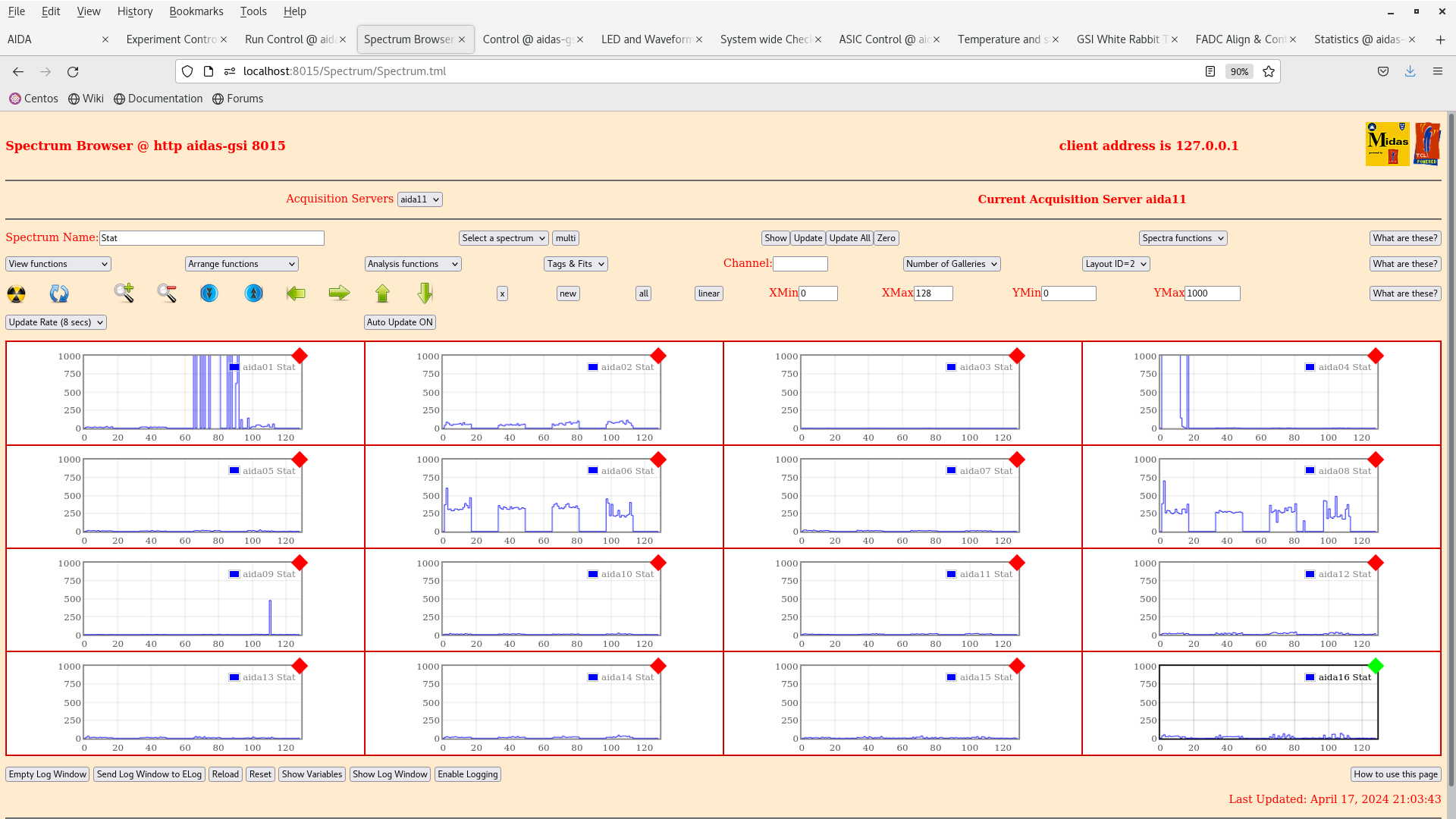

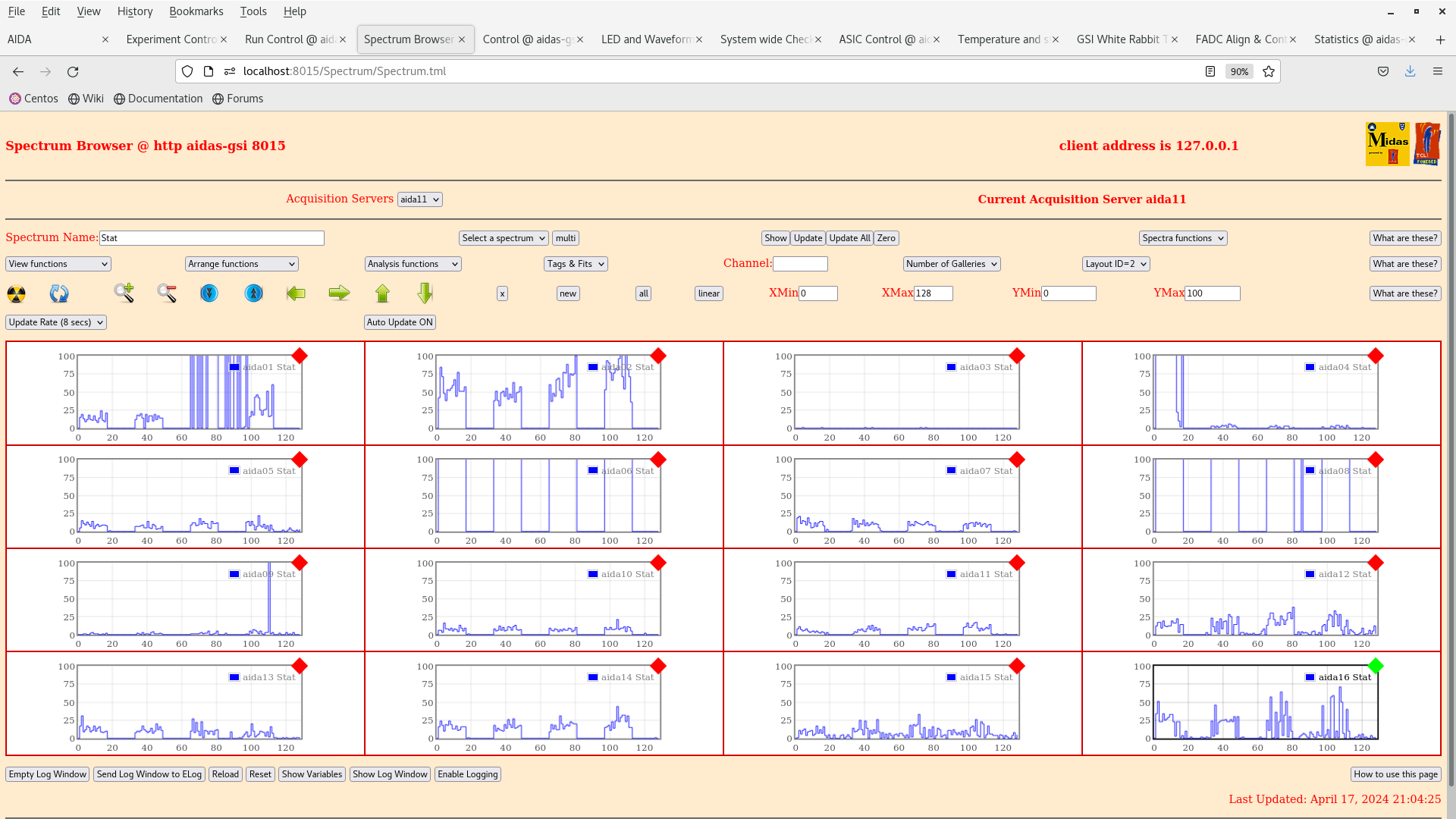

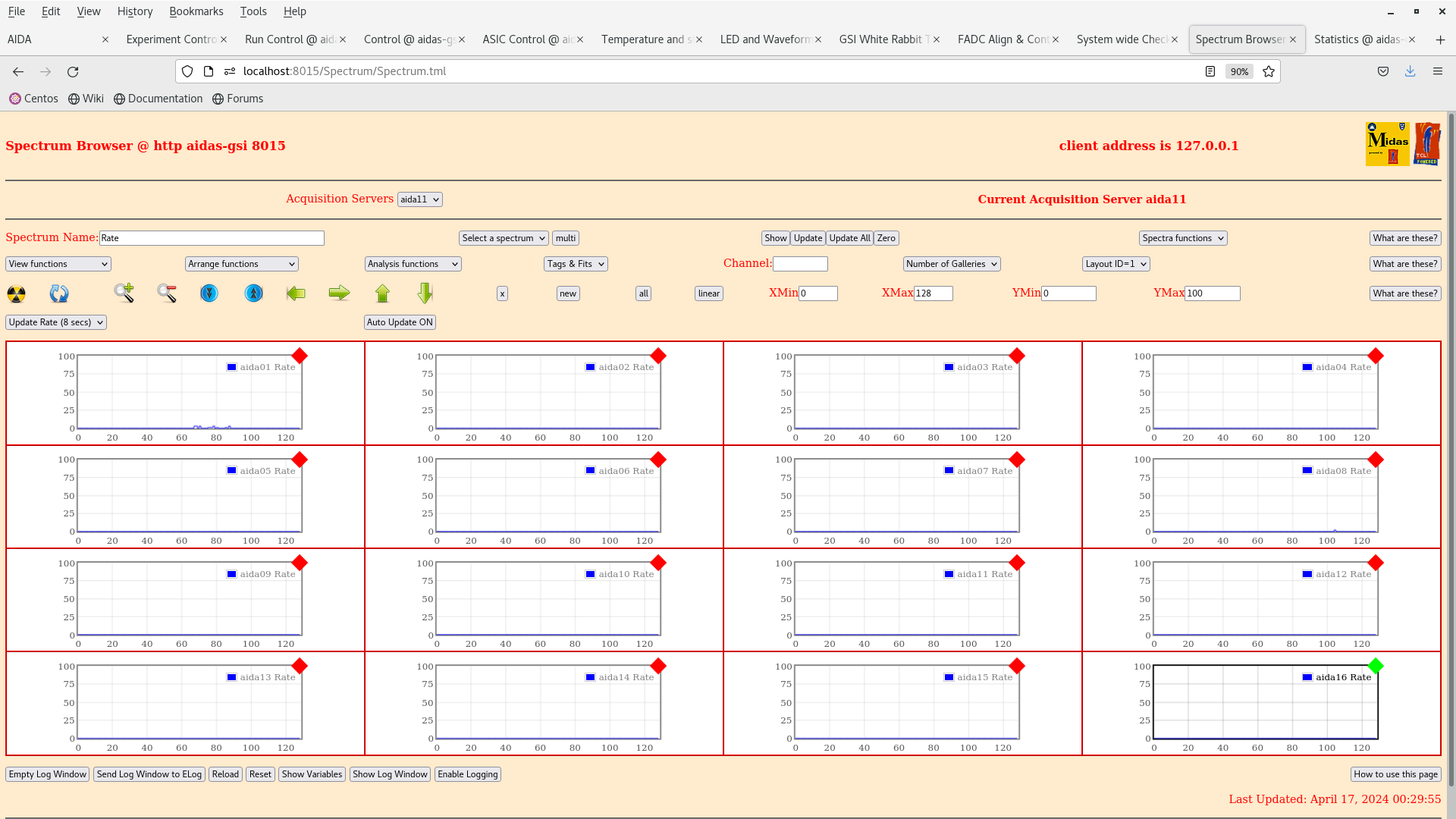

per FEE64 Rate spectra - attachments 34-35

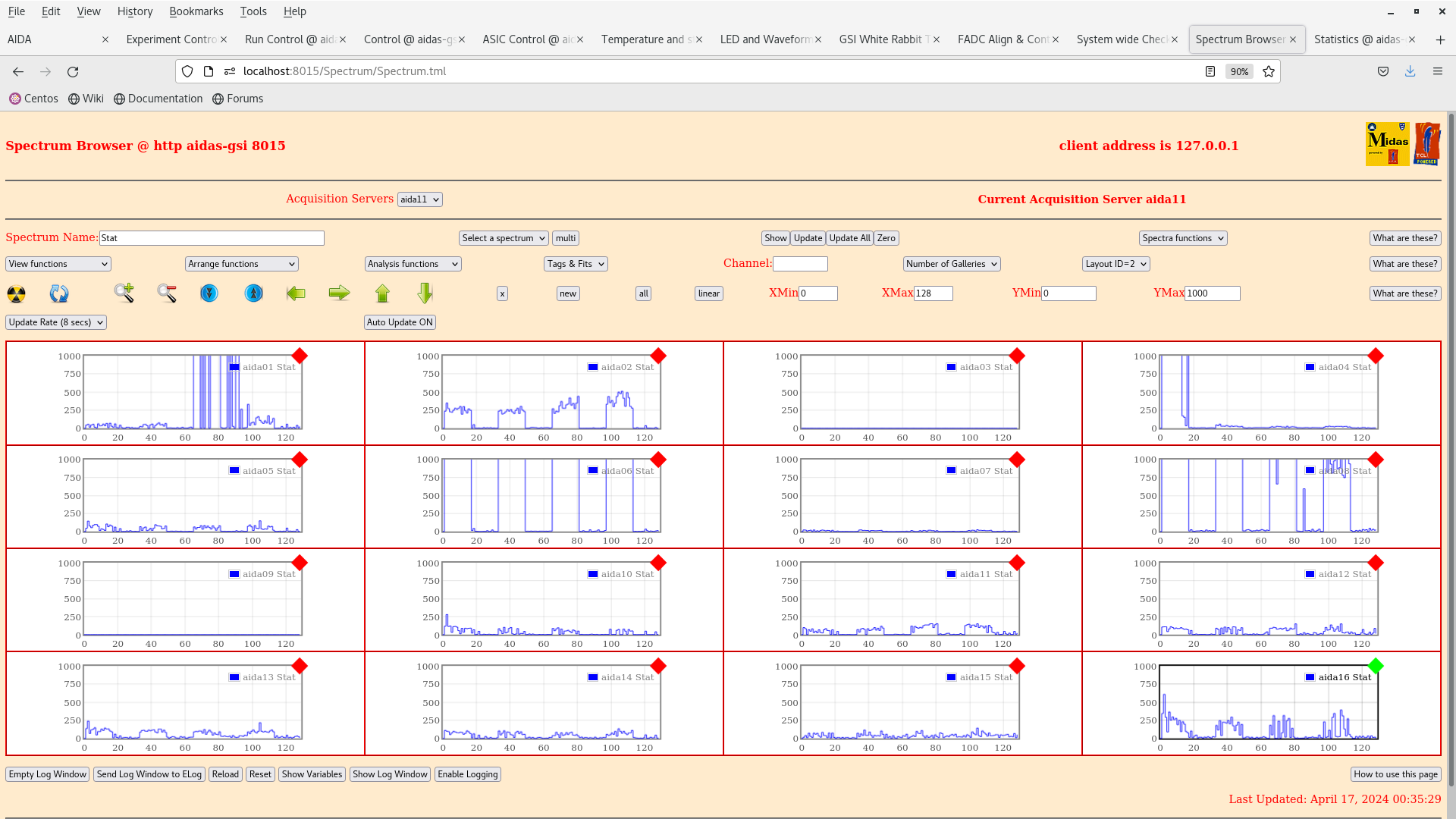

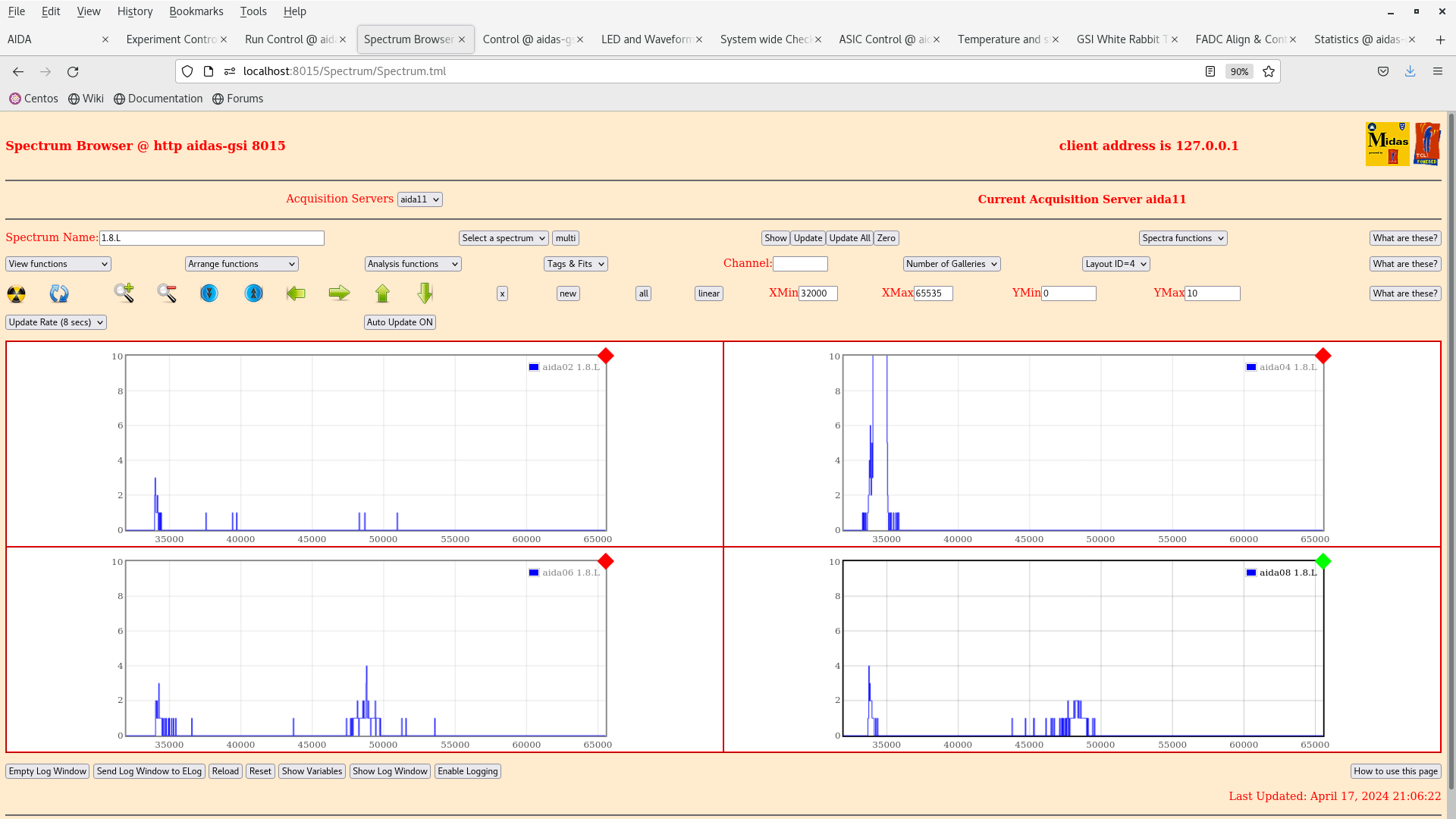

per FEE64 1.8.L spectra - attachments 32-33 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
