S100 ADC offsets using pulser walkthrough data from data files R12 & R13

ch = channel + ( module * 64 ) + ( range * 2048 )

adc_data( ch ) = INT( RSHIFT( ABS( adc_data( ch ) - 32768 ), 3 ) - offset( ch ) + 0.5 )

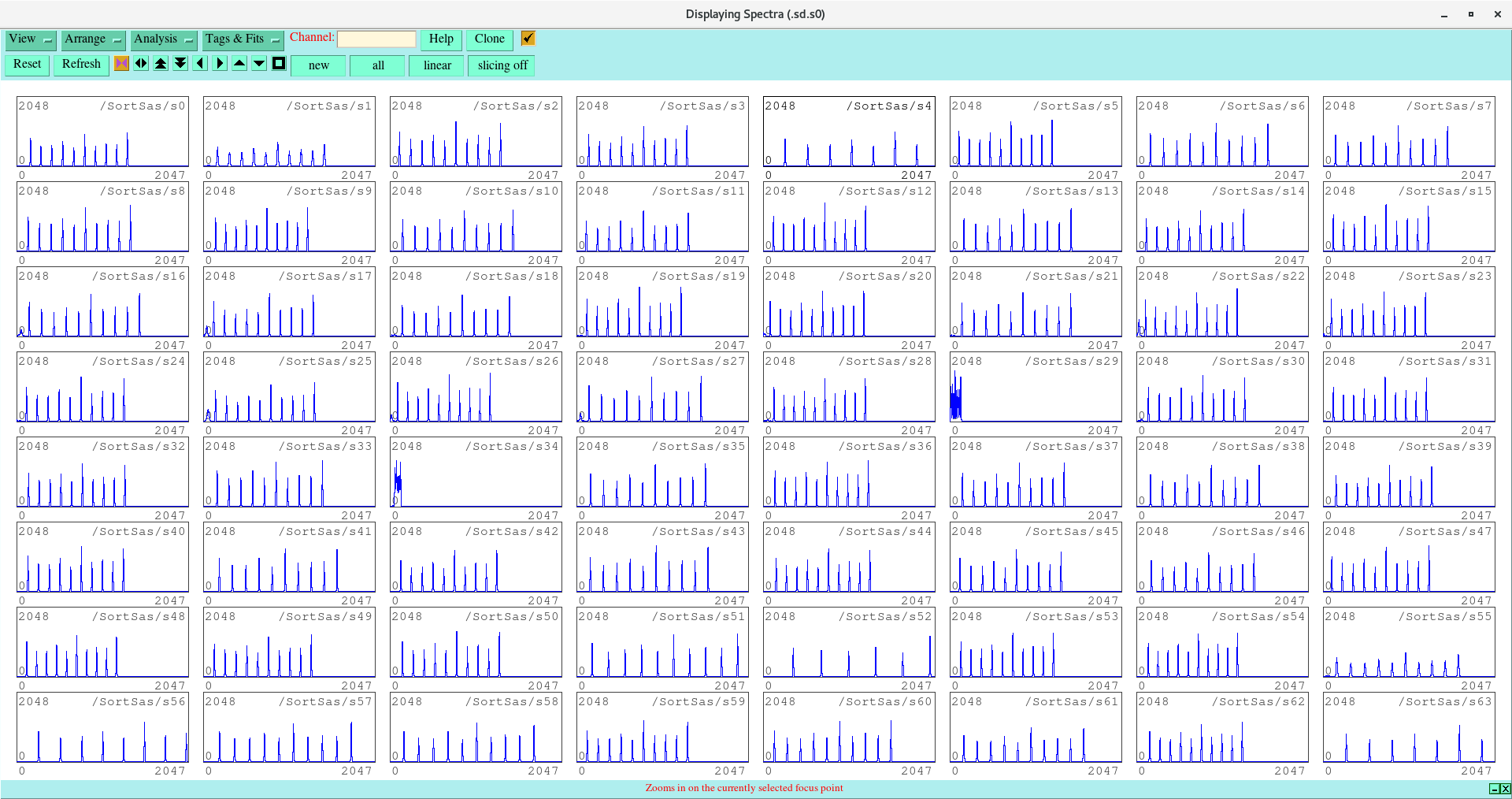

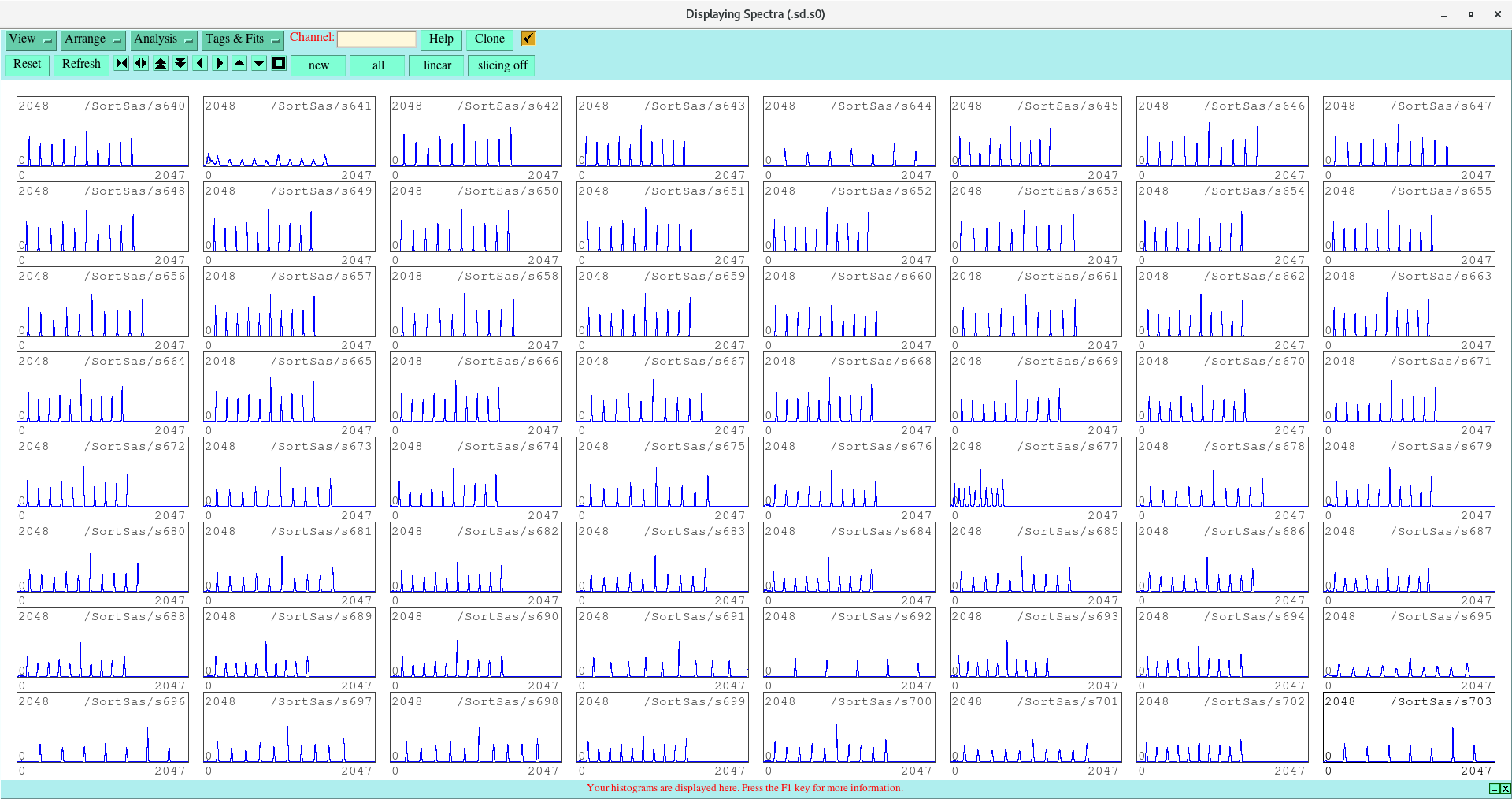

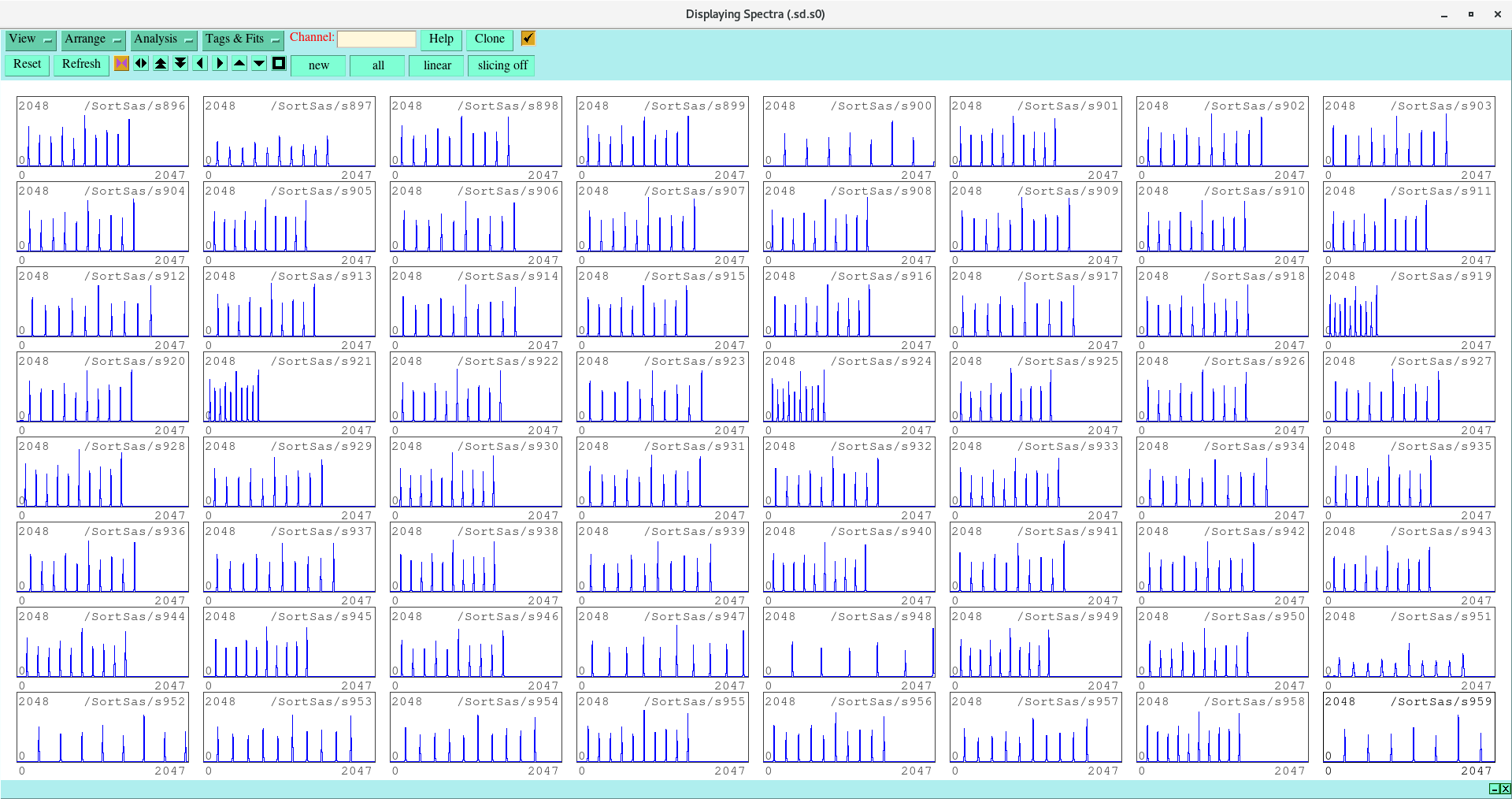

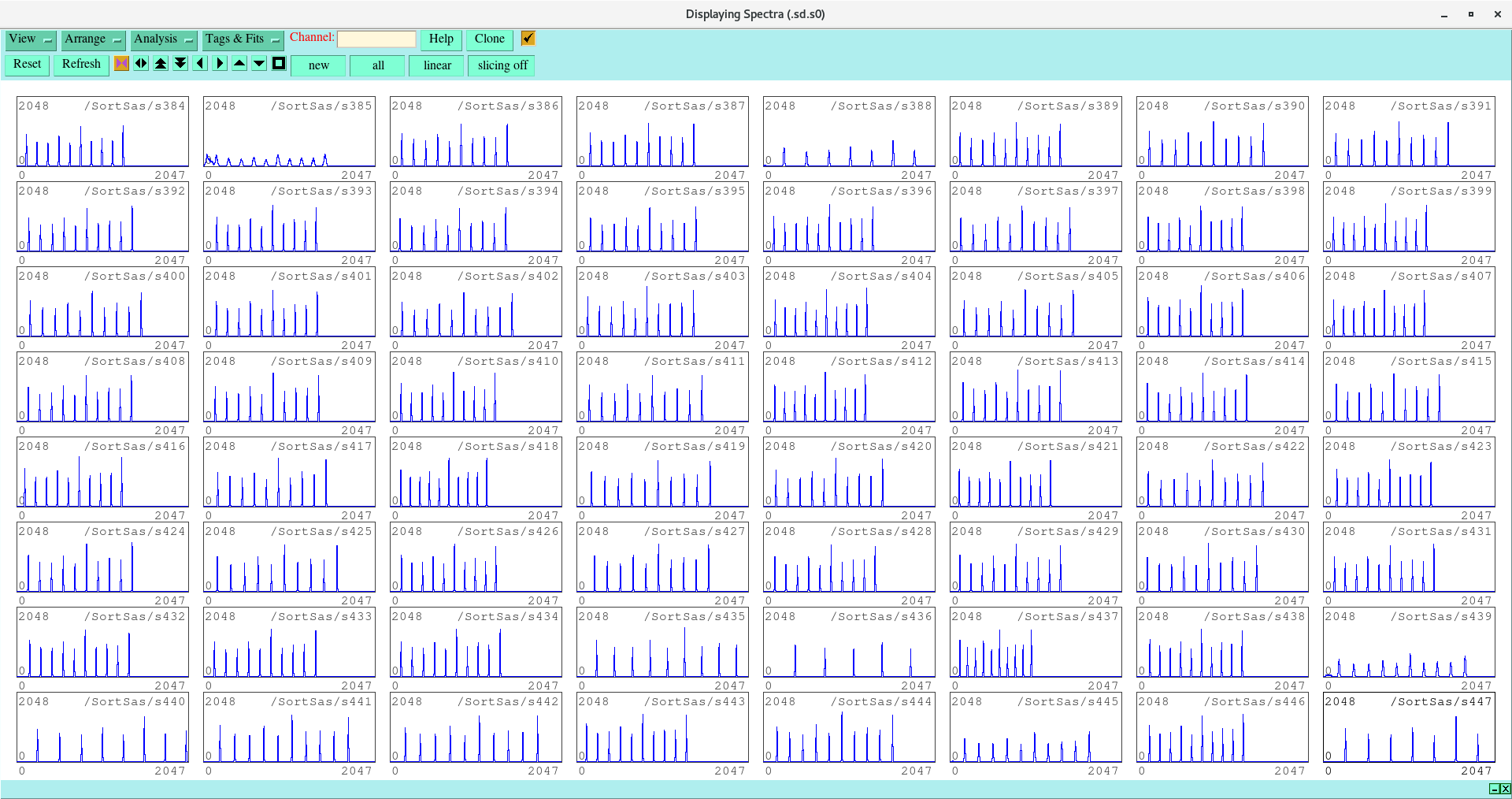

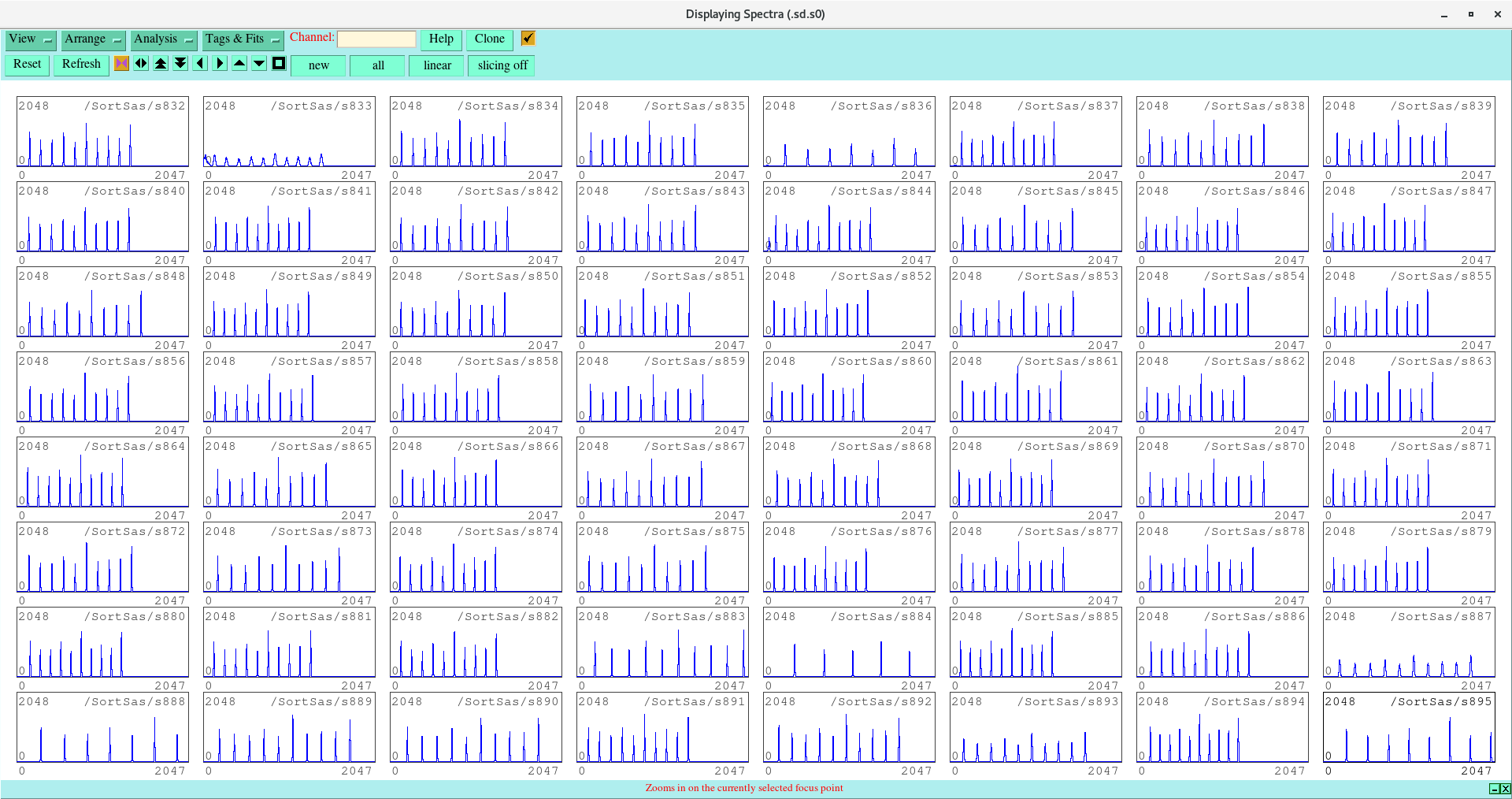

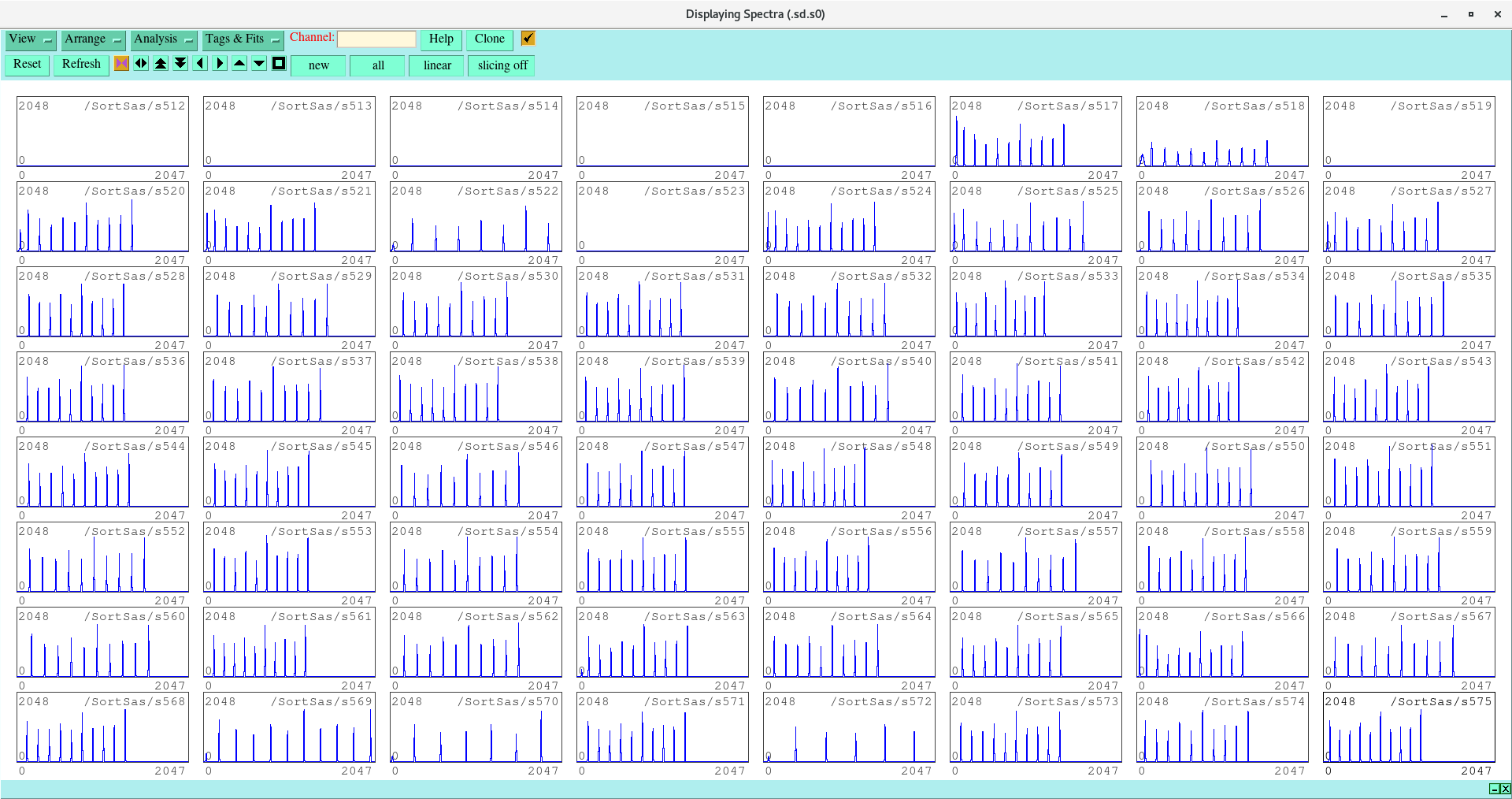

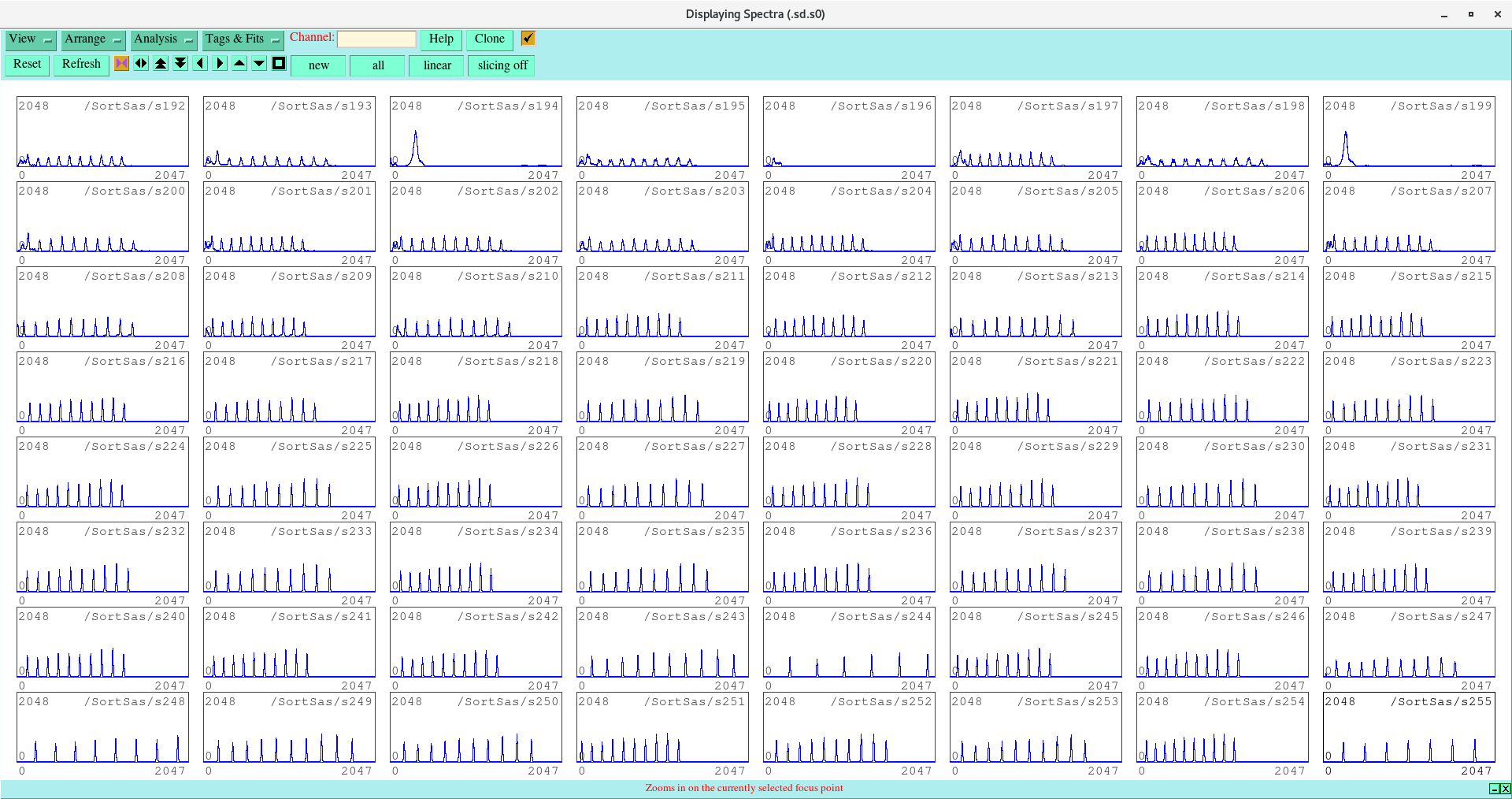

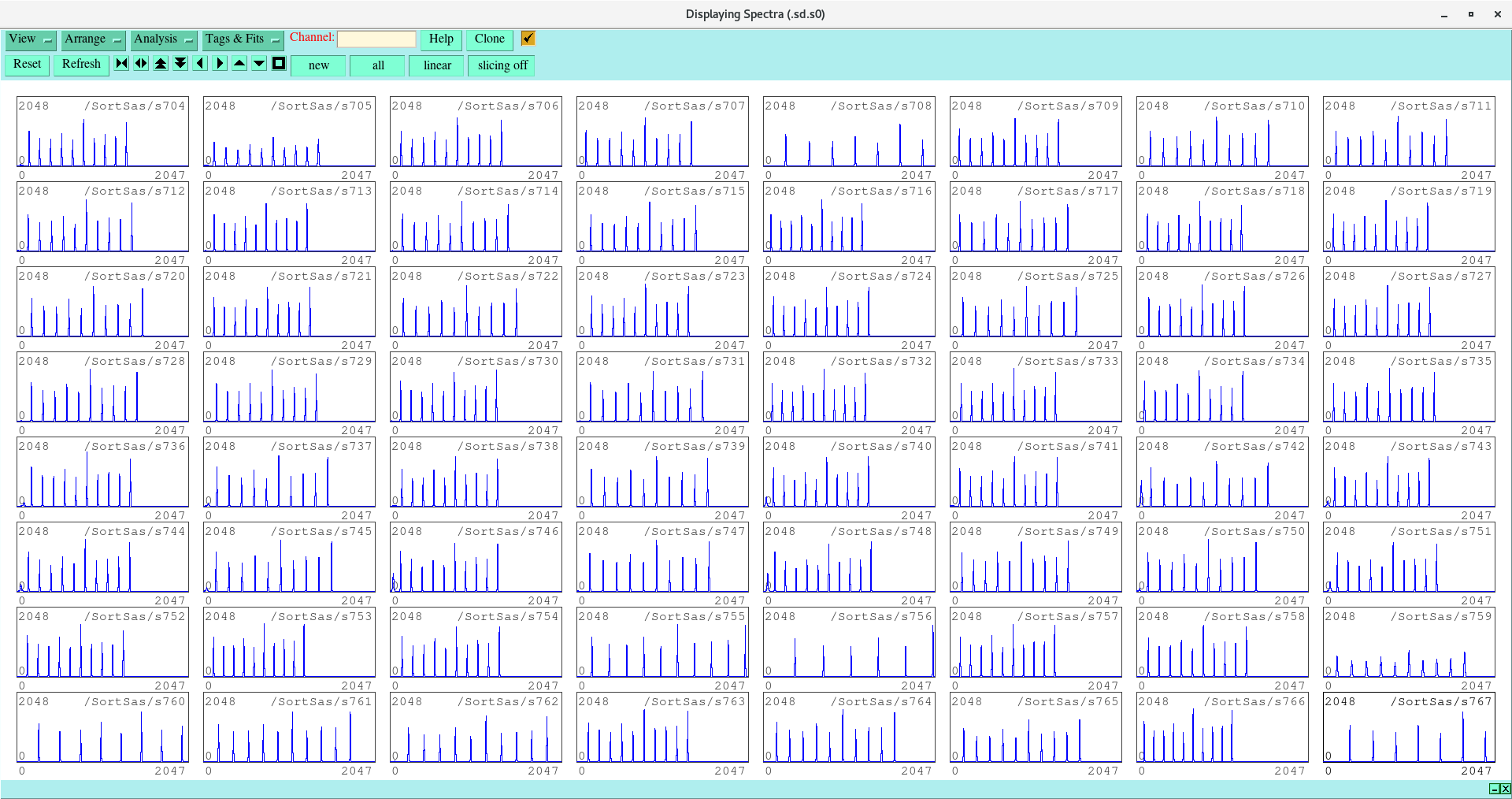

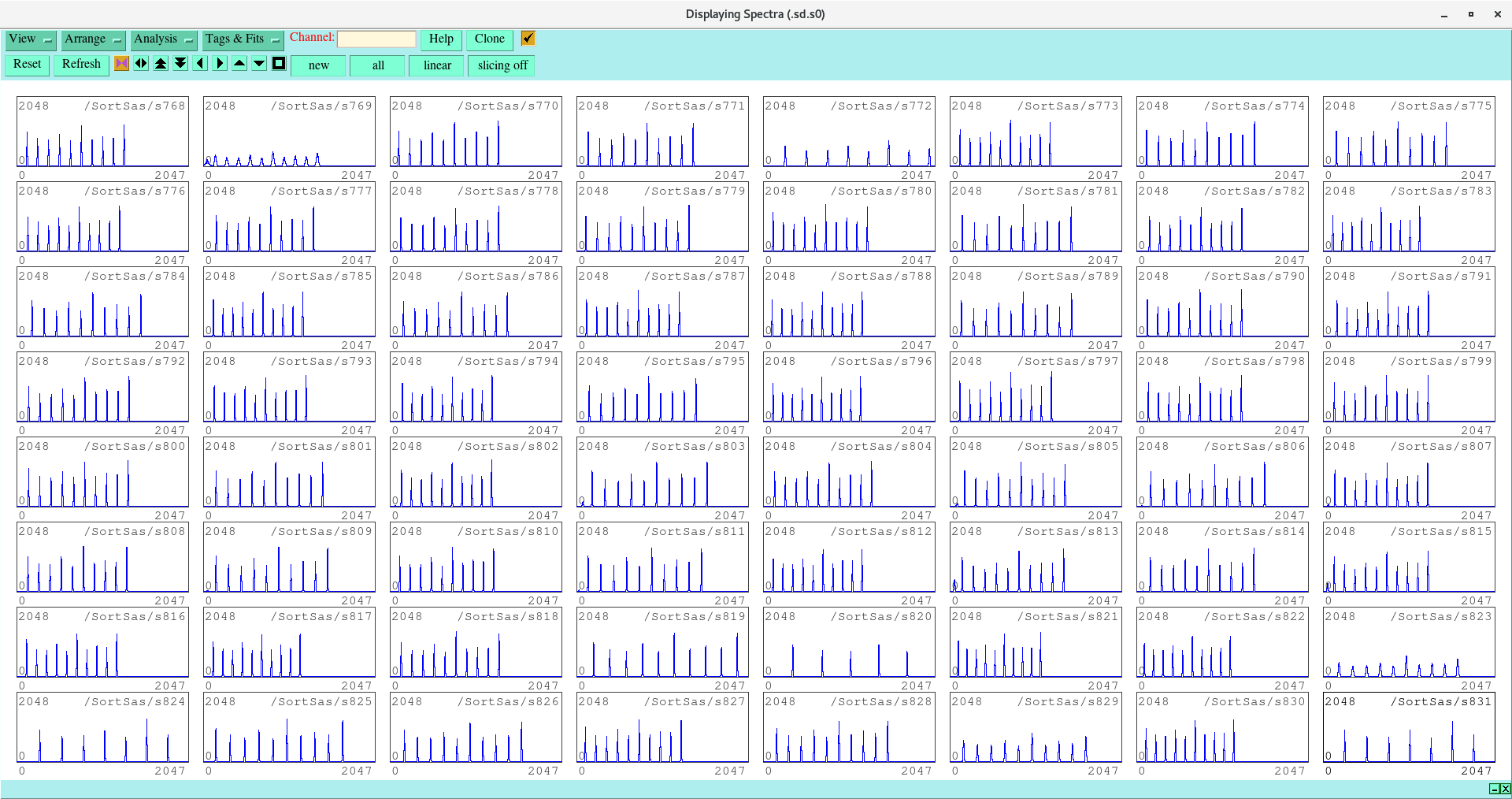

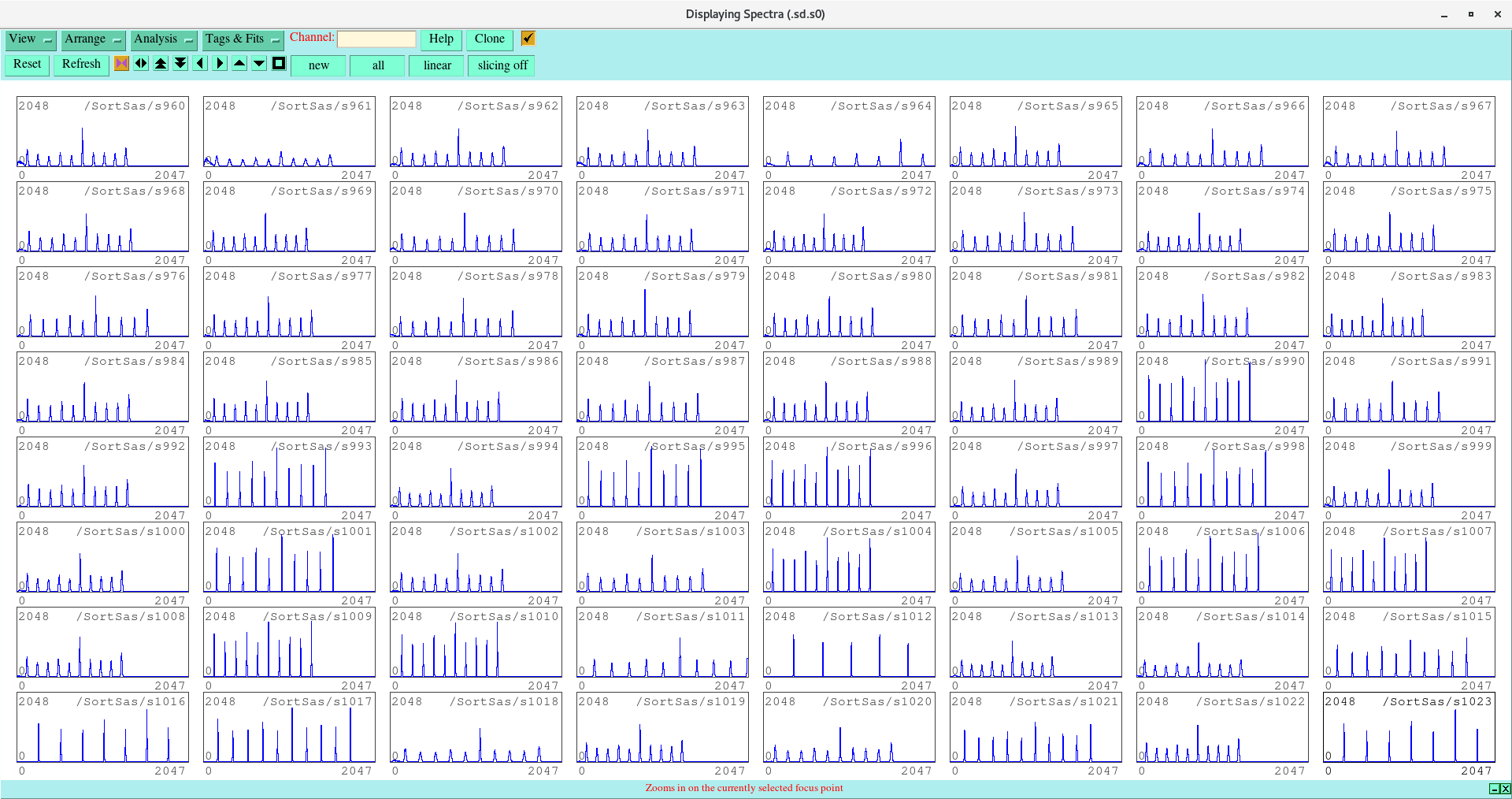

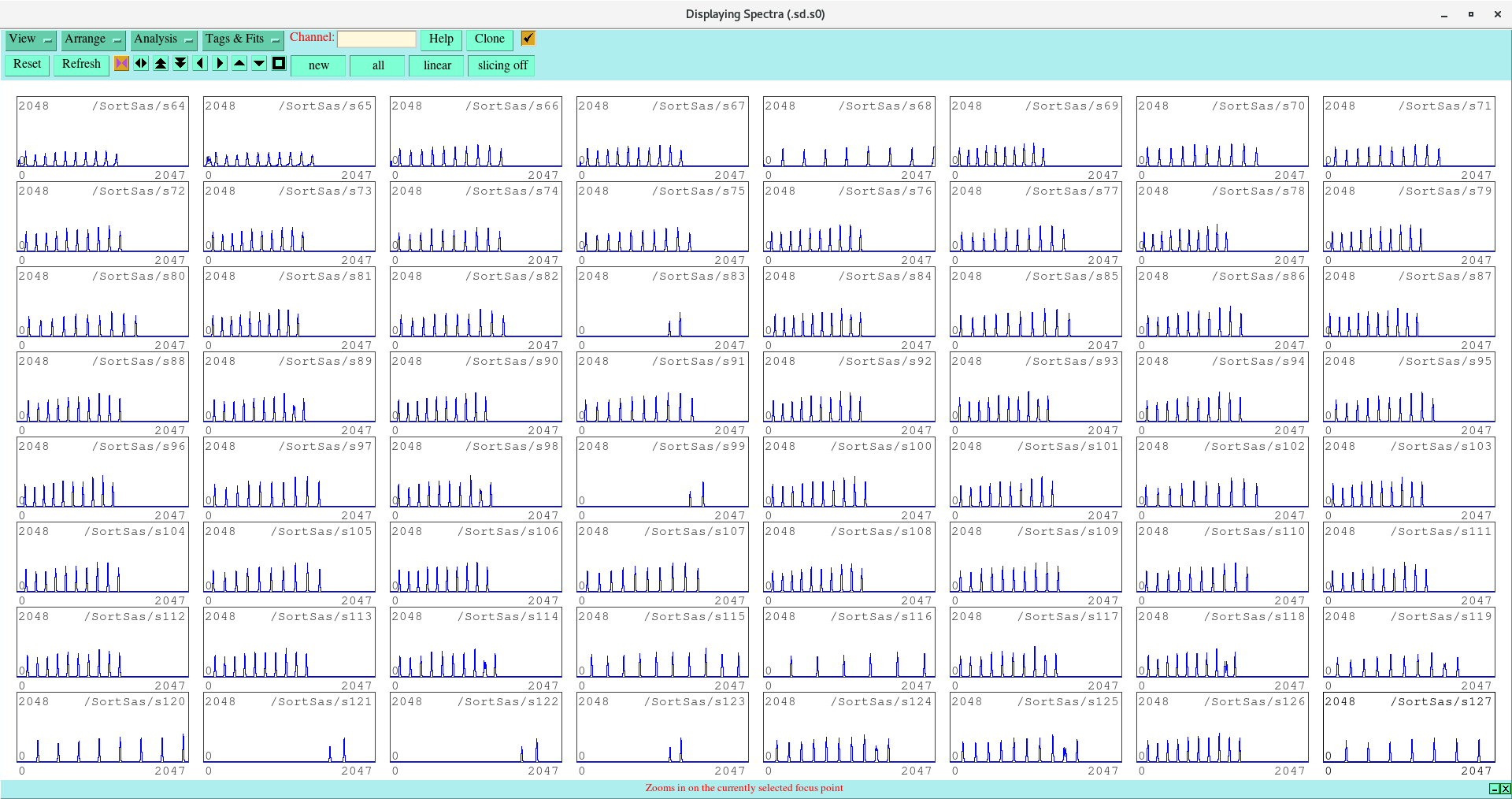

per p+n FEE64 ADC spectra (aida01-aida16 *not* aida02, aida04, aida06 & aida08) - attachments 1-12

Note common x & y-scales - peak height proxy for peak width

aida09 1.8.L (s520) pulser peak width 7 ch FWHM (~40keV FWHM)

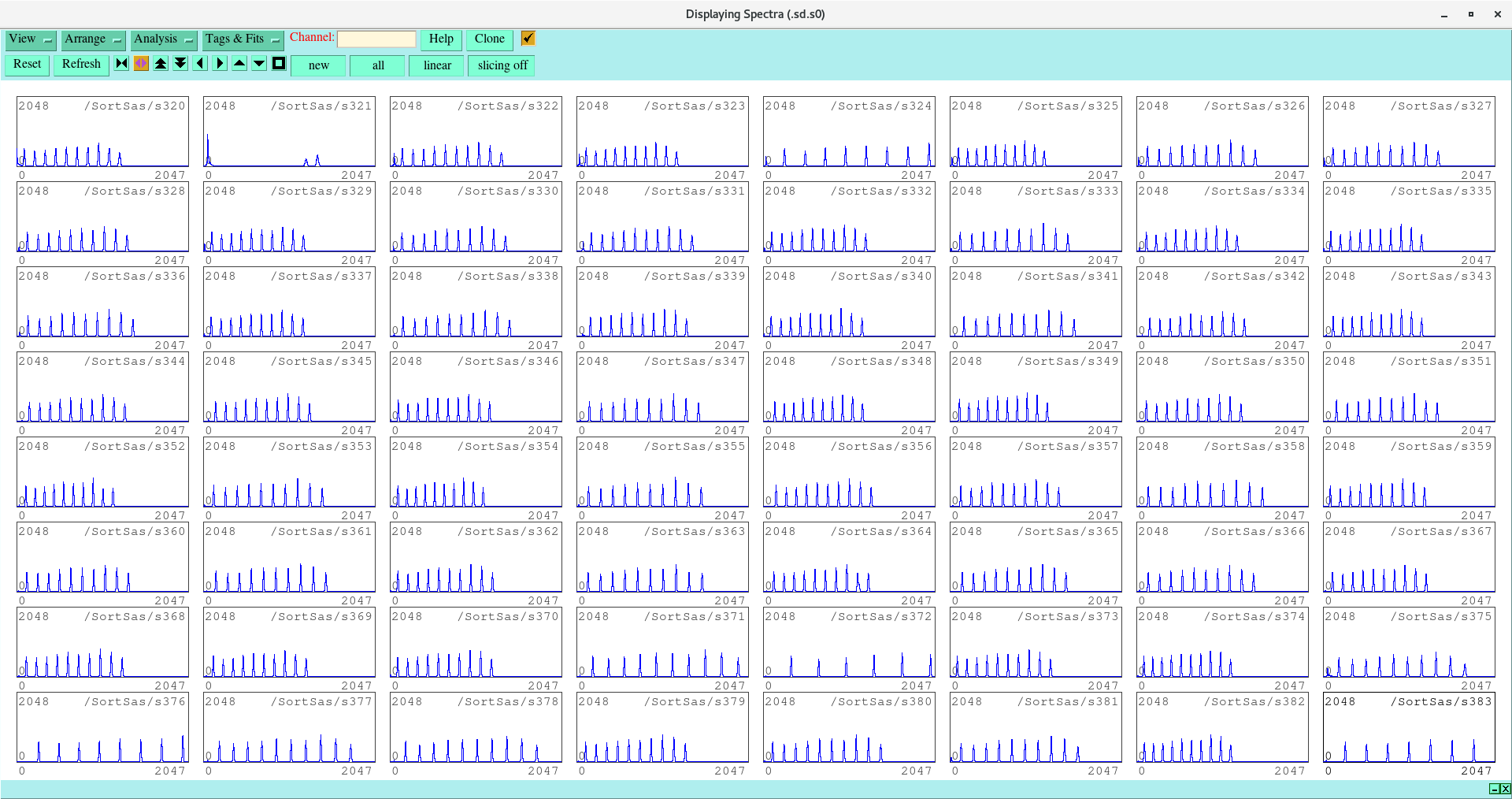

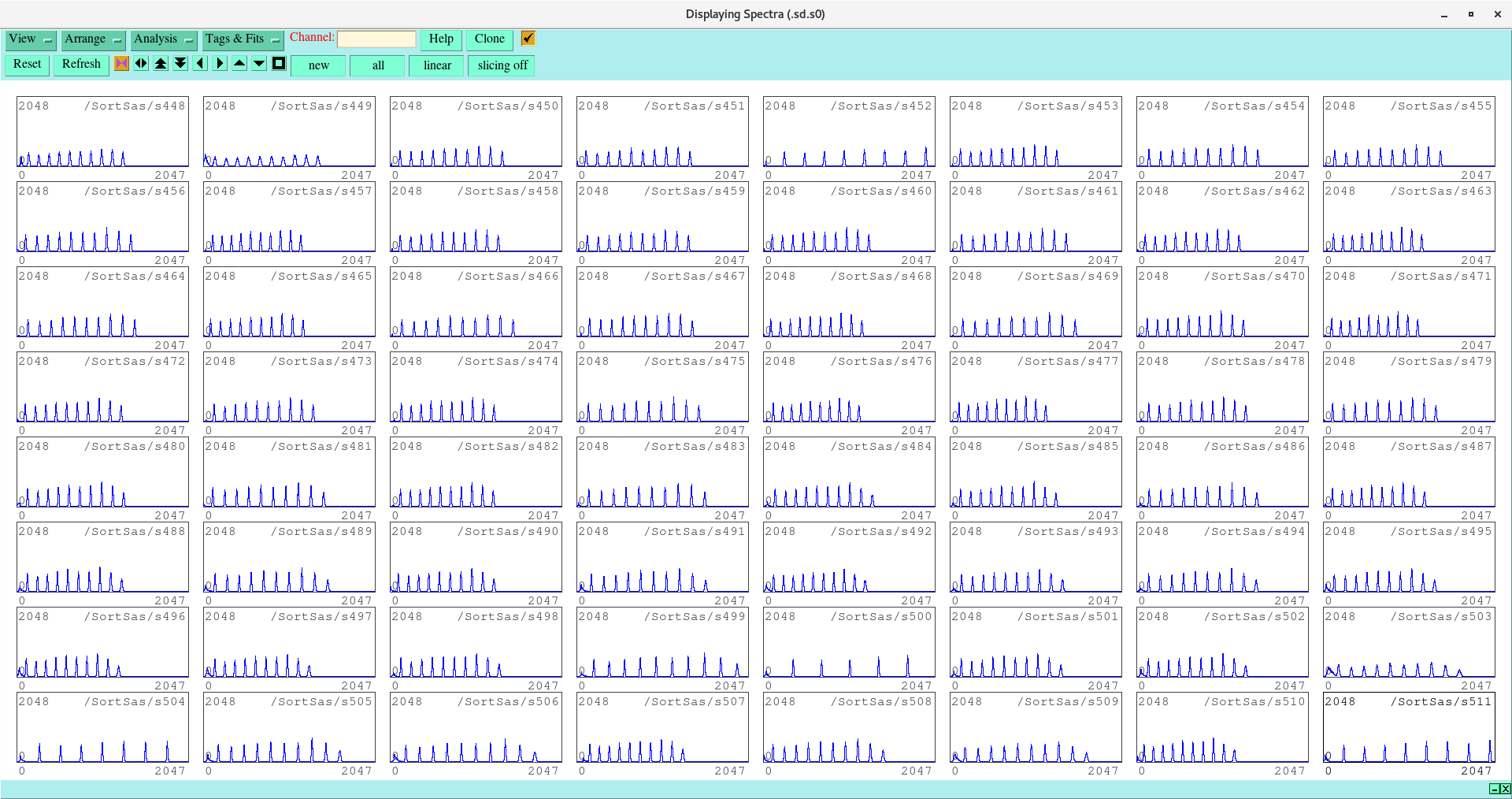

per n+n FEE64 ADC spectra (aida02, aida04, aida06 & aida08) - attachments 13-16

Note common x & y-scales - peak height proxy for peak width

aida02 1.8.L (s72) pulser peak width 16 ch FWHM (~88keV FWHM)




ADC offset analysis

/home/npg/td/Calibration/offsets /home/npg/td/S100/R12-R13 50 1024 20 5


First pass sort variables ( ADC offsets, FEE64 configuration, LEC & HEC equal energy cuts ) - attachment 17

  $variables
  offset(   0) =    34.20
  offset(   1) =    27.50
  offset(   2) =   -18.51
  offset(   3) =    13.56
  offset(   4) =    -6.12
  offset(   5) =   -14.51
  offset(   6) =    11.86
  offset(   7) =    -0.19
  offset(   8) =     2.52
  offset(   9) =    24.94
  offset(  10) =     7.54
  offset(  11) =   -20.01
  offset(  12) =    -0.93
  offset(  13) =    26.51
  offset(  14) =   -12.75
  offset(  15) =    -4.72
  offset(  16) =     5.48
  offset(  17) =    -8.97
  offset(  18) =     4.25
  offset(  19) =    -3.19
  offset(  20) =   -40.78
  offset(  21) =    -0.95
  offset(  22) =   -14.62
  offset(  23) =   -28.18
  offset(  24) =   -12.96
  offset(  25) =    14.90
  offset(  26) =   -32.39
  offset(  27) =     0.66
  offset(  28) =     6.68
  offset(  29) = -9999.99
  offset(  30) =    15.03
  offset(  31) =    -2.98
  offset(  32) =    16.22
  offset(  33) =    27.02
  offset(  34) = -9999.99
  offset(  35) =    17.09
  offset(  36) =    17.72
  offset(  37) =    16.29
  offset(  38) =    23.46
  offset(  39) =    27.55
  offset(  40) =     9.26
  offset(  41) =    34.03
  offset(  42) =     2.46
  offset(  43) =     8.62
  offset(  44) =    29.61
  offset(  45) =   -14.47
  offset(  46) =    42.23
  offset(  47) =   -27.52
  offset(  48) =     1.06
  offset(  49) =     4.03
  offset(  50) =    22.04
  offset(  51) =   -10.44
  offset(  52) =    38.54
  offset(  53) =     8.66
  offset(  54) =    20.65
  offset(  55) =     0.35
  offset(  56) =     5.19
  offset(  57) =    19.55
  offset(  58) =    -5.57
  offset(  59) =    -7.26
  offset(  60) =   -21.96
  offset(  61) =     5.89
  offset(  62) =    36.14
  offset(  63) =     3.05
  offset(  64) =   -15.80
  offset(  65) =    25.02
  offset(  66) =   -15.94
  offset(  67) =     6.19
  offset(  68) =   -19.87
  offset(  69) =     0.37
  offset(  70) =    -9.68
  offset(  71) =     9.68
  offset(  72) =   -11.13
  offset(  73) =    -6.20
  offset(  74) =   -25.35
  offset(  75) =   -25.57
  offset(  76) =   -19.75
  offset(  77) =     8.60
  offset(  78) =   -22.55
  offset(  79) =   -10.56
  offset(  80) =     5.90
  offset(  81) =    -1.29
  offset(  82) =    -1.52
  offset(  83) = -9999.99
  offset(  84) =    24.56
  offset(  85) =   -10.73
  offset(  86) =    11.96
  offset(  87) =   -35.20
  offset(  88) =    16.67
  offset(  89) =    10.31
  offset(  90) =   -13.86
  offset(  91) =   -33.64
  offset(  92) =     2.96
  offset(  93) =    -2.41
  offset(  94) =     1.80
  offset(  95) =    26.72
  offset(  96) =   -18.06
  offset(  97) =    -0.82
  offset(  98) =   -19.61
  offset(  99) = -9999.99
  offset( 100) =   -11.22
  offset( 101) =     9.13
  offset( 102) =   -29.56
  offset( 103) =    -1.95
  offset( 104) =   -14.24
  offset( 105) =   -21.87
  offset( 106) =    -7.47
  offset( 107) =   -14.22
  offset( 108) =    -6.72
  offset( 109) =    -4.35
  offset( 110) =   -12.98
  offset( 111) =   -11.42
  offset( 112) =     5.39
  offset( 113) =    16.43
  offset( 114) =   -10.19
  offset( 115) =   -13.21
  offset( 116) =    19.82
  offset( 117) =    -4.45
  offset( 118) =    21.88
  offset( 119) =    13.84
  offset( 120) =    10.16
  offset( 121) = -9999.99
  offset( 122) = -9999.99
  offset( 123) = -9999.99
  offset( 124) =    13.42
  offset( 125) =     4.74
  offset( 126) =    10.81
  offset( 127) =    16.15
  offset( 128) =    -4.37
  offset( 129) =    21.60
  offset( 130) =     8.61
  offset( 131) =    -2.95
  offset( 132) =   -10.00
  offset( 133) =     2.40
  offset( 134) =    -9.40
  offset( 135) =   -24.68
  offset( 136) =     4.46
  offset( 137) =    -0.20
  offset( 138) =    20.63
  offset( 139) =   -25.14
  offset( 140) =    -7.48
  offset( 141) =    13.71
  offset( 142) =    -4.11
  offset( 143) =    -9.17
  offset( 144) =    15.36
  offset( 145) =    11.07
  offset( 146) =   -13.21
  offset( 147) =    -8.91
  offset( 148) =     4.75
  offset( 149) =   -10.47
  offset( 150) =    18.10
  offset( 151) =     0.62
  offset( 152) =    -2.18
  offset( 153) =     5.79
  offset( 154) =     2.73
  offset( 155) =    17.67
  offset( 156) =    15.58
  offset( 157) =   -34.45
  offset( 158) =    -1.55
  offset( 159) =    12.93
  offset( 160) =     4.16
  offset( 161) =   -15.55
  offset( 162) =    17.51
  offset( 163) =    -5.30
  offset( 164) =     8.65
  offset( 165) =   -13.48
  offset( 166) =   -10.14
  offset( 167) =    -3.75
  offset( 168) =    12.28
  offset( 169) =   -23.31
  offset( 170) =   -11.44
  offset( 171) =     5.06
  offset( 172) =   -15.18
  offset( 173) =    17.88
  offset( 174) =    12.26
  offset( 175) =   -13.64
  offset( 176) =    -9.33
  offset( 177) =    21.57
  offset( 178) =    28.82
  offset( 179) =    27.67
  offset( 180) =    62.22
  offset( 181) =    -2.89
  offset( 182) =    17.11
  offset( 183) =    11.80
  offset( 184) =    17.26
  offset( 185) =    15.52
  offset( 186) =    -8.89
  offset( 187) =    15.53
  offset( 188) =   -11.80
  offset( 189) =     0.85
  offset( 190) =    11.21
  offset( 191) =     7.76
  offset( 192) =     5.12
  offset( 193) =    26.29
  offset( 194) = -9999.99
  offset( 195) =     7.45
  offset( 196) = -9999.99
  offset( 197) =     2.31
  offset( 198) =    -1.94
  offset( 199) = -9999.99
  offset( 200) =    -0.41
  offset( 201) =   -23.18
  offset( 202) =    -1.82
  offset( 203) =    17.39
  offset( 204) =   -10.40
  offset( 205) =   -13.42
  offset( 206) =     8.22
  offset( 207) =     2.93
  offset( 208) =   -56.48
  offset( 209) =   -10.42
  offset( 210) =    50.72
  offset( 211) =     0.45
  offset( 212) =    27.74
  offset( 213) =   -16.62
  offset( 214) =    15.39
  offset( 215) =   -13.44
  offset( 216) =    34.58
  offset( 217) =    15.20
  offset( 218) =    -3.05
  offset( 219) =    -0.28
  offset( 220) =   -40.52
  offset( 221) =   -31.47
  offset( 222) =    20.29
  offset( 223) =   -13.69
  offset( 224) =    -1.11
  offset( 225) =    33.58
  offset( 226) =   -16.57
  offset( 227) =    -4.95
  offset( 228) =   -11.93
  offset( 229) =     7.06
  offset( 230) =    -2.90
  offset( 231) =   -38.90
  offset( 232) =    -8.84
  offset( 233) =     1.20
  offset( 234) =     3.21
  offset( 235) =    17.26
  offset( 236) =     4.76
  offset( 237) =    13.15
  offset( 238) =    13.66
  offset( 239) =    -2.42
  offset( 240) =    -1.46
  offset( 241) =     0.03
  offset( 242) =    20.72
  offset( 243) =    -0.74
  offset( 244) =    -2.03
  offset( 245) =   -36.41
  offset( 246) =     5.31
  offset( 247) =     3.45
  offset( 248) =    -9.35
  offset( 249) =     8.61
  offset( 250) =     6.18
  offset( 251) =   -72.01
  offset( 252) =    11.53
  offset( 253) =   -13.74
  offset( 254) =    -2.41
  offset( 255) =   -16.47
  offset( 256) =     6.19
  offset( 257) =    13.35
  offset( 258) =    10.44
  offset( 259) =    16.45
  offset( 260) =    13.62
  offset( 261) =    36.59
  offset( 262) =    24.89
  offset( 263) =    11.04
  offset( 264) =    12.12
  offset( 265) =    -1.04
  offset( 266) =    20.55
  offset( 267) =   -19.88
  offset( 268) =    10.57
  offset( 269) =    31.05
  offset( 270) =    23.09
  offset( 271) =   -17.38
  offset( 272) =   -18.40
  offset( 273) =    16.00
  offset( 274) =    -5.59
  offset( 275) =    -3.98
  offset( 276) =     0.70
  offset( 277) =     4.32
  offset( 278) =   -13.61
  offset( 279) =    26.62
  offset( 280) =    17.81
  offset( 281) =     7.10
  offset( 282) =   -30.97
  offset( 283) =    13.50
  offset( 284) =    88.96
  offset( 285) =    -0.03
  offset( 286) =     8.64
  offset( 287) =     1.86
  offset( 288) =     4.27
  offset( 289) =    19.21
  offset( 290) =   -33.21
  offset( 291) =   -28.54
  offset( 292) =     7.98
  offset( 293) =    -8.69
  offset( 294) =     1.27
  offset( 295) =    20.08
  offset( 296) =    15.92
  offset( 297) =    -4.67
  offset( 298) =    30.68
