Entry time:

Sun Apr 21 00:34:33 2024

Author*:

Subject*:

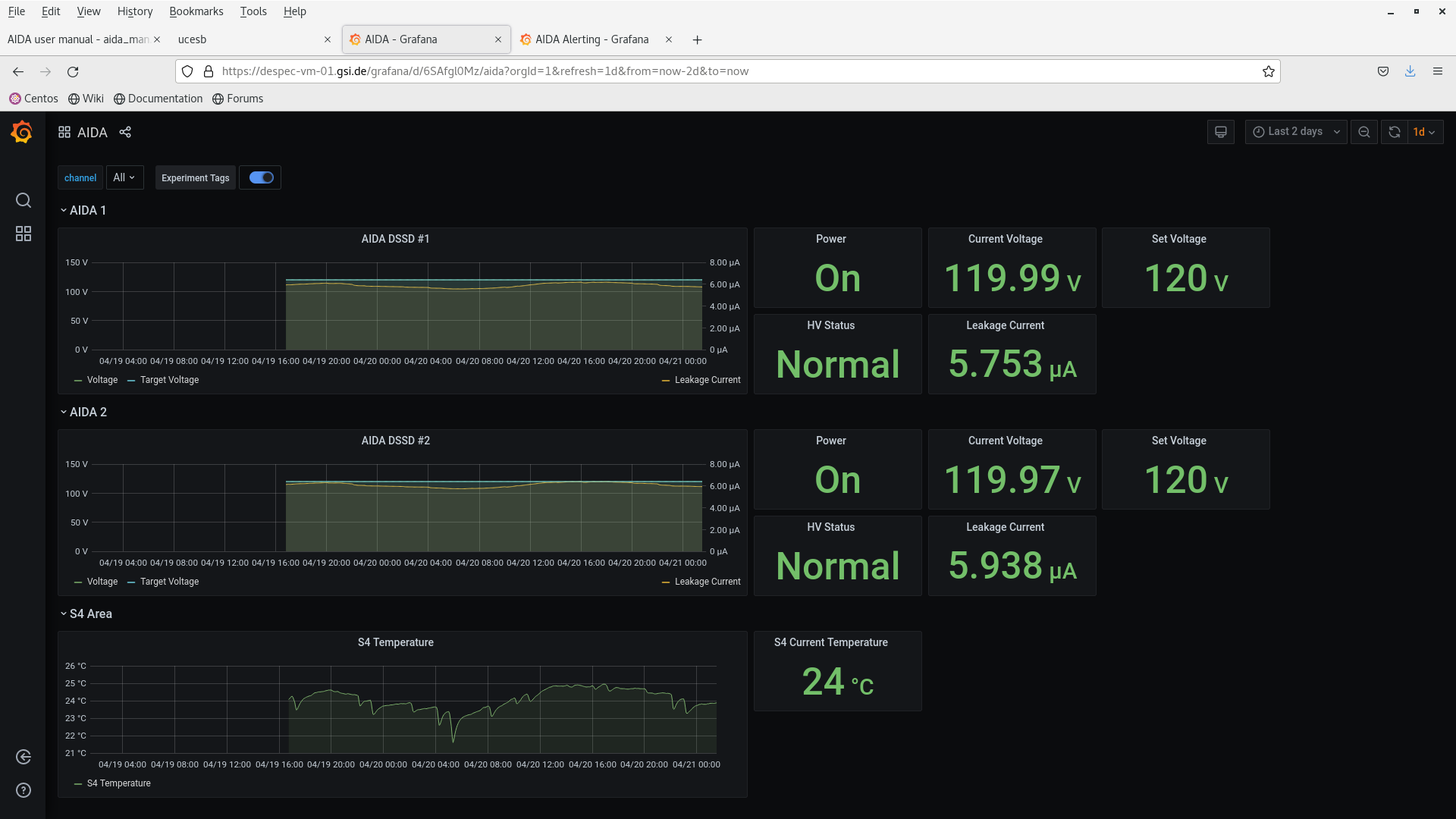

01.35 DSSSD bias & leakage current OK - Grafana - attachment 1

FEE64 temperatures OK - attachment 2

      ADC data item stats OK - attachment 3

Merger OK - attachment 4

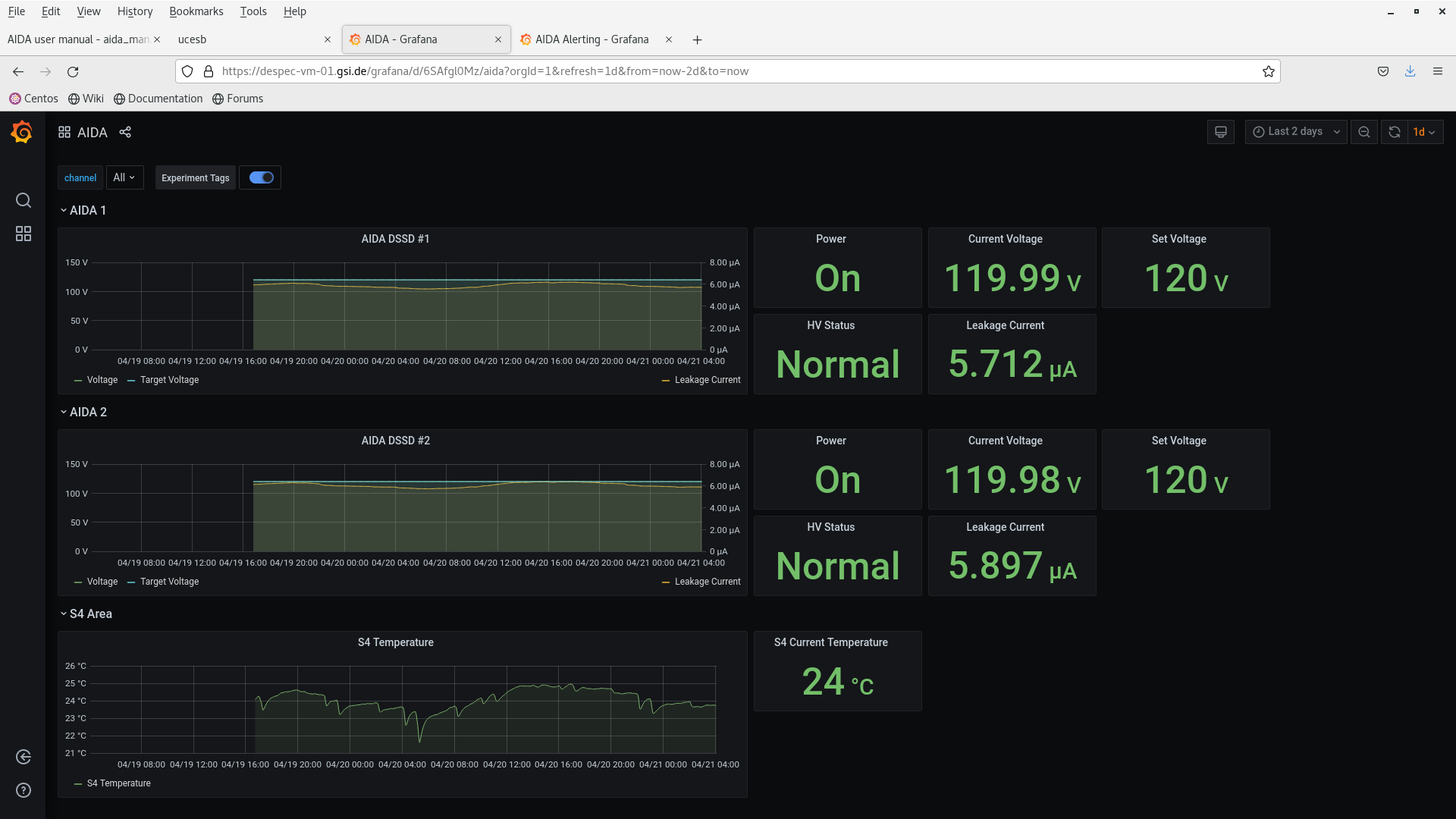

04.05 DSSSD bias & leakage current OK - Grafana - attachment 5

FEE64 temperatures OK - attachment 6

      ADC data item stats OK - attachment 7

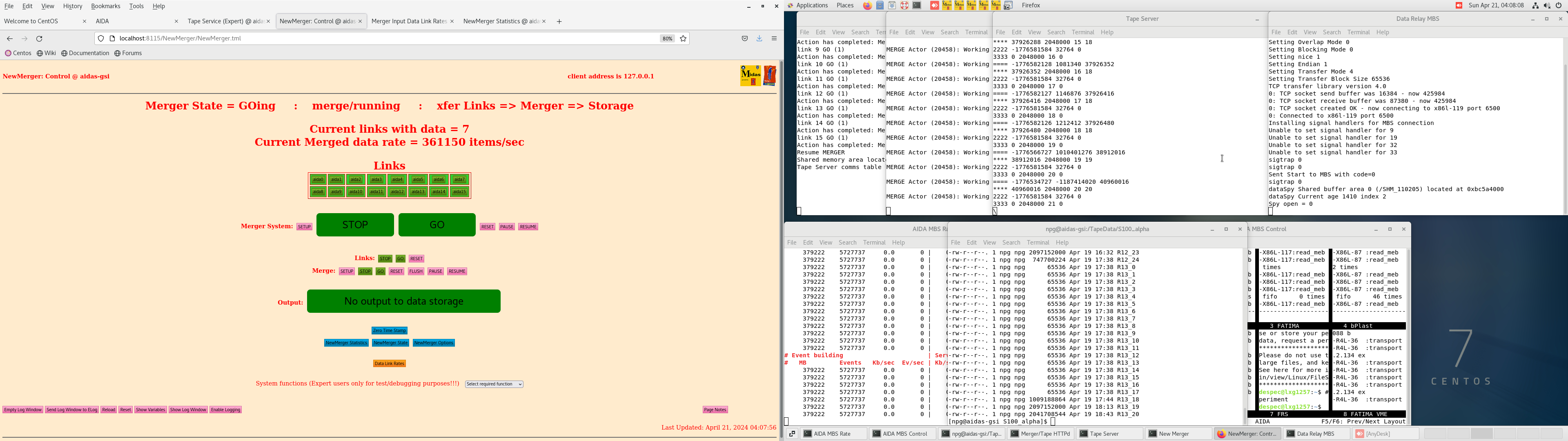

Merger OK - attachment 8

08.20 DSSSD bias & leakage current OK - Grafana - attachment 9

FEE64 temperatures OK - attachment 10

      ADC data item stats - attachment 11
       increased rates observed esp. DSSSD#2 n+n

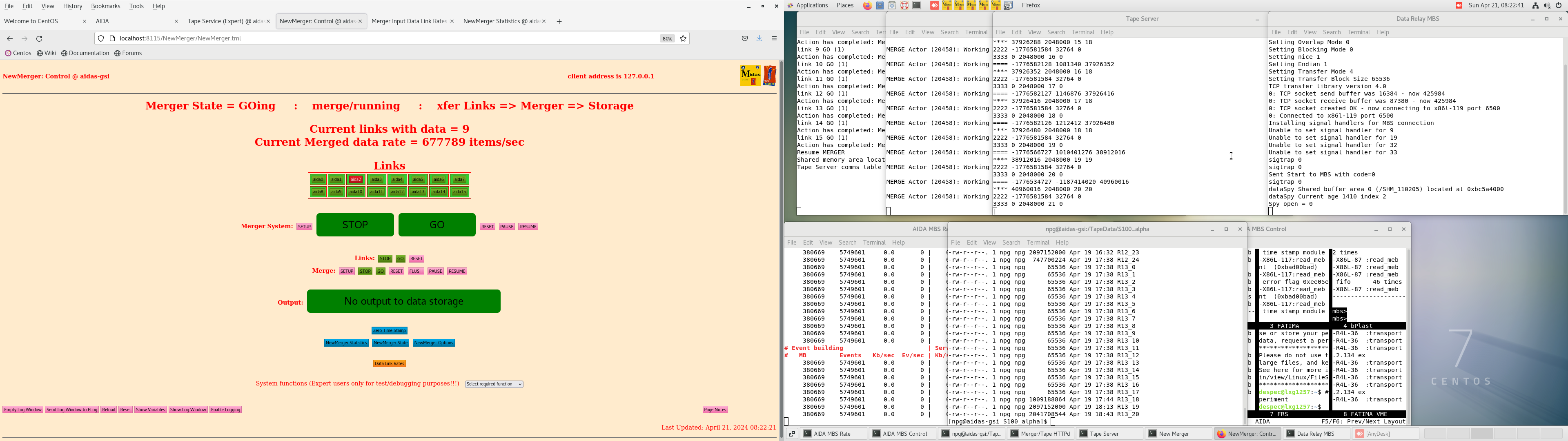

Merger etc - attachment 12
      rate increased x2 cf. overnight

WR timestamp - attachment 13
       aida03 out sequence

09.25 MBS data relay restarted

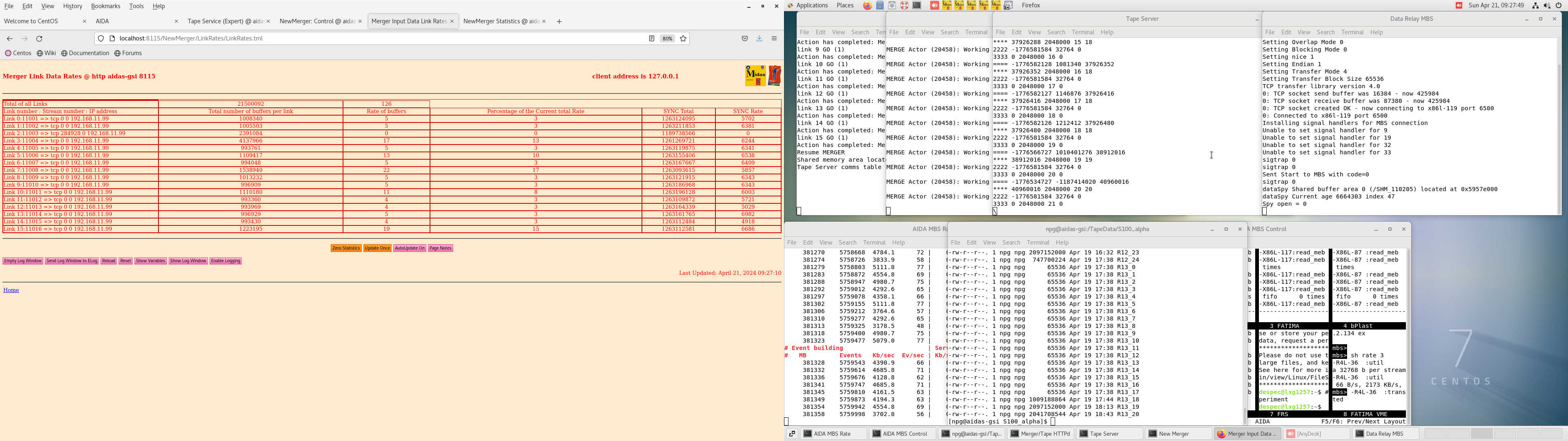

Merger data links - attachment 14
       aida03 rate zero

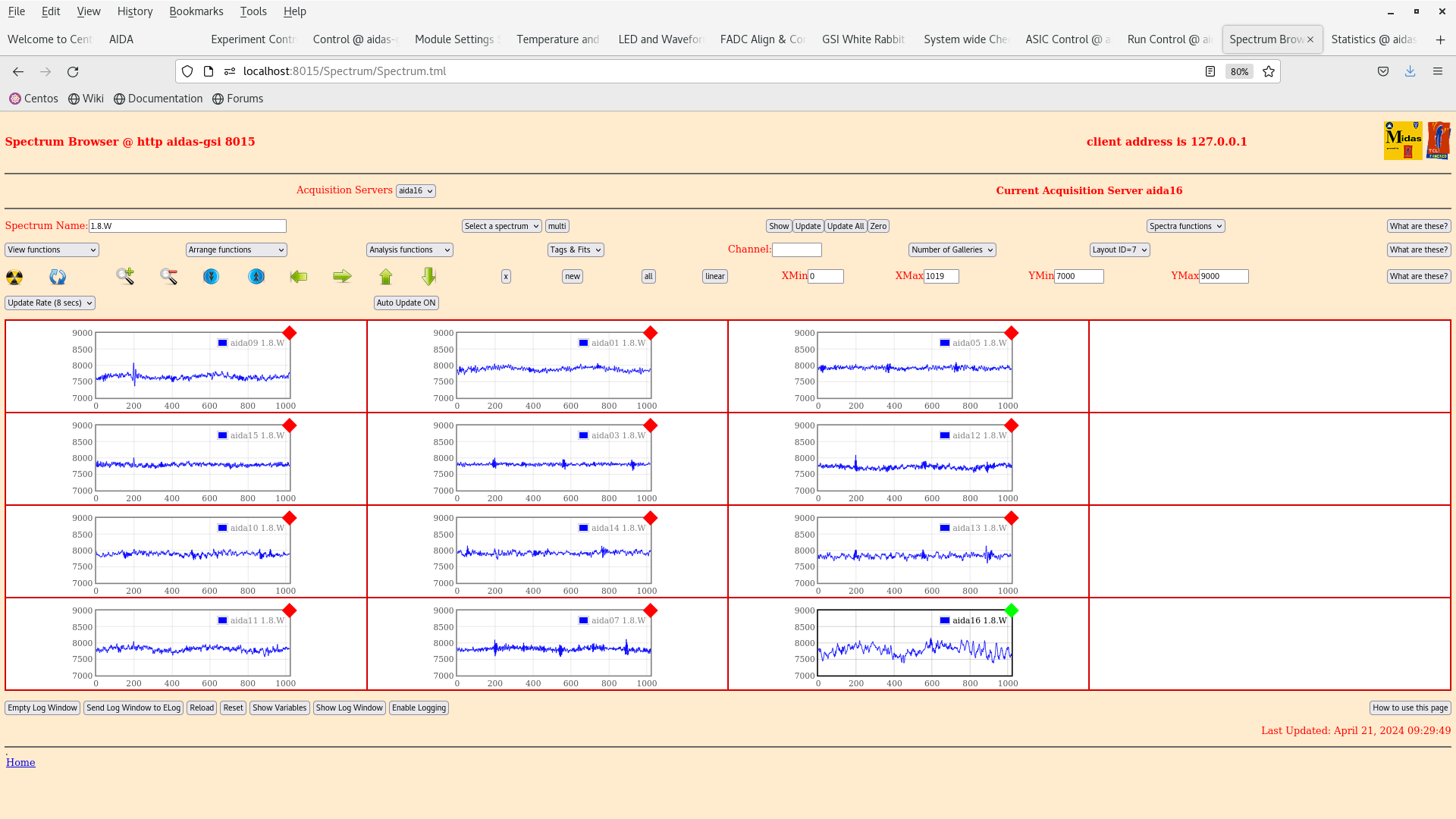

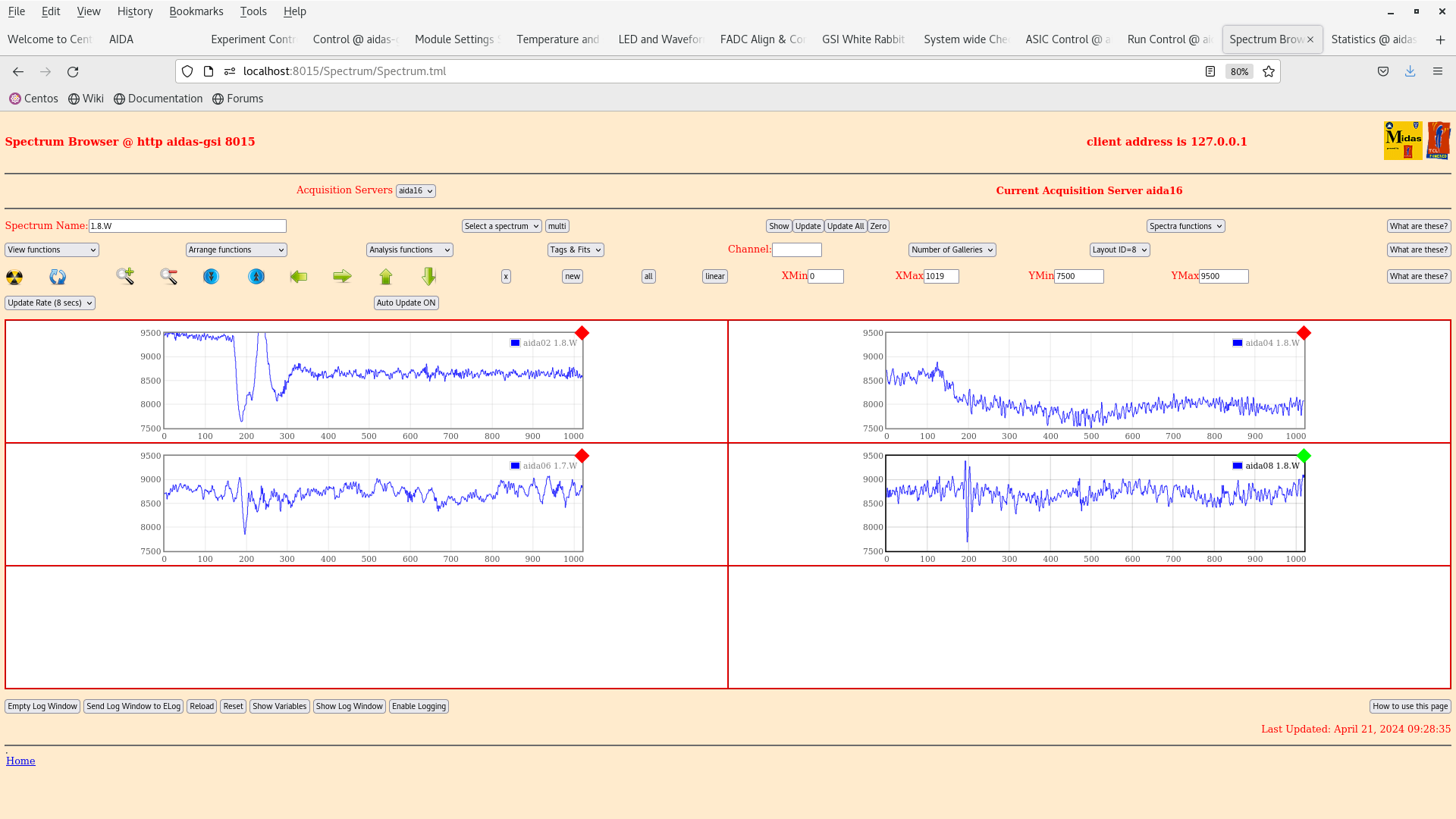

per FEE64 1.8.W spectra - 20us FSR - attachments 15-16

per FEE64 Rate spectra - attachment 17
      increased rate for DSSSD#2 n+n FEE64s in particular

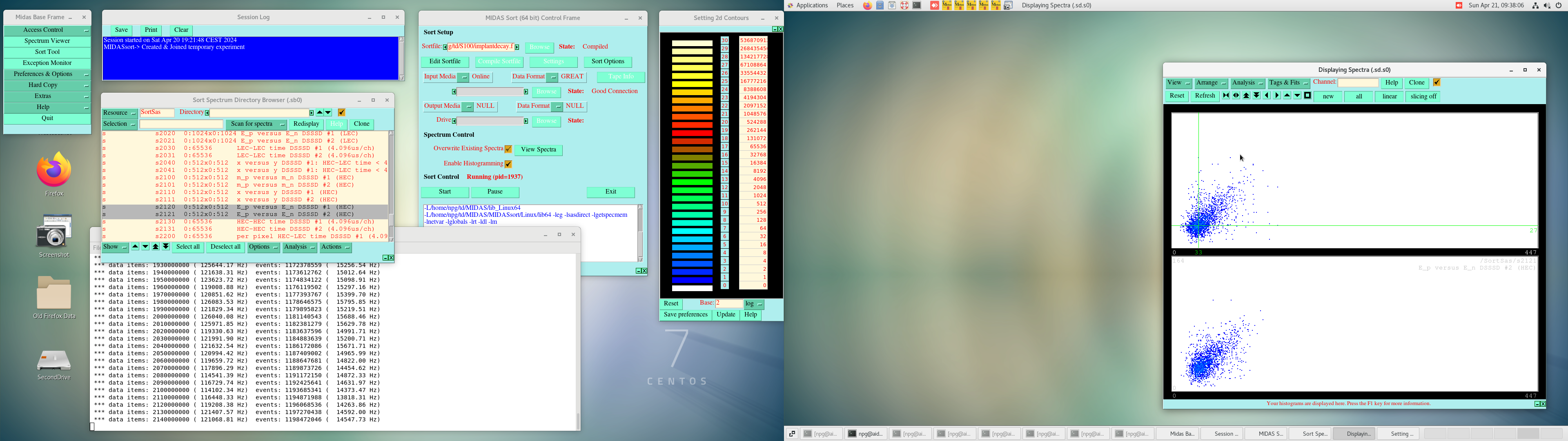

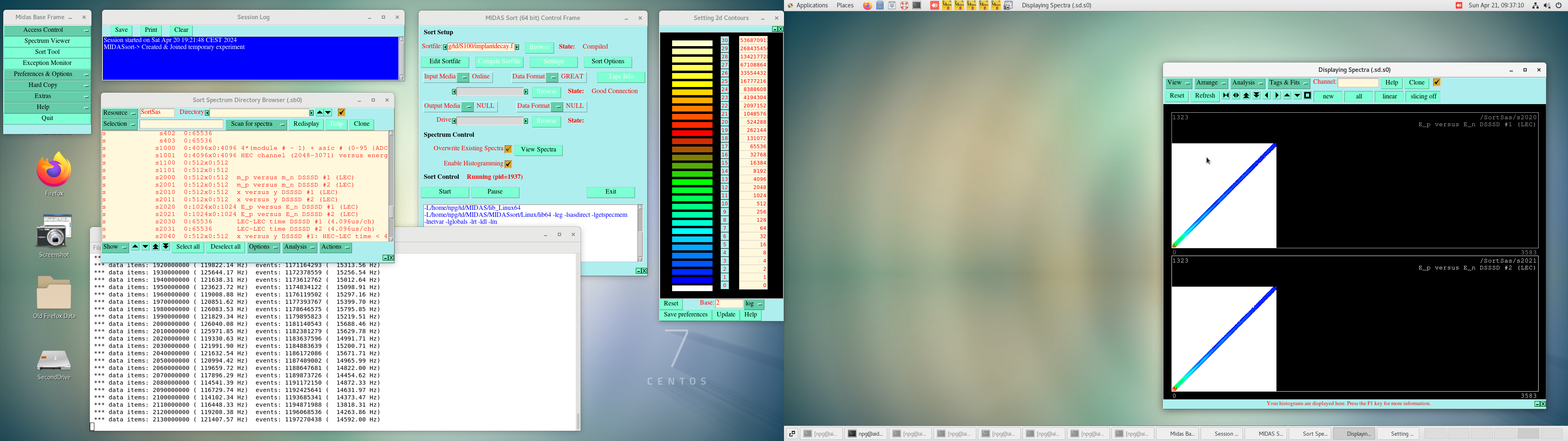

MIDASsort online analysis - attachments 18-19
      per DSSSD e_front versus e_back for LEC (20keV/channel) and HEC (20MeV/channel)
      observe light ions (LEC) c. 2MeV
      observe low rate of high energy ions (HEC) c. 600MeV
      similar energies in both DSSSDs for LEC and HEC implying both types of event have range >> 2mm Si

10.09 DAQ STOP
      aida03 does not respond - reboot aida03

DAQ RESET/SETUP etc

Synchronise ASIC clocks
      All system wide checks OK *except* FPGA errors

Data transfer disabled
      Histograms & stats zero'd
      DAQ GO

Merger restarted

Data transfer enabled
      DAQ GO

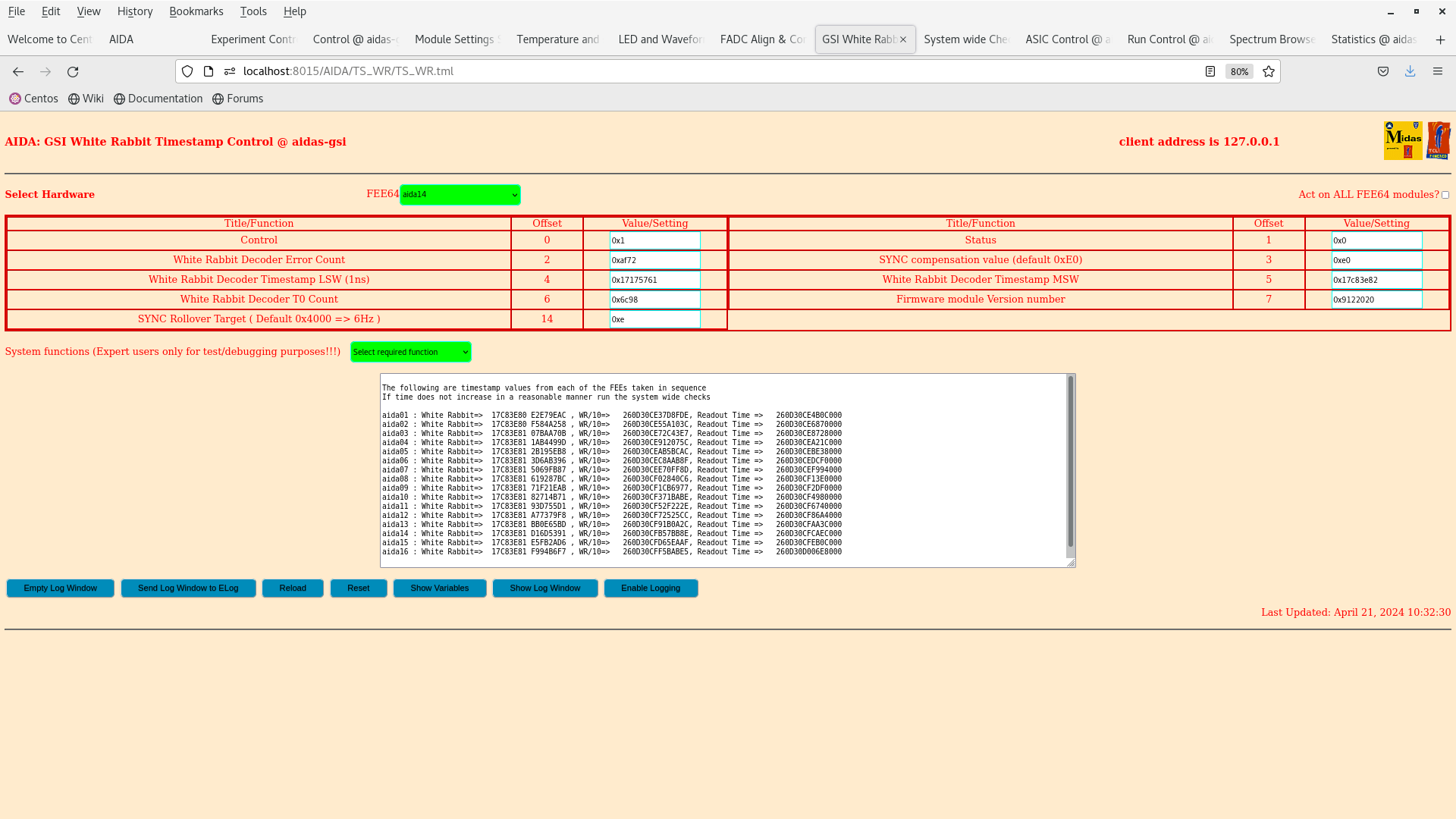

WR timestamp OK - attachments 20-21

ADC data item stats OK - attachment 22
       rates status quo ante

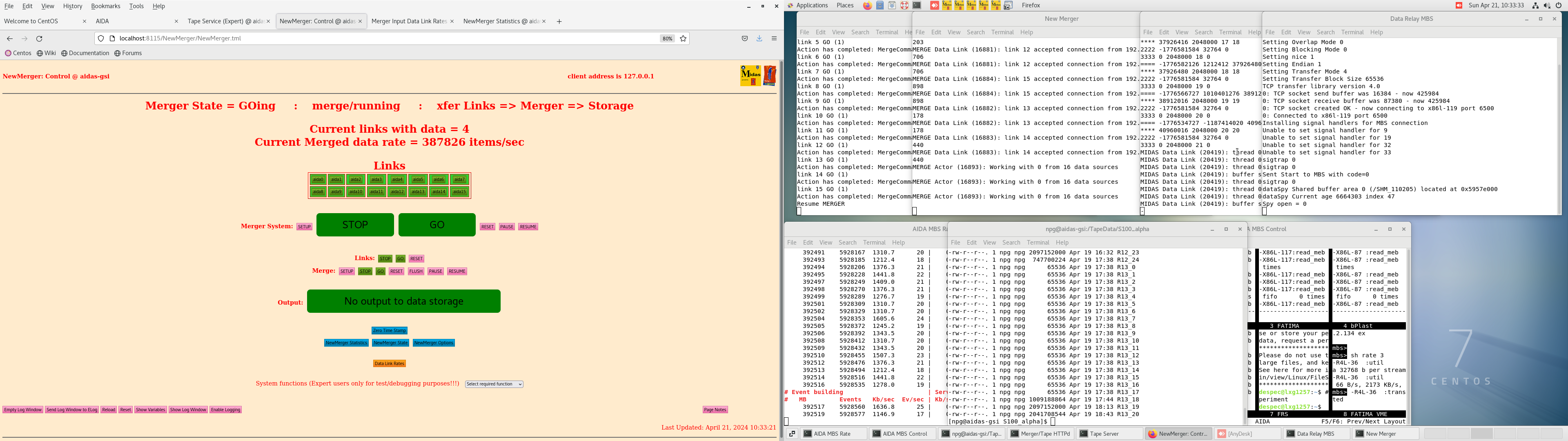

      Merger etc OK - attachment 23

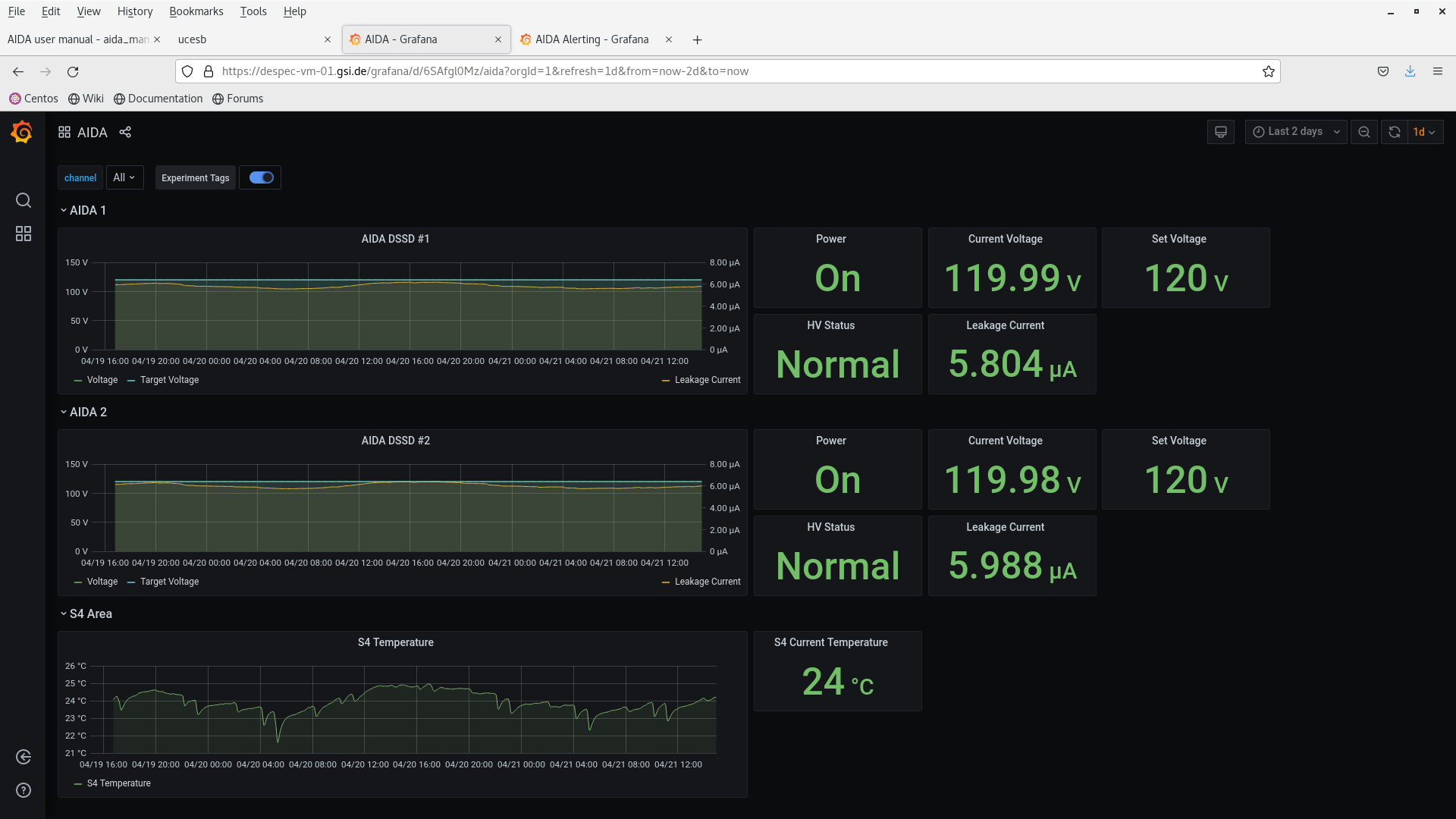

14.58 DSSSD bias & leakage current OK - Grafana - attachment 24

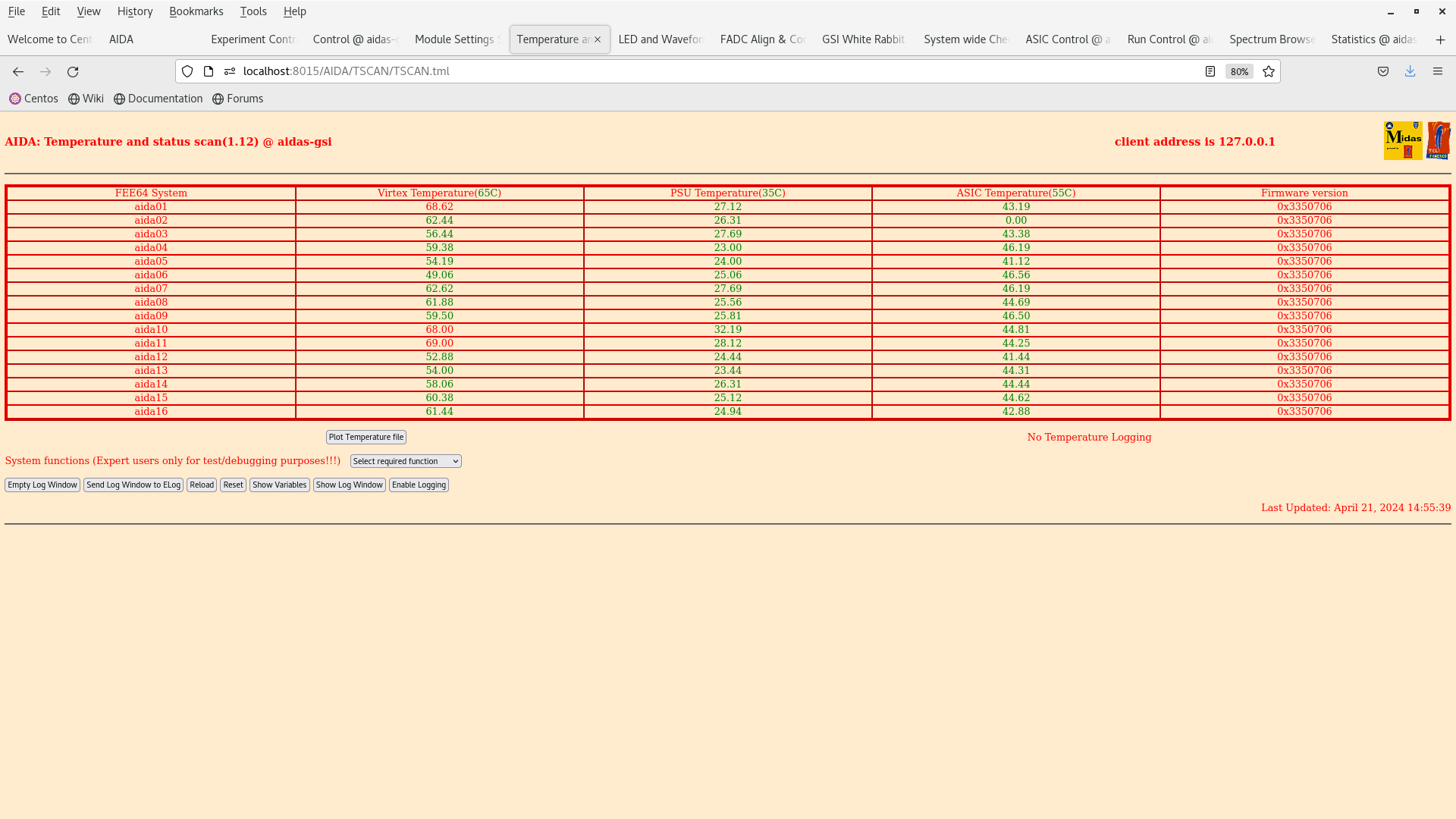

FEE64 temperatures OK - attachment 25

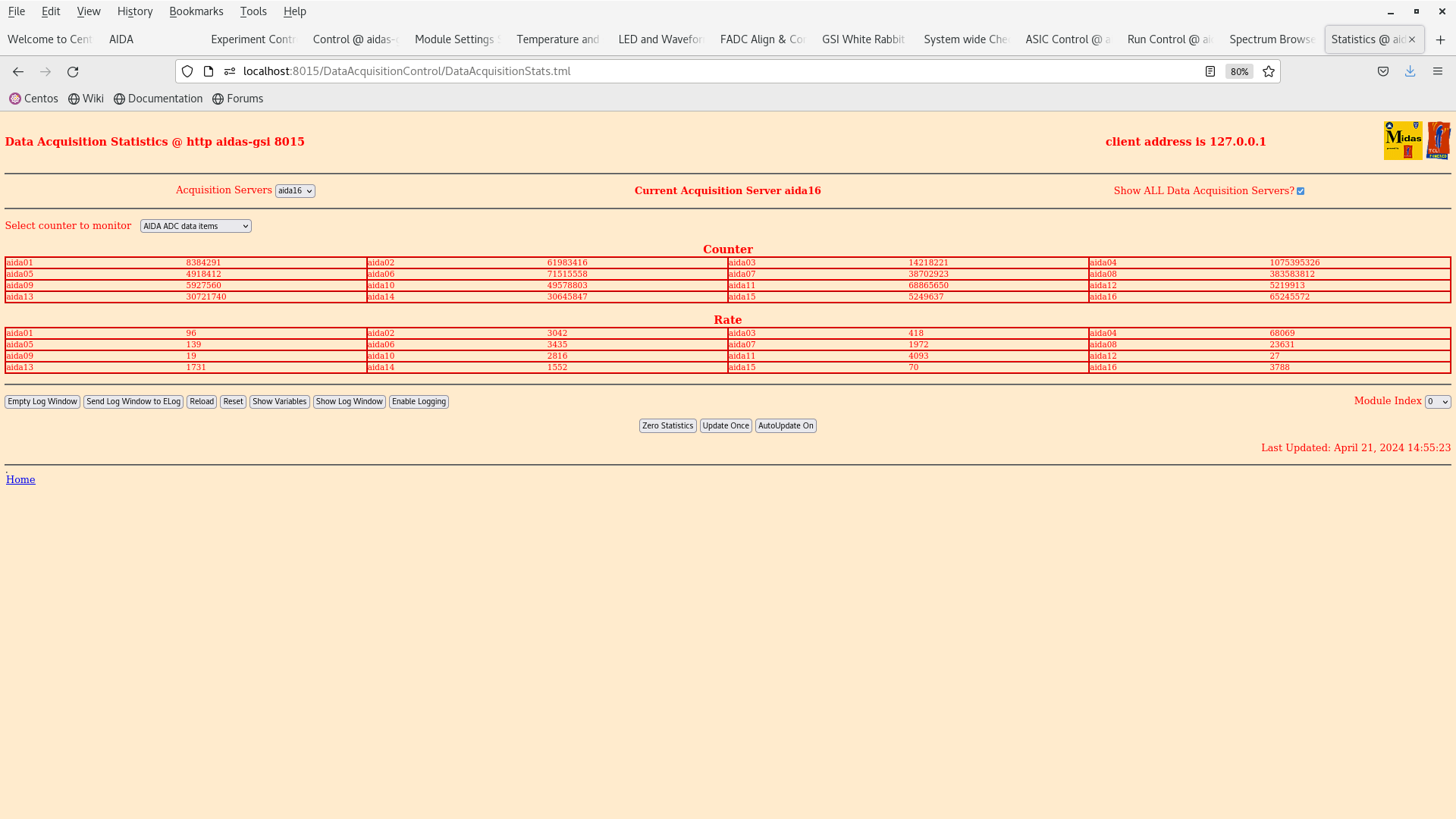

ADC data item stats OK - attachment 26

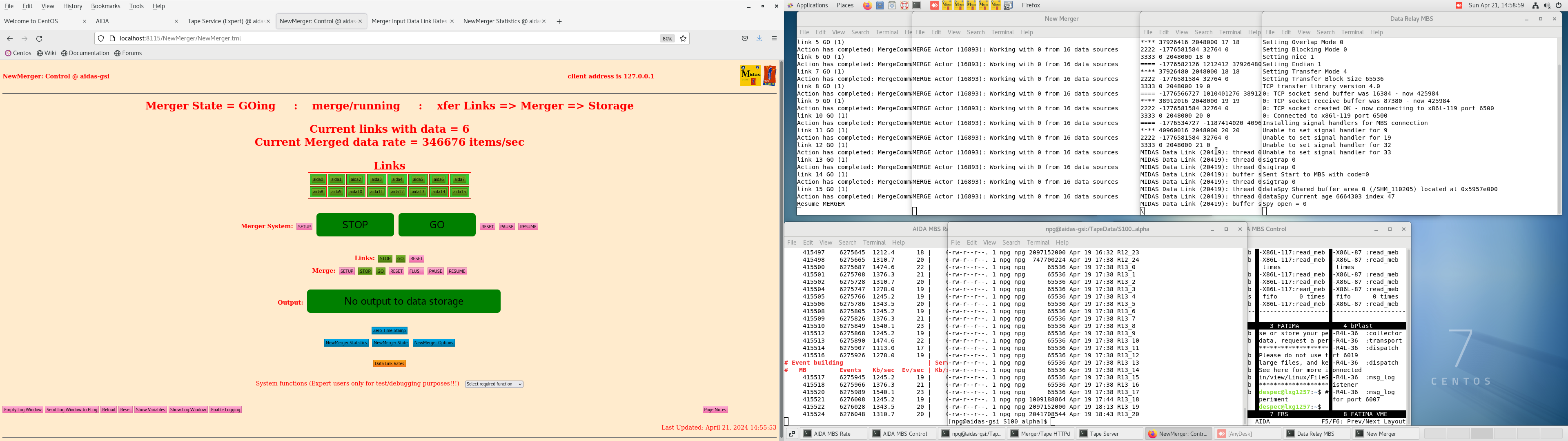

Merger etc OK - attachment 27

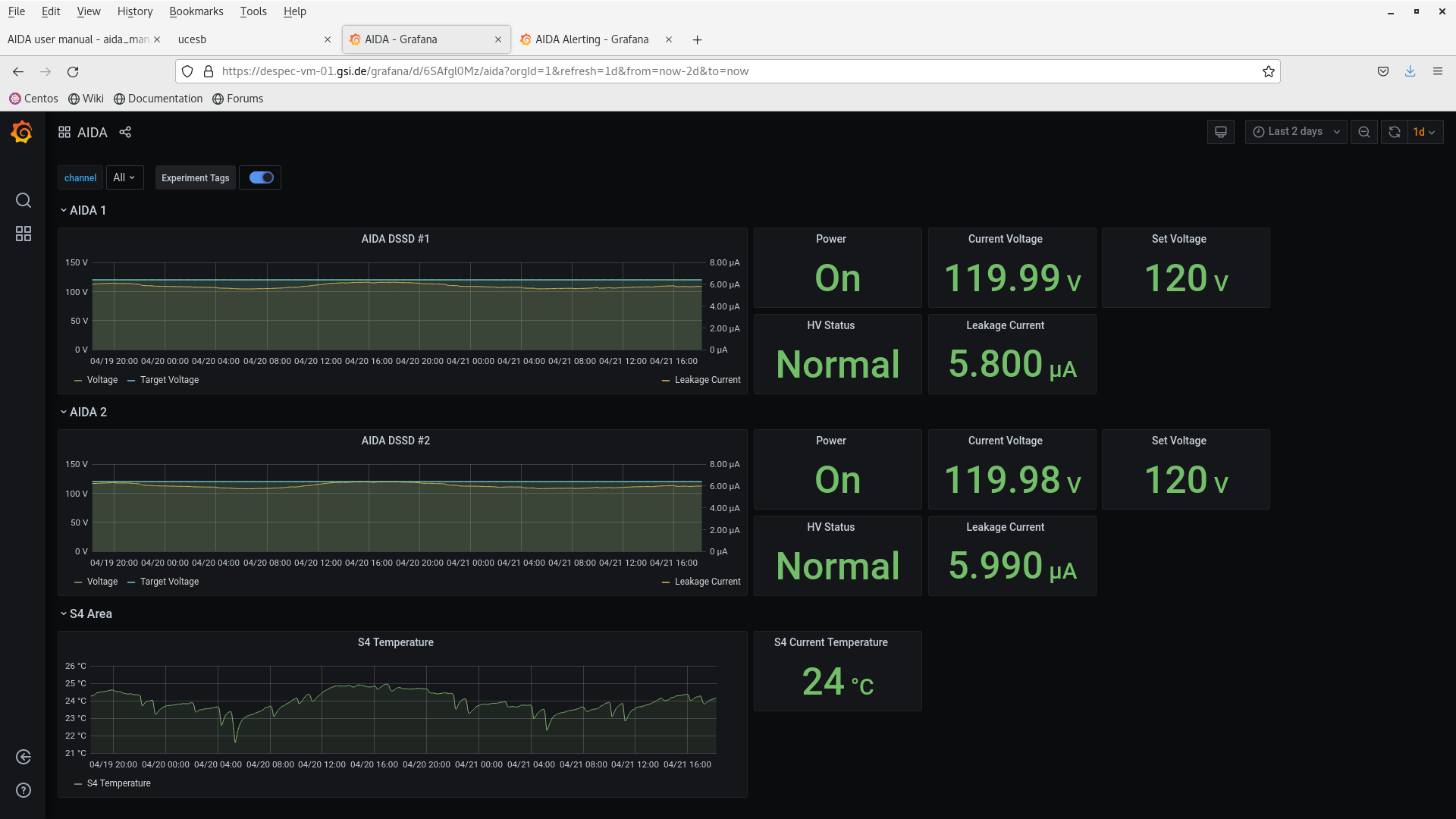

18.13 DSSSD bias & leakage current OK - Grafana - attachment 28

FEE64 temperatures OK - attachment 29

ADC data item stats OK - attachment 30

Merger etc OK - attachment 31

20.30 Primary c, few kHz 170Er beam to S4 - upstream s/steel flange removed
      Start of stopping range calibration in the implantation stack - currently ion appear to be stopping in DSSSD#1 (upstream)

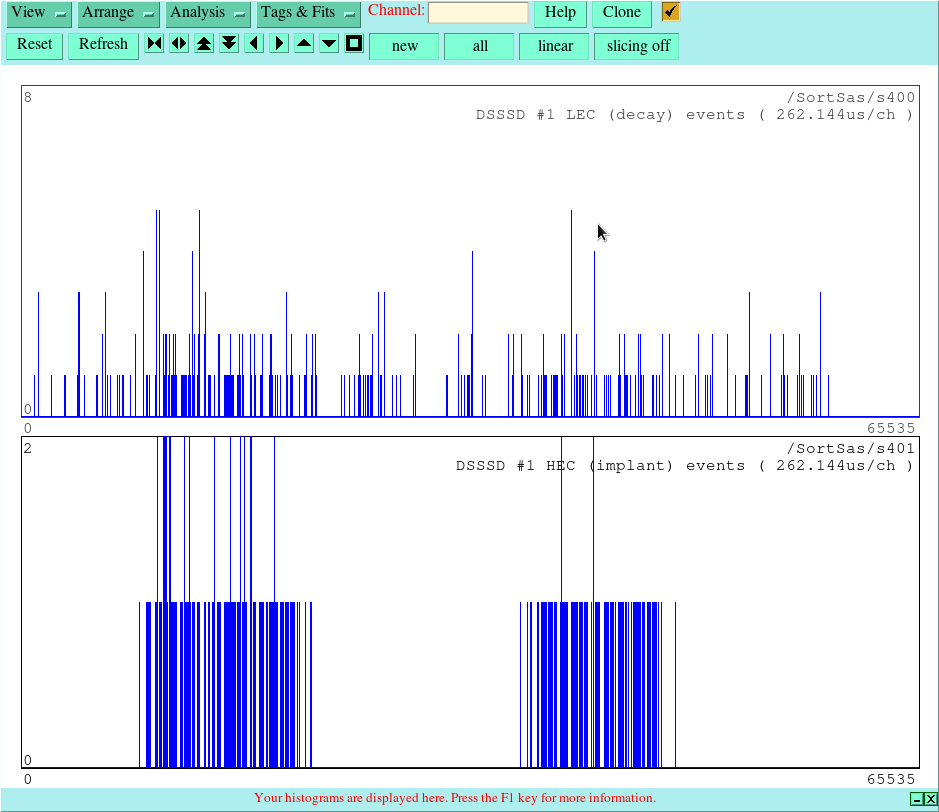

Decay and implant events as function of time showing spill structure - attachment 32

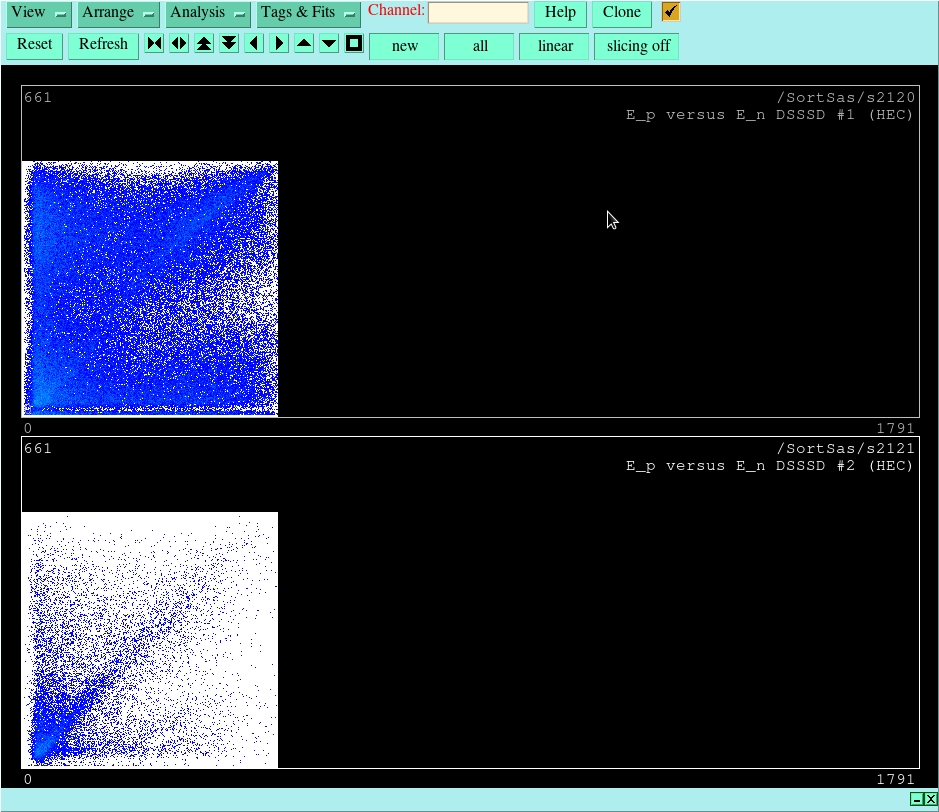

per DSSSD e_front versus e_back (HEC, 20MeV/channel) - attachment 33

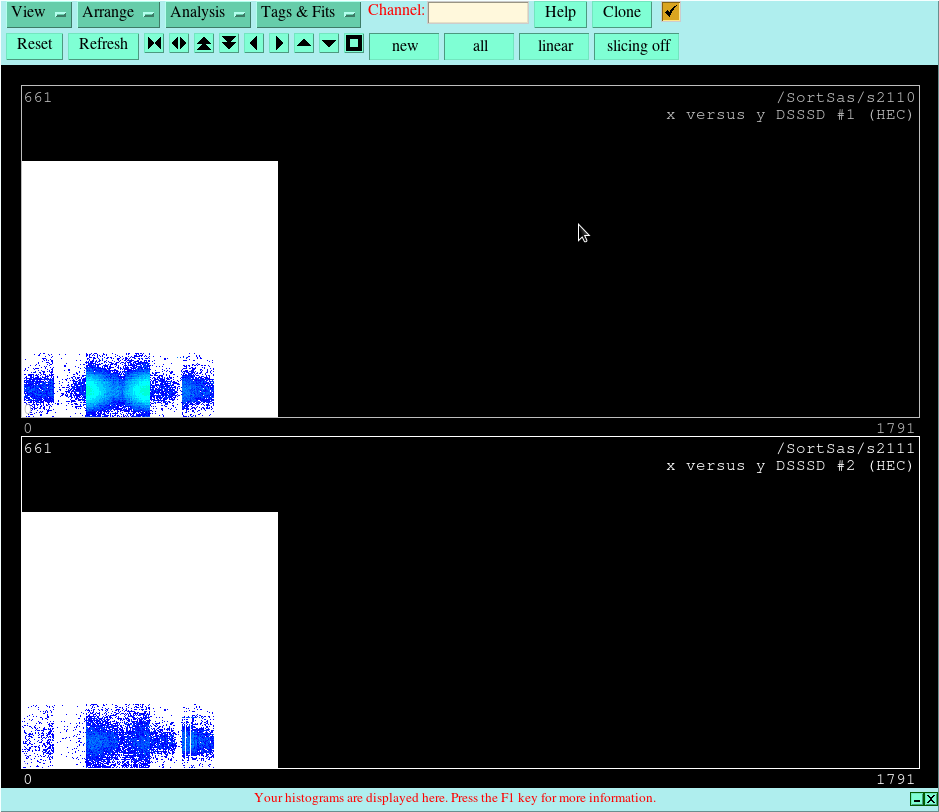

per DSSSD x versus y hit pattern (HEC) - attachment 34
       mapping to be configured but clear ions are mostly implanted in centre of DSSSD#1

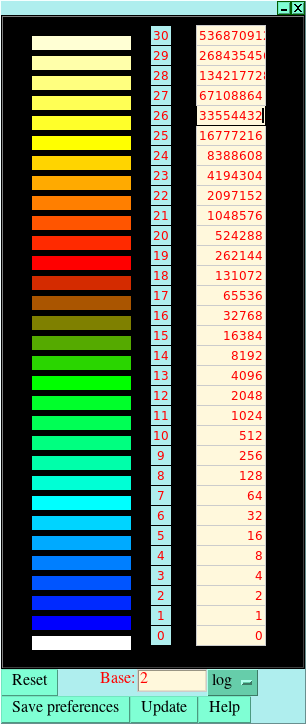

2D colour/contour levels - attachment 35

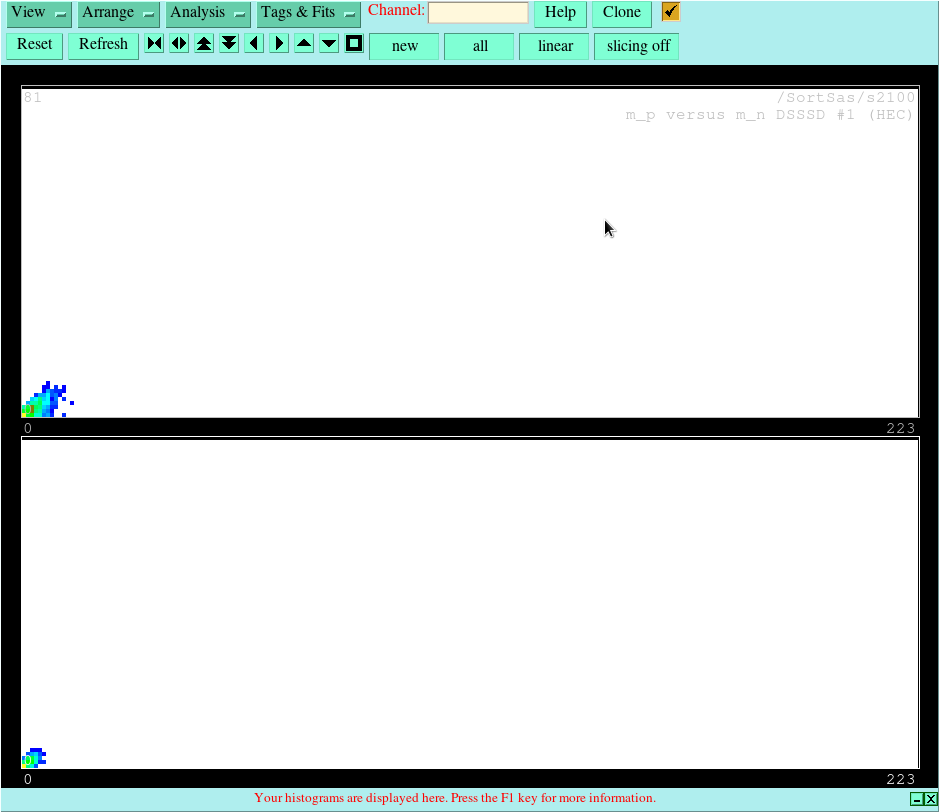

per DSSSD m_front versus m_back (HEC) - attachment 36

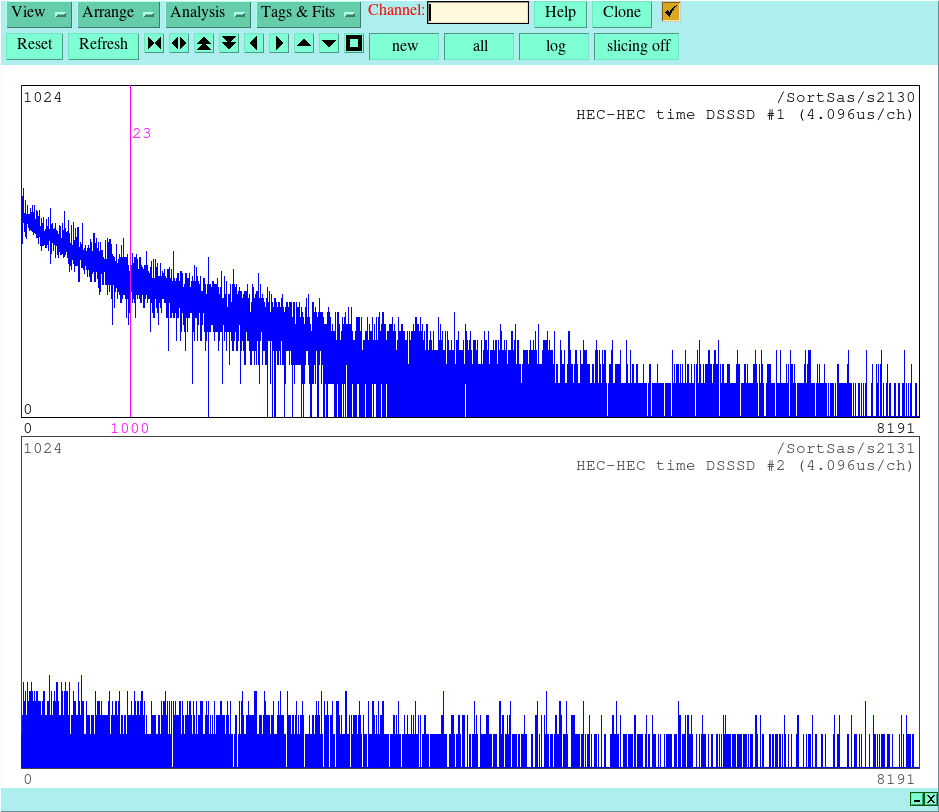

per DSSSD per pixel HEC-HEC time (4.096us/channel) - attachment 37

23.44 aida02 has stopped running
      DAQ STOP
      aida02 rebooted

Data transfer disabled

DAQ RESET/SETUP

Synchronise ASIC clocks
      All system wide checks OK *except* FPGA errors

Histograms & stats zero'd
      DAQ GO

Merger restarted

Data transfer enabled
      DAQ GO
