Entry time:

Sun Apr 21 23:20:45 2024

Author*:

Subject*:

00.15 Data link to MBS was closed by MBS - reason(s) unknown
      NH restarted MBS receiver and data transfer restarted

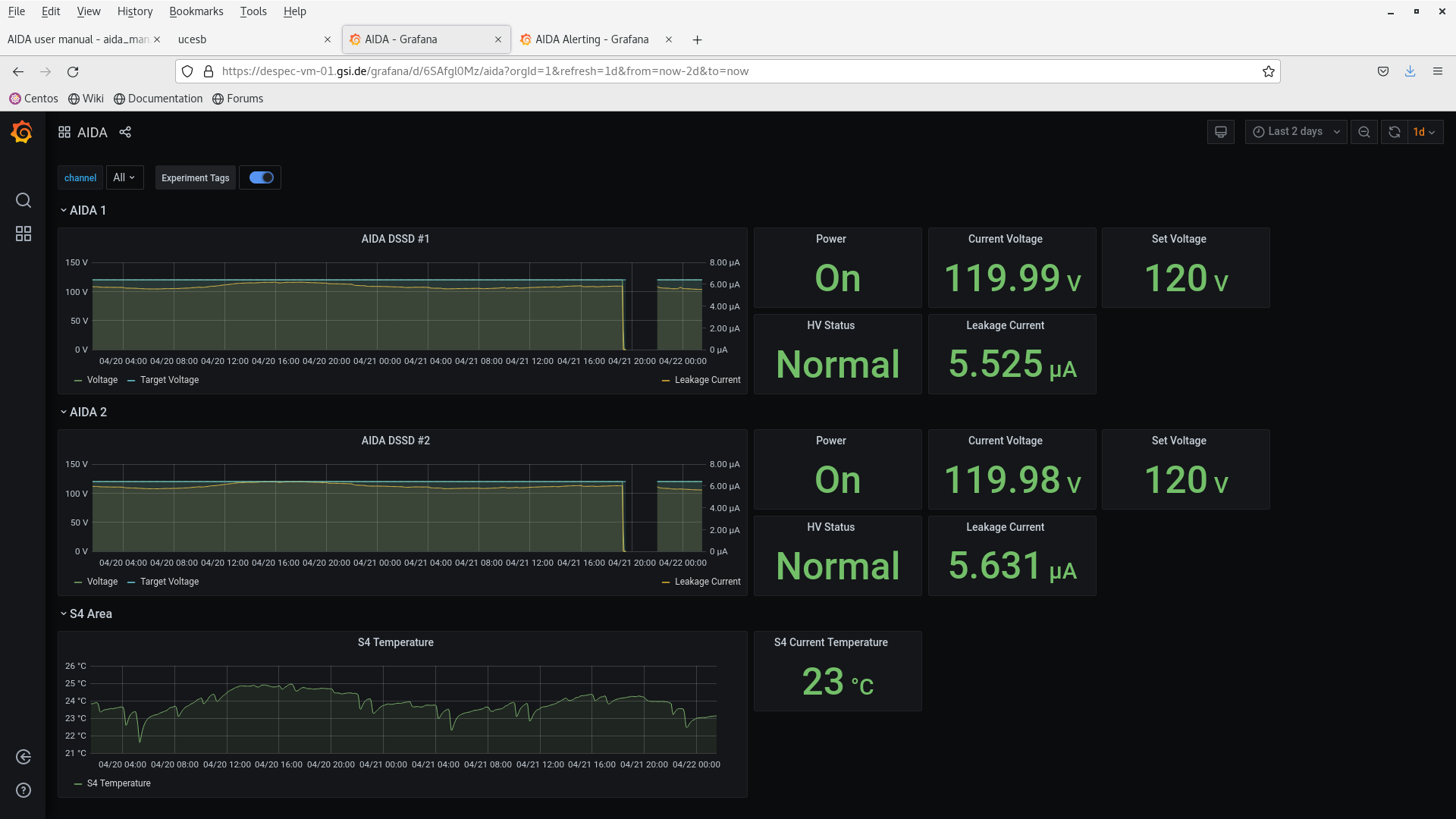

01.34 DSSSD bias & leakage current OK - attachment 1

FEE64 temperatures OK - attachment 2

ADC data item stats OK - attachment 3

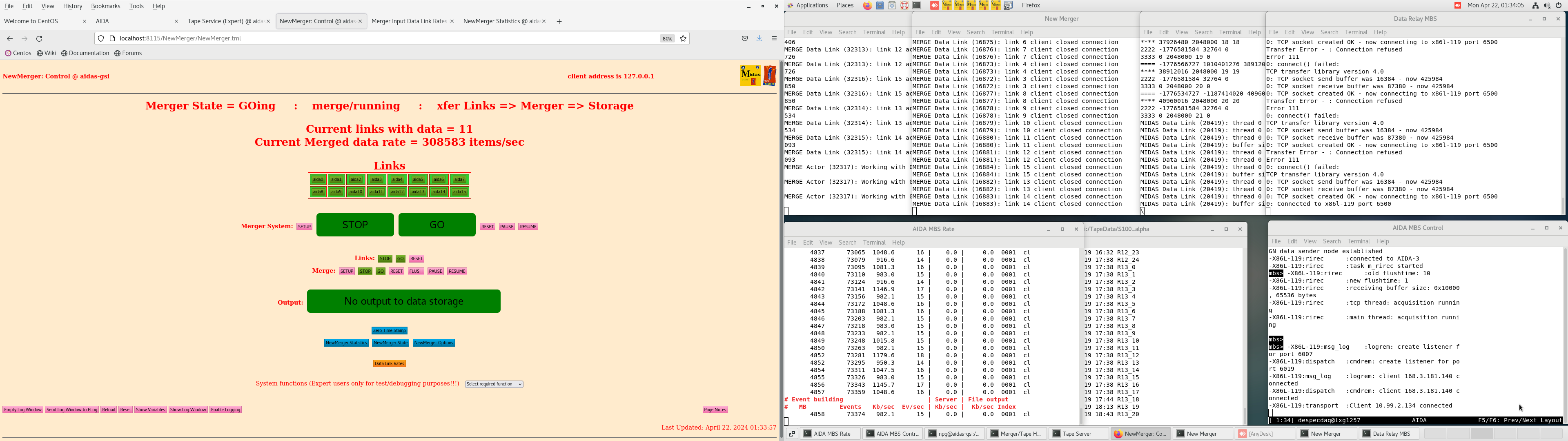

Merger, TapeServer etc - attachment 4

04.36 DSSSD bias & leakage current OK - attachment 5

FEE64 temperatures OK - attachment 6

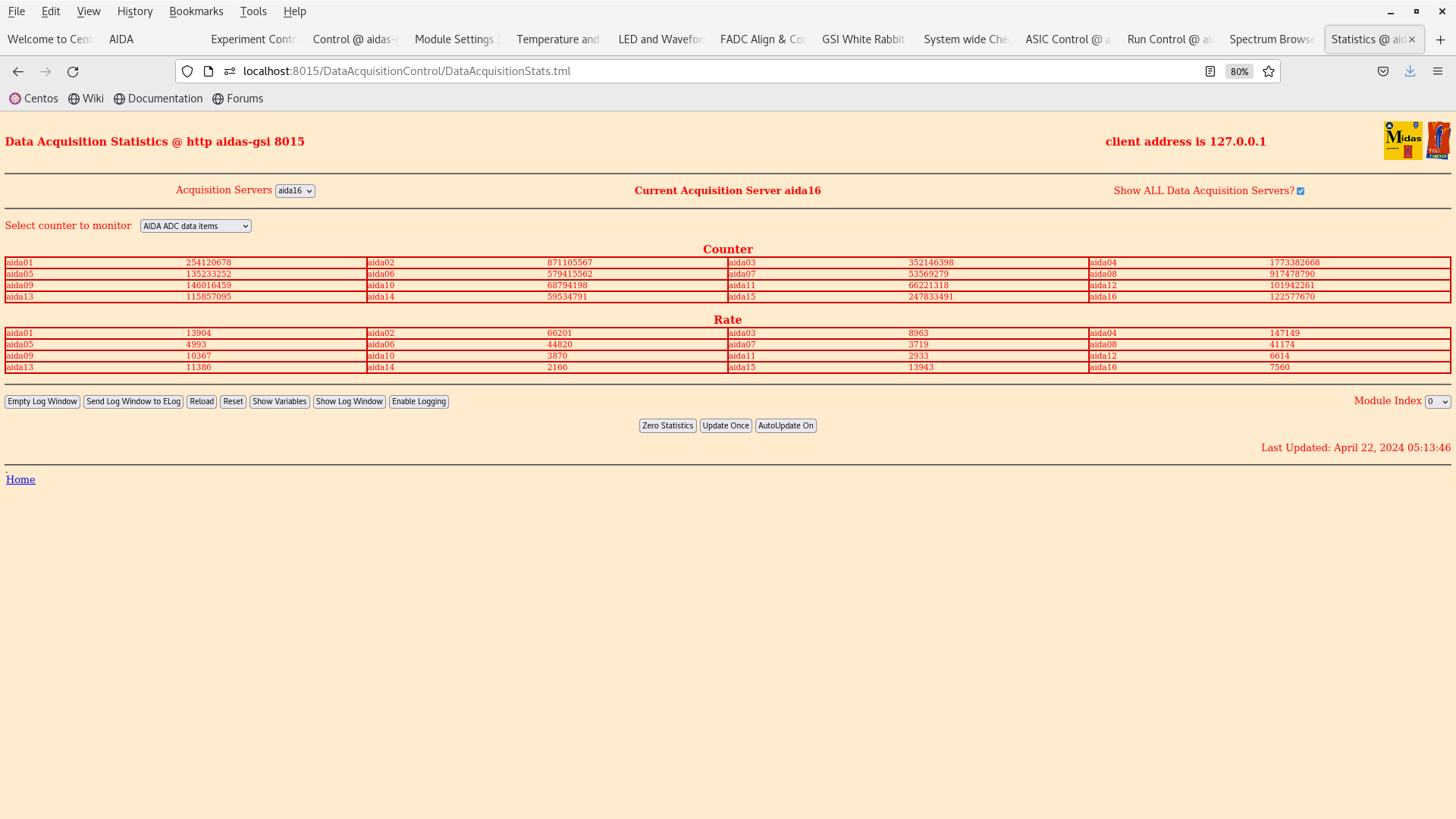

ADC data item stats OK - attachment 7

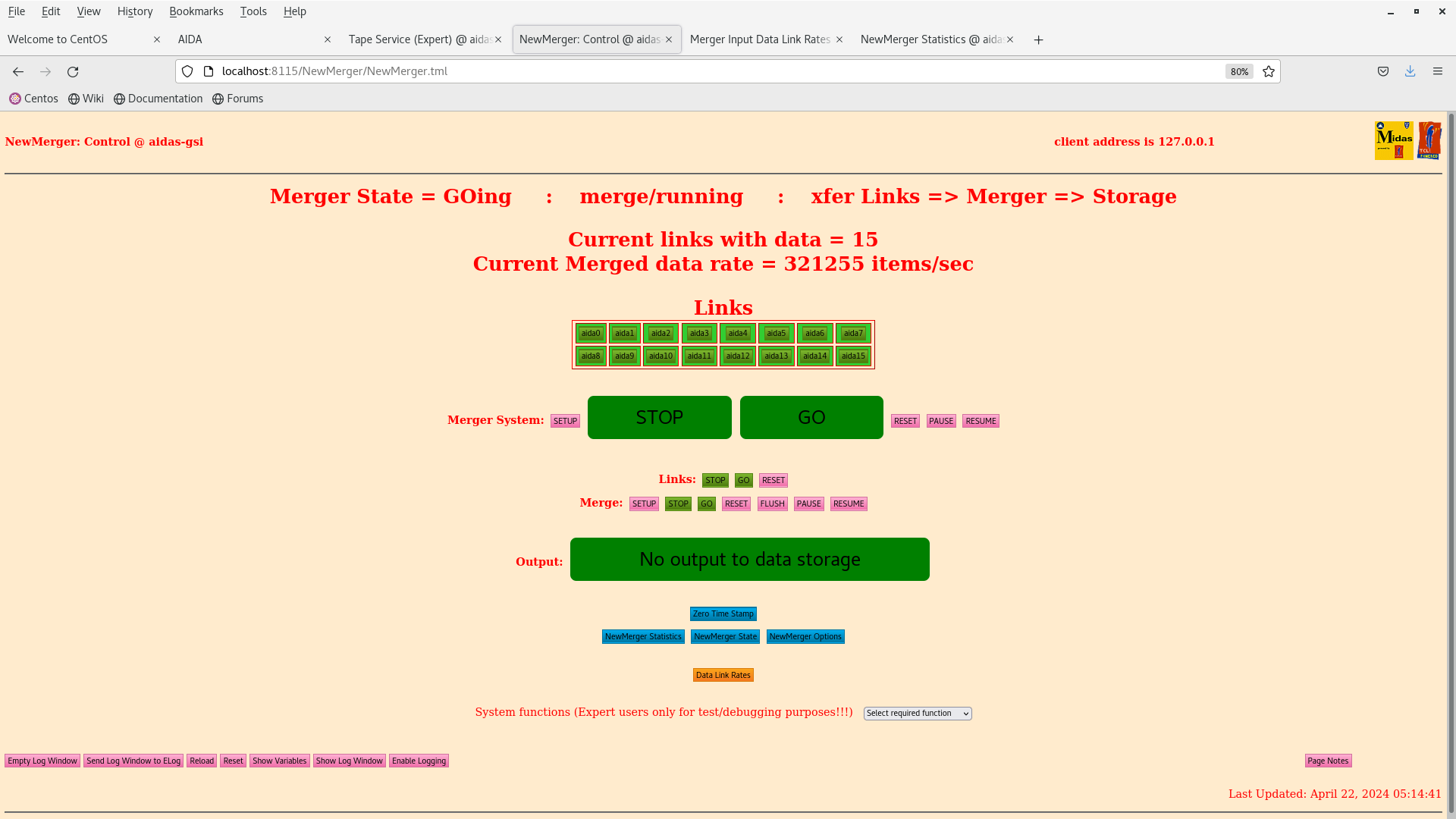

Merger, TapeServer etc - attachment 8

07.54 data storage to local disk enabled
      file aida-gsi:/TapeData/S100_alpha/R14_

09.36 DAQ continues, current data file R14_46

168Er setting

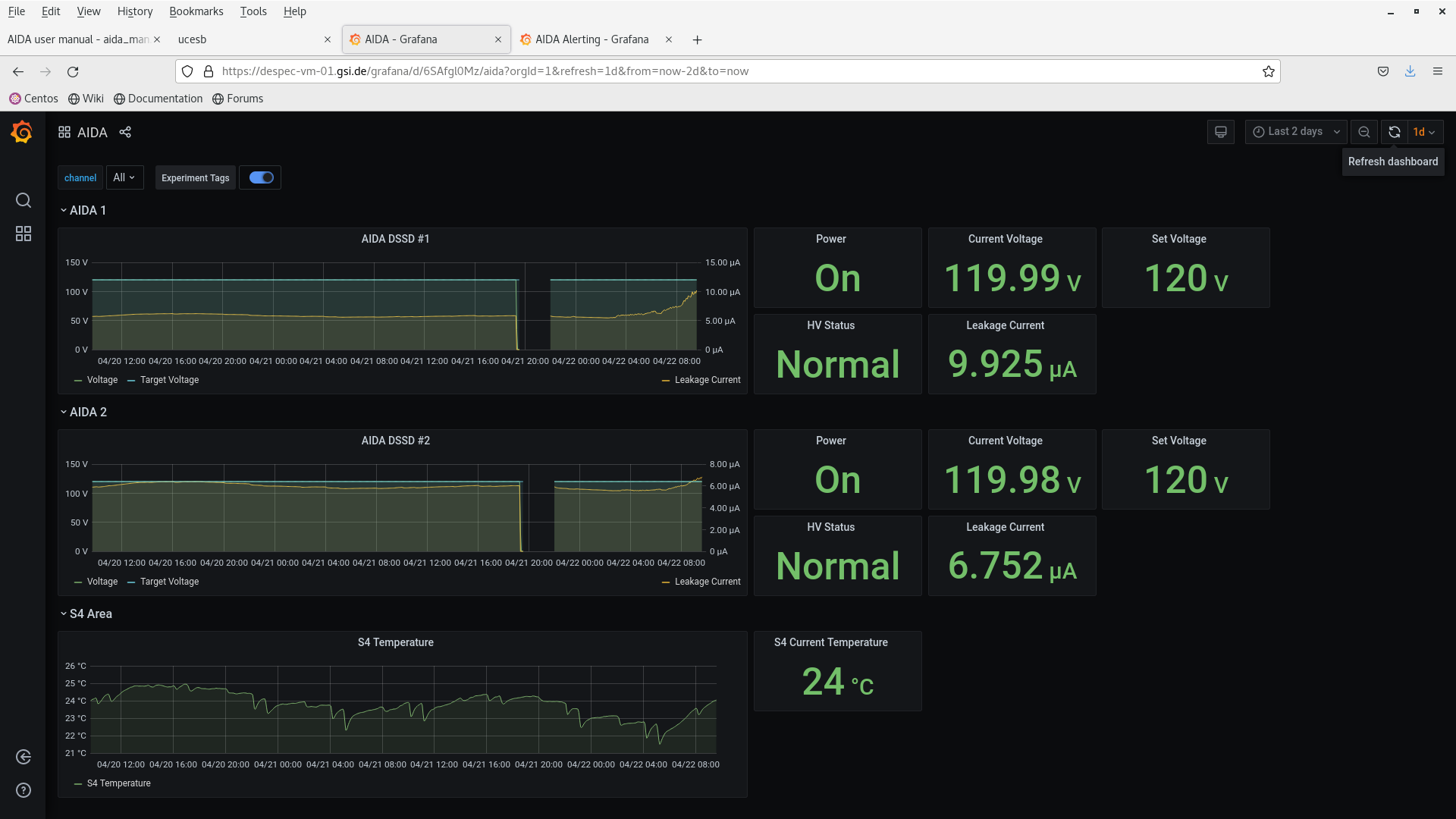

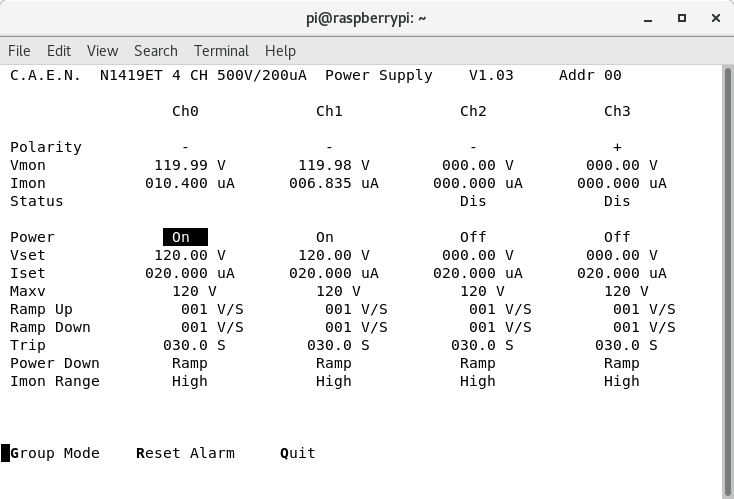

DSSSD bias & leakage current OK - attachments 9 & 10
      leakage current DSSSD#1 ramping and cycling with beam spills

FEE64 temperatures OK - attachment 11

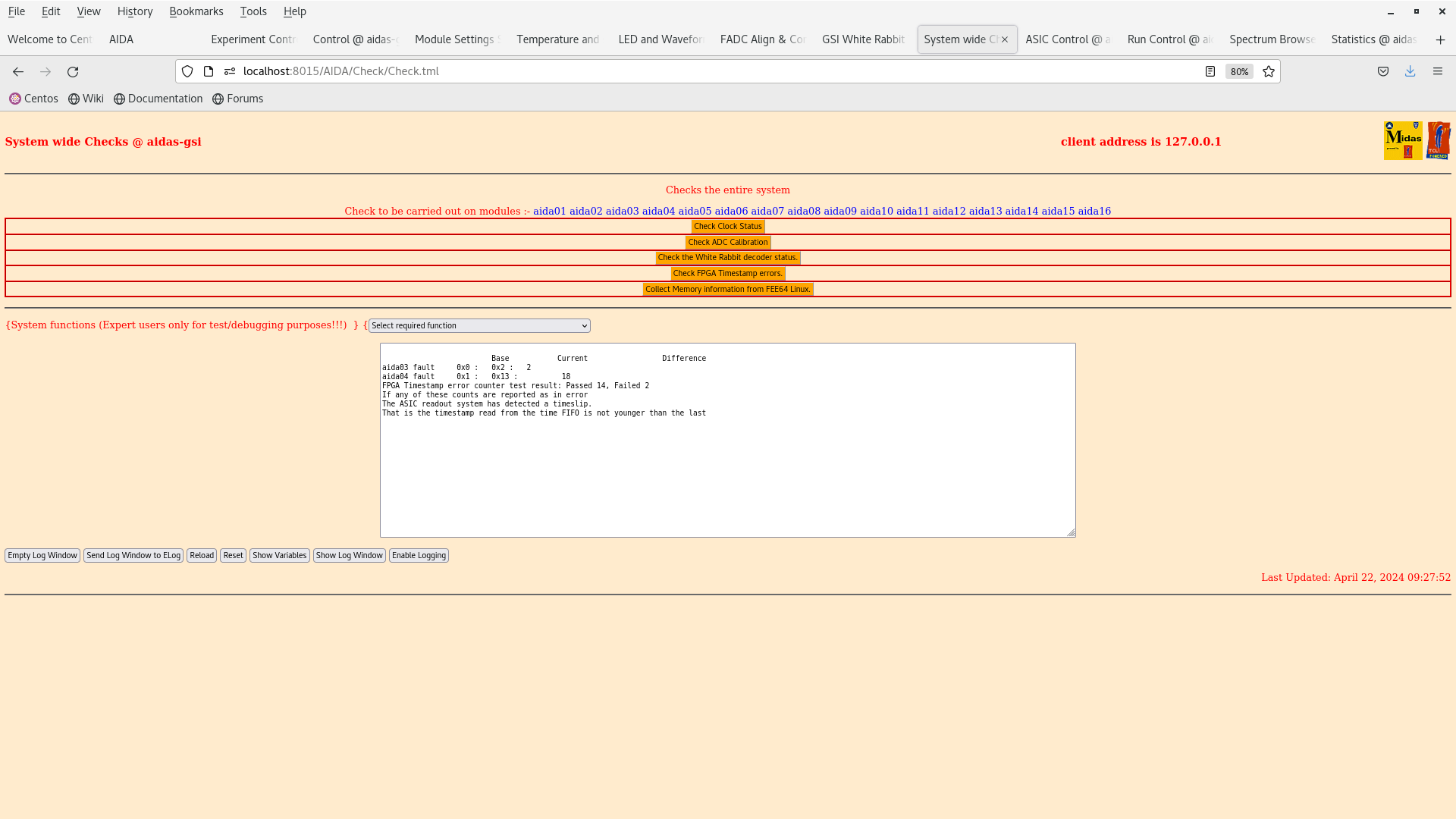

System wide checks OK *except* WR/FPGA errors - attachments 12-13

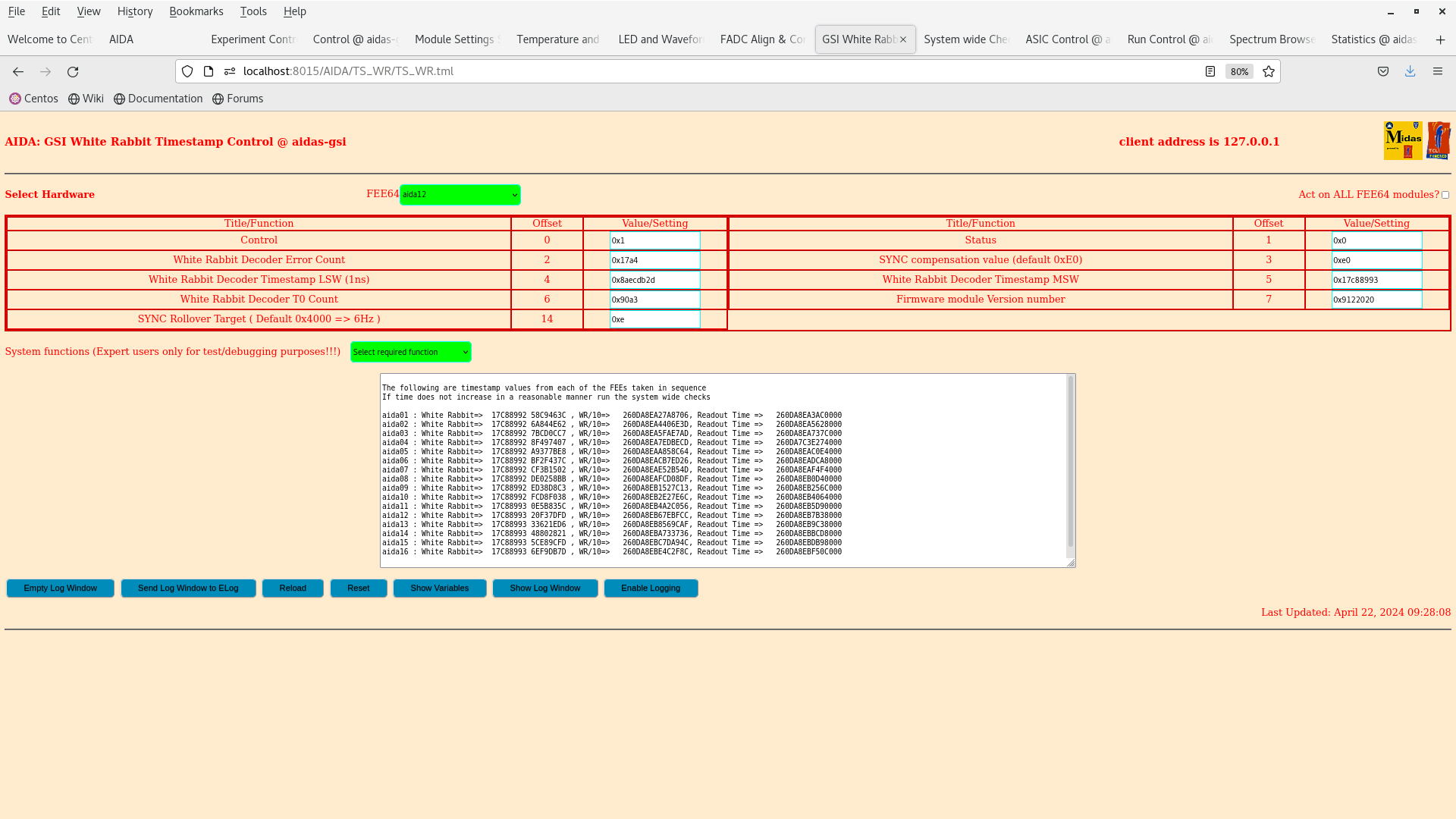

WR timestamps - attachment 14
       aida04 out of seq

ADC data item stats - attachment 15
       high rates observed all FEE64s beam on, beam off rates OK

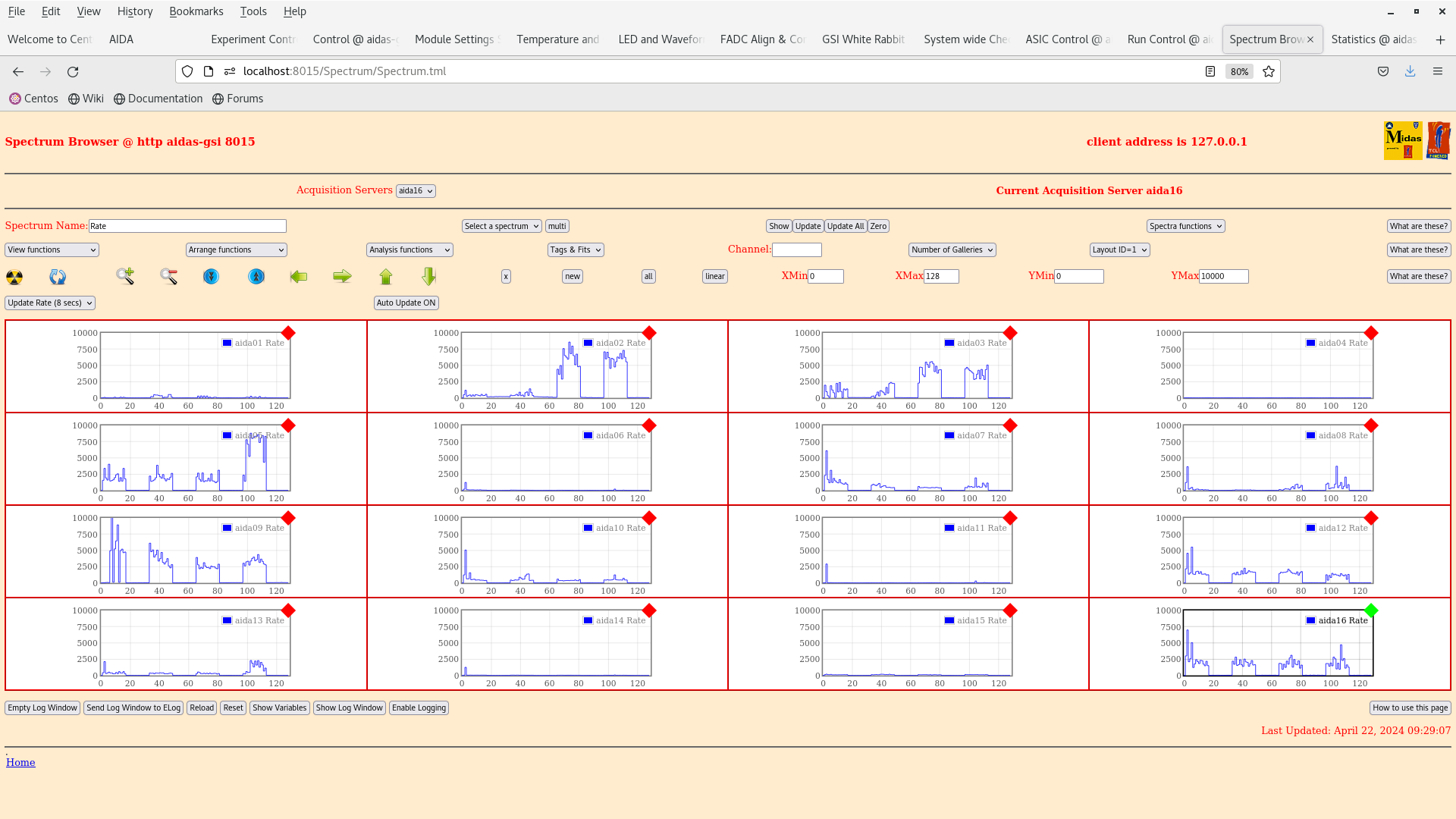

per FEE64 Rate spectra - attachment 16

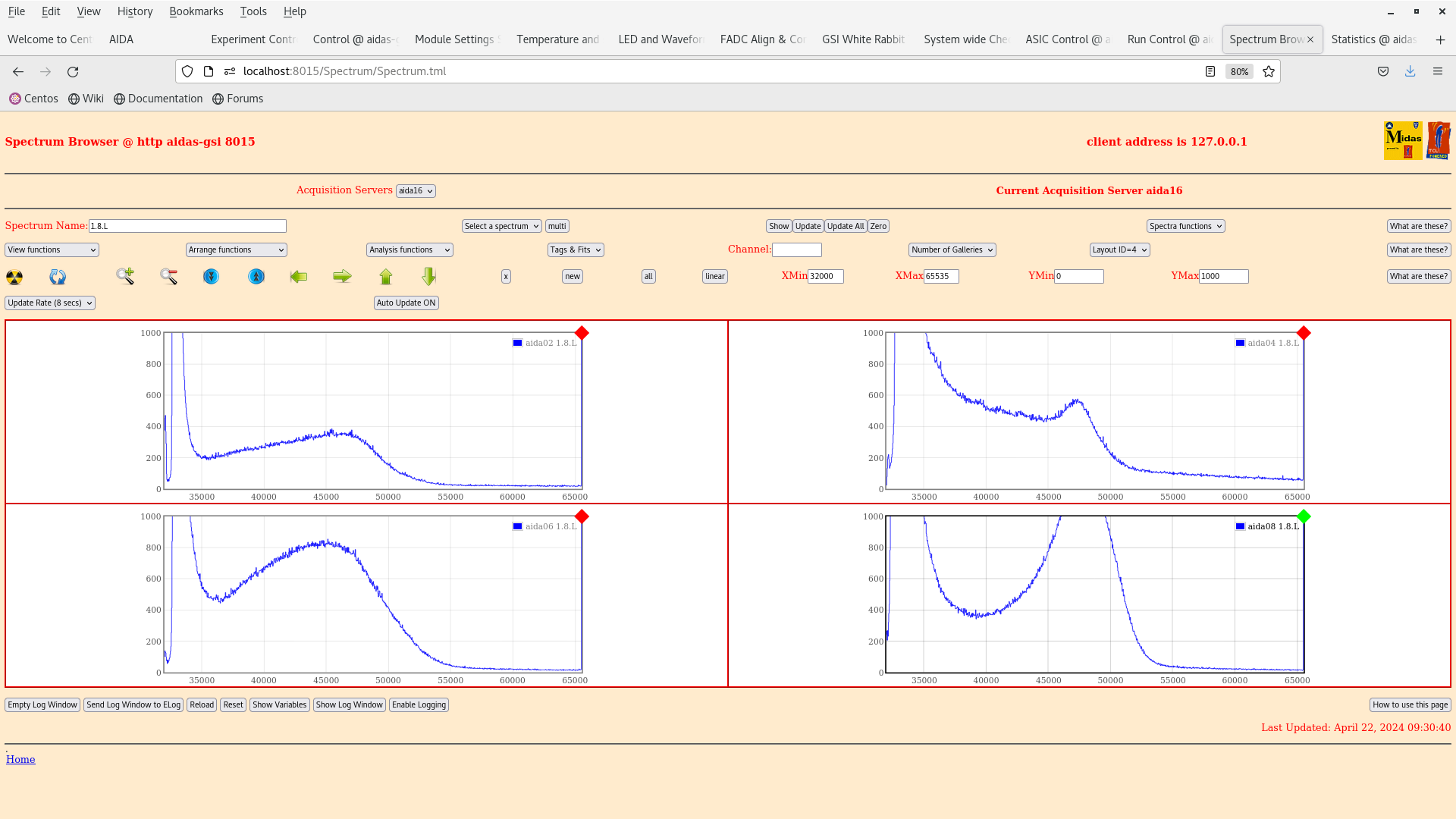

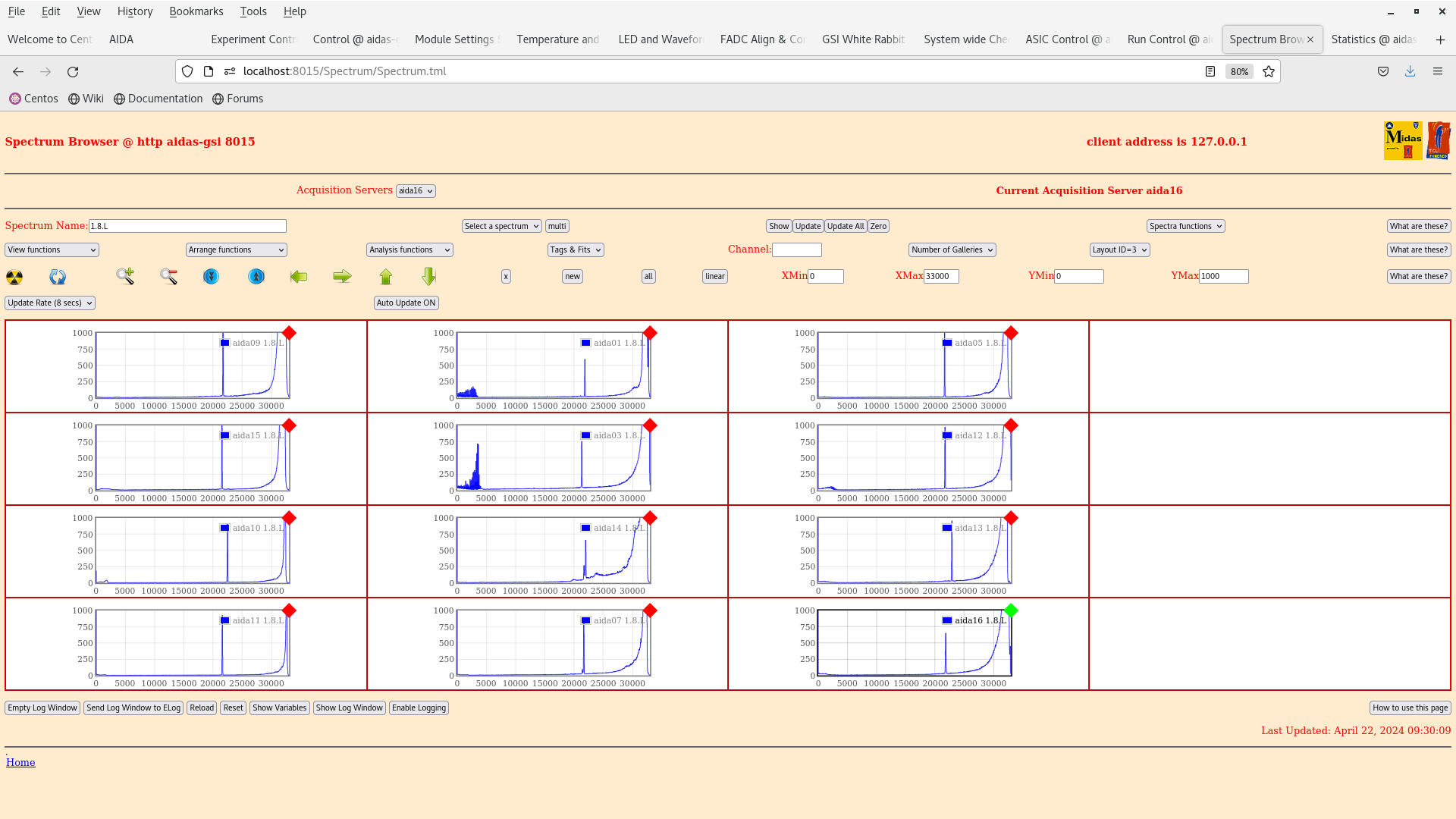

per FEE64 1.8.L spectra - attachments 17-18

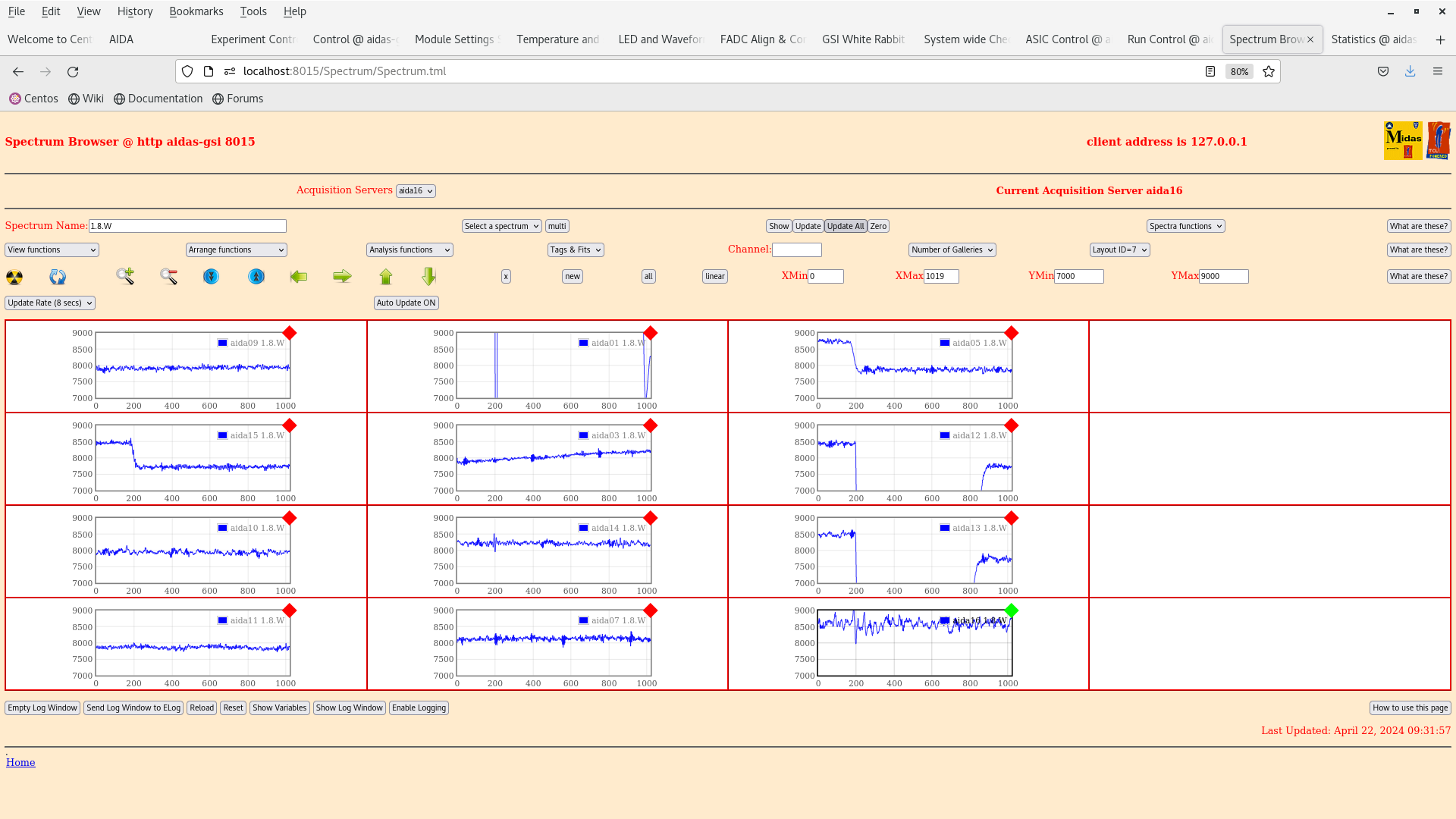

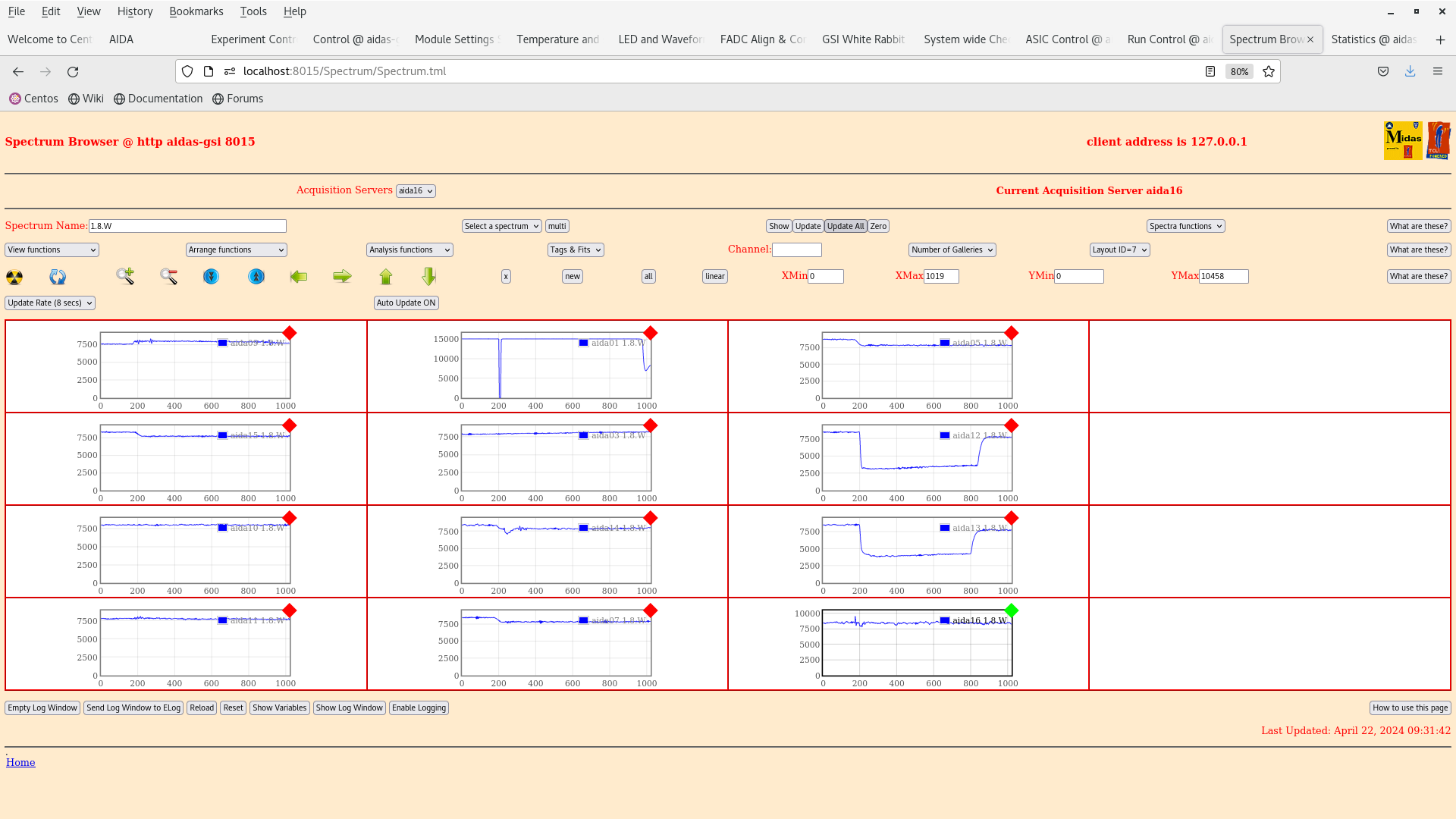

per FEE64 1.8.W spectra - attachments 19-20

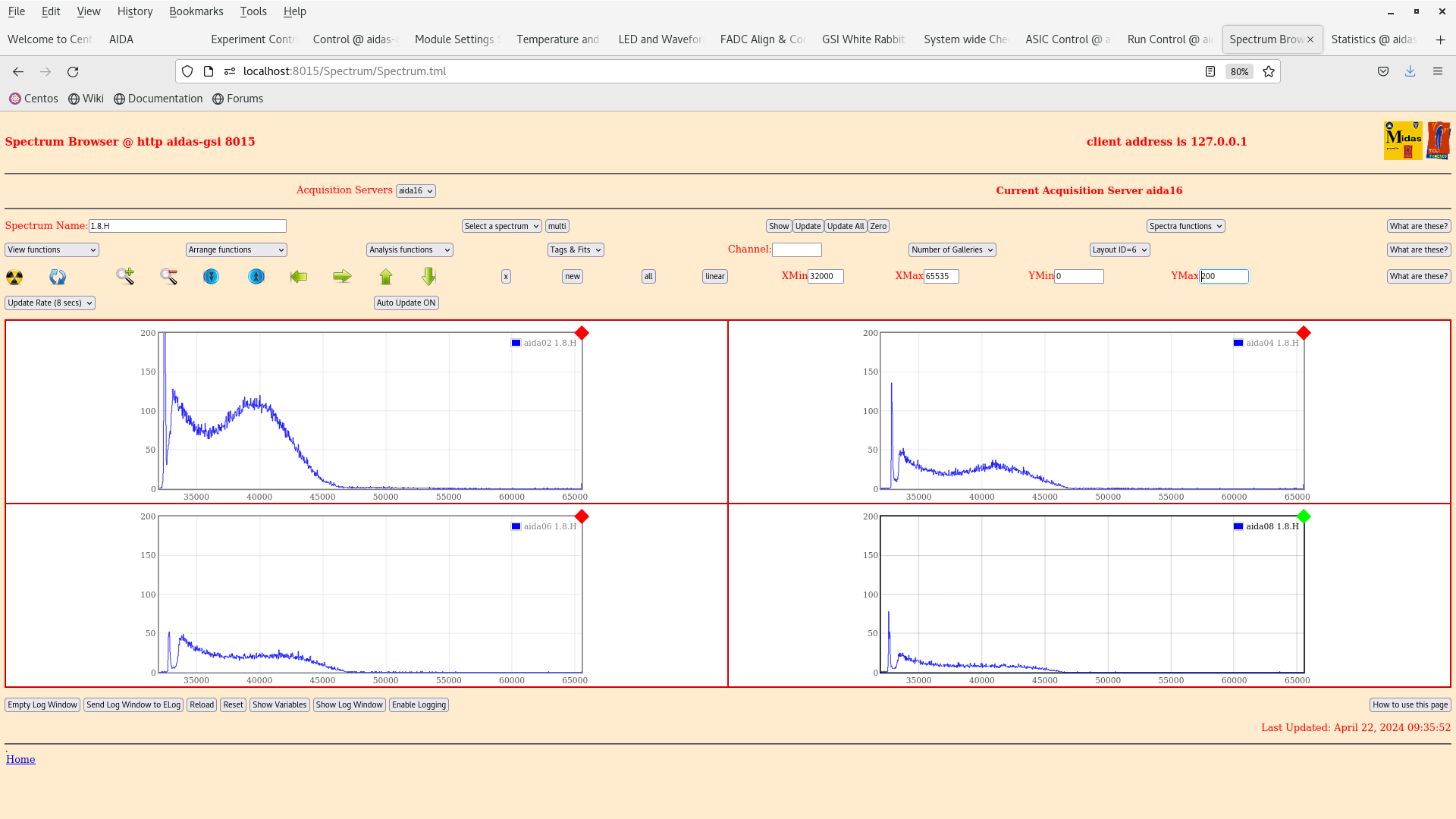

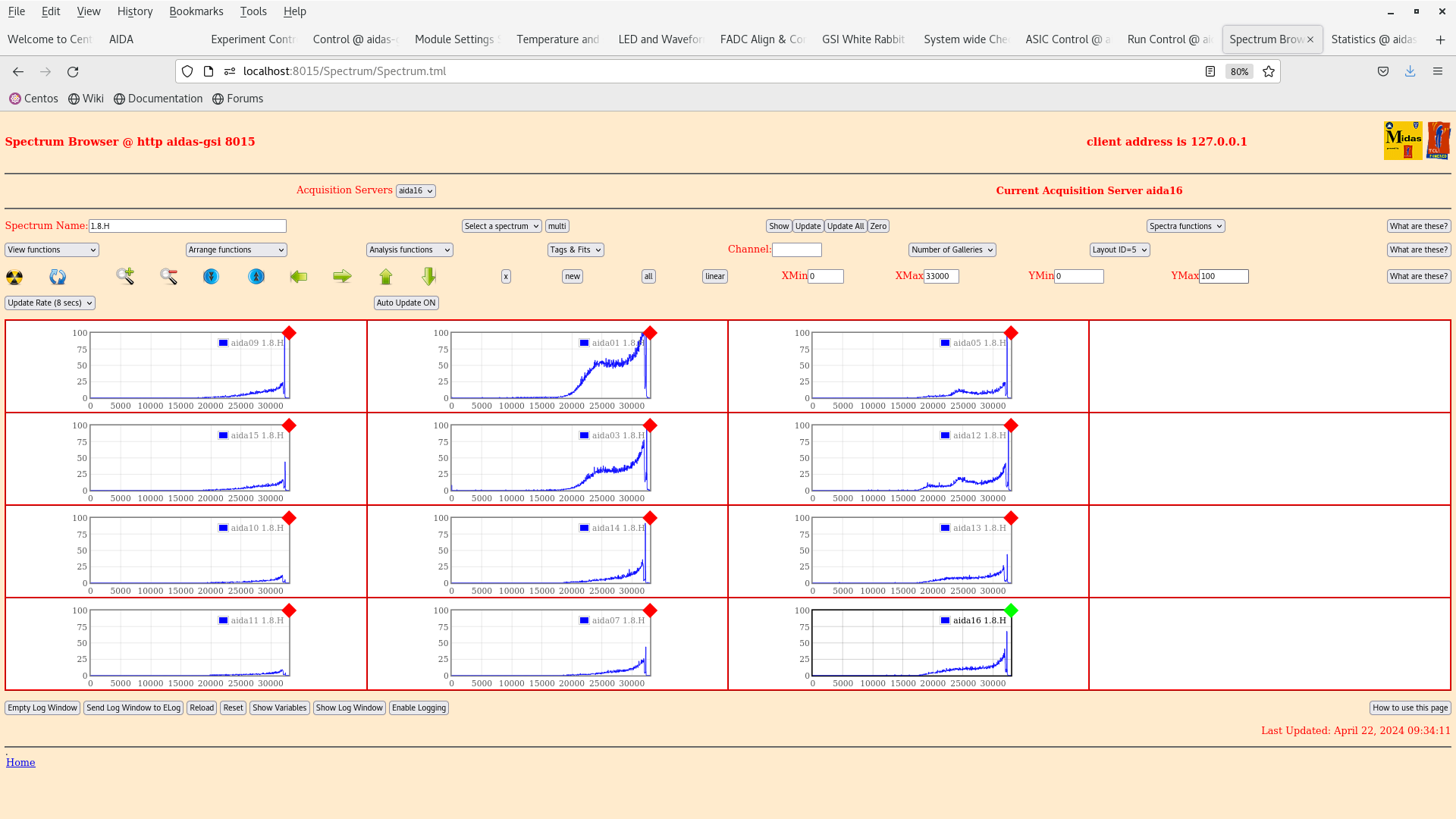

per FEE^4 1.8.H spectra - attachments 21-22

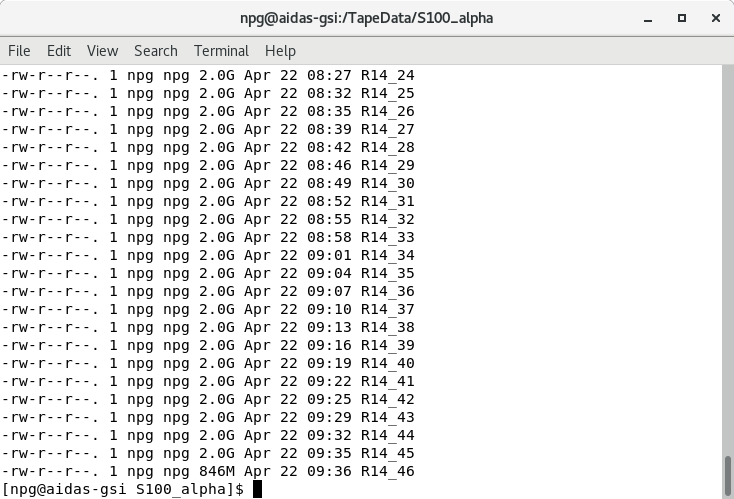

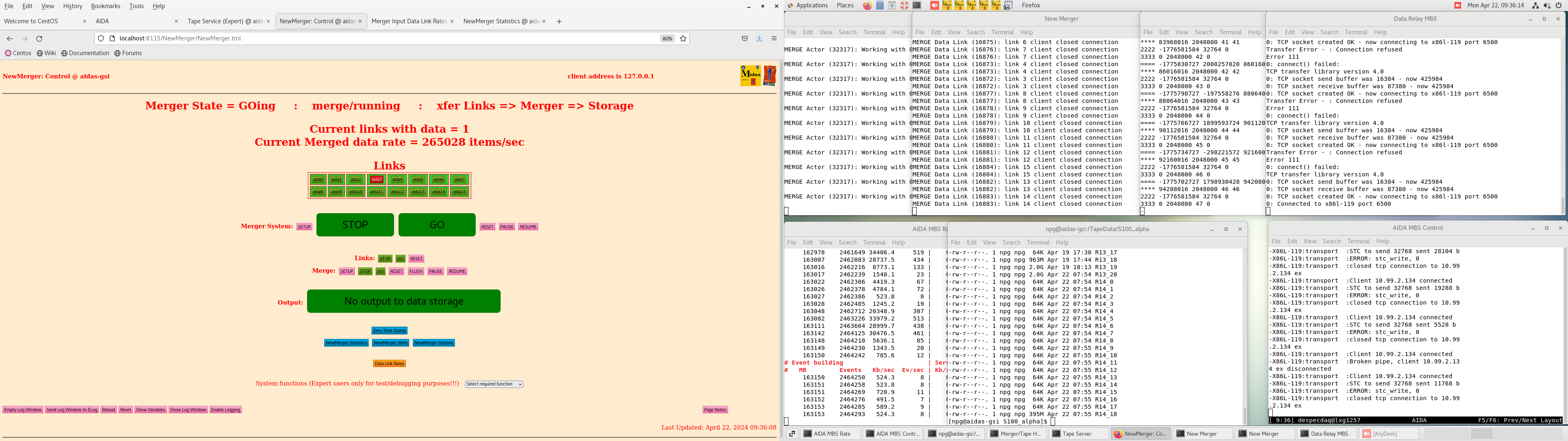

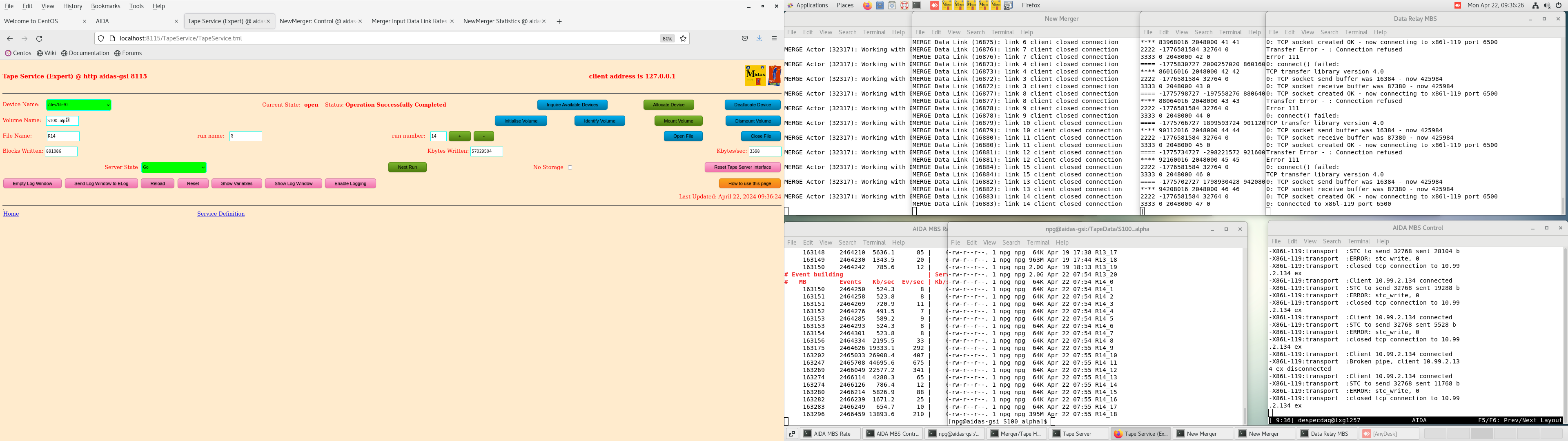

      Merger, TapeServer etc - attachments 23-25
       data rates to c. 10Mb/s beam on

09.55 aida04 rebooted - https://elog.ph.ed.ac.uk/DESPEC/586

10.01 DAQ restarted
      data file R15

ADC data item stats - attachments 26-27
       large variation in rates beam off/on

c. 10.30 beam off (for new FRS setting?)

11.25 analysis of data files R14_19 (beam ON) and R15_24 (beam OFF) - attachments 28-29

For beam ON max deadtime c. 11% (aida04), beam OFF max deadtime c. 0.1% (aida04)

Zero timewarps observed

Notice large # of PAUSE/RESUME data items for aida03 & aida04 presumably due to additional overhead of processing the time machine scalers

12.35 Beam off

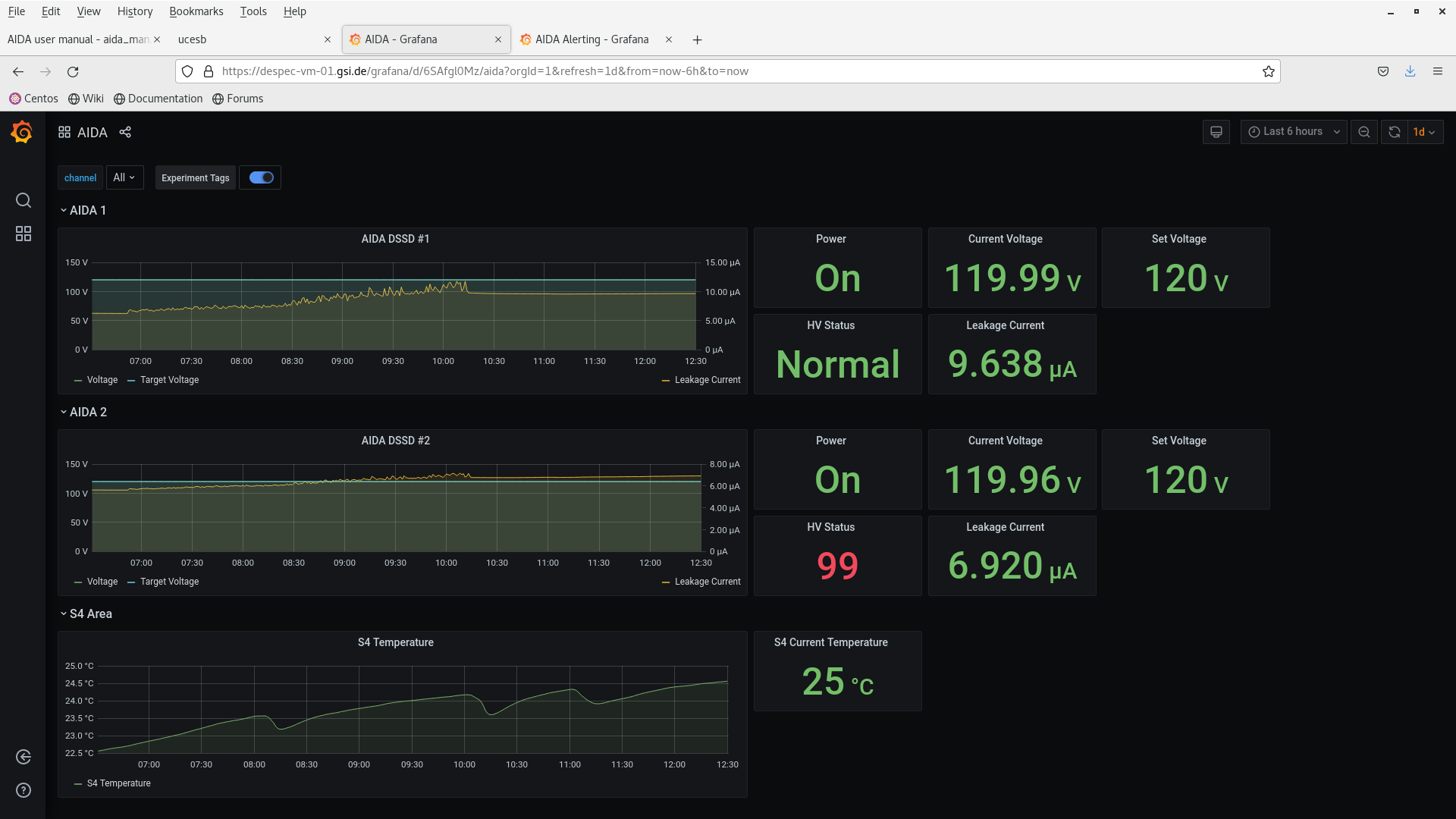

DSSSD bias & leakage current OK - attachment 30
       Can observe beam spill structure in DSSSD leakage currents - now slowly recovering with beam off

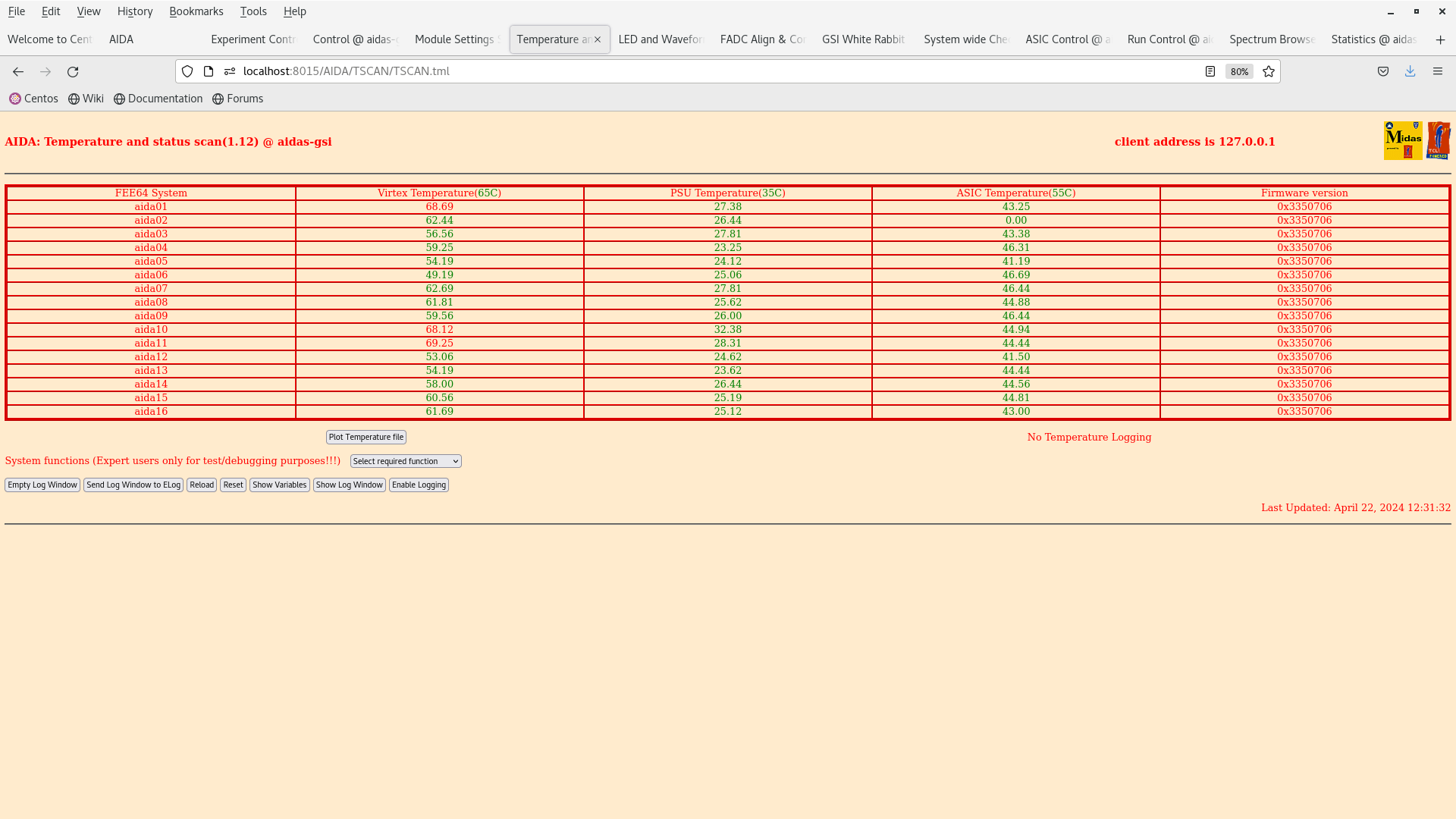

FEE64 temperatures OK - attachment 31

ADC data item stats OK - attachment 32

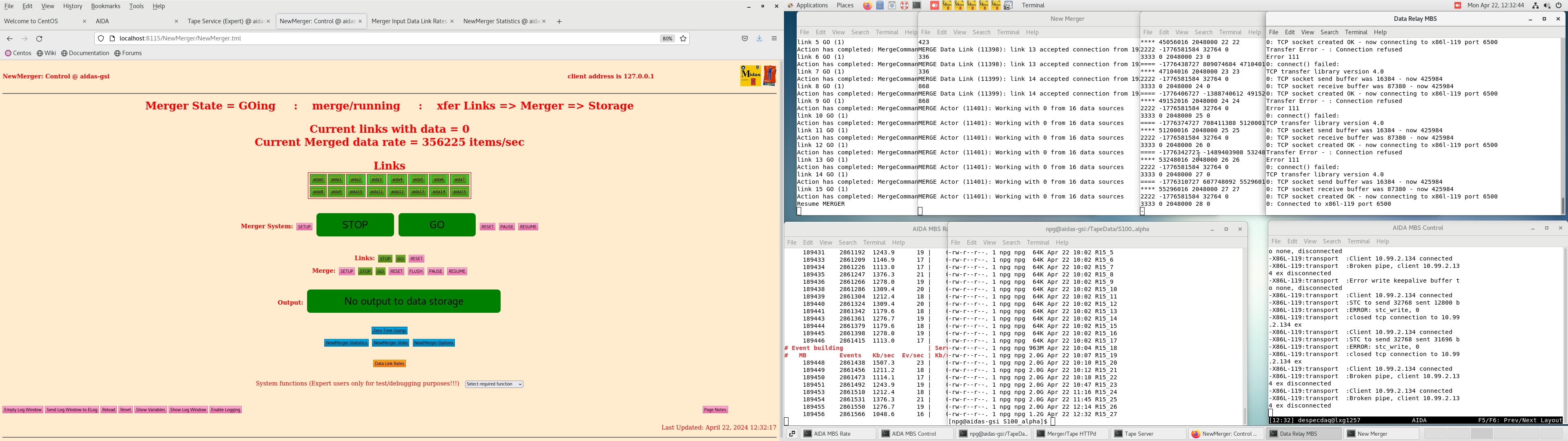

Merger, TapeServer etc - attachment 33

12.55 New ASIC settings 2024Apr22-12.55.38
       *all* discs disabled to reduce load on aida04
       slow comparator 0x14

BNC PB-5 settings (since yesterday evening)

Amplitude 10.0V
      Attenuation x10
      tau_d 1ms
      Frequency 2Hz
      Tail pulse
      Polarity +

13.46 all histograms & stats zero'd

13.48 Beam off

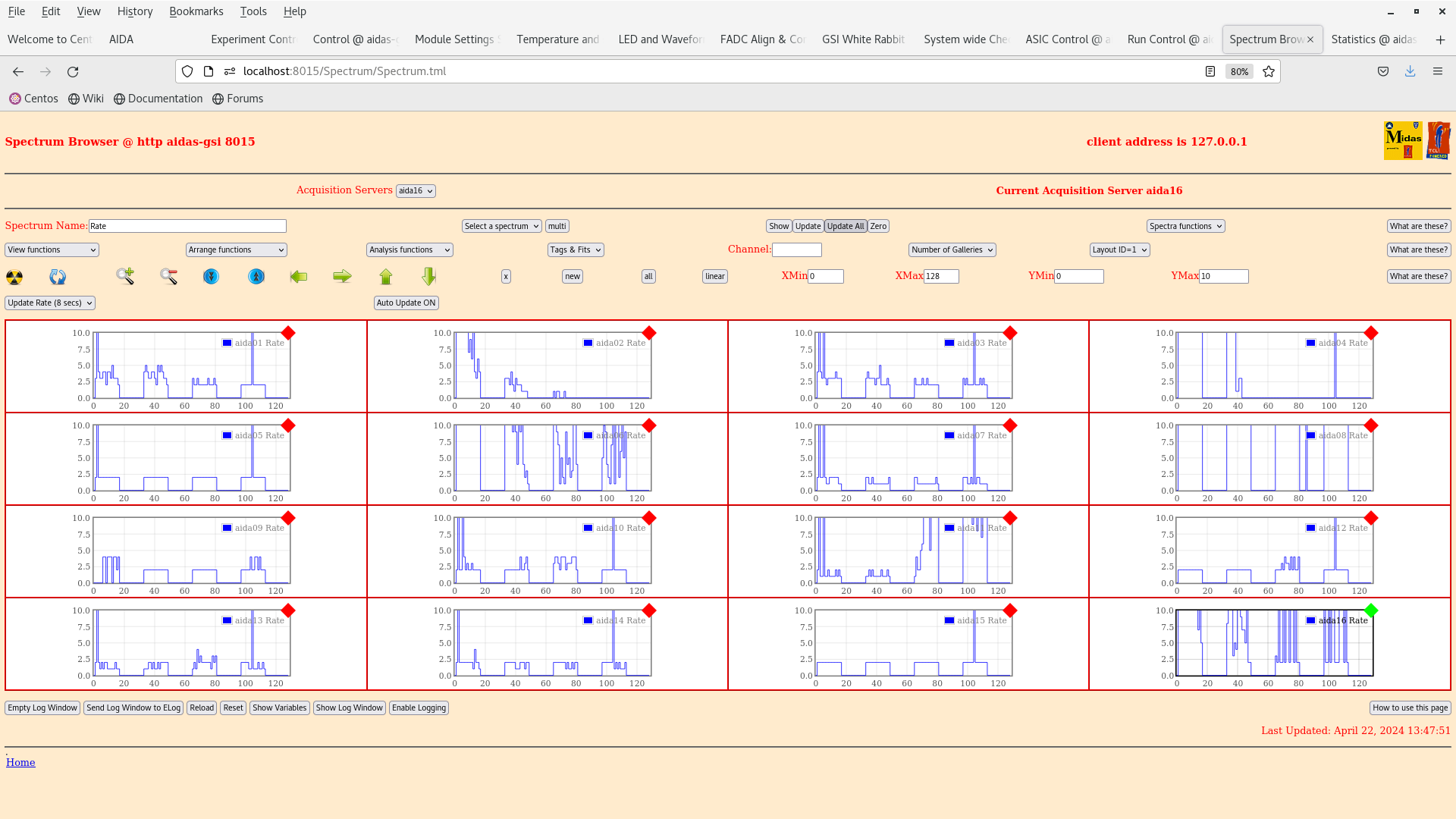

      per FEE64 Rate spectra - attachment 34
       2Hz pulser to p+n FEE64s

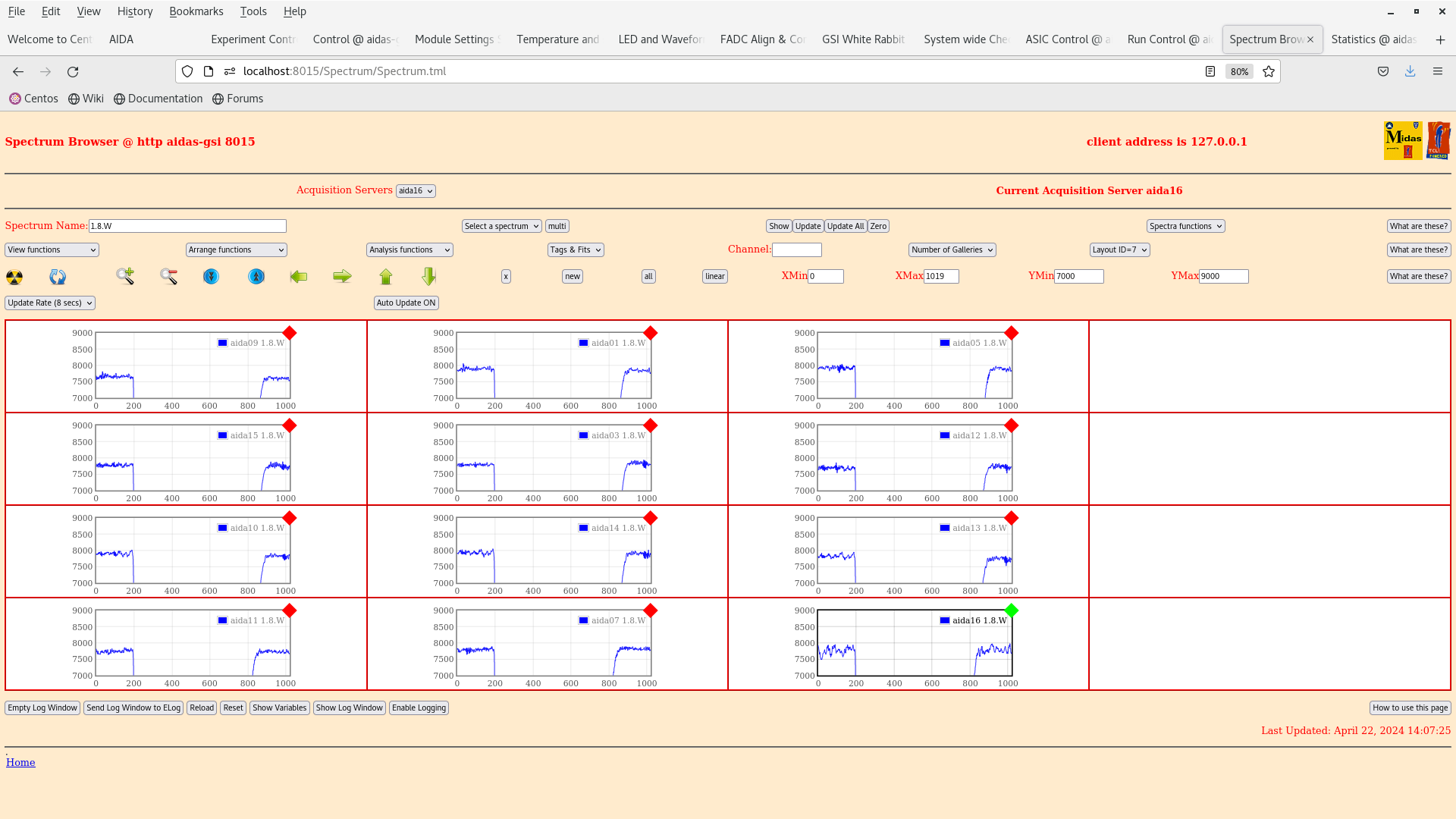

per FEE64 1.8.W spectra - attachments 35-36
       p+n FEE64 threshold = 6000 to capture pulser events
       n+n FEE64 threshold = 8000 to capture noise

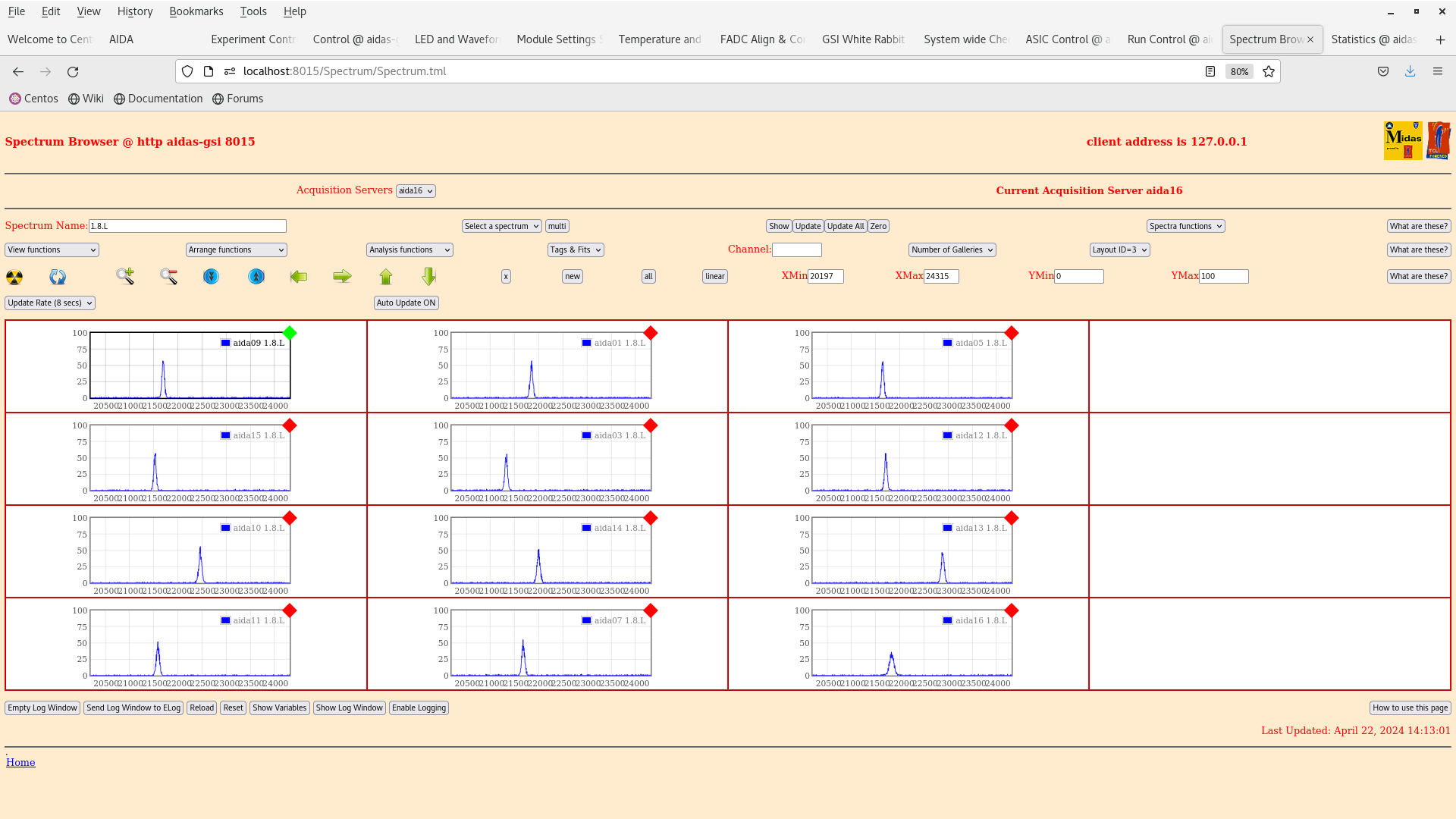

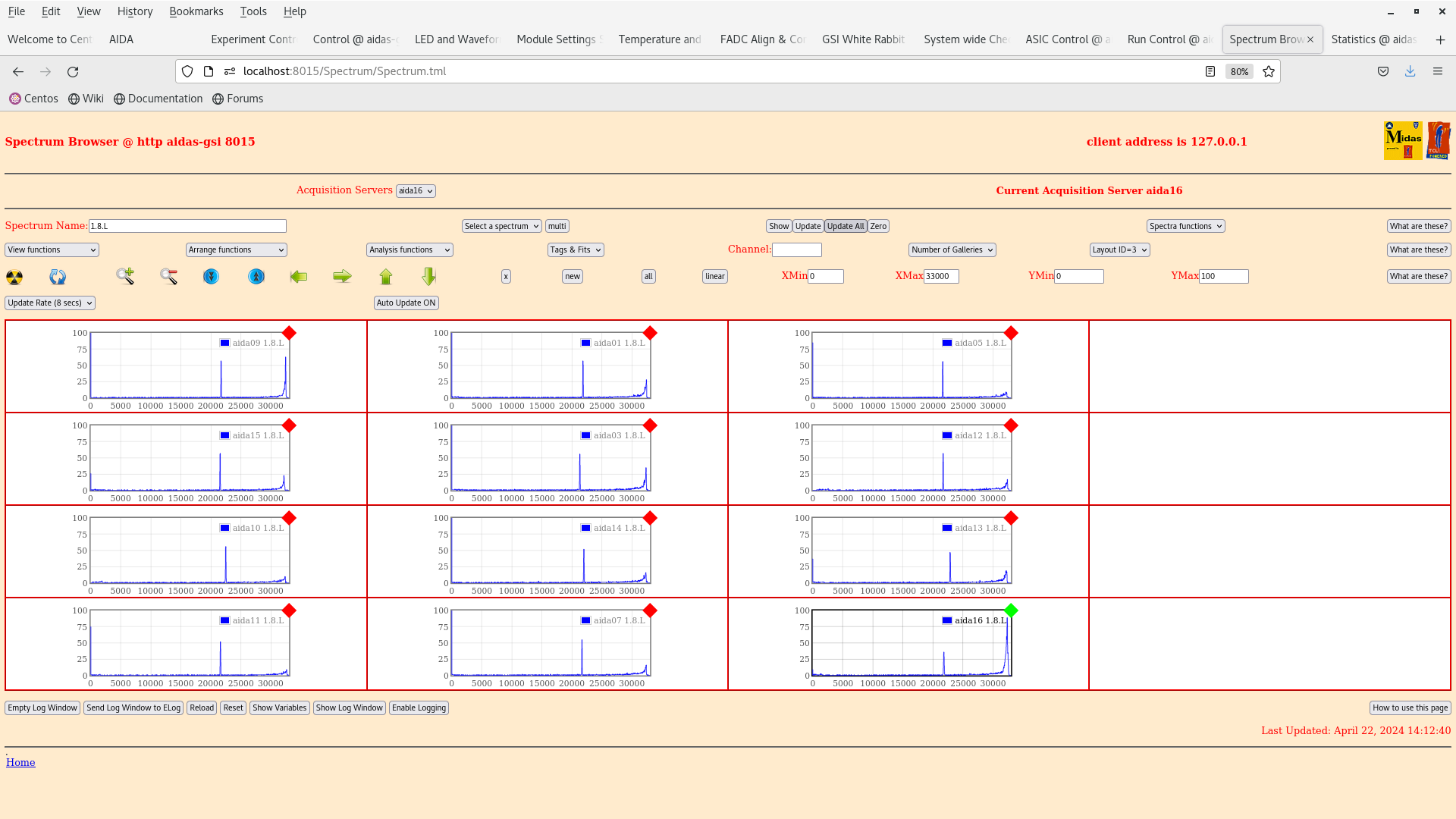

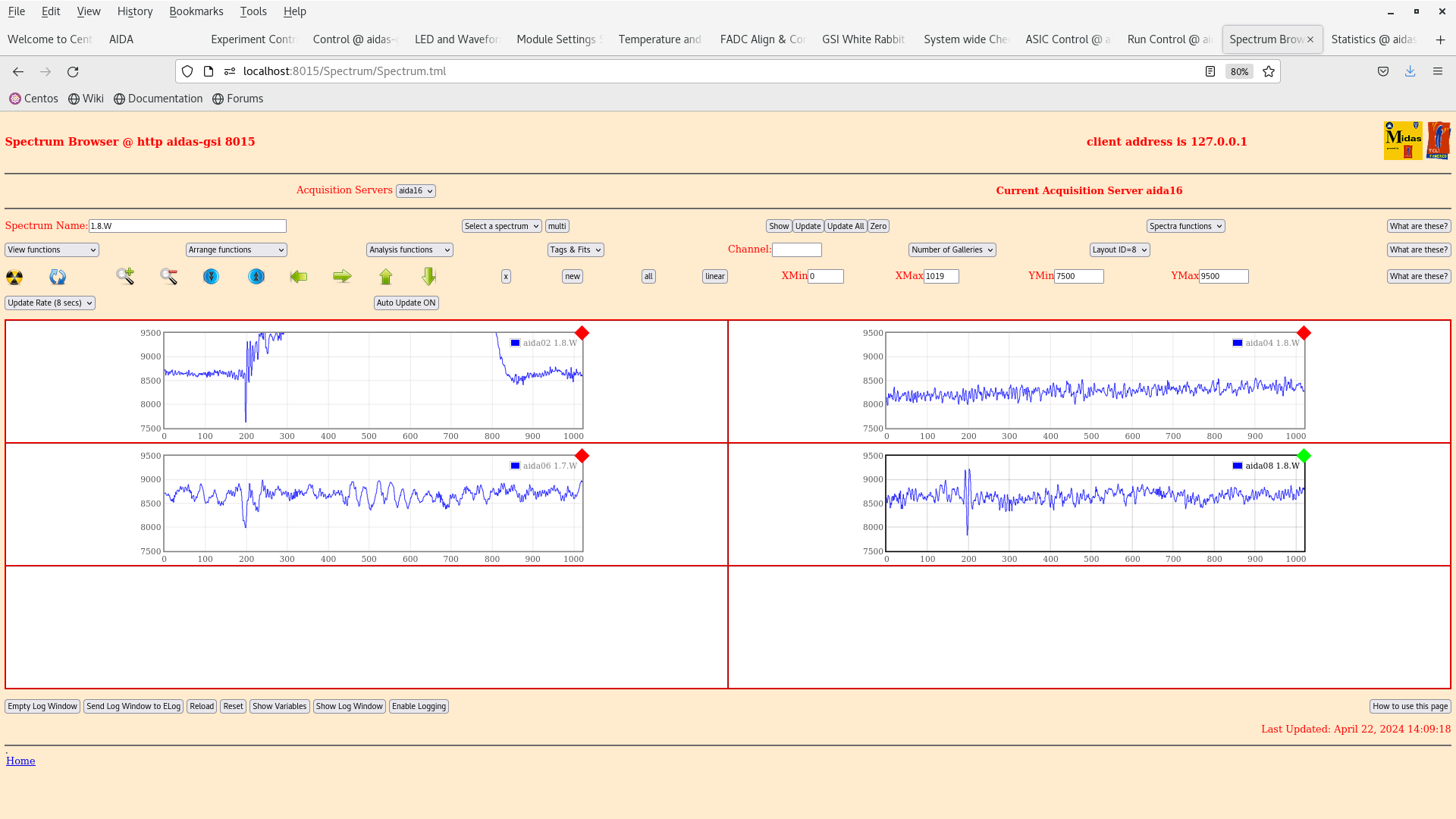

per p+n FEE64 1.8.L spectra - attachments 37-38
       common x/y-scale - peak height proxy for peak width
       aida09 pulser peak width 57 ch FWHM ~40keV FWHM ( 5 x sigma ~ 85keV )

14.28 168Eu setting (check only - setup still in progress)

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2024-04-22_01-32-28.png Original size: 1920x1080

Attachment 2:

Screenshot_from_2024-04-22_01-32-48.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2024-04-22_01-33-05.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2024-04-22_01-34-06.png Original size: 3840x1080

Attachment 5:

Screenshot_from_2024-04-22_05-12-23.png Original size: 1920x1080

Attachment 6:

Screenshot_from_2024-04-22_05-13-16.png Original size: 1920x1080

Attachment 7:

Screenshot_from_2024-04-22_05-14-07.png Original size: 1920x1080

Attachment 8:

Screenshot_from_2024-04-22_05-15-01.png Original size: 1920x1080

Attachment 9:

Screenshot_from_2024-04-22_09-27-20.png Original size: 734x499

Attachment 10:

Screenshot_from_2024-04-22_09-37-32.png Original size: 1920x1080

Attachment 11:

Screenshot_from_2024-04-22_09-27-38.png Original size: 1920x1080

Attachment 12:

Screenshot_from_2024-04-22_09-27-54.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2024-04-22_09-27-54.png Original size: 1920x1080

Attachment 14:

Screenshot_from_2024-04-22_09-28-29.png Original size: 1920x1080

Attachment 15:

Screenshot_from_2024-04-22_09-28-43.png Original size: 1920x1080

Attachment 16:

Screenshot_from_2024-04-22_09-29-28.png Original size: 1920x1080

Attachment 17:

Screenshot_from_2024-04-22_09-30-17.png Original size: 1920x1080

Attachment 18:

Screenshot_from_2024-04-22_09-30-48.png Original size: 1920x1080

Attachment 19:

Screenshot_from_2024-04-22_09-31-45.png Original size: 1920x1080

Attachment 20:

Screenshot_from_2024-04-22_09-32-00.png Original size: 1920x1080

Attachment 21:

Screenshot_from_2024-04-22_09-34-15.png Original size: 1920x1080

Attachment 22:

Screenshot_from_2024-04-22_09-35-55.png Original size: 1920x1080

Attachment 23:

Screenshot_from_2024-04-22_09-36-14.png Original size: 3840x1080

Attachment 24:

Screenshot_from_2024-04-22_09-36-26.png Original size: 3840x1080

Attachment 25:

Screenshot_from_2024-04-22_09-36-37.png Original size: 734x499

Attachment 26:

Screenshot_from_2024-04-22_10-06-16.png Original size: 1920x1080

Attachment 27:

Screenshot_from_2024-04-22_10-06-32.png Original size: 1920x1080

Attachment 28:

R14_19

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  247983505 (  854821.8 Hz)
        Other data format:   13936495 (   48040.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       2020 (       7.0 Hz)
                               RESUME:       2018 (       7.0 Hz)
                              SYNC100:      33080 (     114.0 Hz)
                              WR48-63:      33080 (     114.0 Hz)
                           FEE64 disc:    4068663 (   14025.1 Hz)
                             MBS info:    9797634 (   33773.3 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:    1220258 (    4206.3 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      290.100 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.648                0.000
  1               16.396                0.000
  2               16.224                0.000
  3               32.946                0.000
  4                4.383                0.000
  5               16.546                0.000
  6                0.000                0.000
  7               17.903                0.000
  8                0.098                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.093                0.000
 12                0.128                0.000
 13                0.000                0.000
 14                6.899                0.000
 15                0.006                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   16217774     546956          0          0         43         43       2226       2226     533739       8679          0     243502
  1   35997019     655408          0          0        266        266       4741       4741     645391          3          0     273982
  2   19522166    4283326          0          0        212        211       2914       2914     609647    3667428          0     121715
  3   45252368    3863960          0          0        711        711       6334       6334     501021    3348849          0      85285
  4   13017873    1445769          0          0        136        136       1769       1769     113373    1328586          0      34444
  5   28657824    1675874          0          0        252        251       3721       3721     223840    1444089          0      62230
  6    2024666     103995          0          0          1          1        248        248     103497          0          0      18668
  7   35214745     192536          0          0        242        242       4568       4568     182916          0          0      92814
  8    9901593     241512          0          0          8          8       1198       1198     239100          0          0      66118
  9    1636292      52204          0          0          0          0        256        256      51692          0          0       9281
 10    1524839      18248          0          0          0          0        211        211      17826          0          0       2366
 11    7330756     257048          0          0         12         12        910        910     255204          0          0      83995
 12    5748840     120224          0          0         17         17        694        694     118802          0          0      35149
 13    2639782     121147          0          0          0          0        330        330     120487          0          0      30525
 14   17865155     154024          0          0        117        117       2280       2280     149230          0          0      12092
 15    5431813     204264          0          0          3          3        680        680     202898          0          0      48092
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   29.855s ( 1071.830 blocks/s,  66.989 Mb/s)

Attachment 29:

R15_24

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  228207643 (  129261.6 Hz)
        Other data format:   33712360 (   19095.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        547 (       0.3 Hz)
                               RESUME:        547 (       0.3 Hz)
                              SYNC100:      38576 (      21.9 Hz)
                              WR48-63:      38576 (      21.9 Hz)
                           FEE64 disc:    2636338 (    1493.3 Hz)
                             MBS info:   30997776 (   17557.8 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     110998 (      62.9 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:     1765.471 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                0.000                0.000
  2                0.000                0.000
  3                1.254                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.032                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0     716460      53177          0          0          0          0        106        106          0      52965          0          0
  1    6234512      54773          0          0          0          0        905        905          1      52962          0          1
  2    1818908   15542833          0          0          0          0       2263       2263      44321   15493986          0          0
  3  117796308   17921646          0          0        542        542      20384      20384    2481931   15397863          0          3
  4     548813        118          0          0          0          0         59         59          0          0          0          0
  5    7623899       2086          0          0          0          0       1043       1043          0          0          0          0
  6    3790120       8410          0          0          0          0        635        635       7140          0          0          0
  7   58887930      93835          0          0          5          5       8712       8712      76401          0          0     110890
  8     284598       7007          0          0          0          0         30         30       6947          0          0          2
  9    5466145       1638          0          0          0          0        819        819          0          0          0          0
 10    8640524      22006          0          0          0          0       1261       1261      19484          0          0          0
 11     299711        105          0          0          0          0         40         40         25          0          0         18
 12    3513079       1030          0          0          0          0        515        515          0          0          0          0
 13    2905492        870          0          0          0          0        435        435          0          0          0          0
 14     391698        162          0          0          0          0         48         48         66          0          0         72
 15    9289446       2664          0          0          0          0       1321       1321         22          0          0         12
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   32.203s (  993.692 blocks/s,  62.106 Mb/s)

Attachment 30:

Screenshot_from_2024-04-22_12-31-14.png Original size: 1920x1080
