We have observed a number of AIDA FEE64s stop producing data.

Summary of dates & (approximate) times

aida03	21.4.24	08.20
aida04	22.4.24	09.14             https://elog.ph.ed.ac.uk/DESPEC/586
aida01	22.4.24	16.00
aida02	22.4.24	22.00
aida02	23.4.24	10.21
aida02	23.4.24 11.25
aida04  23.4.24 16.53?            attachment 2
aida04/aida05 25.4.24 22.28       no messages in aida04 system console
aida04  27.8.24 c.23:00
aida04  28.8.24 c. 12-13:00       power cycle
aida04  28.8.24 c. 16.00          reset per Elog 618
aida02  28.4.24 c. 22.20          reset per Elog 618, no error messages in system console
aida04  29.4.24 01.15
aida04  30.4.24 <03.30
aida02  30.4.24 <10.00


aida02 2.5.24 c. 19.30 reset


In future, it would be useful to copy system console reports to the Elog to check whether we can identify common error messages etc.


ssh pi@nnrpi1
<password>

cd logs
cat /ttyUSBx

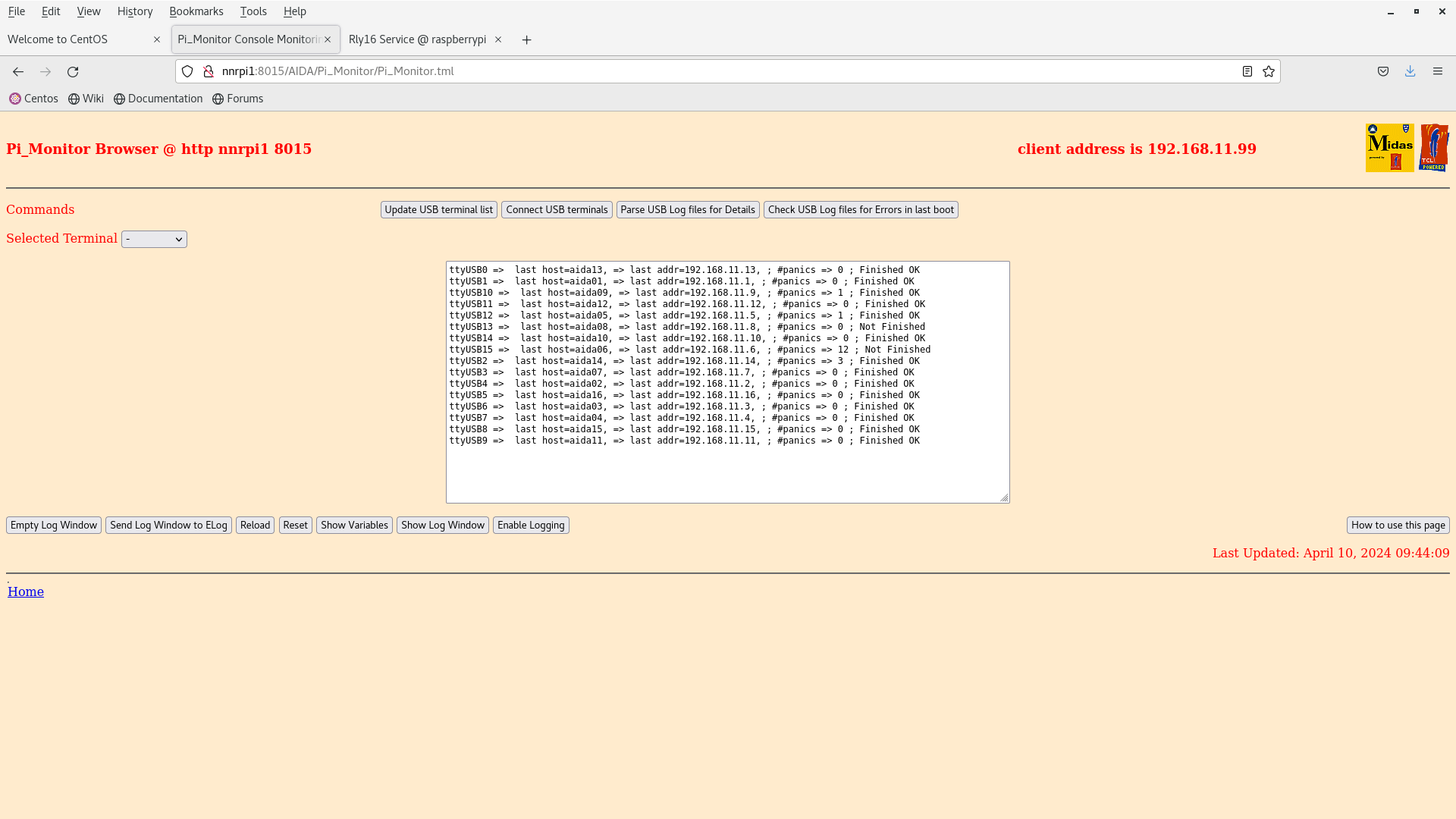

The current mapping of USB port # to AIDA FEE64s - attachment 1


aida02 system console c. 19.30 2.5.24

02:05:24/14:40:51|executing generic doStop
02:05:24/19:27:28|Halt (1)
02:05:24/19:27:29|Halt (2)
02:05:24/19:27:29|Halt (3)
02:05:24/19:27:30|Halt (4)
02:05:24/19:27:30|Halt (5)
02:05:24/19:27:31|Halt (6)
02:05:24/19:27:31|Halt (7)
02:05:24/19:27:32|Halt (8)
02:05:24/19:27:32|Halt (9)
02:05:24/19:27:33|Halt (10)
02:05:24/19:27:33|Halt (11)
02:05:24/19:27:34|Halt (12)
02:05:24/19:27:34|Halt (13)
02:05:24/19:27:35|Halt (14)
02:05:24/19:27:35|Halt (15)
02:05:24/19:27:36|Halt (16)
02:05:24/19:27:36|Halt (17)
02:05:24/19:27:37|Halt (18)
02:05:24/19:27:38|Halt (19)
02:05:24/19:27:38|Action has not completed
02:05:24/19:27:39|Giving up waiting
02:05:24/19:27:39|disconnect xfer stream #0 (1)
02:05:24/19:27:39|disconnect xfer stream #0 (2)
02:05:24/19:27:39|disconnect xfer stream #0 (3)
02:05:24/19:27:40|disconnect xfer stream #0 (4)
02:05:24/19:27:40|disconnect xfer stream #0 (5)
02:05:24/19:27:41|disconnect xfer stream #0 (6)
02:05:24/19:27:41|disconnect xfer stream #0 (7)
02:05:24/19:27:42|disconnect xfer stream #0 (8)
02:05:24/19:27:42|disconnect xfer stream #0 (9)
02:05:24/19:27:43|disconnect xfer stream #0 (10)
02:05:24/19:27:43|disconnect xfer stream #0 (11)
02:05:24/19:27:44|disconnect xfer stream #0 (12)
02:05:24/19:27:44|disconnect xfer stream #0 (13)
02:05:24/19:27:45|disconnect xfer stream #0 (14)
02:05:24/19:27:46|disconnect xfer stream #0 (15)
02:05:24/19:27:46|disconnect xfer stream #0 (16)
02:05:24/19:27:47|disconnect xfer stream #0 (17)
02:05:24/19:27:47|disconnect xfer stream #0 (18)
02:05:24/19:27:48|disconnect xfer stream #0 (19)
02:05:24/19:27:48|Action has not completed
02:05:24/19:27:49|Giving up waiting
02:05:24/19:27:49|executing generic Stop_Merger
02:05:24/19:27:49|executing generic Stop_DataStorageServer
02:05:24/19:27:49|completed generic doStop
02:05:24/19:27:49|do_GetState returned z=0 and 1
02:05:24/19:27:49|do_GetState returned z=0 and 1
02:05:24/19:28:01|Transfer Error - : Connection reset by peer
02:05:24/19:28:08|send() failed:
02:05:24/19:28:08|Aida state now Stopped. AidaExecV10.0_Jul  6 2022: Build 15:10:57
02:05:24/19:28:08|do_GetState returned z=0 and 0
02:05:24/19:28:13|executing generic doGo
02:05:24/19:28:45|Initialising communication with storage server 192.168.11.99 on port 11002
02:05:24/19:28:45|Setting Transfer Block Size 65536
02:05:24/19:28:45|Setting Transfer Mode 3
02:05:24/19:28:45|Setting Overlap Mode 0
02:05:24/19:28:45|Setting Blocking Mode 0
02:05:24/19:28:45|Setting nice 0
02:05:24/19:28:45|TCP transfer library version 3.12
02:05:24/19:28:45|TCP socket send buffer was 16384 - now 221184
02:05:24/19:28:45|TCP socket receive buffer was 87380 - now 221184
02:05:24/19:28:45|TCP socket created OK - now connecting to 192.168.11.99 port 11002
02:05:24/19:28:45|Connected to 192.168.11.99 port 11002
02:05:24/19:28:45|connect xfer stream #0 (1)
02:05:24/19:28:45|Data Acquisition Statistics counters now cleared
02:05:24/19:28:46|ASIC DMA buffer size 2097152; WAVE DMA buffer size 1048576
02:05:24/19:28:46|Aida state now Going. AidaExecV10.0: Build Jul  6 2022_15:10:57
02:05:24/19:28:46|Go (1)
02:05:24/19:28:46|Running Go_Electronics for aida02 with TSMaster aida01
02:05:24/19:28:46|ADCs Calibrated.
02:05:24/19:28:46|Finished Go_Electronics for AIDA
02:05:24/19:28:46|executing generic Go_Merger
02:05:24/19:28:46|executing generic Go_DataStorageServer
02:05:24/19:28:46|completed generic doGo
02:05:24/19:28:46|do_GetState returned z=0 and 1
02:05:24/19:28:46|In RDOGo_Operate: Enabled Correlation, ASIC and discriminator readout
02:05:24/19:28:51|Also in RDOGo_Operate: Enabled waveform readout
02:05:24/19:28:51|get_WAVEBlk (A) which = 0 ---- status = 0048, State machines = 0201
02:05:24/19:28:51|WV:0:Buffer info. Length = 64 : Offset = 0
02:05:24/19:28:51|WV:1:Buffer info. Length = 62 : Offset = 2
02:05:24/19:28:51|WV:2:Buffer info. Length = 60 : Offset = 4
02:05:24/19:28:52|WV:3:Buffer info. Length = 58 : Offset = 6
02:05:24/19:28:52|WV:4:Buffer info. Length = 56 : Offset = 8
02:05:24/19:28:52|WV:5:Buffer info. Length = 54 : Offset = 10
02:05:24/19:28:52|WV:6:Buffer info. Length = 52 : Offset = 12
02:05:24/19:28:52|WV:7:Buffer info. Length = 50 : Offset = 14
02:05:24/19:28:52|WV:8:Buffer info. Length = 48 : Offset = 16
02:05:24/19:28:52|WV:9:Buffer info. Length = 46 : Offset = 18
02:05:24/19:28:52|get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0201
02:05:24/19:28:52|get_WAVEBlk (A) which = 0 ---- status = 0048, State machines = 0908
02:05:24/19:28:52|get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
02:05:24/19:28:52|get_WAVEBlk (A) which = 0 ---- status = 0048, State machines = 0908
02:05:24/19:28:52|get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
02:05:24/19:28:52|get_WAVEBlk (A) which = 0 ---- status = 0048, State machines = 0908
02:05:24/19:28:52|get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
02:05:24/19:28:52|get_WAVEBlk (A) which = 0 ---- status = 1048, State machines = 0201
02:05:24/19:28:52|get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
02:05:24/19:28:52|

23:04:24/11:48:07|TCP transfer library version 3.12
23:04:24/11:48:07|TCP socket send buffer was 16384 - now 221184
23:04:24/11:48:07|TCP socket receive buffer was 87380 - now 221184
23:04:24/11:48:07|TCP socket created OK - now connecting to 192.168.11.99 port 11004
23:04:24/11:48:07|Connected to 192.168.11.99 port 11004
23:04:24/11:48:07|connect xfer stream #0 (1)
23:04:24/11:48:07|Data Acquisition Statistics counters now cleared
23:04:24/11:48:07|ASIC DMA buffer size 2097152; WAVE DMA buffer size 1048576
23:04:24/11:48:07|Aida state now Going. AidaExecV10.0: Build Jul  6 2022_15:10:57
23:04:24/11:48:07|Go (1)
23:04:24/11:48:07|Running Go_Electronics for aida04 with TSMaster aida01
23:04:24/11:48:07|ADCs Calibrated.
23:04:24/11:48:07|Finished Go_Electronics for AIDA
23:04:24/11:48:08|executing generic Go_Merger
23:04:24/11:48:08|executing generic Go_DataStorageServer
23:04:24/11:48:08|completed generic doGo
23:04:24/11:48:08|do_GetState returned z=0 and 1
23:04:24/11:48:08|In RDOGo_Operate: Enabled Correlation, ASIC and discriminator readout
23:04:24/11:48:13|Also in RDOGo_Operate: Enabled waveform readout
23:04:24/11:48:13|get_WAVEBlk (A) which = 0 ---- status = 104A, State machines = 0201
23:04:24/11:48:13|WV:0:Buffer info. Length = 64 : Offset = 0
23:04:24/11:48:13|WV:1:Buffer info. Length = 62 : Offset = 2
23:04:24/11:48:13|WV:2:Buffer info. Length = 60 : Offset = 4
23:04:24/11:48:13|WV:3:Buffer info. Length = 58 : Offset = 6
23:04:24/11:48:13|WV:4:Buffer info. Length = 56 : Offset = 8
23:04:24/11:48:13|WV:5:Buffer info. Length = 54 : Offset = 10
23:04:24/11:48:13|WV:6:Buffer info. Length = 52 : Offset = 12
23:04:24/11:48:13|WV:7:Buffer info. Length = 50 : Offset = 14
23:04:24/11:48:13|WV:8:Buffer info. Length = 48 : Offset = 16
23:04:24/11:48:13|WV:9:Buffer info. Length = 46 : Offset = 18
23:04:24/11:48:13|get_WAVEBlk (A) which = 1 ---- status = 0188, State machines = 0201
23:04:24/11:48:13|get_WAVEBlk (A) which = 0 ---- status = 0048, State machines = 0908
23:04:24/11:48:13|get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
23:04:24/11:48:13|get_WAVEBlk (A) which = 0 ---- status = 0048, State machines = 0908
23:04:24/11:48:14|get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
23:04:24/11:48:14|get_WAVEBlk (A) which = 0 ---- status = 0048, State machines = 0908
23:04:24/11:48:14|get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
23:04:24/11:48:14|get_WAVEBlk (A) which = 0 ---- status = 0048, State machines = 0908
23:04:24/11:48:14|get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
23:04:24/11:48:14|executing generic doStop
23:04:24/16:58:30|Halt (1)
23:04:24/16:58:31|Halt (2)
23:04:24/16:58:32|Halt (3)
23:04:24/16:58:32|Halt (4)
23:04:24/16:58:33|Halt (5)
23:04:24/16:58:33|Halt (6)
23:04:24/16:58:34|Halt (7)
23:04:24/16:58:35|Halt (8)
23:04:24/16:58:35|Halt (9)
23:04:24/16:58:36|Halt (10)
23:04:24/16:58:36|Halt (11)
23:04:24/16:58:37|Halt (12)
23:04:24/16:58:37|Halt (13)
23:04:24/16:58:38|Halt (14)
23:04:24/16:58:39|Halt (15)
23:04:24/16:58:39|Halt (16)
23:04:24/16:58:40|Halt (17)
23:04:24/16:58:40|Halt (18)
23:04:24/16:58:41|Halt (19)
23:04:24/16:58:41|Action has not completed
23:04:24/16:58:42|Giving up waiting
23:04:24/16:58:42|disconnect xfer stream #0 (1)
23:04:24/16:58:42|disconnect xfer stream #0 (2)
23:04:24/16:58:43|disconnect xfer stream #0 (3)
23:04:24/16:58:43|disconnect xfer stream #0 (4)
23:04:24/16:58:44|disconnect xfer stream #0 (5)
23:04:24/16:58:44|disconnect xfer stream #0 (6)
23:04:24/16:58:45|disconnect xfer stream #0 (7)
23:04:24/16:58:45|disconnect xfer stream #0 (8)
23:04:24/16:58:46|disconnect xfer stream #0 (9)
23:04:24/16:58:47|disconnect xfer stream #0 (10)
23:04:24/16:58:47|disconnect xfer stream #0 (11)
23:04:24/16:58:48|disconnect xfer stream #0 (12)
23:04:24/16:58:48|disconnect xfer stream #0 (13)
23:04:24/16:58:49|disconnect xfer stream #0 (14)
23:04:24/16:58:49|disconnect xfer stream #0 (15)
23:04:24/16:58:50|disconnect xfer stream #0 (16)
23:04:24/16:58:51|disconnect xfer stream #0 (17)
23:04:24/16:58:51|disconnect xfer stream #0 (18)
23:04:24/16:58:52|disconnect xfer stream #0 (19)
23:04:24/16:58:52|Action has not completed
23:04:24/16:58:53|Giving up waiting
23:04:24/16:58:53|executing generic Stop_Merger
23:04:24/16:58:53|executing generic Stop_DataStorageServer
23:04:24/16:58:53|completed generic doStop
23:04:24/16:58:53|do_GetState returned z=0 and 1
23:04:24/16:58:53|do_GetState returned z=0 and 1
23:04:24/16:59:06|Transfer Error - : Connection reset by peer
23:04:24/16:59:15|send() failed:
23:04:24/16:59:15|TCP transfer library version 3.12
23:04:24/16:59:15|TCP socket send buffer was 16384 - now 221184
23:04:24/16:59:15|TCP socket receive buffer was 87380 - now 221184
23:04:24/16:59:15|TCP socket created OK - now connecting to 192.168.11.99 port 11004
23:04:24/16:59:15|Transfer Error - : Connection refused
23:04:24/16:59:15|connect() failed:
23:04:24/16:59:15|Aida state now Stopped. AidaExecV10.0_Jul  6 2022: Build 15:10:57
23:04:24/16:59:15|do_GetState returned z=0 and 0
23:04:24/16:59:18|do_GetState returned z=0 and 0
23:04:24/17:00:09|do_GetState returned z=0 and 0
23:04:24/17:00:11|do_GetState returned z=0 and 0
23:04:24/17:00:19|do_GetState returned z=0 and 0
INIT: Switching to runlevel: 6
INStarting killall:  Unmounting NFS filesystems:  umount: /MIDAS: not mounted
23:04:24/17:00:43|[  OK  ]
23:04:24/17:00:43|Stopping rpcbind: [  OK  ]
23:04:24/17:00:45|Shutting down kernel logger: [  OK  ]
23:04:24/17:00:47|Shutting down system logger: [  OK  ]
23:04:24/17:00:47|Stopping xinetd: [  OK  ]
23:04:24/17:00:47|[  OK  ]
23:04:24/17:00:47|Sending all processes the TERM signal... xaida: release:
23:04:24/17:00:48|
23:04:24/17:00:48|AIDAMEM: aidamem_release:
23:04:24/17:00:48|xaida: release:
23:04:24/17:00:48|Sending all processes the KILL signal...
23:04:24/17:00:53|Saving random seed:
23:04:24/17:00:53|Syncing hardware clock to systxaida: open:
23:04:24/17:00:53|emxaida: release:
23:04:24/17:00:53| time xaida: open:
23:04:24/17:00:53|xaida: ioctl: called with command 536899587
23:04:24/17:00:53|xaida: ioctl: called with command 1076129801
23:04:24/17:00:53|RTCxaida: release:
23:04:24/17:00:53|_RD_TIME: Inappropriate ioctl for device
23:04:24/17:00:53|ioctl() to /dev/rtc to read the time failed.
23:04:24/17:00:53|
23:04:24/17:00:53|Please stand by while rebooting the system...
Sj5õ24/17:00:54|Restarting system.
23:04:24/17:00:56|U×®­Ë
                        )	$T,W¤']Z¥anuary 2017
Flash base address=FC000000
Set Flash to ASync Mode
XST_SUCCESS:00:56|
Finished copying zImage to RAM
23:04:24/17:00:57|
Found 0 errors checking kernel image
23:04:24/17:00:58|VHDL version number 0X03350706
Based on AIDA Bootloader version number 1.2.0 -- 16th August 2012
Starting LMK 3200 setup
23:04:24/17:00:58|
Setting LMK03200 to standard clock settings -- External Clock 23Nov15
.... SPI Base Address=0x81400000
clk_control_reg=0x4
23:04:24/17:00:58|Next step is SPIconfig
Control 32(0x81400000)=0x180
SlaveSel(0x81400000)=0x3
Ctrl(0x81400000)=0xE6
Ctrl(0x81400000)=0x86
23:04:24/17:00:58|SPIconfig done now to set up the LMK3200 registers
23:04:24/17:00:58|LMK #0 : regInit[0]=0x80000000
23:04:24/17:00:58|LMK #0 : regInit[1]=0x10070600
23:04:24/17:00:58|LMK #0 : regInit[2]=0x60601
23:04:24/17:00:59|LMK #0 : regInit[3]=0x60602
23:04:24/17:00:59|LMK #0 : regInit[4]=0x60603
23:04:24/17:00:59|LMK #0 : regInit[5]=0x70624
23:04:24/17:00:59|LMK #0 : regInit[6]=0x70605
23:04:24/17:00:59|LMK #0 : regInit[7]=0x70606
23:04:24/17:00:59|LMK #0 : regInit[8]=0x70627
23:04:24/17:00:59|LMK #0 : regInit[9]=0x10000908
23:04:24/17:00:59|LMK #0 : regInit[10]=0xA0022A09
23:04:24/17:00:59|LMK #0 : regInit[11]=0x82800B
23:04:24/17:00:59|LMK #0 : regInit[12]=0x28C800D
23:04:24/17:00:59|LMK #0 : regInit[13]=0x830020E
23:04:24/17:00:59|LMK #0 : regInit[14]=0xC800180F
Calibrate completed at 943 counts
Setting Clock Control =0x0000000B, to set GOE and sync bit
Ctrl @ SPIstop (0x81400000)=0x186
Timeout waiting for Lock detect Stage 2 (Zero Delay), PWR_DWN=0x00000004
23:04:24/17:00:59|
Finished Clock setup LMK03200
completed LMK 3200 setup
Loaded all four ASICs with default settings
Setting the ADCs into calibration mode
23:04:24/17:00:59|
Control 32(0x81400400)=0x180
SlaveSel(0x81400400)=0xFF
Ctrl(0x81400400)=0xE6
Ctrl(0x81400400)=0x86
Init : Config of AD9252 SPI ok
23:04:24/17:01:00|
Ctrl @ SPIstop (0x81400400)=0x186ADCs initialised
Cal DCMs not locked
ADC calibrate failed
Jumping to kernel simpleboot...
23:04:24/17:01:00|
zImage starting: loaded at 0x00a00000 (sp: 0x00bc4eb0)
Allocating 0x3b78cc bytes for kernel ...
gunzipping (0x00000000 <- 0x00a0f000:0x00bc380e)...done 0x39604c bytes
23:04:24/17:01:03|
Linux/PowerPC load: console=ttyS0 root=/dev/nfs ip=on rw mem=112M
Finalizing device tree... flat tree at 0xbd1300
Probing IIC bus for MAC... MAC address = 0xd8 0x80 0x39 0x41 0xa0 0x71
23:04:24/17:01:09|Using Xilinx Virtex440 machine description
23:04:24/17:01:10|Linux version 2.6.31 (nf@nnlxb.dl.ac.uk) (gcc version 4.2.2) #34 PREEMPT Tue Nov 15 15:57:04 GMT 2011
23:04:24/17:01:10|Zone PFN ranges:
23:04:24/17:01:10|  DMA      0x00000000 -> 0x00007000
23:04:24/17:01:10|  Normal   0x00007000 -> 0x00007000
23:04:24/17:01:10|Movable zone start PFN for each node
23:04:24/17:01:10|early_node_map[1] active PFN ranges
23:04:24/17:01:10|    0: 0x00000000 -> 0x00007000
23:04:24/17:01:10|MMU: Allocated 1088 bytes of context maps for 255 contexts
23:04:24/17:01:10|Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 28448
23:04:24/17:01:10|Kernel command line: console=ttyS0 root=/dev/nfs ip=on rw mem=112M
23:04:24/17:01:10|PID hash table entries: 512 (order: 9, 2048 bytes)
23:04:24/17:01:10|Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
23:04:24/17:01:11|Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
23:04:24/17:01:11|Memory: 109680k/114688k available (3500k kernel code, 4852k reserved, 144k data, 130k bss, 168k init)
23:04:24/17:01:11|Kernel virtual memory layout:
23:04:24/17:01:11|  * 0xffffe000..0xfffff000  : fixmap
23:04:24/17:01:11|  * 0xfde00000..0xfe000000  : consistent mem
23:04:24/17:01:11|  * 0xfde00000..0xfde00000  : early ioremap
23:04:24/17:01:11|  * 0xd1000000..0xfde00000  : vmalloc & ioremap
23:04:24/17:01:11|NR_IRQS:512
23:04:24/17:01:11|clocksource: timebase mult[a00000] shift[22] registered
23:04:24/17:01:11|Console: colour dummy device 80x25
23:04:24/17:01:11|Mount-cache hash table entries: 512
23:04:24/17:01:11|NET: Registered protocol family 16
23:04:24/17:01:11|PCI: Probing PCI hardware
23:04:24/17:01:11|bio: create slab <bio-0> at 0
23:04:24/17:01:11|NET: Registered protocol family 2
23:04:24/17:01:11|IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
23:04:24/17:01:11|TCP established hash table entries: 4096 (order: 3, 32768 bytes)
23:04:24/17:01:11|TCP bind hash table entries: 4096 (order: 2, 16384 bytes)
23:04:24/17:01:11|TCP: Hash tables configured (established 4096 bind 4096)
23:04:24/17:01:11|TCP reno registered
23:04:24/17:01:12|NET: Registered protocol family 1
23:04:24/17:01:12|ROMFS MTD (C) 2007 Red Hat, Inc.
23:04:24/17:01:12|msgmni has been set to 214
23:04:24/17:01:12|io scheduler noop registered
23:04:24/17:01:12|io scheduler anticipatory registered
23:04:24/17:01:12|io scheduler deadline registered
23:04:24/17:01:12|io scheduler cfq registered (default)
23:04:24/17:01:12|Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled
23:04:24/17:01:12|83e00000.serial: ttyS0 at MMIO 0x83e01003 (irq = 16) is a 16550
23:04:24/17:01:12|console [ttyS0] enabled
23:04:24/17:01:12|brd: module loaded
23:04:24/17:01:12|loop: module loaded
23:04:24/17:01:12|Device Tree Probing 'ethernet'
23:04:24/17:01:12|xilinx_lltemac 81c00000.ethernet: MAC address is now d8:80:39:41:a0:71
23:04:24/17:01:12|xilinx_lltemac 81c00000.ethernet: XLlTemac: using DMA mode.
23:04:24/17:01:12|XLlTemac: DCR address: 0x80
23:04:24/17:01:12|XLlTemac: buffer descriptor size: 32768 (0x8000)
23:04:24/17:01:12|XLlTemac: Allocating DMA descriptors with kmalloc
23:04:24/17:01:12|XLlTemac: (buffer_descriptor_init) phy: 0x6938000, virt: 0xc6938000, size: 0x8000
23:04:24/17:01:12|XTemac: PHY detected at address 7.
23:04:24/17:01:12|xilinx_lltemac 81c00000.ethernet: eth0: Xilinx TEMAC at 0x81C00000 mapped to 0xD1024000, irq=17
23:04:24/17:01:13|fc000000.flash: Found 1 x16 devices at 0x0 in 16-bit bank
23:04:24/17:01:13| Intel/Sharp Extended Query Table at 0x010A
23:04:24/17:01:13| Intel/Sharp Extended Query Table at 0x010A
23:04:24/17:01:13| Intel/Sharp Extended Query Table at 0x010A
23:04:24/17:01:13| Intel/Sharp Extended Query Table at 0x010A
23:04:24/17:01:13| Intel/Sharp Extended Query Table at 0x010A
23:04:24/17:01:13| Intel/Sharp Extended Query Table at 0x010A
23:04:24/17:01:13|Using buffer write method
23:04:24/17:01:13|cfi_cmdset_0001: Erase suspend on write enabled
23:04:24/17:01:13|cmdlinepart partition parsing not available
23:04:24/17:01:13|RedBoot partition parsing not available
23:04:24/17:01:13|Creating 5 MTD partitions on "fc000000.flash":
23:04:24/17:01:13|0x000000000000-0x000000500000 : "golden_firmware"
23:04:24/17:01:13|0x000000500000-0x000000800000 : "golden_kernel"
23:04:24/17:01:13|0x000000800000-0x000000d00000 : "user_firmware"
23:04:24/17:01:13|0x000000d00000-0x000000fe0000 : "user_kernel"
23:04:24/17:01:13|0x000000fe0000-0x000001000000 : "env_variables"
23:04:24/17:01:13|xilinx-xps-spi 81400400.hd-xps-spi: at 0x81400400 mapped to 0xD1028400, irq=20
23:04:24/17:01:13|SPI: XIlinx spi: bus number now 32766
23:04:24/17:01:13|xilinx-xps-spi 81400000.xps-spi: at 0x81400000 mapped to 0xD102C000, irq=21
23:04:24/17:01:14|SPI: XIlinx spi: bus number now 32765
23:04:24/17:01:14|mice: PS/2 mouse device common for all mice
23:04:24/17:01:14|Device Tree Probing 'i2c'
23:04:24/17:01:14| #0 at 0x81600000 mapped to 0xD1030000, irq=22
23:04:24/17:01:14|at24 0-0050: 1024 byte 24c08 EEPROM (writable)
23:04:24/17:01:14|TCP cubic registered
23:04:24/17:01:14|NET: Registered protocol family 17
23:04:24/17:01:14|RPC: Registered udp transport module.
23:04:24/17:01:14|RPC: Registered tcp transport module.
23:04:24/17:01:14|eth0: XLlTemac: Options: 0x3fa
23:04:24/17:01:14|eth0: XLlTemac: allocating interrupt 19 for dma mode tx.
23:04:24/17:01:14|eth0: XLlTemac: allocating interrupt 18 for dma mode rx.
23:04:24/17:01:15|eth0: XLlTemac: speed set to 1000Mb/s
23:04:24/17:01:17|eth0: XLlTemac: Send Threshold = 24, Receive Threshold = 4
23:04:24/17:01:17|eth0: XLlTemac: Send Wait bound = 254, Receive Wait bound = 254
23:04:24/17:01:17|Sending DHCP requests ., OK
23:04:24/17:01:18|IP-Config: Got DHCP answer from 192.168.11.99, my address is 192.168.11.4
23:04:24/17:01:18|IP-Config: Complete:
23:04:24/17:01:18|     device=eth0, addr=192.168.11.4, mask=255.255.255.0, gw=255.255.255.255,
23:04:24/17:01:18|     host=aida04, domain=dl.ac.uk, nis-domain=nuclear.physics,
23:04:24/17:01:18|     bootserver=192.168.11.99, rootserver=192.168.11.99, rootpath=/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida04
23:04:24/17:01:18|Looking up port of RPC 100003/2 on 192.168.11.99
23:04:24/17:01:18|Looking up port of RPC 100005/1 on 192.168.11.99
23:04:24/17:01:18|VFS: Mounted root (nfs filesystem) on device 0:12.
23:04:24/17:01:18|Freeing unused kernel memory: 168k init
INIT: version 2.86 booting
23:04:24/17:01:19|Starting sysinit...
23:04:24/17:01:19|		Welcome to DENX & STFC Daresbury Embedded Linux Environment
23:04:24/17:01:20|		Press 'I' to enter interactive startup.
23:04:24/17:01:20|Setting clock  (utc): Tue Apr 23 16:01:20 BST 2024 [  OK  ]
23:04:24/17:01:20|Building the cache [  OK  ]
23:04:24/17:01:20|Setting hostname aida04:  [  OK  ]
23:04:24/17:01:21|Mounting local filesystems:  [  OK  ]
23:04:24/17:01:22|Enabling /etc/fstab swaps:  [  OK  ]
23:04:24/17:01:24|Finishing sysinit...
INIT: Entering runlevel: 3
