09.56 DAQ continues data file S100_alpha/R18_387
      FRS switching settings

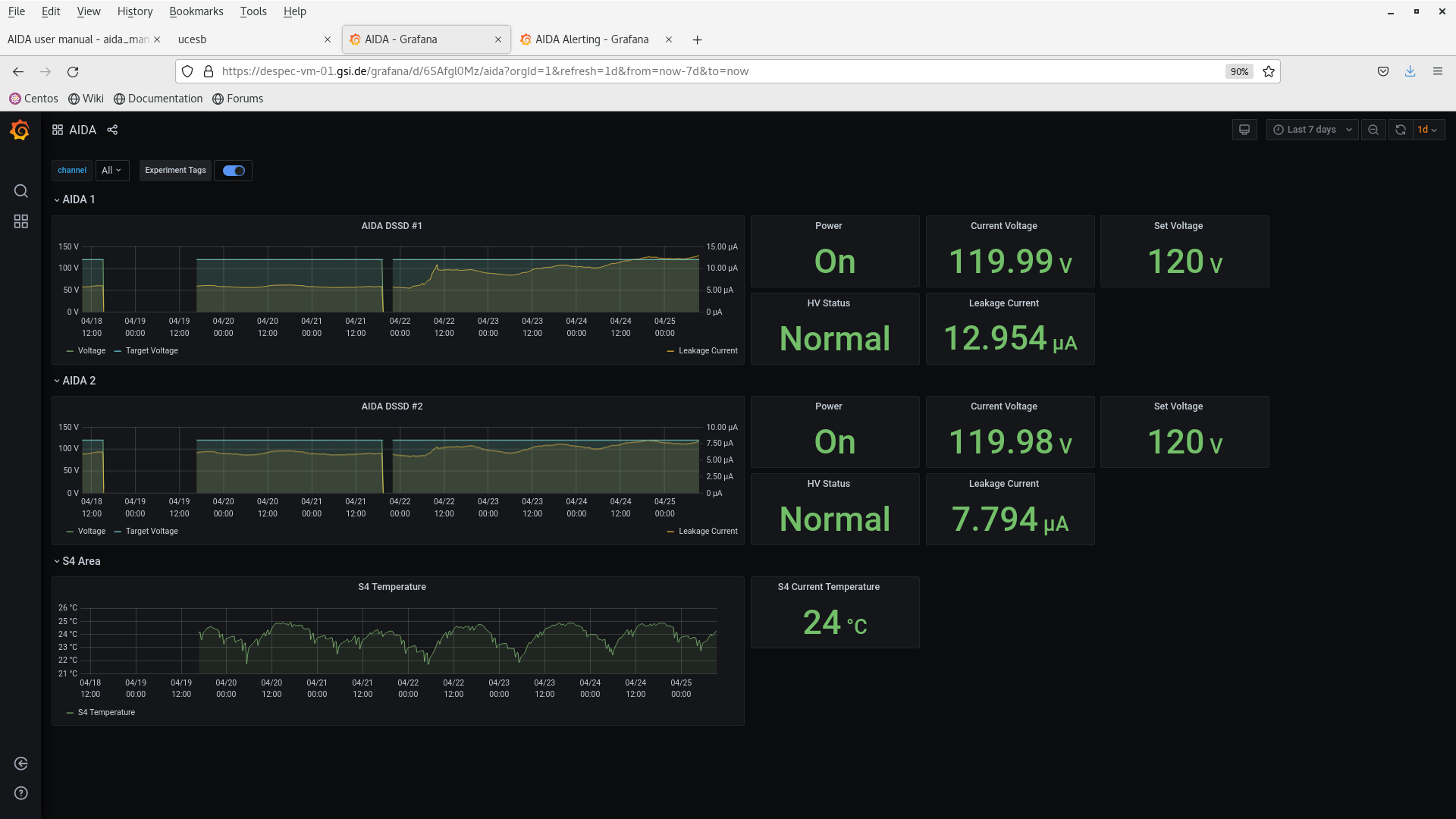

DSSSD bias & leakage current OK - attachments 1

FEE64 temperatures OK  - attachment 2
       aida02 ASIC temp - known fault

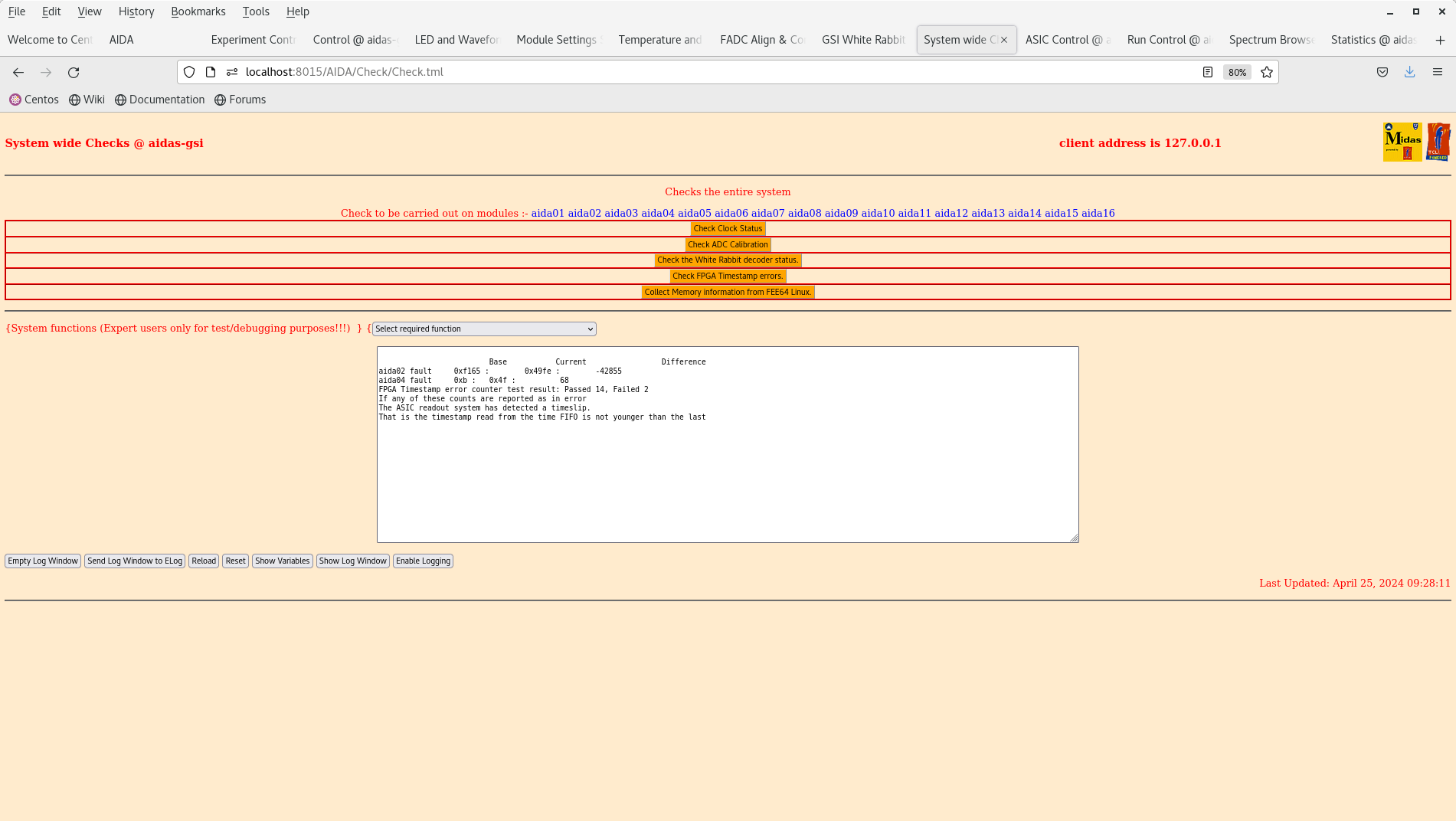

All system wide checks OK *except* as shown - attachments 3-5

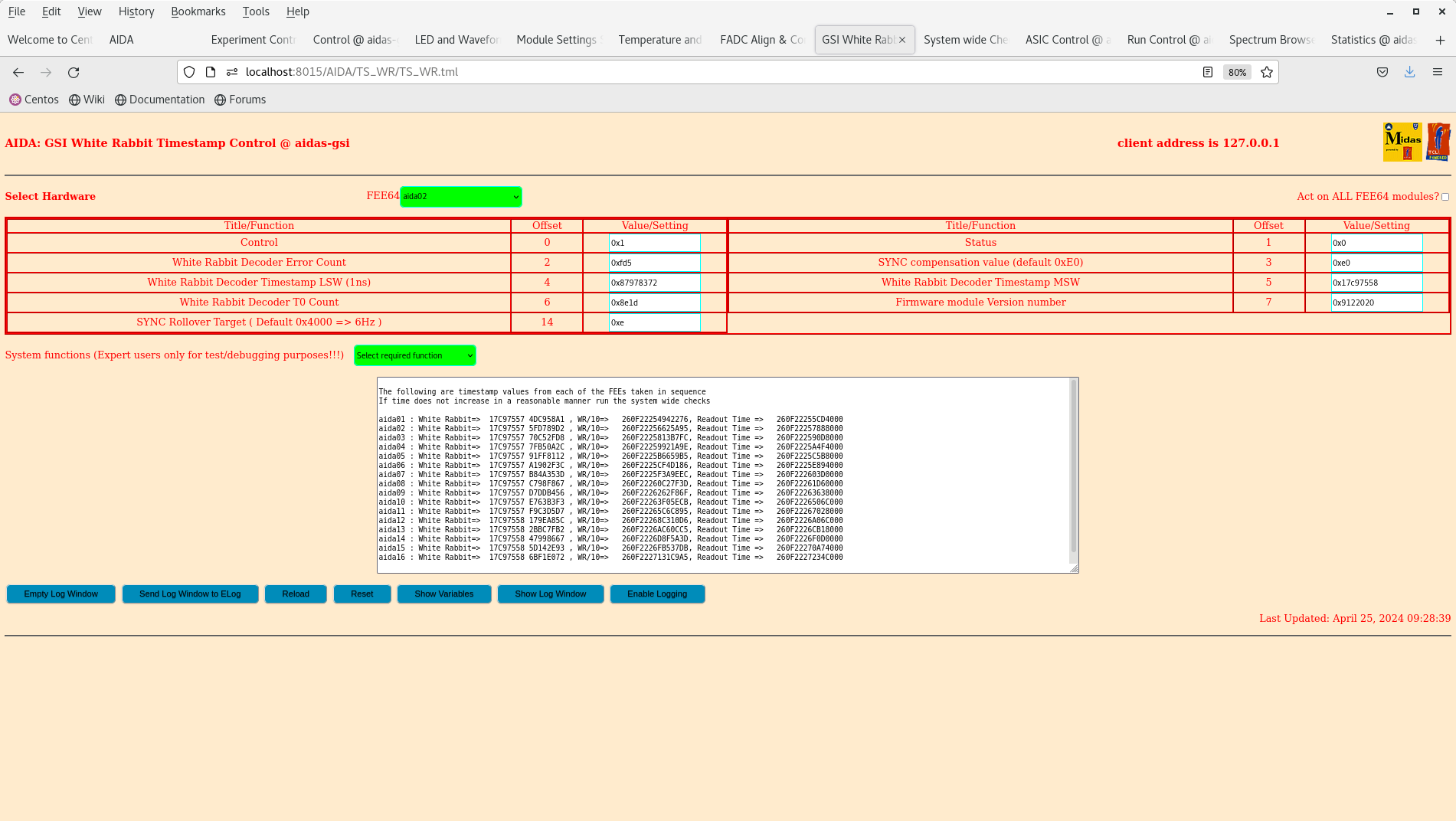

WR timestamps OK - attachment 6

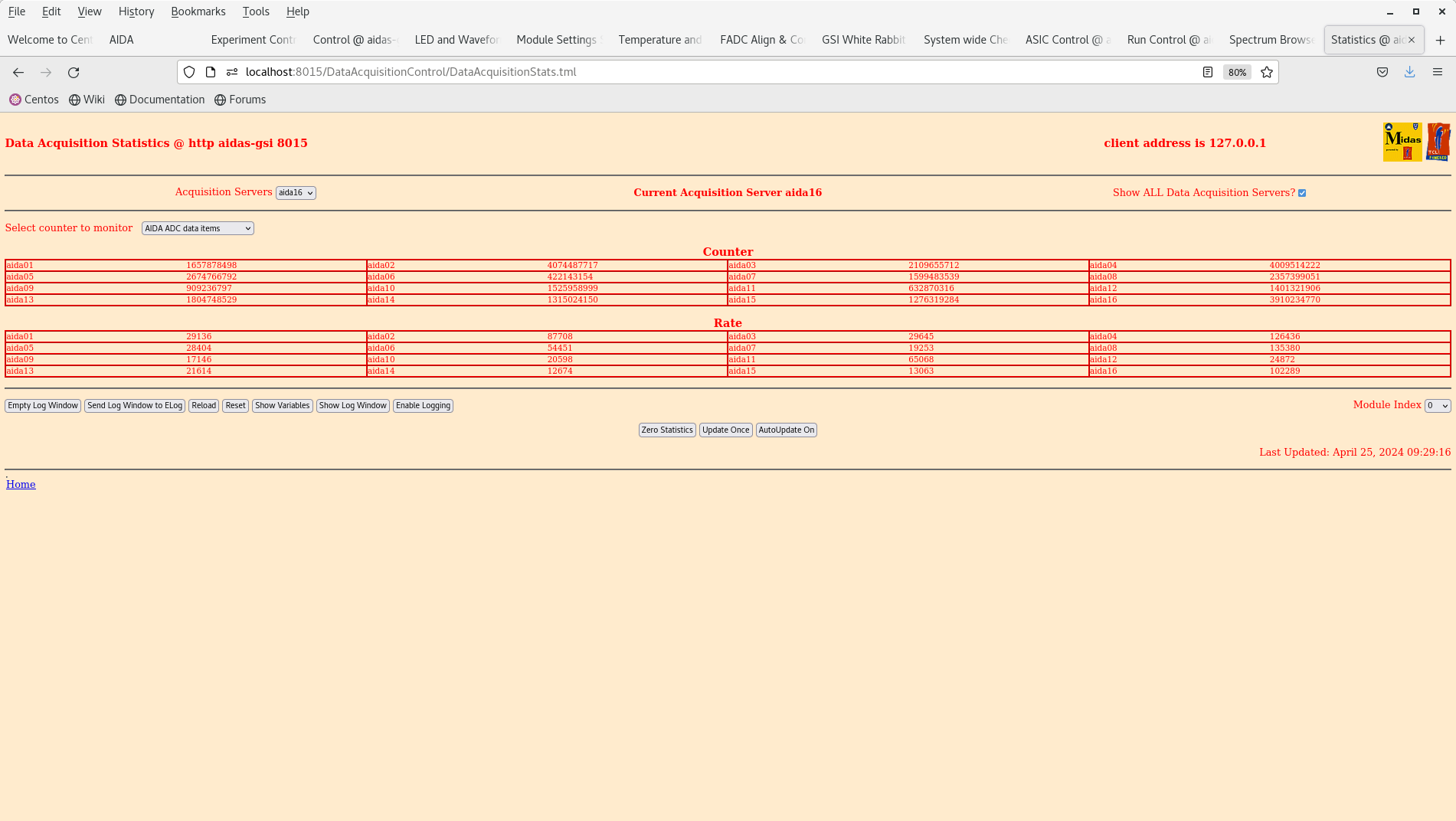

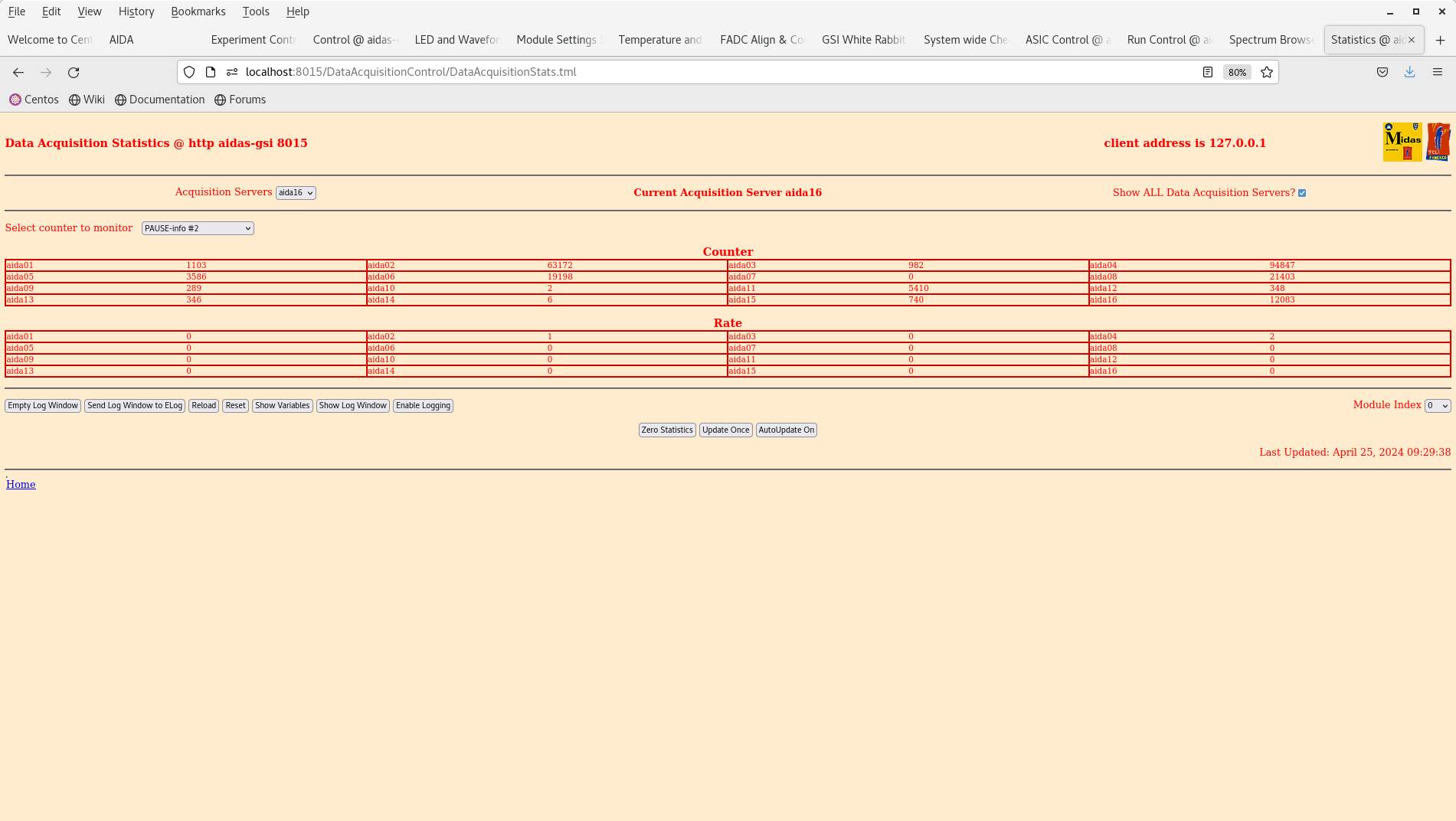

ADC, PAUSE, RESUME & Correlation Scaler data time stats - attachments 7-10

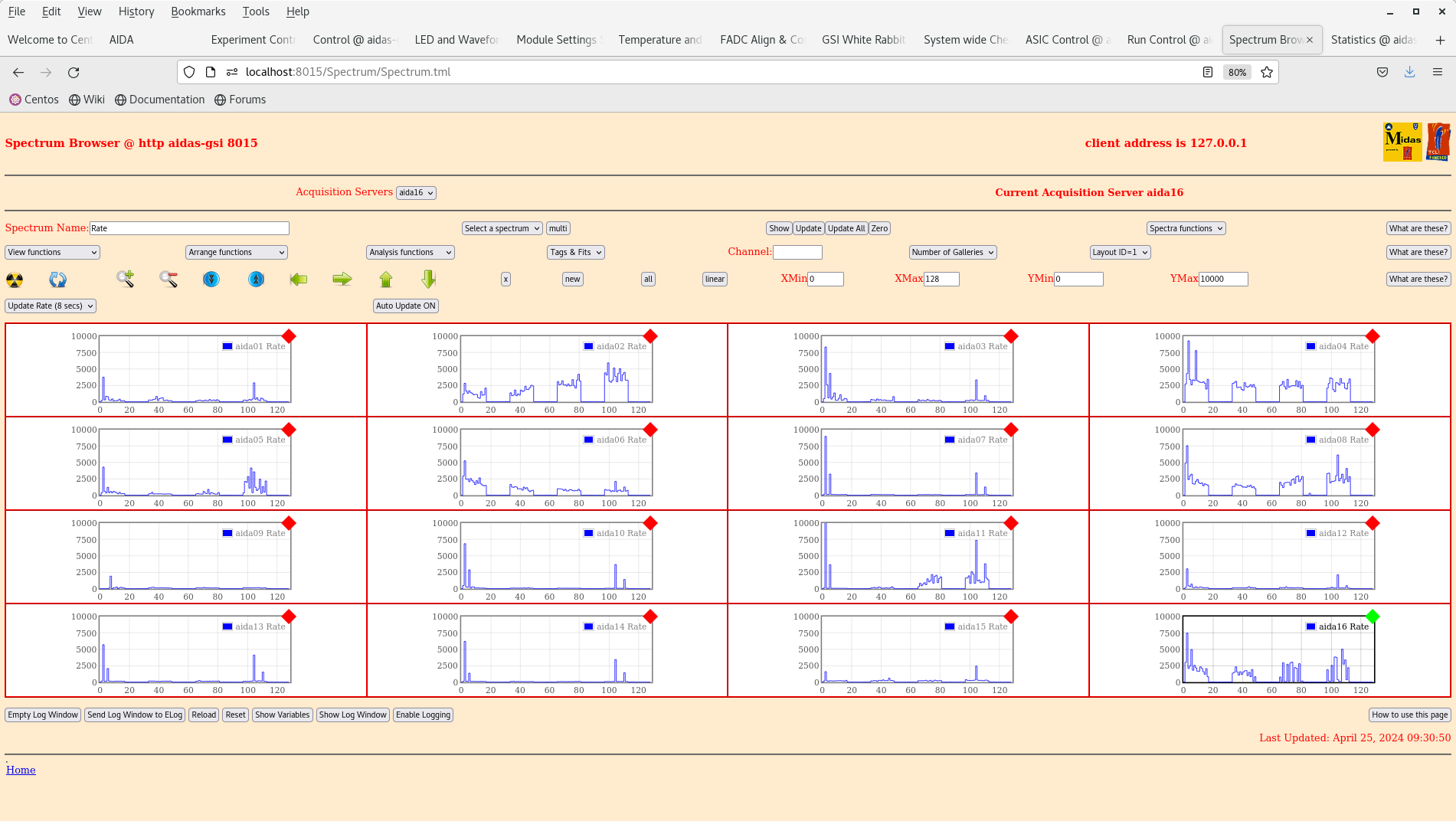

per FEE64 Rate spectra - attachments 11

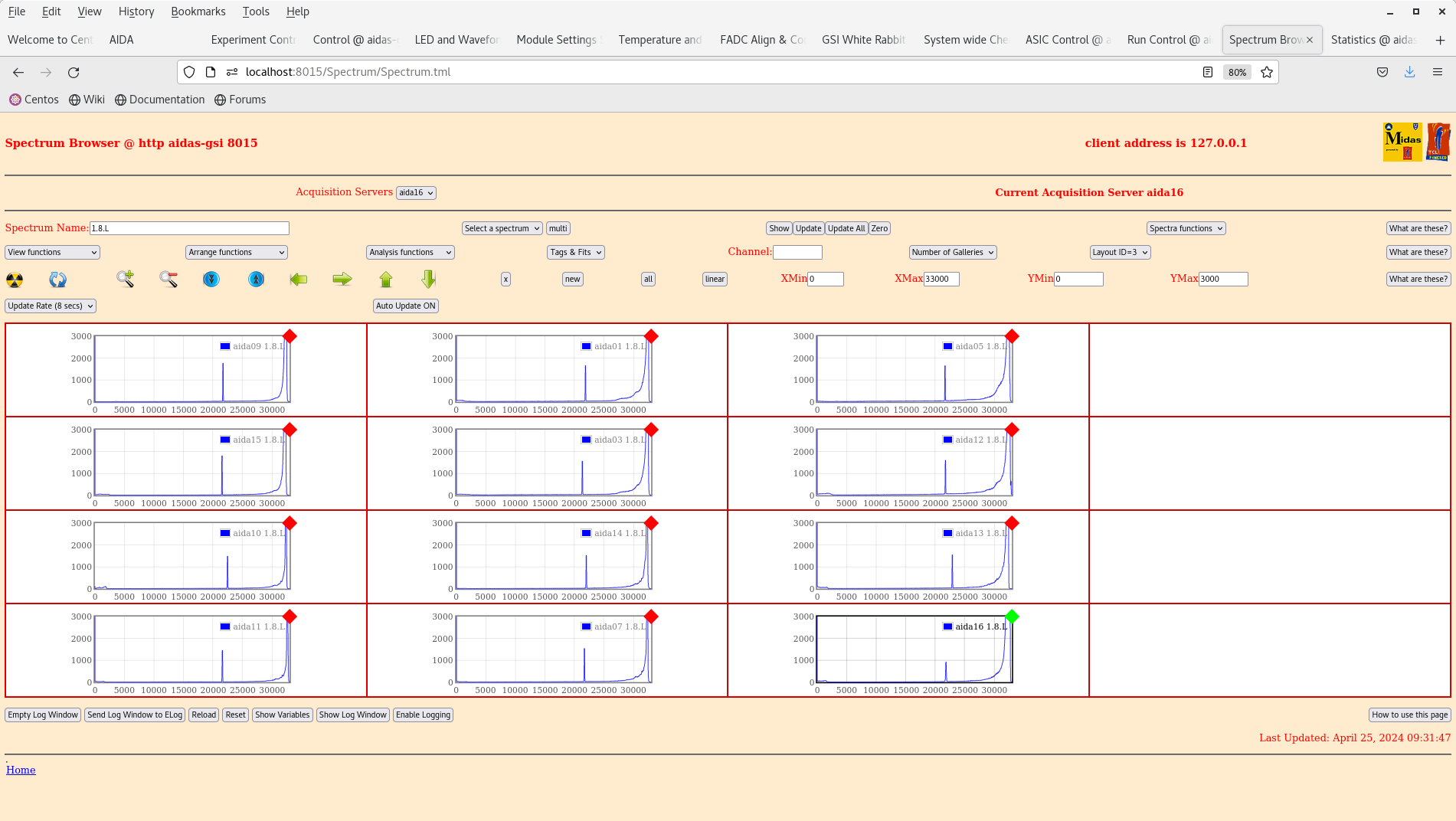

per p+n FEE64 1.8.L spectra - attachments 12-13
       aida09 pulser peak width 57 ch FWHM
       common x/y scale => peak height proxy for width => all p+n FEE64s similar pulser peak widths

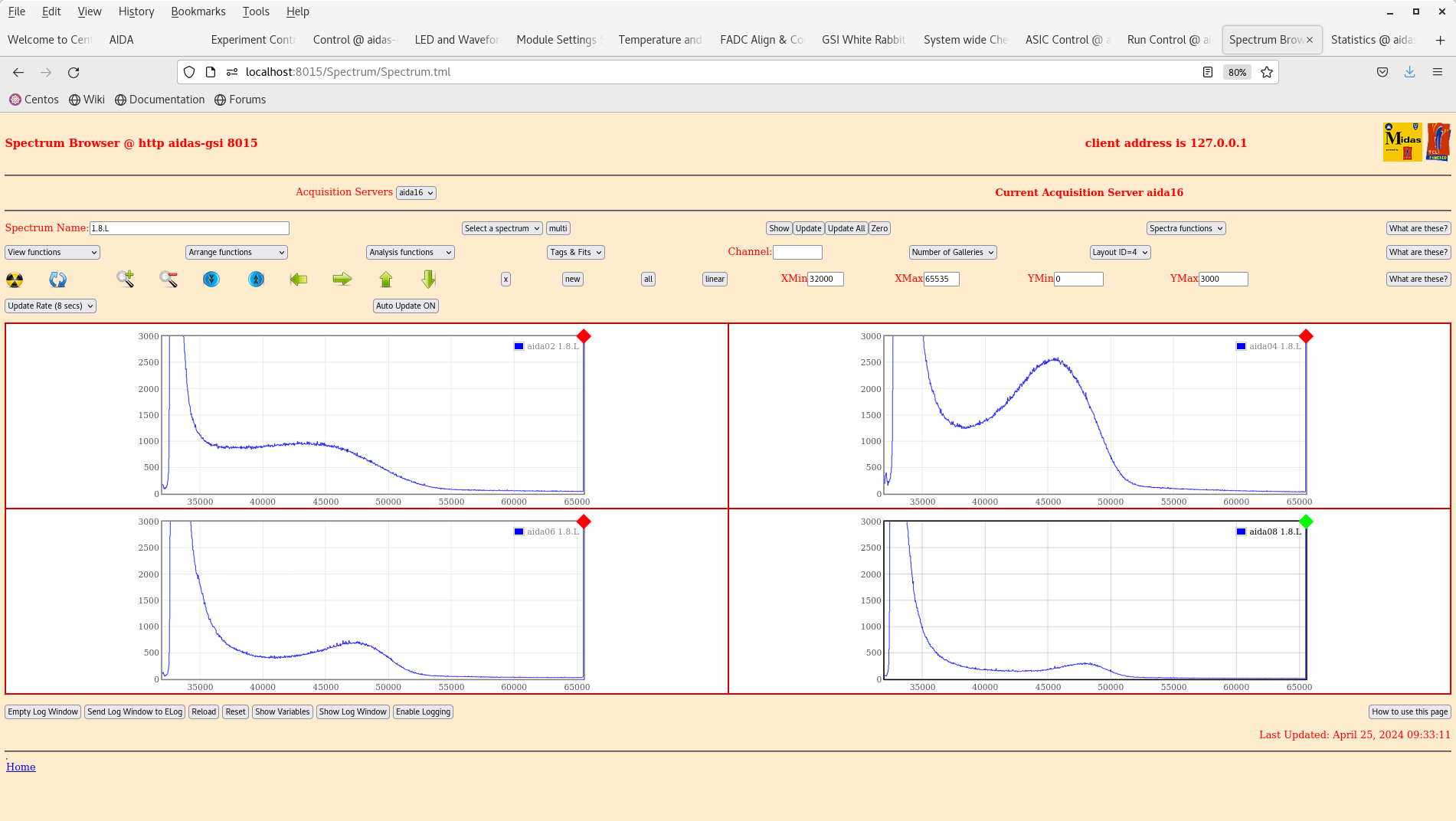

per n+n FEE64 1.8.L spectra - attachment 14

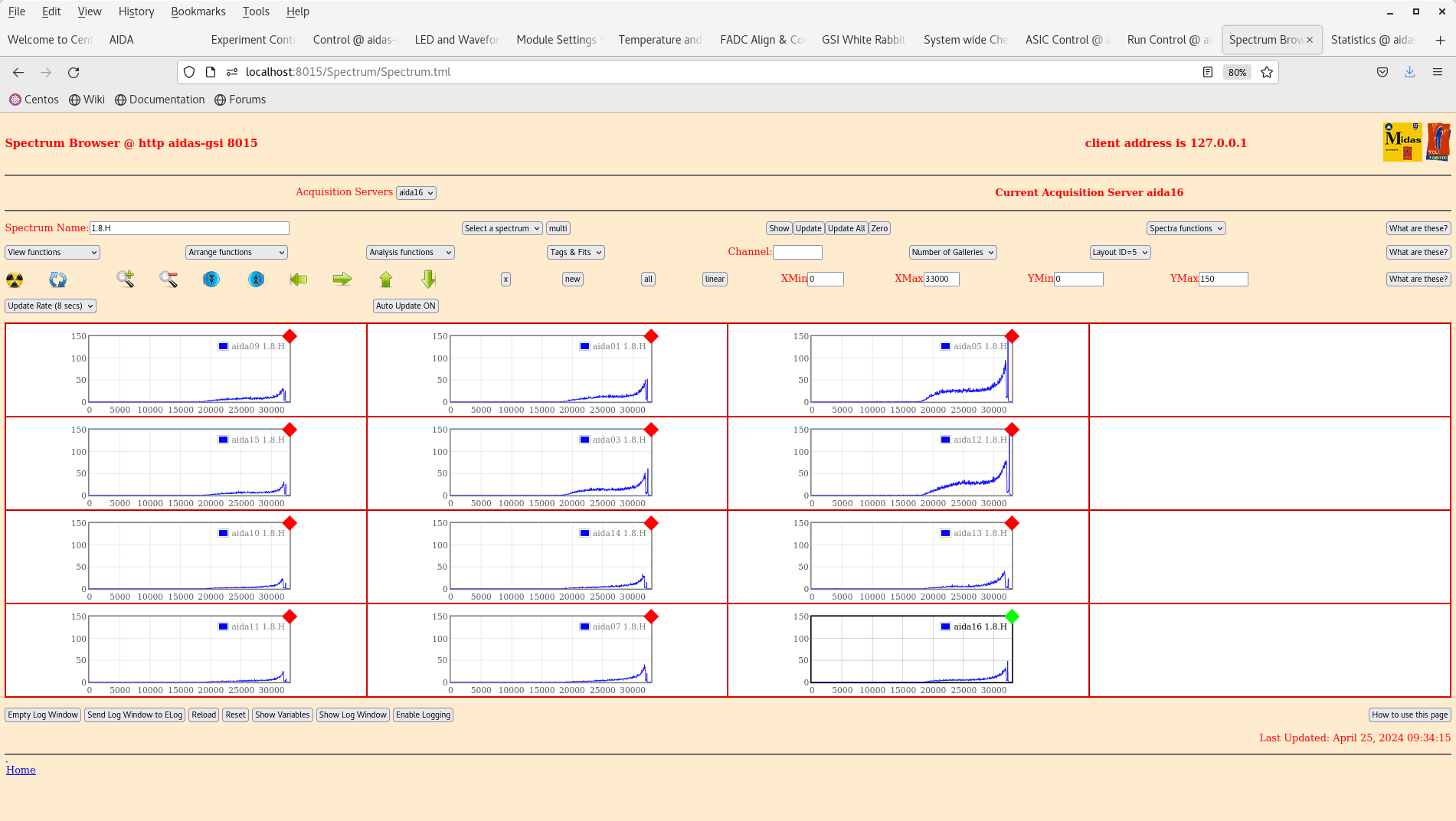

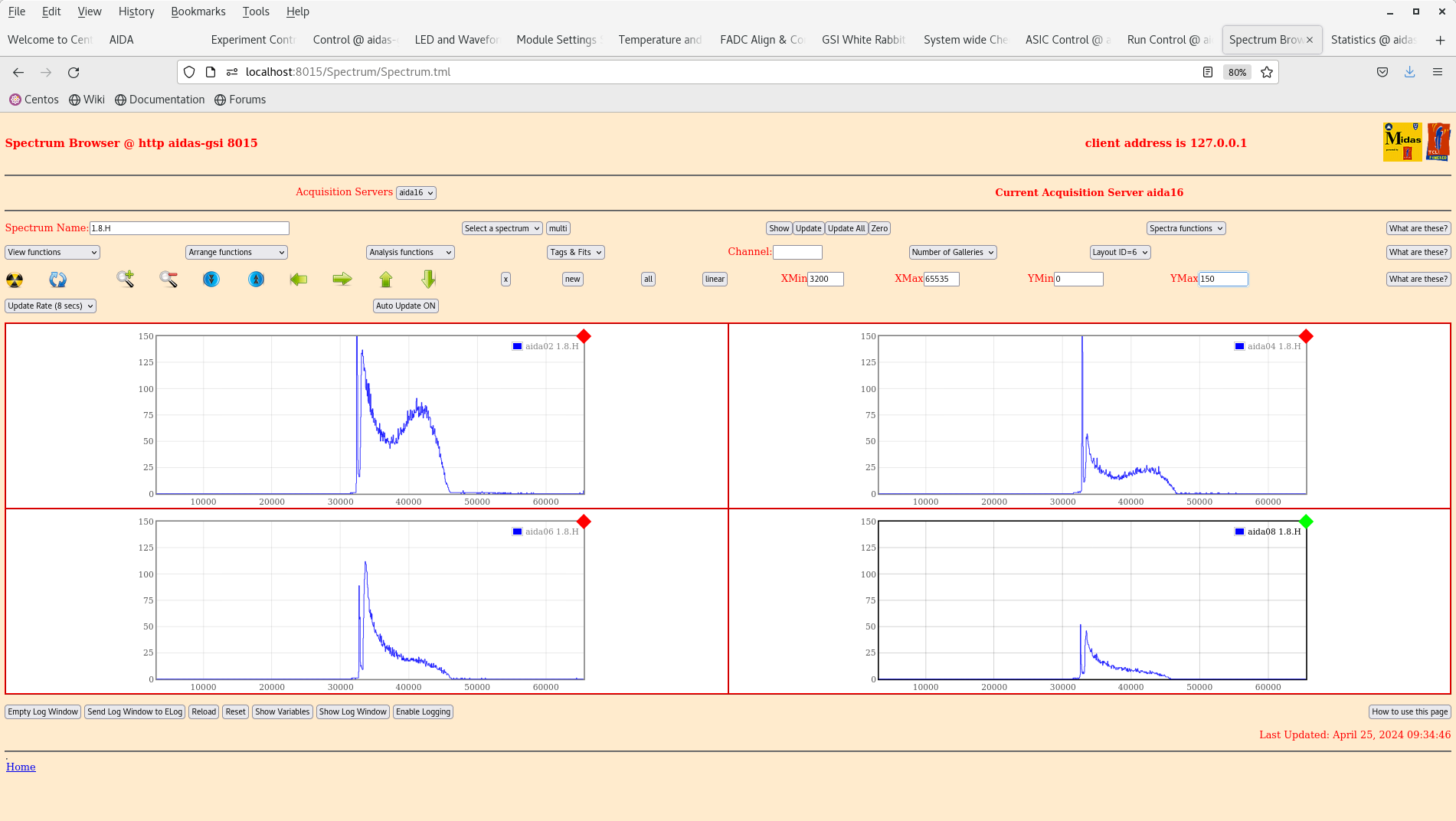

per FEE64 1.8.H spectra - attachments 15-16

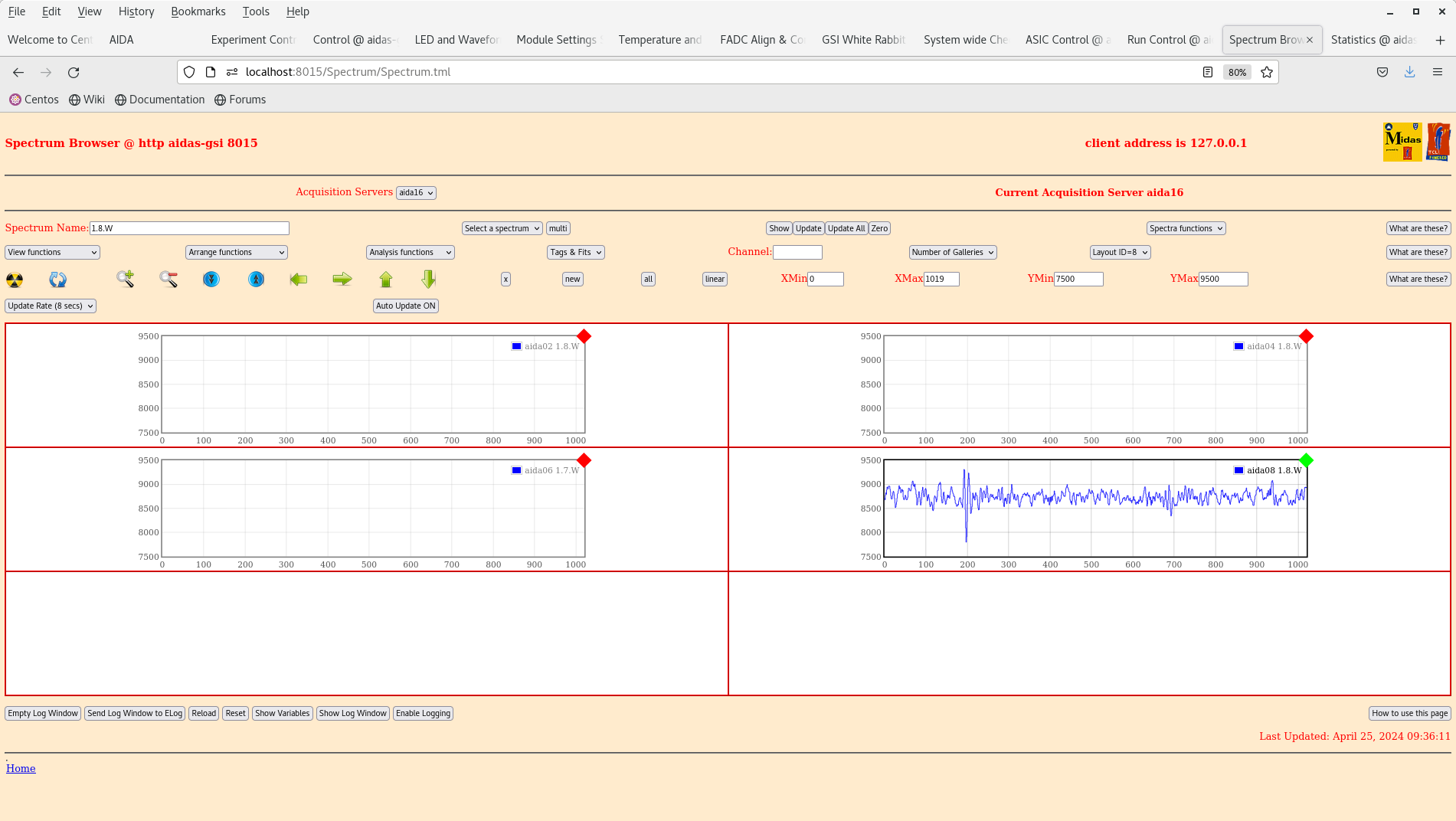

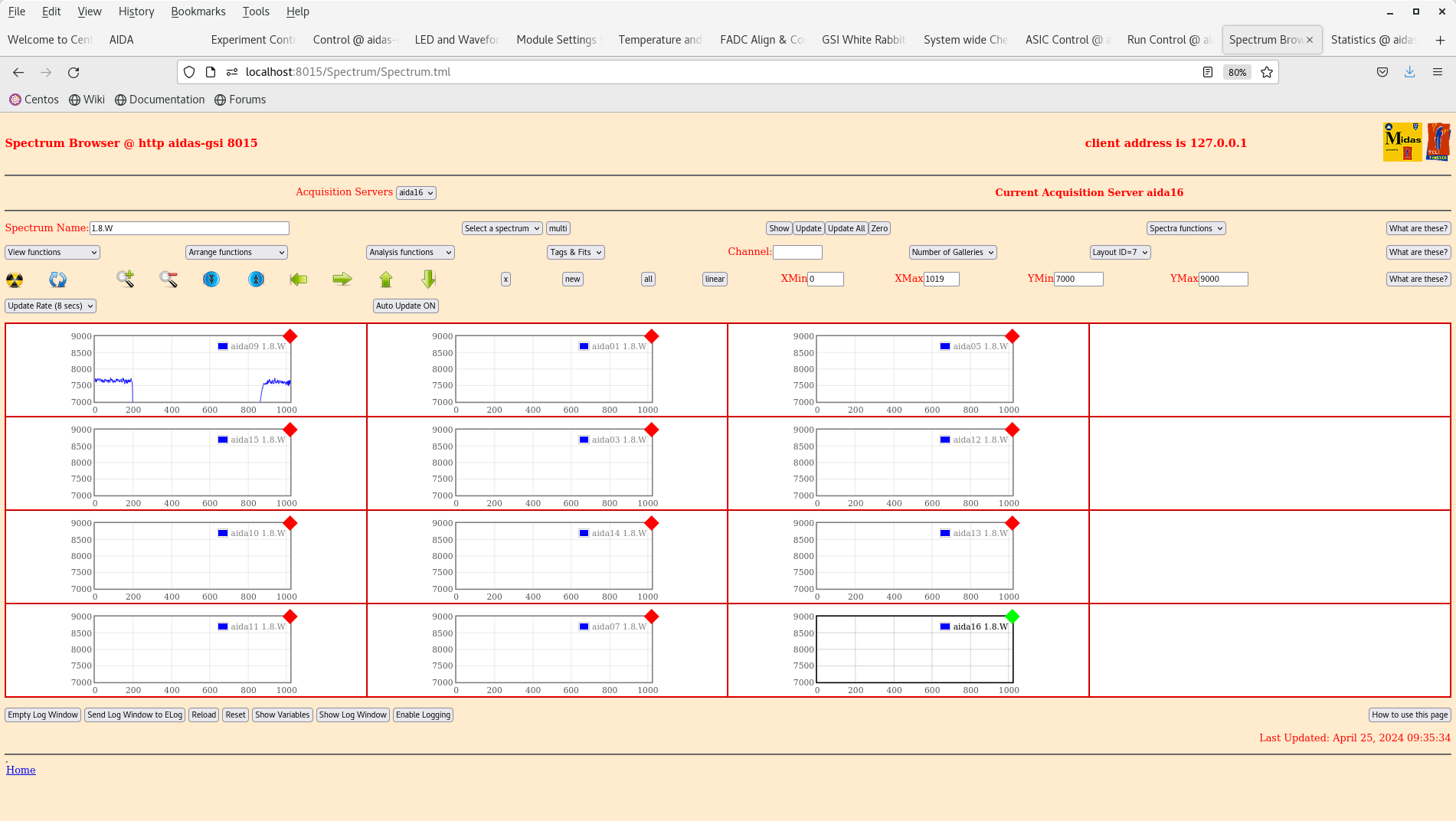

per FEE64 1.8.W spectra - 20us FSR - attachments 17-18
       only aida08 & aida09 currently updating - ASIC check load and/or DAQ STOP/GO required?

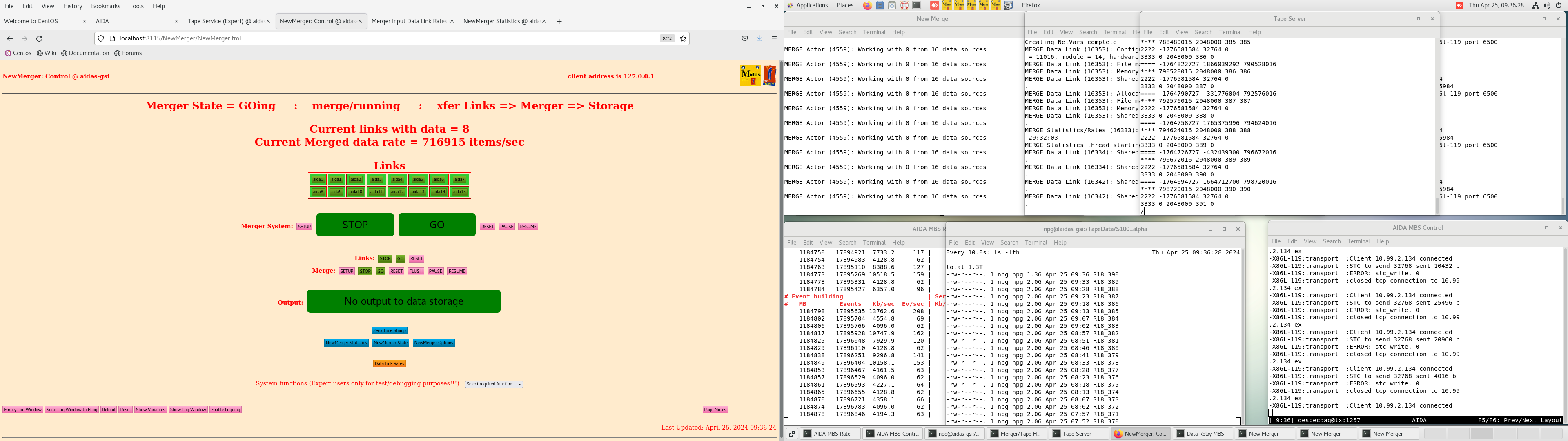

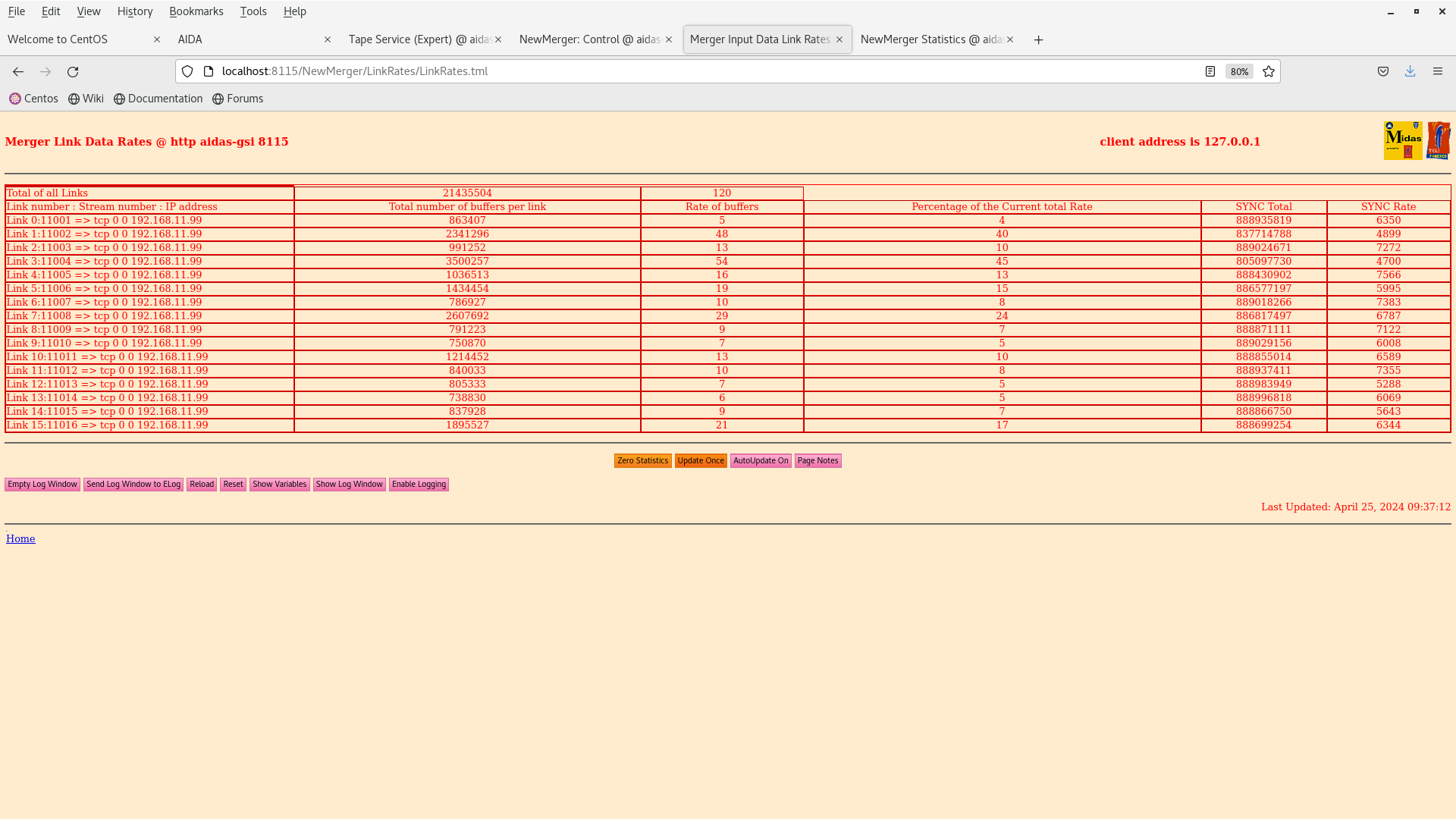

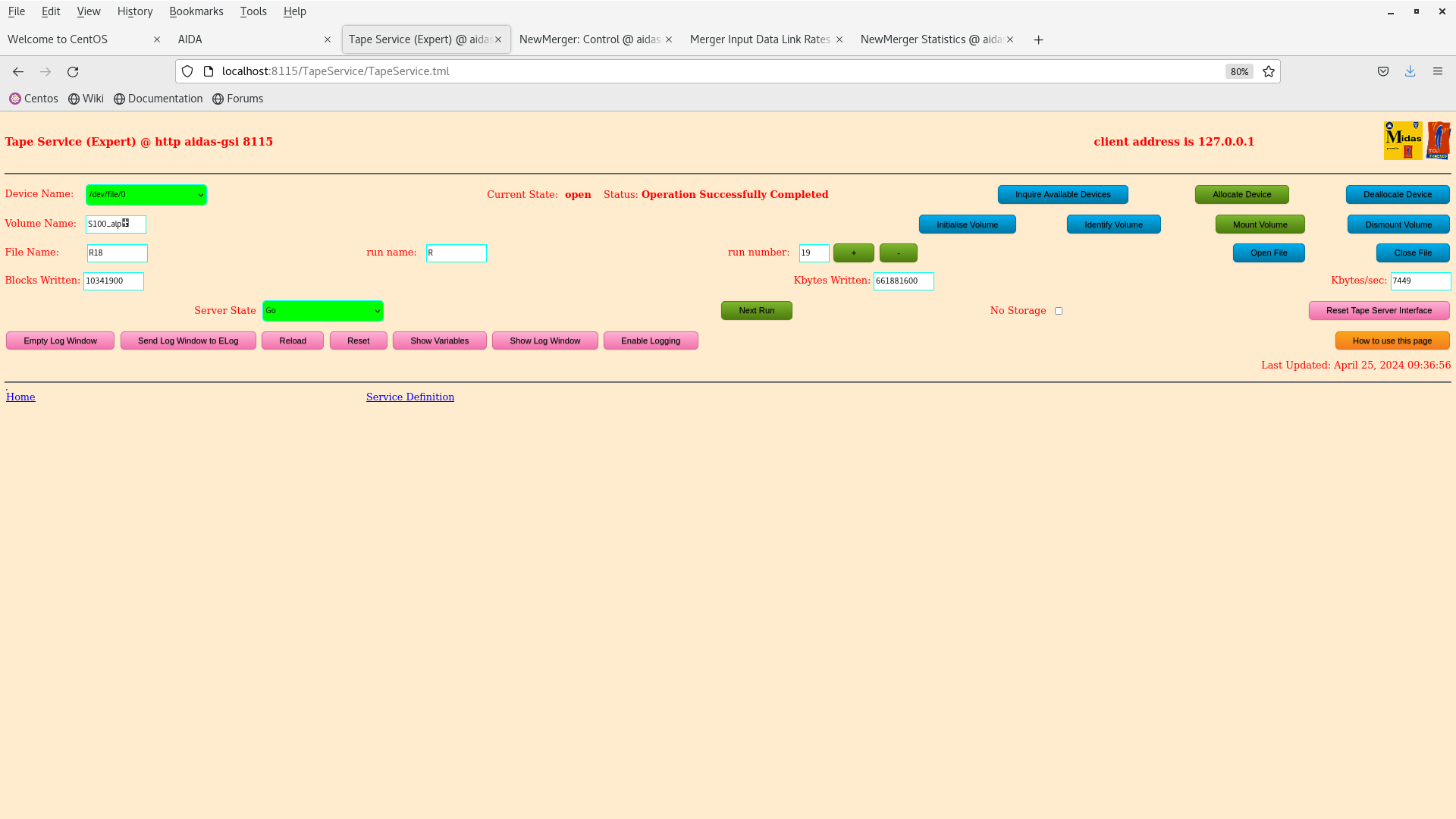

Merger, TapeServer etc - attachments 19-21

BNC PB-5 settings - attachment 22

10.07 data file S100_alpha/R20
      new run for new FRS setting

10.08 all histograms, stats, merger stats and data link stats zero'd

10.10 ADC data item stats (beam OFF) - attachment 23
      11/16 < 20k, max 129k (aida08)

10.31 analysis of data file R18_349 (closed 06.00 this morning)
      max deadtime 12% (aida04)
      no timewarps
      HEC data item rate 1.7kHz

11.00 tuning 168dy FRS setting

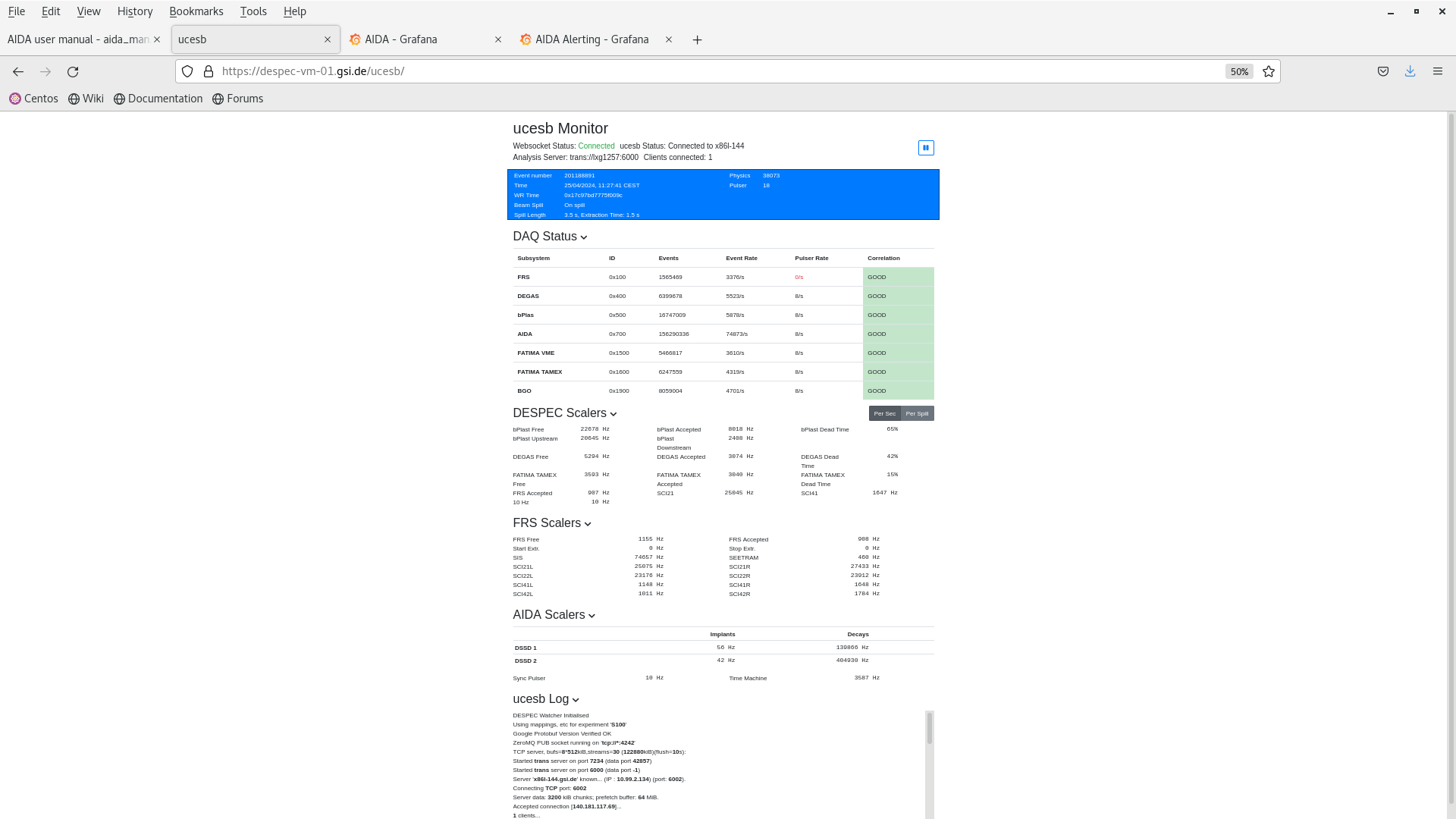

      ucesb - attachment 24
      spill length 3.5s, extraction time 1.5s

11.30 degraders now set to implant in AIDA DSSSDs
      high rates expected

per FEE64 Rate spectra - attachment 25

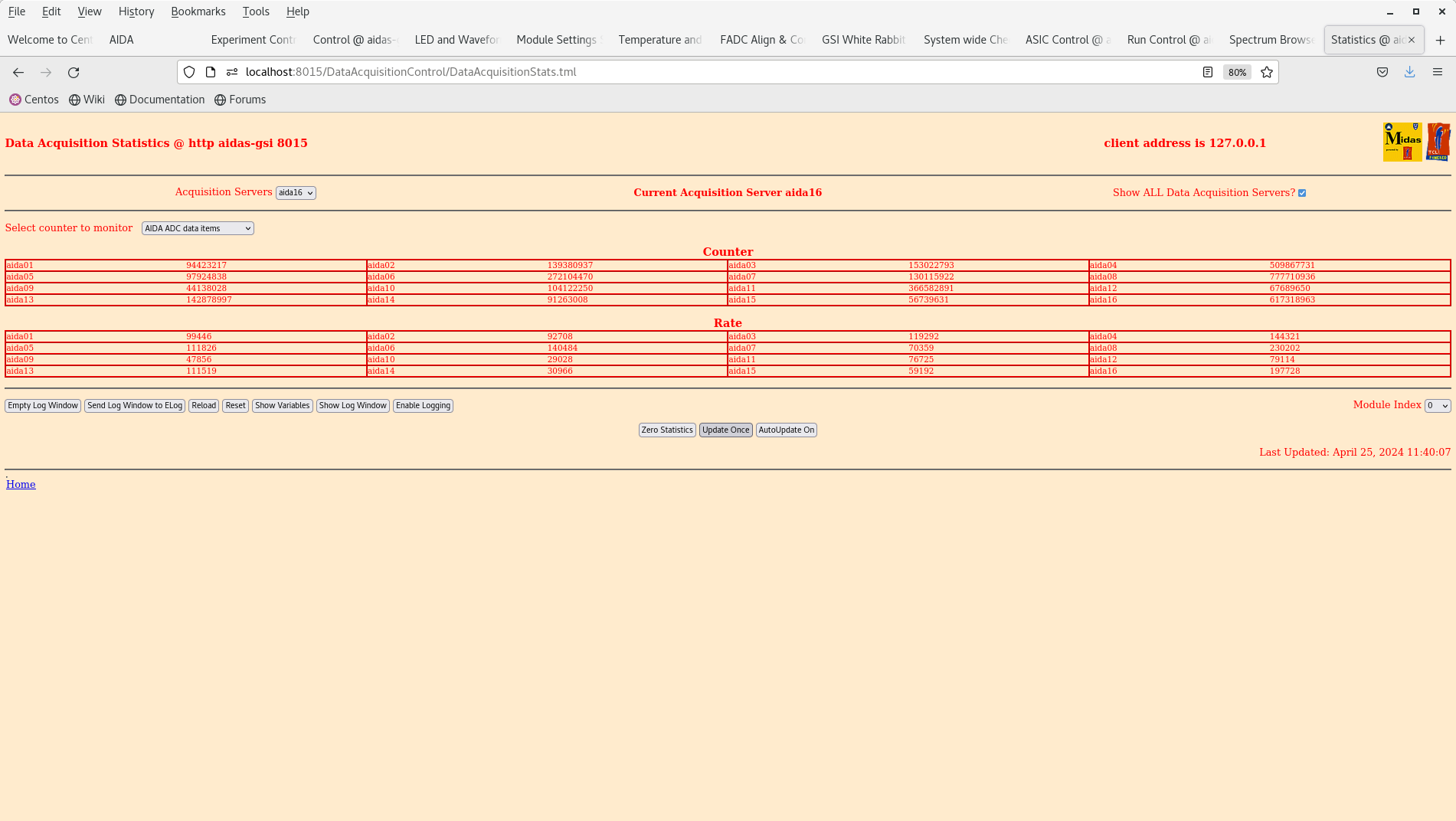

ADC data item stats - attachment 26

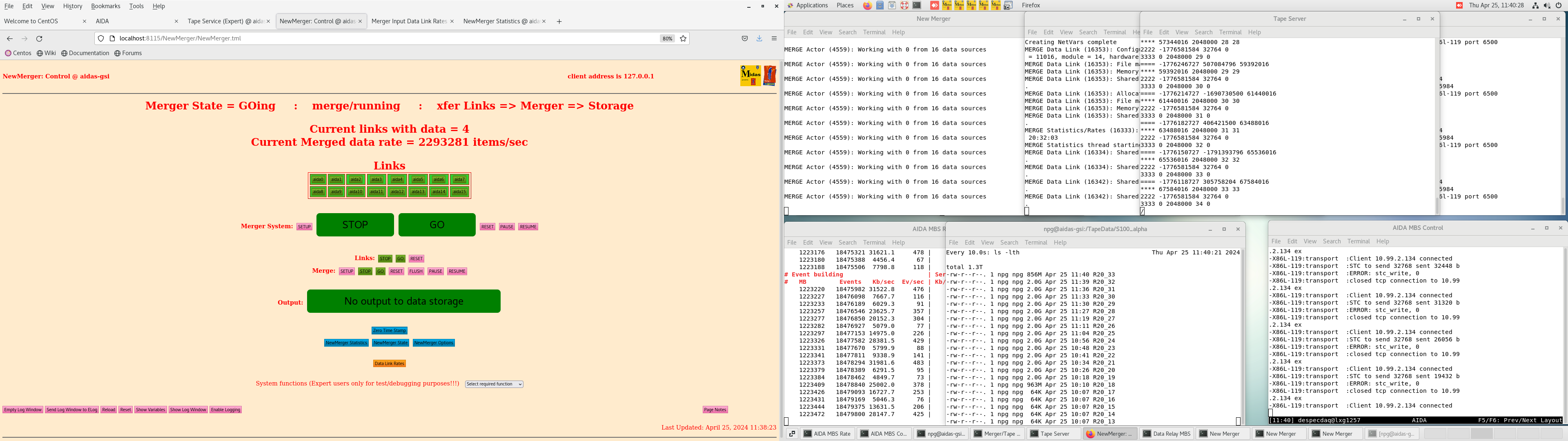

Merger etc - attachment 27
      in spill rates to MBS up 30+Mb/s, 2.5M data item/s merged

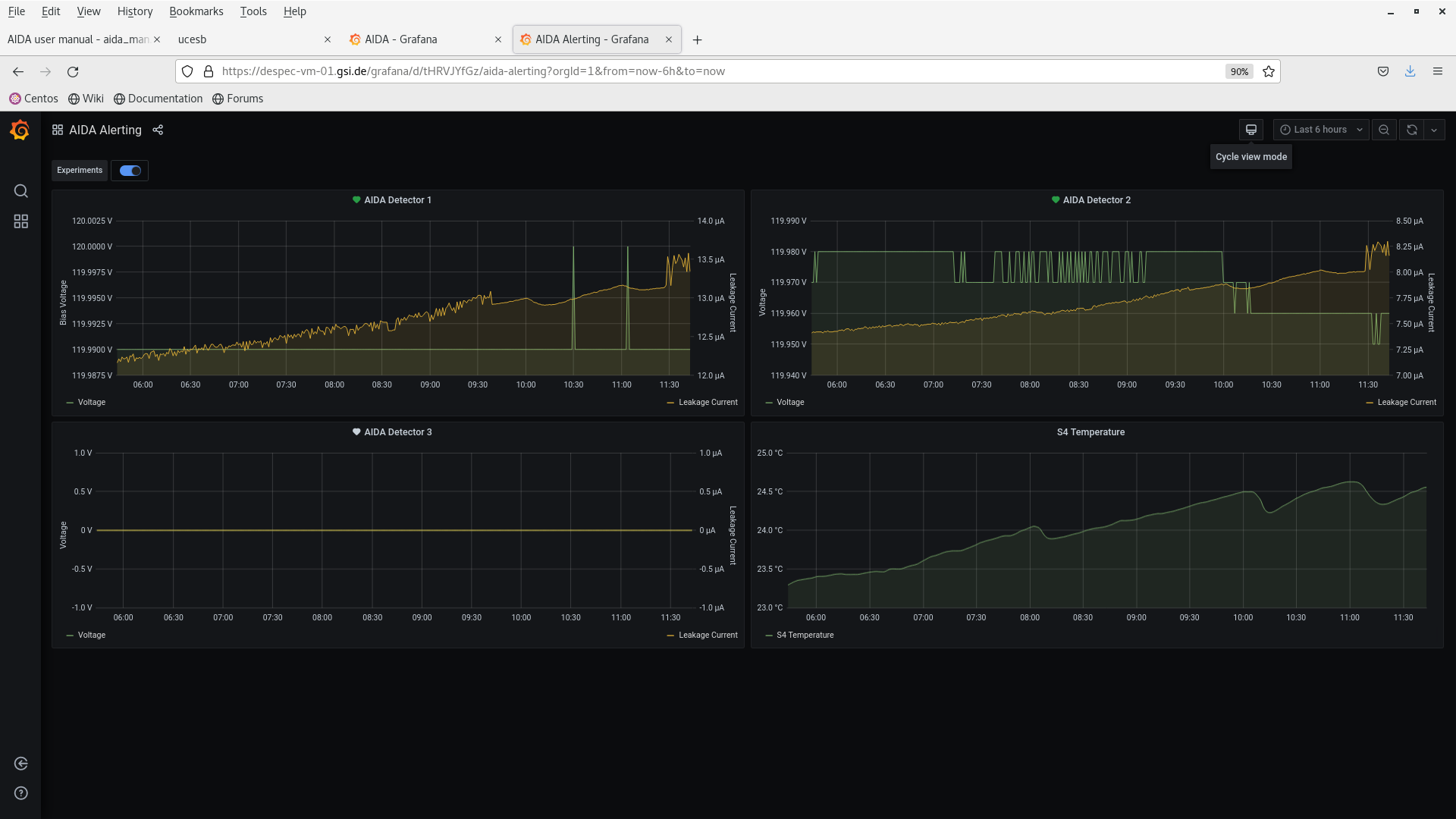

DSSSD bias & leakage current - attachment 28
       c. few hundred nA step in leakage current

analysis of data file R20_33 - attachment 29
      max deadtime 18% (aida08)
      no timewarps
      HEC data item rate 4.1kHz (c. 2.4x previous FRS setting)

Correcting for spill cycle => 5.9kHz in spill (online analysis shows no HEC events observed outside spill)
      assume typical HEC event multiplicity = 3 => implant rate ~ 2.0kHz in spill or 6800 implants per spill
      SC42 L/R currently report c. 4.5kHz

Note that we currently see a higher fraction of events in DSSSD#2 cf. previous setting so multiplicity assumption may be low
      If we assume multipicity = 6 => implant rate ~ 1.0kHz in spill or 3200 implants per spill

we are probably somewhere in between

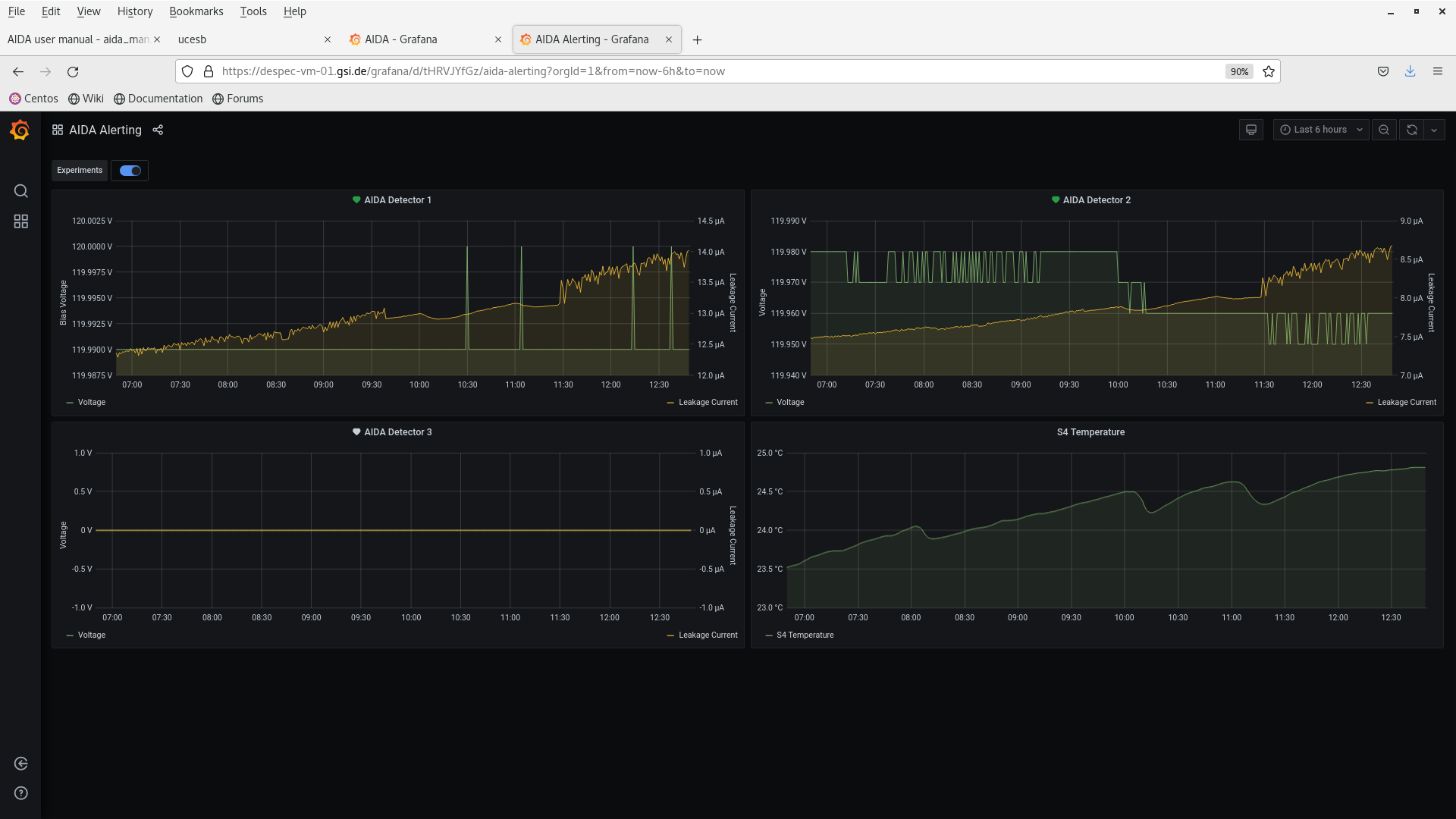

12.50 DSSSD bias & leakage current - Grafana - attachment 30
       leakage current ramping, spill micro structure observable

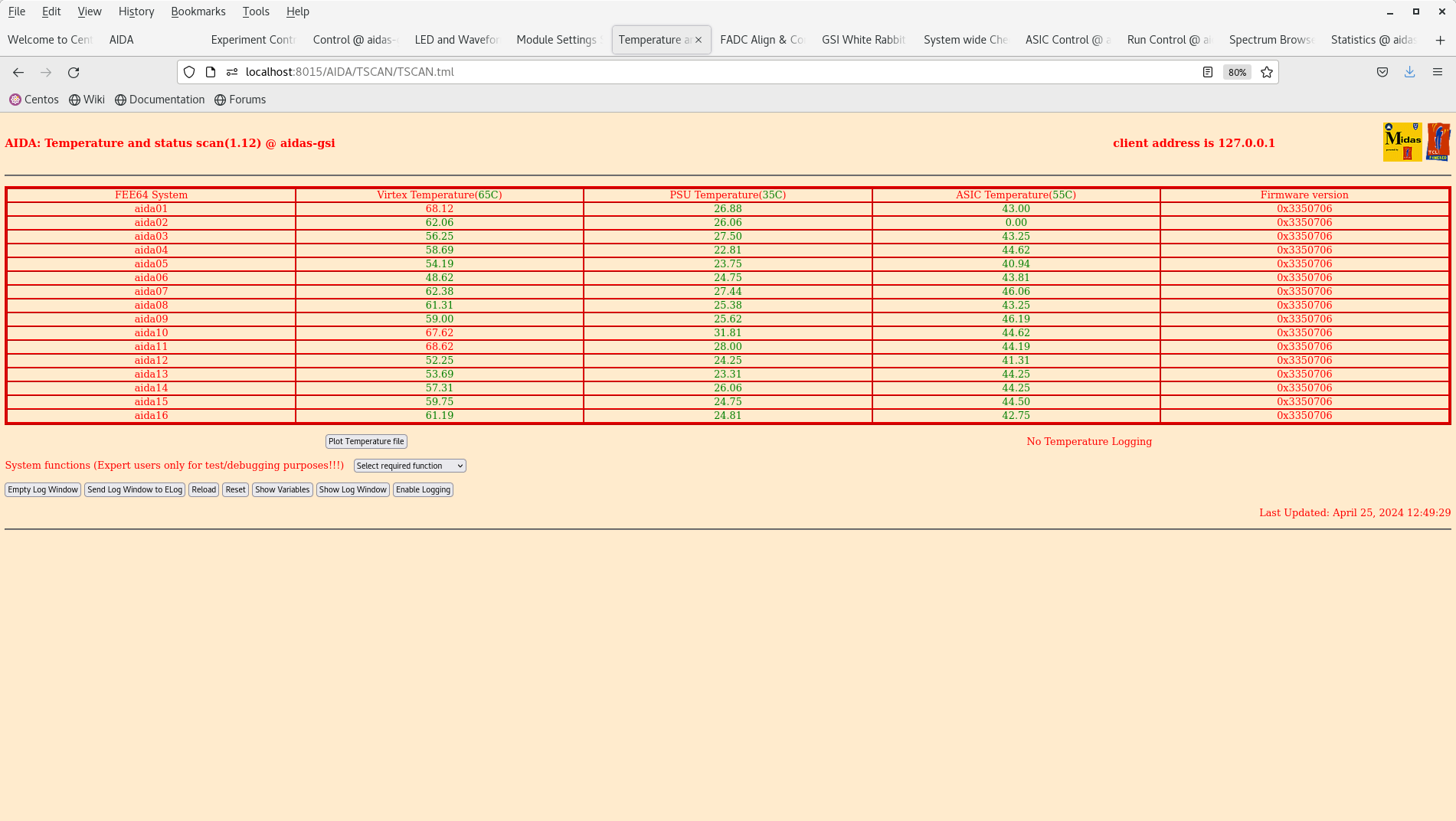

FEE64 temperatures OK - attachment 31

ADC data item stats - attachment 32

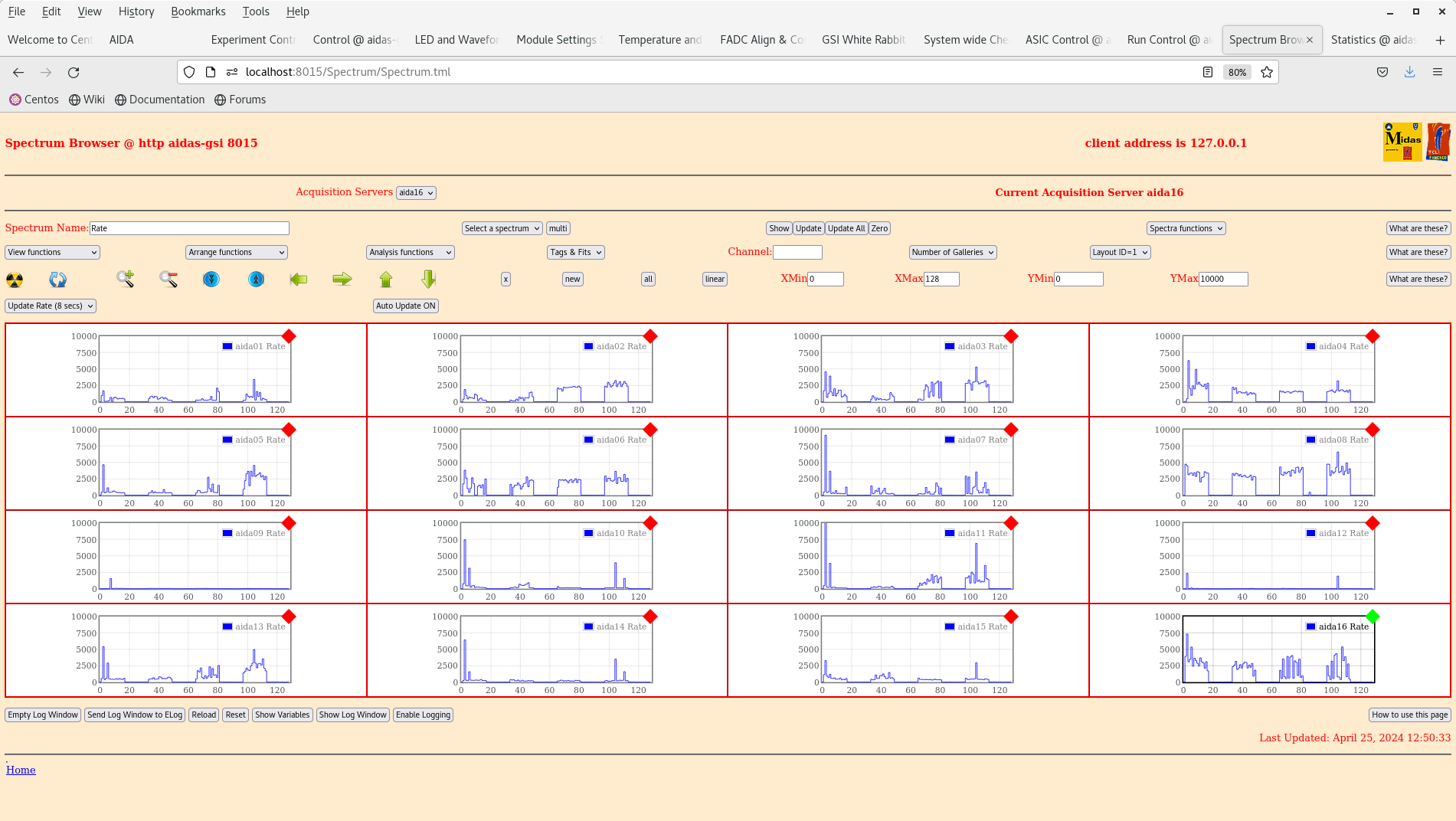

per FEE64 Rate spectra - attachment 33

Merger etc - attachment 34

14.56 analysis of data file R20_106 - attachment 35
      max deadtime c. 18% (aida04 & aida08), c. 12% (aida03), c. 11% (aida06), c. 9% (aida02 & aida13), c. 6% (aida05), all others <2%
      no timewarps
      HEC data item rate 4.2kHz

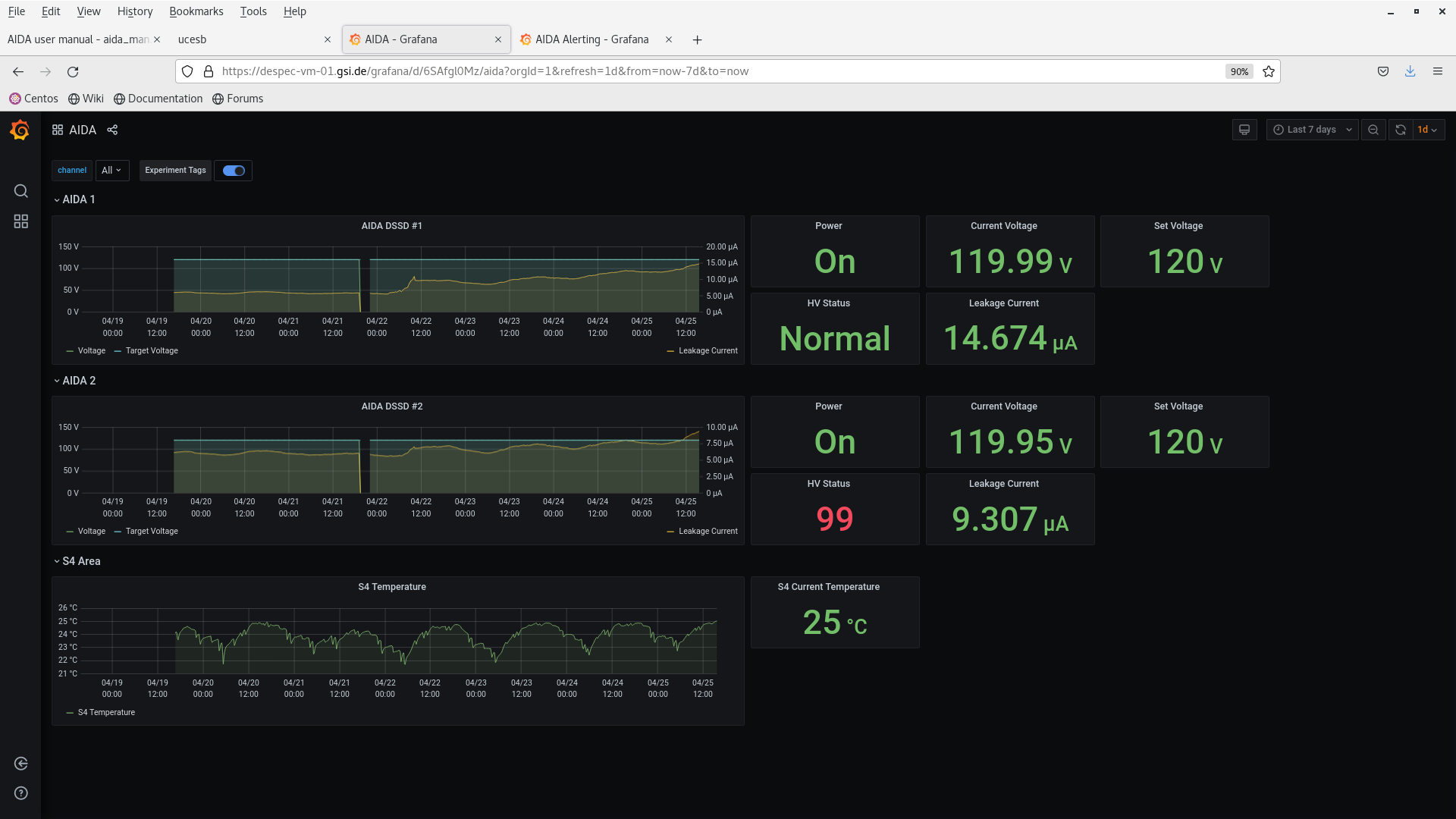

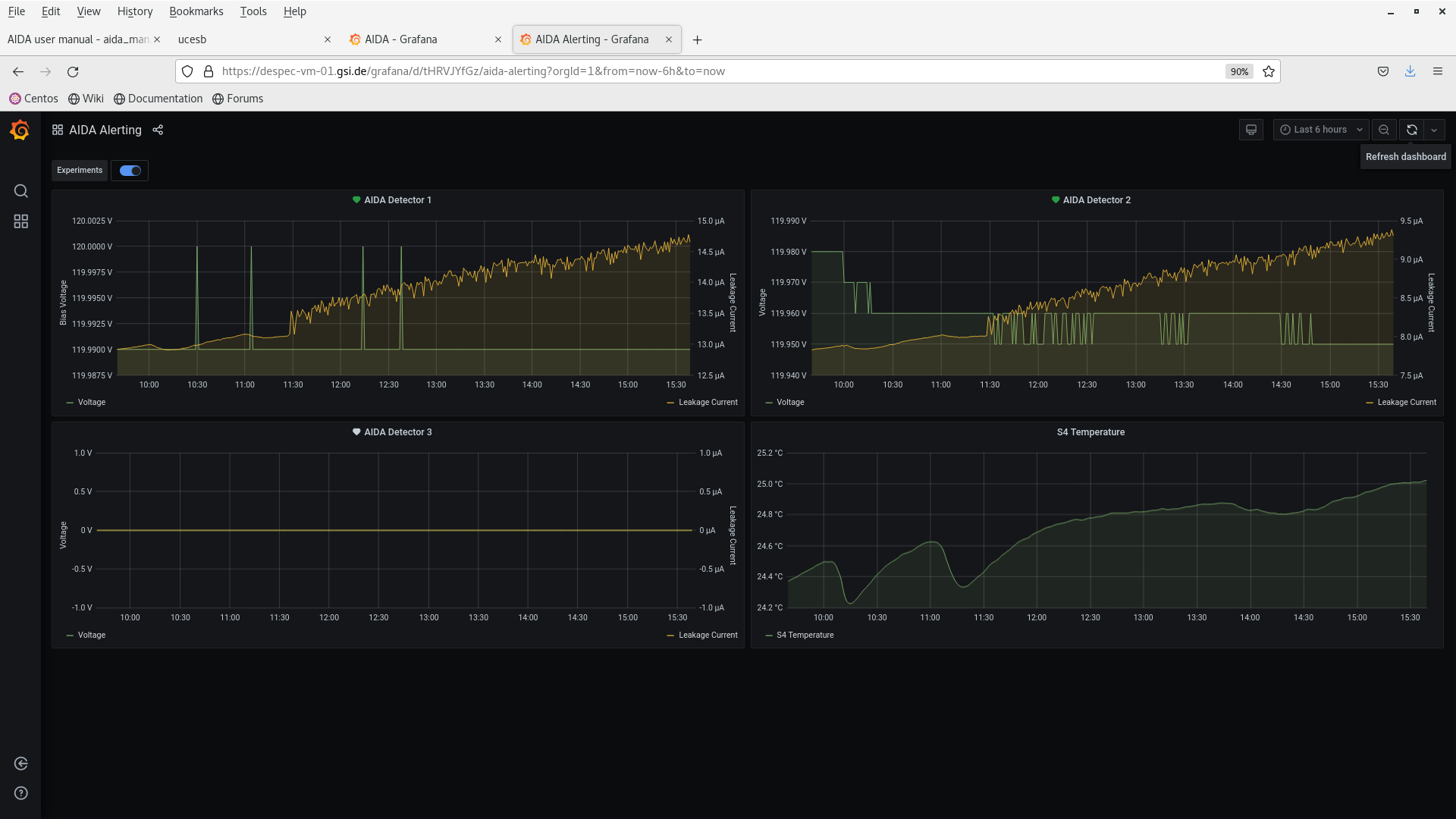

15.40 DSSSD bias & leakage current - Grafana - attachments 36-37
       leakage current ramping, spill micro structure observable

FEE64 temperatures OK - attachment 38

ADC data item stats - attachment 39

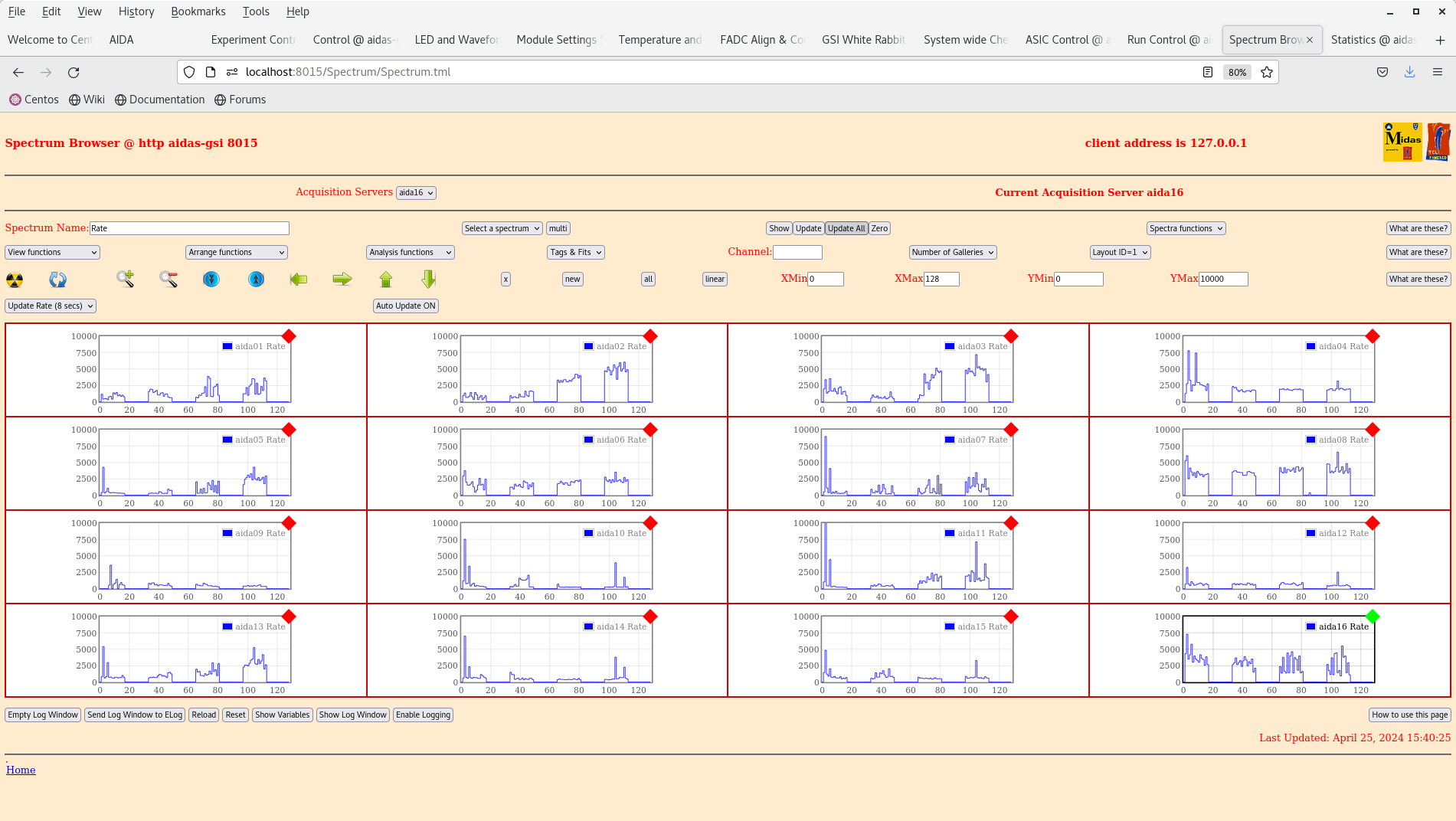

per FEE64 Rate spectra - attachment 40

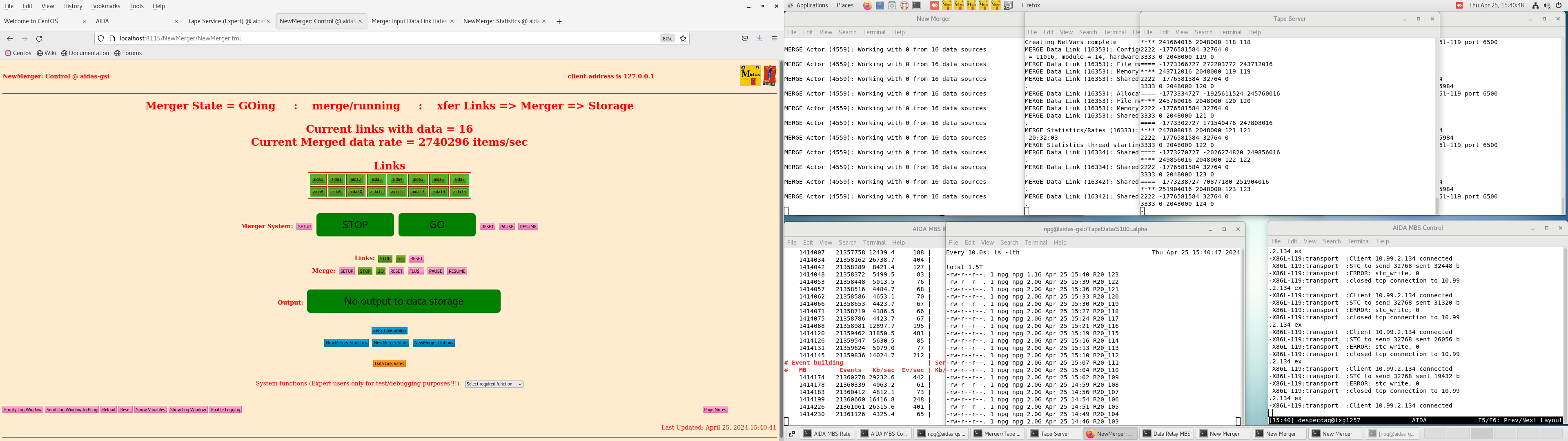

Merger etc - attachment 41

ucesb - attachment 42

15.57 all histograms zero'd

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2024-04-25_09-27-20.png Original size: 1920x1080

Attachment 2:

Screenshot_from_2024-04-25_09-27-44.png Original size: 1901x1072

Attachment 3:

Screenshot_from_2024-04-25_09-28-05.png Original size: 1901x1072

Attachment 4:

Screenshot_from_2024-04-25_09-28-16.png Original size: 1901x1072

Attachment 5:

Screenshot_from_2024-04-25_09-28-23.png Original size: 1901x1072

Attachment 6:

Screenshot_from_2024-04-25_09-29-04.png Original size: 1901x1072

Attachment 7:

Screenshot_from_2024-04-25_09-29-20.png Original size: 1901x1072

Attachment 8:

Screenshot_from_2024-04-25_09-29-46.png Original size: 1901x1072

Attachment 9:

Screenshot_from_2024-04-25_09-29-59.png Original size: 1901x1072

Attachment 10:

Screenshot_from_2024-04-25_09-30-15.png Original size: 1901x1072

Attachment 11:

Screenshot_from_2024-04-25_09-30-56.png Original size: 1901x1072

Attachment 12:

Screenshot_from_2024-04-25_09-31-55.png Original size: 1901x1072

Attachment 13:

Screenshot_from_2024-04-25_09-32-11.png Original size: 1901x1072

Attachment 14:

Screenshot_from_2024-04-25_09-33-15.png Original size: 1901x1072

Attachment 15:

Screenshot_from_2024-04-25_09-34-23.png Original size: 1901x1072

Attachment 16:

Screenshot_from_2024-04-25_09-34-52.png Original size: 1901x1072

Attachment 17:

Screenshot_from_2024-04-25_09-35-38.png Original size: 1901x1072

Attachment 18:

Screenshot_from_2024-04-25_09-36-14.png Original size: 1901x1072

Attachment 19:

Screenshot_from_2024-04-25_09-36-28.png Original size: 3840x1080

Attachment 20:

Screenshot_from_2024-04-25_09-37-02.png Original size: 1920x1080

Attachment 21:

Screenshot_from_2024-04-25_09-37-17.png Original size: 1920x1080

Attachment 22:

Screenshot_from_2024-04-25_10-02-31.png Original size: 476x712

Attachment 23:

R18_349

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  254055879 (  798496.4 Hz)
        Other data format:    7864121 (   24716.9 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        850 (       2.7 Hz)
                               RESUME:        851 (       2.7 Hz)
                              SYNC100:      33185 (     104.3 Hz)
                              WR48-63:      33185 (     104.3 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    7796050 (   24502.9 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     547807 (    1721.8 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      318.168 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.011                0.000
  1               15.547                0.000
  2                0.026                0.000
  3               39.441                0.000
  4                0.410                0.000
  5                0.954                0.000
  6                0.000                0.000
  7                0.601                0.000
  8                0.003                0.000
  9                0.000                0.000
 10                0.050                0.000
 11                0.014                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.017                0.000
 15                0.116                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    6649451      11230          0          0          3          3        839        839          0       9546          0      49433
  1   33550123     378474          0          0        245        245       4373       4373          0     369238          0     100748
  2    7942952    3356106          0          0          5          5       1429       1429          0    3353238          0      35304
  3   50066846    2782463          0          0        379        380       6547       6547          0    2768610          0      28219
  4   11634489     554162          0          0         19         19       1542       1542          0     551040          0      47658
  5   18478696     749338          0          0         77         77       2403       2403          0     744378          0      37331
  6    6034652       1500          0          0          0          0        750        750          0          0          0      11345
  7   41275133      10854          0          0         71         71       5356       5356          0          0          0      92779
  8    3808950        934          0          0          2          2        465        465          0          0          0      19548
  9    5816078       1448          0          0          0          0        724        724          0          0          0       8443
 10   16595017       4342          0          0         16         16       2155       2155          0          0          0       3675
 11    5732285       1360          0          0          2          2        678        678          0          0          0      65221
 12    7170732       1770          0          0          0          0        885        885          0          0          0      12515
 13    5117877       1350          0          0          0          0        675        675          0          0          0      13502
 14    5096608       1234          0          0          2          2        615        615          0          0          0       7339
 15   29085990       7556          0          0         29         29       3749       3749          0          0          0      14747
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   31.840s ( 1005.030 blocks/s,  62.814 Mb/s)

Attachment 24:

Screenshot_from_2024-04-25_11-27-43.png Original size: 1920x1080

Attachment 25:

Screenshot_from_2024-04-25_11-39-59.png Original size: 1901x1072

Attachment 26:

Screenshot_from_2024-04-25_11-40-11.png Original size: 1901x1072

Attachment 27:

Screenshot_from_2024-04-25_11-40-28.png Original size: 3840x1080

Attachment 28:

Screenshot_from_2024-04-25_11-43-22.png Original size: 1920x1080

Attachment 29:

R20_33

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  257467881 ( 1603138.0 Hz)
        Other data format:    4452119 (   27721.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1792 (      11.2 Hz)
                               RESUME:       1788 (      11.1 Hz)
                              SYNC100:      32598 (     203.0 Hz)
                              WR48-63:      32598 (     203.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    4383343 (   27293.1 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     659812 (    4108.4 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      160.602 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                4.032                0.000
  1               14.271                0.000
  2               17.643                0.000
  3               26.583                0.000
  4               10.476                0.000
  5               15.929                0.000
  6                1.815                0.000
  7               29.387                0.000
  8                0.158                0.000
  9                0.036                0.000
 10                0.592                0.000
 11                0.531                0.000
 12               14.310                0.000
 13                0.165                0.000
 14                0.189                0.000
 15                0.995                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   14126134       8441          0          0         70         70       1791       1791          0       4719          0      78615
  1   16495785     288035          0          0        163        162       2094       2094          0     283522          0     105734
  2   19988207    1651337          0          0        161        161       2732       2732          0    1645551          0      49977
  3   24594867    1476087          0          0        215        214       3183       3183          0    1469292          0      26591
  4   15580694     468076          0          0        119        119       1941       1941          0     463956          0      27262
  5   22750595     522722          0          0        300        299       2910       2910          0     516303          0      62407
  6   11629769       3045          0          0         37         36       1486       1486          0          0          0      11991
  7   37179788       9710          0          0        273        273       4582       4582          0          0          0      86342
  8    7628214       1994          0          0          9          9        988        988          0          0          0       1179
  9    5725517       1418          0          0          5          5        704        704          0          0          0       1622
 10   13190745       3550          0          0         69         69       1706       1706          0          0          0         70
 11    9285908       2326          0          0         29         29       1134       1134          0          0          0      74999
 12   16713447       4700          0          0        252        252       2098       2098          0          0          0      21646
 13    6115493       1498          0          0         25         25        724        724          0          0          0      35370
 14    8494444       2072          0          0         11         11       1025       1025          0          0          0         92
 15   27968274       7108          0          0         54         54       3500       3500          0          0          0      75915
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   34.629s (  924.083 blocks/s,  57.755 Mb/s)

Attachment 30:

Screenshot_from_2024-04-25_12-50-09.png Original size: 1920x1080

Attachment 31:

Screenshot_from_2024-04-25_12-50-16.png Original size: 1901x1072

Attachment 32:

Screenshot_from_2024-04-25_12-50-28.png Original size: 1901x1072

Attachment 33:

Screenshot_from_2024-04-25_12-50-35.png Original size: 1901x1072

Attachment 34:

Screenshot_from_2024-04-25_12-51-02.png Original size: 3840x1080

Attachment 35:

R20_106

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  257522900 ( 1655989.1 Hz)
        Other data format:    4397100 (   28275.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1842 (      11.8 Hz)
                               RESUME:       1844 (      11.9 Hz)
                              SYNC100:      32579 (     209.5 Hz)
                              WR48-63:      32579 (     209.5 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    4328256 (   27832.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     659185 (    4238.9 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      155.510 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                3.085                0.000
  1               13.568                0.000
  2               18.124                0.000
  3               27.697                0.000
  4                9.792                0.000
  5               16.474                0.000
  6                2.671                0.000
  7               28.543                0.000
  8                0.065                0.000
  9                0.015                0.000
 10                0.643                0.000
 11                0.597                0.000
 12               14.389                0.000
 13                0.083                0.000
 14                0.439                0.000
 15                1.481                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   13689199       8238          0          0         65         65       1771       1771          0       4566          0      77953
  1   16947527     287988          0          0        165        166       2170       2170          0     283317          0     104868
  2   20356284    1630731          0          0        174        175       2797       2797          0    1624788          0      51128
  3   23896908    1435934          0          0        213        214       3077       3077          0    1429353          0      26122
  4   15647459     464207          0          0        117        117       2008       2008          0     459957          0      27024
  5   22696175     532714          0          0        306        305       2914       2914          0     526275          0      64287
  6   12236208       3082          0          0         42         42       1499       1499          0          0          0      11994
  7   36272075       9624          0          0        259        259       4553       4553          0          0          0      84854
  8    7567267       1906          0          0          4          4        949        949          0          0          0       1286
  9    5993294       1442          0          0          3          3        718        718          0          0          0       1730
 10   13223300       3544          0          0         82         82       1690       1690          0          0          0         53
 11    9630981       2436          0          0         36         36       1182       1182          0          0          0      75223
 12   16792007       4646          0          0        270        270       2053       2053          0          0          0      21202
 13    6155506       1514          0          0         19         19        738        738          0          0          0      35333
 14    8544527       2006          0          0         19         19        984        984          0          0          0         68
 15   27874183       7088          0          0         68         68       3476       3476          0          0          0      76060
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   30.426s ( 1051.740 blocks/s,  65.734 Mb/s)

Attachment 36:

Screenshot_from_2024-04-25_15-39-07.png Original size: 1920x1080
