06.00 DAQ continues file S100_alpha/R20_740
      FRS setting 162Eu

DSSSD bias & leakage current - Grafana - attachments 1-2
       leakage currents tracking S4 ambient temperature

FEE64 temperatures OK - attachment 3

All system wide checks OK *except*

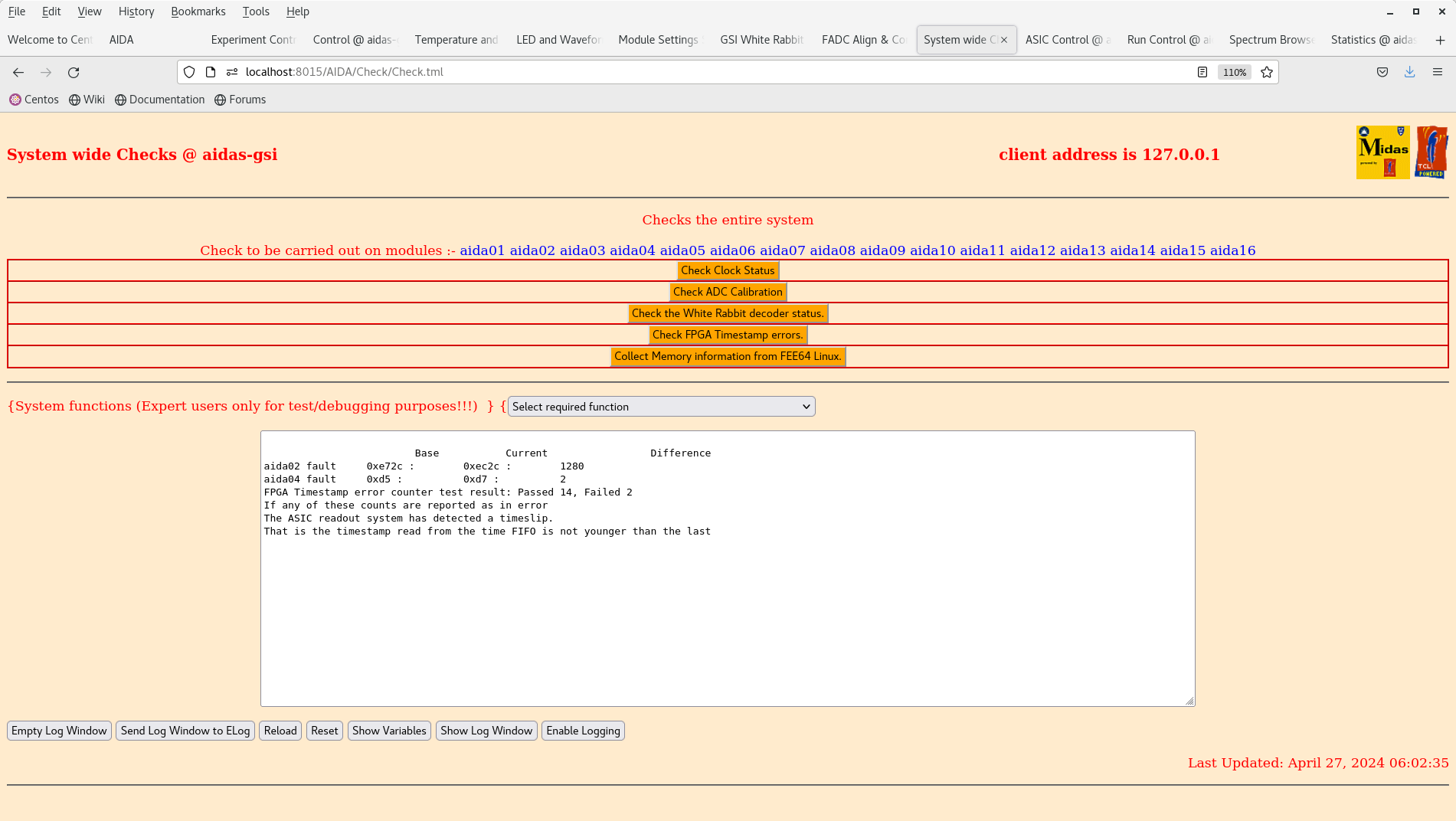

       as reported - attachments 4-5
       *all* ADCs not calibrated (not calibrated post-synchronise ASIC clocks at most recent restart)

WR timestamps OK - attachment 6

ADC, PAUSE, RESUME, Correlation scaler data item stats OK - attachments 7-10

per FEE64 Rate spectra - attachment 11

per p+n FEE64 1.8.L specra - attachments 12-13
       aida09 pulser peak width 55 ch FWHM (~38keV FWHM)

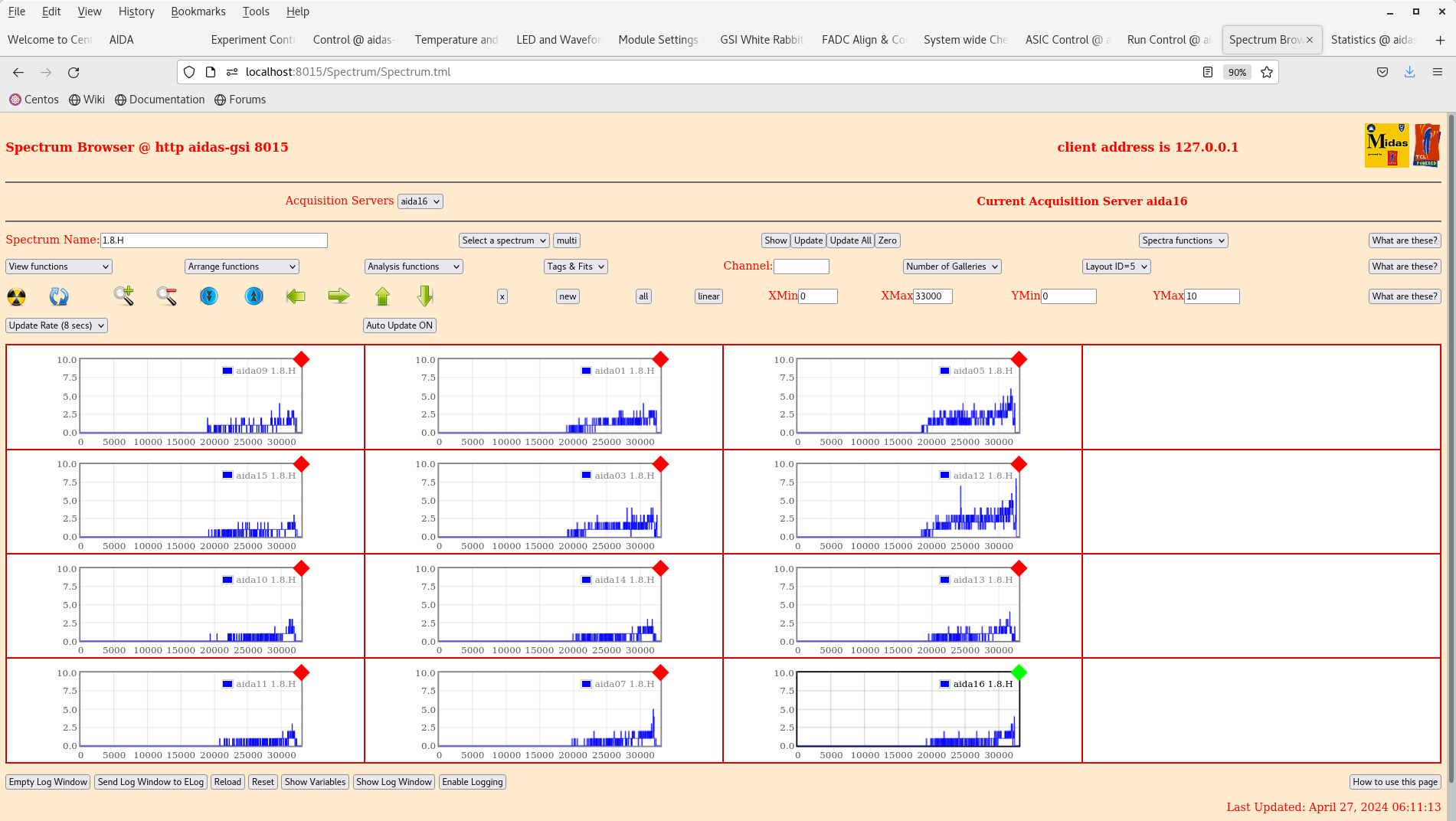

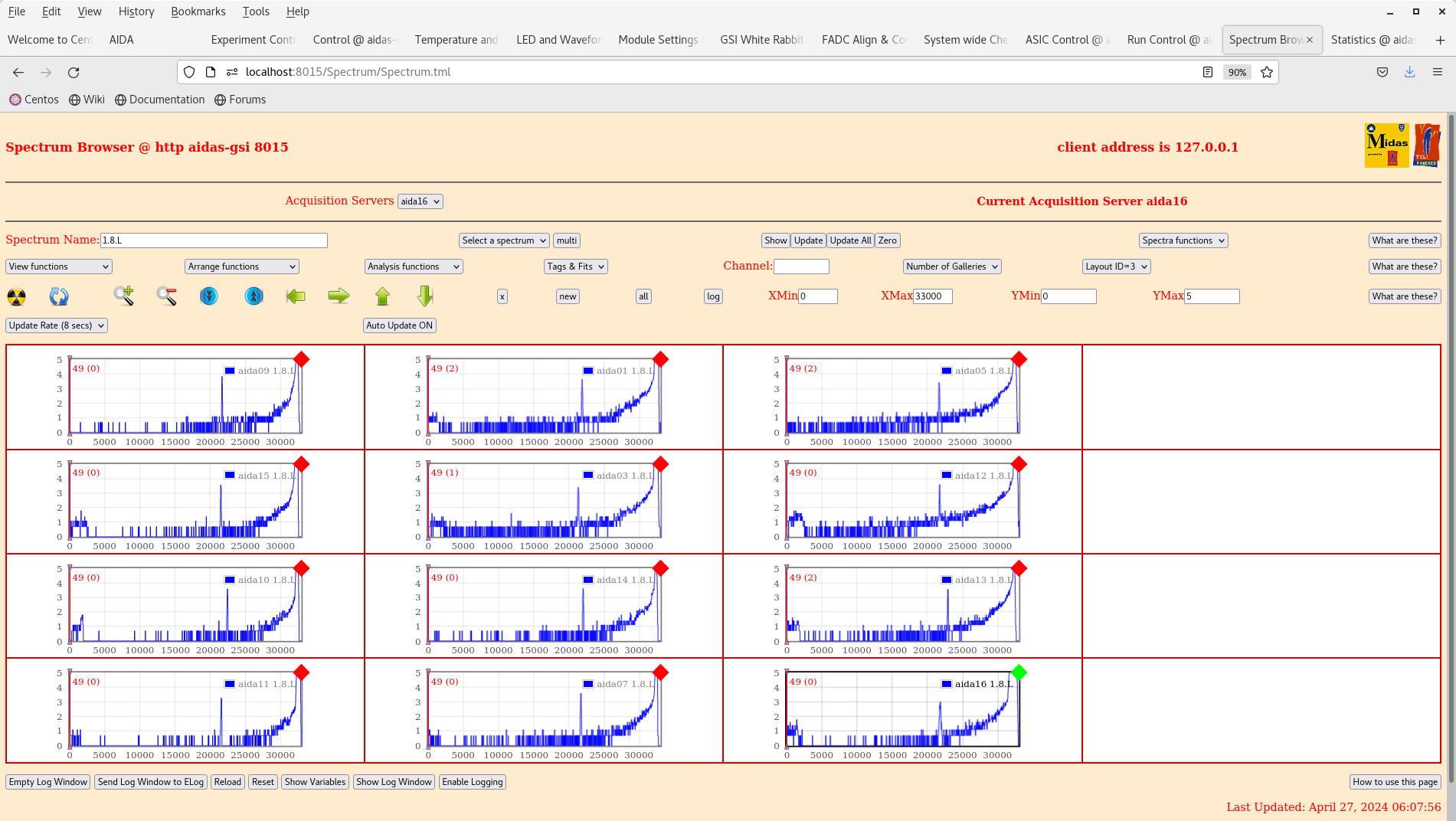

per FEE64 1.8.H spectra - attachments 14-15

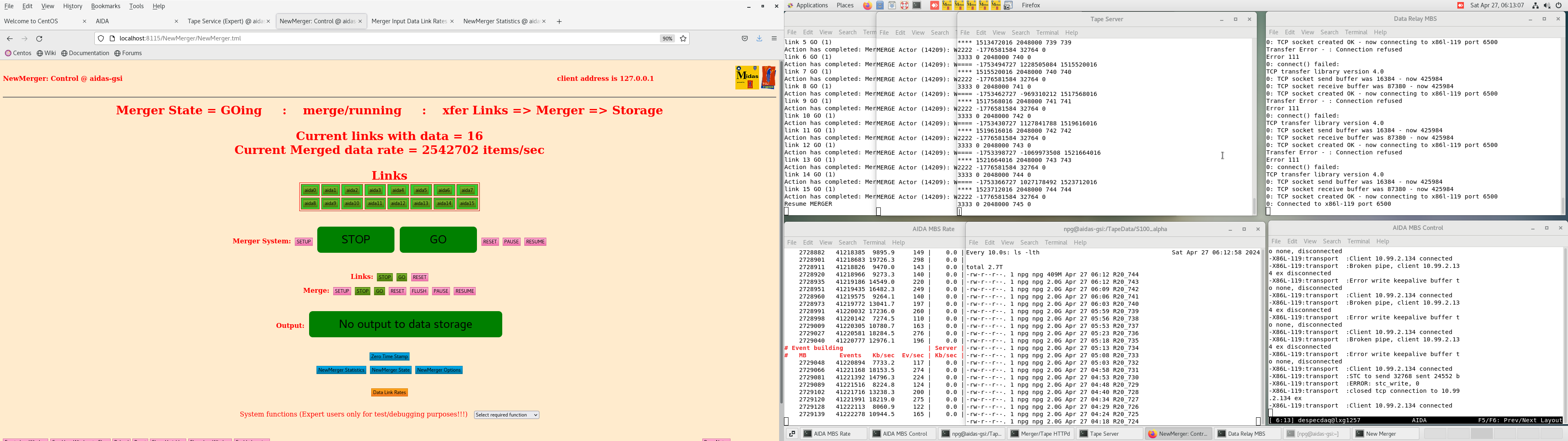

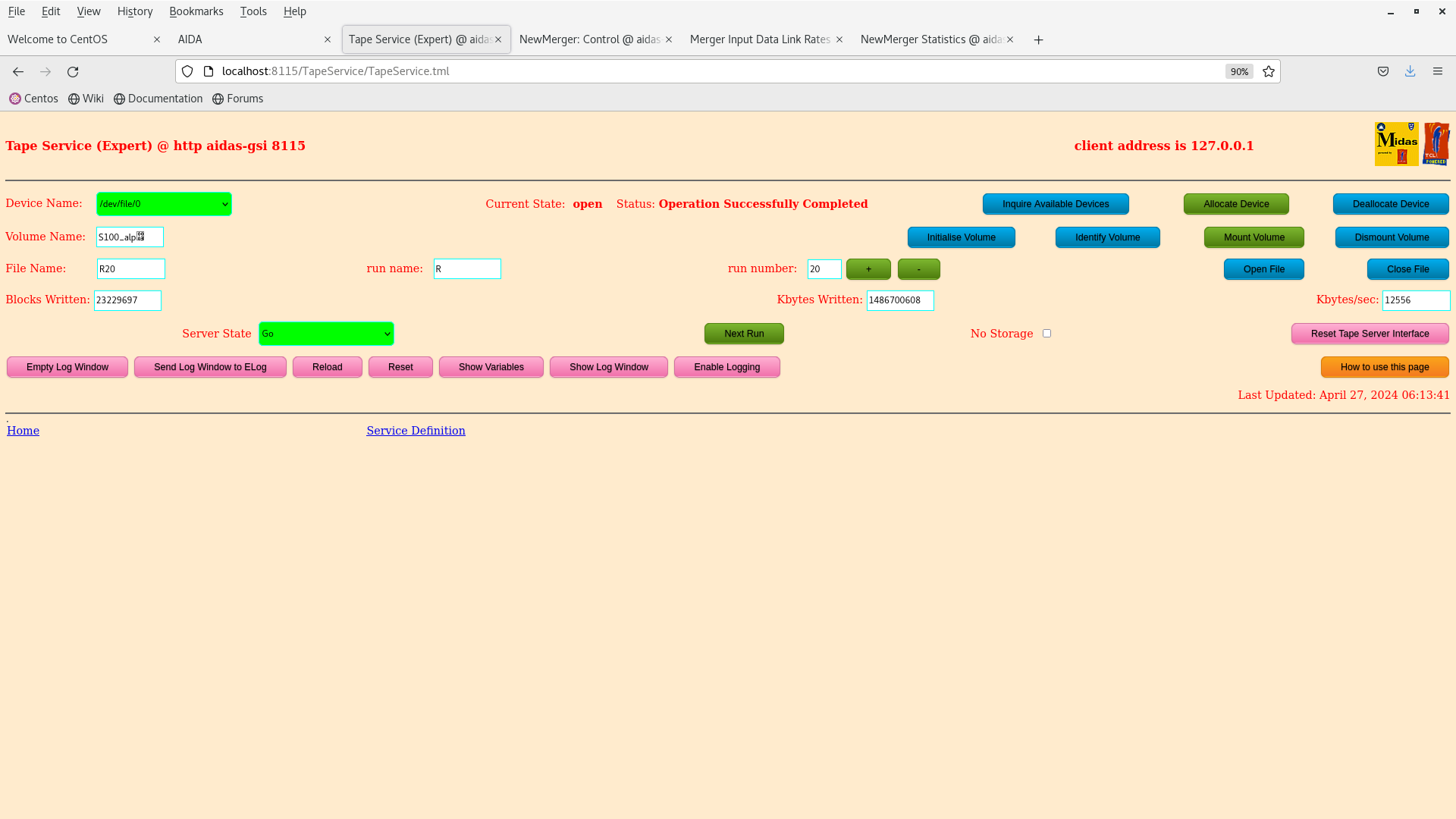

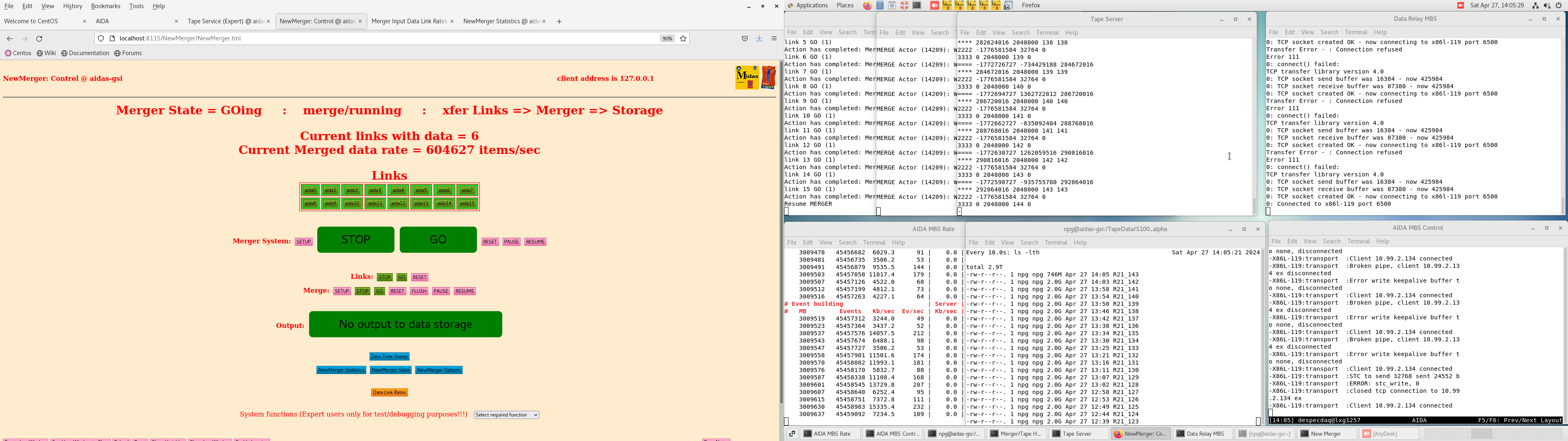

Merger, TapeServer etc - attachments 16-17
       12Mb/s to disk

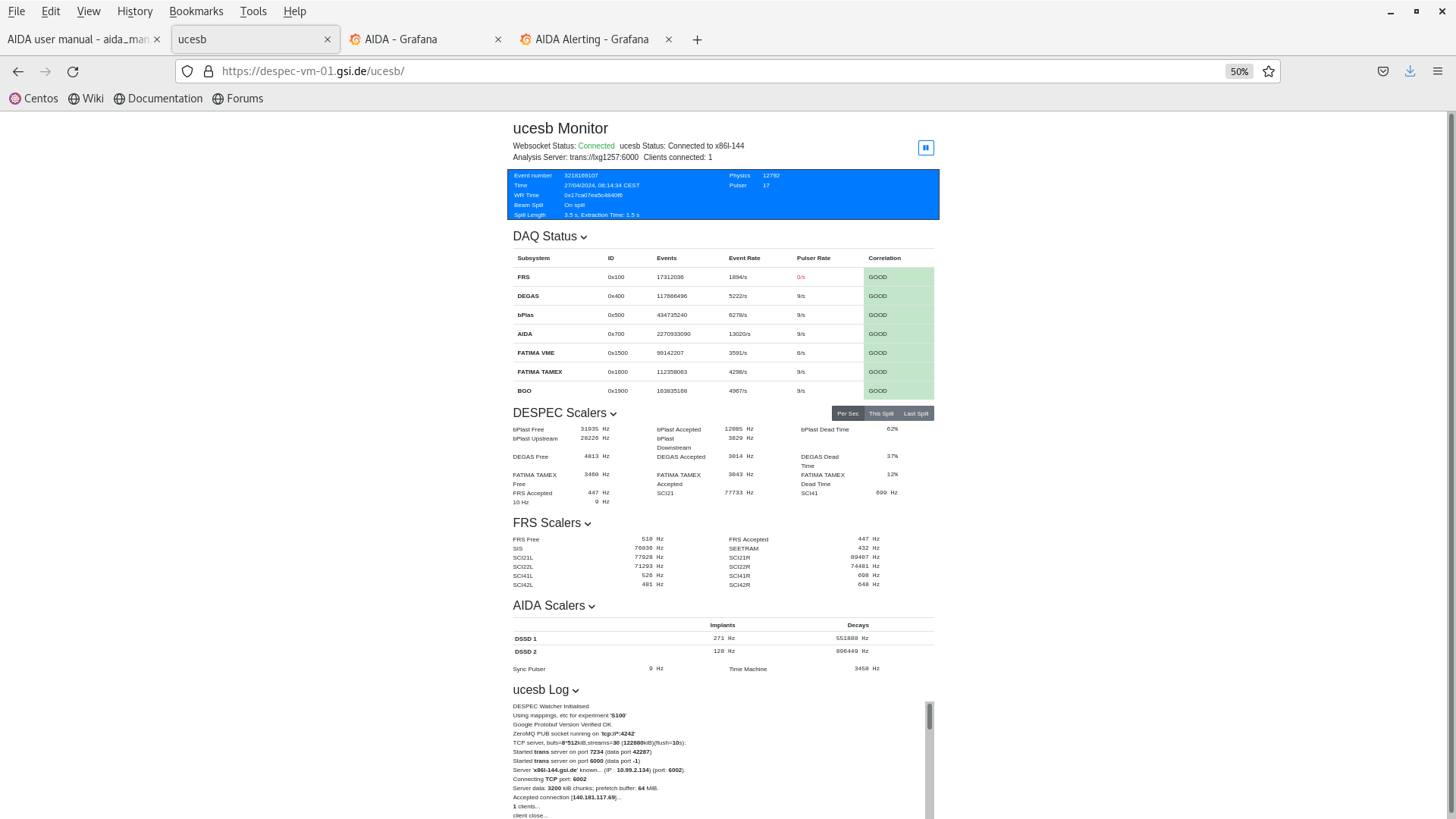

ucesb - attachment 18
       spill length 3.5s, extraction 1.5s

06.30 analysis data file R20_748 - attachment 19
      max deadtime 12%
      no timewarps
      HEC data item rate 2.1kHz

06.35 new run file S100_alpha/R21

09.30 DAQ continues - file S100_alpha/R21_83

DSSSD bias & leakage currents - Grafana - attachment 20

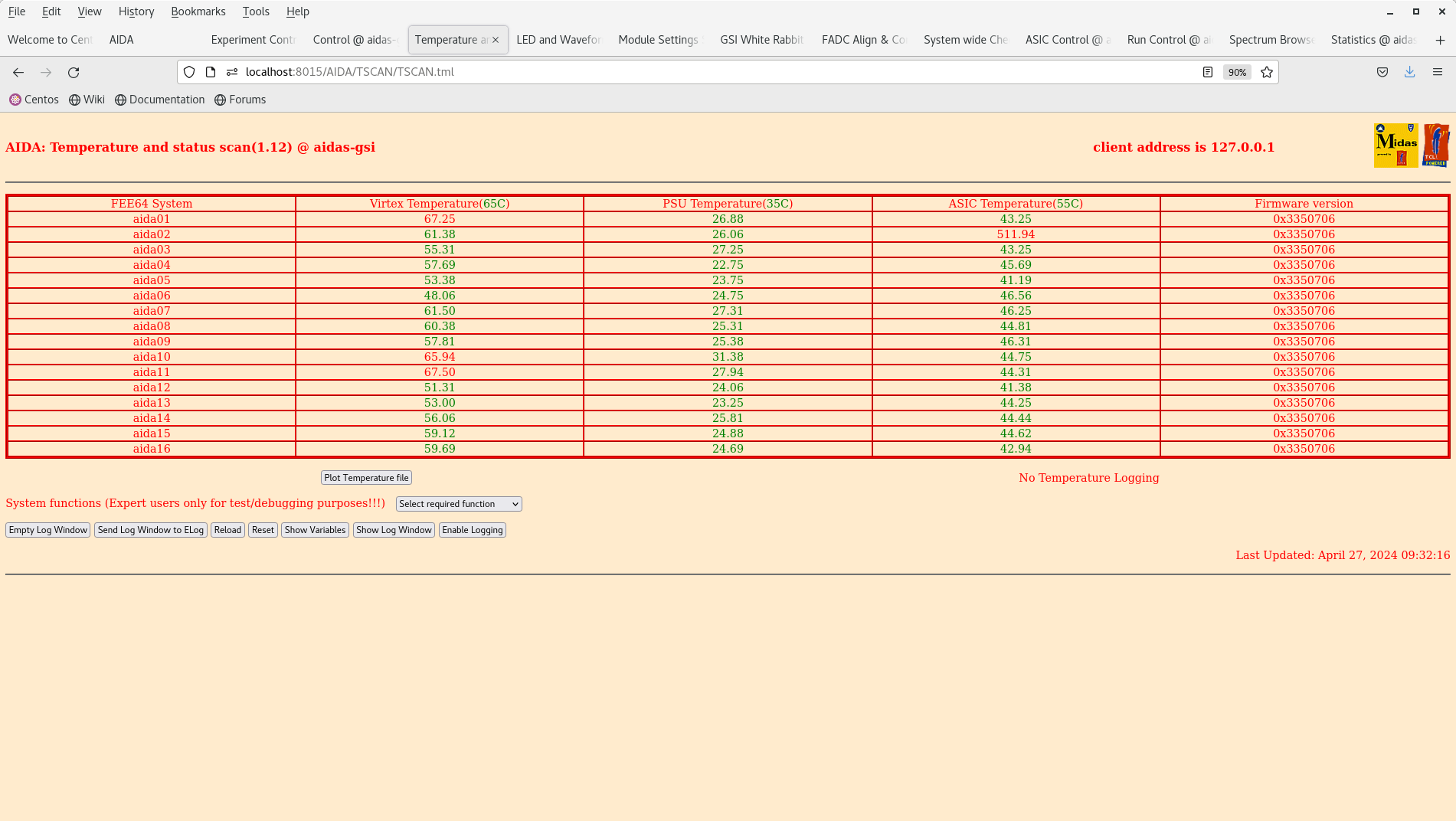

FEE64 temperatures OK - attachment 21

ADC data item stats OK - attachments 22

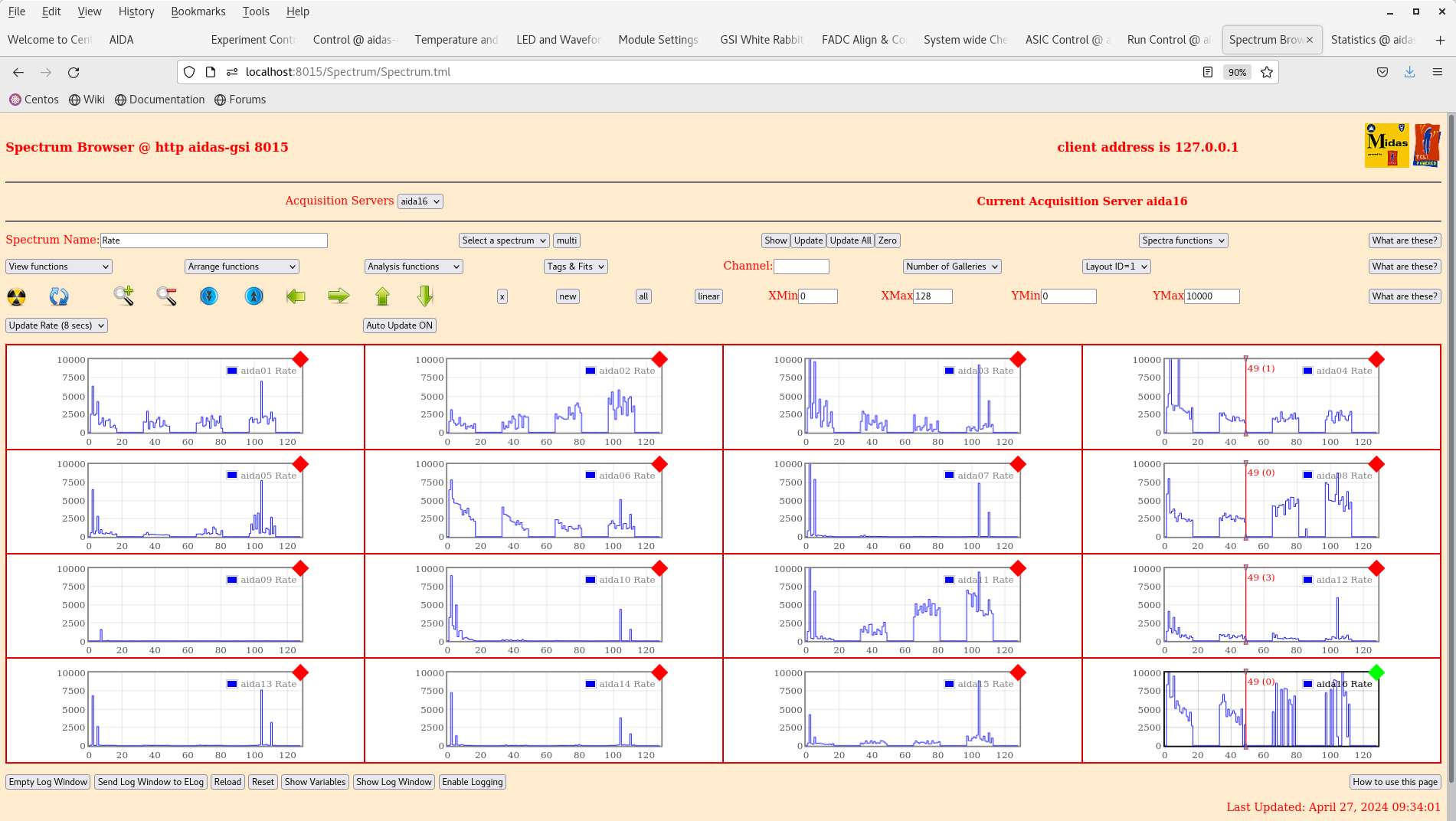

per FEE64 Rate spectra - attachment 23

Merger etc - attachments 24

ucesb - attachment 25
       spill length 3.5s, extraction 1.5s

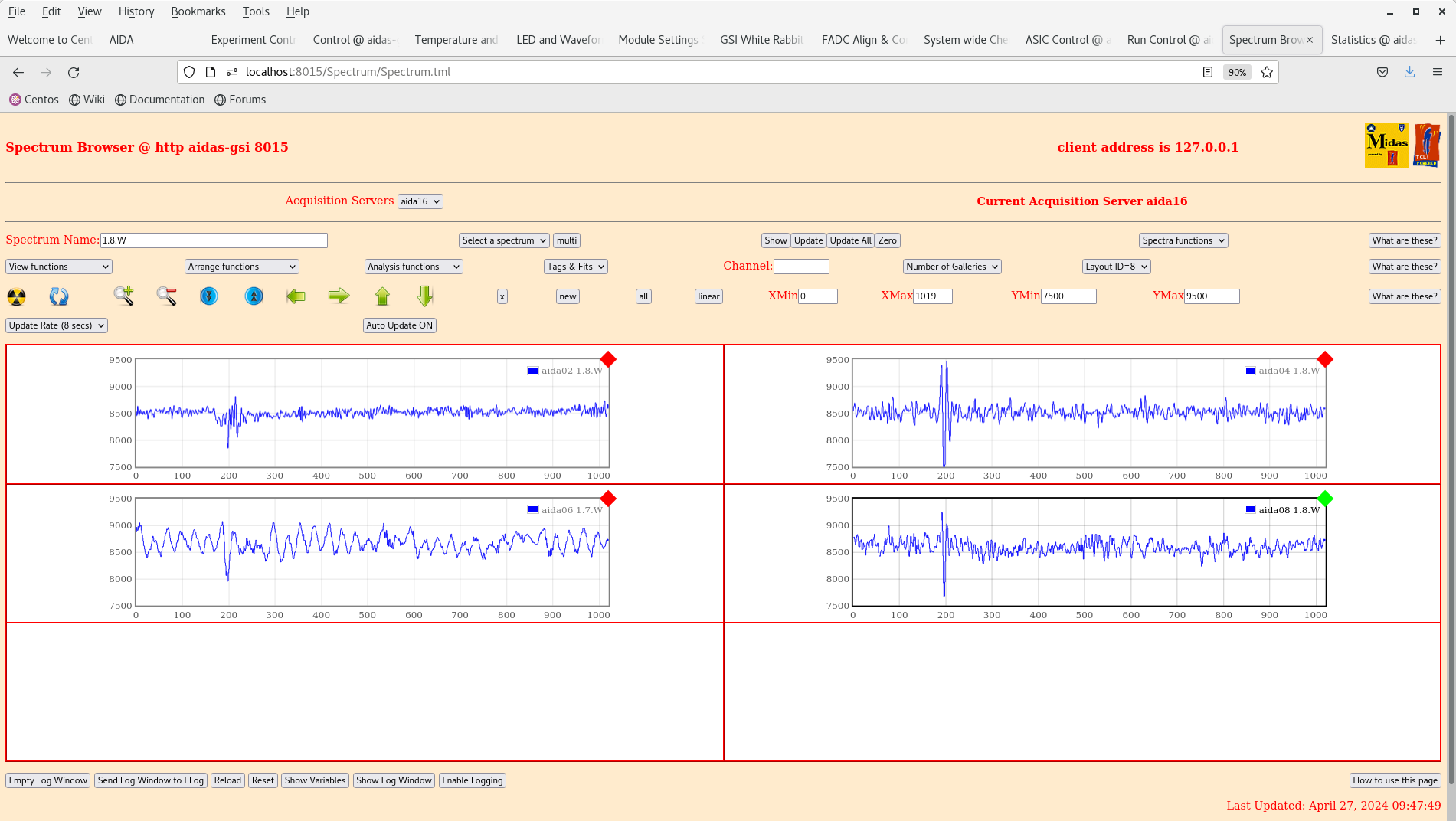

09.50 per FEE64 1.8.W spectra - 20us FSR - attachments 26-27
       no significant change in electronic noise cf. start of run

per p+n FEE64 1.8.L spectra - attachment 28
       aida09 pulser peak width 62 ch FWHM
       common x/y scale - peak heoght proxy for width

13.57 DAQ continues file R21_141

DSSSD bias & leakage current - Grafana - attachments 29-30

FEE64 temperatures OK - attachment 31

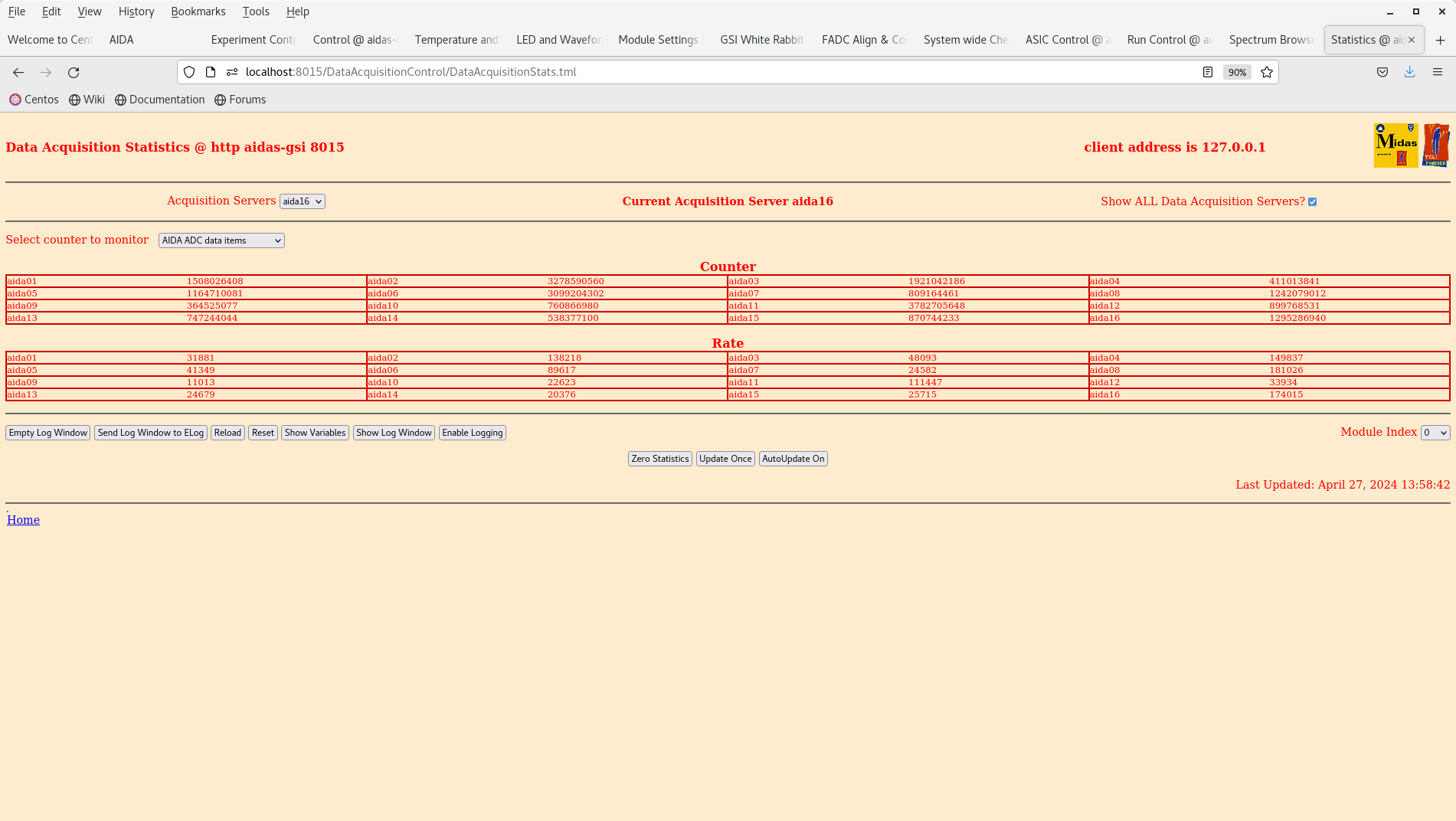

ADC data item stats OK - attachments 32

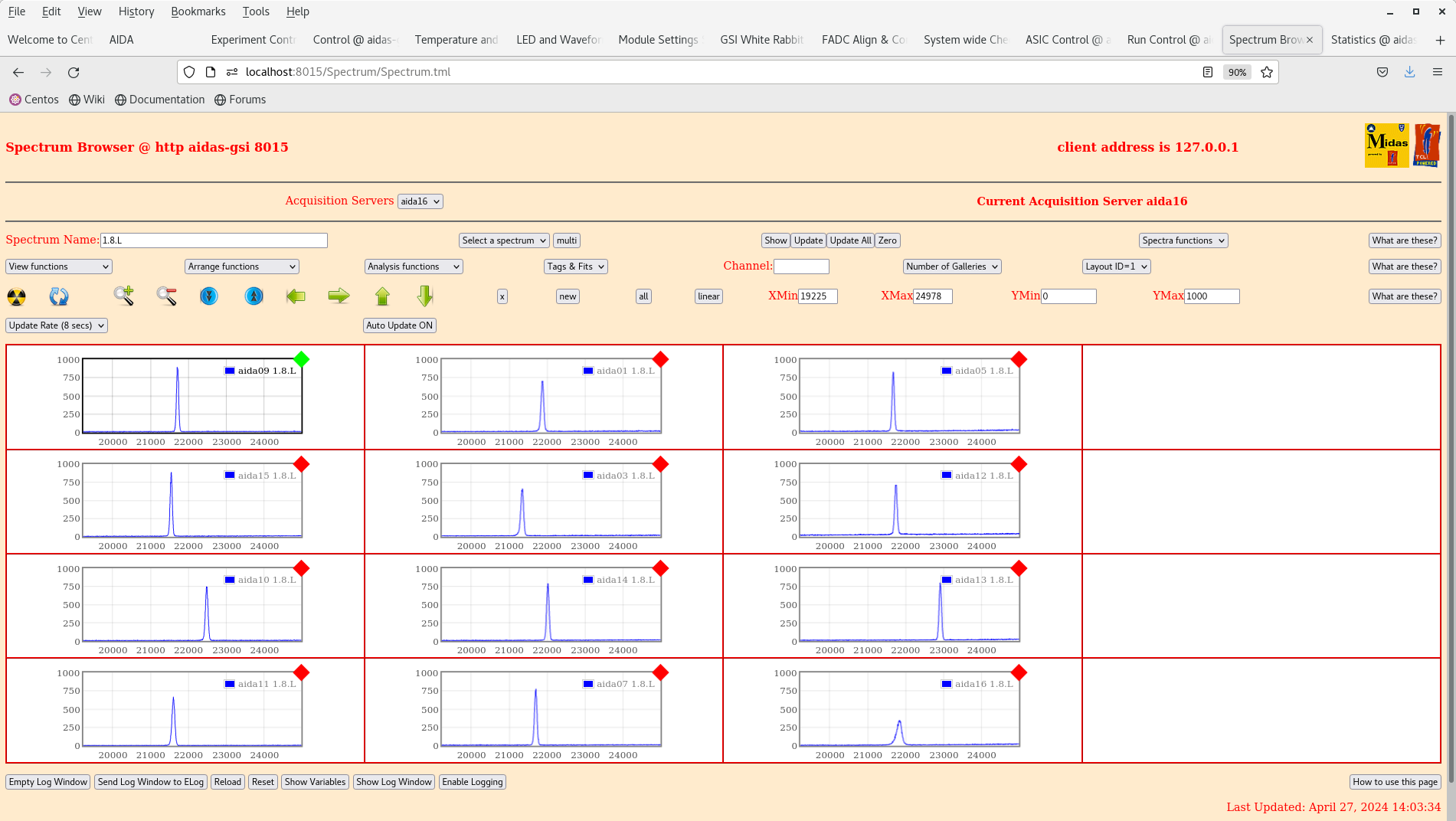

per p+n FEE64 1.8.L spectra - attachment 33
       aida09 pulser peak width 55 ch FWHM (~39keV FWHM)

per FEE64 Rate spectra - attachment 34

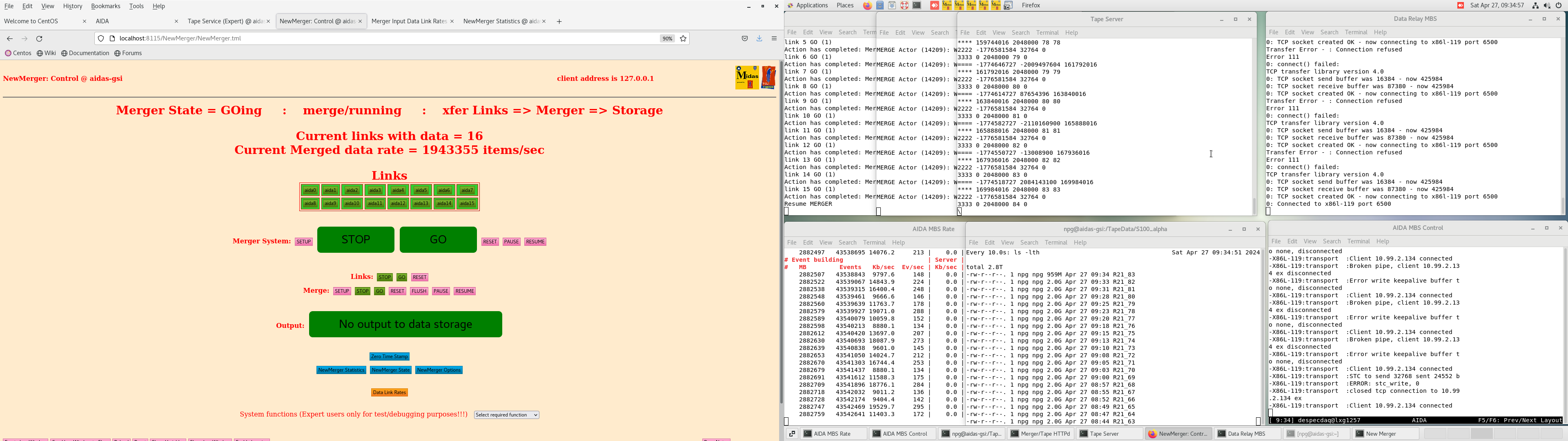

Merger etc - attachments 35

ucesb - attachment 36
       spill length 3.5s, extraction 1.5s

14.15 analysis data file R21_144 - attachment 35
      max deadtime 16% (aida04)
      no timewarps
      HEC data item rate 2.0kHz

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

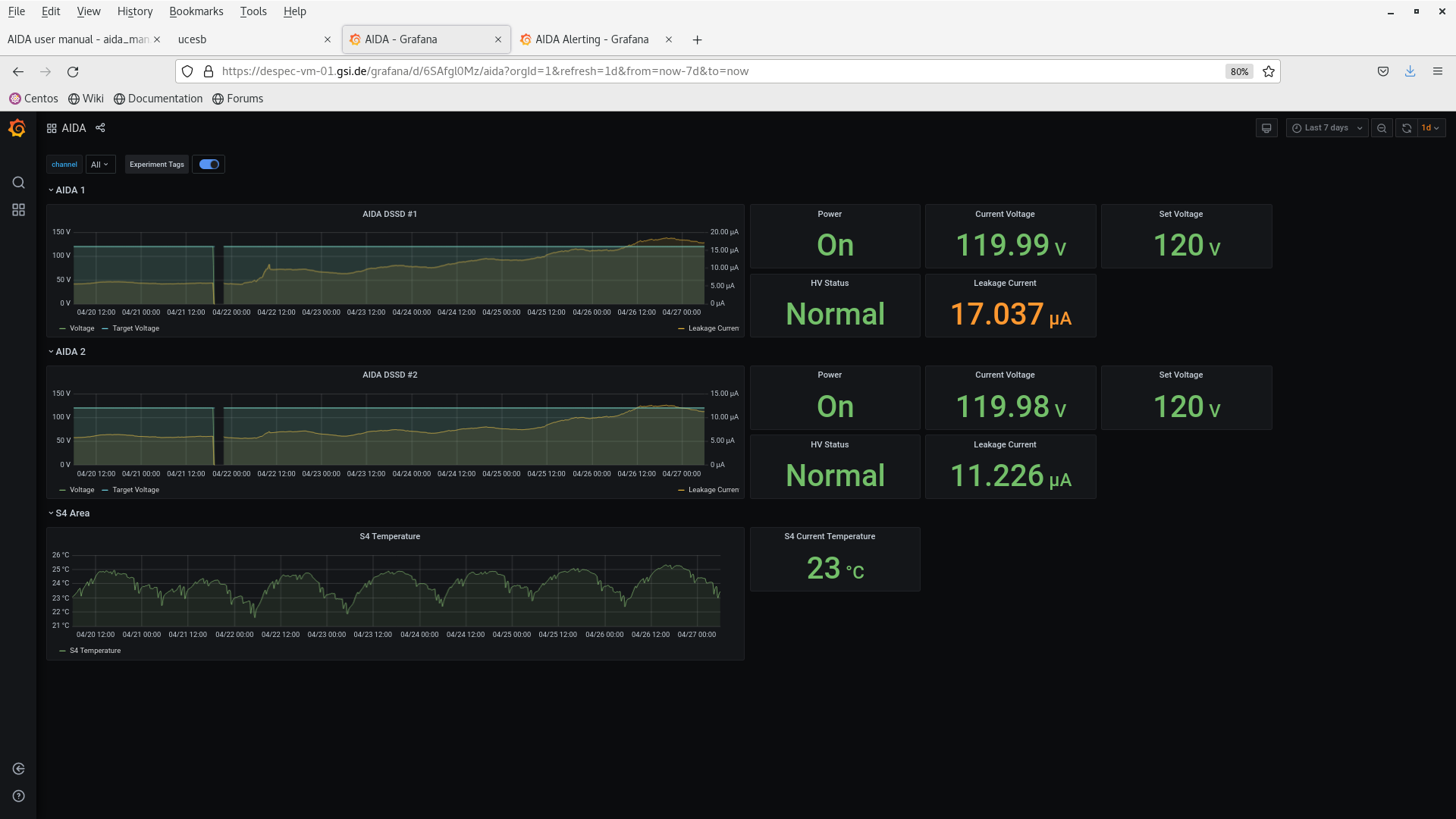

Screenshot_from_2024-04-27_06-00-39.png Original size: 1920x1080

Attachment 2:

Screenshot_from_2024-04-27_06-01-02.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2024-04-27_06-01-38.png Original size: 1901x1072

Attachment 4:

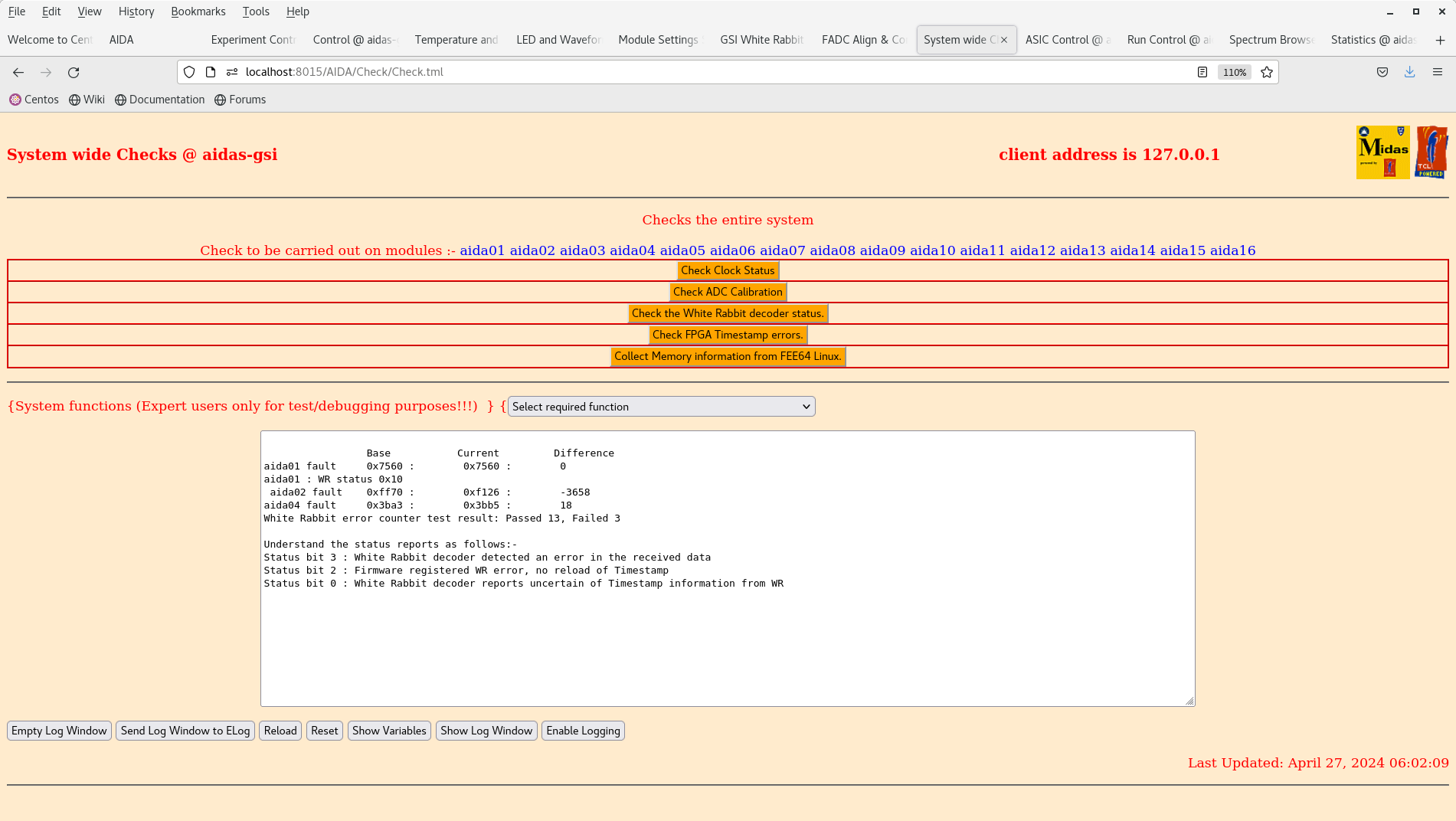

Screenshot_from_2024-04-27_06-02-22.png Original size: 1901x1072

Attachment 5:

Screenshot_from_2024-04-27_06-02-46.png Original size: 1901x1072

Attachment 6:

Screenshot_from_2024-04-27_06-03-00.png Original size: 1901x1072

Attachment 7:

Screenshot_from_2024-04-27_06-03-32.png Original size: 1901x1072

Attachment 8:

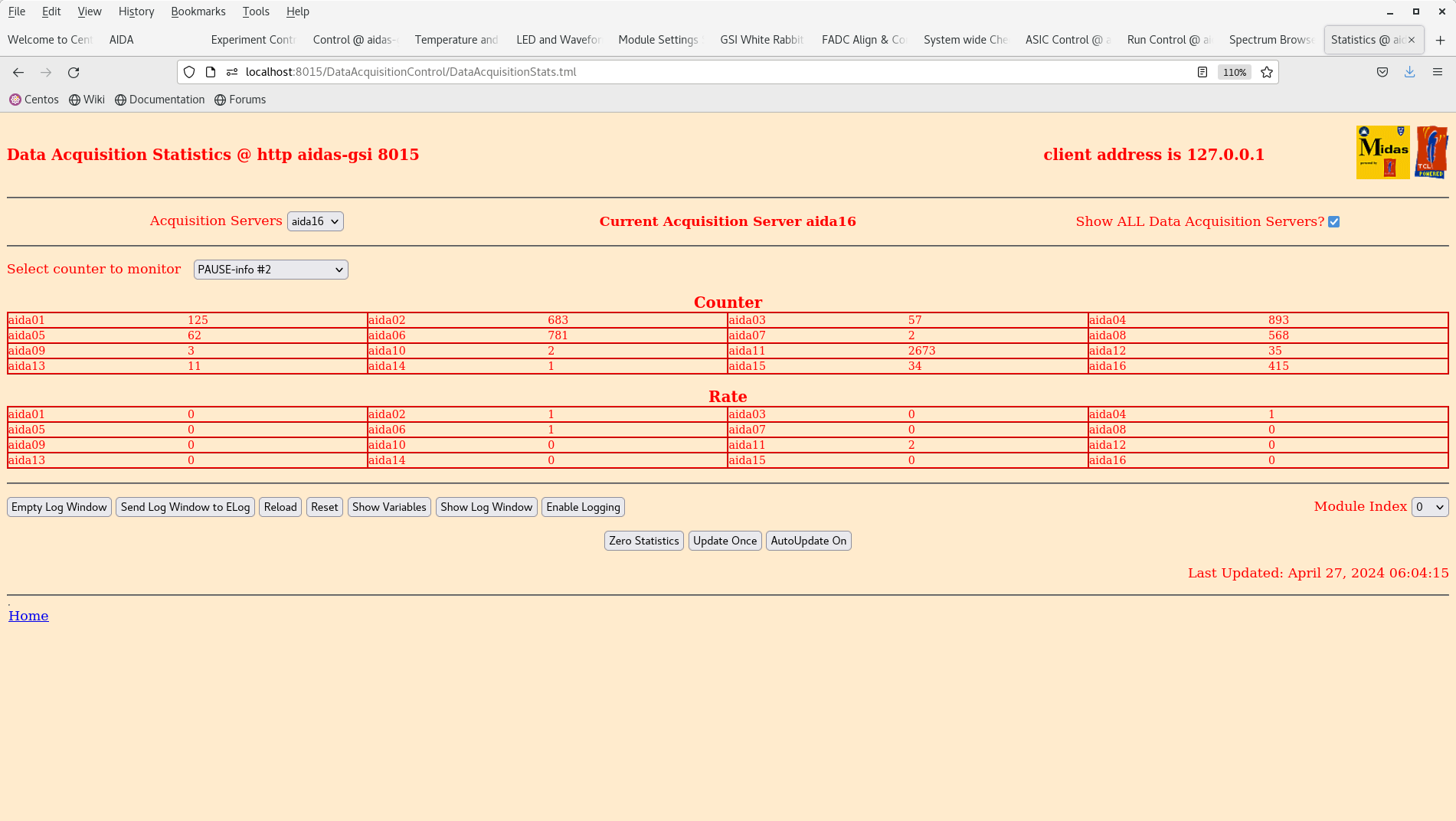

Screenshot_from_2024-04-27_06-04-34.png Original size: 1901x1072

Attachment 9:

Screenshot_from_2024-04-27_06-05-03.png Original size: 1901x1072

Attachment 10:

Screenshot_from_2024-04-27_06-05-37.png Original size: 1901x1072

Attachment 11:

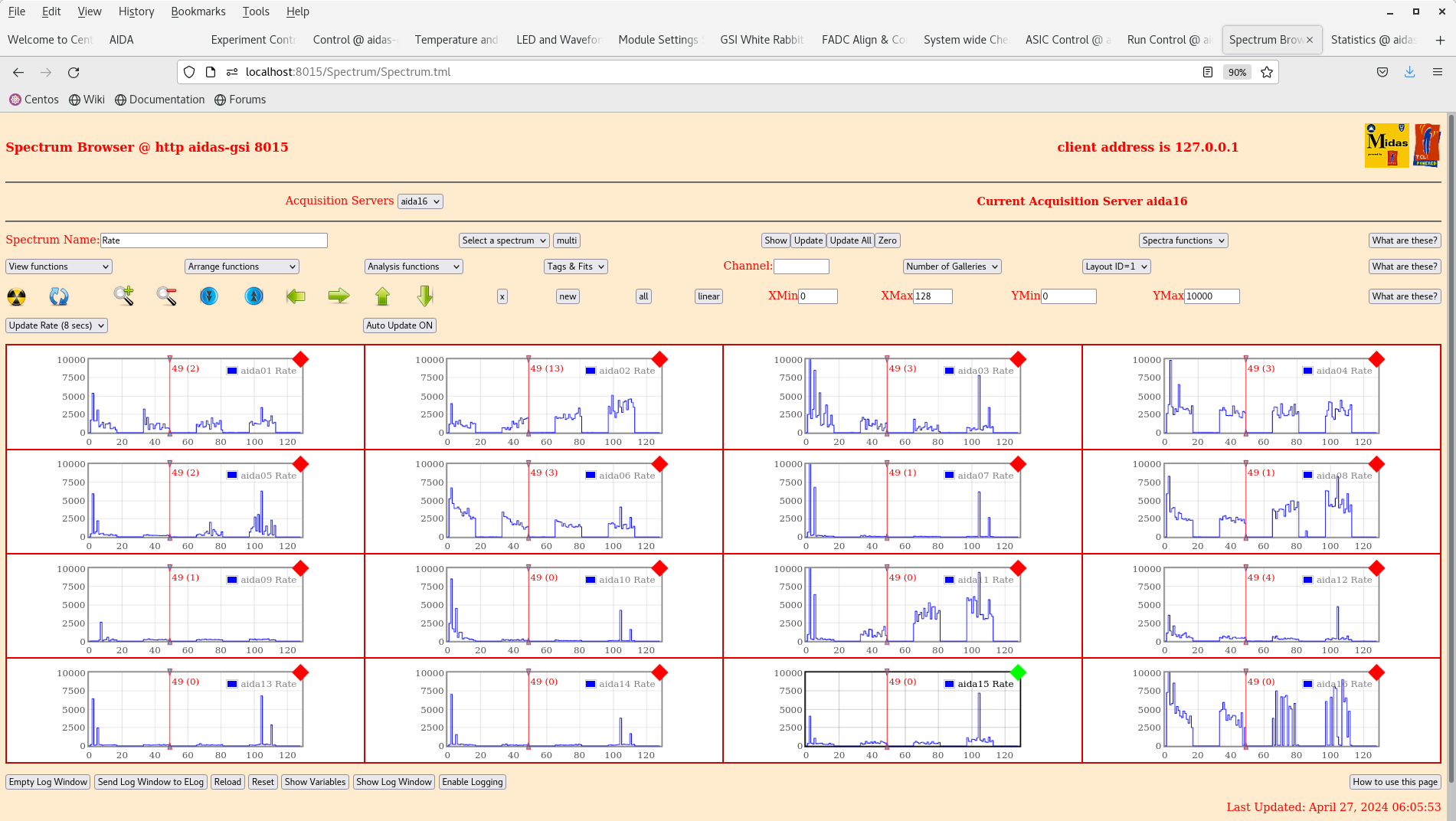

Screenshot_from_2024-04-27_06-06-17.png Original size: 1901x1072

Attachment 12:

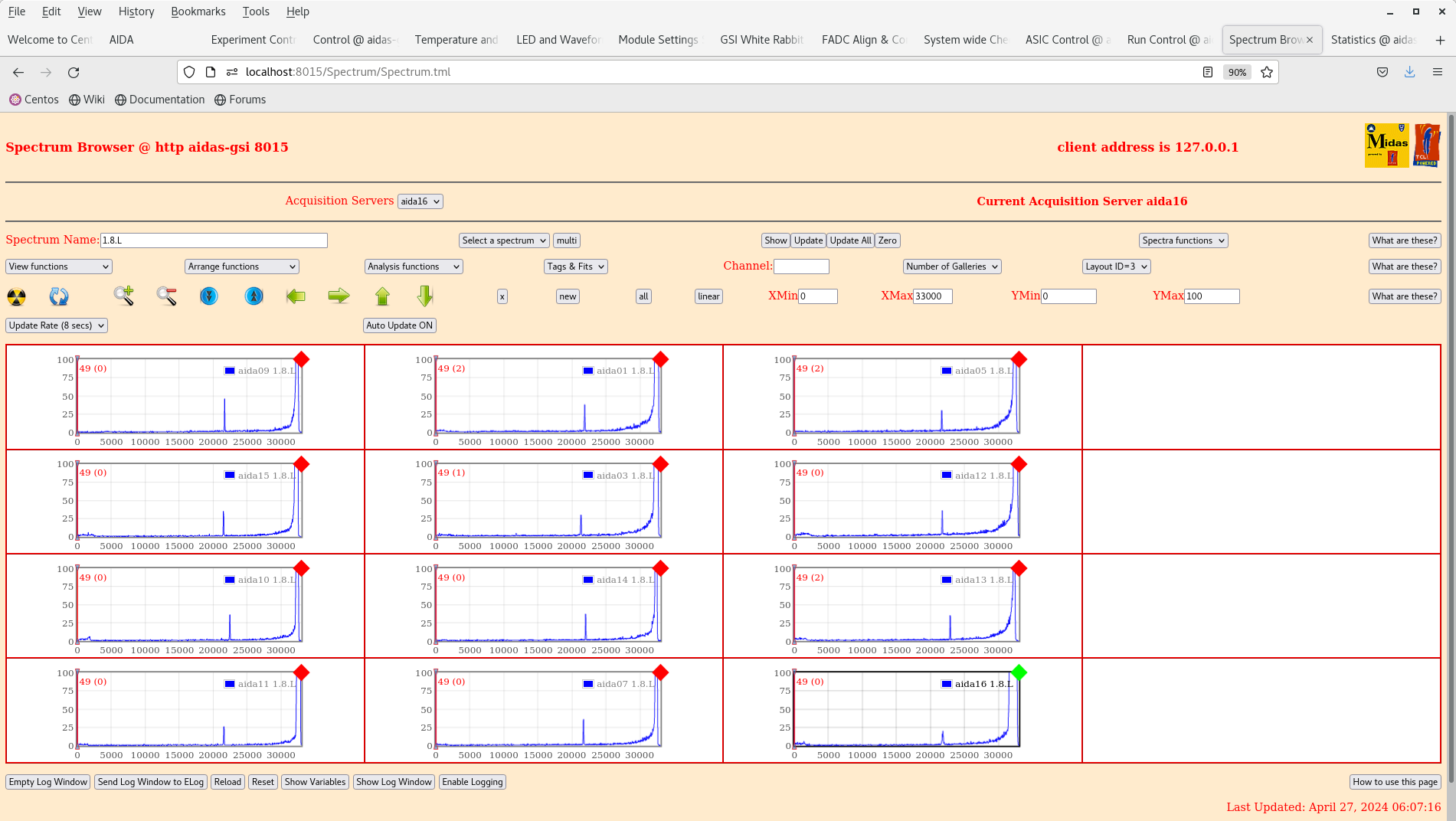

Screenshot_from_2024-04-27_06-07-30.png Original size: 1901x1072

Attachment 13:

Screenshot_from_2024-04-27_06-08-12.png Original size: 1901x1072

Attachment 14:

Screenshot_from_2024-04-27_06-11-26.png Original size: 1901x1072

Attachment 15:

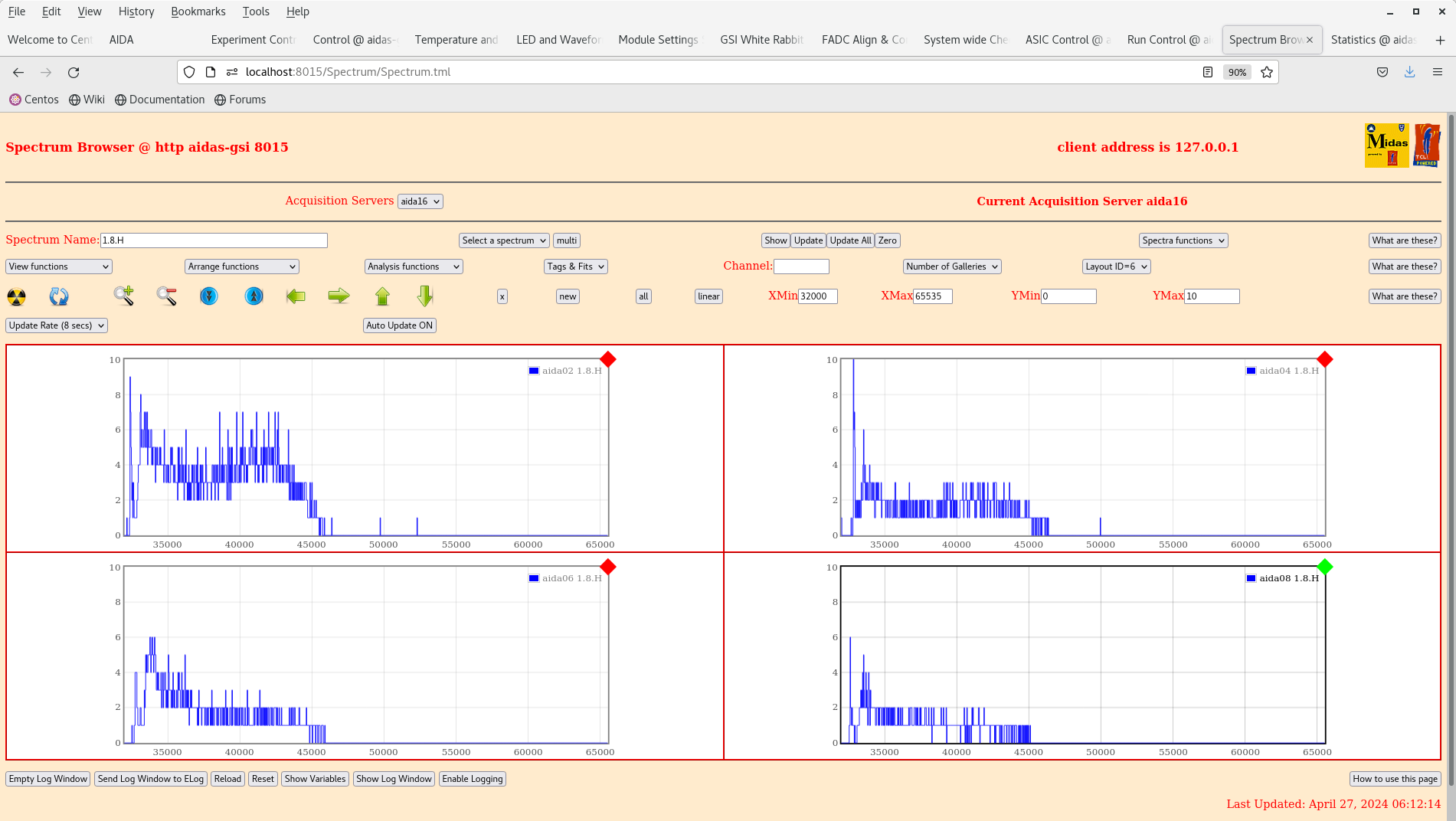

Screenshot_from_2024-04-27_06-12-32.png Original size: 1901x1072

Attachment 16:

Screenshot_from_2024-04-27_06-13-07.png Original size: 3840x1080

Attachment 17:

Screenshot_from_2024-04-27_06-13-53.png Original size: 1920x1080

Attachment 18:

Screenshot_from_2024-04-27_06-14-37.png Original size: 1920x1080

Attachment 19:

R20_748

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  257504742 ( 1406851.0 Hz)
        Other data format:    4415258 (   24122.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1610 (       8.8 Hz)
                               RESUME:       1611 (       8.8 Hz)
                              SYNC100:      32682 (     178.6 Hz)
                              WR48-63:      32682 (     178.6 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    4346673 (   23747.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     386233 (    2110.1 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      183.036 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.284                0.000
  1               10.840                0.000
  2                0.188                0.000
  3               23.217                0.000
  4                0.100                0.000
  5                2.070                0.000
  6                0.000                0.000
  7                2.151                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                8.754                0.000
 11                0.009                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.015                0.000
 15                2.919                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   12463516       8663          0          0         35         35       1556       1556          0       5481          0      27718
  1   18658776     198614          0          0        164        164       2390       2390          0     193506          0      51705
  2   15562218    1904264          0          0         13         13       2088       2088          0    1900062          0      19441
  3   28663274    1575353          0          0        203        204       3714       3714          0    1567518          0      14524
  4    7649540     297936          0          0          9          9        969        969          0     295980          0      20940
  5   22941092     390586          0          0        220        220       3010       3010          0     384126          0      18537
  6    5869094       1360          0          0          0          0        680        680          0          0          0       5932
  7   40428040      10412          0          0        122        122       5084       5084          0          0          0     148981
  8    2103382        490          0          0          0          0        245        245          0          0          0      10601
  9    5530471       1492          0          0          0          0        746        746          0          0          0       4423
 10   31486867       9242          0          0        711        711       3910       3910          0          0          0       1813
 11    6680681       1722          0          0          2          2        859        859          0          0          0      37346
 12    4842246       1236          0          0          0          0        618        618          0          0          0       5812
 13    3504495        918          0          0          0          0        459        459          0          0          0       6910
 14    6454647       1674          0          0          3          3        834        834          0          0          0       4246
 15   44666403      11296          0          0        128        128       5520       5520          0          0          0       7304
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   38.639s (  828.186 blocks/s,  51.762 Mb/s)

Attachment 20:

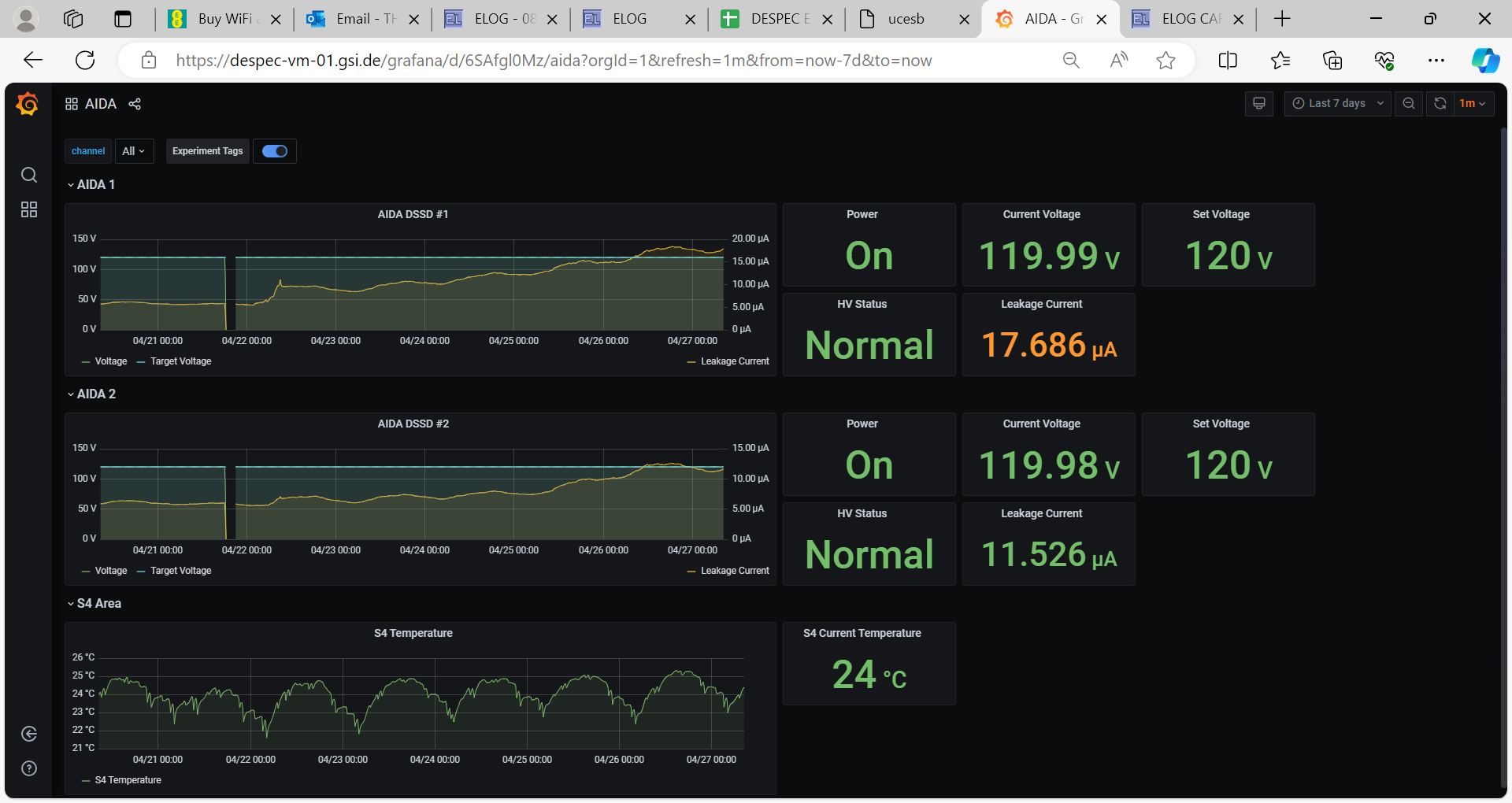

Capture.PNG Original size: 1920x1020

Attachment 21:

Screenshot_from_2024-04-27_09-32-29.png Original size: 1901x1072

Attachment 22:

Screenshot_from_2024-04-27_09-33-31.png Original size: 1901x1072

Attachment 23:

Screenshot_from_2024-04-27_09-34-20.png Original size: 1901x1072

Attachment 24:

Screenshot_from_2024-04-27_09-34-58.png Original size: 3840x1080

Attachment 25:

Screenshot_from_2024-04-27_09-35-41.png Original size: 1920x1080

Attachment 26:

Screenshot_from_2024-04-27_09-47-09.png Original size: 1901x1072

Attachment 27:

Screenshot_from_2024-04-27_09-48-06.png Original size: 1901x1072

Attachment 28:

Screenshot_from_2024-04-27_09-52-52.png Original size: 1901x1072

Attachment 29:

Screenshot_from_2024-04-27_13-57-44.png Original size: 1920x1080

Attachment 30:

Screenshot_from_2024-04-27_13-58-01.png Original size: 1920x1080

Attachment 31:

Screenshot_from_2024-04-27_14-01-26.png Original size: 1901x1072

Attachment 32:

Screenshot_from_2024-04-27_13-58-55.png Original size: 1901x1072

Attachment 33:

Screenshot_from_2024-04-27_14-03-49.png Original size: 1901x1072

Attachment 34:

Screenshot_from_2024-04-27_14-04-30.png Original size: 1901x1072

Attachment 35:

Screenshot_from_2024-04-27_14-05-30.png Original size: 3840x1080

Attachment 36:

Screenshot_from_2024-04-27_14-06-42.png Original size: 1920x1080

Attachment 37:

R21_144

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  256251858 ( 1109842.9 Hz)
        Other data format:    5668143 (   24549.1 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1144 (       5.0 Hz)
                               RESUME:       1144 (       5.0 Hz)
                              SYNC100:      32860 (     142.3 Hz)
                              WR48-63:      32860 (     142.3 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    5600135 (   24254.5 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     452307 (    1959.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      230.890 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.168                0.000
  1               16.872                0.000
  2                0.114                0.000
  3               36.051                0.000
  4                0.888                0.000
  5                2.369                0.000
  6                0.000                0.000
  7                1.443                0.000
  8                0.006                0.000
  9                0.000                0.000
 10                1.304                0.000
 11                0.023                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.033                0.000
 15                1.208                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    7949000       9111          0          0         19         19       1076       1076          0       6921          0      39332
  1   26808065     269780          0          0        235        235       3356       3356          0     262598          0      70729
  2   11614466    2448126          0          0         13         13       1817       1817          0    2444466          0      27115
  3   37929923    1952070          0          0        294        294       4896       4896          0    1941690          0      19677
  4    8915163     414541          0          0         12         12       1163       1163          0     412191          0      27553
  5   22729514     538305          0          0        114        114       2904       2904          0     532269          0      25872
  6    5822184       1488          0          0          0          0        744        744          0          0          0       8358
  7   40443466      10506          0          0         99         99       5154       5154          0          0          0     123022
  8    3043811        744          0          0          1          1        371        371          0          0          0      14593
  9    5157550       1312          0          0          0          0        656        656          0          0          0       6148
 10   26044004       6988          0          0        273        273       3221       3221          0          0          0       2629
 11    5888316       1514          0          0          4          4        753        753          0          0          0      52905
 12    5831030       1426          0          0          0          0        713        713          0          0          0       8360
 13    4114996        986          0          0          0          0        493        493          0          0          0       9929
 14    5361222       1380          0          0          5          5        685        685          0          0          0       5844
 15   38599148       9866          0          0         75         75       4858       4858          0          0          0      10241
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   33.879s (  944.541 blocks/s,  59.034 Mb/s)

Attachment 38:

Drop attachments here...

ELOG V3.1.4-unknown
