Took over the shift from Marc.

&nbsp;

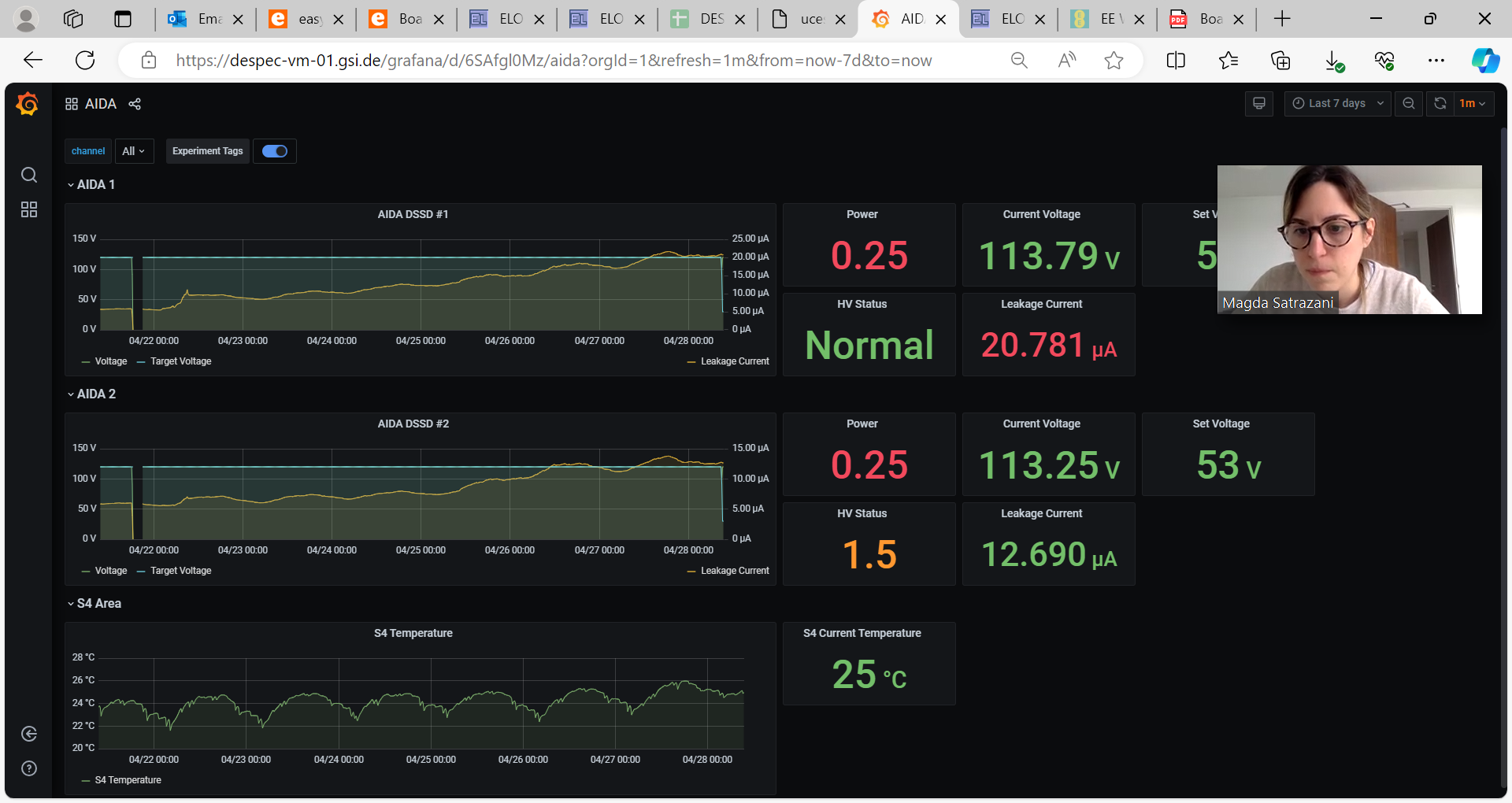

10.51 Added screenshots to illustrate erroneous data from Grafana (AIDA) - attachments 18-19

&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Compare to the CAEN HV&nbsp;control terminal (attachment 15) which shows the expected values. Have email&#39;d Nic &amp; Helena. TD

10.55 Noticed that the CAEN HV&nbsp;control terminal is showing the corerct data but on the wrong line of the display (attachment 15). Enter commands q (quit) and d (display) to restart display - the correct data now appears on the correct line (attachment 20).

&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;Grafana (AIDA) is now reporting data correctly too (attachment 21).

&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Summary - CAEN HV terminal display issue ( c. 10.05 - 10.55 )

&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;Note the correct data/values continued to be shown. Leakage current shown correctly by both Grafana and CAEN HV control throughout.

&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;Conclude this was a display issue - not a change in the operating parameters of the CAEN N1419ET.. Data should be OK.

&nbsp;

14.45 analysis data file R21_500 - attachment 36

&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;max deadtime 22% (aida11), 16% (aida04), 7% (aida02), 6% (aida08), 6% (aida06) , all others &lt; 1%

&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;no timewarps

&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;HEC data item rate 2.7kHz

&nbsp;

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2024-04-28_at_08-00-09_Temperature_and_status_scan_aidas-gsi.png Original size: 1837x637

Attachment 2:

Screenshot_2024-04-28_at_08-01-18_Statistics_aidas-gsi.png Original size: 1846x622

Attachment 3:

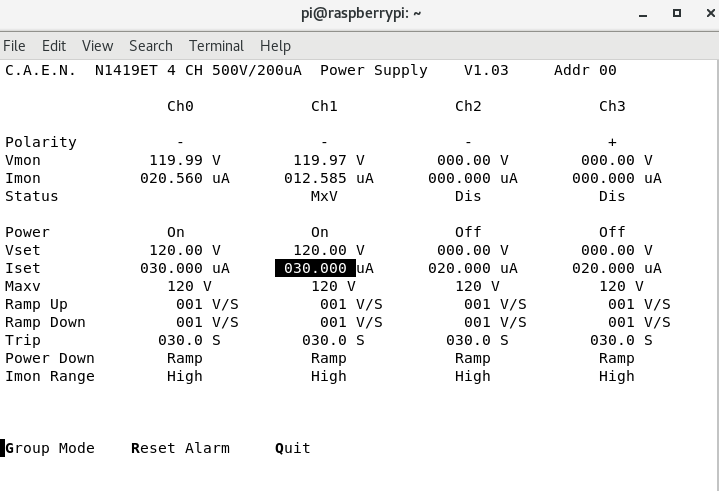

leakage_current.png Original size: 719x491

Attachment 4:

Screenshot_2024-04-28_at_08-05-38_Spectrum_Browser_aidas-gsi.png Original size: 1818x871

Attachment 5:

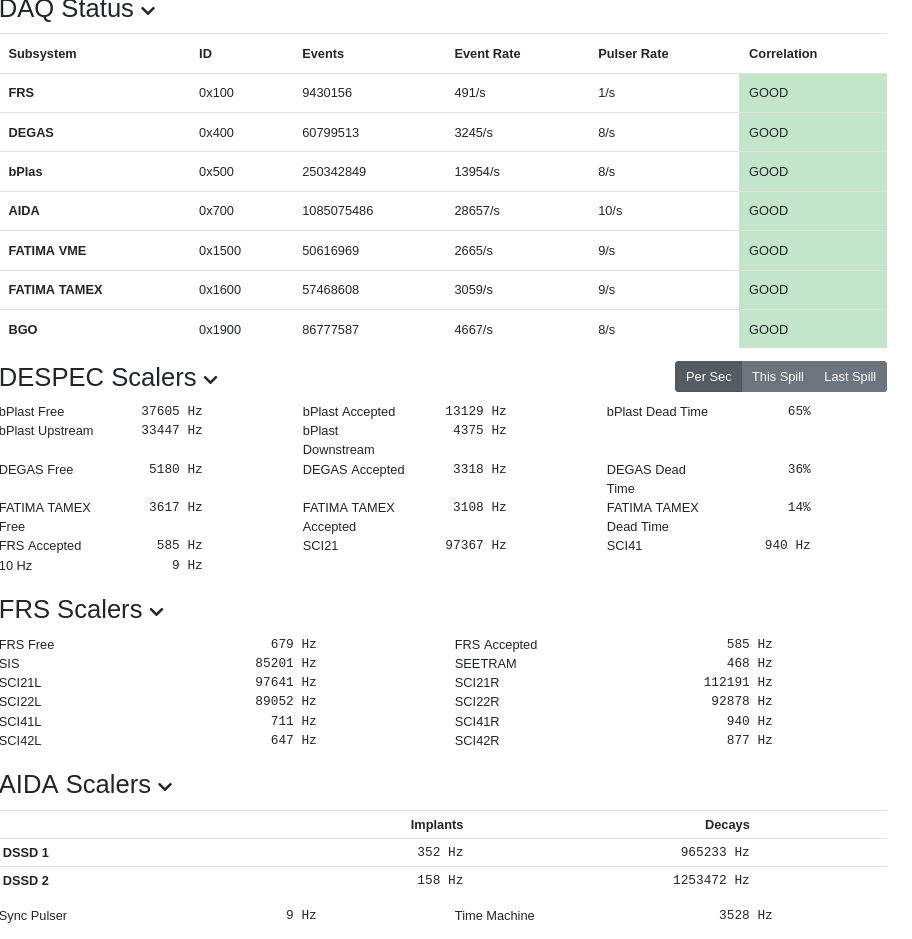

Screenshot_2024-04-28_at_08-08-14_ucesb.png Original size: 912x939

Attachment 6:

Screenshot_2024-04-28_at_08-09-21_AIDA_-_Grafana.png Original size: 1680x774

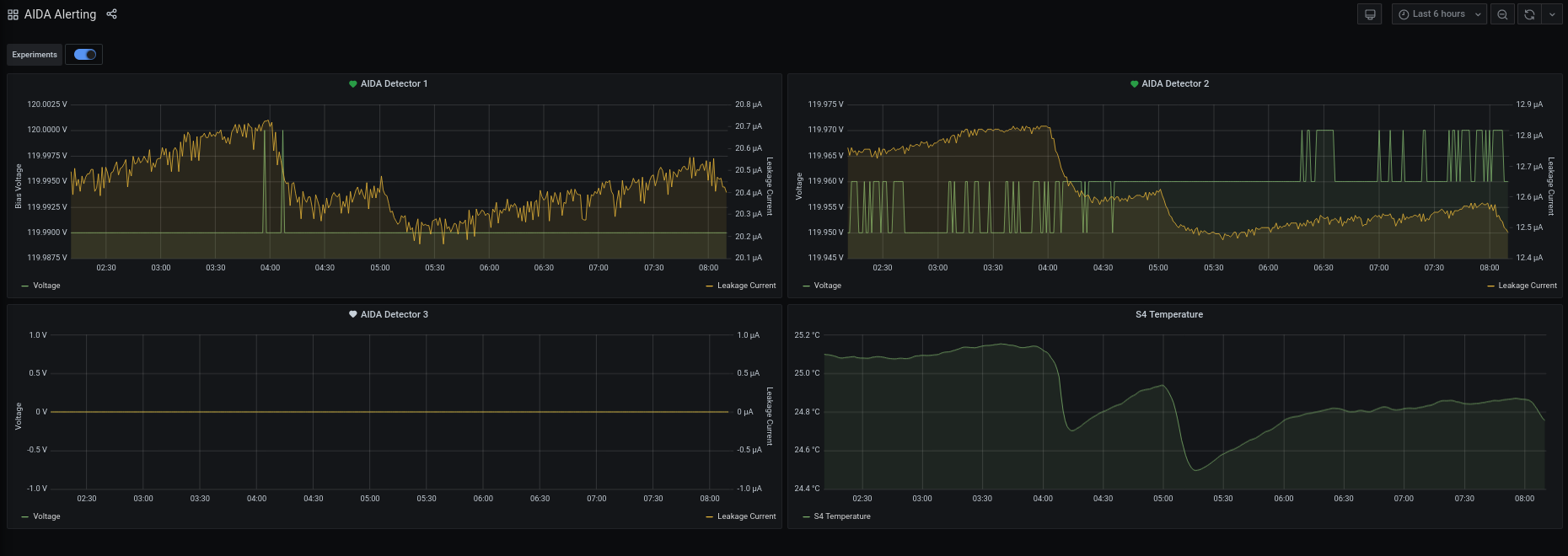

Attachment 7:

Screenshot_2024-04-28_at_08-11-20_AIDA_Alerting_-_Grafana.png Original size: 1860x660

Attachment 8:

Screenshot_2024-04-28_at_10-01-48_Temperature_and_status_scan_aidas-gsi.png Original size: 1846x659

Attachment 9:

Screenshot_2024-04-28_at_08-01-18_Statistics_aidas-gsi.png Original size: 1846x622

Attachment 10:

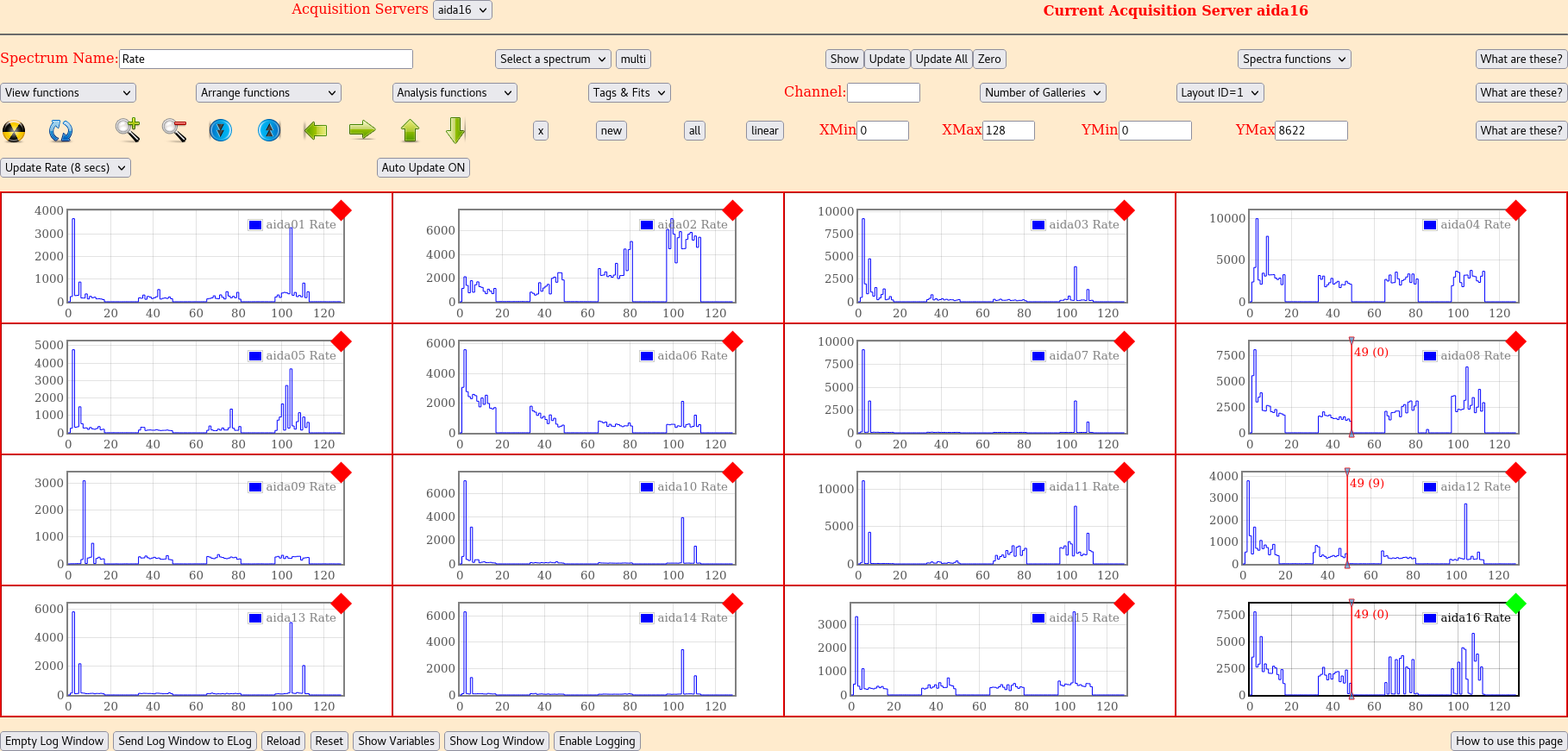

Screenshot_2024-04-28_at_10-02-44_Spectrum_Browser_aidas-gsi.png Original size: 1818x871

Attachment 11:

Screenshot_2024-04-28_at_10-03-40_AIDA_-_Grafana.png Original size: 1872x889

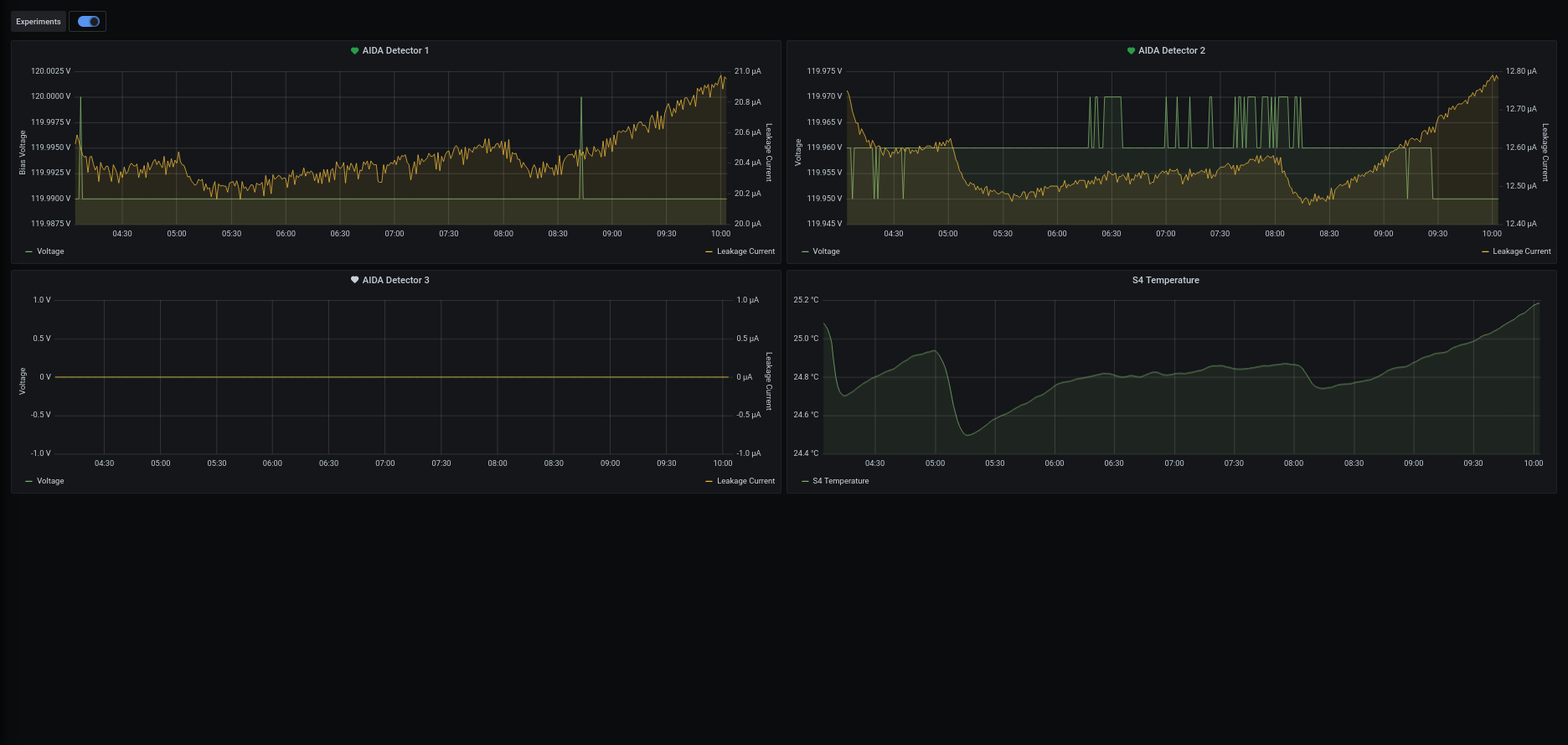

Attachment 12:

Screenshot_2024-04-28_at_10-04-04_AIDA_Alerting_-_Grafana.png Original size: 1872x889

Attachment 13:

Screenshot_2024-04-28_at_10-04-19_ucesb.png Original size: 1133x914

Attachment 14:

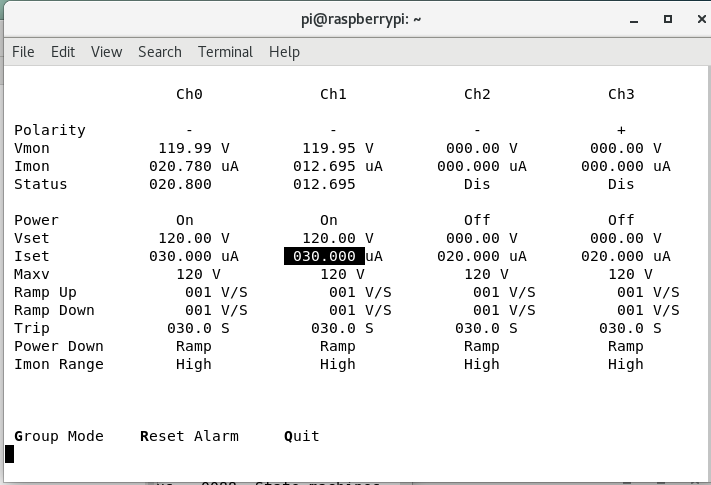

Screenshot_from_2024-04-28_10-08-23.png Original size: 711x485

Attachment 15:

Screenshot_from_2024-04-28_10-30-24.png Original size: 705x480

Attachment 16:

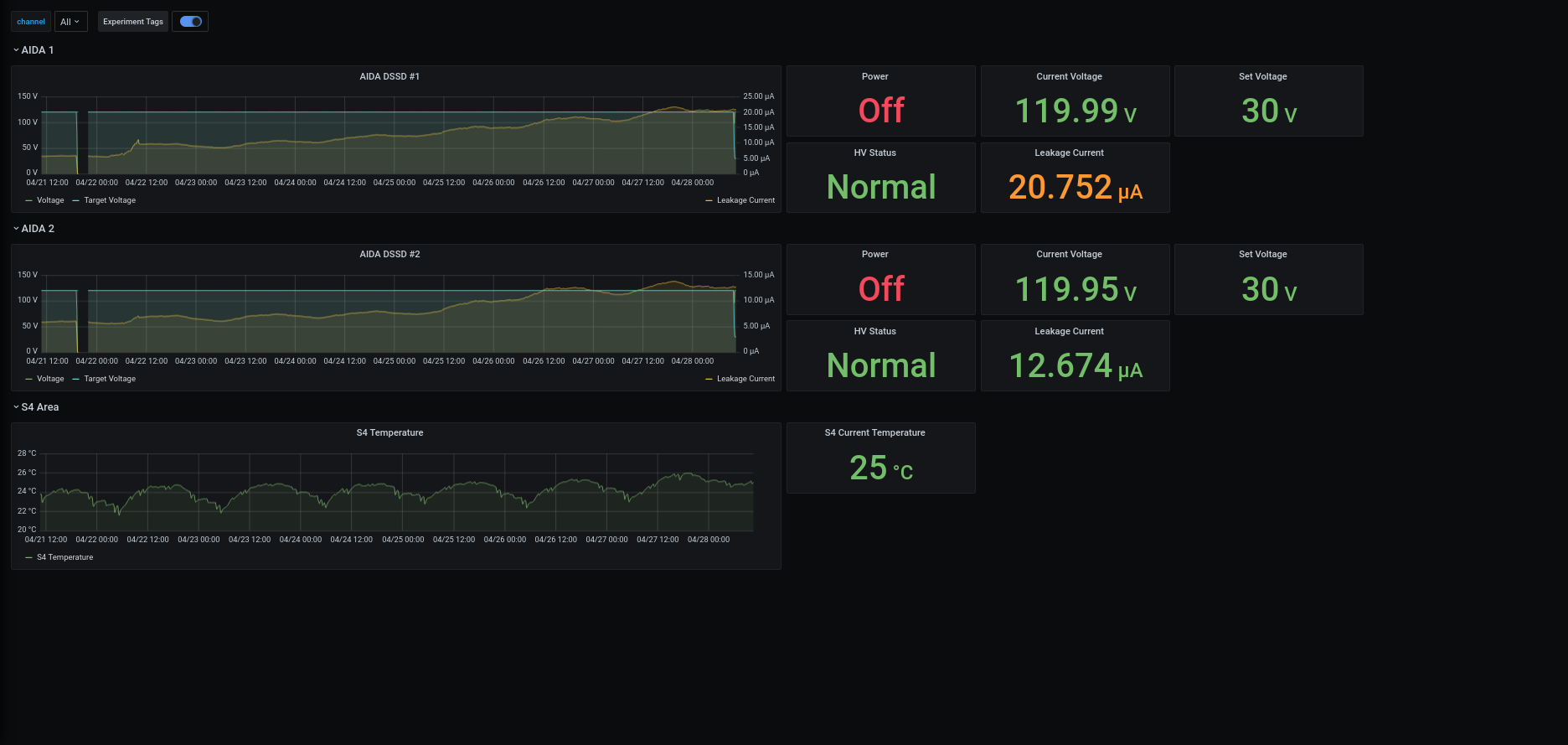

Screenshot_2024-04-28_at_10-34-47_AIDA_-_Grafana.png Original size: 1872x889

Attachment 17:

Screenshot_2024-04-28_at_10-34-56_AIDA_Alerting_-_Grafana.png Original size: 1872x889

Attachment 18:

Capture_Grafana.PNG Original size: 1920x1020

Attachment 19:

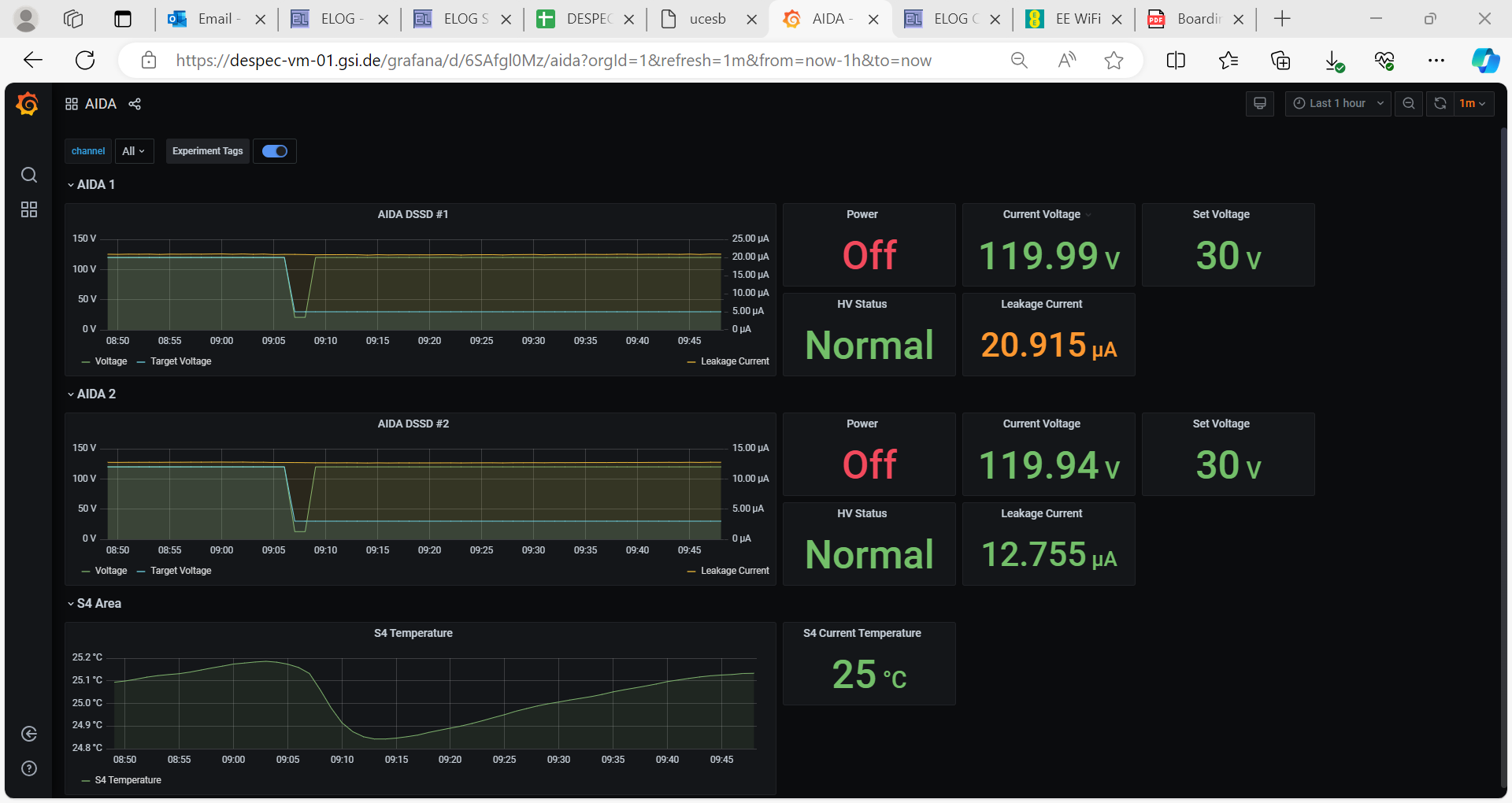

Capture_Grafana_2.PNG Original size: 1920x1020

Attachment 20:

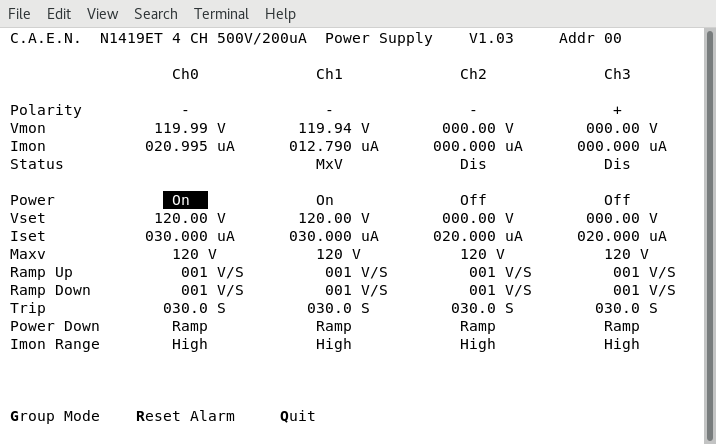

Screenshot_from_2024-04-28_10-58-43.png Original size: 716x444

Attachment 21:

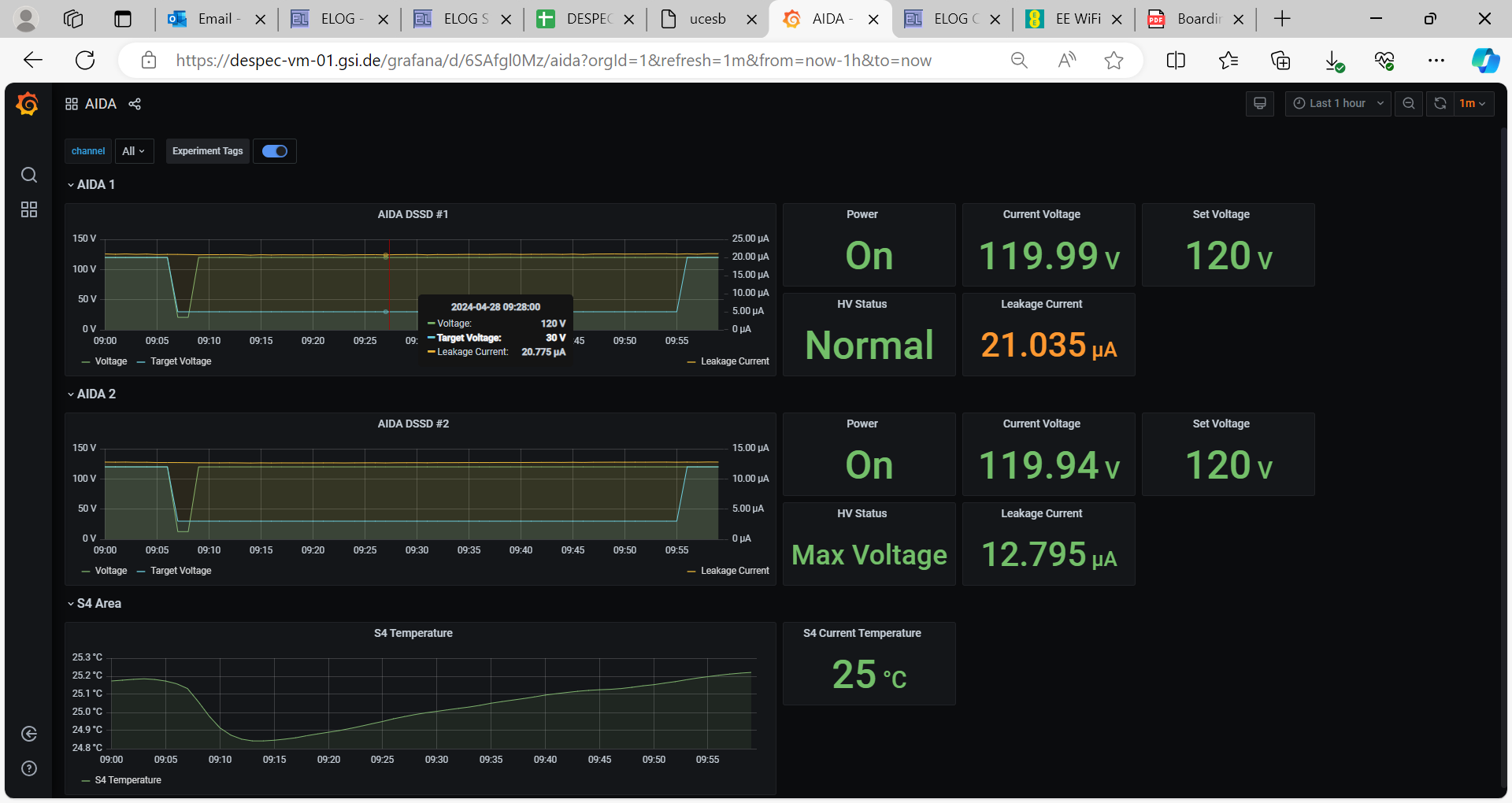

Capture_Grafana_3.PNG Original size: 1920x1020

Attachment 22:

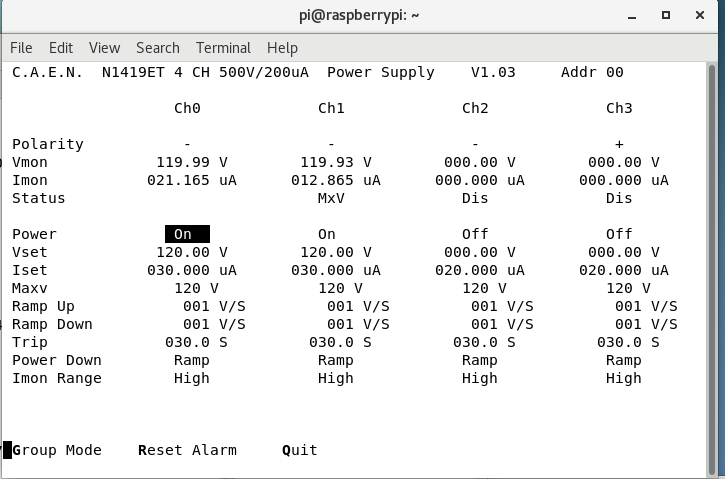

Screenshot_from_2024-04-28_12-00-49.png Original size: 725x479

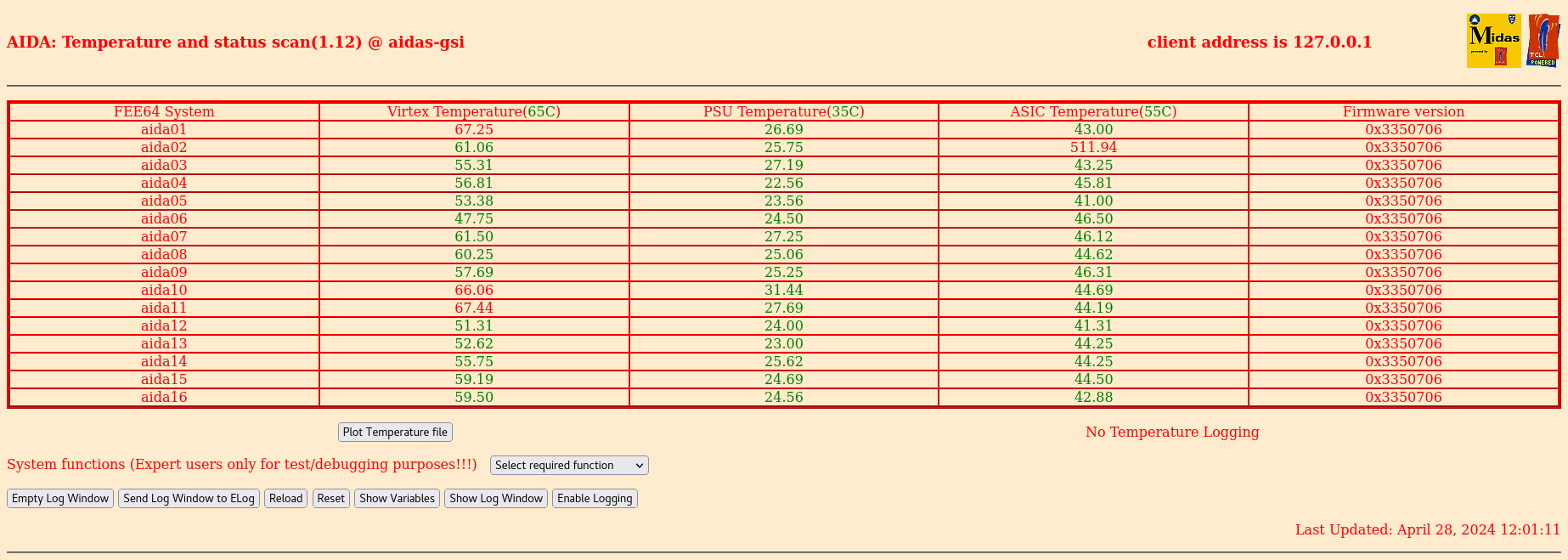

Attachment 23:

Screenshot_2024-04-28_at_12-01-21_Temperature_and_status_scan_aidas-gsi.png Original size: 1846x659

Attachment 24:

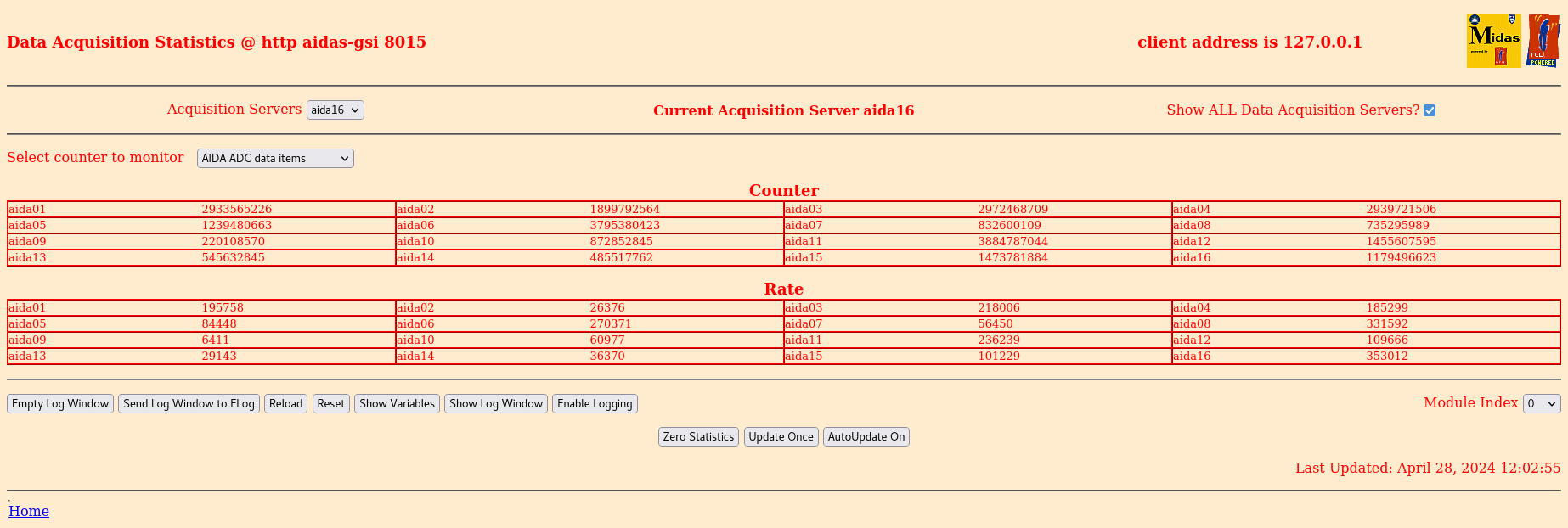

Screenshot_2024-04-28_at_12-02-58_Statistics_aidas-gsi.png Original size: 1846x622

Attachment 25:

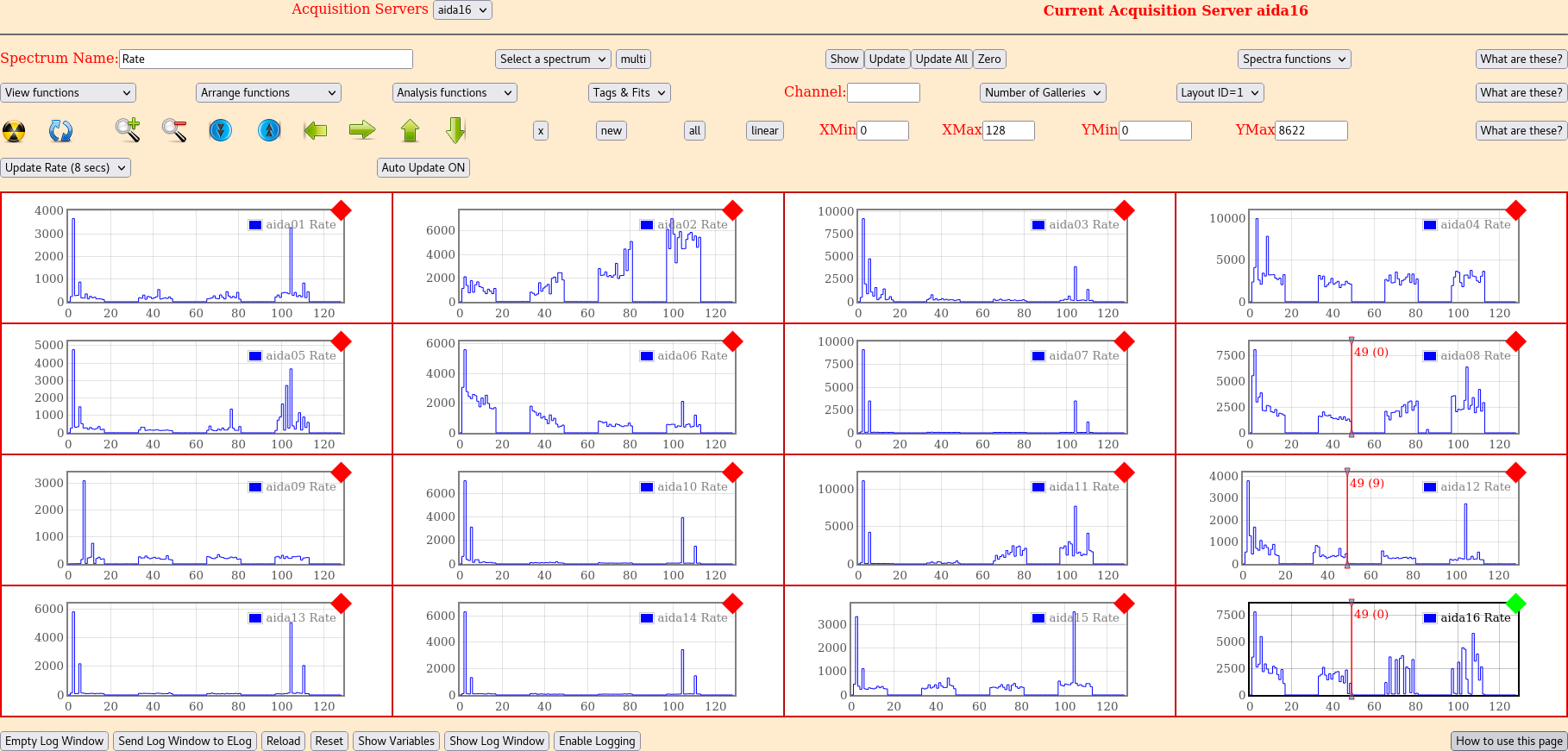

Screenshot_2024-04-28_at_12-02-36_Spectrum_Browser_aidas-gsi.png Original size: 1818x871

Attachment 26:

Screenshot_2024-04-28_at_11-59-21_AIDA_-_Grafana.png Original size: 1872x889

Attachment 27:

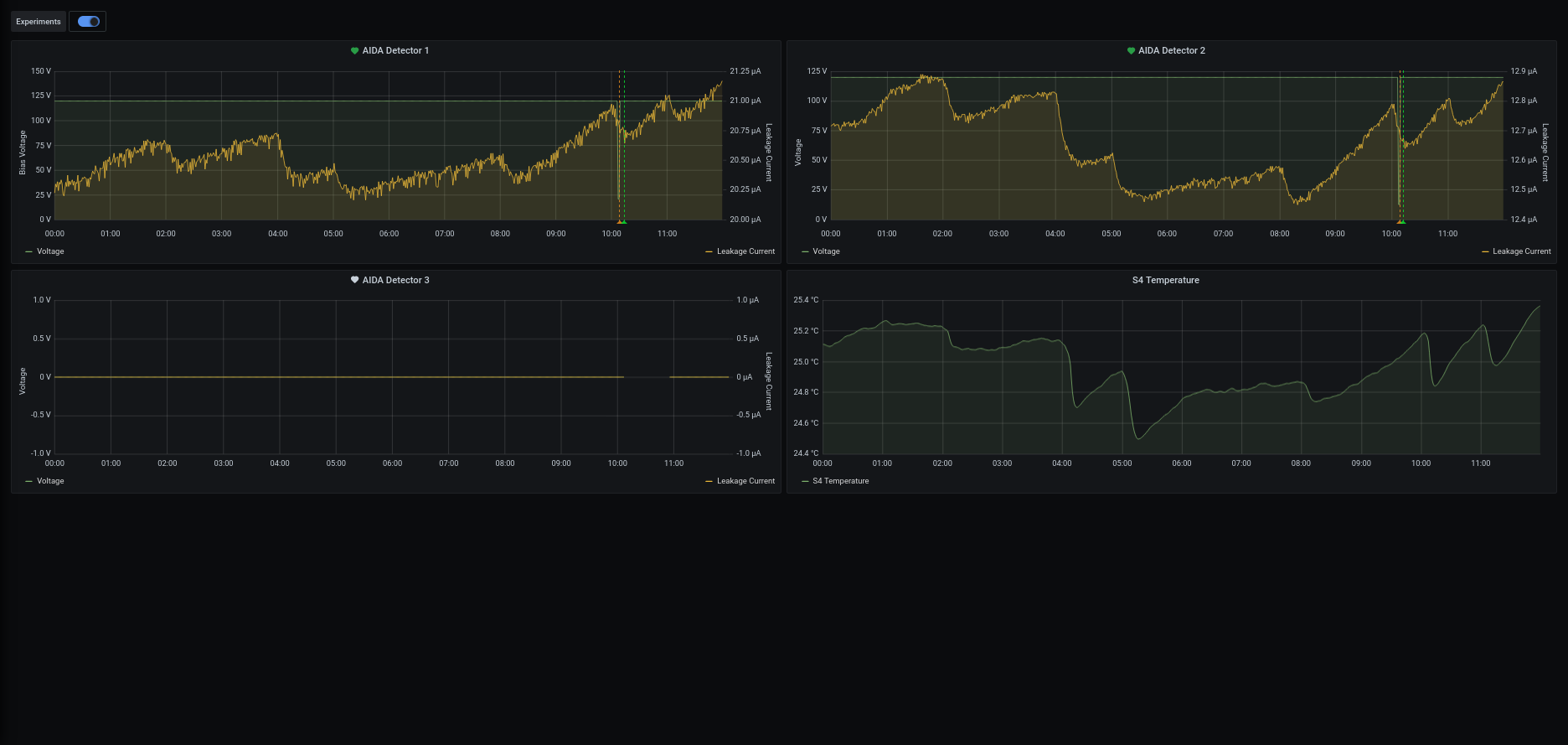

Screenshot_2024-04-28_at_11-59-44_AIDA_Alerting_-_Grafana.png Original size: 1872x889

Attachment 28:

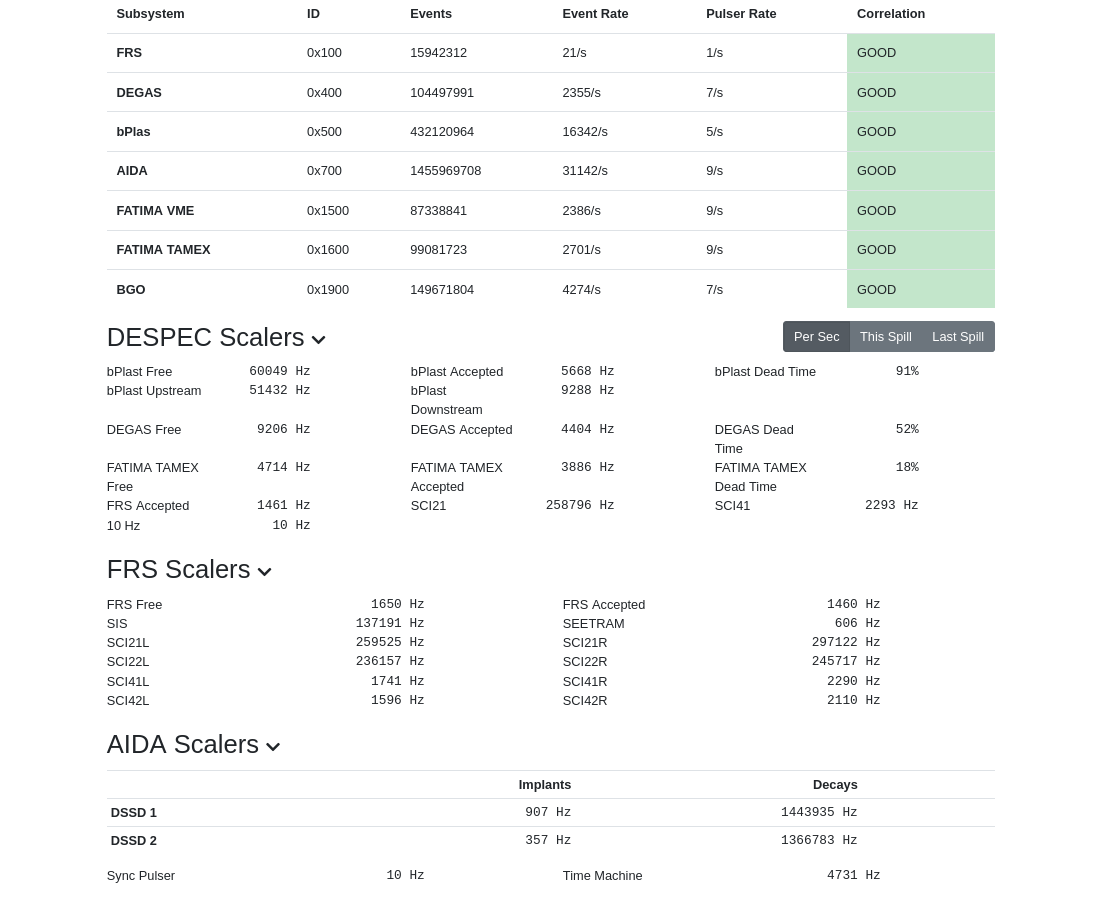

Screenshot_2024-04-28_at_12-00-08_ucesb.png Original size: 1097x897

Attachment 29:

Screenshot_2024-04-28_at_14-03-06_Temperature_and_status_scan_aidas-gsi.png Original size: 1846x659

Attachment 30:

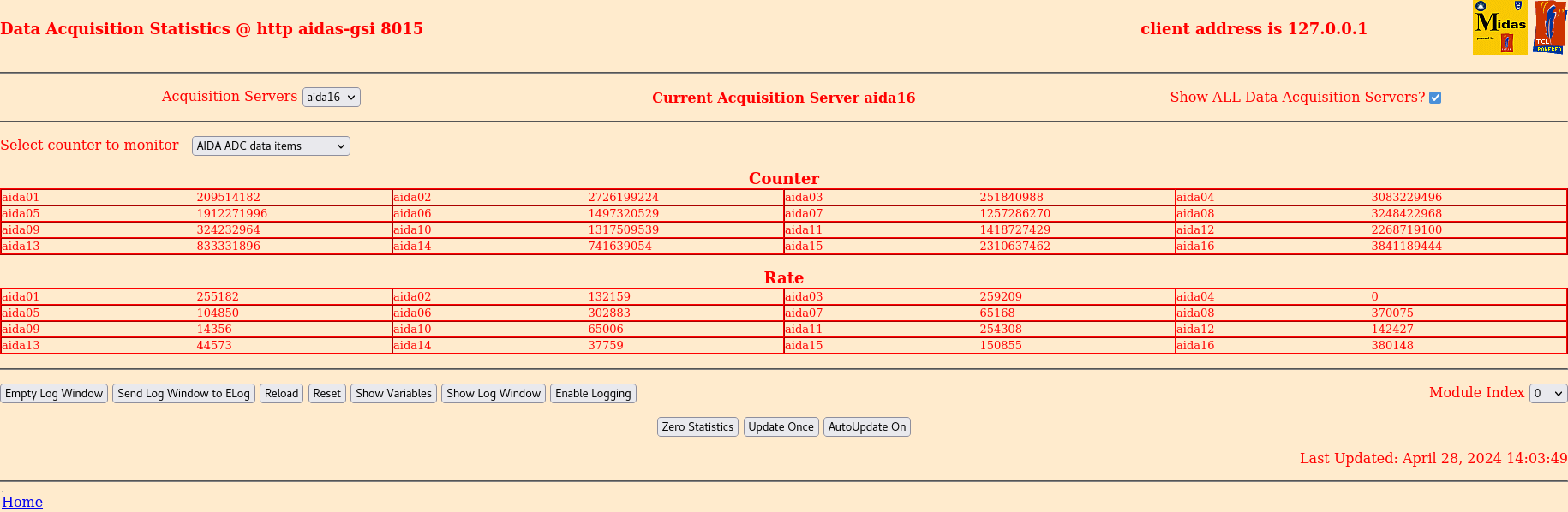

Screenshot_2024-04-28_at_14-04-21_Statistics_aidas-gsi.png Original size: 1830x598

Attachment 31:

Screenshot_2024-04-28_at_14-04-07_Spectrum_Browser_aidas-gsi.png Original size: 1818x871

Attachment 32:

Screenshot_2024-04-28_at_14-01-38_AIDA_-_Grafana.png Original size: 1872x889

Attachment 33:

Screenshot_2024-04-28_at_14-01-52_AIDA_Alerting_-_Grafana.png Original size: 1872x889

Attachment 34:

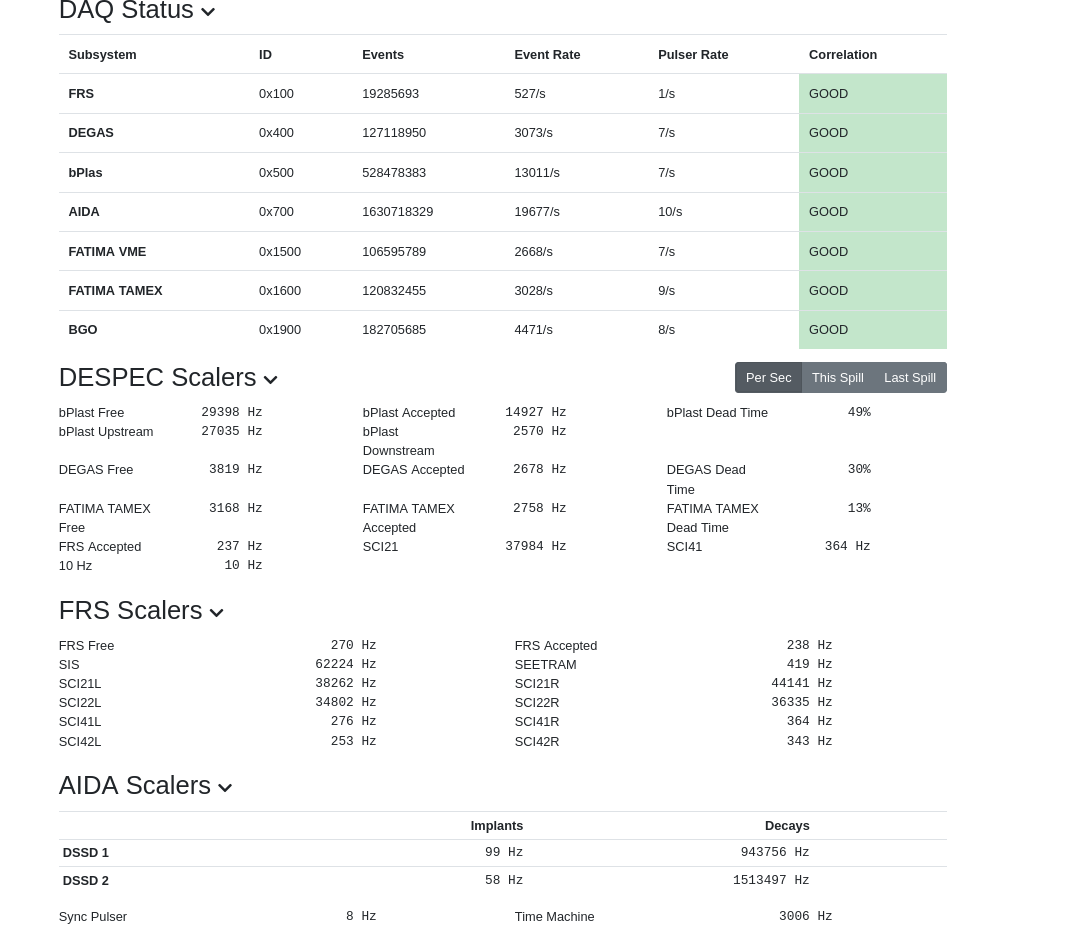

Screenshot_2024-04-28_at_14-02-02_ucesb.png Original size: 1087x927

Attachment 35:

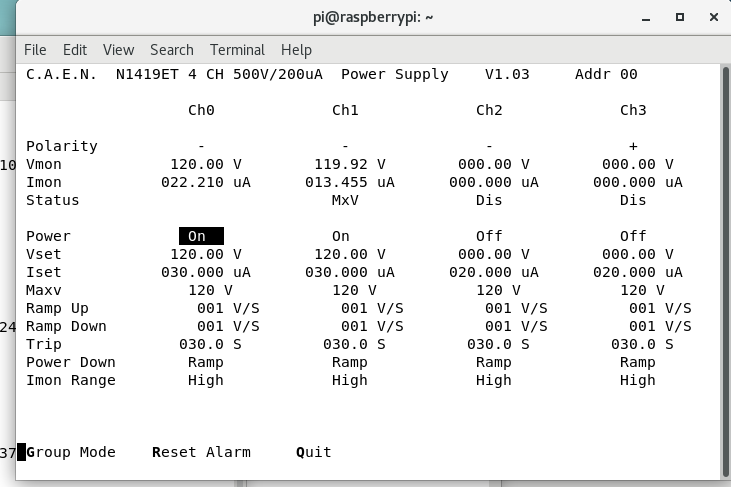

Screenshot_from_2024-04-28_14-02-43.png Original size: 731x487

Attachment 36:

R21_500.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  259329603 ( 2382071.3 Hz)
        Other data format:    2590397 (   23794.1 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1783 (      16.4 Hz)
                               RESUME:       1783 (      16.4 Hz)
                              SYNC100:      32405 (     297.7 Hz)
                              WR48-63:      32405 (     297.7 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    2522021 (   23166.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     289080 (    2655.3 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      108.867 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                1.124                0.000
  1                7.512                0.000
  2                0.941                0.000
  3               17.003                0.000
  4                0.495                0.000
  5                6.767                0.000
  6                0.004                0.000
  7                7.595                0.000
  8                0.000                0.000
  9                0.006                0.000
 10               24.536                0.000
 11                0.145                0.000
 12                0.001                0.000
 13                0.000                0.000
 14                0.322                0.000
 15                8.584                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   22169110       8971          0          0         57         57       2822       2822          0       3213          0      16255
  1   12639517     112315          0          0         99         99       1612       1612          0     108893          0      29028
  2   22281064    1127033          0          0         37         37       2985       2985          0    1120989          0      11197
  3   20798124     911187          0          0        135        135       2715       2715          0     905487          0       8456
  4    9363935     176936          0          0         14         14       1205       1205          0     174498          0      11991
  5   27019969     216459          0          0        325        325       3434       3434          0     208941          0       9910
  6    6076361       1558          0          0          2          2        777        777          0          0          0       3470
  7   35565405       8998          0          0        189        189       4310       4310          0          0          0     153479
  8    1477425        362          0          0          0          0        181        181          0          0          0       6096
  9    6250272       1506          0          0          2          2        751        751          0          0          0       2572
 10   27290515       8024          0          0        662        662       3350       3350          0          0          0        840
 11   10865846       2620          0          0         16         16       1294       1294          0          0          0      22001
 12    3883231        948          0          0          2          2        472        472          0          0          0       3485
 13    3455565        826          0          0          0          0        413        413          0          0          0       4071
 14   11216035       2794          0          0         51         51       1346       1346          0          0          0       2348
 15   38977229       9860          0          0        192        192       4738       4738          0          0          0       3881
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   38.605s (  828.898 blocks/s,  51.806 Mb/s)

Attachment 37:

Drop attachments here...

ELOG V3.1.4-unknown
