Entry time:

Tue Apr 30 09:06:45 2024

Author*:

Subject*:

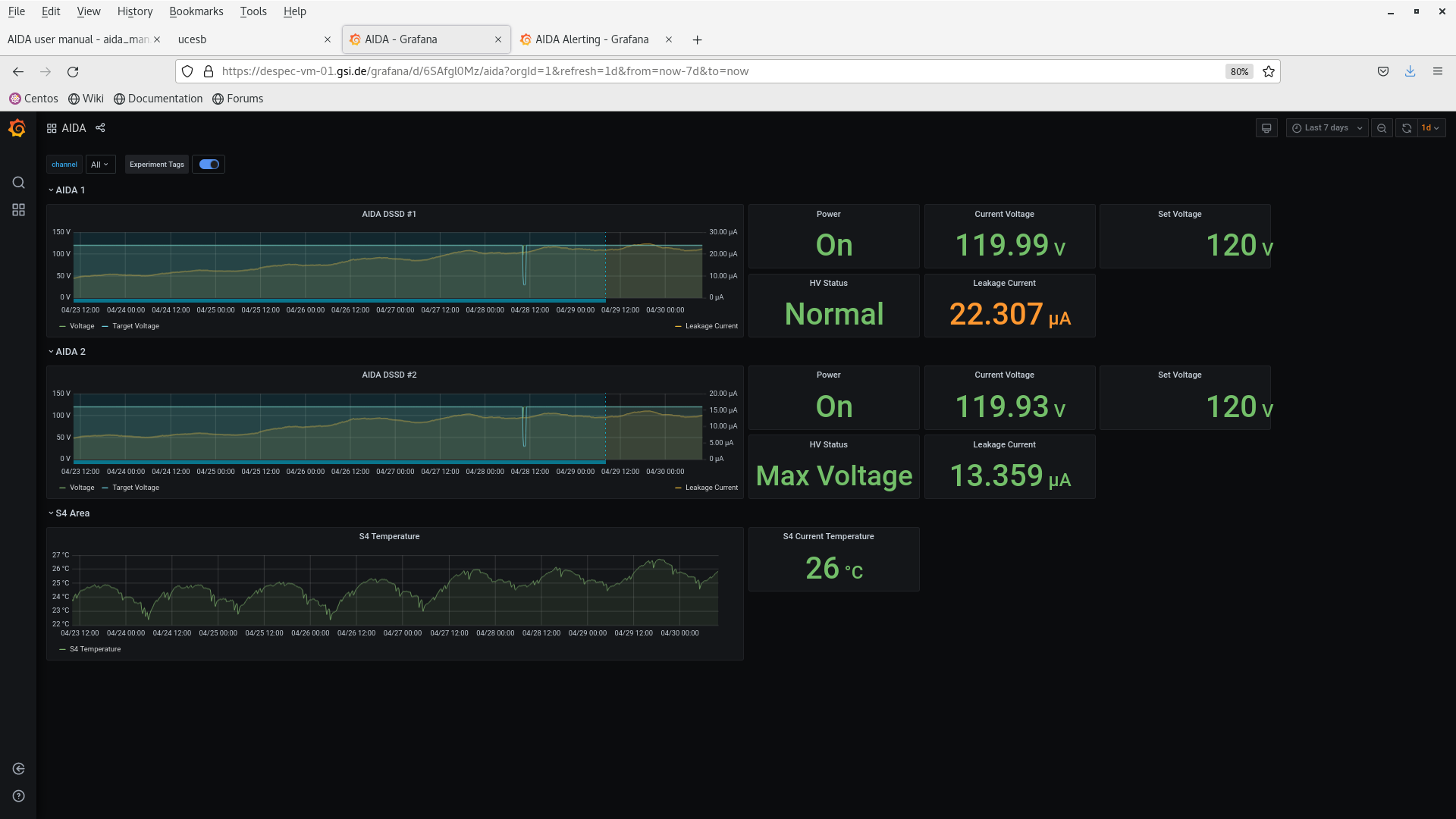

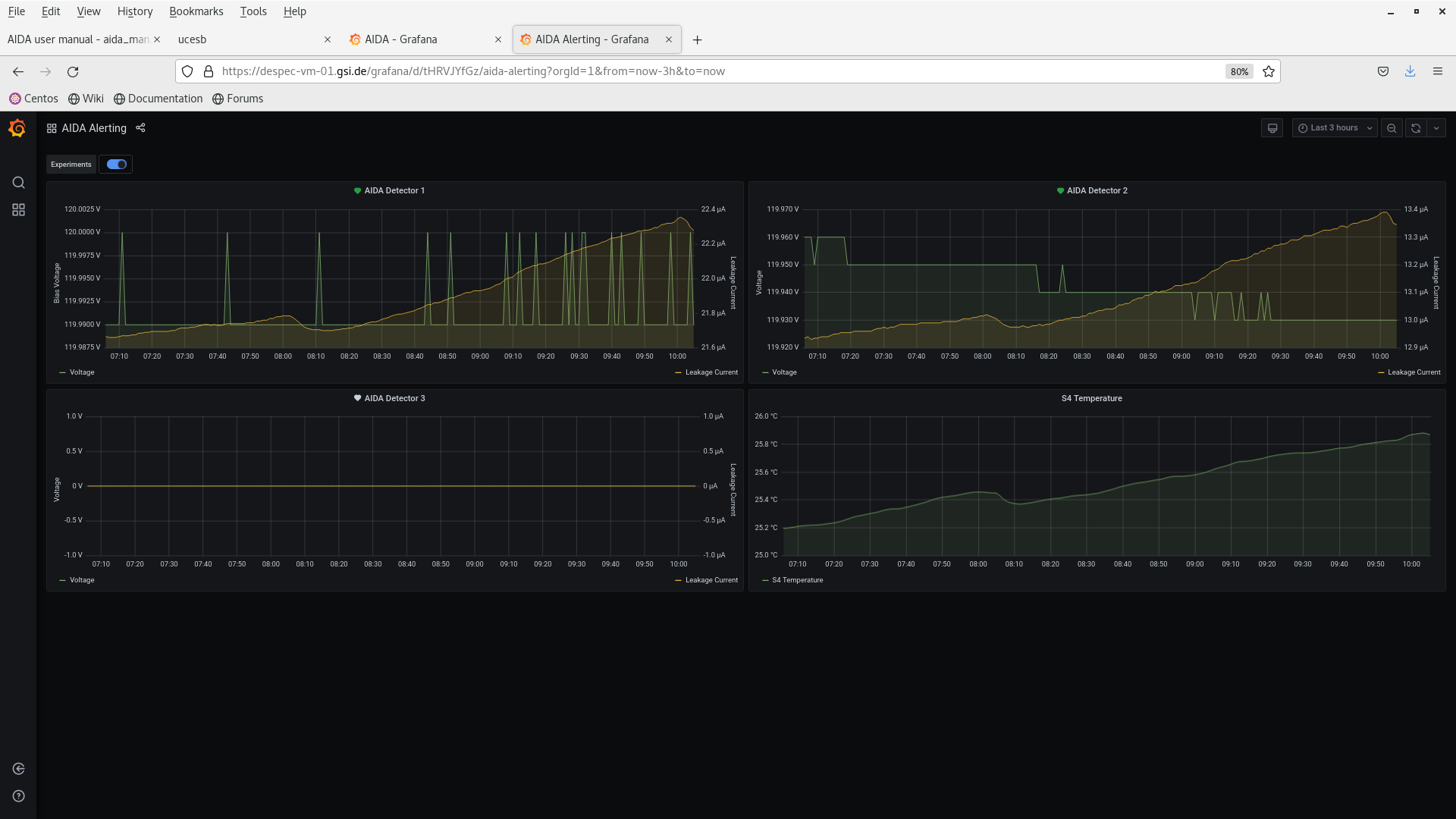

10.00 DSSSD bias & leakasge current - Grafana - attachments 1-2

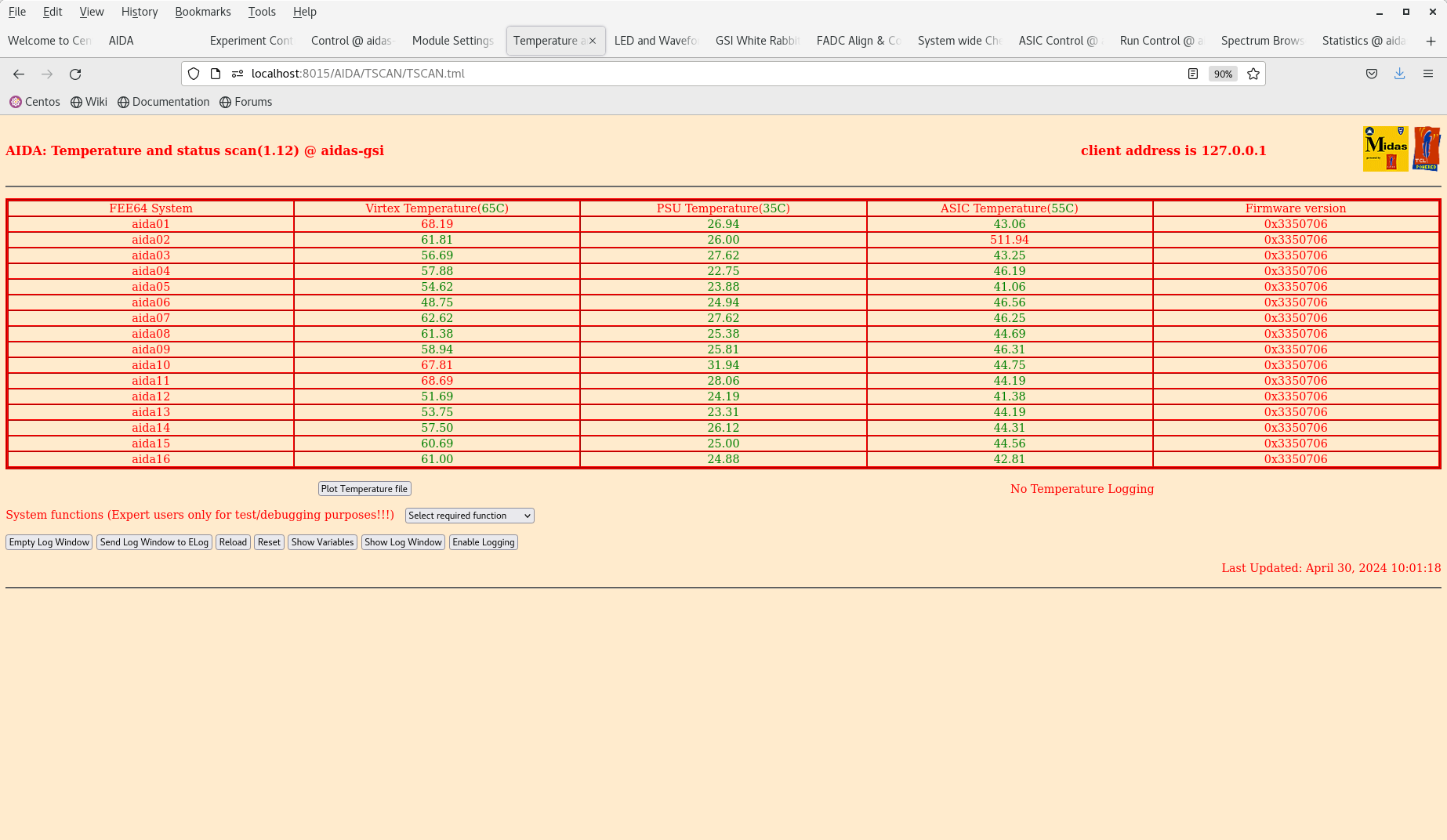

FEE64 temperatures OK - attachment 3

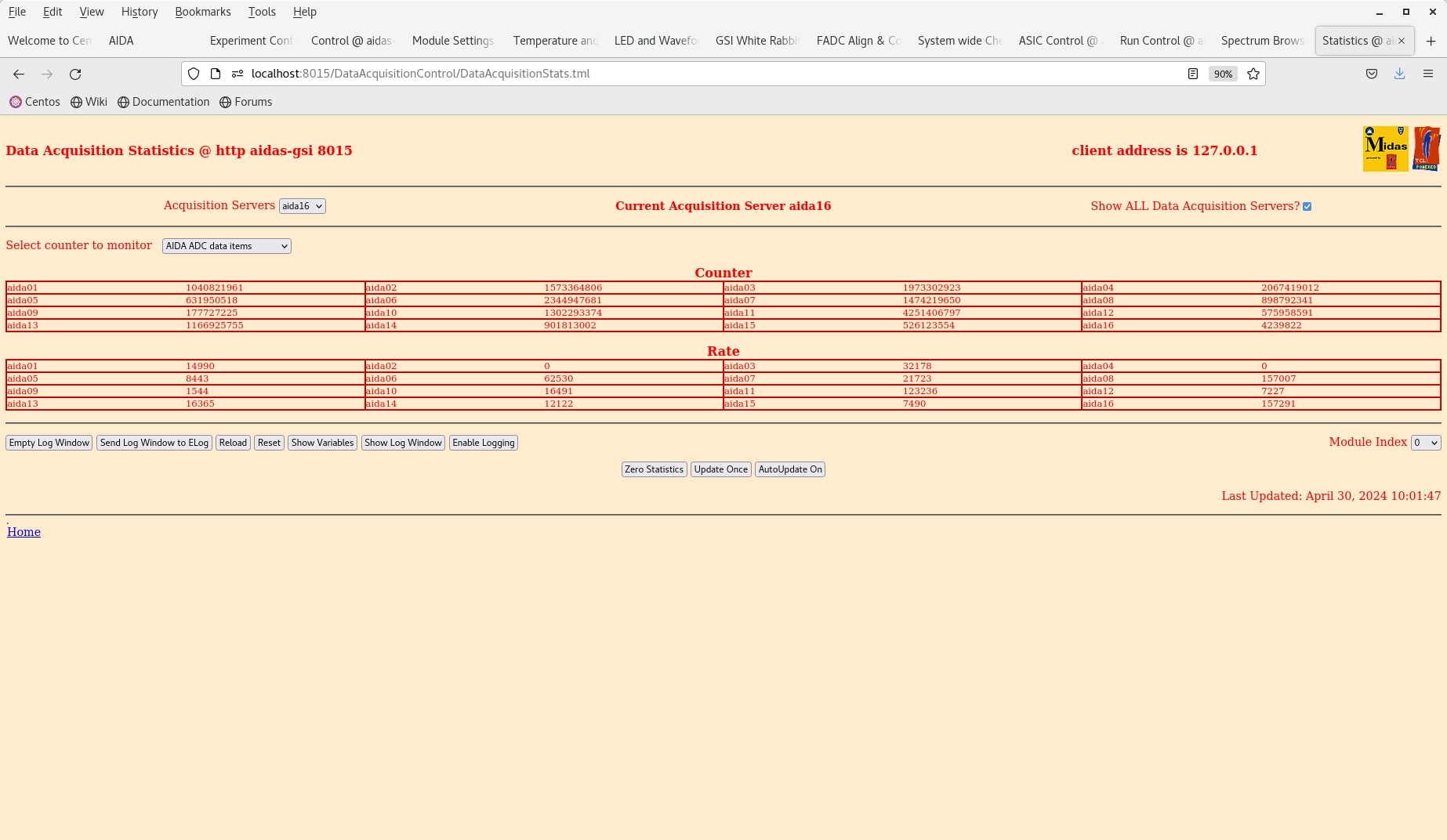

ADC data item stats - attachment 4
       9/16 FEE64s < 20k

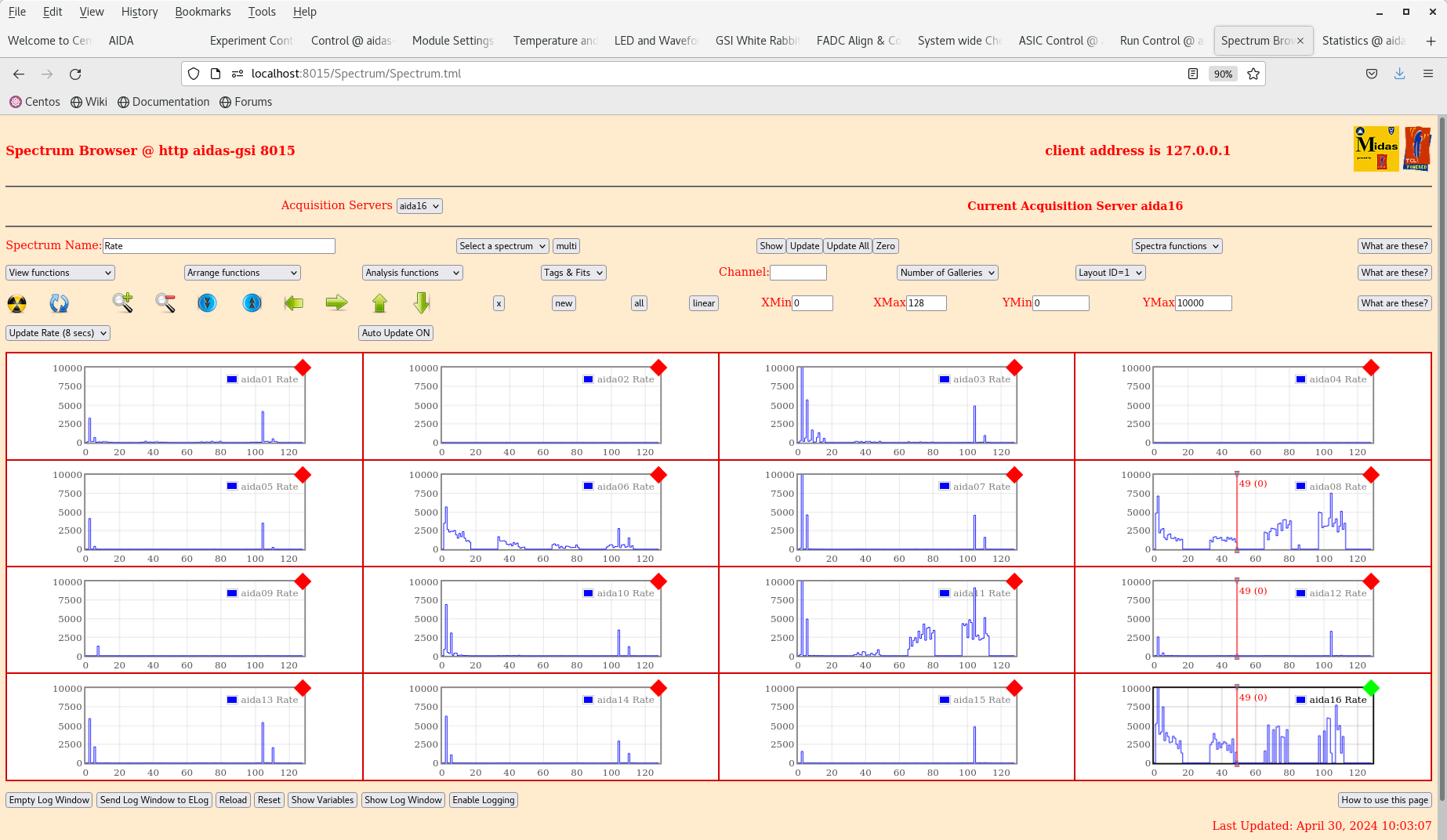

per FEE64 Rate spectra - attachment 5

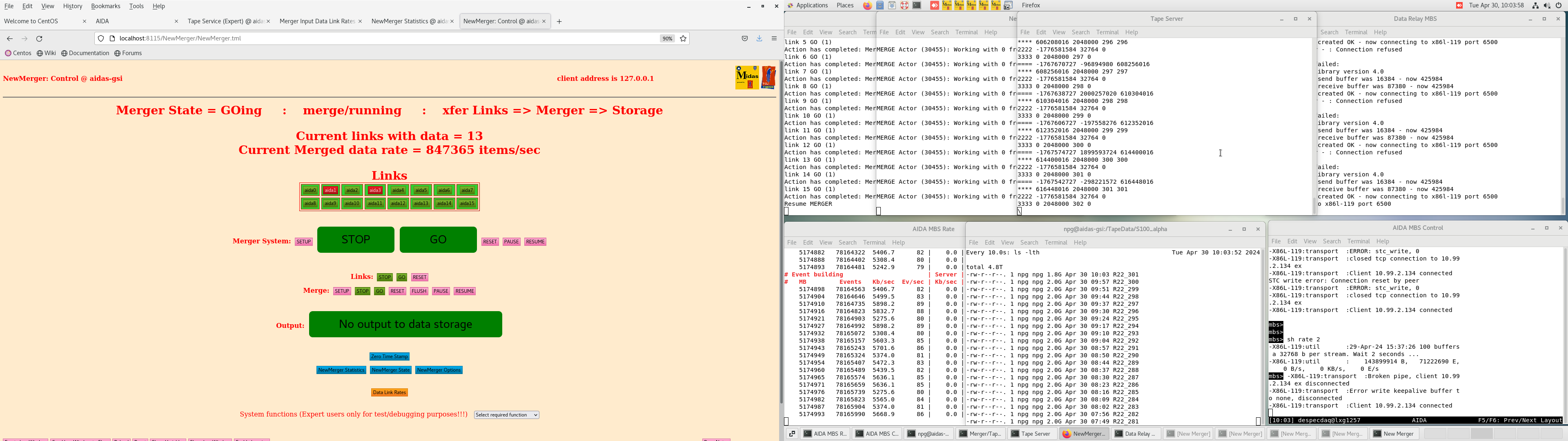

Merger etc - attachments 6-7
       aida02, aida04 inactive

11.20 DAQ restarted
      aida02 and aida04 now producing data

11.30 analysis data file R22_313
      all deadtimes <1%
      no timewarps
      HEC data item rate 560Hz (all from one channel of aida08 asic #3)
      aida03 & aida04 MBS rates c. 24kHz

14.32 FEE64 temperatures OK
      ADC data item stats OK
       all FEE64s producing data

14.43 all histograms & stats zero'd

[NH checks here]

21.26 aida04 stopped forwarding to merger
 the "quick fix" (stop merger, rerun) worked

MBS is having huge issues on DESPEC side, AIDA not included
Decide to stop taking data to disk for now (no storage mode on)
Keeping running (incl. to AIDA FDR MBS) just to get an idea of stability

System Wide Checks
 clocks PASSED
 ADC IGNORED
 WR:
		 Base 		Current 	Difference
aida02 fault 	 0xe4d8 : 	 0x65c0 : 	 -32536
aida03 fault 	 0x2371 : 	 0x2380 : 	 15
aida04 fault 	 0xa210 : 	 0xaf58 : 	 3400
aida06 fault 	 0x3624 : 	 0x3626 : 	 2
White Rabbit error counter test result: Passed 12, Failed 4

FPGA:

			 Base 		Current 		Difference
aida02 fault 	 0xaa3b : 	 0xc455 : 	 6682
aida04 fault 	 0x5a4 : 	 0x6ba : 	 278
aida06 fault 	 0x0 : 	 0x1 : 	 1
FPGA Timestamp error counter test result: Passed 13, Failed 3
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Module aida04 LMK PLL channel 1 lock transition counter has incremented
Module aida04 LMK PLL channel 2 lock transition counter has incremented
PLL lock counter test result: Passed 15, Failed 1

Baselines reset

22.50 FEE64 temps ok
      merger ok
       all links active
      ADC data item stats ok

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2024-04-30_10-05-08.png Original size: 1920x1080

Attachment 2:

Screenshot_from_2024-04-30_10-05-37.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2024-04-30_10-01-32.png Original size: 1846x1072

Attachment 4:

Screenshot_from_2024-04-30_10-02-03.png Original size: 1846x1072

Attachment 5:

Screenshot_from_2024-04-30_10-03-26.png Original size: 1846x1072

Attachment 6:

Screenshot_from_2024-04-30_10-03-58.png Original size: 3840x1080

Attachment 7:

R22_313

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  246802750 (  787077.4 Hz)
        Other data format:   15117251 (   48210.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        802 (       2.6 Hz)
                               RESUME:        802 (       2.6 Hz)
                              SYNC100:      33168 (     105.8 Hz)
                              WR48-63:      33168 (     105.8 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:   15049311 (   47993.7 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     182597 (     582.3 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      313.569 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                0.000                0.000
  2                0.000                0.000
  3                0.410                0.000
  4                0.000                0.000
  5                0.208                0.000
  6                0.000                0.000
  7                1.577                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                1.890                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                1.784                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    4403022      10517          0          0          0          0        556        556          0       9405          0          0
  1    4797622      11663          0          0          0          0        607        607          0      10449          0          0
  2    9960742    7551016          0          0          0          0       2246       2246          0    7546524          0          0
  3   26989916    7491649          0          0         64         64       4294       4294          0    7482933          0          0
  4    2737535        758          0          0          0          0        379        379          0          0          0          0
  5   21805196       5662          0          0         70         70       2761       2761          0          0          0          0
  6    6978804       1886          0          0          0          0        943        943          0          0          0          0
  7   53329550      13820          0          0        126        126       6784       6784          0          0          0     182597
  8     479454        122          0          0          0          0         61         61          0          0          0          0
  9    5592721       1538          0          0          0          0        769        769          0          0          0          0
 10   39929583      11138          0          0        441        441       5128       5128          0          0          0          0
 11    2351324        636          0          0          0          0        318        318          0          0          0          0
 12    5309169       1226          0          0          0          0        613        613          0          0          0          0
 13    3913898       1006          0          0          0          0        503        503          0          0          0          0
 14    2364855        578          0          0          0          0        289        289          0          0          0          0
 15   55859359      14036          0          0        101        101       6917       6917          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   32.668s (  979.553 blocks/s,  61.222 Mb/s)
