Entry time:
Mon May 27 17:20:49 2024
Author
*
:
Subject
*
:

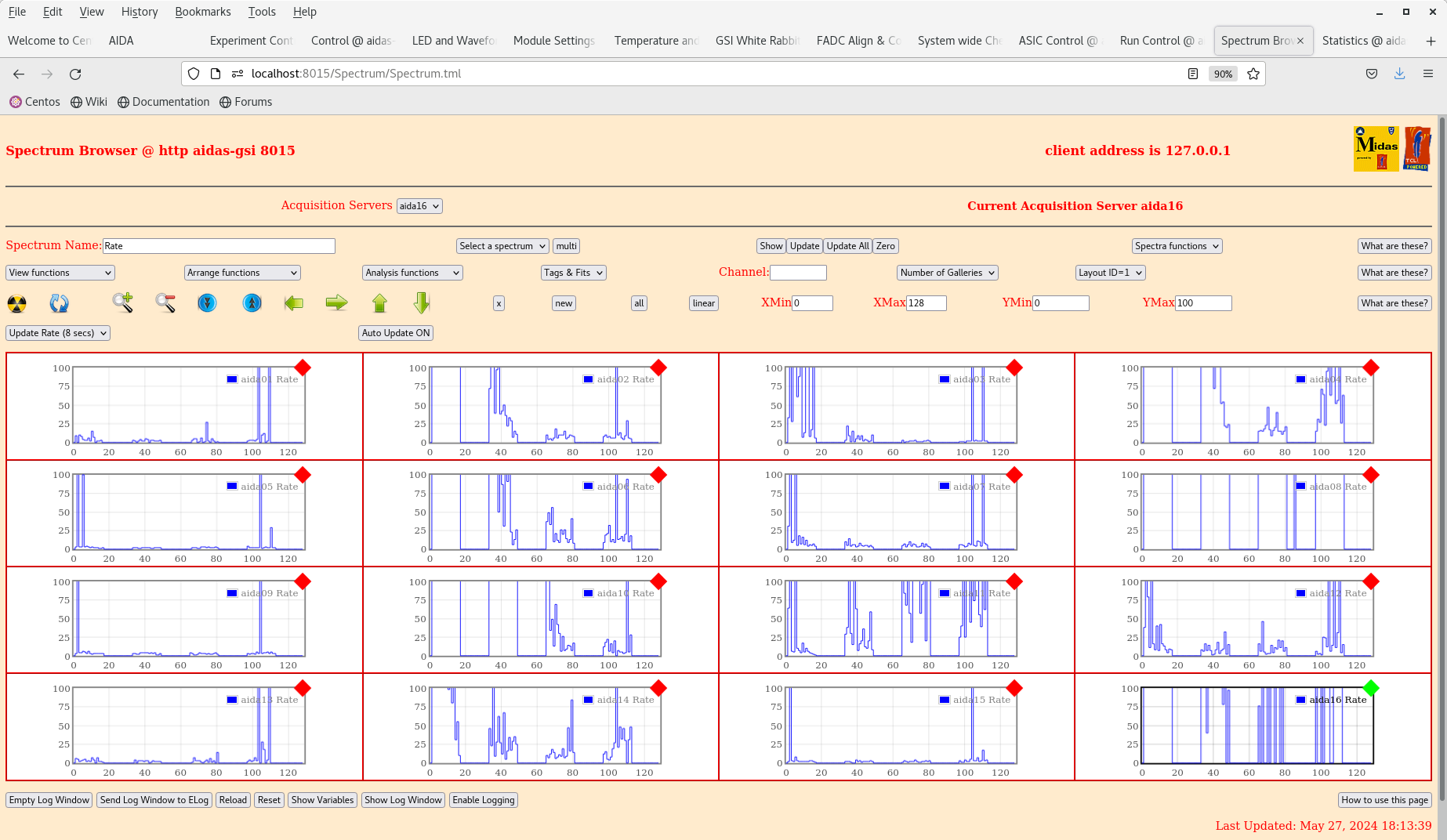

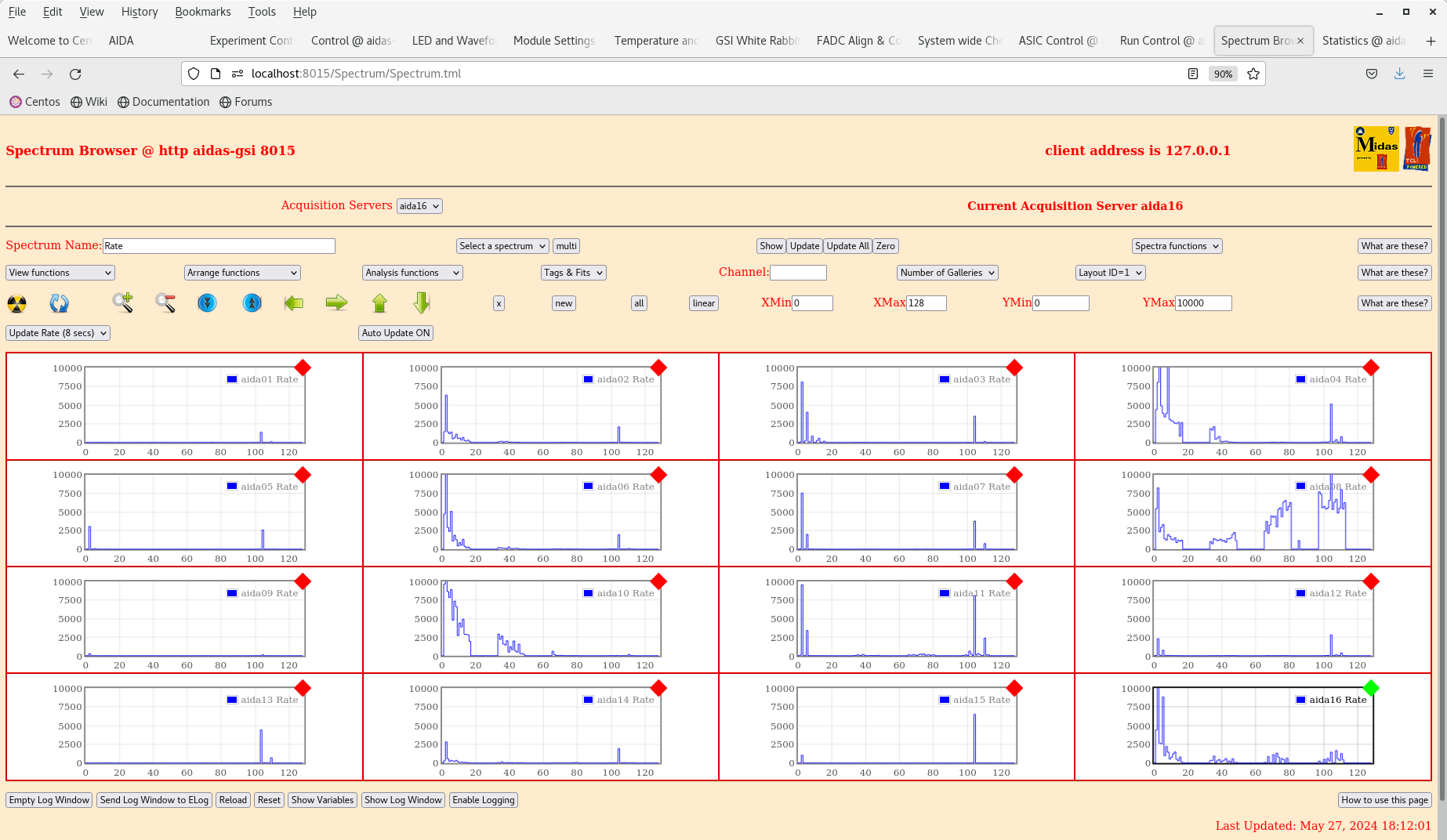

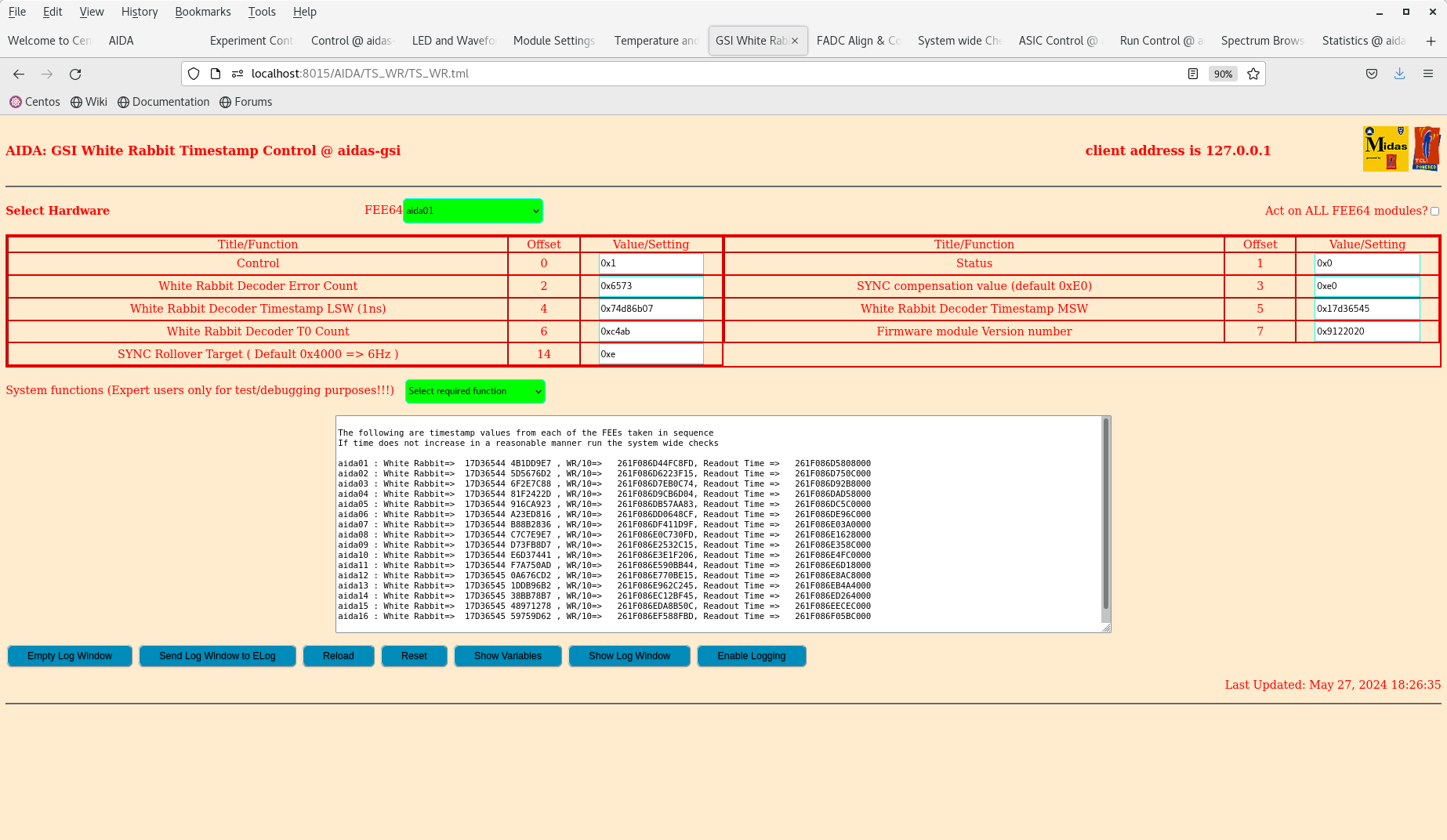

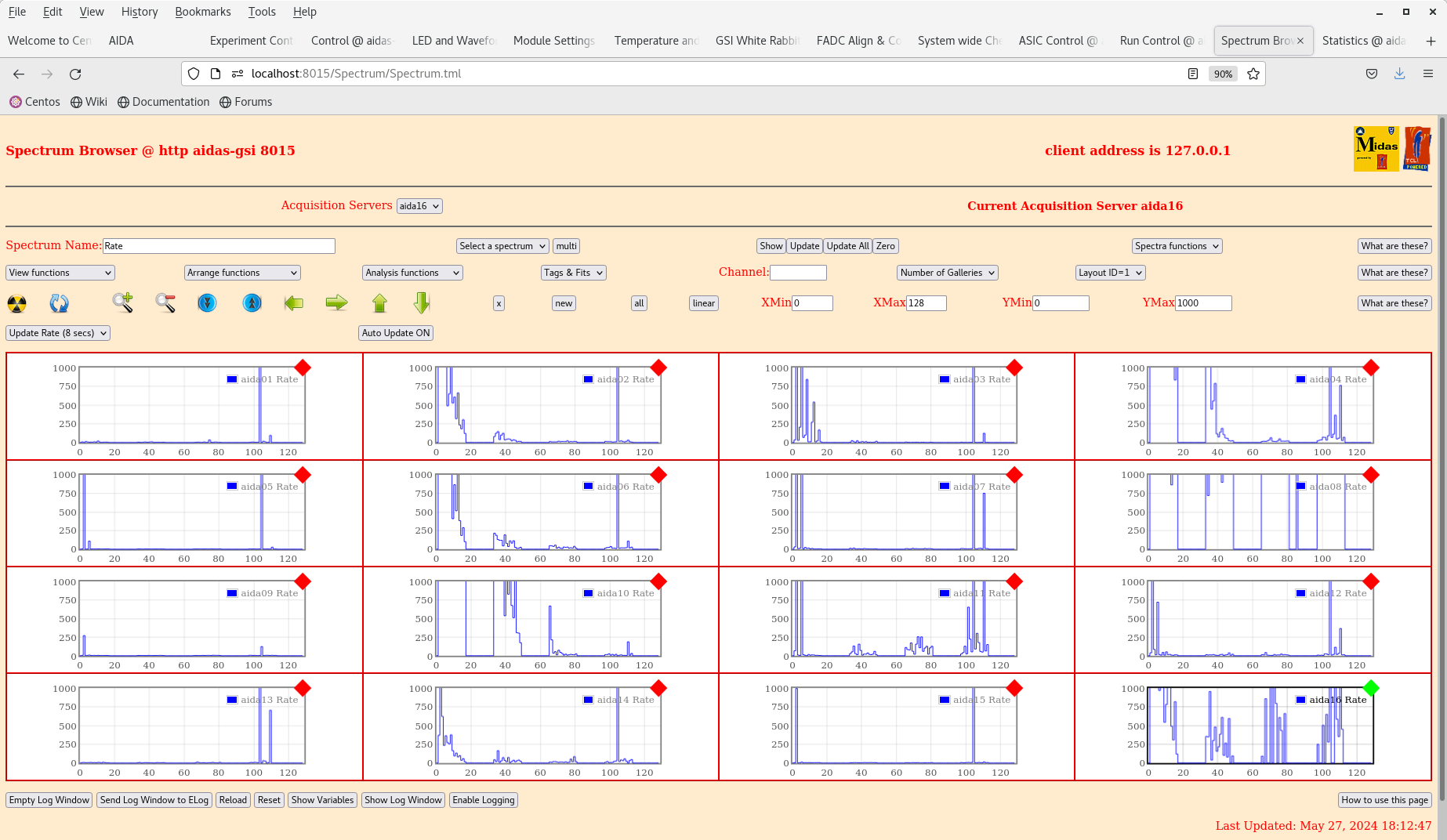

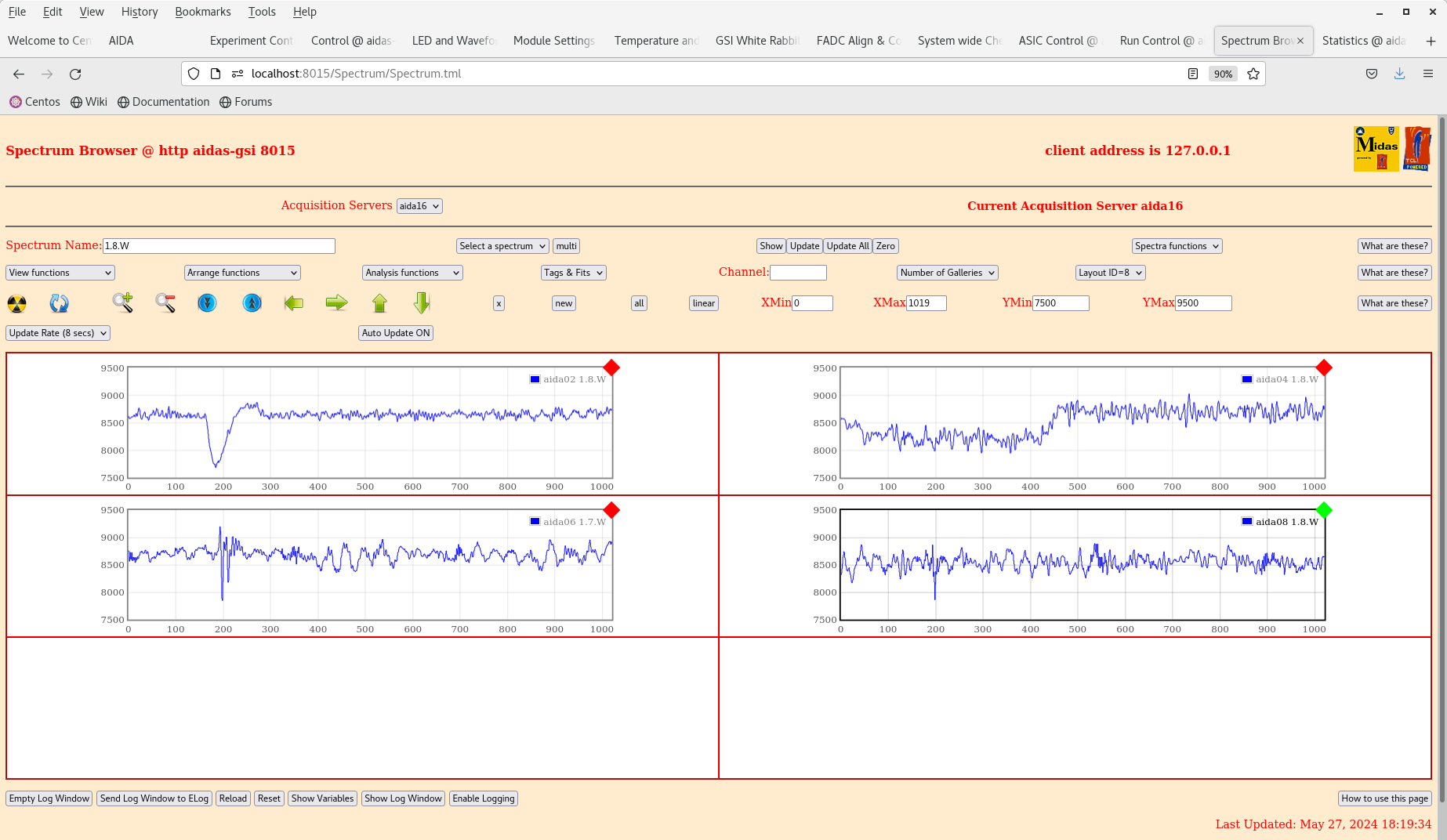

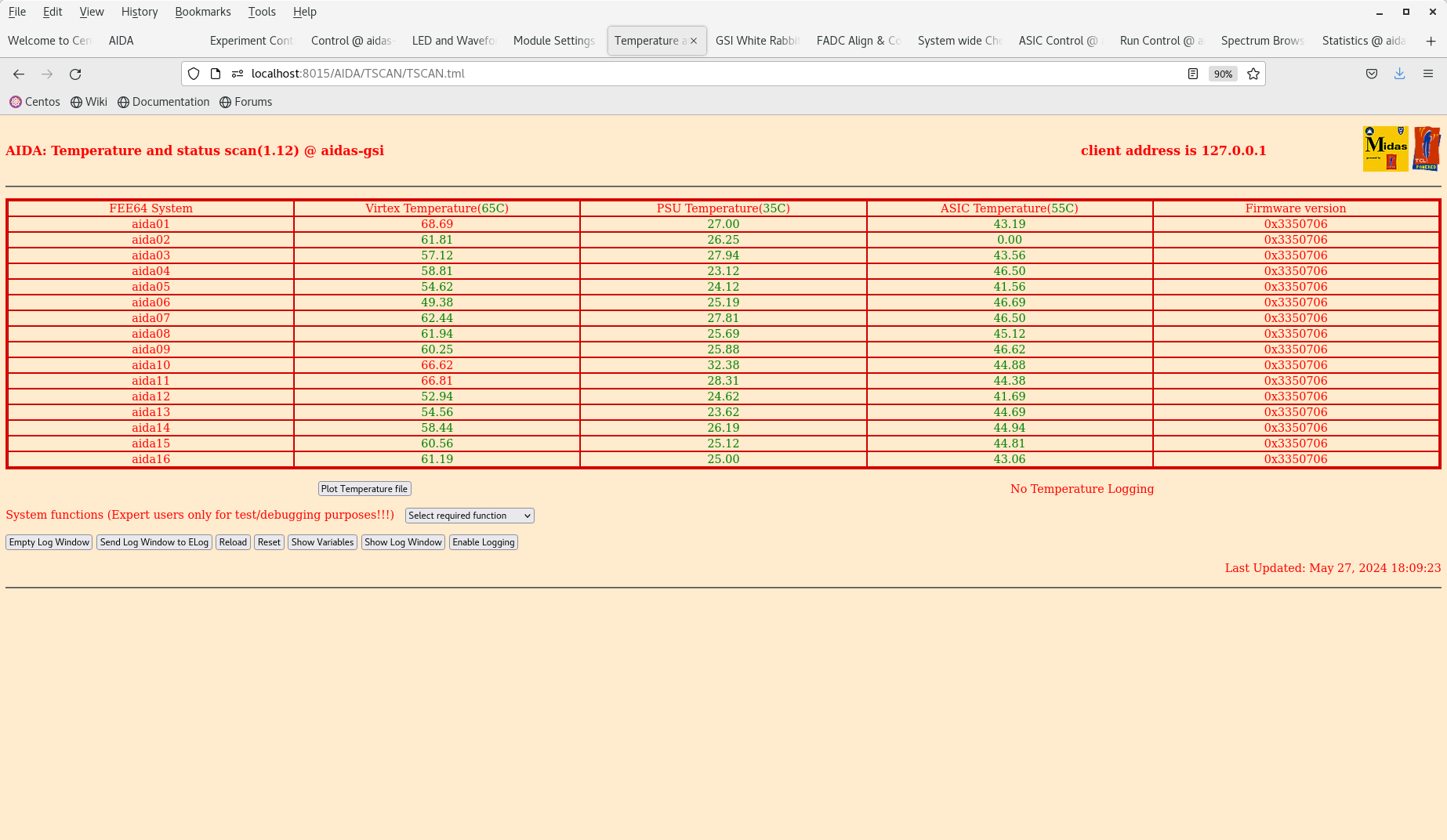

17.50 bPlas cabling, grounds etc connected, power OFF CC reports that bPlas power is actually ON FEE64 power ON DSSSD bias & leakage current OK - attachment 1 FEE64 temperatures OK - attachment 2 ASIC settings 2024Apr26-01.29.53 p+n FFEE64 slow comparator 0xa, n+n Ohmic FEE64 0xf System wide checks OK *except* aida02 WR decoder status ADC data item stats - attachment 3 9/16 < 20k, max 234k (aida08) per FEE64 Rate spectra - attachments 4-6 per FEE64 1.8.W spectra - 20us FSR - attachments 7-8 WR timestamps OK - attachment 9 18.50 FEE64 power OFF
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 716x444
Attachment 2:
Original size: 1846x1072
Attachment 3:
Original size: 1846x1072
Attachment 4:
Original size: 1846x1072
Attachment 5:
Original size: 1846x1072
Attachment 6:
Original size: 1846x1072
Attachment 7:
Original size: 1846x1072
Attachment 8:
Original size: 1846x1072
Attachment 9:
Original size: 1846x1072
